A Novel Behaviour Profiling Approach to Continuous Authentication

for Mobile Applications

Saud Alotaibi

, Abdulrahman Alruban

1,2

, Steven Furnell

1,3,4

and Nathan Clarke

1,3

Centre for Security, Communications and Network Research, Plymouth University, Plymouth, U.K

Computer Sciences and Information Technology College, Majmaah University,

Al Majma’ah, Saudi Arabia

Security Research Institute, Edith Cowan University,

Perth,Western Australia

Centre for Research in Information and Cyber Security, Nelson Mandela University,

Port Elizabeth, South Africa

Keywords: Transparent Authentication, Behaviour Profiling, Mobile Applications, Mobile Security, Usable Security

Biometric Authentication, Smartphones, Tablets.

Abstract: The growth in smartphone usage has led to increased user concerns regarding privacy and security.

Smartphones contain sensitive information, such as personal data, images, and emails, and can be used to

perform various types of activity, such as transferring money via mobile Internet banking, making calls and

sending emails. As a consequence, concerns regarding smartphone security have been expressed and there is

a need to devise new solutions to enhance the security of mobile applications, especially after initial access to

a mobile device. This paper presents a novel behavioural profiling approach to user identity verification as

part of mobile application security. A study involving data collected from 76 users over a 1-month period was

conducted, generating over 3 million actions based on users’ interactions with their smartphone. The study

examines a novel user interaction approach based on supervised machine learning algorithms, thereby

enabling a more reliable identity verification method. The experimental results show that users could be

distinguished via their behavioural profiling upon each action within the application, with an average equal

error rate of 26.98% and the gradient boosting classifier results prove quite compelling. Based on these

findings, this approach is able to provide robust, continuous and transparent authentication.

1 INTRODUCTION

Smartphones have evolved and become a necessity in

our everyday life; we use them to contact each other,

transfer money, and to store sensitive information

(Saevanee et al. 2014). Since smartphones contain

high-risk applications and sensitive data, such as

personal and financial information, suitably robust

security is needed on mobile devices and this makes

authentication of paramount importance. Currently, a

user can perform almost all tasks without having to

re-authenticate or re-validate after point-of-entry

authentication. This presents additional demands in

terms of usability and security (Clarke, 2011; Alotaibi

et al. 2016).

It is commonly acknowledged that biometric

authentication is a reliable solution to authenticating

users using convenient and trusted methods (Clarke

et al., 2009, 2016; Zhang et al., 2018). Most biometric

authentication systems are capable of providing a

wide range of transparent authentication approaches

to achieve a high level of balance between usability

and security (Alotaibi et al. 2015). In this context,

behavioural biometrics is often presented as a suitable

authentication method and, indeed, is commonly used

for transparent and continuous authentication while

ensuring usability (Clarke, 2011; Hatin et al., 2017).

One type of behavioural biometric is behaviour

profiling. The main aim in this case is the transparent

verification of mobile users based on the way they

interact with the required service whilst using their

smartphone (Clarke, 2011; Meng et al., 2015). This

approach compares the current user’s activities with

a historical profile of usage that is built utilising a

machine learning method (Mahfouz et al., 2017).

This research study considers the use of a be-

246

Alotaibi, S., Alruban, A., Furnell, S. and Clarke, N.

A Novel Behaviour Proﬁling Approach to Continuous Authentication for Mobile Applications.

DOI: 10.5220/0007313302460251

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 246-251

ISBN: 978-989-758-359-9

haviour profiling approach to authenticate legitimate

users and detect imposters in a continuous and

transparent manner, which is maintained beyond

point of entry, without the explicit involvement of the

user. Although several studies exploring a behaviour

profiling approach to smartphone use have been

conducted, many have been conducted with relatively

small trial groups and in artificial conditions. This

study involves a sizeable population of users, with

data collection during genuine day-to-day usage.” In

this study, a total of 3,015,339 actions were

accumulated (with an average of 22,457 actions per

day). In this dataset, the long total usage day was 1230

days and 35 was the short total usage day. The study

also employed four types of classifier to assess the

performance of the system.

The next section presents related work and the

state of the art of smartphone behaviour profiling

biometrics. This is followed by an outline of a novel

behaviour profiling approach to smartphone security,

including the data collection phase, experimental

methodology, and the feature extraction process in

section 3. Section 4 presents the experimental results

and section 5 concludes the paper.

2 RELATED WORK

Although a limited number of studies have focused

on behavioural profiling-based authentication for

mobile devices, some investigative efforts have been

made in the literature to introduce behavioural

profiling as a behavioural biometrics authentication

approach to providing transparent authentication

(Alotaibi et al., 2015). For instance, Li et al. (2011)

introduced a behaviour profiling approach to identify

mobile device misuse by focusing on the mobile

user’s application usage. This work used the MIT

Reality Mining dataset (Eagle & Pentland, 2006). The

following data were collected from 100 smartphone

users for 9 months: application information (app

name, date, duration of usage and cell ID), voice call

data (including date, time, number called, duration,

and cell ID), and text message data (date, time,

number texted and cell ID) (Meng et al., 2015;

Mahfouz et al., 2017). This research achieved a total

equal error rate (EER) of 7.03%. Later, the authors

presented a novel behaviour profiling framework that

was able to collect user behaviour to evaluate the

system security status of a device in a continuous

manner before sensitive services were accessed (Li et

al., 2014). They investigated the sensitivity of the

application concept, which is mapped to high-risk

levels to make the framework more secure and

transparent when the user requires access to high-risk

applications. The authors concluded that the approach

seems able to distinguish mobile users through their

application usage; in particular, by focusing on the

names of applications and the location of usage,

which are considered valuable features.

Among further studies in a similar context,

Saevanee et al. (2012) examined the combination of

three diverse biometric methods: keystroke

dynamics, behavioural profiling and linguistic

profiling. Using this multimodality, the researchers

achieved a total EER of 3.3% from 30 virtual users

(the dataset was not real and was gathered from

different datasets). To continue their work, Saevanee

et al. (2014) presented a text-based authentication

framework utilising the above modalities and

introduced a security aspect by allowing the user to

set security levels for access to different applications.

The researchers claimed that this approach would

reduce the number of intrusive authentication

requests for high-security applications by 91%.

In other recent work, Fridman et al. (2015)

proposed a parallel binary decision-level fusion

architecture for active authentication. The fusion is

used for classifiers based on four biometric

modalities: text analysis, application usage patterns,

web browsing behaviour, and the physical location of

the device through GPS (outdoors) or Wi-Fi

(indoors). To evaluate the framework, the authors

collected a dataset from 200 users’ Android mobile

devices over a period of 5 months. After 1 minute of

the user using the device, the EER was 5%, whereas

the EER was 1% after 30 minutes.

In the same context, Neal and Woodard (2017)

introduced associative classification to authenticate

mobile device users by analysing the performance of

applications. Bluetooth and Wi-Fi data were collected

from 189 college-level students over 19 months.

Three time intervals (5, 15, and 30 min) were selected

and association rules were extracted from each data

type separately and combined as features. The

experimental results revealed up to 91% accuracy,

with application and Bluetooth data being more

accurate than Wi- Fi data. Prior to that, Shi et al.

(2011) recorded users’ routines, such as location,

phone calls, and application usage, in order to build a

profile and assign a positive (e.g., good behaviour,

such as a phone call to a known number) or negative

score for each user’s routine, using a dataset based on

50 users for a period of 12 days or more. The dataset

contained SMS, phone call, browser history and

location, without demonstrating the finding of this

study.

A Novel Behaviour Proﬁling Approach to Continuous Authentication for Mobile Applications

247

3 EXPERIMENTAL

METHODOLOGY

The main aim of this section is to present the

methodology of a novel behavioural profiling

approach to user identity verification, which is

maintained beyond point of entry, without the explicit

involvement of the user. In addition, this section

examines the proposed approach based on supervised

machine learning algorithms.

3.1 Mobile Data Collection Dataset

This experiment enlisted 100 participants at the

University of Plymouth and collected app log data,

such as a timestamp for the application used by the

participant and the name of the user action for each

application (read, send, etc.). The dataset collection

was carried out from February to July 2017. Each

participant engaged in the study for at least 1 month,

during which time they were all simply asked to use

their device as normal. For the purpose of the data

collection, a code was developed to extract log files

from a backup file from the participants’ devices by

utilising the Android Debug Bridge (ADB), which is

a command line tool that allows communication

between a connected Android device and a computer.

The backup file was extracted and a code run on

SQLite to extract a log file from the backup file

extracted for each application.

During the data collection phase, applications

were selected and collected. Some applications, such

as Facebook, online mobile banking, and Chrome, are

fully encrypted, and there was no means of collecting

user data without compromising the user’s privacy by

asking the participant to root his/her device. For this

reason, in order to protect the users’ privacy, only 11

applications were collected: Phone Call, SMS,

Download, YouTube, WhatsApp, Browser, Google

Play, Email, Viber, Google Photo, Camera, and

Yahoo mail. Consequently, the collectively

applications have been offered enough of a basis for

profiling enough of the users’ interactions.

At the end of the data collection, the 76 users had

completed the process and the analysis phase was

ready to begin. Each user’s data were stored in an

individual text file, each record containing the

following fields: the date (in two forms: human time

and a timestamp e.g., 2016-06-28 20:22:30,

1467141750071), application name, action type, and

extra information, such as message/email length and

call duration. A total of 3,015,339 actions with total

daily usage of 22,457 were accumulated. In this

context, the long total usage day was 1230 days, and

35 was the short total usage day. This, in turn, means

that the large dataset sample size might lead to a high

degree of accuracy, which would have a positive

impact on the conclusions drawn from the proposed

approach.

3.2 Data Pre-Processing and Feature

Extraction

The main purpose of the data pre-processing phase is

to improve the quality of the data to allow for reliable

statistical analysis by converting raw data that are

derived from data extraction and extracting

discriminative user information. More specifically,

feature extraction is a crucial phase that allows the

classifier to identify users based on extracting a

discriminative set of features following analysis of

raw data drawn from the users. The extracted feature

sets for each participant are labelled and stored as a

sequence of comma-separated values (CSV) files. In

this research study, seven features were extracted

from the data collected from the participants’

interactions with their mobile device. These features

were determined as they generic metadata for almost

every action that the user could perform.

 Application name

 Action name

 Length of message/email

 Call duration

 Day of the week

 Hour of the day

 Time between every two consecutive user actions.

3.3 Modelling

With a dataset labelled as the input in the previous

phase, machine learning was utilised to construct a

model that can identify pattern similarities by training

machines on the new dataset after feature extraction

(Narudin et al., 2016). Using a machine learning

classifier, the predictable model created is able to

authenticate the mobile user based on his/her

behaviour. Supervised learning methods were chosen

in this experiment due to the labelled known data and

known responses. Three classifiers were selected in

this research study: a support vector machine (SVM),

random forest (RF), and gradient boosting (GB), to

identify the most efficient machine learning classifier

based on the classifier output. The selections of these

algorithms were made based on their popularity in

solving such a problem (Narudin et al., 2016).

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

248

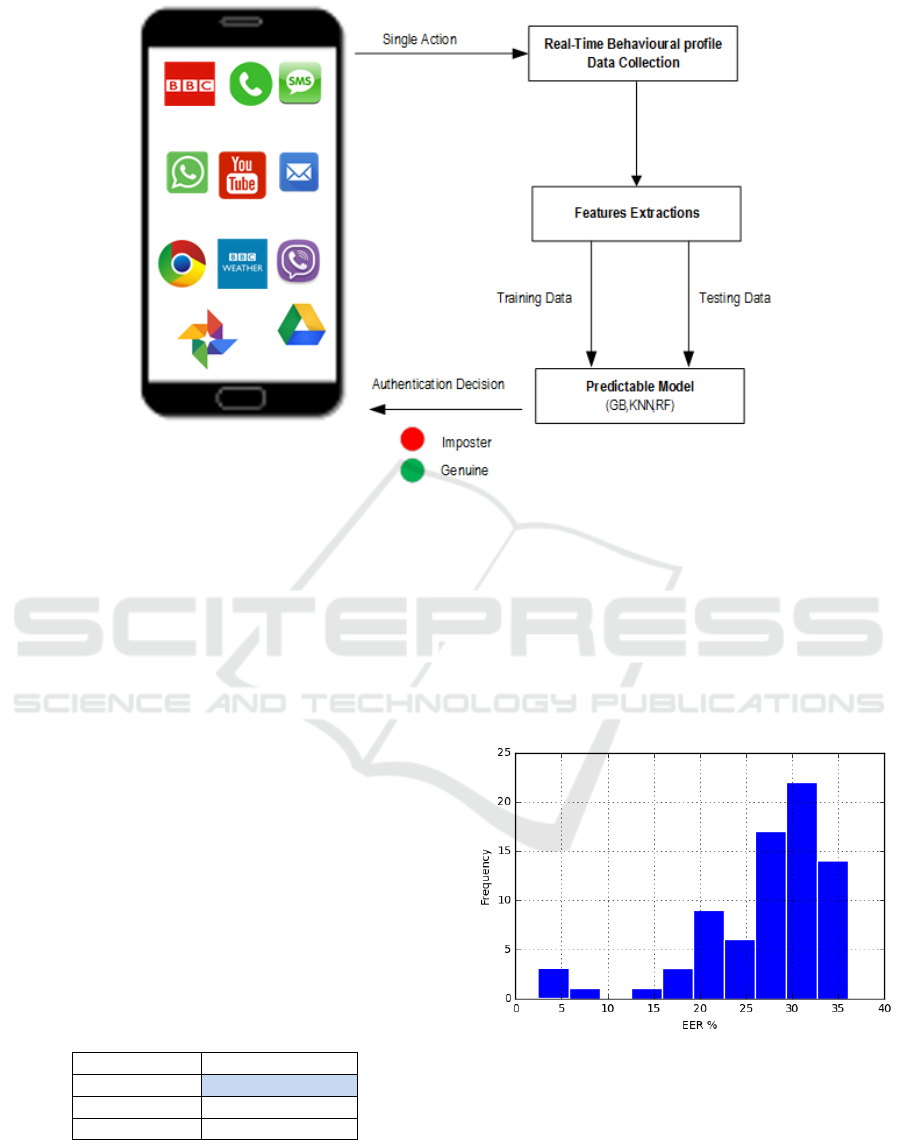

Figure 1: Block diagram of the proposed approach.

4 EXPERIMENTAL ANALYSIS

AND DISCUSSION

Table 1 displays the performance results of the three

selected classifiers, showing that the GB classifier,

which achieved the lowest EER (26.98%), was quite

successful. Given that an authentication decision was

made on each user action within each application,

with some actions taking less than 1 second, the

experimental results are promising and thereby

support the proposed idea of basing the authentication

decision on historical behavioural profiling of the

smartphone user. However, having transparent

authentication for each user action would not be a

logical approach due to some of the factors that have

to be taken into account, such as the time taken to

produce the authentication decision, memory space

requirements, computational overheads, and the

usability of the proposed system.

Table 1: Performance of the classification algorithms.

Classifier

EER (%)

26.98

28.70

KNN

30.53

Based on the performance of the classification

algorithms presented in Table 1, a more detailed

analysis of the GB algorithm result was undertaken.

Figure 2 shows a histogram distribution of the EER

for the 76 participants after applying the GB classifier

and shows that only a few participants achieved a

good EER result, although, on average, the EER was

26.98%. For instance, four participants (71, 44, 52,

and 57) produced an EER of less than 10% (2.5, 4.4,

4.4, and 9.1, respectively). Participant 34 had the

highest EER (36.01%), whereas participant 71 had

the lowest (2.5%).

Figure 2: Histogram showing the distribution of the EER

after applying the GB classifier

In order to investigate the features ranking, the

feature importance approach was applied, utilising

the random forest algorithm. The training set was fed

into the algorithm to perform multiclass classification

and then compute each feature contribution weight to

use for the classification decision. The main aim of

A Novel Behaviour Proﬁling Approach to Continuous Authentication for Mobile Applications

249

feature importance is to quantify the importance of

each of the extracted features to understand which has

the most significant impact on the classification task

(Hooker et al., 2018). Consequently, feature

importance provides a high level of insight into a

model’s behaviour, which leads to improved model

prediction. The feature importance technique was

applied to all feature extractions for participant 71

(i.e., the user with the lowest EER), as illustrated in

Figure 3, which shows the names of the features and

their relative importance. It is clear from the figure

that two features, application and action, were the

most important (both were 41%). The third important

feature, the day of the week, has a weight of 13%,

while the two remaining features registered about 5%

in total. This suggests that application, action and day

of the week are the three most important features,

forming 95% of the decision weight for participant

71.

This analysis was supported by plotting the

application feature distribution of the user with the

lowest EER (71), the user with the highest EER (34)

and the population of the dataset, as depicted in

Figure 4. It can be seen that participant 71 behaved

differently from the other participants, while the

behaviour of participant 34, who had the highest

EER, was almost identical to the pattern for the rest

of the population. This suggests that participant 71

used an almost unique application in comparison with

the others. This is also consistent with the action

feature type. As Figure 6 shows, the same user (71)

still behaved differently in comparison with

participant 34. Finally, the distribution of the hour of

the day feature shows almost the same pattern.

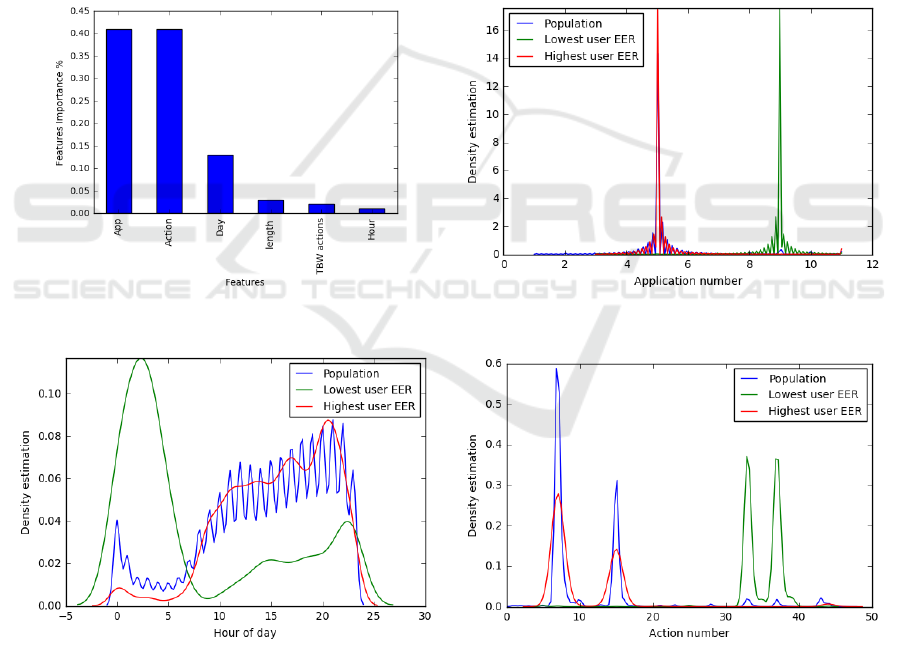

Figure 3: Features importance results.

Figure 4: Application feature comparison.

Figure 5: Hour of the day feature comparison.

Figure 6: Action feature comparison.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

250

4 CONCLUSIONS

This study presented a novel behavioural profiling

approach to verifying the user in terms of mobile

application security and providing robust user

identification. In this study, three supervised machine

learning algorithms were selected to evaluate the

proposed approach and to determine the ideal

classifier based on EER value. The experimental

results show that the significance of this research lies

in having successfully applied continuous user

verification for mobile applications in a manner that

fulfils both security and usability requirements.

Although the authentication decision is based on

action resolution, the experimental results are still

promising. Making an authentication decision on

each user action might lead to an unusable system

which does not present transparent authentication.

For future work, solutions could be suggested and

tested to improve the usability of the approach in

relation to the security requirements. For instance, it

would be beneficial to test the impact of different time

windows on performing the verification process and

how this affects the overall accuracy of the model.

REFERENCES

Alotaibi, S., Furnell, S. and Clarke, N. (2015). “Transparent

authentication systems for mobile device security: A

review”. In the 10th International Conference for

Internet Technology and Secured Transactions

(ICITST) (pp. 406-413). IEEE.

Alotaibi, S., Furnell, S., and Clarke, N. (2016). “A novel

Taxonomy for mobile applications data”. Int. J. Cyber-

Security Digit. Forensics, 5 (3), 115-121.

Alotaibi, S., Furnell, S., and Clarke, N. (2016a).” MORI:

An Innovative Mobile Applications Data Risk

Assessment Model”. In Journal of Internet Technology

and Secured Transactions (JITST), Volume 5, Issues

3/4.

Clarke, N., Karatzouni, S., and Furnell, S. (2009). “Flexible

and transparent user authentication for mobile devices”.

IFIP Advances in Information and Communication

Technology, 297/2009, pp.1-12.

Clarke, N. (2011).”Transparent user authentication:

biometrics, RFID and behavioural profiling”. Springer

Science and Business Media.

Fridman, L., Weber, S., Greenstadt, R. and Kam, M.

(2015). “Active authentication on mobile devices via

stylometry, application usage, web browsing, and GPS

Location”. In arXiv preprint arXiv, pp.1–10.

Eagle, N., and Pentland, A. (2006). Reality mining: sensing

complex social systems. Personal and ubiquitous

computing, 10(4), 255-268.

Hatin, J., Cherrier, E., Schwartzmann, J., and Rosenberger,

C. (2017).”Privacy preserving transparent mobile

authentication”. In International Conference on

Information Systems Security and Privacy (ICISSP).

pp. 354-361.

Hooker, S., Erhan, D., Kindermans, P. J., and Kim, B.

(2018). “Evaluating Feature Importance Estimates”.

ArXiv preprint arXiv: 1806.10758.

Li, F., Clarke, N., Papadaki, M., and Dowland, P. (2011).

“Misuse detection for mobile devices using behaviour

profiling”. IJCWT, vol. 1, no. 1, pp.41– 53.

Li, F., Clarke, N., Papadaki, M., and Dowland, P., (2014).

“Active authentication for mobile devices utilising

behaviour profiling”. International journal of

information security, 13(3), pp.229-244.

Mahfouz, A., Mahmoud, T. M., and Eldin, A. S. (2017). “A

survey on behavioral biometric authentication on

smartphones”. Journal of Information Security and

Applications, 37, 28-37.

Meng, W., Wong, D., Furnell, S., and Zhou, J. (2015).”

Surveying the development of biometric user

authentication on mobile phones”. IEEE

Communications Surveys and Tutorials (Volume: 17,

Issue: 3). pp. 1268 – 1293.

Narudin, F. A., Feizollah, A., Anuar, N. B., and Gani, A.

(2016). “Evaluation of machine learning classifiers for

mobile malware detection”. Soft Computing, 20(1),

343-357.

Neal, T. J., and Woodard, D. L. (2017). “Using associative

classification to authenticate mobile device users”. In

Biometrics (IJCB), 2017 IEEE International Joint

Conference on (pp. 71-79). IEEE.

Saevanee, H., Clarke, N., and Furnell, S. (2012). “Multi-

modal behavioural biometric authentication for mobile

devices”. In Proceedings of the Information Security

and Privacy Research, IFIP Advances in Information

and Communication Technology - IFIP AICT. Springer

Boston. pp. 465-474.

Saevanee, H., Clarke, N., Furnell, S., and Biscione, V.

(2014). “Text-based active authentication for mobile

devices”. In ICT Systems Security and Privacy

Protection. Berlin Heidelberg: Springer, pp.99-112.

Shi E, Niu Y, Jakobsson M, and Chow R. (2011). “Implicit

authentication through learning user behavior”. In:

Proceedings of the 13th international conference on

information security. ISC’10. Berlin, Heidelberg:

Springer-Verlag. p. 99–113. ISBN 978-3-642-18177-1.

Zhang, J., Tan, X., Wang, X., Yan, A., and Qin, Z. (2018).

“T2FA: Transparent Two-Factor Authentication”. In

IEEE Access, 6, pp.32677-32686. DOI:

10.1109/ACCESS.2018.2844548

A Novel Behaviour Proﬁling Approach to Continuous Authentication for Mobile Applications

251
