Supporting Reuse of EHR Data in Healthcare Organizations:

The CARED Research Infrastructure Framework

Vincent Menger

1,2

, Marco Spruit

, Jonathan de Bruin

, Thomas Kelder

and Floor Scheepers

Department of Information and Computing Sciences, Utrecht University, Princetonplein 5, Utrecht, The Netherlands

Department of Psychiatry, University Medical Center Utrecht, Utrecht, The Netherlands

Department of Information and Technology Services, Utrecht University, Utrecht, The Netherlands

EdgeLeap B.V., Utrecht, The Netherlands

Keywords: EHR, Data Management, Infrastructure, Open Source, Repeatability, Data Preparation, Data Analysis.

Abstract: Healthcare organizations have in recent years started assembling their Electronic Health Record (EHR) data

in data repositories to unlock their value using data analysis techniques. There are however a number of

technical, organizational and ethical challenges that should be considered when reusing EHR data, which

infrastructure technology consisting of appropriate software and hardware components can address. In a

case study in the University Medical Center Utrecht (UMCU) in the Netherlands, we identified nine

requirements of a modern technical infrastructure for reusing EHR data: (1) integrate data sources, (2)

preprocess data, (3) store data, (4) support collaboration and documentation, (5) support various software

and tooling packages, (6) enhance repeatability, (7) enhance privacy and security, (8) automate data process

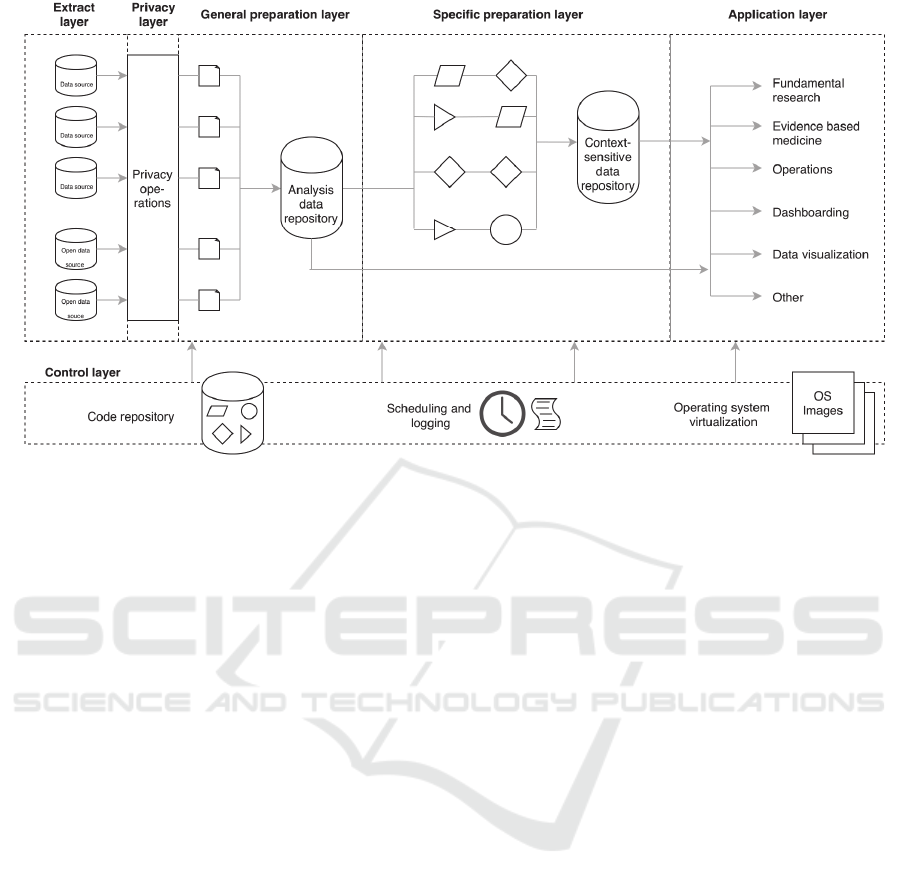

and (9) support analysis applications. We propose the CApable Reuse of EHR Data (CARED) framework

for infrastructure that addresses these requirements, which consists of five consecutive data processing

layers, and a control layer that governs the data processing. We then evaluate the framework with respect to

the requirements, and finally describe its successful implementation in the Psychiatry Department of the

UMCU along with three analysis cases. Our CARED research infrastructure framework can support

healthcare organizations that aim to successfully reuse their EHR data.

1 INTRODUCTION

The digitization of our society is rapidly creating

opportunities to use new resources for research in

healthcare in the form of routinely collected large

datasets (Murdoch and Detsky, 2013; Priyanka and

Kulennavar, 2014). Meanwhile, recent

advancements in Machine Learning and Big Data

analytics enable unlocking the potential value of

these datasets (Groves et al., 2013). While current

research in healthcare is predominantly based on

Randomized Controlled Trials (RCTs) and Cohort

Studies (CSs), a data analytics approach on the other

hand integrates real time data from various sources

within a health care organization, such as structured

patient records, unstructured text notes, lab

measurements, financial data, and various others

(Badawi et al., 2014; Friedman et al., 2014). This

approach can have substantial benefits in addition to

RCT and CS study designs, in terms of cost-

effectiveness, sample size and reduction of selection

bias (Raghupathi and Raghupathi, 2014; Gandomi

and Haider, 2015). In the near future, this may allow

a transition to a data driven healthcare, where using

real time clinical data for supporting important

decisions in the care process becomes the norm, and

research using data analytics becomes an important

driver of new insights into aetiology and treatment

of disease (Murdoch and Detsky, 2013).

In this context, the various types of EHR data

that have been gathered for the sake of delivering

care to patients have become an important asset to

healthcare organizations, that is nowadays typically

available in a digital format (Dean et al., 2009).

Healthcare organizations have therefore started to

assemble their EHR data in data repositories in order

to apply data analytics techniques to them

(Lokhandwala and Rush, 2016; Obermeyer and Lee,

2017). Several challenges in management and

analysis of data have subsequently emerged, not

only of a technical nature (e.g. secure storage of

data, data pre-processing and data analysis), but also

Menger, V., Spruit, M., de Bruin, J., Kelder, T. and Scheepers, F.

Supporting Reuse of EHR Data in Healthcare Organizations: The CARED Research Infrastructure Framework.

DOI: 10.5220/0007343900410050

In Proceedings of the 12th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 41-50

ISBN: 978-989-758-353-7

of an organizational nature (e.g. combining data

from different sources, effective collaboration

between researchers, and reproducibility of research)

and an ethical nature (e.g. legal regulations and

patient privacy concerns) (Hersh et al., 2014; Safran,

2014; Meystre et al., 2017). To mitigate these

challenges, a dedicated infrastructure consisting of

appropriate hardware and software components is

essential for gaining reliable and secure access to the

data, and for sharing knowledge about the structure

and meaning of data (Jensen, Jensen and Brunak,

2012; Danciu et al., 2014). Current data repositories

however are often based on Data Warehouse (DWH)

technology which falls short in addressing most of

these challenges, leading to scattering of both data

and knowledge about data within an organization

(Roski, Bo-Linn and Andrews, 2014; George,

Kumar and Kumar, 2015).

A dedicated research infrastructure for reusing

EHR data improves on this situation by providing a

unified data management practice for all researchers

involved, ranging from data sources on the one hand

to applications in clinical practice and clinical

research on the other (Hersh et al., 2013). For

example, it helps reduce errors in analysis, improves

possibilities for collaboration among researchers of

various disciplines, and leads to more efficient use

of time and resources in the long term (Pollard et al.,

2016). Although the benefits of such an

infrastructure are apparent, a general framework for

an infrastructure to support reusing EHR data has

not yet been proposed. Our study aims to provide

such a framework. Because research infrastructure

software packages need to interoperate with a large

variety of health IT systems, databases, EHR

software from different vendors, and other local

standards (Hammami, Bellaaj and Kacem, 2014;

Kasthurirathne et al., 2015), our study will address

this problem on the conceptual level rather than

offering a software solution. Individual healthcare

organizations can subsequently use existing tools

within their organization, supplemented with (open

source) software packages to implement an

infrastructure consisting of appropriate hardware and

software components based on our proposed

framework, that is interoperable with their current

systems and practices.

In this study, we will thus identify the most

important requirements for an infrastructure for

reusing EHR data by means of expert interviews in

the University Medical Center Utrecht (UMCU) in

the Netherlands. We then translate these

requirements into relevant concepts and their

relations and arrange them in a generic framework.

The main merit of the framework we propose lies in

providing clear concepts that need to be instantiated

in a research infrastructure for reusing EHR data,

thereby supporting learning healthcare organizations

that aim to do so. We furthermore describe the

implementation of our proposed infrastructure

framework in the Psychiatry Department of the

UMCU, and present three specific applications that

were enabled by this infrastructure.

1.1 Related Work

In contrast to research into reusing EHR data within

an organization, there are various examples of

projects that aim to integrate all types of clinical data

from different institutions. For example, the CER

Hub (Hazlehurst et al., 2015) which provides

standardized access to the patient centric EHR

across organizations, the SHARPn project (Rea et

al., 2012) which enables using the EHR for

secondary purposes in multiple academic centers,

and EHR4CR (De Moor et al., 2015) which offers a

scalable and efficient approach to interoperability

between EHR systems. Additionally the eMERGE,

PCORnet and SHRINE projects provide more

research into the ethical, legal and social issues of

combining data from multiple sites (Weber et al.,

2009; McCarty et al., 2011; Fleurence et al., 2014).

All of these projects address topics such as semantic

interoperability, data quality and data integration

through a Trusted Third Party (TTP), which are only

indirectly relevant when reusing EHR data within an

organization.

Data management practices within an

organization are usually designed for dealing with

data from CS and RCT studies (Krishnankutty et al.,

2012), accompanied with infrastructure in the form

of a Clinical Data Management System (CMDS) (Lu

and Su, 2010). The data that is produced by CS and

RCT studies contains measurements that are clearly

defined in a study protocol, and that are often static

after patient enrolment has ended. Challenges

include data-entry and medical coding of data. This

type of clinical data strongly differs from secondary

EHR data, which is already present data that is

updated live, and is often undocumented.

Research into infrastructure for reusing EHR,

which is scarce in the first place, typically describes

one or two requirements, and thereby only a small

part of the solution that is needed. For example, they

focus on the preprocessing and analysis pipeline

(Peek, Holmes and Sun, 2014), analysing and

storing large datasets (Youssef, 2014), integration of

data sources (Bauer et al., 2016) or composing

HEALTHINF 2019 - 12th International Conference on Health Informatics

Figure 1: The process of identifying the nine requirements for the infrastructure.

research datasets from secondary data (Murphy et

al., 2010). Not one approach however provides a

unifying data management practice, failing to

provide the broad scope for infrastructure that we

envision. The generic framework that our study will

provide therefore has additional value for the field of

clinical research data management.

2 METHODS

2.1 Identification of Requirements

Requirements for an infrastructure for reusing EHR

data were identified in the University Medical

Center Utrecht (UMCU) in the Netherlands. The

process of identifying these requirements from

expert interviews is depicted in Figure 1. First, semi-

structured interviews were conducted with seven

relevant stakeholders in the UMCU to explore the

requirements for an infrastructure. A board level

stakeholder and psychiatrist, a nurse researcher, and

data and IT experts with several backgrounds were

included in the interviews, ensuring representation

of all relevant stakeholders. In this case, semi-

structured interviews are the most appropriate

method for eliciting new information (Gill et al.,

2008). Questions about the participants’ views on

current data management practices, possible

improvements to these practices and their feasibility

in the context of the UMCU, current issues

experienced, and their ideal data management

situation were asked.

The transcripts of these interviews were then

processed using a grounded theory approach.

Researchers first applied an open coding process to

the transcripts by segmenting them and describing

each segment in a word or short sequence of words

(Strauss and Corbin, 1990). This resulted in 156

codings in the seven interviews combined. To be

Table 1: The number of codings in each interview, distributed over the nine themes and seven interviewees. The rightmost

column shows the requirement that was formulated based on the theme in the leftmost column.

Theme Interviewee Requirement

Board level,

psychiatrist

Data manager

Information

Architect

Data Analyst 1

Data Analyst 2

Data Analyst 3

Nurse Researcher

Data sources 1 3 1 1 (1) Integrate data sources

Data standardization

and preparation

7 1 6 12 2 6 (2) Preprocess data

Data storage 4 7 1 9 (3) Store data

Software and tooling 2 2 12 9 1 3 1 (4) Support various software and

tooling packages

Coding best practices

and documentation

3 2 2 3 1 3 (5) Support collaboration and

documentation

Repeatability 1 1 2 1 (6) Enhance repeatability

Privacy and security 1 1 (7) Enhance privacy and security

Data process automation 3 3 3 6 4 1 (8) Automate data process

Healthcare practice

applications

4 1 3 6 4 2 (9) Support analysis applications

Supporting Reuse of EHR Data in Healthcare Organizations: The CARED Research Infrastructure Framework

able to identify requirements out of these codings,

the open codings were then processed into broader

categories by grouping codings based on their

similarities and differences using Inductive Content

Analysis (Elo and Kyngäs, 2008). This iterative

process resulted in eleven themes that spanned

multiple codes and could not be further combined. In

a final step, all themes that were mentioned by more

than one interviewee were reformulated into

requirements. Table 1 shows the roles of the

interviewees within the UMCU, and the nine

requirements that were identified based on the

interviews, including the number of codings for each

interview and theme.

2.2 Requirements

The nine requirements that were identified based on

the expert interviews are discussed below.

1. Integrate data sources. In a healthcare

organization, typically multiple data sources exist

(e.g. different database systems for structured patient

records, unstructured text notes, correspondence, lab

values, financial administration, genetics), that store

data in their own format and do not necessarily

communicate and interoperate with each other

(Coorevits et al., 2013; Nair, Hsu and Celi, 2016).

Further integration with open data sources and

patient-gathered data (e.g. from wearables or social

media) can offer even better insights.

2. Preprocess data. Data preparation is a crucial step

in the data analysis process that is relatively easy to

model yet time consuming, especially if its steps are

repeated for each separate analysis (Priest et al.,

2014; Wickham, 2014). Applying preprocessing

steps (e.g. tidying, standardizing, reshaping and

integrating data) in a central, collaborative manner

thus saves time and effort for all researchers

involved. There is on the other hand a tradeoff with

flexibility, and researchers should also be enabled to

make their individual choices in data preparation

steps where needed.

3. Store data. Data that is gathered from various

sources and then preprocessed should be accessible

in a uniform format, allowing researchers to load

necessary data into their tools for analysis (Apte et

al., 2011; Jensen, Jensen and Brunak, 2012).

4. Support various software and tooling packages.

Data analysis teams are typically multidisciplinary,

consisting for example of data analysts, health

researchers, practitioners and statisticians

(Lokhandwala and Rush, 2016), each applying a

wide range of different techniques such as classical

statistics, machine learning and data visualization

(Katal, Wazid and Goudar, 2013). This leads to a

variety of different software and tooling packages

being used, which all need to be able to interoperate

with a central infrastructure if adoption is to be

achieved.

5. Support collaboration and documentation.

Collaboration among researchers within a data

analysis project is vital for obtaining both high

quality data and analysis (Cheruvelil et al., 2014;

Priest et al., 2014). This is mainly achieved by

documentation and code collaboration (Wilson et

al., 2014), adoption of which is currently low in

health care research (Murphy et al., 2012).

Documenting data firstly improves shared

knowledge about data, a lack of which is one of the

largest barriers for performing analysis, especially in

health care (Lee et al., 2015). Code collaboration

secondly reduces redundancy and errors.

6. Enhance repeatability. Reproducible research is

slowly becoming the norm in data-intensive

scientific research (Peng, 2011), yet it is still not

uncommon for researchers to be unable to recover

data associated with their own published works

(Goodman et al., 2014; Pollard et al., 2016). Data

analysis in healthcare requires a reproducible

workflow, which has well-recognized benefits, both

internally (e.g. traceability of data, better insights

into data provenance) and externally (e.g. better

substantiation of results, enabling reuse of methods

and results for others) (Johnson et al., 2014; Wang

and Hajli, 2017).

7. Enhance privacy and security. Healthcare data

that are made available for research comprise

sensitive data, that should be handled securely and

with respect for patient privacy by design (Gil et al.,

2007; Kupwade Patil and Seshadri, 2014). Security-

wise, restrictions on who can access which part of

research datasets help prevent data leaks and

unnecessary risks of patient re-identification.

Regarding privacy, de-identification techniques (e.g.

pseudonymization, de-identification of free-text

variables, k-anonymity measures) are needed to

mitigate impact on patient privacy (Menger et al.,

2017).

8. Automate data process. By automating all data

processing steps, up-to-date EHR data becomes

available periodically, without the need to perform

additional time intensive operations before analysis

is started. This additionally leads to better speed to

decision (Wang et al., 2017) and even better model

learning (Lin and Haug, 2006).

9. Support analysis applications. The various

applications of reusing EHR data, such as decision

support, dashboarding, fundamental research, data

HEALTHINF 2019 - 12th International Conference on Health Informatics

Figure 2: The CARED framework, consisting of five data processing layers from left to right, and an additional control

layer that governs the data processing.

visualization, and several others (Chen, Chiang and

Storey, 2012; Gandomi and Haider, 2015), should

all be supported.

2.3 Framework Development

A conceptual framework for a data infrastructure

was designed based on the nine requirements

described above. As current data repositories are

commonly based on Data Warehouse technology,

the DWH model of Inmon et al. (Inmon, 2002) was

used as a starting point. This model defines four data

layers: the Data Source layer, the Staging layer, the

Data Warehouse layer, and the Data Access layer.

The layers in this model were iteratively refined,

separated and combined, and new layers were added

in order to meet all the nine requirements. Next,

these layers were integrated in a single unifying

framework. This design was presented and discussed

in a focus group with the stakeholders in Table 1,

aiming to demonstrate the framework and to

evaluate it with respect to the nine requirements. A

focus group is appropriate so that interaction

between stakeholders is possible, so that all opinions

about the framework can be explored, and so that all

its potential issues are found (Gill et al., 2008). One

of the researchers facilitated the focus group, while

the stakeholders were present to discuss the

requirements and the framework. Comments mainly

concerned the extent to which data preprocessing

can be done in advance, the privacy steps that

needed to be taken, and the viability of

implementing infrastructure based on the framework

in the UMCU. The participants attitude towards the

framework was generally positive, and based on this

focus group no major changes to the framework

were introduced.

An infrastructure based on this framework was

finally implemented in the Psychiatry Department of

the UMCU. There, an initiative to bring data driven

research to the daily practice resulted in some

preliminary results (Menger et al., 2016), but with

no further supporting infrastructure in place, making

it an ideal case for implementing the framework.

3 RESULTS

3.1 Framework

The CApable Reuse of EHR Data (CARED)

framework we designed can be seen in Figure 2. It

consists of five data layers (from left to right) in

which data is processed, and a control layer for

governing the data process.

In the data processing layers, first the extract

layer connects to various internal and external data

sources, and extracts the data in their own format.

The subsequent privacy layer performs operations

that help guarantee patient privacy, such as de-

identification, pseudonymization and removal of

non-consenting patients’ data. Next, we propose to

Supporting Reuse of EHR Data in Healthcare Organizations: The CARED Research Infrastructure Framework

apply data preprocessing in two separate general and

specific preparation steps. In the general preparation

layer, the extracted and de-identified data from the

several sources is transformed and tidying steps such

as standardization, reformatting and reshaping are

applied. The data remains semantically unchanged,

meaning that only transformations concerning the

format of data are performed. The cleaned data is

stored in an analysis data repository, where it can be

accessed by researchers through an Application

Programmable Interface (API). In the specific

preparation layer, advanced transformations that

require domain knowledge, such as imputation, data

integration and data enrichment are applied to data

from the analysis data repository. After this phase,

processed data are stored in a second, context-

specific data repository that is also accessible

through an API. In the final application layer, data

from the analysis data repository or context-specific

data repository are processed further by individual

researchers according to their analysis purpose.

Additionally, the control layer drives the data

through the data processing layers. This layer

consists of three parts. Firstly, it contains a code

repository where all code that transforms the data in

or between layers is collaboratively written and

maintained by all researchers involved. This creates

a scientific workflow that traces data and code from

source to application when guidelines for

documenting code and data with version control are

applied. Secondly, the scheduling and logging

component makes sure that all clinical data is

periodically extracted from the data sources and

processed as specified in the code base. Reporting

and notification ensure that errors in this process can

be noticed and corrected. The execution of code

thirdly is performed by using containerization on the

operating system level. Images that provide all

necessary software and libraries to execute code

from the repository in a container are specified, so

that the data process is not dependent on individual

researchers software.

3.2 Evaluation

Below, we will describe how and in which parts of

the framework the identified requirements are

addressed. Between square brackets, the abbreviated

layer(s) in which this requirement is satisfied is

written (e=extract layer, p=privacy layer, gp=general

preparation layer, sp=specific preparation layer,

a=application layer, c=control layer).

1. Integrate data sources [e]. Multiple data sources

are integrated in the extract layer, which allows

flexibility with regard to adding or removing data

sources.

2. Preprocess data [e, gp, sp]. We propose to divide

the preprocessing of data into two steps: a general

data preparation step and a subsequent specific data

preparation step. In the first step, operations

concerning the format of data are performed, and in

the second step additional operations concerning the

contents of data are performed. This distinction

allows researchers to choose between two datasets

with a different level of preparation, balancing

between flexibility and time-efficiency. In the first

case, all preprocessing operations are performed by

the individual researcher, but can be tailored to

specific needs, while in the second off-the-shelf

preparation both the effort needed to start analysis

and the likelihood of errors is reduced. In both cases,

the researcher needs to perform final analysis-

specific preparation in order to perform the analysis.

3. Store data [gp, sp]. Data are stored in an

accessible location, in two analysis data and context-

sensitive data repositories. An important

requirement for data storage is that read- and write

access can be provided for relevant software

packages through an API. The data storage method

can be subject to organizational and technical

requirements, with options ranging from a shared

drive to a database scheme (e.g. NoSQL) or

distributed file systems. To ensure that previous

versions of datasets are retrievable, snapshots of data

can be stored using data differencing techniques.

4. Support various software and tooling [a, c]. The

infrastructure is not dependent on specific software

packages. This means that both running the data

through the five data layers and performing analysis

can be performed using any software package that

can access data in the two repositories through the

API.

5. Support collaboration and documentation [c].

Container images and documentation of code and

data are shared in the code repository. Access to the

central code repository for all researchers enables

collaboration both in the data process and in specific

research applications.

6. Enhance repeatability [e, gp, sp, a, c]. Firstly, the

pipeline structure of the framework ensures that all

data can be traced back to its source, providing data

lineage for all eventual applications. Secondly,

previous versions of data, code and operating system

containers that are all stored together create a

scientific workflow, which allows repeating analysis

internally. By making the combination of these three

items publicly available (e.g. along with a published

result), analysis additionally becomes repeatable for

HEALTHINF 2019 - 12th International Conference on Health Informatics

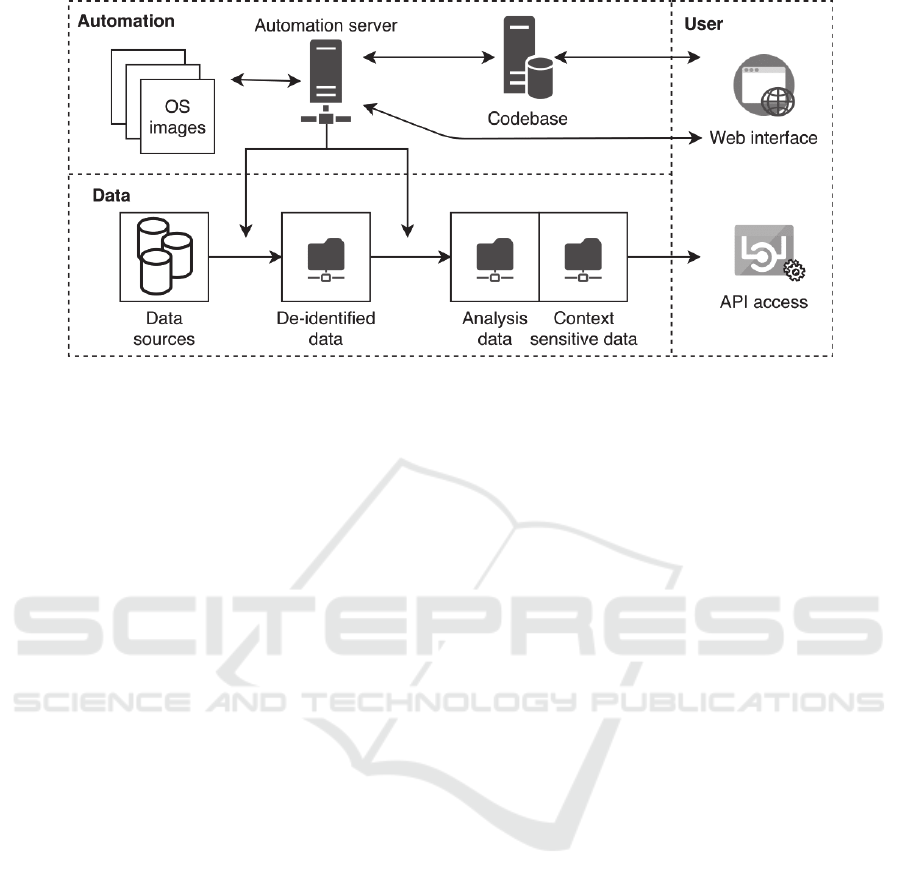

Figure 3: A schematic overview of infrastructure implemented in the Psychiatry Department of the UMCU based on the

CARED framework. It consists of an automation server and codebase that can be accessed through a web interface, and

several data components that can be accessed through an API.

the entire research commuity.

7. Enhance privacy and security [p]. Privacy of

patients is enhanced by incorporating a separate

privacy layer as one of the first data processing

layers, ensuring that no datasets with identifying

information proliferate in the analysis process.

Security of data is enhanced by storing data in two

central repositories that can be accessed by an API,

preventing creation of copies of datasets on personal

drives. Both the data access API and any other

interfaces that allow interaction with the

infrastructure can have restrictions on access for

individual researchers, for example when only a

subset of data is relevant for a specific analysis goal.

8. Automate data process [c]. All code that drives

the data through the processing layers is available in

the code repository, and can therefore be executed in

its specified container at defined time intervals by an

automation server. This ensures that data in both

data repositories are periodically updated.

9. Support analysis applications [a]. The data in the

two repositories can support a broad range of

applications that is able to read data from one of the

two data repositories through the API, such as data

visualization, dashboards, (re)training of machine

learning models, and decision support in the EHR.

3.3 Implementation

Based on this framework, an infrastructure was

designed and implemented in the Psychiatry

Department of the UMCU in a time period of 6

months. The subsequent programming of data

processing pipelines took another approximate 6

months. Software components were implemented

with open source packages such as GitLab, Docker,

Jenkins, Python and R, supplemented with already

present enterprise software to extract data from

internal data sources. The hardware setup consists of

a Linux and a Windows server, in order to allow

interoperation with existing systems.

The implementation is schematically depicted in

figure 3. The core of the implementation is the

automation server, which updates data weekly by

fetching code and OS containers and applying it to

data. The data is extracted, de-identified and stored

in a network folder. Then additional preprocessing

steps are applied, and another network folder stores

the data in analysis data and context sensitive data

repositories. After mounting the network folder,

researchers can access data in these repositories

through an API based on their autorization. The code

base and automation server are accessible through

their web interfaces.

Our infrastructure has enabled several

applications within the Psychiatry Department, three

specific cases are highlighted below.

Personalized antipsychotics and antidepressants

prescriptions. Patients with a psychotic or

depressive disorder are often prescribed medication

as part of their therapy. There are however various

types of both antipsychotics and antidepressants, and

choosing a drug and dose that improve an individual

patients symptoms while minimizing side effects is

mostly based on trial and error. During their

lifetime, these patients typically switch medication

and dose several times before the optimal

combination is found. To smoothen this process, we

Supporting Reuse of EHR Data in Healthcare Organizations: The CARED Research Infrastructure Framework

developed visualizations of medication history based

on information in the EHR, that is displayed to

psychiatrists and patients. An overview of previous

steps taken in finding an optimal prescription are

comprehensively displayed, facilitating better

decisions about next steps.

Prediction of inpatient violence incidents. During

psychiatric admission, violence from patient directed

at staff or other patients can occur. This topic has

been thoroughly researched in psychiatry literature,

yet a data driven approach had not been applied. We

integrated admission data, textual data in the first 24

hours of admission, and violence incident reports,

and then applied machine learning to train a

classifier that is able to assess violence risk for

individual patients, outperforming trained

psychiatrists and other existing violence risk

assessment tools (Menger, Scheepers and Spruit,

2018). This experiment is fully repeatable, while

predictions can eventually be shown in the EHR.

Tracking patient enrolment status. Before a patient

can start a planned admission or therapy, several

administrative steps need to be taken that can take a

span of multiple weeks or months. This includes for

example obtaining referral documents from previous

care organizations or a general practitioner, checking

health insurance, and planning admission or therapy.

Based on the current status of enrolment as written

in text notes in the EHR, we therefore designed a

status tracking system for patient enrolment. This

leads to better insight into a current enrolment status,

which benefits both patients and staff.

4 DISCUSSION

To fully realise the potential of analysing already

existing EHR data, an infrastructure consisting of

appropriate hardware and software components is

needed, so that important technical, organizational

and ethical challenges of reusing EHR data are

mitigated. Current data repositories in healthcare

organizations are often still based on DWH

technologies, which fall short in addressing many of

these challenges. Our CARED framework, designed

based on requirements that were identified in the

UMCU, provides a modern and unifying approach to

infrastructure for EHR data reuse. It addresses

important challenges, that are too often disregarded

or solved in an ad hoc manner, such as analysing

sensitive data with regard for patient privacy,

repeatability of analysis, collaboration among

researchers, and documentation of data and its

analysis. Current research typically manages one or

two of these challenges, while our research provides

a framework that covers all the important aspects of

reusing EHR data. We argue that adopting this

framework improves quality of analysis, enhances

patient privacy and data security, and aids efficient

use of time, resources and skills. By providing a

generic framework, we furthermore circumvent

problems of interoperability with current IT systems,

improving likelihood of its adoption. Adhering to

the CARED framework when designing and

implementing infrastructure in a healthcare

organization will therefore be able to improve the

state of data analytics research on secondary EHR

data.

Implementing an infrastructure that is based on

our proposed framework in the Psychiatry

Department of the UMCU furthermore shows the

feasibility of such a project. Although organizational

factors caused some delays and practical difficulties,

no fundamental setbacks were experienced.

Additionally, we made use of existing open source

software packages, leveraging knowledge and

efforts from the extensive ecosystem of data analysis

researchers. This is an important benefit that remains

unaddressed in other software solutions. Modern

data analysts are well versed in performing analysis

using open source packages, typically implemented

in the Python and/or R programming languages.

Using such open software packages is a cost-

effective measure that additionally lowers the

threshold for data analysts from various domains to

join the challenge of obtaining value from EHR data,

which holds many promises for the future.

5 CONCLUSION

In this study, we used expert interviews to identify

the most important requirements for an

infrastructure for reusing EHR data, and

subsequently designed the CApable Reuse of EHR

Data (CARED) framework for infrastructure that

addresses these challenges. The CARED framework

we propose consists of five data processing layers:

an extract layer, a privacy layer, two preprocessing

layers, and an application layer. The framework is

governed by a control layer, which consists of a

code base where code and analysis is documented, a

scheduler that automates the process, and

containerization to make the analysis more robust

and repeatable. We have elaborated upon the

implementation of an infrastructure based on the

proposed framework, showing its feasibility. Our

study shows how an infrastructure based on the

HEALTHINF 2019 - 12th International Conference on Health Informatics

CARED framework in place will improve the

quality of analysis, enable types of analysis that are

otherwise not possible, and aid efficient use of time,

resources and skills.



REFERENCES

Apte, M. et al. (2011) ‘Using Electronically Available

Inpatient Hospital Data for Research’, Clinical and

Translational Science. Wiley-Blackwell, 4(5), pp. 338–

345.

Badawi, O. et al. (2014) ‘Making big data useful for health

care: A summary of the inaugural MIT critical data

conference’, Journal of Medical Internet Research. JMIR

Publications Inc., 16(8), p. e22.

Bauer, C. R. K. D. et al. (2016) ‘Integrated data repository

toolkit (IDRT): A suite of programs to facilitate health

analytics on heterogeneous medical data’, Methods of

Information in Medicine, 55(2), pp. 125–135.

Chen, H., Chiang, R. H. L. and Storey, V. C. (2012) ‘Business

Intelligence and Analytics: From Big Data To Big

Impact’, Mis Quarterly, 36(4), pp. 1165–1188.

Cheruvelil, K. S. et al. (2014) ‘Creating and maintaining

high-performing collaborative research teams: The

importance of diversity and interpersonal skills’,

Frontiers in Ecology and the Environment. Ecological

Society of America, 12(1), pp. 31–38.

Coorevits, P. et al. (2013) ‘Electronic health records: New

opportunities for clinical research’, Journal of Internal

Medicine, 274(6), pp. 547–560.

Danciu, I. et al. (2014) ‘Secondary use of clinical data: The

Vanderbilt approach’, Journal of Biomedical Informatics.

NIH Public Access, 52, pp. 28–35.

Dean, B. B. et al. (2009) ‘Review: Use of Electronic Medical

Records for Health Outcomes Research’, Medical Care

Research and Review, 66(6), pp. 611–638.

Elo, S. and Kyngäs, H. (2008) ‘The qualitative content

analysis process’, Journal of Advanced Nursing, 62(1),

pp. 107–115.

Fleurence, R. L. et al. (2014) ‘Launching PCORnet, a

national patient-centered clinical research network’,

Journal of the American Medical Informatics

Association, 21(4), pp. 578–582.

Friedman, C. et al. (2014) ‘Toward a science of learning

systems: a research agenda for the high-functioning

Learning Health System’, Journal of the American

Medical Informatics Association. Oxford University

Press, 22(1), pp. 43–50.

Gandomi, A. and Haider, M. (2015) ‘Beyond the hype: Big

data concepts, methods, and analytics’, International

Journal of Information Management. Pergamon, 35(2),

pp. 137–144.

George, J., Kumar, B. V. and Kumar, V. S. (2015) ‘Data

Warehouse Design Considerations for a Healthcare

Business Intelligence System’, in Proceedings of the

World Congress on Engineering 2015, pp. 4–7.

Gil, Y. et al. (2007) ‘Privacy enforcement in data analysis

workflows’, in CEUR Workshop Proceedings. CEUR-

WS.org, pp. 46–53.

Gill, P. et al. (2008) ‘Methods of data collection in qualitative

research: interviews and focus groups’, Bdj. Nature

Publishing Group, 204(6), pp. 291–295.

Goodman, A. et al. (2014) ‘Ten Simple Rules for the Care

and Feeding of Scientific Data’, PLoS Computational

Biology. Public Library of Science, 10(4), p. e1003542.

Groves, P. et al. (2013) ‘The “big data” revolution in

healthcare: accelerating value and innovation’, McKinsey

Global Institute. Center for US Health System Reform

Business Technology Office, (January), pp. 1–22.

Hammami, R., Bellaaj, H. and Kacem, A. H. (2014)

‘Interoperability of healthcare information systems’, in

2014 International Symposium on Networks, Computers

and Communications, ISNCC 2014.

Hazlehurst, B. L. et al. (2015) ‘CER Hub: An informatics

platform for conducting comparative effectiveness

research using multi-institutional, heterogeneous,

electronic clinical data’, International Journal of Medical

Informatics. Elsevier, 84(10), pp. 763–773.

Hersh, W. R. et al. (2013) ‘Recommendations for the Use of

Operational Electronic Health Record Data in

Comparative Effectiveness Research’, eGEMs

(Generating Evidence & Methods to improve patient

outcomes). Academy Health, 1(1), p. 1018.

Hersh, W. R. et al. (2014) ‘Caveats for the Use of Operational

Electronic Health Record Data in Comparative

Effectiveness Research’, Medical care. NIH Public

Access, 51(August), pp. S30–S37.

Inmon, W. H. (2002) Building the data warehouse, John

Wiley & Sons, Inc.

Jensen, P. B., Jensen, L. J. and Brunak, S. (2012) ‘Mining

electronic health records: towards better research

applications and clinical care’, Nature Reviews Genetics.

Nature Publishing Group, 13(6), pp. 395–405.

Johnson, K. E. et al. (2014) ‘How the provenance of

electronic health record data matters for research: a case

example using system mapping.’, EGEMS (Washington,

DC). Academy Health, 2(1), p. 1058.

Kasthurirathne, S. N. et al. (2015) ‘Enabling Better

Interoperability for HealthCare: Lessons in Developing a

Standards Based Application Programing Interface for

Electronic Medical Record Systems’, Journal of Medical

Systems, 39(11).

Katal, A., Wazid, M. and Goudar, R. H. (2013) ‘Big data:

Issues, challenges, tools and Good practices’, in 2013 6th

International Conference on Contemporary Computing,

IC3 2013. IEEE, pp. 404–409.

Krishnankutty, B. et al. (2012) ‘Data management in clinical

research: An overview.’, Indian journal of pharmacology.

Wolters Kluwer -- Medknow Publications, 44(2), pp.

168–72.

Kupwade Patil, H. and Seshadri, R. (2014) ‘Big Data Security

and Privacy Issues in Healthcare’, in 2014 IEEE

International Congress on Big Data. IEEE, pp. 762–765.

Lee, E. S. et al. (2015) ‘Characterizing Secondary Use of

Clinical Data’, AMIA Summits on Translational Science

Supporting Reuse of EHR Data in Healthcare Organizations: The CARED Research Infrastructure Framework

Proceedings. American Medical Informatics Association,

2015, pp. 92–96.

Lin, J. and Haug, P. J. (2006) ‘Data Preparation Framework

for Preprocessing Clinical Data in Data Mining’, AMIA

Annual Symposium proceedings.

Lokhandwala, S. and Rush, B. (2016) ‘Objectives of the

secondary analysis of electronic health record data’, in

Secondary Analysis of Electronic Health Records. Cham:

Springer International Publishing, pp. 3–7.

Lu, Z. and Su, J. (2010) ‘Clinical data management: Current

status, challenges, and future directions from industry

perspectives’, Open Access Journal of Clinical Trials.

McCarty, C. A. et al. (2011) ‘The eMERGE Network: A

consortium of biorepositories linked to electronic medical

records data for conducting genomic studies’, BMC

Medical Genomics, 4(1), p. 13.

Menger, V. et al. (2016) ‘Transitioning to a Data Driven

Mental Health Practice: Collaborative Expert Sessions for

Knowledge and Hypothesis Finding’, Computational and

Mathematical Methods in Medicine, 2016.

Menger, V. et al. (2017) ‘DEDUCE: A pattern matching

method for automatic de-identification of Dutch medical

text’, Telematics and Informatics.

Menger, V., Scheepers, F. and Spruit, M. (2018) ‘Comparing

Deep Learning and Classical Machine Learning

Approaches for Predicting Inpatient Violence Incidents

from Clinical Text’, Applied Sciences. Multidisciplinary

Digital Publishing Institute, 8(6), p. 981.

Meystre, S. M. et al. (2017) ‘Clinical Data Reuse or

Secondary Use: Current Status and Potential Future

Progress’, Yearbook of Medical Informatics. Georg

Thieme Verlag KG, 26(01), pp. 38–52.

De Moor, G. et al. (2015) ‘Using electronic health records for

clinical research: The case of the EHR4CR project’,

Journal of Biomedical Informatics, 53, pp. 162–173.

Murdoch, T. B. and Detsky, A. S. (2013) ‘The Inevitable

Application of Big Data to Health Care’, Jama. American

Medical Association, 309(13), p. 1351.

Murphy, S. N. et al. (2010) ‘Serving the enterprise and

beyond with informatics for integrating biology and the

bedside (i2b2)’, Journal of the American Medical

Informatics Association. American Medical Informatics

Association, 17(2), pp. 124–130.

Murphy, S. N. et al. (2012) ‘Current State of Information

Technologies for the Clinical Research Enterprise across

Academic Medical Centers’, Clinical and Translational

Science. Wiley-Blackwell, 5(3), pp. 281–284.

Nair, S., Hsu, D. and Celi, L. A. (2016) ‘Challenges and

opportunities in secondary analyses of electronic health

record data’, in Secondary Analysis of Electronic Health

Records. Cham: Springer International Publishing, pp.

17–26.

Obermeyer, Z. and Lee, T. H. (2017) ‘Lost in Thought — The

Limits of the Human Mind and the Future of Medicine’,

New England Journal of Medicine. Massachusetts

Medical Society, 377(13), pp. 1209–1211.

Peek, N., Holmes, J. H. and Sun, J. (2014) ‘Technical

challenges for big data in biomedicine and health: data

sources, infrastructure, and analytics’, Yearbook of

medical informatics.

Peng, R. D. (2011) ‘Reproducible Research in Computational

Science’, Science. American Association for the

Advancement of Science, 334(6060), pp. 1226–1227.

Pollard, T. et al. (2016) ‘Data preparation’, in Secondary

Analysis of Electronic Health Records. Cham: Springer

International Publishing, pp. 101–114.

Priest, E. L. et al. (2014) ‘Developing electronic data methods

infrastructure to participate in collaborative research

networks.’, EGEMS (Washington, DC). Academy Health,

2(1), p. 1126.

Priyanka, K. and Kulennavar, N. (2014) ‘A survey on big data

analytics in health care’, IJCSIT, 5(4), pp. 5865–5868.

Raghupathi, W. and Raghupathi, V. (2014) ‘Big data

analytics in healthcare: promise and potential’, Health

Information Science and Systems. BioMed Central, 2(1),

p. 3.

Rea, S. et al. (2012) ‘Building a robust, scalable and

standards-driven infrastructure for secondary use of EHR

data: The SHARPn project’, Journal of Biomedical

Informatics. NIH Public Access, 45(4), pp. 763–771.

Roski, J., Bo-Linn, G. W. and Andrews, T. A. (2014)

‘Creating value in health care through big data:

Opportunities and policy implications’, Health Affairs.

Project HOPE - The People-to-People Health Foundation,

Inc., 33(7), pp. 1115–1122.

Safran, C. (2014) ‘Reuse Of Clinical Data’, IMIA Yearbook.

Schattauer Publishers, 9(1), pp. 52–54.

Strauss, A. and Corbin, J. (1990) Basics of Qualitative

Research, Newbury Park, CA: Sage.

Wang, Y. et al. (2017) ‘An integrated big data analytics-

enabled transformation model: Application to health

care’, Information & Management.

Wang, Y. and Hajli, N. (2017) ‘Exploring the path to big data

analytics success in healthcare’, Journal of Business

Research. Elsevier, 70, pp. 287–299.

Weber, G. M. et al. (2009) ‘The Shared Health Research

Information Network (SHRINE): A Prototype Federated

Query Tool for Clinical Data Repositories’, Journal of the

American Medical Informatics Association. American

Medical Informatics Association, 16(5), pp. 624–630.

Wickham, H. (2014) ‘Tidy Data’, Journal of Statistical

Software, 59(10), pp. 1–23.

Wilson, G. et al. (2014) ‘Best Practices for Scientific

Computing’, PLoS Biology. Edited by J. A. Eisen. Public

Library of Science, 12(1), p. e1001745.

Youssef, A. E. (2014) ‘A Framework for secure healthcare

systems based on big data analytics in mobile cloud

computing environments’, International Journal of

Ambient Systems and Applications.

HEALTHINF 2019 - 12th International Conference on Health Informatics
