Proposing a Co-simulation Model for Coupling Heterogeneous Character

Animation Systems

Felix Gaisbauer

1,2

, Jannes Lehwald

, Philipp Agethen

1,2

, Julia Sues

and Enrico Rukzio

Daimler AG, Wilhelm-Runge-Str. 11, 89081 Ulm, Germany

Ulm University, James-Franck Ring, 89081 Ulm, Germany

Keywords:

Character Animation, Motion Synthesis Framework, Motion Model Unit, Co-simulation.

Abstract:

Nowadays, character animation systems are used in different domains ranging from gaming to production

industries. The utilized technologies range from physics based simulation, inverse kinematics and motion

blending to machine learning methods. Most of the available approaches are however tightly coupled with the

development environment, thus inducing high porting efforts if being incorporated into different platforms.

Currently, no standard exists which allows to exchange complex character animation approaches. A com-

prehensive simulation using these heterogeneous technologies is therefore not possible, yet. In a different

domain than character animation, the Functional Mock-up Interface (FMI) has already solved this problem.

Initially being tailored to industrial needs, the standards allows to exchange dynamic simulation approaches

like solvers for mechatronic components. Recently, based on this standard, a novel concept has been pro-

posed which allows to embed various character animation approaches within a common framework using so

called Motion Model Units. In this paper, we extend the proposed Motion Model Unit architecture and present

a novel co-simulation approach which orchestrates several sub-simulations in a common environment. The

proposed co-simulation can handle concurrent motions, generated by heterogeneous character animation tech-

nologies, while creating feasible results. The applicability of the novel co-simulation approach is underlined

by a user study.

1 INTRODUCTION

Motion synthesis is an important aspect of many sec-

tors in nowadays life, ranging from gaming to auto-

motive industry. In recent years, there has been a vast

progress in terms of character animation techniques,

ultimately increasing naturalness and realism. The

predominant proportion of the utilized approaches

rely on motion capture data and use motion blend-

ing techniques. Apart from this, there are approaches

which are based on artiﬁcial intelligence (Li et al.,

2017; Holden et al., 2017), physics based simulation

(Tsai et al., 2010) or statistical concepts (Min and

Chai, 2012). While motion blending techniques are

widely spread and provided by most target environ-

ments, the latter approaches are commonly tailored to

speciﬁc platforms and use-cases. To incorporate these

systems into novel platforms, high porting efforts are

usually the consequence. Standardized components,

embedding heterogeneous approaches would signif-

icantly reduce these porting efforts, while providing

additional beneﬁts. For instance, complex scenarios

such as occurring in automotive production could be

simulated whereas specialized technologies for simu-

lations in collision-afﬂicted scenarios and data-driven

walk animations could be combined.

However, for exchanging context dependent char-

acter animation algorithms, there is no standardized

solution available, yet. In a different domain than

character animation, the Functional Mock-up Inter-

face (FMI) (Blochwitz et al., 2011) has already solved

this problem by encapsulating various simulation ap-

proaches using a common interface. Recently, based

on this FMI standard a novel concept has been pro-

posed which allows to embed various character an-

imation approaches within a common framework us-

ing so called Motion Model Units (MMU) (Gaisbauer

et al., 2018b). In this paper, we extend the proposed

Motion Model Interface architecture and present a

novel co-simulation approach which is able to or-

chestrates several sub-simulations embedded within

MMUs. The proposed co-simulation can handle con-

current motions, generated by heterogeneous charac-

ter animation technologies, while creating feasible re-

Gaisbauer, F., Lehwald, J., Agethen, P., Sues, J. and Rukzio, E.

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems.

DOI: 10.5220/0007356400650076

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 65-76

ISBN: 978-989-758-354-4

sults. The applicability of the novel co-simulation ap-

proach is underlined by a user study.

The remainder of the paper is structured as fol-

lows: First the state of the art with regard to digital hu-

man simulation, co-simulation and the FMI standard

is revisited. Second, the concept of the Motion Model

Unit architecture, which forms the basis of the pro-

posed approach, is explained. Afterwards, the novel

co-simulation concept is presented in detail. Based on

a user study and exemplary task scenarios, the appli-

cability of the novel approach is evaluated. Finally, a

further conclusion and an outlook are given.

2 STATE OF THE ART

The concept of the novel co-simulation approach

builds upon a large body of related work. In the fol-

lowing, an overview of the state of the art in the con-

text of digital human simulation as well as regarding

co-simulation and the FMI standard is provided.

2.1 Character Animation Technologies

Character animation technologies are used through-

out heterogeneous domains. In general, the utilized

technologies can be subdivided into data-driven and

model-driven approaches (M

uller et al., 2018).

The predominant proportion of the data-driven ap-

proaches are based on motion blending techniques

and utilize blending trees contained in state machines.

These methods provide natural motions while being

computationally efﬁcient. The existent approaches

can be subdivided into Barycentric-, K-Nearest-

Neighbor-, Radial Basis Function-interpolation and

Inverse blending (Feng et al., 2012a). Based on the

automatic composition of segmented motion capture

clips, motion graphs allow to generate a sequence of

natural motions (Kovar et al., 2008). Min and Chai

(Min and Chai, 2012) presented a statistical approach

of the motion graphs to include the uncertainty of hu-

man motion. Due to the growing computational ca-

pabilities, recently, deep learning based approaches

received signiﬁcant attention. Recent works present

deep learning based animation systems (Holden et al.,

2017; Li et al., 2017; Gaisbauer et al., 2018c) which

offer great potential for modeling natural motions.

Besides the data-driven approaches, model-driven

systems are also intense subject of research. In this

category physics based character animations are fre-

quently used. The approaches can be subdivided

into trajectory optimization and reinforcement learn-

ing (M

uller et al., 2018). Approaches like (Tsai

et al., 2010) model the locomotion behaviour based

on an inverted pendulum. Others, such as (Falout-

sos et al., 2001) present composable controller for

physics based simulation. Moreover, inverse kinemat-

ics (IK) approaches such as (Aristidou and Lasenby,

2011; Buss, 2004) are also frequently used to com-

pute postures of digital avatars. In practice, IK is of-

tentimes utilized in combination with data-driven ap-

proaches or path planning algorithms.

Whereas data-driven approaches rely on recorded

motion capture data, model-driven approaches gener-

ate natural motions based on mathematical and phys-

ical models. Consequently, data-driven approaches

only cover the range which is given by the underly-

ing data, whereas model driven approaches are more

generic. The applicability of the different technolo-

gies therefore strongly depends on the use-case do-

main. For instance, in heavily collision-afﬂicted sce-

narios data-driven approaches are less suited since a

large amount of data sets is required.

2.2 Character Animation Systems

An exhaustive number of tools for simulating human

motion has been developed for various scopes of ap-

plications.

Tools like IPS IMMA (Hanson et al., 2014), San-

tos and Siemens Jack focus on the analysis and design

of workplaces and products. Since the addressed use-

cases often contain collision-afﬂicted environments,

the systems mainly utilize model-driven simulation

technologies. Musculoskeletal and bio-mechanical

modeling tools like AnyBody and OpenSim (Delp

et al., 2007) use highly-detailed DHMs including

a ﬁne-grained representation of musculoskeletal- or

organ-system. These tools precisely model motions

of the human body, however, at the expense of the

real-time capability.

Another cluster which received signiﬁcant atten-

tion during the last years, is the group of character an-

imation systems and game engines like Unity , Unreal

Engine and CryEngine. These tools provide gaming-

related platforms including various tools (e.g. retar-

geting of DHMs) to easily animate human motion.

Even though achieving outstanding results in terms of

naturalness, difﬁcult movements in collision-afﬂicted

setting can only be scarcely simulated.

Smartbody (Thiebaux et al., 2008) provides an

animation system which is focused on the genera-

tion of human motion utilizing hierarchical motion

controllers. These controllers are embedded in the

Smartbody platform, thus being limited in their in-

teroperability. Moreover, the authors explicitly state

that they do not intent to create a platform indepen-

dent and modular architecture for exchanging char-

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

acter animations systems, since in their opinion those

architectures either under specify the interface and re-

strict the capabilities (Shapiro, 2011). Other frame-

works which provide a modular and exchangeable ar-

chitecture are Adapt (Shoulson et al., 2014) and Real

actor (Cerekovic et al., 2009). Whereas the ﬁrst is

used for agent prototyping, Real actor represents a

behavior realization system for embodied conversa-

tional agents.

Recently, a novel framework which combines het-

erogeneous character animation approaches in a com-

mon system was presented (Gaisbauer et al., 2018b).

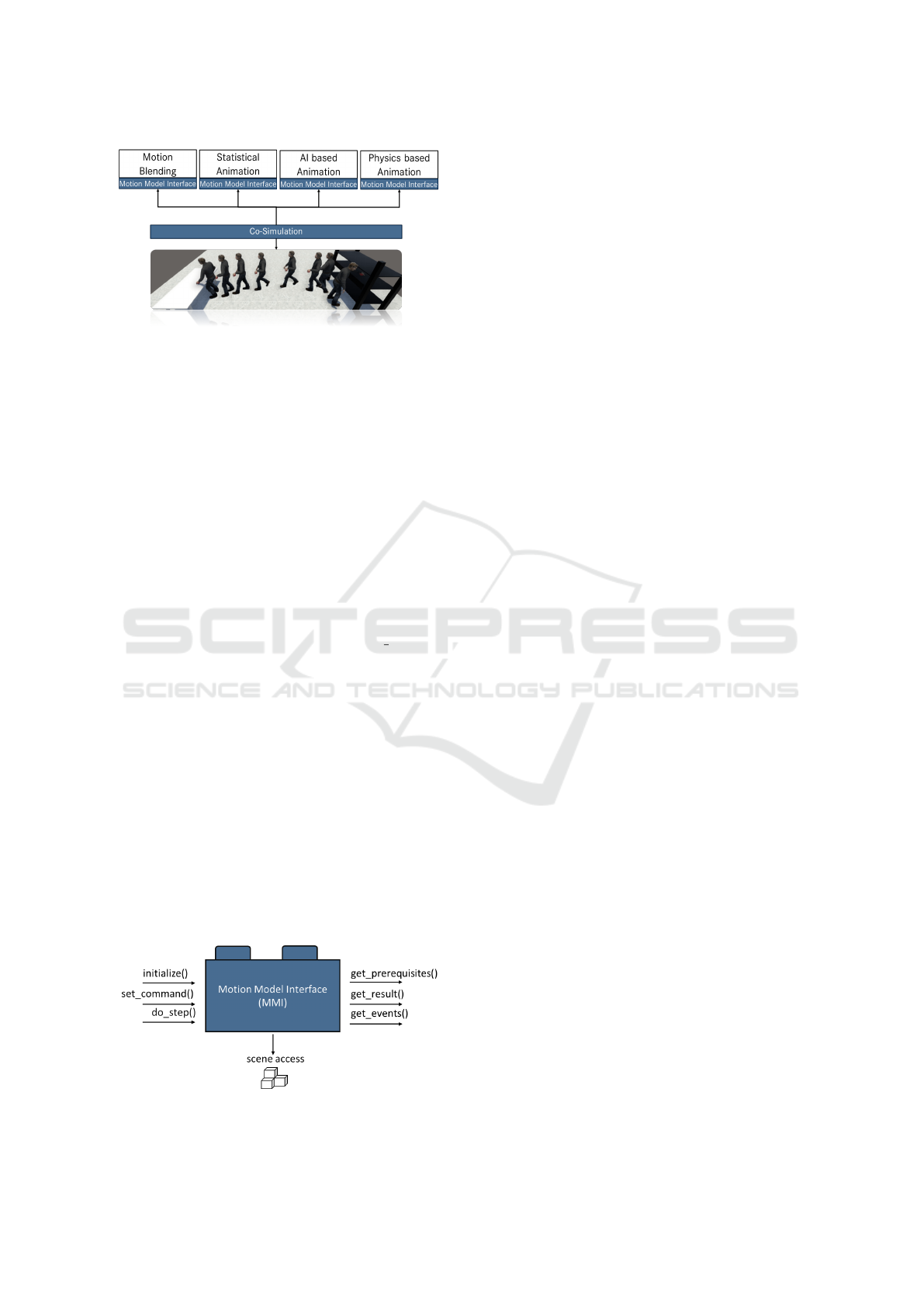

The framework is based on modular blocks called

Motion Model Units which encapsulate the speciﬁc

technologies and algorithms (Gaisbauer et al., 2018a).

The proposed concept within this work strongly

builds upon the presented Motion Model Unit archi-

tecture.

2.3 Co-simulation and FMI Standard

For exchanging motions between different simula-

tion tools, there are various formats such as Biovi-

sion Hierarchy (bvh) and Filmbox (fbx) available.

Even though these formats are widely used, they are

only capable of storing pre-generated motions (e.g.

recorded by a motion capture system). Hence, it is not

possible to integrate motion generations algorithms

within the ﬁles itself.

For exchanging simulation functionality in a dif-

ferent domain than motions, a widely used solution

is available. Functional Mock-up Interface (FMI) is a

standard that supports the exchange of dynamic simu-

lation models as well as its co-simulation while being

tool independent. This standard is based on a com-

bination of xml-ﬁles and compiled C-code (ITEA,

2011). An instance of a FMI component is called

a Functional Mock-up Unit (FMU). Using the FMI

standard, it is possible to perform a simulation of dif-

ferent FMUs, containing appropriate solvers, whereas

only the simulation results of the FMUs are ex-

changed after deﬁned time steps. This approach is

called FMI for co-simulation (Blochwitz et al., 2011).

The concept of modular motion units, which is also

referred as Motion Model Interface (MMI) approach,

builds upon the idea of the FMI concept to further ex-

tend the standard to simulate human motion

Orchestrating various sub-simulations as intended

by the FMI or MMI approach, requires a supe-

rior instance managing the distributed sub-systems.

In general, this orchestration process is named co-

simulation, whereas the co-simulator updates the

components and incorporates the results. Recently,

in literature various co-simulation approaches for the

FMI standard have been proposed (Bastian et al.,

2011; Van Acker et al., 2015; Wang and Baras, 2013),

however, these systems predominantly focus on sig-

nal ﬂow modeling mainly in the mechatronical do-

main. Since the co-simulation of character animation

systems has entirely different requirements, these so-

lutions can not be directly used.

Summarizing the state of the art with regard to

co-simulation approaches, it can be stated that no

approach is currently available for the orchestration

of heterogeneous character animation systems. To

bridge this gap, in this paper, a novel co-simulation

concept is proposed which can be applied to the MMI

approach. The concept allows to orchestrate and in-

corporate various character animation techniques in a

common system.

3 A MODULAR FRAMEWORK

FOR CHARACTER

ANIMATION SYSTEMS

Based on the FMI approach, a concept for exchanging

character animation systems is introduced in (Gais-

bauer et al., 2018b). With the FMI standard, com-

plex systems like industrial machines can be simu-

lated using specialized approaches such as solvers of

pneumatic cylinders or kinematic models. The re-

spective sub-simulations are embedded within stan-

dardized modules (FMUs) (Blochwitz et al., 2011).

Several of these co-simulations are sequenced by a

co-simulator. This component communicates with the

FMUs at discrete points in time and incorporates the

computed results of all heterogeneous approaches in

a common simulation. Transferring this concept to

the domain of character animation, so called Motion

Model Interfaces (MMIs) and their implementations

called Motion Model Units (MMUs) are presented

which allow to incorporate diverse character anima-

tion approaches into a common framework. Figure 1

shows the main idea of the approach.

3.1 Motion Model Units

The proposed MMUs are an essential part of this

modular concept and provide the basic interface for

encapsulating different character animation systems

and technologies (see Figure 1 top). These units

contain the actual animation approach, being imple-

mented in the required platform and programming

language. For instance, an actual MMU can com-

prise a data-driven algorithm implemented in Python,

as well as model-based approaches realized in C++.

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems

Figure 1: Principle of the Motion Model Unit approach.

Using standardized units for encapsulating heterogeneous

character animation approaches and a co-simulation, multi-

ple systems can be incorporated into a common platform.

By utilizing a common interface, and inter-process

communication, the MMUs can be accessed indepen-

dent of the platform. Thus, the communication and

workﬂow is only driven by the functionality provided

by the interface and not by the speciﬁc environments.

Figure 2 gives an overview of the provided key func-

tionality of the interface.

The individual MMUs are responsible for gener-

ating speciﬁc kinds of motion (e.g. locomotion be-

haviour or grasp modeling). Each MMU provides the

functionality to set the intended motion instruction,

as well as getting prerequisites for executing the mo-

tion. Moreover, the MMUs comprise a do step rou-

tine which is executed for each frame to be simulated.

In this context, the actual posture at the given frame

is computed by the speciﬁc technology. For each

frame, the MMU provides output parameters describ-

ing the generated posture, it’s constraints, as well as

intended scene manipulations and events. Since most

motion generation approaches strongly rely on spatial

information of the environment and the digital human

representation, the communication with the scene is

an important aspect for realizing such an encapsula-

tion. Thus, each MMU can access the information

provided by the scene through a deﬁned interface (see

Figure 2 scene access). In this way, the actual scene

representation can be embedded in diverse target envi-

ronments. Considering the concurrency between dif-

ferent MMUs, manipulations of the scene which are

Figure 2: Illustration of the key functionality of the pro-

posed Motion Model Unit interface.

intended by the MMUs are not directly written back

to the scene, instead these are provided as an output

of the simulation step and are furthermore processed

by a superior instance.

3.2 Concept of Co-simulation

Having distinct MMUs comprising speciﬁc simula-

tion approaches, the separately generated postures

must be merged and further processed to obtain nat-

ural motions. Therefore a co-simulator is required,

which orchestrates the actual execution of the MMUs.

In this context, the component merges and overlaps

the motions, while considering the constraints of the

postures. Since the scope of the framework is to in-

corporate strongly heterogeneous character animation

systems, the individual MMUs might comprise en-

tirely different skeleton structures and anthropome-

tries. To utilize these heterogeneous results in a

common platform, a retargeting to a global reference

skeleton is required for each MMU.

Moreover, since two consecutive MMUs might

start/end with a different posture (e.g. MMU1 ends

with t-Pose, MMU2 starts with idle pose), the tran-

sition between the respective units must be explic-

itly modeled. Even though the authors of (Gaisbauer

et al., 2018b) proposed the basic concept of the mod-

ular MMI architecture and a basic workﬂow for the

co-simulation, no detailed conception and implemen-

tation of such a co-simulation is available, yet.

4 NOVEL CO-SIMULATION

APPROACH

In principle, the above described framework allows to

technically incorporate heterogeneous character ani-

mation systems in a common framework. However,

several questions are left open. In particular it is un-

clear how the gathered results of different MMUs can

be combined to generate feasible postures. Moreover,

the handling of concurrent motions using distinct

MMUs has not been addressed yet. In the follow-

ing, we present a novel co-simulation concept which

is able to orchestrate various MMUs while produc-

ing feasible results. The co-simulation works inde-

pendently of the utilized animation technology within

the respective MMUs. Furthermore, the concurrent

behaviour of motions is considered and modeled.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

4.1 Co-simulation Process &

Hierarchical MMU Modeling

Based on speciﬁed motion instructions such as ”walk

to table” and ”pick up object from table”, the co simu-

lation needs to incorporate and overlap several differ-

ent postures generated by the MMUs. To realize the

desired behaviour, several concepts ranging from the

hierarchical modeling to constraint handling and the

actual workﬂow need to be deﬁned.

Hierarchical MMU Modeling. The proposed co-

simulation model builds upon the concept of hier-

archical motion controllers ﬁrst introduced by Kall-

mann et al. (Kallmann and Marsella, 2005). As de-

scribed in (Feng et al., 2012b), the state of the charac-

ter is manipulated by a series of stacked controllers.

The output of the previous controller is set as input of

the subsequent one. Figure 3 visualizes the concept

transferred to the MMUs.

Each controller knows the character state of the

previous step, as well as the state during the cur-

rent phase. The controller can either override, mod-

ify or ignore the state of the virtual character. In

(Feng et al., 2012b), the authors propose to uti-

lize a generalization-specialization hierarchy, which

means that lower priority controllers typically control

a greater number of body parts, while higher-priority

controllers control fewer. In this context a full body

motion (e.g. idle) is executed ﬁrst, while more spe-

ciﬁc motions such as grasping are executed later/ with

a higher priority.

In the newly proposed co-simulation model, each

MMU has a speciﬁc priority in analogy to the afore-

mentioned concept. The priorities of the respective

MMUs are assigned by the co-simulator based on the

priority, characteristics and the involved body regions

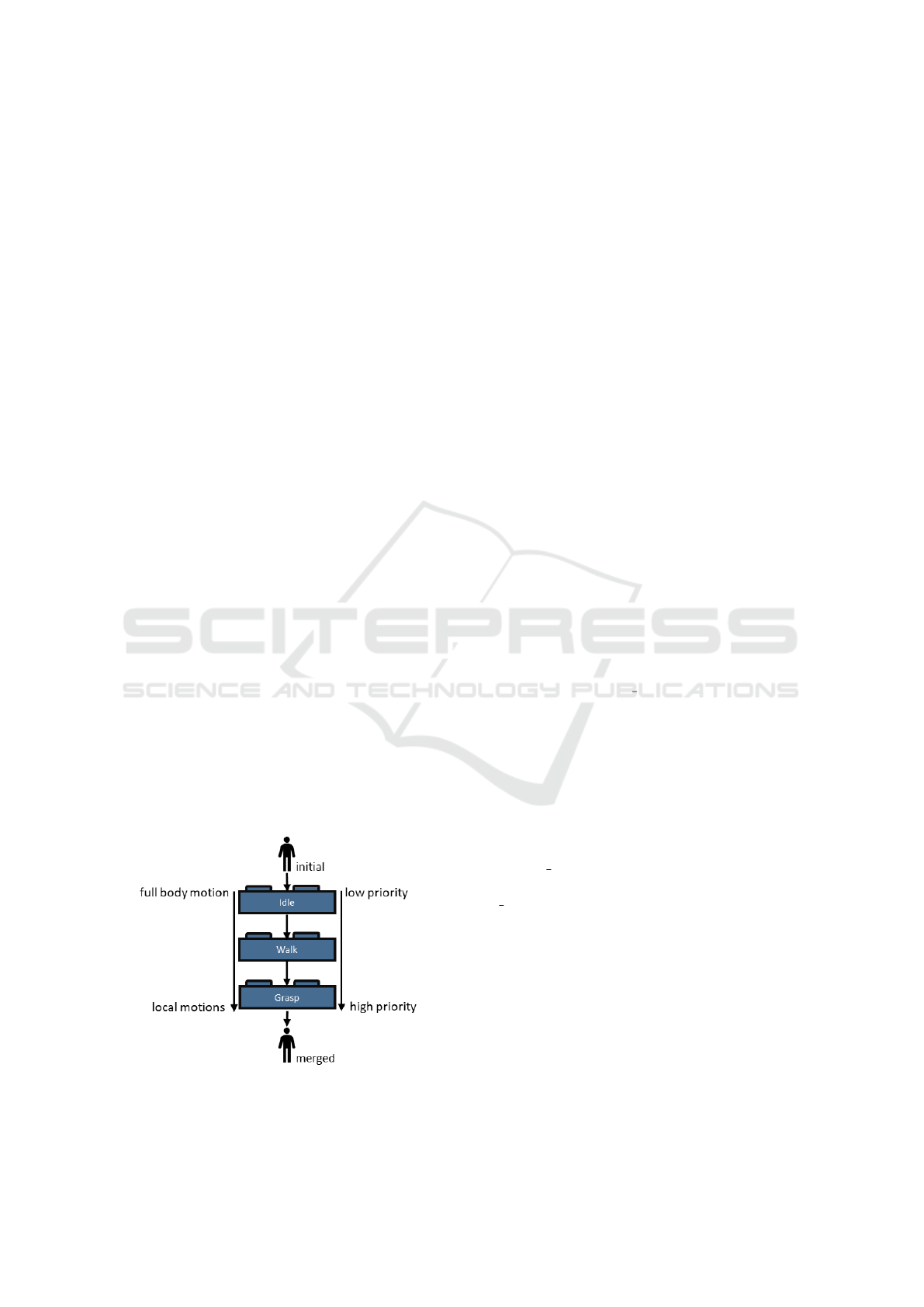

Figure 3: Concept of hierarchical motion-controllers as

proposed by (Feng et al., 2012b) applied to the Motion

Model Units.

of the given motion instruction (e.g. walking = low

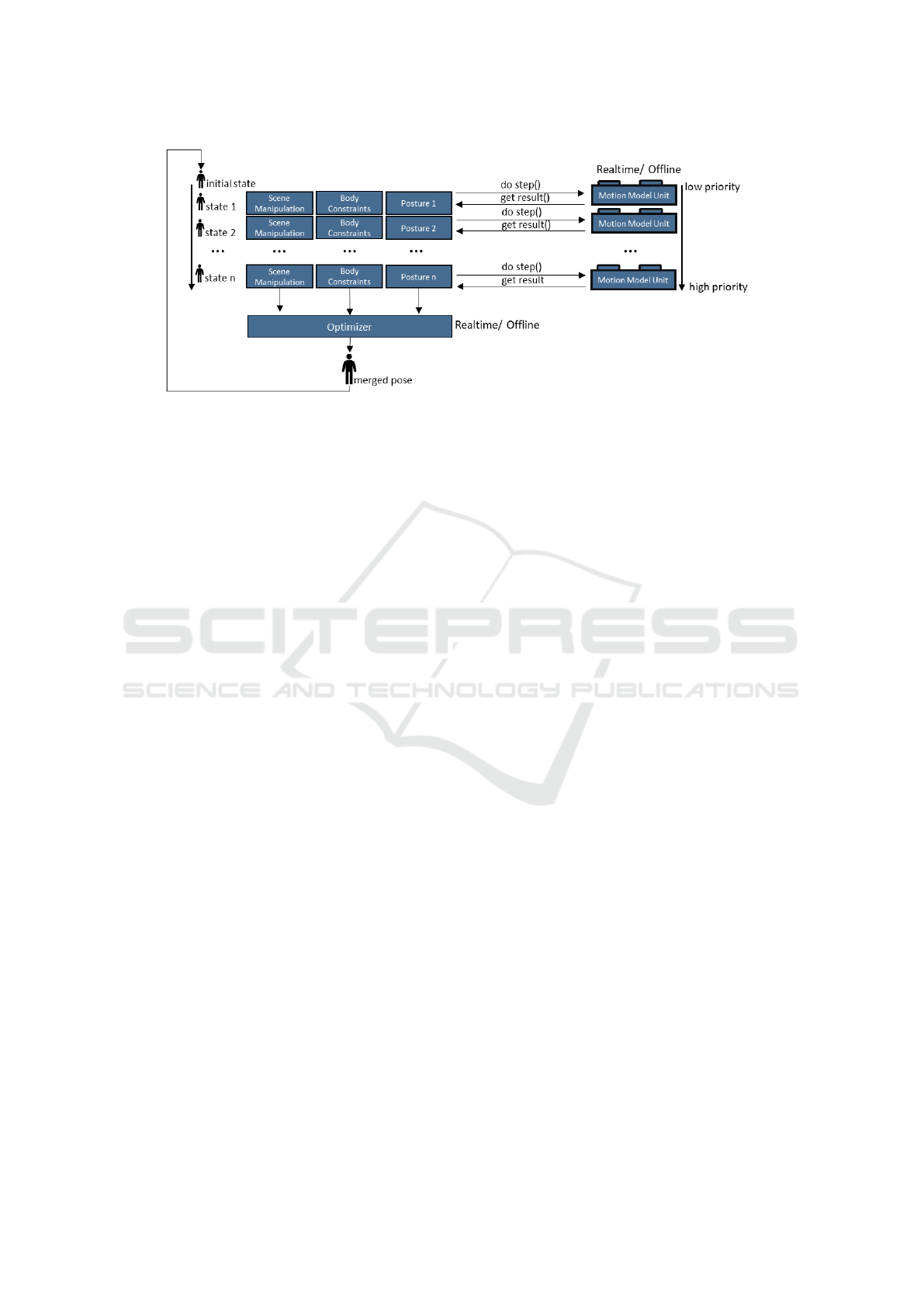

priority, grasping = high priority). Figure 4 gives an

overview of the newly proposed co-simulation model

and its workﬂow.

Constraint Deﬁnition. If the above illustrated con-

cept of hierarchical MMUs is strictly applied, the

MMUs with higher priorities might completely over-

write the results of the previous ones, thus neglecting

relevant criteria of the preceding posture. To prevent

this, each MMU can deﬁne speciﬁc body constraints

preserving the main features of the posture. For in-

stance, a MMU which focuses on locomotion can set

the foot and hip position as essential constraints of

the posture. On the other hand, a grasp motion marks

the hand position and ﬁnger transformations as crucial

constraint. The set of available constraint types in the

proposed framework is limited to a ﬁnite amount. The

co-simulator stores the constraints of the respective

MMUs (see Figure 4 Body Constraints) for further

considerations and processing. Analogously scene-

manipulations intended by the MMU are also stored

and further processed.

Co-simulation Workﬂow. In general, the input of

the co-simulation is a set of given motion instruc-

tions with logical dependencies between each other

(e.g. put-down starts after walk is ﬁnished). The co-

simulation evaluates these conditions and starts the

respective MMU via set command, if the conditions

are fulﬁlled. Afterwards, the started MMU is marked

as active. Analogously, termination criteria are also

handled by the co-simulation.

As illustrated in Figure 4, in every simulation step,

the co-simulator executes each active MMU accord-

ing to its priority, starting with the lowest. At the be-

ginning of the frame, the initial state is provided as in-

put which corresponds to the merged result of the last

frame. Next, the respective MMU is executed by call-

ing the do step function, whereas the computed re-

sults of the current frame are obtained by utilizing the

get result method. The results comprise the generated

posture, body constraints, as well as intended scene

manipulations. The gathered results of the MMU are

stored by the co-simulator and are further integrated

into the current state of the character.

Furthermore, the constraint register is utilized to

generate a state which represents the constrained pos-

ture at the present evaluation stage. In total there are

three different states accessible from the MMU: ini-

tial, current state and current state constrained. In

particular, it is up to the speciﬁc MMU implementa-

tion of how to consider and incorporate these states

into the respective model. Note, that between each

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems

Figure 4: Illustration of the proposed co-simulation model. The MMUs are executed for each frame according to their priority.

The results which comprise the actual character posture, body constraints as well as scene manipulations are stored in a register

within the co-simulator. These results are later on merged to a single feasible posture by an optimization algorithm.

exchange of postures a retargeting between the differ-

ent skeletons is performed.

In general, depending on the available MMUs and

conﬁgurations, the merging and processing of the

postures might be already established by the hierar-

chical execution of the MMUs. However, to generate

optimized results fulﬁlling all constraints, a separate

optimization stage (see 4 Optimizer) is necessary.

Modeling the Transitions Between Postures. De-

spite the scheduling and posture merging process, the

modelling of the transition between postures of differ-

ent frames is an essential aspect to obtain feasible mo-

tions. In most animation systems, motion blending is

commonly used for this purpose. By applying cross-

fading between different motions, the transitions can

be smoothly interpolated. However, in contrast to an-

imation clips, the content of the speciﬁc MMU is not

known and dynamically generated. Moreover, each

MMU might have speciﬁc parameters for the tran-

sition between different postures. Therefore a sim-

ple, globally performed cross-fading is not possible,

without possibly violating constraints. To establish a

smooth transition between various postures generated

by different MMUs, the novel co-simulation approach

builds upon two concepts.

First, in the framework, the constraints deﬁned

by the MMUs are not actively removed by the co-

simulator. Thus, if a MMU ﬁnishes the motion and

has end constraints such as ”keep hand position”

which preserve the posture, the constraints remain to

be considered by the posture optimization until be-

ing actively removed. Consequently, unnatural transi-

tions with gaps between the postures can be avoided

if end constraints are speciﬁed.

Second, if a MMU ﬁnishes its motion and has

no active constraints speciﬁed (e.g. grasp object), it

needs to ensure that the ending posture matches the

posture of the character. The transition modeling is

therefore internally performed by the MMU, whereas

the speciﬁc parameterization and knowledge of the

MMU can be used. The process can be principally

considered as a distributed modeling of the transitions

which is in contrast to commonly performed global

motion blending. In this way, it is ensured that smooth

transitions between the previous MMU in hierarchy

and the respective MMU are obtained, after the MMU

is ﬁnished.

Even though natural transitions can be obtained

by applying the above illustrated concept, in general,

the approach does not ensure a globally feasible solu-

tion. Therefore the posture transitions and constraints

are further considered within the posture optimization

stage.

4.2 Posture Optimization

After having obtained a set of different character pos-

tures, constraints and scene manipulations, all with

deﬁned priorities, next these have to be merged in or-

der to generate a feasible posture and scene interac-

tions. In general, to obtain realistic motions two dif-

ferent kind of constraints must be considered. First

the posture constraints within the frame itself, second

the constraints between consecutive frames. The for-

mer are required to model an appropriate static pos-

ture considering the heterogeneous characteristics of

the different MMUs, while the latter are important to

model continuous and realistic motions.

Given the available input data and constraints, the

problem can be formulated as a constraint optimiza-

tion problem with speciﬁc constraints for the inter-

frame and posture suitability. In literature there are

various optimization algorithms for solving these kind

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

of problems available (Powell, 1978; Homaifar et al.,

1994). Depending on the desired quality and algo-

rithm, the optimization might take more time, than

available in a real-time simulation. For certain use-

cases like automotive production planning real-time

performance is not important. However, for gaming

related use-cases real-time performance is essential.

Therefore the optimization approach has to be care-

fully chosen regarding the desired performance. In

general two classes of optimization approaches are

suggested - namely real-time and ofﬂine.

Ofﬂine Optimization. An ofﬂine optimization can

consider all constraints and body postures obtained

from the MMUs to gather (near) optimal results. In

this context, ergonomic optimization/comfort func-

tions such as proposed by (Hanson et al., 2014) can

be integrated and combined with sophisticated IK ap-

proaches. Moreover, the postures between consecu-

tive frames can be optimized with regard to energy

consumption or smoothness. In general, these ofﬂine

optimization approaches are appropriate for use-cases

where highly accurate motions and transitions are re-

quired, whereas depending on the speciﬁc domain the

objective functions can be adjusted in a ﬂexible man-

ner. Since the ofﬂine optimization has no real-time

requirements, the utilized MMUs do not necessarily

have to provide real-time performance. In this con-

text, MMUs for path planning, such as required for

modeling assembly paths in collision-afﬂicted envi-

ronments can be incorporated. In general, the MMUs

are also classiﬁed according to the real-time/ ofﬂine

scheme.

Real-time Optimization. For a real-time capable

optimization, it is not possible to use advanced op-

timization algorithms within each frame. Given the

hierarchical modeling of the MMUs, feasible postures

can be obtained for each frames, if the priorities are

speciﬁed in a correct way. Moreover, by applying the

transition modeling as proposed in 4.1, the MMUs in-

ternally handle the transition to the underlying char-

acter state or specify end constraints which preserve

the current posture. Utilizing an IK solver, the speci-

ﬁed constraints can be applied with minimal compu-

tational overhead, whereas the transition modeling is

fully performed by the MMUs.

4.3 Modeling Concurrent Motions

Given the previously described architecture, it is pos-

sible to execute arbitrary MMUs based on their pri-

ority and generate a merged character posture for

each frame. In general, the sequence of motions to

be executed must be provided as an input to the co-

simulation. Using formats like the Behaviour Markup

Language (BML) (Feng et al., 2012b), a basic sce-

nario such as walk to, pick-up and put-down can be

formulated. In this case the pick-up motion starts after

the walk to motion has been ﬁnished. Analogously,

the put-down motion has the prerequisites, that walk

to and pick-up must be ﬁnished. With the BML lan-

guage these conditional constraints which depend on

other BML instructions can be formulated. It is also

possible to model timing constraints. However, given

the language it is difﬁcult to formulate constraints

strongly related to the scene context, or which are

not known at the time the instructions are created.

Since the MMUs might comprise completely differ-

ent animation technologies, the prerequisites can only

be deﬁned by the MMU algorithms itself. Therefore

each MMU provides the functionality to specify the

required prerequisites for executing a speciﬁc motion.

Examining humanoid motions, it can be encoun-

tered that most of the performed motions are com-

monly executed in parallel. For instance, a grasp mo-

tion might be performed during walking, the speciﬁc

time and location when the grasping starts, however,

strongly depends on spatial constraints and prereq-

uisites of the actual grasp motion. Thus, it is not a

straightforward task to deﬁne the exact timing and all

constraints in before. To nevertheless cover the con-

current modeling in a generic manner within the co-

simulation, the get prerequisites method of the MMU

interface can be utilized. This method returns all con-

straints which have to be fulﬁlled in order to start the

speciﬁc motion. Depending on the implementation

and motion to be modeled, the constraints can address

vastly heterogeneous aspects such as the distance to a

target object or the maximum velocity of the avatar.

For modeling concurrent behavior, ﬁrst, the co-

simulation checks if all external conditions for start-

ing the MMU are fulﬁlled (e.g. time dependencies in

BML). If this is the case, next, the prerequisites of the

speciﬁc MMU instance are obtained and checked in

detail. If the prerequisites of the examined instruc-

tion are fulﬁlled, the respective motion can be started

using the motion instruction. Applied to the afore-

mentioned walking and grasping example, the grasp

motion can be automatically started during walking if

the required constraints such as distance to the target

object are fulﬁlled. By modeling the runtime speciﬁc

constraints in this way, the exact timing does not have

to be explicitly speciﬁed in before. Moreover, each

MMU implementation can adjust the constraints dy-

namically according to the used model.

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems

5 EVALUATION

After having outlined the concept of the novel co-

simulation approach, in this section the applicability

for simulating speciﬁc human motion tasks is vali-

dated within a user study. Summarizing the role of

the co-simulation, the main task is to merge and in-

corporate different postures obtained from any het-

erogeneous MMUs, while generating feasible results.

Therefore the target of the evaluation is to verify

whether the co-simulation can generate results which

do not decrease the quality of the individual motions.

5.1 Experimental Design

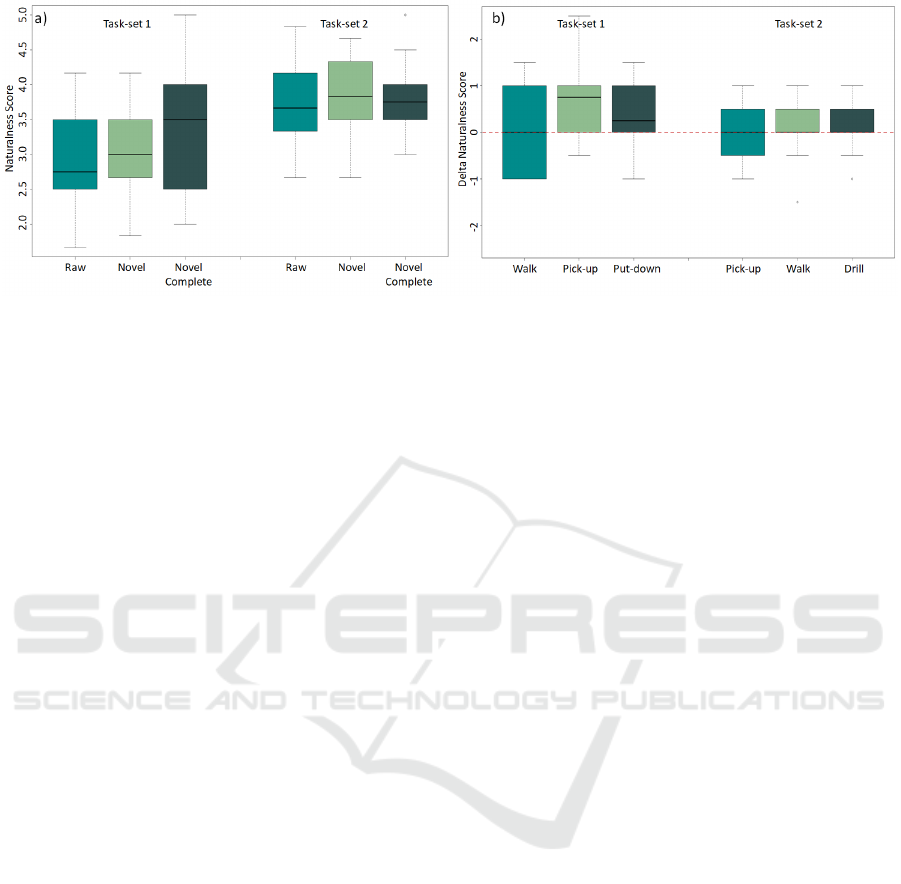

The validity of the co-simulation approach is mea-

sured by a user-study in which the participants rate

the naturalness of the generated motions. The over-

all target is to validate whether the co-simulation

can incorporate heterogeneous animation technolo-

gies while preserving the naturalness of the original

motions contained in the MMUs. For evaluating the

naturalness, only a few quantitative metrics have been

proposed, either focusing on partial aspects such as

walking, or lacking in accuracy. In general, motions

that humans have seen repeatedly are judged natural,

whereas motions that happen very rarely are not (Ren

et al., 2005). Therefore a user study has been selected

as appropriate measure.

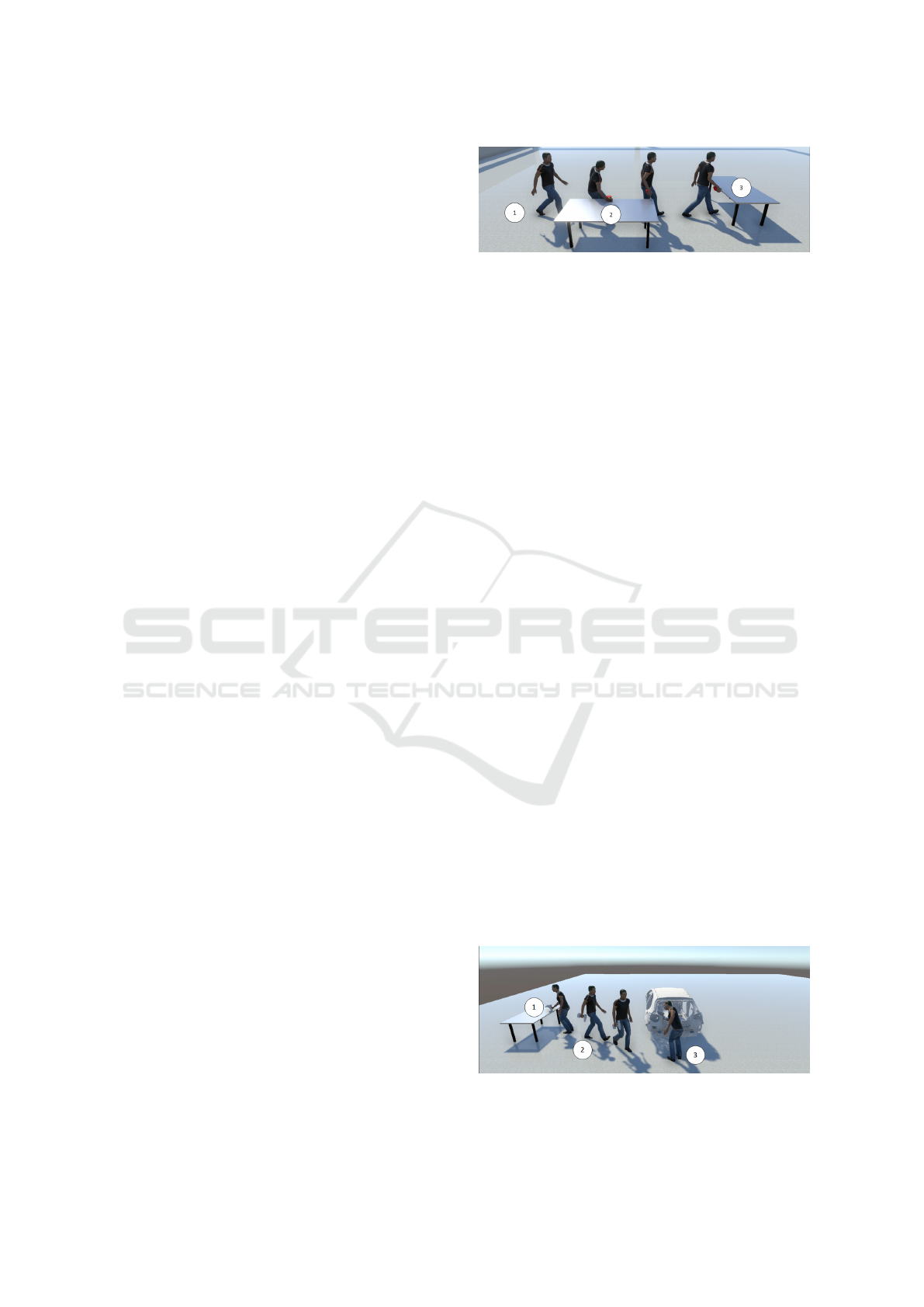

For the experiment, two sets of tasks to be per-

formed by the digital human are speciﬁed. Each

task-set comprises several sub-motions (e.g. walk,

pick-up, put-down) which are shown separately to

the participants. In addition to this, the sub-motions

generated by the novel co-simulation are shown as

well. Since the co-simulation overlaps various mo-

tions, the sub-motion walk can comprise additional

motions such as pick-up. To validate the overall nat-

uralness of the co-simulated result and its transitions,

a clip showing the overall task is also visualized. For

instance, this full clip can contain the motions walk,

pick-up and put-down, all temporally overlapped by

the co-simulator.

The participants have to rate the naturalness of the

motions, without knowing the different groups. Over-

all, the validity of the co-simulation can be proven if

the rating of the novel motions is not worse than the

individual sub-motions.

5.2 Apparatus

To measure the performance of the co-simulation, in

total two different task sets have been selected. Each

Figure 5: Experimental setup for task-set 1: The digital

character starts at (1), walks to the table and picks up the

red object (2). Finally the object is placed on the table (3).

task-set comprises three different sub-motions which

are realized by heterogeneous MMUs.

Task-set 1: Pick Up, Put Down One Handed. In

the ﬁrst task-set, the digital avatar walks to a table

and picks up a cube. Afterwards, the avatar walks to

the front of a second table and places the cube on the

surface. Figure 5 illustrates the experimental setup.

The different sub-motions are modeled using

varying technologies and platforms. The walk MMU

is based on the recent publication of (Holden et al.,

2017) which models the locomotion behaviour based

on deep neural networks (Unity, C#). The pick-

up implementation is based on a model-driven ap-

proach which uses path planning and inverse kinemat-

ics (C++). The put-down motion is realized using a

statistical motion synthesis approach in Python.

Task-set 2: Pick-up, Drill in Collision-afﬂicted

Area. The second task-set models a drill operation

in a collision-afﬂicted scenario (see Figure 6). First,

the avatar picks up an electric drill from a table. Next,

the avatar walks to the back of a vehicle and performs

a drill motion inside the trunk.

The walk MMU is based on the Unity Mecanim

animation system, whereas the pick-up motion is re-

alized by a physics based motion synthesis approach

build upon the avatar physics of deep motion (Unity,

C#). Moreover, for generating collision-free motions

within the car trunk, the drill motion is generated by

a model-driven approach using path planning and in-

verse kinematics (C++).

Figure 6: Experimental setup for task-set 2: The digital

character picks up an electric drill (1), walks to the car (2)

and performs a drill motion in the trunk (3).

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

Test System. The utilized co-simulation is imple-

mented in the Unity3D engine. All external MMUs

are accessed via TCP inter-process communication

using the deﬁned MMU interface. The time accu-

racy of the simulation has been set to 15 ms. To

map the resulting postures of the MMUs to a com-

mon skeleton, the retargeting functionality provided

by the Unity3D engine has been used. The pri-

orities of the MMUs have been set according to

the generalization-speciﬁcation approach proposed in

(Feng et al., 2012b).

5.3 Procedure

For validating the perceived realism of the simula-

tions, a questionnaire containing a ﬁve point Likert

scale has been used. Whereas 1 corresponds to a

strong disagreement, 5 corresponds to a very strong

agreement. The performed task sets are split into the

respective sub-tasks: walk, pick-up, put-down (task-

set 1) and pick-up, walk, drill (task-set 2). For each

sub-task the question targets the naturalness of the

motion. The recorded videos, which display the raw

motions, the co-simulated motions, as well as the

combined results are shown to each participant. To

control sequence effects, the order in which the clips

are shown is randomized for each participant. More-

over, all videos are presented in total twice.

5.4 Results

The results of the respective simulation approaches

are evaluated based on a survey conducted with 18

participants (5 females, 13 males, age: µ = 28.50,

σ = 8.15). Figure 7 illustrated the results of the per-

formed survey. For each task-set, three different plots

are shown. The ﬁrst plot (Raw) visualizes the mean

measured naturalness scores for showing the individ-

ual motions of task 1 (e.g. walk, pick-up, put-down).

The second plot (Novel) shows the obtained scores

for the individual motions generated by the novel co-

simulator. Note that these sub-motions might com-

prise simultaneous motions (e.g. grasping during

walking). The third plot (Novel Complete) repre-

sents the score for the complete clip, as created by the

new co-simulation. This clip contains all sub-motions

within the task-set orchestrated by the co-simulation.

Analogously, the subsequent plots represent the natu-

ralness scores for the second task-set.

Task-set1. The original sub-motions of task-set 1

(walk, pick-up, put-down) are generally rated as par-

tially natural, as the median value (m) of 2.75 illus-

trates. Moreover, the mean value can be denoted with

2.88, whereas σ = .67. In contrast, the rating of the

individual motions generated by the co-simulator is

slightly increased with a median of 3.00, µ = 3.18

and σ = .66. Additionally, the overall clip which con-

tains the co-simulated sequence of all motions scores

higher with a median of 3.50, µ = 3.41 and σ = .90.

Figure 7 b) additionally shows the differences in

rating of the individual sub-motions, set relative to

the raw motions. A positive value means that the co-

simulated results achieved better ratings while a neg-

ative value corresponds to a worse rating of the co-

simulated results. The walk motion achieved a me-

dian value of .00, µ = −.02 and σ = .82. For the

pick-up motion a median difference of .75, µ = .67

and σ = .88 can be encountered. The put-down mo-

tion is rated with a median of .25, µ = .31 and σ = .71.

Task-set2. For task-set 2, it can be encountered that

the mean values have an overall higher naturalness

score (rather natural) than the ﬁrst task-set. The raw

motions obtained from the MMUs are rated with a

median of 3.67, µ = 3.86 and σ = .46. The individual

motions generated by the novel co-simulator have a

median of 3.83, µ = 3.90 and σ = .39 Moreover, the

full clip comprising the sequence of all co-simulated

sub-motions scores a median value of 3.75, µ = 3.88

and σ = .49.

Evaluating the individual motions, it can be de-

noted, that the three sub-motions pick-up, walk and

drill achieved different naturalness scores. As illus-

trated by Figure 7 b), the pick-up motion of task-

set 2 achieved a median value of .00, µ = −.02 and

σ = .48. For the walk motion a median difference of

.00, µ = .02 and σ = .56 can be encountered. The

drill motion is rated with a median of .25, µ = .16 and

σ = .52.

5.5 Discussion

For evaluating the validity of the novel approach, no

signiﬁcance tests were performed, since the hypothe-

sis does not raise the question whether the novel ap-

proach is better or worse. Instead, it should be exam-

ined whether the novel approach can generate results

which do not decrease the quality (are not worse). To

quantify this, an equivalence study as commonly per-

formed in medicine is required. Within these types of

studies the interval borders for equality have to be ex-

plicitly set. However, given the naturalness of human

motion and the underlying rating scale, no border for

equality is known, yet. Therefore the obtained results

are only discussed based on the representative sample

using descriptive statistics.

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems

Figure 7: Boxplots displaying the results of the performed user study. Plot a) visualizes the absolute achieved naturalness

scores for both simulated task-sets. Each boxplot contains the combined mean naturalness values of the sub-motions (e.g.

mean of walk, pick-up, put-down). Novel complete represents the complete task-set generated by the co-simulation. Plot b)

shows the differences of the naturalness ratings between the co-simulated sub-motions and the raw motions within the MMUs.

The values are set relative to the raw motions (e.g. +1 means the co-simulated motions are rated better).

Task-set1. In the ﬁrst task-set, the raw motions

of the MMUs achieved overall medium scores (µ =

2.88), whereas the sub-motions of the co-simulation

are judged as more natural (see Figure 7 a). Addition-

ally, the complete clip generated by the co-simulator

is rated more natural (µ = 3.41), which underlines

that the co-simulated motions do not decrease the per-

ceived naturalness of the motions.

Examining the underlaying data in a more ﬁne-

grained manner, differences between the sub-motions

can be encountered. As illustrated in Figure 7 b) the

walk motion is rated similar to the raw motions of

the MMUs. Given the available results, no system-

atic difference can be derived, as the median value

of 0 and the mean −.02, are negligible compared to

the standard deviation of .82. In contrast, the pick-

up motion is rated higher if the co-simulation is ap-

plied (µ = +.67, m = +.75). The main difference be-

tween the two pick-up motions, is that the pick-up is

performed during walking if the co-simulation is ap-

plied, whereas Raw contains the pick-up in a static

posture. As underlined by the scores, the participants

perceived this as more natural compared to an isolated

pick-up motion. Moreover, the put-down motion of

the co-simulation shows a similar trend (µ = +.31,

m = +.25). Here again, the put-down was performed

during walking.

Analyzing the given sample, for task-set 1 it can

be concluded that the results generated by the co-

simulation can preserve the quality of the original

motions. Moreover, as the overall higher score for

the complete motion indicates, the co-simulator gen-

erates smooth-transitions between the individual mo-

tions which increase the overall perceived natural-

ness.

Task-set2. In the second task-set, all tested conﬁg-

urations are rated rather similar. However, the co-

simulated results (see Figure7 a) Novel) achieved a

higher median value of 3.83 compared to the raw mo-

tions (m = 3.67). Moreover, the complete clip com-

prising all motions, obtained a similar median score

of 3.75. This illustrates that the perceived naturalness

of the comprehensive motions does not decrease to a

large extent.

Analyzing the individual sub-motions additional

differences can be encountered. The median val-

ues of all three sub-motions is .00, the mean val-

ues, however, vary between −.02 for pick-up and .17

for drilling. These differences can be traced back

to the concurrent modeling of the motions. Analo-

gously to the pick-up motion of task-set 1, the drill

motion is already started during the walking if the co-

simulation is applied. In contrast, the pick-up mo-

tion within task-set 2 is sequentially simulated, which

means that no concurrent motions occur in both, the

raw MMU motion, as well as in the co-simulation.

The results underline that no systematic differences

in the ratings of the pick-up motion can be encoun-

tered, since µ = −.02 and m = .00 are negligible com-

pared to the standard deviation of .48. The walk mo-

tion achieved a slighty higher rating in mean value if

the co-simulation is applied (µ = +.02), compared to

the standard deviation of σ = .56, the effect can be

considered as negligible.

Overall, taking into account the minimal differ-

ences between the three conﬁgurations of task-set 2,

it can be concluded that the novel co-simulation can

produce results which do not evidently decrease the

quality of the original motions.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

Findings. Both task-sets received vastly different

absolute ratings. As main possible reason for this

difference, the utilized MMUs can be denoted. The

MMUs comprise varying algorithms and technolo-

gies which generate different motions. Other reasons

which also might inﬂuence the ratings, are the dif-

ferent camera perspective, the utilized elements in the

virtual scene (e.g. electric drill, vehicle) or the content

of the tasks and its basic motions. However, the spe-

ciﬁc inﬂuence of these factors is currently not known

and could be investigated in future research.

Summarizing the ﬁndings, the performed user

study shows, that the novel co-simulation approach

can be applied to generate feasible human motion

based on distinct MMUs. In particular the co-

simulation is able to handle the execution of concur-

rent motions which especially leads to increased nat-

uralness scores in task-set 1. Even though these ﬁrst

evaluations indicate the validity of the novel concept

and its implementation, the evaluations are just cover-

ing a small portions of the possible scenarios. More-

over, the ﬁndings are only valid for the given sample

since no statistical signiﬁcance has been tested.

6 CONCLUSIONS

Within the paper, a novel co-simulation approach for

orchestrating different character animation systems is

presented. The validity of the novel concept has been

evaluated by a conducted user study investigating the

naturalness of the generated motions. Overall, the

novel co-simulation approach can preserve the quality

of the original motions contained within the MMUs,

while generating feasible results.

Limitations. Even though the generic problem of

orchestrating heterogeneous MMUs can be addressed

by the novel approach, there are still limitations.

Currently, the priorities of the respective MMUs

are statically assigned according the generalization-

speciﬁcation scheme. If a system comprises multiple

MMUs which are active at the same time, the pri-

ority has to be carefully chosen. Recently, (Broman

et al., 2013) proposed an approach to dynamically de-

termine the priorities of modules within a FMI co-

simulation. To allow the automatic simulation of sev-

eral concurrent MMUs an automated priority assign-

ment could be utilized.

Given the proposed hierarchical co-simulation,

multiple MMUs can be principally combined in real-

time. However, since the input of each MMU con-

tains the result of the previous MMU, there is a strong

sequential dependency. Scaling up the amount of

MMUs therefore leads to a performance bottleneck,

since each MMU has to wait for the result of the pre-

vious MMU in hierarchy. The available frame time

for each MMU is therefore reduced with each addi-

tional MMU (e.g. 30Hz: 2 MMUs = 16.7ms, 3MMUs

= 8.3ms). To nevertheless allow systems which incor-

porate a large amount of MMUs in real-time, a paral-

lel co-simulation in which the input state is predicted

is a possible solution. In this context, the future state

of a MMU could be either predicted by the MMU it-

self or externally via approaches like Kalman ﬁlters.

Future Work. Despite the discussed limitations,

there are further consecutive topics which can be ad-

dressed in future work. In this context, aspects like the

modeling of the inﬂuence of previous and subsequent

actions on the current motions can be analyzed. For

instance, it is expected, that the speciﬁc parameteri-

zation of a put-down motion is strongly inﬂuenced by

the previous pick-up motion. Furthermore building

upon heterogeneous simulation approaches embed-

ded in MMUs, Monte-Carlo simulations which vary

the input parameters could be investigated. Moreover,

posture optimization approaches addressing speciﬁc

metrics such as ergonomics can be examined. Finally,

the MMU concept will be further developed and dis-

cussed in the international ITEA 3 research project

MOSIM (ITEA, 2018).

ACKNOWLEDGEMENTS

The authors acknowledge the ﬁnancial support by the

Federal Ministry of Education and Research of Ger-

many within the MOSIM project (ITEA, 2018).

REFERENCES

Aristidou, A. and Lasenby, J. (2011). Fabrik: A fast, itera-

tive solver for the inverse kinematics problem. Graph-

ical Models, 73(5):243–260.

Bastian, J., Clauß, C., Wolf, S., and Schneider, P. (2011).

Master for co-simulation using fmi. In Proceedings

of the 8th International Modelica Conference; March

20th-22nd; Technical Univeristy; Dresden; Germany,

number 63, pages 115–120. Link

oping University

Electronic Press.

Blochwitz, T., Otter, M., Arnold, M., Bausch, C., Elmqvist,

H., Junghanns, A., Mau\s s, J., Monteiro, M., Neid-

hold, T., and Neumerkel, D. (2011). The functional

mockup interface for tool independent exchange of

simulation models. In Proceedings of the 8th In-

ternational Modelica Conference, pages 105–114.

Linkoeping University Electronic Press.

Proposing a Co-simulation Model for Coupling Heterogeneous Character Animation Systems

Broman, D., Brooks, C., Greenberg, L., Lee, E. A., Masin,

M., Tripakis, S., and Wetter, M. (2013). Determinate

composition of fmus for co-simulation. In Proceed-

ings of the Eleventh ACM International Conference on

Embedded Software, page 2. IEEE Press.

Buss, S. R. (2004). Introduction to inverse kinematics with

jacobian transpose, pseudoinverse and damped least

squares methods. IEEE Journal of Robotics and Au-

tomation, 17(1-19):16.

Cerekovic, A., Pejsa, T., and Pandzic, I. S. (2009). Re-

alactor: character animation and multimodal behavior

realization system. In International Workshop on In-

telligent Virtual Agents, pages 486–487. Springer.

Delp, S. L., Anderson, F. C., Arnold, A. S., Loan, P.,

Habib, A., John, C. T., Guendelman, E., and The-

len, D. G. (2007). Opensim: open-source software

to create and analyze dynamic simulations of move-

ment. IEEE transactions on biomedical engineering,

54(11):1940–1950.

Faloutsos, P., Van de Panne, M., and Terzopoulos, D.

(2001). Composable controllers for physics-based

character animation. In Proceedings of the 28th an-

nual conference on Computer graphics and interac-

tive techniques, pages 251–260. ACM.

Feng, A., Huang, Y., Kallmann, M., and Shapiro, A.

(2012a). An analysis of motion blending techniques.

In International Conference on Motion in Games,

pages 232–243. Springer.

Feng, A. W., Xu, Y., and Shapiro, A. (2012b). An example-

based motion synthesis technique for locomotion and

object manipulation. In Proceedings of the ACM SIG-

GRAPH Symposium on Interactive 3D Graphics and

Games, pages 95–102. ACM.

Gaisbauer, F., Agethen, P., B

ar, T., and Rukzio, E. (2018a).

Introducing a Modular Concept for Exchanging Char-

acter Animation Approaches. In Jain, E. and Kosinka,

J., editors, EG 2018 - Posters. The Eurographics As-

sociation.

Gaisbauer, F., Agethen, P., Otto, M., B

ar, T., Sues, J., and

Rukzio, E. (2018b). Presenting a modular framework

for a holistic simulation of manual assembly tasks.

Procedia CIRP, 72:768–773.

Gaisbauer, F., Froehlich, P., Lehwald, J., Agethen, P., and

Rukzio, E. (2018c). Presenting a Deep Motion Blend-

ing Approach for Simulating Natural Reach Motions.

In Jain, E. and Kosinka, J., editors, EG 2018 - Posters.

The Eurographics Association.

Hanson, L., H

ogberg, D., Carlson, J. S., Bohlin, R., Brolin,

E., Delfs, N., M

ardberg, P., Stefan, G., Keyvani, A.,

and Rhen, I.-M. (2014). Imma–intelligently moving

manikins in automotive applications. In Third Inter-

national Summit on Human Simulation (ISHS2014).

Holden, D., Komura, T., and Saito, J. (2017). Phase-

functioned neural networks for character control.

ACM Transactions on Graphics (TOG), 36(4):42.

Homaifar, A., Qi, C. X., and Lai, S. H. (1994). Con-

strained optimization via genetic algorithms. Simu-

lation, 62(4):242–253.

ITEA (2011). ITEA Project 07006 MODELISAR - website

www.itea3.org/project/modelisar.html.

ITEA (2018). ITEA Project 17028 MOSIM - website

www.itea3.org/project/mosim.html.

Kallmann, M. and Marsella, S. (2005). Hierarchical mo-

tion controllers for real-time autonomous virtual hu-

mans. In International Workshop on Intelligent Vir-

tual Agents, pages 253–265. Springer.

Kovar, L., Gleicher, M., and Pighin, F. (2008). Motion

graphs. In ACM SIGGRAPH 2008 classes, page 51.

ACM.

Li, Z., Zhou, Y., Xiao, S., He, C., and Li, H. (2017). Auto-

Conditioned LSTM Network for Extended Com-

plex Human Motion Synthesis. arXiv preprint

arXiv:1707.05363.

Min, J. and Chai, J. (2012). Motion graphs++: a com-

pact generative model for semantic motion analysis

and synthesis. ACM Transactions on Graphics (TOG),

31(6):153.

Powell, M. J. (1978). A fast algorithm for nonlinearly con-

strained optimization calculations. In Numerical anal-

ysis, pages 144–157. Springer.

Ren, L., Patrick, A., Efros, A. A., Hodgins, J. K., and

Rehg, J. M. (2005). A data-driven approach to quanti-

fying natural human motion. In ACM Transactions

on Graphics (TOG), volume 24, pages 1090–1097.

ACM.

Shapiro, A. (2011). Building a character animation system.

In International Conference on Motion in Games,

pages 98–109. Springer.

Shoulson, A., Marshak, N., Kapadia, M., and Badler, N. I.

(2014). Adapt: the agent developmentand prototyp-

ing testbed. IEEE Transactions on Visualization and

Computer Graphics, 20(7):1035–1047.

Thiebaux, M., Marsella, S., Marshall, A. N., and Kall-

mann, M. (2008). Smartbody: Behavior realiza-

tion for embodied conversational agents. In Pro-

ceedings of the 7th international joint conference on

Autonomous agents and multiagent systems-Volume

1, pages 151–158. International Foundation for Au-

tonomous Agents and Multiagent Systems.

Tsai, Y.-Y., Lin, W.-C., Cheng, K. B., Lee, J., and Lee, T.-Y.

(2010). Real-time physics-based 3d biped character

animation using an inverted pendulum model. IEEE

transactions on visualization and computer graphics,

16(2):325–337.

Van Acker, B., Denil, J., Vangheluwe, H., and De Meule-

naere, P. (2015). Generation of an optimised master

algorithm for fmi co-simulation. In Proceedings of

the Symposium on Theory of Modeling & Simulation:

DEVS Integrative M&S Symposium, pages 205–212.

Society for Computer Simulation International.

Wang, B. and Baras, J. S. (2013). Hybridsim: A modeling

and co-simulation toolchain for cyber-physical sys-

tems. In Proceedings of the 2013 IEEE/ACM 17th In-

ternational Symposium on Distributed Simulation and

Real Time Applications, pages 33–40. IEEE Computer

Society.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications
