Model Federation based on Role Modeling

Bastien Drouot and Jo

el Champeau

Lab STICC UMR6285, ENSTA Bretagne, Brest, France

Keywords:

Model Federation, Role Modeling, DSML Interoperability.

Abstract:

Modeling approaches could be a powerful solution for speciﬁcation, design and analysis. At a system level,

models must take into account many system concerns. Thus, several system modeling approaches are based

on several viewpoints expressed in Domain Speciﬁc Modeling Languages. Cyber threat analysis takes place

within this modeling context with the need for several DSMLs to address several viewpoints of the system. So,

the analysis of this domain is supported by DSML interoperability to perform simulation or other algorithms.

Therefore, in this paper, we present an approach to face DSML interoperability based on role modeling. The

Role4All framework is based on a metamodel including the Role concept. The Role4All language provides the

capacity to deﬁne shared semantics between the DSMLs. Role4All and role modeling avoid model transfor-

mations and promote a federation approach between several DSMLs. The federation mechanisms of Role4All

are illustrated in the cyber threat modeling framework to emphasize information gathering and the updates of

the role model.

1 INTRODUCTION

In several domains, modeling approaches are ac-

cepted as solutions for the support of speciﬁcation,

design and, in some cases, implementation. These ap-

proaches are considered as powerful if the models are

used for a precise and dedicated purpose such as sys-

tems engineering, system knowledge management,

system analysis (structural, behavioral), performance

evaluation (worst case analysis, scheduling) and also

model or code generation. To take into account the

diversity of system aspects, modeling approaches are

mostly based on several Domain Speciﬁc Modeling

Languages (DSMLs) or a standard Language with

specializations (SysML and its proﬁles). In any case,

these approaches aim to focus each DSML on a pre-

cise domain to provide adequate abstractions to ﬁt

with the domain concepts, or a subset of the concepts.

Currently, one of the active research domains is

the security domain for systems integrating digital

subsystems. These systems must be analyzed on sev-

eral levels of abstraction (from binary to system lev-

els) and from several viewpoints (network infrastruc-

ture or operating system of course). For this kind of

problematics, models are relevant to outline system

features, to provide relationships between features or

concepts and to support different kinds of analysis

from human expertise to automatic algorithms such

as artiﬁcial intelligence.

In this context, we demonstrate that cyber threat anal-

ysis must be supported by a set of DSMLs, dedi-

cated to providing abstractions for system representa-

tion, vulnerability deﬁnition, attacker competencies,

etc. Cyber threat analysis is an activity using current

knowledge and hypothetical attacker ability in order

to anticipate cyber attacks. So one of the goals of

this activity is to explore attacker behavior in the cur-

rent system to understand and anticipate attack sce-

narios. Relative to this situation, models are a power-

ful means to formulate hypotheses and obtain attack

scenarios to prevent real cyber attacks or to produce

defense or monitoring artifacts.

To improve the results of this kind of analysis,

we need to correlate different models to obtain the

most relevant analysis. In the resulting modeling con-

text, we face the interoperability problem of several

DSMLs which model a system from several view-

points. In this paper, we propose a model federa-

tion approach to solve the interoperability problem

between several DSMLs. This federation approach is

based on role modeling, the main property of which

is to provide dynamic interface deﬁnitions. Our ap-

proach is illustrated by a relevant cyber threat model-

ing context.

Our paper is organized as follows: we present

the cyber threat analysis context to clarify our re-

quirements in Section 2. Section 3 focuses on the

Drouot, B. and Champeau, J.

Model Federation based on Role Modeling.

DOI: 10.5220/0007363500720083

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 72-83

ISBN: 978-989-758-358-2

DSML interoperability and the role modeling ap-

proach. We introduce our model federation language

and approach in Section 4. Section 5 illustrates our

Role4All framework in the cyber threat modeling

context. Finally we conclude the paper in Section 6.

2 CYBER THREAT CONTEXT

2.1 Cyber Threat Analysis

Cyber threat analysis aims to look for system vulnera-

bilities, in relation to current vulnerability knowledge

and tries to anticipate an attacker’s behavior, while

making assumptions as to his system knowledge and

his attack goals.

The Threat analysis approach is at the cross-

roads between penetration testing methodology (Ho-

lik et al., 2014), cyber threat intelligence (Conti et al.,

2018) and attack analysis (Elahi et al., 2010). Given

this crossroads, several methodological steps have

been identiﬁed:

• Modeling: Several system elements are conceptual-

ized to produce an abstraction of the considered sys-

tem. For example, attack trees are part of the model-

ing artifacts used to represent the goal of a potential

attack and all the possible actions to achieve this goal.

The main objective of this modeling step is to gather

information and to create a representation of the cur-

rent knowledge of the system.

• System Discovery: The knowledge of a system de-

pends on the current view of the real system. For ex-

ample, extending knowledge of the system can lead

to the identiﬁcation of accessible vulnerabilities re-

garding the architecture and conﬁguration of the sys-

tem. System discovery consists in the description of

the actions and commands that can be performed on

the system to extend the knowledge of the latter.

• Vulnerability Exploitation: A vulnerability is an er-

ror or weakness in design, implementation, or oper-

ation (Schneider, 1999). Based on the previous dis-

covery step, vulnerabilities can be exploited to reach

the attack goal or an intermediate step in the overall

attack scenario. The selection of suitable vulnerabili-

ties depends on the system conﬁguration and is moti-

vated by the expected progress in the current scenario.

The purpose of the vulnerability exploitation step is to

perform the attack scenario based on attacker ability,

system access and system conﬁguration.

Thus, the threat Analysis approach can be split

into three steps: Modeling, System discovery and

Vulnerability exploitation. Each of these steps can

be approached using models. Indeed, the vulnera-

bility exploitation is based on the modeling step and

the system discovery can be simulated through mod-

els. Therefore, in the following parts we focus on the

model approach to performing threat analysis.

2.2 Cyber Threat Modeling

Threat modeling is about using models to ﬁnd secu-

rity problems. The use of models means an abstrac-

tion of the system, the threats, the attackers and some

other details (Shostack, 2014). There is no consen-

sus about the threat modeling approach, for example

in (Myagmar et al., 2005) Myagmar et al. propose

a threat modeling approach consisting in the follow-

ing three high-level parts: characterizing the system,

identifying assets and access points, and identifying

threats. While Pauli and Xu in (Pauli and Xu, 2005)

center the threat modeling around three ideas: de-

scribing the decision-making process of an attacker,

modeling the security threats and designing the sys-

tem. Although the threat modeling approaches of

Myagmar et al. and Pauli and Xu are different, it is

possible to review the subgroups they create using a

common theme.

Regarding the literature, we separated the threat

modeling into three parts:

• System Modeling: System modeling consists in

characterizing the system by describing the system

behavior, its features, its boundaries, etc. System

modeling could be split into sub-parts such as the sys-

tem topology and the system conﬁguration. System

modeling represents the characterization of the sys-

tem for Myagmar et al. and the design of the system

for Pauli and Xu.

• Attacker Modeling: Attacker modeling consists in

characterizing the attacker and his behavior, that in-

cludes the attacker’s goal, the attacker’s competen-

cies and attack scenarios. Attacker modeling repre-

sents the identiﬁcation of assets and access points for

Myagmar et al. and the description of the decision-

making process of an attacker for Pauli and Xu.

• Threat Description: Threat description consists

in describing the possible vulnerabilities of the sys-

tem. Threat description represents the identiﬁcation

of threats for Myagmar et al. and the modeling of

security threats for Pauli and Xu.

Our threat modeling process includes the same

steps as the processes of Myagmar et al. and Pauli

and Xu but with a different grouping. Our grouping

highlights the modeling part of the threat modeling

and allows a clear distinction between the system, the

threats and the attackers. One of the possible imple-

mentations of our representation of the threat model-

ing, based on various DSMLs, is:

• System Topology: A subset of the system modeling

Model Federation based on Role Modeling

describing the boundaries of the system and the re-

lations between elements in the system. The DSML

chosen to describe the system topology was PimCa

(Hemery, 2015). PimCa was deﬁned by a cybersecu-

rity entity of the French Ministry of Armed Forces,

dedicated to representing and analyzing a system at

several levels of abstraction, from an electronic to

a systems level. The system topology is modeled

by several entity types (processing, storing, customs,

passport, etc.) and specialized relationships between

the entities (controls, uses, owns, etc.).

• System Conﬁguration: The conﬁguration of each el-

ement of the system. We decided to use a conﬁgura-

tion ﬁle based on structured data as a DSML. This

DSML allowed the element conﬁguration to be de-

scribed including version numbers but did not allow

the interaction between conﬁgurations to be modeled.

• Vulnerabilities: A vulnerability library. All systems

have vulnerabilities, most of them referenced in a li-

brary. We chose to limit our vulnerabilities to a single

library: NVD the US National Vulnerability Database

(Zhang et al., 2011).

• Attacker: Attacker decision-making during an at-

tack. This decision depends on the attacker’s compe-

tencies and knowledge of the system. The decision-

making of the attacker is symbolized by an attack tree

(Mauw and Oostdijk, 2005). The attacker’s compe-

tencies are modeled by structured data based on the

description of an attack in CVSS (Mell et al., 2006).

His knowledge of the system is represented by a spe-

ciﬁc viewpoint of the system changing step-by-step

over the attack.

Each of these DSMLs is one of the possible

DSMLs, for example, an attack tree can by replaced

by Misuse cases (Alexander, 2003), or a fault tree

(Lee et al., 1985), or a data-ﬂow diagram (Li and

Chen, 2009). In this article, the set of DSMLs chosen

is: PimCa, conﬁguration ﬁles, NVD, attack tree and

attacker competencies structured data. Moreover, to

generate and animate the attacker viewpoint step-by-

step, we decided to operate a simulation. Our simula-

tion allows the action of the attacker to be simulated

independently of his attack scenario. The attack sce-

nario only depends on actions taken, according to the

attacker’s viewpoint and abilities.

To summarize, we chose to group the threat mod-

eling into these three groups and we implemented our

representation of the threat modeling with several re-

placeable DSMLs that may evolve. This is why inter-

operability between DSMLs must be managed, taking

into account that they can be modiﬁed or replaced,

and the way that DSMLs interact can also change.

3 BACKGROUND AND

PROBLEMATICS

3.1 DSML Interoperability

Interoperability between several formalisms is a re-

current problem in Model Driven Engineering (MDE)

approaches in the scope of a modeling and simulat-

ing process or a development process including mod-

els at several steps. Traditionally, interoperability ap-

proaches are classiﬁed through integration, uniﬁca-

tion or federation of the formalisms (Rio, 2012; Guy-

chard et al., 2013; Niemoller et al., 2013). Integration

is based on the creation of a modeling language in-

cluding the union of all the concepts of the different

formalisms. This approach is applied if the concept

number is limited and in particular if the number of

formalisms remains ﬁxed because any new DSML in-

tegration requires the redeﬁnition of the entire inte-

grated language which is the major drawback of this

approach.

The uniﬁcation mechanism is based on the identi-

ﬁcation of common concepts between the formalisms

and the deﬁnition of the correspondence between

these core concepts and the concepts of the model-

ing languages. This approach is usually named as the

pivot language approach. This strategy is one of the

most used to conceptualize and implement interoper-

ability between several formalisms. In the case of a

limited number of concepts, pivot language is a pow-

erful solution if any concept of the languages ﬁnds

its correspondence in the pivot deﬁnition. After the

correspondence deﬁnition, transformations can be ap-

plied between all the formalisms and the pivot lan-

guage, and also in the reverse direction. However,

the deﬁnition accuracy of the pivot language remains

a difﬁcult task. If the deﬁnition is too abstract, this

leads to lost concepts (or properties), if the concepts

(or properties) have no correspondence in the pivot

language. On the other hand, deﬁning a rich pivot lan-

guage, to preserve any property of the languages, pro-

duces an overly broad pivot language. In this case, the

uniﬁcation is equivalent to the integration approach

with these drawbacks, and the management of the lan-

guage transformations.

The federation approach shifts the point of view

and focuses on modeling the semantics of the

links between the concepts (Guychard et al., 2013;

Niemoller et al., 2013). These links or relationships

deﬁne the correspondence between the concepts with-

out a concrete pivot language deﬁnition. The main

goal of the federation is to specify the interoper-

ability without modifying the language concepts, by

concentrating on the semantic deﬁnitions. Based on

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

this interoperability speciﬁcation, the transformations

are applied only on demand. Several federation ap-

proaches exist but for all, the main advantage is the

clear separation between the source element with its

original type (the DSML’s concept) and the semantic

modeling relative to the federation context (the feder-

ation’s concept). A source concept could have several

semantics within the same federation and also several

source concepts could share the same semantics.

Relative to the cyber threat modeling context, we

have chosen to apply the federation approach to en-

sure the DSML interoperability while taking into ac-

count the immature modeling context and thus the

probable evolution of the DSML deﬁnitions. This

evolution feature is mainly the major drawback for

DSML interoperability. So our federation requires

a ﬂexible deﬁnition and a support to agree with the

DSML deﬁnition evolutions. In this context, the abil-

ity to deﬁne a dynamic interoperability is ensured by

role modeling, which is one of the main strengths we

will expand upon in the next section.

3.2 Role Modeling

Role modeling has its roots in the work on data mod-

eling during the seventies and as natural extensions

the roles were used in object-oriented design and im-

plementation, and modeling and metamodeling. In

(Steimann, 2000) Steimann presents a short survey on

role modeling which emphasizes the ontological def-

inition of roles. This deﬁnition clearly highlights the

difference between the natural type of individuals and

the roles where the individuals could enter or leave

without losing their identity.

To summarize, roles are used to provide dynamic-

ity on classic type approaches (K

uhn et al., 2014) and

to deﬁne dynamic interfaces which can be adapted

over time (Gottlob et al., 1996). Furthermore, these

usages can be on several levels, metamodeling, mod-

eling, and implementation.

Relative to our context, the natural type is

provided by a metaclass of the DSML deﬁnition,

and roles support the semantic interpretation of the

elements according to the current attached role.

Steimann provided a reference set of 15 features, with

their semantics, that must be fulﬁlled by a role-based

modeling framework (Steimann, 2000). Based on this

reference list of features, K

uhn et al. upgraded the

framework by adding the ability to deﬁne a context

for a group of roles (K

uhn et al., 2014).

Roles are successfully used to interconnect hetero-

geneous design tools in order to create tool chains

dedicated to system design with many necessary

tools. So, building a tool chain requires an interop-

erability support that can be based on roles. Seifert

et al. connected various models produced by different

modeling tools thanks to roles (Seifert et al., 2010).

Moreover, Champeau et al. used roles to guarantee

the preservation of the semantics of a model entity

during the model exchange process between model-

ing tools (Champeau et al., 2013). Roles enabled

the modiﬁcation of tools underlying metamodels to

be avoided.

To deﬁne the necessary interoperability support

between our DSMLs, we chose to improve the

Role4All framework (Schneider et al., 2015) to add

a federation support from the previous design and ap-

ply the framework to our cyber security context.

4 Role4All: ROLES AND

FEDERATION

In this section, we introduce Role4All: a role-based

framework including a role language. This language

takes advantage of the role concept to deﬁne dedi-

cated viewpoints and to map these viewpoints on sev-

eral DSMLs. The language Role4All is based on the

relevant subset of role features to ensure the federa-

tion of several modeling languages.

The purpose of the federation is to clearly sepa-

rate the syntax of the model elements and the seman-

tics deﬁned by the federation model. In our case, the

syntax is supported by the DSMLs and the seman-

tics by the role model. Thanks to this context, we de-

ﬁne and present the Role4All language and the weak

coupling between the model elements, the syntax, the

roles, and the semantics.

4.1 Role Features

In the literature, a signiﬁcant effort has been made to

provide an exhaustive formalized feature list to char-

acterize and deﬁne the role concept in the context of

role modeling (Steimann, 2000; K

uhn et al., 2014).

T.Kuhn et al. listed 26 necessary role features, re-

ported in Table 1, to cover all the potential aspects of

a role language deﬁnition. Following on from deﬁn-

ing a role-based language is ﬁrst a selection of the

relevant features in the identiﬁed set, regarding the

targeted context and domain. This feature selection

creates various role language deﬁnitions. The asso-

ciated tooling on these languages can introduce some

usage variations but the role semantics remains pre-

served if the selected features are a strict subset of the

identiﬁed features (K

uhn et al., 2015).

Our main driver deﬁnes dynamic viewpoints be-

tween several DSMLs and therefore between the sup-

Model Federation based on Role Modeling

Table 1: Classiﬁcation of role features.

1. Roles have properties and behaviors 15. An object and its roles have different identities

2. Roles depend on relationships 16. Relationships between roles can be constrained

3. Objects may play different roles simultaneously 17. There may be constraints between relationships

4. Objects may play the same role several times 18. Roles can be grouped and constrained together

5. Objects may acquire and abandon roles dynamically 19. Roles depend on compartments

6. The sequence of role acquisition and removal may 20. Compartments have properties and behaviors

be restricted 21. A role can be part of several compartments

7. Unrelated objects can play the same role 22. Compartments may play roles like objects

8. Roles can play roles 23. Compartments may play roles which are part

9. Roles can be transferred between objects of themselves

10. The state of an object can be role-speciﬁc 24. Compartments can contain other compartments

11. Features of an object can be role-speciﬁc 25. Different compartments may share structure

12. Roles restrict access and behavior

13. Different roles may share structure and behavior 26. Compartments have their own identity

14. An object and its roles share identity

ported tool languages. In this context, our objectives

are to take into account:

• A common semantic interpretation of several con-

cepts of different languages. For example in a design

process, at the implementation step, a system function

of the application domain and a Thread in a concur-

rent design are federated to a Class concept of an ob-

ject language, to provide a common implementation

interpretation.

• The semantic evolution of a language concept dur-

ing a modeling process. For example along a design

process, a system function relative to the application

domain is interpreted as a Thread in a concurrent de-

sign and as a Class of an implementation language.

• The provision of a dynamic semantics to the feder-

ated concepts. In our system design process, a sys-

tem function can be implemented as class or Threads.

Moreover, in a simulation framework the two can be

simulated as an agent concept to analyze and evaluate

the system design.

In Role4All, each role, called Role, gathers a sub-

set of these 26 features. In this paper, instead of a list

of role features, we classify them according to their

underlying objectives in Role4All. The three most

important objectives are: deﬁning viewpoints, feder-

ating behaviors between elements and ensuring dy-

namic deﬁnition of these viewpoints.

• Deﬁning viewpoints: As in role modeling ap-

proaches, in Role4All a Role deﬁnes a viewpoint of

one or several model elements. As previously ex-

plained, we need to create a single viewpoint to deﬁne

a common semantics from several DSMLs. This ob-

jective is covered by Features 1, 3, 4, 7 and 15. Each

feature has a dedicated purpose:

- Feature 1 enhances elements thanks to properties

and behaviors.

- Features 3 and 4 deal with several interpretations

and thus several role models applied at the same

time.

- Feature 7 deﬁnes a viewpoint related to different

elements of different languages.

- Feature 15 requires a separation between the model

elements, which keep their native identity, and the

roles of these elements, to model viewpoints and

relationships between model elements.

• Federating behaviors between elements: Roles are

used to federate model elements (Wende et al., 2009).

Role4All uses Role instances (named roles) to fed-

erate model instances from different languages. The

federation is supported mainly by two features:

- Feature 18 groups roles together for the federation.

- Feature 13 enables behavior between federated

roles to be shared.

• Deﬁning dynamic viewpoints: One of the most im-

portant features in role modeling is to support dy-

namic evolution of the viewpoint deﬁnitions. The

roles are attached or detached to the viewpoint to

adapt the semantics relative to viewpoint evolution.

For example simulation results can generate new roles

relative to some existing model elements. This objec-

tive is supported by the following features:

- Feature 5 provides the capacity to attach new roles,

including the integration of simulation results.

- Features 8 and 9 deal with the adaptation of view-

point deﬁnition by adding new roles on a role or by

migrating a role through another object.

Finally, a role in Role4All is totally deﬁned by the

Features: 1, 3, 4, 5, 7, 8, 9, 13, 15 and 18. In the next

section, we describe how these features are combined

and linked in the Role4All metamodel.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

































Figure 1: Role4All metamodel.

4.2 Role4All Design: Viewpoint

Based on the previous design of Role4All (Schneider

et al., 2015), in this paper we present an extension of

Role4All to ensure model federation. The Role4All

deﬁnition is based on a metamodel, presented in Fig-

ure 1. This metamodel results in the selected Features

1, 3, 4, 5, 7, 8, 9, 13, 15 and 18. In this paragraph and

the following, we present how this metamodel gathers

the features together.

As a reminder, we use role to talk about a role in-

stance and Role to talk about a role class and idem for

the other metaclasses (player and Player, playRela-

tion and PlayRelation, adapter and Adapter). Regard-

ing our DSML interoperability context, a Player rep-

resents an element of one of the DSML’s metamodels

and a Role is a viewpoint of one or several Players.

The key structure in our metamodel is: A player plays

a Role means that a player is linked with a role. More-

over, relative to the metamodel, the link is reiﬁed by a

playRelation. This relation ensures a clear separation

between the Player and the Role. This relation can

support its own properties, in particular, the Adapter

deﬁnition. The adapter is in charge of transforming

the player properties into role properties.

Each role feature is supported by the Role4All

metamodel substructure. The deﬁnition of a view-

point is supported by:

- Feature 1: Roles have properties and behaviors: A

Role is deﬁned by the metaclass Role. Thus, the

generic semantics of a role deﬁnes this metaclass.

Furthermore, a Role is deﬁned by a class with be-

haviors and properties. So the operational seman-

tics of the role is deﬁned by the methods to encap-

sulate behaviors and property access.

- Feature 3: Objects may play different roles simul-

taneously: A player may have many playRelations

according to the cardinality ”*” of the relation be-

tween Player and PlayRelation. As we stated be-

fore, the PlayRelation emphasizes the separation

between a DSML element and several Roles.

- Feature 4: Objects may play the same role several

Figure 2: Notiﬁcations in the federated models.

times: In addition to the cardinality of the relation

between Player and PlayRelation, a player may be

linked to the same Role several times but with a dif-

ferent adapter. So, a player may play the same Role

several times with a different Adapter, or not.

- Feature 7: Unrelated objects can play the same

role: The dissociation between Role, Player and

Adapter, allows various players to play the same

Role, with a speciﬁc adapter.

- Feature 15: An object and its roles have different

identities: A role and the player linked to it are in-

stances of different classes in Role4All.

So, Role4All metamodel substructures support

Features 1, 3, 4, 7 and 15 allowing viewpoints to be

deﬁned. In the next section, let us focused on the fea-

tures mainly dedicated to the concept federation.

4.3 Role4All Design: Federation and

Dynamicity

The main goal of the federation approach is to face the

issue of the deﬁnition of relationships between sev-

eral formalisms. Each formalism deﬁnes a viewpoint

of a system, and the federation speciﬁes cross cutting

concerns on the formalisms. The resulting federa-

tion model has two main properties: ﬁrst, taking into

account the dynamics of the relationships between

the formalisms and second, ensuring consistency be-

tween the model elements of the different viewpoints.

So the main features to support the federation are:

- Feature 5: Objects may acquire and abandon

roles dynamically: The Player class has a behavior

method, ”play”, to allow at run time, the creation

of a playRelation to connect a role, an adapter and

itself. Moreover, the removal of a playRelation en-

titles a player to release a Role dynamically.

- Feature 8: Roles can play roles: The class Role is

a subclass of Player, so a role has the inherited be-

Model Federation based on Role Modeling

havior (especially the method ”play”) of a player.

Therefore, a role can play a Role.

- Feature 9: Roles can be transferred between ob-

jects: A role can be transferred to another object

via the creation of a new playRelation or a mutation

of the older relation towards the other object.

- Feature 13: Different roles may share structure and

behavior: A Role is deﬁned via a class, so sub-

classes create Roles to share behavior and structure

with the parent Role.

- Feature 18: Roles can be grouped and constrained

together: The class Role and the association be-

tween containerRole and containedRoles allow a

role to contain other roles or to be contained by an-

other role. This association allows the creation of

role sets. The behavior of the container includes

constraints applicable to all the roles of this set. As

we presented below, this feature is one of the main

supports of the role federation.

Feature 5, 8 and 9 are inherently role concept

properties to ensure dynamicity and interoperability

between the formalisms from the role model. Indeed,

if new concepts (or properties) are required in the fed-

eration deﬁnition, we add roles to adapt this deﬁni-

tion. Furthermore, if concepts (or properties) are no

longer necessary in the federation deﬁnition, we can

detach the corresponding roles and remove the asso-

ciated playRelation and adapter. These capacities en-

sure a dynamic deﬁnition of the federation approach.

Feature 13 and 18 ensure consistency between

roles and model elements. In the metamodel (Figure

1), this feature is supported by the reﬂexive reference

on the Role class, with one containerRole and several

containedRoles if each containedRoles is connected

with a model element. This containerRole provides

the capacity to gather a logical assembly of roles, in

order to deﬁne a set of federated roles. This container

also maintains the overall behavior of this set based

on local role behaviors and supports broadcasting no-

tiﬁcations which come from local behavior.

To illustrate this deﬁnition, when a model ele-

ment is updated, it notiﬁes its associated role. This

role transmits the notiﬁcation to its containerRole and

then, the containerRole broadcasts the notiﬁcation to

all the containedRoles. This algorithm, illustrated in

Figure 2, ensures the goal to notify each contained-

Role federated in the container. In the case of noti-

ﬁcation with no returned object, each containedRole

processes the notiﬁcation, and thus typically updates

a property of every model element associated with

each role. In this case, the container does not ensure

a particular consistency rule and the updating of all

the model elements, via the containedRoles, is per-

Figure 3: Network architecture of the use case.

formed. In the case of notiﬁcation with a returned

object, a sequential order semantics is applied and the

ﬁrst non null object is considered as the result of the

broadcast. This answer selection algorithm could be

extended to select an answer relative to the evaluation

of an assertion or a property of the container. These

two examples are detailed in the next section.

Regarding the integration of the behavior in our

metamodel, we precise that Role4All is implemented

as an embedded DSL in Pharo/Smalltalk

. This kind

of implementation provides facilities to have a clear

DSL’s deﬁnition and also a powerful implementation

based on Smalltalk code for the behavior deﬁnition of

the meta-entities and entities.

5 THREAT MODELING USE

CASE

5.1 Case Study

In the previous parts, we presented our federation

approach based on role modeling supported by the

Role4All framework. In this part, we exemplify our

approach through the modeling space of the cyber

threat analysis use case. As deﬁned previously, cy-

ber threat analysis requires several viewpoints to take

into account the system modeling, vulnerability de-

scription and the attacker modeling.

Each viewpoint is deﬁned by a dedicated DSML

and applied to a precise domain. In this context, a

model federation approach is required to create an at-

tacker viewpoint, which represents the attacker’s cur-

rent view of the real system throughout the scenario.

This attacker viewpoint emphasizes the main pur-

pose of the role modeling by creating a semantic

viewpoint of several source DSMLs. Based on this

Pharo Distribution (http://pharo.org)

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

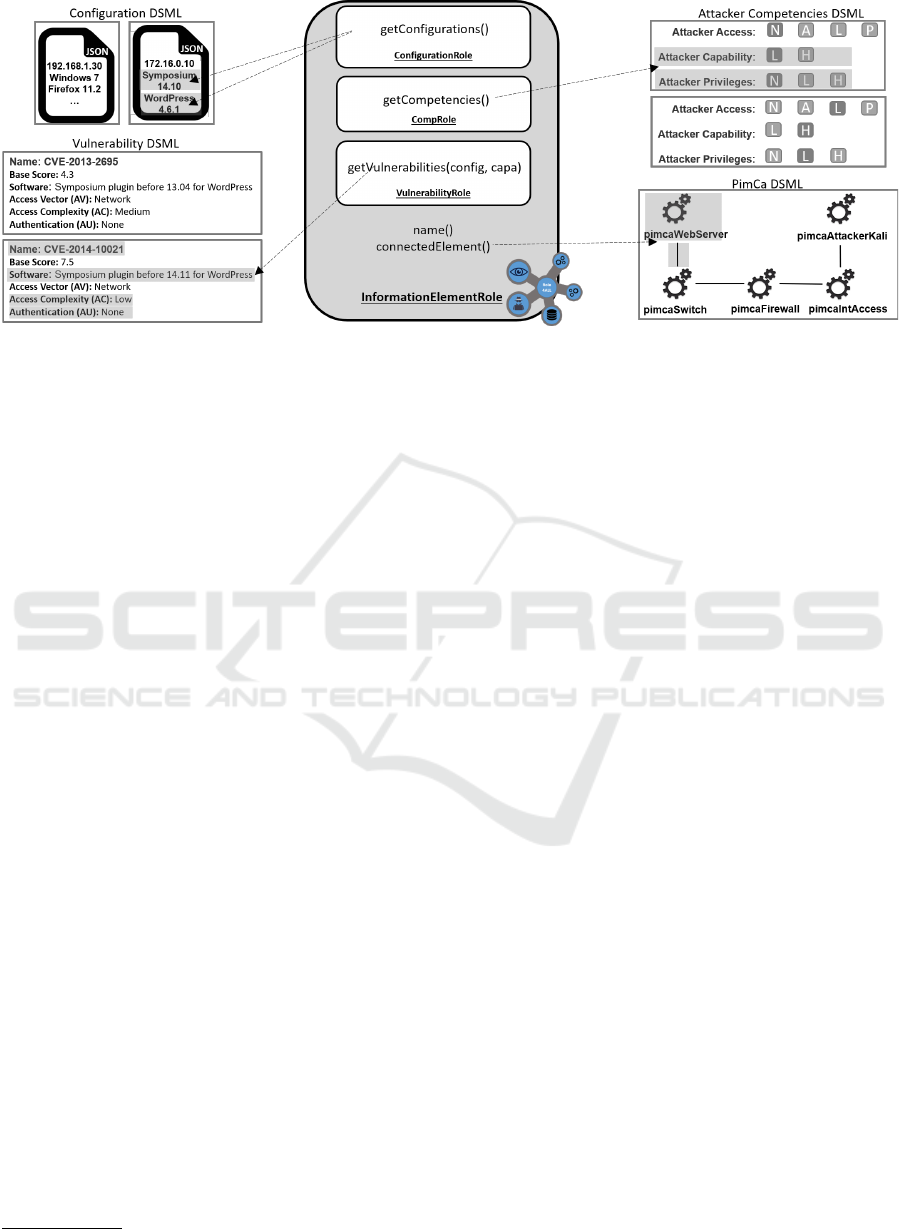

Figure 4: Conceptual view of the federation framework.

modeling infrastructure, we illustrate three main fea-

tures of our federation approach:

• How to gather information from several DSMLs to

create a common and shared semantics ?

• How this shared semantics is used to notify and up-

date the DSML syntax elements ?

• How to dynamically update this shared semantics ?

This is one of the foundation features of role modeling

and federation approaches.

To obtain representative models of the cyber threat

analysis, several sources exist, from bibliographic de-

scriptions (Holik et al., 2014) to penetration testing

techniques on the real system. Another way is to use

an isolated virtual platform

and experiment sophisti-

cated cyber attack scenarios in this sandbox environ-

ment. This ﬂexible way provides the capacity to ex-

periment several strategies and create quick iterations

between modeling and experiments, in order to obtain

the most representative models.

In this context, models and simulation focus on

a system level and on entity behaviors, to overlook

low level constraints and activities such as penetra-

tion testing. However, to be representative, a sophisti-

cated cyber attack scenario is held as the reference on

which the system is modeled , with all the associated

features (conﬁguration and vulnerabilities), and also

the attacker skills required to perform the scenario.

This scenario is performed on a networked sys-

tem (Figure 3) including three parts: the attacker’s

computer, the Internet and the target local network

which embodies most company architectures with a

web server and a local network.

In the network ﬁgure, the Kali machine symbol-

izes the attacker’s computer, the Internet is abstracted

by a switch, connecting the Kali machine to the local

network. The target local network consists of three

HNS Platform (https://www.hns-platform.com)

subnets, all protected by the same ﬁrewall. The cyber

threat analysis includes a risk analysis emphasizing

that the active directory is a critical resource due to

the contained access accounts (login and password).

In the virtual environment, the attack scenario in-

cludes three main steps:

• Identifying vulnerabilities of the web server by us-

ing ﬁrst the nmap command to localize the web server

and wpscan to identify vulnerabilities in the Word-

Press framework deployed on the web server.

• Using a vulnerability to take control of the machine

by privilege elevation with the metasploit program to

execute the payload cowroot malware.

• Inside the local network the active directory admin-

istrator is targeted and his access account is obtained

by a Trojan horse.

This experimental approach to perform this sce-

nario on the virtualized system is close to reality.

However, we need to test enough scenarios to be rel-

evant and this task is time consuming and requires

competencies, on several levels of abstraction: net-

work, operating system, applications.

Our approach is to provide a modeling framework

on this use case to simulate the scenario based on the

federated models. The expected beneﬁt is to exper-

iment and analyze several system conﬁgurations and

several scenarios according to different attacker com-

petencies. In the next section, we present the model-

ing space and the federated approach, both illustrated

relative to this use case.

5.2 Federation through Role4All Role

Models

As presented previously, we federate several DSMLs

through a common semantics. This common seman-

tics deﬁnes the attacker viewpoint and enables DSML

Model Federation based on Role Modeling

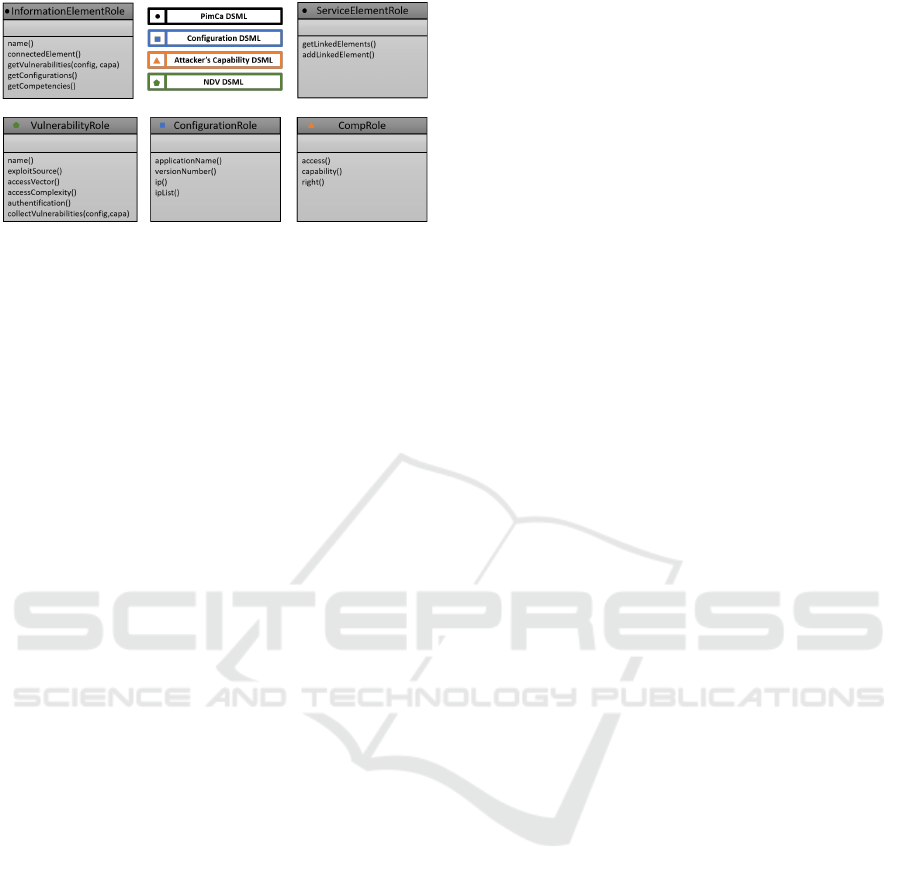

Figure 5: Federation Role Model.

model access without any model copy or transforma-

tion. The common semantics is supported by the be-

havioral properties of the roles as illustrated in Figure

4. This conceptual view shows the common seman-

tics in the center (i.e the roles of the attacker view-

point), and around it, accessed models via the behav-

ioral properties of the roles.

Figure 4 represents the relationships between In-

formationElementRole, a Role of the attacker view-

point (detailed in Section 5.2.1), and the different

DSMLs. The different DSMLs are PimCa for the

system model, a vulnerability DSML based on a sub-

set of the NVD data structure, a DSML for the sys-

tem conﬁguration and an attacker competency DSML

based on CVSS.

The InformationElementRole references three

types of Role, VulnerabilityRole (to select all the vul-

nerabilities for a speciﬁc conﬁguration exploitable by

a relevant attacker), the ConﬁgurationRole (to deﬁne

the conﬁguration of the system entities) and the Com-

pRole (to deﬁne the attacker competencies)

So this role model illustrates a semantic deﬁnition

applied to a set of DSML concepts to provide a dedi-

cated behavioral meaning.

In the rest of this section, we focus on the federa-

tion mechanisms used in Role4All to:

• Create a common and shared semantics.

• Use and dynamically update this semantics.

5.2.1 Deﬁnition of the Common and Shared

Semantics

Regarding the Role4All metamodel, the relation-

ship containerRoles-containedRoles on the Role class

speciﬁes that any role can reference a collection of

roles, see Figure 1. This relationship between roles is

not explicitly reiﬁed by a metaclass in the metamodel.

So the role model does not contain relationship deﬁni-

tion between Roles as we illustrate in Figure 5. This

feature provides extreme ﬂexibility because the role

model states only the Role deﬁnitions individually

and the role instantiation schema (Figure 6) provides

relationships between roles. Two main advantages are

underlined: ﬁrst these relationships can be changed

throughout the federation runtime to evolve and thus

conform to the evolution of the attacker viewpoint of

the system, in our example. Secondly, any role can be

moved from a containerRole to another without any

constraints except those of the domain.

The attacker role model contains two main Roles

allowing the system elements to be interpreted: ﬁrst,

the elements that contain relevant information regard-

ing the attacker goals (the attacker must control or

corrupt these elements) and second, the elements that

produce a service in the system (the attacker must use

or bypass these elements). These Roles are Infor-

mationElementRole and ServiceElementRole. Three

other Roles are deﬁned to access subsets of DSMLs,

presented in Figure 5. These ﬁve Roles are:

• InformationElementRole: This Role speciﬁes a se-

mantics for a subset of the PimCa DSML and contains

three roles to access the other DSMLs for the conﬁg-

uration elements, the attacker competencies and vul-

nerabilities.

• ServiceElementRole: This Role provides another

viewpoint of the PimCa DSML to view the topology

elements which provide a service which can be used

or bypassed by the attacker. These elements are nec-

essary but they are not part of ﬁnal the goal. Thus,

the PimCa elements could be viewed as an Informa-

tionElementRole or ServiceElementRole according to

the knowledge and perception of the attacker.

• ConﬁgurationRole: This Role mainly provides the

application name and version on the topology ele-

ments of role type InformationElementRole or Ser-

viceElementRole.

• CompRole: This Role speciﬁes the attacker’s com-

petencies, such as to take into account the use of ex-

isting malware (via metasploit, for example) or the

development a new malware.

• VulnerabilityRole: This Role speciﬁes the possible

vulnerability viewpoint relative to the current element

conﬁguration and the attacker’s competencies. This

Role selects the vulnerabilities by applying a ﬁlter

(composed of conﬁguration and attacker competen-

cies) because typically the NVD data base is too huge

and detailed. The viewpoint selects only the relevant

vulnerability features to reach the targeted scenario.

With our role model, the instantiation process can

create one instance of InformationElementRole as a

containerRole and one instance of each Conﬁgura-

tionRole, CompRole and VulnerabilityRole which are

as containedRoles, see Figure 6.

Conforming to the Role4All metamodel, each role

has behavioral methods to federate model data from

the DSMLs and each model element is a player.

For example, the method getVulnerabilities (shown in

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

Figure 6: Instantiation schema of a container and its con-

tained roles.

Figure 4) provides the behavior to select the vulner-

abilities regarding the current conﬁguration and the

attacker competencies.

In the following parts we exemplify the usage of

the behavioral methods of shared semantics.

5.2.2 Usage and Dynamic Update of the Shared

Semantics

To focus on the use of the shared semantics, we ex-

emplify the gathering of vulnerabilities on an ex-

ploitable element targeted by the attacker. Thanks to

the behavioral method getVulnerabilities of Informa-

tionElementRole, we gather model data from the con-

ﬁguration, the attacker competencies and the vulner-

ability DSMLs. Finally, this method selects and re-

turns all the exploitable vulnerabilities relative to the

InformationElementRole instance.

In our example, Figure 7, we take an instance

of InformationElementRole called webServer. Web-

Server corresponds to the federation of a PimCa ma-

chinery instance called ”pimcaWebServer”, a dedi-

cated conﬁguration deﬁning WordPress version 4.6.1

and Symposium version 14.11, and attacker compe-

tencies with a network access and without authentica-

tion privilege like in Figure 4.

The instantiation schema, illustrated in Figure 6,

provides a webServer as a containerRole and three

instances: webServerConﬁgWP, webServerConﬁgSP

and webServerAttack as containedRoles.

To accomplish a simulation step, the simulator

must request the message getVulnerabilities. This

simulator DSL is based on a dedicated set of roles

and on an interactive approach. Without an in-depth

presentation of this simulator, we consider here that

this environment requests the federation and waits for

a response from the role model with or without infor-

mation from the DSMLs.

So the request of getVulnerabilities by the simula-

tor, triggers the behavior of the federation in several

steps, illustrated in Figure 7 and presented below:

Figure 7: Federation mechanism details for information

gathering and updating role model.

1 The simulator triggers the behavior method

getVulnerabilities on the containerRole, web-

Server. This method requires arguments: a con-

ﬁguration and attacker’s competencies. So web-

Server must request this information from its

containedRoles.

2 The containerRole requests all the containe-

dRoles, and especially webServerConﬁgWP and

webServerConﬁgSP about the conﬁguration of

webServer and webServerAttack about the at-

tacker’s competencies.

3 WebServerConﬁgWP, webServerConﬁgSP and

webServerAttack are linked to their player, i.e

the model elements of the DSMLs. Conforming

to the metamodel, the PlayRelation and Adapter

instances collect the data from the players.

4 WebServerConﬁgWP, webServerConﬁgSP and

webServerAttack send the requested information

to webServer. Then the containerRole calls the

method getVulnerabilities with arguments result-

ing of the collected information.

5 The method getVulnerabilities generates an in-

stance of VulnerabilityRole contained by web-

Server, called webServerVuln1.

6 WebServerVuln1 triggers the method collectVul-

nerabilities. This method requires the same ar-

guments as getVulnerabilities and generates in-

stances of VulnerabilityRole. This method se-

lects all the existing vulnerabilities for the web-

Server conﬁguration which are exploitable by

the attacker. For each selected vulnerability, an

instance of VulnerabilityRole is created with a

sub-set of the features from NVD vulnerability

database. In our example webServer has three

selected vulnerabilities, so we generate three in-

stances of VulnerabilityRole to update the role

model with the vulnerabilities.

7 Each instance of VulnerabilityRole sends the vul-

Model Federation based on Role Modeling

nerability content to webServer.

8 Then the containerRole returns all the federated

VulnerabilityRole instances to the simulator.

In our use case, the returned list of vulnerabilities con-

tains the vulnerability CVE-2014-10021. This vulner-

ability allows remote attackers to execute an arbitrary

code by uploading an executable ﬁle. Thanks to this

vulnerability, the attacker obtains full access to the

Web server. Thus the attacker has access to the tar-

get local network, and he can obtain the administrator

account of the Active Directory using Trojan horse.

With this example we illustrate the use of the

shared semantics and highlight the relation between

containerRole and containedRole to ensure the infor-

mation gathering and the update of the role model.

The role model is composed of role classes and be-

havioral methods. These methods act on the DSML

elements, the players, to get and set the element prop-

erties without any copy of these elements. The cre-

ation of playRelation at run time (Step 6 of Figure 7)

allows the federation system to be adapted dynami-

cally to the evolution of the players. As a future work

we would like to try a web based implementation sim-

ilar to WebDPF (Rabbi et al., 2016).

6 CONCLUSION

DSML interoperability remains tedious to obtain and

it is traditionally handled by transformations with po-

tential extensions to have bi-directional transforma-

tions. Our claim is that the model federation approach

facilitates the DSML interoperability issue. In this

paper, we demonstrate that role modeling provides

the capacity to deﬁne a shared semantics between the

considered DSMLs. The goal of our role modeling

approaches is to act as a semantics viewpoint on the

model elements.

In this approach, the model elements remain in-

dependent of the federated model and no transforma-

tions are applied. The role model is based on behav-

ioral functions to obtain and set model elements with-

out the creation of intermediate model elements. Our

Role4All metamodel is based on a formalization of

the role concept which provides a clear context of our

work. The framework must be extended to take into

account, for example, dedicated connectors to facili-

tate the interaction with classic data formats such as

JSON.

The case study used to illustrate our approach is

really relevant in the sense that cyber threat analy-

sis requires several tools to improve this kind of criti-

cal analyses. The analysis needs to take into account

many data and metadata on a system, correlate these

data and process the resulting federated data. This ex-

ample must be extended to increase the data sources

but it remains a very interesting ﬁeld of study for the

federation approach.

ACKNOWLEDGEMENTS

This work is accomplished in the context of a PhD

grant from the French Ministry of Armed Forces and

the Brittany Regional Council.

REFERENCES

Alexander, I. (2003). Misuse cases: Use cases with hostile

intent. IEEE software, 20(1):58–66.

Champeau, J., Leilde, V., and Diallo, P. I. (2013). Model

federation in toolchains. In MODELS Companion

Proceedings.

Conti, M., Dargahi, T., and Dehghantanha, A. (2018). Cy-

ber Threat Intelligence: Challenges and Opportuni-

ties, pages 1–6. Springer International Publishing,

Cham.

Elahi, G., Yu, E., and Zannone, N. (2010). A vulnerability-

centric requirements engineering framework: analyz-

ing security attacks, countermeasures, and require-

ments based on vulnerabilities. Requirements engi-

neering, 15(1):41–62.

Gottlob, G., Schreﬂ, M., and R

ock, B. (1996). Extending

object-oriented systems with roles. ACM Transactions

on Information Systems (TOIS), 14(3):268–296.

Guychard, C., Guerin, S., Koudri, A., Beugnard, A.,

and Dagnat, F. (2013). Conceptual interoperability

through models federation. In Semantic Information

Federation Community Workshop.

Hemery, D. (2015). PimCa: D

eﬁnition du langage. Techni-

cal report, DGA Maitrise de l’Information.

Holik, F., Horalek, J., Marik, O., Neradova, S., and Zitta, S.

(2014). Effective penetration testing with Metasploit

framework and methodologies. In 2014 IEEE 15th In-

ternational Symposium on Computational Intelligence

and Informatics (CINTI), pages 237–242. IEEE.

uhn, T., B

ohme, S., G

otz, S., and Aßmann, U. (2015).

A combined formal model for relational context-

dependent roles. In Proceedings of the 2015 ACM

SIGPLAN International Conference on Software Lan-

guage Engineering, pages 113–124. ACM.

uhn, T., Leuth

auser, M., G

otz, S., Seidl, C., and Aß-

mann, U. (2014). A metamodel family for role-based

modeling and programming languages. In Interna-

tional Conference on Software Language Engineer-

ing, pages 141–160. Springer.

Lee, W.-S., Grosh, D. L., Tillman, F. A., and Lie, C. H.

(1985). Fault tree analysis, methods, and applica-

tions - a review. IEEE transactions on reliability,

34(3):194–203.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

Li, Q. and Chen, Y.-L. (2009). Data ﬂow diagram. In Mod-

eling and Analysis of Enterprise and Information Sys-

tems, pages 85–97. Springer.

Mauw, S. and Oostdijk, M. (2005). Foundations of attack

trees. In Proceedings of the 8th international confer-

ence on Information Security and Cryptology, pages

186–198. Springer-Verlag.

Mell, P., Scarfone, K., and Romanosky, S. (2006). Com-

mon vulnerability scoring system. IEEE Security &

Privacy, 4(6).

Myagmar, S., Lee, A. J., and Yurcik, W. (2005). Threat

modeling as a basis for security requirements. In Sym-

posium on requirements engineering for information

security (SREIS), volume 2005, pages 1–8. Citeseer.

Niemoller, J., Mokrushin, L., Vandikas, K., Avesand, S.,

and Angelin, L. (2013). Model federation and proba-

bilistic analysis for advanced OSS and BSS. In Next

Generation Mobile Apps, Services and Technologies

(NGMAST), 2013 Seventh International Conference

on, pages 122–129. IEEE.

Pauli, J. and Xu, D. (2005). Threat-driven architectural de-

sign of secure information systems. In Proceeding of

First International Workshop on Protection by Adap-

tation PBA 2005, Miami.

Rabbi, F., Lamo, Y., Yu, I. C., and Kristensen, L. M.

(2016). Webdpf: A web-based metamodelling and

model transformation environment. In Model-Driven

Engineering and Software Development (MODEL-

SWARD), 2016 4th International Conference on,

pages 87–98. IEEE.

Rio, M. (2012). A l’interface de l’ing

enierie et de

l’analyse environnementale, f

eration pour une

eco-

conception proactive. PhD thesis, Universit

e de Tech-

nologie de Troyes.

Schneider, F. B. (1999). Trust in cyberspace. National

Academy Press Washington, DC.

Schneider, J.-P., Champeau, J., Teodorov, C., Senn, E.,

and Lagadec, L. (2015). A role language to inter-

pret multi-formalism system of systems models. In

9th Annual IEEE International Systems Conference

(SysCon), pages 200–205. IEEE.

Seifert, M., Wende, C., and Aßmann, U. (2010). Anticipat-

ing unanticipated tool interoperability using role mod-

els. In Proceedings of the First International Work-

shop on Model-Driven Interoperability, pages 52–60.

ACM.

Shostack, A. (2014). Threat modeling: Designing for secu-

rity. John Wiley & Sons.

Steimann, F. (2000). On the representation of roles in

object-oriented and conceptual modelling. Data &

Knowledge Engineering, 35(1):83–106.

Wende, C., Thieme, N., and Zschaler, S. (2009). A role-

based approach towards modular language engineer-

ing. In International Conference on Software Lan-

guage Engineering, pages 254–273. Springer.

Zhang, S., Caragea, D., and Ou, X. (2011). An empiri-

cal study on using the national vulnerability database

to predict software vulnerabilities. In International

Conference on Database and Expert Systems Appli-

cations, pages 217–231. Springer.

Model Federation based on Role Modeling
