Generative Adversarial Networks as an Advanced Data Augmentation

Technique for MRI Data

Filippos Konidaris, Thanos Tagaris, Maria Sdraka and Andreas Stafylopatis

School of Electrical and Computer Engineering, National Technical University of Athens,

Iroon Polytexneiou 9, Zografou Campus 15780, Athens, Greece

Keywords:

Generative Adversarial Networks, Deep Learning, MRI, Data Augmentation, ADNI, Alzheimer’s Disease.

Abstract:

This paper presents a new methodology for data augmentation through the use of Generative Adversarial Net-

works. Traditional augmentation strategies are severely limited, especially in tasks where the images follow

strict standards, as is the case in medical datasets. Experiments conducted on the ADNI dataset prove that

augmentation through GANs outperforms traditional methods by a large margin, based both on the validation

accuracy and the models’ generalization capability on a holdout test set. Although traditional data augmenta-

tion did not seem to aid the classiﬁcation process in any way, by adding GAN-based augmentation an increase

of 11.68% in accuracy was achieved. Furthermore, by combining traditional with GAN-based augmentation

schemes, even higher accuracies can be reached.

1 INTRODUCTION

Over the past years, there has been a rapid deve-

lopment in the ﬁeld of Computer Vision, especially

through techniques involving Deep Learning. A trend

has emerged, where models achieving state-of-the-art

performances are becoming deeper and more com-

plex. An explanation might be that the most important

benchmark each new Deep Neural Network must pass

is the annual ImageNet Large Scale Visual Recogni-

tion Challenge (ILVRC) (Russakovsky et al., 2015),

which requires the models to be trained on an immen-

sely large dataset (i.e. millions of images). However,

performance on this challenge does not always trans-

late well to real world applications, as they rarely in-

clude such a large dataset.

Training a deep model on insufﬁcient data usu-

ally results in overﬁtting, because a model of high

capacity is capable of “memorizing” the training set.

Multiple methods have been shown to alleviate this

problem, but none so effectively to be used exclusi-

vely. These techniques can be split into two broad

categories: regularization techniques, aiming to limit

the model’s capacity (e.g. dropout, parameter norm

penalties) and data augmentation techniques, attemp-

ting to increase the size of the dataset (Kuka

cka et al.,

2018). In practice, most models beneﬁt from a mul-

Github repo: https://github.com/ﬁlippos1994/Gan mri

aug

titude of these techniques. This study mostly focuses

on the latter category.

Data augmentation has proven to be very effective

and is adopted universally in the ﬁeld of deep lear-

ning, e.g. (Ciresan et al., 2010), (Vasconcelos and

Vasconcelos, 2017). It is in fact so effective that it is

being used even in tasks that involve large amounts

of data (Wu et al., 2015). The most common forms

of augmentation include horizontal and vertical ﬂips,

afﬁne transformations (e.g. scaling, translating, rota-

ting), brightness/contrast adjustments and ﬁlter appli-

cations (e.g. blurring, sharpening). The goal of such

transformations is to obtain a new image that contains

the same semantic information as the original.

While augmentation most certainly helps neural

networks learn and generalize more effectively, it

also has its drawbacks. In most cases, augmenta-

tion techniques are limited to minor changes on an

image, as more “heavy” augmentations might damage

the image’s semantic content. Furthermore, the forms

of augmentation one can use differ from problem to

problem, making their application ad-hoc and empi-

rical. For instance, medical images have to be mildly

augmented as they follow strict standards (i.e. they

are centered, their orientation and intensity vary little

from image to image and many times they are late-

rally/horizontally asymmetric) (Hussain et al., 2017).

Finally, augmentation techniques are applied on one

image at a time and thus are unable to gather any

Konidaris, F., Tagaris, T., Sdraka, M. and Stafylopatis, A.

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data.

DOI: 10.5220/0007363900480059

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 48-59

ISBN: 978-989-758-354-4

information from the rest of the dataset. This paper

proposes a novel technique that overcomes said limi-

tations and is capable of augmenting any given data-

set with realistic, high-quality images generated from

scratch.

Generative Adversarial Networks (GANs) (Good-

fellow et al., 2014) are a family of unsupervised neu-

ral networks most commonly used for image genera-

tion. Each GAN is composed of two networks: a ge-

nerator and a discriminator, competing against each

other in a two-player minimax game. These models

have proven to be capable of creating realistic images

and will serve as the basis of this study.

2 RELATED WORK

Generative Adversarial Networks have been success-

fully used in the past for data augmentation. For

example, (Antoniou et al., 2017) and (Wang et al.,

2018) use custom GAN architectures in a low-data

setting achieving consistently better results than tra-

ditionally augmented classiﬁers, while (Perez and

Wang, 2017) devise a novel pipeline called Neural

Augmentation which, through style transfer techni-

ques, aims at generating images of different styles,

performing equally as good as traditional augmenta-

tion schemes in a subsequent classiﬁcation task. Ad-

ditionally, (Neff, 2018) proposes a generative model

which learns to produce pairs of images and their re-

spective segmentation masks in order to assist a U-

Net segmentation model, proving that in simpler da-

tasets networks trained with a mix of synthetic and

real images stay competitive with networks trained on

strictly real data using standard data augmentation.

One ﬁeld in which data augmentation is especi-

ally important is that of medical imaging, where the

lack of available public data is a ubiquitous problem

since access to individual medical records is hea-

vily protected by legislation and appropriate consent

must be given. In most cases this process is hinde-

red by bureaucracy and/or high costs, while the re-

sulting collection is greatly imbalanced towards nor-

mal subjects. Several authors employ Machine Le-

arning techniques to learn directly from the available

data and surpass the state-of-the art in problems as

diverse as generating benchmark data, image norma-

lization, super resolution, or cross-modality synthesis

(Frangi et al., 2018).

The medical ﬁeld has only recently started adop-

ting GAN-based methodologies for synthesizing ima-

ges (Yi et al., 2018). In particular (Bentaieb and

Hamarneh, 2018) and (Shaban et al., 2018) propose

GAN-based style transfer approaches to stain nor-

malization in histopathology images, with quite in-

teresting results in various datasets. For tackling seg-

mentation tasks, various authors have proposed cus-

tom GAN architectures and pipelines which are ad-

versarially trained to produce proper segmentation

masks from a given medical image dataset (Shin

et al., 2018), (Dai et al., 2017), (Xue et al., 2017).

Regarding image translation between modes, (Dar

et al., 2018) synthesize T2-weighted brain MRI ima-

ges from T1-weighted ones, and vice versa, using a

Conditional GAN model. Finally, many authors, such

as (Frid-Adar et al., 2018) and (Costa et al., 2018),

have attempted to generate counterfeit medical ima-

ges in order to increase the size of the training set of

different deep learning models, a task more closely

related to the one examined in this paper.

Supplementary to all of the above efforts, our ap-

proach aims to exploit the superior performance of

GANs for the beneﬁt of medical image classiﬁca-

tion. We explore the impact of GAN-assisted data

augmentation on the diagnosis of Alzheimer’s Dise-

ase through non-invasive MRI scans and our critic is

a robust CNN model designed to classify among Alz-

heimer’s patients and healthy controls.

3 GENERATIVE ADVERSARIAL

NETWORKS

A Generative Adversarial Network is composed of

two networks, the generator and the discriminator.

The generator accepts a noise vector as input and pro-

duces fake data, which are then fed, along with real

ones, to the discriminator, whose goal is to distinguish

which distribution the samples originate from. Con-

versely, the generator’s goal is to learn the real dis-

tribution without witnessing it, in order to make its

output indistinguishable from real samples. Both net-

works are trained simultaneously and adversarially,

until an equilibrium is reached.

In order to combat instability issues during trai-

ning, the Earth Mover’s or Wasserstein distance was

used, partially because it leads to convergence for a

much broader set of distributions, but mostly because

its value is directly correlated to the quality of the ge-

nerated data. (Arjovsky et al., 2017). The resulting

formulation of the game is presented in eq. (1), where

D is the set of 1-Lipschitz functions.

min

max

D∈D

x∼P

[D(x)] − E

z∼P

[D(G(z))] (1)

The discriminator’s 1-Lipschitz constraint was

initially achieved by clipping its weights by an ar-

bitrary value (WGAN). It was later shown that this

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data

technique led to sub-optimal behaviour, which could

be ameliorated with the inclusion of a gradient pen-

alty term to the discriminator’s loss function, as

shown in eq. (2), calculated on a random interpola-

tion point between the real and the fake samples (P

ˆx

)

(Gulrajani et al., 2017). The resulting architecture

(WGAN-GP) is the one used in the current work.

L = E

z∼P

[D(G(z))] − E

x∼P

[D(x)] +

+ λ E

ˆx∼P

ˆx

[(k∇

ˆx

D( ˆx)k

− 1)

]

(2)

4 PROPOSED AUGMENTATION

METHODOLOGY

The main goal of this study was to produce realistic

images for each of the classes on-demand. To achieve

this, a framework was designed where a single GAN

was trained on each of the classes. For this purpose, a

GAN architecture of sufﬁcient capacity to understand

and model the underlying distributions of each of the

classes had to be selected. A GAN that satisﬁes the

above goal should, after training, be able to produce

realistic images of the class it was trained upon.

4.1 Generator

An architecture with 11 layers and more than 15 mil-

lion trainable parameters was selected as the genera-

tor of the network. The architecture is depicted in

Figure 1.

The input of the generator is a vector of 128

random values in the [0, 1) range, sampled from a uni-

form distribution. Following the input is a Fully Con-

nected (FC) layer with 6 · 5 · 512 = 15360 neurons.

The output of the FC layer is then transformed into a

3D volume, which can be thought of as a 6 × 5 image

with 512 channels. The subsequent layers are regular

2D convolutions (Conv) and 2D transposed convolu-

tions (Conv trans up), sometimes referred to as “de-

convolution” layers. A 5 × 5 sized kernel and ‘same’

padding were selected for both types of layers, while

a stride of 2 was selected for the transposed convolu-

tions. This results in the doubling of the spatial di-

mensions of its input.

All layers apart from the last are activated by a

“Leaky ReLU” function. The ﬁnal layer has a hy-

perbolic tangent (tanh) activation function, because

its output needs to be bounded in order to be able to

output an image. A tanh function was preferred over

a sigmoid function because it is centered around 0,

which helps during training (LeCun et al., 1998).

Finally, after ﬁve alternations of convolution and

transposed convolution layers (each of which doubles

Input (128)

Dense (6 · 5 · 512)

Conv trans up (512)

Conv (256)

Conv trans up (256)

Conv (128)

Conv trans up (128)

Conv (64)

Conv trans up (64)

Conv (32)

Conv trans up (32)

Conv (1)

Input (128)

FC (6 · 5 · 512)

Conv trans up (512)

Conv (256)

Conv trans up (256)

Conv (128)

Conv trans up (128)

Conv (64)

Conv trans up (64)

Conv (32)

Conv trans up (32)

Conv (1)

1.981.440 + 61.440

6.554.112 + 2048

3.277.056 + 1024

1.638.656 + 1024

819.328 + 512

409.728 + 512

204.864 + 256

102.464 + 256

51.232 + 128

25.632 + 128

801

Figure 1: On the left is the architecture of the network’s

generator. The size of each layer can be seen after its name.

On the right, the number of parameters (trainable + batch

normalization) of each layer is presented.

the size of its input), an image with a resolution of (6·

× 5 · 2

) = (192 × 160) and 1 channel is produced.

4.2 Discriminator

The discriminator is a regular CNN architecture ai-

med towards binary classiﬁcation. The one used in

the present study consists of 11 layers and around 9.5

million trainable parameters and can be seen in Figure

The input to the discriminator is a single-channel

192 × 160 image. This image is then passed ﬁve ti-

mes through alternating layers of convolutions with a

stride of 1 and 2 respectively; the latter are used for

sub-sampling as there are no pooling layers present

in the architecture. The ﬁnal two layers are FC ones.

All layers in the network are activated by a “Leaky

ReLU” , besides the last one which has no activation

function.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Conv (32)

Conv down (64)

Conv (64)

Conv down (64)

Conv (64)

Conv down (128)

Conv (128)

Conv down (128)

Conv (128)

Dense (512)

Dense (1)

(192, 160, 1)

Conv (32)

Conv down (64)

Conv (64)

Conv down (64)

Conv (64)

Conv down (128)

Conv (128)

Conv down (128)

Conv (128)

FC (512)

FC (1)

832

51.264

102.464

204.928

409.728

7.864.832

513

Figure 2: The architecture of the network’s discriminator

is depicted on the left. The size of each layer can be seen

after its name. The number of parameters of each layer is

presented on the right of the Figure.

5 APPLICATION

For an experimental validation of the effectiveness

of the proposed methodology, an application was

selected where traditional augmentation techniques

were ineffective. One of the most troublesome dom-

ains for data augmentation is medical imaging, since

biological constraints pose great limitations on the vi-

sual transformations that can be applied without da-

maging the semantic content of the data.

5.1 Dataset

To fully test and evaluate our approach, we experi-

mented on the Alzheimer’s Disease Neuroimaging

Initiative (ADNI)

dataset (Petersen et al., 2010).

Alzheimer’s disease (AD) is an irreversible neurode-

generative disease that results in loss of memory and

mental function (thinking, planning, judgment) cau-

sed by the permanent deactivation of neuronal synap-

ses. It is the sixth-leading cause of death in the Uni-

ted States and the most common cause of dementia

among people over the age of 65, yet no prevention

methods or cures have been discovered (Alzheimer’s

Association, 2018).

The ADNI was launched in 2003 as a public-

private partnership, led by Principal Investigator Mi-

chael W. Weiner, MD. The primary goal of ADNI has

been to test whether serial magnetic resonance ima-

ging (MRI), positron emission tomography (PET), ot-

her biological markers, and clinical and neuropsycho-

logical assessment can be combined to measure the

progression of mild cognitive impairment (MCI) and

early Alzheimer’s disease (AD). It has grown to in-

clude data from over 300 patients with AD, over 850

patients with mild cognitive impairment (MCI) and

over 350 normal control subjects (NC).

5.1.1 Patient Selection

In our study we selected a subset of the ADNI image

data which only included scans of normal (NC) and

AD patients, ignoring MCI subjects to aim for the hig-

hest variance between classes. In addition, since Alz-

heimer’s disease causes obvious damage in the brain

tissue, such as shrinkage of the hippocampus and ce-

rebral cortex and enlargement of ventricles, we utili-

zed only the T1 MRI images available. To account

for imbalance between the two classes, 58% of cont-

rol subjects was randomly chosen, ending up with 152

AD patients and 101 NC subjects.

5.1.2 Preprocessing

All images downloaded from the ADNI database

were already preprocessed according to the ofﬁcial

ADNI acquisition protocol (Jack Jr et al., 2008). Ad-

ditional preprocessing steps were taken to facilitate

model training, such as removal of 40 − 45% of the

images at the beginning of the sequence and 25%

at the end of the sequence, and resizing them to

Data used in preparation of this article were obtai-

ned from the Alzheimer’s Disease Neuroimaging Initia-

tive (ADNI) database (adni.loni.usc.edu). As such, the

investigators within the ADNI contributed to the design

and implementation of ADNI and/or provided data but did

not participate in analysis or writing of this report. A

complete listing of ADNI investigators can be found at:

http://adni.loni.usc.edu/wp-content/uploads/how to apply

/ADNI Acknowledgement List.pdf

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data

192 × 160 with Lanczos interpolation. Finally, we

randomly divided the dataset into training, validation

and test sets, keeping intact the sequence of each pa-

tient so that every patient appears in only one of the

aforementioned sets. Table 1 shows the distribution

of images (and patients) among classes.

We should note here that in our initial experi-

ments we randomly shufﬂed and split all images wit-

hout preserving each patient’s sequences; this allowed

the models to identify key features in each subject’s

head’s morphology and achieve a perfect score on the

test set (i.e. for each test set image, the model had

been trained on another from the same patient). Be-

cause of this, the study of the models’ generalization

on new, unseen patients, which is a necessary require-

ment for all medical applications, became infeasible.

Table 1: Image distribution for the ADNI dataset. The re-

spective number of patients is enclosed in parentheses.

training validation test

AD 25,154 (134) 1,975 (12) 1,399 (6)

NC 24,298 (86) 2,343 (9) 2,139 (6)

5.2 Experimental Framework

In order to measure the effectiveness of the proposed

methodology, the following experiment was devised:

Firstly, a Deep Neural Network architecture, capa-

ble of achieving a satisfactory performance on classi-

fying the two categories (i.e. AD, NC), was selected.

This network was trained on the aforementioned data-

set with (II) and without (I) the use of traditional aug-

mentation techniques. Afterwards, artiﬁcial images

were added to the training data, forming a composite

dataset, which was again used to train the same net-

work with (IV) and without (III) the use of traditional

augmentation. The four combinations are depicted in

Table 2 for better clarity.

Table 2: The four experiments conducted. The use of GANs

for data augmentation is represented by the horizontal axis

and the use of traditional augmentation techniques on the

vertical axis. The two experiments on the bottom row (i.e.

III and IV) will be referred to as “composite data” experi-

ments.

augmentation

NO YES

GAN

NO I II

YES III IV

The goal of the study was to prove that the mo-

del trained with data augmentation through the use of

GANs (III) outperforms the one without (I). Moreo-

ver, the use of GANs (III) was compared to traditio-

nal augmentation techniques (II), while the impact of

both forms of augmentation (IV) was also examined.

Several metrics were used to evaluate the perfor-

mance of our experiments (i.e. accuracy, precision,

recall, f1), but for simplicity only the accuracy sco-

res will be presented. Since the datasets are highly

balanced, the rest of the metrics fall in line and con-

sequently were considered redundant.

5.2.1 Classiﬁcation Model

For the classiﬁcation task we used the popular Res-

Net architecture (He et al., 2016) with 18 layers. The

architecture concluded with a singe FC layer with a

softmax activation function. One parameter we expe-

rimented on was the use of dropout (Srivastava et al.,

2014), which was applied on FC layer; three diffe-

rent dropout rates were examined: 0% (which is equi-

valent to no dropout), 25% and 50%. Every model

was trained from scratch on the available images after

dataset normalization was applied. The models were

trained for a total of 100 epochs with the Adam opti-

mization algorithm (Kingma and Ba, 2014).

5.2.2 Traditional Augmentation Techniques

Due to the nature of our dataset we could only apply

a limited range of visual transformations. In particu-

lar, we sequentially applied: a) horizontal ﬂip with

a given probability, b) brightness adjustment within

90%−110% of the original values, with the same pro-

bability, c) scaling to 90%−110% of the original size,

translation by −5 to +5 percent per axis and rotation

by −5 to +5 degrees, again with the same probabi-

lity. Higher values for this probability correspond to

larger deformations for each image. The probability

will be addressed with the symbol p and will illustrate

the “strength” of the augmentation. For all transfor-

mations, the discarded pixels were all padded with 0

(i.e. the intensity of the background). The whole pro-

cedure is shown in Algorithm 1. In our experiments

we tried probability values (p) of 0.25 and 0.5.

Algorithm 1: Traditional augmentation algorithm.

1: procedure AUGMENT(img, p)

2: with probability p:

3: img ← FlipHorizontally(img)

4: with probability p:

5: img ← Ad justBrightness(img, (0.9, 1.1))

6: with probability p:

7: img ← Scale(img, (0.9, 1.1))

8: img ← Translate(img, (−5, +5))

9: img ← Rotate(img, (−5, +5))

10: return img

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

5.2.3 GAN Augmentation

In our GAN models we used a batch size of 32, the

Adam optimizer, Wasserstein loss and gradient pen-

alty (with weight = 10 as in the original paper).

The condition upon which training was termina-

ted required the loss of the discriminator to reach 0,

at which point it is unable to distinguish between real

and fake images. This was reached after around 350

epochs, as can be seen in Figure 3, which depicts the

training losses of the GAN trained on the subset of

ADNI control subjects (i.e. NC). The AD subset exhi-

bited similar training loss curves.

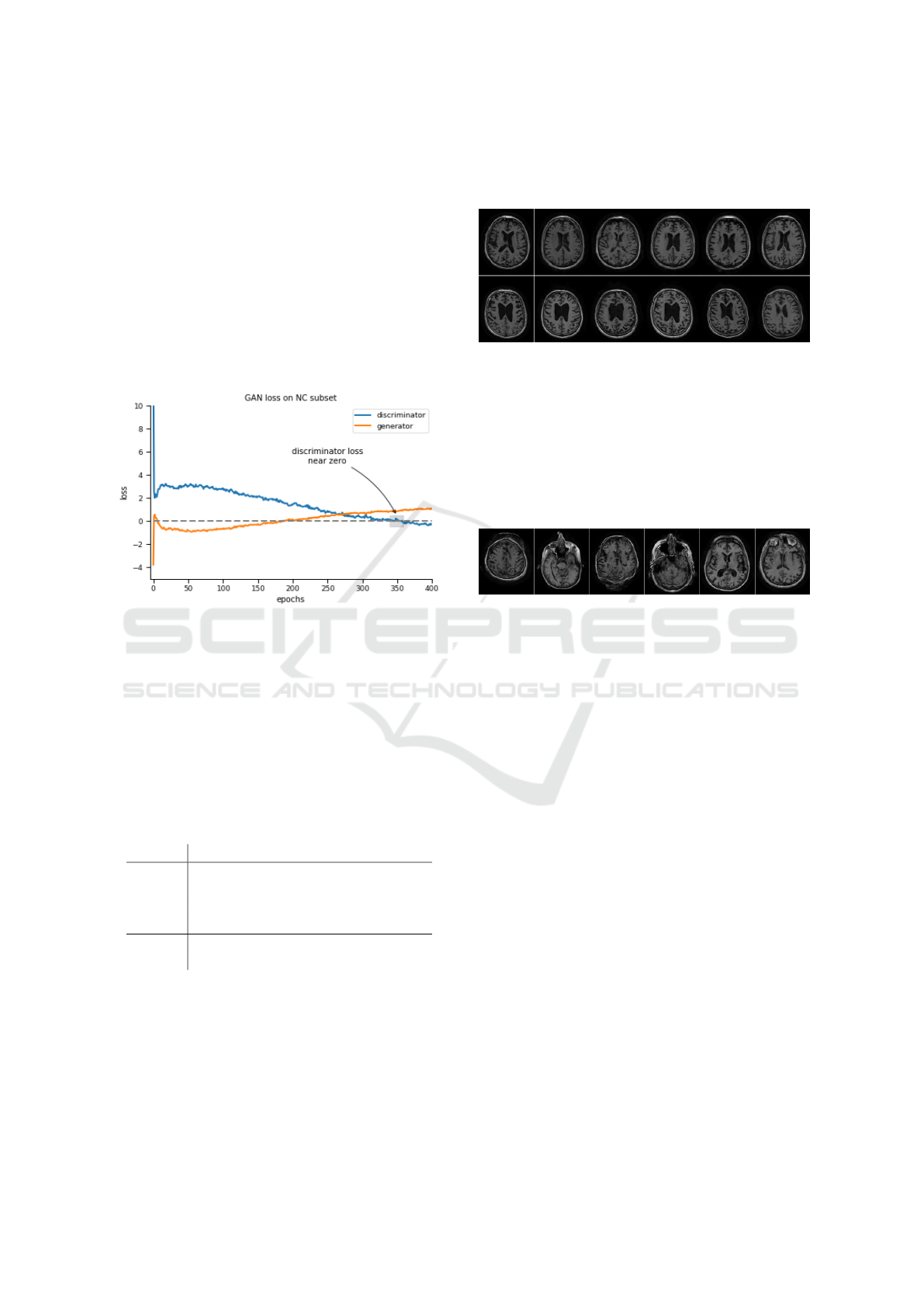

Figure 3: The loss of the GAN trained on the NC subset.

After they were fully trained, the GANs were tas-

ked of producing 50, 000 fake images for each class.

These were combined with the images from the ori-

ginal dataset to form eight separate composite data-

sets, each with a different ratio of fake/real images

(i.e. 25%, 50%, 75%, 100%, 125%, 150%, 175% and

200%). Table 3 shows the statistical characteristics of

all eight composite training sets.

Table 3: Statistics of composite training sets for different

fake/real image ratios.

0% 25% 50% 75%

mean 35.317 35.240 35.200 35.121

std 44.920 44.826 44.783 44.709

100% 125% 150% 175% 200%

35.118 35.089 35.073 35.050 35.035

44.686 44.669 44.640 44.626 44.610

The generated images impacted the statistical me-

asures very slightly, testament of how well the GANs

modeled the distribution of the training sets.

5.3 Empirical Evaluation

In this section we present a number of images produ-

ced by the trained generator in order to demonstrate

our model’s potential. Most generated images proved

to be of extremely high quality (Fig. 4) and showed

all traits of a real MRI scan.

Figure 4: Comparison between real samples (leftmost ima-

ges) from the two classes (NC top, AD below) and their ﬁve

most lookalike GAN-created samples, in left-to-right order.

The images were found using an unsupervised, 5-Nearest

Neighbors model.

In Fig. 5 we demonstrate a few cases where the

generator failed to synthesize meaningful images, but

fortunately these mishaps constitute a very small part

of our ﬁnal composite data.

Figure 5: Some non-realistic looking samples.

Finally, with the additional assistance of a speci-

alized radiologist, we concluded that the overall qua-

lity of the synthetic images was sufﬁcient for use in

the subsequent experiments.

6 RESULTS

Two methods were used for evaluating the results of

the four experiments. The ﬁrst, which we will refer

to as the “runtime evaluation” involved the validation

set, while the second involved the test set and is refer-

red to as the “generalization analysis”. The ﬁrst was

used to select the best model regarding both the epoch

and hyper-parameters with which it achieves its best

performance, while the second served to produce an

unbiased estimate of the performance of the models.

6.1 Runtime

During training, at the end of each epoch, every model

was evaluated on the validation set. This procedure

was used to select the best hyper-parameters and to

study the convergence of the models. The accuracy at

the end of each epoch was stored for all experiments

and when plotted can illustrate how the models’ per-

formance improves during training. Because of the

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data

high oscillations some models experience, the graphs

were “smoothed” through a moving average. After

training, weights of the epoch at which each model

achieved its highest validation accuracy were stored.

6.1.1 I. Baseline Experiments

This experiment aimed at establishing a baseline for

future experiments. Three different dropout probabi-

lities were tested, 0% (which corresponds to no dro-

pout), 25% and 50%. The results can be seen in Fi-

gure 6.

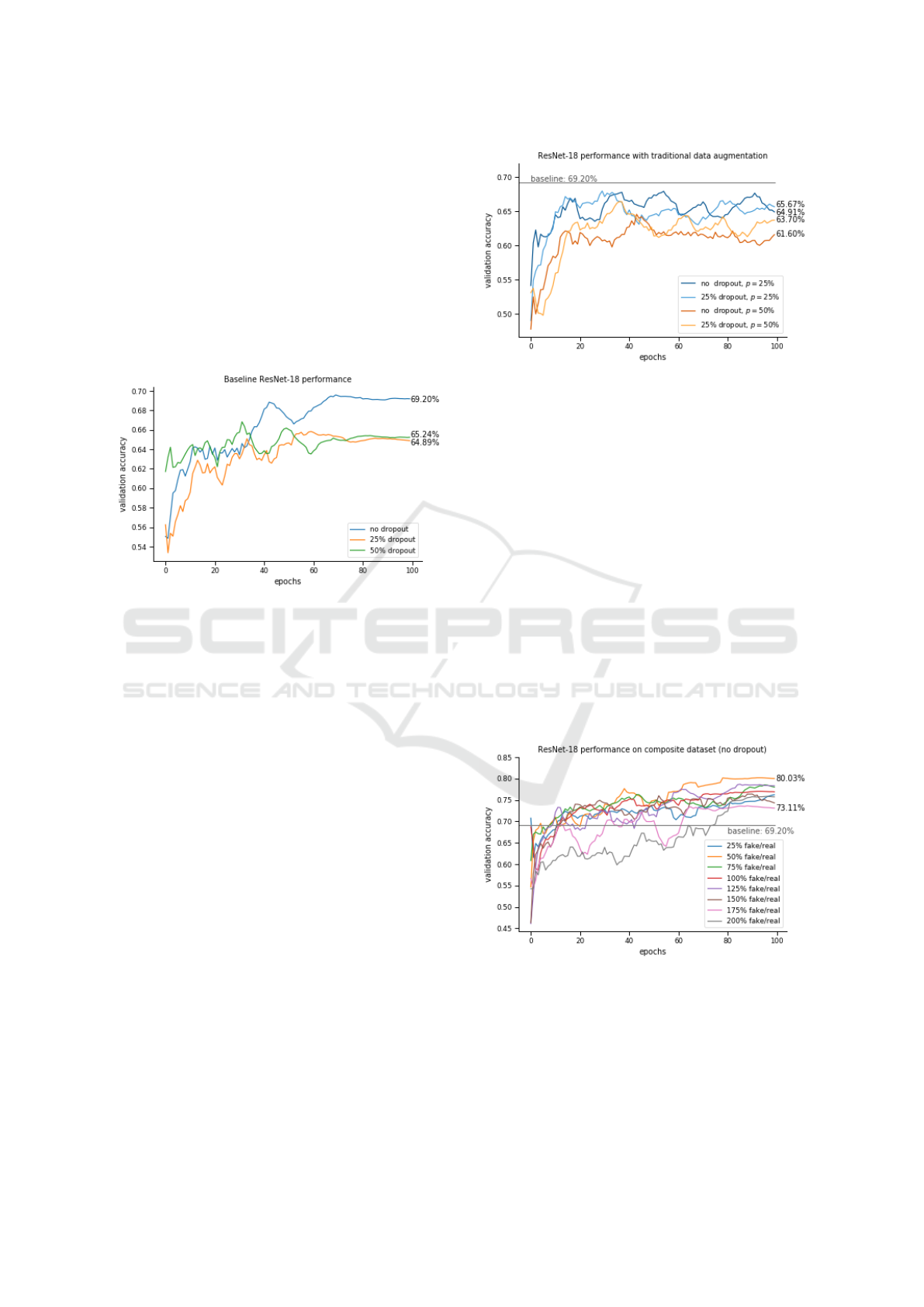

Figure 6: ResNet-18 trained on the ADNI dataset without

any form of augmentation. This will be used as a baseline

for the next experiments.

The best model (i.e. the ones with no dropout)

achieved an accuracy of 69.2%. This will serve as the

“baseline” for subsequent runs. The addition of dro-

pout appeared to deteriorate the model’s performance

by around 4%.

6.1.2 II. Traditional Augmentation

After establishing the baseline, the next step was to

study how the addition of traditional augmentation

techniques affect the performance of the models. The

augmentors used are described in Section 5.2.2. Fi-

gure 7 depicts the runtime performance of two models

(i.e. one with 25% dropout probability and one wit-

hout dropout) on the augmented dataset. While the

model without dropout clearly outperformed the ot-

hers, its use was re-evaluated during this experiment,

as the regularization effect might be beneﬁcial on not

so ideal data.

While augmentation usually improves a model’s

performance, in the present experiment it did not, ap-

parent by the fact that not a single model reached the

baseline set by the previous experiment. One expla-

nation could be that MR images have a very strict for-

mat. Even the mildest augmentation strategies pro-

ved counter-productive for the classiﬁcation task. The

Figure 7: ResNet-18 trained on the ADNI dataset with tradi-

tional forms of augmentation. Two different network archi-

tectures were examined for two different values of p. The

baseline from the previous experiment is represented by a

straight line.

best model in this experiment was the one without

dropout and with a 25% augmentation probability,

which converged to an accuracy of 65.67%.

From the ﬁgure it is also apparent that augmenta-

tion impairs the model’s convergence, evident by the

heavy oscillations in the curves.

6.1.3 III. Composite Data

The main goal of this study was to evaluate the per-

formance of a CNN trained on a dataset augmented by

images generated from a GAN. In order to determine

the ideal amount of artiﬁcial images to be added to the

original dataset, 8 experiments were run, described in

Section 5.2.3. These results are depicted in Figure 8.

Figure 8: ResNet-18 trained on the ADNI dataset augmen-

ted with GAN generated images. 8 different datasets were

used with different ratios of fake/real images. All architec-

tures here do not make use of any dropout. The baseline is

represented by a straight line.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Every single one of the runs outperforms the ba-

seline, proving that GANs can be effectively used as

data augmentors, even in tasks where traditional aug-

mentation techniques are ineffective. The best ratio

(i.e. 50%) scores more than 10% higher than the ba-

seline.

Another thing to note is that performing data aug-

mentation with GAN-generated images does not hea-

vily impact the convergence of the models, as was the

case with traditional augmentation techniques. Even

with the increase in the size of the dataset, almost all

models had converged by epoch 80. In contrast most

traditional data augmentation runs (Figure 7) hadn’t

converged even through the full length of the experi-

ment (100 epochs).

The optimal ratio appears to be somewhere bet-

ween 50 and 125 percent; the best score was 80.03%

from the model trained with a 50% fake/real ratio.

Further tests were run with the use of dropout with

the probability of 25%. While these were worse than

those without dropout, they conﬁrmed the best ratio.

Figure 9 compares the two tests; the thick line repre-

sents the mean of all 8 scores of each test, while the

error band stretches from the best to the worst.

Figure 9: Each of the two tests (i.e. dropout 0% and 25%)

represent 8 runs with different fake/real image ratios. The

thick line follows the mean of all 8 runs, while the error

band covers the distance from the best to worst model. The

baseline is represented by a straight line.

Both tests score much higher than the baseline,

while models that didn’t use dropout outperform the

others.

6.1.4 IV. Composite Data with Traditional

Augmentation

Finally, the combination of both types of augmen-

tation (i.e. traditional and GAN-based) was exami-

ned. The best model this time proved to be the one

with 25% dropout and a 100% fake/real ratio, scoring

78.97%. Contrary to previous experiments, dropout

proved useful in this case. The models trained with

25% dropout, p = 25% and eight different fake/real

ratios are depicted in Figure 10.

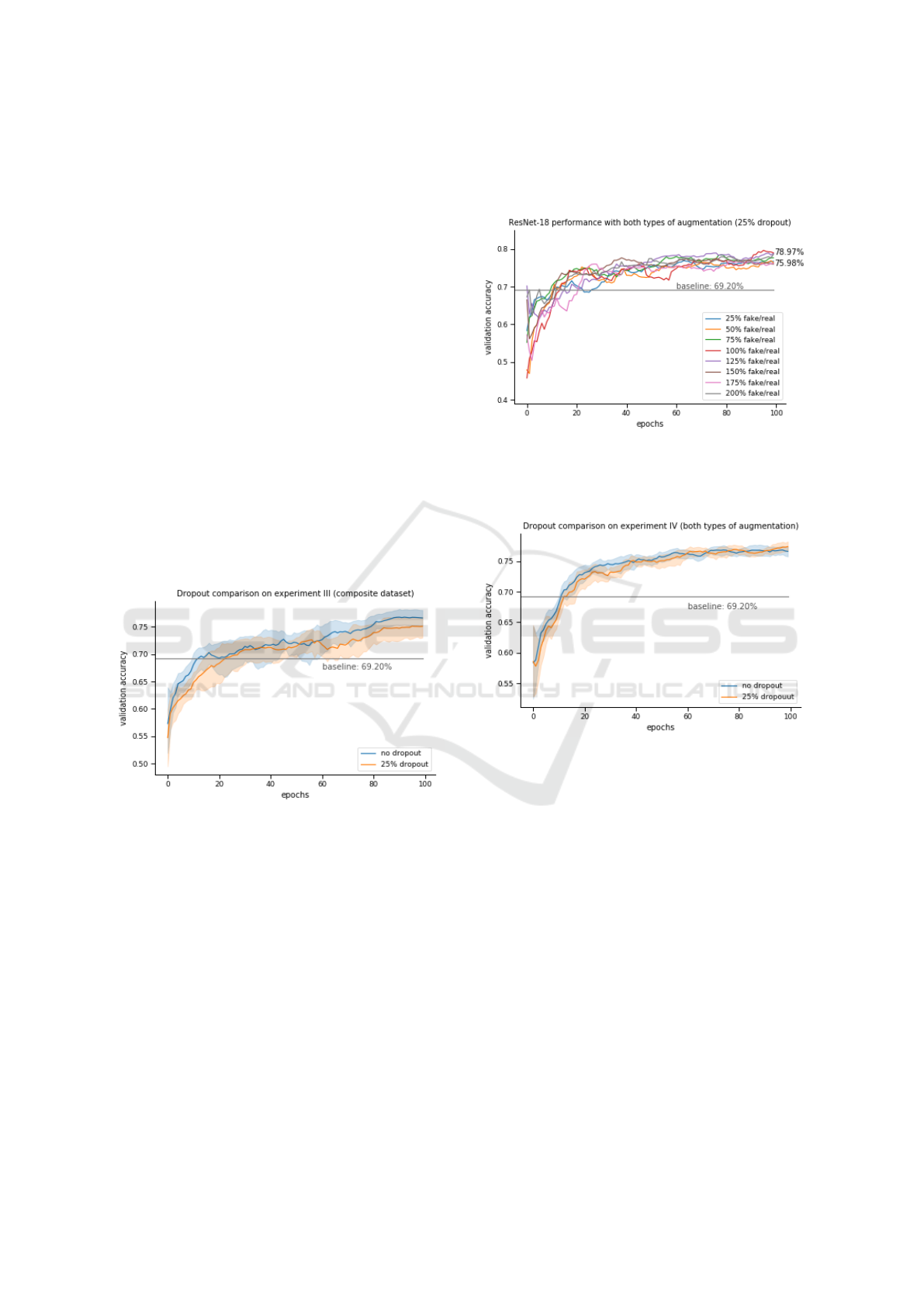

Figure 10: ResNet-18 trained on eight different composite

datasets with different fake/real ratios. All models were trai-

ned with 25% dropout and p = 25%. The baseline is repre-

sented by a straight line.

Figure 11: Each of the two tests (i.e. dropout 0% and 25%)

represent 8 runs with different fake/real image ratios. The

thick line follows the mean of all 8 runs, while the error

band covers the distance from the best to worst model. All

models are trained with a 25% dropout probability. The

baseline is represented by a straight line.

The models with 25% dropout fared slightly better

than the ones without, as seen in Figure 11.

Another comparison could be made involving the

two experiments trained on composite datasets, i.e.

one with (IV) and one without (III) the use of traditi-

onal data augmentation. Figure 12 shows the two best

categories of experiments III and IV.

While the addition of traditional augmentation

techniques did manage to assist in the convergence of

the models, the best model was still the one from ex-

periment III. Because there was uncertainty on whet-

her or not the models had fully converged, their trai-

ning was continued for another 100 epochs. After 200

epochs, two more models managed to reach over 80%

validation accuracy: these were the models from ex-

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data

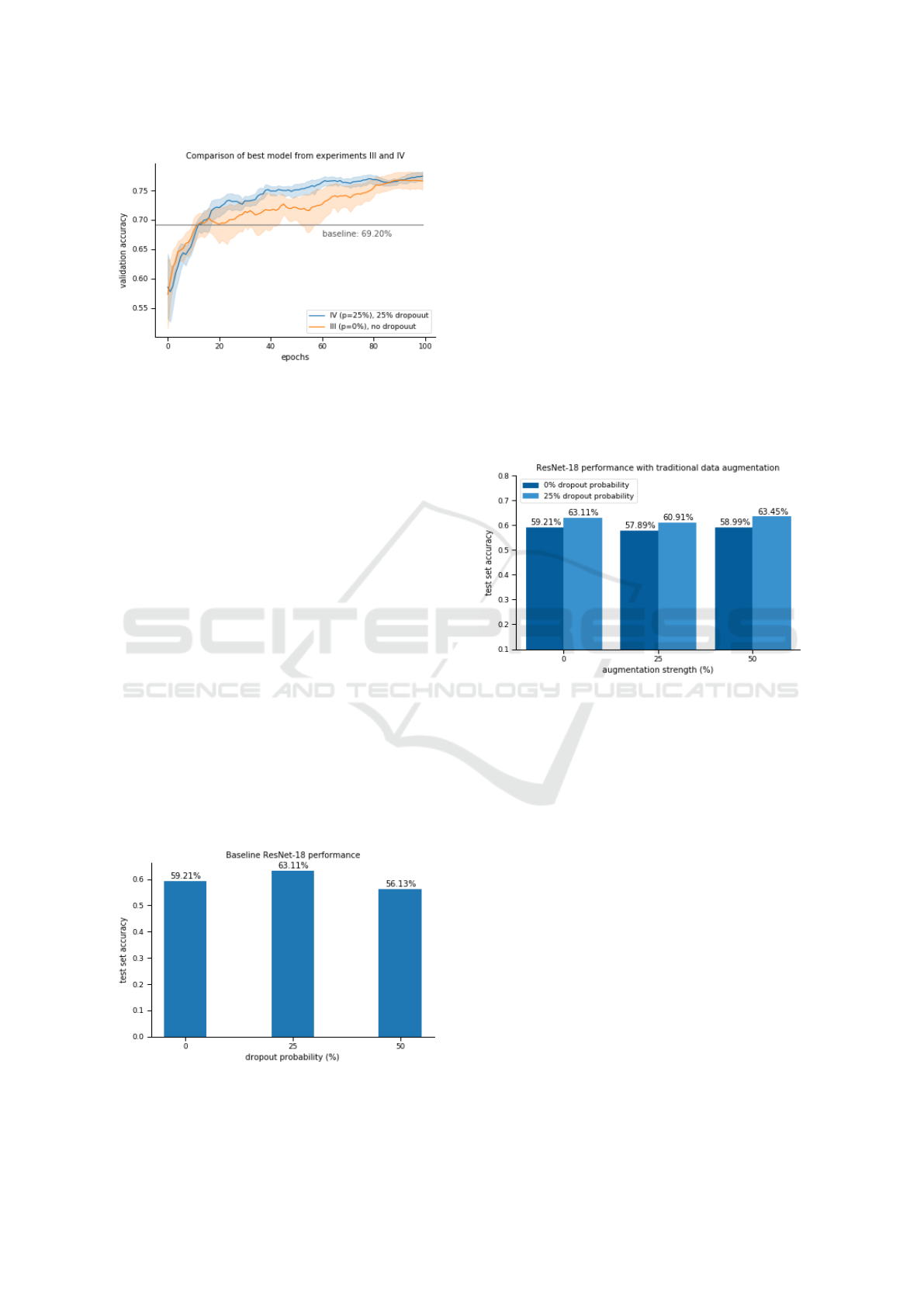

Figure 12: The best runs from experiments III and IV. The

8 runs from experiment III are without any dropout, while

the 8 runs from experiment IV are with 25% dropout.

periment IV, with p = 25%, a dropout probability of

25% and fake/real ratios of 125% and 150% respecti-

vely. This proves that models trained with “strong”

augmentations can be effective, but require more trai-

ning time.

6.2 Generalization

After training the models and evaluating them on the

validation set to identify (a) the best hyper-parameters

and (b) the epoch that it achieves its best performance,

these “best” models were further evaluated on the test

set. Because the hyper-parameter and epoch selection

was done on the validation set, there is a chance that

these led to an overﬁt of the models on that set. The

test set was meant to evaluate the models one last

time, as objectively as possible.

6.2.1 I. Baseline Experiments

Figure 13 shows the effect of dropout on the models

trained without any form of augmentation.

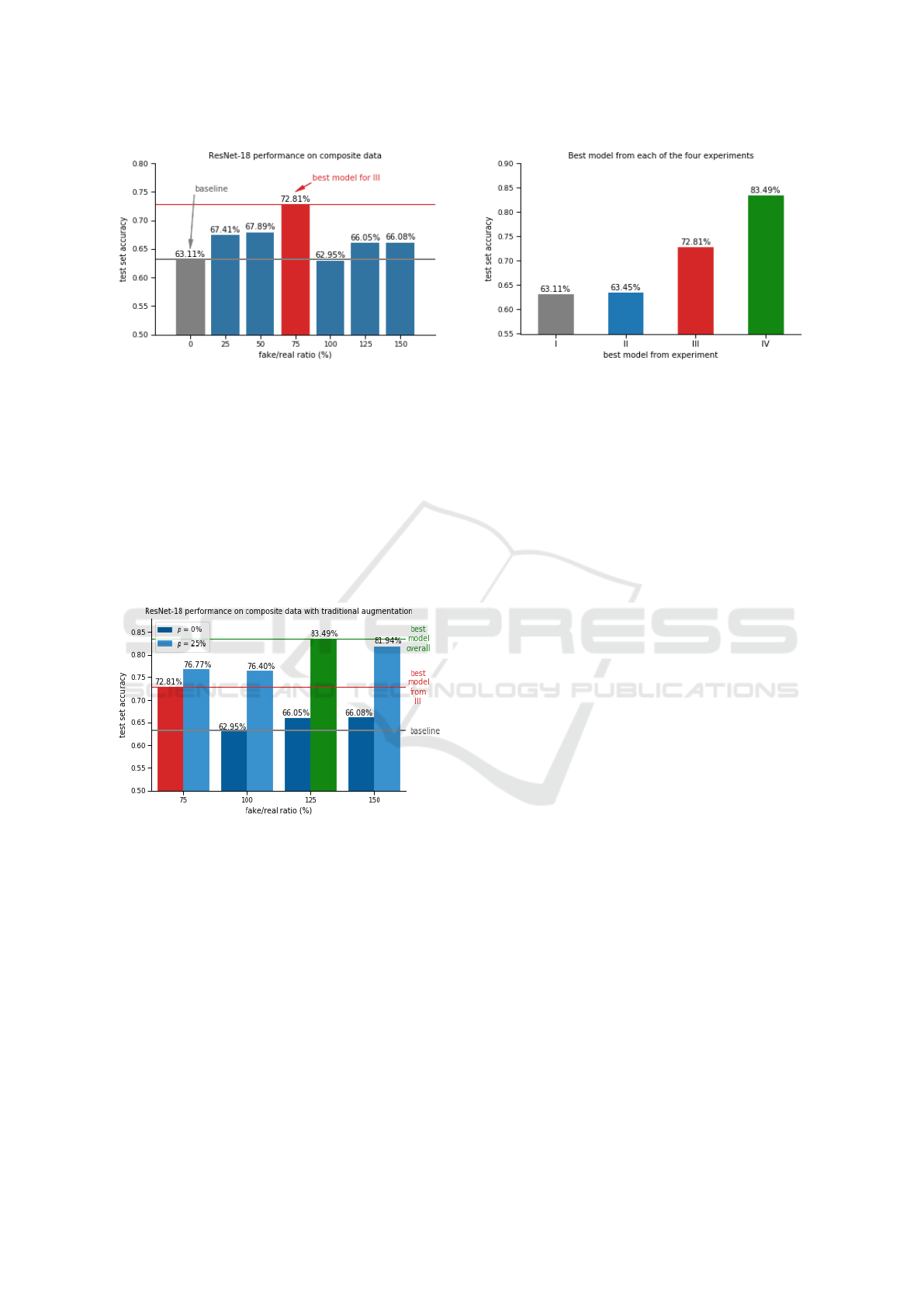

Figure 13: Three ResNet-18 architectures with different

dropout probabilities were evaluated. 0% dropout is the

same as not using dropout at all.

The ﬁrst thing to note is that the scores are lower

than the corresponding ones on the validation set, es-

pecially the one that didn’t use dropout. This could

be a consequence of overﬁtting on the validation set.

In any case, the test set results are considered to be

more reliable. The use of dropout appears to beneﬁt

the results on the test set, which would make sense if

any overﬁt was taking place. The best model proved

to be the one with a 25% dropout probability, which

achieved an accuracy of 63.11%. This will serve as

the baseline throughout the rest of the experiments.

6.2.2 II. Traditional Augmentation

The second experiment involved the use of traditio-

nal augmentation techniques; the results are shown in

Figure 14.

Figure 14: Two different values of p were tested (i.e. 25%

and 50%). The ﬁrst two bars (with p = 0%) represent

the previous experiment where no augmentation was used.

They are considered to be the baseline.

Again, the use of dropout beneﬁted the models,

which seems to conﬁrm our previous hypothesis of

overﬁtting. Data augmentation appears to have little

to no effect, regardless its probability. Nevertheless

the best model was the one with 25% dropout proba-

bility and p = 50%, with a score of 63.45%.

6.2.3 III. Composite Data

For the third experiment, the models were trained on

the eight composite datasets. The results can be seen

in Figure 15.

Almost all of the models that used the composite

data outperformed the baseline. These results fall in

line with those from Section 6.1.3. The best model

was the one with a 25% dropout probability and a

50% fake/real ratio, scoring 72.81%; an increase of

15.4% over the baseline model’s performance.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Figure 15: The models in this experiment were trained on

six composite datasets with different ratios of fake/real ima-

ges. Again the ﬁrst one represents the accuracy scored by a

model trained on the original dataset (baseline result).

6.2.4 IV. Composite Data with Traditional

Augmentation

Finally, traditional augmentation techniques were

used on the composite dataset. The models were eva-

luated with and without the use of dropout.

The results are illustrated in Figure 16.

Figure 16: The models in this experiment were trained on

six composite datasets with different ratios of fake/real ima-

ges. Again the ﬁrst one represents the accuracy scored by a

model trained on the original dataset (baseline result).

Augmentation appeared to improve the results by

a large margin, in contrast to what it did in the base-

line experiment. This is discussed further in Section

6.3.

The best model was the one with a 125% fake/real

ratio, which achieved the best overall accuracy of

83.49%. An increase of 14.7% and 32.3% over the

best model from experiment III and the baseline, re-

spectively.

Figure 17 compares the best scoring models from

each of the 4 experiments. Both models that were trai-

ned on composite datasets (i.e. III and IV), performed

Figure 17: The best performing model from each of the four

experiments is presented here. While traditional augmenta-

tion (II) didn’t help the baseline model’s performance (I),

the use of GAN-generated images (III) did. By combining

traditional and GAN augmentation schemes (IV), the best

overall score was achieved.

much better than those trained on the original dataset

(i.e. I and II). While traditional augmentation didn’t

help the baseline model (I) it did help the one trained

on the composite dataset (III). A possible explanation

is discussed in the following section.

6.3 Discussion

The beneﬁt of augmenting the dataset with GAN-

produced images is obvious from the experiments on

both the validation (Sec. 6.1) and the test sets (Sec.

6.2). Most importantly, they increase the accuracy of

the models without impacting their convergence.

The main question that arises is why does traditio-

nal data augmentation seem to work on the composite

and not on the original data. A possible explanation

would be that, even though the original dataset is an

acceptable 50, 000 images, these were obtained from

a mere 220 subjects. This results in the dataset ha-

ving a low variance regarding the shapes and forms

of the heads depicted in the images (i.e. the same

patient will produce similar images from visit to vi-

sit). Traditional augmentation strategies would either

heavily alter each image, confusing the model or, in

our case, be so subtle that it simply won’t improve its

performance. The images introduced by GANs howe-

ver don’t correspond to a real patient, so each image’s

characteristics are unique to the dataset, increasing its

variance, and thus possibly giving meaning to traditi-

onal augmentation techniques.

7 CONCLUSION

This paper presents a novel methodology for data aug-

mentation with the use of Generative Adversarial Net-

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data

works. It involves training a GAN for each of the clas-

ses of the original dataset and then using it to produce

a number of synthetic images.

The use of a powerful generative model for pro-

ducing images has many advantages over traditional

augmentation schemes. The most important are the

quality of the produced images and the capability of

generalizing beyond the limits of the original dataset

to produce new patterns. The proposed technique is

especially useful in low-variance datasets where the

images follow a very strict format.

To study the impact of this augmentation strategy,

four experiments were conducted. First, a CNN ar-

chitecture was trained on a large dataset to form a

baseline (I). Afterwards the same model was trained

with traditional (II) and the proposed GAN augmen-

tation technique (III). Finally, the use of both forms

of augmentation on the same dataset was examined

(IV). The models were trained on MR images from

the ADNI dataset to classify patients with AD from

NC subjects.

The models trained with the proposed GAN aug-

mentation methodology (III) outperform the ones

with a traditional one (II) by a large margin. In fact,

because of the nature of the images, the traditional

techniques offered no improvement over the baseline

experiment (I). The ﬁnal experiment, which combi-

ned both forms of augmentation (IV) outperformed

the rest, showing that while traditional augmentation

could not function on its own, it synergizes well with

GAN augmentation.

Because of the success of the present experiment,

multiple future research directions could be spawned.

An obvious choice is to experiment with different ar-

chitectures for further improvements on the data qua-

lity, either within the WGAN-GP framework by utili-

zing a more powerful discriminator, or by using a ne-

wer, more sophisticated framework that leads to im-

proved experimental performance, such as the Auxi-

liary Classiﬁer GANs by (Odena et al., 2016) or the

Progressive Growing GANs by (Karras et al., 2017).

A different research direction is to use GANs as

a way to improve performance on imbalanced data-

sets. Instead of discarding surplus data or repeating

the same images, a GAN could be trained on the least

populous classes and then generate synthetic data. If

trained correctly, there could be a non-trivial increase

in performance.

ACKNOWLEDGEMENTS

The Titan X Pascal graphics card used for this rese-

arch was donated by the NVIDIA Corporation.

Data collection and sharing for this project was

funded by the Alzheimer’s Disease Neuroimaging

Initiative (ADNI) (National Institutes of Health Grant

U01 AG024904) and DOD ADNI (Department of De-

fense award number W81XWH-12-2-0012). ADNI

is funded by the National Institute on Aging, the Na-

tional Institute of Biomedical Imaging and Bioengi-

neering, and through generous contributions from the

following: AbbVie, Alzheimer’s Association; Alz-

heimer’s Drug Discovery Foundation; Araclon Bio-

tech; BioClinica, Inc.; Biogen; Bristol-Myers Squibb

Company; CereSpir, Inc.; Cogstate; Eisai Inc.; Elan

Pharmaceuticals, Inc.; Eli Lilly and Company; Eu-

roImmun; F. Hoffmann-La Roche Ltd and its afﬁ-

liated company Genentech, Inc.; Fujirebio; GE He-

althcare; IXICO Ltd.; Janssen Alzheimer Immunot-

herapy Research & Development, LLC.; Johnson &

Johnson Pharmaceutical Research & Development

LLC.; Lumosity; Lundbeck; Merck & Co., Inc.; Meso

Scale Diagnostics, LLC.; NeuroRx Research; Neuro-

track Technologies; Novartis Pharmaceuticals Corpo-

ration; Pﬁzer Inc.; Piramal Imaging; Servier; Takeda

Pharmaceutical Company; and Transition Therapeu-

tics. The Canadian Institutes of Health Research is

providing funds to support ADNI clinical sites in Ca-

nada. Private sector contributions are facilitated by

the Foundation for the National Institutes of Health

(www.fnih.org). The grantee organization is the Nort-

hern California Institute for Research and Education,

and the study is coordinated by the Alzheimer’s Ther-

apeutic Research Institute at the University of Sout-

hern California. ADNI data are disseminated by the

Laboratory for Neuro Imaging at the University of

Southern California.

REFERENCES

Alzheimer’s Association (2018). Alzheimer’s disease facts

and ﬁgures. Alzheimer’s & Dementia, 14(3):367–429.

Antoniou, A., Storkey, A., and Edwards, H. (2017). Data

augmentation generative adversarial networks. arXiv

preprint arXiv:1711.04340.

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein gan. arXiv preprint arXiv:1701.07875.

Bentaieb, A. and Hamarneh, G. (2018). Adversarial stain

transfer for histopathology image analysis. IEEE

Transactions on Medical Imaging, 37(3):792–802.

Ciresan, D. C., Meier, U., Gambardella, L. M., and Schmid-

huber, J. (2010). Deep big simple neural nets excel on

handwritten digit recognition. CoRR, abs/1003.0358.

Costa, P., Galdran, A., Meyer, M. I., Niemeijer, M.,

Abr

amoff, M., Mendonc¸a, A. M., and Campilho,

A. (2018). End-to-end adversarial retinal image

synthesis. IEEE Transactions on Medical Imaging,

37(3):781–791.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Dai, W., Doyle, J., Liang, X., Zhang, H., Dong, N., Li, Y.,

and Xing, E. P. (2017). SCAN: structure correcting

adversarial network for chest x-rays organ segmenta-

tion. CoRR, abs/1703.08770.

Dar, S. U. H., Yurt, M., Karacan, L., Erdem, A., Erdem,

E., and C¸ ukur, T. (2018). Image synthesis in multi-

contrast MRI with conditional generative adversarial

networks. CoRR, abs/1802.01221.

Frangi, A. F., Tsaftaris, S. A., and Prince, J. L. (2018).

Simulation and synthesis in medical imaging. IEEE

Transactions on Medical Imaging, 37(3):673–679.

Frid-Adar, M., Diamant, I., Klang, E., Amitai, M., Gold-

berger, J., and Greenspan, H. (2018). Gan-based

synthetic medical image augmentation for increased

CNN performance in liver lesion classiﬁcation. CoRR,

abs/1803.01229.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. In Advan-

ces in neural information processing systems, pages

2672–2680.

Gulrajani, I., Ahmed, F., Arjovsky, M., Dumoulin, V., and

Courville, A. C. (2017). Improved training of wasser-

stein gans. CoRR, abs/1704.00028.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resi-

dual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hussain, Z., Gimenez, F., Yi, D., and Rubin, D. (2017).

Differential data augmentation techniques for medical

imaging classiﬁcation tasks. In AMIA Annual Sympo-

sium Proceedings, volume 2017, page 979. American

Medical Informatics Association.

Jack Jr, C. R., Bernstein, M. A., Fox, N. C., Thompson,

P., Alexander, G., Harvey, D., Borowski, B., Britson,

P. J., L. Whitwell, J., Ward, C., et al. (2008). The alz-

heimer’s disease neuroimaging initiative (adni): Mri

methods. Journal of Magnetic Resonance Imaging:

An Ofﬁcial Journal of the International Society for

Magnetic Resonance in Medicine, 27(4):685–691.

Karras, T., Aila, T., Laine, S., and Lehtinen, J. (2017). Pro-

gressive growing of gans for improved quality, stabi-

lity, and variation. CoRR, abs/1710.10196.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization. CoRR, abs/1412.6980.

Kuka

cka, J., Golkov, V., and Cremers, D. (2018). Regulari-

zation for deep learning: A taxonomy.

LeCun, Y. A., Bottou, L., Orr, G. B., and M

uller, K.-

R. (1998). Efﬁcient backprop. In Neural networks:

Tricks of the trade, pages 9–48. Springer.

Neff, T. (2018). Data augmentation in deep learning using

generative adversarial networks. Master’s thesis, Graz

University of Technology, Graz, Austria,.

Odena, A., Olah, C., and Shlens, J. (2016). Conditional

image synthesis with auxiliary classiﬁer gans. arXiv

preprint arXiv:1610.09585.

Perez, L. and Wang, J. (2017). The effectiveness of data

augmentation in image classiﬁcation using deep lear-

ning. CoRR, abs/1712.04621.

Petersen, R. C., Aisen, P., Beckett, L., Donohue, M., Gamst,

A., Harvey, D., Jack, C., Jagust, W., Shaw, L., Toga,

A., et al. (2010). Alzheimer’s disease neuroimaging

initiative (adni) clinical characterization. Neurology,

74(3):201–209.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh,

S., Ma, S., Huang, Z., Karpathy, A., Khosla, A.,

Bernstein, M., Berg, A. C., and Fei-Fei, L. (2015).

ImageNet Large Scale Visual Recognition Challenge.

International Journal of Computer Vision (IJCV),

115(3):211–252.

Shaban, M. T., Baur, C., Navab, N., and Albarqouni, S.

(2018). Staingan: Stain style transfer for digital histo-

logical images. CoRR, abs/1804.01601.

Shin, H.-C., Tenenholtz, N. A., Rogers, J. K., Schwarz,

C. G., Senjem, M. L., Gunter, J. L., Andriole, K., and

Michalski, M. (2018). Medical Image Synthesis for

Data Augmentation and Anonymization using Gene-

rative Adversarial Networks. ArXiv e-prints.

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: a simple way

to prevent neural networks from overﬁtting. The Jour-

nal of Machine Learning Research, 15(1):1929–1958.

Vasconcelos, C. N. and Vasconcelos, B. N. (2017). Incre-

asing deep learning melanoma classiﬁcation by clas-

sical and expert knowledge based image transforms.

CoRR, abs/1702.07025.

Wang, Y., Girshick, R. B., Hebert, M., and Hariharan,

B. (2018). Low-shot learning from imaginary data.

CoRR, abs/1801.05401.

Wu, R., Yan, S., Shan, Y., Dang, Q., and Sun, G. (2015).

Deep image: Scaling up image recognition. arXiv pre-

print arXiv:1501.02876.

Xue, Y., Xu, T., Zhang, H., Long, L. R., and Huang, X.

(2017). Segan: Adversarial network with multi-scale

1$ loss for medical image segmentation. CoRR,

abs/1706.01805.

Yi, X., Walia, E., and Babyn, P. (2018). Generative Adver-

sarial Network in Medical Imaging: A Review. ArXiv

e-prints.

Generative Adversarial Networks as an Advanced Data Augmentation Technique for MRI Data
