Document Image Dewarping using Deep Learning

Vijaya Kumar Bajjer Ramanna

, Saqib Bukhari

and Andreas Dengel

1,2

Informatik, Technical University of Kaiserlautern, Kaiserslautern, Germany

Department of Knowledge Management, Deutsches Forschungszentrum f

ur K

unstliche Intelligenz GmbH (DFKI),

Kaiserlsutern, Germany

Keywords:

Document Image Dewarping, Deep Learning, Geometric Distortion, Page Curl, Line Curl.

Abstract:

The distorted images have been a major problem for Optical Character Recognition (OCR). In order to perform

OCR on distorted images, dewarping has become a principal preprocessing step. This paper presents a new

document dewarping method that removes curl and geometric distortion of modern and historical documents.

Finally, the proposed method is evaluated and compared to the existing Computer Vision based method. Most

of the traditional dewarping algorithms are created based on the text line feature extraction and segmentation.

However, textual content extraction and segmentation can be sophisticated. Hence, the new technique is pro-

posed, which doesn’t need any complicated methods to process the text lines. The proposed method is based

on Deep Learning and it can be applied on all type of text documents and also documents with images and

graphics. Moreover, there is no preprocessing required to apply this method on warped images. In the pro-

posed system, the document distortion problem is treated as an image-to-image translation. The new method

is implemented using a very powerful pix2pixhd network by utilizing Conditional Generative Adversarial

Networks (CGAN). The network is trained on UW3 dataset by supplying distorted document as an input and

cleaned image as the target. The generated images from the proposed method are cleanly dewarped and they

are of high-resolution. Furthermore, these images can be used to perform OCR.

1 INTRODUCTION

These days, most of the libraries and companies want

to convert their old documents and books to digital

form. Evidently, these days Optical Character Recog-

nition (OCR) (Mori et al., 1999) is extensively used

for this purpose. OCR performs well on the undis-

torted document images. The hard copies of input

documents are scanned using cameras or ﬂatbed scan-

ners. These scanned images are passed as inputs

to OCR. However, these scanned documents are dis-

torted in most of the cases and they are not in conve-

nient form to apply the recognizer. Also, OCR doesn’t

give a good accuracy for distorted images. Hence,

these images are not appropriate to apply OCR and

even not for archiving because of the existing docu-

ment distortion.

There could be several reasons for document de-

warping, sometimes the instruments used for scan-

ning like camera and ﬂatbed scanner are the main ba-

sis. Camera-based scanned images are generally suf-

fer from perspective distortion because of the varied

angle of camera position and geometrical distortion

due to the curvature of the unfolded book surface. For

non-planner documents like books, the page curl is

added as an additional distortion to the scanned im-

ages. Apart from that, the distortion is also caused by

document aging, for example, historical documents.

In recent days, document image dewarping re-

search community is continuously growing and sev-

eral algorithms have been developed to dewarp dis-

torted document images (Liang et al., 2005). Most of

the algorithms are based on conventional aligned text

lines and few of them also utilize line segmentation

in addition to that. Some of these algorithms depen-

dent on only single camera images to apply dewarp-

ing. Most of the algorithms are for textual documents

but few recent techniques work on both text and im-

age documents. However, textual based algorithms

need some preprocessing of the input images before

using any of these dewarping methods. The majority

of the algorithms just focus on only one problem, so

we would need to apply two methods to remove mul-

tiple distortions (Ex perspective and page curl).

In contrast, our model doesn’t rely on text line

alignment or segmentation. Our approach won’t even

need any preprocessing steps for the input images. It

works well on text and non-text parts of a document

524

Bajjer Ramanna, V., Bukhari, S. and Dengel, A.

Document Image Dewarping using Deep Learning.

DOI: 10.5220/0007368405240531

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 524-531

ISBN: 978-989-758-351-3

like images, tables, graphics etc. The dewarped image

is a high resolution and it can be used for OCR. Un-

like other methods, we can use images from multiple

scanners or cameras as input.

Recently, Deep Learning has gained success in

many ﬁelds. The powerful matrix multiplication of

Deep Neural Networks with the combination of GPU

architecture has wide application. The research in

document images is getting extensive beneﬁts from

Deep Learning. The proposed method is based on

the most advanced image-to-image translation Deep

Learning network, which has the ability to synthe-

size high resolution dewarped image by retaining the

quality of text or image/graphics in the input image.

The document distortion problem is formulated as an

image to image translation problem to avoid the de-

pendency on line/image/graphics alignment in the in-

put image. In our experiment, we the beneﬁts from

the state-of-the-art image-to-image model pix2pixhd

(Wang et al., 2017). This network is trained on the

high-resolution UW3 dataset by using the distorted

image as input and the normal image as the target.

2 RELATED WORK

Document image dewarping is an essential prepro-

cessing step for OCR to get better character recogni-

tion. There is a wide list of developed methods (Stam-

atopoulos et al., 2008)(Bukhari et al., 2009)(Ulges

et al., 2005) for document dewarping. But, the most

popular approach is to use depth-measuring equip-

ments like structured light or laser scanner to mea-

sure the depth. However, Depth Measuring equip-

ments are certainly not appropriate for common users

because of the need for special hardware and cali-

bration of the hardware. Also, In case of non-linear

curled pages, these depth measuring instruments work

efﬁciently only on multiple images but for common

users, it might be too inconvenient to take so many

pictures (Koo et al., 2009). This limits the use of

depth measuring methods. Generally, people tend to

focus on easy and comfortable devices like mobile

cameras with a high resolution and ﬂatbed scanners.

The majority of the currently available methods

utilize prior document layout information to remove

page curl and/or perspective distortion. These meth-

ods work by keeping text lines as basis as they are

the salient features of a document. The dewarping

method using an estimation of curled text lines (Ulges

et al., 2005) takes only single camera image as an in-

put. It’s a line-by-line dewarping approach, which

uses local text line extraction and depth extraction.

But, these methods made an assumption that the line

spacing is constant and the input documents must

have a single column. Also, this method takes nearly

10 secs to process one image. Another method (Kim

et al., 2015) which does not work directly by using

text lines instead they use connected components like

discrete representations of text-lines and text-blocks.

Nevertheless, this method is not suitable if the text

has multiple skews and each skew has different an-

gles. In general, there are lots of disadvantages with

line based methods as it is hard to extract text lines for

complex layouts.

In another research work (Wu and Agam, 2002),

they reconstruct the target mesh by using a single in-

put document image to remove perspective and geo-

metric distortion. To create the target mesh they cal-

culated the starting point and the orientation of curled

text lines. This method is language independent and

doesn’t depend on structural models, however, works

on the basis of an assumption that all the text lines

in the input documents are straight. So, this method

cannot be used to remove page curl and/or line curl.

3 OUR APPROACH

In the proposed method, the document dewarping

problem is considered as the image-to-image transla-

tion. The goal is to translate the input image from one

domain to other domain by taking input distorted im-

age and the target clean image. The proposed model

has generative-adversarial networks to learn the style

transfer from input distorted images to clean images.

For the experiment, the training is performed on UW3

dataset. We prepared the synthetic distorted UW3

dataset using OCRODEG package (NVlabs, 2018) by

inducing random page and/or line curl distortion. The

generated input dataset looks similar to the originally

distorted test images. The experiment is conducted by

training the proposed network using synthetic UW3

dataset prepared and the evaluation is done on the

UW3 dataset and additionally, another originally dis-

torted dataset.

In our approach, we used the powerful image-to-

image translation network (Wang et al., 2017), which

translates the image from one domain to another do-

main. The model gets the beneﬁt by using the adver-

sarial loss instead of L1 loss since L1 loss produce

blurry images. The adversarial training helps the dis-

criminator to learn to better distinguish between gen-

erated dewarped images from the generator and the

real images. The discriminator uses the trainable loss

which brings additional beneﬁts to the results with the

ability to better distinguish images at the target. The

advantage of multi-scale generator, discriminator and

Document Image Dewarping using Deep Learning

525

the new objective function makes it easier to gener-

ate high-resolution images with realistic textures. The

generator has a global network which is responsible

for style transfer and a local enhancer which helps to

generate high-resolution images.

3.1 Pix2pixhd Network

There are a couple of methods to solve image-to-

image translation problem. For example, pix2pix im-

age translation network with conditional Generative

Adversarial Network (CGAN) (Isola et al., 2017) is

one of them. Initially, we made an attempt to ap-

ply this network for our problem but the restriction

of the network to use the image size of 256x256

limits the beneﬁt for our situation because we have

high-resolution document images. Since the model

has Generative networks, if the input images are re-

sized then it’s difﬁcult for the network to recon-

struct the characters. Nevertheless, pix2pixhd (Wang

et al., 2017) network accepts high-resolution input

images and furthermore, the network generates high-

resolution images with the help of GANs and by con-

sidering adversarial loss instead of the L1 loss. GANs

produce natural image distribution by forcing the gen-

erated samples to be indistinguishable from natural

images. This pix2pixhd model ﬁne-tunes the genera-

tor and multi-scale discriminator, which helps to gen-

erate images conditionally at high resolution.

Figure 1: Synthetic data preparation using OCRODEG

package; (a) Original clean image, (b) After applying syn-

thetic distortion.

3.2 Dataset Preparation

The new method does not require any preprocessing

on the input images, which makes the dataset prepa-

ration quite simple. UW3 dataset images which are

in ‘tif‘ format are converted into the required ‘jpg‘

format and stored in the directory named ‘train

B‘

(ground truths). No re-sizing has been done on the

input images since the model can be trained on high-

resolution images. As mentioned in the previous sec-

tion, the distorted input images are generated by using

the package OCRODEG. This package let us to gen-

erate random noise and the images are distorted using

this noise. Figure (1) shows the synthetic data gener-

ated using this package. Distorted input dataset has

the same name, size, and format as the ground truth

and they are saved in a directory ‘train A‘. We have

used two test sets, the UW3 dataset which was not

included for training and a new dataset from the his-

torical domain; OCR-D images (Ocr-d.de, 2018). The

synthetic UW3 test set is prepared using OCRODEG

in a similar way we did to the train set but OCR-D im-

ages have distortions already in the original images.

3.3 Implementation

The state-of-the-art method for the image-to-image

translation problem is high-resolution photo-realistic

image-to-image translation (Wang et al., 2017), the

pytorch implementation of the same (NVIDIA, 2018)

has been used for this research work. The model is

trained by changing the network parameters to get

better result. We have used 1500 UW3 raw im-

ages without resizing, but during training, images are

cropped with a ﬁnesize of 768 (the network can also

be trained with higher resolution) and loaded with a

loadsize of 1024 to reduce the hardware requirement

for training. The number of label channels used is

0 and the maximum number of samples allowed per

dataset is 200.

Pix2pix baseline is a CGAN. It is a supervised

learning framework with two networks; a generator

to map the input images to real images and a discrim-

inator to distinguish between real and generated im-

ages. In pix2pixhd model, the generator is a com-

bination of two networks; global generator and local

enhancer. Global generator is responsible for the im-

age style transfer. It consists of three components; a

convolutional front-end, a set of residual blocks and a

transposal convolutional backend. It works at a reso-

lution of 1024x512. In our experiment we have 2 lo-

cal enhancers, that means the output resolution will be

doubled (2048x1024). The Local Enhancer is respon-

sible for a high-resolution output image and it also

contains the same three components. During train-

ing, the global generator is trained before the local en-

hancer network and they are ﬁne tuned together later.

Multiscale discriminators have been used to avoid

over-ﬁtting caused due to deeper network, which is

necessary to produce high-resolution images. In our

experiment, we have used 3 scale discriminators with

similar network structures but different scales, which

discriminates the synthesized image and real image

in 3 different scales. Basically, this network has

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

526

(a) (b) (c)

Figure 2: Training results of UW3 images using our method (a) Original Image, (b) Distorted input image, (c) Dewarped

image using our DL method.

(a) (b) (c) (d)

Figure 3: Comparing test results of Computer Vision and Deep Learning methods. (a) Original Image (b) Warped image (c)

Dewarped image using CV method, (d) Dewarped image using our DL method. As one can see from the patch (c) the lines

are not straight.

been adopted to guide the generator with both global

overview and minute details of an image by including

larger and smaller scales of the network.

During training, the overall objective of the loss

function includes the GAN loss and feature loss. This

features loss is extracted from each layer of the dis-

criminator and it will be matched with different scales

of real and synthesized image features. Additional

feature loss stabilizes the training since we are using

different scales.

Training: The powerful deep learning pix2pixhd net-

work is trained on 1500 UW3 dataset of average size

(3300,2500). However, the model is learned on the

patches of size (1024, 768) by cropping the input dis-

torted image. We considered batch size of one to train

the network to learn one to one mapping between the

distorted and the clean image. We used GPU with size

of 12 GB for training. The input training data is very

generalized and it contains images with mix of text,

images and tables.The entire training is carried out for

over 250 epochs. As we use the distorted images in

place of random noise as input to GANs, the network

has already learnt the layout of the document image

in the ﬁrst few epochs. The reason for learning over

200 epochs is to train the network to learn and gener-

ate minute features of each character. Testing is per-

formed on two unseen dataset; UW3 dataset Images

which are not included in training and OCR-D histor-

ical images. The input warped image has been split

into patches and we applied the dewarping method on

these patches. The ﬁnal dewarped image has higher

resolution (3300,2500), with a very good quality of

characters and images of the document. These re-

sulted images can be used to apply OCR.

4 PERFORMANCE EVALUATION

The qualitative analysis of the results is done by com-

paring results of our method to ground truth images.

The proposed network trained on UW3 dataset is very

generalized and it works great on varied types of doc-

uments; Documents with a single column and multi-

column (Figure 1), text, images (Figure 5), equations

and tables. The model has been evaluated against all

these document elements. The training results are

demonstrated in Figure (1), these are UW3 patches

generated during the training at Epoch 225. The in-

put distorted image (Figure 2b) is a patch from two

column document image with line level distortion on

two columns. The generated image (Figure 2c) looks

similar to the original clean image (Figure 2a), all the

text lines are straight and the characters still holds the

same resolution as the ground truth image.

Document Image Dewarping using Deep Learning

527

Table 1: This table shows the average values for Pixel-based image evaluation for both Deep Learning (DL) and Computer

Vision (CV) methods. These results are calculated between the UW3 ground truth test image and synthesized image from DL

and CV method.

Evaluation Method Computer Vision Deep Learning

Pixel Accuracy 79.64% 93.25%

Mean Accuracy 61.04% 84.66%

Frequency Weighted IU 67.74% 88.53%

SSIM 61.17% 72.88%

HaarPSI 98.00% 98.99%

Table 2: Tesseract and ABBYY OCR evaluation results on the UW3 dataset. The average Character Error Rate (CER) is

computed between the ground truth text ﬁle against the text ﬁle generated by applying Tesseract OCR on the ground truth

image, input warped image and dewarped images using existing and proposed methods.

Image Type Tesseract ABBYY

Clean Image 3.78% 9.69%

Warped Image 17.1% 40.45%

Dewarped using CV method 5.07% 13.32%

Dewarped using DL method 4.39% 10.92%

(a) (b)

Figure 4: Testing results from our method on OCR-D his-

torical data. (a) Distorted input image, (b) Dewarped image

from DL method.

(a) (b)

Figure 5: Evaluation results on a document with image

(UW3 dataset) (a) Distorted input image, (b) Dewarped im-

age from DL method.

The performance evaluation is also conducted on

unseen OCR-D dataset by using the trained model to

remove distortion from these images. OCR-D dataset

is from a completely different domain and it differs a

lot from the UW3 dataset, which has a different lan-

guage (German) and font style (Futura). Besides the

fact that the model was trained on UW3 dataset, yet

the performance is also great on the historical OCR-

D dataset. Similar to the training process, no prepro-

cessing has been done on this dataset except that the

images are binarized. The reason for binarization is

that the input images are blurred because of document

aging and it is hard to distinguish the results. The bi-

narization method used is from (Afzal et al., 2013).

Dewarping results from our method are independent

of binarization. From Figure (4), it is visually evi-

dent that the proposed method successfully removed

distortions from the historical document image. The

image (Figure 4a) has geometrical distortions; the line

curls and page curls caused mostly by document ag-

ing and also a non-linear surface of the book. The

dewarped image using our method has effectively re-

moved the page curl and the lines are mostly straight.

5 EVALUATION

Nowadays, there are numerous possibilities to assess

two images to check the similarity between them. The

majority of them are quantitative analysis and some

of them are based on the human perceptual analysis.

In our experiment, we have used diverse evaluation

methods based on our data. As pixel-based evalua-

tion methods are fundamental and common for im-

age comparison, we have computed Pixel Accuracy,

Mean Accuracy and Frequency Weighted IU (Long

et al., 2015) between the ground truth image and the

dewarped image. The numerals are tabulated in the

column Deep Learning in Table (1). These metrics

compare two images at the pixel level and provide

similarity score between the two images. our experi-

ment results reveal very good similarity (93.25% pixel

accuracy) between the dewarped image and the orig-

inal image. However, pixel-based methods estimate

absolute errors, which may not be adequate to assess

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

528

two images quality, so we have additionally consid-

ered the Structural Similarity Index (SSIM) (Wang

et al., 2004). The idea behind this strategy is that

the inter-dependencies between pixels in space, carry

very signiﬁcant visual structural information. The

calculated SSIM (kersner, 2018) between the ground

truth image and the synthesized image shows 72.88%

(Table 1) of similarity.

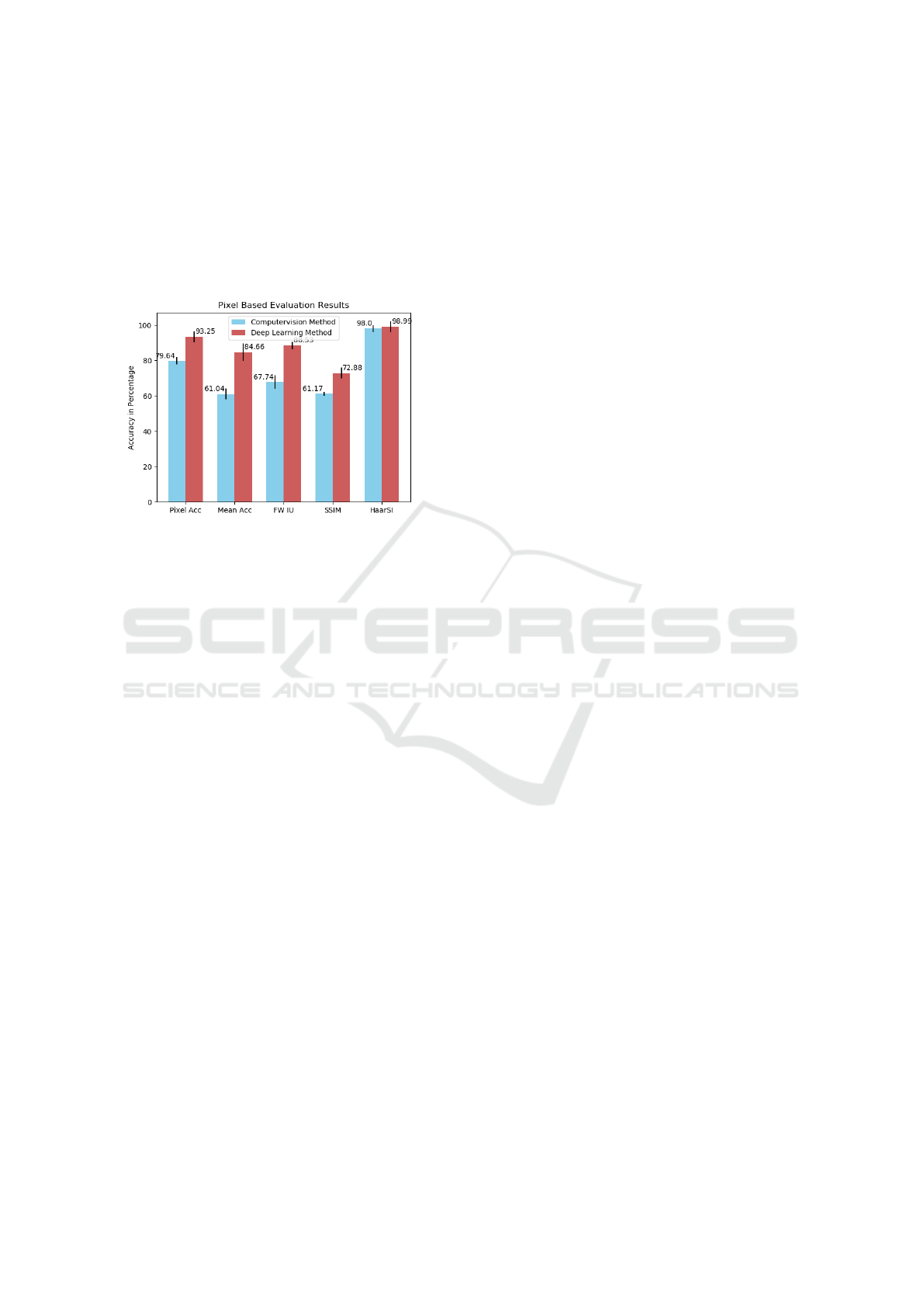

Figure 6: Pixel Accuracy comparison between Computer-

vision method and Deep Learning method.

Additionally, another state-of-the-art method for

image comparison is Haar Perceptual Similarity In-

dex (HaarPSI)(Reisenhofer et al., 2018). In the ex-

periment, it has been proved that this method works

better than other currently available similarity mea-

sures so far and also outcomes from this method

are highly correlated with the human opinion scores.

Once again, HaarPSI reported outstanding similarity

(98%) between the synthesized dewarped image and

ground truth image. Based on these metrics we can

infer that the dewarped image is almost similar to the

ground truth image. So, the proposed method is suc-

cessful in removing the distortion from the input im-

age and the generated image looks close to the ground

truth image.

Another interesting evaluation method we have

used is Optical Character Recognition (OCR). We

have considered two OCR engines, which are freely

available on the Internet to evaluate the results of our

method against the existing Computer Vision method

and to the ground truth images. To evaluate the recog-

nizer results, we have computed character error rate

between text ﬁles the synthesized images from our

method and the ground truth images. This method

computes edit distance between the ground truth and

recognizer output image. The outcome of this evalu-

ation method is the character error in percentage be-

tween the two ﬁles.

1. Tesseract (Smith, 2007) is an open source OCR

engine, which supports a variety of languages. Until

now, it is one of the best open source OCR. This OCR

has been applied on three images; input distorted im-

age, ground truth, and dewarped image. The obtained

results are compared with the ground truth text ﬁle

by computing character error rate. Tesseract OCR re-

sults (Table 2 and Figure 7) show better error score

for the dewarped image when compared to the dis-

torted image. This proves the increase in recognizer

accuracy after using our proposed method and also,

shows the quality of the Deep Learning based dewarp-

ing method. Tesseract evaluation is also performed on

OCR-D historical images. The recognizer results in

Table (3) explains the improvement in the recognizer

accuracy after applying our dewarping method.

2. Abbyy (Finereaderonline.com, 2018) is an

OCR engine developed by a Russian company AB-

BYY, which is used to convert document image to ed-

itable electronics format. For the evaluation purpose,

Abbyy OCR is applied to the results of the existing

method (Bukhari et al., 2009) and our method. The

generated text ﬁles are compared to the ground truth

text ﬁle using a character comparison method. The

recognizer results from the Table (2) and Figure (7)

also gave the best results for our method. The error

percentage for the results of our method is less than

the result of the warped image.

The Deep Learning based dewarping method

works well both on text-based documents as well as

on documents with images. However, these two OCR

engines work on the basis of document layout. More-

over, the ground truth text ﬁles of the images used

for the experiment include only non-image content ie,

only the textual part of the document. Hence, for the

sake of evaluation, we have cleaned (removed image

content from document) the images before applying

OCR. Nevertheless, if we look at the error percent-

age from the Character Comparison method, the de-

warped images have less error when compare to the

warped images. This quantitatively proves that our

method increases the percentage of character recog-

nition.

Finally, in order to better evaluate our method, we

compared our results with the existing document im-

age dewarping method, which is developed based on

a computer vision technique (Bukhari et al., 2009).

This method works only on textual documents but

fails to extend its application to documents with im-

ages. Figure (3) conveys the qualitative compari-

son of dewarping results for the current and existing

method. The dewarped results from Computervision

method (Figure 3c) still have line curls in the mid-

dle but the results from our method (Figure 3d) looks

similar to the original image (Figure 3a). In order to

make a quantitative analysis, the results of the two

methods have been compared in two stages. Firstly,

Document Image Dewarping using Deep Learning

529

Table 3: Tesseract OCR on OCR-D images(Error % is shown in table). The edit distance is computed between Tesseract OCR

output text ﬁles of the warped input image and dewarped image (proposed method).

Image File ID Warped Input Image Dewarped image

estor rechtsgelehrsamkeit02 1758 0119 21.84% 21.09%

luther auszlegunge 1520 0003 66.91% 56.20%

luther auszlegunge 1520 0029 34.23% 24.98%

Average 40.99% 34.09%

Figure 7: Comparison of OCR results. Tesseract and AB-

BYY OCR are applied on clean image, warped image, and

resulting image of CV and DL methods. The bar graph

shows the Character error rate in percentage.

we have considered the pixel-based metrics (Table 1

and Figure 6) to evaluate which method is better in de-

warping the distorted image and focus on to generate

the resulting image close to the original image. For all

of the pixel-based evaluation metrics, out method has

an average of 14% higher accuracy when compared

to the Computervision based approach. This infers

that the DL based approach generates un-distorted im-

ages resembles the original image. Secondly, in or-

der to evaluate the dewarping method with respect to

the recognizer accuracy, Tesseract and Abbyy OCR

have been applied to the results of the two methods.

The numerals are tabulated in Table (2), DL based ap-

proach increased the recognizer accuracy by 1-2%.

Besides, the work in (Bukhari et al., 2009) proved

that the Computer Vision method works better than

any other Document Dewarping methods. In our ex-

periment, from qualitative and quantitative analysis

of the results we can conclude that the DL method is

good dewarping method compared to Computervision

Based method. Hence, our proposed method is better

than other existing document dewarping method to re-

move page and line curl from the distorted document.

Until now we have discussed the best part of the

proposed approach, but the method also fails in some

cases. As discussed, the input image passed to the

model is always high resolution. If the input distorted

image is resized then it is difﬁcult for the generator

to produce good quality characters. The model cor-

(a) (b)

Figure 8: Testing on a image with low resolution, from dif-

ferent language (Kannada) and domain (Source: google im-

ages) (a) Distorted input image, (b) Dewarped image from

DL method.

rects only the style of the images but fails to produce

a good quality image. As seen from the results (Fig-

ure 8), the model removed the curls from the text and

to generated straight text lines but fail to produce the

local features of the characters. The future work can

concentrate on training the model with resized input

data so that the model can be applied for low resolu-

tion or resized images.

6 CONCLUSION

In this paper, we have proposed Document Image

Dewarping Method using the advanced Deep Learn-

ing Image to Image Translation technique. The out-

comes are evaluated using the state-of-the-art eval-

uation methods and also OCR has been applied on

the resulting images. The experimental results show

that the proposed method works great on text docu-

ment images, documents with graphics and images,

and also on the historical documents. The main ad-

vantage of this method is that it doesn’t require any

sophisticated text line or layout extraction and more-

over, this approach doesn’t need any preprocessing to

be done on the input images. Currently, this method

can be applied to dewarp historical documents, ge-

ometrically degraded images, images with page and

line curl. The future work can extend our method to

include also perspective distortion problems.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

530

ACKNOWLEDGEMENTS

This work was supported by my Supervisor, Special

thanks to him for his guidance to ﬁnish this work

smoother and successfully. The test dataset was bor-

rowed from OCR-d.de, special gratitude for providing

the dataset to evaluate our work. Our appreciation for

the author for sharing the code of existing computer

vision based method, which helped us in great extent

to evaluate our method effectively.

REFERENCES

Afzal, M. Z., Kr

amer, M., Bukhari, S. S., Youseﬁ, M. R.,

Shafait, F., and Breuel, T. M. (2013). Robust bina-

rization of stereo and monocular document images us-

ing percentile ﬁlter. In International Workshop on

Camera-Based Document Analysis and Recognition,

pages 139–149. Springer.

Bukhari, S. S., Shafait, F., and Breuel, T. M. (2009). De-

warping of document images using coupled-snakes.

In Proceedings of Third International Workshop on

Camera-Based Document Analysis and Recognition,

Barcelona, Spain, pages 34–41. Citeseer.

Finereaderonline.com (2018). Ocr online - text recognition

& pdf conversion service — abbyy ﬁnereader online.

https://ﬁnereaderonline.com/en-us. (Accessed on: 10-

09-2018).

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-image translation with conditional adversar-

ial networks. arXiv preprint.

kersner, M. (2018). martinkersner/py img seg eval.

https://github.com/martinkersner/py img seg eval.

(Accessed on: 10-08-2018).

Kim, B. S., Koo, H. I., and Cho, N. I. (2015). Document

dewarping via text-line based optimization. Pattern

Recognition, 48(11):3600–3614.

Koo, H. I., Kim, J., and Cho, N. I. (2009). Composition of

a dewarped and enhanced document image from two

view images. IEEE Transactions on Image Process-

ing, 18(7):1551–1562.

Liang, J., Doermann, D., and Li, H. (2005). Camera-based

analysis of text and documents: a survey. Interna-

tional Journal of Document Analysis and Recognition

(IJDAR), 7(2-3):84–104.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Mori, S., Nishida, H., and Yamada, H. (1999). Optical char-

acter recognition. John Wiley & Sons, Inc.

NVIDIA (2018). Nvidia/pix2pixhd.

https://github.com/NVIDIA/pix2pixHD.

NVlabs (2018). Nvlabs/ocrodeg.

https://github.com/NVlabs/ocrodeg.

Ocr-d.de (2018). Koordinierte f

orderinitiative zur weiteren-

twicklung von verfahren der optical character recog-

nition (ocr). http://ocr-d.de/.

Reisenhofer, R., Bosse, S., Kutyniok, G., and Wiegand, T.

(2018). A haar wavelet-based perceptual similarity in-

dex for image quality assessment. Signal Processing:

Image Communication, 61:33–43.

Smith, R. (2007). An overview of the tesseract ocr engine.

In Document Analysis and Recognition, 2007. ICDAR

2007. Ninth International Conference on, volume 2,

pages 629–633. IEEE.

Stamatopoulos, N., Gatos, B., Pratikakis, I., and Perantonis,

S. J. (2008). A two-step dewarping of camera docu-

ment images. In Document Analysis Systems, 2008.

DAS’08. The Eighth IAPR International Workshop on,

pages 209–216. IEEE.

Ulges, A., Lampert, C. H., and Breuel, T. M. (2005). Doc-

ument image dewarping using robust estimation of

curled text lines. In Document Analysis and Recog-

nition, 2005. Proceedings. Eighth International Con-

ference on, pages 1001–1005. IEEE.

Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Tao, A., Kautz, J., and

Catanzaro, B. (2017). High-resolution image synthe-

sis and semantic manipulation with conditional gans.

arXiv preprint arXiv:1711.11585.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image quality assessment: from error visi-

bility to structural similarity. IEEE transactions on

image processing, 13(4):600–612.

Wu, C. and Agam, G. (2002). Document image de-warping

for text/graphics recognition. In Joint IAPR Interna-

tional Workshops on Statistical Techniques in Pattern

Recognition (SPR) and Structural and Syntactic Pat-

tern Recognition (SSPR), pages 348–357. Springer.

Document Image Dewarping using Deep Learning

531
