Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem

Maan Haj Rachid

Department of Oncology-Pathology, Science for Life Laboratory, Karolinska Institutet, Stockholm, Sweden

Keywords:

All-Pairs Sufﬁx-Preﬁx, Overlaps, Genome Assembly.

Abstract:

Finding the overlaps between sequences that are generated by Next Generation Sequencing (NGS) technology

is a time- and space-consuming step in building a string graph in genome assembly. The problem is known

in computer science as all-pairs sufﬁx preﬁx (APSP). The problem has been tackled since 1992 and several

solutions were presented to solve it. While some of them achieve optimal theoretical time consumption, they

have a very high space-consumption in addition to being practically slow due to a raised constant factor. Some

other recent solutions practically consume much less space and time to solve APSP despite their adaptations

to techniques and data structures which don’t have optimal worst-case asymptotic complexity.

Other few researches tackled the approximate version of the overlap problem hoping to avoid error-detecting

stages in genome assembly. These solutions used the same data structures which were employed to solve

APSP in addition to some advanced techniques in order to address the complexity of approximate matching.

In this work, we evaluate these recent algorithms, in terms of time and space, in both exact and approximate

formats. Our results show that FastAPSP has the best time-consumption unless the size of the data set is large.

The high space demand of such large data sets would favor the usage of SOF and Readjoiner. Our experiments

also show that AOF is, in general, faster than FM unless the data set is small and repetitive. In addition, it can

handle large data sets that cannot be processed by FM.

1 INTRODUCTION

The emergence of the Next Generation Sequencing

(NGS) technology created a new computational chal-

lenge. In the context of de novo genome assembly, the

overwhelming number of reads (sequences) which are

produced by NGS requires further processing in order

to create the string graph. A string graph is a graph

in which nodes represent reads while edges represent

overlaps between reads. When a string graph is cre-

ated, a path which passes through every node exactly

once is sought. Such path is called a Hamilton path.

An assembler which builds a string graph is called

an overlap-based genome assembler. An alternative

choice is to build a de Bruijn graph which requires

solving an easier problem, namely the Euler path. An

Euler path is a path which passes through every edge

in the graph exactly once. The nodes in a de Bruijn

graph are k-mers obtained from the sequences where

k is less than the length of one sequence.

Finding overlaps between sequences is the ini-

tial time- and space-consuming step that is required

to build the string graph. Finding overlaps is well-

https://orcid.org/0000-0002-6380-209X

known in literature as all-pairs sufﬁx-preﬁx (APSP).

For a group of sequences G = S

,...S

, ﬁnding a

solution for APSP is to ﬁnd the longest sufﬁx-preﬁx

matching for every ordered pair in G.

Gusﬁeld et al. (Gusﬁeld et al., 1992) presented an

optimal solution for APSP using a generalized sufﬁx

tree (GST). A sufﬁx tree of a text T is a data structure

in which each sufﬁx in T is represented by a path from

the root to a leaf. The high space-consumption of suf-

ﬁx tree motivated Ohlebusch and Gog (Ohlebusch and

Gog, 2010) to present a practically better solution in

terms of time and space using a generalized enhanced

sufﬁx array (GESA). An ESA is a sufﬁx array and an

LCP (longest common preﬁx) array. A Sufﬁx array of

a text T with a size of n is an array of size n containing

the text positions of lexicographically sorted sufﬁxes

of T . An LCP array is an array of size n containing

the lengths of the longest common preﬁxes of every

two consecutive lexicographically sorted sufﬁxes of

T . The word ”Generalized” is used to indicate that

the data structure is created from one string that is

built by concatenating all reads (sequences) together

and separating every two reads with a distinct separa-

tor.

174

Rachid, M.

Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem.

DOI: 10.5220/0007369801740181

In Proceedings of the 12th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 174-181

ISBN: 978-989-758-353-7

The usage of compressed versions of these data

structures in some works such as (Simpson and

Durbin, 2012), (Haj Rachid et al., 2014b) and

(Haj Rachid et al., 2014a) offered low space-

consumption solutions for APSP, however, it had

a dramatic slowdown effects. Despite the optimal

time complexity of GST and ESA, it has been real-

ized that these solutions have high constants when

solving APSP. Accordingly, practical solutions such

as Readjoiner (Gonnella and Kurtz, 2012) and SOF

(Haj Rachid and Malluhi, 2015) are practically faster

solutions and consume much less space than GST and

GESA.

Tustumi et al (Tustumi et al., 2016) revisited OG

solution using ESA and improved the time (2.6 times

faster) and the space (15% less) consumptions. The

work of (Louza et al., 2016) presented a technique to

parallelize ESA’s new technique. The presented par-

allelization achieved superior speed–up over the se-

quential version, however, Readjoiner and SOF have

better time and space consumptions.

Lim and Park (Lim and Park, 2017) recently pre-

sented a solution which uses the same data structure

that is utilized in SOF in addition to other few auxil-

iary data structures. The presented solution uses ad-

vanced algorithmic techniques for the matching step

in order to achieve fast running time. The time con-

sumption is dramatically improved over SOF with an

expected higher space-consumption than SOF. They

called their algorithm FastAPSP.

While most researches tackled APSP when build-

ing a de novo overlap-based assembler, a few of

them such as (V

alim

aki, Niko and Ladra, Susana and

akinen, Veli, 2012) tackled the approximate ver-

sion of the overlap problem. Valimaki et al. used a

compressed sufﬁx array (FM index (Ferragina et al.,

2004b)) with the backward backtracking technique to

ﬁnd approximate overlaps. The technique is also en-

hanced by sufﬁx ﬁlters which were introduced and

improved by (K

arkk

ainen, Juha and Na, Joong Chae,

2007) and (Kucherov, Gregory and Tsur, Dekel, 2014)

respectively.

Such direction can save the time required to de-

tect and to correct errors in the input reads. The

work of (Haj Rachid, Maan, 2017) utilizes pigeonhole

principle in ﬁnding approximate overlaps and it con-

sumes less time and space than (V

alim

aki, Niko and

Ladra, Susana and M

akinen, Veli, 2012). However,

only Hamming distance was used in the experiments

which extremely limits the usability of the presented

tool as processing genomic data requires handling in-

sertions/deletions in addition to mismatches.

1.1 Our Contribution

• We extend the algorithm presented in (Haj

Rachid, Maan, 2017) to handle edit distance. We

call the new tool AOF (Approximate Overlap

Finder).

• We compare the time and the space consumptions

for 4 recent algorithms to solve APSP.

• We also analyze the performance and the space-

consumption for two solutions for approximate

APSP.

2 PRELIMINARIES

An input read (sequence) is a string of character over

an ordered alphabet Σ={A,C,G,T}. In this work, k de-

notes the number of input reads, n is the total length of

all strings, m is the minimal length of an overlap and

h is the threshold of mismatches/deletions/insertions.

2.1 Approximate Matching

An approximate matching between two strings can

be expressed by the edit distance. The edit distance

between strings S

, S

is deﬁned as the minimum

number of insertions, deletions and replacements of

symbols to transform string S

into S

(Levenshtein,

Vladimir I, 1966). Hamming distance is another way

to describe an approximate match. The Hamming dis-

tance between strings S

and S

is the number of mis-

matching symbols between strings S

and S

. A string

is an approximate match to S

, if the edit distance

(or the Hamming distance) between the two strings is

≤ h, where h is the threshold of insertions, deletions

and replacements (or only replacements when Ham-

ming distance is used) to transform S

to S

2.2 Dynamic Programming

Dynamic programming was ﬁrst presented by Bell-

man (Bellman, Richard, 1954). The basic idea is

to break the problem down into its basic blocks, re-

solve the sub problems, and record the results in a

two-dimensional array A. We initialize A[0, j] = j and

A[i,0]= i. For j>0 and i>0, A[i, j] can be calculated

as follows:

A[i, j] = Min











A[i, j − 1] + 1 ,

A[i − 1, j] + 1

A[i − 1, j − 1] +Comp(S

[i],S

[ j])

where Comp(S

[i],S

[ j])=0, if S

[i],S

[ j] are

Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem

175

matched, and 1 otherwise. We assume that the gap

penalty is 1.

Needleman and Wunsch (Needleman, Saul B and

Wunsch, Christian D, 1970) used dynamic program-

ming to ﬁnd an optimal global alignment and to cal-

culate the edit or Hamming distance. An alignment

for two DNA, RNA or protein sequences is a way

of arranging the two sequences to identify regions of

similarity that may be a consequence of functional,

structural, or evolutionary relationships between them

(Gollery, Martin, 2005). In global alignment, we

attempt to align every character in every sequence,

while local alignment only targets regions of similar-

ity. Figure 1 demonstrates the procedure for ﬁnding

edit distance and then executing a technique called

backtracing in order to ﬁnd the global alignment. The

two sequences are aligned as follows:

A AGCGG

ACAGC A

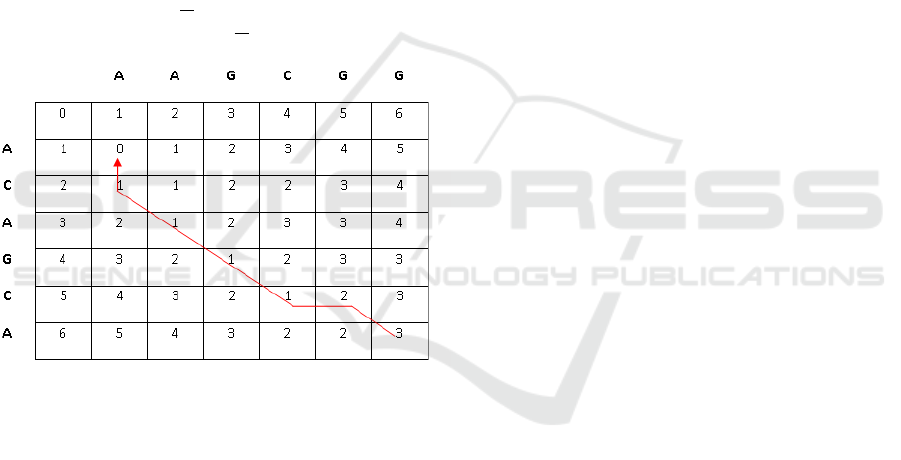

Figure 1: Finding edit distance for two sequences using dy-

namic programming. A backtracing technique is used to

derive the alignment between the two sequences (shown in

red). We assume that gap penalty is 1, mismatch penalty is

1, and matching reward is 0.

2.3 Pigeonhole Principle

The principle is based on the idea that if an

approximate match between two strings with the

same length does exist using at most h inser-

tions/deletions/mismatches, then if we divide each

of the two strings into h+1 parts of the same length

(the last part in both strings may be longer than the

other parts if the length of a string is not divisible

by h + 1), at least one part in one of them will ex-

actly match the corresponding part in the other string.

Many softwares such as Blast (Wu, Thomas D and

Nacu, Serban, 2010) uses such concept to take advan-

tage of extremely fast online and ofﬂine exact match-

ing algorithms to ﬁnd candidates (seeds) for approxi-

mate matching. When a candidate is found, the time-

consuming dynamic programming technique is ap-

plied to validate this matching.

2.4 Approximate All-Pair Sufﬁx-Preﬁx

(AAPSP)

We deﬁne a solution for AAPSP as follows. For a

group of sequences G, the target is to ﬁnd all sufﬁx-

preﬁx matchings which have a minimal length of m

and require at most h insertions/deletions/mismatches

(or only mismatches when Hamming distance is used)

for every ordered pair in G.

3 STUDIED TOOLS

Our selection for the studied tools was based on meet-

ing three requirements:

• The tool has been presented recently as a state-of-

the-art, in terms of space or time consumptions, to

ﬁnd overlaps.

• The tool supports multi-threading.

• The time and space consumptions for ﬁnding the

overlaps using the tool can be isolated if the tool

also performs other tasks such as building a string

graph or executing an assembly algorithm.

3.1 Exact Overlap

3.1.1 Readjoiner

Readjoiner (Gonnella and Kurtz, 2012) is a complete

overlap-based assembler which takes sequences as

an input, ﬁlters them, then assembles them in three

phases:

• Overlap: ﬁnds overlaps and builds the string

graph.

• Layout: ﬁnds the locations of the reads with re-

spect to each other.

• Consensus: constructs the sequence.

To ﬁnd overlaps, Readjoiner ﬁrst creates buckets

based on reads preﬁxes. The initial target is to dis-

tribute all sufﬁxes of all reads on their correspond-

ing buckets. In order to reduce the number of candi-

date sufﬁxes in each bucket, Readjoiner creates ﬁlters

(P and Q) which are built using the ﬁrst k

and the

last k

characters of the k-mer of every preﬁx in ev-

ery read, where k

, and k are parameters. In each

bucket, knowing that each bucket contains sufﬁxes

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

176

which positively passed the ”P and Q” checks and

cannot match preﬁxes from other buckets, Readjoiner

then ﬁnds overlaps using the algorithm presented in

(Ohlebusch and Gog, 2010). Finding overlaps can be

isolated in Readjoiner from the rest of the pipeline.

3.1.2 String Overlap Finder (SOF)

SOF uses a compact preﬁx tree to solve APSP

(Haj Rachid and Malluhi, 2015). A compact preﬁx

tree for a group of strings G is a tree in which ev-

ery string in G is represented by a path from the root

to a leaf. The idea is to test every sufﬁx in every

read by seeking a path for it in the tree. If a path

p from the root down to a node matches a sufﬁx Su,

then Su represents a sufﬁx-preﬁx match. SOF ﬁnds

all sufﬁx-preﬁx matches for every ordered pair in the

input strings. To ﬁnd only the longest sufﬁx-preﬁx

match, it uses an additional two-dimensional array to

store results.

Readjoiner is faster and consumes less space than

SOF when a single thread is used. In addition, SOF

has a degraded performance when the reads are long.

However, SOF has, in general, better time and space

consumptions in multi-threading environments. In

addition, SOF utilizes more threads than Readjoiner

and handles large data sets (Haj Rachid and Malluhi,

2015).

3.1.3 Enhanced Sufﬁx Array

Tustumi et al. (Tustumi et al., 2016) revisited Ohle-

busch and Gog technique to solve APSP using GESA.

An additional array P with a length k (number of

strings) has been added in order to include the posi-

tion of every complete string in GESA. The new tech-

nique is based on scanning GESA in a different way

(from bottom to top) for each segment in GESA us-

ing the new auxiliary data structure which ultimately

excludes many sufﬁxes from processing and accord-

ingly saves time. Experimental results show that the

time and space consumptions have improved over

OG algorithm. The new algorithm also outperforms

Readjoiner but only when m is small (≤ 5). The par-

allelized version of their new algorithm demonstrates

better scalability than SOF on the multi-core system

(Louza et al., 2016).

3.1.4 FastAPSP

FastAPSP employs the same data structure which

SOF utilizes, however, it uses an advanced algorith-

mic technique in the matching step instead of the

brute force processing of every sufﬁx in SOF. The new

technique can be summarized as categorizing sufﬁxes,

based on their lengths, in three different cases and

avoiding processing them (matching a path in the tree)

whenever possible. In order to do that, FastAPSP uses

additional auxiliary data structures.

FastAPSP is remarkably faster than SOF and

Readjoiner when enough space is available (Lim,

2018). In addition, it can ﬁnd only the largest suf-

ﬁx preﬁx match without the need of two-dimensional

array of size k

. Nevertheless, FastAPSP consumes

more space than SOF which may limit its ability to

handle large data sets.

3.2 Approximate Overlap

3.2.1 FM With Backtracing

An FM-index is a compressed full-text sub string in-

dex based on the Burrows-Wheeler transform (Bur-

rows and Wheeler, 1994). It was created by Paolo Fer-

ragina and Giovanni Manzini(Ferragina et al., 2004a).

The Burrows-Wheeler transform (BWT) rearranges

a character string into runs of similar characters.

This is useful for compressing a string that has runs

of repeated characters by techniques such as move-

to-front transform and run-length encoding (Bentley

et al., 1986). (V

alim

aki, Niko and Ladra, Susana and

akinen, Veli, 2012) utilizes FM with the backward

backtracking technique to ﬁnd approximate overlaps.

3.2.2 AOF: Finding Edit-Distance-Based

Approximate Overlaps using Pigeonhole

Principle

The work of (Haj Rachid, Maan, 2017) explains a

technique to ﬁnd approximate overlaps between se-

quences using pigeonhole technique. However, Ham-

ming distance was used to deﬁne an approximate

overlap. We show how to use the same principle to

ﬁnd approximate overlaps using edit distance.

Let m be a minimal length for an overlap (i.e., a

sufﬁx-preﬁx match with a length <m will not be con-

sidered). If sufﬁx S is an approximate sufﬁx-preﬁx

match with a threshold h, then its preﬁx of length m

has to have an edit distance ≤h when aligned with a

preﬁx of length m of some read. Accordingly, if the

preﬁx of S with size m is divided into h+1 parts of

equal length, then one of these parts exactly matches

a corresponding part of a preﬁx p of some read r with

the same size m.

Let S be a candidate for an approximate overlap

(i.e., one of its parts of equal length exactly matches

a corresponding part in a preﬁx of a read). Let j

, j

be the starting character and the ending character of

the matching part in S respectively. We ﬁrst globally

align the preﬁx of S which is ending with the character

Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem

177

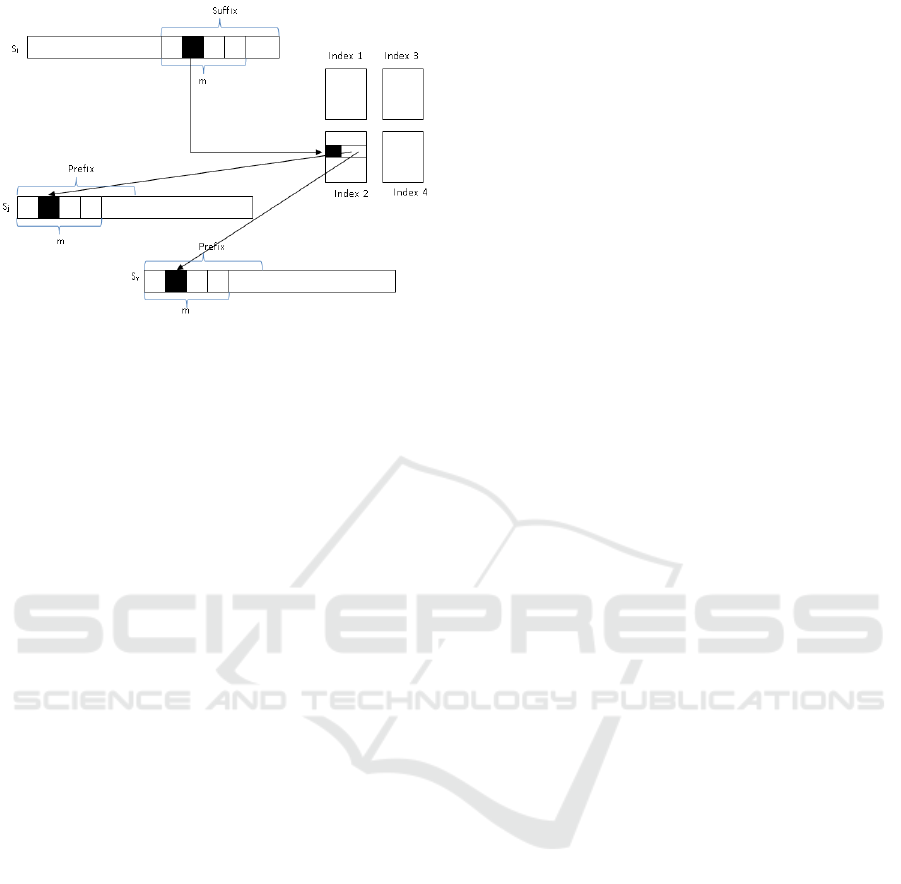

Figure 2: Solving approximate all-pairs sufﬁx-preﬁx using

pigeonhole principle. Since the black portion in S

is the

second part in the sufﬁx, we look for it in index 2. Two

matches are found. Threshold h is 3 in this example, ac-

cordingly, we have 4 indices.

S[ j

-1] with its corresponding part in preﬁx p. If the

edit distance for this alignment is smaller than h, then

we also globally align the sufﬁx of S which is starting

from the character S[ j

+1] in S with its corresponding

part in preﬁx p. Accordingly, the technique can be

summarized as follows:

• Divide the preﬁx of length m for each read into

h+1 parts of equal length (except the last part

which may be longer if m is not divisible by h+1).

Accordingly, we have k(h+1) parts.

• Add each part p from each read r to an index

which has entries of type hkey, Li where L is a

list of reads. Accordingly, if p is already in the

index, r will be added to an existed entry (in its L

list), otherwise, a new entry hp, {r}i will be added

to the index.

• Every sufﬁx S in every read where |S|≥m will be

tested. This is done by dividing the preﬁx of S of

size m into h+1 parts of equal length and search-

ing for each part in the index. If a part p has a

hit at position i in the index, we investigate ev-

ery read r

in L

. Using dynamic programming,

we globally align all characters that precede p in

S with their corresponding characters in r

. If the

threshold h is not exceeded, we also globally align

all characters after p in S with their corresponding

characters in r

. If the end of S is reached with-

out exceeding the threshold, then S is reported as

an approximate overlap between r (the read which

contains S) and r

. Figure 2 explains the tech-

nique.

Time complexity for this technique is O(n

). The

performance clearly correlates negatively with the

number of hits. The index may contain (h+1)k en-

tries. All entries may have up to (h+1)k values (in all

L lists). Therefore, the space complexity is bounded

by the size of the text which is O(n log σ) where n is

the total length of all reads and σ is the size of the

alphabet.

4 EXPERIMENTAL RESULTS

4.1 Experimental Setup

4.1.1 Exact Overlap

We compare the time and space consumptions for

the latest four parallelized solutions for APSP: Read-

joiner (RJ), SOF, ESA, and FastAPSP. All tools can

output the overlaps using the format hv,w,ovi where

v and w are reads and ov is the size of the over-

lap. Our six datasets, shown in table 1, are obtained

from PubMed with sizes ranging from 42MB up to

32 GB. We ran our experiments on a machine run-

ning Linux Ubuntu with 2.6 GHZ CPU, 32 GB RAM,

and 8 threads.

4.1.2 Approximate Overlap

The source code for AOF can be downloaded from

https://github.com/maanrachid/AOF. We analyze the

performance of two algorithms to ﬁnd approximate

overlaps: FM and AOF. Both tools support multi-

threading and provide the user the ability to specify

m, h, and the type of distance (edit/Hamming).

Our experiments were run on an 8-threads ma-

chine with 8 GB RAM and a CPU of 2.6 GHZ.

We used randomly-generated and real data sets.

Randomly-generated data is created using a program

which asks the user for n and k then generates k ran-

dom sequences with a total length of n. Real data

sets were obtained from PubMed and Citrus genome

database. Their details are shown in table 2. We com-

pare the time and space consumptions of AOF and

FM (V

alim

aki, Niko and Ladra, Susana and M

akinen,

Veli, 2012). We run AOF with mismatch penalty of 1,

gap penalty of 1 and a match score of 0. Edit distance

is used in all experiments.

4.2 Discussion

4.2.1 Exact Overlap

Table 3 show that both time and space consumptions

for parallelized ESA are extremely high when com-

pared with the other three solutions. FastAPSP has

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

178

Algorithm 1: Solving AAPSP using pigeonhole principle.

1: psize ←m/(h + 1)

2: for Every read r in input reads do

3: for Every candidate sufﬁx S in r do

4: for Every part p of length psize in S’s preﬁx of size m do

5: if p is found in position i in the index then

6: for Every read r

found in L

7: Globally align all characters before p with their corresponding characters in r

8: if threshold is not exceeded then

9: Globally align all characters after p with their corresponding characters in r

until the end of S is reached

10: end if

11: if threshold is not exceeded then

12: Report S as a sufﬁx-preﬁx match between r and r

13: Apply back-tracing

14: Report the alignment.

15: end if

16: end for

17: end if

18: end for

19: end for

20: end for

Table 1: Data sets used in testing four solutions for APSP.

Data Set n k m

Streptococcus Mitis (SRR007326) 42M 156,310 40

HIV (SRR5760188) 62.4M 320,739 40

E.coli (SRR2244250) 302.3M 502,172 40

Salmonella (SRR2007640) 1.2G 2,508,609 40

Exome Human Genome (SRR866986) 9.8G 53,603,681 40

Female Human Genome (SRR098909) 32.7G 161,962,055 80

Table 2: n is the total size. k is the number of sequences. m is the minimal length of an overlap.

Data Set n (MB) k m

Random 1 1 10,000 30

Random 2 2.5 20,000 30

Random 3 5 50,000 30

Streptococcus Mitis (SRR007326) 42 156,310 60

Citrus Trifoliata 46 62,344 60

Citrus Sinensis 154 208,909 70

E. Coli (SRR2244250) 302 502,172 80

the best time-consumption in most of the cases (4 out

of 6), however its space consumption is always higher

than SOF and Readjoiner, which may be the reason

for FastAPSP’s termination in the last two large data

sets (9.8 and 32.7 GB). SOF and Readjoiner have

the best space-consumption. SOF consumes less time

than Readjoiner in all cases and processes all data sets

without a termination.

4.2.2 Approximate Overlap

We ﬁrst investigate the impact of the minimal length

of an overlap m on the performance. Figure 3 shows

that FM has the same performance for all different

values of m, while m clearly affects AOF’s perfor-

mance. While the two applications start with close

results, SOF’s performance improves dramatically

when m increases.

Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem

179

Table 3: Time and space consumptions for all 4 solutions: Readjoiner, ESA, SOF, FastAPSP.

Data Set Readjoiner SOF ESA FastAPSP ReadJoiner SOF ESA FastApsp

Time Time Time Time Space Space Space Space

SRR007326 2 0,3 76 0,2 21 38 944 71

SRR5760188 T 167 1,320 65 T 68 7,100 212

SRR2244250 77 33 T 13 438 238 T 636

SRR2007640 337 200 900 100 474 726 7,200 5,900

SRR866986 T 1,885 T T T 10,034 T T

SRR098909 T 14,153 T T T 31,219 T T

Table 4: T indicates a termination due to high space consumption. h is the maximum number of errors (mis-

matches/insertions/deletions). m is the minimal length for an overlap.

Data m h=1 h=2 h=3 h=1 h=2 h=3

Set AOF AOF AOF FM FM FM

Random 1 30 0.06 0.1 7 1 36 324

Random 2 30 0.1 0.8 43 10 194 2,520

Random 3 30 0.3 2.7 180 17 228 2,880

Streptococcus Mitis 60 22 56 137 171 1545 T

Citrus Trifoliata 60 282 870 2171 127 1,020 T

Citrus Sinensis 70 55 290 1,029 T T T

E. Coli 80 4,021 34,800 168,000 T T T

Table 5: T indicates a termination due to high space consumption.

Data Set AOF FM

Random 1 9 MB 141 MB

Random 2 15 MB 540 MB

Random 3 23 MB 691 MB

Streptococcus Mitis 93 MB 5.1 GB

Citrus Trifoliata 290 MB 6.8 GB

Citrus Sinensis 850 MB T

E. Coli 750 MB T

Figure 3: Performance of FM and AOF using different min-

imal overlap values (m) on random data with different data

set sizes. Number of mismatches is 3 in all tests. Logarith-

mic scale is used.

This is expected. When the length of the piece

which will be searched for in the index increases,

fewer matches are expected. Since we have less hits,

dynamic programming will be applied less often and

the time consumption improves.

Table 4 demonstrates the performances of AOF

and FM (V

alim

aki, Niko and Ladra, Susana and

akinen, Veli, 2012) using different values for h

(the threshold for mismatches/deletions/insertions) on

both random and real data. Since random cases have

a few or almost no matches, AOF runs faster than FM

while FM has better performance with small genomic

and repetitive data due to increasing the number of

hits. Despite the slowdown of AOF with genomic

data, it is clear that it can handle large cases which

cause a terminating error when run with FM.

Table 5 clearly explains the cause of termination.

AOF consumes much less space than FM. Accord-

ingly, FM could not handle several cases due to its

high space consumption. AOF can be an appropriate

solution in a machine with limited resources.

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

180

5 CONCLUSION

FastAPSP is the right choice for solving APSP when

data sets are relatively small or space-consumption is

not a big concern. In such cases, Readjoiner could

be an excellent choice for relatively small data sets

in a single-core machine. In other circumstances,

SOF could be a favorable choice. We present AOF

as a space-efﬁcient tool which enables genome as-

sembler’s engineer to handle the overlap problem es-

pecially in machines with limited resources using

both Hamming distance and edit distance. Unlike

FM, AOF’s time consumption improves dramatically

when minimal length of an overlap (m) increases. De-

spite the fact that AOF is slower than FM in handling

some small genomic data sets, AOF can process large

data sets which cannot be handled by FM due to the

high space-consumption.

REFERENCES

Bellman, Richard (1954). The theory of dynamic program-

ming. Technical report, DTIC Document.

Bentley, J. L., Sleator, D. D., Tarjan, R. E., and Wei, V. K.

(1986). A locally adaptive data compression scheme.

Communications of the ACM, 29(4):320–330.

Burrows, M. and Wheeler, D. J. (1994). A block-sorting

lossless data compression algorithm. Technical report,

Digital SRC Research Report.

Ferragina, P., Manzini, G., M

akinen, V., and Navarro, G.

(2004a). An alphabet-friendly fm-index. In Interna-

tional Symposium on String Processing and Informa-

tion Retrieval, pages 150–160. Springer.

Ferragina, P., Manzini, G., Veli, M., and Navarro, G.

(2004b). An alphabet-friendly FM-index. In SPIRE,

pages 150–160.

Gollery, Martin (2005). Bioinformatics: Sequence and

genome analysis, david w. mount. cold spring harbor,

ny: Cold spring harbor laboratory press, 2004, 692

pp., paperback. isbn 0-87969-712-1. Clinical Chem-

istry, 51(11):2219–2219.

Gonnella, G. and Kurtz, S. (2012). Readjoiner: a fast and

memory efﬁcient string graph-based sequence assem-

bler. BMC Bioinformatics, 13:82.

Gusﬁeld, D., Landau, G., and Schieber, B. (1992). An efﬁ-

cient algorithm for the all pairs sufﬁx-preﬁx problem.

Inf. Process. Lett., 41(4):181–185.

Haj Rachid, M. and Malluhi, Q. (2015). A practical

and scalable tool to ﬁnd overlaps between sequences.

BioMed research international, 2015.

Haj Rachid, M., Malluhi, Q., and Abouelhoda, M. (2014a).

A space-efﬁcient solution to ﬁnd the maximum over-

lap using a compressed sufﬁx array. In MECBME.

Haj Rachid, M., Malluhi, Q., and Abouelhoda, M. (2014b).

Using the Sadakane compressed sufﬁx tree to solve

the all-pairs sufﬁx preﬁx problem. BioMed Research

International.

Haj Rachid, Maan (2017). Two efﬁcient techniques to ﬁnd

approximate overlaps between sequences. BioMed

Research International, 2017.

arkk

ainen, Juha and Na, Joong Chae (2007). Faster ﬁlters

for approximate string matching. In ALENEX. SIAM.

Kucherov, Gregory and Tsur, Dekel (2014). Improved ﬁl-

ters for the approximate sufﬁx-preﬁx overlap problem.

In International Symposium on String Processing and

Information Retrieval, pages 139–148. Springer.

Levenshtein, Vladimir I (1966). Binary codes capable of

correcting deletions, insertions, and reversals. In So-

viet physics doklady, volume 10, pages 707–710.

Lim, J. (2018). A Practical Algorithm for the All-Pairs

Sufﬁx-Preﬁx Problem. PhD thesis.

Lim, J. and Park, K. (2017). A fast algorithm for the all-

pairs sufﬁx–preﬁx problem. Theoretical Computer

Science, 698:14–24.

Louza, F. A., Gog, S., Zanotto, L., Araujo, G., and Telles,

G. P. (2016). Parallel computation for the all-pairs

sufﬁx-preﬁx problem. In International Symposium on

String Processing and Information Retrieval, pages

122–132. Springer.

Needleman, Saul B and Wunsch, Christian D (1970). A

general method applicable to the search for similari-

ties in the amino acid sequence of two proteins. Jour-

nal of molecular biology, 48(3):443–453.

Ohlebusch, E. and Gog, S. (2010). Efﬁcient algorithms

for the all-pairs sufﬁx-preﬁx problem and the all-

pairs substring-preﬁx problem. Inf. Process. Lett.,

110(3):123–128.

Simpson, J. and Durbin, R. (2012). Efﬁcient de novo as-

sembly of large genomes using compressed data struc-

tures. Genome research, 22(3):549–556.

Tustumi, W. H., Gog, S., Telles, G. P., and Louza, F. A.

(2016). An improved algorithm for the all-pairs

sufﬁx–preﬁx problem. Journal of Discrete Algo-

rithms, 37:34–43.

alim

aki, Niko and Ladra, Susana and M

akinen, Veli

(2012). Approximate all-pairs sufﬁx/preﬁx overlaps.

Information and Computation, 213:49–58.

Wu, Thomas D and Nacu, Serban (2010). Fast and snp-

tolerant detection of complex variants and splicing in

short reads. Bioinformatics, 26(7):873–881.

Latest Advances in Solving the All-Pairs Sufﬁx Preﬁx Problem

181
