Practical License Plate Recognition in Unconstrained Surveillance

Systems with Adversarial Super-Resolution

Younkwan Lee, Jiwon Jun, Yoojin Hong and Moongu Jeon

Machine Learning and Vision Laboratory, Gwangju Institute of Science and Technology, Gwangju, South Korea

Keywords:

Intelligent Transportation Systems, Visual Surveillance, License Plate Recognition, Super-Resolution,

Generative Adversarial Networks.

Abstract:

Although most current license plate (LP) recognition applications have been signiﬁcantly advanced, they are

still limited to ideal environments where training data are carefully annotated with constrained scenes. In

this paper, we propose a novel license plate recognition method to handle unconstrained real world trafﬁc

scenes. To overcome these difﬁculties, we use adversarial super-resolution (SR), and one-stage character

segmentation and recognition. Combined with a deep convolutional network based on VGG-net, our method

provides simple but reasonable training procedure. Moreover, we introduce GIST-LP, a challenging LP dataset

where image samples are effectively collected from unconstrained surveillance scenes. Experimental results

on AOLP and GIST-LP dataset illustrate that our method, without any scene-speciﬁc adaptation, outperforms

current LP recognition approaches in accuracy and provides visual enhancement in our SR results that are

easier to understand than original data.

1 INTRODUCTION

License plate recognition (LPR) is a fundamental and

essential process of identifying vehicles and can be

extended to a variety of real-world applications. LPR

methods have been widely studied over the last de-

cade, and are especially of big interest in intelligent

transport systems (ITS) applications such as access

control (Chinomi et al., 2008), road trafﬁc monito-

ring (Noh et al., 2016; Pu et al., 2013; Song and Jeon,

2016; Lee et al., 2017; Yoon et al., 2018) and trafﬁc

law enforcement (Zhang et al., 2011). Since all li-

cense plate recognition methods always deal with the

letters and numbers in images, they are closely rela-

ted to image classiﬁcation (Simonyan and Zisserman,

2014; Russakovsky et al., 2015) and text localization

(Anagnostopoulos et al., 2006).

Conventional LPR methods typically include two

stages: character localization and character recogni-

tion. Those methods are widely designed for unrea-

listically most constrained scenarios: a high-quality

resolution and an unrotated frontal or rear image. Ho-

wever, unlike the ideal situation, many trafﬁc surveil-

lance cameras scattered around the world are opera-

ting in a number of unconstrained scenarios: they pro-

duce poor-resolution images and tilted license plates

as shown in Figure 1. Although considerable progress

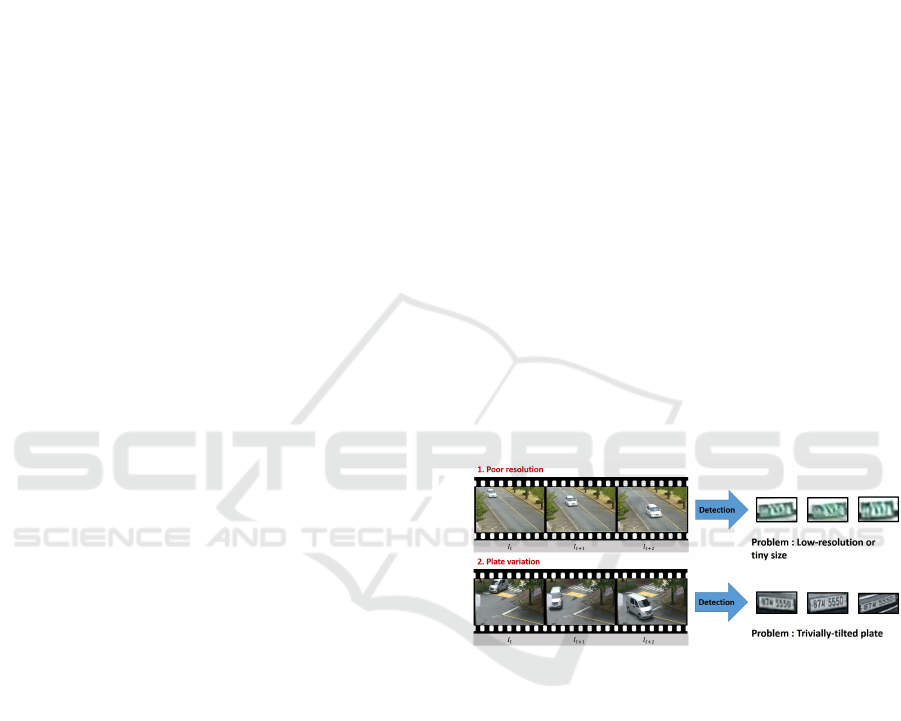

Figure 1: Example in GIST-LP dataset. Poor-resolution and

plate variation are common challenging issues on license

plate recognition problem.

of computer vision technology has been made, exis-

ting methods may fail to recognize license plates in

such an environment without considering any uncon-

strained conditions. As a consequence, we ﬁnd its

limitations in three aspects: ﬁrst, many license plate

samples only constitute incomplete text search space;

second, the projection angle of the sample is tilted

with respect to the image plane at an angle of up to 30

degrees, interfering character exploitation; third, bad

text localization often results in erroneous outputs.

Based on this ﬁnding, we propose a novel deep

convolutional neural network based method for better

LPR.

Adversarial Super-resolution. We suggest an adver-

sarial super-resolution (SR) method including a ge-

Lee, Y., Jun, J., Hong, Y. and Jeon, M.

Practical License Plate Recognition in Unconstrained Surveillance Systems with Adversarial Super-Resolution.

DOI: 10.5220/0007378300680076

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 68-76

ISBN: 978-989-758-354-4

nerator and a discriminator networks over an image

area. Modern SR method (Dong et al., 2014) com-

monly targets the pixel-wise average as optimization

goal, minimizing the mean squared error (MSE) bet-

ween the super-resolved image and the ground truth,

which leads to the smoothing effect, especially across

text. Instead, we follow (Ledig et al., 2017)’s genera-

tor network, which solves minimax game as optimiza-

tion goal, avoiding a smoothing effect, which provide

a sharpening effect. Combined with SR in genera-

tor, we introduce a new loss function that encourages

the discriminator to count characters and distinguish

whether SR or high-resolution(HR) sample concur-

rently. Character counting results from the discrimi-

nator network help improve character recognition per-

formance in one-stage recognition module as a condi-

tional term.

Reconstruction Auto-encoder. We always recon-

struct the samples to straighten when the horizontally

or vertically tilted license plate is projected onto the

image plane. To address this issue, we utilize the con-

volutional auto-encoder network with the objective

function as the difference between the tilted image

and the straightened image. By doing so, it serves

as a preprocessing for correct character exploitation.

One-Stage Recognition. We do use the commonly

used character segmentation and localization process.

Instead, we propose a uniﬁed character localization

and recognition approach as one-stage. One-stage re-

cognition is not only more intuitive, but also more

accurate than segmentation that requires precise an

estimate of each pixel’s class. Our One-stage method

divides the input image into a 1*S grid, and detects

LP at three different scales which includes a condi-

tional term. The result of our character localization

using each grid cell is naturally uniﬁed with character

classiﬁcation.

In summary, our key contributions are:

• We show that adversarial SR module and AE ba-

sed reconstruction module in the real world for

unconstrained surveillance cameras can improve

the recognition performance greatly by (2.57%

(AOLP) and 8.06% (GIST-LP)) compared with

the state-of-the-art methods.

• The One-stage method combined with the condi-

tional term, instead of the two-stage method (cha-

racter detection and classiﬁcation), reduced the lo-

calization and classiﬁcation error.

• We collected a dataset of challenging license plate

samples from unconstrained conditions accompa-

nied by the text annotations (1,800 samples, 50

different license plates).

2 RELATED WORK

2.1 License Plate Recognition

Traditionally, numerous LPR methods proposed con-

sists of the two stages: semantic segmentation of the

exact character region and recognition of the charac-

ters. The related methods generally utilize discrimi-

nate features, such as edge, color, shape and texture

but does not show good results. Edge-based met-

hods (Kim et al., 2000; Zhang et al., 2006; Wang and

Lee, 2003; Kim et al., 2000; Zhang et al., 2006) and

geometrical features (Wang and Lee, 2003) assume

the presence of characters in the license plate. Many

color-based methods (Shi et al., 2005; Chen et al.,

2009) usually use the combination of the license plate

and the characters.

However, since the two-stage methods are not

only slow to run, but also take more time to converge

for optimized training due to the double networks,

one-stage pipeline based methods, segmentation-free

approach (Zherzdev and Gruzdev, 2018; Cheang

et al., 2017; Li and Shen, 2016; Wang et al., ), inclu-

ding segmentation and recognition at once, are propo-

sed. Most segmentation-free models take advantage

of deeply learned features which outperforms traditio-

nal methods on the task of classiﬁcation by deep con-

volutional neural networks (DCNN) (Simonyan and

Zisserman, 2014; He et al., 2016) and data-driven ap-

proaches (Russakovsky et al., 2015). The core under-

lying assumption of these methods extracts features

directly without sliding window for LPR. As exam-

ples of these models, Sergey et al. (Zherzdev and

Gruzdev, 2018) adopted a lightweight convolutional

neural network to learn end-to-end way. In another

work that use RNN module, Teik Koon et al. (Cheang

et al., 2017) proposed CNN-RNN uniﬁcation model

that feed the entire image as input. It is assumed that

the context of the entire image is further evaluated for

exact classiﬁcation than the sliding window approa-

ches being. Also, Hui et al. (Li and Shen, 2016) uti-

lized a cascade framework using DCNN and LSTM

and Xinlong et al. (Wang et al., ) proposed DCNN

and a bidirectional LSTM to use sequence labeling.

2.2 Adversarial Learning

The generative adversarial network (GAN) (Goodfel-

low et al., 2014; Radford et al., 2015; Radford et al.,

2015) is an amazing solution for training deep neural

network of generative models, which aim to learn the

probability distributions of the input data. Originally,

GAN is suggested to yield the more realistic-fake

images (Frid-Adar et al., 2018), but recent researches

Practical License Plate Recognition in Unconstrained Surveillance Systems with Adversarial Super-Resolution

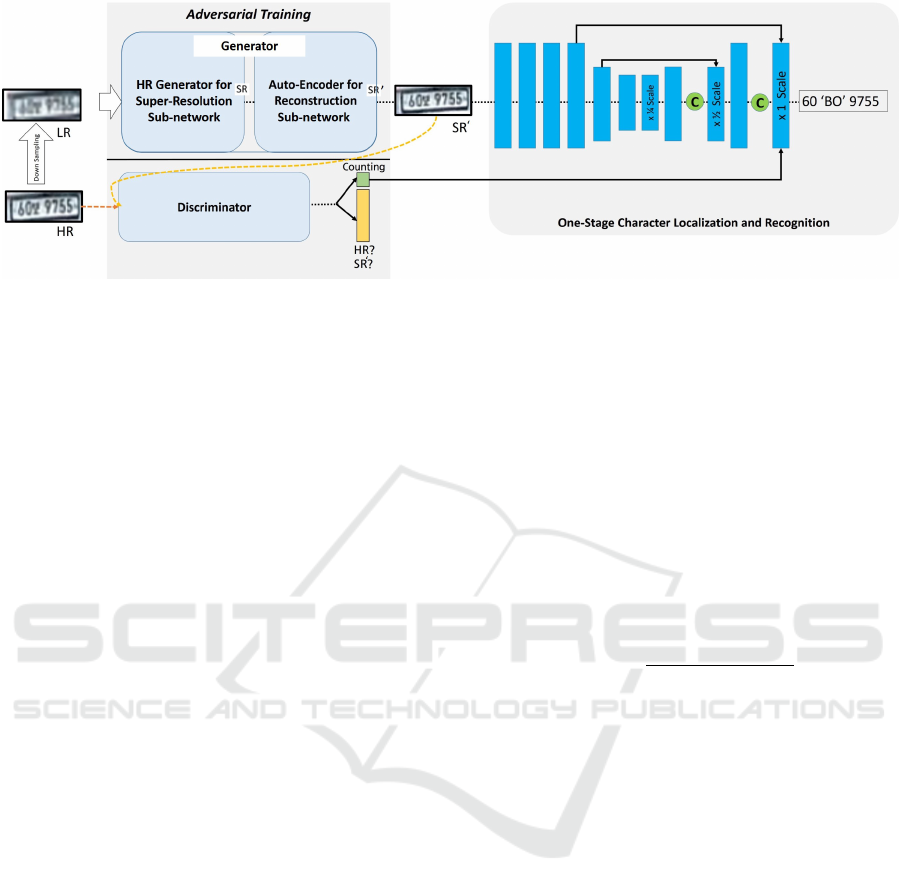

Figure 2: The proposed license plate recognition pipeline.

show that this adversarial technique can be utilized to

produce the speciﬁc training algorithms. e.g,. gene-

rative focused tasks; super-resolution (Nguyen et al.,

; Ledig et al., 2017; Lee et al., 2018), style transfer

(Zhu et al., 2017; Li et al., 2017), natural-language

processing (Rajeswar et al., 2017) and discriminative

focused tasks; human pose estimation (Chou et al.,

2017; Peng et al., 2018).

3 PROPOSED METHOD

In this section, we describe the details of the propo-

sed end-to-end pipeline for LPR. The schematics of

the method is illustrated in Figure 2. We ﬁrst intro-

duce the adversarial network to super-resolve the in-

put image, and reconstruct its output. Then, the de-

tails of the proposed one-stage character recognition

network are presented for recognizing characters on

the license plate and locating individual text regions

without character segmentation. Finally, we describe

a training process to ﬁnd optimal parameters of our

model.

3.1 Adversarial Network Architecture

Adversarial learning techniques have been widely

used in many tasks (Frid-Adar et al., 2018; Zhu et al.,

2017; Rajeswar et al., 2017; Chou et al., 2017), provi-

ding boosted performance through adversarial data or

features. In vanilla GAN (Goodfellow et al., 2014),

a minimax game is trained by alternately updating

a generator sub-network G and a discriminator sub-

network D simultaneously. The value function of the

generator G and the discriminator D is deﬁned as:

min

max

V (D, G) =E

x∼p

real

(x)

[logD(x)]

+ E

z∼p

f ake

(z)

[log(1 − D(G(z)))]

(1)

where p

real

is the real data distribution observation

from x and p

f ake

is the fake data distribution ob-

servation from a random distribution z. These sub-

networks have conﬂicting goals to minimize their own

cost and maximize the opposite’s cost. Therefore, the

conclusion to play the minimax game can be that the

probability distribution (p

f ake

) generated by the gene-

rator G exactly matches the data distribution (p

real

After all, the discriminator D will not be able to dis-

tinguish between sampling distribution from the ge-

nerator G and real data distribution. At this time, for

the ﬁxed generator, the optimal discriminator function

is as follows:

∗

(x) =

real

(x)

real

(x) + p

f ake

(x)

. (2)

In a similar way, we modiﬁed the minimax value

function in the vanilla GAN for solving SR so that

the generator G consisting of a HR generator G

and

a reconstruction network G

recon

creates an HR image

from LP image, while the discriminator D trains to

distinguish the HR fake image obtained by the gene-

rator from the actual LR image. This adversarial SR

process can be deﬁned as follows:

min

max

V (D, G) = E

∼p

train

)

[logD

)]

+ E

∼p

)

[log(1 − D

))],

(3)

where I

is the high-resolution image, I

is the low-

resolution image, θ

and θ

denote the parameters

trained by a feed-forward CNN G

and D

respecti-

vely.

Generator Network. Different from (Goodfellow

et al., 2014), our generator network is composed of

two sub-networks: (1) HR Generator G

and (2)

Convolutional Auto-encoder for reconstruction G

recon

as shown in Figure 2. The former is a series of con-

volutional layers and fractionally-strided convolution

layers (i.e. upsample layer) inspired by (Ledig et al.,

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

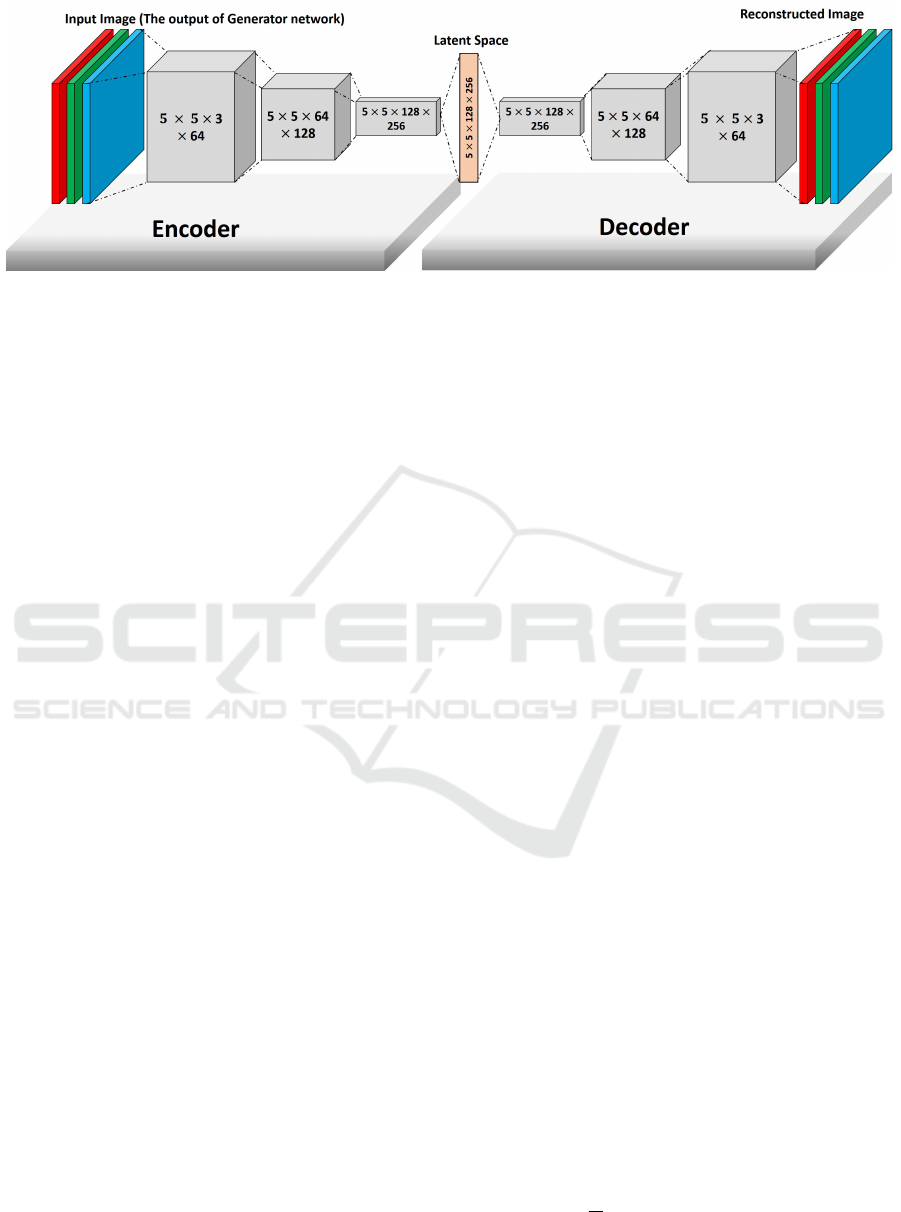

Figure 3: The proposed Auto-Encoder based reconstruction sub-network structure.

2017). We use two upsample layers(2 times upsam-

pling) as proposed by Radford et al. (Radford et al.,

2015), and acquire a 4 times enhanced image image

from them.

In addition to its network, we include a re-

construction sub-network for the reﬁnement task of

image with enhanced resolution. Given the output of

4 times super-resolved image, our proposed network

aims at discovering that it corrects slightly distorted

image through denoising learning manner. Basically,

we employ a convolutional neural network (CNN) as

encoder and decoder, as shown in Figure 3. Although

both encoder and decoder consist of the same num-

ber of convolutional layers, the former adds MaxPool-

ing2D layers for spatial down-sampling, while the lat-

ter adds UpSampling2D layers, with the BatchNor-

malization (Ioffe and Szegedy, 2015).

Discriminator Network. Figure 2 shows the archi-

tecture of the discriminator network and its output

components. Inspired by VGG19 (Simonyan and Zis-

serman, 2014), we follow the same network structure.

To discriminate exact object regions, we design all the

fully-connected layers to split into two parallel bran-

ches to obtain two outputs: (1) how many characters

are in the image as counting result f

count

and (2) the

HR vs. SR f

GAN

3.2 Character Recognition Network

Architecture

In this section, we describe the details of the propo-

sed character recognition approach where localization

and recognition are integrated into one-stage. We em-

ploy YOLO v3 (Redmon and Farhadi, 2018) as our

detection network. To achieve scale-invariance, it de-

tects characters at three scales, which are given by di-

minished dimensions of the image by 32, 16 and 8

each other, without the MaxPooling2D layer. Unlike

previous model (Redmon and Farhadi, 2017), this al-

lows better detection performance of small size cha-

racter, which is optimized for character on a license

plate that is mostly expressed in small size localiza-

tion and recognition with residual skip connections.

The shape of detection kernel denoted as 1 × 1 ×

(B × (5 + C)), where B is the number of bounding

boxes, 5 is the sum of the four attributs of bounding

boxes (coordinates (x , y), width and height) and one

object conﬁdence score and C is the number of clas-

ses. In our method, we deﬁne the detection kernel size

as B = 3 and C is 66 (10 numbers (0-9), 26 English

letters and 30 Korean letters), result in 1 × 1 × 213.

Furthermore, we add the counting information

output f

count

from the discriminator as a conditional

term in our character recognition model. The last

layer of recognition model has the previous layer’s

output and f

count

as inputs. We demonstrate that our

recognition model can be extended to the sophistica-

ted model where it can accurately count and localize

any character in any input. These are further discus-

sed later in Section 4.4.

3.3 Training

In this section, we discuss the objective to op-

timize our adversarial network and one-stage re-

cognition network. Let I

, I

and I

denote

a low-resolution image, high-resolution image and

SR image, respectively. Given a training dataset

, I

, text

j=1

, ..., text

j=count

, count

}

i=1

, our goal

is to learn the adversarial model that predicts SR

image from low-resolution image and recognition

model that predicts character’s class and location

from SR image.

Pixel-wise Loss. To force the generated plate image

to high-resolution ground truth, our generator net-

work is optimized for the MSE loss in each pixel va-

lues between the generated image sets and the small

and blurry plate image sets calculated as follows:

MSE

(w) =

∑

i=1

(kG

) − I

)

+ kG

) − I

(4)

Practical License Plate Recognition in Unconstrained Surveillance Systems with Adversarial Super-Resolution

where G

means HR generator, G

denotes the re-

construction network, and w are the parameters of ge-

nerator network.

Adversarial Loss. In order to provide a sharpening

effect to the generated image different from the MSE

loss that gives the smoothing effect, we deﬁne adver-

sarial loss as:

adv

∑

i=1

log(1 − D

))). (5)

Adversarial loss ampliﬁes the photo-realistic effect

and is trained in the direction of deception of the dis-

criminator.

Reconstruction Loss. In order to let the quality of ge-

nerated images by the S1 to be more photo-realistic,

we propose the reconstruction loss that corrects chan-

ges in the generated image topology that interfere

with the detection and is deﬁned as follows:

const

∑

i=1

) − G

))k. (6)

The reconstruction loss is calculated as L1 loss, the

difference between the output of G

and G

Classiﬁcation Loss. The classiﬁcation loss is playing

both the roles of an character counting task as well

as the discrimination task. To be more speciﬁc, the

discriminator takes an image as input and classiﬁed it

into two outputs: the HR real natural image or the SR

fake image and the numbers of characters respecti-

vely. The loss of this multi-task is calculated as fol-

lows:

clc

∑

i=1

(log((y

∧ count

) − D

)))

+ log((y

∧ count

) − D

))),

(7)

where y

represents prediction value of the number

of characters and the operations ∧ with y

and count

output 1 if it predicts correctly or 0 respectively.

4 EXPERIMENTAL RESULTS

4.1 Setup

All the reported implementations are based on Ten-

sorFlow as learning framework, and our method has

done on the NVIDIA TITAN X GPU. First of all, we

use the YOLO-v3 for the pre-trained model on COCO

(Lin et al., 2014) as our one-stage recognition model

so that we trained license plate images by ﬁne-tuning

their network parameters.

Also, to avoid the premature convergence of the

discriminator network, the generator network is up-

dated more frequently than original one. In addition,

higher learning rate is applied to the training of the

generator. For stable training, we use a technique cal-

led gradient clipping trick (Pascanu et al., 2013) and

the Adam optimizer (Kingma and Ba, 2014) with a

high momentum term. For the discriminator network,

we use the VGG-19 (Simonyan and Zisserman, 2014)

model pre-trained on ImageNet as our backbone net-

work and we divide all the fully connected layers into

two parallel f

count

and f

GAN

layers. The weights in

all parallel fully connected layers are initialized from

the standard Gaussian distribution with zero-mean, a

standard deviation of 0.01 and the constant 0 as the

bias in all layers. All models are trained on loss

function for ﬁrst 10 epochs with initial learning rate

of 10

−4

. After that, we set the learning rate to a furt-

her reduced 10

−5

for the remaining epochs. Finally,

batch normalization (Ioffe and Szegedy, 2015) is used

in all layers of generator and discriminator, except the

last layer of the G and the ﬁrst layer of the D.

4.2 Dataset

AOLP: This dataset(Hsu et al., 2013) includes 2,049

images of Taiwan license plates, which are collected

from the unconstrained surveillance scenes. AOLP

dataset is divided into three subsets: access cont-

rol (AC) with 681 samples, trafﬁc law enforcement

(LE) with 757 samples, and road patrol (RP) with

611 samples, based on diverse application parame-

ters. 100 samples per subset are used for the training,

and the rest of the 581(AC)/657(LE)/511(RP) sam-

ples are used for testing. More speciﬁcally, AC has

a narrow range of variation conditions, while LE/RP

have a wider range of variation conditions. Therefore,

compared to the AC subset, LE/RP are more challen-

ging subsets because they require a wider range of se-

arch conditions on the experiments. Besides, the RP

samples collected via mobile have more challenging

conditions because of the larger pan and orientation

changes compared to the LE samples collected at road

cameras with ﬁxed viewing angles.

GIST-LP: We collected and annotated a new dataset

GIST-LP for LPR. Our dataset is targeted on images

captured from surveillance cameras under unconstrai-

ned scenes. We do not limit the license plate always

to be large and front. We used trafﬁc surveillance ca-

meras which has 1920 x 1080 pixels of spatial resolu-

tion. We annotated the characters, including Korean

(30 categories) and numbers (0-9, 10 categories) for

all of the license plate images. In total, there are 1,800

license plates that appear in 1,569 frames. For license

plate images, the characters are usually small-sized,

blurred or tilted without occlusion. The dataset in-

clude information about bounding box for each cha-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

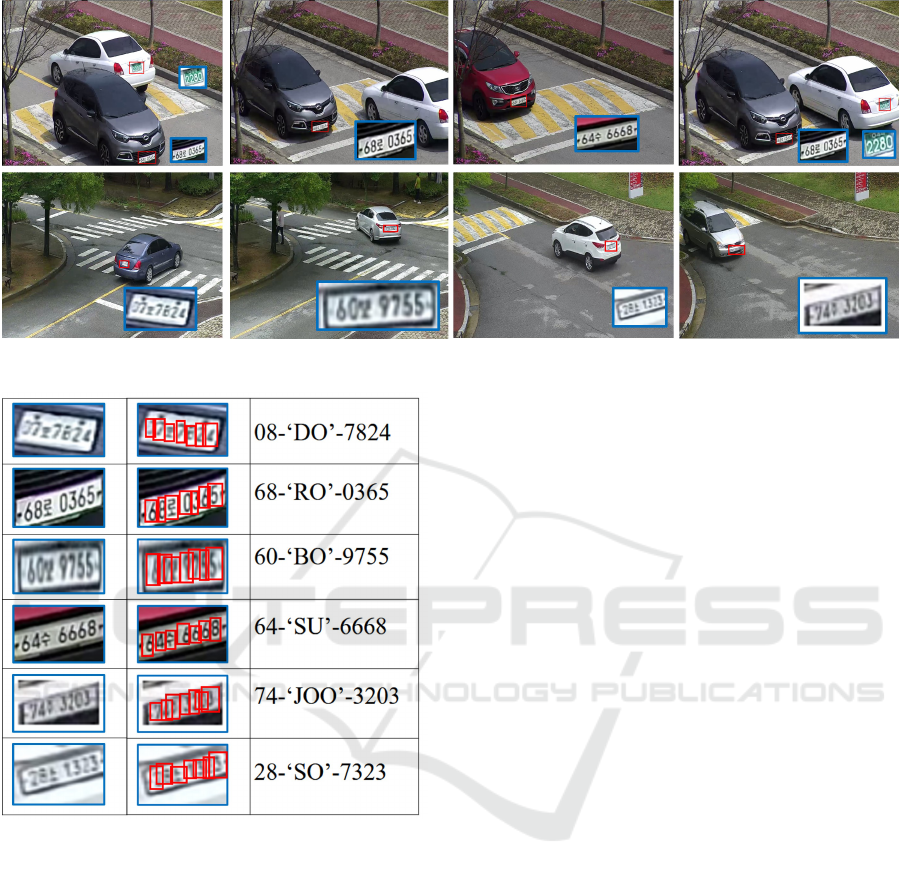

Figure 4: Samples from the unconstrained surveillance cameras in GIST-LP dataset.

Figure 5: Example in GIST-LP dataset (Laroca et al., 2018).

Qualitative sample images of recognition results. The ﬁrst

column shows the original plates, the second column shows

the character localization results and the third indicates the

recognitionm results.

racter and text class (Koreans and numbers).

4.3 Comparison with other Methods

In the experiment with AOLP, we compared our met-

hod with the state-of-the-are license plate recognition

approaches (Anagnostopoulos et al., 2006; Jiao et al.,

2009; Smith, 2007; Hsu et al., 2013). The results are

listed in Table 1, which are provided with accuracy

of recognition to evaluate both text localization and

classiﬁcation are all performed well at the same time.

We see that our method obtained the highest perfor-

mance (i.e. 96.74%) on the all subsets, and outper-

formed the state-of-the-are LPR approaches by more

than 2.5%. Also, it is important to note that, under

the fairly tilted conditions, our method operated con-

sistently robust and successfully detects the charac-

ters, while the baseline fail to detect. Furthermore,

one interesting ﬁnding of these results is that, based

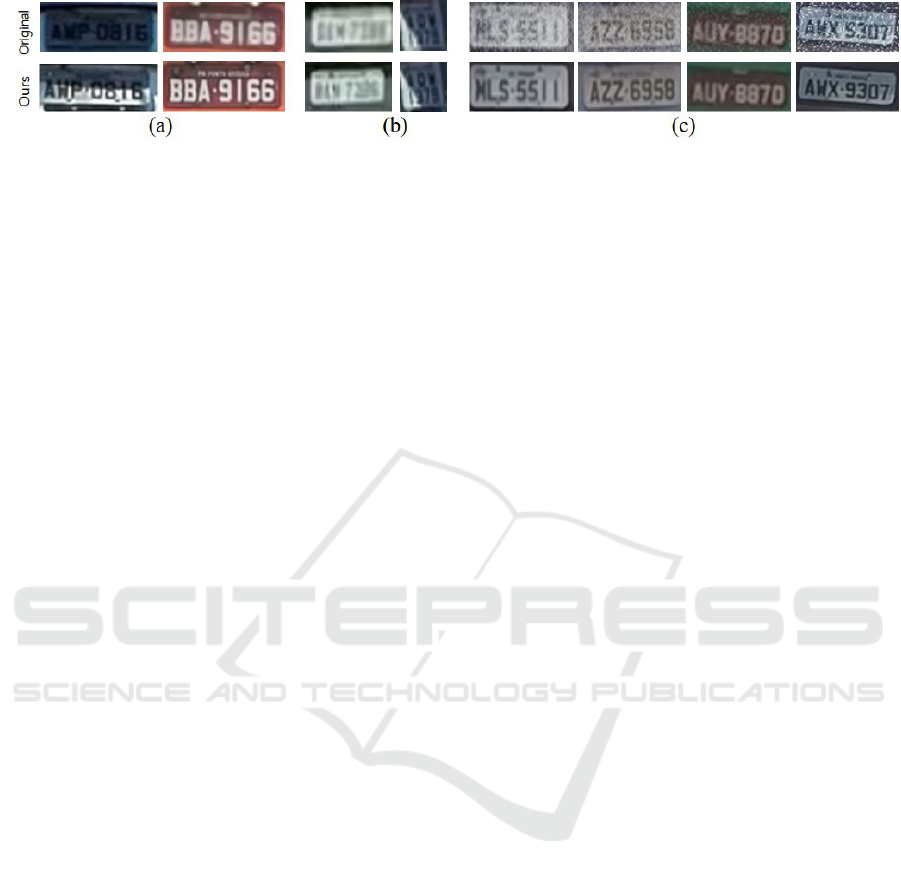

on Figure 6 (b,c), the addition of adversarial loss lead

to the highlighting of the positive features, while de-

cimating of other irrelevant features. By doing so, it

was further improved when detecting under night or

confusing conditions. Based on these observations,

our proposed method operated at least as well as ot-

hers, which outperformed all other methods in most

cases.

To show the results of experiment of LPR with

GIST-LP, we compared our method with (Girshick

et al., 2014; Ren et al., 2015) and followed the stan-

dard metrics (i.e. accuracy of recognition) of the

GIST-LP. There were many tiny license plates in

GIST-LP, making character detection not be accu-

rate. Hence, we found that the state-of-the-art method

(Redmon and Farhadi, 2018) that performed without

considering the tiny size and blurred condition recor-

ded on the inferior performance. However, our met-

hod mitigated the inﬂuence of these conditions and in-

dicated these license plates successfully. Under such

a challenging condition, our LPR performance still

achieved a comparable performance (93.83%) over all

other state-of-the-art LPR approaches, as shown Ta-

ble 2.

4.4 Ablation Study

In the proposed method, the loss functions of advers-

arial networks locate different regions, each with their

unique roles. In order to inspect its inﬂuence on cha-

racter recognition performance, we removed one loss

Practical License Plate Recognition in Unconstrained Surveillance Systems with Adversarial Super-Resolution

Table 1: Comparison of our method with other state-of-the-art method on the AOLP dataset.

Method Performance

AC LE RP Avg

(Anagnostopoulos et al., 2006) 92.00% 88.00% 91.00% 86.34%

(Jiao et al., 2009) 90.00% 86.00% 90.00% 88.51%

(Smith, 2007) 96.00% 83.00% 83.00% 87.31%

(Hsu et al., 2013) 95.00% 93.00% 94.00% 94.17%

Baseline (YOLO v3) (Redmon and Farhadi, 2018) 94.66% 89.04% 89.04% 90.90%

without pixel-wise MSE loss 97.24% 94.67% 94.91% 95.60%

without reconstruction loss 96.21% 88.89% 94.32% 92.91%

without adversarial loss 95.18% 87.67% 93.93% 92.00%

without classiﬁcation loss 96.39% 94.98% 96.48% 95.88%

Ours 97.59% 95.89% 96.87% 96.74%

Table 2: Comparison of our method with other state-of-the-art method on the GIST-LP dataset.

Method Performance

RCNN based on VGG-16 (Girshick et al., 2014) 74.44%

RCNN based on ZFNET (Girshick et al., 2014) 72.11%

Faster-RCNN et al. (Ren et al., 2015) 86.77%

Baseline (YOLO v3) (Redmon and Farhadi, 2018) 84.16%

Ours without pixel-wise MSE loss 91.78%

Ours without reconstruction loss 89.00%

Ours without adversarial loss 87.72%

Ours without classiﬁcation loss 90.78%

Ours 93.83%

function from the objective function at a time and

performed an ablation study with it to compare the

complete objective function. Most extremely, we per-

form experiments that compare the baseline and over-

all objective function, which obtain the superior per-

formance by a considerable gap (5.84% / 9.67%) from

Table 1 and 2.

Also, when removing one loss function from the

overall objective function our method shows a con-

siderable performance drop. First of all, even if the

MSE loss is not suitable for tiny objects due to the

smoothing effect, if there is no MSE loss, the perfor-

mance degradation is up to 1.14% (in AOLP) / 2.05%

(in GIST-LP), affecting the image up-scaling super-

resolution. Then the reconstruction loss affects the

correct converting of the tilted plate, because the SR

performance of the generator is somewhat dependent

on the degree of tilted angle of the license plate, and

it leads to about 3.83% (in AOLP), 4.83%(in GIST-

LP) improvement in performance. In another step,

we observe that adversarial loss leads to the sharpe-

ned super-resolved result of minimax game. Thus it

has a great inﬂuence on the detection performance

as shown in Figure 6. The GIST-LP dataset which

has relatively more tiny plates than AOLP dataset has

found a performance improvement of almost 4.74%

as shown Table 2, and the AOLP dataset also achieves

performance improvement of nearly 6.11% as shown

Table 1. Finally removing classiﬁcation loss in the

objective function shows a signiﬁcant impact on the

character recognition performance, which observes

an impressive improvement of 0.86% (in AOLP) and

3.15% (in GIST-LP). This proves that our two paral-

lel fully-connected layers for classiﬁcation affect the

classiﬁcation performance for our text localization of

the detector as well as the SR performance of the ge-

nerator. Also, we demonstrate that the counting term

as conditional data beneﬁts to better explore the space

of the character localization as much as possible.

4.5 Qualitative Results

As shown in Figure 6., we give additional examples

of the clear LP generated by the proposed generator

network from the tiny ones. Upon thorough investiga-

tion of the generated images, we ﬁnd that our method

learn strong priors using the proposed new loss functi-

ons of GAN by focusing on images of plate contour,

certain letters and numbers as shown in Figure 6 (a).

It implies that the proposed loss signiﬁcantly allows

visually clearer LP and can be used to solve the ill-

posed problem. Thus, SR module can capture the tiny

LP without hallucination and it implies the proposed

architecture has an impact on reducing the false nega-

tives.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Figure 6: Example in AOLP dataset (Hsu et al., 2013). Poor-resolution and background clutter are common challenging issues

on character recognition problem.

5 CONCLUSIONS

In this paper, we propose a new method based on

GAN to recognize characters in unconstrained license

plates. We design a novel network to directly gene-

rate a clear SR image from a blurry small one, and

our up-sampling sub-network and reconstruction sub-

network are trained in an end-to-end way. More-

over, we introduce an extra classiﬁcation branch to

the discriminator network, which can distinguish the

HR/SR and the character counting probability simul-

taneously. Furthermore, the adversarial loss brings to

generator network to restore a clearer SR image. Our

experiment on AOLP and GIST-LP datasets demon-

strate the substantial improvements, when compared

to previous state-of-the-art methods.

REFERENCES

Anagnostopoulos, C. N. E., Anagnostopoulos, I. E., Lou-

mos, V., and Kayafas, E. (2006). A license plate-

recognition algorithm for intelligent transportation sy-

stem applications. IEEE Transactions on Intelligent

transportation systems, 7(3):377–392.

Cheang, T. K., Chong, Y. S., and Tay, Y. H. (2017).

Segmentation-free vehicle license plate recognition

using convnet-rnn. arXiv preprint arXiv:1701.06439.

Chen, Z.-X., Liu, C.-Y., Chang, F.-L., and Wang, G.-Y.

(2009). Automatic license-plate location and recog-

nition based on feature salience. IEEE transactions

on vehicular technology, 58(7):3781.

Chinomi, K., Nitta, N., Ito, Y., and Babaguchi, N. (2008).

Prisurv: privacy protected video surveillance system

using adaptive visual abstraction. In International

Conference on Multimedia Modeling, pages 144–154.

Springer.

Chou, C.-J., Chien, J.-T., and Chen, H.-T. (2017). Self ad-

versarial training for human pose estimation. arXiv

preprint arXiv:1707.02439.

Dong, C., Loy, C. C., He, K., and Tang, X. (2014). Le-

arning a deep convolutional network for image super-

resolution. In European conference on computer vi-

sion, pages 184–199. Springer.

Frid-Adar, M., Diamant, I., Klang, E., Amitai, M., Gold-

berger, J., and Greenspan, H. (2018). Gan-based synt-

hetic medical image augmentation for increased cnn

performance in liver lesion classiﬁcation. arXiv pre-

print arXiv:1803.01229.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the

IEEE conference on computer vision and pattern re-

cognition, pages 580–587.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. In Advan-

ces in neural information processing systems, pages

2672–2680.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resi-

dual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hsu, G.-S., Chen, J.-C., and Chung, Y.-Z. (2013).

Application-oriented license plate recognition. IEEE

transactions on vehicular technology, 62(2):552–561.

Ioffe, S. and Szegedy, C. (2015). Batch normalization:

Accelerating deep network training by reducing inter-

nal covariate shift. arXiv preprint arXiv:1502.03167.

Jiao, J., Ye, Q., and Huang, Q. (2009). A conﬁgurable met-

hod for multi-style license plate recognition. Pattern

Recognition, 42(3):358–369.

Kim, K. K., Kim, K., Kim, J., and Kim, H. J. (2000).

Learning-based approach for license plate recogni-

tion. In Neural Networks for Signal Processing X,

2000. Proceedings of the 2000 IEEE Signal Proces-

sing Society Workshop, volume 2, pages 614–623.

IEEE.

Kingma, D. P. and Ba, J. (2014). Adam: A method for sto-

chastic optimization. arXiv preprint arXiv:1412.6980.

Laroca, R., Severo, E., Zanlorensi, L. A., Oliveira, L. S.,

Gonc¸alves, G. R., Schwartz, W. R., and Menotti, D.

(2018). A robust real-time automatic license plate

recognition based on the YOLO detector. CoRR,

abs/1802.09567.

Ledig, C., Theis, L., Huszar, F., Caballero, J., Cunningham,

A., Acosta, A., Aitken, A., Tejani, A., Totz, J., Wang,

Z., et al. (2017). Photo-realistic single image super-

resolution using a generative adversarial network. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 4681–4690.

Lee, Y., Yu, J., and Jeon, M. (2017). Automatic part lo-

calization using 3d cuboid box for vehicle subcate-

gory recognition. In Control, Automation and Infor-

Practical License Plate Recognition in Unconstrained Surveillance Systems with Adversarial Super-Resolution

mation Sciences (ICCAIS), 2017 International Confe-

rence on, pages 175–180. IEEE.

Lee, Y., Yun, J., Hong, Y., Lee, J., and Jeon, M.

(2018). Accurate license plate recognition and super-

resolution using a generative adversarial networks on

trafﬁc surveillance video. In 2018 IEEE Internatio-

nal Conference on Consumer Electronics-Asia (ICCE-

Asia), pages 1–4. IEEE.

Li, H. and Shen, C. (2016). Reading car license plates using

deep convolutional neural networks and lstms. arXiv

preprint arXiv:1601.05610.

Li, Y., Wang, N., Liu, J., and Hou, X. (2017). De-

mystifying neural style transfer. arXiv preprint

arXiv:1701.01036.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Doll

ar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean conference on computer vision, pages 740–755.

Springer.

Nguyen, A., Bengio, Y., and Dosovitskiy, A. Plug & play

generative networks: Conditional iterative generation

of images in latent space.

Noh, S., Shim, D., and Jeon, M. (2016). Adaptive sliding-

window strategy for vehicle detection in highway en-

vironments. IEEE Transactions on Intelligent Trans-

portation Systems, 17(2):323–335.

Pascanu, R., Mikolov, T., and Bengio, Y. (2013). On the

difﬁculty of training recurrent neural networks. In In-

ternational Conference on Machine Learning, pages

1310–1318.

Peng, X., Tang, Z., Yang, F., Feris, R., and Me-

taxas, D. (2018). Jointly optimize data augmen-

tation and network training: Adversarial data aug-

mentation in human pose estimation. arXiv preprint

arXiv:1805.09707.

Pu, J., Liu, S., Ding, Y., Qu, H., and Ni, L. (2013). T-

watcher: A new visual analytic system for effective

trafﬁc surveillance. In Mobile Data Management

(MDM), 2013 IEEE 14th International Conference on,

volume 1, pages 127–136. IEEE.

Radford, A., Metz, L., and Chintala, S. (2015). Unsuper-

vised representation learning with deep convolutio-

nal generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Rajeswar, S., Subramanian, S., Dutil, F., Pal, C., and Cour-

ville, A. (2017). Adversarial generation of natural lan-

guage. arXiv preprint arXiv:1705.10929.

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. arXiv preprint.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Advances in neural information

processing systems, pages 91–99.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). Imagenet large scale visual

recognition challenge. International Journal of Com-

puter Vision, 115(3):211–252.

Shi, X., Zhao, W., and Shen, Y. (2005). Automatic license

plate recognition system based on color image pro-

cessing. In International Conference on Computati-

onal Science and Its Applications, pages 1159–1168.

Springer.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Smith, R. (2007). An overview of the tesseract ocr engine.

In Document Analysis and Recognition, 2007. ICDAR

2007. Ninth International Conference on, volume 2,

pages 629–633. IEEE.

Song, Y.-m. and Jeon, M. (2016). Online multiple ob-

ject tracking with the hierarchically adopted gm-

phd ﬁlter using motion and appearance. In Consu-

mer Electronics-Asia (ICCE-Asia), IEEE Internatio-

nal Conference on, pages 1–4. IEEE.

Wang, S.-Z. and Lee, H.-J. (2003). Detection and recogni-

tion of license plate characters with different appea-

rances. In Intelligent Transportation Systems, 2003.

Proceedings. 2003 IEEE, volume 2, pages 979–984.

IEEE.

Wang, X., Man, Z., You, M., and Shen, C. Adversarial ge-

neration of training examples: Applications to moving

vehicle license plate recognition.

Yoon, Y.-c., Boragule, A., Yoon, K., and Jeon, M. (2018).

Online multi-object tracking with historical appea-

rance matching and scene adaptive detection ﬁltering.

arXiv preprint arXiv:1805.10916.

Zhang, H., Jia, W., He, X., and Wu, Q. (2006). Learning-

based license plate detection using global and local fe-

atures. In Pattern Recognition, 2006. ICPR 2006. 18th

International Conference on, volume 2, pages 1102–

1105. IEEE.

Zhang, J., Wang, F.-Y., Wang, K., Lin, W.-H., Xu, X., Chen,

C., et al. (2011). Data-driven intelligent transportation

systems: A survey. IEEE Transactions on Intelligent

Transportation Systems, 12(4):1624–1639.

Zherzdev, S. and Gruzdev, A. (2018). Lprnet: License plate

recognition via deep neural networks. arXiv preprint

arXiv:1806.10447.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. arXiv preprint

arXiv:1703.10593.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
