Methodology of a Network Simulation in the Context of an Evaluation:

Application to an IDS

Pierre-Marie Bajan

, Christophe Kiennert

and Herve Debar

IRT SystemX, Palaiseau, France

Telecom SudParis, Orsay, France

Keywords:

Evaluation Methodology, Cybersecurity, Network Simulation.

Abstract:

This paper presents a methodology for the evaluation of network services security and the security of protection

products. This type of evaluation is an important activity, considering the ever-increasing number of security

incidents in networks. Those evaluations can present different challenges with a variety of properties to verify

and an even larger number of tools available to compose and orchestrate together. The chosen approach in

the paper is to simulate scenarios to perform trafﬁc generation containing both benign and malicious actions

against services and security products, that can be used separately or conjointly in attack simulations. We use

our recently proposed method to generate evaluation data. This methodology highlights the preparation efforts

from the evaluator to choose an appropriate data generating function and make topology choices. The paper

presents the case and discusses the experimental results of an evaluation of a network-based IDS, with only

benign trafﬁc, only malicious trafﬁc, and mixed trafﬁc.

1 INTRODUCTION

Companies and governments need to evaluate the se-

curity of their current systems and all new systems

they create. The evaluation of targets, like services

and security products, covers a broad range of proper-

ties (performances, security, compliance with speciﬁ-

cations, etc.) and a large variety of tools exist to eval-

uate these properties. With current methods, it is dif-

ﬁcult to compose and orchestrate these tools to eval-

uate all the properties of services and security prod-

ucts. The best solution so far is provided by testbed

environments, but they require a lot of resources and

workforce to set up and maintain.

Our recent paper (Bajan et al., 2018) proposed a

new method to generate large-scale evaluation data.

This method is independent of the virtualized struc-

ture and can work on overlay networks used in testbed

environments or on a lighter and more limited virtual

network that are more scalable. Our method does not

run real-life applications to generate trafﬁc but uses a

single program that reproduces model data while re-

specting some properties of that data (size, duration,

acknowledgment by services, etc.). Thus, this method

signiﬁcantly reduces the resource requirements for

the generation of evaluation data.

In this paper, we propose a methodology to eval-

uate security products and services with the proposed

network simulation. This methodology aims to help

the evaluator to identify the inputs required by the net-

work simulation but also to choose a correct simula-

tion topology according to the evaluation goals (use

of external components, selection of inputs, the con-

stitution of the ground truth, etc.). We illustrate that

methodology with the example of the evaluation of

the Intrusion Detection System (IDS) Suricata with a

network simulation prototype.

In this paper, we present in section 2 the funda-

mental concepts of the evaluation of services and se-

curity products. Section 3 showcases the network

simulation through experimental protocols to evalu-

ate services and security products. In section 4 we

apply our experimental protocol for to the evaluation

of the IDS Suricata. Finally, we conclude our work in

section 5.

2 FUNDAMENTAL CONCEPTS

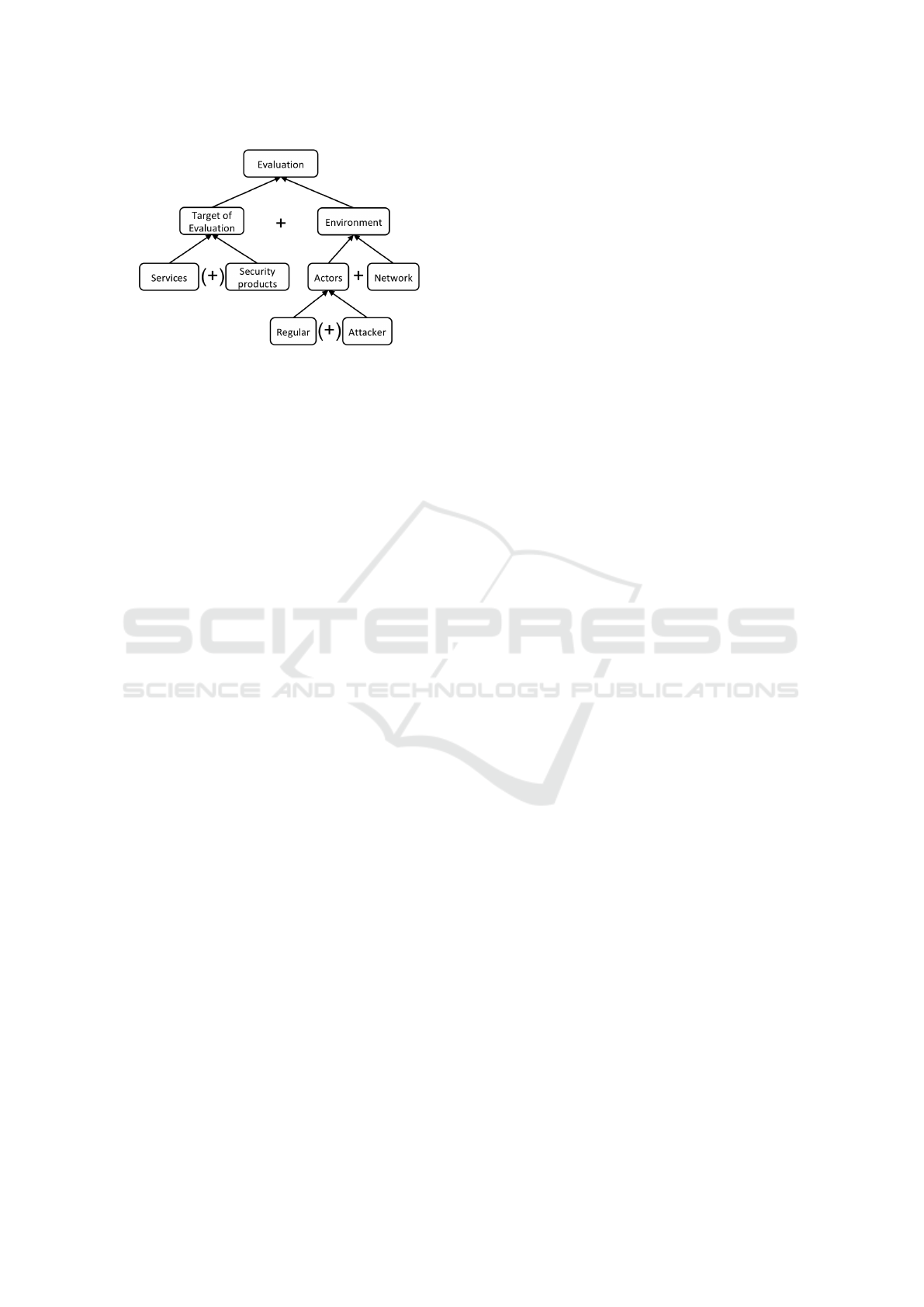

Figure 1 illustrates the different elements involved in

an evaluation. As previously mentioned, we consider

as evaluation targets either services or security prod-

ucts. Their evaluation requires an environment that

provides a network and actors. However, depending

378

Bajan, P., Kiennert, C. and Debar, H.

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS.

DOI: 10.5220/0007378603780388

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 378-388

ISBN: 978-989-758-359-9

Figure 1: Elements of an evaluation.

on the type of evaluation, it can involve both types of

targets. For example, security products can be in-line

products that are placed in the network so that incom-

ing trafﬁc has to go through them before reaching its

destination, like a ﬁrewall, or they can be out-of-band,

like an authentication server.

In-line security products only work when listen-

ing to trafﬁc between actors (like regular users and

attackers) and services. Thus the evaluation of such

products requires the presence of services alongside

the security product. On the other hand, the evalu-

ation of a service does not require the presence of a

security product. Similarly, an evaluation that veriﬁes

the compliance with speciﬁcations of a service does

not require the presence of an attacker.

2.1 Targets of Evaluation

Services and security products are the targets of a

large variety of evaluations, each with different goals

in mind. Such evaluations aim to verify speciﬁc prop-

erties that can be different for services and security

products. In this section, we describe the main prop-

erties for services and security products.

2.1.1 Service

A service must be able to meet the needs of the users

(supporting enough requests for operational use, com-

pliance to the speciﬁcations, etc.) with acceptable

performances overhead (memory, CPU, I/O, energy,

etc.). It must also be able to resist the actions of an

attacker in the case where a security product does not

adequately protect it. Thus, the evaluation of services

must verify the following properties:

• compliance with the speciﬁcations

• workload processing capacity

• resilience to attacks

The ﬁrst goal of the evaluation of a service is to

verify that the service complies with its design.

For services produced with model-driven engi-

neering (UML, SysML, etc.), there are two steps to

this evaluation: a validation of the model (does this

service answer the needs?) and a veriﬁcation of the

model (was this service correctly built?). In (Gogolla

and Hilken, 2016), the authors propose essential use

cases for model exploration, validation, and veriﬁ-

cation of a structural UML model enriched by OCL

(Object Constraint Language) invariants and demon-

strate them on a model validator.

The workload processing capacity is an evaluation

of the capacity of the product to handle a large number

of requests and signiﬁcant stress. The goal of such an

evaluation is to ensure that the service will be resilient

when in operation and can meet the demands of users.

This evaluation can determine if it allocated enough

resources to the service, or it can provide inputs to

improve the performances of the service. For exam-

ple, (Nahum et al., 2007) studied the performance of

a SIP server according to the scenario and use of the

protocol.

Lastly, a service can be evaluated based on its re-

silience to attacks. Security products do not protect

all services, and they need to be able to resist attacks

on their own. The goal of such an evaluation is to de-

termine the scope of the attacks the service can resist

or is vulnerable. This evaluation aims to ﬁnd vulnera-

bilities due to conﬁguration ﬂaws and vulnerabilities

speciﬁc to the service itself.

2.1.2 Security Products

There exists a wide variety of security products: ﬁre-

wall, IDS, antivirus, WAF (Web Application Fire-

wall), SBC (Session Border Control), DLP (Data

Leak Prevention), etc. It is necessary to know how

well they detect and/or block attacks (accuracy, attack

coverage, workload processing capacity) and how

much overhead they impose on the system. Therefore,

the evaluation of security products aims at validating

the following properties:

• policy accuracy

• attack coverage

• performance overhead

• workload processing capacity

Policy accuracy regards the correctness of the

judgment of the security product. That judgment can

take different forms: detecting an attack, accepting

credentials, detecting abnormal behavior, etc. The

evaluation of this property requires the security prod-

uct to judge a mixed set of interactions (attack/regular,

accepted/rejected, etc.). The correctness of that judg-

ment depends on the policy of the security product

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS

379

that can be ﬂawed or impacted by conﬁguration is-

sues. In (Garcia-Alfaro et al., 2011), Garcia-Alfaro et

al. presented a management tool that analyzes conﬁg-

uration policies and assists in the deployment of con-

ﬁguration policies of network security components.

The goal is to ensure the absence of inconsistencies

in the policies of security products on the network.

The evaluation of attack coverage aims to deter-

mine the range of attacks that can affect the judgment

of the security product. It ensures that the security

product is not affected by known attacks or vulnera-

bilities. The conﬁguration of the product impacts the

attack coverage of a security product. The conﬁgu-

ration must be a trade-off with the number of wrong

decisions (false alerts, false acceptances, false rejec-

tions, etc.) generated and the number of correct de-

cisions, as highlighted by the base-rate fallacy issue

presented by Axelsson in (Axelsson, 2000).

Finally, the evaluation of performance overhead

deals with the resources consumed by the security

product. However, performance overhead usually fo-

cuses on the impact of the addition of a security prod-

uct on the performances of the network. An inline se-

curity product analyzes the network trafﬁc that passes

through it. Therefore, if the security product has poor

performances, it can slow down the overall trafﬁc on

the network. Similarly, if an out-of-band security

product replies to requests slowly, it can also impact

the performances of services that depend on that se-

curity product. For example, the use of DNSSEC to

secure DNS against cache poisoning has a negative

impact on the performances of networks, as pointed

out in (Migault et al., 2010).

2.2 Evaluation Environment

As previously mentioned, the evaluation of targets

like services and security products verify all kinds of

aspects. A large variety of tools exists to evaluate

those aspects.

Workloads drivers like ApacheBench and SPEC

CPU2017 are drivers that produce large amounts of

data to stress speciﬁc resources of the target (CPU,

network, memory, etc.). However, the produced traf-

ﬁc is dependent on the tool and is detrimental to in-

line security products that require a learning phase,

such as anomaly-based IDS. Also, it only tests some

of the functionalities of the target.

To test all functionalities of a target, we previously

mentioned that model validation and veriﬁcation tools

exist, but evaluators usually have to manually test the

functions or draft homegrown scripts to do so.

The best way to generate attacks on a target is

to either manually generate attacks or use an exploit

script. Exploit databases like Metasploit allow the

evaluator to test a large variety of attacks targeting

speciﬁc products. However, exploits and homegrown

scripts are speciﬁc and not scalable.

Other methods also exist to look for vulnerabili-

ties in a target like fuzzing and vulnerability scanners

(e.g., Arachni, OWASP, Wapiti, OpenVAS, etc.).

All these tools and methods require a network or

virtualized structure. It can be a physical network

dedicated to the evaluation of products, a virtual net-

work existing above a physical network (overlay net-

works) or a virtual network with solely virtual net-

work equipment. The choice of the network will de-

pend on the resources of the evaluator, but it can be

costly and time-consuming to set up and maintain.

On that structure, the different tools previously

mentioned can be deployed multiple times across the

network to create a testbed environment, where the

evaluator will be able to produce evaluation data for a

large scale network with full control.

However, not all evaluators can afford such a

testbed environment. Thus, evaluators can also use

external data rather than generating them. They can

use traces of large-scale experiments on other struc-

tures. Those traces may be publicly available to the

community to serve as an evaluation standard and

comparison point: DARPA(Cunningham et al., 1999),

CAIDA(Phan et al., 2017), DEFCON(Cowan et al.,

2003), MawiLab(Fontugne et al., 2010), etc. How-

ever, publicly available traces are often not adapted to

the needs of the evaluation and are quickly outdated.

Another method is to use real-world production

traces and mix in several attacks from known exploits.

Despite being the solution that provides the most re-

alistic data, the evaluator can never know for sure that

no attack in the traces is left unidentiﬁed. Moreover,

traces from real-world production are difﬁcult to ob-

tain and pose the issue of revealing data to the eval-

uator that may compromise the activity of the entity

providing the traces. Anonymization techniques can

solve this problem but often at the cost of losing data

that may be useful for the evaluation.

To sum it up, the evaluation of services and se-

curity products has many objectives with a lot of dif-

ferent tools that can achieve each of these objectives.

The difﬁculty for an evaluator is to successfully com-

pose or orchestrate the existing tools and methods to-

gether to achieve those objectives in order to obtain

a complete and thorough evaluation. Moreover, the

composition of those tools must represent a reason-

able amount of time and resources for the evaluator.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

380

3 EVALUATION

METHODOLOGY

Testbed environments propose the most complete so-

lution to evaluate products, but they are also very

costly, mainly due to the network structure. The ap-

proach in (Bajan et al., 2018) aims at addressing this

issue. As previously explained, the network can be a

physical network, an overlay network or a simulated

network (virtual network built with virtual network

components). Most testbed environments use over-

lay network or simulated network to connect virtual

machines as end-points. Those virtual machines must

be sophisticated enough to run applications that will

interact with the evaluation target. For that reason,

lightweight virtual machines are usually not used be-

cause of their limited capacity. Smith and Nair called

those two types of virtual machines respectively sys-

tem virtual machines and process virtual machines in

(Smith and Nair, 2005).

Having system virtual machines deployed on a

large scale consumes many resources and requires

substantial maintenance. Therefore, a method was

proposed in (Bajan et al., 2018) to generate data at a

large scale with the support of a lightweight network

simulator, Mininet. The generated data is undifferen-

tiated between benign and malicious data.

Its principle is to reproduce model data at a cus-

tomizable level of realism on a lightweight virtual net-

work that might not support running the applications

that have generated the data. Applications are not run

on virtual machines to generate the evaluation data.

Instead, this method relies on data reproducing func-

tions that produce similar evaluation data with the re-

sources available on the network support. External

equipment can be connected to the virtual network

and can interact with the simulated agents.

3.1 Services

The goal of this network simulation is to have a

method to generate data at large scale, with data re-

alistic enough for the needs of the evaluator, with

smaller constraints than current methods (usually

testbed environments or traces).

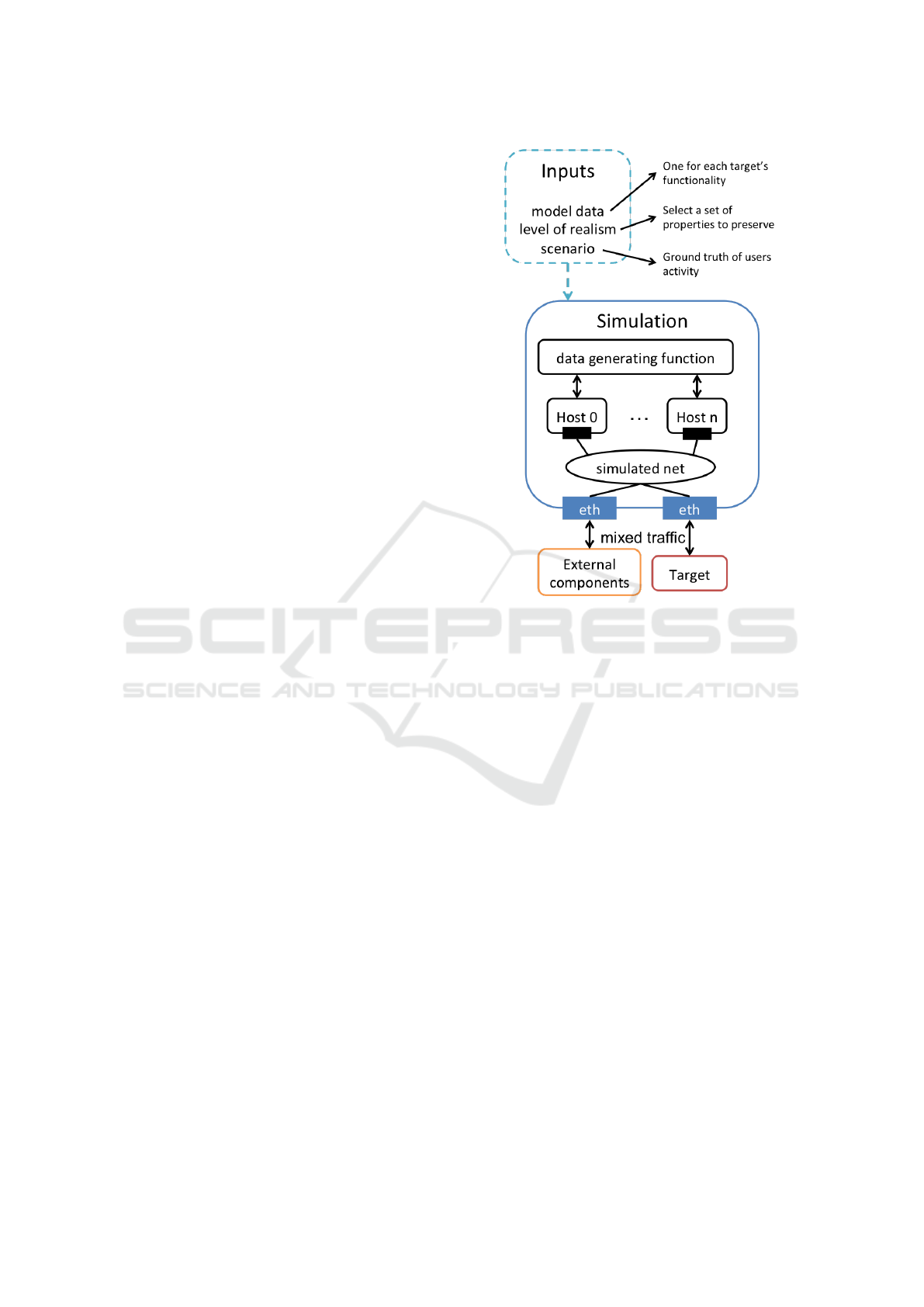

Figure 2 shows the general topology of the net-

work simulation. The virtualized structure of the sim-

ulation creates the hosts and connects them in a simu-

lated network. The evaluated target is connected to

that network along with other external components

that the evaluator may use. To use the simulation, the

evaluator must provide the model data that the sim-

ulation will reproduce. The evaluator must provide

model data must for each elementary action (short

Figure 2: Simulation general topology.

set of interactions between the service and a client).

Those elementary actions will correspond to entries

of the ground truth of the actions taken by the users,

which is called the scenario.

To ensure the compliance with the speciﬁcations,

we select as elementary actions each functionality of

the evaluation target. The evaluator must manually

execute each functionality of the service and record

the resulting data, which form the model data. The

nature of that data can change according to the input

requirements of the data generating function of the

simulation. It can be values, logs, network traces, etc.

The level of realism is not an actual input of the

simulation model, but one of the simulation parame-

ters. It corresponds to a data generating function that

reproduces the model data while preserving one or

several properties of the model data (size of packets,

acknowledgment by the service, waiting time, etc.).

The evaluator must choose a level of realism so that

the service ﬁnds the real data and simulated data to

be equivalent in respect to the properties preserved by

the data generating function.

The third input required for the simulation is the

scenario. This scenario is composed of sets of el-

ementary actions and parameters speciﬁc to the el-

ementary action. Those elementary actions are the

functionalities of the services. Just like the function-

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS

381

alities might require parameters, the evaluator has to

provide elementary action parameters necessary for

the compliance to the speciﬁcation. For example,

if the service has an authentication functionality, the

evaluator needs to provide the model data of the ”con-

nection to the service” elementary action and there-

fore to provide a set of credentials as elementary ac-

tion parameters.

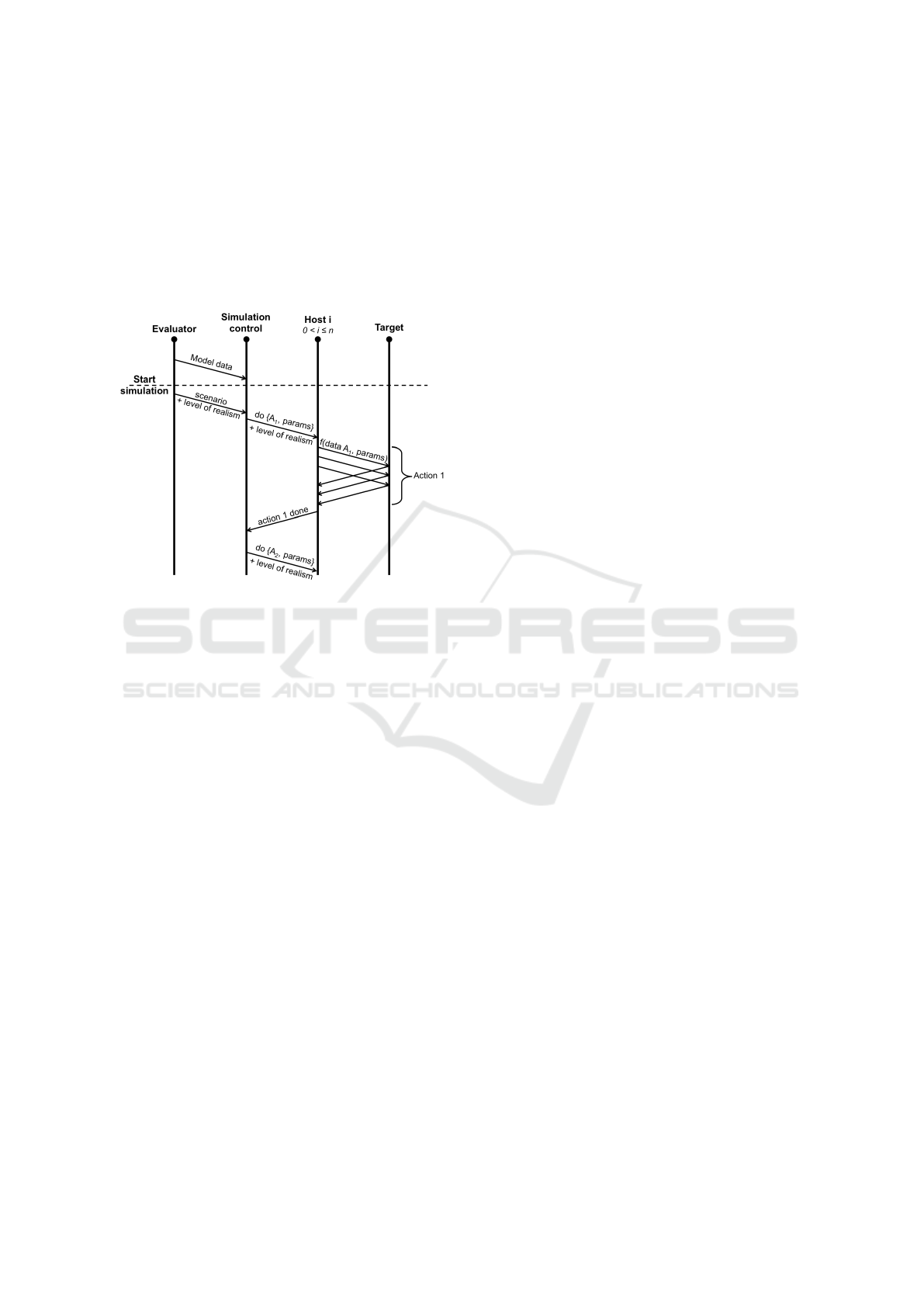

Figure 3: Sequential diagram of the simulation.

Figure 3 illustrates the sequential process of the

simulation with the elements previously explained.

The ﬁgure displays only one of the virtual hosts of the

n hosts that interact simultaneously with the target. In

this example, the evaluator gives a scenario that re-

quired the host H

to simulate the elementary action

followed by the action A

. The virtual host gen-

erates the data on the client side of A

with the data

generating function f corresponding to the selected

level of realism. The host gives f the model data of

the action A

and the elementary action parameters in

the scenario. With an appropriate scenario, the net-

work simulation can make a large number of clients

use all the functionalities of the service over the re-

quired period of time, verifying both the compliance

to the speciﬁcations and the workload processing ca-

pacity.

For the production of attacks, there are two so-

lutions: the evaluator can either provide inputs for at-

tacks as he would for other elementary actions or con-

nect an external source of attacks (exploit database,

physical attacker, vulnerability scanner, etc.) to the

simulated network. The simulation model uses the

same data generating function to produce malicious

or benign data.

The last step of every evaluation is the analysis of

the experimental results. This step is a comparison

of the ground truths of the different components of

the evaluation: services, security products, network,

and users. The evaluator compares the ground truth

of the evaluated target with the ground truth of others

components. Thus, in the study of discrepancies, we

can ascertain if the mistake comes from the evaluated

product or the evaluation method.

The network simulation provides the network en-

vironment and actors (regular users and attackers).

The ground truth analyzed for the actors are the sce-

nario and control data (data exchanged between the

simulation control and the virtual hosts) generated by

the simulation. It displays which elementary actions

were simulated by which host with which parameters.

For the network, an analysis of the network traces can

constitute a ground truth. Indeed, by identifying spe-

ciﬁc URLs or speciﬁc packets, or if the attacker comes

from an external component, it can also be identiﬁed

in traces based on the IP address. We then compare

that ground truth to the simulation scenario or control

data.

3.2 Security Products

When evaluating an in-line security product, the eval-

uator needs to conﬁgure the simulation to generate

trafﬁc between users and services. The evaluator

needs to construct a realistic activity model of the pro-

duction of the services (the scenario) and capture the

model data of single entries of that activity model.

The evaluator may construct different scenarios ac-

cording to different situations (regular use of services,

overload of requests, under attack, etc.) and generate

simulation data of several services protected by the

same security product. The attacks can be elemen-

tary actions of that scenario or external components.

To ensure a proper evaluation of the attack coverage,

we advise the use of an external component for the

attacker.

In the evaluation of an out-of-band security prod-

uct, the evaluator is no longer required to generate a

simulated activity between users and services. The

evaluator must ﬁrst identify the actors interacting with

the functionalities of the security product and repro-

duce these interactions. They can be interactions be-

tween the security product and users or between the

security product and the services, or both. The evalu-

ator must then capture the model data of those inter-

actions.

The network simulation can either be used as the

sole evaluation tool of the security product or only as

the network component. The network can simulate

a large number of hosts playing the role of either an

attacker, regular users or services and connect a se-

curity product at any point of the simulated network

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

382

(Figure 2). That way, only the network simulation is

needed for the evaluation, but a consequent amount

of work is required of the evaluator to ensure substan-

tial attack coverage. It can also connect an external

attacker, external service and security product to its

simulated network and only generate benign trafﬁc.

That way, only the inputs necessary for the benign

trafﬁc are required for the simulation. However, just

like in the evaluation of services, the addition of the

ground truth of the external component is left to the

evaluator.

We mentioned in 2.1.2 that the evaluation of secu-

rity products consists in the veriﬁcation of four prop-

erties: policy accuracy, attack coverage, workload

processing capacity and performance overhead. The

network simulation can verify these properties on a

security product.

The policy accuracy represents the accuracy of

the judgment of the security product, and its eval-

uation depends on the conﬁguration of the security

products. To properly evaluate this property a reliable

ground truth is required. Its difﬁculty depends on the

topology chosen, more precisely if it includes external

components or not. If the evaluation includes external

components, additional work must be done to gener-

ate a complete ground truth of the evaluation, but the

external network interface of the components make

their trafﬁc easily identiﬁable.

The ”attack coverage” property also generates ad-

ditional work for the evaluator according to the topol-

ogy choice. If the simulation simulates the attack-

ers, the evaluator must capture a large amount of the

model data added to match the variety of attacks of an

external attacker.

The ”workload processing capacity” property is

inherent to the simulation method. The method aims

to generate consequent benign trafﬁc along with at-

tacks for an evaluation closer to production context.

This need for mixed trafﬁc in the evaluation of secu-

rity products was a challenge that was already high-

lighted by the US Department of Commerce and in-

stitutes like the MIT in 2003(Mell et al., 2003). So

far, the best solution was testbed environments.

The last property of the ”performance overhead”

evaluation requires an additional step to the experi-

ment. The network simulation can be supported on a

single server. It is quite easy to measure the perfor-

mances of the server as a whole for two experiments.

The ﬁrst experiment is the simulation without the se-

curity product, and the second experiment consists of

the same simulation with the security product. The

difference between the two should provide the perfor-

mance overhead due to the security product.

Figure 4: Topology of our evaluation of Suricata.

4 EVALUATION OF AN IDS:

EXPERIMENTAL RESULTS

In this section, we present an application of the pre-

vious methodology for the evaluation of a security

product, focusing on the IDS Suricata. The goal of

this evaluation is to verify the impact of a consequent

volume of benign data on the detection rate of Suri-

cata. We also want to look for differences in the anal-

ysis by Suricata between live and ofﬂine trafﬁc. We

call live analysis the alerts generated by Suricata dur-

ing the simulation and ofﬂine analysis the alerts gen-

erated by Suricata from the network traces captured

from the simulation. The main difference between the

two analysis is that during the live analysis, Suricata

is under stress to keep up with the ﬂow of data passing

through it, while in the ofﬂine analysis Suricata reads

the traces at its own pace.

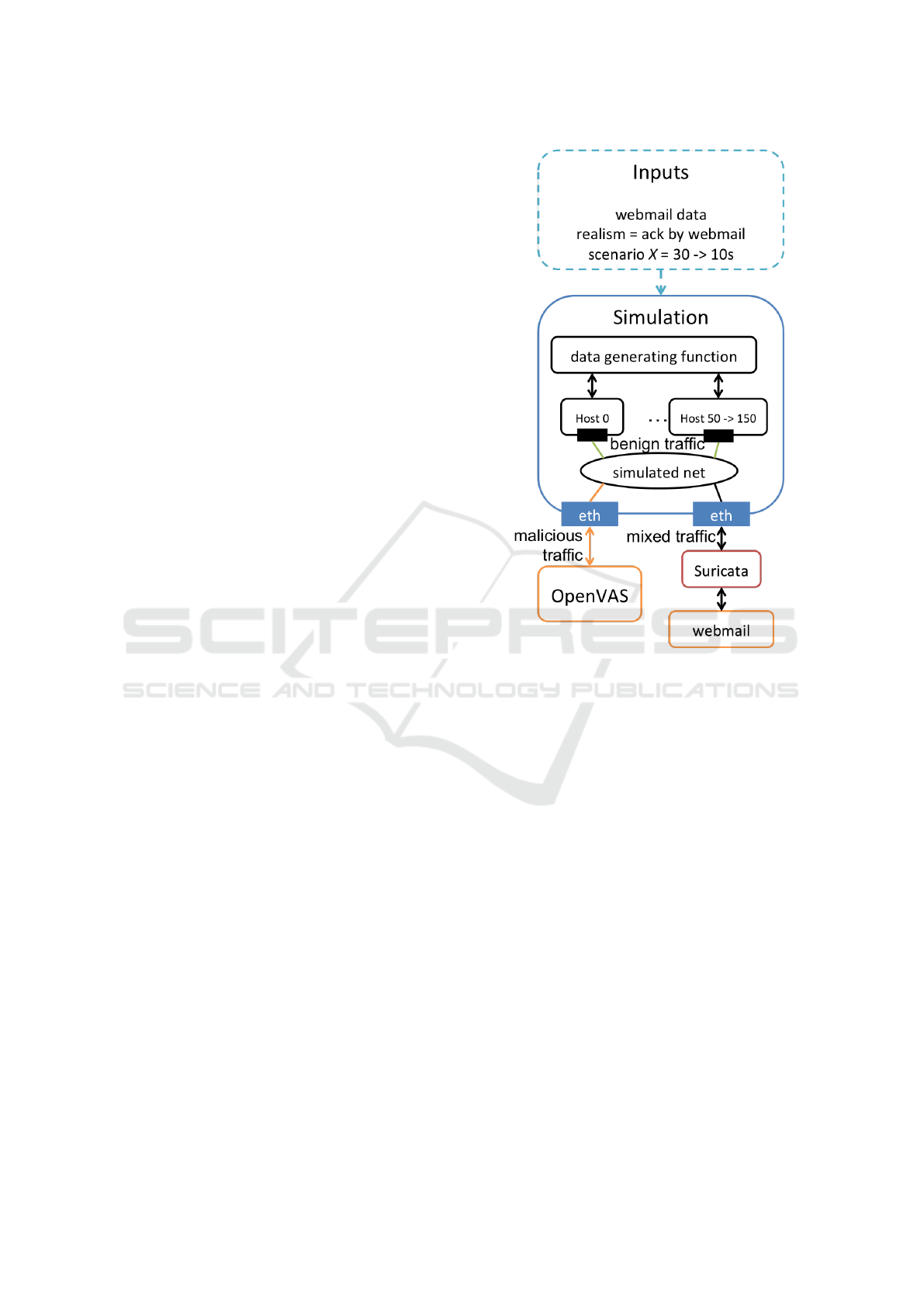

Figure 4 shows the topology of our evaluation of

Suricata. The simulation is created and managed by

the prototype described in (Bajan et al., 2018). We

chose to have an external service and external attacker

to evaluate the IDS. We set up Suricata with the rules

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS

383

of EmergingThreat as available on January 2018. We

left the basic conﬁguration of Suricata. The external

service is a webmail server (Postﬁx + Roundcube)

that we set up to look like the webmail server of a

small company. The external attacker is OpenVAS, a

vulnerability scanner. We used the scan named ”Full

and fast” that test 62 families of vulnerability. We

scan the external server, and the probe passes through

the simulated network. This scan lasts an average of

23 minutes and starts 3 minutes after the start of the

simulation scenario of 30 minutes of benign activity.

The simulated hosts are the employees of a small

company. The employees all follow the same script

of activity shown in Figure 5.

Wait X seconds

Connect to webmail

Read last email

Disconnect

p = 0.5

Wait X seconds

Connect to webmail

Read last email

Send email

Disconnect

p = 0.5

p = 0.2

p = 0.8

Figure 5: Script of the benign activity.

Figure 5 represents the decision graph of the el-

ementary actions performed by each host. The host

waits X seconds before deciding with a probability

of 0.5 to perform the ﬁrst series of elementary actions

(connect → read email → disconnect). It then waits X

seconds again and decides with a probability of 0.2 to

perform the second series of elementary actions (con-

nect → read mail → write mail → disconnect). Each

simulated host repeats that script for the whole dura-

tion of the simulation.

We regulate the intensity of the generated benign

trafﬁc with the number of hosts simulated during the

experiment (50, 100, 150, 200 or 250 hosts), and

we control the intensity of the script by changing

the waiting period X between each series of elemen-

tary actions (10 or 30 seconds). The data generat-

ing function (selected by the level of realism) that

we choose for this evaluation is a function that gener-

ates the same packets as the model data but modiﬁes

some elements so that the webmail server may accept

them. They are two types of modiﬁcations: modi-

ﬁcations for the sake of variability and modiﬁcation

for the sake of functionality. The ﬁrst kind modiﬁes

a part of the content of the model data that may dif-

fer from user to user (examples: credentials, email

content, etc.). The second modiﬁcations focus on el-

ements that are time sensitive and, therefore, must be

changed to be accepted by the service (e.g., the token

ID, the cookies, the IP addresses, etc.). They do not

affect the variability but maintain the consistency of

the data generation function.

4.1 Evaluation with Benign Trafﬁc

Before starting the test with mixed trafﬁc, we need

to have a reference point for the benign trafﬁc and

malicious trafﬁc. We start with the benign trafﬁc. We

perform the evaluation without the external attacker

OpenVAS. The goal is to obtain a reference point for

the quantity of simulated data generated solely by the

simulation and see if these benign data raise any alert

on the IDS. We test different numbers of hosts and

different waiting periods. We do each experiment for

a set of parameters (number of hosts, waiting period

X) 20 times.

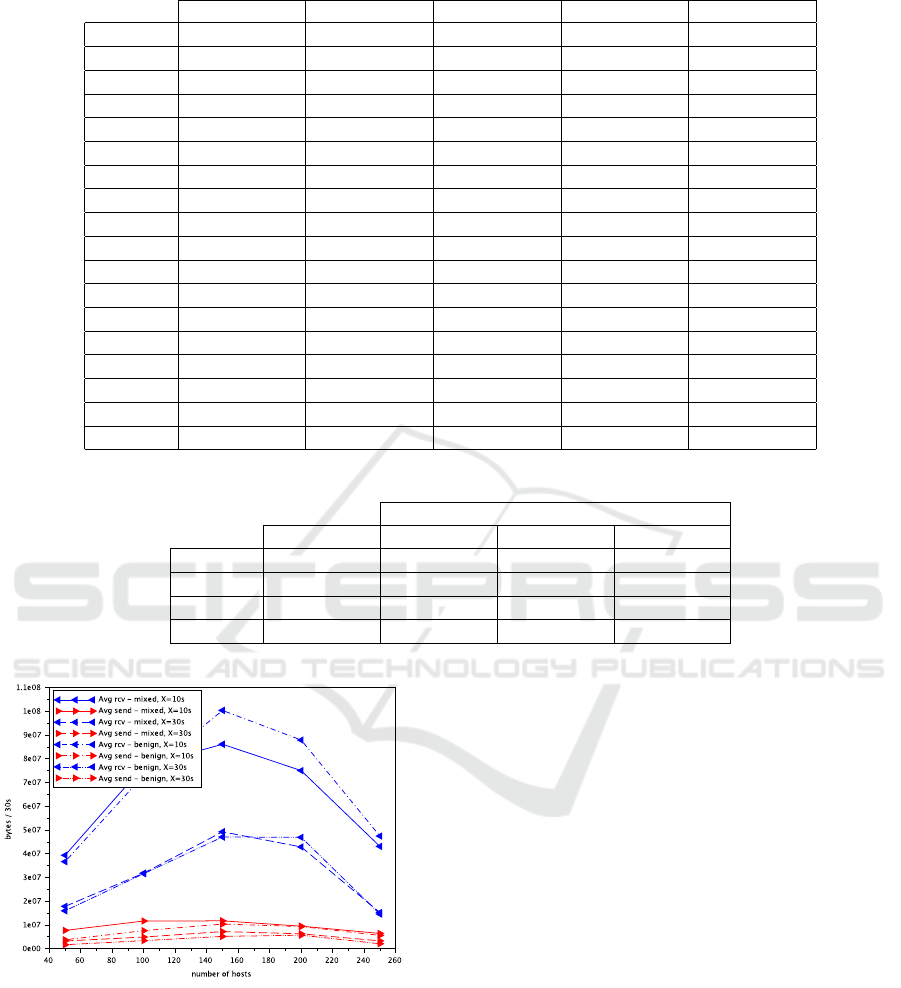

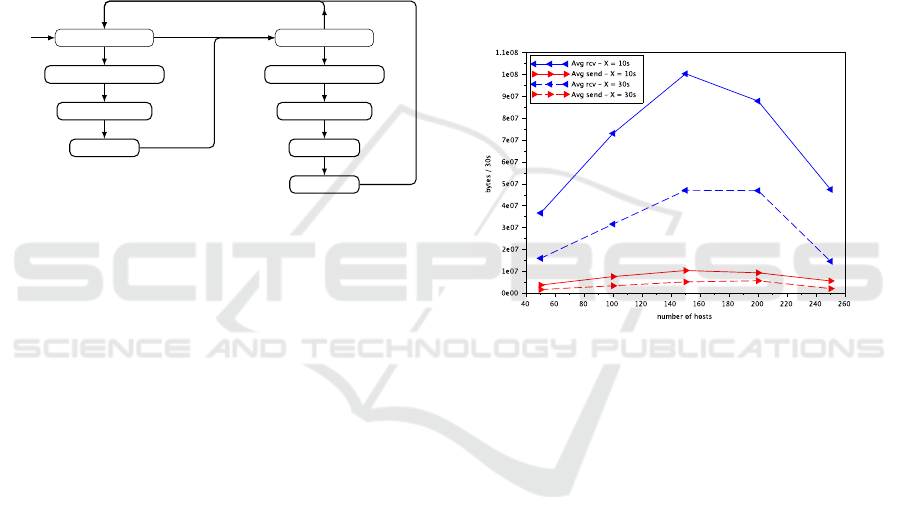

Figure 6: Network trafﬁc of the evaluation with benign traf-

ﬁc.

Figure 6 shows the average number of bytes re-

ceived (blue with a left arrow) and sent (red with a

right arrow) every 30 seconds by the simulation from

the webmail server during the experiment. The solid

lines are the experiments where the scenario has a

waiting period of 10 seconds between each series of

simulated actions while the dotted lines are the exper-

iments where the waiting period is 30 seconds. The

simulated hosts request a variety of data for each page

from the service webmail (HTML pages, fonts, links,

logos, etc.) which results in the simulation receiving

a lot more data than it sends. Figure 6 shows that

a more intensive scenario results in signiﬁcantly in-

creased amount of exchanged data.

This ﬁgure also shows that our current implemen-

tation prototype has difﬁculties handling more than

150 hosts. The amount of generated data is propor-

tional to the number of hosts simulated on the ﬁrst

part of the graph up to 150 hosts. Beyond that point

the simulation encounters difﬁculties. The cause of

such difﬁculties is still unidentiﬁed and is the target of

improvement of our current prototype. It can be due

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

384

to limitations of the network support (Mininet) or lim-

itations on the service webmail that may not be able

to handle so many simultaneous connection requests

for a set of only ﬁve credentials. However, previous

experiments tend to point a limitation on the handling

number of connections (around 6000) during the ex-

periment, which would be a limitation of our network

support.

Despite that technical difﬁculty, we observe inter-

esting results from this evaluation of the generation

of benign data. Coincidentally, this evaluation of the

generation of benign data also ends up being an eval-

uation of the external service of our simulation. The

graph in Figure 6 represents four days and 20 hours

of continuous activity between the simulation and the

webmail server. It evaluates the capacity of the web-

mail server to process a consequent workload.

The experiments also reveal that our benign trafﬁc

is raising an alert on Suricata. Indeed, we deliberately

chose not to use encryption in the simulated trafﬁc

to limit the issues in our evaluation. Thus it raises a

Suricata alert when our simulated hosts connect to the

service with credentials in clear text. It generates one

alert each time the ”connect to the webmail” elemen-

tary action is simulated.

Table 1: Number of ”clear password” alerts from Suricata.

X = 10s X = 30s

Nbr hosts avg stdev avg stdev

50 2433 82 1044 33

100 4864 64 2065 50

150 5611 197 3077 65

200 5078 192 3287 452

250 3091 139 1227 285

Table 1 shows the average number and standard

deviation of alerts generated by Suricata during the

generation of benign trafﬁc. We calculate the aver-

age and standard deviation out of the twenty experi-

ments made for each set of parameters. These num-

bers are also representative of the number of sessions

created with the webmail server during the experi-

ment. The standard deviation of the number of alerts

is relatively high when one or several experiments en-

countered difﬁculties, especially when the simulation

reaches 150 hosts or more.

4.2 Evaluation with Malicious Trafﬁc

After evaluating the benign data, we now focus on the

malicious data. In the topology of Figure 4, we only

launch the simulated network without starting the ac-

tivity of the hosts. We then launch a scan of the ser-

vice with the vulnerability scanner OpenVAS. We ob-

serve the alerts raised by Suricata in Table 2.

Table 2: Number of alerts from Suricata (malicious only).

Alert ID Live analysis Ofﬂine analysis

2006380 1 1

2012887 6 6

2016184 2 2

2019232 780 780

2019239 260 260

2022028 1040 1040

2220007 2 2

2221002 1 1

2221015 2 2

2221016 1 1

2230010 34 34

2230015 34 34

2230010 34 34

2220018 1 1

2221007 57 57

2221013 1 1

2221014 1 1

2221018 1 1

2221028 6 6

Table 2 shows the number of alerts raised by Suri-

cata, classiﬁed by alert ID. The alert ID 2012887 cor-

responds to the alert that warns about the transmission

of a password in clear text, similar to the benign trafﬁc

analysis.

From Table 2, we can infer that the trafﬁc solely

generated by OpenVAS does not create enough stress

on Suricata to generate a difference between the of-

ﬂine and live analysis.

4.3 Evaluation with Mixed Trafﬁc

Lastly, we evaluate Suricata with mixed trafﬁc gen-

erated by our simulation and OpenVAS at the same

time. We start the generation of benign trafﬁc ﬁrst

then, after two minutes, we start the vulnerability

scan. We generate different levels of trafﬁc inten-

sity (number of hosts + X), and we compare the alerts

raised during the live and ofﬂine analysis of Suricata.

We expect the resulting alerts to be equal to the num-

ber of alerts found for the same intensity of benign

trafﬁc plus the alerts raised with the malicious trafﬁc.

To be consistent, we order OpenVAS to do the same

vulnerability scan.

Figure 7 presents the average number of bytes re-

ceived (blue with a left arrow) and sent (red with

a right arrow) every 30 seconds by the simulation

from the webmail server during the experiments with

mixed and benign trafﬁc. For reference, we display

the results of the benign trafﬁc in Figure 6 along with

the results of the mixed trafﬁc. In this ﬁgure, the lines

without dots represent the data exchanged during the

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS

385

Table 3: Number of alerts from Suricata (mixed, X = 10s).

50 Hosts 100 Hosts 150 Hosts 200 Hosts 250 Hosts

Alert ID live off. live off. live off. live off. live off.

2006380 2 2 2 2 2 2 2 2 2 2

2012887 2460 2465 4813 4821 5526 5541 5069 5075 3044 3046

2016184 2 2 2 2 2 2 2 2 2 2

2019232 780 780 780 780 780 780 780 780 780 780

2019239 260 260 260 260 260 260 260 260 260 260

2022028 1040 1040 1040 1040 1040 1040 1040 1040 1040 1040

2220007 2 2 2 2 2 2 2 2 2 2

2220018 1 0 1 0 1 0 1 0 1 0

2221002 2 1 2 1 2 1 2 1 2 1

2221007 57 56 57 56 57 56 57 56 57 56

2221013 1 1 1 1 1 1 1 1 1 1

2221014 1 1 1 1 1 1 1 1 1 1

2221015 2 2 2 2 2 2 2 2 2 2

2221016 1 1 1 1 1 1 1 1 1 1

2221018 2 0 2 0 2 0 2 0 1 0

2221028 6 5 6 5 6 5 6 5 6 5

2230010 33 33 32 32 33 33 32 32 33 32

Table 4: Number of interesting alerts from Suricata (X = 5s).

Mixed

OpenVAS 50 Hosts 100 Hosts 150 Hosts

Alert ID live off. live off. live off. live off.

2200069 7395 7617 7611 7252

2200074 20 60 79 71

2230010 44 44 32 31 33 33 33 33

Figure 7: Network trafﬁc of the evaluation with mixed and

benign trafﬁc.

mixed trafﬁc and the lines with dots (single or dou-

ble) are the data exchanged during the benign trafﬁc

generation. A solid line corresponds to mixed trafﬁc

with X = 10s, a dotted line to mixed trafﬁc with X

= 30s, a dotted line with single dots to benign trafﬁc

with X = 10s and ﬁnally a dotted line with double dots

to benign trafﬁc with X = 30s. As in Figure 6, less in-

tense scenarios (X = 30s) exchange a lower number

of bytes than more intense scenario (X = 10s). More-

over, apart from the mixed experiment launched with

limit parameters (150 hosts, X = 10s), the behavior

of the mixed experiment is close to the benign trafﬁc

experiment, as we expected.

Table 3 represents the average number of alerts

raised by Suricata by alert ID for the most intense sce-

nario (X = 10s). For each number of hosts, we show

the average number of alerts raised live and ofﬂine by

Suricata. For the most part, the results are pretty simi-

lar to the proﬁle of alerts showed in Table 2 except for

alert 2012887 that was raised both during the benign

trafﬁc and the mixed trafﬁc. The range of variation of

this speciﬁc alert matches the results obtained for the

evaluation with benign trafﬁc in Table 1.

However, Table 3 also shows that differences ap-

pear between the ofﬂine and live analysis. Those dif-

ferences are proof that Suricata operates slightly dif-

ferently between a live analysis and an ofﬂine analysis

due to the stress inﬂicted on the IDS during the sim-

ulation. With larger stress (more intensive scenario,

more hosts and different conﬁgurations of Suricata)

we can expose even more alerts that the IDS detects

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

386

in ofﬂine analysis but misses in the live analysis.

Table 4 shows the preliminary results of on-going

experiments with a higher intensity scenario (X = 5s),

a more in-depth vulnerability scanning and more rules

activated on Suricata. The analysis of benign trafﬁc

shows none of those alerts. In these experiments, a

few interesting results appear. Alert 2200069 shows

that there are attacks that Suricata does not detect dur-

ing a live analysis. Alert 2200074 produces more

alerts in mixed trafﬁc than in an attack without be-

nign trafﬁc. On the contrary, we detect fewer alerts

2230010 and 2230015 than expected with the addition

of benign trafﬁc. The analysis of those experiments is

still on-going, but an improvement of the current lim-

itations of the prototype could allow a deeper under-

standing of the behavior of the IDS.

5 CONCLUSION

In this paper, we deﬁned a methodology for the eval-

uation of services and security products. We deﬁned

a set of properties that the evaluation of each target

must respect. Most evaluation tools can only cover

some of those properties, and the challenge of the

evaluator is to successfully compose and orchestrate

the large variety of tools to cover all properties.

Using our recently proposed method to generate

evaluation data, we showed how we could design an

experiment using our network simulation that respects

all the properties of the evaluation of services and se-

curity products. However, our methodology requires

some preparation efforts from the evaluator. The eval-

uator needs to provide model data and scenarios and

must choose an appropriate data generating function.

He must also make topology choice (the use of exter-

nal components, selection and composition of ground

truth, actors interacting with the target, etc.) accord-

ing to his goals and his evaluation target. However,

this method is still at its initial stage. The prepara-

tion effort of the evaluator can be greatly reduce with

the development of further data generating functions,

tools to identify time-sensitive inputs, and the accu-

mulation of model data. Those improvements were

discussed in the previous paper.

To illustrate the proposed evaluation methodol-

ogy, we presented the experimental results of an eval-

uation of a network-based IDS. We evaluate this IDS

with our network simulation using only benign trafﬁc,

only malicious trafﬁc, and mixed trafﬁc. After inci-

dentally evaluating the workload processing capacity

of the external service of our topology, we observed

that the separate evaluation of benign trafﬁc and ma-

licious trafﬁc gave slightly different results than with

mixed trafﬁc. In particular, we observe a difference

in behavior between a live and ofﬂine analysis most

likely due to the stress of consequent benign trafﬁc.

However, we also notice that our current proto-

type has limitations and does not support more intense

evaluations of the security product. A more advanced

prototype of the simulation could also provide more

development of the model and the scope of possible

evaluations. It would also be interesting to extend the

experimental results to similar security products and

products of different types.

REFERENCES

Axelsson, S. (2000). The base-rate fallacy and the difﬁculty

of intrusion detection. ACM Transactions on Informa-

tion and System Security (TISSEC), 3(3):186–205.

Bajan, P.-M., Kiennert, C., and Debar, H. (2018). A new

approach of network simulation for data generation in

evaluating security products. In Internet Monitoring

and Protection, 2018. ICIMP 2018. Thirteenth Inter-

national Conference on. IARIA.

Cowan, C., Arnold, S., Beattie, S., Wright, C., and Viega,

J. (2003). Defcon capture the ﬂag: Defending vulner-

able code from intense attack. In DARPA Information

Survivability Conference and Exposition, 2003. Pro-

ceedings, volume 1, pages 120–129. IEEE.

Cunningham, R. K., Lippmann, R. P., Fried, D. J.,

Garﬁnkel, S. L., Graf, I., Kendall, K. R., Webster,

S. E., Wyschogrod, D., and Zissman, M. A. (1999).

Evaluating intrusion detection systems without attack-

ing your friends: The 1998 darpa intrusion detection

evaluation. Technical report, Massachusetts Inst. of

Tech. Lexington Lincoln Lab.

Fontugne, R., Borgnat, P., Abry, P., and Fukuda, K. (2010).

Mawilab: combining diverse anomaly detectors for

automated anomaly labeling and performance bench-

marking. In Proceedings of the 6th International

COnference, page 8. ACM.

Garcia-Alfaro, J., Cuppens, F., Cuppens-Boulahia, N., and

Preda, S. (2011). Mirage: a management tool for the

analysis and deployment of network security policies.

In Data Privacy Management and Autonomous Spon-

taneous Security, pages 203–215. Springer.

Gogolla, M. and Hilken, F. (2016). Model validation and

veriﬁcation options in a contemporary uml and ocl

analysis tool. Modellierung 2016.

Mell, P., Hu, V., Lippmann, R., Haines, J., and Zissman, M.

(2003). An overview of issues in testing intrusion de-

tection systems. Technical report, NIST Interagency.

Migault, D., Girard, C., and Laurent, M. (2010). A perfor-

mance view on dnssec migration. In Network and Ser-

vice Management (CNSM), 2010 International Con-

ference on, pages 469–474. IEEE.

Nahum, E. M., Tracey, J., and Wright, C. P. (2007). Evalu-

ating sip server performance. In ACM SIGMETRICS

Performance Evaluation Review, volume 35, pages

349–350. ACM.

Methodology of a Network Simulation in the Context of an Evaluation: Application to an IDS

387

Phan, T. V., Bao, N. K., and Park, M. (2017). Distributed-

som: A novel performance bottleneck handler for

large-sized software-deﬁned networks under ﬂooding

attacks. Journal of Network and Computer Applica-

tions, 91:14–25.

Smith, J. E. and Nair, R. (2005). The architecture of virtual

machines. Computer, 38(5):32–38.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

388
