Action Anticipation from Multimodal Data

Tiziana Rotondo

, Giovanni Maria Farinella

1,2

, Valeria Tomaselli

and Sebastiano Battiato

1,2

Department of Mathematics and Computer Science, University of Catania, Italy

ICAR-CNR, Palermo, Italy

STMicroelectronics, Catania, Italy

Keywords:

Action Anticipation, Multimodal Learning, Siamese Network.

Abstract:

The idea of multi-sensor data fusion is to combine the data coming from different sensors to provide more

accurate and complementary information to solve a speciﬁc task. Our goal is to build a shared representation

related to data coming from different domains, such as images, audio signal, heart rate, acceleration, et c., in

order to anticipate daily activities of a user wearing multimodal sensors. To this aim, we consider the Stanford-

ECM Dataset which contains syncronized data acquired with different sensors: video, acceleration and heart

rate signals. The dataset i s adapted to our action prediction task by identifying the transitions from the generic

“Unknown” class to a speciﬁc “Activity”. We discuss and compare a Siamese Network with the Multi Layer

Perceptron and the 1D CNN where the input is an unknown observation and the output is the next activity to

be observed. The feature representations obtained with the considered deep architecture are classiﬁed with

SVM or KNN classiﬁers. Experimental results pointed out that prediction from multimodal data seems a

feasible task, suggesting that multimodality improves both classiﬁcation and prediction. Nevertheless, the

task of reliably predicting next actions is still open and requires more investigations as well as the availability

of multimodal dataset, speciﬁcally built for prediction purposes.

1 INTRODUCTION

The prediction of the future is a challenge that has al-

ways fascinated human s. As reported in (Lan et al.,

2014), given a short video or an image, humans can

predict what is going to happen in the near future. The

overall design of machines that anticipate future acti-

ons is still an op en issue in Computer Vision. In th e

state of the art, there are many a pplications in robotics

and health care that use this predictive characteristic.

For example, (Chan et al. , 2017) proposed a RNN

model for anticipating accidents in dashcam videos.

(Koppu la and Saxena, 2016; Furnari et al., 2017) stu-

died how to enable robots to anticipate human-object

interactions from visual input, in order to provide ad e -

quate assistance to the user. (Koppu la et al., 2016;

Mainprice and Beren son, 2013; Duarte et al., 2018)

studied how to anticipate human activities for impro-

ving the collabora tion between human and robot. In

(Damen e t al., 2018), the authors propose a new data-

set, called Epic-Kitchen Dataset, and action and anti-

cipation challenges have been investigated.

In this paper we consider the pro blem of pre-

dicting user actions. Since the information in the real

world comes from different sources and can b e cap-

tured by different sensors, our goal is to predict an

action before it happens from multimodal observed

data.

Multimodal learning aims to build models that are

able to process information from different modalities,

semantically related, to create a shared representation

of them. For example, given an image of a dog and

the word “dog ”, we want to projec t these data in a

representation space that takes a ccount of both source

domains.

As reported in (Srivastava and Salakhutdinov,

2014), each modality is characterized b y different

statistical p roperties, and hence each one of it c an

add valuable and complementary information to the

shared representation. A good model for multimodal

learning must satisfy certain properties. In fact the

shared rep resentation must be such that resemblance

in the shared space of representation implies that the

similarity of the inputs can be easily obta ined even in

the absence of some modalities.

Another aspect, not less important than the previ-

ous one, is represented by the data; in particular, they

are c ollected at different samplin g frequencies, there-

154

Rotondo, T., Farinella, G., Tomaselli, V. and Battiato, S.

Action Anticipation from Multimodal Data.

DOI: 10.5220/0007379001540161

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 154-161

ISBN: 978-989-758-354-4

fore, before to features captioning, it is necessary to

synchro nize the various inputs in order to have all the

related modalities p roperly aligned.

This paper presents a study of predicting a future

action from currently observed multimodal d ata. To

this aim , th e Stanford-ECM Dataset (Naka mura et al.,

2017) has been considered. It comprises video, acce-

leration and h e art rate data. We adapted this dataset

to extract transitions from unknown to speciﬁc acti-

vities. Siamese network with Multi Layer Perceptron

and 1D CNN are used for predicting next activity just

from features extracted from the previous temporal

sequence, labeled as “Unknown”. The feature repre-

sentations obtaine d with the considered deep architec-

ture are classiﬁed with SVM or KNN classiﬁer.

The prediction accuracy o f th e tested models is

compare d with respect to the classic a ction classi-

ﬁcation which is c onsidered as a baselin e. Results

demonstra te that th e presented system is effective in

predic-ting activity from an unknown observation and

suggest that multimodality improves both classiﬁca-

tion and prediction in some cases. This conﬁr ms that

data from different sensors can be exploited to en-

hance the representation of the surroundin g context,

similarly to what happens for human beings, that ela-

borate information coming f rom their eyes, ears, skin,

etc. to h ave a global and more reliable view of the

surrounding world.

The remainder of the paper is organized as fol-

lows. Sec tion 2 reviews the related work. Section 3

describes the dataset u sed in this paper. Section 4 d e -

tails the building blocks of our system while section

5 presents the expe rimental settings and discusses the

results. Finally, co nclusions are given in Section 6.

2 RELATED WORKS

We focus our review to related work w hich focus on

action anticipation an d multimodal learning.

2.1 Action Anticipation

The goal of action anticipation is to detect and recog-

nize a human ac tion be fore it happens. T he work of

(Gao et al., 2017) proposes a Reinf orced Encoder-

Decoder (RED) network for action anticipation that

takes multiple rep resentations as input and learns to

anticipate a sequence of future representations. These

anticipated represen ta tions are processed by a c la ssiﬁ-

cation network for action classiﬁcation. In (Lan et al. ,

2014), it is presented a hierarchical model that repre-

sents the human movements to infer future actions

from a static image or a short video clip. In (Ma et a l.,

2016), the authors proposed a method to improve trai-

ning of temporal deep models to learn activity pro-

gression for activity detection and ea rly recognition

tasks. Since in the state of the art ther e are not sufﬁ-

ciently large datasets for action anticipation task , the

work o f (Damen et al., 2018 ) proposes a new data-

set, called Epic-Kitchen Dataset. The authors sh ow

the great potential of the d ataset for push ing appro-

aches that target ﬁne-grained video understanding to

new frontier s.

2.2 Multimodal Learning

In this work, we are interested in considering mul-

timodal inputs to address action anticipation. One

of th e ﬁrst paper on Multimodal Learning is (Ngiam

et al., 2011) where video and audio signals are used

as input. The aim of the work is to embed the inputs

into a shared representation in order to be able to use

only a single modality at test time. The creation of

a shared representation has also been treated in oth er

works. In particular (Srivastava and Salakhutdinov,

2014; Aytar et al. , 2017) build representations that are

useful for several tasks, such as cross-modal retrieval

or transferring classiﬁers between modalities.

In (Nakamura et al., 2017), a model for rea soning

on multimodal data to jointly predict activities and

energy expenditures is proposed. In particula r, they

consider Egocen tric videos augmented with heart rate

and acceler ation signals. In ( Wu e t al., 2017), an on-

wrist motion trigg ered sensing system for a nticipating

daily intention is proposed. The authors in troduce a

RNN method to anticipate intention and a policy net-

work to reduce computation requirement.

3 DATASET

There are few publicly available multimoda l datasets

in litera ture. Table 1 shows the relevant multimo-

dal datasets together with main characteristics a nd

the presence of transitions between actions. Since

sequences with transitions amo ng activities are nee-

ded, in our experiments, we considered the egocen-

tric multimodal dataset, called Stanford-ECM Data-

set (Nakamu ra et al., 201 7). This dataset comprises

31 hours of egocentric video (113 videos) synchroni-

zed with acceleration and heart rate data. The video

and triaxial accelerations were captured with a mobile

phone equipped with a 720 ×1280 resolution camera

at 30fps and 30Hz, resp e ctively. The lengths of the vi-

deos range from 3 minutes to about 51 minu te s. The

heart rate was collected with a wrist sensor every 5

seconds (0.2 Hz). These multimodal data were time-

Action Anticipation from Multimodal Data

155

Table 1: Relevant multimodal datasets together with main characteristics. T he second and third columns indicate the acquisi-

tion modality. Fourth column i ndicates the number of acti on class, whereas column ﬁve is related to the number of subjects

involved into the acquisition. The last two columns are related to the r esolution of frames and the presence of transitions

between actions.

Dataset First Person Third Person ♯ Class ♯ Subjects Resolution Transition

Multimodal Egocentric Activity Dataset (Song et al., 20 16) X ✗ 20 - 1280x720 ✗

Daily Intention Dataset (Wu et al., 2017) X ✗ 34 3 640x480 X

Epic-Kitchen Dataset (Damen et al., 2018) X ✗ 149 32 1920x1080 ✗

CMU-MMAC Dataset (Torre et al., 2009) X X 31 39 800x600 X

Stanford-ECM Dataset (Nakamura et al., 2017) X ✗ 24 10 720x1280 X

Table 2: Activity classes of Stanford-ECM Dataset.

Activity Activity

1.BicyclingUphill 13.Shopping

2.Running 14.Strolling

3.Bicycling 15.FoodPreparation

4.PlayingWithChildren 16.TalkingStanding

5.ResistanceTraning 17.TalkingSitting

6.AscendingStairs 18.SittingTasks

7.Calisthenics 19.Meeting

8.Walking 20.Eating

9.DescendingStairs 21.StandingInLine

10.Cooking 22.Riding

11.Presenting 23.Reading

12.Driving 24.Background

synchro nized through Bluetoo th. Cubic polynomial

interpolation was used to ﬁll any gap in heart rate data.

Finally, data have been aligned consid ering millise-

cond level at 30 Hz.

The activity classes p resent in the Stanford ECM-

Dataset are listed in Table 2. There are 24 classes in

total. “Background” is a miscellaneous activity class

which includes activities such as taking pictures or

parking a bicycle. The dataset has a lso an additio-

nal class, unknown, tha t is related to part of the d a ta

before or after an action oc c urs.

Since this d ataset was c reated for classiﬁcation

task, we have reviewed it to be compliant to our action

prediction task.

We considered a transition, suitable to build trai-

ning and test sets: Unknown/Activity, where “Acti-

vity” means a gener ic activity different from “back-

ground” and “unknown”. We cut each video around

the Unknown/Activity transitions including 64 fra-

mes before and 64 after the transitions point. Since

some transitions were represented w ith few sam-

ples, we have concentrated the analysis to the fol-

lowing 9 activities: Bicycling, Playing With Child-

ren, Walking, Strolling, Food Preparation, Talking

Standing, Talking Sitting, Sitting Tasks and Shop-

ping. Hence, the ﬁn al dataset contains 309 transitions

Unknown/Activity.

4 PROPOSED AP PROACH

The proposed approach is synthetically sketched in

Figure 1. The model con sid ers the three modalities vi-

deo, a cceleration and heart rate as input after a feature

extraction process. More over details of the different

component of our approach will be g iven.

4.1 Problem

Let b e y

= (v

,hr

)

the input vector at time t

where v

∈ R

is a video, a

∈ R

is an acceleration

signal an d hr

∈ R is a heart rate data, we deﬁne the

feature representation of video, acceleration and he-

art r ate signal as x

, x

and x

= (x

)

the features vector at time t. Given x

as input, we

want to predict the label label

t+1

of the next action by

observing only data before the activity starts.

4.2 Features Extraction

In this section we descr ibe the feature representation

, x

and x

for each signal. The extraction of vi-

deo an d acceleration features is similar to (Nakamura

et al., 2017).

For visual data, features are extracted from the

pooling layer ﬁve of the Inception CNN architecture

(Szegedy et al., 2015) pretrained on ImageNet (Deng

et al., 2009). Each video frame has been transfor-

med into a x

feature vector of 1024 dimension . For

acceleration data, we extracted features from raw sig-

nals thr ough a temporal sliding window p rocess con-

sidering a window size of 32fps. Time-domain featu-

res and frequency-domain features are extracted fr om

raw signals. For time-domain features, mean, stan-

dard deviation, skewness, kurtosis, percentiles (10th,

25th, 50th, 75th, 9 0th), acceleration count for each

axis a nd correlation co e fﬁcients betwe e n each axis are

computed. For frequency-domain features, we con-

sider the spectral entropy J = −

N/2

∑

i=0

·log

where

is the normalized power spectra l density computed

from Shor t Time Fourier Transform (STFT). Then,

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

156

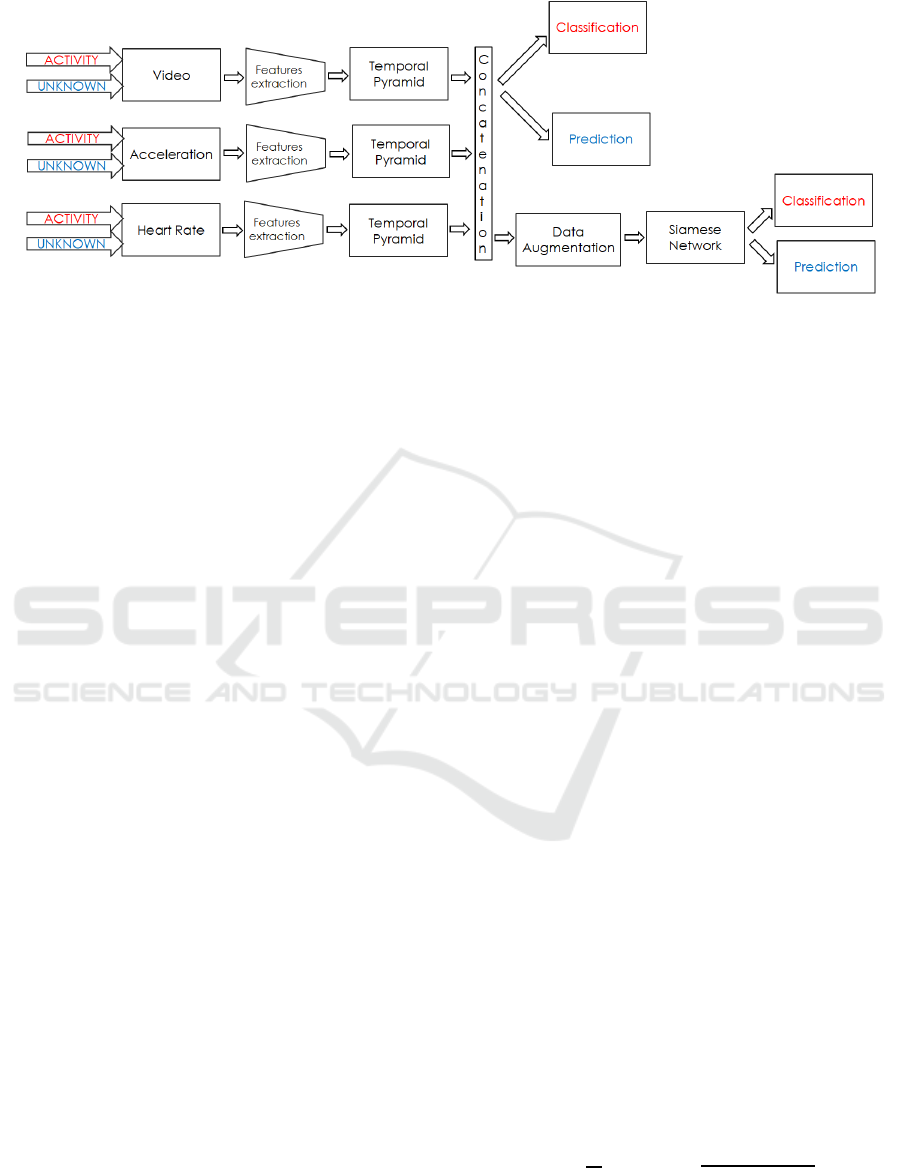

Figure 1: Pipeline of our anticipation approach.

the obtained f e atures fr om the se domain s are co nca-

tenated and x

is a 36-dimensional vector.

For heart rate data, the features are extracted f rom

the time-series of the raw signals. Mean and standard

deviation are calculated to compute a x

∈R

vector.

4.3 Temporal Pyramid

We represent features in a temporal pyra mid fashion

(Pirsiavash and Ramanan, 2012) composed by three

level. The top level (j=0) is an histogram over th e

full temporal extent of a data, the next level (j=1 ) is

the concatenation of two h istograms obtained by tem-

porally segmenting each m odality into two half s, the

last level (j= 2) is the concatenation of four histograms

obtained by temporally segmenting each previous his-

togram into two h alves. In this way, 7 histograms are

obtained corresponding to a 1024 ×7 visual features,

36×7 acceleration features, and 2 ×7 hea rt rate featu -

res. All features are concatenated into a single vector

= (x

)

of 7434 components.

4.4 Data Augmentation

Since we have few transition samples, data augmen-

tation technique is used to expand the train ing set to

prevent over-ﬁtting. In this pa per, the permutation

Unknown/Activity is considered. Each unknown se-

quence is paired with all the possible seq uences of

activity. For example, we combined the unknown clip

related to “walking” a c tivity with every other acti-

vity. The label of each augmented transition is chan-

ged from 0-8 to 0-1, as follows: if unknown and th e

activity belong to the same class (e.g. unknown rela-

ted to walking and the following ac tivity is walking),

we assign a label 1, othe rwise a label 0 is assigned if

unknown and the activity are different ( e.g. unknown

related to walking and activity is related to food pre-

paration).

The obtained dataset is strongly unbalanced. Ta-

ble 3 compares the number of sequences before and

after augmentation. Some classes, such as Shopping

or Food Preparation, are poorly represented therefore

it is necessary to down-sample the dataset. We con-

sider the square of minimum value of the number of

original activity tra nsitions (11

= 121) from seq uen-

ces with label 1 and 15 4 sequences from sequences

with label 0 for each class, in order to balance activi-

ties classes and unknown class. The ﬁnal da ta set has

12177 sequences.

4.5 Learning Approach

Our goal is to build an embedding space where the

unknown sequen c es, wh ic h are related to the past, are

close to those of future activities. In this regard, we

use Siamese networks (Brom ley et al., 1993; Koch

et al., 2 015) which consist of twin networks that share

weights and accept two different inputs. After lear-

ning proc e ss, two similar im a ges should be mapped

by the network to close points in the feature space be-

cause e ach network computes the same function. Du-

ring training the two networks extract features from

two inputs, while the ﬁnal shared neuron measures

the distance between the two feature vectors.

In our experiment, since the Siamese network

will be trained to make representations of features of

”Unknown” sequenc e s and next ”Activity” very c lose

in the embedding space, one stream of the Siamese

network processes the unknown features wherea s the

other stream processes those related to the activity.

Euclidean metric is used as distan ce between inputs.

The con trastive loss function (Hadsell et al., 200 6) is

used for training purposes:

√

D + (1 −Y)

max(1 −D,0) (1)

where Y is the ground tr uth activity label and D is the

euclidean distance betwee n two fea ture po ints.

Action Anticipation from Multimodal Data

157

Table 3: Number of sequences for each activity before and after augmentation.

Activity ♯ of original activity transitions ♯ of augmented activity transitions ♯ of ﬁnal transitions

Bicycling 18 4482 1353

Walking 79 19671 1353

Shopping 11 2739 1353

Talking Standing 26 6474 1353

Sitting Tasks 17 4233 1353

Playing With Children 32 7968 1353

Strolling 32 7968 1353

Food Preparation 14 3486 1353

Talking Sitting 20 4980 1353

TOT 249 62001 12177

Figure 2: a) 1D CNN Architectures. b) MultiLayer Perceptron architecture.

We c onsider two different architectures for Sia-

mese network: Multilayer Perceptron (Bishop, 2006)

and 1D Convolutional Neural Network (CNN) (Kira-

nyaz et al., 201 6; Lee et al., 2017) . Figure 2 shows

the architecture of the used networks. For Multilayer

Perceptron, two hidden layers are considered with a

number of n eurons of 4000 and 3000 respectively. For

1D CNN, three convolutional layers are used with a

number of ﬁlters of 32, 64 and 2, respectively, (all of

size 3 ×1) and a relu activation function. The output

of each convolutional layer is reduced in size using a

max-pooling layer that halves the number of featu res.

4.6 Classiﬁcation and P rediction

Our aim is to predict next ac tivity from an unknown

clip. To our knowledge, in the state of the art, there

are not results on action anticipation from multimo-

dal data, therefore we consider as baseline the classi-

ﬁcation of activity sequences and the classiﬁcation of

unknown sequence s. A k-nearest-neighbor classiﬁca-

tion algorithm (K-NN) and a support vector machin e

(SVM) are used for classiﬁcation purposes.

5 EXPERIMENTS

In this section, the results of the propo sed approach

are shown and discussed. Our model is evaluated on

Stanford-ECM Dataset. The fe ature representations

obtained with the considered deep architectures are

classiﬁed with SVM or KNN classiﬁer.

5.1 Setup

We randomly split our data into disjoint training (2 49

sequences) and testing sets (60 sequences) for trai-

ning and testing purposes. For Siamese Network, the

Adam op timizer is considered with batch size of 249

samples. Variable learn ing rate is used starting fr om

0.001. In the Multilayer Perceptron, in order to pre-

vent overﬁtting, we apply a dropo ut procedure during

training. We evaluate K-NN for different values of k

and SVM for different kernels. In K-NN classiﬁer,

we consider two different we ights: uniform and dis-

tance. The ﬁrst assigns equal weights to all poin ts,

while distance weight assigns weights proportional to

the inverse of the distance from the query point.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

158

Table 4: SVM Results.

Classiﬁcation Prediction

Modality (♯ Features) Linear Kernel RBF Linear Kernel RBF

Acceleration (252) 31.67% 46.67% 31.67% 46.67%

Heart rate (14) 33.33% 28.33% 33.33% 35%

Video(7168) 66.67% 68.33% 60% 56.67%

Acceleration+Heart rate (266) 36.67% 50% 38.33% 48.33%

Video+Acceleration (7420) 70% 71.67% 68.33% 68.33%

Video+Heart rate(7182) 66.67% 66.67% 60% 63.33%

Video+Acceleration+Heart rate (7434) 70% 68.33% 68.33% 68.33%

Table 5: K-NN Results.

Classiﬁcation

Modality (♯ Features) weights=uniform weights= distance

k = 1 k = 3 k = 5 k = 7 k = 9 k = 1 k = 3 k = 5 k = 7 k = 9

Acceleration (252) 41.67% 53.33% 48.33% 45% 45% 41.67% 51.67% 46.67% 50% 50%

Heart rate (14) 23.33% 21.67% 18.33% 23.33% 31.67% 23.33% 20% 15% 15% 15%

Video(7168) 63.33% 61.67% 61.67% 61.67% 60% 63.33% 61.67% 63.33% 66.67% 63.33%

Acceleration+ Heart ra te (266) 38.33% 46.67% 48.33% 45% 43.33% 38.33% 43.33% 45% 48.33% 46.67%

Video+Acceleration (7420) 61.67% 61.67% 63.33% 63.33% 61.67% 61.67% 58.33% 61.67% 65% 65%

Video+Heart rate(7182) 63.33% 61.67% 61.67% 61.67% 60% 63.33% 61.67% 65% 65% 63.33%

Video+Acceleration+Heart rate (7434) 60% 65% 63.33% 63.33% 58.33% 60% 61.67% 63.33% 65% 63.33%

Prediction

Modality (♯ Features) weights=uniform weights= distance

k = 1 k = 3 k = 5 k = 7 k = 9 k = 1 k = 3 k = 5 k = 7 k = 9

Acceleration (252) 41.67% 53.33% 48.33% 45% 45% 41.67% 51.67% 46.67% 50% 50%

Heart rate (14) 20% 26.67% 26.67% 25% 35% 20% 20% 20% 23.33% 26.67%

Video(7168) 55% 56.67% 60% 56.67% 60% 55% 58.33% 58.33% 56.67% 63.33%

Acceleration+ Heart ra te (266) 33.33% 46.67% 48.33% 45% 48.33% 33.33% 41.67% 45% 45% 48.33%

Video+Acceleration (7420) 53.33% 58.33% 60% 60% 56.67% 53.33% 61.67% 58.33% 60% 60%

Video+Heart rate(7182) 55% 56.67% 60% 56.67% 60% 55% 58.33% 58.33% 56.67% 63.33%

Video+Acceleration+Heart rate (7434) 53.33% 58.33% 61.67% 60% 56.67% 53.33% 61.67% 60% 60% 58.33%

5.2 Baseline

In order to better evaluate our approach, we deﬁne a

baseline where the values of accuracy in classiﬁca-

tion and in prediction are compared. In classiﬁcation,

the features relate d to activity sequence, extracted as

described in Session 4.2, are c lassiﬁed, while in pre-

diction we con sider the classiﬁcation of features rela-

ted to unknown clips.

The Tables 4 and 5 show the values of accuracy fo r

each signals and c ombinatio ns o f all of them. For ex-

ample, if we con sid er the accur acy values of video fe-

atures, in Table 4, we can see that, with a linea r kernel,

we obtain an accur a cy value of 66.67% in classiﬁca-

tion and a value of 60% in p rediction; if w e combine

video features with acceleration data, for instance, the

values are 70% in classiﬁcation and 68.33% in pre-

diction. These results suggest two conclusions. The

ﬁrst is tha t, as it is easily und erstandable, the values

of accuracy in classiﬁcation a re higher than those in

prediction, but not so much higher, therefore it is pos-

sible to anticipate the future ac tion. The second is that

most o f the information comes fr om the video, but if

we combine video with another signal, such as ac ce-

leration, the value of accuracy increases. The same

conclusions are obtained with K-NN classiﬁer.

5.3 Siamese Network

Our goal is to predict the label of the next action by

observing only data before the activity starts. Our ba-

seline suggests that it is necessary to ﬁll the gap bet-

ween the accuracy of c la ssiﬁcation and that of the pr e-

diction. As discussed in pr evious section 4, we consi-

der a Siamese network for our purpo se. Two different

architecture s are used: Multilayer Perceptron and a

1D CNN. The interesting point is that with a 1D CNN

we can consider three convolutional layers therefore

our output has dimension of 1860 while w ith a MLP

we have only two layers and the output size is 3 000.

Table 6 and Table 7 show the results of the Siamese

network. The tables list the obtained accuracy with

K-NN and SVM classiﬁer both for classiﬁcation and

anticipation. With a Siamese Network composed by a

Multilayer Perceptron, results on anticipation a re not

so good and are even worse, in most cases, than those

obtained by the baseline. This could be due to the dif-

ﬁculty of the MLP to learn from a very tiny dataset.

More in details, the number of parameters of the net-

work (7434x4 000x3000) is too big with respe ct to the

dataset size. Table 7 shows r esults obtained by trai-

ning the considered classiﬁers on the representation

learned through a Siamese Network, by exploiting a

1D convolutional layer architecture.

Action Anticipation from Multimodal Data

159

Table 6: Siamese Network Results considering a MultiLayer P erceptron architecture.

KNN

Classiﬁcation Prediction

k Baseline Siamese Baseline Siamese

weights=uniform weights=distance weights=uniform weights= distance weights=uniform weights= distance weights =uniform weights= distance

1 60% 60% 58.33% 58.33% 53.33% 53.33% 55% 55%

3 65% 61.67% 60% 60% 58.33% 61.67% 55% 55%

5 63.33% 63.33% 58.33% 58.33% 61.67% 60% 55% 55%

7 63.33% 65% 56.67% 56.67% 60% 60% 53.33% 53.33%

9 58.33% 63.33% 56.67% 56.67% 56.67% 58.33 % 53.33% 53.33%

SVM

Linear Kernel RBF Linear Kernel RBF Linear Kernel RBF Linear Kernel RBF

70% 68.33% 58.33% 46.67% 68.33% 68.33% 55% 56.67%

Table 7: Siamese Network Results considering a 1D CNN architecture.

KNN

Classiﬁcation Prediction

k Baseline Siamese Baseline Siamese

weights=uniform weights=distance weights=uniform weights= distance weights=uniform weights= distance weights =uniform weights= distance

1 60% 60% 50% 50% 53.33% 53.33% 55% 55%

3 65% 61.67% 50% 53.33% 58.33% 61.67% 51.67% 58.33%

5 63.33% 63.33% 55% 55% 61.67% 60% 63.33% 66.67%

7 63.33% 65% 55% 58.33% 60% 60% 63.33% 65%

9 58.33% 63.33% 55% 60% 56.67% 58.33 % 58.33% 65%

SVM

Linear Kernel RBF Linear Kernel RBF Linear Kernel RBF Linear Kernel RBF

70% 68.33% 71.67% 65% 68.33% 68.33% 60% 60%

The best values of accuracy are obtained with K-

NN for k equals 5 and k equals 7. Indeed , if we

compare the acc uracy values of our baseline in the

Table 7 for k = 5 and weights=distan c e, we have

63.33% for classiﬁcation, 60% for prediction whereas

the Siamese network overcomes these values obtai-

ning a 66.67% of accuracy. For k=7, results show that

the accuracy value with a Siamese network is equal

to 6 5%, in other words, the same value of accur acy

obtained for classiﬁcation baseline. It is also interes-

ting to note that the representation generated b y the

Siamese Network is n ot suitable in this case for clas-

siﬁcation task; in fact, accuracy ac hieved in classiﬁ-

cation is quite lower than that of the simple baseline.

This could be due to the fact that the Siamese network

has been trained to solve the c hallenge of ma king re-

presentations of features of ”Unknown” sequence and

next ”Activity” very clo se in the embe dding space

with few samples. The results achieved with the SVM

classiﬁer do not reac h the accuracy of the b a seline.

6 CONCLUSION

This work presents preliminary results o n action an-

ticipation from multimodal data. In particu la r, the

Stanford-ECM Dataset has been considered to ad-

dress the problem. We compared the performances

of different architecture and classiﬁers. Our prelimi-

nary results su ggest that mu lti- modality imp roves

both classiﬁcation and prediction, but we couldn’t

deeply take advantage of deep learning approaches

on multi-modal data due to a very limited dataset for

training the methods. Future works could b e aimed to

improve the overall pip e line in order to ﬁll the gap be-

tween classiﬁcation and prediction performances and

to test algorithm on bigger multimodal datasets, spe -

ciﬁcally built with th e aim of addressing prediction

and anticipation.

ACKNOWLEDGEMENTS

This research is supported by STMicro electronics and

Piano della Ricerca 2016-2 018 Linea di Intervento 2

of DMI, University of Catania. We also thank the aut-

hors of (Nakamura et al., 2017) for providing the ori-

ginal Stanford-ECM dataset.

REFERENCES

Aytar, Y., Vondrick, C., and Torralba, A. (2017).

See, hear, and read: Deep aligned representations.

abs/1706.00932.

Bishop, C. M. (2006). Patter Recognition and Machine Le-

arning (Information Science and Statistics). Springer-

Verlag, Berlin, Hei delberg.

Bromley, J., Guyon, I., LeCun, Y., S¨ackinger, E., and Shah,

R. (1993). Signature veriﬁcation using a ”siamese”

time delay neural network. In Proceedings of the 6th

International Conference on Neural Information Pro-

cessing Systems, pages 737–744, San Fr ancisco, CA,

USA. Morgan Kaufmann Publishers Inc.

Chan, F.-H., Chen, Y. -T., Xiang, Y., and Sun, M. (2017).

Anticipating accidents in dashcam videos. In Lai,

S.-H., Lepetit, V., Nishino, K., and S ato, Y., editors,

Asian Conference on Computer Vision, pages 136–

153, Cham. Springer International P ublishing.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

160

Damen, D., Doughty, H., Farinella, G. M., Fidler, S., Fur-

nari, A., Kazakos, E., Moltisanti, D., Munro, J., Per-

rett, T., Price, W., and Wray, M. (2018). Scaling ego-

centric vision: The epic-kitchens dataset. European

Conference on Computer Vision.

Deng, J., Dong, W., Socher, R., Li, L. J., Li, K., and Fei-Fei,

L. (2009). Imagenet: A large-scale hierarchical image

database. In IEEE Conference on Computer Vision

and Pattern Recognition, pages 248–255.

Duarte, N., Tasevski, J., Coco, M. I., R akovic, M., and

Santos-Victor, J. (2018). Action anticipation: Reading

the intentions of humans and robots. IEEE Robotics

and Automation Letters, abs/1802.02788.

Furnari, A., Battiato, S., Grauman, K ., and Farinella, G. M.

(2017). Next-active-object prediction from egocentric

videos. Journal of Visual Communication and Image

Representation, 49:401 – 411.

Gao, J., Yang, Z., and Nevatia, R. (2017). RED: reinfor-

ced encoder-decoder networks for action anticipation.

British Machine Vision Conference, abs/1707.04818.

Hadsell, R., Chopra, S., and LeCun, Y. (2006). Dimensio-

nality reduction by learning an invariant mapping. In

IEEE Computer Society Conference on Computer Vi-

sion and Pattern Recognition (CVPR’06), volume 2,

pages 1735–1742.

Kiranyaz, S., Ince, T., and Gabbouj, M. (2016). Real-time

patient-speciﬁc ecg classiﬁcation by 1-d convolutional

neural networks. IEEE Transactions on Biomedical

Engineering, 63(3):664–675.

Koch, G., Zemel, R., and Salakhutdinov, R. (2015). Sia-

mese neural networks for one-shot image recognition.

In ICML Deep Learning Workshop.

Koppula, H. S., Jain, A., and Saxena, A. (2016). cipatory

planning for human-robot teams. In Experimental Ro-

botics: The 14th International Symposium on Experi-

mental Robotics.

Koppula, H. S. and Saxena, A. (2016). Anticipating human

activities using object affordances for reactive robo-

tic response. IEEE Trans. Pattern Anal. Mach. Intell.,

38(1):14–29.

Lan, T., Chen, T.-C., and Savarese, S. (2014). A hierar-

chical representation f or future action prediction. In

European Conference on Computer Vision – ECCV,

pages 689–704, Cham. Springer International Publis-

hing.

Lee, S.-M., Yoon, S. M., and Cho, H. (2017). Human acti-

vity recognition from accelerometer data using convo-

lutional neural network. In IEEE International Confe-

rence on Big Data and Smart Computing (BigComp),

pages 131–134.

Ma, S., Sigal, L., and Sclaroff, S. (2016). Learning activity

progression in lst ms for activity detection and early

detection. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 1942–1950.

Mainprice, J. and Berenson, D. (2013). Human-robot colla-

borative manipulation planning using early prediction

of human motion. In IEEE/RSJ International Confe-

rence on Intelligent Robots and Systems, pages 299–

306.

Nakamura, K. , Yeung, S., Al ahi, A., and Fei-Fei, L. (2017).

Jointly learning energy expenditures and activities

using egocentric multimodal signals. In IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 6817–6826.

Ngiam, J., Khosla, A., Kim, M., Nam, J., Lee, H., and Ng,

A. Y. (2011). Multimodal deep learning. In Procee-

dings of the 28th International Conference on Interna-

tional Conference on Machine Learning, pages 689–

696, USA. Omnipress.

Pirsiavash, H. and Ramanan, D. (2012). Detecting activities

of daily living in ﬁrst-person camera views. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 2847–2854.

Song, S., Cheung, N., Chandrasekhar, V., Mandal, B., and

Lin, J. (2016). Egocentric activity r ecognition with

multimodal ﬁsher vector. abs/1601.06603.

Srivastava, N. and Salakhutdinov, R. (2014). Multimodal

learning with deep boltzmann machines. Journal of

Machine Learning Research, 15:2949–2980.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S., Angue-

lov, D., Erhan, D., Vanhoucke, V., and Rabinovich, A.

(2015). Going deeper with convolutions. In The IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 1–9.

Torre, F. D., Hodgins, J. K., Montano, J., and Valcarcel,

S. (2009). Detailed human data acquisition of kit -

chen activities: the cmu-multimodal activity database

(cmu-mmac). In CHI 2009 Workshop. Developing

Shared Home Behavior Datasets to Advance HCI and

Ubiquitous Computing Research.

Wu, T., Chien, T., Chan, C., Hu, C., and Sun, M. (2017).

Anticipating daily intention using on-wrist motion

triggered sensing. Intenational Conference on Conm-

puter Vision, abs/1710.07477.

Action Anticipation from Multimodal Data

161
