FinSeg: Finger Parts Semantic Segmentation using Multi-scale Feature

Maps Aggregation of FCN

Adel Saleh

, Hatem A. Rashwan

, Mohamed Abdel-Nasser

1,3

, Vivek K. Singh

Saddam Abdulwahab

, Md. Mostafa Kamal Sarker

, Miguel Angel Garcia

and Domenec Puig

Department of Computer Engineering and Mathematics, Rovira i Virgili University, Tarragona, Spain

Department of Electronic and Communications Technology, Autonomous University of Madrid, Madrid, Spain

Electrical Engineering Department, Aswan University, 81542 Aswan, Egypt

adelsalehali.alraimi, hatem.rashwan, mohamed.abelnasser, vivekkumar.singh, mdmostafakamal.sarker,

Keywords:

Semantic Segmentation, Fully Convolutional Network, Pixel-wise Classiﬁcation, Finger Parts.

Abstract:

Image semantic segmentation is in the center of interest for computer vision researchers. Indeed, huge num-

ber of applications requires efﬁcient segmentation performance, such as activity recognition, navigation, and

human body parsing, etc. One of the important applications is gesture recognition that is the ability to under-

standing human hand gestures by detecting and counting ﬁnger parts in a video stream or in still images. Thus,

accurate ﬁnger parts segmentation yields more accurate gesture recognition. Consequently, in this paper, we

highlight two contributions as follows: First, we propose data-driven deep learning pooling policy based on

multi-scale feature maps extraction at different scales (called FinSeg). A novel aggregation layer is introduced

in this model, in which the features maps generated at each scale is weighted using a fully connected layer.

Second, with the lack of realistic labeled ﬁnger parts datasets, we propose a labeled dataset for ﬁnger parts

segmentation (FingerParts dataset). To the best of our knowledge, the proposed dataset is the ﬁrst attempt

to build a realistic dataset for ﬁnger parts semantic segmentation. The experimental results show that the

proposed model yields an improvement of 5% compared to the standard FCN network.

1 INTRODUCTION

Semantic segmentation is an important task in image

recognition and understanding. It is considered as a

dense classiﬁcation problem. The main task in Se-

mantic segmentation is to assign a unique class to

every pixel in an image. Deep learning approaches

have been used in several applications, such as hu-

man activity recognition, object recognition, image

classiﬁcation (Saleh et al., 2018b), time-series fore-

casting (Abdel-Nasser and Mahmoud, 2017) as well

as semantic segmentation. Recently, convolutional

neural networks (CNNs) have obtained signiﬁcant re-

sults in image understanding tasks. However, these

approaches still exhibit obvious shortcomings when

they come to dense prediction tasks, e.g., semantic

segmentation. The main reason for the shortcomings

is that these models include repeated steps of pooling

and convolution can cause losing much of ﬁner image

information.

One way of handling this shortcoming is to le-

arn an up-sampling operation (deconvolution) to ge-

nerate the feature maps of higher-resolution. Indeed,

those deconvolution operations can not recover the

lost low-level visual after the down-sampling opera-

tions. For this reason, they are unable to precisely

generate a high resolution output. Indeed, the low-

level visual structure is essential for a proper pre-

diction on the boundaries and details alike. Recently,

the work proposed in (Chen et al., 2018) applied di-

lated convolution ﬁlters to deal with larger receptive

ﬁelds without down-sampling the image. The afore-

mentioned approach is successful, but it has two li-

mitations. First, the dilated convolution uses a coarse

sub-sampling of features, which likely causes a loss

of important details. Second, it performs convoluti-

ons on a large number of detailed feature maps that

have high dimensional features, which yields additio-

nal algorithmic complexity.

Several applications necessitate accurate segmen-

tation methods, such as activity recognition, naviga-

tion, and human body parsing (Saleh et al., 2018a;

Liang et al., 2018). One of the important applicati-

ons is gesture recognition that is the ability to under-

Saleh, A., Rashwan, H., Abdel-Nasser, M., Singh, V., Abdulwahab, S., Sarker, M., Garcia, M. and Puig, D.

FinSeg: Finger Parts Semantic Segmentation using Multi-scale Feature Maps Aggregation of FCN.

DOI: 10.5220/0007382100770084

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 77-84

ISBN: 978-989-758-354-4

standing human hand gestures by detecting and coun-

ting ﬁnger parts in a video stream or in still images.

In this paper, we attempt to deal with such small ob-

jects (i.e., ﬁnger parts). Consequently, it is essential

to extract extra information from different image sca-

les (e.g., ﬁne to coarse features). Thus, we propose

to enforce the low level layers to learn these ﬁne-to-

coarse features. This is achieved by feeding diffe-

rent resolutions of input images to the network. This

will be advantageous information for solving ﬁnger

parts semantic segmentation task, and it can help the

model to overcome scale variations, which is consi-

dered as high-level knowledge. However, the ques-

tion here is which scale will be more beneﬁcial for

extracting high-level information for an accurate ﬁn-

ger parts segmentation. Thus, after feeding images

of different scales, our proposed model can learn to

weight the generated feature maps at different scales.

These feature maps are up-sampled to a uniﬁed-scale

and then pooled to feed them to next layers, as shown

in Figure 1. The main contributions of this paper can

be summarized as follows:

• We propose a novel deep aggregation layer ba-

sed on a multi-scale segmentation network which

combines coarse semantic features with ﬁne-

grained low-level features in a parallel style to

generate high-resolution semantic feature maps.

The proposed model is called FinSeg.

• With the lack of realistic labeled ﬁnger parts data-

sets, we release a dataset for ﬁnger parts semantic

segmentation (called FingerParts dataset). As far

as we know, this is the ﬁrst available dataset for

ﬁnger parts segmentation using a high resolution

real images.

2 RELATED WORKS

Recently, the most successful methods for the se-

mantic segmentation task are related to deep lear-

ning models, speciﬁcally CNNs. In (Girshick et al.,

2014), a region-proposal-based method has been used

to estimate segmentation results. In turn, the aut-

hors of (Long et al., 2015; Chen et al., 2018) have

shown the effective feature generation of CNNs and

presented semantic segmentation based on the fully

convolutional networks (FCNs). It worth to note that

FCN becomes a standard deep network for different

applications, such as image restoration (Eigen et al.,

2013), image super-resolution (Dong et al., 2014)

and depth estimation (Eigen and Fergus, 2015; Ei-

gen et al., 2014). However, the main limitation of

networks based on the FCN architecture is the low-

resolution prediction. Thus, many works proposed

different techniques to tackle this limitation in order

to generate high-resolution predictions. For instance,

conditional random ﬁeld (CRF) has been used as a

post layer for coping with this problem. This is done

by generating a middle resolution score feature map

and then reﬁning boundaries using a dense CRF. In

addition, an atrous convolution layer has been propo-

sed in (Chen et al., 2014). The atrous layers are con-

volution ﬁlters with different rates to extract the key

features of input images in different scales. In (Zheng

et al., 2015), a robust end-to-end fashion parsing met-

hod is proposed by adding recurrent layers in order to

improve the performance of the FCN network.

Furthermore, many deconvolution based methods

have been proposed in (Badrinarayanan et al., 2015;

Noh et al., 2015) to learn how to up-sample low re-

solution prediction by taking into account the advan-

tage of middle layer features in the FCN network. For

example, the work proposed in (Chen et al., 2014)

added prediction layers to middle layers to generate

prediction scores at multiple resolutions. Then the

multi-resolution predictions are averaged to generate

the ﬁnal prediction. But, this model was trained in

multi-stage style rather than end-to-end manner. In

turn, other methods, such as SegNet (Badrinarayanan

et al., 2015), (Sarker et al., 2018; Singh et al., 2018)

and U-Net (Ronneberger et al., 2015) have used skip-

connections in the decoder architecture to add infor-

mation from feature maps extracted of the middle lay-

ers to the deconvolution layers.

Unlike the aforementioned methods, the proposed

FinSeg model exploits the multi-scale features in the

low-level layers in order to predict coarse-to-ﬁne se-

mantic features extracted from different resolution of

an input image. In addition, unlike the standard FCN

network, FinSeg uses the residual network, namely

ResNet101, instead of the VGG network. In addition,

we use the skip-connections of all encoder layers to

add feature maps to all decoder layers as shown in

Figure 1.

3 PROPOSED MODEL

We propose a deep semantic segmentation model

(FinSeg) based on a new aggregation layer. FinSeg

accepts an input image at different resolutions, ex-

tracts feature maps of every scale, weights each ex-

tracted feature maps, pools them and then feeds the

ﬁnal feature maps through long range connections to

achieve a high-resolution semantic segmentation of

ﬁnger parts. Below, we describe the steps of our mo-

del.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Encoder

Decoder

MultiscaleInput

AggregationLayer

Prediction

Conv1

Conv2

Conv3

Conv4

Dconv1

Dconv2

Dconv3

Dconv4

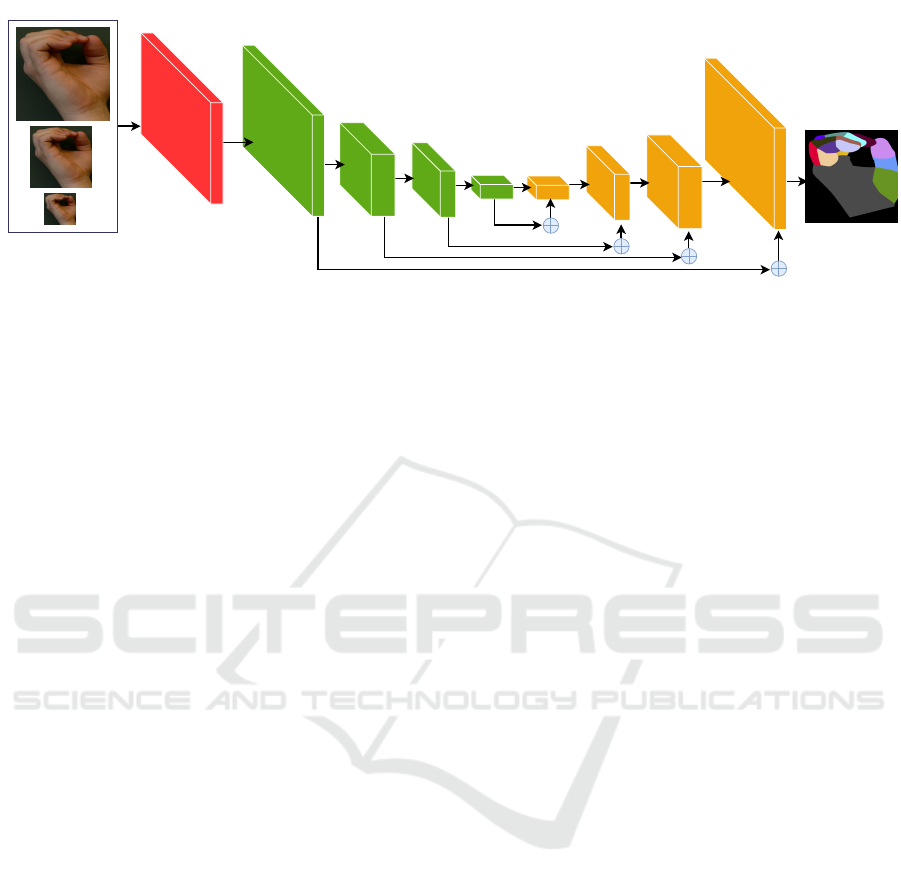

Figure 1: The main structure of the proposed model (FinSeg). Red block refers to the generation of the feature maps from the

proposed aggregation block (shown in details in Figure 2).

3.1 FinSeg Architecture

As shown in Figure 1, the proposed model has an

encoder-decoder architecture. In general, the encoder

reduces the spatial dimension through pooling layers

along with summarizing the input images. In turn, the

decoder recovers the object mask and spatial dimen-

sion. Following (Ronneberger et al., 2015), we use

skip-connections from the encoder to the decoder in

order to recover the object details in the decoder stage

by transferring low level feature from lower layers to

the higher ones.

3.2 Aggregation Layer

We show the architecture of the aggregation layer in

Figure 2. As shown, an image I is fed into the mo-

del with s scales. The input images I

...I

are fed

to a parallel sequence of convolution layers. Shared

convolution ﬁlters are applied on the images of diffe-

rent scales. After feeding images of different scales

through ﬁrst parallel layers of the model, the resul-

ted feature maps have different sizes. Since, it is not

possible to aggregate feature maps with different si-

zes, the multi-scale feature maps are up-sampled to

the largest dimension and aggregated in one feature

map. After aggregation, the resulted feature maps are

then fed into the next aggregation layer and this pro-

cedure is repeated k times.

Fully connected layer (FC) of s inputs and s × nl out-

puts is used to learn the weights of the aggregation

alyer, where s is the number of scales and nl is the

number of internal sequent layers of the aggregation

layer. We propose a fully automated procedure that

can learn how to give a high weight for the more im-

portant scaled feature maps and suppress others. In

this study, s = 3 and nl = 3 are the optimum values

that yield the best results. The FC layer learns to

weight the resulted feature maps of each scale (see

Figure 2). A softmax function is used as an activation

for each resulted s weights. In this work FC is initi-

alized with an input vector w = [1/3; 1/3; 1/3]. It is

obvious that we start with giving an equal weight for

all scales.

Suppose that the ﬁnal aggregated feature maps ex-

tracted at a layer l can be expressed as follows:

l,i

∑

i=1

l,i

l,i−1

under the constraint of

∑

i=1

l,i

= 1, where F

l,i−1

the feature maps of the previous scale i − 1, and i ∈

1....s with l ≥ 2. The resulted F

l,i

is then fed into the

convolution layer of the next internal layer.

3.3 Encoder and Decoder of FinSeg

Encoder: After calculating the multi-scale aggrega-

ted feature maps, they are fed into the encoder net-

work. The encoder consists of four convolution lay-

ers followed by a max-pooling layers (down-sampling

layers) to encode input into feature representations at

different levels as shown in Figure 1. The encoder

layers are adapted from the pre-trained ResNet101

network (the ﬁrst four layers only).

Decoder: It consists of up-sampling and summing

followed by regular convolution operations. To re-

cover original image dimensions by up-sampling, we

use the bi-linear interpolation. Thus, we expand the

feature maps dimensions to meet the same size with

the corresponding blocks of the encoder and then ap-

ply skip connections by summing the feature maps of

the decoder layer with the ones generated from the

corresponding encoder layers.

FinSeg: Finger Parts Semantic Segmentation using Multi-scale Feature Maps Aggregation of FCN

w11

w12

w13

w21

w22

w23

w31

w32

w33

AggregationLayer

Output

0.33

Input

Conv 1 Conv 2

Conv 3

FClayer

Weights

Softmax1

Softmax2

Softmax3

w11

w12

w13

w21

w22

w23

w31

w32

w33

Figure 2: The architecture of the aggregation layer. Feature maps are aggregated at the largest scale in each internal layer.

4 EXPERIMENTAL RESULTS

AND DISCUSSION

4.1 FingerParts Dataset

In this paper, we introduce to a new dataset based

on real hand images (called FingerParts) that can be

used for the human palm and ﬁnger parts segmenta-

tion task. The FingerParts dataset contains 1100 real

images and their corresponding annotations. We have

ordered human made annotations, which is in general

perfect. Number of hands per image is ranging from

one hand to three hands in most cases. These ima-

ges can contain backside or frontal views of different

hands as shown in Figure 3.

Furthermore, 1000 images were taken from a pu-

blic dataset for hand gesture recognition (Kawulok

et al., 2014; Nalepa and Kawulok, 2014; Grzejszczak

et al., 2016). In addition, 100 images were collected

by scrapping images from Google Image. The re-

sults of scrapping were manually checked in order to

avoid repeated and non-relevant images. The number

of classes in the dataset is 17: a class for the back-

ground, 3 classes per ﬁnger (3 × 5 = 15) and one for

each palm. Information about key-points is also avai-

lable. There is 16 key points information per hand

(i.e., 15 for the ﬁngers parts and one for the palm).

In Table 1, we show a comparison between the Fin-

gerParts dataset with prior state-of-the-art datasets. It

is obvious that our dataset is based on realistic ima-

ges and it can be used for semantic segmentation and

gesture recognition tasks.

Data Augmentation

In this study, we applied data augmentation by scaling

the input images by a random value varying between

0.5 and 2.0. In addition, we applied illumination

changes via a gamma correction operator with values

varying from 0.5 to 3.0 with a step of 0.5. Random

horizontal ﬂipping was also applied. Furthermore, we

added extra synthetic backgrounds to the input ima-

ges to expose the model to more difﬁcult tasks. In

total, we have 58,380 images for training and 4935

for testing.

Figure 3: Samples of the proposed FingerParts dataset.

4.2 Training Procedure

In each iteration, FinSeg reads a batch of 8 ima-

ges, resizes them to 512x512 and normalizes them.

The normalization step consists of 3 steps: 1) the in-

put image is divided by 255. This step makes va-

lues of each RGB image varies between 0 and 1.0,

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Table 1: Quantitative comparison of our proposed dataset, FingerParts, with public datasets of hand segmentation task.

Dataset Number of Images Segmentation Task Real/Synthetic Key Point

(Zimmermann and Brox, 2017) 41258 Yes Synthetic Yes

(Kawulok et al., 2014) 899 No Real Yes

MU HandImages (Barczak et al., 2011) 2425 No Real Yes

FingParts(our) 1100 Yes Real Yes

2) centralization of image values through subtracting

[0.485,0.456,0.406] from RGB channels respectively

is applied, and 3) the RGB channels are divided by

[0.229,0.224,0.225]. Those values were used on Ima-

geNet dataset for classiﬁcation task and ﬁxed (empi-

rically) from computer vision community. An initial

learning rate of 0.01 with weight decay of 10

−8

were

used in the training procedure. SGD was chosen as an

optimizer and with a value of 0.99 for the momentum

parameter. In this work, the cross-entropy is used as a

loss function. It is deﬁned as:

CE = −

∑

log(y

)

where y

is the probability for predicted class i and y

is the true probability for that class.

Although, the proposed aggregation layer add

some algorithmic complexity to the proposed model

by multi-scale layers, it converges in the same num-

ber of iterations of the standard FCN model (See Fi-

gure 4). However, the training process is more expen-

sive in terms of time consumption.

Figure 4: The convergence of the proposed model and the

FCN model.

4.3 Evaluation Metrics

In this work, we use two metrics to assess the perfor-

mance of the proposed model: the intersection over

Union (IoU) and pixel accuracy. In literature, IoU

is referred to as the Jaccard index, which is basically

a metric to calculate the percent overlap between the

target mask and the prediction output.

IoU =

target ∩ prediction

target ∪ prediction

We also use the pixel accuracy metric. This metric

reports the percent of pixels in the image which were

correctly classiﬁed. The pixel accuracy is calculated

for each class separately as well as globally over all

classes. It can be deﬁned as follows:

accuracy =

T P + T N

T P + T N + FP + FN

4.4 Experimental Results and

Discussion

We evaluate our approach on the proposed dataset

(FingerParts). To present the usefulness of automati-

cally selecting of feature maps scales, we choose the

FCN model of (Chen et al., 2014) as baseline. In this

section, we compare the results of three variations of

the aggregation layer of the proposed model (Avra-

geAggr, AggrFCNSoftmax and AggrFCNRelu) with

the ones of FCN model. The ﬁrst variation of the pro-

posed aggregation layer (AvrageAggrFCN), we apply

aggregation is by averaging of feature maps of dif-

ferent scales with the same internal layer. The se-

cond variation (AggrFCNSoftmax), we use a softmax

function as an activation function applied on the weig-

hts resulting of the FC layer. In the third variation

(AggrFCNRelu), we add a Relu after every internal

convolution layer of the aggregation block.

Table 2 hows the experimental results of the pro-

posed model with the proposed dataset. The baseline

model, FCN, yielded an IoU of 0.58 and an accuracy

of of 87%. AvrageAggr gave an improvement of 4%

in IoU values (only after average the feature maps ex-

tracted at different scales). However, for the accuracy,

there was a small improvement (< 0.5%).

Learning a weight for the resulted feature maps at

a scale is a generalized form of aggregation, and it has

more potential to ﬁnd optimized weights. According

to results shown in Table 2, predicting the weights of

each feature map using an FCN layer yields better re-

sults than the baseline model. An improvement of 5%

with AggrFCNSoftmax was achieved. Another ex-

periment were conducted to check Relu function as

an activation function with AggrFCNRelu yielded an

FinSeg: Finger Parts Semantic Segmentation using Multi-scale Feature Maps Aggregation of FCN

IoU improvement of about 3%. Thus, the best results

was achieved when we use the softmax function for

estimating the weight values of each scale.

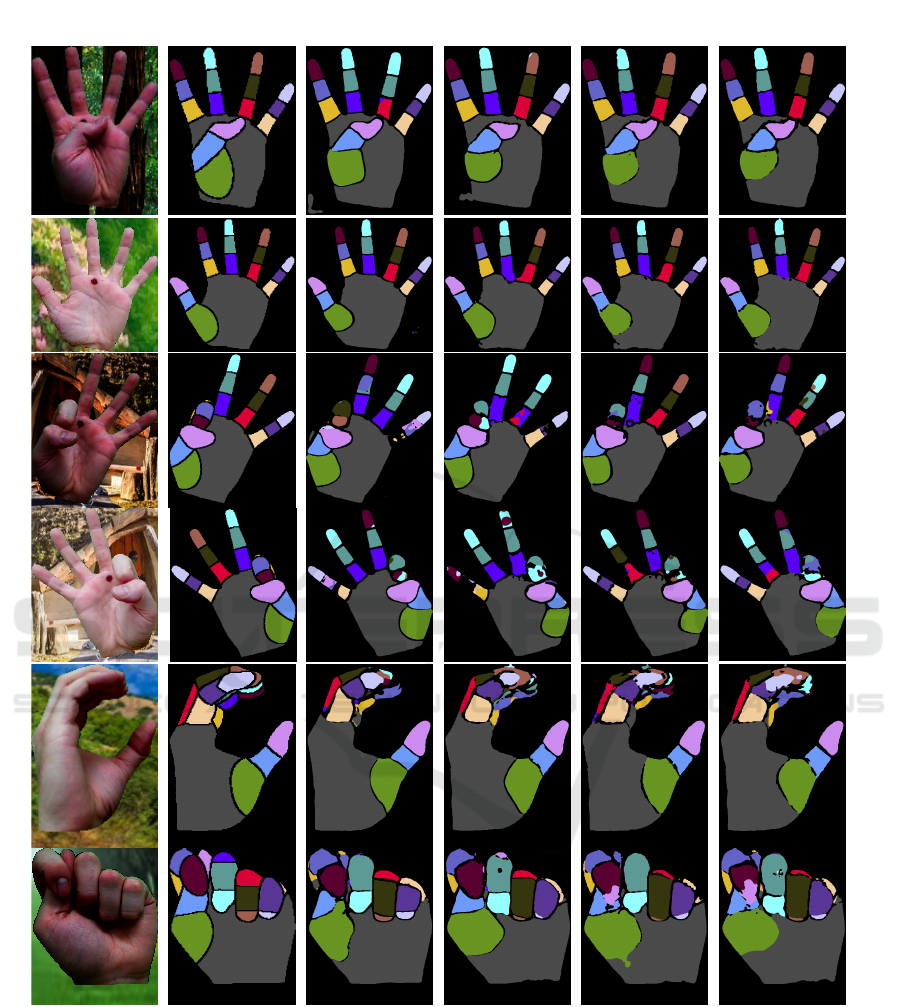

Qualitative results of some of these experiments

are shown in Figure 5. As shown, and supporting our

quantitative results, the proposed model with AggrF-

CNSoftmax (using aggregation of FC and sofmax lay-

ers) present visual improvements of ﬁnger parts seg-

mentation with our dataset, compared to the FCN mo-

del and the two other variations of the proposed model

(AggrFCNRelu and AvrageAggr).

Table 2: The performance of the three variants of the pro-

posed model (AggrFCNSoftmax, AggrFCNRelu and Avra-

geAggr) and the FCN model.

Method IoU Accuracy

FCN (Chen et al., 2014) 0.5833 87.32

AvrageAggr 0.6231 87.64

AggrFCNSoftmax 0.6307 88.13

AggrFCNRelu 0.6151 87.91

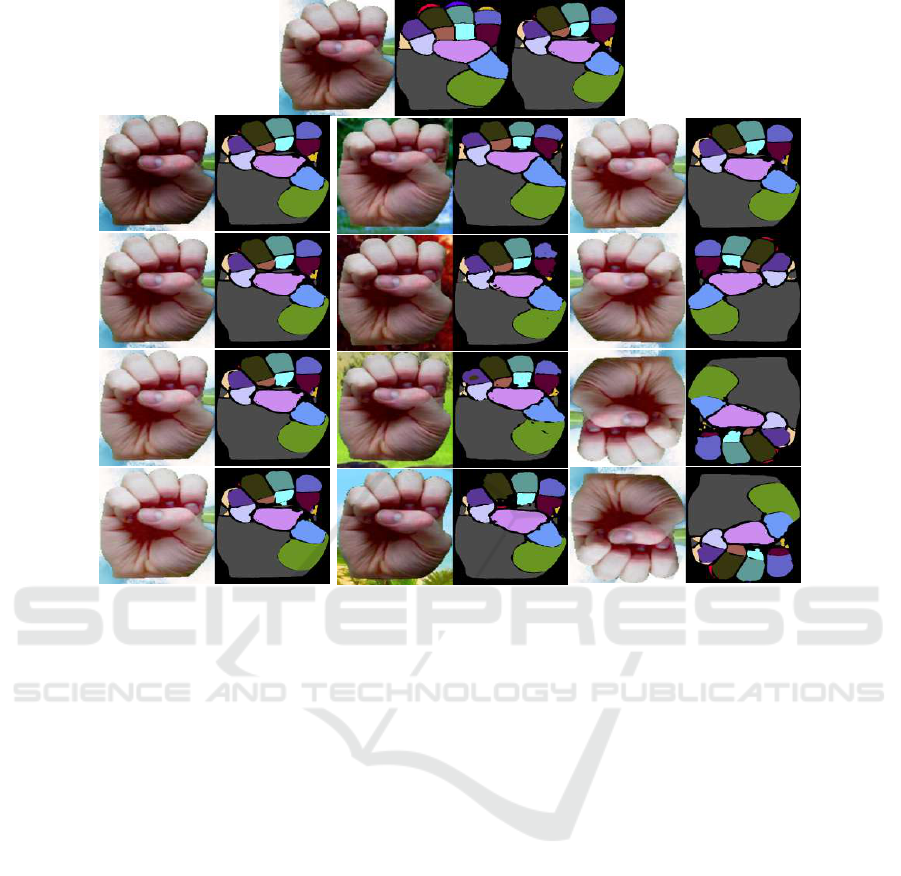

A Case Study

To assess the performance of the proposed model

on a concrete case, we select an image randomly

(see Figure 6) from the dataset.Then, we analyze

the performance of the proposed model under diffe-

rent conditions: illumination changing, background

changing, and image ﬂipping. With no effects on

the input image, our model achieved an IoU of

0.5515. Applying illumination effect based on non-

linear Gamma correction with different values (γ ∈

{0.5,1.0,1.5,2.5}) causes a degradation in the per-

formance of our model (IoU drops to 0.5515). This

degradation can be explained by the disappearance of

small parts in Figure 6-(col 1-2). Another issue was

investigated by changing the background and image

ﬂipping. Our experiments show that the changing in

the background IoU reduces to 0.5501 (see Figure 6-

(cols. 3-4)), while image ﬂipping reduces the IoU

to 0.5493 (see Figure 6-(cols. 5-6)). As shown, the

change of the IoU value around 0.55 under different

conditions, such illumination changes, adding back-

ground and image ﬂipping. Consequently, we can say

that the change on the global context of the input ima-

ges has insigniﬁcant impact on the ﬁnal decision of

the proposed model. It is important to note that dif-

ferent ﬁnger parts are discriminated using their rela-

tive location to the palm more than their appearance.

Thus, we can conclude that the model learns how to

extract global shape information from the input ima-

ges.

5 CONCLUSIONS

In this paper, we have proposed a novel deep lear-

ning based model for ﬁnger parts semantic segmen-

tation. The proposed model is based on generating

features maps with different resolution of an input

image. These features maps are then aggregated to-

gether using automated weights estimated from fully

connected layer. The estimated weights are used to

assign a high weight for the more important scaled

feature maps and suppress others. The generated fe-

ature maps are fed into an encoder-decoder network

with skip-connections to predict the ﬁnal segmenta-

tion mask. In addition, we have introduced a new da-

taset that can help to solve ﬁnger parts semantic seg-

mentation problem. To the best of our knowledge,

FingerParts is ﬁrst dataset for ﬁnger parts semantic

segmentation with real high resolution images. The

proposed model outperformed the standard FCN net-

work with an improvement of 5% in terms of the IoU

metric. Future work will include the use of the seg-

mented ﬁngers parts to improve the accuracy of ge-

sture recognition methods.

REFERENCES

Abdel-Nasser, M. and Mahmoud, K. (2017). Accurate pho-

tovoltaic power forecasting models using deep lstm-

rnn. Neural Computing and Applications, pages 1–14.

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2015).

Segnet: A deep convolutional encoder-decoder ar-

chitecture for image segmentation. arXiv preprint

arXiv:1511.00561.

Barczak, A., Reyes, N., Abastillas, M., Piccio, A., and Su-

snjak, T. (2011). A new 2d static hand gesture colour

image dataset for asl gestures.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2014). Semantic image segmentation

with deep convolutional nets and fully connected crfs.

arXiv preprint arXiv:1412.7062.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2018). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous convo-

lution, and fully connected crfs. IEEE transactions on

pattern analysis and machine intelligence, 40(4):834–

848.

Dong, C., Loy, C. C., He, K., and Tang, X. (2014). Le-

arning a deep convolutional network for image super-

resolution. In European conference on computer vi-

sion, pages 184–199. Springer.

Eigen, D. and Fergus, R. (2015). Predicting depth, surface

normals and semantic labels with a common multi-

scale convolutional architecture. In Proceedings of the

IEEE International Conference on Computer Vision,

pages 2650–2658.

Eigen, D., Krishnan, D., and Fergus, R. (2013). Restoring

an image taken through a window covered with dirt or

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

GT BaseLine Av.

Generalized

Agg.+ Softmax

Generalized

Agg.+ Relu

Figure 5: A visual comparison between the different versions of proposed model (FinSeg) and the FCN model with the

FingerParts dataset. Input images (col. 1), ground-truth (col. 2), results of the FCN model (col. 3), results of AvrageAggr

(col. 4), results of AggrFCNSoftmax (col. 5), and results of AggrFCNSoftmax (col. 6).

rain. In Proceedings of the IEEE international confe-

rence on computer vision, pages 633–640.

Eigen, D., Puhrsch, C., and Fergus, R. (2014). Depth map

prediction from a single image using a multi-scale

deep network. In Advances in neural information pro-

cessing systems, pages 2366–2374.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the

IEEE conference on computer vision and pattern re-

cognition, pages 580–587.

Grzejszczak, T., Kawulok, M., and Galuszka, A. (2016).

Hand landmarks detection and localization in co-

lor images. Multimedia Tools and Applications,

75(23):16363–16387.

Kawulok, M., Kawulok, J., Nalepa, J., and Smolka, B.

FinSeg: Finger Parts Semantic Segmentation using Multi-scale Feature Maps Aggregation of FCN

Figure 6: Analyzing the performance of the proposed model under different conditions: illumination changing (cols. 1-2),

background changing (cols. 3-4), and image ﬂipping (cols. 5-6).

(2014). Self-adaptive algorithm for segmenting skin

regions. EURASIP Journal on Advances in Signal

Processing, 2014(1):170.

Liang, X., Gong, K., Shen, X., and Lin, L. (2018). Look into

person: Joint body parsing & pose estimation network

and a new benchmark. IEEE Transactions on Pattern

Analysis and Machine Intelligence.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Nalepa, J. and Kawulok, M. (2014). Fast and accurate

hand shape classiﬁcation. In International Confe-

rence: Beyond Databases, Architectures and Structu-

res, pages 364–373. Springer.

Noh, H., Hong, S., and Han, B. (2015). Learning deconvo-

lution network for semantic segmentation. In Procee-

dings of the IEEE international conference on compu-

ter vision, pages 1520–1528.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Saleh, A., Abdel-Nasser, M., Garcia, M. A., and Puig, D.

(2018a). Aggregating the temporal coherent descrip-

tors in videos using multiple learning kernel for action

recognition. Pattern Recognition Letters, 105:4–12.

Saleh, A., Abdel-Nasser, M., Sarker, M. M. K., Singh,

V. K., Abdulwahab, S., Saffari, N., Garcia, M. A., and

Puig, D. (2018b). Deep visual embedding for image

classiﬁcation. In Innovative Trends in Computer En-

gineering (ITCE), 2018 International Conference on,

pages 31–35. IEEE.

Sarker, M., Kamal, M., Rashwan, H. A., Banu, S. F., Sa-

leh, A., Singh, V. K., Chowdhury, F. U., Abdulwa-

hab, S., Romani, S., Radeva, P., et al. (2018). Sls-

deep: Skin lesion segmentation based on dilated re-

sidual and pyramid pooling networks. arXiv preprint

arXiv:1805.10241.

Singh, V. K., Romani, S., Rashwan, H. A., Akram, F., Pan-

dey, N., Sarker, M., Kamal, M., Barrena, J. T., Saleh,

A., Arenas, M., et al. (2018). Conditional generative

adversarial and convolutional networks for x-ray bre-

ast mass segmentation and shape classiﬁcation. arXiv

preprint arXiv:1805.10207.

Zheng, S., Jayasumana, S., Romera-Paredes, B., Vineet, V.,

Su, Z., Du, D., Huang, C., and Torr, P. H. (2015). Con-

ditional random ﬁelds as recurrent neural networks. In

Proceedings of the IEEE international conference on

computer vision, pages 1529–1537.

Zimmermann, C. and Brox, T. (2017). Learning

to estimate 3d hand pose from single rgb

images. Technical report, arXiv:1705.01389.

https://arxiv.org/abs/1705.01389.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
