A Robust Page Frame Detection Method for Complex Historical

Document Images

Mohammad Mohsin Reza

, Md. Ajraf Rakib

, Syed Saqib Bukhari

and Andreas Dengel

1,2

Department of Computer Science, University of Kaiserslautern, Germany

Deutsche Forschungszentrum f

ur K

unstliche Intelligenz GmbH (DFKI), Kaiserslautern, Germany

Keywords:

Document Analysis, Document Pre-processing, Complex Historical Document Analysis, 16th-19th Century

German Books, Document Noise Removal, Page Frame.

Abstract:

Document layout analysis is the most important part of converting scanned page images into search-able full

text. An intensive amount of research is going on in the ﬁeld of structured and semi-structured documents

(journal articles, books, magazines, invoices) but not much in historical documents. Historical document

digitization is a more challenging task than regular structured documents due to poor image quality, damaged

characters, big amount of textual and non-textual noise. In the scientiﬁc community, the extraneous symbols

from the neighboring page are considered as textual noise, while the appearances of black borders, speckles,

ruler, different types of image etc. along the border of the documents are considered as non-textual noise.

Existing historical document analysis method cannot handle all of this noise which is a very strong reason

of getting undesired texts as a result from the output of Optical Character Recognition (OCR) that needs to

be removed afterward with a lot of extra afford. This paper presents a new perspective especially for the

historical document image cleanup by detecting the page frame of the document. The goal of this method is

to ﬁnd actual contents area of the document and ignore noises along the page border. We use morphological

transforms, the line segment detector, and geometric matching algorithm to ﬁnd an ideal page frame of the

document. After the implementation of page frame method, we also evaluate our approach over 16th-19th

century printed historical documents. We have noticed in the result that OCR performance for the historical

documents increased by 4.49% after applying our page frame detection method. In addition, we are able to

increase the OCR accuracy around 6.69% for contemporary documents too.

1 INTRODUCTION

There has been a resurgence of interest in Optical

Character Recognition (OCR) in recent years mainly

for digitizing document to increase re-usability of

information. Automatic data processing plays a vital

role in the processing of huge documents quickly

to make our daily life not only easier but also get

more beneﬁt to reuse the information and achieve.

Currently, the usage of contemporary and invoice

type documents is very high in our daily life but

it is also clearly noticeable from the last couple of

years that people are showing their interest in the

digitization of historical documents. By considering

such interests, the government is also started to take

necessary steps for digitizing this huge archives.

Existing commercial OCR systems (like ABBYY

https://www.abbyy.com/

and OmniPage

) and open-source OCR systems (like

OCRopus

and Tesseract

) have traditionally been

optimized for contemporary documents like books,

letters, memos, and other end-user documents. How-

ever, OCR engines for digitization of historical

archives differ in their requirements from such tradi-

tional OCR systems mainly because of complex lay-

outs and ancient character style. In addition, OCR

systems traditionally have usually been developed for

speciﬁc scripts and languages, and it is difﬁcult to

train them for old scripts that can give high per-

formance. There were some efforts from the re-

searchers to handle the challenging case of histori-

cal document images. One of the known open-source

OCR system called anyOCR (Bukhari et al., 2017)

https://www.nuance.com/print-capture-and-pdf-

solutions/optical-character-recognition/omnipage.html

https://github.com/tmbdev/ocropy

https://github.com/tesseract-ocr/tesseract

556

Reza, M., Rakib, M., Bukhari, S. and Dengel, A.

A Robust Page Frame Detection Method for Complex Historical Document Images.

DOI: 10.5220/0007382405560564

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 556-564

ISBN: 978-989-758-351-3

is specially developed for Latin script historical doc-

uments, but also remarkable for contemporary and

semi-structured documents like books, magazines, ar-

ticles etc. Recently, anyOCR system updated for in-

voice documents (Reza et al., 2018) by implementing

several methods including page frame.

In this paper, we present a page frame detection

approach for complex historical document images.

Figure 1(a) depicts a complex historical document im-

age whereas Figure 1(b) represents a contemporary

document image. The dataset we are using here is

quite challenging because of its noisy ruler, damaged

pages and other noisy objects around the page bound-

ary. To overcome this problem at ﬁrst we do the bina-

rization which Bukhari et al. (Bukhari et al., 2017)

used in his paper and skew correction (Gari et al.,

2017) (Wagdy et al., 2014) of a document image and

then apply morphological methods to detect and re-

move ruler. After removing the ruler we use different

approaches to ﬁlter noise and detect document content

area.

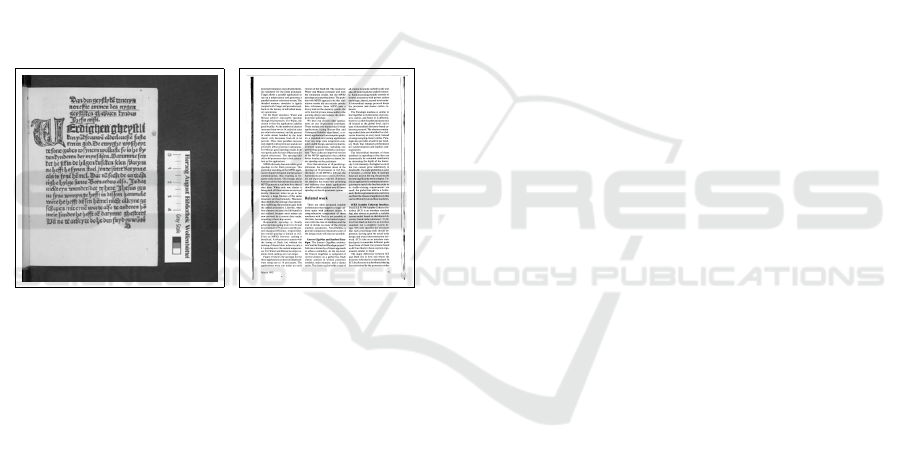

(a) (b)

Figure 1: Historical Vs. Contemporary Image. (a) A sam-

ple Historical document image, and (b) A sample Contem-

porary image.

The rest of the paper is organized as follows. Af-

ter discussing related work in Section 2, our proposed

method discussed in Section 3 for page frame de-

tection for historical documents followed by perfor-

mance evaluation in Section 4 to compare our result

with other systems. Finally, in Section 5 we conclude

our work.

2 RELATED WORK

Page frame detection for any kind of document is

a very challenging task, especially historical docu-

ment. According to Shafait et al. (Shafait et al., 2008)

there are basically two different kinds of noise gener-

ate along the border of the document while copying

or scanning a book page, one of them is called tex-

tual noise (extraneous symbols from the neighbouring

page) and another is non-textual noise such as black

borders, speckles etc. Textual noise may become a

reason of getting an unwanted result after the process-

ing of Optical Character Recognition(OCR). In any-

OCR system, Bukhari et al. (Bukhari et al., 2017) are

using a method called text-image segmentation that

is very effective for removing non-textual noise from

a document. Similarly, Shafait et al. (Shafait and

Breuel, 2009) are removing textual noise from a doc-

ument, which is also performing well over contempo-

rary documents. Shafait and Breuel have combined

projection proﬁle analysis with connected component

removal to implement their method that can recog-

nize the borders of noise areas. However, our target

is ﬁrst to remove both textual and non-textual noise

from more challenging historical documents that oc-

cur in the page border area and then detect the page

frame area based on the content area of the docu-

ments. Before implementing our approach, we have

investigated a couple of papers to know the contribu-

tion of other researchers in the area of page frame de-

tection. So far we do not ﬁnd enough work related to

page frame detection for historical document images

but there are few papers available online that mention

about page frame detection for general documents.

Shafait et al. (Shafait et al., 2007) applied a

method that shows how to detect the page frame with

the uses of a geometric matching algorithm that is ig-

noring the presence of white-space between real page

contents and noisy borders. Authors have reduced the

error rate of OCR by using this page frame method

over UW-III dataset (Phillips, 1996) which is con-

temporary documents dataset. However, page frame

recognition of historical documents is comparatively

harder than general documents. So, we have con-

sidered historical documents to develop our proposed

page frame detection method and ﬁnally, we evalu-

ate of this new page frame approach over both his-

torical and contemporary documents of two different

datasets.

According to Stamatopoulos et al. (Stamatopou-

los et al., 2010), we can detect the page frame of

two different page in a single document image. Here

authors have used some pre-processing (binarization,

noise-removal and image smoothing) technique to get

the vertical zones of two pages and after that, they

have calculated the horizontal zones of each page.

Nonetheless, this work is not exactly like our work

but still its related to page frame recognition. So, we

have noticed every single document image of this pa-

per and found that the used documents contain less

page border noise compare to ours.

As like the work of Stamatopoulos et al. (Stam-

atopoulos et al., 2010) another page frame method is

developed by Bukhari et al. (Bukhari et al., 2012)

A Robust Page Frame Detection Method for Complex Historical Document Images

557

where they have also taken the help of pre-processing

(binarization and text or non-text segmentation) tech-

niques and detect the text lines before applying the

straight-line approximation algorithm over the start-

ing and ending points of the ridges to get the page

frame regions of documents. DFKI-I dataset (which

is camera captured document images) has been used

for the evaluation of this page frame approach that

contains pages of several technical books. The prob-

lem we faced during the analysis of historical doc-

ument images is still unsolved and this gives us the

motivation for developing a new page frame method

especially for complex historical document images.

In the paper, Cinque et al. (Cinque et al., 2002)

give an excellent explanation about three major prob-

lems (print-through, marginal artifacts, and partial ex-

tra pages) that we ﬁnd in most of the documents. They

have used a page segmentation method to recognize

different sections and the page frame area of the doc-

ument images. Authors measured the content area of

the document image to detect the page frame region

of a document image. In the end, the method is tested

over UW-III dataset and achieved good results too.

However, as our concern about historical documents

we planned to test our page frame detection approach

over historical documents image dataset, as well as

the general documents dataset.

There is an excellent work done by Stamatopou-

los et al. (Stamatopoulos et al., 2007) on border de-

tection and noise removal for historical documents

by using the combination of projection proﬁles and

connected component labelling process. Authors of

that paper mainly work on camera captured histor-

ical documents where writers introduced a method

that can automatically recognize the document bor-

ders and splits not only the black borders but also the

noisy text areas from the neighbouring pages. Finally,

to verify the recognized noisy text areas authors have

also used signal cross-correlation. Nevertheless, the

historical documents we have used for the develop-

ment of this proposed page frame recognition method

is more challenging as compared to the used docu-

ment images by Stamatopoulos et al. (Stamatopoulos

et al., 2007).

However, the purpose of this paper is to intro-

duce a method that may help others to work on more

complex historical documents which contain multi-

ple page borders as well as other unexpected object

shapes like a ruler, knife, and so on.

3 PAGE FRAME DETECTION

METHOD FOR HISTORICAL

DOCUMENTS

From the overview of the related work, a reader can

get a very good idea about the contribution of differ-

ent researchers in page frame detection. With due re-

spect to all the researchers, we want to mention that

most of the research has been done based on con-

temporary documents where the researchers have also

found good accuracy in OCR after detecting the page

frame and removing the noises from the borders but

there is very less work done for historical document

page frame detection. If we apply the methods that are

developed based on contemporary documents then we

get less accuracy in the OCR.

In our related work, we have mentioned an ex-

cellent work of historical documents page frame de-

tection method which is introduced by Stamatopou-

los et al. (Stamatopoulos et al., 2007). This method

can recognize the page border from camera captured

documents and remove the noises that occur from the

neighbouring page of the document images. Instead

of this work, we do not ﬁnd any other work on his-

torical documents page frame detection. Due to that

reason, we have implemented our own method that

can remove the noisy ruler or other objects which has

a shape like a ruler and after removing that ruler or

object our method can recognize the page frame area

of the document images which is the goal of our work.

German 16th-19th Century historical documents

also contain the above mentioned problem. Remov-

ing those noise from a historical document image is

not an easy task because that does not handle by other

pre-processing methods like binarization or existing

page frame detection. The ruler detection is a very

challenging task because ruler contains value along

with text which also considers as text noise and needs

to remove. We have tried different approaches to de-

tect and remove the ruler from images. Our two dif-

ferent page frame approaches are shown in Figure 2.

Before detecting page frame, we have decided to use

the image binarization and deskewing technique im-

plemented by Bukhari et al. (Bukhari et al., 2017).

The binarization technique uses a percentile based bi-

narization method that is suitable for different types of

grayscale document images from properly scanned to

camera-captured having non-uniform illuminations,

low contrast.

Figure 3(a) depicts the view of the original im-

age and Figure 3(b) represents the image after using

percentile binarization method of the anyOCR sys-

tem (Bukhari et al., 2017). After applying the per-

centile binarization technique we have used the con-

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

558

tours function of OpenCV library (Itseez, 2015) to de-

tect the shape of the ruler in the document images and

ﬁll with white background. Figure 4(b) shows the de-

tected ruler shape from Figure 4(a) document image

and Figure 5 illustrates the document image after re-

moving the ruler with white pixels.

As we already get the document image without

the noisy ruler, now we can use text area detection

method to get the text area of the document image.

Here, we have used another function of OpenCV

called morphological transformation (Itseez, 2014) to

detect the text area of the document image. We get

the outline of each text objects by using the morpho-

logical gradient. Then we merge all the necessary text

boundary box as column wise that may help us to

get the page frame area of the document image. Fi-

nally, we get our desired content area and crop the

area from the document image for further use of opti-

cal character recognition. Additionally, we have also

made another approach of page frame detection by us-

ing the line segment detector (LSD) (G. Randall and

Morel, 2008) where we detect the text boundary line

of a document image. Figure 8 and 10 shows the page

boundary area over different historical document im-

ages and Figure 9 and 11 represents the ﬁnal output

of our page frame detection method.

3.1 Noisy Ruler Removal

This is the ﬁrst stage for our page frame method. We

apply our method over a binary image:

I(x, y) = {0, 1} 0 ≤ x < I

, 0 ≤ y < I

(1)

In the noisy ruler removal step, we detect ruler using

OpenCV contours (Itseez, 2014). Contours is a curve

joining all the continuous points along the boundary,

having same colour or intensity. It is a very useful

method for shape analysis and object detection. This

method basically detects all the shape of text or non-

text object.

OpenCV contours perform better over binarize

image. Before applying contours, a threshold and

canny edge detection (Canny, 1986) should be applied

over the binary image. Algorithm 1 is used to ﬁnd par-

ent rectangles by removing child rectangles from the

document image.

A ruler is basically a rectangular object which

is laid on the boundary side. We consider rectangle

area between 30% to 1% of the document image area

and height:width ratio is 10:3 or vice-versa to assume

as a ruler. We ﬁlter out rest of the rectangles which

does not match with the above threshold value. We

then make ruler area as a ﬁlled white background.

The main idea to remove ruler is to avoid text noise in-

Algorithm 1: Find parent rectangles by removing

child rectangles.

Data: rect

Result: Find parent rectangles

for i in 1 : len(rect) do

, y

, w

, h

= rect[i];

for j in i + 1 : length(rect) do

, y

, w

, h

= rect[ j];

if (x

) and ((x

+ w

) > (x

))

and (y

) and ((y

+ h

) >

)) and (h : w < > 10 : 3) then

remove rect[ j];

side of the ruler which make easy to detect main text

content.

3.2 Detect Text-area

In this stage, we use OpenCV morphological trans-

formation (Itseez, 2014) to detect text area of the doc-

ument image. We do morphological gradient to get

the outline of the objects Figure 6(a) and then apply

morphological close transformation over the inverse

of the document. Morphological close transforma-

tion use to closing small holes (Figure 6(b)) inside

the foreground objects to make symbols intact, clean

and thin object shape as like Figure 6(c).

We used OpenCV contours with kernel size [10,1]

to get text bounding area which is shown in Figure

7. We ﬁlter out bounding area where the black pixel

contains less than 45%, width of the box is W > 90%

> 15 and height of the box is H > 50% > 15 (where

W is document width and H is document height) to

precise text bounding area.

3.3 Page Frame Detection using Text

Bounding Box

We merge all text boundary box column wise if the X-

axis of one boundary box lay on the X-axis of other

boundary box and the box area is larger than 5% of the

total image area usually not in the page border area.

We may get more than one column boundary box

as shown in Figure 8. This column boundary box may

contain noisy text area coming from the neighbour-

ing area or part of the main page content area. To

distinguish this, we apply some heuristic geometrical

calculation to decide whether marge or remove those

columns to get the main page frame area. We merge

columns if the column width is below 55% of original

image width and pixel space between columns is less

than 4% of the original image width.

A Robust Page Frame Detection Method for Complex Historical Document Images

559

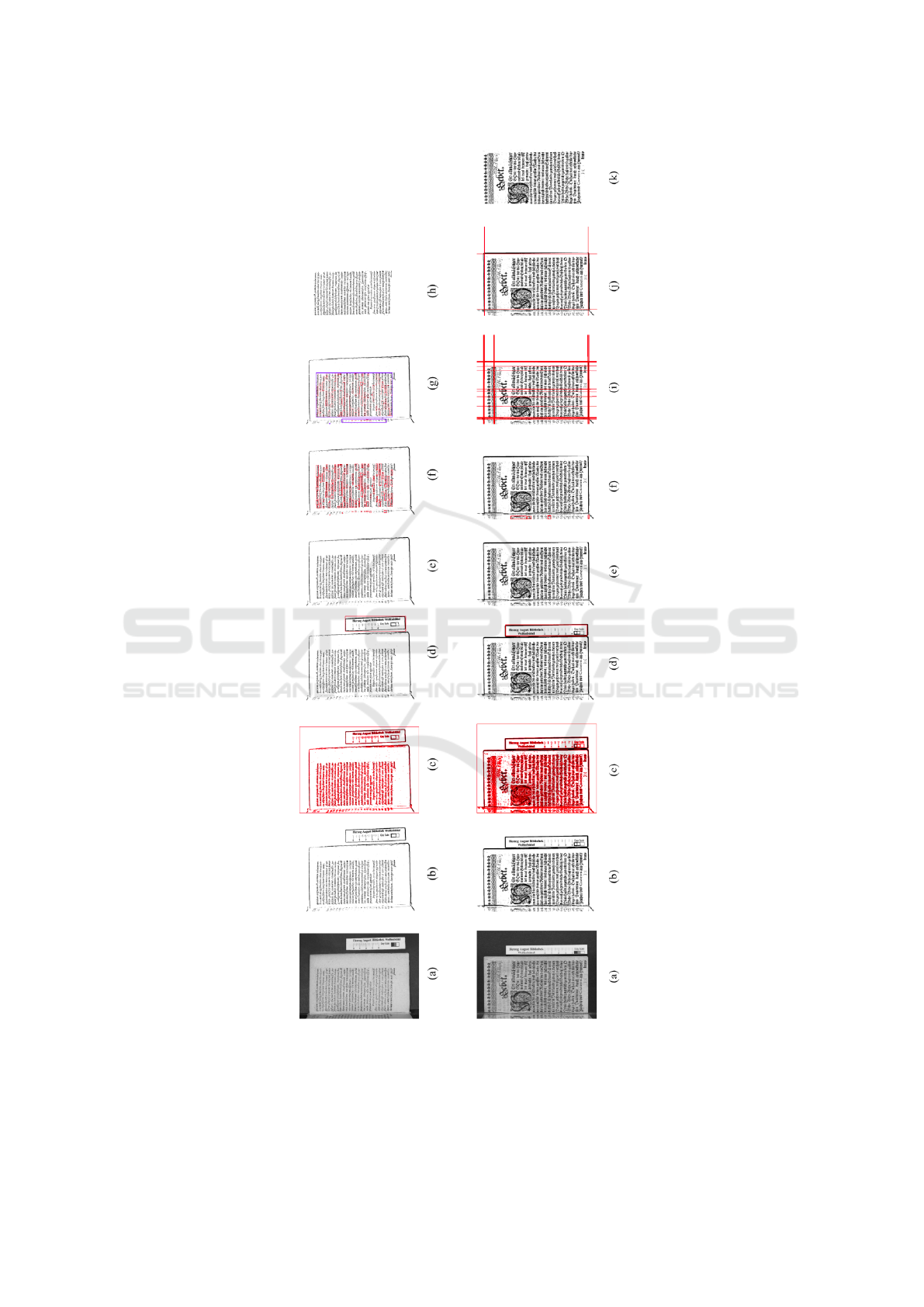

Figure 2: Complete processing steps of our page frame method over two different documents which perform two different

approaches. (a) Original historical document image, (b) Image after binarization process, (c) Apply contours to detect the

shape of every object, (d) Detect ruler after ﬁltering object area, (e) Remove ruler from the document, (f) Detect text area

boundary, (g) Detect page boundary area over the document image, (h) Final page frame by cropping boundary area through

Text Bounding Box, (i) Line detection using LSD , (j) Line detection by ﬁltering in border region, and (h) Final page frame

by cropping boundary area through LSD.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

560

(a) (b)

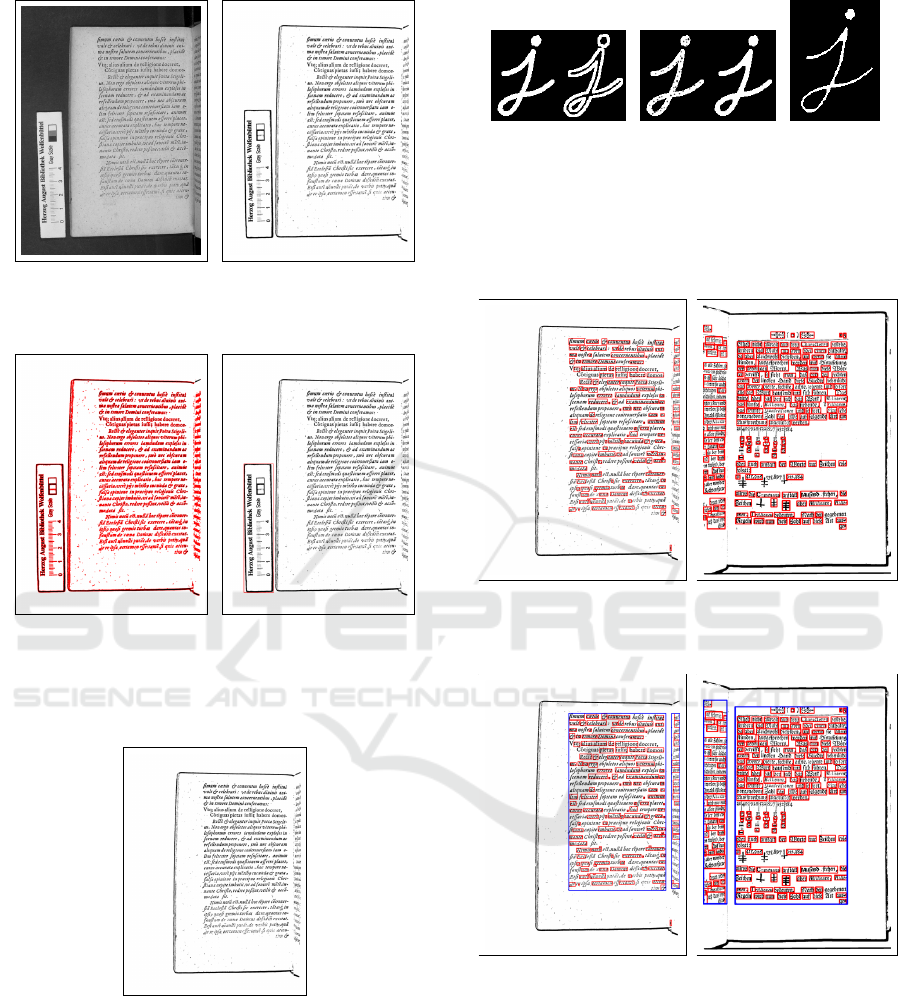

Figure 3: Document binarization. (a) Original historical

document image, (b) Binarized image.

(a) (b)

Figure 4: Apply OpenCV contours and geometric algorithm

to detect ruler of the document: (a) Apply contours to de-

tect shape of every object, (b) detect ruler after applying

geometric algorithm.

Figure 5: Remove ruler from the document.

After getting page frame area coordinate using

this approach, we crop the page to ﬁnalize the page

frame shown in Figure 9 which is later used for OCR.

(a) (b) (c)

Figure 6: Apply different morphological transformation

over the document to make clean and intact each of the char-

acter or objects: (a) morphological Gradient operation gives

the outline of the object, (b) morphological Close operation

close small holes inside the object, (c) apply both operations

over each object to get the clean thin shape.

(a) (b)

Figure 7: Detect text area boundary over two different docu-

ments:(a) sample document one, (b) sample document two.

(a) (b)

Figure 8: Detect page boundary over two different docu-

ments:(a) sample document one, (b) sample document two.

3.4 Page Frame Detection using Line

Segment Detector

We have also used another approach to detect page

frame area. This method applies automatically when

our ﬁrst method does not satisfy. In this method, we

detect the boundary line by using the line segment

detector (LSD) (von Gioi et al., 2010) which gives

A Robust Page Frame Detection Method for Complex Historical Document Images

561

(a) (b)

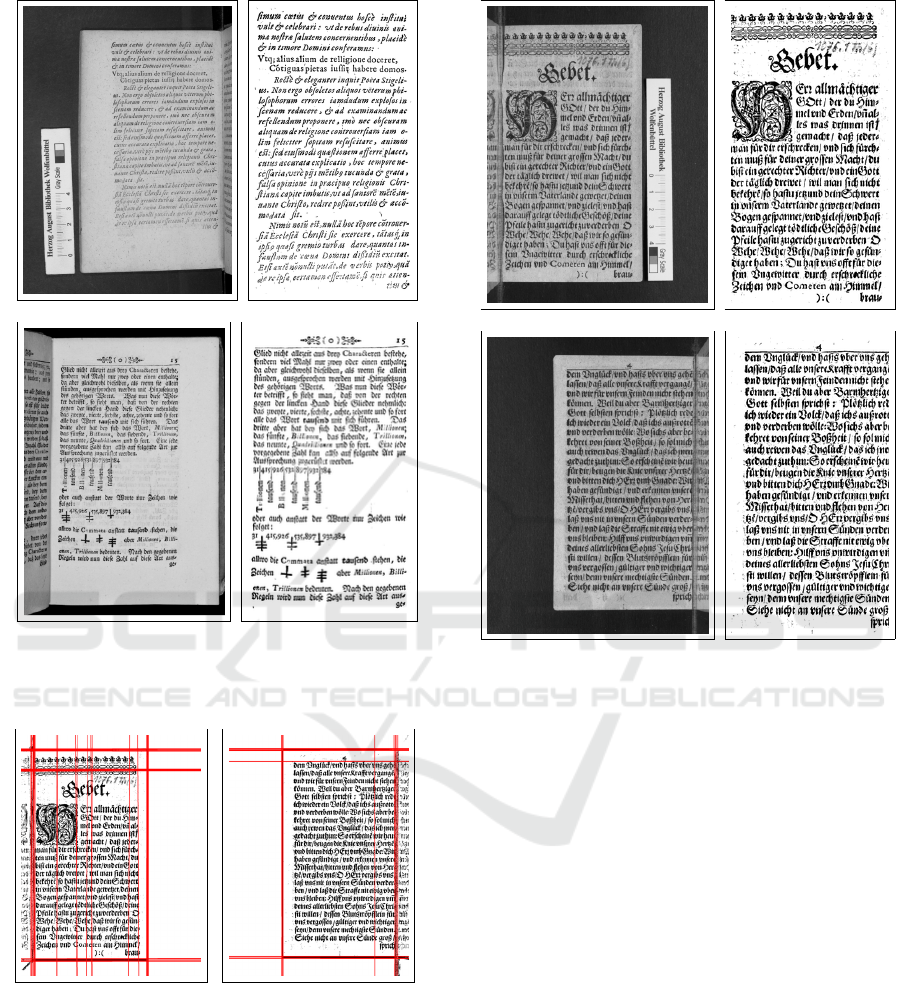

Figure 9: Page frame detection using our text bounding box

method: (a)(c) Original image, (b)(d) after applying our

method.

(a) (b)

Figure 10: Border line detection over different documents

using LSD : (a) a sample document one, (b) a sample docu-

ment two.

important information about the geometric content of

images. Line segments can be used as low-level fea-

tures to extract information from images. In our ap-

proach, we ﬁrst apply LSD to detect all possible lines

in the image. Then we consider the lines which have

the length more than 45 pixels and lay down on the

border region. The border region considered as 25%

(a) (b)

Figure 11: Another approach of our page frame detection

using Line Segment Detector: (a)(c) Original image, (b)(d)

after applying our method.

from left, 25% from right, 40% from the top and 40%

from the bottom. If three lines from left, right, top and

bottom found closely (a maximum 15-pixel difference

between lines) then we consider it as boundary line as

shown in Figure 10. Finally, we crop the image to get

page frame which is shown in Figure 11(b) and 11(d).

4 EXPERIMENT RESULTS

For the evaluation of our newly introduced page frame

detection method, we used 16th to 19th-century OCR-

D historical dataset consists of 124 scanned document

images. Out of this 124 images we have used 10

images for the training purpose (i.e., parameter op-

timization) and 114 images for the testing purpose.

We have mentioned earlier that this page frame detec-

tion method mainly developed for handling the dif-

ﬁculties of historical document images, but we also

want to check the performance of this new method

over the contemporary dataset. So, we have taken 74

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

562

Table 1: Performance evaluation on OCR-D historical doc-

uments before and after applying page frame detection

method [training images 10 and test images 114].

Dataset Before After

Train 78.15% 84.84%

Test 78.98% 83.47%

Table 2: Performance evaluation on UW-III contemporary

documents before and after applying page frame detection

method [training images 14 and test images 60].

Dataset Before After

Train 87.79% 94.01%

Test 84.75% 91.44%

images from UW-III dataset as contemporary docu-

ments where we used 14 images for training and 60

images for testing.

There is no existing page frame evaluation method

available in the community. Due to that reason, we

decided to evaluate by considering OCRed text output

performance of the Tesseract OCR system. Tesser-

act Fraktur language model has used to do the OCR

over the OCR-D historical document images. Simi-

larly, English + German language model has used for

UW-III document images. We used the Levenshtein

distance algorithm to check the OCR accuracy of a

generated text ﬁle. First of all, we calculate the accu-

racy of the OCRed text output over the original noisy

image and then we again calculate the accuracy over

the same images after removing noise by using our

page frame method.

We also tried to use ABBYY online OCR system

with Fraktur language model but failed to do the OCR

for all the training dataset. Surprisingly, only one

document performed OCR with Fraktur model and

another one document with the combination of En-

glish and German language model over original doc-

ument images. We also used that system after ap-

plying the new page frame method and found that

only two documents generate the OCRed text with

Fraktur and three documents with English and Ger-

man model. The anyOCR system performs well for

Latin typescript documents and it does not contain

the Fraktur language model. So, we could not test

our page frame detection method with this anyOCR

system. Table 1 shows that our page frame method

increases the OCRed text accuracy from 78.98% to

83.47% for historical documents. Similarly, it also

performed well over contemporary document images

by improving the accuracy from 84.75% to 91.44%

(Table 2).

5 CONCLUSION

In this paper, we proposed an advanced page frame

detection method for historical document images.

This mechanism is good enough to remove various

kind of noises from page boundary. For the evaluation

of our implemented page frame detection method, we

used different OCR systems to check the accuracy of

optical character recognition before and after apply-

ing this newly developed page frame approach. We

have used two different datasets to test our mecha-

nism. In both cases, we achieved better accuracy after

applying our page frame method. Moreover, the pro-

posed page frame detection method is able to improve

the OCR accuracy up to 4.49% for the historical and

6.69% for the contemporary document images.

REFERENCES

Bukhari, S. S., Kadi, A., Ayman, J. M., and Dengel, A.

(2017). anyocr: An open-source ocr system for his-

torical archives. In ICDAR.

Bukhari, S. S., Shafait, F., and Breuel, T. M. (2012). Bor-

der noise removal of camera-captured document im-

ages using page frame detection. In Iwamura, M. and

Shafait, F., editors, Camera-Based Document Analysis

and Recognition, pages 126–137, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 8:679–698.

Cinque, L., Levialdi, S., Lombardi, L., and Tanimoto, S.

(2002). Segmentation of page images having artifacts

of photocopying and scanning. Pattern Recognition,

35(5):1167 – 1177. Handwriting Processing and Ap-

plications.

G. Randall, J. Jakubowicz, R. G. v. G. and Morel, J. (2008).

Lsd: A fast line segment detector with a false detec-

tion control. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 32:722–732.

Gari, A., Khaissidi, G., Mrabti, M., Chenouni, D., and

Yacoubi, M. E. (2017). Skew detection and correc-

tion based on hough transform and harris corners. In

2017 International Conference on Wireless Technolo-

gies, Embedded and Intelligent Systems (WITS), pages

1–4.

Itseez (2014). The OpenCV Reference Manual, 2.4.9.0 edi-

tion.

Itseez (2015). Open source computer vision library.

Phillips, I. T. (1996). UW-III english/technical document

image database manual. User’s Reference Manual for

the UW English/Technical Document Image Database

III.

Reza, M. M., Rakib, M. A., Bukhari, S. S., and Dengel, A.

(2018). A high-performance document image layout

analysis for invoices. In DAS2018.

A Robust Page Frame Detection Method for Complex Historical Document Images

563

Shafait, F. and Breuel, T. M. (2009). A simple and effective

approach for border noise removal from document im-

ages. 2009 IEEE 13th International Multitopic Con-

ference, pages 1–5.

Shafait, F., van Beusekom, J., Keysers, D., and Breuel,

T. M. (2007). Page frame detection for marginal noise

removal from scanned documents. In SCIA.

Shafait, F., van Beusekom, J., Keysers, D., and Breuel,

T. M. (2008). Document cleanup using page frame

detection. International Journal of Document Analy-

sis and Recognition (IJDAR), 11:81–96.

Stamatopoulos, N., Gatos, B., and Georgiou, T. (2010).

Page frame detection for double page document im-

ages. In Proceedings of the 9th IAPR International

Workshop on Document Analysis Systems, DAS ’10,

pages 401–408, New York, NY, USA. ACM.

Stamatopoulos, N., Gatos, B., and Kesidis, A. (2007). Au-

tomatic borders detection of camera document im-

ages. In 2nd International Workshop on Camera-

Based Document Analysis and Recognition, Curitiba,

Brazil, pages 71–78.

von Gioi, R. G., Jakubowicz, J., Morel, J., and Randall, G.

(2010). Lsd: A fast line segment detector with a false

detection control. IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, 32(4):722–732.

Wagdy, M., Faye, I., and Rohaya, D. (2014). Document

image skew detection and correction method based

on extreme points. In 2014 International Conference

on Computer and Information Sciences (ICCOINS),

pages 1–5.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

564
