Probability based Proof Number Search

Zhang Song

, Hiroyuki Iida

, H. Jaap van den Herik

Japan Advanced Institute of Science and Technology, Ishikawa, Japan

Leiden Centre of Data Science, Leiden, The Netherlands

Keywords:

Probability, Monte-Carlo Simulations, Proof Number Search, Game Solver.

Abstract:

Probability based proof number search (PPN-search) is a game tree search algorithm improved from proof

number search (PN-search) (Allis et al., 1994), with applications in solving games or endgame positions.

PPN-search uses one indicator named “probability based proof number” (PPN) to indicate the “probability”

of proving a node. The PPN of a leaf node is derived from Monte-Carlo evaluations. The PPN of an internal

node is backpropagated from its children following AND/OR probability rules. For each iteration, PPN-search

selects the child with the maximum PPN at OR nodes and minimum PPN at AND nodes. This holds from

the root to a leaf. The resultant node is considered to be the most proving node for expansion. In this paper,

we investigate the performance of PPN-search on P-game trees (Kocsis and Szepesv

ari, 2006) and compare

our results with those from other game solvers such as MCPN-search (Saito et al., 2006), PN-search, the UCT

solver (Winands et al., 2008), and the pure MCTS solver (Winands et al., 2008). The experimental results

show that (1) PPN-search takes less time and fewer iterations to solve a P-game tree on average, and (2) the

error rate of selecting a correct solution decreases faster and more smoothly as the iteration number increases.

1 INTRODUCTION

Proof number search (PN-search) (Allis et al., 1994)

is a search algorithm and is one of the most successful

approaches for solving games or endgame positions.

In PN-search, each node in a search tree incorporates

two indicators called proof number and disproof num-

ber, respectively, indicating the “difﬁculty” of proving

and disproving a game position corresponding with

this node. For all unsolved nodes (leaf nodes), the

proof number and disproof number are 1. For a win-

ning node, the proof number and disproof number are

0 and inﬁnity, respectively. For a non-winning node,

it is the reverse. For internal nodes, the proof num-

ber and disproof number are backpropagated from its

children following MIN/SUM rules: at OR nodes, the

proof number equals the minimum proof number of

its children, and the disproof number equals the sum-

mation of the disproof numbers of its children. It is

the reverse for AND nodes. For each iteration, go-

ing from the root to a leaf node, PN-search selects ei-

ther the child with the minimum proof number at OR

nodes, or the child with the minimum disproof num-

ber at AND nodes. Finally, it regards the leaf node

arrived at as the most proving node to expand. PN-

search is an advanced approach for proving the game-

theoretic value, especially for sudden-death games

that may abruptly end by the creation of one of a pre-

speciﬁed set of patterns such as they occur in Gomoku

and Chess. PN-search works so well because the two

games mentioned usually have an unbalanced game

tree with various branching factors. Obviously, the

proof number and disproof number are highly instru-

mental when the branching factor varies. As a result,

the proof number and disproof number can give dis-

tinguishable information to indicate the shortest path

of proving or disproving a node. For games with a

balanced tree and with an almost ﬁxed depth and an

almost ﬁxed branching factor such as Hex and Go, the

PN-search is quite weak, because the proof numbers

and disproof numbers are too similar to give distin-

guishable information.

To solve this obstacle, some PN-search variants

were proposed with the idea of using a parameter

to enforce a deeper search, such as Deep PN-search

(Ishitobi et al., 2015) and Deep df-pn (Zhang et al.,

2017). Another possible solution is to utilize the

heuristic information of the leaf node, such as df-pn*

(Nagai, 2002). In the last few years, the Monte-Carlo

tree search (MCTS) (Chaslot, 2010) has become quite

successful on balanced tree games such as Go. Hence,

using Monte-Carlo evaluations to obtain the proof

Song, Z., Iida, H. and van den Herik, H.

Probability based Proof Number Search.

DOI: 10.5220/0007386806610668

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2019), pages 661-668

ISBN: 978-989-758-350-6

661

number and disproof number of the leaf nodes is a

new promising method to improve PN-search. One

pointer in this direction is the Monte-Carlo proof

number search (MCPN-search) (Saito et al., 2006).

MCPN-search has exactly the same rules as PN-

search except that the proof number and the disproof

number of unsolved nodes are derived from Monte-

Carlo simulations. This method makes MCPN-search

more efﬁcient than PN-search especially in balanced

tree games. However, there still is a new obstacle in

MCPN-search: using the same backpropagation rules

(MIN/SUM rules) as PN-search does not work well

with Monte-Carlo evaluations, as the Monte-Carlo

evaluation leads to a convergent real number while

the MIN/SUM rules are proposed for discrete integer

numbers. Hence, it will cause an information loss of

the Monte-Carlo evaluations in the backpropagation

step.

In this paper, we propose a new application of

Monte-Carlo proof number search named probability

based proof number search (PPN-search). The idea

originates from the concept ”searching with proba-

bilities” (Palay, 1983). The core idea is that the

probability of proving a node is computed from the

probabilities of proving its children while following

the AND/OR rules of probability events. The com-

bined operation is based on the hypothesis that prov-

ing each of the children of a node is an independent

event. In Palay (1983), this idea is applied on B*

search (Berliner, 1981) without using Monte-Carlo

evaluations. In this paper, we adopt the idea together

with Monte-Carlo evaluations on PN-search and pro-

pose a new search algorithm called probability based

proof number search (PPN-search). To show the efﬁ-

ciency of PPN-search, we conduct experiments on P-

game trees (Kocsis and Szepesv

ari, 2006) which are

randomly constructed game trees with a ﬁxed depth

and a ﬁxed branching factor, normally used to sim-

ulate balanced game trees, such as the ones occur-

ring in Hex and Go. We compare the performance

of PPN-search, MCPN-search, PN-search and other

Monte-Carlo based game solvers such as the pure

MCTS solver (Winands et al., 2008) and the UCT

solver (MCTS solver equipped with the Upper Con-

ﬁdence Bounds applied to Trees). The experimental

results show that PPN-search outperforms other ex-

isting solvers by taking less time and fewer iterations

to converge to the correct solution on average. More-

over, the error rate of the selected moves decreases

faster and more smoothly as the number of iterations

increases.

The rest of the paper is organized as follows. In

Section 2, the formalism and the algorithm of PPN-

search are presented. In Section 3, two benchmarks

about Monte-Carlo based game solvers are introduced

and the relations between PPN-search and these game

solvers are discussed. We conduct experiments and

discuss the results in Section 4. Finally, we conclude

in Section 5.

2 PROBABILITY BASED PROOF

NUMBER SEARCH

In this section, we present the main concept (Subsec-

tion 2.1), the formalism (Subsection 2.2), and the al-

gorithm (Subsection 2.3) of probability based proof

number search (PPN-search).

2.1 Main Concept

In PPN-search, only one indicator is incorporated in

each node. The indicator is the probability. It indi-

cates the probability of proving a node. The PPN of

a leaf node is derived from Monte-Carlo simulations.

For each iteration, for all nodes from the root to a leaf

node, PPN-search selects the child with the maximum

PPN at OR nodes and the child with the minimum

PPN at AND nodes. The resultant node is regarded

as the most proving node for expansion. When new

nodes are available, PPNs are backpropagated to the

root while following the AND/OR probability rules.

Similar to the proof number, the PPN is highly rel-

evant with the branching factor because of the prob-

ability rules. So the PPN contains the information of

the tree structure above the leaf nodes. Moreover, the

Monte-Carlo simulations give the PPN more informa-

tion beneath the leaf nodes. As a result, PPN becomes

such a domain independent heuristic combining the

information above and beneath the leaf nodes.

2.2 Probability Based Proof Number

Let n. ppn be the PPN of a node n. There are three

types of nodes to be discussed below.

(1) Assume n is a terminal node

(a) If n is a winning node,

n. ppn = 1.

(b) If n is not a winning node,

n. ppn = 0.

(2) Assume n is a leaf node (not terminal), and

R is the winning rate computed by applying several

playouts from this node. Take θ as a small positive

number close to 0.

(a) If R ∈ (0, 1),

n. ppn = R.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

662

(b) If R = 1,

n. ppn = R −θ.

n. ppn = R + θ.

(3) Assume n is an internal node, using AND/OR

probability rules of independent events.

(a) If n is an OR node,

n. ppn = 1 −

∏

∈ children of n

1 −n

. ppn (1)

(b) If n is an AND node,

n. ppn =

∏

∈ children of n

. ppn (2)

2.3 Algorithm

The PPN-search includes the following four steps.

(1) Selection: for all nodes from the root to a leaf

node, do select the child with the maximum PPN at

OR nodes and the child with the minimum PPN at

AND nodes, while regarding it as the most proving

node for expansion.

(2) Expansion: expanding the most proving node.

(3) Play-out: The play-out step begins when we

enter a position that is not a part of the tree yet. Moves

are selected in a randomly self-play mode until the

end of the game. After several play-outs, the PPNs

of the expanded nodes are derived from Monte-Carlo

evaluations.

(4) Backpropagation: updating the PPNs from

the extended nodes to the root, while following the

AND/OR probability rules given above.

3 BENCHMARKS

In this section, two benchmarks of the type Monte-

Carlo based game solver are introduced (see Subsec-

tion 3.1 and Subsection 3.2). Moreover, the relations

between PPN-search and these two benchmarks are

discussed.

3.1 Monte-Carlo Proof Number Search

Monte-Carlo proof number search (MCPN-search)

(Saito et al., 2006) is an enhanced proof number

search by adding the ﬂexible Monte-Carlo evaluation

to the leaf nodes. We discuss three differences be-

tween MCPN-search and PPN-search.

(1) MCPN-search uses two indicators: proof num-

ber (PN) and disproof number (DN). The PN (DN)

of a leaf node equals the non-winning (winning) rate

derived from Monte-Carlo simulations. In contrast,

PPN-search uses only one indicator PPN. The PPN

of a leaf node equals the winning rate derived from

Monte-Carlo simulations.

(2) MCPN-search when going from the root to

a leaf node, selects the child with the minimum PN

(DN) taking into consideration whether the current

node is an OR (AND) node, just as the original PN-

search. In contrast, PPN-search when going from the

root to a leaf node, solely selects the child with the

maximum PPN at OR nodes and the child with the

minimum PPN at AND nodes.

(3) MCPN-search backpropagates PN and DN by

following MIN/SUM rules as the original PN-search.

In contrast, PPN-search backpropagates PPN by fol-

lowing the AND/OR probability rules of independent

events.

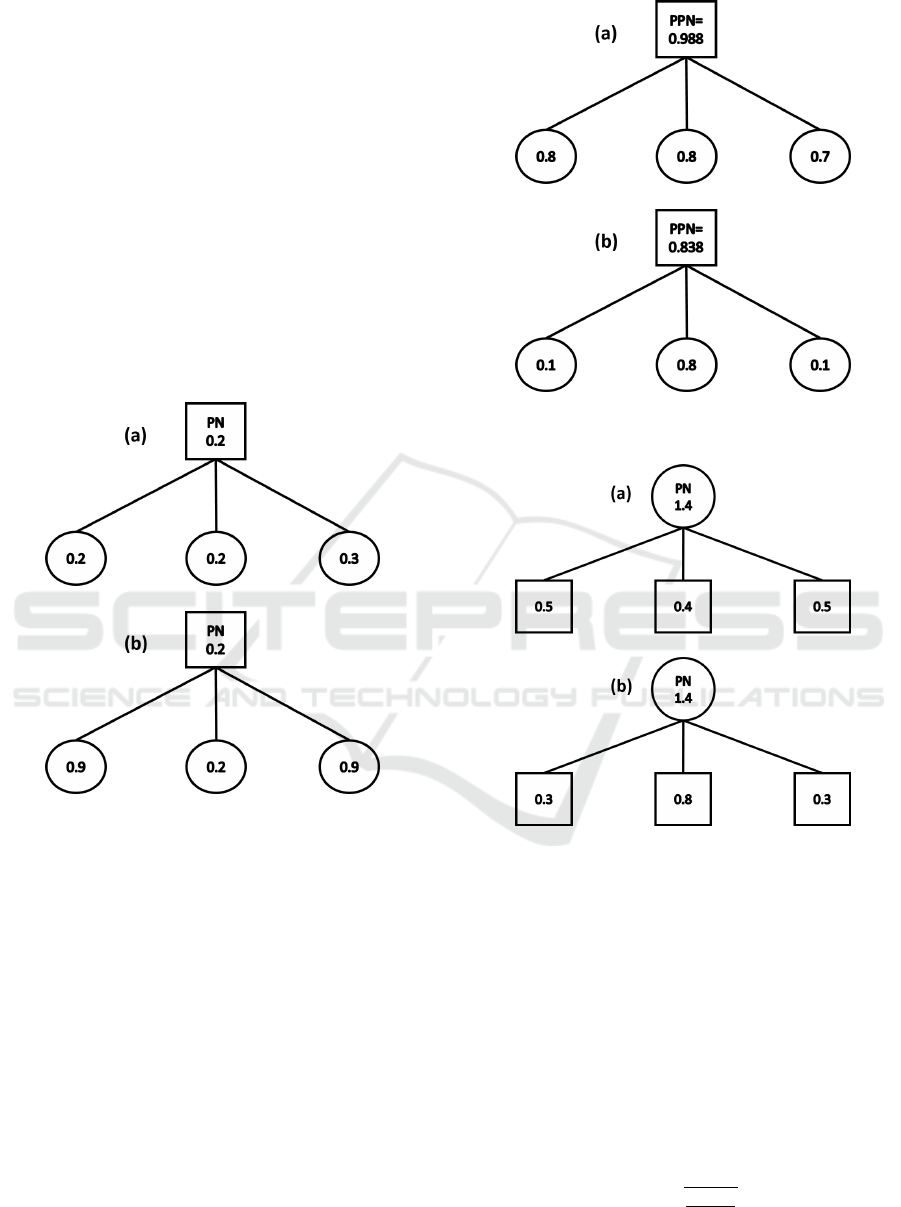

Compared with PPN-search, an important obsta-

cle of MCPN-search is that using the same updat-

ing rules (MIN/SUM rules) as the PN-search does

not go along well with Monte-Carlo evaluations, as

the Monte-Carlo evaluation leads to a convergent real

number whereas the MIN/SUM rules are proposed

for discrete integer numbers. It will cause an infor-

mation loss in the backpropagation step. For exam-

ple, Figure 1 shows two trees ((a) and (b)) in MCPN-

search where the root is an OR node. According to the

MIN rule of MCPN-search, the PN of the root equals

the minimum PN of its children (being 0.2). How-

ever, tree (a) and tree (b) obtain the same PN for the

root, which means that both trees have the same “dif-

ﬁculty” to be proved. Yet, if we investigate the PN

distribution of the leaves, tree (a) is more promising to

be proved because all leaves have relatively small PNs

(0.2, 0.2, and 0.3). This is especially true if the PN of

the leaf node is derived from Monte-Carlo evaluations

which are usually slightly different. In other words,

actually all branches have an inﬂuence on the root

in a game tree even though the root is an OR node,

especially when the proof number or disproof num-

ber indicators of leaf nodes are derived from Monte-

Carlo evaluations. For PPN-search, such an obstacle

will not occur. In comparison with MCPN-search, we

simply change the PNs of the leaves in Figure 1 to

PPNs by the following operation: let PPN = 1 - PN,

which corresponds to the deﬁnitions of PPN and PN.

Then use the OR rule (Eq. (1)) to update the PPN. As

is shown in Figure 2, tree (a) has a larger PPN than

tree (b), which implies that tree (a) is more promising

to be proved than tree (b). This conclusion is ﬁtting

to our intuition.

Figure 3 and Figure 4 show such phenomenon for

the SUM rule of MCPN-search. Here, the root is an

Probability based Proof Number Search

663

AND node and the PN of the root equals the summa-

tion of the PNs of its children. As a result, tree (a)

and tree (b) obtain the same PN which implies that

both trees have the same “difﬁculty” to be proved.

However, there is one leaf in tree (b) with a very big

PN 0.8 which means that this leaf is very likely to be

disproved, whereas all the leaves in tree (a) have rel-

atively smaller and more similar PNs. As is known,

for an AND node, if there exists one child that is dis-

proved, the node will be disproved. Therefore, the

SUM rule loses some information during the back-

propagation process. PPN-search is able to solve this

obstacle by changing the SUM rule to the AND rule

(Eq. (2)). As is shown in Figure 4, tree (a) obtains a

larger PPN than tree (b), which implies that tree (a)

is more promising to be proved, which corresponds to

our intuition.

Figure 1: Two examples of updating PN by MIN rule in

MCPN-search (the square represents the OR node).

3.2 Monte-Carlo Tree Search Solver

Monte-Carlo Tree Search (MCTS) (Chaslot, 2010) is

a best-ﬁrst search guided by the results of Monte-

Carlo simulations. In the last few years, MCTS

has advanced the ﬁeld of computer Go substantially.

Although MCTS equipped with the UCT (Upper

Conﬁdence Bounds applied to Trees) formula which

enables the evaluations to converge to the game-

theoretic value, it is still not able to prove the game

theoretic value of the search tree. This is even more

true for sudden-death games, such as Chess. In

this case, some endgame solvers (i.e., PN-search)

are traditionally preferred above MCTS. To trans-

form MCTS to a good game solver, Winands et al.

introduced an MCTS variant called MCTS solver

Figure 2: Two examples of updating PPN by OR rule in

PPN-search (the square represents the OR node).

Figure 3: Two examples of updating PN by SUM rule in

MCPN-search (the circle represents the AND node).

(Winands et al., 2008), which has been designed to

prove the game-theoretical value of a node in a search

tree. The MCTS solver includes the following four

strategic steps.

(1) Selection: Selection picks a child to be

searched based on the previously gained information.

For pure MCTS when going from the root to a leaf

node, the child with the largest simulation value will

be selected. For UCT, an enhanced version of MCTS,

it controls the balance between exploitation and ex-

ploration by selecting the child with the largest UCT

value:

C×ln n

where v

is the simulation value of the node i, n

is the

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

664

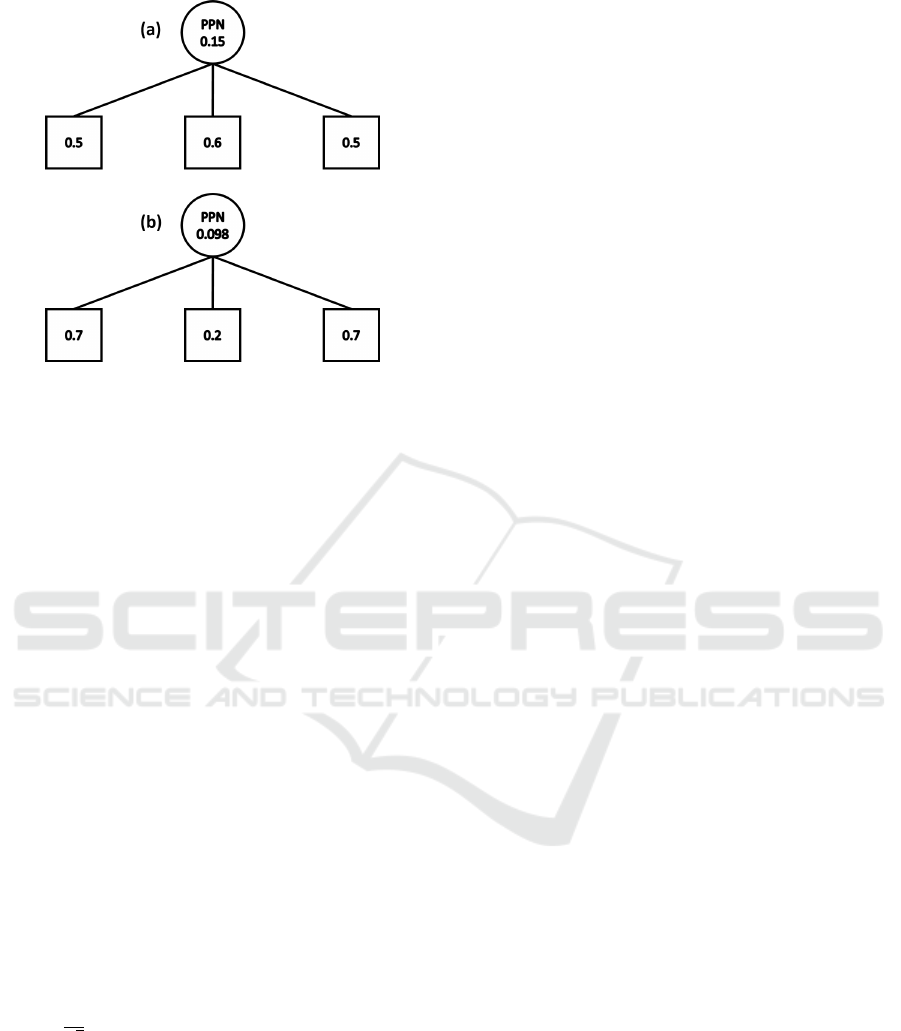

Figure 4: Two examples of updating PPN by AND rule in

PPN-search (the circle represents the AND node).

visit count of child i, and n

is the visit count of cur-

rent node p. C is a coefﬁcient parameter, which has

to be tuned experimentally. Winands et al. also con-

sider other strategies to optimize the selection based

on UCT, such as progressive bias (PB). But in this

paper, to make it easy to follow, we only apply the

UCT strategy. To transform UCT and pure MCTS to a

solver, a node is assumed to have the game-theoretical

value ∞ or −∞ that corresponds to a proved win or not

win, respectively. In this paper, we consider all the

drawn games as proved to be not win games to make

the experimental results more easy to interpret. When

a child is a proven win, the node itself is a proven win,

and no selection has to take place. But when one or

more children are proven to be not a win, it is tempted

to discard them in the selection phase. In this paper, to

make it easy to compare, i.e., we do not consider the

proved win or the proved not win node in the play-out

step, because such technique can similarly be applied

into PPN-search and MCPN-search. Moreover, for

the ﬁnal selection of the winning move at the root, of-

ten, it is the child with the highest visit count, or with

the highest value, or a combination of the two. In the

UCT solver or in the pure MCTS solver, the strategy

is to select the child of the root with maximum quan-

tity v +

√

, where A is a parameter (here, set to 1), v is

the node’s simulation value, and n is the node’s visit

count.

(2) Play-out: The play-out step begins when we

enter a position that is not a part of the tree yet.

Moves are selected in self-play until the end of the

game. This task might consist of playing plain ran-

dom moves.

(3) Expansion: Expansion is the strategic task that

decides whether nodes will be added to the tree. In

this paper, we expand one node for each iteration.

(4) Backpropagation: Backpropagation is the pro-

cedure that propagates the result of a simulated game

back from the leaf node, through the previously tra-

versed node, all the way up to the root. A usual strat-

egy of UCT or pure MCTS is taking the average of

the results of all simulated games made through this

node. For the UCT solver and the pure MCTS solver

(in addition to backpropagating the values 1,0,-1) the

search also propagates the game-theoretical values ∞

or −∞. The search assigns ∞ or −∞ to a won or

lost terminal position for the player to move in the

tree, respectively. Propagating the values back in the

tree is performed similar to negamax in the context of

MIN/MAX searching in such a way that we do not

need to distinguish between MIN and MAX nodes.

More precisely, for negamax, the value of a MIN node

is the negation of the value of a MAX node. Thus, the

player on move looks for a move that maximizes the

negation of the value resulting from the move: this

successor position must by deﬁnition have been val-

ued by the opponent.

Compared with PPN-search, the main difference

between the pure MCTS solver and PPN-search is the

backpropagation strategy. For a pure MCTS solver,

the backpropagation strategy of a node is taking the

average of the simulation results of its children. In

contrast, PPN-search follows the AND/OR probabil-

ity rules presented in Eqs. (1) and (2). Actually, both

backpropagation strategies have been discussed in an

early paper of MCTS (Coulom, 2006) that points out

the weakness of AND/OR probability backpropaga-

tion rules for MCTS. Compared with taking the aver-

age, it is noted that they have to assume some degree

of independence between probability distributions for

probability backpropagation rules. This assumption

of independence is wrong in the case of Monte-Carlo

evaluation because the move with the highest value

is more likely to be overestimated than other moves.

Moreover, a refutation of a move is likely to refute si-

multaneously other moves of a node. Such statement

(Coulom, 2006) is true for MCTS when it is used to

ﬁnd an approximate best move in a game AI, but is

not appropriate when MCTS is used to solve a game

or a game position. There are two reasons: (1) To

solve a game or a game position, the search algorithm

has to go deeply until to the terminal nodes to com-

pletely prove the game-theoretic value. So it is not

necessary for a search algorithm to avoid overestimat-

ing the move with the highest value. In contrast, what

really matters for a search algorithm is the speed to

approach the terminal nodes. (2) To solve a game or a

game position, we need to search on an AND/OR tree

to ﬁnd the solution. Therefore, the AND/OR prob-

Probability based Proof Number Search

665

ability backpropagation rules are more suitable than

taking the average. For example, Figure 5 shows two

trees in an UCT solver or pure MCTS solver where

the root is an OR node. Assuming that all the children

have the same visit count, for updating the simulation

value of the root, we take the average of the simula-

tion value of its children. Then both trees obtain the

same simulation value, which implies that both trees

have the same possibility to win. However, to prove a

game, things are different. As the root is an OR node,

it will be proved as long as there exists one child that

can be proved. In Figure 5, tree (b) has a child with a

very large winning rate 0.9, while all children in tree

(a) have relatively small winning rate, so tree (b) is ab-

solutely more likely to be proved than tree (a). If we

use AND/OR probability rules to update these simu-

lation values, it is clear that as is shown in Figure 6

tree (b) obtains larger PPN values than tree (a), which

means that tree (b) is more likely to be proved. And

this is surely more ﬁtting to our intuition. It is similar

for the AND rule of PPN-search. Therefore, it is dif-

ﬁcult to prove a game-theoretic value of search tree.

In summary, PPN-search with AND/OR backpropa-

gation rules is more suitable than the UCT solver and

the pure MCTS solver.

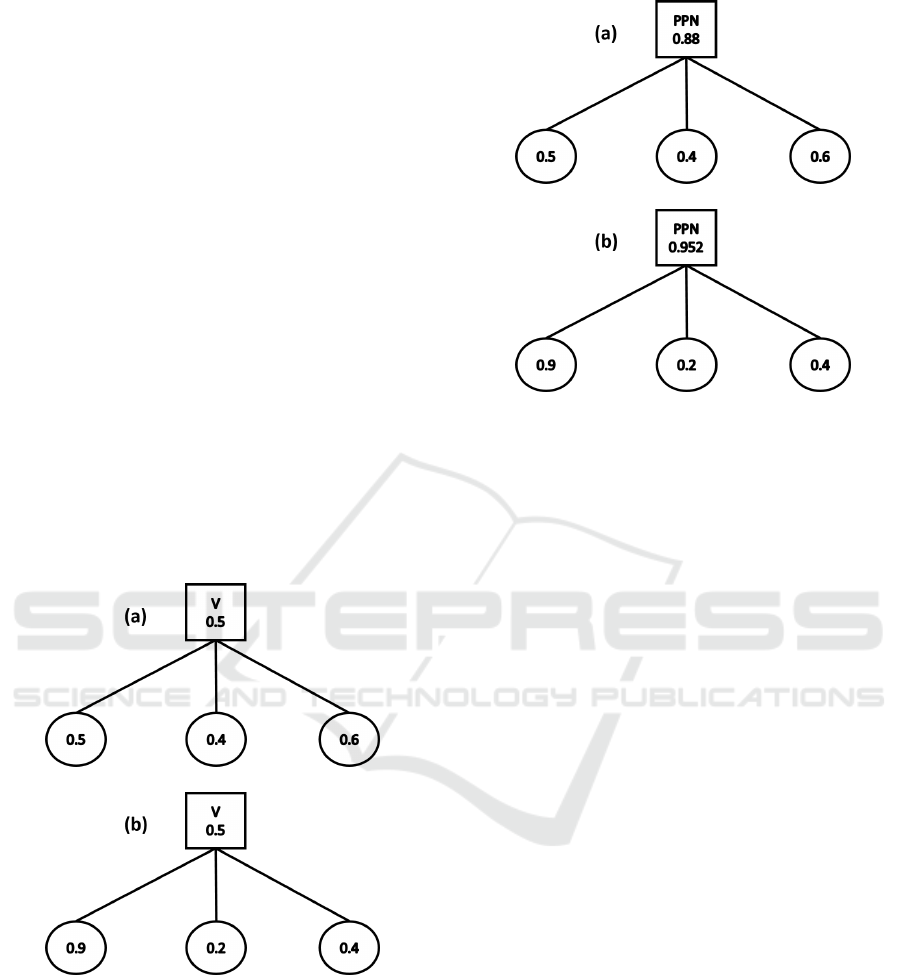

Figure 5: Two examples of updating simulation values by

taking the average in the UCT solver or the pure MCTS

solver (the square represents the OR node).

4 EXPERIMENTS

To examine the effectiveness of PPN-Search, we con-

ducted two series of experiments on P-game trees.

The P-game tree (Kocsis and Szepesv

ari, 2006) is a

MIN/MAX tree where a randomly chosen value is as-

signed to each move. The value of a leaf node is given

Figure 6: Two examples of updating PPN by OR rule in

PPN-search (the square represents the OR node).

by the sum of the move values along the path. If the

sum is positive, the result is a win for MAX, if nega-

tive it is a win for MIN, and it is draw if the sum is 0.

In all experiments, for the moves of MAX the value

was chosen uniformly from the interval [0,127] and

for MIN from the interval [−127,0].

In series 1, we construct 200 P-game trees ran-

domly, with 2 branches and 20 layers, and apply

ﬁve distinct types of search: PPN-search, PN-search,

MCPN-search, the UCT solver, and the pure MCTS

solver to prove (winning) or disprove (non-winning)

these game trees. For each expanded leaf node, we

set 10 playouts to compute the winning rate for the

following four types of search PPN-search, MCPN-

search, the UCT solver, and the pure MCTS solver

(further investigation shows that the number of play-

outs does not inﬂuence the experimental results).

Here we report experimental results as shown in Fig-

ure 7, Figure 8, and Figure 9. Figure 7 shows the av-

erage search time for proving or disproving a P-game

tree with 2 branches and 20 layers for all ﬁve types

of search PPN-search, PN-search, MCPN-search, the

UCT solver, and the pure MCTS solver, respectively.

Figure 8 shows the average number of iterations for

proving or disproving a P-game tree with 2 branches

and 20 layers for all ﬁve types of search. Figure 9

shows the error rate of selecting a correct solution

by PPN-search, PN-search, MCPN-search, the UCT

solver, and the pure MCTS solver for each iteration

on P-game trees with 2 branches and 20 layers. More

concretely, the error rate equals the number of wrong

moves selected by the search among 200 tests di-

vided by the testing times 200. Notice that the UCT

solver or the MCTS solver expands 1 node per iter-

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

666

ation while others expand 2 nodes. So, we regard 2

iterations of the UCT solver or the MCTS solver as 1

iteration, and present it in the ﬁgures.

In series 2, we construct 200 P-game trees ran-

domly, with 200 trees with 8 branches and 8 layers,

and apply ﬁve distinct types of search (the same ones

as in series 1). Figure 10, Figure 11, and Figure 12

show the analogous experimental results on P-game

trees with 8 branches and 8 layers. Notice that the

UCT solver or the MCTS solver expands 1 node per

iteration while others expand 8 nodes. So, we regard

8 iterations of the UCT solver or the MCTS solver

as 1 iteration, and present it in the ﬁgures. Accord-

ing to the ﬁgures, compared with the four types (PN-

search, MCPN-search, the UCT solver, and the pure

MCTS solver), our PPN-search outperforms the oth-

ers while averagely taking less time and fewer itera-

tions to prove or disprove a game tree. Furthermore,

compared with the three types (PN-search, MCPN-

search and the pure MCTS solver), our PPN-search

converges faster to the correct solution, and the error

rate of selected moves decreases more smoothly as the

number of iterations increases. For MCPN-search, it

takes more time and more iterations than PPN-search

to converge to the correct solution on average, and

the error rate waves as the number of iterations in-

creases, because of its inconsistent backpropagation

rules. As for the pure MCTS solver according to the

ﬁgures, the performance is better than the PN-search,

and competitive with MCPN-search, but worse than

PPN-search. The UCT solver converges faster to the

correct solution than the other types of search, but av-

eragely takes more time and more iterations to solve a

P-game tree than PPN-search, MCPN-search, and the

pure MCTS solver. Here, we tested the UCT solver

with different parameters but only show one of them

with parameter

√

2 in the ﬁgures. Actually, all these

UCT solvers averagely take more time and more itera-

tions to solve a P-game tree than PPN-search, MCPN-

search, and the pure MCTS solver. One possible rea-

son is that in P-games trees, the game trees are so

well balanced that the exploration strategy of UCT

may not be advantageous to enforce a deep search to

solve a game tree fast. In other words, UCT is a good

search algorithm to ﬁnd the approximate best move

for a game AI, but the UCT solver is not a good search

algorithm to solve a game.

5 CONCLUDING REMARKS

PPN-search is a promising variant of proof number

search based on Monte-Carlo simulations and prob-

ability backpropagation rules. It only uses one in-

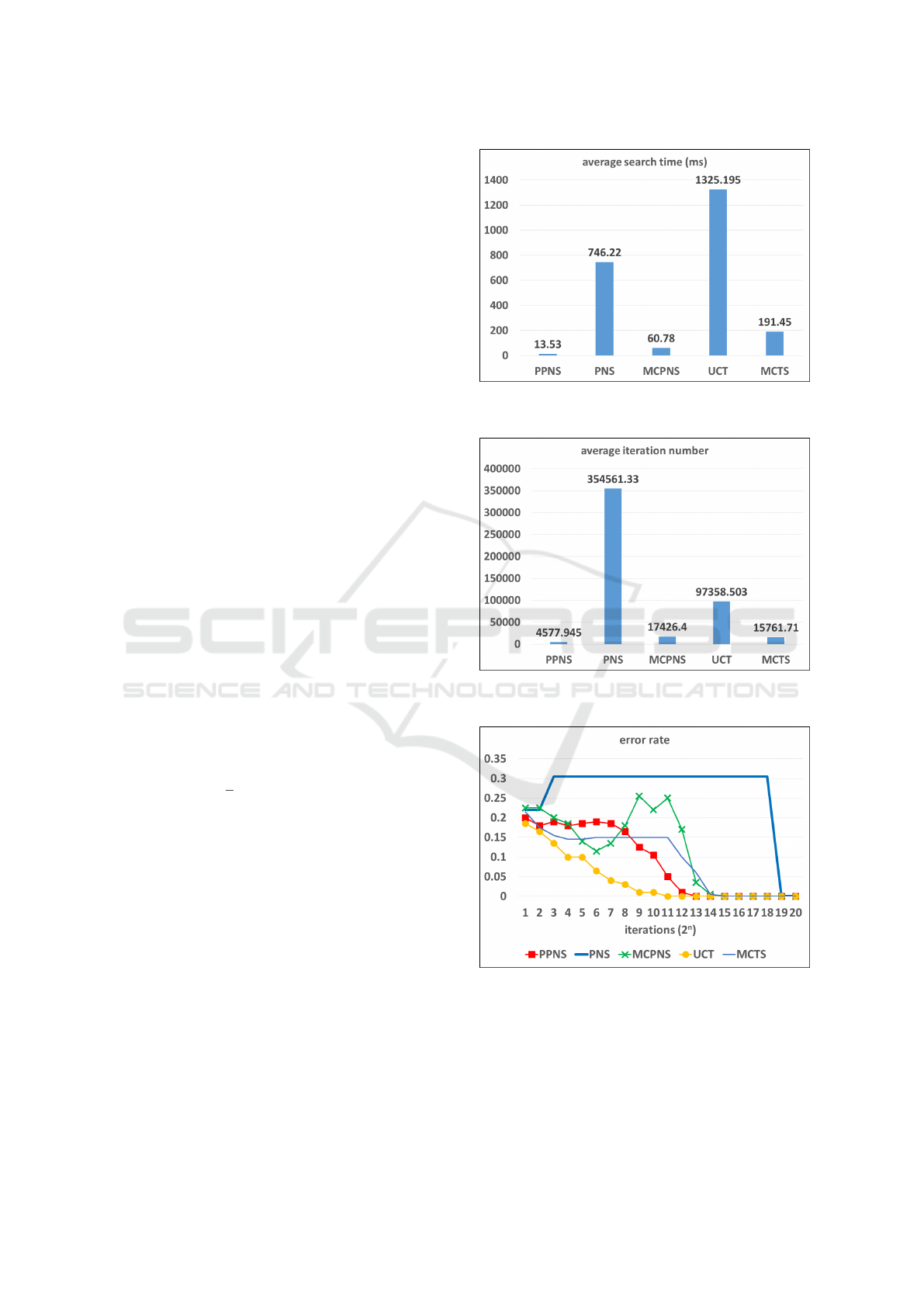

Figure 7: Comparison of average search time for a P-game

tree with 2 branches and 20 layers.

Figure 8: Comparison of average numbers of iterations for

a P-game tree with 2 branches and 20 layers.

Figure 9: Comparison of the error rate of selected moves

for each iteration on P-game trees with 2 branches and 20

layers.

dicator PPN to indicate the ”probability” of prov-

ing a game position, and backpropagates PPNs by

AND/OR probability rules of independent events.

Compared with PN-search, MCPN-search, the UCT

Probability based Proof Number Search

667

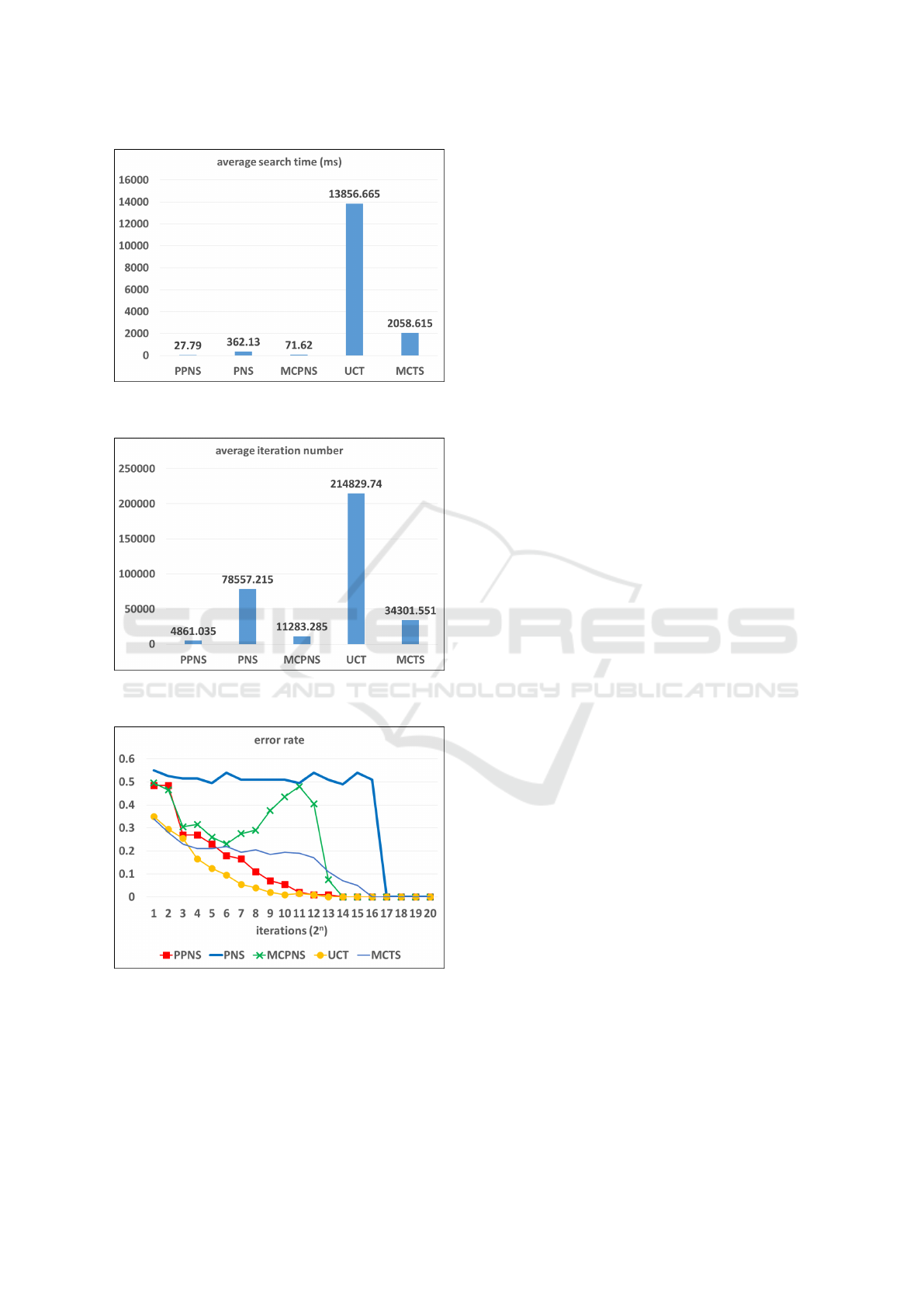

Figure 10: Comparison of average search time for a P-game

tree with 8 branches and 8 layers.

Figure 11: Comparison of average numbers of iterations for

a P-game tree with 8 branches and 8 layers.

Figure 12: Comparison of the error rate of selected moves

for each iteration on P-game trees with 8 branches and 8

layers.

solver, and the pure MCTS solver, PPN-search out-

performs them while taking less time and fewer iter-

ations to prove or disprove a game tree on average.

Moreover, the error rate of the selected moves de-

creases faster and more smoothly as the number of

iterations increases.

Further works may include (1) applying PPN-

search into real games with large-size balanced game

trees and unbalanced game trees, respectively, to fur-

ther investigate its performance; (2) proposing proba-

bility based conspiracy number search (PCN-search)

by incorporating the notion of the single conspiracy

number (Song and Iida, 2019).

REFERENCES

Allis, L. V., van der Meulen, M., and Van den Herik, H. J.

(1994). Proof-number search. Artiﬁcial Intelligence,

66(1):91–124.

Berliner, H. (1981). The B* tree search algorithm: A best-

ﬁrst proof procedure. In Readings in Artiﬁcial Intelli-

gence, pages 79–87. Elsevier.

Chaslot, G. M. J.-B. C. (2010). Monte-carlo tree search.

PhD thesis, Maastricht University.

Coulom, R. (2006). Efﬁcient selectivity and backup op-

erators in monte-carlo tree search. In International

conference on computers and games, pages 72–83.

Springer.

Ishitobi, T., Plaat, A., Iida, H., and Van den Herik, H. J.

(2015). Reducing the seesaw effect with deep proof-

number search. In Advances in Computer Games,

pages 185–197. Springer.

Kocsis, L. and Szepesv

ari, C. (2006). Bandit based monte-

carlo planning. In European conference on machine

learning, pages 282–293. Springer.

Nagai, A. (2002). Df-pn algorithm for searching and/or

trees and its applications. PhD thesis, Department of

Information Science, University of Tokyo.

Palay, A. J. (1983). Searching with probabilities. Technical

report, Carnegie-mellon Univ Pittsburgh Pa Dept of

Computer Science.

Saito, J.-T., Chaslot, G., Uiterwijk, J. W., and Van den

Herik, H. J. (2006). Monte-carlo proof-number search

for computer go. In International Conference on Com-

puters and Games, pages 50–61. Springer.

Song, Z. and Iida, H. (2019). Using single conspiracy num-

ber for long term position evaluation. In 10th Interna-

tional Conference on Computer and Games (in press).

Winands, M. H., Bj

ornsson, Y., and Saito, J.-T. (2008).

Monte-carlo tree search solver. In International

Conference on Computers and Games, pages 25–36.

Springer.

Zhang, S., Iida, H., and Van den Herik, H. J. (2017). Deep

df-pn and its efﬁcient implementations. In Advances

in Computer Games, pages 73–89. Springer.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

668
