Firearm Detection using Convolutional Neural Networks

Rodrigo Fumihiro de Azevedo Kanehisa and Areolino de Almeida Neto

Federal University of Maranhao (UFMA), São Luís, Brazil

Keywords:

Firearm Detection, Computer Vision, Darknet YOLO.

Abstract:

This papers studies the application of the YOLO algorithm to create a ﬁrearm detection system, demonstrating

its effectiveness in this task. We also constructed a dataset based on the website Internet Movie Firearm

Database (IMFDB) for this study. Individuals carrying ﬁrearms in public places are a strong indicator of

dangerous situations. Studies show that a rapid response from law enforcement agents is the main factor in

reducing the number of victims. However, a large number of cameras to be monitored leads to an overload of

CCTV operators, generating fatigue and stress, consequently, loss of efﬁciency in surveillance. Convolutional

neural networks have been shown to be efﬁcient in the detection and identiﬁcation of objects in images, having

sometimes produced more accurate and consistent results than human candidates.

1 INTRODUCTION

An Individual carrying ﬁrearms in public settings is a

strong indicator of possible dangerous situations. Re-

cently there has been an increase in the number of in-

cidents in which individuals or small groups make use

of ﬁrearms in order to injure or kill as many people as

possible. Among the most notable of these events,

called mass shootings, are the Columbine massacre

(USA, 37 victims), the attack on Uotya Island (Nor-

way, 179 victims), the Realengo massacre (Brazil, 13

victims) and that one against the Charlie Hebdo news-

paper (France, 23 victims).

Surveillance systems such as closed-circuit televi-

sion (CCTV) and drones are becoming increasingly

common. Research shows that the installation of

CCTV systems helps to combat mass shooting inci-

dents (Kayastha, 2016). Scotland Yard used CCTV

images as evidence in 90% of homicide cases in 2009

(Barrett, 2013). In England, it is estimated that there

are around 5 million security cameras nationwide

(Barrett, 2013). Despite helping to combat crime, the

large number of cameras leads to a huge overhead for

its operators.

Automatic surveillance systems have begun to

emerge in recent years, mainly for the use in intelli-

gent transportation systems (ITS). These include traf-

ﬁc surveillance (Bramberger et al., 2003) and vehicle

recognition (Baran et al., 2015). Another application

of cameras in surveillance can be on security, then a

system capable of automatically detecting ﬁrearms in

images would enable a faster and more efﬁcient re-

sponse from law enforcement agents. One of the

most promising techniques for the creation of auto-

matic surveillance systems is machine learning and

computer vision.

This paper is divided into ﬁve sections. In addition

to this introductory section, it is presented the theoret-

ical basis necessary for understanding this work in the

following section. In the third section, the methodol-

ogy and the tools used are discussed. In the fourth

one, the results obtained during this study are pre-

sented. And ﬁnally, in the ﬁfth section, conclusions

of this research are discussed.

2 RELATED WORK

(Verma and Dhillon, 2017) propose the use of con-

volutional neural networks (CNN) for detection of

ﬁrearms. The training was made with the use of

transfer learning. The tests were performed with

a dataset built from the Internet Movie Firearm

Database (IMFDb). The work could detect and clas-

sify three types of guns, pistols, revolvers and shot-

guns.

In (Bertozzi, 2017), a method was proposed for

detection of ﬁrearms and potentially dangerous situ-

ations using CNN, in addition to proposing the use

of proprietary hardware to capture the images. This

work was aimed to detect and react to the presence of

ﬁrearms or other weapons when used in a threatening

way.

Kanehisa, R. and Neto, A.

Firearm Detection using Convolutional Neural Networks.

DOI: 10.5220/0007397707070714

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2019), pages 707-714

ISBN: 978-989-758-350-6

707

In (Ardizzone et al., 2014), bottom-up saliency

map and top-down saliency map techniques were

used to create probabilistic models for the position

of ﬁrearms in position-based images of the face of a

person carrying it, also with the use of an extracted

dataset from the site IMFDb.

In (Grega et al., 2016), a method was proposed for

automatic detection of dangerous situations in CCTV

systems, through the use of image processing and ma-

chine learning. Sliding window techniques, fuzzy

classiﬁers and canny detectors were used for detec-

tion of knives and ﬁrearms in a video. In addition

to the detection system, the authors constructed and

made available their dataset.

3 BACKGROUND

3.1 Darknet - YOLO

Darknet YOLO is a state-of-the-art object-detection

system based on convolutional neural networks (Red-

mon and Farhadi, 2016). It was initially developed

using Darknet, an open-source neural network frame-

work written in C and CUDA (Redmon, 2016). Tra-

ditional classiﬁers use sliding window techniques or

selective search to ﬁnd candidate regions and iden-

tify the desired object. In this way, regions with high

probabilities are considered detections (Redmon and

Farhadi, 2016).

Unlike other methods, YOLO does not re-

purposes a classiﬁer for detection. This algorithm

looks at the image only once. To perform the de-

tection, the image is subdivided into multiple sub-

regions. For each sub-region, ﬁve bounding boxes are

considered and the probabilities of each of them con-

tain an object are calculated. By looking only once to

the image, YOLO executes a much faster detection,

being a hundred times faster than Fast R-CNN (Red-

mon and Farhadi, 2016). Figure 1 demonstrates the

detection process.

Despite its efﬁciency, YOLO has some limita-

tions. YOLO imposes strong spatial constraints by

using bounding box predictions since each sub-region

provides a limited number of bounding boxes, each of

which can only have one class. This spatial limitation

limits the number of near objects this model can de-

tect. It also has difﬁculties with small objects appear-

ing in groups, such as ﬂocks of birds (Redmon et al.,

2016).

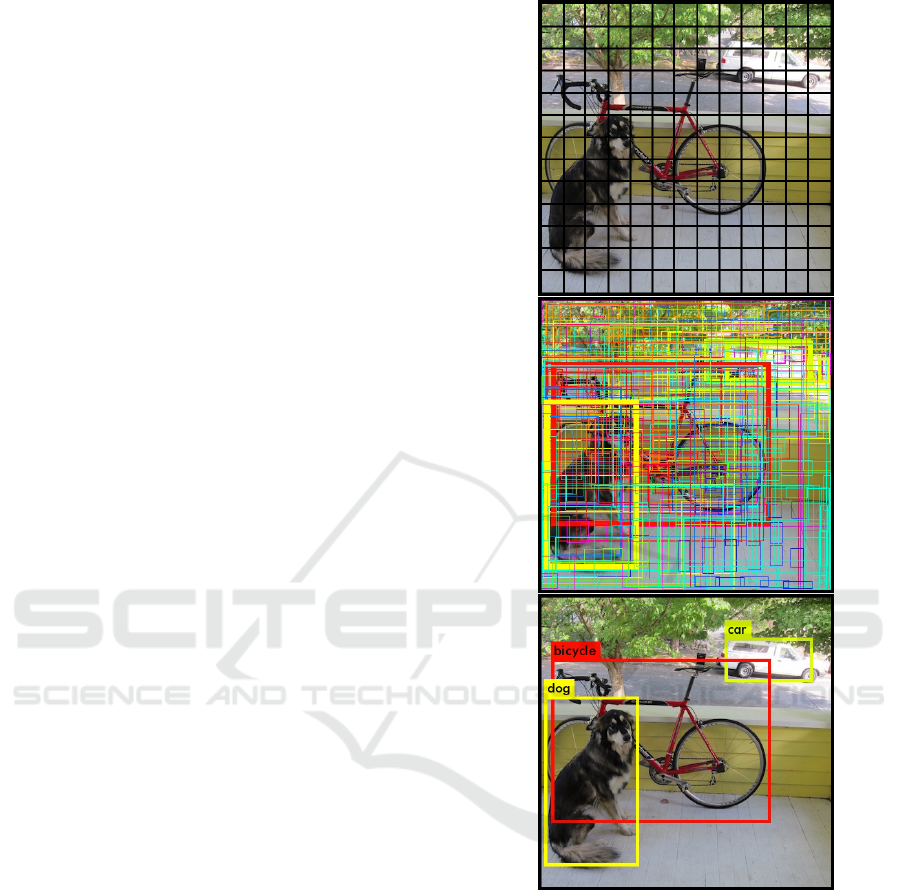

Figure 1: Operation of Darknet YOLO.

4 METHODS

4.1 Dataset

IMFDb is an on-line database of ﬁrearms images used

or displayed on ﬁlms, television shows, video games

and animes. There are included actor related articles

and some famous characters, such as James Bond,

listing speciﬁc weapons associated with his works

(Bourjaily, 2009).

The site also includes an image hosting sec-

tion similar to Wikimedia Commons, which contains

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

708

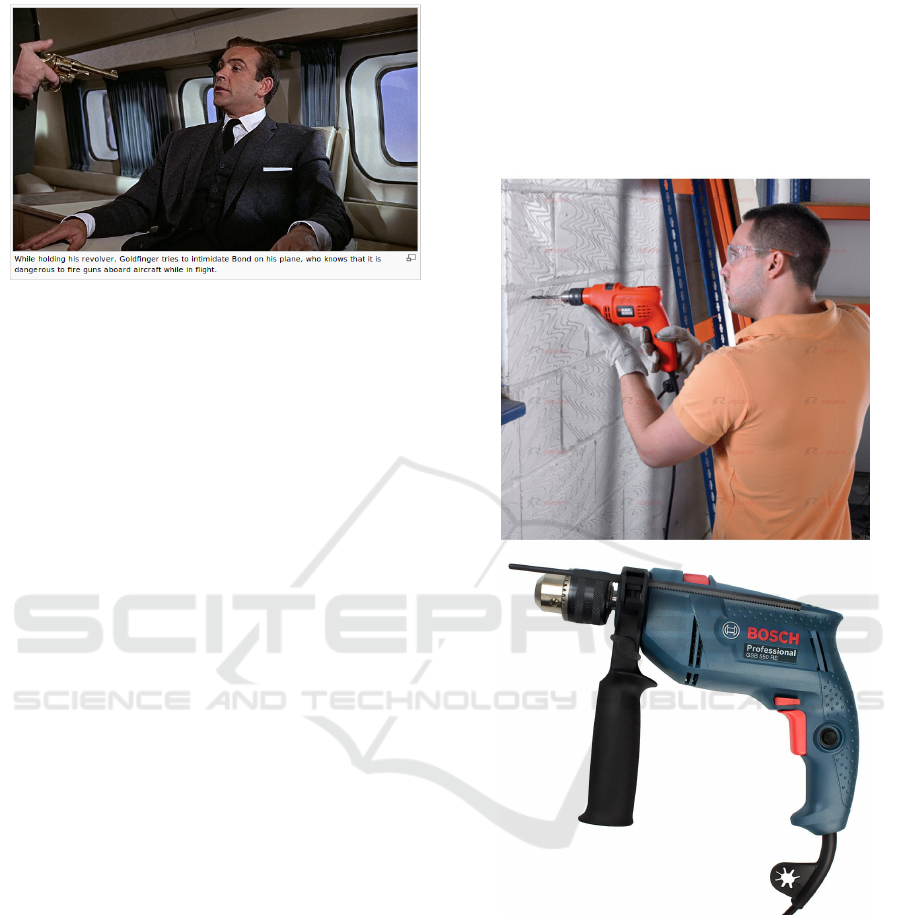

Figure 2: Example of an IMFDb article.

ﬁrearm photos, manufacturer logos, screenshots and

related art (Bourjaily, 2009). From this session, the

dataset used for positive cases was extracted. About

20,000 images were extracted, of which approxi-

mately 4600 were used since the dataset annotation

process was manual.

4.2 Scrapy

To construct the dataset, a web crawler was devel-

oped using the Scrapy library, which is an open source

Python library used for scraping sites, extraction of

structured data from web pages and web crawling.

It can be used for a large number of applications

such as data mining, archiving or information pro-

cessing. It is currently maintained by Scrapinghub

Ltd., a web-scraping development and services com-

pany (Korobov, 2015).

The architecture of the scrapy system is based on

the construction of spiders, which are entities respon-

sible for navigation within the provided URLs. In ad-

dition to browsing and accessing links, a spider also

processes the information it ﬁnds ﬁltering and down-

loading it. A spider was constructed for this paper

that searches for images and downloads them inside

the IMFDb, looking for pages of speciﬁc models of

ﬁrearms.

The criterion used for the search was the popu-

larity of ﬁrearms models. The web-crawler looked

for guns such as AK-47 or M-16 assault riﬂes (UN.

SECRETARY-GENERAL et al., 1997), Colt M1911,

Glock and Sig pistols, shotguns such as Remington

M870, Mossberg 500 (Brauer, 2013). Often, works

containing these models also contained other models

not speciﬁed during searches. In this way, the dataset

contains images with a wide variety of models.

4.3 Google Images Download

For the creation of the dataset of negative images, the

Python script Google Images Download was used.

This tool is a command line program to search for

keywords or key phrases in Google Images and op-

tionally download them (Vasa, 2018).

Figure 3: Examples of negative images.

The images sought were allusions to ﬁrearms,

both in shape and texture, such as hair dryers and

handheld power drills. Items incorrectly classiﬁed

during preliminary tests were also searched such as

umbrellas or metal handrails. The dataset of negative

cases acquired contained 1939 images. In this way,

a negative dataset was obtained to designate objects

that should not be classiﬁed as ﬁrearms.

4.4 Dataset Annotation

After the acquisition of the dataset, it was prepared

using the tool BBox-Label-Tool (Shi Qiu, 2016) to

Firearm Detection using Convolutional Neural Networks

709

mark the ROI (Regions of Interest) in the images.

This process was performed only for the set of pos-

itive images since in the set of negative images there

is no ROI.

Only images containing small arms, by the United

Nations deﬁnition in the SALW protocol (Small Arms

and Light Weapons), were considered. This cate-

gory includes handguns (pistols and revolvers) and

long guns (submachine guns, carbines, riﬂes, shot-

guns and light machine guns) (UN. SECRETARY-

GENERAL et al., 1997) (Small Arms Survey et al.,

2007). Grenade launchers, rocket launchers, vehicle-

mounted weapons and explosives were ignored.

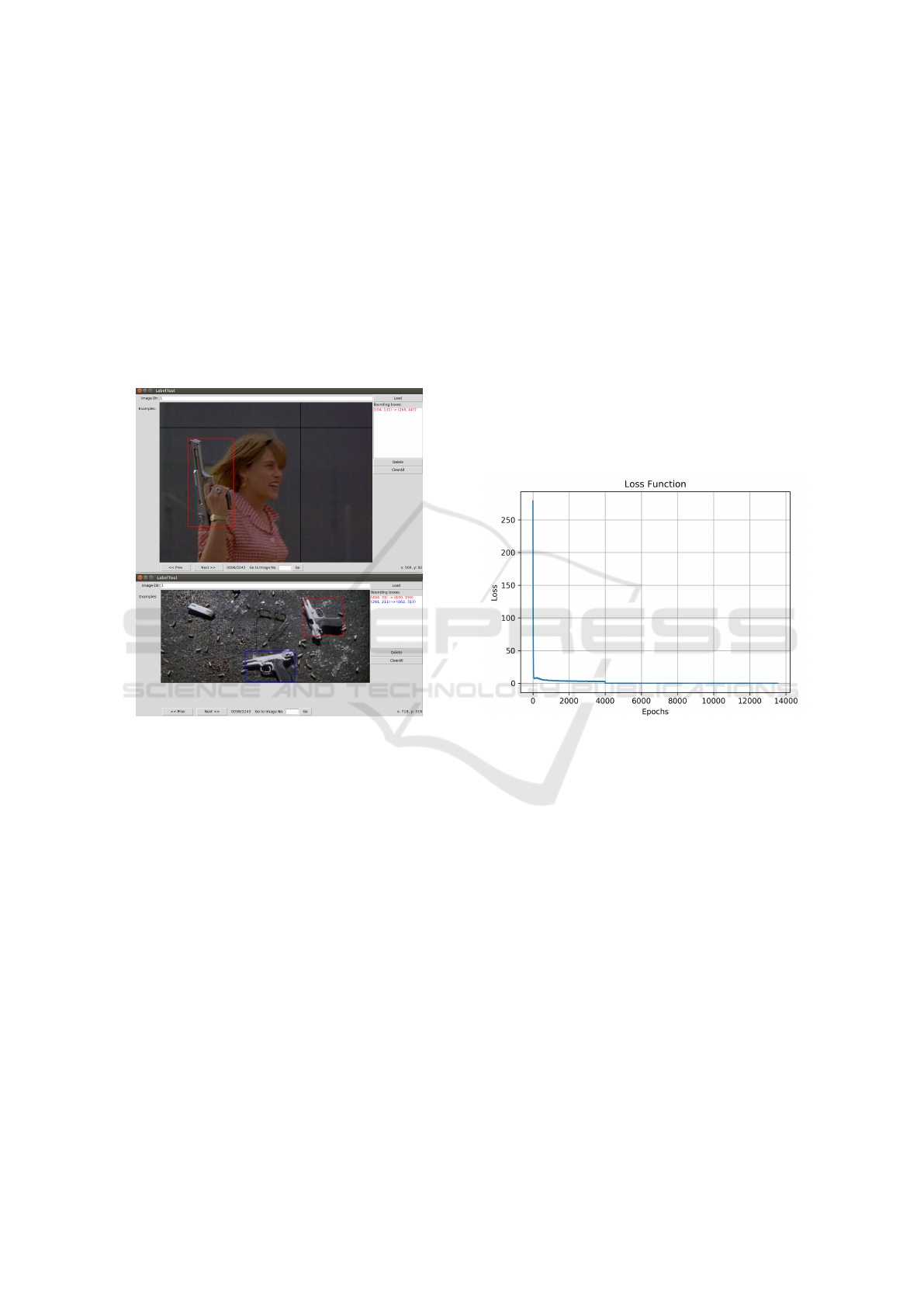

Figure 4: Dataset annotation tool.

For each image, a text ﬁle with the same name was

generated. This ﬁle contained the number of labels in

the image and the coordinates of the bounding boxes

on each of these. In some cases, there are no labels for

an image because they did not meet a minimum qual-

ity criterion, having a poor resolution or bad lighting.

These text ﬁles were saved with zero labels and were

then the images eliminated from the positive dataset.

From the 20 thousand images obtained, only 4646

were marked. The process of marking ROI on the

images was executed manually. Each image was ana-

lyzed individually and the regions containing ﬁrearms

were marked. For this reason, although 20 thousand

images were downloaded, only 4646 were used.

4.5 Network Training

The dataset was randomly divided into two groups,

training and testing. About 90% (5916 images) of

the images were used for training and 10% (669 im-

ages) for testing. The learning rate used was 0.0001,

the momentum of 0.9 and the decay of 0.0005. The

batch size was 64 images and the input layer size was

416 × 416. Finally, anchors were generated for the

training process based on the positive dataset, using

the k-means clustering algorithm.

The network architecture used in this paper was

based on the architecture used by (Redmon and

Farhadi, 2016) in the PASCAL VOC challenge (Ev-

eringham et al., 2015). This architecture was chosen

because it proved to be efﬁcient for the classiﬁcation

and detection of objects during the mentioned chal-

lenge.

During the training process, each epoch took an

average of 5.5 seconds. Up to the ﬁrst 1000 epochs,

a checkpoint of the network was saved for every 100

epochs, after the ﬁrst 1000 epochs, this interval was

increased to 1000 epochs. The graph in Figure 5

shows the network loss function during training.

Figure 5: Loss function of the training process after 13 thou-

sand iterations.

5 TESTS AND EVALUATIONS

In this session, the results of this work are presented.

These tests were performed to analyze the perfor-

mance of the methodology. The system was evalu-

ated in two main criteria: classiﬁcation and detection.

The classiﬁcation problem consists in classify images

by the presence of ﬁrearms. In the detection problem,

the system tries to identify the location of guns, in ad-

dition to their presence in the image. The dataset used

for testing contains around 10% of the images, there

were a total of 669 images, 446 were positive and 223

were negative, containing a total of 554 marked ob-

jects.

5.1 Metrics

The classiﬁcation problem was evaluated in a tradi-

tional way. For each test image, the system aimed to

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

710

identify the presence or absence of a ﬁrearm. Sensi-

tivity, speciﬁcity, accuracy and ROC curve (Receiver

Operating Characteristic) were used to evaluate the

classiﬁcation (Fawcett, 2006).

For the detection problem, the PASCAL VOC

challenge metrics were used (Everingham et al.,

2008). These metrics were chosen to generate an ob-

jective comparison criterion of the technique used in

this work with future techniques.

The intersection over union (IOU), also known as

the Jaccard index, is the computation of the bounding

box bounding box intersection of ground truth. This

metric is widely used in object detection challenges

such as PASCAL VOC (Everingham et al., 2010) and

for evaluation of algorithms like HOG + SVM and

CNN’s (Rosebrock, 2016).

In the PASCAL VOC challenge, an IOU value

of 50% is used, with any detection with conﬁdence

above this value being considered a match, i.e., a pos-

itive classiﬁcation (Everingham et al., 2015). Values

with IOU less than 50% are considered errors, even if

they contain the object to be detected. The detected

bounding box must have the same label of the ground

truth and the region must be detected only once to be

considered a true positive (Everingham et al., 2010).

5.2 Results

In this session, the results obtained in each of the ex-

periments are presented. These tests were performed

to analyze the performance of the methodology used.

The dataset used for testing consist of a total of 669

images, 446 were positive and 223 were negative,

containing a total of 554 marked objects.

Initially, tests were performed with the training

done using only images with positive cases. This net-

work was trained for six thousand epochs. These tests

were done to evaluate the detection efﬁciency of the

tool and to check which objects were detected incor-

rectly. After that, the dataset of negative cases was

constructed, based on the results obtained in the pre-

liminary tests and subsequent training was performed.

This training was done for 13 thousand epochs.

The application proved to be efﬁcient in detect-

ing small arms of all types and models. Demonstrat-

ing the ability to locate objects even when a partial

occlusion occurs. In addition to being able to de-

tect all types of small arms, the system was able to

detect weapons such as anti-aircraft artillery and ve-

hicle mounted guns, as well as rocket launchers and

grenade launchers.

The application is also able to distinguish ’L’

shaped objects, such as drills and hair dryers, com-

monly compared to ﬁrearms. This is true even when

they are welded so as to refer to the carrying of

weapons.

The results obtained during the image classiﬁca-

tion tests were promising. From 669 test images, 644

were correctly classiﬁed: 427 were true positive and

217 were a true negative. From those incorrectly clas-

siﬁed, there were six false positives and 19 false nega-

tives, these results can be seen in the table 1. The val-

ues obtained were 95.73% of sensitivity, 97.30% of

speciﬁcity and 96.26% of accuracy. The ROC curve

drawn from these results can be seen in Figure 6.

Table 1: Confusion Matrix.

Predicted /Real P N

P’ 427 6

N’ 19 217

Figure 6: ROC curve.

Figure 7: Precision and Recall.

The Mean Average Precision (MAP) value was

70.72%, comparable to state-of-the-art applications

for detecting objects for a single class, this result

can be seen in Figure 7. It can be emphasized

that in some cases, the error occurred due to dif-

ferences of IOU between the bounding box and the

ground truth, but as can be seen in the images be-

low, the system is capable of performing useful de-

tections even in this situation. Other cases considered

Firearm Detection using Convolutional Neural Networks

711

errors by this methodology were cases of detection

of previously unmarked weapons in the dataset oc-

curred, such as rocket launchers and vehicle mounted

weapons. These results, although correct, reduce the

MAP within the metric used.

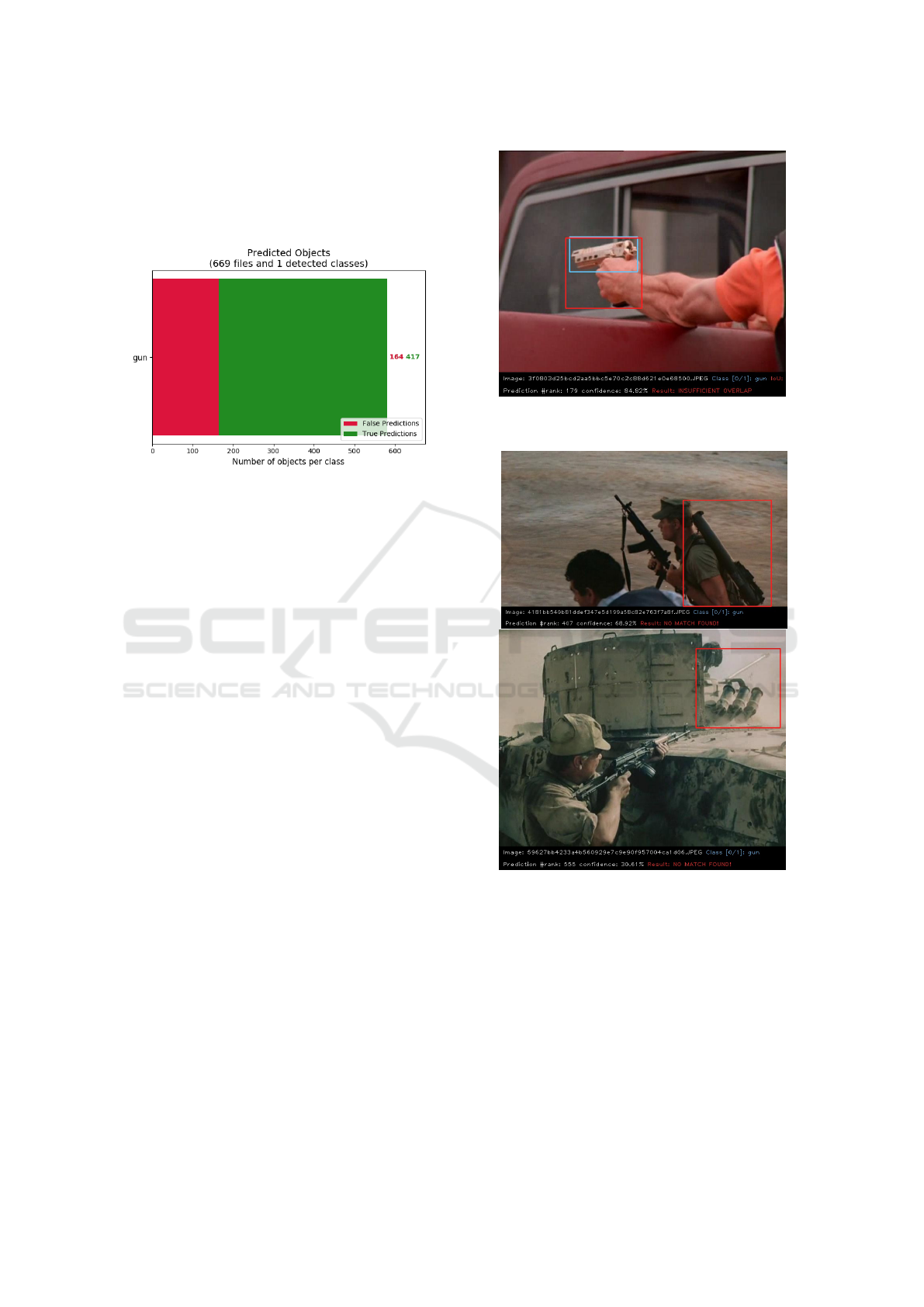

Figure 8: Object detection result chart.

In the images below, some of these cases are

demonstrated. The regions predicted by the system

are indicated by the red box and the region of ground

truth the blue box. In the Figure 9 there is an exam-

ple of a valid detection, however, with IOU less than

50%.

The Figure 10 demonstrates cases of objects not

marked, by not being classiﬁed as small arms, which

were detected by the system. These images consider

only individual detections, so only one detected re-

gions are highlighted in each image even when there

are other visible ﬁrearms such as Figure 10.

5.3 Firearm Detection Demonstrations

The following images demonstrate the results

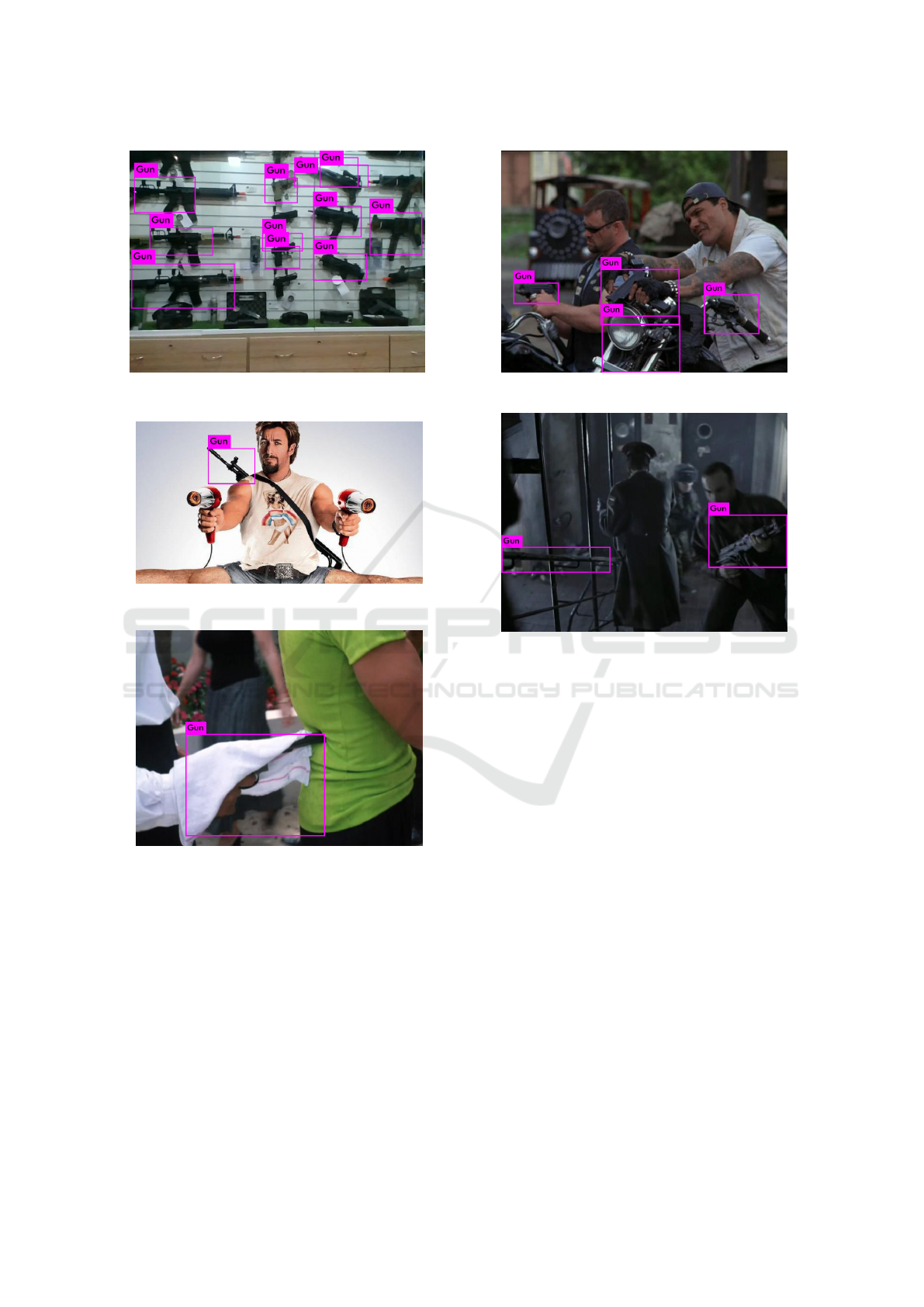

achieved with this system. The Figure 11 contains

a wall with multiple replicas of ﬁrearms. From the 17

objects present, 9 were correctly detected. Failures

occur due to limitations of this technique with clus-

ters of objects in close proximity.

In Figure 12, there are two hair dryers alluding to

ﬁrearms and a weapon under partial occlusion. This

test demonstrates the system’s capacity to differenti-

ate guns from objects with a similar shape. In addi-

tion to showing the technique’s robustness to partial

occlusion.

In Figure 13, an almost totally occluded revolver

is detected. Only part from the barrel, grip and trigger

guard are visible. This image shows the system’s abil-

ity to identify objects almost completely occluded.

The following images demonstrate cases of er-

ror. In Figure 14, it can be seen that both guns were

detected correctly, however, part of the motorcycle’s

Figure 9: Demonstration of a valid detection, but with a low

MAP value.

Figure 10: Demonstrations of detection of correct and valid

but unmarked objects.

handlebar and suspension were incorrectly classiﬁed

as a ﬁrearm. This is a common error case when there

are metal or L-shaped objects close to hands.

Detection failures occurred in situations where

there are metallic or frosted objects, usually close

proximity or overlapping with hands, especially if

these objects are elongated. The faults also oc-

curred with ’L’ shaped, metallic, polished or dark

objects, usually in contrast with a light background.

Among the objects generating false positives are

metal handrails when near or covered by hands, poles

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

712

Figure 11: Demonstration of positive results in an environ-

ment with multiple objects.

Figure 12: Demonstration of positive results in an environ-

ment with partial occlusion and with alluding objects.

Figure 13: Demonstration of positive results in a environ-

ment with partial occlusion.

and metal structures containing protrusions.

The Figure 15 shows the riﬂe correctly detected,

however, the side railing was also highlighted. Again

detection occurred with an elongated metal object.

Although some cases of error have occurred, these

are minimal and do not make the system unfeasible,

given the sensitivity, speciﬁcity and accuracy reached

respectively 95.73%, 97.30%, 96.26%, evidencing

the system’s ability to identify ﬁrearm-containing im-

ages with great efﬁciency, as well a MAP rate of 70%,

shows the system’s efﬁciency in locating objects.

Figure 14: Demonstration of an error case.

Figure 15: Demonstration of an error case.

6 CONCLUSIONS

This work demonstrated the feasibility of using

CNN’s to create a generic ﬁrearm detector. The

method used proved to be robust and able to cor-

rectly detect weapons that were not presented during

the training (different models and in many environ-

ments). The dataset constructed for this work proved

sufﬁcient variation to allow the system to be able to

understand the concept of a ﬁrearm.

The results obtained, 95.73% of sensitivity,

97.30% of speciﬁcity, 96.26% of accuracy and 70%

of MAP, demonstrate the technique’s efﬁciency. The

technique used stands out for its speed of detection,

capable of being executed in real time. Another con-

tribution is the ﬁrst application of this technique for

detecting ﬁrearms.

Despite the system’s limitations, when studying

the cases of errors, one can realize that these are the

result of a relatively homogeneous dataset in terms of

image quality and acquisition method. This situation

can be overcome by the inclusion of lower quality im-

ages or acquired with equipment for use in a real ap-

plication.

Firearm Detection using Convolutional Neural Networks

713

Based on achieved results with this technique, it

is possible to implement this system, for video input

streams generated by security cameras, allowing use

in real-time environments. There are also plans to use

the detector in its current state for automated anno-

tation of the remaining dataset, as well as including

images from other sources such as security cameras

and other capture methods such as infrared cameras,

night vision and x-ray. The dataset can be found at

the link in the footnote

ACKNOWLEDGEMENT

The authors acknowledge FAPEMA, CAPES and

CNPq for ﬁnancial support in the development of this

work. Special thanks to UFMA and MecaNET for

technical support.

REFERENCES

Ardizzone, E., Gallea, R., La Cascia, M., and Mazzola, G.

(2014). Combining top-down and bottom-up visual

saliency for ﬁrearms localization. In Signal Process-

ing and Multimedia Applications (SIGMAP), 2014 In-

ternational Conference on, pages 25–32. IEEE.

Baran, R., Glowacz, A., and Matiolanski, A. (2015). The ef-

ﬁcient real-and non-real-time make and model recog-

nition of cars. Multimedia Tools and Applications,

74(12):4269–4288.

Barrett, D. (2013). One surveillance camera for every 11

people in britain, says cctv survey. The Telegraph, 10.

Bertozzi, N. (2017). Advisors: Susan Jarvis. PhD thesis,

Worcester Polytechnic Institute.

Bourjaily, P. (2009). Bourjaily: The internet movie ﬁrearms

database | ﬁeld & stream. Retrieved in June, 04, 2018

from https://www.ﬁeldandstream.com/blogs/gun-

nut/2009/04/bourjaily-internet-movie-ﬁrearms-

database.

Bramberger, M., Pﬂugfelder, R. P., Maier, A., Rinner, B.,

Strobl, B., and Schwabach, H. (2003). A smart cam-

era for trafﬁc surveillance. In Proceedings of the ﬁrst

workshop on Intelligent Solutions in Embedded Sys-

tems, pages 153–164.

Brauer, J. (2013). The us ﬁrearms industry.

Everingham, M., Eslami, S. M. A., Van Gool, L., Williams,

C. K. I., Winn, J., and Zisserman, A. (2015). The pas-

cal visual object classes challenge: A retrospective.

International Journal of Computer Vision, 111(1):98–

136.

Everingham, M., Van Gool, L., Williams, C. K., Winn, J.,

and Zisserman, A. (2008). The pascal visual object

classes challenge 2007 (voc 2007) results (2007).

https://github.com/Rkanehisa/Firearm_Detection

Everingham, M., Van Gool, L., Williams, C. K., Winn, J.,

and Zisserman, A. (2010). The pascal visual object

classes (voc) challenge. International journal of com-

puter vision, 88(2):303–338.

Fawcett, T. (2006). An introduction to roc analysis. Pattern

recognition letters, 27(8):861–874.

Grega, M., Matiola

nski, A., Guzik, P., and Leszczuk, M.

(2016). Automated detection of ﬁrearms and knives

in a cctv image. Sensors, 16(1):47.

Kayastha, R. (2016). Preventing mass shooting through co-

operation of mental health services, campus security,

and institutional technology.

Korobov, M. (2015). Scrapy, a fast high-level web crawling

& scraping framework for python. . Retrieved in June,

26 ,2017 from https://github.com/scrapy/scrapy.

Redmon, J. (2013–2016). Darknet: Open source neural net-

works in c. http://pjreddie.com/darknet/.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 779–

788.

Redmon, J. and Farhadi, A. (2016). Yolo9000: Better,

faster, stronger. arXiv preprint arXiv:1612.08242.

Rosebrock, A. (2016). Intersection over union (iou) for ob-

ject detection - pyimagesearch. Retrieved in May, 09,

2018 from https://bit.ly/2QWgBoa.

Shi Qiu, P. (2016). Bbox-label-tool. Retrieved in June, 26,

2017 from https://github.com/puzzledqs/BBox-Label-

Tool.

Small Arms Survey, G., of International Studies (Geneva,

G. I., and Switzerland) (2007). Small arms survey

2007: guns and the city. Cambridge University Press.

UN. SECRETARY-GENERAL, UN. Group of Experts on

the Problem of Ammunition and Explosives, Chair-

person, of Experts on the Problem of Ammunition,

U. G., and Explosives (1997). General and complete

disarmament: Small arms. Retrieved in May, 14, 2018

from https://bit.ly/2DEkhrU.

Vasa, H. (2018). Google images down-

load. Retrieved in April, 21, 2018 from

https://github.com/hardikvasa/google-images-

download.

Verma, G. K. and Dhillon, A. (2017). A handheld gun de-

tection using faster r-cnn deep learning. In Proceed-

ings of the 7th International Conference on Computer

and Communication Technology, pages 84–88. ACM.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

714
