A Semantic Analysis of Interface Description Models of

Heterogeneous Vehicle Application Frameworks: An Approach

Towards Synergy Exploration

Sangita De

1,3

, Michael Niklas

, Jürgen Mottok

and Přemek Brada

Corporate System & Technology SW, Continental Automotive GmbH, Regensburg, Germany

Department of Electrical Engineering & Information Technology, OTH, Regensburg, Germany

Department of Computer Science and Engineering, Universitsy of West Bohemia, Pilsen, Czech Republic

Keywords: Application, Framework, IDL, Semantic, Mapping, Traits, Synergy, Metamodel, Syntax, Component Model,

Domain, Vehicle, Interface, Messages, Fields, RPC, Client-Server, Analysis, Structures, Port, Service, IPC.

Abstract: As the world is getting more connected, the demands of services in automotive industry are increasing with

the requirements such as IoT (Internet of Things) in cars, automated driving, etc. Eventually, the automotive

industry has evolved to a complex network of services, where each organization depends on the other

organizations, to satisfy its service requirements in different phases of the vehicle life cycle. Because of these

heterogeneous and complex development environments, most of the vehicle component interface models need

to be specified in various manifestations to satisfy the semantic and syntactic requirements, specific to

different application development environments or frameworks. This paper describes an approach to semantic

analysis of components interfaces description models of heterogeneous frameworks, that are used for vehicle

applications. The proposed approach intends to ensure that interface description models of different service-

based vehicle frameworks can be compared, correlated and re-used based on semantic synergies, across

different vehicle platforms, development environments and organizations. The approach to semantic synergy

exploration could further provide the knowledge base for the increase in interoperability, overall efficiency

and development of an automotive domain specific general software solutions, by facilitating coexistence of

components of heterogeneous frameworks in the same high-performance ECU for future vehicle software.

1 INTRODUCTION

A semantic analysis on domain specific applications

(apps) of heterogeneous frameworks (FWs) can be

dedicated to specific kind of artefacts (e.g.

deployment possibilities of app component models,

etc) or it can be general and capable of including any

constituent of the metamodel ecosystem in context of

app software. The Interface Description Language

(IDL) model is an integral part of an app FW and is

represented using a platform specific language. The

IDL model of a Service Oriented Architecture (SOA)

based vehicle app FW, usually describes the services

that are offered or required by an app in an abstract

form, independent of implementation details. Every

vehicle app IDL model can be expressed in two basic

forms. Firstly, FW specific language notation, named

as syntax, and secondly, meaning of the syntax named

as semantics. Syntax of an IDL is possibly infinite set

of legacy elements, and is augmented by the meaning

of those elements, which is expressed by relating the

syntax to a semantic domain (Weinreich and

Sametinger, 2001). Therefore, any app FW IDL

definition must consist of the syntax domain and

mapping from the syntactic elements to the semantic

domain. The approach to synergy exploration using

semantic comparison of interface models of vehicle

components can be used to find the correlation among

the interface syntax of these components.

1.1 Contribution of the Report

A vehicle interface description model usually has

commonality in semantics, despite using different

IDLs, when modelling the same app for a vehicle

component in different FWs. However, the SOA

based vehicle FWs have IDLs which differ mostly in

concrete syntax representations because their

manifestations are adapted to a specific app FW to

394

De S., Niklas M., Mottok J. and Brada P.

A Semantic Analysis of Interface Description Models of Heterogeneous Vehicle Application Frameworks: An Approach Towards Synergy Exploration.

DOI: 10.5220/0007472503960403

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 7th International Conference on Model-Driven Engineering and

Software Development), pages 394-401

ISBN: 978-989-758-358-2

which they are integrated. This further results in

inefficient vehicle app software component reuse and

increase in overall development cost. The gaps

between these IDLs of heterogeneous vehicle app

FWs, can be reduced by analysing the semantic

synergies in semantic mappings of their interface

models, thereby leading to more efficient vehicle app

software component reuse and reduction in overall

development cost.

The goal of this paper is to compare the semantics

of various SOA based vehicle app FW interface

models using mappings and to explore the synergies

in semantic mappings. This will help future domain

experts to understand the semantic synergies of

interface models and decide which semantic

synergies could be considered for creating any kind

of domain specific general software solutions such as

a Meta Interface description model for automotive

domain. In the future, semantic mappings of interface

models of vehicle FWs could be further used for

translation of semantics required for app component

model transformation from one FW to another FW

(Ruscio et al., 2012).

1.2 Motivation Scenario and Related

Work

An app component model description is always useful

for exchange of information between the FW experts

of the given component model. The specifics of an

app component model however make it quite difficult

to read and understand the architecture of app

component for experts from other different vehicle

FWs (Brada and Snajberk, 2011). Over the past few

years, the demand for cross sub-domain

functionalities in the automotive domain has

increased. Consequently, it has become necessary to

combine the software components and subsystems as

well as message formats from different sub-domains,

to provide cross domain functionalities (Avram et al.,

2014). This could be due to the fact: firstly, the

increase in requirement for integration with 3rd party

and legacy components, secondly, the conformance

to frequent new standards in automotive domain

(Birken, 2013), thirdly, the non-functional system

requirements such as performance and footprints and

lastly, the requirement of huge number of

communicating processors for cross sub- domain

communications. Therefore, it is required to cluster

the vehicle apps based on a software functional area

and glue the relevant artefacts between them

(Pretschner et al., 2007). This can be done by

identifying the synergies in semantic mappings

among the vehicle app IDL models of an app cluster.

There are several IDLs of SOA based FWs which

are used for vehicle app interface model

specifications. The OMG (Object Management

Group) standard has an open distributed object

computing infrastructure CORBA (Common Object

Request Broker Architecture) (Gokhale et al., 2007).

CORBA provides object services that are service

interfaces to be used by many distributed object

programs regardless of application domains, but

CORBA faces performance trade-offs with high

speed networks. Franca FW provides special support

to those automotive domain IDLs which can be

implemented using EMF (Birken, 2013). Based on

the Franca core model, service interface

specifications defined in other IDLs can be

transformed to or from Franca. However, there are

still some unanswered questions like successful

extension of Franca connectors to messages. These

questions could be addressed using semantic mapping

analysis.

Message component interface models from ROS

(Robot Operating System) and Google Protobuf

(Protocol buffers) used for different message

serialization and deserialization purposes during

message transmission and reception in vehicle apps,

have several pros and cons. There are proposals for

establishing a bridge between ROS and Protobuf FWs

to overcome their cons and to obtain a merged support

from both ROS and Protobuf IDLs (Dhama, 2017).

To establish this kind of bridge basically requires

statical analysis of metamodels to understand the

semantic mapping and synergies between given

specific FWs app interface models.

1.3 Automotive IDL: The Rationale

In domain specific models such as automotive system

models, the metamodels are often originally

introduced as structuring elements. These elements

give semantics to traditional modelling languages and

thereby also describes semantics for interface models

(Ruscio et al., 2012). The Figure 1 illustrates

overview of heterogeneous software components

(SWCs) supported by different app FWs say A and B

and supported by different Operating Systems (OSs).

In context of a concrete app, a software component

implementation must conform to one of the

component types defined by its component model. An

app software component model has a set of concrete

interface elements manifest on the visible surface of

its black box. These model elements populate some

or all its actual traits, which again conform to the

corresponding trait definitions.

A Semantic Analysis of Interface Description Models of Heterogeneous Vehicle Application Frameworks: An Approach Towards Synergy

Exploration

395

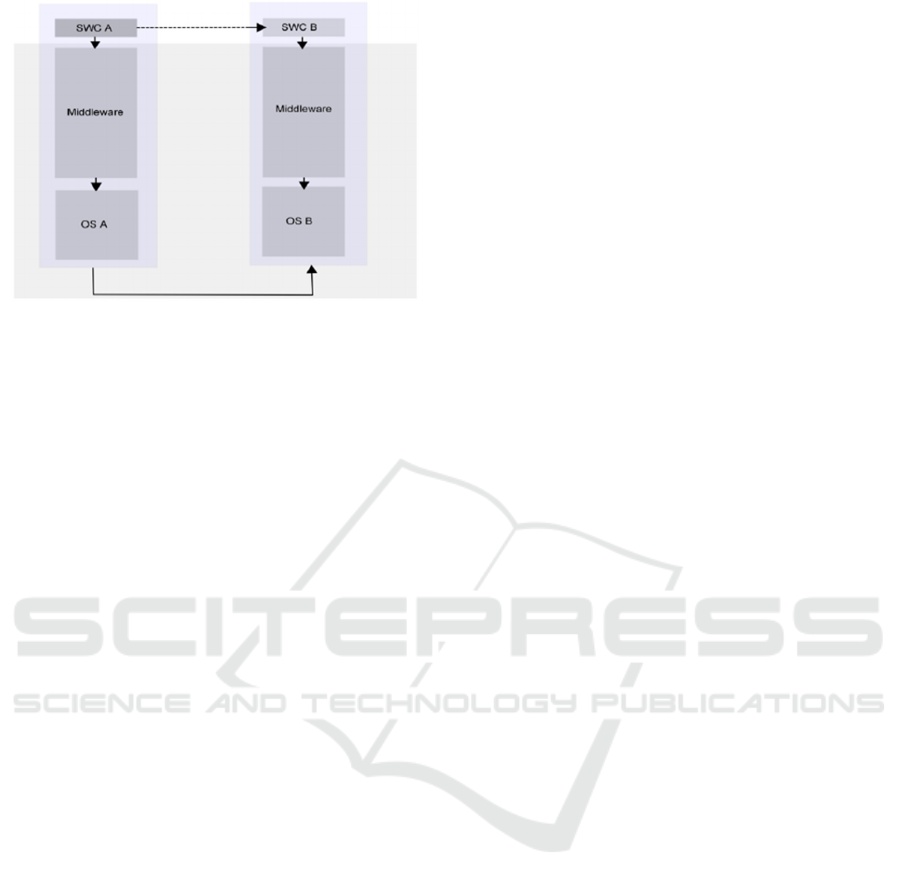

Figure 1: Overview of interfaces of SWC.

An interface not only specifies the services, call-

backs or function calls that a client may request from

a service provider app component, but it may also

include constraints on the usage of these services that

must be considered by both the service app

component and its clients. Interfaces are service

contracts between a service provider and a service

receiver. This contract may include numerous

invariants, preconditions and post conditions such as

deployment conditions of an app component interface

model that must be considered when using an

individual operation.

Most automotive domain FW component models

have an IDL for describing interfaces and their

elements using an implementation independent

semantic and syntactic notation (Lau and Wang,

2007). In context of SOA based FWs that are mostly

used in automotive domain, an app IDL model

basically includes information on following elements

at an abstract level:

 Service definition using signals or messages,

structure or events and broadcasts

specifications;

 A unique name for the service or identity for

the interface;

 Method signatures containing Semantic and

Syntactic Information with valid parameter

types, e.g. methods used for Service

subscription (or registration), Service

publication, Service notifications (using

callback notifications), etc.;

 Attributes (or member variables of an

interface), fields and Data Types (e.g.

primitive, complex);

 Optional deployment features based on

supported middleware or communication

protocol used by different app FWs.

2 SEMANTIC ANALYSIS OF IDL

MODELS: THE APPROACH

The problem to find the differences in the

component’s interface model of heterogeneous FWs

is intrinsically complex and requires specialized

algorithms to match the abstraction levels of models.

2.1 Static Semantic Analysis

Based on explicit semantic content authoring or static

analysing, approaches can be roughly classified into

two basic categories Top-Down and Bottom-Up

(Brada and Snajberk, 2011). The manual static

semantic analysis approach considered in the current

scope is a Top-Down approach and is at an early

stage, without the use of any automated static analysis

tool. The approach is based on the starting point of an

authoring process which is upper most level of

expressiveness. The proposed approach considers

Interface_basic_type of the interface specification as

the starting point or trait for analysis process. The

current approach defines the abstract traits of a

vehicle FW’s component interface model for the

semantic analysis. The approach further uses

semantic mapping to compare these traits for few of

the existing IDL alternatives used by vehicle FWs.

The approach uses a common case study of

SeatHeating SWC to realize an abstract interface

model by using each of the IDL alternatives. The

SeatHeating SWC is a sensor actuator component

model used in vehicle to monitor seat heat.

2.2 Classification of Traits for

Semantic Analysis

The abstract functional traits that are required for a

vehicle app interface model, have been classified

based on SOA based FW’s component metamodels

basic features. For the traits, the metamodel

representation ∈ Identifiers defines a trait ’ s

metamodel representation name, and metatype ∈

Identifiers defines type of the trait in context of

metamodel (Brada and Snajberk, 2011). The

specifications of abstract functional traits for

component interface model elements are provided

below, where comm stands for communication:

 Interface_basic_type

metamodel representation: basic_intf_element

metatype:basic_element_specification;

 Service_Interface_connection_point

metamodel representation: service_connect_pt

metatype: Interface_ports;

MODELSWARD 7th International Conference on Model-Driven Engineering and Software Development - 7th International Conference on

Model-Driven Engineering and Software Development

396

 Intf_bind_comm_proto

metamodel representation: comm_proto

metatype: Interface_binder_comm_protocol;

 Communication_Method_Specification

metamodel representation: method_spec

metatype: Interface_communication_method;

 Method_behaviour_Specification

metamodel representation: method_behav

metatype: asynchronous,synchronous;

 Field_Specification

metamodel representation: field_spec

metatype: attributes;

 Records_Specification

metamodel representation: record_spec

metatype: Datatypes;

Traits for an IDL can also represent non-

functional elements. The specifications of non-

functional traits for component interface model are

provided below:

 Versioning: Interface compatibility;

 Software Licence supported;

 Language Bindings supported.

3 IDL MODELS OF VEHICLE

APP FWS: ALTERNATIVES

This section provides an overview of abstract

interface models using few of the existing IDL

alternatives of heterogeneous FWs used for vehicle

apps (Dhama, 2017). The abstract interface models

discussed in this section are based on SeatHeating

SWC model case study, as described in subsection

2.1.

3.1 Franca IDL

Franca IDL is developed as a part of the GENIVI

standard Franca FW and supports IVI (In-Vehicle

infotainment) system’s interfaces. Franca IDL is

language-neutral and independent of concrete

bindings. APIs (Application Program Interfaces)

defined with Franca IDL consist of collections of

attributes, methods and broadcasts (Birken, 2013).

Primitive datatypes supported are (Un)signed

integers, Float/Doubles, Strings and Byte Buffers.

Using Franca IDL, a vehicle app client calls the

backend server using a vehicle ID and a struct

(Structure) defining service information such as a

unique Service Id. Figure 2 illustrates SeatHeating

vehicle app using Franca IDL abstract model. With

Franca IDL, a vehicle app is free to use older versions

of service interface methods with newer versions of

Franca IDL models. Therefore, in context of

versioning, Franca IDL has backward compatibility.

Figure 2: Abstract model of Franca FW Interface with

Service Structures and Methods.

Franca+ provides an extension to the Franca FW that

adds support to the modelling for software and hardware

components. It uses the same textual language style as

Franca but supports the definition of components,

composition of components, typed ports and connectors

between ports as seen in the Figure 3.

Figure 3: Abstract model for Franc++ component Interface.

The “provides” keyword, within a component

definition, is used to define a provider port. Similarly,

the “requires” keyword is used to define a required

port. Franca+ plans to extend the Franca interface

deployment model based on RPC (Remote Procedure

Call) mechanism. The Common API provides the

middleware solution supported by GENIVI as a part

of Franca FW. With Franca Interface model, an app

communicates with the Common API library and not

with the IPC (Inter Process Communication) directly

thereby making the app IPC agnostic.

3.2 Google Protocol Buffers IDL

Protobuf are a flexible, efficient, automated

mechanism for serializing structured data, used in IVI

/* Structure grouped under

Services*/

interface SeatHeatingServ {

version (major 2 minor 0),

struct HeatingElementService

{UInt32 ServiceId, String

ServiceName}

/* Method specification*/method

subscribeSeatHeatingServ{

in {UInt32 VehicleId

HeatingElementService myService}}}

/*A Client Component for Heating

Element */

Service component SeatHeatingControl

{ requires SeatHeatingElement as

AnswerMePort

} /* The Server Component for

Heating Element */

Service component SeatHeating {

provides SeatHeatingElement as

AskMePort}

A Semantic Analysis of Interface Description Models of Heterogeneous Vehicle Application Frameworks: An Approach Towards Synergy

Exploration

397

systems e.g. vehicle telematics data exchange, etc.

Protobufs are open source since 2008, prior to that

they were internally used by Google (since 2001). A

strong aspect of Protobuf data descriptions is the

ability to update, in a backward compatible and

forward compatible way, without affecting the

already deployed systems. Versioning is done by

using unique field numbers. The meta-data in

Protobuf is in form of key-pairs. In contrast to Franca

IDL, the base of defining interfaces within Protobuf

is through the definition of messages.

Messages are identified by a name and contain

fields, each with a unique field number as illustrated

in an example in Figure 4 (Dhama, 2017). However,

like Franca IDL Protobuf also uses a RPC mechanism

known as gRPC (Google RPC) for deployment of

message component models. RPC binding done via

gRPC generates stubs and skeletons. The Search

Request for service or Search Response messages

(basically a structure) contains 2 essential fields as

per proto3 syntax, illustrated in Figure 4. Fields can

either be:

 singular: with multiplicity 0...1. No keyword is

needed in this case;

 repeated: with multiplicity 0...N. Keyword

repeated is used. It is used to define an array

type.

Figure 4: Abstract model of service interface messages

using Google Protobuf.

gRPC is a high performance open source RPC

FW. Client machines can seamlessly call server

machines as if they are in the same execution

environment. Protobufs are designed for messages

that are 1MB in size or smaller. Therefore, Protobuf

by default, will not deserialize a message larger than

64MB. Protobuf uses two different kinds of message

transport mechanisms. When transferring of

client(stubs) to server (skeleton) RPC messages

within a single machine, Protobuf uses IPC using

shared memory and event based synchronizations.

When there is a requirement to transfer RPC

messages from client or subscriber to server or

publisher including multiple host machines, Protobuf

uses inter host communication based on UDP

(Unified Datagram Protocol) multicast feature.

3.3 Apache Thrift IDL

Thrift is a software library and set of code-generation

tools developed at Facebook to expedite development

and implementation of efficient and scalable backend

services. Thrift, which is supported by Apache

Software Foundation standard, allows developers to

define datatypes and service interfaces in a single

language-neutral file. Thrift generates all the

necessary code to build RPC clients and servers that

communicate seamlessly across various

programming languages (Slee, Agarwal and

Kwiatkowski ,2007). and is frequently used in the

vehicle apps e.g. monitoring of driver behaviour apps

using sensors.

Apache Thrift IDL is a superset of Protobufs, with

additional features that does not exist in Protobuf

such as constants, rich containers types e.g. list, maps,

sets, etc. The RPC invocation is done by sending a

method name on wire as string. Thrift defines

interfaces using Structures. Struct (structures) are

grouped under services like Franca IDL. An example

of SeatHeating service to track the seat heat using

Thrift IDL is shown in Figure 5. The field header for

every member of a struct is encoded with a unique

field identifier.

Figure 5: Abstract model for thrift struct and services.

/*Search request for Interface

SeatHeating Operation */

message SeatHeatingOperationRequest

{

string parameter1 = 1; /* Singular

Field Specification */

bool parameter2 = 2;}

/*Search response for Interface

SeatHeating Operation */

message

SeatHeatingOperationResponse {

bool parameter2 = 1; repeated

string parameter3 = 1;}

/*Repeated Field Specification*/

Service SeatHeatingserv{rpc

operation(SeatHeatingOperationReque

st);returns(SeatHeatingOperationRes

ponse);}

/*Interface using structures*/

struct SeatHeatingElement {

1: required double seat_temp;

2: required double heating_calib;

};

/*exception*/

exception DBUnavailable {

1: string ErrorCode;};

/*Service Specification*/

service SeatHeatingserv {

bool updatetemp(1:

SeatHeatingElement elem) throws

(1: DBUnavailable naService);}

MODELSWARD 7th International Conference on Model-Driven Engineering and Software Development - 7th International Conference on

Model-Driven Engineering and Software Development

398

The Thrift IDL also supports versioning.

Versioning in Thrift is implemented via field

identifiers Thrift is robust to versioning and data

definition changes. Thrift supported app FW must be

able to support requests from out-of-date clients to

new servers, and vice versa. Therefore, in context of

versioning, Apache Thrift IDL has forward &

backward compatibility like Franca IDL.

3.4 AUTOSAR XML (ARXML)

ARXML (AUTOSAR eXtensible Markup Language)

is the standard description format used to model all

AUTOSAR (Automotive Open System Architecture)

software component models related to the

AUTOSAR Classic platform and the AUTOSAR

Adaptive platform. AUTOSAR is widely accepted as

the de-facto standard of automotive system software

architecture for developing automotive app of various

automotive platforms during the different phases of a

vehicle life cycle. The AUTOSAR app software

component (SWC) template meta model is

implemented using ARXML Schema (Dhama, 2017).

One of the major benefits of using ARXML as

IDL is to simply the comparison of AUTOSAR SWC

descriptions from different AUTOSAR based

automotive platforms. This further enables

interoperability among different AUTOSAR

platforms such as AUTOSAR Adaptive and

AUTOSAR Classic. Figure 6 illustrates an

SeatHeating SWC model using ARXML. The

AUTOSAR SWC have provider port

(PPortPrototype) and receiver port (RPortPrototype)

interfaces like Franca+. The app software component

uses service interfaces. An example of AUTOSAR

Adaptive app software component release version

4.0.3 specific ARXML file can be seen in Figure 6.

/*Software Component Model

Specification*/

/*Service Interface specification using

Methods and Events */

Figure 6: SeatHeating vehicle app SWC model

implementation using ARXML.

The Service interface model uses RPC

communication protocol, like Franca, Protobuf and

Thrift IDLs. Service interface is specified using

various elements (AUTOSAR AP release, 2010),

these includes:

 Aggregation of variable data prototypes in the

role of Events;

 Aggregation of meta-class Fields in the role of

Fields;

 Aggregation of Client-Server Operations in the

role of Methods.

In AUTOSAR Adaptive platform, a Service

Instance Manifest file contains Service deployment

description. The services provider SWCs are called

skeleton and the service receiver SWCs are called

Proxy. For model migration of a AUTOSAR Classic

SWC model to the AUTOSAR Adaptive app manifest

model, ARXML is used as a common modelling

language to represent both source and target SWC

models and their interfaces.

3.5 ROS IDL

ROS (Robot Operating System) provides the required

tools to easily access sensor’s data, process that data,

and generate an appropriate response for the motors

and other actuators of the robot. Due to these

characteristics ROS is a perfect FW for self-driving

cars and an autonomous vehicle can be considered

just as another type of robot (Berger and

Dukaczewski, 2014).

ROS offers a message passing interface that

provides IPC and is commonly referred to as a

middleware solution. The benefit of using a message

passing system is that it forces to implement clear

interfaces between the nodes in a system, thereby

improving encapsulation and promoting code reuse.

The datatypes used by ROS messages is a superset of

datatypes used by Google Protobuf and Apache

Thrift.

The asynchronous nature of publish/subscribe

messaging works for Data Distribution Services

(DDS) requirements in robotics, but for synchronous

request/response interactions, RPC is used between

processes required for higher levels of robot

operations. In ROS1 FW, a Master stores topics and

service registration information for all other ROS

nodes. An example to create a ROS1 FW service node

for SeatHeating SWC using a node handler for

invocation of RPC is illustrated in Figure 7.

A Semantic Analysis of Interface Description Models of Heterogeneous Vehicle Application Frameworks: An Approach Towards Synergy

Exploration

399

Figure 7: Abstract model of a ROS 1 service node using

ROS IDL.

To create a client node using ROS1 FW, a

ros::ServiceClient object is used to call the service

using the same node handler later on as illustrated in

Figure 8. A node sends out a message by publishing

it to a given topic. The topic is a name that is used to

identify the content of the message. The nodes can

only receive messages with a matching topic type.

Figure 8: Abstract model of a ROS 1 client node using ROS

IDL.

4 DISCUSSIONS ON RESULTS OF

SEMANTIC ANALYSIS

This section includes tables to illustrate the results

from semantical comparison of the various IDL

models based on mapping of functional and non-

functional traits. Table 1 illustrates the semantical

comparison of the various IDL models based on

mapping of non-functional interface traits (described

in sub-section 2.2): Versioning i.e. forward or

backward compatibility of a component’s interface

model, software Licence supported, and Language

bindings used to describe a component’s interface

model (Ruscio et al., 2012). The fields within the

tables marked white indicates semantic synergies in

functional and non-functional traits among the

different FW IDL model alternatives, using manual

static semantic analysis approach. The synergies

revealed in the semantic traits comparison of the

vehicle FW IDL alternatives, could be further utilized

for cross vehicle FW communication of services.

Table 1: Static semantic mapping of FW IDL models based

on non -functional traits.

IDL Alter-

natives

Versioning

Language

Bindings

supported

Software

Licence

supported

Franca

IDL

Backward

compatibi-

lity

C++, C,

Java

Genivi

Alliance

Protobuf

Forward,

Backward

Compatibi-

lity

C++,

Python,

Java, C#

BSD

Thrift

Forward,

Backward

compatibi-

lity

C++, Java,

Python,

Ruby, C#,

Perl

Apache

arxml

Backward

compatibi-

lity

C++, C AUTOS-AR

ROS IDL

No support

to versioning

C++, C,

Python

BSD

Table 2 illustrates the semantic mapping of vehicle

app IDL alternatives based on functional traits such

as Interface basic element type specification or

representation, interface’s Communication Method

Specification used, and the Communication protocol

that is used for deployment of the FW API models.

Table 2: Static semantic mapping based on functional traits

for vehicle component service interface model.

IDL

Interface_

basic_

type

Communica-

tion_Method_

Specification

Intf_bind_

comm_pro

Franca

IDL

Structure,

Port

Interface

Publish-

Subscribe,

Client.Server

RPC

Protobuf Messages

Publish-

gRPC

Thrift Structure Client-Server RPC

ARXML

Port

Interface

Publish-

RPC

ROS IDL Messages

Client-Server,

Publish-

RPC,

DDS IP

/* Service node created by Server*/

ros::init(argc,argv,"add_two_ints_s

erver");

ros::NodeHandle n;

ros::SeatHeatingServ service =

n.advertiseService("update_seat_tem

perature", update);

/* Service requested by Client*/

ros::NodeHandle n;

ros::SeatHeatingControl client =

n.serviceClient<service_start::updat

e_Temp>("update_seat_temperature");

MODELSWARD 7th International Conference on Model-Driven Engineering and Software Development - 7th International Conference on

Model-Driven Engineering and Software Development

400

Table 3 illustrates semantic synergies based on

semantic mapping of the IDLs based on functional

traits such as interface Method behaviour

specification, Record specification used for attributes

specification and Service (Service Provider or

Receiver) Interface connection point.

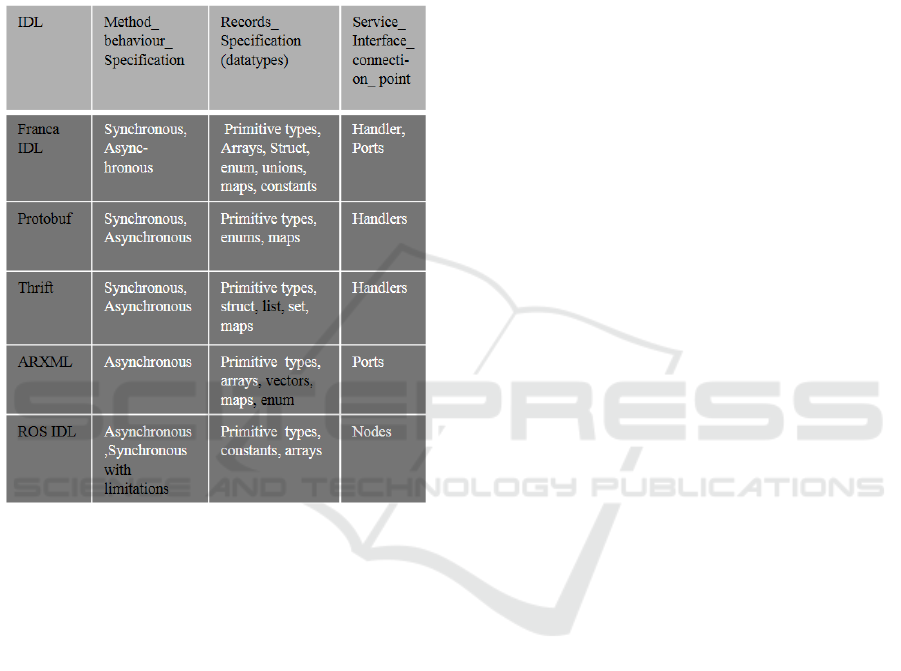

Table 3: Static semantic mapping of FW IDLs based on

functional traits.

Primitive types in Table 3 includes (Un)signed

integers, floats, Strings, bytes, Booleans, double.

5 CONCLUSIONS

The paper proposes a manual static semantic analysis

approach specifically tailored to explore the synergies

in semantics of interface models for vehicle app

components of heterogeneous FWs. With the

proposed approach, we have defined the abstract

functional and non-functional traits as the basic

features for a FW component’s interface model. We

have tried to simplify the semantic comparisons based

on the traits, for the various IDL alternatives by using

a common case study. Semantic synergies were

successfully explored to find the correlation between

the IDL models. In the absence of semantic synergy

exploration among the IDL models, the translation of

the interface semantics of an app SWC model of a

given FW to SWC model of another FW is not

possible. With the growing demands for services, the

functional and non-functional traits considered in the

current scope for vehicle FW IDLs, could be further

extended for semantic analysis in future. As a

proposal for future work, the correlation explored

between the different FW IDL models using semantic

mappings can be used for any kind of automotive

domain specific general software solution such as

Meta IDL model. To deal with this, we plan to extend

our work of semantic mapping of interface traits in

this direction.

REFERENCES

Weinreich, R., Sametinger, J., 2001. The book, “Component

Models and Component Services: Concepts and

Principles”, G.T. Heineman and W.T. Council (eds.),

Reading, MA: Addison-Wesley, pp. 33-48.

Brada, P., Snajberk, J., 2011. “Ent: A Generic Meta-Model

for the Description of Component-based Applications”,

Elsevier Electronic Notes in theoretical Computer

Science 279(2).

Ruscio, D., Wagelaar, D., Iovino, L., Pierantonio, A.,2012.

“Translational Semantics of a co-evolution Specific

language with the EMF Transformation Virtual

Machine”, ICMT.

Slee, M., Agarwal, A., Kwiatkowski, M., 2007. “Thrift:

Scalable Cross-language Services Implementation”,

Facebook white paper 5, 156 university ave.

Dhama, A., 2017. “Interface Definition Languages”, EB

white paper, http://www.elektrobit.com.

Birken, K., 2013. “Franca User Guide”, Release 0.12.0.1,

Eclipse Foundation, itemis AG.

Lau, K., K., Wang, Z., 2007. “Software Component

Models”, IEEE Transactions on software Engineering,

Vol 33, Issue 10, pp. 709-724.

AUTOSAR Adaptive Platform (AP) Release,

October, 2017. “Specification of manifest”.

http://www.autosar.org.

Berger, C., Dukaczewski, M., 2014. “Comparison of

Architectural Design Decisions for Resource-

Constrained Self-Driving Cars-A Multiple Case-

Study”, in Gesellschaft for INFORMATIK.

Pretschner, A., Broy, M., Krüger, I., H., Stauner, T., 2007.

“Software engineering for automotive systems: A

roadmap”, In Proceedings FOSS 2007, IEEE

Computer Society, Washington DC, USA, pp. 55-71.

Avram, A., Lenz, D., Bauch, D., Minnerup, P.,2014.

“Interface Definition and Code Generation in

heterogeneous Development Enviornments from a

Single-Source”, Fortiss GmbH, TMU, Munich.

Gokhale, A., Schmidt, D., C., Ryan, C., Arulanthu, A.,

1999. „The Design and performance of A OMG

CORBA IDL Compiler Optimized for Embedded

Systems “, LCTES workshop at PLDI, Atlanta,

Georgia.

A Semantic Analysis of Interface Description Models of Heterogeneous Vehicle Application Frameworks: An Approach Towards Synergy

Exploration

401
