IML: Towards an Instructional Modeling Language

Eric J. Rapos and Matthew Stephan

Department of Computer Science & Software Engineering, Miami University, Oxford, OH, U.S.A.

Keywords:

Modeling Languages, Model-Driven Engineering, Model Education, Domain-Speciﬁc Modeling Language,

Meta-model, Model Transformation, Model-based Testing.

Abstract:

Existing software modeling languages and tooling often contain features far beyond the comprehension of

novice users. Additionally, tools focus on speciﬁc aspects of the model-driven software engineering (MDSE)

process with little to no connection between various tools, phases, and applications. This paper describes our

current work and project plans to develop a single modeling language that is aimed at teaching MDSE at the

university level. The Instructional Modeling Language (IML), which implements both graphical and textual

modeling paradigms, centres around a single tool that includes functionality for various modeling techniques

and is not bloated with the full functionality that has been demonstrated to cause students to become over-

whelmed when introduced to numerous tools at once. IML includes and describes crucial MDSE concepts

and learning milestones including functionality for meta-modeling, instance creation, model transformations,

real-time system modeling, code generation, model-based testing, and others. Ultimately, our goal is for IML

to be used by instructors to introduce MDSE into their curriculum in a lightweight, easy-to-instruct manner.

This includes industrial education to introduce employees with little or no modeling experience to MDSE

concepts and applications. In this paper, we describe our plans for developing IML through four phases, our

current progress including IML’s scope and meta-model, our prototype, and future plans and anticipated chal-

lenges. Our hope is to continue engaging the MDSE community at the conference for feedback, suggestions,

and for volunteers for case study and trial adoption.

1 INTRODUCTION

Model-Driven Software Engineering (MDSE) has

been gaining traction in software development and

engineering, particularly in embedded and real-time

systems (Hutchinson et al., 2011). The uptake in

usage in industry has led to a shortage of trained

graduates with appropriate knowledge and skills in

MDSE (Hutchinson et al., 2014). While many insti-

tutions have introduced courses in modeling (shown

through increasing participation in the Educator’s

Symposium of the MoDELS conference), the tool

support and languages that currently exist are cumber-

some in scope and not explicitly designed for teach-

ing. While many languages exist for teaching pro-

gramming (Mannila and de Raadt, 2006), the same

cannot be said of modeling languages. There is sig-

niﬁcant positive impact when using the model-driven

approach in software engineering education (Hamou-

Lhadj et al., 2009), however it is important that it be

introduced as effectively as possible.

This position paper presents our work in progress

towards the development of a modeling language

intended to help teach modeling to university stu-

dents. We plan for the Instructional Modeling Lan-

guage (IML) to be a light-weight language that in-

troduces multiple key concepts of MDSE, such as

meta-modeling, model transformation, simulation,

and code generation. It will do so in a single tool envi-

ronment that neither has a cumbersome learning curve

nor does it feature overwhelmingly complex struc-

tures and overhead. IML is, to the best our knowl-

edge, the ﬁrst modeling language targeted speciﬁcally

at teaching MDSE skills and features. Thus, IML may

be considered a domain speciﬁc modeling language

(DMSL), where the domain is MDSE education.

To fully realize IML’s implementation, we will de-

velop a set of tools will to showcase its features. Thus,

we use the term IML to refer to both the modeling

language and the tool framework we propose to im-

plement it. We based IML upon UML class diagrams

for its core functionality, and implementing several

of its key features while removing some of the more

cumbersome aspects of UML in favour of teaching

concepts simply. This differs from lightweight lan-

guages, such as lightweight UML, because it facili-

Rapos, E. and Stephan, M.

IML: Towards an Instructional Modeling Language.

DOI: 10.5220/0007485204170425

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 417-425

ISBN: 978-989-758-358-2

417

tates the complete MDSE process and is intended pri-

marily for education.

We begin by presenting out motivations and

planned contributions, followed by relevant work in

Section 2. Section 4 presents the overall details of

the proposed IML, detailing the 4 phases of develop-

ment. Section 5 presents our current progress to date

and Section 6 presents the future work. Finally in Sec-

tion 7 we conclude with a summary of the proposed

and completed work.

1.1 Motivation

The main motivation for our work comes from our

previous experience teaching a course in MDSE

to students with minimal to no exposure to any

of the main modeling concepts. Their difﬁculties

stemmed from the unavailability of a single tool capa-

ble of demonstrating the many aspects of MDSE, and

the technical challenges associated with students in-

stalling and maintaining several different tools. This

ranged from open source, to academic, and propri-

etary systems. The experience is shared by others

in the community struggling with similar issues (Ra-

pos, 2018). This is similar to the course offered by

Poruban et al. whereby they had to use ”several dif-

ferent practical tools” instead of a single tool in order

to teach MDSE to their graduate students (Poruban

et al., 2014).

The driving force behind the IML is rooted in two

main areas: i) the need for a single tool capable of

demonstrating the full spectrum of MDSE topics, and

ii) the desire for a light-weight tool that allows users

to learn concepts easier than full heavy-weight tools,

and transfer them to those full tools after mastering

the basics.

1.2 Contributions

In order for the IML to become successful, we plan on

making four contributions which we describe in detail

in this paper.

• a light-weight, yet fully functional, modeling lan-

guage geared towards teaching MDSE;

• a set of example models and material to accom-

pany the language;

• a facility for customization of the IML DSML for

individual use/instruction; and

• a demonstration of the effectiveness of the DSML

through case studies, examples and existing

evaluations of teaching languages (Mannila and

de Raadt, 2006).

The goal of our IML project is to develop a fully

modularized and simple, yet comprehensive, DSML

speciﬁcally tailored to teaching MDSE to college/u-

niversity level students with some prior program-

ming and system design experience. Beyond being

a language to teach MDSE, a secondary goal for our

project is to have the IML robust enough for use in

very small scale modeling projects. That is, it will

be a fully functional language that is useful for rudi-

mentary real-world systems. Ideally it would ﬁnd a

place in the world of Agile modeling, where it could

be used as a means of lightweight rapid prototyping

systems to produce early results. Further, we intend

for the models created and managed by the IML to

be transferable to existing, more robust tools, in order

for the lightweight rapid prototypes to be portable to

full-scale development, if desired.

2 BACKGROUND AND RELATED

WORK

In this section, we brieﬂy overview DSMLs as the

IML is a DSML intended for teaching. We also sum-

marize existing work on teaching-speciﬁc modeling

languages to both position our work and to utilize and

learn from their experiences.

2.1 Domain-Speciﬁc Modeling

Languages

DSMLs are a tried and tested way of facilitating

MDSE by allowing engineers to create and manage

modeling artifacts using domain-speciﬁc abstractions,

concepts, and terms with which they are familiar. The

DSML meta-models and their environments and tools

are designed in such a way that facilitate full code

generation (Amyot et al., 2006; Kelly and Tolvanen,

2008). They have been shown to be very effective in

practice (K

arn

a et al., 2009), and exist for many dif-

ferent domains including adaptive systems (Fleurey

and Solberg, 2009), business models (Sonnenberg

et al., 2011), computer games (Furtado and Santos,

2006), multiagent systems (Hahn, 2008), and others.

In our case, we are developing a DSML for MDSE

education.

2.2 Education-speciﬁc Languages

In a comparison of languages for teaching intro-

ductory programming, Mannila and Raadt summa-

rize seventeen criteria for evaluating introductory pro-

gramming languages based on a survey of the ﬁeld

and languages considered ’teaching languages’ (Man-

nila and de Raadt, 2006). Some examples include a

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

418

language that is suitable for teaching, has the ability

to apply physical analogies, features a general frame-

work, is interactive and features rapid code develop-

ment and more. They organize their criteria into four

categories: learning, design and environment, support

and availability, and its ability to go beyond introduc-

tory programming. We plan to use these seventeen

criteria and four categories to guide not only the de-

sign of the IML but also our planned evaluations and

case studies.

Silva-Maceda et al. performed an experiment

demonstrated that allocating more time for students

to absorb concepts, rather than better programming

languages (C versus Raptor), was more of a factor in

student success in learning traditional code program-

ming (Silva-Maceda et al., 2016). With the IML, our

goal is to allow for students to spend more time fo-

cusing on the concepts rather than the individual tools

and their intricacies.

Van Roy et al. demonstrated that the speciﬁc pro-

gramming paradigm made no difference in student

learning, but that the language they used was the key

factor (Van Roy et al., 2003). This supports our mis-

sion in creating the IML, a language focused primar-

ily on modeling education.

3 IML OVERVIEW

In this section we present an inital overview of the

Instructional Modeling Language, speciﬁcally its in-

tended features and our initial meta-model.

3.1 Feature Selection

Based on our personal academic and industrial expe-

riences in modeling, and our research on MDSE ed-

ucation including the recommendations provided in

the ongoing work towards an MDSE body of knowl-

edge (Ciccozzi et al., 2018), we chose the following

modeling concepts for inclusion in the IML,

1. conceptual system modeling

2. meta-modeling and instance creation

3. model-to-model and model-to-text model trans-

formations

4. behavioral modeling

5. model execution and simulation

6. code generation

7. model-based testing and model validation

This list is by no means an exhaustive and com-

plete list of MDSE topics. However, we contend it

forms the basis of a core understanding and is the

minimal set of concepts for us to consider IML to be

completed. Additional techniques and concepts can,

and likely will, be added in successive releases based

on practitioner and academic feedback.

3.2 IML Meta-model

In order for us to demonstrate the light-weight na-

ture of the IML and the limited subset of UML model

features it will implement, it was imperative that we

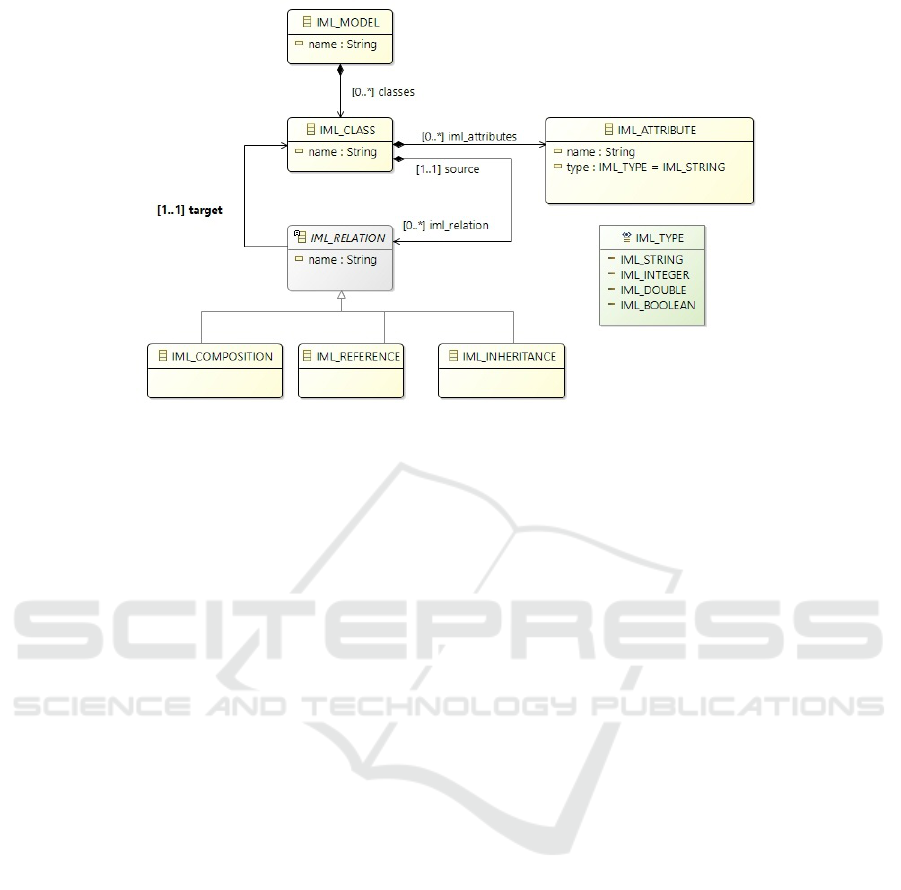

ﬁrst develop a meta-model for the language. Figure 1

presents the IML meta-model, which we developed as

an Ecore model within the EMF. When compared to

the Ecore meta-model, the meta-model for IML con-

tains a constrained set of data types, and is simpliﬁed

greatly in how relations are expressed

IML describes a simpliﬁed version of UML class

diagrams, containing classes with a name and at-

tributes, and a limited set of relations between classes.

While the feature set is limited, it still allows users to

create conceptual models with a variety of data types

and relations, containing enough complexity to hone

and grasp concepts related to meta-modeling, model

creation, and the general abstraction elements associ-

ated with MDSE.

As the project progresses, it is possible that the

meta-model will evolve to adapt to necessity, but our

goal is to maintain its light-weight simplicity through-

out development.

4 IMPLEMENTING IML

In order to accomplish the goals of IML, we have out-

lined a 4 phase project, which we describe in the fol-

lowing subsections.

4.1 Phase 1: Conceptualization

The ﬁrst phase of the project is one of the more im-

portant steps in creating an effective framework for

teaching MDSE. Our original intent was to conduct

a review of courses being taught by colleagues and

other institutions to examine the overlapping and key

topics. However a recent initiative lead by many well

established MDSE researchers and industry represen-

tatives works toward creating a Body of Knowledge

speciﬁcally for MDSE (Ciccozzi et al., 2018). This

work in progress will provide an already cultivated

list of topics that will make an excellent feature set

for the IML. We present our results in analyzing this

work and how we will incorporate it into the IML in

Section 5.

IML: Towards an Instructional Modeling Language

419

Figure 1: The IML Meta-Model implemented as an Ecore Model.

4.2 Phase 2: Implementation

The bulk of this project will focus on the implementa-

tion of the IML DSML and its supporting tools. Based

on the functionality we determine in Phase 1, we will

order concepts in sequence based on when they are

used by modelers in the typical MSDE process. For

example, conceptual system design should be early in

the process, while model-based testing and code gen-

eration will ultimately be later in the list. The reason

for this ordering is that our goal is to implement the

set of IML tools in an iterative fashion, producing a

working tool over many iterations, and adding new

functionality during each iteration.

4.2.1 Implementation Alternatives

There are currently two possible options we are con-

sidering for the development of the IML: an EM-

F/GMF based plugin to emulate similar tools, and a

standalone Java based tool implemented in JavaFX.

Both of these options have pros and cons, which we

discuss below. It is our hope that the modelsward

community will provide further feedback and insights

into these options.

Eclipse based Implementation Option. Eclipse is

a well-known, heavily supported, platform that is

used in numerous tools developed in both academia

and industry. In addition to its prevalence, Eclipse

is also an open source option meaning that there are

no additional costs to the development, and students

and users of the resulting DSML will not require soft-

ware licenses in order to use the tools. This is not the

case for many of the current modeling tools. By cre-

ating an Eclipse based tool, we can leverage existing

open source plugins to Eclipse that will help imple-

ment parts of what we hope to accomplish. As an

example, the Eclipse Modeling Framework (EMF) is

an eclipse plugin itself, and could be leveraged easily

for us to incorporate in the DSML we develop. How-

ever, it would be a pared down version to remove any

high-complexity features that may bog down novice

users, leaving only the required and key educational

features.

Using this existing framework may have the pit-

fall of its associated complexities and bloat may make

its way into the IML, which directly contradicts the

goals and our vision of a light-weight framework de-

signed for education. To make use of EMF we would

have to be very careful to avoid using large numbers

of data types, obfuscate complex aspects, and provide

detailed support and documentation.

JavaFX based Implementation Option. JavaFX

is the successor to Java Swing, and is used to

create graphical interfaces to Java based programs.

By building a framework from the ground up with

JavaFX we are capable of avoiding any the complex-

ity issues that could arise from the use of EMF. This

approach allows for full control over the elements of

the modeling language that the users will be interact-

ing with. Another added beneﬁt of a standalone Java

based application is the fact that installation will not

be an issue. This is in contrast to the Eclipse option

since Eclipse plugins can often cause issues for those

unfamiliar with the framework. Additionally, most

potential users will already have a JRE installed on

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

420

their machine

, leaving practically no installation re-

quirements.

The downside of pursuing this implementation op-

tion is that there is signiﬁcantly less community and

framework support for JavaFX than there is for EMF

and GMF based solutions.

4.2.2 Model Representation Format

Another major milestone in the development of our

DSML is determining the appropriate format for en-

coding IML models textually. In keeping with the

open source mentality, as well as being able to reuse

as much as possible, we have decided to represent the

models for this DSML using an XML representation.

This type of representation is widely accepted and

used in many current modeling tools, and allows us to

use existing naming conventions, representations and

more to ensure smooth transitions from our modeling

language to full-ﬂedged modeling tools.

4.3 Phase 3: Validation, Veriﬁcation,

and Quality Assurance

As each feature is implemented in the previous phase,

they will be tested independently for correctness,

completeness, and quality. This interleaving of phases

2 and 3 will allow concurrent work to be done by all

those involved in the project and will also ensure an

iterative development of the modeling language. This

will allow for individual aspects of the IML to be dis-

seminated earlier on, rather than waiting for the entire

framework. This will allow for additional community

feedback and cyclical improvements throughout de-

velopment.

Beyond modularity, this iterative approach will al-

low for dedicated testing of smaller units of imple-

mentation, which is a key factor in producing quality

software tools (Ammann and Offutt, 2016). After we

have implemented all phases and tested them individ-

ually, we will take part in several levels of integration

testing to ensure the entire product suite works harmo-

niously as a complete end-to-end modeling tool (Am-

mann and Offutt, 2016). This will consist of several

case studies, aimed at reproducing results from other

mainstream modeling tools. When all aspects of the

system work together, we will consider the system

complete and we will proceed to the fourth and ﬁnal

phase.

https://web.archive.org/web/20100925204716/,

https://java.com/en/download/faq/whatis java.xml

4.4 Phase 4: Documentation and

Support

Since one of the main purposes of the IML is its use

in teaching, a large component of its success is depen-

dent on proper documentation and support.

During the completion of the IML, we will fo-

cus efforts on providing supporting materials to ac-

company delivery of the tool, including documen-

tation for installation, troubleshooting, the creation

and packaging of several example models, and more.

We will validate and verify this documentation during

this phase by soliciting feedback from students in our

modeling course, asking for peer reviews from both

modeling practitioners and educators, and other tech-

niques. We will also produce demonstration videos

for instructors to use in course offerings and/or novice

modelers to use in self-learning modeling principles.

In addition to the educational support, this phase

will also include us developing support for the tool

by means of marketing through websites, published

works, forums, and others. We will note its availabil-

ity to instructors, primarily those involved in MDE

education and those responsible for the push towards

the MBE body of knowledge (Ciccozzi et al., 2018),

and more broadly via the modeling community.

5 CURRENT PROGRESS

This section presents the current progress in our re-

alization of the IML. It is rooted in three main areas:

selection of IML’s features, initial development of the

IML meta-model, and early prototype development.

5.1 Current Prototype

In an attempt to begin working on the IML, an early

prototype has been developed using JavaFX. This sec-

tion discusses the various aspects that we have cur-

rently implemented.

5.1.1 Overall Tool Layout

The ﬁrst necessary step was the creation of the tools

overall layout for its user interface. Since one of our

other implementation options was an Eclipse based

approach, along with our desire for the IML to allow

users to easily transition to existing tools in the mod-

eling domain, we opted for a GUI that was visually

similar to Eclipse and its derivative plugins. Thus, we

opted for a tool with a canvas in the center capable of

displaying models or a text editor; a ﬁle/tree browser

to the left; a tool box on the right, which currently

IML: Towards an Instructional Modeling Language

421

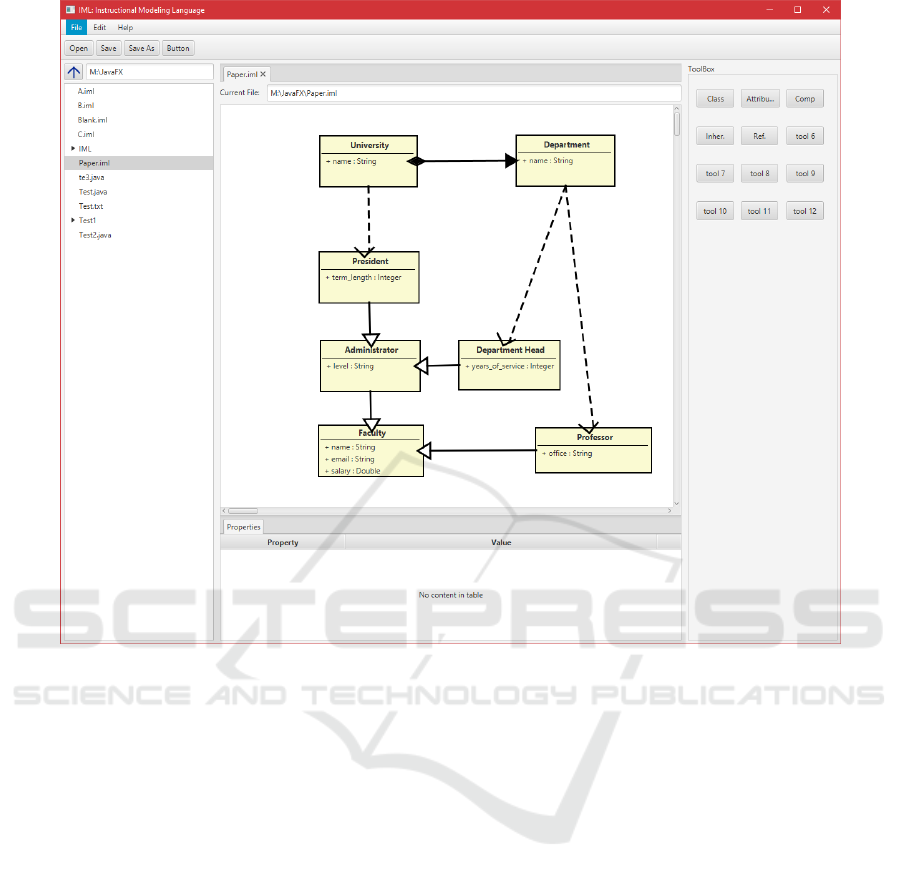

Figure 2: An example IML Model in the tool’s model drawing canvas.

contains placeholders for tools to be added later;and

a view for displaying properties and other details on

the bottom. JavaFX uses a layout manager that made

maintaining these layouts rather simple, and easy to

maintain independently in a plug and play manner.

We present the main IML window in Figure 2.

5.1.2 Model Canvas

One of the main features of our early prototype is the

model drawing canvas. As a modeling tool, it is im-

perative to be able to implement the creation of IML

models accurately. Our current prototype allows the

creation of various IML-named classes on the can-

vas, which can then have various typed and named

attributes added to them. Each of the classes are ca-

pable of having various relations between them, for

example, composition, reference, and inheritance, us-

ing the standard accepted notations.

Figure 2 shows an example model we have drawn

on the canvas. It illustrates a university made up

of departments, each of which reference certain fac-

ulty members that inherit features from the general

Faculty class. Our current implementation does not

present the cleanest lines, but its main purpose is

for proof-of-concept of function, and should devel-

opment continue using JavaFX, we will give further

attention to UI aspects.

5.1.3 Model Format - Read and Write

The last major aspect of our current work relates to

the model formatting. In addition to being able to

draw models on the canvas, the IML is capable of sav-

ing the models to an XML based format, as well as

reading in an XML input ﬁle and rendering the cor-

responding model on screen for further editing. We

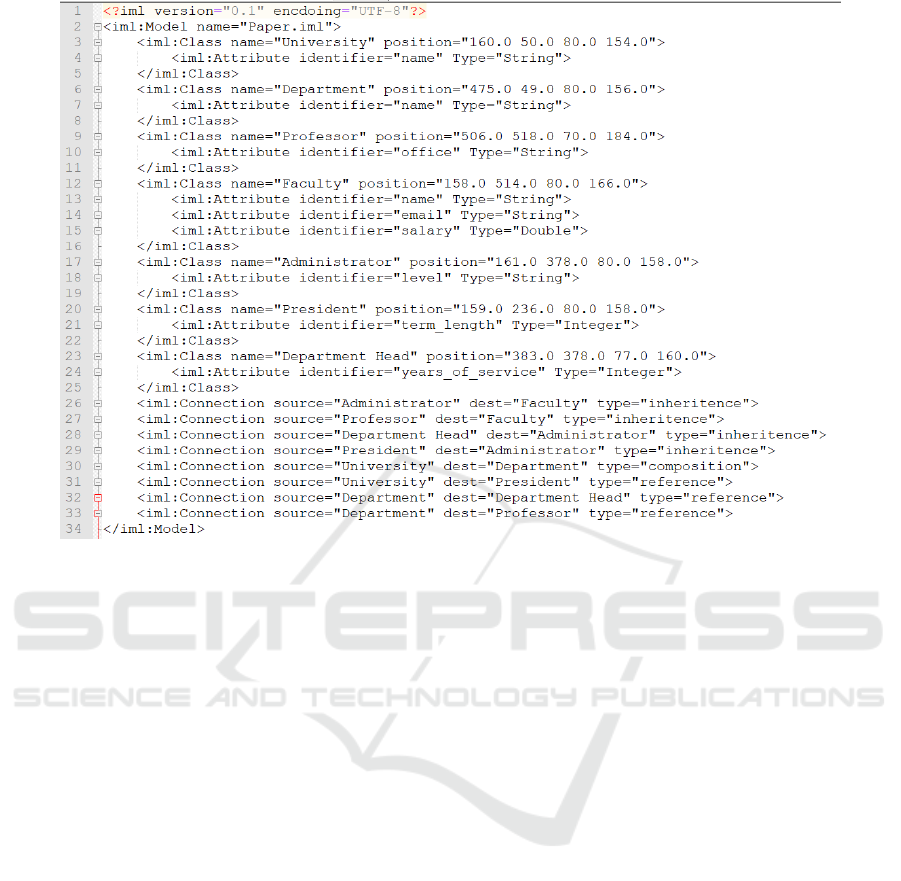

present an example XML representation for the model

shown in Figure 2 in the code listing in Figure 3.

Each class is its own object, with attributes for its

name, and position. Position includes four numeri-

cal values: X position, Y position, height, width, as

shown on line 3. Every class then has each of its

attributes embedded. Each attribute is stored with a

name and type, for example, line 4. After each of the

classes are deﬁned in the XML ﬁle either by the IML

tool or an external tool, the connections between them

are interpreted by the IML tool as individual objects,

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

422

Figure 3: Sample XML representation of IML models.

containing a source, destination, and type such as, in-

heritance, reference, or composition, as we illustrate

on line 26.

6 FUTURE WORK

Our immediate next step is to determine whether to

continue development with the JavaFX method, or to

switch to the Eclipse based toolset of EMF, GMF, et

cetera. While the standalone nature of our current tool

provides more ﬂexibility in what is ultimately devel-

oped, the steep learning curve and lack of commu-

nity support for JavaFX may make it a less viable op-

tion. However, a tool that is signiﬁcantly more light-

weight than existing modeling tools will help set the

IML apart from cumbersome tools, which is one of

the IML’s main goals.

Regardless of which option we choose, the re-

maining future work involves us extending our cur-

rent progress to implement a fully functional ﬁrst it-

eration of IML. Recall, our intent is to iteratively add

functionality from the list of features. Our ﬁrst prior-

ity is conceptual system modeling, which is the abil-

ity to draw and manipulate models similar to existing

UML tools; a feature nearly completely implemented

in the current prototype. The remaining features miss-

ing from the ﬁrst iteration are the ability to manipulate

properties via the properties tab, and model check-

ing for conformance to the a speciﬁed meta-model.

Speciﬁcally, the IML meta-model in the ﬁrst iteration,

and custom meta-models in later iterations.

Following the completion of the the ﬁrst iteration,

the next logical step is the implementation of model

transformations within IML. This involves the abil-

ity to provide two custom meta-models and a set of

transformation rules to be able apply automatically

the transformation from any instance models that con-

form to the source meta-model, thus creating corre-

sponding instances that conform to the source meta-

model.

Our minimum viable product (MVP) for the IML

and tool suite entails the implementation of concep-

tual modeling including conformance checking to a

speciﬁed meta-model, the ability to create custom

meta-models and instance models, and model trans-

formations. This MVP milestone will be useful in

teaching several of the important high-level concepts

in MDSE. Beyond this MVP, the remaining features

will be implemented one by one until we have intro-

duced the full feature set. We now describe each fea-

ture in detail.

To incorporate behavioral modeling into IML, the

goal is to provide two alternative methods that em-

ulate leading tools. The ﬁrst method will be the

use of state machines to implement behavior, much

like existing UML-RT tool implementations, such as

IML: Towards an Instructional Modeling Language

423

Papyrus-RT

which is the current focus of ongoing re-

search (Hili et al., 2017; Kahani et al., 2017). Keep-

ing with the simpliﬁed nature of the IML, this will be

a signiﬁcantly reduced subset of the UML-RT proﬁle

to demonstrate functionality of existing tools, such as

Papyrus-RT, without the need to cover some of UML-

RT’s more complex implementation issues. The sec-

ond method is to implement block based data-driven

behavior in the style of Simulink models, again using

a signiﬁcantly reduced block library to demonstrate

functionality. For each of these behavioral modeling

methods, IML will include some mechanism of ex-

ecution and/or simulation. The intent is to be able

to walk though execution of the models, and provide

simulated inputs to observe the system’s responses.

For code generation, our intent will be to generate

functional code, in Java for example, for the behav-

ioral models that can be run independently from the

IML framework. The focus of this aspect of IML is

to demonstrate the power of MDSE to produce source

code from graphical models.

The ﬁnal area of work for us in development

of the IML is related to model-based testing and

model-checking techniques. We have yet to deter-

mine the speciﬁcs, but we will leverage existing test-

ing technologies, such as test case generation through

symbolic execution for the UML-RT based mod-

els (Zurowska and Dingel, 2012; Rapos and Dingel,

2012), and some form of Simulink model style of test-

ing capable of generating full test suites that apply to

both simulation and code generation, while consider-

ing the evolution of systems and their tests (Matinne-

jad et al., 2016).

7 CONCLUSIONS

The goal of the IML and its framework is to pro-

vide computer science and software engineering ed-

ucators adequate tool support to effectively incorpo-

rate MDSE into their curriculum, either as modules

in existing courses or, ideally, as full courses on the

topic. We envision IML as a modeling language that

is capable of producing small-scale and simpler work-

ing software systems, but one that is not burdened by

the cumbersome nature of many existing languages

and tools available currently. By stripping away many

low-level details and leaving only what is necessary

for a student to master modeling techniques such as

meta-modeling, model transformations, model-based

testing, and others, IML aims to ﬁll a sufﬁcient void

in educational focused software.

https://www.eclipse.org/papyrus-rt/

REFERENCES

Ammann, P. and Offutt, J. (2016). Introduction to software

testing. Cambridge University Press.

Amyot, D., Farah, H., and Roy, J.-F. (2006). Evaluation of

development tools for domain-speciﬁc modeling lan-

guages. In International Workshop on System Analysis

and Modeling, pages 183–197. Springer.

Ciccozzi, F., Famelis, M., Kappel, G., Lambers, L., Mosser,

S., Paige, R. F., Pierantonio, A., Rensink, A., Salay,

R., Taentzer, G., Vallecillo, A., and Wimmer, M.

(2018). Towards a body of knowledge for model-

based software engineering. In MODELS, pages 82–

89, New York, NY, USA. ACM.

Fleurey, F. and Solberg, A. (2009). A domain speciﬁc

modeling language supporting speciﬁcation, simula-

tion and execution of dynamic adaptive systems. In

MODELS, pages 606–621. Springer.

Furtado, A. W. and Santos, A. L. (2006). Using domain-

speciﬁc modeling towards computer games develop-

ment industrialization. In OOPSLA workshop on

domain-speciﬁc modeling (DSM06).

Hahn, C. (2008). A domain speciﬁc modeling language

for multiagent systems. In Joint conference on

Autonomous agents and multiagent systems, pages

233–240. International Foundation for Autonomous

Agents and Multiagent Systems.

Hamou-Lhadj, A., Gherbi, A., and Nandigam, J. (2009).

The impact of the model-driven approach to software

engineering on software engineering education. In

International Conference on Information Technology:

New Generations, pages 719–724.

Hili, N., Dingel, J., and Beaulieu, A. (2017). Modelling and

code generation for real-time embedded systems with

uml-rt and papyrus-rt. In International Conference on

Software Engineering Companion, pages 509–510.

Hutchinson, J., Rounceﬁeld, M., and Whittle, J. (2011).

Model-driven engineering practices in industry. In

International Conference on Software Engineering,

pages 633–642. ACM.

Hutchinson, J., Whittle, J., and Rounceﬁeld, M. (2014).

Model-driven engineering practices in industry: So-

cial, organizational and managerial factors that lead to

success or failure. SCP, 89:144–161.

Kahani, N., Hili, N., Cordy, J. R., and Dingel, J. (2017).

Evaluation of uml-rt and papyrus-rt for modelling

self-adaptive systems. In International Workshop on

Modelling in Software Engineering, pages 12–18.

arn

a, J., Tolvanen, J.-P., and Kelly, S. (2009). Evaluating

the use of domain-speciﬁc modeling in practice. In

OOPSLA workshop on Domain-Speciﬁc Modeling.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-speciﬁc mod-

eling: enabling full code generation. John Wiley &

Sons.

Mannila, L. and de Raadt, M. (2006). An objective compar-

ison of languages for teaching introductory program-

ming. In Baltic Sea conference on Computing educa-

tion research, pages 32–37. ACM.

Matinnejad, R., Nejati, S., Briand, L. C., and Bruckmann,

T. (2016). Automated test suite generation for time-

continuous simulink models. In Proceedings of the

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

424

38th International Conference on Software Engineer-

ing, pages 595–606, New York, NY, USA. ACM.

Poruban, J., Bacikova, M., Chodarev, S., and Nosal, M.

(2014). Pragmatic model-driven software develop-

ment from the viewpoint of a programmer: Teaching

experience. In FedCSIS, pages 1647–1656. IEEE.

Rapos, E. J. (2018). We’ll make modelers out of ’em yet:

Introducing modeling into a curriculum. In EduSymp

18, Educators Symposium at MODELS. ACM/IEEE.

Rapos, E. J. and Dingel, J. (2012). Incremental test case

generation for uml-rt models using symbolic execu-

tion. In International Conference on Software Testing,

Veriﬁcation and Validation, pages 962–963.

Silva-Maceda, G., Arjona-Villicana, P. D., and Castillo-

Barrera, F. E. (2016). More time or better tools? a

large-scale retrospective comparison of pedagogical

approaches to teach programming. IEEE Transactions

on Education, 59(4):274–281.

Sonnenberg, C., Huemer, C., Hofreiter, B., Mayrhofer, D.,

and Braccini, A. (2011). The rea-dsl: A domain spe-

ciﬁc modeling language for business models. In In-

ternational Conference on Advanced Information Sys-

tems Engineering, pages 252–266. Springer.

Van Roy, P., Armstrong, J., Flatt, M., and Magnusson, B.

(2003). The role of language paradigms in teaching

programming. In ACM SIGCSE Bulletin, volume 35,

pages 269–270. ACM.

Zurowska, K. and Dingel, J. (2012). Symbolic execution of

uml-rt state machines. In ACM Symposium on Applied

Computing, pages 1292–1299, New York, NY, USA.

ACM.

IML: Towards an Instructional Modeling Language

425
