Bi-Directional Attention Flow for Video Alignment
Reham Abobeah
1,2
, Marwan Torki
3
, Amin Shoukry
1,3
and Jiro Katto
4
1
CSE Department, Egypt-Japan University of Science and Technology, Alexandria, Egypt
2
CSE Department, Al-Azhar University, Cairo, Egypt
3
CSE Department, Alexandria University, Alexandria, Egypt
4
Computer Science and Communication Engineering Department, Waseda University, Tokyo 169-8555, Japan
Keywords:
Temporal Alignment, Synchronization, Attention Mechanisms, Bi-directional Attention.
Abstract:
In this paper, a novel technique is introduced to address the video alignment task which is one of the hot
topics in computer vision. Specifically, we aim at finding the best possible correspondences between two
overlapping videos without the restrictions imposed by previous techniques. The novelty of this work is that
the video alignment problem is solved by drawing an analogy between it and the machine comprehension
(MC) task in natural language processing (NLP). Simply, MC seeks to give the best answer to a question
about a given paragraph. In our work, one of the two videos is considered as a query, while the other as a
context. First, a pre-trained CNN is used to obtain high-level features from the frames of both the query and
context videos. Then, the bidirectional attention flow mechanism; that has achieved considerable success in
MC; is used to compute the query-context interactions in order to find the best mapping between the two input
videos. The proposed model has been trained using 10k of collected video pairs from ”YouTube”. The initial
experimental results show that it is a promising solution for the video alignment task when compared to the
state of the art techniques.
1 INTRODUCTION
Video Alignment aims at finding, in time and space,
the best correspondences between two videos. More
specifically, temporal alignment or synchronization
refers to mapping each frame in a reference sequence
to the most similar one in an input sequence, taking
into consideration the sequence information (Diego
et al., 2011). Along the last years, video alignment
has played a significant role in many computer vision
applications including video matting (Sand and Teller,
2004), action recognition (Ukrainitz and Irani, 2006),
object detection (Kong et al., 2010), change detection
(Diego et al., 2011), and video editing (Wang et al.,
2014).
Most of the previous video alignment techniques
have some restrictions on the captured videos such as
constraining the used cameras to be either still or ste-
reo or independently moving. Other difficult assump-
tions include knowing the trajectories of some feature
points along the whole video (Singh et al., 2008) or
supposing the existence of some linear relationship
among the two videos (Padua et al., 2010). We think
that these restrictions are among the reasons behind
the limited applicability of these techniques in real
applications. So, in this paper, we aim to overcome
most of these limitations and open the way to new ap-
plications through our new proposed technique.
Recently, attention mechanisms have achieved
great success in many applications in both NLP and
computer vision areas (Weston et al., 2015; Agrawal
et al., 2017; Xiong et al., 2016). Specifically, they
improved in a significant way the performance of Re-
current Neural Network (RNN), through guiding it
to ”where to look” during the task. The most com-
mon characteristics of these attention-based works
can be summarized in the following points. First, they
extract the information related to the query through
summarizing the context into a fixed length vector ba-
sed on the attention weights. Second, the attention
weights at any time step depend mainly on the atten-
ded vector from the previous step. Third, the attention
direction is always from the query to the image, in
captioning task or the context paragraph in NLP task.
Unlike these mechanisms, we depend, mainly in
our work, on the bidirectional attention flow (BIDAF)
technique introduced recently in (Seo et al., 2016).
BIDAF outperforms the previous techniques by the
Abobeah, R., Torki, M., Shoukry, A. and Katto, J.
Bi-Directional Attention Flow for Video Alignment.
DOI: 10.5220/0007524505830589
In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 583-589
ISBN: 978-989-758-354-4
Copyright
c
2019 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
583
following features which make it the best choice for
our task. First, instead of context summarization, the
attention is estimated at each time step and the out-
put vector together with the previous layer represen-
tation are passed to the modeling layer. Second, the
attention at each time step depends only on the query
and the context at the current time step regardless of
the attention at the previous step. Consequently, this
prevents inaccurate attention at previous steps from
affecting the current time attention. Finally, BIDAF
technique applies the attention in both directions from
the query to the context and vice versa. This, in turn,
leads to a significant improvement in the overall accu-
racy through feeding more useful information to the
model.
In this paper, we propose a new solution for the
video alignment task. Specifically, we deal with the
task as MC by letting one of the two input videos acts
as a query and the other as the context, allowing the
technique to find the best match for the given query.
Nothing more than the existence of an overlapping
among these two videos is required. We exploit all
the previously mentioned features of the BIDAF me-
chanism and apply it to our task.
Through testing the proposed approach on a small
challenging dataset, we conclude that it can be
successfully applied to the state of the art video alig-
nment datasets.
2 RELATED WORK
2.1 Video Alignment
There are many available solutions for the video sy-
nchronization task. They differ according to the re-
strictions and assumptions imposed by each method.
We briefly introduce some of these previous works in
this section.
Regarding the temporal correspondence, some
works assume a constant offset time between each
two corresponding frames t
r
= t
q
+β , (Tuytelaars and
Van Gool, 2004; Ushizaki et al., 2006; Wolf and Zo-
met, 2006). Others, assume a linear relationship in or-
der to consider the frame rate difference t
r
= α t
q
+ β
, (Wedge et al., 2007; Tresadern and Reid, 2009; Ra-
vichandran and Vidal, 2011). In both cases, the alig-
nment models need to only estimate one or two para-
meters whereas in non-parametric curve assumption
based models, the problem turns to be much harder
(Sand and Teller, 2004; Fraundorfer et al., 2007; Ho
and Newman, 2007; Singh et al., 2008; Cao et al.,
2010).
By considering the relation between the used ca-
meras, the existing solutions depend on using either
two rigidly connected or independently moving ca-
meras. The problem is easier to solve in the first case
as the geometric transformation among the coordinate
systems of both cameras is assumed to be constant
(Wolf and Zomet, 2006; Wedge et al., 2007; Ravi-
chandran and Vidal, 2011). On the contrary, no geo-
metric relationship can be assumed in case of the two
moving cameras. Consequently, the proposed soluti-
ons have to assume the existence of an overlapping
field of view between the two cameras in order to
solve the problem (Sand and Teller, 2004; Dai et al.,
2006; Fraundorfer et al., 2007; Singh et al., 2008;
Tresadern and Reid, 2009; Padua et al., 2010).
Also, the existing alignment models can be clas-
sified, according to their inputs, into two types, direct
methods and feature based methods. In the first type,
the model deals directly with the frame intensity va-
lues (Caspi and Irani, 2002; Ushizaki et al., 2006), its
Fourier transform (Dai et al., 2006), or its dynamic
texture (Ravichandran and Vidal, 2011). On the ot-
her hand, feature based methods require tracking the
feature points along the whole two sequences (Tuy-
telaars and Van Gool, 2004; Wolf and Zomet, 2006;
Singh et al., 2008), or both the feature points and li-
nes along three sequences (Lei and Yang, 2006) or
identifying the interest points in space or in space and
time (Sand and Teller, 2004; Fraundorfer et al., 2007;
Tresadern and Reid, 2009; Cao et al., 2010; Padua
et al., 2010). It is worthy to note that some of the
previous works can align the two videos even if they
are captured at different points in time like (Ukrai-
nitz and Irani, 2006; Ho and Newman, 2007; Singh
et al., 2008; Cao et al., 2010), while other works deal
only with simultaneously captured videos like (Caspi
and Irani, 2002; Dai et al., 2006; Lei and Yang, 2006;
Tresadern and Reid, 2009; Padua et al., 2010; Ravi-
chandran and Vidal, 2011). Recently, (Douze et al.,
2016) has introduced an alignment method that can
accurately find the best correspondences among two
overlapped videos even with a significant change in
the view point. However, this method assumes a con-
stant offset time among the two input videos.
Unlike the previous solutions, we aim to present
a new alignment technique that works smoothly with
no restrictions, other than the existence of an overlap
among the two given videos.
2.2 Visual Question Answering (VQA)
Recently, the VQA task or answering a question about
an image has been solved by representing both the
question and the image through RNN and CNN, re-
VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
584
spectively. Then, they are combined together to give
a suitable answer for the question (Malinowski et al.,
2015; Agrawal et al., 2017).
Also, some researches have exploited the atten-
tion mechanisms to solve the VQA task. They can be
classied according to the granularity level of their at-
tention mechanism and the attention matrix computa-
tion method. A coarse granularity level causes mul-
tiple image patches to gain attention from the que-
stion (Xiong et al., 2016; Zhu et al., 2016). While
a finer level causes each question word to pay atten-
tion to all image patches and, at the end, the patch
with the highest attention value is selected (Xu and
Saenko, 2016). Also, (Yang et al., 2016) introdu-
ced the idea of combining the question representa-
tion at different levels of granularity (uni/bi/trigrams).
On the other hand, there are various approaches to
construct the attention matrix including concatena-
tion, element-wise (sum/product) and Bilinear Pool-
ing (Fukui et al., 2016).
Besides the work introduced by (Seo et al., 2016)
in MC, that applied the bidirectional attention mecha-
nism to their work, (Lu et al., 2016) also adopted the
same idea. They proved that estimating the attention
from the question words to the image patches and vice
versa, has a great effect on the efficiency of the VQA
task. Consequently, we expect the same success in
solving the video alignment task using the same me-
chanism.
3 THE PROPOSED MODEL

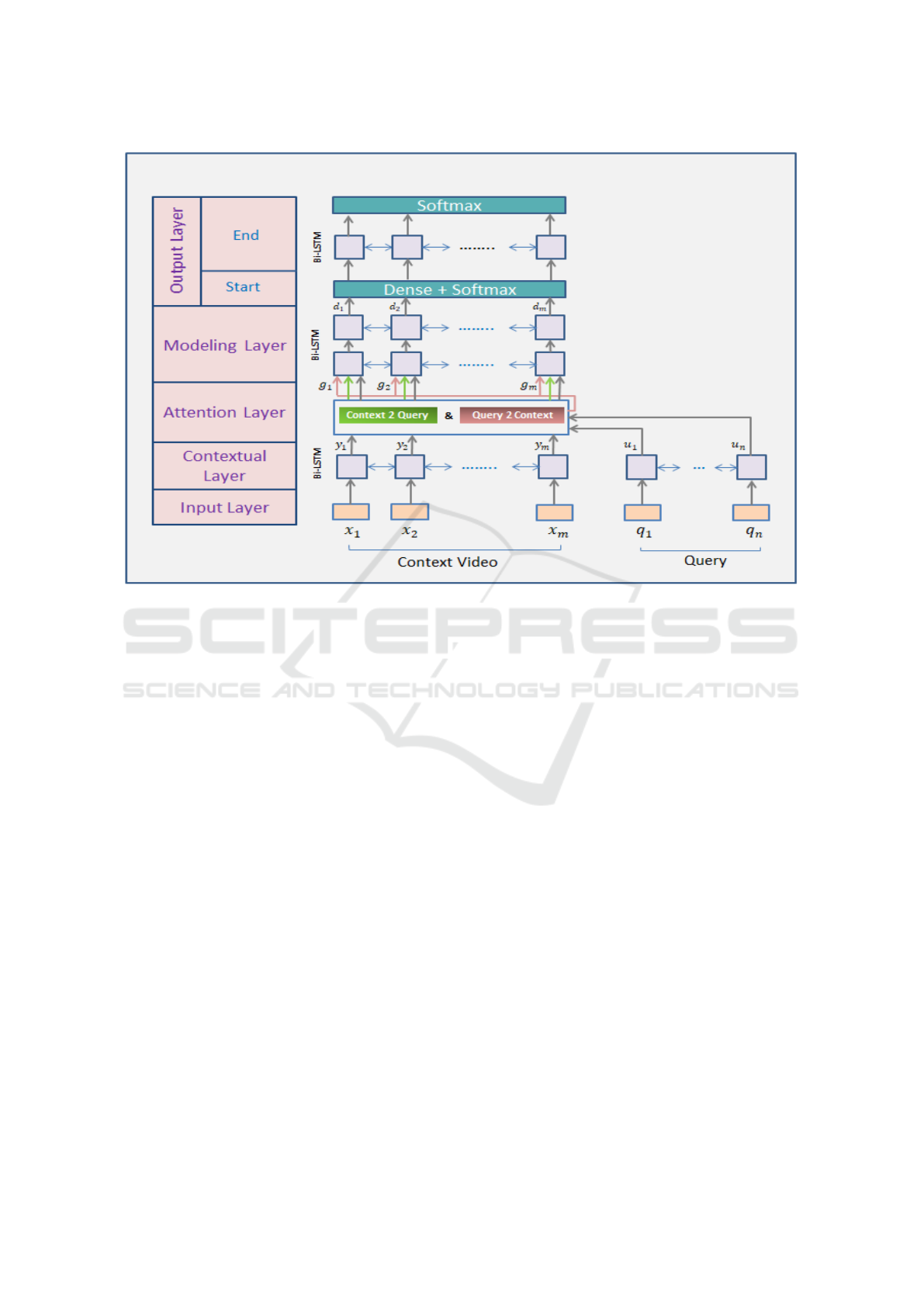

Our alignment technique, as shown in Figure 1, con-
sists of five layers that can be described as follows:
1. Input Layer: maps each frame from both query
and context videos to a fixed length descriptor
using a pre-trained CNN.
2. Contextual Layer: considers the relations bet-
ween all the sequence frames in order to improve
the feature extraction layer.
3. Attention Layer: ties the query and the context
video vectors such that it generates a set of feature
vectors representing the query-awareness degree
for each frame in the context video.
4. Modeling Layer: is responsible for scanning the
context video through applying the RNN.
5. Output Layer: gives the start and end indices for
the best aligned part from the context video to the
input query.
1. Input Layer: It is considered a frame level
feature extraction layer. Let {x
1
, ..., x
M
} and
{q
1
, ..., q
N
} be frames of a context and query
videos, respectively. Each frame in the input is
fully described by a fixed length vector through
using a pre-trained VGG-16. VGG-16 is a
convolutional neural network of 16 layers depth
that is pre-trained on ImageNet dataset (Deng
et al., 2009) which contains millions of static
labeled images.
2. Contextual Layer: In this layer, a Long Short
Term Memory Network (LSTM) (Hochreiter and
Schmidhuber, 1997) is used in both forward and
backward directions in order to consider the tem-
poral interactions among input frames. The input
to the contextual layer is the descriptors obtained
from the first layer. Each LSTM output is of d-
dimension and the final layer output is a concate-
nation of both LSTMs outputs to yield Y R
2d×M
from the context video and U R
2d×N
from the
query video. Therefore, the dimension of each
component of Y and U is 2d.
It is worthy to mention that the first two layers of
the model are computed for both the query and
context and they represent two levels of feature
extraction.
3. Attention Layer: This layer is in charge of fu-
sing and linking the information from both the
query and the context video frames. As mentio-
ned earlier, it adopts a different way in compu-
ting the attention, other than those in the previous
mechanisms. Instead of summarizing in a single
representative vector both the query and the con-
text, the attention of the query to each frame in the
context video is estimated at each time step. This
layer takes as input the contextual representation
vectors of both the query and the context videos
and outputs the query-aware representation vec-
tors G of the context video. In addition, the con-
text layer output is passed to the Modeling layer.
One of the main pros of this layer is computing the
attention in both directions to obtain, at the end,
a set of highly representative attended vectors in
each direction.
The shared step in computing the bidirectional at-
tention is to calculate a similarity matrix between
both the context and the query frames as follows:
Similarity Matrix: It is constructed by compu-
ting the cosine similarity between the m-th con-
text frame and the n-th query frame to obtain, at
the end, S R
M×N
.
Bi-Directional Attention Flow for Video Alignment
585
Figure 1: The BIDAF-based Video Alignment Model.
Context to Query Attention: This step determi-
nes the most relevant query frames to each frame
in the context video. Given the similarity matrix
S, the attention weights of the query frames to the
m-th frame in the context video, are calculated ac-
cording to the following formula:
a
:
m
= so f tmax( S
:
m
) R
N
(1)
where S
:
m
is the m-th column vector in S and
a
mn
= 1, for all m. Consequently, we obtain the
¯
Umatrix of size 2d by M, such that each column
represents the attended query vector to a specific
frame in the context video:
¯
U
:
m
=
n
a
mn
U
:
n
(2)
Query to Context Attention: This step is very
critical for reaching the best answer to the input
query. It determines the context video frame that
has the best similarity to one of the query frames.
First, the attention weights of each context frame
are calculated using the following formula:
b = so f tmax(max( S)) R
M
(3)
where max function is applied to each column in
the S matrix. Then, the weighted context vectors
are obtained using
¯
Y
:
m
= b
m
Y
:
m
R
2d×M
(4)
Finally, the targeted attended vector is the weigh-
ted sum of these vectors which represent the most
important context frames w.r.t. the query frames
as follows:
¯y =
m
¯
Y
:
m
R
2d
(5)
The final output of this layer is obtained by com-
bining the output of both the contextual and the
attention layers. Semantically, each column in the
output matrix is aware of each context frame re-
presentation and is calculated through
G
:
m
= [ Y
:
m
;
¯
U
:
m
;Y
:
m
¯
U
:
m
;Y
:
m
¯
Y
:
m
] R
8d×M
(6)
where is an element-wise multiplication and [ ;]
is a concatenation of vector across row.
4. Modeling Layer: Unlike the contextual layer
that computes the interactions among the context
frames with no regard to the query frames, this
layer captures these interactions by considering
the query frames. It takes as input the output
of the previous layer, G matrix, which reflects
the query-awareness of each context frame. The
modeling layer processes the input through two
bi-directional LSTM layers, each direction output
VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
586

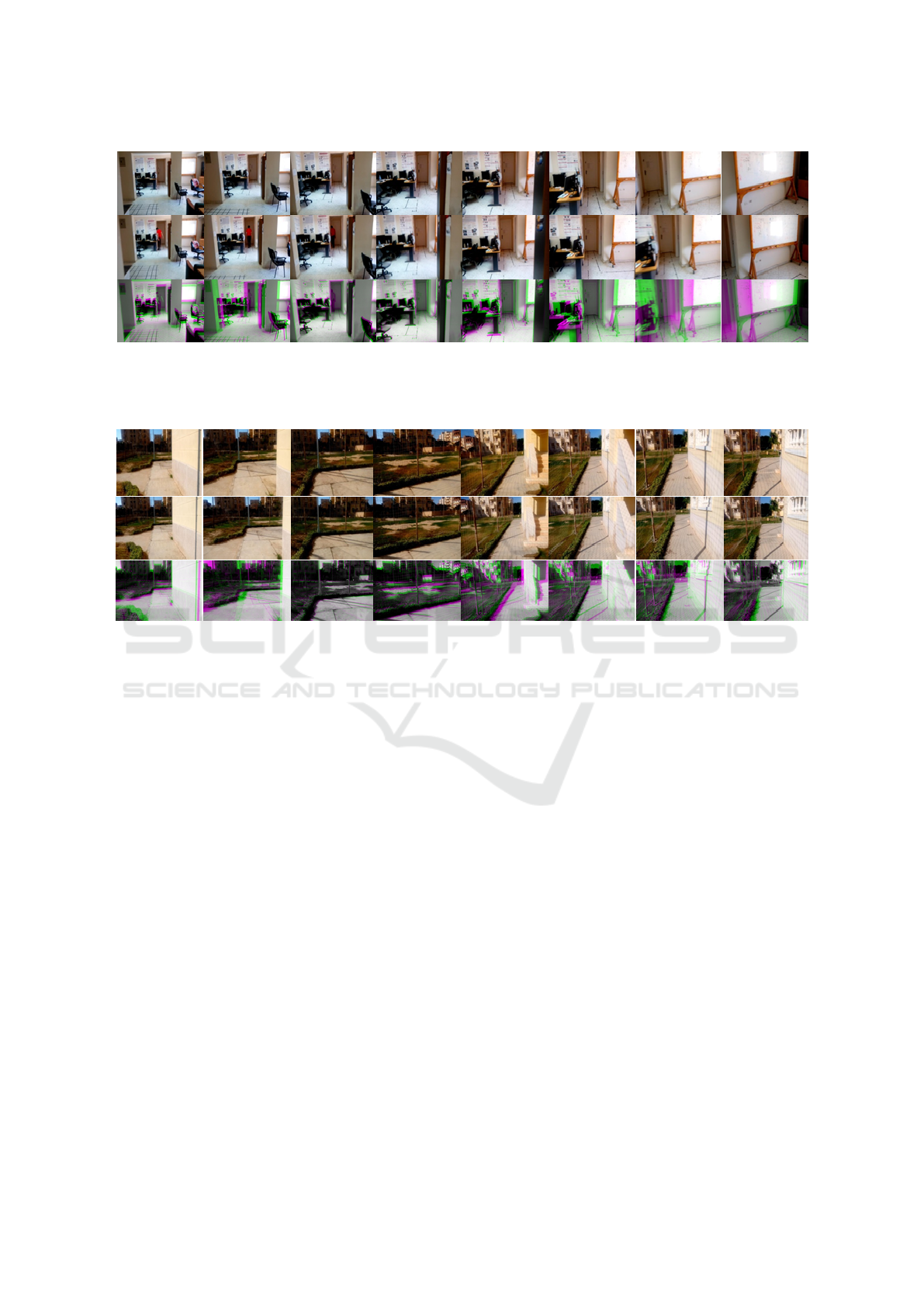

Figure 2: Example of BIDAF-based Indoor Alignment. The top and the middle rows represent some selected frames from the
query sequence and their corresponding frames in the original one, respectively. The bottom row represents the fusion image
where the Red & Blue channels in the RGB image are assigned to the query frame, while the Green channel is assigned to its
corresponding frame.
Figure 3: Example of BIDAF-based Outdoor Alignment. The top and the middle rows represent some selected frames from
the query sequence and their corresponding frames in the original one, respectively. The bottom row represents the fusion
image where the Red & Blue channels in the RGB image are assigned to the query frame, while the Green channel is assigned
to its corresponding frame.
is of size ”d”, hence the final output is a matrix
D R
2d×M
. Each column in the output matrix
captures the contextual information of the m-th
frame w.r.t the whole context and the query
videos.
5. Output Layer: This layer aims at finding the best
part in the context video corresponding to the in-
put query. Specifically, it responds by the start and
end of the frame indices of the best sub-sequence
in the context video. Firstly, the probability distri-
bution of the start index w.r.t. the whole video can
be obtained through:
P
Start
= so f tmax( w
T
p
start
[ G; D] )
(7)
Where w
p
start
R
10d
represents a trainable weight
vector. For obtaining the end frame index, the D
matrix is pushed to one bi-directional LSTM layer
in order to get D
?
R
2d×M
. Then, the probability
distribution of the end index is estimated through:
P
End
= so f tmax( w
T
p
end
[ G; D
?
] )
(8)
4 THE PROPOSED APPROACH
EVALUATION
We train our model on 10k of YouTube videos that are
aligned manually in an accurate way. For each query
video, its corresponding part in the context video is
identified by the start and end of frames indices.
As an initial evaluation, the proposed model is
tested by the blind navigation dataset introduced
in our recently published work (Abobeah et al.,
2018). Although this dataset has been collected in the
context of a navigation technique for blind people, it
has a tight relation to our present task. The navigation
technique depends mainly on identifying the current
location of the blind user w.r.t. a reference video
through using an on-line alignment technique. This
dataset consists of 12 video pairs of 22 minutes total
length, half of them are captured at outdoor and the
rest at indoor. All videos are captured using a chest
mounted mobile phone camera carried by a blind
person along some indoor/outdoor routine paths and
Bi-Directional Attention Flow for Video Alignment
587
are manually annotated for the instruction generation
task in the navigation work. For our task, all videos
are re-annotated such that each query, which is
randomly chosen with various lengths from 5 to 120
seconds from each video, is aligned to its original
video. Specifically, we assign the interval [ l
t
, u
t
]
in the original video to represent the start and end
indices of the query input, and given the predicted
interval from the proposed model, we can estimate
the alignment error for each pair.
We can qualitatively observe the performance of
our proposed approach on two video pairs from the
navigation dataset, one is captured at indoor as shown
in figure 2, and the other at outdoor as shown in fi-
gure 3. Clearly, We can observe the well defined cor-
respondences among each of the two videos, which
support our idea of considering our approach a pro-
mising solution for the video alignment task.
5 CONCLUSIONS
In this work, we present a new technique to solve the
temporal alignment task between two overlapped vi-
deos with no restrictions imposed on the capturing
process. The proposed technique uses the pretrained
CNN network,”VGG-16”, to obtain highly descriptive
features of the video frames. Also, it exploits the bi-
directional attention flow mechanism that has already
proved its efficiency in MC in order to consider the
existing interactions between the two input videos in
both directions. Initial results obtained using a trai-
ning dataset including around 10k of video pairs from
”YouTube” show that this approach is highly effective
in mapping the input query video to its corresponding
part in the context video. We plan to test our model
using the state of the art datasets for video alignment
to be able to assess its accuracy thoroughly.
ACKNOWLEDGEMENTS
This work has been supported by the Ministry of Hig-
her Education (MoHE) of Egypt and Waseda Univer-
sity at Japan through a PhD scholarship.
REFERENCES
Abobeah, R., Hussein, M., Abdelwahab, M., and Shoukry,
A. (2018). Wearable rgb camera-based navigation sy-
stem for the visually impaired. In Advanced Concepts
for Intelligent Vision Systems, volume 5, pages 555–
562.
Agrawal, A., Lu, J., Antol, S., Mitchell, M., Zitnick, C. L.,
Parikh, D., and Batra, D. (2017). Vqa: Visual question
answering. International Journal of Computer Vision,
123(1):4–31.
Cao, X., Wu, L., Xiao, J., Foroosh, H., Zhu, J., and Li,
X. (2010). Video synchronization and its applica-
tion to object transfer. Image and Vision Computing,
28(1):92–100.
Caspi, Y. and Irani, M. (2002). Spatio-temporal alignment
of sequences. IEEE Transactions on Pattern Analysis
& Machine Intelligence, (11):1409–1424.
Dai, C., Zheng, Y., and Li, X. (2006). Accurate video align-
ment using phase correlation. IEEE Signal Processing
Letters, 13(12):737–740.
Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,
L. (2009). Imagenet: A large-scale hierarchical image
database. In Computer Vision and Pattern Recogni-
tion, 2009. CVPR 2009. IEEE Conference on, pages
248–255. Ieee.
Diego, F., Ponsa, D., Serrat, J., and L
´
opez, A. M. (2011).
Video alignment for change detection. IEEE Tran-
sactions on Image Processing, 20(7):1858–1869.
Douze, M., Revaud, J., Verbeek, J., J
´
egou, H., and Schmid,
C. (2016). Circulant temporal encoding for video re-
trieval and temporal alignment. International Journal
of Computer Vision, 119(3):291–306.
Fraundorfer, F., Engels, C., and Nist
´
er, D. (2007). Topologi-
cal mapping, localization and navigation using image
collections. In Intelligent Robots and Systems, 2007.
IROS 2007. IEEE/RSJ International Conference on,
pages 3872–3877. IEEE.
Fukui, A., Park, D. H., Yang, D., Rohrbach, A., Darrell, T.,
and Rohrbach, M. (2016). Multimodal compact bili-
near pooling for visual question answering and visual
grounding. arXiv preprint arXiv:1606.01847.
Ho, K. L. and Newman, P. (2007). Detecting loop closure
with scene sequences. International Journal of Com-
puter Vision, 74(3):261–286.
Hochreiter, S. and Schmidhuber, J. (1997). Long short-term
memory. Neural computation, 9(8):1735–1780.
Kong, H., Audibert, J.-Y., and Ponce, J. (2010). Detecting
abandoned objects with a moving camera. IEEE Tran-
sactions on Image Processing, 19(8):2201–2210.
Lei, C. and Yang, Y.-H. (2006). Tri-focal tensor-based
multiple video synchronization with subframe opti-
mization. IEEE Transactions on Image Processing,
15(9):2473–2480.
Lu, J., Yang, J., Batra, D., and Parikh, D. (2016). Hierar-
chical question-image co-attention for visual question
answering. In Advances In Neural Information Pro-
cessing Systems, pages 289–297.
Malinowski, M., Rohrbach, M., and Fritz, M. (2015). Ask
your neurons: A neural-based approach to answering
questions about images. In Proceedings of the IEEE
international conference on computer vision, pages 1–
9.
Padua, F., Carceroni, R., Santos, G., and Kutulakos,
K. (2010). Linear sequence-to-sequence alignment.
VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications
588
IEEE Transactions on Pattern Analysis and Machine
Intelligence, 32(2):304–320.
Ravichandran, A. and Vidal, R. (2011). Video registration
using dynamic textures. IEEE Transactions on Pattern
Analysis and Machine Intelligence, 33(1):158–171.
Sand, P. and Teller, S. (2004). Video matching. In ACM
Transactions on Graphics (TOG), volume 23, pages
592–599. ACM.
Seo, M., Kembhavi, A., Farhadi, A., and Hajishirzi, H.
(2016). Bidirectional attention flow for machine com-
prehension. arXiv preprint arXiv:1611.01603.
Singh, M., Cheng, I., Mandal, M., and Basu, A. (2008). Op-
timization of symmetric transfer error for sub-frame
video synchronization. In European Conference on
Computer Vision, pages 554–567. Springer.
Tresadern, P. A. and Reid, I. D. (2009). Video synchroniza-
tion from human motion using rank constraints. Com-
puter Vision and Image Understanding, 113(8):891–
906.
Tuytelaars, T. and Van Gool, L. (2004). Synchronizing vi-
deo sequences. In Computer Vision and Pattern Re-
cognition, 2004. CVPR 2004. Proceedings of the 2004
IEEE Computer Society Conference on, volume 1, pa-
ges I–I. IEEE.
Ukrainitz, Y. and Irani, M. (2006). Aligning sequences and
actions by maximizing space-time correlations. Com-
puter Vision–ECCV 2006, pages 538–550.
Ushizaki, M., Okatani, T., and Deguchi, K. (2006). Vi-
deo synchronization based on co-occurrence of appea-
rance changes in video sequences. In Pattern Recogni-
tion, 2006. ICPR 2006. 18th International Conference
on, volume 3, pages 71–74. IEEE.
Wang, O., Schroers, C., Zimmer, H., Gross, M., and
Sorkine-Hornung, A. (2014). Videosnapping: In-
teractive synchronization of multiple videos. ACM
Transactions on Graphics (TOG), 33(4):77.
Wedge, D., Huynh, D., and Kovesi, P. (2007). Using space-
time interest points for video sequence synchroniza-
tion.
Weston, J., Chopra, S., and Bordes, A. (2015). Memory
networks. arXiv preprint arXiv:1410.3916.
Wolf, L. and Zomet, A. (2006). Wide baseline matching be-
tween unsynchronized video sequences. International
Journal of Computer Vision, 68(1):43–52.
Xiong, C., Merity, S., and Socher, R. (2016). Dynamic
memory networks for visual and textual question ans-
wering. In International conference on machine lear-
ning, pages 2397–2406.
Xu, H. and Saenko, K. (2016). Ask, attend and answer:
Exploring question-guided spatial attention for visual
question answering. In European Conference on Com-
puter Vision, pages 451–466. Springer.
Yang, Z., He, X., Gao, J., Deng, L., and Smola, A. (2016).
Stacked attention networks for image question answe-
ring. In Proceedings of the IEEE Conference on Com-
puter Vision and Pattern Recognition, pages 21–29.
Zhu, Y., Groth, O., Bernstein, M., and Fei-Fei, L. (2016).
Visual7w: Grounded question answering in images.
In Proceedings of the IEEE Conference on Computer
Vision and Pattern Recognition, pages 4995–5004.
Bi-Directional Attention Flow for Video Alignment
589
