Semi-automatic Training Data Generation for Semantic Segmentation

using 6DoF Pose Estimation

Shuichi Akizuki

1,2

and Manabu Hashimoto

Department of Electrical Engineering, Keio University, Hiyoshi, Yokohama, Japan

Department of Engineering, Chukyo University, Nagoya, Aichi, Japan

Keywords:

Dataset Generation, Semantic Segmentation, Affordance.

Abstract:

In this research, we propose a method using a low cost process to generate large volumes of real images as

training data for semantic segmentation. The method ﬁrst estimates the six-degree-of-freedom (6DoF) pose

for objects in images obtained using an RGB-D sensor, and then maps labels that have been pre-assigned to

3D models onto the images. It also captures additional input images while the camera is moving, and is able

to map labels to these other input images based on the relative motion of the viewpoint. This method has

made it possible to obtain large volumes of ground truth data for real images. The proposed method has been

used to create a new publicity available dataset for affordance segmentation, called the NEDO Part-Affordance

Dataset v1, which has been used to benchmark some typical semantic segmentation algorithms.

1 INTRODUCTION

Achieving use of tools by robotic arms is one of im-

portant goal in the ﬁeld of intelligent robotics. It re-

quires: 1) Developing a gripper with which to grasp

an object, 2) Generating grasping motions required

to use the grasped object, and 3) Estimating of the

type of actions that are supported by an object of that

type (this is called affordance of the object). Of these

sub-tasks, estimating affordance needs to be proces-

sed ﬁrst, so it is particularly important, and has been

an active research topic in the past several years.

Generally, affordance estimation is considered to

be a semantic segmentation problem, of assigning

pre-deﬁned affordance labels to each pixel of an ob-

ject in an image. However, different parts of ever-

yday objects have different affordance types, so it

has been extremely expensive to create correct data

for training. For example, the handle of a hammer

would have an affordance of Grasp because it can be

held in the hand, while the head would have an af-

fordance of Pound because it can be used to hit other

objects. Further, more than 10k training images taken

from multiple viewpoints are needed to create a high-

performance classiﬁer, so it is not practical to apply

these labels manually.

In this research, we propose a method involving a

low-cost procedure to generate large volumes of ima-

ges that are suitable for training a classiﬁer to solve

semantic segmentation problems. Speciﬁcally, affor-

dance labels are pre-assigned to 3D models of the ob-

jects to be recognized, and these labels are mapped

onto images by estimating the 6DoF pose of these ob-

jects in images captured using an RGB-D sensor. We

also capture additional input images by moving the

camera, and map the label data onto these other ima-

ges based on the relative motion of the viewpoints.

The approach of the proposed method differs from the

artiﬁcial operations referred to as data augmentation,

in that it provides large volumes of training images

with associated ground truth from real measurement

data. The contributions of this research are as follows:

• We propose a method for generating training ima-

ges annotated with pixel-wise labels, using a

semi-automatic procedure with 6DoF pose esti-

mation.

• We propose a new dataset for estimating the affor-

dance of object parts, created using the proposed

algorithm. The dataset can be downloaded from

our website

• We use this dataset to benchmark some prominent

semantic segmentation algorithms.

In section 2, we discuss recent trends regarding af-

fordance estimation and semantic segmentation met-

hods. In section 3 we discuss a dataset for affordance

http://isl.sist.chukyo-u.ac.jp/archives/nedopro/

Akizuki, S. and Hashimoto, M.

Semi-automatic Training Data Generation for Semantic Segmentation using 6DoF Pose Estimation.

DOI: 10.5220/0007568706070613

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 607-613

ISBN: 978-989-758-354-4

607

segmentation that we have created, called the NEDO

Part Affordance Dataset v1. In section 4, we describe

the low-cost ground-truth annotation procedure using

6DoF pose estimation, which we proposed for crea-

ting this dataset. In section 5, we describe benchmark

tests done on de-facto standard semantic segmenta-

tion methods using the NEDO Part Affordance Data-

set v1, and in section 6, we summarize the results of

this research.

2 RELATED WORK

2.1 Affordance Estimation

Various earlier methods have been proposed for esti-

mating affordance of objects appearing in a scene.

One approach is to model human poses for affor-

dance, and to evaluate their consistency with real sce-

nes. For example, one procedure for handling the sit-

table affordance is to prepare a human model in sitting

poses, and then compare it with input scenes (Grab-

ner et al., 2011). This approach is also closely rela-

ted to Robotic grasping, and a method proposed for

estimating graspability by comparing hand state with

measurement data (Domae et al., 2014)

Recently, the main approach has been to train for

the correspondence between affordance and local fea-

tures extracted from the input scene to identify multi-

ple affordance values. Affordance estimation is being

solved using so-called multi-class classiﬁers. Myers

et al. proposed a method that estimates seven affor-

dances (Grasp, Cut, Scoop, Contain, Pound, Support,

Wrap-grasp) for everyday objects at the pixel level.

The method trains for so-called hand-crafted local

features such as depth, color, and curvature, which

are obtained from depth images of the everyday ob-

jects(Myers et al., 2015).

Prompted by efforts such as Seg-

Net(Badrinarayanan et al., 2017), which have

had success using Deep Learning (DL) for semantic

segmentation, there has also been active research

applying DL to estimation of affordances. Nguyen

et al. proposed a method to estimate the affordance

deﬁned by Myers et al. using an encoder-decoder

network, which demonstrated superiority for hand-

crafted features(Nguyen et al., 2016). Another

method that performs object-detection as a prior

step, and then uses a network to estimate object class

and affordance for each detected object region, has

also been proposed(Do et al., 2018). Other methods

have also been proposed, implementing affordance

segmentation by taking RGB input images and

using networks to estimate mid-level features, depth

information, normal-vectors and object classes(Roy

and Todorovic, 2016).

2.2 Semantic Segmentation

Semantic segmentation is the task of estimating the

class to which each pixel of an input image belongs.

Fully Convolutional Networks(Long et al., 2015)

implement the semantic segmentation task by using

convolutional layers that output 2D heatmaps to re-

place the fully-connected layers of classiﬁcation net-

works used in methods like VGG(Simonyan and Zis-

serman, 2014) and AlexNets(Krizhevsky et al., 2012).

SegNet(Badrinarayanan et al., 2017) is an encoder-

decoder network. The decoder is able to discrimi-

nate accurately by gradually increasing resolution. U-

Net is able to reﬂect segmentation results on detailed

shapes in the input image by concatenating the fea-

ture maps of each encoder with the decoder feature

maps(Ronneberger et al., 2015).

3 PROPOSED DATASET

3.1 Dataset Overview

We now describe the NEDO Part Affordance Dataset

v1 proposed for affordance segmentation in this rese-

arch. The dataset is composed of the following data.

• 3D models created from measurements of real

everyday objects with point-wise annotation.

• Multiple RGB-D images of these everyday ob-

jects.

• Ground-truth images with pixel-wise annotation,

corresponding to the RGB-D images.

Examples of data in the NEDO Part Affordance

Dataset v1 are shown in Figure 1. Examples of object

models are shown in Figure 1(a). Object models are

composed of meshes with affordance labels on each

vertex. The colors on the 3D models indicate affor-

dance labels as deﬁned in Table 2. All objects in the

dataset were measured using a precise 3D sensor, and

modeled with actual-size dimensions. The affordance

labels are deﬁned in Table 2. These include labels de-

ﬁned by Myers et al. with the additional labels, Stick,

None, and Background. A total of 74 3D models of

10 types of kitchen and DIY tools were measured. A

breakdown of the objects is given in Table 1.

Figure 1(b) gives examples of input images and

ground truth. A total of 10125 images were prepared,

which were divided into 8706 training set and 1419

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

608

(a) Object models with affordance annotation

(b) Input scene and corresponding ground truth

Figure 1: Examples of object models in the dataset and scene images. (a) Object models. Colors indicate the affordance

labels. (b) Scene images and corresponding ground truth.

Table 1: Types and number object models in the dataset.

Kitchen tools

Fork(9), Knife(8), Ladle(6), Mug(4),

Peeler(10), Spatula(11), Spoon(8)

DIY tools Hammer(4), Scissors(9), Shovel(5)

Table 2: Affordance labels and its label colors.

Affordance Functionality Color

Contain With deep cavities to hold liquid. (255,255,0)

Cut Used for separating another object. (255,0,0)

Grasp Can be enclosed by a hand. (0,255,0)

Pound Used for striking other objects. (160, 160, 160)

Scoop

A curved surface with a mouth for

gathering soft material.

(0, 255, 255)

Stick Sharp parts that can be pushed into something. (0,150,0)

Support Flat parts that can hold loose material. (255,0,255)

Wrap-grasp Can be held with the hand and palm. (0,0,255)

None Other region on objects (255,255,255)

Background Other region outside of objects. (0,0,0)

testing set. Each pixel of the ground truth images in-

dicates an affordance label. Each scene contains 5 to

11 (avg. 7.97) of the objects, selected and arranged at

random.

3.2 Data Acquisition

The object models consist of mesh data measured

from a full perimeter. A Solutionix C500 3D scan-

ner from Medit Inc. was used for measurements,

and mesh data comprised roughly 500,000 vertices for

each object. For the scene data, objects were arranged

on a table with several Augmented Reality (AR) mar-

kers, and for each arrangement, approximately 250 to

300 frames of RGB and depth images with resolution

of 640x480 pixels were recorded. An Intel D415 3D

sensor was used for these images. The AR markers

were used for semi-automatic annotation, as descri-

bed in the following section.

4 SEMI-AUTOMATIC

ANNOTATION

4.1 Algorithm

We use a semi-automatic process to generate ground

truth images with pixel-wise annotation for input ima-

ges I

, i = {1, ...n}, taken from multiple viewpoints. i

represents the viewpoint index of the captured image.

The algorithm consists of three steps, as shown in Fi-

gure 2.

1. 6DoF pose annotation

Semi-automatic Training Data Generation for Semantic Segmentation using 6DoF Pose Estimation

609

2. Camera pose estimation using ArUco

1. 6DoF pose annotation for I

3. GT image rendering

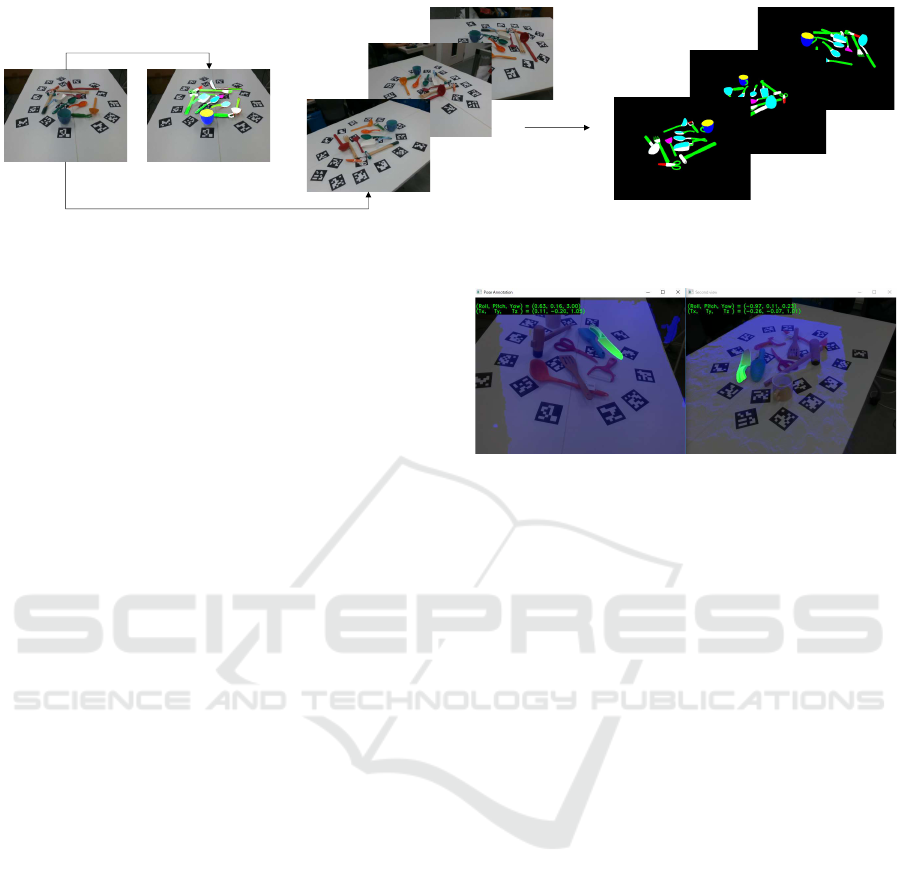

Figure 2: Ground truth data generation using semi-automatic process.

2. Camera pose estimation using ArUco(Garrido-

Jurado et al., 2014)

3. Groud truth image rendering

In Step 1, the pose of each object in the ﬁrst

frame is computed using specially developed anno-

tation software. In Step 2, the ArUco library, which

is able to compute the pose of the AR markers accu-

rately, is used to compute changes in the camera pose

between the ﬁrst frame and the other frames. In Step

3, the ground truth images are rendered based on the

pose data computed in Steps 1 and 2. Details of each

step are given below.

4.2 6DoF Pose Annotation

This module performs annotation of the 6DoF pose

= [R, t;0, 1], for each object M

, j = {1, ..., k} in

the ﬁrst frame of input image I

. R is a 3 × 3 rotation

matrix, and t is a 3 × 1 translation vector.

We developed dedicated software for 6DoF pose

annotation for this research. A screen shot of the soft-

ware is shown in Figure 3. The annotation software

allows object models to be transformed to a suita-

ble pose using keyboard and mouse operations. The

image on the left shows object model (Knife) over-

laid on the image I

in green. Depth data for I

is also

overlaid in blue. The image on the right is an image

taken from a different viewpoint, also input when the

software was started, with transformation applied to

the object model synchronized with the image on the

left. Accurate annotation can be done by checking the

ﬁt of the object model on both images. The software

provides commands for the following operations.

Step Move: Provides ﬁne adjustment of the pose in

the x, y, and z directions and in the roll, pitch and

yaw angles using keyboard input.

Direct Move: Moves the object to the position

clicked on the image by translation.

ICP: Estimates the pose of the object model using

the ICP algorithm (Besl and McKay, 1992), using the

model’s current position as the initial position.

Figure 3: Screen shot of the 6DoF pose annotator. The ob-

ject model is rendered in green over images from two view-

points. Accurate annotation can be done by checking over

RGB images from two different viewpoints.

Direct move can be used to move the object model

to near the position of the object in the scene, and

then ICP can be used to compute the pose accurately.

Occlusions can occur due to the placement of objects,

so there are cases when the pose cannot be estimated

using ICP. Step move is used for ﬁne tuning in such

cases. These operations are used to compute the 6DoF

pose T

, j = {1, ..., k} for each object in I

4.3 Camera Pose Estimation

This module computes the transformation matrix T

from the camera position for capturing I

to the ca-

mera position for capturing I

. ArUco is ﬁrst used

to compute the 6DoF poses T

i, j

of the AR mar-

kers in each image. j represents the marker ID.

Then, the transformation matrix is computed as T

avg(T

1, j

−1

i, j

). avg() computes an average of the

transformations. T

is detected for several markers.

These are converted to x, y, z, roll, pitch and yaw va-

lues, and the average of each is computed before con-

verting back to a matrix. In this way, a highly accurate

transformation matrix T

is obtained.

It is also conceivable to ﬁnd the object model

6DoF poses and annotate the ﬁrst frame without

using AR markers, by use tracking methods, but there

would be a high risk of failure because occlusions and

camera position can hinder object observations. As

such, we decided to use AR markers, which enable

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

610

transformations between camera poses to be compu-

ted accurately.

4.4 GT Image Rendering

The ground truth image G

is obtained by transfor-

ming the object model M

and mapping it onto image

with viewpoint i. If the 3D vertices of object mo-

del M

are x, then their position from viewpoint i is

= T

x. This computation is applied to all verti-

ces of the models of all objects appearing in the scene.

Then, each x

is projected onto the image in order of

decreasing z coordinate, which is from farthest to nea-

rest to the camera. This produces an image that repre-

sents the front-to-back relationships between objects

correctly. G

is generated by setting the pixel values

to the pre-assigned affordance labels on the objects.

5 EXPERIMENTS

5.1 Annotation Cost

This section discusses the annotation cost when using

the proposed method. With the proposed method, the

pose of each object in a scene is annotated using de-

dicated software for only the ﬁrst frame in a set of

RGB-D images captured from that scene. After this

annotation is applied, pixel-wise annotation is applied

automatically to all other frames.

6DoF pose estimation for a single scene using the

software required approximately 15 to 20 minutes for

each scene. This produced ground truth images for

the multi-viewpoint images from more than 300 fra-

mes. In contrast, annotation work for general se-

mantic segmentation requires roughly 10 minutes per

image, so using the proposed method dramatically re-

duces the annotation cost relative to earlier methods.

5.2 Benchmarking of Semantic

Segmentation Methods

We used the proposed NEDO Part Affordance Data-

set v1 to benchmark semantic segmentation methods.

The following algorithms were used for comparison.

1. Fully Convolutional Networks (FCN-8s) (Long

et al., 2015)

2. SegNetBasic(Badrinarayanan et al., 2017)

3. U-net (Ronneberger et al., 2015)

The central 320 × 240 pixel part of each image

was cropped and used for training. For FCN-8s, we

used the VGG16 pre-trained model for the Encoder

part, so we cropped to a size of 320 × 256 pixels to ﬁt

the pre-set input size for training.

Each network was trained using Adam gradient

descent optimization(Kingma and Ba, 2014). The le-

arning rate was changed between 10

−2

, 10

−3

, 10

−4

and 10

−5

to learn the optimal model parameters. As

a result of our experiments, we achieved the good re-

sult of 10

−4

for all models using our data set. With a

batch size of 10, we repeated for 100 epochs.

To evaluate recognition performance, we used in-

tersection over union (IoU), which is widely used as

an index for segmentation tasks. The IoU for each

affordance label is shown in Table 3, and examples

of recognition results are shown in Figure 4. FCN-8s

had the best average performance. Considering la-

bels individually, the IoU was relatively low for None

compared to other labels. This may be because the

None label is assigned to parts that have no function

as an object, so its shape varies widely, and the label

gets assigned to shapes that are difﬁcult to distinguish

from RGB images, such as the back part and front

part of the spoon. In fact, in the fourth image from

the right in Figure 4, the green spoon is placed facing

down, so the correct label for the visible surface is

None, but all methods estimated it to be Scoop.

The right-most image in Figure 4 contains a scis-

sors that has not provided ground truth image due

to lack of 3D object model. Each of the methods

were able to detect the scissors, so it seems that some

generality has been achieved for variations in object

shapes. This suggests that the proposed data set con-

tains enough diversity for use in training for affor-

dance of everyday objects.

6 CONCLUSION

This research has proposed a method for generating

large volumes of training images for semantic seg-

mentation using a low-cost procedure. The propo-

sed method estimates the 6DoF pose of labeled 3D

models and maps them onto input images to generate

ground truth images. Then, by moving an RGB-D ca-

mera to capture many images and estimating the rela-

tive camera motion, the results of annotating the ﬁrst

frame are mapped onto all of the images. This pro-

cedure made it possible to obtain a large number of

pixel-wise annotated real images, semi-automatically.

We created the NEDO Part Affordance Dataset v1,

containing 74 detailed 3D models with affordance la-

bels and a set of more than 10,000 annotated ima-

ges. This dataset was used to benchmark some pro-

minent semantic segmentation algorithms. The pro-

Semi-automatic Training Data Generation for Semantic Segmentation using 6DoF Pose Estimation

611

Table 3: IoU score of each affordance label.

Contain Cut Grasp Pound Scoop Stick Support Wrap-grasp None BG Mean

FCN-8s 0.747 0.390 0.441 0.506 0.647 0.500 0.658 0.715 0.386 0.864 0.585

SegNetBasic 0.676 0.318 0.404 0.338 0.558 0.373 0.501 0.622 0.306 0.802 0.490

U-Net 0.744 0.298 0.411 0.139 0.620 0.457 0.446 0.704 0.323 0.852 0.499

Input image

FCN-8s

SegNetBasic

U-Net

Ground truth

Figure 4: Examples of affordance segmentation for each method. From top to bottom, input images, FCN-8sSegNetBasicU-

Netand Ground truth.

posed method can also be used to obtain 6DoF poses

for each viewpoint and instance segmentation results.

In the future, we plan to add to the annotation data

provided by this dataset, so that it can be used to test

other image recognition tasks.

ACKNOWLEDGEMENTS

This work was partially supported by the New Energy

and Industrial Technology Development Organization

(NEDO).

REFERENCES

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2017).

Segnet: A deep convolutional encoder-decoder archi-

tecture for image segmentation. IEEE Transactions on

Pattern Analysis and Machine Intelligence.

Besl, P. and McKay, N. (1992). A Method for Registration

of 3-D Shapes. IEEE Transactions on Pattern Analysis

and Machine Intelligence (PAMI), 14(2):239–256.

Do, T.-T., Nguyen, A., and Reid, I. (2018). Affordance-

net: An end-to-end deep learning approach for object

affordance detection. In International Conference on

Robotics and Automation (ICRA).

Domae, Y., Okuda, H., Taguchi, Y., Sumi, K., and Hirai, T.

(2014). Fast graspability evaluation on single depth

maps for bin picking with general grippers. In Robo-

tics and Automation (ICRA), 2014 IEEE International

Conference on, pages 1997–2004. IEEE.

Garrido-Jurado, S., Mu

noz Salinas, R., Madrid-Cuevas, F.,

and Mar

ın-Jim

enez, M. (2014). Automatic generation

and detection of highly reliable ﬁducial markers under

occlusion. Pattern Recognition, 47(6):2280–2292.

Grabner, H., Gall, J., and Van Gool, L. (2011). What makes

a chair a chair? In Computer Vision and Pattern Re-

cognition (CVPR), 2011 IEEE Conference on, pages

1529–1536. IEEE.

Kingma, D. P. and Ba, J. (2014). Adam: A method for sto-

chastic optimization. arXiv preprint arXiv:1412.6980.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in neural information pro-

cessing systems, pages 1097–1105.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Myers, A., Teo, C. L., Ferm

uller, C., and Aloimonos, Y.

(2015). Affordance detection of tool parts from geo-

metric features. In ICRA, pages 1374–1381.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

612

Nguyen, A., Kanoulas, D., Caldwell, D. G., and Tsagarakis,

N. G. (2016). Detecting object affordances with con-

volutional neural networks. In Intelligent Robots and

Systems (IROS), 2016 IEEE/RSJ International Confe-

rence on, pages 2765–2770. IEEE.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Roy, A. and Todorovic, S. (2016). A multi-scale cnn for

affordance segmentation in rgb images. In Euro-

pean Conference on Computer Vision, pages 186–201.

Springer.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Semi-automatic Training Data Generation for Semantic Segmentation using 6DoF Pose Estimation

613
