3DCNN Performance in Hand Gesture Recognition Applied to Robot

Arm Interaction

J. A. Castro-Vargas

, B. S. Zapata-Impata

, P. Gil

1,3

, J. Garcia-Rodriguez

2,3

and F. Torres

1,3

Dept. of Physics, Systems Engineering and Signal Theory, University of Alicante, San Vicente del Raspeig, Alicante, Spain

Dept. of Computer Technology, University of Alicante, San Vicente del Raspeig, Alicante, Spain

Computer Science Research Institute, University of Alicante, San Vicente del Raspeig, Alicante, Spain

Keywords:

Gesture Recognition from Video, 3D Convolutional Neural Network.

Abstract:

In the past, methods for hand sign recognition have been successfully tested in Human Robot Interaction

(HRI) using traditional methodologies based on static image features and machine learning. However, the

recognition of gestures in video sequences is a problem still open, because current detection methods achieve

low scores when the background is undeﬁned or in unstructured scenarios. Deep learning techniques are being

applied to approach a solution for this problem in recent years. In this paper, we present a study in which we

analyse the performance of a 3DCNN architecture for hand gesture recognition in an unstructured scenario.

The system yields a score of 73% in both accuracy and F

. The aim of the work is the implementation of a

system for commanding robots with gestures recorded by video in real scenarios.

1 INTRODUCTION

Interaction with robots is often carried out in indus-

trial environments with control panels. However, con-

trol panels are not often user-friendly. Ideally, in

service tasks, their use for interacting with people

should be intuitive and user-friendly through the use

of voice and gestures. The use of voice is usually con-

strained by the environmental noise. Therefore, visual

methods are interesting for human-robot interaction,

speciﬁcally, in the recognition of hand gestures to in-

dicate actions to the robot.

In most of the works in human-robot interaction,

hand gestures are performed at close ranges from the

camera in order to capture more details (Luo and

Wu, 2012), (Malima et al., 2006) and (Ionescu et al.,

2005), but sometimes this can be dangerous if the user

has to invade the workspace of the robot to reach that

distance with respect to the camera. Other approaches

are constrained to work in structured scenarios, i.e.

scenes with a previously deﬁned background or easily

segmentable as in (Chen et al., 2010). As a result, the

classiﬁcation of gestures for operating robots is more

reliable but requires modifying the environment.

Besides, it is possible to ﬁnd methods oriented to

the detection of static gestures by pose as in (Luo and

Wu, 2012) and (Malima et al., 2006) and dynamic

gestures carried out in a temporal band as in (Ionescu

et al., 2005), (Abid et al., 2014) and (Strobel et al.,

2002). However, pose-based methods limit the move-

ments that the user can perform in front of the robot,

because some gesture could trigger the system and re-

sult in a high number of false positives. For this rea-

son, we propose the use of temporal hand gestures, in

order to have more security when interacting with the

robot, minimizing the risk of false positives.

Recently, deep learning techniques as shown in

(Schmidhuber, 2015) are being applied to ﬁnd a so-

lution for this problem. In this line, methods based on

Convolutional Neural Networks (CNN) trained with

sequences are interesting because of their robustness

at learning visual features. Previously, CNN (Barros

et al., 2014) and ConvLSTM (Tsironi et al., 2016)

have been used in robotic applications.

The main contributions of this work are two

folded. First, we propose and evaluate the use of a

3DCNN (Molchanov et al., 2015) to classify hand

gestures. Secondly, in order to evaluate its perfor-

mance, we have generated a novel dataset

of four

complex gestures performed at a distance between 1.5

and 2.5m from a RGB-D camera in an unstrctured en-

vironment.

The document is organised as follows: Section 2

https://drive.google.com/drive/folders/1-BTbcZ6vXL

DQ6jj5ptC3SF2cMkBAOsfA?usp=sharing

802

Castro-Vargas, J., Zapata-Impata, B., Gil, P., Garcia-Rodriguez, J. and Torres, F.

3DCNN Performance in Hand Gesture Recognition Applied to Robot Arm Interaction.

DOI: 10.5220/0007570208020806

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 802-806

ISBN: 978-989-758-351-3

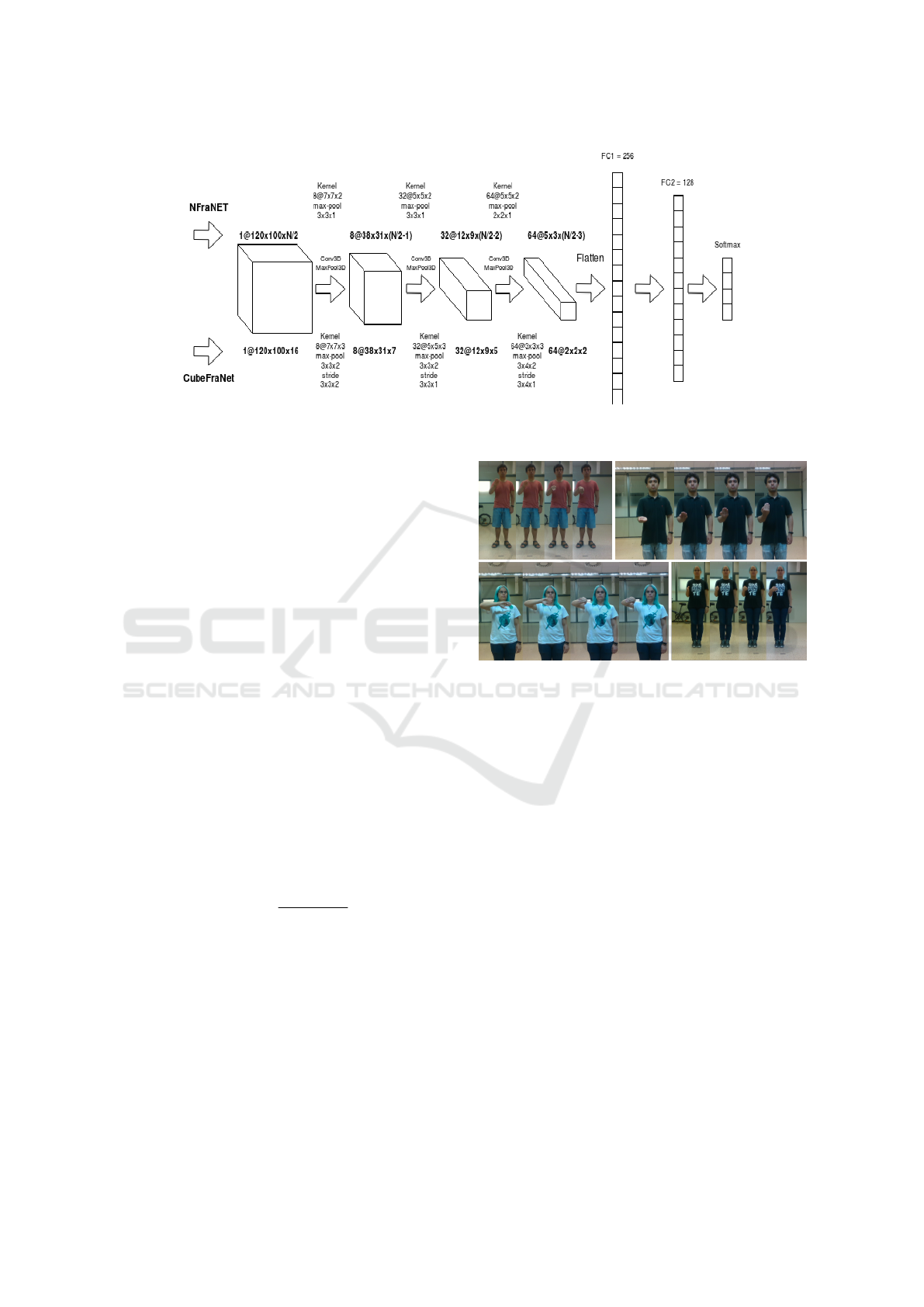

Figure 1: Architecture implemented in this work. Top pipeline (NFraNet) and bottom pipeline (CubeFraNet) represent the

two conﬁgurations tested.

presents the evaluated neural network and describes

the dataset used in the experimentation. Section 3

describes the proposed learning methodology and the

evaluation metrics used to measure the performance

of the recognition system. Section 4 details the exper-

iments and discusses the obtained results. Finally, the

conclusions of this work are presented in section 5.

2 NETWORK ARCHITECTURE

AND DATASET

The 3DCNN architecture implemented in this work

consists of three 3D convolutional layers, each layer

followed by a max pooling layer. This way, the 3D

layer is partitioned and replaced with a downsampling

layer by the activation of its maximally active unit, as

is described in (Giusti et al., 2013). The output of the

last convolutional layer is used as input for two con-

secutive fully connected layers and then one softmax

layer (Figure 1).

The weights of each convolutional layer have

been initialized according to (Molchanov et al.,

2015), from a uniform distribution deﬁned between

[−W

] where W

6/(n

+ n

) , n

are the in-

put neurons and n

the output neurons.

The dataset

contains 624 sequences of RGB-D

images captured from a D435 depth camera, manu-

factured by Intel RealSense, at a distance of 1.5 and

2.5m with two fellows, one male and one female. The

distance was deﬁned taking into account the working

environment of the robot. The images were stored

with a resolution of 640 x 360 pixels.

We changed the two people clothing every 104

samples of the 624 sequences/scenes. Thus, 6 dif-

ferent outﬁts were used. In addition, the dataset was

Figure 2: Example from our dataset of each gesture classi-

ﬁed in this work, with different distances (from top to bot-

tom, left to right): down, up, right and left movements.

recorded balancing the classes: there are 104 se-

quences for each of the 4 gestures. Finally, in each se-

quence, the recorded gesture was repeated twice. The

ﬁgure 2 shows a subset of the gestures.

3 LEARNING METHODOLOGY

Initially, we performed a brief evaluation to select an

optimal number of frames from the video sequences,

experimenting with selecting 4, 8, 16 and 32 frames

(Figure 3). We computed the accuracy rate of the

proposed architecture for each test, being 16 the best

number of frames to be used according to the obtained

results (Figure 3).

Besides, for this work, we use a minimum max-

pooling on the depth to adapt the network to the

frames chosen. Later, we modify the kernels and

max-pooling of the network to work with the size of

the selected frames. Additionally, the training sam-

ples are pre-processed to facilitate the learning of the

3DCNN Performance in Hand Gesture Recognition Applied to Robot Arm Interaction

803

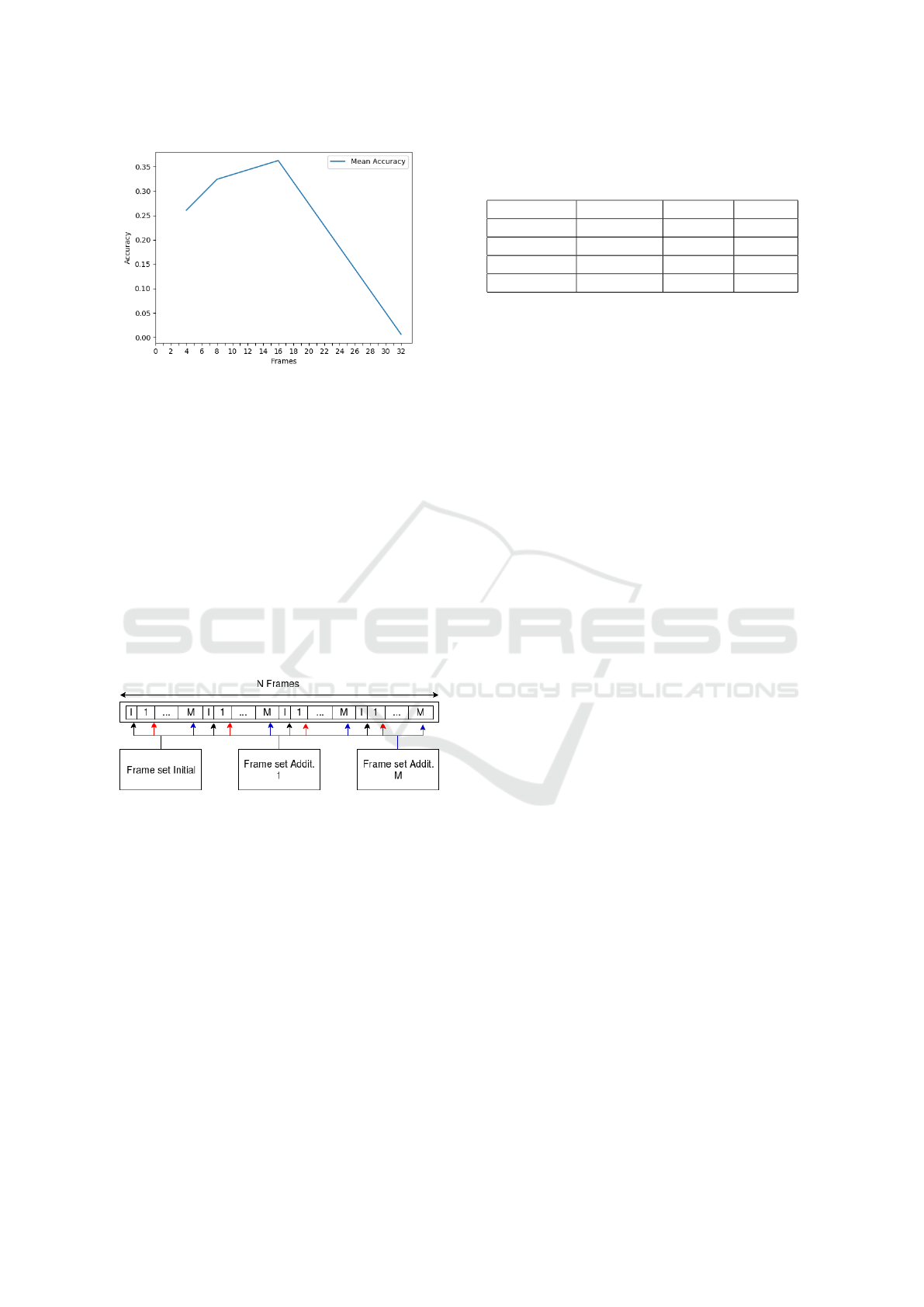

Figure 3: Analysis of accuracy using 4, 8, 16 and 32 frames

with an L2 regularization.

network. We augment the dataset before the training

phase and the images are resized to 320 x 180 pixels.

Afterwards, depending on the number of frames

that we want to use for training, we select N equidis-

tant frames over the total length of the sequence (Fig-

ure 4 illustrates this process). Then, other additional

M sets are selected by taking the next frame of the

sequence, obtaining M+1 sets of N frames per scene.

Moreover, since each sequence holds the same ges-

ture repeated twice, each set of N frames is split in

half to create a group of N/2 frames with the ﬁrst rep-

etition and another group of N/2 frames with the sec-

ond repetition.

Figure 4: Selection of frames throughout the pre-processing

of scenes.

In Table 1 can be observed the result of applying

the selection of frames over the dataset. Depending

on the number of frames selected for training, the total

number of samples is reduced and the spatiotemporal

information in each sample varies. For example, with

a selection of N=8 frames, after splitting them in half

and selecting the M additional sets, we have a total of

7488 samples of 4 frames.

In order to ﬁnd that selecting 16 frames yielded

a greater performance, we trained the NFraNet net-

work, deﬁned in Figure 1, with the samples split as

shown in Table 1. This experiment was performed

running 600 epochs on mini batches with a size of

16 samples. Concurrently, while a batch was run-

ning on a Nvidia GeForce GTX 1080ti GPU, the fol-

Table 1: Number of samples used for training after applying

both sampling and selection of additional frames. Addit.

stands for the number of additional frame sets.

Frames (N) Addit. (M) Samples S. Split

8 5 3744 7488

16 4 3120 6240

32 1 1248 2496

64 0 624 1248

lowing batch received an extra online pre-processing:

images were rotated with a 50% probability between

[−3,3] degrees. Then, a crop was made on the centre

with and offset of -10 pixels in width and -15 pix-

els in height. This crop had a 50% of probability to

undergo random displacements between [−2,2] pix-

els in height and [−4, 4] pixels in width. This pre-

processing was carried out with the goal of providing

the network with increased online data and improving

its generalization capabilities. In order to avoid over-

ﬁtting the training set, two regularization techniques

were used during training. We applied Dropout (Sri-

vastava et al., 2014) to the units of the network with a

50% of probability and weights were regularized us-

ing L

regularization (Goodfellow et al., 2016), with

beta = 0.01.

4 EXPERIMENTS AND RESULTS

We have studied the performance of the NFraNet and

the CubeFraNet during training by applying k-fold

cross-validation (Kohavi, 1995) with k=5 for both of

them. The performance evaluation of our proposal

has been carried out with the following metrics (Pow-

ers, 2011), widely used for this kind of tasks: Accu-

racy (Acc), Precision (P), Recall (R) and F1-measure

). They are deﬁned as follows:

Acc = (T P + T N)/(T P + FP + FN + T N)

P = T P/(T P + FP)

R = T P/(T P + FN)

= 2 ∗ (P ∗ R)/(P + R)

(1)

where TP (True Positives) denote the numbers of cor-

rectly detected instances like the correct gesture; FN

(False Negatives) denote the number of instances that,

although having performed the gesture, it has not been

detected as such; FP (False Positives) indicate the

number of times that a certain gesture has been rec-

ognized as the wanted one, despite having executed

another; TN (True Negatives) indicates the number

of times that the executed gesture has been correctly

identiﬁed as not belonging to the wanted one.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

804

A cross-validation experiment was made to com-

pare both architectures but they showed a similar per-

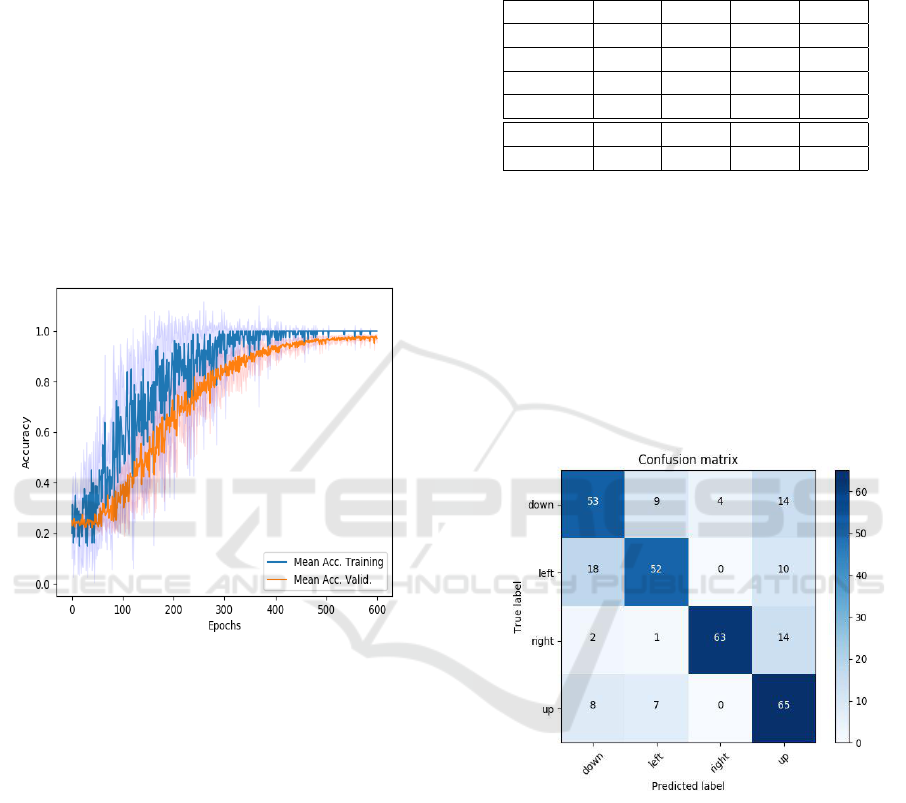

formance. Figure 5 shows the accuracy rate in cross

validation of one of them (NFraNet). Since the net-

works showed to suffer from overﬁtting, we decided

to measure their ﬁnal performance using a test set af-

ter tuning them using cross-validation on the training

set.

The test set consisted of 20 unknown scenes sam-

ples. These samples were never seen in training, so

with them we evaluated the generalization capability

of the proposed neural network. In this evaluation,

we obtained a 0.728 success rate for the ﬁrst conﬁgu-

ration of the 3DCNN network (NFraNet) and a 0.684

success rate for the second (CubeFraNet) in terms of

accuracy.

Figure 5: Average accuracy obtained with 5-fold cross-

validation with NFraNet.

Table 2 holds the scores achieved by NFraNet for

the recognition task of the four gestures described in

Section 2 on the test set. The table shows that ’Right’

obtained the best score in F

and P (0.85 and 0.78, re-

spectively) and the second best in Acc and therefore,

it is the most reliable prediction of the four gestures

if we would tele-operate a robot. ’Up’ is the best one

considering Acc and R (0.81 in both cases) and the

second best valued gesture by F

, however its P is the

lowest. ’Left’ and ’Down’ have similar values in both

Acc and R (around 0.66). However, between both ges-

tures, ’Left’ predictions are more reliable as indicated

by the P.

A more exhaustive study can be carried out ob-

serving the confusion matrix in ﬁgure 6. It indicates

a tendency to confuse ’Left’ and ’Up’ gestures with

’Down’, while ’Right’ shows a certain level of ro-

bustness to be identiﬁed, as indicated by its scores.

Besides, the network tends to predict in favor of ’Up’,

affecting even the ’Right’ gesture, which seems to dif-

fer more from the rest of the gestures.

Table 2: The Accuracy, Precision, Recall and F1 score

achieved by NFraNet on the test set.

Gesture Acc. P R F

Down 0.663 0.654 0.663 0.658

Left 0.650 0.754 0.650 0.698

Right 0.788 0.940 0.788 0.857

Up 0.813 0.631 0.813 0.710

Average 0.728 0.745 0.728 0.731

Std 0.073 0.122 0.073 0.075

In relation to the issue of gestures being confused

with ’Down’, we think that this could be due to the

body posture when the gestures were recorded. As

can be seen in the Figure 2, during the execution of the

gestures ’Down’, ’Left’ and ’Up’ the elbow is placed

almost identically. However, in order to perform the

’Right’ gesture, it elbow is raised to a different po-

sition. Owing to this, the network could have given

more importance to spatial features related to the arm

position than to temporal features related to the hand.

Figure 6: Confusion matrix of the NFraNet on the test set.

5 CONCLUSIONS

In this work, two neural network conﬁgurations based

on 3DCNN have been tested in order to classify 4

gestures for tele-operating or interacting with robots

at a safe distance. The best proposed conﬁguration

(NFraNet) yielded an average accuracy of 73% and

the resulting confusion matrix showed us that it effec-

tively extracted spatiotemporal features with which

we could classify the gestures with reliability, com-

pared to the state of the art. Taking into account

3DCNN Performance in Hand Gesture Recognition Applied to Robot Arm Interaction

805

the number of samples and the visual and temporal

complexity of the generated novel dataset, the per-

formance of the presented system is close to that of

(Molchanov et al., 2015), in which they achieved

77.5% using a visually segmented dataset for the

recognition of hand gestures.

Taking into account the present results, the pro-

posed method could stand as a starting point for a fu-

ture work in the ﬁeld of human-robot interaction with

gestures. In a real world scenario, an adaptation phase

of the user to the constrains of our system would be

required. Also, a high level conﬁguration of the neu-

ral network could be carried out to increase the conﬁ-

dence of the outputs. As a beneﬁt, during online ex-

ecution, the system would have several opportunities

to identify the same gesture as the temporal window

moves.

In the future, we plan to test the possibility of us-

ing an already trained network in a similar visual task

and transfer its features to our problem. In addition,

checking the performance of a mixed architecture us-

ing ConvLSMT and 3DCNN would be an interesting

experiment. Finally, in order to generate more sam-

ples we would like to experiment with methods that

produce synthetic data realistic enough for learning.

ACKNOWLEDGEMENTS

This work was funded by the Ministry of Economy,

Industry and Competitiveness from the Spanish Gov-

ernment through the DPI2015-68087-R and the pre-

doctoral grant BES-2016-078290, by the European

Commission and FEDER funds through the project

COMMANDIA (SOE2/P1/F0638), action supported

by Interreg-V Sudoe.

REFERENCES

Abid, M. R., Meszaros, P. E., Silva, R. F., and Petriu,

E. M. (2014). Dynamic hand gesture recognition for

human-robot and inter-robot communication. In IEEE

Conference on Computational Intelligence and Vir-

tual Environments for Measurement Systems and Ap-

plications, pages 12–17.

Barros, P., Parisi, G. I., Jirak, D., and Wermter, S. (2014).

Real-time Gesture Recognition Using a Humanoid

Robot with a Deep Neural Architecture.

Chen, K.-Y., Chien, C.-C., Chang, W.-L., and Teng, J.-T.

(2010). An integrated color and hand gesture recog-

nition approach for an autonomous mobile robot. In

Image and Signal Processing (CISP), 2010 3rd Inter-

national Congress on, volume 5, pages 2496–2500.

IEEE.

Giusti, A., Cires¸an, D. C., Masci, J., Gambardella, L. M.,

and Schmidhuber, J. (2013). Fast image scan-

ning with deep max-pooling convolutional neural net-

works. In International Conference on Image Process-

ing (ICIP), pages 4034–4038. IEEE.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. MIT Press.

Ionescu, B., Coquin, D., Lambert, P., and Buzuloiu, V.

(2005). Dynamic hand gesture recognition using the

skeleton of the hand. Eurasip Journal on Applied Sig-

nal Processing, 2005(13):2101–2109.

Kohavi, R. (1995). A study of cross-validation and boot-

strap for accuracy estimation and model selection. In

14th International Joint Conference on Artiﬁcial In-

telligence, volume 2, pages 1137–1143.

Luo, R. C. and Wu, Y. C. (2012). Hand gesture recogni-

tion for Human-Robot Interaction for service robot.

In IEEE International Conference on Multisensor Fu-

sion and Integration for Intelligent Systems, pages

318–323. IEEE.

Malima, A.,

Ozg

ur, E., and C¸ etin, M. (2006). A fast al-

gorithm for vision-based hand gesture recognition for

robot control. In IEEE 14th Signal Processing and

Communications Applications Conference, pages 6–

9. IEEE.

Molchanov, P., Gupta, S., Kim, K., Kautz, J., and Clara,

S. (2015). Hand Gesture Recognition with 3D Con-

volutional Neural Networks. In Computer Vision and

Pattern Recognition (CVPR), pages 1–7.

Powers, D. M. (2011). Evaluation: from precision, recall

and f-measure to roc, informedness, markedness and

correlation.

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural Networks, 61:85 – 117.

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: A Sim-

ple Way to Prevent Neural Networks from Over-

ﬁtting. Journal of Machine Learning Research,

2014(15):1929–1958.

Strobel, M., Illmann, J., Kluge, B., and Marrone, F. (2002).

Using spatial context knowledge in gesture recogni-

tion for commanding a domestic service robot. In

IEEE International Workshop on Robot and Human

Interactive Communication, pages 468–473.

Tsironi, E., Barros, P., and Wermter, S. (2016). Ges-

ture recognition with a convolutional long short-term

memory recurrent neural network. Bruges, Belgium,

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

806
