Location Privacy Assured Internet of Things
Ismail Butun and Mikael Gidlund
Department of Information Systems and Technology, Mid Sweden University, 851 70 Sundsvall, Sweden
Keywords:
Security, Mix-Zone, Location Obfuscation, IoT, Preserving, Context-awareness, Vulnerabilities, Trust,
End-device.
Abstract:
Internet of Things (IoT) is in the booming age of its growth, therefore a vast amount of applications, projects,
hardware/software solutions, and customized concepts are being developed. The proliferation of IoT will
enable location-based services to be available everywhere for everyone, and this will raise a large number
of privacy issues related to the collection, usage, retention, and disclosure of the user’s location information.
In order to provide a solution to this unique problem of IoT, this paper proposes Location Privacy Assured
Internet of Things (LPA-IoT) scheme, which uses the concepts of Mix-Zone, location-obfuscation along with
context-awareness. To the authors’ best knowledge, the proposed LPA-IoT scheme is the first location-based
privacy-preserving scheme for IoT that provides flexible privacy levels associated with the present context of
the user.
1 INTRODUCTION
The Internet of Things (IoT)
1
is revolutionizing the IT
sector. According to predictions, by the end of 2020,
20 billion IoT devices are expected to exist and seam-
lessly connect each other on the global Internet (Ko-
cakulak and Butun, 2017).
A mobile ecosystem is characterized by devices
that usually contain very sensitive personal (and busi-
ness) data including contacts, communication pat-
terns, and the whereabouts of the user. Hence, one
of the major privacy impacts of cyber-security solu-
tions for this ecosystem is the potentially very high
sensitivity of attribute disclosure. Similarly, these de-
vices contain information that can easily re-identify
their users depending on some preexisting pattern of
events such as calendar events, etc.
A somehow similar consideration holds for the
IoT ecosystem considering that, for example, home
automation systems may continuously detect home
activities; health-care related IoT systems may reveal
medical conditions, and IoT installations in smart en-
vironments may include cameras or other systems that
can directly or indirectly identify users performing ac-
tivities in specific places revealing also their location
1
This work was supported partially by grants: 20201010
(SMART Project) of the European Regional Fund (ERUF),
and 20150367 (TIMELINESS Project) of the Swedish
Knowledge Foundation (KKS).
information at given times. In order to assess the pri-
vacy of the users in IoT, algorithms need to be de-
signed. However, following unique properties of the
IoT make it challenging to design and difficult to de-
vise algorithms accordingly. Therefore, they create
problems to be solved, especially the ones related to
privacy (Vasilomanolakis et al., 2015):
Uncontrolled environment: Users (and in some
cases devices) are mobile, IoT devices are phys-
ically accessible (especially for adversaries) in
public places and finally, there is no trusted au-
thority defined for IoT devices to resume safe op-
eration.
Heterogeneity: IoT consists of various types of
things (devices), services and users.
Scalability: IoT introduces a highly scalable and
flexible network architecture, which may be trou-
ble for the algorithms that are considering stable
network conditions.
Constrained Resources: Some of the IoT things
(things and devices are used interchangeably
throughout the manuscript) are very tiny and have
limited battery power (just as in the case of sen-
sors of WSNs). In order to resume a long life-
time, these devices should be running light-weight
algorithms, crafted in accordance with the sleep-
wakeup cycles of the devices. These tiny de-
vices have also limited communication (small
Butun, I. and Gidlund, M.
Location Privacy Assured Internet of Things.
DOI: 10.5220/0007587906230630
In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 623-630
ISBN: 978-989-758-359-9
Copyright
c
2019 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
623

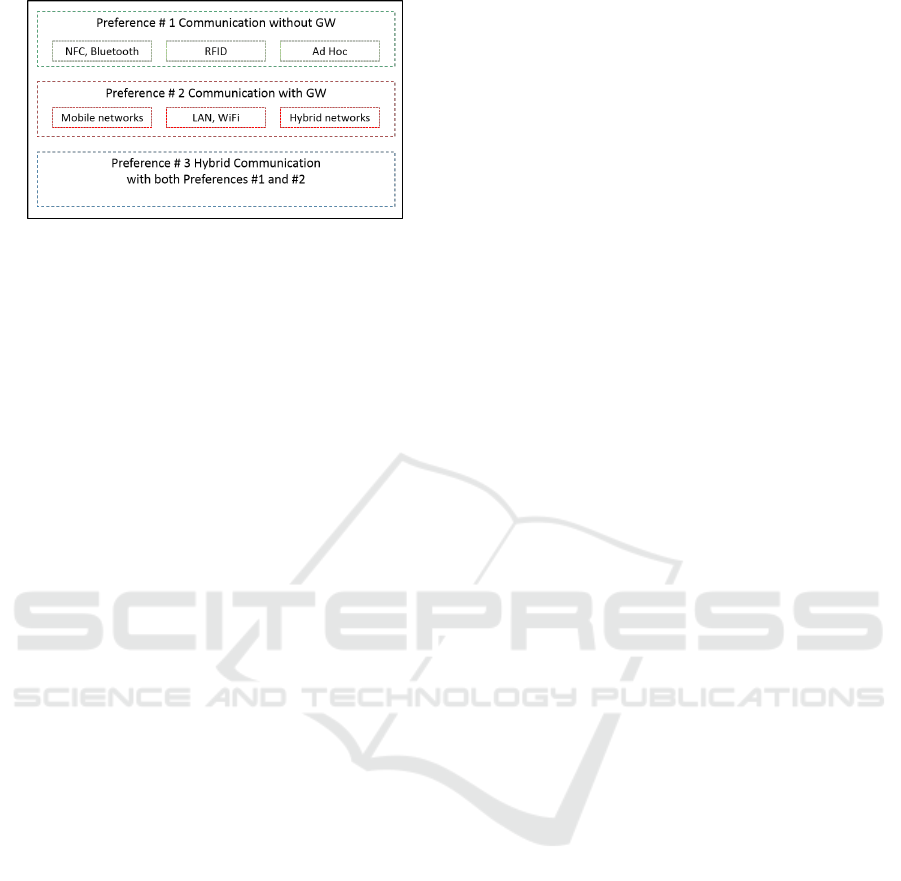

Figure 1: Communications methods in IoT.
area wireless coverage, low data rate, etc.) and
computation (small size of RAM, low processing
speed, etc.) resources. This limited energy, com-
munication, and computation resources would in-
evitably dictate design criterion of IoT privacy al-
gorithms/methods/techniques/etc.
Interactions between the things of IoT are
achieved via a communication network. Hence, IoT
consists of heterogeneous participants; communica-
tion in between those devices is a non-trivial task, as
it requires multiple protocols to be involved as shown
in Fig. 1 (Elkhodr et al., 2013). This heterogeneous
nature and distributed architecture of IoT gives rise to
numerous security and privacy concerns as summa-
rized as follows (Daubert et al., 2015):
Identity Privacy (Visibility). Who is the data
generator? Disclosure of the user identities
throughout their IoT interactions should be ob-
structed.
Location Privacy (Where). Where is the data
taken from? The physical location of the IoT
users should be preserved so that they will not be
tracked.
Footprint Privacy (Knowledge). Can informa-
tion be extracted from the data being transferred in
all layers? Acquisition of large amounts of micro-
data should not reveal private information about
the users.
Query Privacy (Interests). What was the con-
tent of the query? Profiling of the users should be
obstructed.
Ownership Privacy (Who). Who is the owner
of the data? Data stored in databases or trans-
ferred to third parties should not reveal informa-
tion about who was the owner of the data (which
can be used for commercial advertising or busi-
ness purposes, e.g. quote for the next health in-
surance agreement).
Over decades, location privacy was a big concern
for the users in mobile cellular systems as well as the
Internet. As mentioned in (Beresford and Stajano,
2004), Internet Engineering Task Force even formed a
special group working only on this issue (Geographic
Location/Privacy Working Group). As IoT becom-
ing the next phenomenon in technology just like as
Internet, location privacy of the nodes and users will
be a primary concern in some specific scenarios, es-
pecially the ones related to the critical infrastructures
(e.g. location of a valve in a pipeline or location of a
critical actuator in a nuclear power plant) and military
operations (e.g. position of the friendly forces).
The proliferation of IoT will enable location-
based services (LBS) to be available everywhere for
everyone, and this will raise a large number of privacy
issues related to the collection, usage, retention, and
disclosure of the user’s location information (Minch,
2015). Therefore, in order IoT to have profound
business and societal impacts in our rapidly changing
world, location-aware privacy enhancing technolo-
gies should be added immediately. This paper aims
at providing that.
In order to provide a solution to this unique prob-
lem of IoT, this paper proposes Location Privacy As-
sured Internet of Things (LPA-IoT) scheme, which
uses the concepts of Mix-Zone along with location-
obfuscation and context-awareness. Mix-Zone pro-
vides a masked ID (called pseudonym) for each user
whenever users enter a predetermined location zone.
No one other than the server knows which pseudonym
belongs to which user in the zone. Therefore, from
outsider’s point of view, the imprecise location of the
individual is known (i.e. inside the Mix-Zone) but
the precise location is hidden. Similarly, in location-
obfuscation, instead of pseudonyms, the precision
level of the user’s location (that is mostly generated by
GPS receiver) is altered (degraded) by an algorithm
and then fed to the outsiders. Both of these meth-
ods have benefits as well as difficulties. For example,
Mix-Zone needs some certain number of users to be
in the zone to efficiently mask them. On the other
hand, location-obfuscation suffers from communica-
tions and processing costs related to the generation of
extra levels of (depending on the precision) location
information, and also from the handling of that infor-
mation by the server.
In the proposed LPA-IoT scheme, there is a prede-
termined threshold level at which the location hiding
algorithm changes phase from Mix-Zone algorithm to
location-obfuscation algorithm. So that, all the time,
location privacy of the users are assured. To the au-
thors’ best knowledge, the proposed LPA-IoT scheme
is the first location-based privacy-preserving scheme
for IoT that provides flexible privacy levels associated
with the present context of the user. Besides, the pro-
posed scheme works in a dynamic fashion to provide
ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy
624
best cost efficiency.
The structure of this article is as follows: Sec-
tion 2 contains a literature review regarding location
privacy in IoT. Section 3 overviews location privacy
and presents flaws of the existing proposals in the lit-
erature. Section 4, where proposed LPA-IoT scheme
is presented and discussed follows this. Finally, the
article ends with Section 5, which is comprised of
conclusions and future work.
2 RELATED WORK
There are solutions in the literature related to provid-
ing specific or generic privacy for IoT (data-footprint
privacy (Rajagopalan et al., 2011), user configurable
privacy enforcement (Henze et al., 2014), relationship
of the user privacy and trust (Butun, 2017)), but these
works do not establish location-privacy for IoT. Here,
authors will present most of the important work re-
lated to location-privacy in the literature (some are
proposed for IoT, the rest are proposed for mobile and
vehicular networks) categorized as follows:
2.1 Context-awareness
The relation in between privacy and context-
awareness for IoT is discussed in (Medaglia and Ser-
banati, 2010). It is concluded that the users may re-
sume two basic operational modes, which are public
and private. Based on the context information (Where
are we? What we are doing?), privacy can be tuned
in: Public operation mode is selected when objects
(things) advertise their presence and provide their ser-
vices to all nearby devices. However, in private oper-
ation mode, previously stated functionalities are pro-
vided to only very well known (trust wise) neighbors
only.
2.2 Location
Masking/Cloaking/Obfuscation
Location obfuscation has also known as masking or
cloaking, is a method used for protecting location-
privacy of the users by generalizing (substituting
or altering) the location information. Authors of
(Elkhodr et al., 2013) used this method, along with
context-awareness to provide location-privacy to gen-
eral objects (users) of IoT by using data obfuscation
techniques.
In (Elkhodr et al., 2013), authors showed how data
obfuscation technique could be used to hide precise
location information from the unintended parties. In
their methodology, they provide three different types

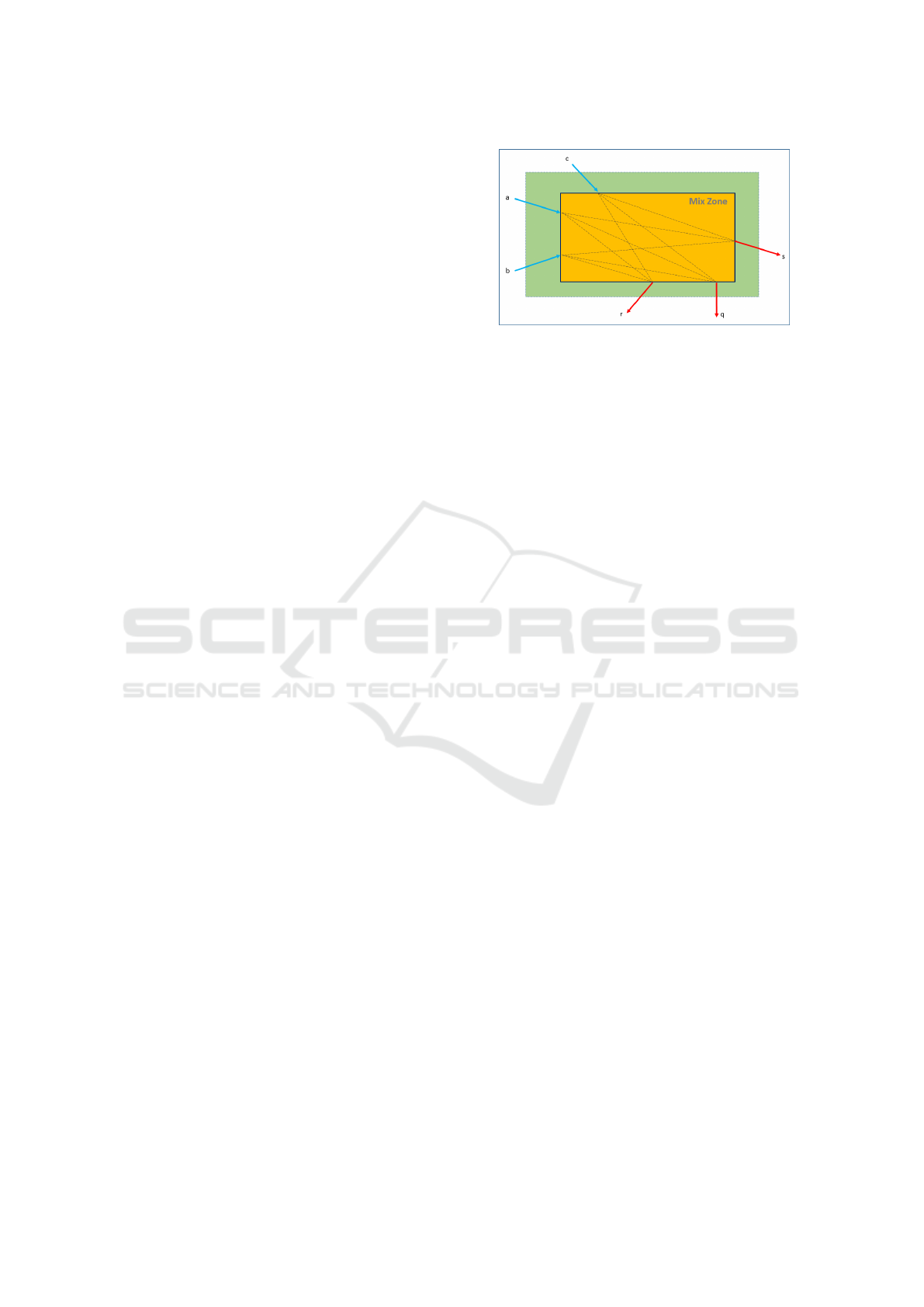

Figure 2: Example movement of three people through a
simple Mix-Zone.
of location information and provide this information
to the specific type of users/objects. As a result,
in the database of each user device; three location
data are generated, namely: high-precision, medium-
precision, and low-precision. When a highly trusted
object or user demands location, high-precise location
is provided. Low-precise location is provided to un-
trusted third party objects/applications/users.
2.3 Pseudonymization/Mix-Zone
In (Beresford and Stajano, 2004), authors proposed
the Mix-Zone concept for pervasive computing, in
which location of the users is masked by the “Mix-
Zone”. Mix-Zone provides a solution for user pri-
vacy in location-based services. It prevents track-
ing of long-term user movements but still allows the
short-term location data to be used by location-aware
applications.
After a user enters a Mix-Zone, the specific loca-
tion of the user right in the Mix-Zone is hidden from
the location-aware applications. This way, users in-
side a Mix-Zone will not be traceable and thereby
will have location privacy in that specific zone. These
zones may be assigned to a hospital, military facility,
etc., in which users do not want to be tracked.
As shown in Fig. 2, for the users a, b and c, the
location information is hidden in the Mix-Zone so that
they are untraceable. For example, the egress point of
user a may be either s, r or q.
2.4 Game Theoretical Approach
In (Freudiger et al., 2009) and (Humbert et al., 2010),
authors assume that the Mix-Zone concept of (Beres-
ford and Stajano, 2004) to be used by their system
(mobile networks) and they model the willingness
(cooperation) of their system users to participate Mix-
Zone as a “Game”, where each player aims at maxi-
mizing its location privacy at a minimum cost.
Location Privacy Assured Internet of Things
625
2.5 Other Approaches
In (Hu et al., 2011) authors proposed identity-based
personal location system with protected privacy for
IoT. Their proposed architecture includes a client-
server relation, which requires a server available all
the time and a communication back-haul to sup-
port all the transactions. Any location request goes
through the server with a classical authentication ser-
vice: Users with the required credentials are allowed
to acquire the personal location information of the
subject.
In (Skarmeta et al., 2014), authors proposed
capability-based distributed access-control scheme
for CoAP (Constrained Application Protocol is a
software protocol intended to be used in very sim-
ple electronics devices, allowing them to commu-
nicate interactively over the Internet) messaging of
IoT. This is a distributed approach, in which smart
things themselves are capable of making well-defined
and context-aware access control decisions. Authors
achieved this by designing a lightweight token used
for access to CoAP Resources, and an optimized im-
plementation of the Elliptic Curve Digital Signature
Algorithm (ECDSA) inside the smart things (nodes).
3 DISCUSSIONS REGARDING
PREVIOUS WORK
As mentioned in Section 2, the solutions of (Ra-
jagopalan et al., 2011) and (Henze et al., 2014) do
not provide privacy for the location information and
therefore not promising for assuring location-privacy.
There are solutions in the literature to ensure loca-
tion privacy for mobile (cellular) networks. As men-
tioned in (Elkhodr et al., 2012), current privacy issues
in mobile platforms are more likely to be inherited if
not magnified in the IoT. However, none of the solu-
tions to provide location-privacy to mobile platforms
(cellular networks) are tailored to the specific needs
and architecture of the IoT yet.
3.1 Context-awareness
The proposed context-aware privacy solution for IoT
of (Medaglia and Serbanati, 2010) is a good idea and
adopted by this paper. However, authors of the pro-
posal do not provide any algorithms, methods or func-
tions to be used for context-awareness. Therefore, this
is left for us as a challenge to tackle.
3.2 Location
Masking/Cloaking/Obfuscation
The Dynamic Disclosure Control Method (DDCM) of
(Elkhodr et al., 2013) provides six levels of obfus-
cation levels (from dummy location information to-
wards exact location information) in which different
location outputs are generated from the same location
information. For example, these five levels of obfus-
cation can be stated for an address information as fol-
lows: Level-0 Exact, Level-1 Street, Level-2 Suburb,
Level-3 State, Level-4 County, and Level-5 Dummy
(random). The proposed method is valid only for GPS
enabled mobile devices. Authors did not discuss the
applicability of this method to other IoT devices (with
or without GPS). Besides, authors also did not pro-
vide any cost analysis, which the proposed DDCM
would bring to the IoT systems.
3.3 Pseudonymization/Mix-Zone
As discussed in the literature (Freudiger et al., 2007;
Freudiger et al., 2009; Humbert et al., 2010), Mix-
Zone model of (Beresford and Stajano, 2004) is not
sufficient alone to provide location-privacy. The
egress and ingress points of the users can be recorded
along with timing information to trace back each user
and precisely predict each user’s final location af-
ter Mix-Zone and a highly correct estimate of the
route inside Mix-Zone. Besides, Mix-Zone concept
is based upon the collaboration of the users: Users in
the Mix-Zone collectively change their pseudonyms
to create confusion for the outside observers (attack-
ers). If some of the members selfishly avoid collab-
orating in the exchange process of pseudonyms, this
would decrease the level of confidence in the system
(location-privacy).
3.4 Game Theoretical Approach
Although authors of (Alpcan and Bas¸ar, 2010) de-
scribed the zero-sum Nash Equilibrium game in
between “attacker” and the “defender”; (Freudiger
et al., 2009) and (Humbert et al., 2010) rather to
play the game in between “cooperative” and “non-
cooperative” users of a location-privacy assured mo-
bile networks. Therefore, application of game theory
to location-privacy assured mobile networks (espe-
cially the IoT networks) from the perspective of “de-
fender” - “attacker” game remains as a future work to
be done.
ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy
626
3.5 Other Approaches
As mentioned in (Notra et al., 2014), other prior
work either wrongly addresses the problem (Hu et al.,
2011) (classical client-server type authentication is
not convenient for highly dynamic and scalable IoT
architecture) or propose high-level security architec-
tures (Skarmeta et al., 2014) involving changes to the
way IoT devices are currently designed and commu-
nicating. With hundreds of IoT device manufacturers,
it is almost impossible to come up with a device em-
bedded security solution that caters to all the security
and privacy threats for a variety of IoT devices with
varying capabilities. Also due to the miniature size of
many IoT devices with limited computing capabilities
and power resources make it impossible to apply ex-
tensive computing-rich security algorithms. Authors
also believe that device embedded solutions require
all manufacturers to be on board which is a hard task.
Among all previous work in the literature,
(Elkhodr et al., 2013) provides a promising solution
for assuring location privacy for IoT applications. Al-
though the methodology of the presented work sounds
logical, here the problems it represents: It is proposed
for generic GPS bearing IoT networks and needs to be
tailored for the other kind of IoT networks (with the
location sensing devices other than the GPS). Once a
precise-data is generated, it is there for hackers and/or
high ability users (hired by advertisers, commercial
companies, etc.) to capture it. Algorithms and/or
methods need to be developed to assure location-
privacy, by securing the original precisely generated
location data.
3.6 The Distinctive Properties of IoT
from “Mobile Networks” and
“Vehicular Networks”
Most of the techniques in the literature for assuring
location privacy are either devised for “mobile net-
works” or “vehicular networks”. The distinctive prop-
erties of IoT from those mentioned networks are as
follows:
Some of the “things” might be stationary, such
as sensing devices in the buildings; whereas the
other “things” might be mobile, such as devices
attached to the users. Hence constituting a hetero-
geneous structure in terms of mobility.
Mobility in the IoT is not rapid as in the vehicu-
lar networks, hence the mobility mostly related to
pedestrians and their surrounding devices.
The network in IoT needs to be scalable as the
number of users and the things might change sub-
stantially.
GPS technology is always available in vehicular
networks whereas it might not be available in all
nodes of the IoT.
Some of the “things” in IoT are super-tiny de-
vices, which are intended to save battery life to
serve a longer lifetime; hence, the algorithms need
to be devised by keeping “energy conservation”
in mind. This is not necessary for vehicular net-
works hence the vehicles have enough battery and
power supply all the time.
In some cases, things of IoT might not be able
to connect to the Internet directly but via their
neighbors. This brings in the Ad-Hoc Network-
ing concept to the design criterion. Whereas,
the vehicular networks are highly connected to
Internet or Intranet via Road-Side-Units and/or
2G/3G/4G/5G cellular technology.

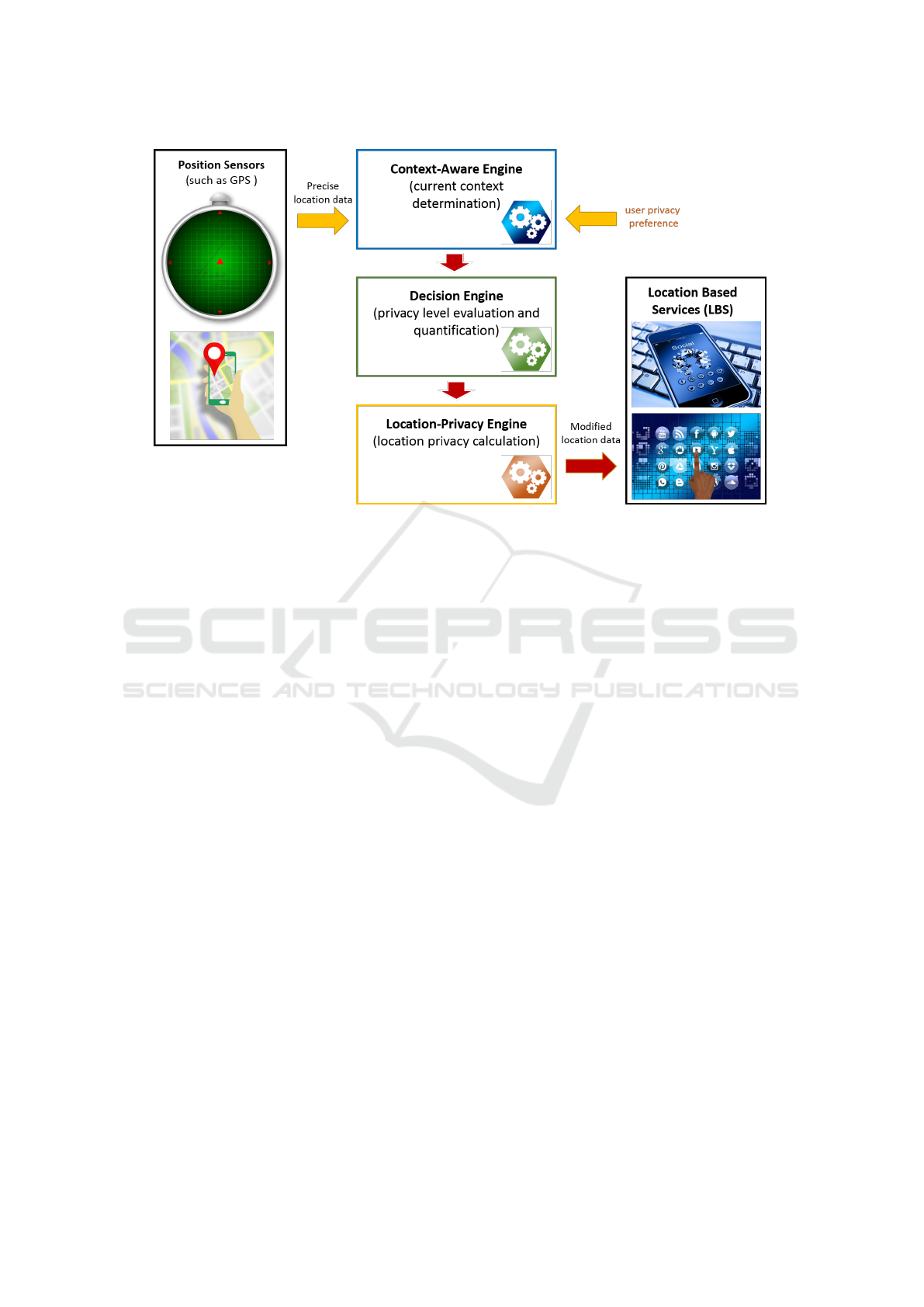

4 PROPOSED LOCATION
PRIVACY ASSURED INTERNET
OF THINGS (LPA-IoT) SCHEME
Context-awareness describes devices that can sense
and be aware of their environment to judge their next
movement or behavior accordingly. However, lo-
cation awareness is an also emerging field in mo-
bile applications and portable devices which leads
to the introduction of location-based services (LBS)
and location-based applications. Location informa-
tion becomes highly sensitive when it is combined
with other contextual information such as the user’s
identity (Elkhodr et al., 2013).
Location-privacy can be defined as the privacy
related to the individuals’ location-specific informa-
tion including their living patterns. As mentioned in
(Minch, 2004), usage of location-aware services will
arise following location-privacy related implications:
collection, retention, use, and disclosure of location
information. Extreme consumer profiling can be done
by the commercial companies related to shopping
and travel patterns of the consumers. Patients visit-
ing health services may be correlated to their health
condition which may be very valuable information
for health-insurance companies. Moreover, personal
safety may be compromised if the location informa-
tion of individuals is breached.
In an IoT network, location of the users can be
determined via one of the methods with the specific
ranges provided as follows: GPS (precise, 10 cm - 10
Location Privacy Assured Internet of Things
627
m range), RFID (near-proximity 1 m - 10 m range),
WiFi (mid-proximity 10 m - 100 m range), GSM tri-
angulation (far-proximity 100 m - 1,000 m range).
Hence the IoT consists of heterogeneous devices, the
precise location information as in mobile and cellular
networks will not be available all the time.
Mobile Target Tracking (MTT), proposed by Hoh
and Gruteser (Hoh and Gruteser, 2005), was able to
reconstruct the tracks of mobile devices in a network,
indicating that spatial and temporal correlation be-
tween successive locations of mobile devices should
be carefully eliminated to prevent attackers from com-
promising the user’s location privacy.
The location privacy algorithms provided in the
literature (summarized in Section 2) are proposed for
either mobile networks or vehicular networks. Hence
IoT have distinctive properties and features compared
to those mentioned networks (please see Section 3.6),
these algorithms cannot be adopted directly. They
need to be revised, re-modeled, re-constructed, re-
structured in order to fulfill the special requirements
of IoT and the users of the IoT.
The design (revising, re-modeling re-constructing,
re-structuring) phase of the location privacy algo-
rithm(s) should be followed by a thorough evaluation
phase. This evaluation phase should include all the
quantification metrics (such as uncertainty, entropy,
confusion time, etc.) in order to provide verifiable
comparison results.
As mentioned above, location privacy is prevent-
ing other parties from a node’s past and current loca-
tion. Hence assuring the location privacy of the IoT
nodes is indispensable, the aim of this paper is to pro-
vide location privacy with a minimum cost to the IoT
nodes.
As discussed in (Medaglia and Serbanati, 2010),
location-based services may be provided in two basic
operation modes:
1. Public Mode: This operation mode would require
none or minimal user privacy for location-based
services.
2. Private Mode: This operation mode would re-
quire maximum user privacy for location-based
services. This can be achieved by using algo-
rithms to ensure user location privacy, such as the
Mix-Zones proposed in (Beresford and Stajano,
2004).
In order to apply this kind of (2-modes of opera-
tion: “Public” and “Private”) approach, the IoT sys-
tem needs to be “context-aware”, so that it can switch
operation mode according to the location the user is
visiting.
Our proposed Location-Privacy Assured IoT
(LPA-IoT) scheme architecture is shown as in Fig. 3.
It consists of mainly three blocks:
Context-Aware Engine: As discussed above,
the first block of the proposed LPA-IoT system
consists of a context-aware engine, which dis-
covers the current context by comparing the pre-
cise location information with the detailed context
database (DCDB). DCDB is constituted by the
system managers, depending on the applications
as well as the user needs. DCDB will be preloaded
on all IoT devices of the LPA-IoT system and will
be updatable by push-based patches if needed.
Patch management aspects of the DCDB is out-
side the scope of this text. Interested readers on
patch management systems may refer to (Al et al.,
2012). Our proposed context-aware engine will be
similar to the one in (Elkhodr et al., 2013), and ac-
cordingly, any context will be analyzed using the
following four contextual parameters: Network,
Location, Period and Request Owner.
Decision Engine: After the context is specified
by the context-aware engine, the result is fed to
the decision engine among with the preselected
user privacy preferences, in order to conclude the
current Privacy Level (“Private” or “Public”) to
be used for location services. Here, the current
context is evaluated with the privacy selection of
the user and quantified to be processed by the next
block.
Location-Privacy Engine: If the result of
the previous engine is “Private”, then this block
will work, otherwise will not. In order to pro-
vide location-privacy, this block uses Mix-Zone
concept of (Beresford and Stajano, 2004) and
location-obfuscation method of (Elkhodr et al.,
2013), both of which are mentioned earlier in this
text. According to our proposed LPA-IoT scheme,
the location-privacy assuring configuration should
be dynamic. According to our proposed model,
there is a certain threshold level of the cost that
is associated with the number of users in the Mix-
Zone, which determines either usage of Mix-Zone
approach or not. If not, then the users in the
Mix-Zone will have to use location-obfuscation
method to attain their location-privacy. The men-
tioned threshold-level will be determined accord-
ing to analytical results. Total cost models of both
Mix-Zone and location-obfuscation will be deter-
mined. These models will include costs related to
packet transmissions between server and clients,
communications and processing. This will pro-
vide us metrics of total cost vs. the total num-
ber of users participating. Then, in the same
manner, privacy-risk models of both Mix-Zone
and location-obfuscation will be determined. This
ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy
628
Figure 3: Proposed system architecture for Location-Privacy Assured IoT (LPA-IoT) Scheme.
will provide us metrics of total privacy-risk vs.
the total number of users participating. Then by
using both obtained metrics, an optimization pro-
cess will be done to deduce the optimum num-
ber of users (N - the threshold-level) where the
location-privacy engine will be triggered to switch
the main algorithm for the location privacy (i.e.
either Mix-Zone approach or location-obfuscation
approach). Finally, the decision will be made ac-
cordingly on which approach to be used.
The resulting modified-location data from the
Location-Privacy Engine block is fed to the informa-
tion demanding LBS. Here, by modification what au-
thors meant is, depending on the algorithm used in
the Location-Privacy Engine block, either the preci-
sion of the location (position) in meters (hundreds of
meters, etc.) will be changed or the pseudonyms of
each location-bearing user will be changed. As a re-
sult, the proposed LPA-IoT system assures location-
privacy of its users according to their user preference,
current context and the total number of users, by using
Context-Awareness, Location-Obfuscation and Mix-
Zone concepts all together in an ordered and layered
fashion.
5 CONCLUSIONS AND FUTURE
WORK
With the proliferation of IoT devices, the location pri-
vacy of the users will be one of the main concerns
related to security. Therefore, in this article, the au-
thors aim at providing a unique solution to address
this specific problem.
Several proposals in the literature are reviewed
that may be relevant to location-based privacy. Most
of the proposals for IoT are aimed at providing
different security services rather than location pri-
vacy, and a few provided specific solutions for net-
works other than IoT (e.g. vehicular networks, mo-
bile networks, etc.). Hence, an LBS-based privacy-
preserving scheme (LPA-IoT) has been proposed in
this paper. To the authors’ best knowledge, the pro-
posed LPA-IoT scheme is the first location-based
privacy-preserving scheme for IoT that provides flex-
ible privacy levels associated with the present con-
text of the user. The proposed LPA-IoT scheme uses
Mix-Zone algorithm for hiding the location informa-
tion in first place. However, when the total number
of users in the zone decreases lower than a certain
minimum threshold level, the location privacy can-
not be assured. At that point, the proposed LPA-
IoT scheme uses the location-obfuscation algorithm.
Although this algorithm is most costly compared to
Mix-Zone, location privacy is assured by any means,
which might be very important in some scenarios.
In the future work, an optimization work (in terms
of performance, cost, and privacy) will be done in be-
tween Location-Obfuscation and Mix-Zone methods.
A threshold level (the total number of users) will be
determined according to this optimization result. Be-
sides, evaluation of the performance analysis of the
proposed scheme has been also left as a future work.
Location Privacy Assured Internet of Things
629
REFERENCES
Al, F., Dalloro, L., Ludwig, H., Claus, J., Fr
¨
ohlich, R., and
Butun, I. (2012). Networking elements as a patch dis-
tribution platform for distributed automation and con-
trol domains. Patent App. PCT/US2012/043,084.
Alpcan, T. and Bas¸ar, T. (2010). Network security: A de-
cision and game-theoretic approach. Cambridge Uni-
versity Press.
Beresford, A. R. and Stajano, F. (2004). Mix zones: User
privacy in location-aware services. In Pervasive Com-
puting and Communications Workshops, 2004. Pro-
ceedings of the Second IEEE Annual Conference on,
pages 127–131. IEEE.
Butun, I. (2017). Privacy and trust relations in internet of
things from the user point of view. In Computing and
Communication Workshop and Conference (CCWC),
2017 IEEE 7th Annual, pages 1–5. IEEE.
Daubert, J., Wiesmaier, A., and Kikiras, P. (2015). A view
on privacy & trust in iot. In Communication Work-
shop (ICCW), 2015 IEEE International Conference
on, pages 2665–2670. IEEE.
Elkhodr, M., Shahrestani, S., and Cheung, H. (2012). A
review of mobile location privacy in the internet of
things. In ICT and Knowledge Engineering (ICT
& Knowledge Engineering), 2012 10th International
Conference on, pages 266–272. IEEE.
Elkhodr, M., Shahrestani, S., and Cheung, H. (2013). A
contextual-adaptive location disclosure agent for gen-
eral devices in the internet of things. In Local Com-
puter Networks Workshops (LCN Workshops), pages
848–855. IEEE.
Freudiger, J., Manshaei, M. H., Hubaux, J.-P., and Parkes,
D. C. (2009). On non-cooperative location privacy: a
game-theoretic analysis. In Proceedings of the 16th
ACM conference on Computer and communications
security, pages 324–337. ACM.
Freudiger, J., Raya, M., F
´
elegyh
´
azi, M., Papadimitratos,
P., and Hubaux, J.-P. (2007). Mix-zones for loca-
tion privacy in vehicular networks. In ACM Workshop
on Wireless Networking for Intelligent Transportation
Systems (WiN-ITS), number LCA-CONF-2007-016.
Henze, M., Hermerschmidt, L., Kerpen, D., H
¨
außling, R.,
Rumpe, B., and Wehrle, K. (2014). User-driven pri-
vacy enforcement for cloud-based services in the in-
ternet of things. In Future Internet of Things and
Cloud (FiCloud), 2014 International Conf. on, pages
191–196. IEEE.
Hoh, B. and Gruteser, M. (2005). Protecting location pri-
vacy through path confusion. In Security and Privacy
for Emerging Areas in Communications Networks. Se-
cureComm 2005., pages 194–205. IEEE.
Hu, C., Zhang, J., and Wen, Q. (2011). An identity-based
personal location system with protected privacy in iot.
In Broadband Network and Multimedia Technology
(IC-BNMT), 2011 4th IEEE International Conference
on, pages 192–195. IEEE.
Humbert, M., Manshaei, M. H., Freudiger, J., and Hubaux,
J.-P. (2010). Tracking games in mobile networks. In
International Conference on Decision and Game The-
ory for Security, pages 38–57. Springer.
Kocakulak, M. and Butun, I. (2017). An overview of wire-
less sensor networks towards internet of things. In
Computing and Communication Workshop and Con-
ference (CCWC), 2017 IEEE 7th Annual, pages 1–6.
IEEE.
Medaglia, C. M. and Serbanati, A. (2010). An overview of
privacy and security issues in the internet of things. In
The Internet of Things, pages 389–395. Springer.
Minch, R. P. (2004). Privacy issues in location-aware mo-
bile devices. In System Sciences, 2004. Proceedings of
the 37th Annual Hawaii International Conf. on, pages
10–pp. IEEE.
Minch, R. P. (2015). Location privacy in the era of the in-
ternet of things and big data analytics. In System Sci-
ences (HICSS), 2015 48th Hawaii International Conf.
on, pages 1521–1530. IEEE.
Notra, S., Siddiqi, M., Gharakheili, H. H., Sivaraman, V.,
and Boreli, R. (2014). An experimental study of se-
curity and privacy risks with emerging household ap-
pliances. In Communications and Network Security
(CNS), Conf. on, pages 79–84. IEEE.
Rajagopalan, S. R., Sankar, L., Mohajer, S., and Poor,
H. V. (2011). Smart meter privacy: A utility-privacy
framework. In Smart Grid Communications (Smart-
GridComm), 2011 IEEE International Conference on,
pages 190–195. IEEE.
Skarmeta, A. F., Hernandez-Ramos, J. L., and Moreno,
M. V. (2014). A decentralized approach for security
and privacy challenges in the internet of things. In In-
ternet of Things (WF-IoT), 2014 IEEE World Forum
on, pages 67–72. IEEE.
Vasilomanolakis, E., Daubert, J., Luthra, M., Gazis, V.,
Wiesmaier, A., and Kikiras, P. (2015). On the secu-
rity and privacy of internet of things architectures and
systems. In Secure Internet of Things (SIoT), 2015
International Workshop on, pages 49–57. IEEE.
ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy
630
