MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s

Users

Caio Viktor S. Avila

, Anderson B. Calixto

, Tulio Vidal Rolim

, Wellington Franco

Amanda D. P. Venceslau

, Vânia M. P. Vidal

, Valéria M. Pequeno

and Francildo Felix De Moura

Department of Computing, Federal University of Ceará, Campus do Pici, Fortaleza-CE, Brazil

Federal University of Ceará, Campus de Crateús, Crateús-CE, Brazil

TechLab, Departamento de Ciências e Tecnologias, Universidade Autónoma de Lisboa Luís de Camões, Portugal

amanda.pires@ufc.br, vpequeno@autonoma.pt

Keywords:

Chatbot, Data Integration, Semantic Web, Medical Informatics, Drugs.

Abstract:

Brazil is one of the countries with the highest level of drug consumption in the world. By 2012 about 66%

claimed to practice self-medication. Such activity can lead to a wide range of risks, including death from

drug intoxication. Studies indicate that a lack of knowledge about drugs and their dangers is one of the main

aggravating factors in this scenario. This work aims to universalize access to information about medications

and their risks for different user proﬁles, especially Brazilian and lay users. In this paper, we presented

the construction process of a Linked Data Mashup (LDM) integrating the datasets: consumer drug prices,

government drug prices and drug’s risks in pregnant from ANVISA and SIDER from BIO2RDF. In addition,

this work presents MediBot, an ontology-based chatbot capable of responding to requests in natural language

in Portuguese through the instant messenger Telegram, smoothing the process to query the data. MediBot acts

like a native language query interface on an LDM that works as an abstraction layer that provides an integrated

view of multiple heterogeneous data sources.

1 INTRODUCTION

Brazil is the ﬁfth country with the highest consump-

tion of drugs in the world, being the ﬁrst in Latin

America (Sousa et al., 2008). In the nation, drugs

occupy the ﬁrst position among the agents causing in-

toxication, in front of toxic drugs such as pesticides,

illicit drugs, rodenticides, insecticides and foodstuffs

improper for consumption (Corrêa et al., 2013). In

2012, according to Pinto et al. (2012), 66% of the pop-

ulation said he had practiced self-medication in his

lifetime. It is understood as self-medication the use

of drugs without any intervention by a physician, or

other qualiﬁed professional, neither in diagnosis, nor

in prescription, nor the follow-up of treatment. Only

in 2016, there were approximately 56,937 registered

cases of human intoxication, of which, 226 evolved to

death, 20,527 being generated due to the use of drugs

(SINITOX, 2016).

The pharmaceutical professional is of great im-

portance in combating the risks resulting from self-

medication. However, in many cases access to a phar-

macist perhaps impracticable, either because of the

low number of professionals relative to the population

size or because of the distance in more remote areas.

Also, there is a need for public awareness campaigns

about the risks of adverse effects of certain drugs.

Authors claim that actions such as improving the

quality of prescriptions and preventing inappropriate

self-medication could reduce the occurrence of ad-

verse reactions (Queneau et al., 2007). Another prob-

lem is that the health terminologies used are rep-

resented using two perspectives: the end-user and

the health professional, making it difﬁcult to under-

stand medical terminologies and their classiﬁcations.

Therefore, a common vocabulary is necessary, mak-

ing possible the understanding of medical terminolo-

gies and their classiﬁcations with a single meaning.

In the web, there is a wide variety of data about

drugs, such data originating from either government

organizations, such as regulatory agencies and public

data portals, makers, on-line drugstores and electronic

bulletin. However, the vast majority of these data are

in the proprietary format, such as spreadsheets, rela-

tional database backups or are available only through

web pages. Also, such data are isolated in data silos,

Avila, C., Calixto, A., Rolim, T., Franco, W., Venceslau, A., Vidal, V., Pequeno, V. and Felix De Moura, F.

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users.

DOI: 10.5220/0007656400250036

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 25-36

ISBN: 978-989-758-372-8

with no direct connection between resources. More-

over, each dataset perhaps represented in different vo-

cabularies, where the same concept in the real world

is represented with varying terms through different

datasets.

An example of information that can not be re-

trieved directly in the current state of data is given in

next: “What are the risks of the drug XX?”. This sim-

ple query requires information from a different set of

sources. The retrieval of such information has some

challenges, such as heterogeneity of the format of the

sources, where some that are founded in XLS, CSV,

RDF formats or web pages which requires different

query techniques. Besides, there’s the need to per-

form the information junction manually, since such

databases usually aren’t integrated. Moreover, it is

necessary for the user to have technical knowledge

about the area, as there may be a need to resolve

vocabulary inconsistencies. These problems can be

solved by using Semantic Web technologies, such as

ontologies that allow the data’s representation in the

same target vocabulary.

Semantic Web (Shadbolt et al., 2006) and Linked

Data (Bizer et al., 2011) technologies are used to han-

dle such limitations. This technology allows a seman-

tic integration between resources in different sources,

representing the data in a uniﬁed vocabulary through

the use of ontologies. The ontology provides a uni-

form vocabulary for data access, acting as an abstrac-

tion layer for data access. Besides, it allows its publi-

cation openly in a non-proprietary format that allows

retrieval of information by both computerized agents

and human users via SPARQL queries endpoints.

The main aim of this work is to facilitate access to

information about drugs and their risks easily and di-

rectly to users. For this purpose we performed the

integration of drug data with a focus on Brazilian

data, ﬁnally producing a Linked Data Mashup (Hoang

et al., 2014), and as an application an ontology-based

chatbot, called MediBot is presented to the Telegram

instant messenger to answer questions in natural lan-

guage about the integrated data, providing a more in-

tuitive user interface. The main contributions are:

• A data’s integration of different data sources about

drugs. We add the information on drug risks con-

tained in the SIDER dataset to the products sold

only in Brazil;

• A mashup model to integrate drug bases;

• A Natural Language Interface (NLI) for end-user

through the use of a ChatBot.

The rest of this paper is organized as follows: Sec-

tion 2 presents the related works. Section 3 describes

the data integration process. Section 4 introduces

Medibot, a chatbot application for queries about the

integrated data. In section 5 we present the evaluation

of MediBot. Finally, in section 6, are discussed the

conclusions and future work.

2 RELATED WORKS

In (Jovanovik, 2017), it showed to perform the inte-

gration and publication of data about drugs of twenty

and three countries. However, Brazil is not found be-

tween these. Also, the vocabulary deﬁned for the inte-

gration does not ﬁt the databases selected in this work.

(Natsiavas et al., 2017) present a model for use of

several databases integrated through Linked Data, in

particular, datasets of the project BIO2RDF for the

mining of signs of adverse reactions of drugs, show-

ing the potential of linked databases in the drug do-

main. However, the model was designed to be used as

part of a data mining platform, so it does not address

how users will access data. In addition to this work,

others have the same goal as (Nová

cek et al., 2017)

and (Natsiavas et al., 2015).

(Vega-Gorgojo et al., 2016) presents PepeSearch,

a system that facilitates searching between different

sources Linked Data in the ﬁeld of drugs and health,

such as Drug Bank(DB) and Sider. The system pro-

vides a faceted query interface that allows the user

to search on multiple data sources. However, the

system is best suited for use by specialists and re-

searchers, besides it has a powerful yet complex query

interface. Moreover, the system does not have data

on drug risks in pregnancy (DRP), despite having

the SIDER side-effects data. Lastly, “MedChatBot”

is a chatbot for medical students based on the open

source AIML UMLS to generate responses to queries

through knowledge extraction. Table 1 presents an

analysis of the aspects present in this work and the

others related (Kazi et al., 2012).

Table 1: Comparison of Related Work.

Sider

DRP NLI

(Jovanovik, 2017) X X - -

(Natsiavas et al., 2017) X X - -

(Nová

cek et al., 2017) X X - -

(Natsiavas et al., 2015) X X - -

(Vega-Gorgojo et al., 2016) X X - -

(Kazi et al., 2012) - - - X

This paper - X X X

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

3 LINKED DATA MASHUP

CONSTRUCTION

In this section, we describe the process of construc-

tion and publication of Linked Data Mashup (LDM).

The integration process was based on the Linked

Data Integration Framework (LDIF). LDIF suggests

the following execution ﬂow: i) Extraction of data

sources; ii) Transformation of data (Tripliﬁcation)

and construction of exported of views; iii) Resolu-

tion of the identity through links owl:sameAs; iv)

Data quality assessment and fusion and v) Data output

(Schultz et al., 2012).

3.1 Selected Sources

In this work, the following criteria that were used for

the selection of datasets: The data should have in-

formation about drugs description, commercial drugs,

drugs risks, drug’s indications and ﬁnally, the data

must have relevance for non-specialist users. Also,

preference is given to Brazilian or Portuguese data,

especially for drugs sold only in Brazil and its risks.

Based on the previously listed criteria, four differ-

ent datasets were selected, three of which are avail-

able from the Agência Brasileira de Vigilância San-

itária(ANVISA)

or Brazilian Sanitary Surveillance

Agency in English, and the last one belongs to the

BIO2RDF project (Belleau et al., 2008). From AN-

VISA, we selected:

• Consumer Drug Prices (CDP)

• Government Drug Prices (GDP)

• Drug’s risks in pregnant and breastfeeding (RPB)

CPD and GPD are found in the XLS and PDF ﬁle

formats in website

, wherein this work the XLS ver-

sion was used. Both datasets have information about

allopathic drugs, such as drug name, producer, bar-

code, therapeutic class, presentation, the active ingre-

dient, and prices. The only difference between them

is because the former has maximum selling prices for

the average consumer, while the latter has maximum

selling prices for government agencies.

The dataset RPB contains the risk categories of

substances during the period of pregnancy and breast-

feeding. This dataset can be found in webdocument

and is only available in unstructured PDF.

The last dataset selected was the SIDER made

available by the BIO2RDF project, and can be found

http://portal.anvisa.gov.br/

http://portal.anvisa.gov.br/listas-de-precos

http://portal.anvisa.gov.br/documents/33880/2561889

/116.pdf/2292b730-2bd5-4acc-b378-

10682b1fc344?version=1.0

in website

already in the RDF format. The dataset

SIDER contains data about drugs, their indications,

side effects, and different labels. However, the

database only has data in English, not containing in-

formation about Brazilian drugs, making it neces-

sary to translate it into Portuguese. This dataset has

been selected because it contains information about

the side effects of active principles, such information

is needed to inform the risks of a drug.

3.2 Vocabulary

Because datasets have different structures, physical

formats, and vocabularies, a mean was required to

standardize access to information. The Linked Data

approach uses ontologies to address such a problem.

In the Linked Data paradigm, ontologies OWL

are

used, which provide a representation of knowledge in

a taxonomic way by through of a hierarchy of classes

and properties, one of the objectives of OWL is to

structure data in a semantically understandable way

by the machine allowing the inference of implicit in-

formation based on deﬁned axioms.

The OWL ontology provides a layer of semantic

abstraction, allowing access to the integrated data in a

transparent way to the user, in addition to using terms

closer to their daily life, abstracting coded ﬁelds and

giving deﬁnitions about terms, giving so the possibil-

ity of a greater understanding to the lay user.

In our work, a vocabulary was developed based on

the data dictionaries of the original datasets, as well as

other sources of knowledge about the domain such as

sites, books, and manuals, having, in particular, the

booklet “What we should know about drugs”

made

available by ANVISA. In developing the vocabulary,

it was always sought to conceptualize verbatim each

term used, in addition to providing different alter-

native nomenclatures following the non-ontological

sources cited before.The OWL implementation can be

found in

3.3 Exported Views

The exported view of a dataset consists of its repre-

sentation using the vocabulary of the target ontology.

The exported view represents an RDF view of the data

http://download.bio2rdf.org/ﬁles/release/3/sider/sider.htm

https://www.w3.org/OWL/

http://www.vigilanciasanitaria.sc.gov.br/index.php/

download/category/112-medicamentos?download=102:

cartilha-o-que-devemos-saber-sobre-medicamentos-anvisa

https://datahub.io/linkeddatamashupeducacional/data-

med/v/2

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users

contained in the source, and this view can be material-

ized or virtual. In both views, there is a need for map-

ping rules to translate terms from the original dataset

into the target vocabulary. The difference between

materialized or virtual view lies in the fact that in the

ﬁrst case the data is physically converted to the RDF

format and stored in a triplestore on which SPARQL

queries will be made. While in the second the data

is kept in its original format, where SPARQL queries

will be made through a mediator that translates the

SPARQL query into the native query language of the

data (e.g., SQL) through the mappings. In this work

we materialized the exported views

In this paper we will use the term tripliﬁcation to

refer to the process of generating RDF

triples that

represent the original data using the deﬁned target vo-

cabulary.

For the tripliﬁcation of datasets CDP and GDP,

we imported the data into the relational database man-

agement system PostgreSQL

, due to the existence of

matured tools in the conversion of relational databases

for RDF. In this work, we used the tool D2RQ (Bizer

and Seaborne, 2004) that performs the transformation

of relational bases to RDF by mapping the original

schema to the desired target vocabulary. The mapping

language used was R2RML

For the tripliﬁcation of the RPB dataset, manual

conversion of the PDF ﬁle to CSV was required on

account of the ﬁle’s internal structure. But ﬁnally, the

same process previously described was used for its

tripliﬁcation.

Finally, since the SIDER source already exists in

the RDF format, it was only necessary to use SPARQL

CONSTRUCT to mapping the original dataset to the

desired vocabulary.

The result of this step was a set of four RDF

graphs with the target vocabulary representing each

original dataset. However, it is still necessary to ﬁnd

out which resources represent the same object be-

tween the different RDF graphs and merge them into

one.

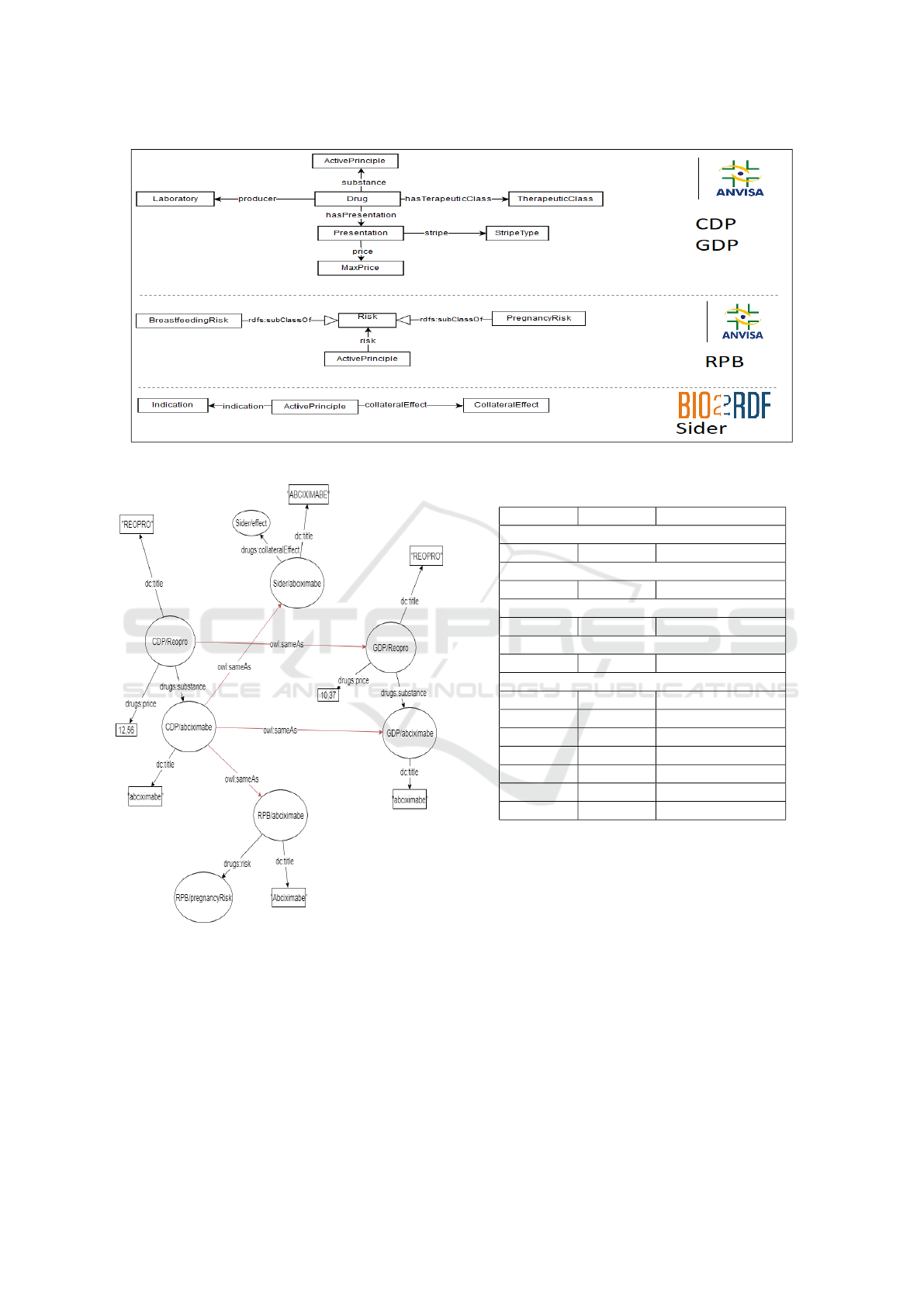

Figure 1 shows the exported views of the infor-

mation contained in the original sources to existing

concepts in the deﬁned target ontology.

3.4 Identity Resolution

This step is responsible for discovering which differ-

ent resources represent the same object in the real

world to connect them via owl: sameAs links. These

resources can be found on a single source or between

https://www.w3.org/RDF/

https://www.postgresql.org/

http://www. w3. org/TR/r2rml/

the different sources, where the direct comparison be-

tween sources are only possible because there is al-

ready a guarantee that all sources have uniform struc-

ture and vocabulary because of the ontology.

In ﬁgure 2 is possible to see an example of iden-

tity resolution. In this example, two resources are

representing the drug “Reopro”, the CDP/Reopro (in

left) representing it in the dataset CDP and GDP/Re-

opro (on the right) in the dataset GDP. Each of the

resources has its properties, including its active prin-

ciples, being these CDP/abciximab and GDP/abcix-

imab. The active principle “abciximab” is also rep-

resented by different resources between the different

datasets, and there is no connection between the re-

sources. Without there being a connection between

the resources of different datasets, there is no possi-

bility, for example, to answer the risks of the drug

“Reopro”, since no dataset has such information indi-

vidually.

The identity resolution will be responsible for dis-

covering that the CDP/Reopro and GDP/Reopro re-

sources represent the same object, thus constructing

an owl:sameAs link between them. Furthermore, the

links between the CDP/abciximab, GDP/abciximab,

Sider/abciximab, and RPB/abciximab resources are

also discovered at this stage. After creating the

owl:sameAs links, it is already possible to merge in-

formation from several datasets about the drug “Reo-

pro” so that it is possible to discover its risks.

For this step, the tool Silk Volz et al. (2009) was

used. Silk uses user-speciﬁed rules to discover and

generate links between resources. For this work, sim-

ple rules, such as strings treatment, comparison of

values and averages, were used in general. For the

most part, the deﬁned rules have used the dc:title at-

tribute that represents the title or nomenclature of the

resource.

Links were generated between resources of the

Drug, Laboratory, Therapeutic Class, Substance and

Presentation classes. The other classes were not taken

into account because their mappings themselves al-

ready guarantee the creation of resources with the

same URI. Table 2 illustrates the number of links gen-

erated between sources.

3.5 Quality Evaluation and Data Fusion

After the identity resolution step, it is already possi-

ble to know through the owl: sameAs links which dis-

tinct resources represent the same real-world object.

However, such resources are still represented by dis-

tinct URIs, so there is a need to merge such resources

into a single one that will encompass all the proper-

ties and relationships of the originals. However, this

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 1: Datasets Exported Views.

Figure 2: Example of Identity Resolution.

merge may cause some problems, such as repeated

values for properties, conﬂicting between properties

values, or incorrect values. So it’s necessary to have

the quality evaluation of the sources, this process de-

ﬁnes the degree of priority of each source. After the

quality evaluation, the data fusion and data cleaning

process will be performed, choosing which informa-

tion should be kept or deleted, based on the priority

Table 2: Generated sameAs Links by Class.

Source A Source B Generated Links

Drug

CDP GDP 8839

Laboratory

CDP GDP 25623

Therapeutic Class

CDP GDP 485

Presentation

CDP GDP 25623

Substance (Active Principle )

CDP GDP 2164

CDP Sider 6401

CDP RPB 374

GDP Sider 6401

GDP RPB 323

RPB Sider 8956

Sider Sider 828175

of each source.

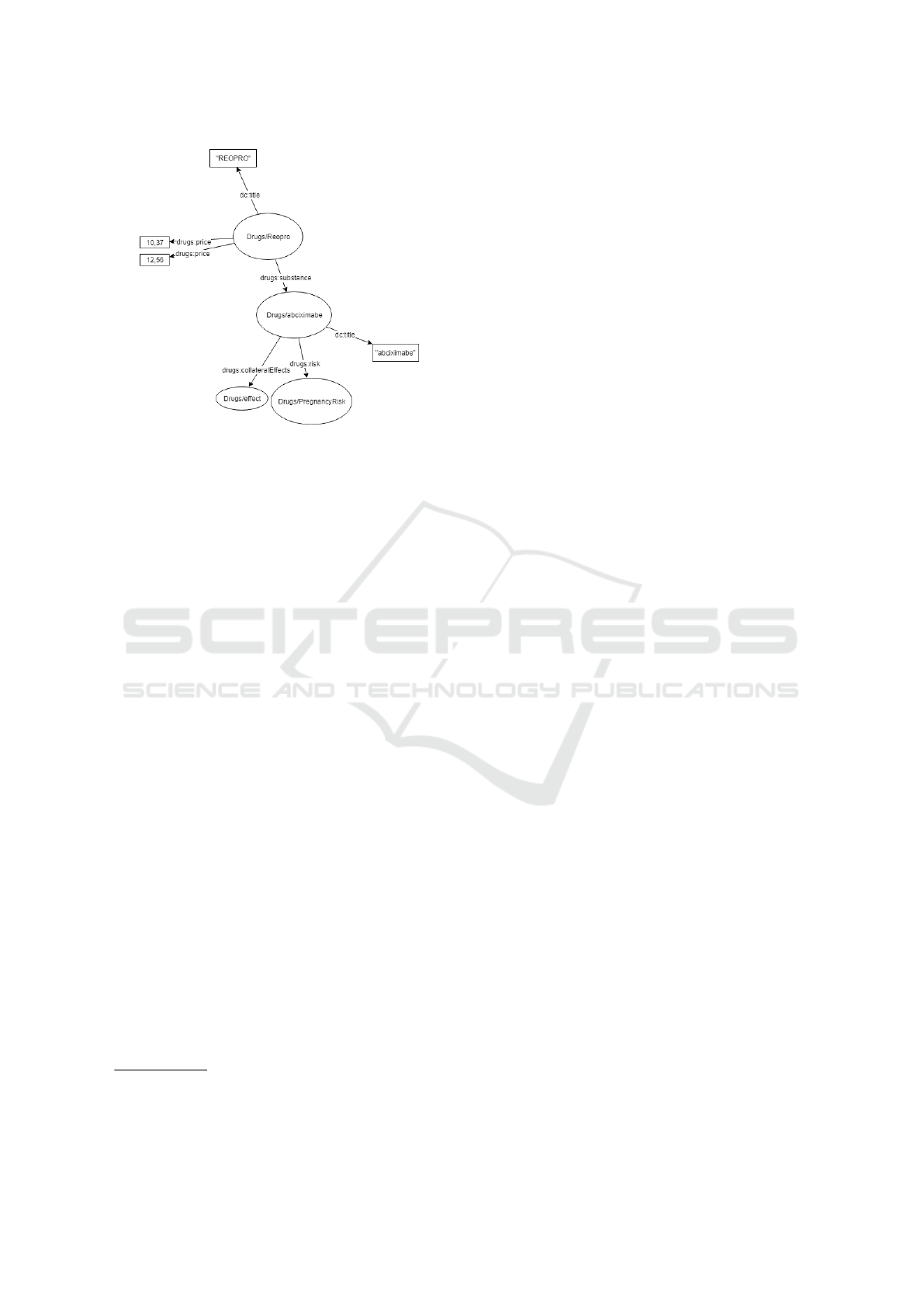

In ﬁgure 3, it is possible to observe the result

of the fusion process of the drug “Reopro”. After

the fusion, the drug “Reopro” will be represented

by a single resource, as well as its active principle.

The resulting merged entities will contain all the in-

formation, previously scattered among the different

datasets, where redundancy and inconsistency have

already been solved.

For this step, we used the tool Sieve (Mendes et al.,

2012). For the quality evaluation phase, the metric

ScoredPreﬁxList was used, where for each source a

weight was given in the following order: CDP, GDP,

RPB and ﬁnally Sider. Such order was selected us-

ing manual analysis taking into account the quality of

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users

Figure 3: Example of resources fused.

how the data is structured, the scope of data, number

of conﬂicts in original data and the number of links

created between resources of the same source. This

last rule comes from the intuition that if a source has

many different resources that represent the same ob-

ject, then the source was constructed less rigorously,

so it will have a lower priority.

Fusion rules have been deﬁned for cleaning only

the classes Drug, Laboratory, Therapeutic Class, Sub-

stance, and Presentation, due possible fusion of such

resources.

3.6 Publication of the Linked Data

Mashup

At the end of the semantic integration process, we

generated a dataset RDF containing the integrated

view of the four original datasets, now following the

same vocabulary and resources merged. This ﬁnal

dataset is called Linked Data Mashup.

The resulting dataset was then hosted in the virtu-

oso triplestore

, which provides a SPARQL endpoint

capable of responding to SPARQL queries via HTTP.

This endpoint is accessed directly by the Medibot ap-

plication. Moreover, the dump of the ﬁnal dataset rep-

resenting the LDM, in addition to the mapping ﬁles

and the OWL implementation of the ontology can be

accessed publicly via datahub

https://virtuoso.openlinksw.com/

https://datahub.io/linkeddatamashupeducacional/data-

med/v/2

4 MediBot

Although the ontology provides a layer of semantic

abstraction with terms closer to the user, there are

still problems in its access. To have access to the

data, before it is necessary to know about the ontol-

ogy’s schema and knowledge about Semantic Web

technologies, such as RDF, OWL and SPARQL. A

SPARQL query can be overly complicated, requir-

ing technical expertise on the part of the user which

would go against the purpose of this work which is to

universalize knowledge about drugs for users of dif-

ferent proﬁles. Therefore, in this work, a data access

interface was developed via natural language through

a chatbot, called MediBot.

MediBot is a chatbot for the instant messenger

Telegram, so that it can be used both via mobile appli-

cation and via the web interface on the PC. MediBot

was implemented in JavaScript using NodeJS. Cur-

rently, MediBot is able to answer questions in Por-

tuguese. MediBot can is contacted via Telegram by id

@websemantica_bot.

In subsection 4.1 the MediBot architecture is pre-

sented. While subsection 4.2 addresses the workﬂow

of the query process.

4.1 MediBot’s Architecture

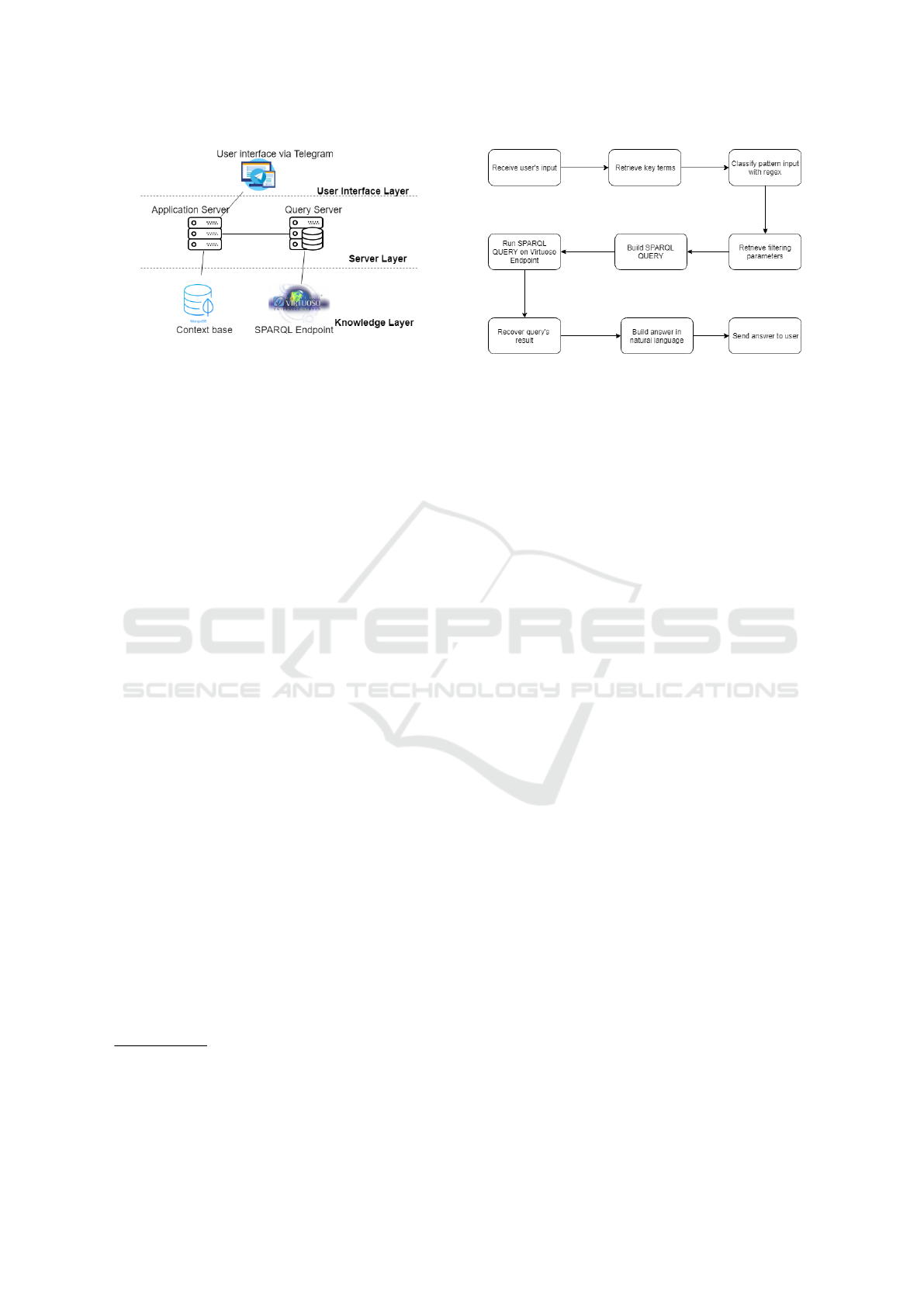

Figure 4 shows MediBot’s architecture. Its architec-

ture is divided into three layers, user interface,server,

and linked data mashup.

The ﬁrst layer, the user interface layer is the in-

teraction medium with the user, been represented by

Telegram instant messenger. The user interface can be

via mobile application in Android and IOS Telegram

app or via web browser in Telegram website. Besides

the mobile application and the website Telegram can

also be accessed via a desktop application on PC. The

reason for choosing the Telegram as a channel for the

chatbot is because the tool already has a large user

base and a robust infrastructure, besides having an

easy API for the creation and use of chatbots.

The second layer is the server layer. This layer

is responsible for the processing of requests and re-

sponses and is composed of two main components.

The ﬁrst component of this layer is the application

server, which is responsible for receiving and pro-

cessing the user’s requests. The application server is

directly connected to the Telegram access API; this

component is the central module of the MediBot ar-

chitecture. The application server receives the user

request and builds the SPARQL query responsible

for retrieving the desired information. Also, the ap-

plication server is also responsible for sending the

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 4: MediBot’s architecture.

SPARQL query to the query server and sending the

response message to the user when it is ready.

The query server is responsible for receiving the

SPARQL query and executing it on the SPARQL end-

point made available by the virtuoso. Besides, this

component is also responsible for obtaining the re-

sponse from the SPARQL query and constructing the

response message to the user. The reason for split-

ting the server layer into two is because of the poten-

tially long time to run the SPARQL query and gen-

erate the response message to the user. By dividing

the application server into two components, it will not

be locked during the processing of time-consuming

queries, which would prevent it from receiving new

requests and interactions that do not require queries.

The third and last layer is the Knowledge layer.

This layer is responsible for storing the knowledge

necessary for the chatbot to respond and interact with

the user. This layer is composed of two components:

• Context Base: It is responsible for storing rel-

evant context information during the interactive

mode, such as personal information about the user

such as name, surname and language, as well as

information about the conversation ﬂow as cur-

rent interaction state, list of options presented, last

message, term and object selected for consulta-

tion. Context information is stored in an instance

of the non-relational object-oriented mongoDB

database, which allows fast storage and quick re-

trieval of data stored in JSON, allowing direct pro-

cessing by javascript code without the need for

pre-processing the data.

• Linked Data Mashup: its description is detailed

in chapter 3, loaded in the virtuoso triplestore that

provides a SPARQL endpoint for the realization

of queries.

https://www.mongodb.com/

Figure 5: MediBot’s workﬂow in quick response mode.

4.2 Query Workﬂow

MediBot has two modes of operation, the ﬁrst being

the quick response mode and the second the interac-

tive one. In quick response mode, MediBot has a set

of SPARQL queries predeﬁned and uses a simple reg-

ular expression evaluation approach to mapping the

entry in one those predeﬁned queries. During the in-

put evaluation process, key terms and ﬁltering param-

eters are retrieved. Key terms help classify into which

type of query the entry should be mapped to while

ﬁltering parameters are used in FILTER clauses to re-

strict the query result to the speciﬁc intent of the user.

Finally, the SPARQL query is built and performed via

HTTP on the Virtuoso endpoint. Moreover, the build-

ing answer process also uses answers patters prede-

ﬁned. Figure 5 shows the workﬂow performed by

MediBot.

Seven types of queries have been deﬁned, which

are shown in Table 3. While Figure 6 presents an im-

age of MediBot responding to query 1 performed in

natural language in Portuguese through the Telegram.

In addition to the quick response mode, MediBot

has an interactive mode. While the former provides

quick and easy access to information, the latter pro-

vides a versatile form of access to the knowledge con-

tained in the sources. The main difference between

the two modes lies in the interactive and conversa-

tional character of the interactive mode, while the in-

teraction of the quick responses mode is summed up

to individual questions and answers, the interactive

mode performs information retrieval tasks in a con-

versational way where the context of the conversation

and previous interactions inﬂuences the results of fu-

ture interactions.

The interactive mode is oriented to ﬁnite tasks,

where the user starts one task at a time through the

sending of messages containing pre-established key-

words; moreover, a task remains active as long as

the user does not explicitly intend to ﬁnish it. How-

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users

Table 3: Types of queries answered by MediBot in quick

response mode.

Type of query Example

Drugs with

a principle active

What are the drugs with

the substance dipyrone?

Deﬁnition

of terms in domain

Deﬁne therapeutic class

Informations about

certain drug

Talk about the drug aspirin

Indicate the risks

of a drug

What are the risks of the

drug reopro?

List of drugs’s

presentation

What are the presentations

of the drug reopro?

Information about

barcode presentation

Give information about bar

code presentation

7896382701801

Price of a presentation

with ICMS tax in

one State

What are the price with

ICMS tax of presentation

7896382701801

in the state of Ceará?

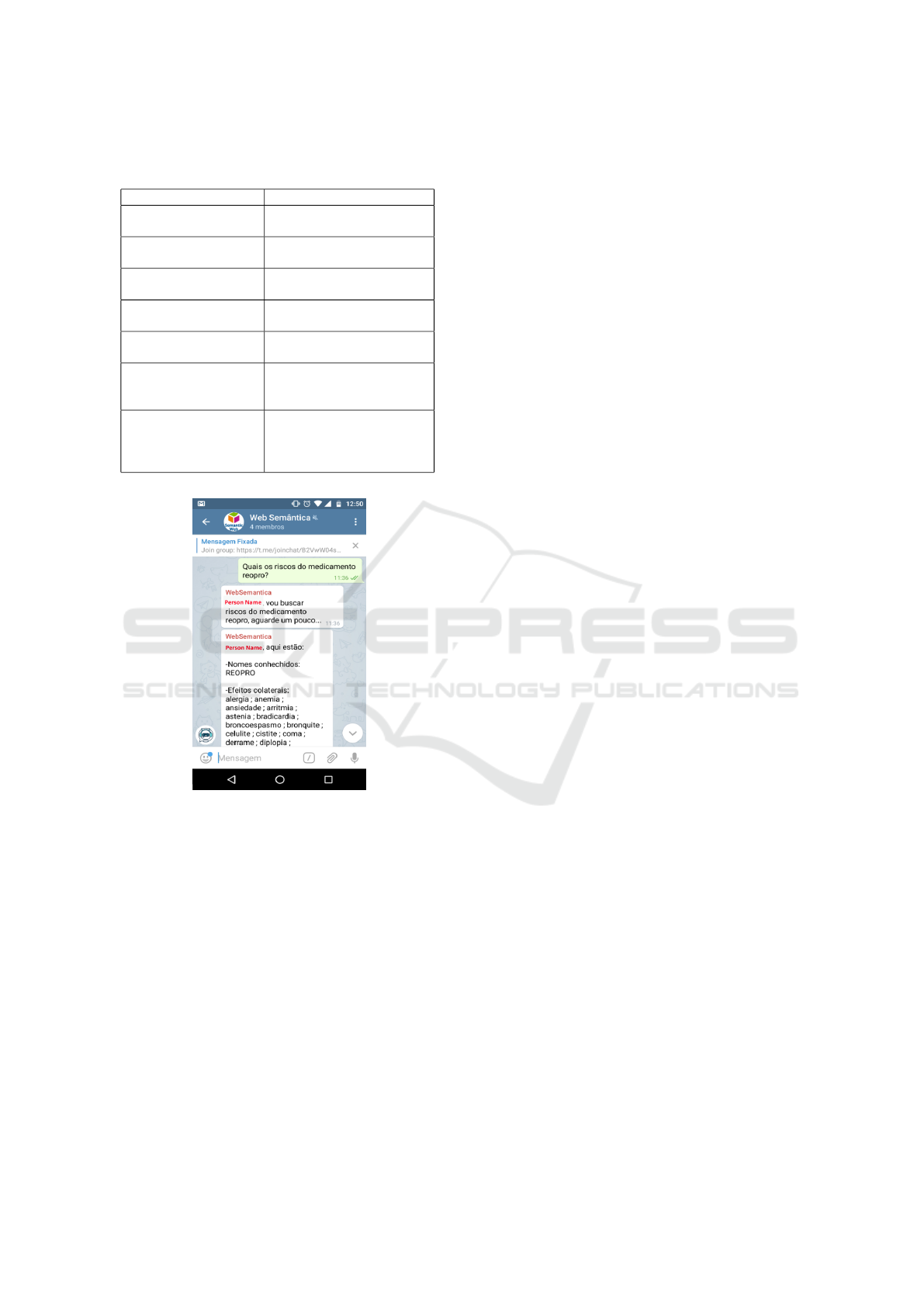

Figure 6: Example of Query in Portuguese on Telegram

about the Drug’s risks.

ever, during any point of an interactive mode task, the

user can perform a quick response mode query, mean-

while, the already started task remains in stand by to

be resumed any time the user wishes.

During interactive mode, two types of tasks can

be performed, browser and query, which will be de-

scribed later. However, the ﬂow followed during the

conversation is not free, following a well-deﬁned pat-

tern ﬂow, where chatbot and user alternate their ques-

tions and answers. For decision of which next steps

to be followed during a speciﬁc task’s conversation,

the MediBot uses information about past interactions

during the same task (in this case called context), the

current point of the task (in this case called state) and,

in cases where the chatbot expects a response from

the user, the message received message (in this case

called input).

To enable continuous interaction between chatbot

and user the interactive mode was implemented fol-

lowing a variation of the pushdown automaton ap-

proach, where the current state of the conversation or

simply state is represented as a state of the automa-

ton, the context of the conversation is represented as

the auxiliary memory of the automaton, and the input

of the user is represented by the input signal of the

automaton. A remarkable aspect of the implementa-

tion of MediBot is the fact of the possibility of state

change without an explicit input sequence, this is due

to the fact that previous user responses may already

have the information necessary for the state change

without that there is a need for the user to reissue his

intention. Due to simplicity and space constraints in

this paper, the formal deﬁnition of the MediBot au-

tomaton will not be presented, however, in the ﬁgures

8 and 7 ﬂowcharts are presented representing the tasks

performed in the interactive mode, being possible to

derive the automaton to from these ﬂowcharts.

There are two types of possible tasks in interactive

mode, which are:

• Browser Task: This task allows the user to

navigate recursively on the existing terms in the

knowledge base, including the ontology schema

and its instances. When the user starts the task of

browsing over a term, MediBot presents the differ-

ent names, types and deﬁnitions of the term, be-

sides presenting its properties and allow the user

to select one of this to be the new pivot of the

task, being able to navigate on the concepts of the

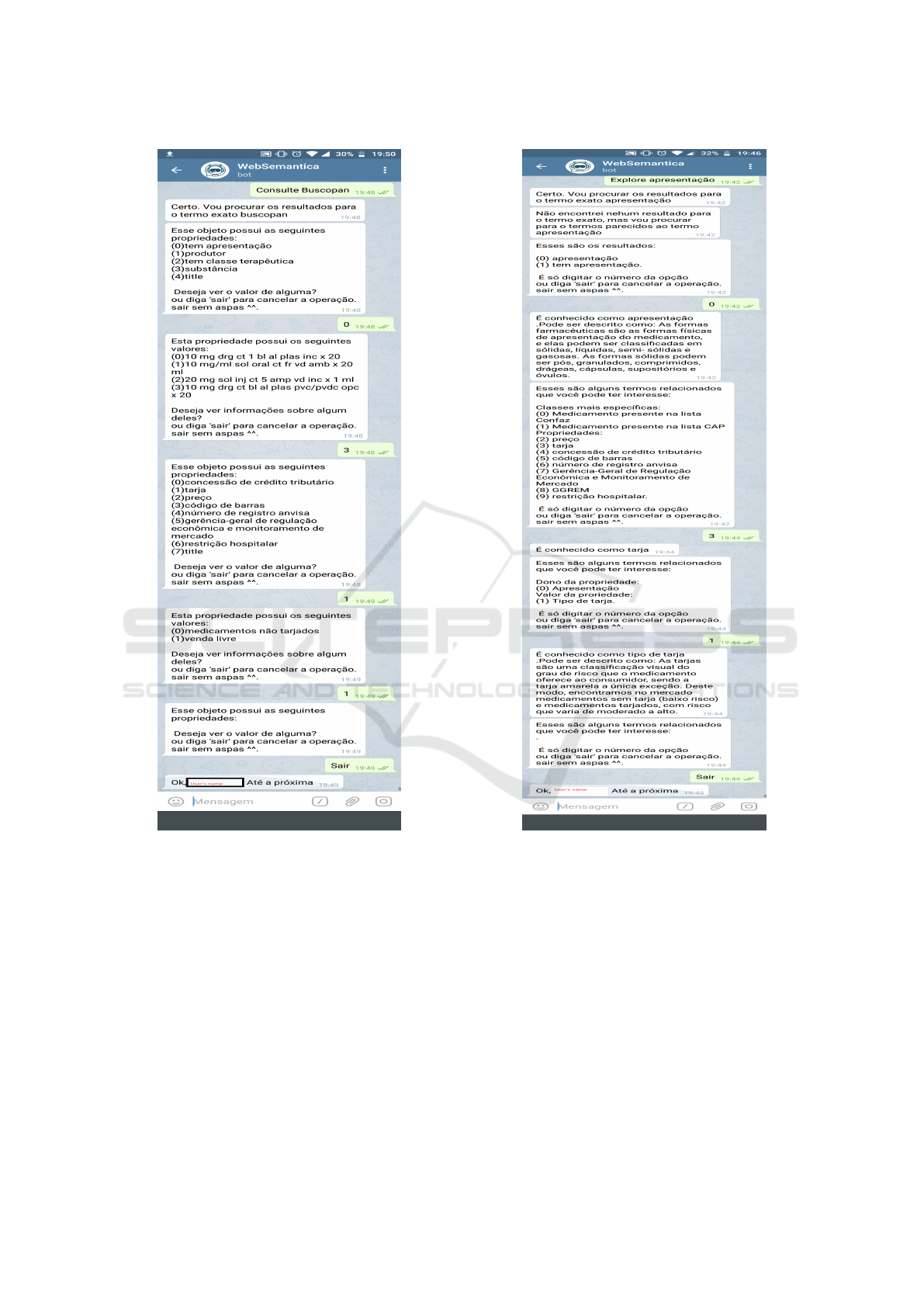

sources. In ﬁgure 8 is presented the browser task’s

ﬂow. In ﬁgure 10 is presented as an example of a

browser task’s interaction on Telegram.

• Query Task: This task allows the user to view

data about instances contained in the knowledge

base. Likewise the browser task, the query task is

also recursively interactive. During this task, the

user can ask to query the properties of a given in-

stance. Upon receiving a query from a user, Med-

iBot returns a list of instance’s properties, giv-

ing the user the option to select one of these to

view its values. If the selected property is a re-

lation (owl:ObjectProperty) MediBot displays the

list of instances as values for the property se-

lected, which can be selected as the new pivot

for the query task. If the selected property is a

simple attribute (owl:DatatypeProperty), it sim-

ply displays a list with the constant values for the

property. In ﬁgure 7 is presented the query task’s

ﬂow. In ﬁgure 9 is presented as an example of a

query task’s interaction on Telegram.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

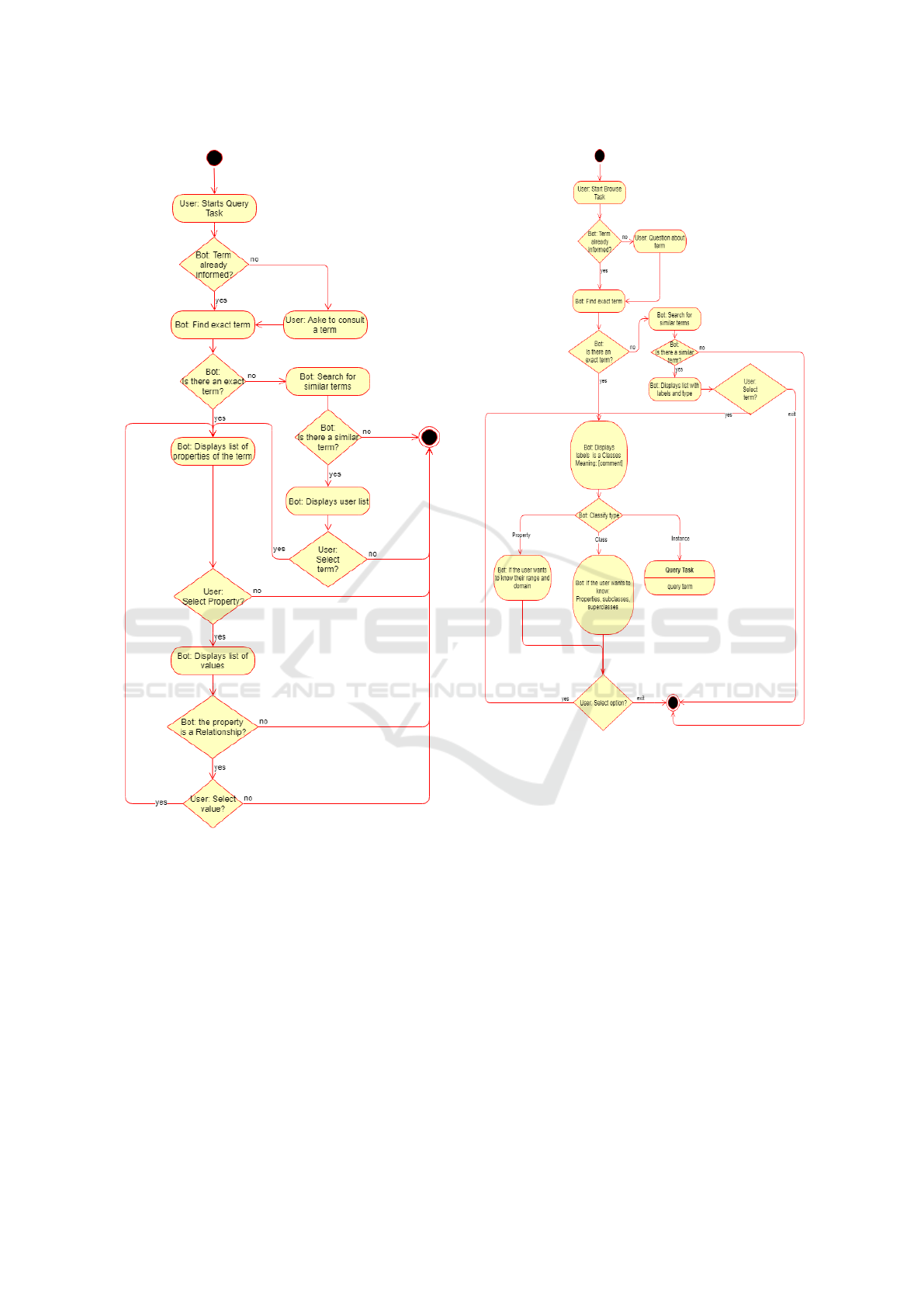

Figure 7: Query task’s ﬂowchart.

It is interesting to note that some steps of the query

and browsers tasks are similar, such as terms list’s dis-

play, these steps were implemented as a single state in

the automaton, with the context being the only point

of differentiation them. Another important implemen-

tation element lies in context’s persistence since for

being an online application and multi-user isn’t feasi-

ble to keep the context in memory, so each time the

context is changed or necessary it has resorted to the

persistence mean MongoDB as described in subsec-

tion 4.1.

Figure 8: Browser task’s ﬂowchart.

5 EVALUATION

In this work, we select the task-based evaluation

method described in (Konstantinova and Orasan,

2013) to measure the MediBot’s usability degree. In

this method are deﬁned sets of tasks that are then re-

quested to be performed by volunteers.

To evaluate the practical usefulness of MediBot,

a set of 6 questions about information contained in

the sources was elaborated. The questions were asked

for not involved with the project volunteer users who

had to use the tool to respond to them. The ques-

tions can be divided into three levels of difﬁculty: (1)

Easy, can be answered with a single interaction with

the chatbot; (2) Medium, and can be answered with

at least two interactions; and (3) Difﬁcult, requiring

more than two interactions with the chatbot.

The questions were asked through face-to-face in-

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users

Figure 9: Example query task in telegram.

terviews with volunteers. Ten volunteers, four men

and six women participated in the study. The average

age of the participants was 31 years, having a min-

imum age of 22 years and a maximum of 63 years.

While none of them has technical knowledge about

the ﬁeld of medicines. Also, two of the participants

had technical knowledge in information technology,

among them one knowing about ontologies.

As evaluation criteria, It was using three aspects.

The ﬁrst criteria were the time needed to solve the

questions, the second was the rate of correctness, and

ﬁnally, the personal opinion of each evaluated that en-

tered as a subjective criterion. In table 4 the result of

the evaluation for each question and the ﬁnal average

Figure 10: Example browser task in telegram.

is presented.

In the criterion of success rate dropouts were

counted as an error, however, the time of such cases

did not enter the meantime because it would cause

distortions.

It is noteworthy that only queries Q001 and Q002

were able to be performed without prior knowledge

about the ontology and the types of queries and their

ﬂows, while the others needed queries on such infor-

mation. This fact was already expected, since Medi-

Bot has a limited set of pre-deﬁned questions (which

includes queries Q001 and Q002), whereas query and

browser tasks require a correct starting point to be

useful.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Table 4: Evaluation result.

ID_Question Question Mean Time(s) Success Rate(%) Difﬁcult

Q001 What is a black box remedy? 30,53 100 1

Q002 What are the risks of Tylenol? 51,2 100 1

Q003

Which drugs have the same

active ingredient as Buscopan?

142,10 80 2

Q004

What is Buscopan’s maximum

price?

358,96 20 2

Q005

What is the relationship between

a substance and a presentation?

152,05 70 3

Q006

Which state has the lowest

maximum price for the

prescription drug orencia?

320,34 10 3

Mean 175,86 63,33

Another interesting point is that queries Q004 and

Q006 took considerably longer, in addition to having

a lower success rate. This fact can be explained be-

cause their answers are not represented in a factual

way at the base. In the case of Q004, there was a

need for a comparison operation, which in general

users tried to compare all existing prices, which re-

quired many interactions, leading to a high dropout

rate. There was the possibility to remove the number

of possibilities taking in characteristics of the presen-

tation, such as quantity, route of administration and

others. Already in the case of query Q006, there was

a need to have an understanding of how the state was

related to price, where once again users attempted

to make all comparisons. However, such a question

could be resolved only by looking at the lowest value

for taxes and which states adopted it.

During the reporting of opinions about the use of

the tool the main points presented were that ontol-

ogy’s image and examples of queries were very use-

ful. In addition to the preference for quick questions

about query and browser tasks.

6 CONCLUSION AND FUTURE

WORK

The main objective of this work is to universalize

access to information about drugs and their risks to

users of different proﬁles, principally Brazilian and

lay users in the domain.

To fulﬁll this goal, in this paper we presented

MediBot, an ontology-based chatbot capable of re-

sponding to requests in natural language in Por-

tuguese via the instant messenger Telegram. Medibot

provides a data access interface without the need for

the user to have prior knowledge about the structure

of the ontology or technical knowledge about Seman-

tic Web technologies.

Besides, in this work, we carried out the process

of semantic data integration in the domain of drug’s

data, where the selection of data related to Brazil was

preferred. Four separate datasets for integration were

selected: “Consumer Drug Prices” (CDP), “Govern-

ment Drug Prices” (GDP) and “Drug’s risks in preg-

nant and breastfeeding” (RPB) made available by the

National Agency Sanitary Surveillance (ANVISA in

Portuguese), and Sider available from the BIO2RDF

project.

Each of the datasets was originally in a different

physical format, such as spreadsheets, RDF or PDF.

In addition, each original dataset had a different vo-

cabulary. These facts show the justiﬁcation of the use

of technologies of Linked Data and Semantic Web to

offer a layer of abstraction that allows transparent ac-

cess to the data in an integrated way and with a vo-

cabulary closer to that used by the user in their daily

lives.

During the usability evaluating the process of

MediBot, we realized that tasks that require compar-

ison operations, such as Q004 and Q006, present a

challenge for users because they require a great repet-

itive manual effort, so as future work we intend to im-

plement automated ways to perform such operations,

besides increasing the number of quick questions.

Still, as future work, we intend to develop an auto-

matic and incremental data update mechanism to en-

sure access to updated information efﬁciently. More-

over, we aim to integrate with a larger number of

datasets, such as global dataset such as drug bank

and registries from other countries, and use e-SUS

datasets with microdata on the use of drugs.

MediBot: An Ontology based Chatbot for Portuguese Speakers Drug’s Users

REFERENCES

Belleau, F., Nolin, M.-A., Tourigny, N., Rigault, P., and

Morissette, J. (2008). Bio2rdf: towards a mashup to

build bioinformatics knowledge systems. Journal of

biomedical informatics, 41(5):706–716.

Bizer, C., Heath, T., and Berners-Lee, T. (2011). Linked

data: The story so far. In Semantic services, inter-

operability and web applications: emerging concepts,

pages 205–227. IGI Global.

Bizer, C. and Seaborne, A. (2004). D2rq-treating non-

rdf databases as virtual rdf graphs. In Proceed-

ings of the 3rd international semantic web con-

ference (ISWC2004), volume 2004. Proceedings of

ISWC2004.

Corrêa, A. D., Caminha, J. d. R., Souza, C. A. M. d., and

Alves, L. A. (2013). Uma abordagem sobre o uso de

medicamentos nos livros didáticos de biologia como

estratégia de promoção de saúde. Ciência & Saúde

Coletiva, 18:3071–3081.

Hoang, H. H., Cung, T. N.-P., Truong, D. K., Hwang, D.,

and Jung, J. J. (2014). Retracted: Semantic informa-

tion integration with linked data mashups approaches.

International Journal of Distributed Sensor Networks,

10(4):813875.

Jovanovik (2017). Consolidating drug data on a global scale

using linked data. Journal of biomedical semantics,

8(1):3.

Kazi, H., Chowdhry, B., and Memon, Z. (2012). Med-

chatbot: An umls based chatbot for medical stu-

dents. International Journal of Computer Applica-

tions, 55(17).

Konstantinova, N. and Orasan, C. (2013). Interactive ques-

tion answering. In Emerging Applications of Natural

Language Processing: Concepts and New Research,

pages 149–169. IGI Global.

Mendes, P. N., Mühleisen, H., and Bizer, C. (2012). Sieve:

linked data quality assessment and fusion. In Proceed-

ings of the 2012 Joint EDBT/ICDT Workshops, pages

116–123. ACM.

Natsiavas, P., Koutkias, V., and Maglaveras, N. (2015). Ex-

ploring the capacity of open, linked data sources to as-

sess adverse drug reaction signals. In SWAT4LS, pages

224–226.

Natsiavas, P., Maglaveras, N., and Koutkias, V. (2017).

Evaluation of linked, open data sources for mining ad-

verse drug reaction signals. In International Confer-

ence on Internet Science, pages 310–328. Springer.

Nová

cek, V., Vandenbussche, P.-Y., and Muñoz, E. (2017).

Using drug similarities for discovery of possible ad-

verse reactions. In AMIA Annual Symposium Proceed-

ings. AMIA.

Pinto, M. C. X., Ferré, F., and Pinheiro, M. L. P. (2012).

Potentially inappropriate medication use in a city of

southeast brazil. Brazilian Journal of Pharmaceutical

Sciences, 48(1):79–86.

Queneau, P., Bannwarth, B., Carpentier, F., Guliana, J.-M.,

Bouget, J., Trombert, B., Leverve, X., Lapostolle, F.,

Borron, S. W., and Adnet, F. (2007). Emergency de-

partment visits caused by adverse drug events. Drug

Safety, 30(1):81–88.

Schultz, A., Matteini, A., Isele, R., Mendes, P. N., Bizer,

C., and Becker, C. (2012). LDIF - A Framework for

Large-Scale Linked Data Integration. In 21st WWW,

Developers Track, page to appear.

Shadbolt, N., Berners-Lee, T., and Hall, W. (2006). The

semantic web revisited. IEEE intelligent systems,

21(3):96–101.

SINITOX (2016). Sistema Nacional de Informações Toxi-

cológicas registro de intoxicações no brasil. Accessed:

2018-09-17.

Sousa, H. W., Silva, J. L., and Neto, M. S. (2008). A im-

portância do proﬁssional farmacêutico no combate à

automedicação no brasil. Revista eletrônica de far-

mácia, 5(1).

Vega-Gorgojo, G., Giese, M., Heggestøyl, S., Soylu, A.,

and Waaler, A. (2016). Pepesearch: Semantic data for

the masses. PloS one, 11(3):e0151573.

Volz, J., Bizer, C., Gaedke, M., and Kobilarov, G. (2009).

Silk-a link discovery framework for the web of data.

LDOW, 538.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems
