Towards a Conceptual Framework for Decomposing Non-functional

Requirements of Business Process into Quality of Service Attributes

Camila F. Castro

, Marcelo Fantinato

Unal Aksu

, Hajo A. Reijers

and Lucin

eia H. Thom

School of Arts, Sciences and Humanities, University of S

ao Paulo, S

ao Paulo – SP, Brazil

Department of Information and Computing Sciences, Utrecht University, Utrecht, The Netherlands

Institute of Informatics, Federal University of Rio Grande do Sul, Porto Alegre – RS, Brazil

Keywords:

Non-functional Requirements, Service Level Agreements, Quality of Services, Web services.

Abstract:

Non-functional Requirements (NFRs) of web services are deﬁned by IT teams at the implementation level

often as Quality of Service (QoS) attributes. Orchestrating web services to run business processes requires

a rigorous deﬁnition of the NFRs of such web services. The deﬁnition of QoS attributes should consider

the business process NFRs since misinterpretations of web service NFRs may affect the behavior of the web

services and hence achieving the business goals. The approaches proposed so far are still heavily dependent on

an IT expert’s knowledge to identify the appropriate QoS attributes required to meet particular business process

NFRs. Deﬁning appropriate QoS attributes without reference to business process-level NFRs may be a costly,

time-consuming task. We propose a conceptual framework for the hierarchical decomposition of NFRs from

the business process level to the web service level. This framework seeks to reduce the dependence on a

particular IT expert’s knowledge by simplifying the dialog between the business and IT areas. The proposed

framework relies on a structure of NFRs interdependence. The main reference was the ISO/IEC 25010 Product

Quality Model, extended by additional software quality models and particular QoS attributes.

1 INTRODUCTION

To ensure the success of executing a business process

through a web service orchestration, functional re-

quirements and Non-functional Requirements (NFRs)

of the web services should be considered. Web

service NFRs are often deﬁned as Quality of Ser-

vice (QoS) attributes, formalized in Service Level

Agreements (SLA) established between web service

providers and consumers. QoS attributes deﬁned in

SLAs are propagated from speciﬁc business goals

(O’Brien et al., 2005), for instance: a business goal

related to agility may require QoS attributes such

as adaptability, scalability and extensibility. There-

fore, different web services require different QoS at-

tributes, and what attributes are required depends on

the business domain, intended use and user require-

ments (Abramowicz et al., 2008).

The deﬁnition of QoS attributes in SLAs should

rely on business process NFRs. Business process

NFRs can be formalized in Business Level Agree-

ments (BLA), which should be deﬁned by business or

requirements analysts and capture business process-

level NFRs useful later for web service provisioning

(Bratanis et al., 2010; Salles et al., 2013; Barros et al.,

2014; Salles et al., 2018). However, a decomposition

of BLAs into SLAs depend on an Information Tech-

nology (IT) expert’s knowledge to identify the proper

QoS attributes required for a web service, based on

implicit business process NFRs.

As an illustrative example, Figure 1 shows a frag-

ment of a business process model for assessing loan

against property applications (Dumas et al., 2013).

Once received the customer application form from the

Loan Ofﬁcer, the Financial Ofﬁcer needs to check the

customer’s credit history to assess the loan risk, while

the Property Appraiser appraises the property. When

both of them complete these activities, the Loan Of-

ﬁcer is able to assess the customer’s eligibility for

the requested loan. This set of activities is suscep-

tible to some NFRs. For example, the execution of

these activities may include BLAs related to: (i) se-

curity, since private customer data in other institutions

should be accessed; (ii) performance efﬁciency, since

a rapid response must be sent to the customer so as not

to lose this business opportunity; and (iii) compliance,

as regulatory rules may need to be met. The web ser-

vices implementing these activities are also suscepti-

Castro, C., Fantinato, M., Aksu, Ü., Reijers, H. and Thom, L.

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes.

DOI: 10.5220/0007656504810492

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 481-492

ISBN: 978-989-758-372-8

481

ble to related NFRs since the effective execution of

the business process depends directly on the effective

execution of the web services.

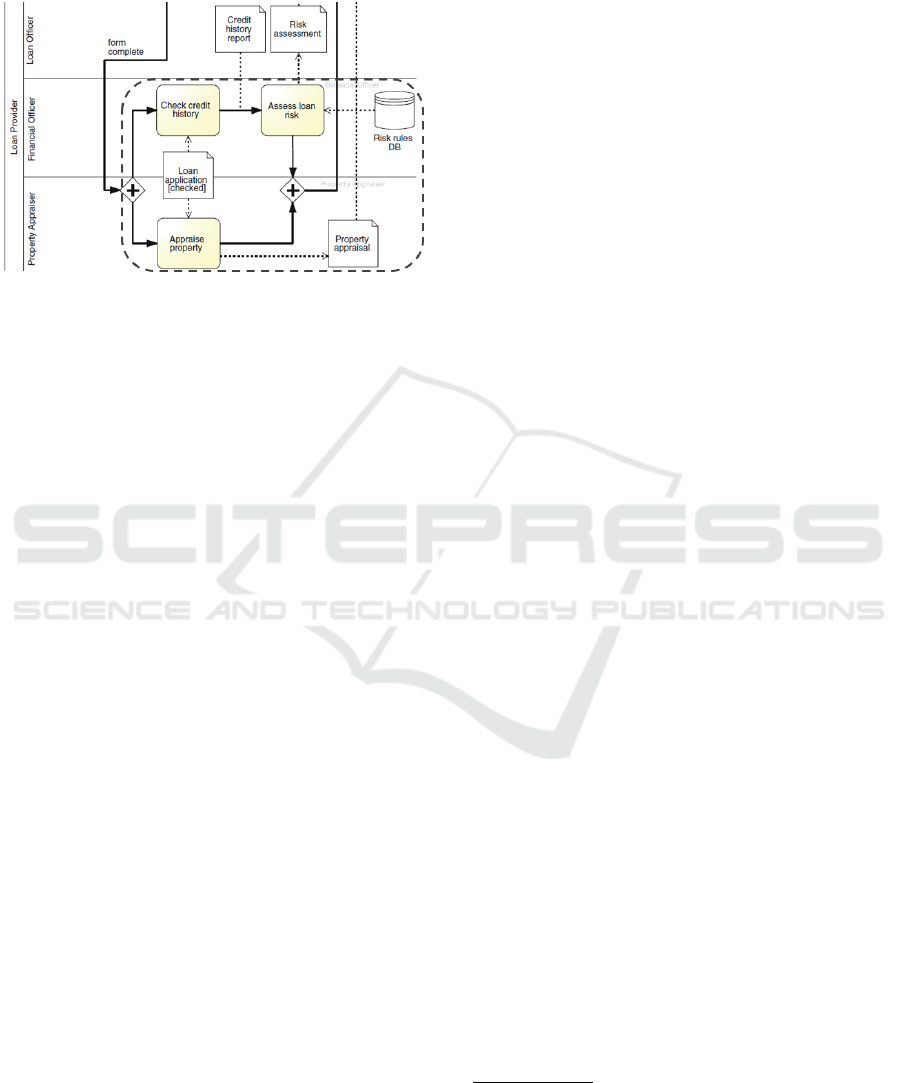

Figure 1: Fragment of a business process for assessing loan

applications (Dumas et al., 2013).

Translating the business process NFRs exempli-

ﬁed above into appropriate NFRs to provision web

services to support the execution of such a business

process is a challenging job. For example, assuming

the business team deﬁnes a BLA stating the execution

of these three activities together should not exceed 5

minutes: what QoS properties for which web services

should be deﬁned to ensure achieving this business

goal? The challenge addressed here is how IT teams

can deﬁne which SLAs (and for what web services)

are needed to meet a BLA deﬁned by business teams.

In this paper, we present a conceptual framework

to hierarchically decompose NFRs from the business

process level to the web service level. The proposed

framework relies on the interdependence of NFRs.

Given a business process-level NFR, this framework

describes the related NFRs that could be considered

at the web service level to meet business goals. This

decomposition is not automated, but an approach to

help IT teams in breaking down preferences of busi-

ness process NFRs into more detailed preferences re-

lated to web service QoS attributes. Motivation comes

from the importance of an appropriate web service ex-

ecution to meet business goals, which hence requires

pertinent QoS attributes based on business needs.

To achieve this goal, we ﬁrst developed a dictio-

nary of NFRs, including both business process and

web service levels. Then, we deﬁned the interde-

pendence among the NFRs at both levels via UML

(Uniﬁed Modeling Language) class diagrams. The in-

terdependence framework considers the relationships

among business process-level NFRs, and between the

business process and web service levels in a top-down

strategy. The ISO/IEC 25010 Product Quality Model

is the main reference, enriched by extra quality mod-

els on software and QoS attributes.

The main contributions of this work are three-

fold: (1) extensive gathering of NFRs related to busi-

ness processes and technical aspects of web service

provisioning, and the deﬁnition of their interdepen-

dence relationships aiming to support those who want

to systematize their decomposition; (2) conceiving

a conceptual framework that, despite primarily de-

signed for the context of business process automation

via web service orchestration, is generic enough to be

used or adapted to other areas considering NFRs; and

(3) presenting an approach that, while not automatic,

can support semi-automated decision making.

The rest of this paper presents the following sec-

tions: underlying concepts, research method, ob-

tained results, related work and concluding remarks.

2 UNDERLYING CONCEPTS

2.1 Non-functional Requirements

In software engineering, Non-functional Require-

ments (NFRs) are deﬁned as constraints on services or

functionalities offered by a system, including charac-

teristics related to software behavior and constraints

imposed by standards (Sommerville, 2010). These

NFRs are deﬁned based on user needs, budget con-

straints or external factors, such as regulatory and leg-

islative determinations (Sommerville, 2010). Exam-

ples are performance, security and availability.

In Business Process Management (BPM) and

Service-Oriented Architecture (SOA), NFRs repre-

sent quality aspects for the provisioning of services

responsible for executing business processes. These

quality aspects set guarantee levels which allow com-

parison among distinct services with the same func-

tionality (Abramowicz et al., 2006). Web service

NFRs are often expressed as QoS attributes and spec-

iﬁed usually through SLAs. SLAs refers to a commit-

ment between web service providers and consumers,

whereby the exact quality conditions that guide the

web service provisioning are systematically deﬁned

(Salles et al., 2013)

. An SLA could include, for in-

stance, a QoS attribute for availability with a target

of 99% and a QoS attribute for response time with a

target of 5 ms. In SLAs, penalties and rewards are

deﬁned and imposed depending on the breach of pre-

deﬁned guarantee terms.

SLA terms are deﬁned by IT considering technical

aspects of web service provisioning (Bratanis et al.,

In this work, only technical aspects involved in a web

service provisioning are considered in SLAs; i.e., IT out-

sourcing or out-tasking web services for higher-level tasks,

including human tasks, are not part of the scope.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

482

2010). However, business aspects should be also con-

sidered, mainly in the context of business process au-

tomation via web service orchestration (Borges et al.,

2019). A different type of agreement is then required,

and hence the use of BLAs is an alternative.

The structure of a BLA is like of an SLA, in-

cluding penalties and rewards. The main difference

lies in their scopes: while SLAs are associated with

web services and consider mainly technical aspects

involved in web service provisioning, BLAs are asso-

ciated with business process activities that will be exe-

cuted in the form of web services (Borges et al., 2019;

Salles et al., 2013). BLAs are deﬁned during business

process analysis and modeling whereas SLAs are de-

termined during business process implementation and

execution (Salles et al., 2013).

The differences between BLA and SLA are illus-

trated by Salles et al. (2018) who exemplify a BLA

goal with “the business subprocess starting in the ac-

tivity [1] and ending in the activity [4] must be con-

cluded within 24 hours” whereas the corresponding

SLAs goals are exempliﬁed with “the web service in-

voked to execute the activity [1] must be completed

within 2 hours” and “the web service invoked to exe-

cute the activity [4] must have 95% of availability”.

A BLA can be mapped to a set of SLAs, each

BLA related to a speciﬁc business process activity au-

tomated through a set of web services with their SLAs

(Goel et al., 2011). Assuming that all the guaranteed

terms of each SLA are satisﬁed, the corresponding

BLA is expected to be satisﬁed accordingly.

2.2 Software Quality Models

According to the IEEE Standard Glossary of Soft-

ware Engineering Terminology (IEEE, 1990), soft-

ware quality means the degree to which a system,

component or business process meets speciﬁc require-

ments. Specifying functional requirements and NFRs

for software is not a trivial task; a common approach

is to use software quality models as a reference to de-

scribe and assess software requirements.

Quality models support identifying relevant qual-

ity characteristics that can be further established as

requirements and their corresponding satisfaction cri-

teria and measures (ISO/IEC, 2010). Quality models

provide the fundamentals for software evaluation, of-

fering a consistent QoS terminology and supporting

software measurement (Botella et al., 2003).

There are several software quality models pro-

posed in the literature from international standards to

several domain and company-speciﬁc models. One

of the most popular approaches is the ISO/IEC 25010

System and Software Quality Model, which is a part

of the ISO/IEC 25000 Software Product Quality Re-

quirements and Evaluation (SQuaRe) model and re-

sults from evolving several other standards, especially

the ISO/IEC 9126 (ISO/IEC, 2010). ISO/IEC 25010

addresses a set of QoS attributes for software product

quality and software quality in use.

Figure 2 shows the structure of ISO/IEC 25010,

depicting its eight main quality characteristics and 31

sub-characteristics. Alternative software quality mod-

els were proposed (McCall et al., 1977; Boehm et al.,

1978; Dromey, 1999). More information about qual-

ity models can be found in Miguel et al. (2014); Sheo-

ran and Sangwan (2015); Tomar and Thakare (2011).

Regarding BPM and SOA, quality models can be

used as a reference to deﬁne requirements related to

business processes and web services, allowing for the

overall quality improvement of SOA-based applica-

tions. To the best of our knowledge, there is no gen-

eral standard accepted as a quality model for web

services being orchestrated to automate business pro-

cesses. However, web services and software modules

share the same set of properties; therefore, if software

components can be replaced by web services, then the

quality requirements of both solutions must be com-

patible with (Abramowicz et al., 2009). As a result,

software quality models can also be used to address

quality characteristics of web services.

Since the ISO/IEC 25010 quality model is a rec-

ognized quality standard for any type of software, it

can also be used to provide QoS attributes for web

services (Abramowicz et al., 2009). Alternative qual-

ity models used in the context of web services were

proposed (OASIS, 2005; Abramowicz et al., 2008).

3 RESEARCH METHOD

This work was developed following principles of the

design science research paradigm, which considers

the creation and evaluation of artifacts to solve iden-

tiﬁed organizational problems (Hevner et al., 2004).

These artifacts need to address an unsolved problem

or propose an improvement for an existing solution to

more signiﬁcantly contribute with science and prac-

tice (Hevner et al., 2004). In this research, the prob-

lem refers to the lack of a systematic structure to sup-

port a straightforward decomposition of NFRs, from

business to QoS attributes related to web services.

However, contrasting the paradigm, this research did

not include a validation work to ascertain the results,

thus resulting in a theoretical research based on liter-

ature analysis. In this context, developing an concep-

tual interdependence framework for NFRs included

two major activities: (i) the elaboration of a dictio-

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes

483

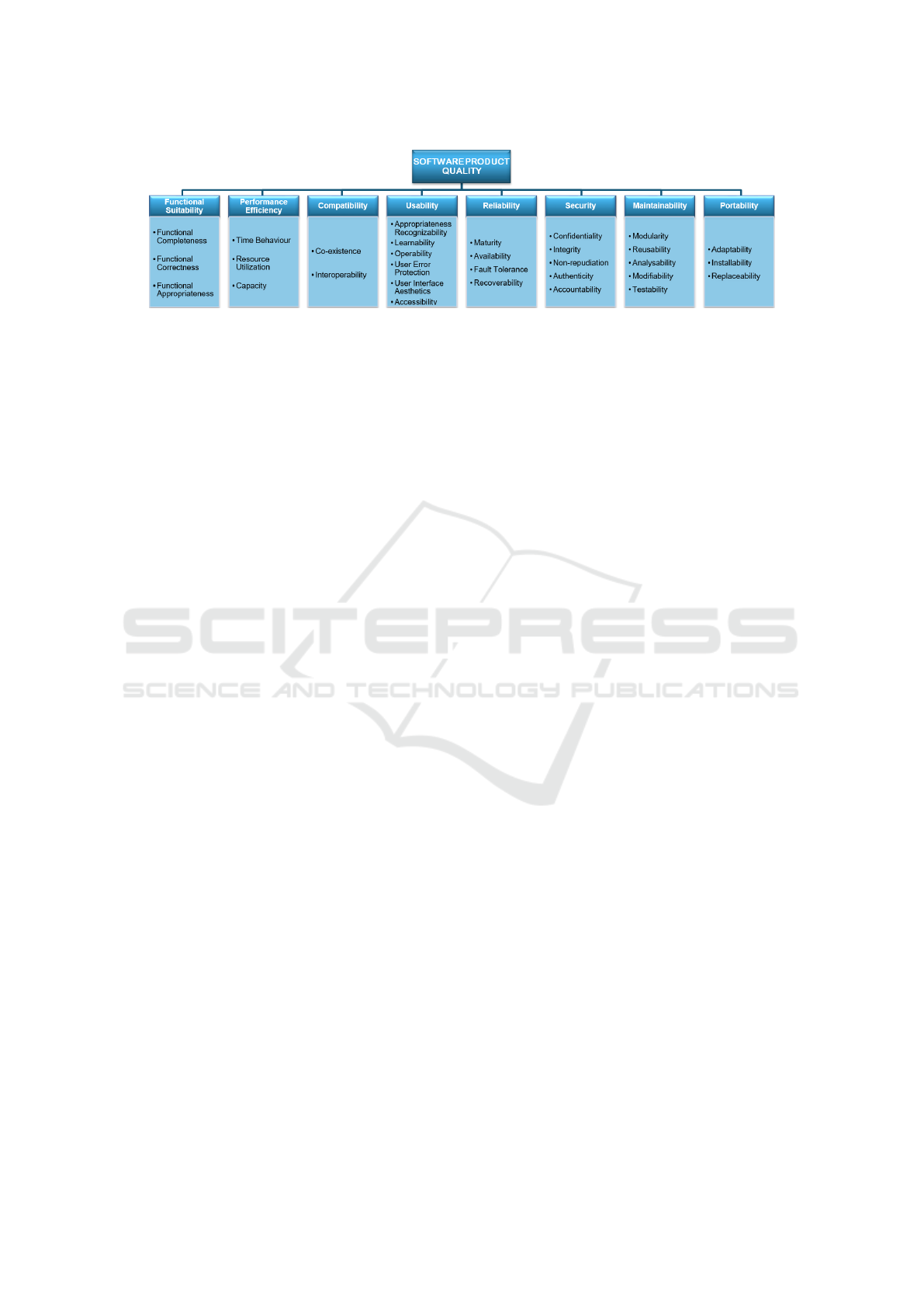

Figure 2: ISO/IEC 25010 Product Quality Model (ISO/IEC, 2010).

nary of NFRs, considering NFRs for both business

process and web service levels; and (ii) the deﬁni-

tion of interdependence relationships between identi-

ﬁed NFRs, taking relationships between NFRs at the

same level (for the business process level) and rela-

tionships between NFRs at different levels (from the

business process level to the lower levels).

Regarding the dictionary of NFRs, an exploratory

literature study was conducted to elicit a set of quality

characteristics related to business or technical aspects

of web service provisioning. ISO/IEC 25010 was

chosen as the main reference for this work primar-

ily because it is already an ofﬁcial standard consoli-

dated in the literature. In addition, because it is one of

the most popular standards related to non-functional

requirements used by researchers and business and

IT practitioners (Abramowicz et al., 2009). Finally,

because it addresses software generically, allowing

a mapping to web services, which are speciﬁc types

of software. The base The structure of characteris-

tics and sub-characteristics provided by IS/IEC 25010

was expanded through extra research on software and

web services quality models and studies related to

SOA and QoS attributes. The dictionary and the de-

tails regarding its elaboration are fully described in a

technical report (de Castro and Fantinato, 2018).

The deﬁnition of the interdependence relation-

ships among the dictionary’s NFRs was based on the

studies of Zulzalil et al. (2008); McCall et al. (1977),

used as the main references to describe the relation-

ships between the business process-level NFRs. Al-

though they predate the publication of the ISO/IEC

25010, both share the same evaluated characteristics.

With respect to the relationships between NFRs

from the business process level to the web service

level and also between NFRs at the web service level,

the structure of characteristics and sub-characteristics

of the ISO/IEC 25010 was also used as the main ref-

erence. For most of the NFRs got from other refer-

ences during the elaboration of the dictionary, the cor-

responding studies already incorporated some hierar-

chical classiﬁcation that could be the basis to deﬁne

the decomposition structure.

Remaining relationships were determined via log-

ical inference based on empirical analysis. The

authors conducted iterative brainstorming meetings

to discuss potential relationships between the NFRs

mapped in the dictionary. The ideas that came up dur-

ing these meetings were reﬁned resulting on a ﬁnal set

of relationships, presented as follows.

4 NFR DECOMPOSITION

Considering business processes being automated

through web service orchestration, a conceptual NFR

decomposition framework is proposed to support a

straightforward deﬁnition of web service QoS at-

tributes. The deﬁnition of QoS attributes is carried

out based on constraints determined by business ar-

eas at process modeling time. Using this approach,

IT teams are given hints of which QoS attributes they

can assign to a web service to meet a business de-

mand. Thus, the expected users for this framework

are IT teams working on the perspective of a web ser-

vice provider and hence involved in the deﬁnition of

web service SLAs to be executed by business units.

The designed NFR decomposition framework is

presented as follows. An explanation of the frame-

work’s structure is given, with details on the dic-

tionary of NFRs and the interdependence diagrams.

Then, the decomposition diagrams are shown.

4.1 Conceptual Framework Overview

The set of NFRs is organized into a dictionary struc-

ture. Two sections form the dictionary of NFRs: one

for business process NFRs (cf. Table 1) and another

for web service NFRs (cf. Table 2), as detailed by

de Castro and Fantinato (2018). The structure of both

sections comprises four attributes: ID, a numerical

NFR identiﬁcation; Name, the NFR name; Deﬁni-

tion, a brief description of the NFR; and Reference,

the references of the works from which the NFR was

extracted from. Synonyms are identiﬁed and grouped

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

484

using a unique ID. Speciﬁcally for web service NFRs,

there is an extra attribute, Measurement Unit, which

identiﬁes the primary unit used to measure a quanti-

tative NFR. The measurement unit was ﬁlled in the

dictionary only when found in the literature.

Considering the relationships between the NFRs,

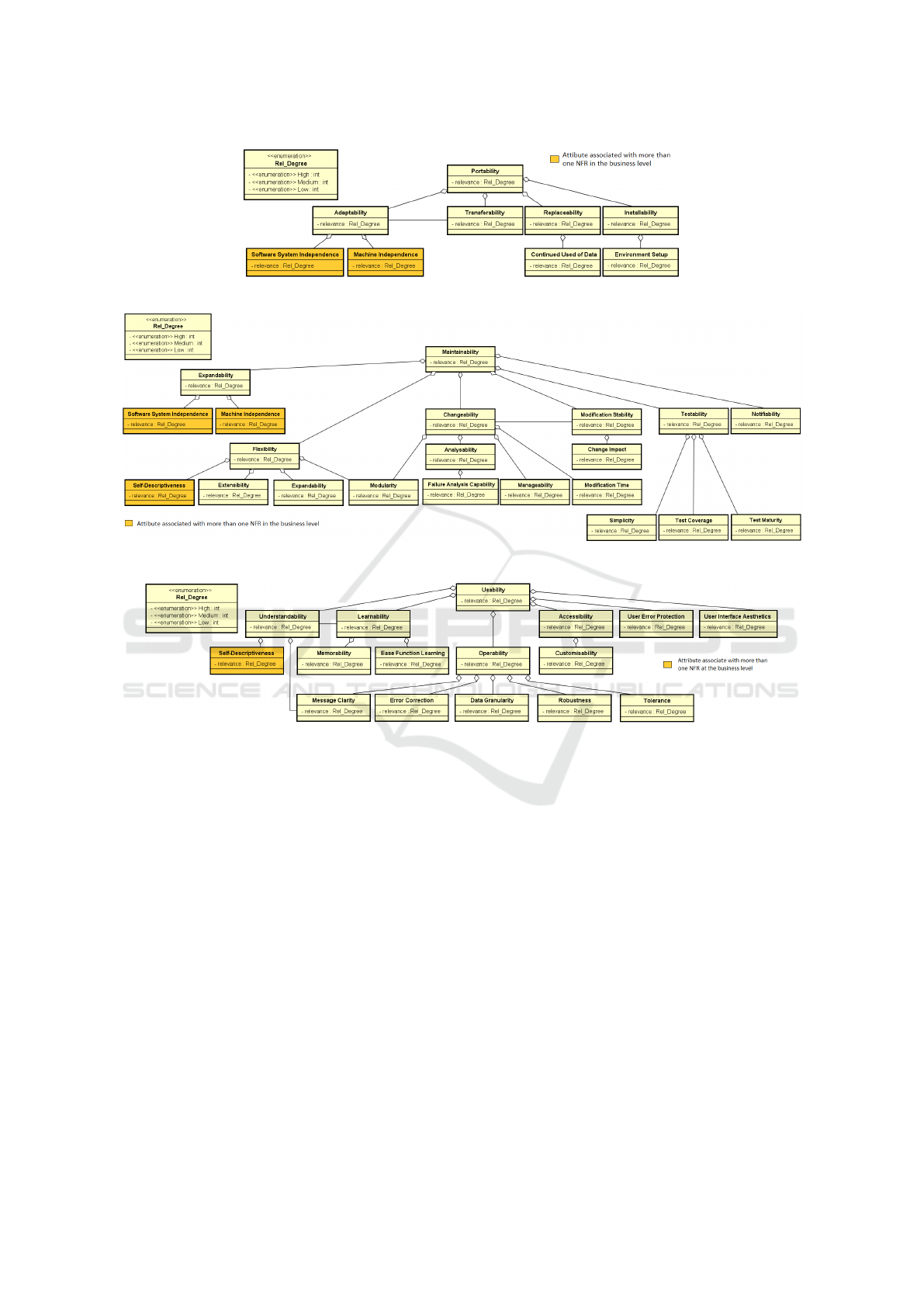

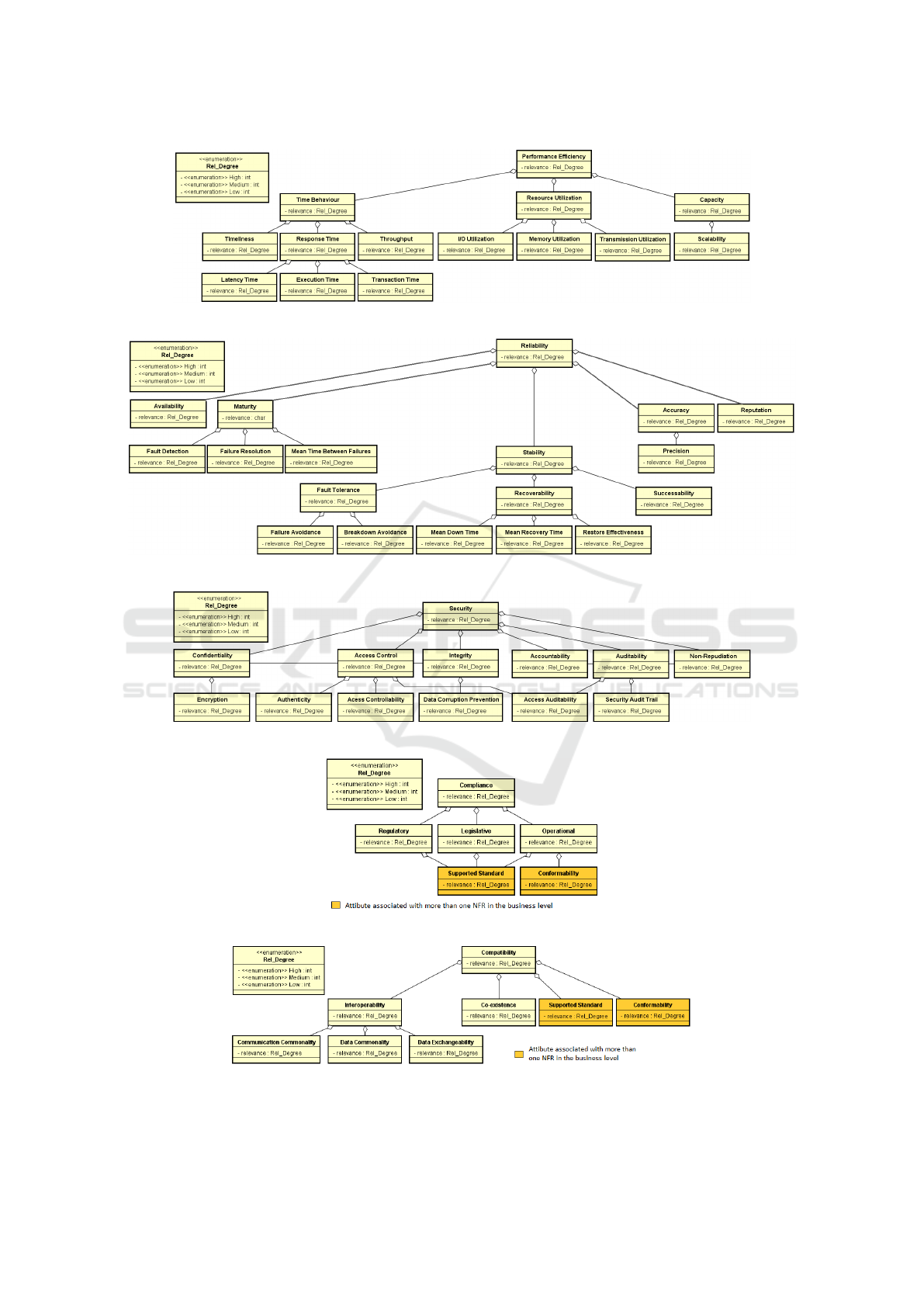

they are represented through UML class diagrams (cf.

Figures 3–11). Each class in the diagram represents

an NFR included in the dictionary. Relationships be-

tween NFRs at the same level are represented using

the association bidirectional connector (e.g., Figure 6,

association between Conﬁdentiality and Access Con-

trol). Relationships between NFRs of different lev-

els are deﬁned through aggregation connectors, i.e.,

lower-level NFRs contribute to those at a higher level,

although they exist independently (e.g., Figure 6, ag-

gregation between Conﬁdentiality and Encryption).

Each class in the diagram includes a conﬁgurable

attribute denominated relevance, which considers

three values: high, medium or low. Business and IT

areas should use this attribute to show which NFRs

are how likely relevant when creating SLAs in an or-

ganization, based on the business domain and pre-

vious experiences. As the proposed decomposition

framework has been developed to be generic enough

to be considered in different organizational contexts,

no prior deﬁnition of relevance for each NFR is pro-

vided. As a result, each organization willing to use

this framework should deﬁne its own relevance val-

ues considering its own context and historical data.

4.2 Decomposition Diagrams

The NFR decomposition framework considers at-

tributes to be deﬁned at business process and web ser-

vice levels, by business and IT areas, respectively. Re-

garding business process NFRs, the ﬁrst section of the

dictionary includes eight attributes (cf. Table 1).

To identify the business process-level NFRs,

the characteristics proposed in the ISO/IEC 25010

(ISO/IEC, 2010) were considered as describing

generic aspects of product quality to be selected by

business areas (de Castro and Fantinato, 2018). From

eight characteristics in the ISO/IEC 25010 model (cf.

Figure 2), seven were adapted to be added in the dic-

tionary as business process NFRs: Performance Efﬁ-

ciency, Compatibility, Usability, Reliability, Security,

Maintainability and Portability. Only the ﬁrst — i.e.,

Functional Suitability — was not considered as it ad-

dresses functional requirements and not NFRs which

is the purpose of this dictionary.

ISO/IEC 25010 and other related software quality

models describe quality characteristics only from the

product perspective. Aiming at completeness for the

business context, the dictionary of business process

NFRs was extended with an attribute addressing reg-

ulatory, legislative and operational aspects involved

in business process enactment. This NFR is Compli-

ance, adapted from the types of NFRs for software

systems presented by Sommerville (2010).

The attributes in Table 1 relate to each other.

For instance, the conversion from standard protocols

to ensure compatibility may affect performance efﬁ-

ciency (McCall et al., 1977), while a fast maintenance

implies in higher recoverability in the presence of er-

rors, improving reliability levels. Identifying inter-

dependence relationships between business process

NFRs is relevant to recommend a more complete set

of web service NFRs to be deﬁned in SLAs. For ex-

ample, when business areas deﬁne a constraint related

to compatibility, the IT team could take care of per-

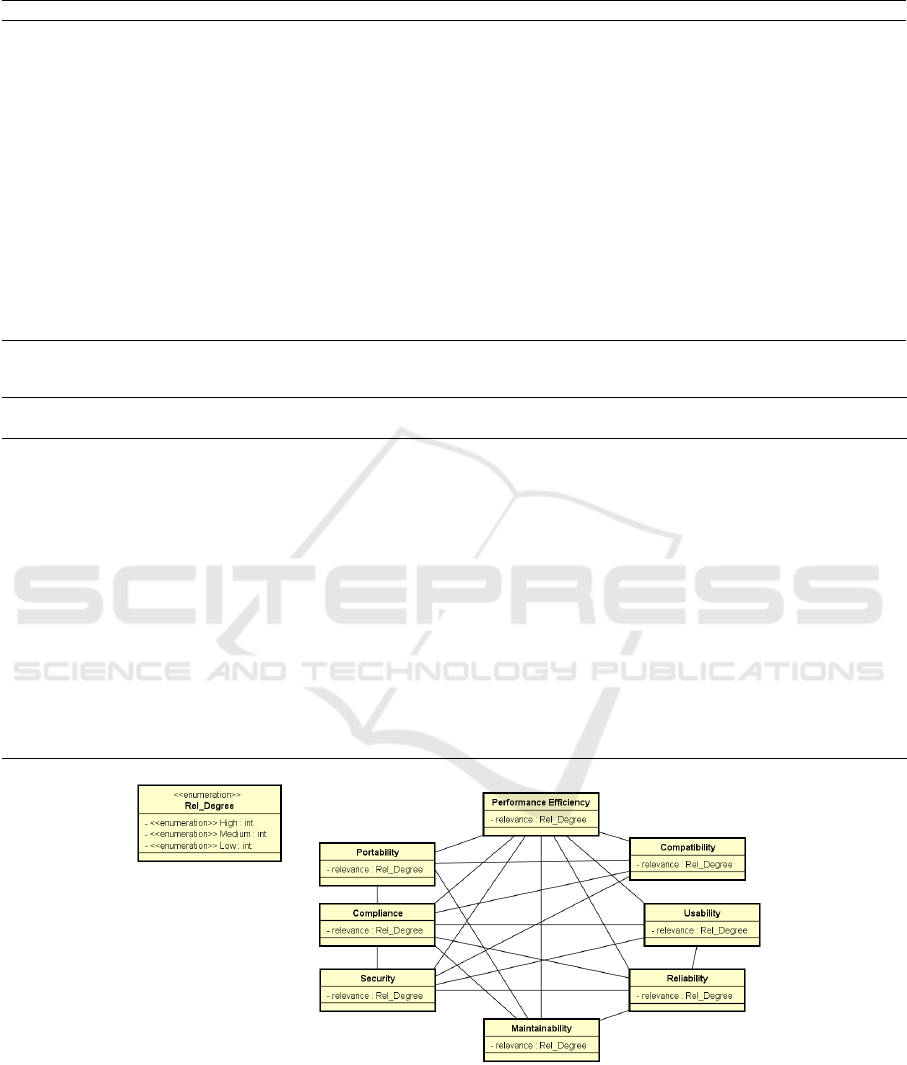

formance NFRs as well. Figure 3 shows the interde-

pendence relationships between the business process

NFRs that were identiﬁed in this work.

Some relationships in Figure 3, such as perfor-

mance efﬁciency vs. compatibility and reliability

vs. maintainability, were deﬁned based the literature

(Zulzalil et al., 2008; McCall et al., 1977). Others,

such as reliability vs. security and compliance vs. se-

curity, were deﬁned via logical inference based on an

empirical analysis by the authors of this work. Table

3 presents a brief explanation of the meaning of the

interdependence relationships shown in Figure 3.

Regarding the web service NFRs, the character-

istics and sub-characteristics proposed in ISO/IEC

25010 (ISO/IEC, 2010) were considered describing

technical aspects of web service provisioning to be

deﬁned in SLAs by IT teams. This model was re-

ﬁned by extra works on software quality models and

QoS attributes and, as a result, the dictionary of web

service NFRs is formed by 93 requirements, each of

them related to at least one business process NFR and

also related among them. Web service NFRs are also

interrelated through a requirements hierarchy. The

dictionary of web service NFRs, with deﬁnitions, ref-

erences, measurement unit and additional details re-

garding its elaboration, is fully described in a techni-

cal report (de Castro and Fantinato, 2018).

The NFR decomposition framework is split into

eight decomposition diagrams (cf. Figures 4-11), one

for each business process NFR (cf. Figure 3).

A illustrative excerpt of the dictionary of web ser-

vice NFRs is shown in Table 2. The NFRs in Table

2 are related to performance efﬁciency, with which

seven other NFRs describing web service’s time be-

havior, resource utilization and capacity are associ-

ated. Contrasting the dictionary of business process

NFRs, shown in Table 1, the measurement unit is de-

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes

485

Table 1: Dictionary of business process NFRs (de Castro and Fantinato, 2018).

ID Name Deﬁnition Reference

1 Performance

Efﬁciency

Degree to which a business process can efﬁciently use an amount of resources (such as

software, products, hardware and generic materials) under stated conditions.

(ISO/IEC,

2010)

2 Compatib-

ility

Degree to which a business process can exchange information with other business pro-

cesses, and/or perform its activities while sharing the computing environment.

(ISO/IEC,

2010)

3 Usability Degree to which a business process can be used by speciﬁed users to achieve speciﬁc

goals with effectiveness, efﬁciency and satisfaction.

(ISO/IEC,

2010)

4 Reliability Degree to which a business process performs speciﬁed activities under speciﬁed condi-

tions for a period.

(ISO/IEC,

2010)

5 Security Degree to which a business process can protect information and data from unauthorized

access.

(ISO/IEC,

2010)

6 Maintain-

ability

Degree of effectiveness and efﬁciency with which the activities of a business process can

be modiﬁed.

(ISO/IEC,

2010)

7 Portability Degree of effectiveness and efﬁciency with which a business process can be conﬁgured

in an environment and transferred from one environment to another.

(ISO/IEC,

2010)

8 Compliance Degree to which a business process is compliant with internal procedures of an organiza-

tion and external guidelines.

(Sommerville,

2010)

Table 2: Excerpt of the web services’ dictionary of NFRs — performance efﬁciency (de Castro and Fantinato, 2018).

ID Name Deﬁnition Meas.

Unit

Ref

1 Time behavior Degree to which the response and processing times and throughput rate

meet requirements in web service provisioning.

— (ISO/IEC,

2010)

2 Resource utilization Degree to which the amount and type of resources used meet require-

ments in web service provisioning.

— (ISO/IEC,

2010)

3 Capacity Maximum limits of a web service (i.e., concurrent users, stored data etc.)

for which performance is guaranteed.

— (ISO/IEC,

2010)

4 Latency time Round-Trip Delay (RTD) between the dispatch of a request and receive

of a response for a web service.

Time (Abramowicz

et al., 2006)

5 Execution time Time for a web service to execute a sequence of activities and process a

request.

Time (Lee et al.,

2003)

6 Response time Time necessary to complete a certain web service request, from the mo-

ment it is dispatched until a response is received.

Time (Lee et al.,

2003)

[Average and maxi-

mum response time]

The average time needed for the packet of control data to get to the

provider’s server and return to the requester.

Time (Abramowicz

et al., 2006)

[Execution

duration]

Expected delay from the dispatch of a web service request until the result

is received by the client.

Time (Zeng et al.,

2003)

Figure 3: Interdependence relationships for business process NFRs.

ﬁned here for some web service NFRs. Synonyms

from different references are grouped in a unique ID,

which is the case of Response time, Average and max-

imum response time and Execution duration.

Figure 4 shows the decomposition diagram for

performance efﬁciency. The NFRs and most of

the relationships between them were extracted from

ISO/IEC (2002, 2010); Abramowicz et al. (2006); Lee

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

486

Figure 4: NFR decomposition diagram — performance efﬁciency.

Figure 5: NFR decomposition diagram — reliability.

Figure 6: NFR decomposition diagram — security.

Figure 7: NFR decomposition diagram — compliance.

Figure 8: NFR decomposition diagram — compatibility.

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes

487

Figure 9: NFR decomposition diagram — portability.

Figure 10: NFR decomposition diagram — maintainability.

Figure 11: NFR decomposition diagram — usability.

et al. (2003); OASIS (2005); O’Brien et al. (2005).

For instance, the relationships between the attributes

related to resource utilization. Other relationships

were mapped from related studies or deﬁned via log-

ical inference. The attributes latency time, execution

time and transaction time, for instance, are associated

with response time considering the deﬁnition of the

latter: “response time is deﬁned as the time required

to complete a web service request” (Lee et al., 2003).

Thus, response time should include the round-trip de-

lay for the network propagation (i.e., the latency time)

plus the execution time required to process the request

in the provider (i.e., the execution time). If transac-

tions are processed, it should also consider the time to

complete the transaction (i.e., the transaction time).

Figures 5 and 6 show the decomposition diagrams

for reliability and security, respectively. As for reli-

ability, 17 web service NFRs are presented, mainly

related to web service availability and stability in the

presence of failures. The NFRs and most of the rela-

tionships were extracted from ISO/IEC (2002, 2010);

McCall et al. (1977); OASIS (2005); Sheoran and

Sangwan (2015); Zeng et al. (2003). For instance,

the attributes fault detection, failure resolution and

mean time between failures as associated with ma-

turity. Other relationships were deﬁned via logical

inference, such as associating fault tolerance, recov-

erability and successability in meeting requests as at-

tributes related to web service stability.

Regarding security, 12 web service NFRs are pre-

sented, mainly related to data conﬁdentiality and in-

tegrity, access control and traceability. The NFRs and

some relationships were extracted from the literature

(ISO/IEC, 2002, 2010; McCall et al., 1977; OASIS,

2005; O’Brien et al., 2005; Pettersson, 2007). Other

relationships, such as the bidirectional association be-

tween conﬁdentiality and access control, were deﬁned

via logical inference. For the latter, we considered

that conﬁdentiality requires that data should be read

only by those with access to it, implying in access

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

488

Table 3: Details of interdependence relationships between business process NFRs.

NFR1 NFR2 Relationship explanation Reference

Perf. Efﬁc. Compatib. The conversion from standard protocols to ensure compatibility between web

services may affect performance efﬁciency.

(McCall

et al., 1977)

Perf. Efﬁc. Usability The additional code and processing required to ease an operator’s task or pro-

vide more usable output may affect performance efﬁciency.

(McCall

et al., 1977)

Perf. Efﬁc. Maintain. The need of using modularity, instrumentation and well commented high-level

code to increase maintainability may affect performance efﬁciency.

(McCall

et al., 1977)

Perf. Efﬁc. Security The additional code and processing required to control the access of a web

service or data may affect performance efﬁciency.

(McCall

et al., 1977)

Perf. Efﬁc. Portability Using direct code or optimized system software to increase performance may

affect a web service’s portability.

(McCall

et al., 1977)

Perf. Efﬁc. Reliability The implementation of strategies to increase web service’s availability may

affect performance efﬁciency.

—

Compatib. Security Coupled systems or web services can be accessed by different users, increasing

the potential for accidental access of sensitive data and thus affecting security

requirements.

(McCall

et al., 1977)

Compatib. Portability The guarantee of the web service’s compatibility may affect portability require-

ments in terms of platform independence.

—

Usability Reliability

[+Security]

The implementation of error prevention functions in a web service’s interface

may affect its maturity and stability in terms of fault detection and tolerance.

(Zulzalil

et al., 2008)

Reliability Maintain. Increasing maintainability usually affects a web service’s reliability, as it turns

easier for a web service to be maintained in case of breakdown.

(Zulzalil

et al., 2008)

Reliability Security The security of a web service may affect its reliability in terms of stability and

reputation.

—

Maintain. Portability Increasing maintainability may affect the effort to transfer a web service from

one operating environment to another.

(Zulzalil

et al., 2008)

Compliance * Regulatory, legislative or operational guidelines can be applied to all seven

remaining NFRs included in the framework.

—

control. The association between access control and

integrity, on the other hand, was proposed in the liter-

ature with a similar argument (McCall et al., 1977).

Figures 7 and 8 show the decomposition diagrams

for compliance and compatibility, respectively. Re-

garding compliance, the NFRs were extracted from

the literature (OASIS, 2005; Ran, 2003; Sommerville,

2010; Yoon et al., 2004) and all the relationships were

deﬁned via logical inference. On the other hand, the

NFRs and most of the relationships for compatibility

were extracted from ISO/IEC (2002, 2010); McCall

et al. (1977), as the attributes associated with interop-

erability. The attributes supported standard and con-

formability were identiﬁed by the authors as being re-

lated to both compliance and compatibility and hence

are shown in both diagrams in orange. The deﬁnition

of this dual association considered a scenario where

technical standards must be addressed in web service

provisioning, as a demand of regulators, organizations

or the government itself. When these standards are re-

lated to the communication between systems, this at-

tribute may also be deﬁned in terms of compatibility.

Conformability is the degree to which the pre-deﬁned

standards are met and hence considered in both cases.

Figures 9, 10 and 11 show the decomposition di-

agrams for portability, maintainability and usability,

respectively. The NFRs and some relationships de-

ﬁned in these diagrams were mainly extracted from

Abramowicz et al. (2006); ISO/IEC (2002, 2010);

McCall et al. (1977); Miguel et al. (2014); OASIS

(2005); O’Brien et al. (2005); Pettersson (2007); She-

oran and Sangwan (2015). The attributes software

system independence and machine independence are

related to both maintainability and portability, and

shown in both diagrams in orange. This dual clas-

siﬁcation considered that, the more a system is inde-

pendent of the computational environment, the easier

it is to adapt its operation to different environments

and reuse its components in different contexts. Like-

wise, the attribute self-descriptiveness is classiﬁed as

related to both maintainability and usability, consid-

ering that the clearer a web service and its documen-

tation is, the easier it is to maintain and operate it.

4.3 Examples of NFR Decomposition

Using the illustrative example of business process

presented in Figure 1, some NFRs can be deﬁned to

the web services that will implement such a process.

Consider the BLA related to performance efﬁ-

ciency associated with the set of highlighted activities.

Some levels for web service QoS attributes should be

pursued in order to ensure that this BLA is met, and

the decomposition framework proposed herein can be

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes

489

used for this purpose. Considering that for each ac-

tivity one or more web services can be used, different

QoS attributes can be deﬁned for each web service,

depending on the needs identiﬁed by the analysts in-

volved. Per Figure 4, to meet the BLA performance

efﬁciency for these three activities, 13 distinct QoS

attributes may be associated with the web services

that will be used to implement them. For example,

for some web services, QoS attributes related to re-

sponse time or throughput may be deﬁned, associated

with some target values; i.e., the QoS levels. IT teams

may also understand that, for some web services, they

should use a more speciﬁc QoS attribute related to la-

tency time, execution time or transaction time.

Besides the direct relationships addressed in the

previous example, indirect QoS attributes can also be

deﬁned as they can also interfere in the performance

efﬁciency of these three activities. For example, ac-

cording to Figure 3, performance efﬁciency is related

to reliability. Thus, web services that implement one

or more of the three activities in Figure 1 may also

have QoS attributes associated with reliability, as they

may also affect the performance efﬁciency of the busi-

ness process, as explained in Table 3. An example

would be to deﬁne a QoS attribute related to availabil-

ity (cf. Figure 5) because the business process will be

delayed if the web service is not available.

Still taking the example in Figure 1, another BLA

associated with the three activities being addressed is

related to security. Using Figure 6 as the main refer-

ence for the decomposition of security-related NFRs,

12 QoS attributes are suggested as ideas for the IT

team to include in the corresponding SLAs. From

these 12 QoS attributes, eight are leaf nodes, i.e., con-

sidered the most speciﬁc attributes, whereas four are

intermediate nodes, i.e., more generic ones. Any at-

tribute level can be used, depending on the needs per-

ceived by the IT team. The business team should pro-

vide detailed information related to the security BLA,

explaining exactly what the requirement means, so IT

teams can choose the most appropriate QoS attributes

to be associated with the web services, such as ac-

cess control, encryption, auditability and so on. The

information from the business area is also relevant to

allow identifying which web services will need QoS

attributes or not. Other QoS attributes can be chosen

by referring to Figures 4, 5, 7, 8 and 11 as the at-

tributes related to performance efﬁciency, reliability,

compliance, compatibility and usability are indirectly

related to security (cf. Figure 3).

5 RELATED WORK

Several studies have addressed business process au-

tomation with SOA. However, only a few of them

discusses the relationship between business process

NFRs and web service QoS attributes.

Still in 2005, the particularities involved in using

quality requirements originally deﬁned as software

quality models were discussed for SOA (O’Brien

et al., 2005). SOA and underlying concepts were ex-

plained in detail, examining their impact on meeting

business goals in organizations. A structured list of

QoS attributes used in SOA was provided.

Then, in 2008, the relationship of ISO/IEC 9126

quality characteristics (ISO/IEC 25000 predecessor)

was investigated to develop web-based applications

(Zulzalil et al., 2008). Eliciting information from

stakeholders with an online survey, interactions be-

tween pairs of quality characteristics were identi-

ﬁed, considering three possible relationships: posi-

tive, negative and independent. This approach en-

abled to understand how software quality aspects in-

ﬂuence each other, contributing to the elaboration of a

quality model that combines individual QoS attributes

based on speciﬁc relationships.

In 2009, a related approach was proposed to ad-

dress quality requirements expressed at the level of

SOA applications and break them down to the level

of components used to create the applications, i.e., at

the web service level (Abramowicz et al., 2009). The

structure used for decomposition considers two on-

tologies: (i) SQuaRE-based SOA Quality Ontology,

with 14 high-level quality characteristics extracted

from ISO/IEC 25000 SQuaRE quality model and is

used by business users; and (ii) Semantic Web Service

QoS Ontology, with a set of qualitative and quantita-

tive QoS attributes related to web services. This ap-

proach supports a more direct decomposition of high-

level QoS attributes into detailed preferences, in a task

less dependent on an IT expert’s knowledge.

Discussions for the business process level were in-

troduced by showing the need for deﬁning functional

requirements and NFRs of web service provisioning

in a different type of agreement, which is the afore-

mentioned BLA (Bratanis et al., 2010).

The Strategic Alignment with BPM (StrAli-BPM)

framework was proposed in 2013 to foster the strate-

gic alignment between business and IT, when exe-

cuting web service-based business processes (Salles

et al., 2013, 2018). StrAli-BPM was extended (Carmo

et al., 2017; Borges et al., 2019) and is formed by

four components, one of which is particularly related

to the work being presented herein — the BLA2SLA

component. BLA2SLA considers a top-down strat-

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

490

egy for a generic decomposition of business process

NFRs (represented by BLAs) into web service QoS

attributes (represented by SLAs). The deﬁnition of

BLAs and SLAs is supported by meta-models, each

including a set of attributes related to the business pro-

cess and web service levels, respectively. BLA2SLA

enables the use of a standardized structure to deﬁne

NFRs for web services based on business needs.

Many of the related work focuses on only dis-

cussing individual quality aspects of software com-

ponents and web services, regardless of their relation-

ship to NFRs of the business processes being auto-

mated. The BLA2SLA (Salles et al., 2013, 2018)

component is closer to the aim sought in this work

but using a loose relationship between the addressed

concepts: business areas deﬁne a BLA, but IT teams

only receive this BLA as a reference and must use

their experience to deﬁne the SLAs considered more

appropriate to address this BLA.

The decomposition model proposed by Abramow-

icz et al. (2008) considers the relationships between

high-level and low-level quality characteristics to

semi-automate the derivation of QoS attributes. How-

ever, they assume NFRs deﬁned from scratch by busi-

ness users in the SOA development. This assumption

contrasts with the work being presented herein, which

assumes that speciﬁc activities of business processes

(to be automated through web services) are associated

with business goals. Their proposed structure con-

siders mainly product quality characteristics to be se-

lected by business users, disregarding organizational

and external requirements (i.e., regulatory and leg-

islative) that might be demanded by business areas in

software applications. For some of those character-

istics, no related QoS attribute was mapped to be de-

ﬁned at the web service level. Ultimately, the relation-

ships among high-level quality characteristics them-

selves were not considered, resulting in each charac-

teristic being examined only individually.

In the approach of Zulzalil et al. (2008), only the

relationships among high-level quality characteristics

themselves were explored, disregarding their relation-

ship with web service QoS attributes. Finally, de-

spite presenting an analysis of QoS attributes in SOA,

O’Brien et al. (2005) did also not consider the rela-

tionships with business process NFRs.

6 CONCLUDING REMARKS

In this paper, we presented a conceptual framework to

support a straightforward decomposition of business

process NFRs (which can be formalized in BLAs)

into web service NFRs (which can be formalized in

SLAs grouping QoS attributes). Our main goal was

to provide a systematization to support IT teams in

breaking down NFRs deﬁned by business areas into

technical aspects for web service provisioning.

Due to the lack of standardized quality models

speciﬁc to business processes and web services, soft-

ware quality models had to be used to build the dic-

tionary. Since web services are a type of software

component, general software product quality mod-

els should work properly also for this particular case.

Thus, the quality models from which NFRs were

elicited are expected to have no negative inﬂuence on

the results of this study. In addition, due to the lack

of studies regarding the interdependence relationships

between software and web service quality attributes,

some relationships on the decomposition diagrams

were designed considering logical inferences on the

NFR interdependence, based on empirical analysis.

This preliminary study presents a promising

model to provide a common understanding between

the business side of an organization and the IT team

eligible for developing web services to automate the

business processes necessary by business units. To

the best of our knowledge, this is the ﬁrst attempt

to present a detailed model for decomposing busi-

ness process NFRs into QoS attributes, considering an

extensive dictionary with about 100 attributes. This

framework provides a basis for facilitating the de-

composition of BLAs into SLAs and attenuating the

dependence of an IT expert’s knowledge in deﬁning

which attributes should be considered in a web ser-

vice based on the constraints of a business process.

Future studies should be devoted to further ad-

justing and validating the proposed framework. We

plan to investigate the NFR Framework (Chung et al.,

1995) as a candidate to replace the UML Class Dia-

grams. For the validation, we intend to extend the pro-

totype proposed in Salles et al. (2013, 2018) with the

decomposition diagrams proposed herein, addressing

the relationships of interdependence between NFRs,

in the context of the StrAli-BPM approach. Other

possibilities are using experts and case studies.

ACKNOWLEDGEMENTS

This work was funded by Fapesp, Brazil

(grants 2017/26491-1 and 2017/26487-4, holder

Marcelo Fantinato) and Capes, Brazil (grants

88881.172071/2018-01, holder Lucin

eia H. Thom).

Towards a Conceptual Framework for Decomposing Non-functional Requirements of Business Process into Quality of Service Attributes

491

REFERENCES

Abramowicz, W., Haniewicz, K., Hofman, R., Kaczmarek,

M., and Zyskowski, D. (2009). Decomposition of

SQuaRE-based requirements for the needs of soa ap-

plications. In Int. Conf. on Advances in Commun.

Techn. and Engin. Sci., pages 81–94.

Abramowicz, W., Hofman, R., Suryn, W., and Dominik, Z.

(2008). SQuaRE based web services quality model.

In Int. MultiConf. of Engin. and Comput. Scient.

Abramowicz, W., Kaczmarek, M., and Zyskowski, D.

(2006). Duality in web services reliability. In Adv.

Int. Conf. on Telecom. and Int. Conf. on Int. and Web

Applic. and Serv., pages 165.1–165.6.

Barros, V. A., Fantinato, M., Salles, G. M. B., and de Al-

buquerque, J. P. (2014). Deriving service level agree-

ments from business level agreements: An approach

towards strategic alignment in organizations. In 16th

Int. Conf. on Enter. Inf. Syst. (ICEIS), pages 214–225.

Boehm, B. W., Brown, J. R., Kaspar, H., and Lipow, M.

(1978). Characteristics of software quality. TRW

Softw. Technol. NH, Amsterdam.

Borges, E. S., Fantinato, M., Aksu, U., Reijers, H. A., and

Thom, L. H. (2019). Monitoring of non-functional

requirements of business processes basedon quality of

service attributes of web services. In 21st Int. Conf.

on Enter. Inf. Syst. (ICEIS).

Botella, Pereand Burgu

es, X., Carvallo, J. P., Franch, X.,

Pastor, J. A., and Quer, C. (2003). Towards a qual-

ity model for the selection of ERP systems. In

Cechich, A., Piattini, M., and Vallecillo, A., editors,

Component-Based Software Quality: Methods and

Techniques, pages 225–245.

Bratanis, K., Dranidis, D., and J. H. Simons, A. (2010).

Towards run-time monitoring of web services confor-

mance to business-level agreements. In 5th Int. Acad.

and Ind. Conf. on Testing – Practice and Research

Techniques, pages 203–206.

Carmo, A., Fantinato, M., Thom, L., Prado, E. P. V.,

ınola, M., and Hung, P. C. K. (2017). An analy-

sis of strategic goals and non-functional requirements

in business process management. Master’s thesis.

Chung, L., Nixon, B. A., and Yu, E. (1995). Using

non-functional requirements to systematically support

change. In 2nd IEEE Int. Symp. on Req. Eng., pages

132–139.

de Castro, C. F. and Fantinato, M. (2018). Dictionary of

non-functional requirements of business process and

web services. Technical Report 003/2018, Graduate

Program of Information Systems, Univ. of S

ao Paulo.

Dromey, R. G. (1999). Software product quality: Theory,

model, and practices. Technical report, Soft. Quality

Institute, Grifﬁth Univ., Brisbane, Australia.

Dumas, M., Rosa, M. L., Mendling, J., and Reijers, H. A.

(2013). Fundamentals of Business Process Manage-

ment. 2 edition.

Goel, N., Kumar, N. V. N., and Shyamasundar, R. K.

(2011). SLA monitor: A system for dynamic moni-

toring of adaptive web services. In 9th Eur. Conf. on

Web Serv., pages 109–116.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

Quarterly, 28(1):75–105.

IEEE (1990). IEEE standard glossary of software engineer-

ing terminology, IEEE Std 610.12-1990.

ISO/IEC (2002). ISO/IEC 9126 software product quality,

IEEE Std 9126:2002.

ISO/IEC (2010). ISO/IEC 25010 system and software qual-

ity models.

Lee, K., Jeon, J., Lee, W., Jeong, S.-H., and Park, S.-W.

(2003). QoS for web services: Requirements and pos-

sible approaches. Technical Report NOTE-ws-qos-

20031125, W3C Korea Ofﬁce.

McCall, J. A., Richards, P. K., and Walters, G. F. (1977).

Factors in software quality. volume-iii. preliminary

handbook on software quality for an acquisiton man-

ager. Technical Report RADC-TR-77-369, Defense

Technical Information Center.

Miguel, J. P., Mauricio, D., and Rodriguez, G. D. (2014). A

review of software quality models for the evaluation

of software products. Int. J. of Soft. Eng. & Applic.,

5(6):31–54.

OASIS (2005). Quality model for web services.

O’Brien, L., Bass, L., and Merson, P. (2005). Quality at-

tributes and service-oriented architectures. Technical

Report CMU/SEI-2005-TN-014, Soft. Engin. Inst.,

Carnegie Mellon Univ.

Pettersson, A. (2007). Service-oriented architecture (SOA)

quality attributes – a research model. Master’s thesis,

Dept. of Informatics, Lunds Univ., Sweden.

Ran, S. (2003). A model for web services discovery with

QoS. ACM SIGecom Exchanges, 4(1):1–10.

Salles, G. M. B., Fantinato, M., Barros, V. A., and de Al-

buquerque, J. P. (2018). Evaluation of the strali-bpm

approach: Strategic alignment with bpm using agree-

ments in different levels. Int. J. of Bus. Inf. Syst.,

27(4):433–465.

Salles, G. M. B., Fantinato, M., de Albuquerque, J. P., and

Nishijima, M. (2013). A contribution to organiza-

tional and operational strategic alignment: Incorpo-

rating business level agreements into business process

modeling. In IEEE Int. Conf. on Serv. Comp., pages

17–24.

Sheoran, K. and Sangwan, O. P. (2015). An insight of

software quality models applied in predicting software

quality attributes: A comparative analysis. In 4th Int.

Conf. on Reliab., Infocom Techn. and Optim., pages

1–5.

Sommerville, I. (2010). Software Engineering. Pearson,

Addison-Wesley, 9 edition.

Tomar, A. B. and Thakare, V. M. (2011). A systematic study

of software quality models. Int. J. of Soft. Eng. & Ap-

plic., 2(4):61–70.

Yoon, S., Kim, D., and Han, S. (2004). WS-QDL containing

static, dynamic, and statistical factors of web services

quality. In Int. Conf. on Web Serv., pages 808–809.

Zeng, L., Benatallah, B., Dumas, M., Kalagnanam, J., and

Sheng, Q. Z. (2003). Quality driven web services

composition. In 12th Int. Conf. on WWW, pages 411–

421.

Zulzalil, H., Ghani, A. A. A., Selamat, M. H., and Mahmod,

R. (2008). A case study to identify quality attributes

relationships for web based applications. Int. J. of

Comp. Sci. and Network Security, 8(11):215–220.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

492
