Improving Reproducibility whilst Maintaining Accuracy in Function

Point Analysis

Marcos de Freitas Jr.

, Marcelo Fantinato

, Violeta Sun

, Lucin

eia H. Thom

and Vanja Garaj

School of Arts, Sciences and Humanities, University of S

ao Paulo, S

ao Paulo – SP, Brazil

Institute of Informatics, Federal University of Rio Grande do Sul, Porto Alegre – RS, Brazil

Department of Electronic and Computer Engineering, Brunel University London, U.K.

Keywords:

Function Point Analysis, Function Points, Business Processes, Functional Size, Functional Size Measurement.

Abstract:

Existing proposals to improve the measurement reproducibility of Function Point Analysis (FPA) oversim-

plify its standard rules, threatening its measurement accuracy. We introduce a new artifact called Function

Point Tree (FPT), which allows for full data collection required to count function points, reducing the ex-

perts’ personal interpretation and thus the size variation. The new measurement method, called FPT-based

FPA (FPT-FPA), enlarges FPA standardization and systematization. Using this method allows to improve

measurement reproducibility whilst maintaining its accuracy. Preliminary results of an empirical study show

coefﬁcients of variation for FTP-FPA lower than the maximum expected for both reproducibility and accuracy

for some scenarios.

1 INTRODUCTION

Function Point Analysis (FPA) is a standardized siz-

ing measurement method aimed at calculating a soft-

ware size measure from its functional requirements,

considering the functionality to be implemented on

user requests and replies (Albrecht, 1979). Results

obtained by FPA are widely used as a reference mea-

sure to derive other quantiﬁable parameters such as

effort, productivity or cost. The International Func-

tion Point Users Group (IFPUG) is the FPA regulator

agency, responsible for the improvement and devel-

opment of the rules set out in the Counting Practices

Manual (CPM) (IFPUG, 2010) in version 4.3.1. FPA

is also standardized by ISO/IEC 20926:2010.

However, a common criticism is FPA is rather sub-

jective as it requires expert judgment, restricting its

standardized use, as discussed in related work. Most

proposals to solve this subjectivity involve mapping

rules between software modeling artifacts (such as

UML) and FPA concepts to derive the functional size

(de Freitas Junior et al., 2015). However, the correct-

ness and completeness of existing artifact models are

not guaranteed as they were not built targeting FPA.

Although these approaches contribute at least par-

tially to improving the measurement reproducibility

among different measures, they overly simplify the

CPM rules. This simpliﬁcation occurs because no ar-

tifact is sufﬁciently detailed to fully apply the stan-

dard FPA method, i.e., the IFPUG’s FPA. In the worst

cases, the FPA counting rules are not applicable be-

cause the artifact model lacks some piece of essential

information (Lavazza et al., 2008). Thus, the existing

approaches to improve reproducibility compromise

the measurement accuracy relative to the true quantity

value. Reproducibility and accuracy are interrelated

and refer to verifying consistency and concordance of

measurement results obtained from repeated measure-

ments, by different subjects, under similar or identical

conditions when compared to the true quantity value.

To overcome the issues mentioned above, we pro-

pose a new measurement method named Function

Point Tree-based Function Point Analysis (FPT-FPA).

We propose to add to the artifact model function re-

ﬁnement tree (Insfr

an et al., 2002) extra informa-

tion needed to count function points, arising the new

model FPT. The extra information can be collected by

a requirements analyst during the software life cycle

to keep all the information needed to IFPUG’s FPA

focused in a single artifact. This enables applying all

FPA rules based on the FPT, reducing individual in-

terpretation because of the lack of speciﬁc informa-

tion to count function points. FPT-FPA was designed

to conform to IFPUG’s FPA. Thus, we aim to improve

the reproducibility of different measured quantity val-

ues by reducing the variation among them, whilst en-

Freitas Jr., M., Fantinato, M., Sun, V., Thom, L. and Garaj, V.

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis.

DOI: 10.5220/0007671700610072

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 61-72

ISBN: 978-989-758-372-8

suring the accuracy of the measured quantity values

relative to the true quantity value, which herein refers

to the value provided by IFPUG.

FPT-FPA was developed following the design sci-

ence research method (Hevner et al., 2004; Wieringa,

2014). Next sections present related work, the pro-

posed FPT-FPA method and experiment results.

2 RELATED WORK

We identiﬁed 15 related works with proposals simi-

lar to the new method proposed by us in this paper.

In these works, 12 base techniques or artifacts are

used, with some used more than one: UML’s class

diagram (Cantone et al., 2004; Harput et al., 2005;

Abrah

ao et al., 2007; Rao et al., 2008; Lavazza et al.,

2008; Chamundeswari and Babu, 2008; Pow-Sang

et al., 2013), UML’s sequence diagram (Uemura et al.,

2001; Cantone et al., 2004; Harput et al., 2005; Rao

et al., 2008; Lavazza et al., 2008), UML’s use case di-

agram (Cantone et al., 2004; Rao et al., 2008; Lavazza

et al., 2008), Source code (Klusener, 2003; Eda-

gawa et al., 2011), Requirements engineering-based

conceptual modeling (Abrah

ao and Insfr

an, 2008),

UML’s component diagram (Lavazza et al., 2008),

Object-oriented hypermedia’s navigation access di-

agram (Abrah

ao et al., 2007), Goal and scenario

based requirements text (Choi et al., 2006), Entity-

relationship – data ﬂow diagram (Lamma, 2004),

Entity-relationship diagram (Fraternali et al., 2006),

Vienna development method – speciﬁcation language

(Miyawaki et al., 2008) and Web modeling language’s

hypertext model (Fraternali et al., 2006).

The coverage of the standard FPA steps for these

12 works ranges from about 5% (Rao et al., 2008) to

70% (Lavazza et al., 2008), with an average of 30%.

Our work proposes 100% coverage.

3 FPT-FPA OVERVIEW

The uniqueness of the new method is its compli-

ance with all steps of IFPUG’s FPA. The new method

seeks to avoid calculating an invalid number of func-

tion points when compared to the true quantity value,

which might occur by simplifying the FPA’s steps.

The IFPUG’s FPA counting procedure starts (cf.

Fig. 1) with a requirements engineering by the re-

quirements analyst who delivers user requirements

speciﬁcation (or an equivalent artifact). No speciﬁc

format is required for this artifact, which is produced

following different approaches and techniques, in-

cluding composed ones. This subprocess is not de-

tailed herein.

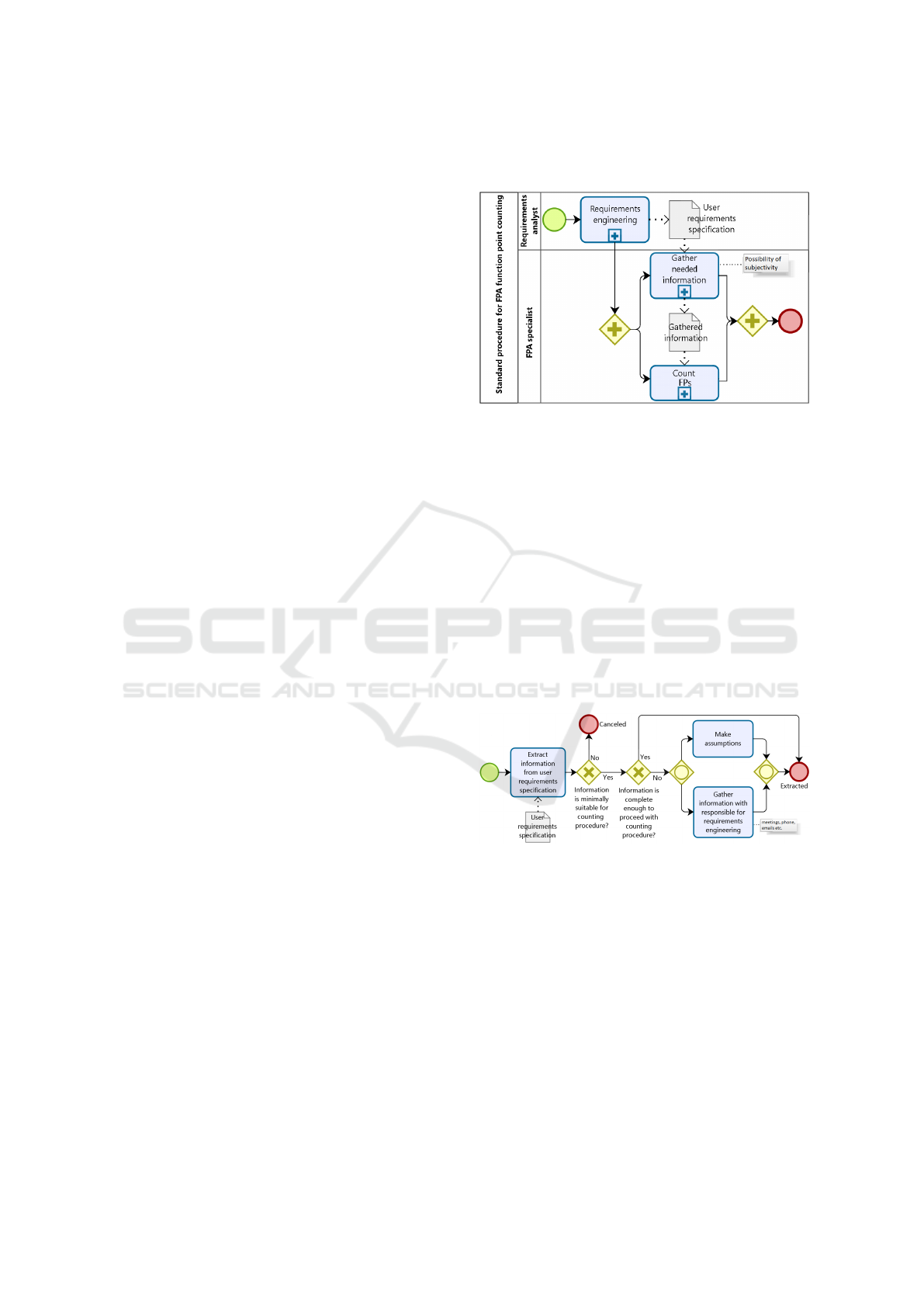

Figure 1: IFPUG’s FPA procedure to count function points.

The user requirements speciﬁcation is used by the

FPA expert to gather needed information. The gath-

ered information is then applied in parallel by the

same FPA expert to count FPs, which is a step also

not detailed herein. Since the user requirements spec-

iﬁcation can come in different formats, the FPA expert

should have to interpret this speciﬁcation to extract

the information needed to count function points.

The ﬁrst task to gather the needed information (cf.

Fig. 2) is to extract information from user require-

ments speciﬁcation. Next, the FPA expert assesses

whether the elementary processes and data functions

can be identiﬁed, i.e., whether the extracted informa-

tion is minimally suitable for the counting procedure;

if not, the procedure should be canceled.

Figure 2: Subprocess gather needed information.

Following, the FPA expert assesses whether the

extra information such as DET, FTR, RET and pro-

cessing logics can be identiﬁed, i.e., whether the ex-

tracted information is full enough to proceed with the

counting procedure and whether this subprocess can

be completed with all the information extracted. If

the FPA expert identiﬁes a lack of information, they

need to execute one or two of these tasks: (i) make as-

sumptions to complete the needed information or (ii)

informally gather information with responsible for re-

quirements engineering by meetings, e-mail, phone,

etc. Both cases can threat the reproducibility to count

function points as they may lead to important varia-

tions in the results of the function point counting.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

The FPT-FPA (Function Point Tree-based Func-

tion Point Analysis) method proposes to add a new

subprocess called elaborate the FPT as an extra task

to the IFPUG’s FPA counting procedure as part of the

requirements analyst duties (cf. Fig. 3). The need

for a formal FPA expert role is hence eliminated, as

the requirements analyst executes the FPA’s function

point counting with the support of the artifact FPT. A

part of the activities that should be performed by an

FPA expert is moved to the requirements analyst and

the other part is a standard procedure that can be auto-

mated. FPT-FPA improves the quality of the counting

as the requirements analyst masters the software re-

quirements. The requirements analyst does not need

knowledge in FPA as the function point counting is

automatically executed based on the FPT available.

As a potential drawback, the requirements analyst

needs to be an FPT expert, but this technique is more

related to their usual responsibilities than mastering

FPA, and then knowledge on all the FPA rules and

procedures is not required.

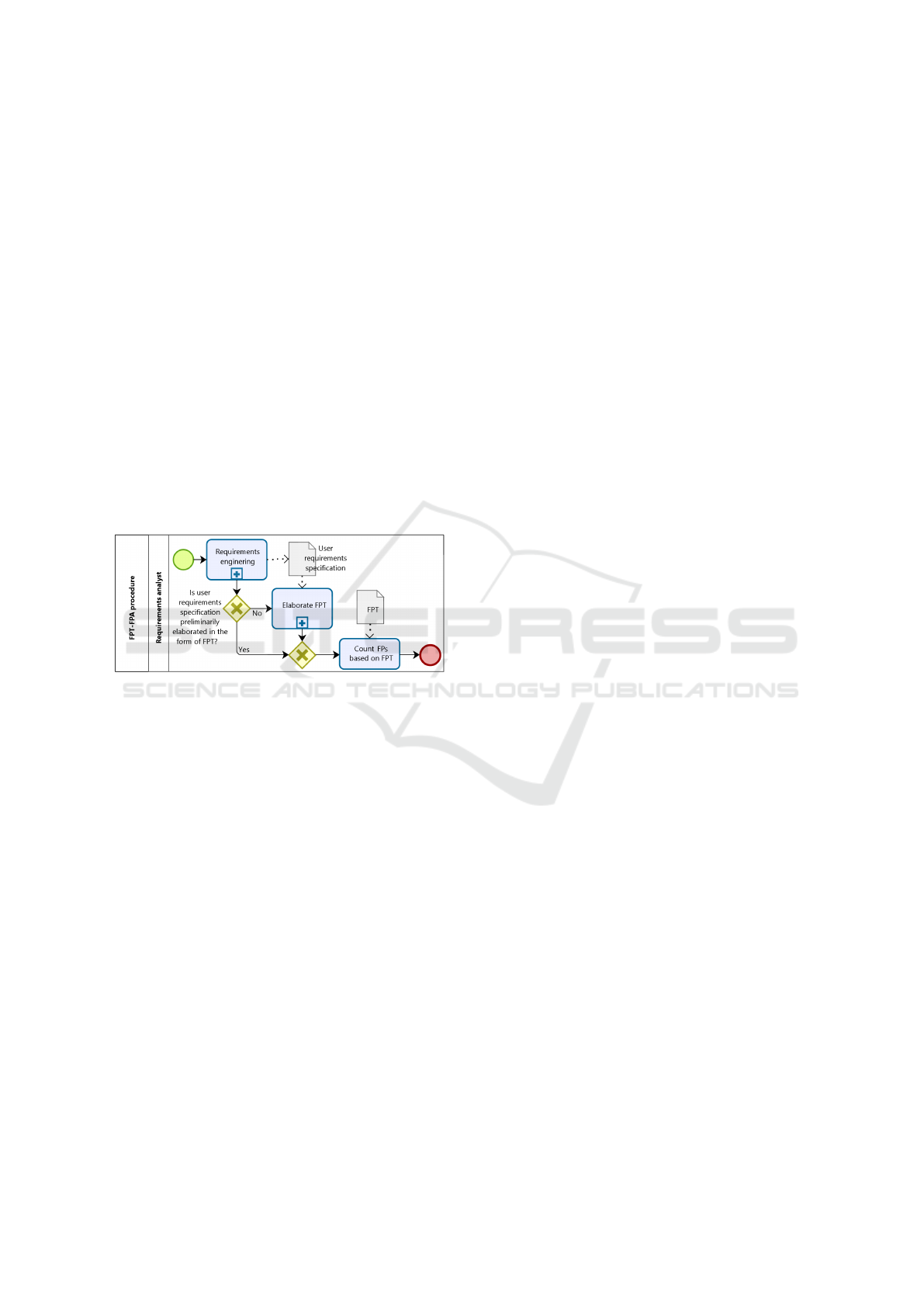

Figure 3: Procedure for the FPT-FPA’s function point count-

ing.

The FPT-FPA counting procedure also starts with

the requirements engineering, delivering the user re-

quirements speciﬁcation (or a corresponding artifact)

by the requirements analyst. In this new context, the

user requirement speciﬁcation, or at least a part, can

be ﬁrstly produced in an FPT, although not manda-

tory. If the user requirements speciﬁcation is prelimi-

narily elaborated in the form of an FPT, it is directly

used to count FPs based on the FPT. Otherwise, the

requirements analyst needs to elaborate the FPT be-

fore proceeding with the counting. The details of the

elaborate the FPT subprocess are presented in Sec-

tion 4 whereas the details of the count FPs based on

the FPT subprocess are presented in Section 5. Be-

cause of their complexities, none of these two sub-

processes are presented visually).

4 FPT ELABORATION

An FPT is composed of three levels: root, intermedi-

ate and leaf nodes. An illustrative example of an FPT

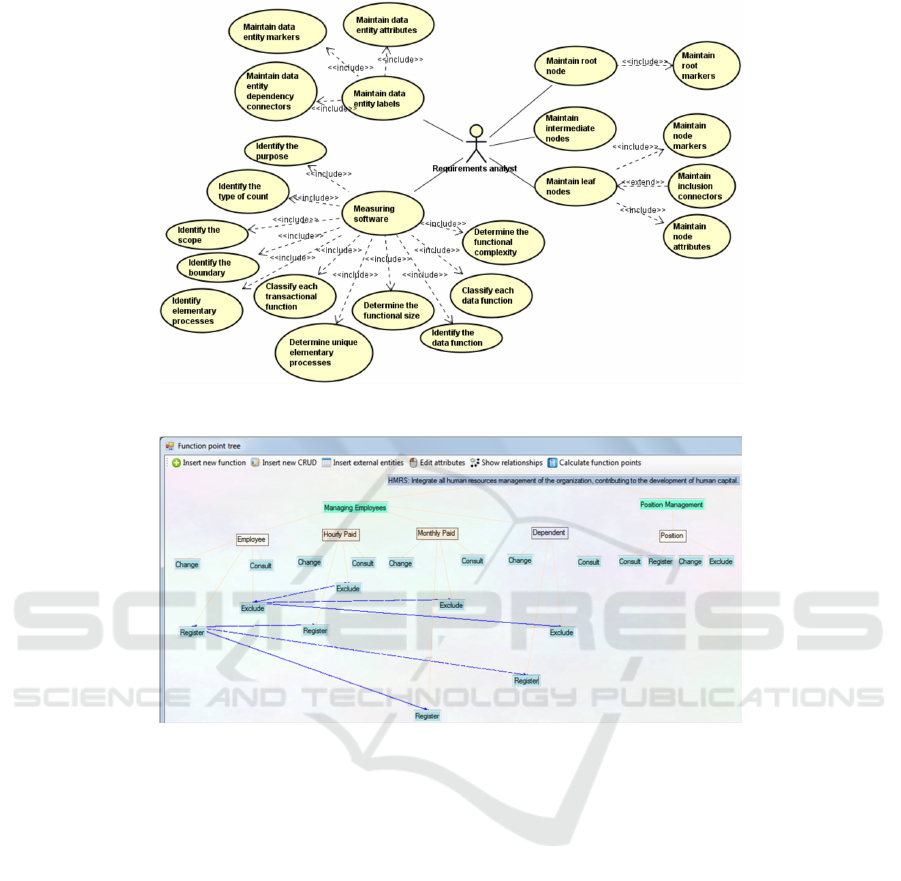

is shown in Fig. 4. The ﬁgure represents a Human

Resources Management System (HRMS).

4.1 Level 1: Tree Root

A tree root represents the counting purpose and the

counting type. Each root must have two types of as-

sociated root markers, showing: (i) the counting pur-

pose, i.e., the purpose for which an organization needs

to count function points according to the FPA con-

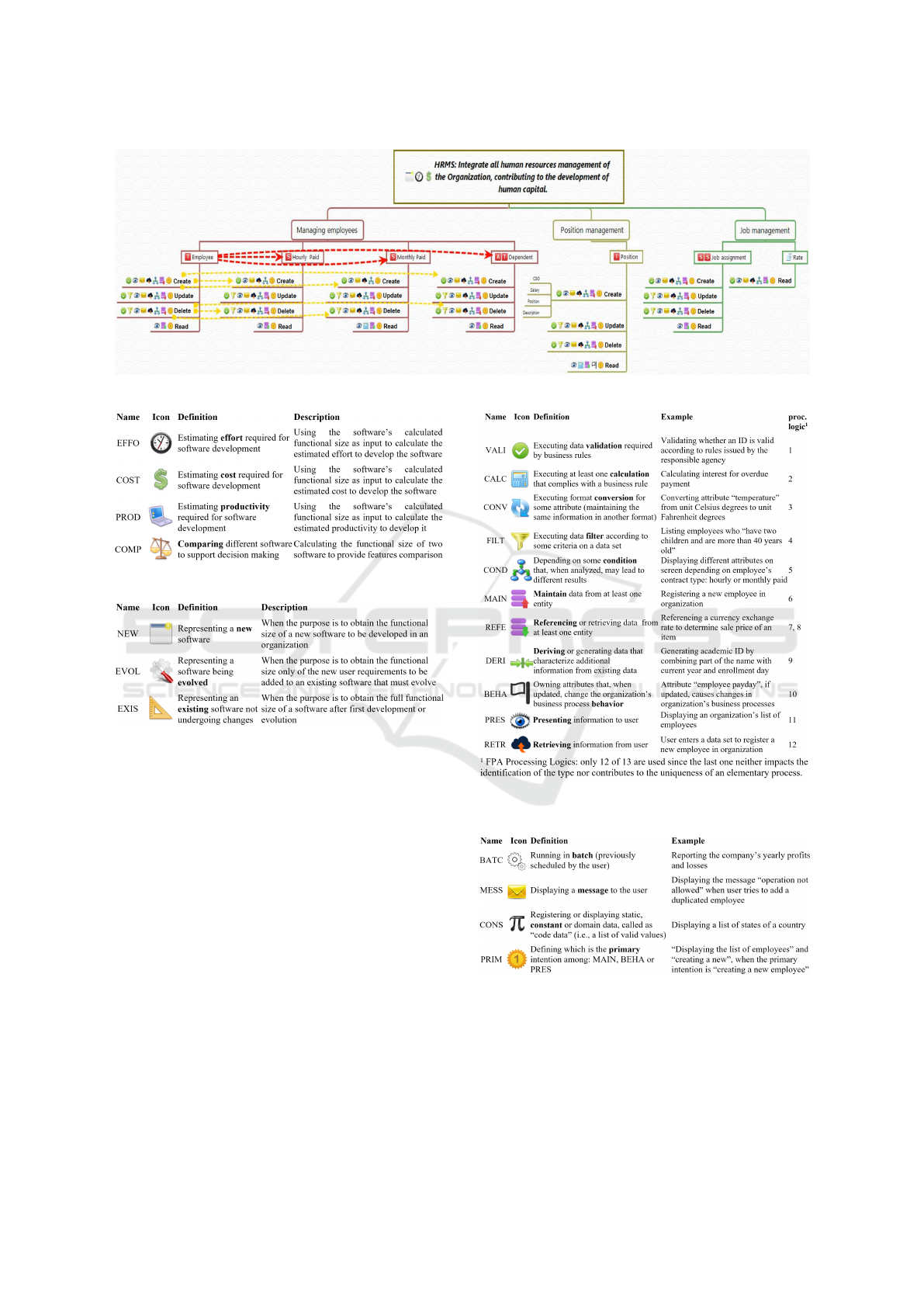

cepts (cf. Fig. 5); and (ii) the counting type, referring

to what will be done with the obtained measure (cf.

Fig. 6). Exactly one root marker exists for the former

case and at least one root marker exists for the latter.

4.2 Level 2: Intermediate Nodes

No change was proposed for the intermediate level on

the function reﬁnement tree as originally deﬁned.

4.3 Level 3: Leaf Nodes

Leaf nodes represent the elementary functions of the

software being measured. Every leaf node must in-

clude: node markers, inclusion dependency connec-

tors (when applicable) and node attributes.

4.3.1 Node Markers

Node markers refer to the behavior of the elemen-

tary functions during software execution. Whenever a

software elementary function contains one or more of

the behavior properties represented by node markers

(cf. Figs. 5 and Fig. 6), these markers are added into

the corresponding leaf node. Fig. 7 shows node mark-

ers whose corresponding behavior is connected to at

least one processing logic. Fig. 8 shows extra node

markers for the behavior of the elementary functions

with no corresponding FPA processing logic. The

node marker PRIM represents which marker among

MAIN, BEHA and PRES is the main purpose of an

elementary function. Thus, PRIM is required for a

leaf node only when at least two of these three node

markers (MAIN, BEHA, PRES) were selected; oth-

erwise, it does not apply. For example (cf. Fig. 4),

the elementary function create employee contains the

node markers VALI, PRES, MESS, REFE, COND,

MAIN and PRIM, so the marker PRIM was added be-

cause PRES and MAIN were previously added. Thus,

PRIM is to inform whether the main purpose of this

elementary function is PRES or MAIN. Speciﬁcally,

in this example, the PRIM value is MAIN.

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis

Figure 4: Example of FPT.

Figure 5: Root markers for counting purposes.

Figure 6: Root markers to represent for counting types.

4.3.2 Inclusion Dependency Connector between

Elementary Functions

An inclusion dependency connector shows an inclu-

sion dependency relationship between two elemen-

tary functions. It is used when the elementary func-

tion after the arrow does not comply with the user

functional requirements if performed alone, but only

if the elementary function contrary to the arrow is

executed ﬁrst. For example, a user functional re-

quirement might require that, after registering an em-

ployee, payment details (monthly or hourly) and de-

pendents have to be registered. Both following ac-

tions do not comply with this user functional require-

ment: (i) registering an employee without sequen-

tially either registering their payment details (monthly

or hourly) or registering their dependents; and (ii) ﬁrst

registering the employee’s payment details (monthly

or hourly) or ﬁrst registering the employee’s depen-

dents, both without ever having previously registered

Figure 7: Node markers for the behavior of the elementary

functions for the FPA processing logics.

Figure 8: Extra node markers for elementary function be-

havior (without corresponding FPA processing logic).

this employee. Therefore, the leaf nodes create em-

ployee, create hourly paid employee, create monthly

paid employee and create dependent are connected by

an inclusion dependency connector, starting from cre-

ate employee ﬁrst and heading toward the other three.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

4.3.3 Node Attributes

Node attributes show the information to be displayed

to or informed by a user during execution of elemen-

tary functions. For each node attribute, it should be

informed: if the information is displayed either in

screen header or footer; if the information is avail-

able for data reading or input or both; and if the infor-

mation has meaning stand-alone to business or only

when combined with another one.

4.4 Relationships Amongst Levels

All intermediate nodes are connected to the tree root

(root-intermediate connections); and all leaf nodes are

connected to an intermediate node (intermediate-leaf

connections). For the latter, these data accompanies

the connections whenever appropriate: data entity la-

bels; data entity markers; exclusion dependency con-

nectors; and data entity attributes:

4.4.1 Data Entity Label

A data entity associated with an intermediate-leaf

connection represents a software data entity main-

tained or referenced by the elementary functions rep-

resented by the corresponding leaf nodes. For exam-

ple (cf. Fig. 4), the label position represents a data

entity maintained or referenced by four elementary

functions: create, update, delete and read (position).

Each informed data entity (i.e., a data entity label) is

accompanied by these extra data: data entity markers;

exclusion dependency connectors (whenever appro-

priate); and data entity attributes – described as fol-

lows. Data entities neither maintained nor referenced

by elementary functions should not be modeled.

4.4.2 Data Entity Markers

Whenever a data entity presents one or more of the

properties related to the ﬁve markers showed in Fig.

9, the corresponding markers are added to the corre-

sponding data entity.

4.4.3 Exclusion Dependency Connector between

Data Entities

This relationship is represented by a red arrow and it

attaches two data entities together. The arrow con-

nects a data entity with other data entities that com-

pose it so that the subsequent data entities (i.e., after

the arrow) are parts of the ﬁrst one (i.e., contrary to

the arrow). If the ﬁrst data entity is deleted, all the

data entities connected to it by exclusion dependency

connectors are also deleted as they do not exist alone.

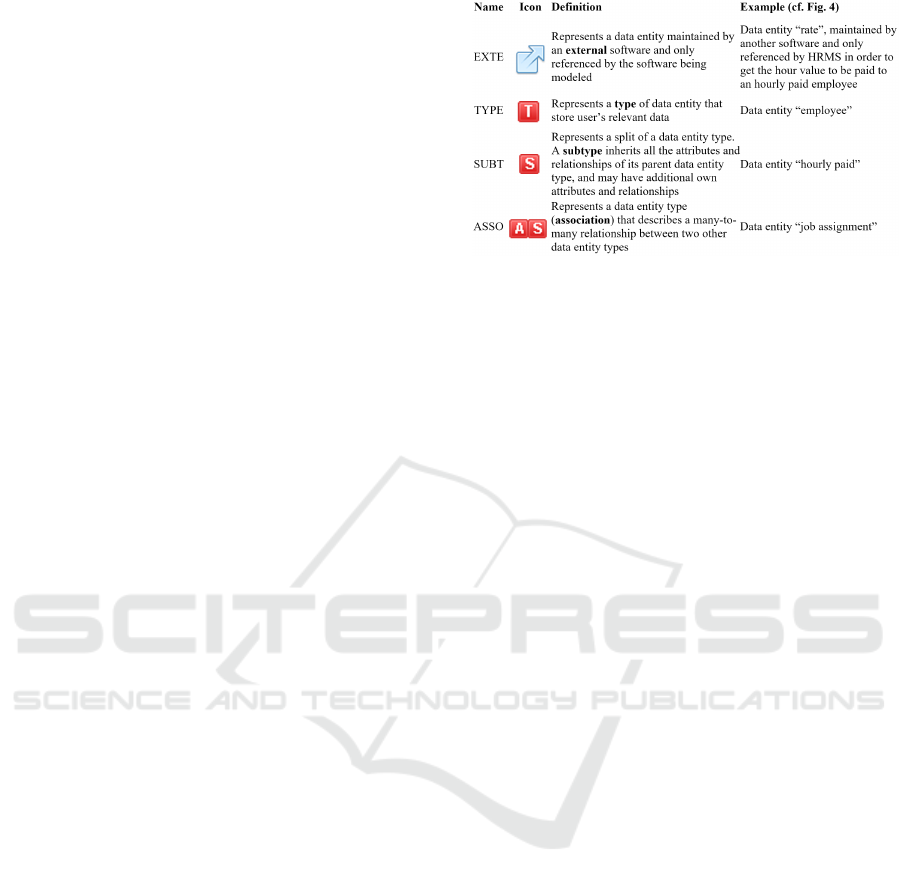

Figure 9: Data entity markers for data entity properties.

For example (cf. Fig. 4), if a user functional require-

ment requires that, by deleting an employee, all the

employee’s dependents and the employee data (what-

ever they are hourly or monthly paid) are also deleted;

then, the dependent data entities (dependent, hourly

paid, and monthly paid) have no meaning alone with-

out a connection to an employee. Therefore, hourly

paid, monthly paid and dependent are connected via

an exclusion dependency connector to employee.

4.4.4 Data Entity Attributes

Data entity attributes represent the information stored

in a data entity. The data entity attributes are main-

tained or referenced by the elementary functions rep-

resented by the leaf nodes. For each data entity,

all data maintained or referenced needed to execute

the corresponding elementary functions is informed.

For each data entity attribute, it is needed to inform

whether the information has meaning stand-alone to

business or only when combined with another one.

5 FPT-FPA-BASED COUNTING

Mapping rules are used so that the data modeled on

the FPT are used as input to FPA. The proposed

rules are described herein following the IFPUG’s FPA

counting steps, i.e., according to the IFPUG’s CPM

steps.

The function point counting starts by gathering the

software documentation. The only input needed is the

FPT and not all the relevant available artifacts as de-

ﬁned by IFPUG’s FPA. The FPT is enough and hence

the only relevant and needed artifact. Therefore, the

information contained in this artifact supports the exe-

cution of the ﬁve stages of the function point counting

as follows. Only the three ﬁrst stages described for IF-

PUG’s FPA are detailed here as no change is proposed

to the last two stages (calculating the functional size

and documenting the counting and report the results).

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis

5.1 Boundary, Scope and Purpose

The counting boundary is represented by the tree root

as it deﬁnes – as child or grandchild nodes – all the

sets of functions and data entities to be addressed dur-

ing the counting procedure. Any other function or

data entity not added in the tree is considered out-

side of the counting border. The counting scope is

represented by all the elementary functions (i.e., leaf

nodes), and all data entities of the FPT. The full set

of elementary functions and data entities is consid-

ered belonging to the counting scope. The counting

purpose is represented by one of these root markers:

EFFO, COST, PROD or COMP. As each FPT has

only one root marker, the marker that is added in the

tree and its corresponding meaning are to deﬁne the

counting purpose. The counting type is represented in

FPT-FPA by a set of one or more of these root mark-

ers NEW, EVOL and EXIS. Since each FPT may have

one or more of these root markers, all the markers

added in the tree and their corresponding meanings

are to deﬁne the counting type.

5.2 Measuring Data Functions

This section presents the steps to measure data func-

tions.

5.2.1 Identifying the Data Functions

Each data entity is mapped to a single data function

or as part of a composed data function, unless: (i)

the data entity refers to a code data, i.e., data en-

tities whose associated elementary function (i.e., a

leaf node) has the node marker CONS are discarded;

(ii) the data entity stores only attributes unacknowl-

edged by business process users, i.e., data entities

whose information represented by its data entity at-

tributes has no meaning stand-alone to business are

discarded; (iii) the data entity describes a many-to-

many relationship between two other data entity types

and contains only foreign keys, i.e., data entities hav-

ing the data entity marker ASSO and presenting up to

two data entity attributes with meaning stand-alone to

business are discarded; and (iv) the data entity stores

only one data entity attribute, i.e., data entities pre-

senting only one data entity attribute with meaning

stand-alone to business are discarded.

All data entities complying with all previous con-

straints are mapped to a single data function or as part

of a composed data function depending on whether

they are logically dependent or independent among

them: (i) data entities logically independent of all the

other data entities, i.e., those not linked to any other

data entity by an exclusion dependency connector, are

directly mapped to a single data function each one.

Thus, only data entities having meaning to business

by their own are mapped to single data functions; and

(ii) a set of data entities logically dependent among

them, i.e., linked one to another by exclusion depen-

dency connectors, is grouped and mapped to a sin-

gle data function. Thus, data entities with meaning to

business only when combined are mapped together to

a single data function.

5.2.2 Classifying the Data Functions as Internal

Logical File (ILF) or External Interface

File (EIF)

This classiﬁcation relies on the elementary functions

that manipulate the data entities components of the

data functions. These rules are followed to classify a

data function:

• ILF: data functions that comply with this con-

straint: at least one of its data entities is associated

with an elementary function (i.e., a leaf node) that

presents the node marker MAIN.

• EIF: data functions that comply with these con-

straints: (a) none of its data entities is associated

with any elementary function (i.e., a leaf node)

that presents the node marker MAIN and (b) at

least one of its data entities presents the data en-

tity marker EXTE.

5.2.3 Determining the Numbers of Data Element

Type (DET) and Record Element Type

(RET) for the Data Functions

For DETs, the number is counted of the data entity at-

tributes (associated with its data entities) with mean-

ing stand-alone to business. For RETs, it is consid-

ered the data entity properties (deﬁned by the data en-

tity markers) of its data entities, based on two rules:

(i) each data entity marked as SUBT, ATTR or ASSO

is counted as a RET of the corresponding data func-

tion; and (ii) each data entity marked as TYPE and not

linked (by exclusion dependency connector) to any

data entity marked as SUBT is counted as a RET of

the corresponding data function.

5.2.4 Determining Complexity and Contribution

for the Data Functions

Based on the DET and RET obtained, the complex-

ity (i.e., low, medium or high) of each data function

is determined, by the direct application of the val-

ues pre-deﬁned by IFPUG’s FPA. Finally, based on

these obtained complexities, the last step determines

the contribution on the functional size of each data

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

function, which is executed by the direct application

of the values pre-deﬁned for IFPUG’s FPA.

5.3 Measuring Transactional Functions

This section presents the steps to measure transac-

tional functions.

5.3.1 Identifying the Elementary Processes

Each elementary function (i.e., a leaf node) added in

the FPT is mapped to a single elementary process or

as part of a composed elementary process, unless: (i)

the elementary function maintains or has references

to code data, i.e., elementary functions presenting the

node marker CONS are discarded according to IF-

PUG’s CPM (IFPUG, 2010); and (ii) the elementary

function does not process data or control information

retrieved from outside the boundary and does not send

data or control information to outside the border, i.e.,

elementary functions with no node attribute inform-

ing availability for user data reading or input are dis-

carded.

All the elementary functions complying with pre-

vious constraints are mapped to a single elementary

process or a part of a composed elementary process

depending on whether they are logically dependent

or independent among them: (i) elementary functions

logically independent of any other elementary func-

tion, i.e., those not linked to any other elementary

function by an inclusion dependency connector, are

each one directly mapped to a single elementary func-

tion; and (ii) a set of elementary functions logically

dependent among them, i.e., linked one to another

by inclusion dependency connectors, is grouped and

mapped to a single elementary process. According

to this classiﬁcation, an elementary process maintains

software in a consistent state after its execution, i.e.,

it makes up a full transaction, is self-contained, and is

the smallest meaningful unit of activity.

5.3.2 Determining Unique Elementary Processes

Each unique elementary process is identiﬁed as a

transactional function. Two or more elementary pro-

cesses are unique elementary process if they have:

(i) the same node markers representing processing

logics (i.e., VALI, CALC, CONV, FILT, COND,

MAIN, REFE, DERI, BEHA, PRES and RETR); (ii)

the same node attributes representing Data Element

Types (DET) for the elementary process; and (iii) the

same data entities representing File Type Reference

(FTR) for the associated elementary process.

5.3.3 Classifying the Transactional Functions as

External Input (EI), External Output (EO)

or External Inquiry (EQ)

This classiﬁcation relies on the primary intention (i.e.,

the node marker PRIM) of the elementary functions

that compose the transactional functions. These rules

are followed to classify a transaction function:

• EI: transactional functions that comply with this

constraint – at least one of its elementary func-

tions presents the node marker PRIM showing as

the primary intention the node markers MAIN or

BEHA.

• EO: transactional functions that comply with

these constraints – (a) none of its elementary

functions presents the node marker PRIM show-

ing as the primary intention the node markers

MAIN or BEHA, (b) at least one of its elemen-

tary functions presents the node markers CALC,

MAIN, BEHA or DERI and (c) at least one of its

elementary functions marked as CALC, MAIN,

BEHA or DERI presents at least one node at-

tribute informing availability for user data read-

ing.

• EQ: transactional functions that comply with

these constraints – (a) none of its elementary

functions presents the node marker PRIM show-

ing as the primary intention the node markers

MAIN or BEHA, (b) none of its elementary func-

tions presents the node markers CALC, MAIN,

BEHA and DERI and (c) at least one of its ele-

mentary functions presents one or more node at-

tributes informing availability for user data read-

ing.

5.3.4 Determining the Numbers of DET and

FTR for the Transactional Functions

To determine the number of DETs for a transactional

function, the number is counted of node attributes (as-

sociated with its elementary functions) with meaning

stand-alone to business. These extra rules are: (i) if

the information corresponding to a node attribute is

displayed only in the screen’s header or footer, then

this node attribute is discarded for the counting of

DETs; (ii) if one of the elementary functions presents

the node marker MESS, it is counted an extra DET

for the corresponding transactional function, consid-

ering the functional ability to display a message to the

user; and (iii) if one of the elementary functions does

not show the node marker BATC, it is counted one ex-

tra DET for the corresponding transactional function,

taking the functional ability to initiate some action.

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis

Then, to determine the number of FTRs for a

transactional function, the data entities related to the

elementary functions constituents of this transaction

function is considered. Each data entity identiﬁed as a

data function (or as part of a data function) and asso-

ciated with the corresponding transactional function

is counted as an FTR for this transactional function.

5.3.5 Determining Complexity and Contribution

for the Transactional Functions

Based on the numbers of DET and FTR obtained, the

complexity (i.e., low, medium or high) of each trans-

actional function is determined, by the direct applica-

tion of the values pre-deﬁned for IFPUG’s FPA. Fi-

nally, based on these obtained complexities, the last

step determines the contribution on the functional size

of each transactional function, which is executed by

the direct application of the values pre-deﬁned for IF-

PUG’s FPA.

6 EVALUATION OF FPT-FPA

An empirical study was conducted to evaluate FPT-

FPA regarding its measurement reproducibility and

accuracy. A quasi-experiment was run to test the

hypothesis that FPT-FPA enables a higher repro-

ducibility and accuracy than IFPUG’s FPA. A quasi-

experiment was applied since it would be impractical

to randomly select the subjects because of the com-

plexity of this study (Easterbrook et al., 2008; Kamp-

enesa et al., 2009).

6.1 Support Tool

A tool was prototyped to support the function point

counting based on the FPT-FPA method. The proto-

type was aimed at demonstrating the automation fea-

sibility of FPT-FPA and helping verify and validate

the proposed method as a proof of concept. The eval-

uation also considered the method execution manu-

ally to ensure its correctness regardless of whether the

tool is used or whether the tool is correctly imple-

mented. A full tool for commercial purposes was not

the primary goal and hence non-functional require-

ments such as usability, performance and others were

not addressed. The FPT was simpliﬁed on the graphic

representation of the elements root markers, nodes

and data entity labels (cf. Fig. 4).

The prototype tool was developed on the .NET

4.5 framework, using the programming language C#

according to the object-oriented paradigm. For data

storage, XML format was used with a set of properties

called LINQ (Language Integrated Query), which en-

ables the development of queries using the C# syntax.

The prototype tool architecture is organized based on

the MVC (Model View Controller) software architec-

tural pattern [38]. In addition to the three standard

MVC layers, an extra layer – called persistence – was

created, dedicated speciﬁcally to the communication

between software and database, to maximize the ben-

eﬁts of the logical separation provided by the MVC

layers.

Fig. 10 shows a use case diagram representing

the prototype functional requirements. The diagram

brings ﬁve main use cases to be used by the only ac-

tor to whom the system is designed – the requirements

analyst. Thus, with the proposed method, an FPA ex-

pert would be no longer needed and the requirement

analyst would receive some extra tasks.

Fig. 11 shows a screenshot of the prototype. The

ﬁgure shows a part of the FPT previously shown in

Fig. 4, with limitations of the prototype because of the

scenario mentioned at the beginning of this section.

The full FPT is not shown in this ﬁgure because of

readability.

6.2 Experiment Design

This section presents the planning of the experiment

that was carried out. The experiment was designed

based on a framework for experimental software engi-

neering (Wohlin et al., 2012). The experiment aimed

to investigate whether the proposed method shows

better reproducibility and accuracy levels when com-

pared to reference values obtained by IFPUG’s FPA.

Based on the GQM (Goal/Question/Metric) template

(Basili and Rombach, 1998), the goal pursued in this

experiment was: to analyze the proposed method for

the purpose of evaluating it in comparison with IF-

PUG’s FPA regarding reproducibility and accuracy,

from the point of view of the researcher, in the context

of M.Sc. students and practitioners measuring func-

tion points.

The analysis of the results considered:

• Reproducibility as the agreement between the

measurement results of different subjects. Repro-

ducibility was examined as calculated by different

subjects by FPT-FPA, by comparing the obtained

calculation results among subjects. We expected

to get a coefﬁcient of variation for the results with

FPT-FPA lower than 17.67%, as this is the aver-

age of the coefﬁcients of variation found in re-

lated work on reproducibility (Connolley, 1990;

Low and Jeffery, 1990; Kemerer, 1993). Although

the only found sources are out-of-date, they can

be used as a reference value as FPA can be kept

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 10: Use case diagram for the support prototype.

Figure 11: Screenshot of the developed prototype.

without substantial changes along these years.

• Accuracy as the agreement between the measure-

ment results and the true quantity value. Accuracy

was examined as calculated by different subjects

by FPT-FPA, by comparing the results with the

ofﬁcial reference value as reported by IFPUG. We

expected to get a coefﬁcient of variation between

the results with FPT-FPA and the IFPUG’s ofﬁcial

value lower than 10.71% as this is the average of

the coefﬁcients of variation found in related work

on accuracy (Uemura et al., 2001; Lamma, 2004;

Fraternali et al., 2006; Miyawaki et al., 2008;

Abrah

ao and Insfr

an, 2008; Adem and Kasirun,

2010; Edagawa et al., 2011).

For the analysis of these two criteria, the total

numbers of measured function points were consid-

ered, i.e., the sum of all Base Functional Compo-

nents (BFC), from both data functions (ILF and EIF)

and transactional functions (EI, EO and EQ). Thus,

the reproducibility and accuracy analyses were per-

formed by evaluating the method as a whole and not

focusing on speciﬁc components. Regardless, some

breakdown values are also presented relating to BFCs

to help identify where reproducibility and accuracy

problems may be located speciﬁcally.

The other parameters of the designed experiment

are presented as follows:

• Subjects: a group of 17 participants with an ed-

ucation background in information systems (or

similar) was selected. Most of the subjects had the

experience of working in the industry for between

1 and 20 years. The subjects were selected by

convenience, with the majority being from orga-

nizations related to software and systems develop-

ment. The remaining subjects were selected from

an academic stricto sensu graduate program. As

the proposal assumes that the FPA expert would

be no longer needed, as the elaboration of the

FPT can be done directly by other roles, the se-

lected subjects were mainly requirements or sys-

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis

tems analysts (or related roles), who are the tar-

get users of the proposed method. The only con-

straint was that they should not have previously

known FPA to avoid the application of the previ-

ous experience and personal techniques in manag-

ing the provided information instead of using the

FPT-FPA method.

• Variables:

– Independent Variables: the primary indepen-

dent variable refers to the methods being com-

pared – FTP-FPA and FPA. The secondary in-

dependent variable was the type of execution

of the FTP-FPA method, i.e., manual or auto-

mated.

– Dependent Variables: the two dependents

variables are – reproducibility and accuracy.

• Treatment: the higher-level treatment refers to

the primary independent variable – FPT-FPA ver-

sus IFPUG’s FPA. All the subjects carried out

only the FPT-FPA method, contributing to an ob-

servation from each subject. The IFPUG’s FPA

method was not carried out during the experiment

execution as the values for reproducibility and ac-

curacy found in the literature were used as a refer-

ence for comparison with FPT-FPA. As the lower-

level treatment, to address the secondary goal, the

subjects were randomly assigned to two groups to

compare the performance for: manual execution

– eight subjects executed FPT-FPA manually; and

automated execution – nine subjects executed

PPT-FPA supported by the prototype.

• Instrumentation:

– Training: the subjects were provided with

the description of the proposed method, an

overview of the experiment and no example.

– Object: a software speciﬁcation previously

measured by IFPUG’s was used with 125 func-

tion points (IFPUG, 2010); all the subjects

elaborated an FPT for the object; subsequently,

they counted the function points for this sys-

tem, based on the elaborated tree.

– Prototype or Results Form: the prototype was

provided to those subjects who should use it

during the experiment and a form was provided

to the other ones.

– Characterization Form: each subject reported

basic personal information and the total time

spent.

• Hypotheses:

– Hypothesis A: refers to the primary indepen-

dent variable and the dependent variable of re-

producibility: the hypothesis is that FPT-FPA

has a reproducibility coefﬁcient of variation

equal to or greater than 17.67%, i.e., FPT-FPA

has an equivalent or higher reproducibility than

IFPUG’s FPA.

– Hypothesis B: refers to the primary indepen-

dent variable and the dependent variable of ac-

curacy: the hypothesis is that FPT-FPA has

an accuracy coefﬁcient of variation equal or

greater than 10.71%, i.e., FPT-FPA has an

equivalent or higher accuracy than IFPUG’s

FPA.

6.3 Subjects Proﬁle

Fig. 12 shows the proﬁle of the subjects, includ-

ing their education background, current position and

work experience. All the 17 subjects held at least a

graduate degree in information systems or related ar-

eas and seven of them also held a lato sensu post-

graduate degree. From them, 13 were working in the

industry, with the majority acting as a system or re-

quirements analyst, and also one developer and one

manager. Some of these 13 subjects working in the in-

dustry were also enrolled in a Master of Science Grad-

uate Program in Information Systems. The remaining

four subjects to complete 17 were fully enrolled in the

same master program; with some previous experience

in the industry. The length of work experience for the

sample ranges from 1 to 20 years.

6.4 Results Achieved

Table 1 shows a results breakdown per subject. These

results include the number of function points mea-

sured, the time spent and the type of execution – Man-

ual (M) or Automated (A). Table 2 shows the mean

values for the function points measured by FPT-FPA

and other derived values needed to evaluate repro-

ducibility and accuracy, for both automated and man-

ual executions.

As for time spent by the subjects applying FPT-

FPA, the following mean values were obtained (in

hours): 2.45 for execution via support prototype and

4.48 for manual execution. The relationship between

the two groups was 55% automated/manual.

For reproducibility, the coefﬁcient of variation,

relative to the mean (to measure reproducibility), cal-

culated as 9.99%, when observing the measurement

results for all subjects is nearly half the maximum de-

ﬁned as the study goal compared to the related work

(i.e., 17.67%). This value shows that, on reproducibil-

ity, the proposed method is on average substantially

better than other approaches present in literature.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 12: Selected subjects proﬁle.

Table 1: Measurement results – totalized data and transactional functions (Reference value = IFPUG’s ofﬁcial value).

Ref. value P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 Mean

# of FPs (total) 125 104 109 88 110 111 102 101 124 124 122 124 118 124 128 128 122 130 115.82

Execut. time (h) N/A 1.7 2.5 2.6 1.1 2.3 2.1 4.5 2.8 3.5 4.2 3.8 3.2 3.0 5.0 8.0 7.5 2.1 3.52

Execut. type N/A A A A A A A A A M M M M M M M M M –

Table 2: Consolidated results on reproducibility and accuracy (totalized data and transactional functions).

Relative to the mean Relative to the true quantity value –

(reproducibility) IFPUG’s ofﬁcial value (Accuracy)

Perspective of analysis Mean of the

measured values

Standard

deviation

Coefﬁcient

of variation

Standard

deviation

Coefﬁcient

of variation

All subjects (M+A) 115.82 11.57 9.99% 14.76 11.81%

Only manually (M) 124.44 3.50 2.81% 3.54 2.83%

Only automated (A) 106.13 9.64 9.08% 21.19 16.95%

For accuracy, the coefﬁcient of variation relative

to the IFPUG’s ofﬁcial value, calculated as 11.81%

based on the measurement results for all subjects, is

slightly higher than the maximum deﬁned as the study

goal compared to the related work (i.e., 10.71%). This

value shows that, on accuracy, the proposed method is

less accurate than those found in related work. How-

ever, when considering different perspectives, better

results are also found. For example, when the re-

sults are evaluated taking into account only the sub-

jects who executed the method manually, it is also

observed a better coefﬁcient of variation calculated as

2.83%, which is much lower than the maximum value

deﬁned as the study goal (i.e., 10.71%).

7 CONCLUSION

FPA has played a key role in private and public

organizations. It is imperative to get reliable and

valid results with the application of this measure-

ment method. However, several issues exist regard-

ing the reproducibility and accuracy of the function

point counting executed using IFPUG’s FPA. This

work aimed to deﬁne a measurement method called

Function Point Tree-based Function Point Analysis

(FPT-FPA), aiming to provide a better standardiza-

tion to count function points. This standardization is

achieved by a new artifact model that includes all in-

formation needed for the counting, called FPT. The

FPT enables counting with improved reproducibility

among different measures whilst maintaining the ac-

curacy with IFPUG’s FPA.

The evaluation showed that the proposed method

presented positive values when the proposed method

was manually executed, on both reproducibility and

accuracy; showing that the proposed method has con-

ceptual soundness. However, the results were not so

good when the proposed method was executed sup-

ported by the prototype, mainly on accuracy; show-

ing that the prototype solution still requires adjusts to

present a more important contribution.

Future works may include ﬁnding the better ad-

justments to the method conceptual rules and the pro-

totype to ensure that all the functional requirements

are completely and correctly added by the technical

users in the FPT. These actions are needed to deliver

results with a higher reproducibility and accuracy, re-

gardless of external factors.

REFERENCES

Abrah

ao, S. and Insfr

an, E. (2008). A metamodeling ap-

proach to estimate software size from requirements

speciﬁcations. In Proceedings of the 34th Euromicro

Conference Software Engineering and Advanced Ap-

plications, pages 465–475.

Improving Reproducibility whilst Maintaining Accuracy in Function Point Analysis

Abrah

ao, S., Mendes, E., Gomez, J., and Insfr

an, E. (2007).

A model-driven measurement procedure for sizing

web applications: Design, automation and validation.

In Proceedings of the 10th International Conference

on Model Driven Engineering Languages and Sytems,

pages 467–481.

Adem, N. A. Z. and Kasirun, Z. M. (2010). Automating

function points analysis based on functional and non

functional requirements text. In Proceedings of the

2nd International Conference on Computer and Au-

tomation Engineering, pages 664–669.

Albrecht, A. J. (1979). Measuring application develop-

ment productivity. In Proceedings of the Joint SHARE,

GUIDE, and IBM Application Development Sympo-

sium, pages 83–92.

Basili, V. R. and Rombach, H. D. (1998). The TAME

project: towards improvement-oriented software envi-

ronments. IEEE Transactions on Software Engineer-

ing, 14(6):758–773.

Cantone, G., Pace, D., and Calavaro, G. (2004). Applying

function point to uniﬁed modeling language: Conver-

sion model and pilot study. In Proceedings of the 10th

International Symposium on Software Metrics, pages

280–291.

Chamundeswari, A. and Babu, C. (2008). An extended

function point approach for size estimation of object-

oriented software. pages 139–145.

Choi, S., Park, S., and Sugumaran, V. (2006). Function

point extraction method from goal and scenario based

requirements text. In Proceedings of the 11th Inter-

national Conference on Applications of Natural Lan-

guage to Information Sytems, pages 12–24.

Connolley, M. J. (1990). An Empirical Study of Function

Point Analysis Reliability. MIT, USA.

de Freitas Junior, M., Fantinato, M., and Sun, V. (2015).

Improvements to the function point analysis method:

A systematic literature review. IEEE Transactions on

Engineering Management, 62(4):495–506.

Easterbrook, S., Singer, J., Storey, M.-A., and Damian, D.

(2008). Selecting empirical methods for software En-

gineeringeering research, pages 285–311.

Edagawa, T., Akaike, T., Higo, Y., Kusumoto, S., Hanabusa,

S., and Shibamoto, T. (2011). Function point mea-

surement from web application source code based on

screen transitions and database accesses. Journal of

Sytems and Software, 84(6):976–984.

Fraternali, P., Tisi, M., and Bongio, A. (2006). Automat-

ing function point analysis with model driven devel-

opment. In Proceedings of the 16th Conference of

the Center for Advanced Studies on Collaborative Re-

search, page 18.

Harput, V., Kaindl, H., and Kramer, S. (2005). Extend-

ing function point analysis of object-oriented require-

ments speciﬁcations. In Proceedings of the 11th Inter-

national Software Metrics Symposium, pages 39–39.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information system research. MIS

Quarterly, 28(1):75–105.

IFPUG (2010). Function Point Counting Practices Man-

ual, release 4.3.1. International Function Point Users

Group, Westerville, Ohio.

Insfr

an, E., Pastor, O., and Wieringa, R. (2002). Require-

ments engineeringeering-based conceptual modelling.

Requirements Engineering, 7(2):61–72.

Kampenesa, V. B., Dyb

aa, T., Hannaya, J. E., and Sjøberga,

D. I. K. (2009). A systematic review of quasi-

experiments in software engineeringeering. Informa-

tion and Software Technology, 51(1):71–82.

Kemerer, C. F. (1993). Reliability of function points mea-

surement: A ﬁeld experiment. Communications of the

ACM, 36(2):85–97.

Klusener, S. (2003). Source code based function point anal-

ysis for enhancement projects. In Proceedings of the

29th International Conference on Software Mainte-

nance, pages 373–376.

Lamma, E. (2004). A system for measuring function points

from an ER-DFD speciﬁcation. The Computer Jour-

nal, 47(3):358–372.

Lavazza, L. A., del Bianco, V., and Garavaglia, C. (2008).

Model-based functional size measurement. In Pro-

ceedings of the 2nd International Symposium on

Empirical Software Engineering and Measurement,

pages 100–109.

Low, G. C. and Jeffery, D. R. (1990). Function points

in the estimation and evaluation of the software pro-

cess. IEEE Transactions on Software Engineering,

16(1):64–71.

Miyawaki, T., Iijima, J., and Ho, S. (2008). Measuring func-

tion points from VDM-SL speciﬁcations. In Proceed-

ings of the 5th International Conference on Service

Sytems and Service Manag., pages 1–6.

Pow-Sang, J. A., Villanueva, D., Flores, L., and Rusu, C.

(2013). A conversion model and a tool to identify

function point logic ﬁles using UML analysis class di-

agrams. In Proceedings of the Joint Conference of the

23rd International Workshop on Software Measure-

ment and the 8th International Conference on Soft-

ware Process and Product Measurement, pages 126–

134.

Rao, K. K., Nagaraj, S., Ahuja, J., Apparao, G., Kumar,

J. R., and Raju, G. S. V. P. (2008). Measuring the func-

tion points from the points of relationships of UML.

In Proceedings of the 1st International Conference

on Computer and Electrical Engineering, pages 748–

752.

Uemura, T., Kusumoto, S., and Inoue, K. (2001). Function-

point analysis using design speciﬁcations based on the

Uniﬁed Modelling Language. Journal of Software

Maintenance: Research and Practice, 13(4):223–243.

Wieringa, R. J. (2014). Design science methodology for

information systems and software Engineeringeering.

Springer.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

Software Engineeringeering. Springer, 1 edition.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems
