Optimizing Sample Patches Selection of CNN to Improve the mIOU

on Landslide Detection

Omid Ghorbanzadeh

and Thomas Blaschke

Department of Geoinformatics - Z-GIS, University of Salzburg, Salzburg, Austria

Keywords: Convolutional Neural Network, RapidEye, mean Intersection Over Union, Training Data Set.

Abstract: Remarkable improvement has been made in object detection and image classification, mainly due to the

availability of large-scale labelled data and also the progress of deep convolutional neural networks (CNNs).

Thus, this amount of training data enables CNNs to learn data-driven image features. However, generating

the efficient sample patches from the satellite images for training the CNNs remains a challenge. In this

study, we use a CNN for the case of landslide detection based on the optical data from the Rapid Eye

satellite. We separate the image into training and test areas of the highly landslide-prone Rasuwa district in

Nepal. Thus, the sample patches were extracted from the training area of the Rapid Eye image. Although the

approach of random sample patches is considered as the most common for feeding the CNNs, it is not the

best solution for all object detection aims. We feed our structured CNN with the randomly selected sample

patches as our first approach. For the second approach, the same CNN architecture is trained by the patches

that selected based on only the central areas of any landslide. The trained CNNs based on both approaches

were used to detection the landslides in an area where considered as our test zone. The detection results are

compared against a precise inventory dataset of landslide polygons through a mean intersection-over-union

(mIOU). The mIOU value of the first approach is 53.56%. However, that of the second one is 56.24%,

which shows an approximately 3% improvement in the resulting accuracy of the landslide detection using

the sample patches generated by the second approach. Rather, the current performance of CNNs in object

detection domain they strongly depend on the quality of the training data and augmentation strategies.

https://orcid.org/0000-0002-9664-8770

https://orcid.org/0000-0002-1860-8458

1 INTRODUCTION

Landslide detection has been considered as one of

the important active study domains in remote

sensing today because of the adverse consequences

of this natural hazard on the human habitation (Hong

et al., 2017). It is essential regarding fast response

actions after a destructive landslide. Although there

are some new field surveying methods for landslide

detection and mapping, e.g. laser rangefinder

binoculars by applying a GPS receiver (Guzzetti et

al., 2012), the problems of the accessing to such

areas still remains a challenge . Therefore, remotely

sensed imagery is the most accessible data providing

critical information required for supporting

humanitarian response (Lang et al., 2017). Analysis

and classification of the remotely sensed imagery for

extracting landslides have done in several studies.

Previous researches have primarily focused on

detecting the changes occurred on the environment

due to the landslides based on the remotely sensed

imagery and some knowledge-based methods or

manually image processing methods (Amit and

Aoki, 2017). Moreover, different machine learning

techniques, e.g. MLP Neural Nets have been used

for landslide detection (Mezaal et al., 2017; Bui et

al., 2016). (Moosavi et al., 2014) proposed a

landslide detection approach based on support vector

machines to find whether the occurrence of the

landslide.

Recently, convolutional neural networks (CNNs)

have become the new hot topic in various image

processing domains and object detection in

particular (Zhang et al., 2018). CNNs are specific

Ghorbanzadeh, O. and Blaschke, T.

Optimizing Sample Patches Selection of CNN to Improve the mIOU on Landslide Detection.

DOI: 10.5220/0007675300330040

In Proceedings of the 5th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2019), pages 33-40

ISBN: 978-989-758-371-1

kind of deep learning techniques based on artificial

neural networks. CNNs can directly get the images

as input data, to avoid the traditional approaches

with pre-processing methods and feature extraction

by the complex operations (Yu et al., 2017). They

have achieved acceptable results in wide range of

image analysis tasks in computer vision (Zhu et al.,

2017; Ghorbanzadeh et al., 2018). There are several

studies that used CNNs for image segmentation

(Längkvist et al., 2016), scene classification

(Qayyum et al., 2017), and object detection

(Radovic et al., 2017). The large numbers of labelled

images along with CNNs were used to some object

detection aims, e.g. airplanes, vehicles, and some

specific trees. The availability of massive amount of

labelled images is considered as one of the main

reasons for achieving fairly good results by CNNs.

However, the way of using these data for training

the CNNs is still a topic of discussion. Randomly

sample patches selection is the common and

traditional way to patch extraction for the CNNs, but

not the best method for any application. A critical

problem in object detection using CNNs is the

selection way of sample patches. Because in some

cases such as landslide detection results with poor

quality when the sample patches are selected

randomly. Therefore, the method of selection of the

patches can be improved regarding the target object

that should be detected. For example, the Genetic

Algorithm was used to identify the best sample

patches from all of the selected patches of tile-based

texture synthesis by (Dong et al., 2005). In another

study (Zhang et al., 2018) used the Moment

bounding (MB) box for identifying the location of

the optimal patches on objects in the urban land use

classification. However, using the mentioned

approaches for the case of landslide detection has

some difficulties regarding the various shapes of

landslides.

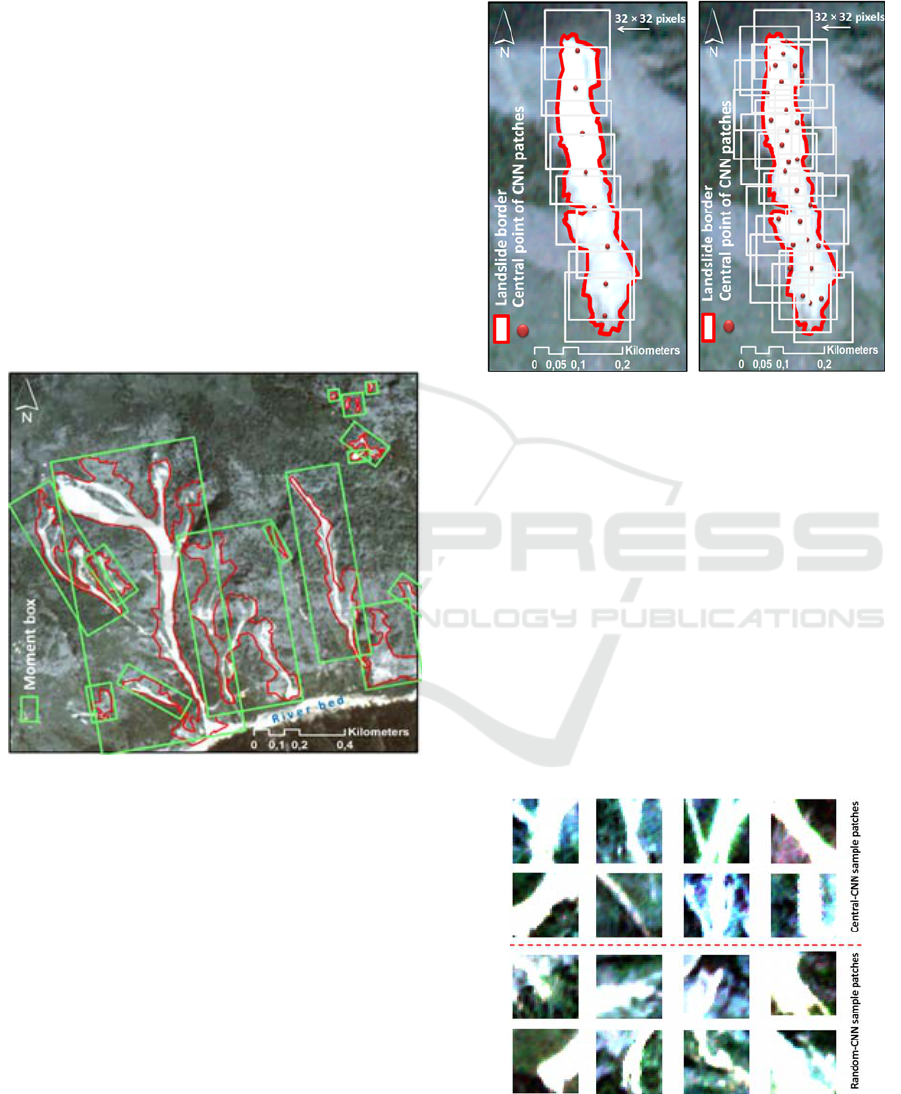

In this study, ones we use the conventional

approach of a random selection of sample patches.

Then we selected the sample patches were located

on the central part of any landslide. Most of the

landslides have linear shape started from SCAR

(area of initial failure) to the deposition area (Fan)

that leads to a high ratio of length to width. Thus, we

selected the patches of the central areas of the

landslides to get those with the most area from

landslides. Both approaches of randomly and central

selection of sample patches were implemented on

optical satellite imagery from the Rapid Eye sensor.

We compare the results from the CNNs based on

both approaches to illustrate the performance of each

approach and its impact on landslide detection. For

comparison, the resulting detected landslide the

mean intersection-over-union (mIOU) accuracy

assessment method was used.

2 STUDY AREA

The case study area lies in the southern part of the

Rasuwa district in Nepal (see figure 1). The study

area has an area of about 1544 km2. The land cover

is mostly forest, followed by shrub land, grassland,

agriculture, and villages. This district is located in

the higher Himalayas and is one of the most

landslide-prone areas along the Trishuli River. Some

of the known landslides had adverse consequences

on the built-up areas and have already caused

casualties in settlement areas. Landslides have also

destroyed the bridges and roads of the main

transport corridor between this country and China.

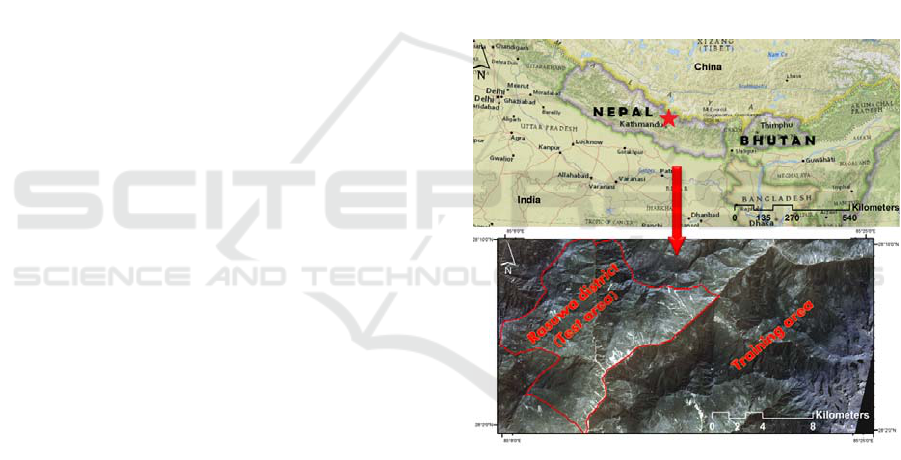

Figure 1: The geographic location of the study area.

3 METHODOLOGY

3.1 Overall Methodology

The Rapid Eye images were used to evaluate the

performance of two approaches of randomly and

central sample patches selection within a structured

CNN for the detection of landslides. The workflow

of the present study is as follow:

 Landslide inventory data set creation;

 Designing the training data set of the spectral

information;

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

 Generating the random sample patches by

considering a window size of 32×32 pixels;

 Generating the central sample patches by

considering the same window size;

 Structuring CNN;

 Testing and validating the performances of each

sample patches selection approaches using

mIOU method.

The experimental results and related descriptions of

this study are organized in the following sections.

More explanations and discussions about the impact

of using different approaches on the resulting

landslide detection can be found in the conclusion

section.

3.2 Landslide Inventory

Our landslide inventory data set was generated

within an extensive field survey in the Rasuwa

district in the higher Himalayas using a GPS device

(Garmin Etre 20X). The resulting GPS polygons of

landslides were then manually boosted using the

satellite images. Therefore, our inventory data set

was generated using the GPS data, correcting

instances, and finally adding landslide areas visible

in the image but not mapped in the field. The

Geographic Information System ArcGIS 10.3 was

used for the correction process.

3.3 Data

The data used for the present study is from

RapidEye that is a constellation of five Earth-

observing satellites with a height of 680 km, the

swath width of 77 km and a 5-day revisit period.

These five satellites deliver sun synchronous of 5

m spatial resolution images (Mahdianpari et al.,

2018). Two RapidEye cloud-free satellite images

were used for this study. We used multispectral

bands (Red, Green, Blue, Red Edge, and Near

Infrared) of RapidEye as following:

 Blue 440 – 510 nm;

 Green 520 – 590 nm;

 Red 630 – 685 nm;

 Red Edge 690 – 730 nm;

 Near-Infrared 760 – 850 nm.

Moreover, the normalized difference vegetation

index (NDVI) as a widely used ratio was calculated

from the near-infrared and the red spectral bands

(Modzelewska et al., 2017). Therefore, we prepared

a data set of the spectral information of RapidEye

and the NDVI.

3.4 Convolution Neural Network

(CNN)

CNNs have introduced state-of-the-art results for

image processing and computer vision (Zhang et al.,

2018). Multi-layer neural networks of a CNN can

obtain the important feature representations of an

image. Thus, these networks can distinguish the

visual laws in the image without any expert-

designed complex rule (Ding et al., 2016). CNNs

have a basic architecture, where each so-called

hidden layer normally contains convolutional and

pooling layers, whereby the convolutional layers are

considered as the main building block of any CNN

(Ghorbanzadeh et al., 2018). The sample patches of

the input image are convolving with a set of

trainable kernels that scan across the entire input

patch resulting in a group of feature maps.

Therefore, the set feature maps result from the

convolution of the filter, with its corresponding local

region on the original sample patches of the input

image.

Structuring a CNN with the architecture that

results in the best performance vary regarding the

application and still is an ongoing discussion in the

deep learning field (Csillik et al., 2018). In this

study, a seven-layer depth CNN was structured and

trained separately with sample patches resulting

from both random and central approaches. This layer

depth was selected according to our sample patches

size of 32×32 through cross-validation. By using

two different sample patches and the same CNN, we

could investigate the impacts of sample selection

approaches on landslide detection. Our structured

CNN was fed by the input sample patches with

32×32×6 units, where 32×32 is the size of one layer

of sample patches and 6 is the number of image

layers (Red, Green, Blue, Red Edge, and Near

Infrared). The first convolution layer was

implemented with a filter size of 5 continuing with

further convolution layers with a smaller filter size

of 3. A max-pooling layer of 2×2 was used

immediately after any convolution layer except the

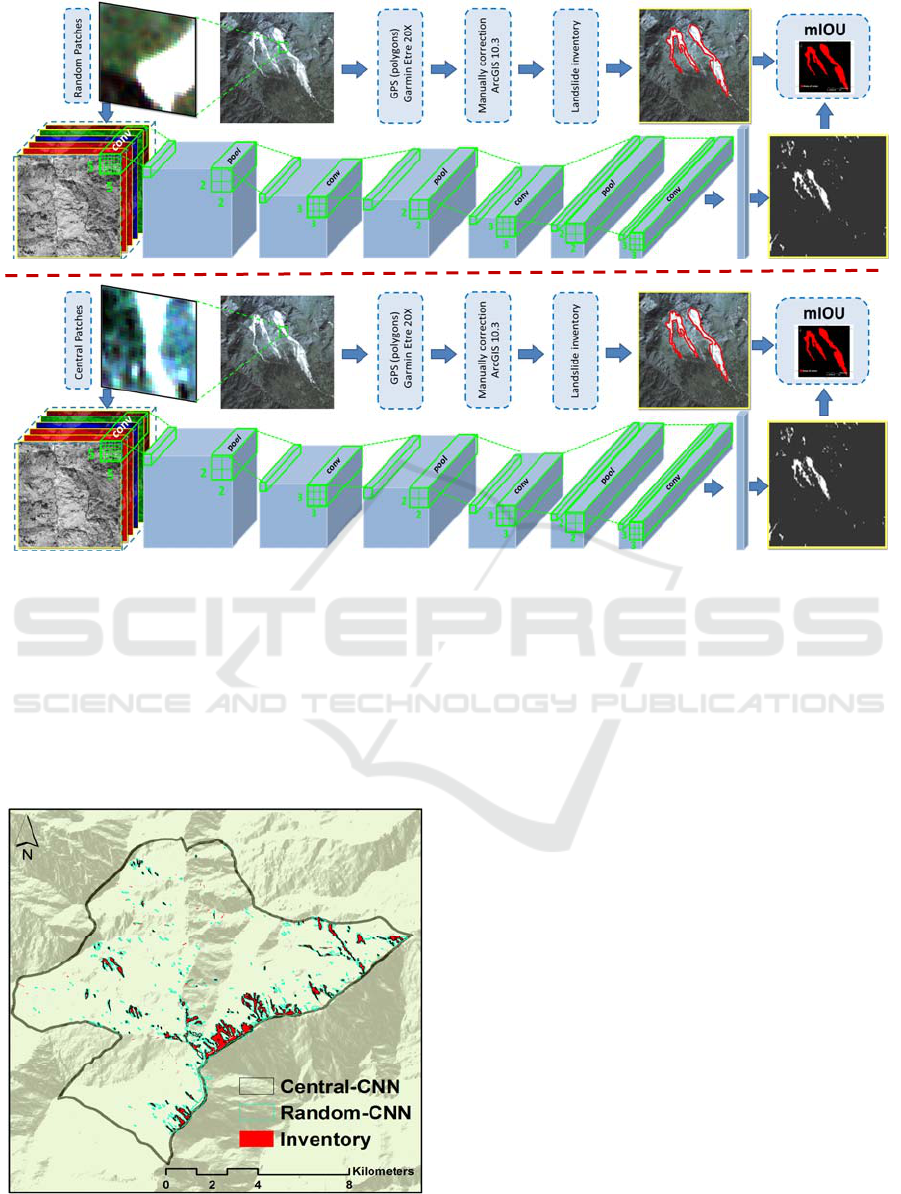

last one. The architecture of the CNN is shown in

figure 5.

3.5 Sample Patches Selection

In this section, the generation of two different the

datasets based on random and central approaches as

well as the problem of using the moment bounding

(MB) box for our case is detailed. Generally, the

scope of the datasets is to obtain a consistent set of

patches with the aim of training the CNNs for any

Optimizing Sample Patches Selection of CNN to Improve the mIOU on Landslide Detection

object detection or classification aims (Depeursinge

et al., 2012). The random selection of the patches

approach was used in several studies, and the

randomly extracted patches were applied to train

their network (Wei et al., 2014; Ghorbanzadeh et al.,

2019). The moment bounding (MB) box is

considered as a useful method for finding the

position of the sample patches and also the size of

the patches. However, for the object of the landslide,

on the one hand, this method leads to defining a

wide range of patch sizes and consequently much

more computations. On the other hand, considering

the specific shape of some landslides (see figure 2),

selecting the patches based on the position that

defined by MB box results in having much more

non-landslide areas in the patch. It means the CNN

would train by the patches that have less useful data

for landslide detection. Using the MB box for CNN

is fully described by (Zhang et al., 2018).

Figure 2: An illustration of different sizes and shapes of

the landslides that resulted in different moment bounding

(MB) boxes.

In this study, we used this approach for

generating our first training data set. The CNN that

trained with this approach was named as random-

CNN. More than 3000 original samples were

generated from the training area (see figure 1).

However, approximately 2000 sample patches were

manually extracted from the central areas of

landslides. The lower number of central sample

patches is because of avoiding much overlap of

patches on the image. By selecting the patches from

the central areas of the landslides, it is more likely to

have more areas from the landslide polygon in the

extracted patch than the non-landslide areas.

Therefore, the central-CNN will train with the

patches that have more data from the landslide areas.

The difference of sample patches selection is

illustrated in figure 2.

Figure 3: An example of the sample patches selection

based on central (left) and random (right) approaches.

4 RESULTS

The same CNNs trained with different sample

patches extracted from both random and central

approaches were tested on the Rasuwa district where

considered as our test area. For both CNNs, we used

the same threshold of 95% and those detected

landslides which were smaller than 70 pixels were

removed. As described earlier, the main goal of this

study is to investigate the impact of using different

input sample patches of CNN on the accuracy of

landslide detection. The sample patches extracting

from both approaches are presented in figure 4.

Figure 4: An illustration of convolution input sample

patches extracting based on central (upper) and random

(lower) approaches.

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

Figure 5: Flowchart of different sections of the methodology and accuracy assessment.

Two landslide maps were generated based on

different sample patches selection approaches and

the same CNN. Figure 6 shows the resulting

landslide detected maps. Both approaches were

implemented with five spectral layers from the

RapidEye images (Red, Green, Blue, Red Edge, and

Near Infrared) and the NDVI.

Figure 6: Landslide detection results using central and

random-CNNs.

5 VALIDATION

5.1 Quantitative Results

In this section, we represent quantitative results of

the resulting maps based on random-CNN and

central-CNN. In this regard, the area and also the

percentage of three classified pixels, namely, true

positive (TP), false positive (FP), and false negative

(FN) were assessed. These are the common

measures that used in the remote sensing and the

computer vision domains to validate the

performance of the models. TP is referring to the

pixels that were correctly detected as the target

object. FP relates to pixels that were detected as the

target object, but they are not. FN points to ground

truths that are not detected as such by the applied

model (Guirado et al., 2017). Regarding the

calculation of these measures, a reliable inventory

data set of the ground truths is required. The

accuracy and details of the inventory data set can

easily affect the final accuracy assessment results.

Obtaining these measures make it possible to find

any uncertainty among the location, and boundaries

of the areas where the model detected as the

landslide area. The areas and percentages of each

Optimizing Sample Patches Selection of CNN to Improve the mIOU on Landslide Detection

measure and the approach were represented in table

5.2 Mean Intersection Over Union

(mIOU)

The mIOU is an accuracy assessment metric applied

to measure the accuracy of the result of a predictor

model based on ground truth. The mIOU is a known

validation metric in computer vision domain,

particularly for object detection studies (Liu et al.,

2018). The mIOU is a general validation metric

where any model that generates bounding polygons

can be evaluated by using this metric based on an

inventory dataset of ground truth polygons (see

figure 7). It is defined as the mean of the following

equation (1):

IOU = (Area of Overlap)

⁄

(Area of Union) (1)

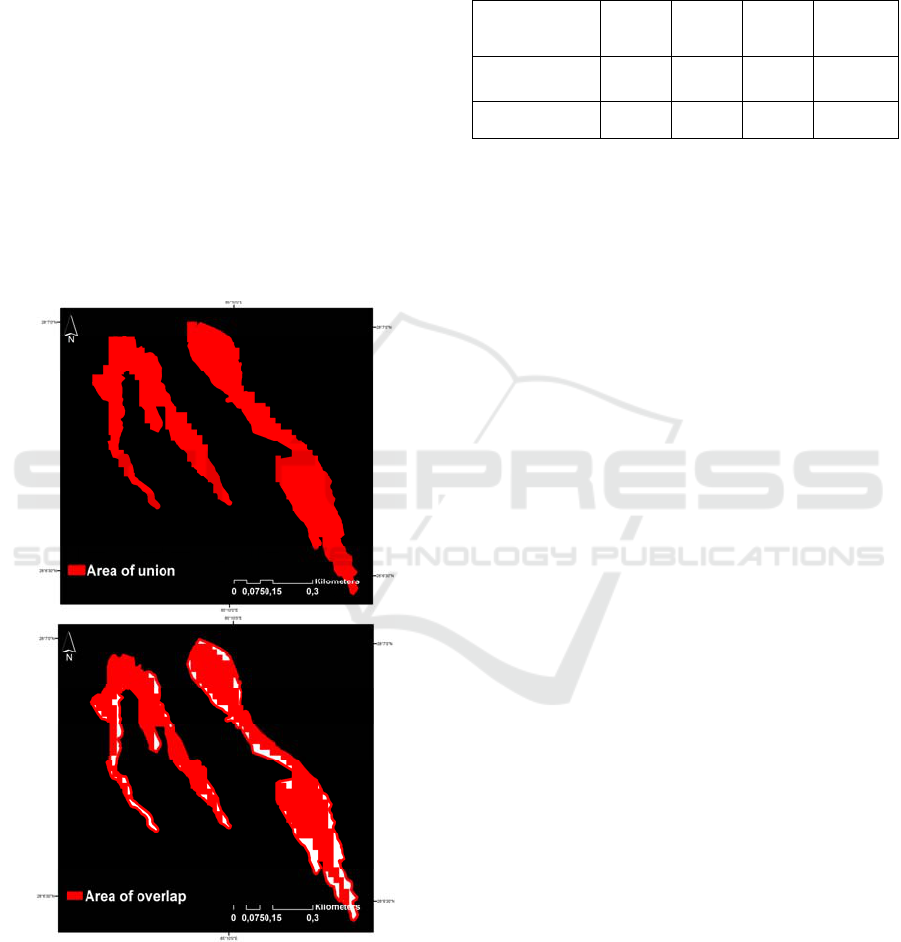

Figure 7: An illustration area of union and area of overlap.

The resulting mIOU value for both landslide

maps generated by random-CNN and central-CNN

were calculated and represented in table 1.

According to the mIOU values, random-CNN

yielded a landslide detection result with the mIOU

value of 53.56. However, using the central-CNN

improved the mIOU value to 56.24.

Table 1: The area and percentage of each measure along

with the mIOU.

Model

TP (ha)

TP (%)

FP (ha)

FP (%)

FN (ha)

FN (%)

mIOU (%)

Random-CNN

309.065

53.56 %

35.079

6.07 %

232.835

40.35 %

53.56

Central-CNN

186.839

56.24 %

81.092

24.42 %

64.227

19.34 %

56.24

6 DISCUSSION

In this study, we illustrated the importance of the

quality of CNN training sample patches on the final

result in the case of landslide detection. For the same

model used, different training strategies will

significantly influence the results. In this study, we

generated two different training data sets. First, we

randomly selected the sample patches from the

landslides that occurred in the area where we

considered as the training area. Second, we chose

sample patches from the central area of the same

landslides in the training area. Using the second

approach improved the value of the mIOU metric. It

means the landslides detected by the central-CNN

have more overlap with those of indicated by the

inventory map. However, it is not as simple as to

generally compare, for instance, the TP value of the

random-CNN is much more than that of central-

CNN.

Moreover, random-CNN could not detect only 6

% of all landslides in the test area. Whereas, this is

more than 24 % for the central-CNN. Therefore, the

second approach was not successful to detect a

quarter of the landslides, which is a significant

portion. The better achievement of the central-CNN

in the mIOU is because of it’s lower FN value

compare to that of random-CNN. Therefore, the

second approach showed a better performance to

differentiate between landslide and non-landslide

areas.

7 CONCLUSIONS

The growing availability of remotely sensed imagery

opens many options for updating any classification

and object detection through the deep learning

models. Generating of the appropriate training data

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

sets for these models is still a challenging task due to

the variety of the applications, scale of working and

target classes or objects. CNN training data sets are

traditionally generated by random sample patches

from the whole image or region of interest.

However, in parallel to the improvements in the

methodology and training processes, several

attempts have been made to improve the quality of

training data sets generating approaches. In this

study, we observed that selecting the CNN sample

patches from only the central part of objects such as

landslides is helpful to increase the final accuracy of

the results. Although we used fewer sample patches

for the central-CNN, we got a better result regarding

mIOU. Thus, we can conclude the quality of the

training data set for CNNs is as important as their

quantity. For our future study, we aim to develop an

object-based CNN method for the CNN sample

patches generation. We also want to evaluate the

multiple window sizes for the selection patches from

the landslides of different sizes.

ACKNOWLEDGEMENTS

This research is partly funded by the Austrian

Science Fund (FWF) through the GIScience

Doctoral College (DK W 1237-N23). Special thanks

are owed to Sansar Raj Meena, Department of

Geoinformatics, University of Salzburg, Austria.

REFERENCES

Amit, S. N. K. B., Aoki, Y. Disaster detection from aerial

imagery with convolutional neural network.

Knowledge Creation and Intelligent Computing (IES-

KCIC), 2017 International Electronics Symposium on,

2017. IEEE, 239-245.

Bui, D. T., Tuan, T. A., Klempe, H., Pradhan, B.,

Revhaug, I. 2016. Spatial prediction models for

shallow landslide hazards: a comparative assessment

of the efficacy of support vector machines, artificial

neural networks, kernel logistic regression, and

logistic model tree. Landslides, 13(2), pp 361-378.

Csillik, O., Cherbini, J., Johnson, R., Lyons, A., Kelly, M.

2018. Identification of Citrus Trees from Unmanned

Aerial Vehicle Imagery Using Convolutional Neural

Networks. Drones, 2(4), pp 39.

Depeursinge, A., Vargas, A., Platon, A., Geissbuhler, A.,

Poletti, P.-A., Müller, H. 2012. Building a reference

multimedia database for interstitial lung diseases.

Computerized Medical Imaging and Graphics, 36(3),

pp 227-238.

Ding, A., Zhang, Q., Zhou, X., Dai, B. Automatic

recognition of landslide based on CNN and texture

change detection. Chinese Association of Automation

(YAC), Youth Academic Annual Conference of, 2016.

IEEE, 444-448.

Dong, W., Sun, S., Paul, J.-C. Optimal sample patches

selection for tile-based texture synthesis. Computer

Aided Design and Computer Graphics, 2005. Ninth

International Conference on, 2005. IEEE, 6 pp.

Ghorbanzadeh, O., Blaschke, T., Gholamnia, K., Meena,

S. R., Tiede, D., Aryal, J. 2019. Evaluation of

Different Machine Learning Methods and Deep-

Learning Convolutional Neural Networks for

Landslide Detection. Remote Sensing, 11(2), pp 196.

Ghorbanzadeh, O., Tiede, D., Dabiri, Z., Sudmanns, M.,

Lang, S. 2018. Dwelling Extraction in Refugee Camps

Using CNN-First Experiences and Lessons Learnt.

International Archives of the Photogrammetry,

Remote Sensing, Spatial Information Sciences, 42(1),

pp.

Guirado, E., Tabik, S., Alcaraz-Segura, D., Cabello, J.,

Herrera, F. 2017. Deep-Learning Convolutional

Neural Networks for scattered shrub detection with

Google Earth Imagery. arXiv preprint

arXiv:1706.00917.

Guzzetti, F., Mondini, A. C., Cardinali, M., Fiorucci, F.,

Santangelo, M., Chang, K.-T. 2012. Landslide

inventory maps: New tools for an old problem. Earth-

Science Reviews, 112(1-2), pp 42-66.

Hong, H., Chen, W., Xu, C., Youssef, A. M., Pradhan, B.,

Tien Bui, D. 2017. Rainfall-induced landslide

susceptibility assessment at the Chongren area (China)

using frequency ratio, certainty factor, and index of

entropy. Geocarto international, 32(2), pp 139-154.

Lang, S., Schoepfer, E., Zeil, P., Riedler, B. Earth

observation for humanitarian assistance. GI Forum–J

Geogr Inf Sci, 2017. 157-165.

Längkvist, M., Alirezaie, M., Kiselev, A., Loutfi, A.

Interactive learning with convolutional neural

networks for image labeling. International Joint

Conference on Artificial Intelligence (IJCAI), New

York, USA, 9-15th July, 2016, 2016.

Liu, B., Dixit, M., Kwitt, R., Vasconcelos, N. Feature

Space Transfer for Data Augmentation. Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, 2018. 9090-9098.

Mahdianpari, M., Salehi, B., Rezaee, M.,

Mohammadimanesh, F., Zhang, Y. 2018. Very deep

convolutional neural networks for complex land cover

mapping using multispectral remote sensing imagery.

Remote Sensing, 10(7), pp 1119.

Mezaal, M. R., Pradhan, B., Sameen, M. I., Mohd Shafri,

H. Z., Yusoff, Z. M. 2017. Optimized neural

architecture for automatic landslide detection from

high‐resolution airborne laser scanning data. Applied

Sciences, 7(7), pp 730.

Modzelewska, A., Stereńczak, K., Mierczyk, M., Maciuk,

S., Bałazy, R., Zawiła-Niedźwiecki, T. 2017.

Sensitivity of vegetation indices in relation to

Optimizing Sample Patches Selection of CNN to Improve the mIOU on Landslide Detection

parameters of Norway spruce stands. Folia Forestalia

Polonica, 59(2), pp 85-98.

Moosavi, V., Talebi, A., Shirmohammadi, B. 2014.

Producing a landslide inventory map using pixel-based

and object-oriented approaches optimized by Taguchi

method. Geomorphology, 204(646-656.

Qayyum, A., Malik, A. S., Saad, N. M., Iqbal, M., Faris

Abdullah, M., Rasheed, W., Rashid Abdullah, T. A.,

Bin Jafaar, M. Y. 2017. Scene classification for aerial

images based on CNN using sparse coding technique.

International journal of remote sensing, 38(8-10), pp

2662-2685.

Radovic, M., Adarkwa, O., Wang, Q. 2017. Object

recognition in aerial images using convolutional neural

networks. Journal of Imaging, 3(2), pp 21.

Wei, Y., Xia, W., Huang, J., Ni, B., Dong, J., Zhao, Y.,

Yan, S. 2014. CNN: single-label to multi-label. arXiv

preprint arXiv:1406.5726.

Yu, H., Ma, Y., Wang, L., Zhai, Y., Wang, X. A landslide

intelligent detection method based on CNN and

RSG_R. Mechatronics and Automation (ICMA), 2017

IEEE International Conference on, 2017. IEEE, 40-44.

Zhang, C., Sargent, I., Pan, X., Li, H., Gardiner, A., Hare,

J., Atkinson, P. M. 2018. An object-based

convolutional neural network (OCNN) for urban land

use classification. Remote Sensing of Environment,

216(57-70.

Zhu, X. X., Tuia, D., Mou, L., Xia, G.-S., Zhang, L., Xu,

F., Fraundorfer, F. 2017. Deep learning in remote

sensing: a comprehensive review and list of resources.

IEEE Geoscience and Remote Sensing Magazine, 5(4),

pp 8-36.

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management
