A Systematic Mapping Study of Deployment and Orchestration

Approaches for IoT

Phu H. Nguyen

, Nicolas Ferry

, Gencer Erdogan

, Hui Song

, St

ephane Lavirotte

Jean-Yves Tigli

and Arnor Solberg

SINTEF Digital, Oslo, Norway

Universit

e Nice Sophia Antipolis, Nice, France

Tellu IoT AS, Asker, Norway

Keywords:

IoT, Review, Survey, Deployment, Orchestration, Trustworthiness.

Abstract:

Internet of Things (IoT) systems are typically distributed and perform coordinated behavior across IoT, edge

and cloud infrastructures. Because of the dynamic and heterogeneous nature of these infrastructures, the IoT

is challenging state of the art approaches for the deployment and orchestration of software systems. We need

a clear picture of the research landscape of the existing deployment and orchestration approaches for IoT

(DEPO4IOT). Such a picture can show us how advanced the current state of the art is and what are the gaps to

address. We conducted a systematic mapping study (SMS) to ﬁnd out the research landscape in this area. The

results of our SMS show the overall status of the key artifacts of DEPO4IOT. Among the results, we found a

sharp increase in the number of primary DEPO4IOT publications in two recent years. We also found that most

approaches do not really support the deployment or orchestration at low-level IoT devices. Meanwhile, there

is a lack of addressing the trustworthy aspects and advanced supports in the existing DEPO4IOT approaches.

Finally, we point out the current open issues in this research area and suggest potential research directions to

tackle these issues.

1 INTRODUCTION

The world is now on the verge of “the IoT age” with

the Internet of Things (IoT) installed units predicted

to grow to 20.4 billion by 2020

. IoT systems can

be classiﬁed as systems of systems in which physi-

cal systems (a.k.a, “things”) and cyber systems are

combined and connected via means of communica-

tion. Despite having enormous potential, the hetero-

geneous nature of IoT brings up great challenges that

must be addressed to fully realize the potential of

the IoT. In particular, because IoT systems are typi-

cally distributed and performing coordinated behavior

across IoT, edge and cloud infrastructures (A. Met-

zger (Ed.), 2015), it is important to facilitate their cre-

ation and operation. In this context, the research com-

munity and industry have been proposing different ap-

proaches and tools to support the deployment and/or

orchestration of IoT systems. However, it is not clear

https://www.gartner.com/en/newsroom/press-

releases/2017-02-07-gartner-says-8-billion-connected-

things-will-be-in-use-in-2017-up-31-percent-from-2016

Gartner, February 7, 2017

what are the primary existing approaches for support-

ing the deployment and/or orchestration of IoT sys-

tems, and how advanced they are.

To provide a clear picture of the research land-

scape of the existing approaches and tools for support-

ing the deployment and/or orchestration of IoT sys-

tems (DEPO4IOT), we conducted a systematic map-

ping study (SMS). Our SMS has three main objec-

tives. First, we want to summarize the existing pri-

mary DEPO4IOT approaches. Second, by analyzing

the existing approaches, we can identify any gaps

in the state-of-the-art. Moreover, we want to ex-

amine whether the DEPO4IOT approaches consider

trustworthiness aspects such as security, privacy, re-

silience, reliability, and safety. Addressing trustwor-

thiness aspects is particularly important because IoT

systems can, for instance, have an impact on the phys-

ical world through actuators or can deal with sensi-

tive data. The ability of a system to evolve, quickly

react to failures and release patches is decisive to

ensure and increase the trustworthiness of IoT sys-

tems. Therefore, we also want to ﬁnd out whether

there are any approaches that provide advanced sup-

Nguyen, P., Ferry, N., Erdogan, G., Song, H., Lavirotte, S., Tigli, J. and Solberg, A.

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT.

DOI: 10.5220/0007675700690082

In Proceedings of the 4th International Conference on Internet of Things, Big Data and Security (IoTBDS 2019), pages 69-82

ISBN: 978-989-758-369-8

port for the dynamic evolution of IoT systems such

as monitoring and adaptation mechanisms. Third,

based on the results, we propose new research ac-

tivities to ﬁll the gaps for supporting modern IoT

systems. We followed the latest guidelines in (Pe-

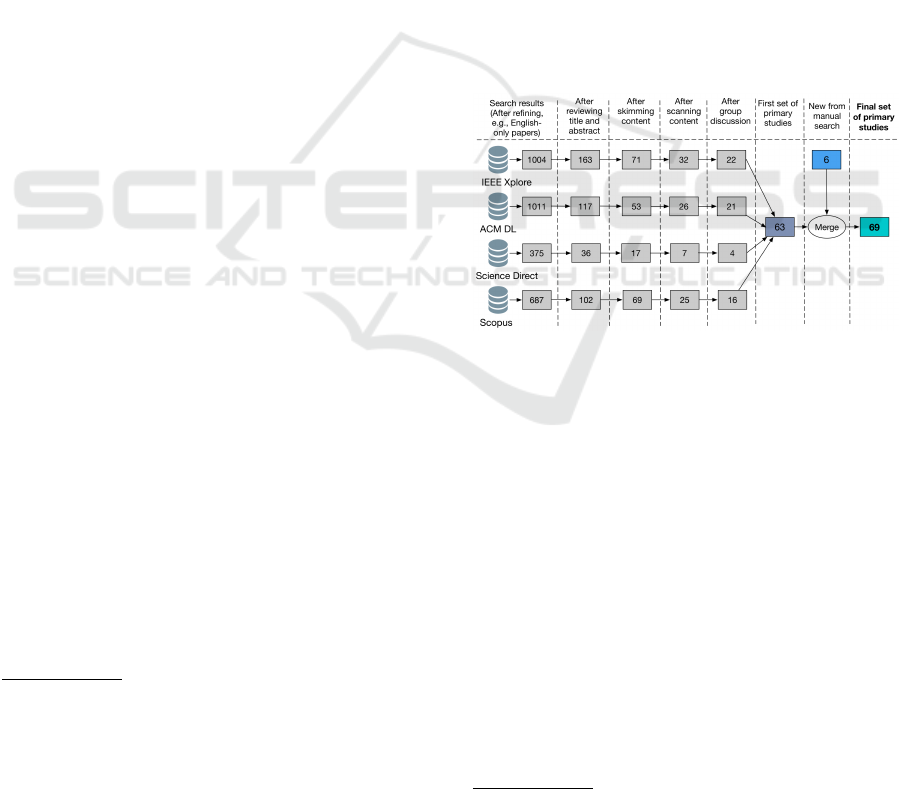

tersen et al., 2015) to conduct our SMS. We have sys-

tematically ﬁltered thousands of relevant papers from

four main on-line publication databases, and a man-

ual search process, to ﬁnally obtain a set of sixty-

nine (69) primary DEPO4IOT studies. We extracted

and synthesized data from the primary studies to an-

swer our research questions (RQs). The main con-

tributions of this work are our answers to the follow-

ing RQs. RQ1: What are the publication statistics of

the primary DEPO4IOT studies? RQ2: What are the

primary DEPO4IOT approaches and how advanced

are they, especially in addressing trustworthiness as-

pects? RQ3: What are the open issues to be further

investigated in this ﬁeld?

In the remainder of this paper: Section 2 gives

some background deﬁnitions. In Section 3, we

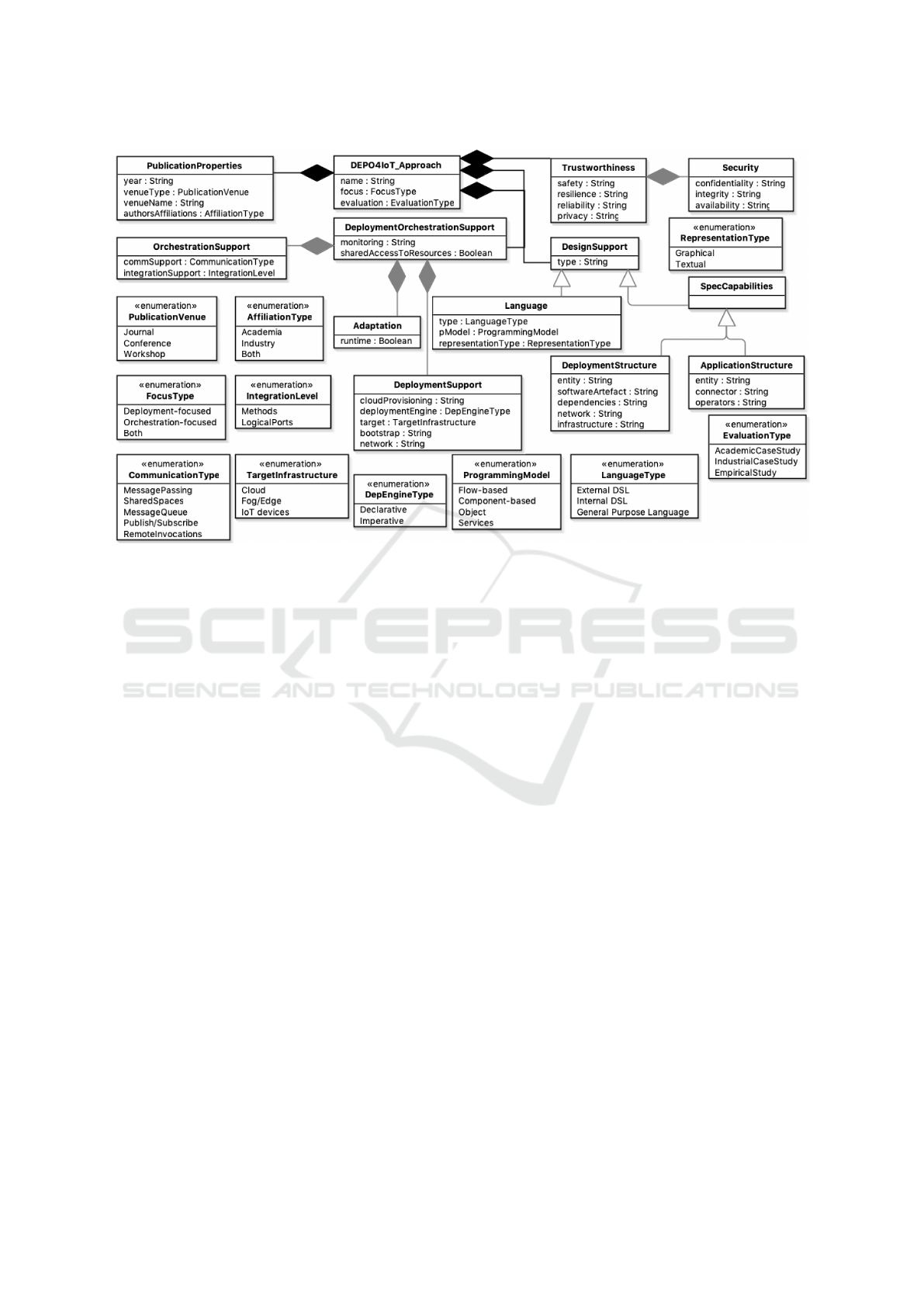

present our SMS approach. To facilitate the data ex-

traction and comparison, Section 4 describes our clas-

siﬁcation schemes for the primary studies. We present

the results of our SMS in Section 5. Related work is

discussed in Section 6. Finally, we conclude the paper

with the major ﬁndings and some directions for future

work in Section 7.

2 BACKGROUND

In this section, we give the deﬁnitions of IoT systems

(subsection 2.1), orchestration and deployment (sub-

section 2.2), and trustworthiness (subsection 2.3) that

were used to deﬁne the scope of this study.

2.1 Deﬁnition of IoT Systems

An IoT system is “a system of entities (including

cyber-physical devices, information resources, and

people) that exchange information and interact with

the physical world by sensing, processing informa-

tion, and actuating” (IEEE Standards Association

et al., 2016). In this work, we consider DEPO4IOT

approaches that are independent or speciﬁc to an IoT

application domain such as smart city or health-care.

2.2 Deﬁnition of Deployment and

Orchestration

Software deployment typically refers to a post-

development activity performed once a piece of soft-

ware has been developed to make it available for use

(Carzaniga et al., 1998). In this study, approaches are

considered as supporting deployment when they ex-

plicitly offer mechanisms enabling the software de-

ployment process, which typically consists of the

following stages: (i) release, (ii) installation, (iii)

activation, (iv) update, (v) adaptation, and (vi) un-

deployment (Dearie, 2007).

Deployment approaches typically rely on the con-

cept of software artifacts or components as a mod-

ular part of a system that encapsulates its contents

(Dearie, 2007). A deployment conﬁguration is thus

a connected graph that describes deployment arti-

facts along with targets and relationships between

them from a structural perspective (Bergmayr et al.,

2018). In the cloud context, the term “topology” is

often used as well. A deployment conﬁguration or

topology typically includes the description of how its

software components are integrated and communicate

with each other. This typically overlaps with the con-

cept of software orchestration (or composition) be-

cause an orchestration is also often represented as a

graph describing relationships between software ele-

ments or processes. However, contrary to deployment

conﬁgurations, these relationships may represent an

order of operations required to realize a behavior. Us-

ing this deﬁnition, any service composition approach

that targets IoT domain is considered as an orchestra-

tion approach for IoT.

2.3 Deﬁnition of Trustworthiness

Trustworthiness refers to the preservation of security,

privacy, safety, reliability, and resilience of systems

(Griffor et al., 2017). Security refers to the preser-

vation of conﬁdentiality, integrity and availability of

information (IEC, ISO, 2012). Privacy refers to the

protection of personally identiﬁable information (PII)

(IEC, ISO, 2011). Safety refers to the ability of the

systems to ensure the absence of catastrophic conse-

quences on the life, health, property, or data of stake-

holders and the physical environment (Griffor et al.,

2017). Reliability refers to the ability of the systems

to deliver stable and predictable performance in ex-

pected conditions (Griffor et al., 2017). Resilience

refers to the ability of the systems to withstand in-

stability, unexpected conditions, and gracefully return

to predictable, but possibly degraded, performance

(Griffor et al., 2017).

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

3 OUR SYSTEMATIC MAPPING

APPROACH

We conducted our SMS by following the latest guide-

lines in (Petersen et al., 2015) and other relevant

guidelines in (Kitchenham, 2004). With the context

and motivation presented in Section 1, we deﬁne our

RQs for this work in Section 3.1. To explicitly deﬁne

the scope of our SMS and reduce possible bias in our

selection process, in Section 3.2, we clarify the inclu-

sion criteria for selecting primary studies. Section 3.3

shows our search strategy to ﬁnd the primary studies

for answering the RQs.

3.1 Research Questions

We detail the general RQs given in Section 1 into

the sub-RQs as follows. RQ1 includes three sub-

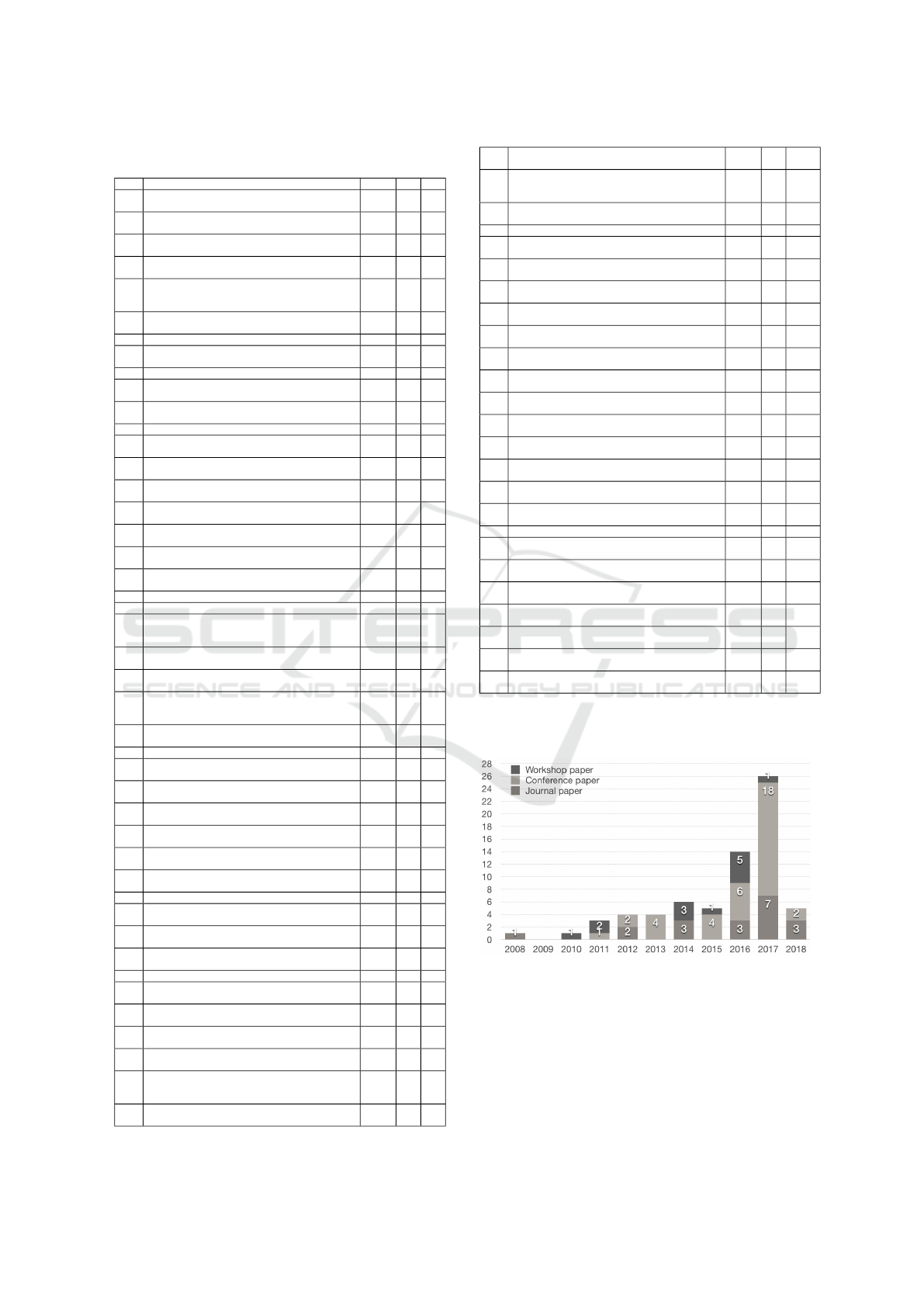

RQs. RQ1.1 - In which years were the primary stud-

ies published and how many publications per year?

Answering this question allows us to know for how

long this ﬁeld has been studied, and how often are

there publications. This is an indicator to assess if this

ﬁeld has got more attention from the research commu-

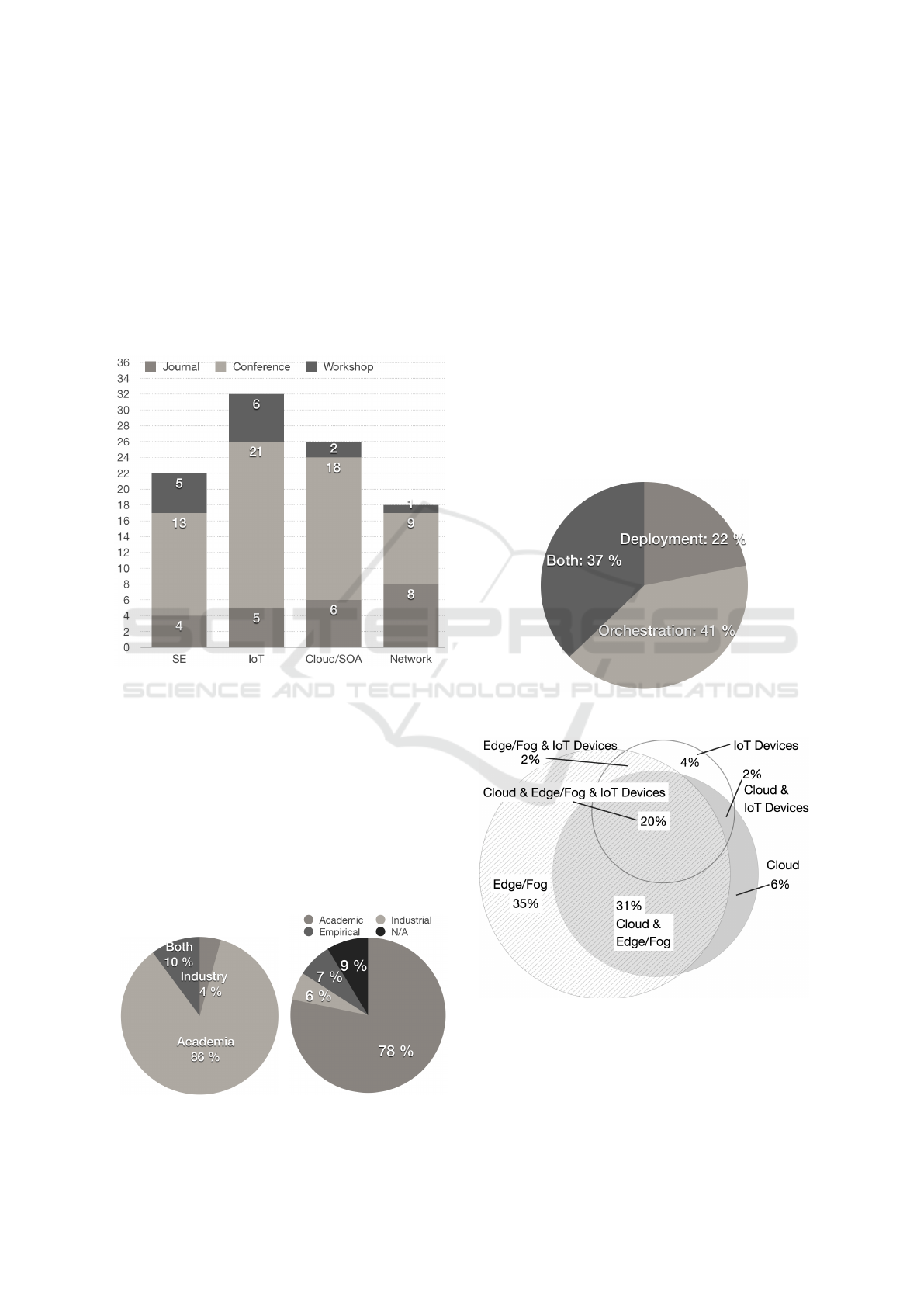

nity. RQ1.2 - In which targeted venues (e.g., Software

Engineering-SE, IoT, Cloud/SOA, and Network) and

venue types (i.e., conference, journal, workshop) were

the primary studies published? Answering RQ1.2 en-

ables us to know which venues have been the tar-

gets for publication of primary studies, knowing that

DEPO4IOT approaches could crosscut several related

research areas such as SE, IoT, SOA, Cloud. The

venue types could also provide some hints on the ma-

turity of the primary studies, e.g., papers published at

journals are supposed to report more mature studies

than papers published at conferences and workshops.

RQ1.3 - What is the distribution of publications in

terms of academic and industrial afﬁliation? A paper

is classiﬁed as academia if all authors are afﬁliated

with a university or a research institute, and indus-

try if all authors are afﬁliated with a company, and

both (academia and industry) if there is a mix of au-

thors from academia and industry. Answering RQ1.3

would give us an indication of how much collabora-

tion between academia and industry on this topic as

well as on the interest and need for DEPO4IOT ap-

proaches in the industry.

RQ2 is broken down into the following sub-RQs.

RQ2.1: How do the primary DEPO4IOT approaches

support IoT orchestration? Answering RQ2.1 allows

us to assess the characteristics of the primary studies

in IoT orchestration techniques. RQ2.2: How do the

primary DEPO4IOT approaches support IoT deploy-

ment? Answering RQ2.2 allows us to assess the char-

acteristics of the primary studies in IoT deployment

techniques. When answering RQ2.1 and RQ2.2, we

also examine how the primary DEPO4IOT approaches

support deployment, orchestration of IoT systems

across the vastly heterogeneous IoT, edge and cloud

space. Particularly, we examine how trustworthi-

ness aspects are supported by the primary DEPO4IOT

studies. Trustworthiness aspects are important in the

development and operation of IoT systems and are

thus often checked in surveys of IoT (e.g., (Tran et al.,

2017)). RQ2.3: Are there any primary approaches

explicitly addressing trustworthiness aspects? An-

swering RQ2.3 allows us to examine the support of

the primary DEPO4IOT approaches towards trustwor-

thy IoT systems. RQ2.4: Are there (runtime) adap-

tation or shared access to resources mechanisms sup-

ported in the primary DEPO4IOT approaches? An-

swering RQ2.4 allows us to check if any approaches

have provided advanced supports such as adaptation

or shared access to resources to increase IoT systems

trustworthiness (see Section 4.3). RQ2.5: How were

the primary DEPO4IOT approaches evaluated? An-

swering RQ2.5 allows us to know what evaluation

methods have been used in the primary studies, e.g.,

industrial case studies or empirical studies. How an

approach has been evaluated is an indication of the

maturity of the work. For example, if the approach is

evaluates based on industrial case studies or empiri-

cal studies, then that indicates a higher maturity level

compared to approaches that have not been evaluated.

Based on the answers to the RQ1 and RQ2, we

can point out the open issues that would deserve more

investigation in the future and some potential direc-

tions to tackle these issues. RQ3 has two sub-RQs:

RQ3.1 - What are the open issues of DEPO4IOT re-

search? RQ3.2 - What research directions could be

recommended for tackling the open issues?

3.2 Inclusion and Exclusion Criteria

Based on the RQs and the scope of our study pre-

sented in Section 1, we clearly predeﬁned the inclu-

sion and exclusion criteria to reduce bias in our pro-

cess of search and selection of primary studies. The

primary studies must meet ALL the following inclu-

sion criteria (IC):

- (IC1) Must propose a deployment OR orchestration

approach.

- (IC2) Must be explicitly for IoT area, either in gen-

eral or in a speciﬁc application domain of IoT.

- (IC3) Must have software engineering approaches as

software is the main drive of deployment and orches-

tration for IoT.

We excluded non-peer-reviewed or unpublished

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

paper, white paper, technical report, thesis, patent,

general web page, presentation, book chapter, and pa-

per not written in English.

3.3 Search and Selection Strategy

Fig. 1 shows an overview of the search and selection

process with the results for each step, which we de-

scribe in the following sections.

3.3.1 Database Search

Using the online search functions of popular publica-

tion databases is the most common way to search for

primary studies when conducting secondary studies

(Petersen et al., 2015). We used four popular publi-

cation databases IEEE Xplore

, ACM DL

, Science

Direct

, and Scopus

to search for candidates of pri-

mary studies. We did not use Google Scholar and

SpringerLink. Scopus and ACM DL already index

SpringerLink

(Tran et al., 2017). Google Scholar re-

turns all kinds of papers, in which peer-reviewed ar-

ticles should have been covered by our four chosen

databases. Worse, Google Scholar also returns many

non-peer-reviewed and non-English papers, which

should have been excluded at the ﬁrst place. The four

chosen databases contain peer-reviewed articles, and

provide advanced search functions, especially search

in meta-data such as title, abstract, keywords that we

used. Based on the RQs, we identiﬁed the search key-

words. Basically, we used the following search query:

(“Internet of Things” OR IoT OR “Web of things” OR

WoT) AND (orchestration OR deployment OR chore-

ography OR topology OR composition OR dataﬂow)

AND (Tool OR Middleware OR Service OR Frame-

work). For each database, the search string needs to

be applied according to the search functions provided.

For each candidate paper, we ﬁrst read the paper’s

title, keywords and abstract. If a candidate paper ap-

pears in more than one database, we only kept the

original one where it was published ﬁrst. If the title,

keywords and abstract are insufﬁcient for us to de-

cide to exclude a candidate paper, we further skimmed

and scanned the paper’s full content. We rather kept

any candidate paper in doubt at one point for further

checks later. In the end, we hold discussions among

reviewers to crosscheck the candidate papers in doubt

http://ieeexplore.ieee.org

https://dl.acm.org

https://www.sciencedirect.com

https://www.scopus.com

https://www.springer.com/gp/computer-

science/lncs/information-on-abstracting-and-

indexing/799288

and agreed on including or excluding each paper. Af-

ter group discussions, we obtained 63 primary studies.

3.3.2 Manual Search

It is impractical to make sure the database search

results can cover all DEPO4IOT publications in

our study. Therefore, we tried to complement the

database search by a manual search. We started our

manual search by initiating a set of the DEPO4IOT

studies that we have known of such as the studies

numbered 22, 24, 26, 30, 31, 35, 42, 49, 50, 53,

55 in Table 1. This was also the test set to ﬁne-

tune the search query in the database search. More-

over, we checked the latest work of the authors of

these DEPO4IOT studies and their related work to

ﬁnd more DEPO4IOT studies (using Google scholar).

We found six new primary studies that have not been

found in the database search (because the common

keywords are not in their titles or abstracts). In total,

we obtained the ﬁnal set of 69 primary studies

for

data extraction and synthesis to answer the RQs.

Figure 1: Overview of the search and selection steps.

4 A TAXONOMY FOR

CLASSIFICATION

To analyze the primary studies for answering our

RQs, we have deﬁned a taxonomy as a classiﬁca-

tion and comparison framework for the primary stud-

ies. Our taxonomy consists of the key aspects of de-

ployment and orchestration for IoT (Figure 2). We

adopted some of the concepts in the taxonomy from

the review on cloud deployment modelling languages

(Bergmayr et al., 2018) but our taxonomy is speciﬁc

for IoT. We group them into the following categories:

deployment and orchestration support (Section 4.1),

design support (Section 4.2), and advanced support

(Section 4.3).

Our search and selection process for the primary stud-

ies ended on 16 March 2018

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

Figure 2: A Taxonomy of Deployment and Orchestration for IoT.

4.1 Deployment and Orchestration

Support

In this section, we discuss the speciﬁc aspects that

we used to analyze the primary studies according to

deployment support (4.1.1) and orchestration support

(4.1.2).

4.1.1 Deployment Support

Different deployment approaches can be classiﬁed

by deployment kind, target, network speciﬁcation,

whether cloud provisioning is supported, and what

kind of bootstrap is used in the deployment process.

Deployment Kind: Automatic deployment typi-

cally comes in two ﬂavors: imperative and declarative

(Binz et al., 2013). The imperative approach requires

a “deployment plan” that details how to reach the de-

sired deployment, usually by leveraging a workﬂow

language. This deployment plan deﬁnes a sequence of

atomic tasks to execute possibly in parallel. This im-

perative approach gives full control over the deploy-

ment process, but it remains difﬁcult to specify and

reuse such plans. In contrast, the declarative approach

only requires a speciﬁcation of the desired deploy-

ment. This state usually captures the needed applica-

tion structure and deployment conﬁguration using a

domain-speciﬁc languages (DSL) and a “deployment

engine” then computes how to reach this state. This

approach better supports evolving and reusing topol-

ogy models, however the deployment engine may not

compute optimal plans.

Target: IoT systems are typically running over

heterogeneous infrastructures ranging from tiny de-

vices over gateways to cloud resources. Following

the layered architecture presented in (Bonomi et al.,

2012) we divide this infrastructure into three layers,

starting from the most constrained: (i) the device

layer, which typically consists of embedded devices,

sensors and actuators with low power and bandwidth;

(ii) the edge/fog layer, which consists of the infras-

tructure located at the edge of the network who bridge

the gap between the tiny devices and the cloud; and

(iii) the cloud layer, which offers a virtually inﬁnite

set of computing and storage resources. The latter is

commonly categorized based on the layers of virtual-

ization (Armbrust et al., 2010): infrastructure (IaaS),

platform (PaaS), and software (SaaS).

Network: Deployment approaches must consider

networking aspects to ensure that connected soft-

ware components, deployed over the whole IoT, edge

and cloud space, can properly interact with each

other (e.g., custom addressing and segmentation of

launched Virtual Machines - VMs).

Cloud Provisioning: One key characteristic of a

modern cloud environment is the capability to dynam-

ically provision cloud resources (Mell and Grance,

2001). Cloud users can provision and release cloud

services on demand and pay only for what they have

actually consumed. This includes compute, storage

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

and network resources. It is not only important to

distinguish tools that actually support cloud resources

provisioning from others but also to identify which

virtualization layer (i.e., IaaS, PaaS, SaaS) their pro-

visioning engine supports.

Bootstrap: This characterizes the kind of boot-

strap the solution relies on. A bootstrap is a basic

executable program on a device, or a runtime envi-

ronment, which the system in charge of the deploy-

ment relies on (e.g., Docker). This aspect relates to

the speciﬁcity of the solution and its dependency to

particular technologies (Arcangeli et al., 2015).

4.1.2 Orchestration Support

Orchestration approaches can be classiﬁed by kinds

of communication and integration.

Communication Support: we classify ﬁve dif-

ferent kinds of communication support in orches-

tration (Eugster et al., 2003): MessagePassing,

SharedSpaces, MessageQueue, Publish-Subscribe,

and RemoteInvocations (e.g., Java RMI, CORBA).

MessagePassing: the producer sends messages

asynchronously through a communication channel.

The consumer receives messages by listening syn-

chronously on that channel. Shared space: Produc-

ers insert data asynchronously into the shared space,

while consumers read data synchronously. Message

queuing: Messages are stored in a FIFO queue.

Producers append messages asynchronously at the

end of the queue, while consumers dequeue them

synchronously at the front of the queue. Publish-

Subscribe: subscribers have the ability to express

their interest in an event, or a pattern of events, and

are subsequently notiﬁed of any event, generated by a

publisher, which matches their registered interest.

Integration Support: The interactions between

the software components that compose an orchestra-

tion or a deployment can be speciﬁed and managed

at different levels of abstraction. Deployment tools

typically manage logical ports (e.g., port 22 should be

open for SSH) for setting up the communication chan-

nel between the software components to be deployed.

Orchestration tools, which are more concerned with

the business logic of an application, typically manage

these interactions at a lower level of abstractions (e.g.,

remote methods invocation).

4.2 Design Support

This section presents the design support aspects that

are common for both deployment and orchestration,

e.g., speciﬁcation language, speciﬁcation capabilities.

4.2.1 Speciﬁcation Language

To specify the orchestration and deployment of an IoT

system, a language must be used.

Representation: The abstract syntax of a lan-

guage deﬁnes its concepts and how they relate to each

other. A concrete syntax is concerned with the form

(Moody, 2009) of a language and deﬁnes how abstract

elements are realized in a concrete representation. A

language may have textual and/or graphical syntaxes.

Language Type: Languages for the deployment

and orchestration of IoT can be a general purpose lan-

guages (GPL) but are typically designed speciﬁcally

for that purpose (i.e., DSL) (Fowler, 2010). A DSL is

either developed on top of an existing GPL (base el-

ements of the GPL are extended) or from scratch and

has its own custom concepts without explicit relation-

ships to any existing language (Mernik et al., 2005).

Programming Model: The selection of a pro-

gramming model typically depends on the pragmatic

of a tool (Bergmayr et al., 2018). For instance, re-

active and event-driven programming is often used

to design IoT systems, ﬂow-based programming is

well suited for orchestrating data ﬂows between IoT

devices and services whilst component oriented pro-

gramming is typically used to specify deployment

models.

4.2.2 Speciﬁcation Capabilities

Here, we want to analyze how the DEPO4IOT ap-

proaches specify IoT applications and their corre-

sponding deployment structure.

Application Structure: To ensure separation of

concerns, complex distributed systems are typically

designed as a set of software components. A com-

ponent is basically a unit of computation in an appli-

cation, whereas interactions among components are

represented by connectors (Medvidovic and Taylor,

2000). Components and connectors are used to de-

scribe the high-level structure of an application in

terms of a component conﬁguration. Practically, in

this paper we call such components: entities. This is

to avoid any confusion with the programming model

used to implement them (e.g., service, component).

The application structure may also leverage prede-

ﬁned operators like Business Process Model and No-

tation (BPMN) operators for orchestration logic.

Deployment Structure: Modelling a deployment

structure typically overlaps with application structure

because to specify the deployment of a system on a se-

lected target infrastructure, its entities need to be allo-

cated to IoT, edge or cloud resources. More precisely,

what needs to be allocated on these resources are the

implementations of those entities (Bergmayr et al.,

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

2018). The notion of a deployable artifact supports

exactly the reference between logical components and

connectors to their implementations. For instance,

a cloud application implemented in Java is possi-

bly packaged into several archives, i.e., “JAR ﬁles”.

Those archives can be represented on the model level

via artifacts. Allocating them to a cloud service, e.g.,

a compute service including a Java platform, should

have the effect that the “JAR ﬁles” are physically al-

located to the provisioned service (Bergmayr et al.,

2018). Furthermore, we use the term dependencies to

depict the fact that application entities (i) may need to

interact with each other and (ii) may depend on other

entities of speciﬁc platforms (Bergmayr et al., 2018).

To actually ensure that connected cloud services can

in fact interact with each other, properties related to

networking concerns need often to be explicitly spec-

iﬁed (Bergmayr et al., 2018).

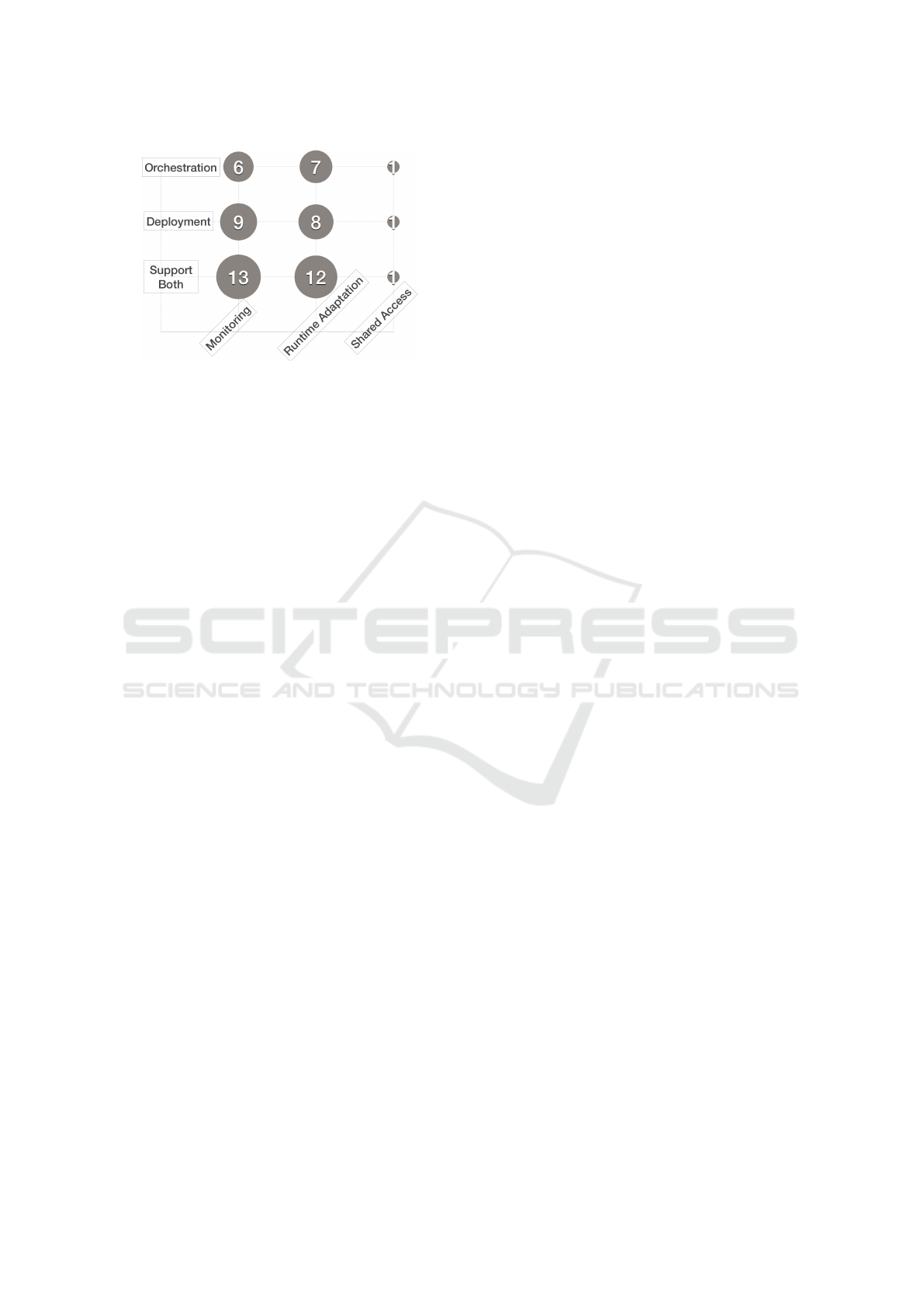

4.3 Advanced Support

Modern IoT systems must be trustworthy to re-

ally realize their values. We check whether the

DEPO4IOT approaches address trustworthiness as-

pects (presented in Section 2.3), which often require

advanced supports such as adaptation, monitoring,

and managing shared access to resources.

Adaptation: (McKinley et al., 2004) deﬁne two

main types of adaptation: (i) static adaptation and (ii)

dynamic adaptation. Static adaptation typically hap-

pens at development time whilst dynamic adaptation

happens at runtime. Orchestration and deployment

tools can support these two types of adaptation for

modifying: (i) the application itself (e.g., replacing

one software component by another) and (ii) its in-

frastructure (e.g., bursting from one cloud to another).

Monitoring: Monitoring is a key activity to rea-

son on the state of a system and for controlling and

managing hardware as well as software infrastruc-

tures (Aceto et al., 2013). Monitoring probes are used

to deliver information and indicators characterizing

the system and the context in which it is running. The

purpose of the monitoring can be multiple. In this

study we identify the following: (i) measuring QoS of

the system, (ii) capturing the status and health of a de-

ployment, (iii) depicting the state of the environment,

and (iv) observing the execution ﬂow of the system,

for instance, for debugging purpose.

Shared Access to Resources (Direct/Indirect):

Because IoT systems may involve actuators it is im-

portant to control the impact these actuators can have

on the physical world and to manage conﬂicting ac-

tuation requests. More generally, this applies to the

management of shared accesses to resources, which

can be of two types: (i) direct concurrent access to

resources (e.g., several entities accessing to the same

service/actuator) or (ii) indirect shared access to a re-

source (e.g., actuators from different applications are

modifying the temperature with possibly conﬂicting

goals) (Ma et al., 2016).

5 RESULTS

Table 1 shows an overview of the primary DEPO4IOT

studies. Based on the taxonomy, we have extracted

and synthesized the data from the primary studies to

answer the RQs of this work.

5.1 Answering RQ1

Answering RQ1.1: as we can see in Fig. 3, the earli-

est primary study was published in 2008, when IoT

research was starting to emerge. There is a sharp

rise in the number of DEPO4IOT publications in the

last two years (2016, 2017), especially regarding the

numbers of journal (J) and conference (C) papers

(2016: 3J, 6C and 2017: 7J, 18C). This rise shows

the crucial need of DEPO4IOT research and more at-

tention to this research area has gained from the re-

search community. We completed our search process

in March 2018 and found ﬁve primary studies pub-

lished in 2018 (3J, 2C).

IoT with its heterogeneous nature spans multiple

relevant research domains among which we identi-

ﬁed Software Engineering (SE), Cloud or Service-

Oriented Architecture (SOA), Network, and recently

specialized IoT research domain (Borgia et al., 2016).

Answering RQ1.2: Fig. 4 shows the times that each

research domain appears in the calls for papers in

the publication venues where the primary DEPO4IOT

studies published are quite close (SE: 22, IoT: 32,

Clould/SOA: 26, Network: 18). Note that the publica-

tion venues can have not only one but several research

domains in their calls for papers. These numbers do

reﬂect the heterogeneous nature of IoT research, with

IoT research domain is getting more visible. Due

to the increasing popularity of the IoT research do-

main, and because the tools for the deployment and

orchestration of application and services in the cloud

have lately reached a high level of maturity, the focus

for the research on deployment and orchestration ap-

proaches has moved toward the IoT and Edge spaces.

Answering RQ1.3: By checking the afﬁliations of

the authors, we can see in Fig. 5 that a majority of

the authors who have published results on DEPO4IOT

are from academia (86%). The involvement of in-

dustry in this research is still very limited, which

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

Table 1: Overview of the primary DEPO4IOT studies

(sorted by year of publication)

# Title* Year v f

1 Challenges and Solutions in Fog Computing Orches-

tration

2018 J O

2 Deploying Edge Computing Nodes for Large-scale

IoT: A Diversity Aware Approach

2018 J D

3 Cloud-Fog Interoperability in IoT-enabled Healthcare

Solutions

2018 C D

4 A visual programming framework for distributed In-

ternet of Things centric complex event processing

2018 J B

5 Enhancing Middleware-based IoT Applications

through Run-Time Pluggable QoS Management

Mechanism

2018 C D

6 A Dynamic Module Deployment Framework for

M2M Platforms

2017 C D

7 A Middleware for Mobile Edge Computing 2017 J B

8 A service orchestration architecture for Fog-enabled

infrastructures

2017 C O

9 Distributed Orchestration in Large-Scale IoT Systems 2017 C O

10 Internet of Things: From Small- to Large-Scale Or-

chestration

2017 C O

11 QoS-Aware Deployment of IoT Applications

Through the Fog

2017 J D

12 Service Orchestration in Fog Environments 2017 C O

13 Towards Container Orchestration in Fog Computing

Infrastructures

2017 C O

14 A Framework based on SDN and Containers for Dy-

namic Service Chains on IoT Gateways

2017 W D

15 A framework for MDE of IoT-Based Manufacturing

CPS

2017 C O

16 A Novel Service-Oriented Platform for the Internet of

Things

2017 C O

17 Design and Implementation of a Message-Service

Oriented Middleware for Fog of Things Platforms

2017 C O

18 Empowering End Users to Customize their Smart En-

vironments

2017 J O

19 Feasibility of Fog Computing Deployment based on

Docker Containerization over RaspberryPi

2017 C B

20 Semantics Based Service Orchestration in IoT 2017 C O

21 An Object-Oriented Model for Object Orchestration 2017 C B

22 A TOSCA-based Programming Model for Interacting

Components of Automatically Deployed Cloud and

IoT Applications

2017 C B

23 An edge-based platform for dynamic Smart City ap-

plications

2017 J D

24 Calvin Constrained: A Framework for IoT Applica-

tions in Heterogeneous Environments

2017 C B

25 InterCloud Communication Through Gatekeepers to

Support IoT Service Interaction in the Arrowhead

Framework

2017 J O

26 Internet of things out of the box Using TOSCA for

automating the deployment of IoT environments

2017 C B

27 Platform-as-a-service gateway for the Fog of Things 2017 J B

28 Runtime deployment and management of CoAP re-

sources for the internet of things

2017 J D

29 Composing Continuous Services in a CoAP-based

IoT

2017 C B

30 Niﬂheim: An end-to-end middleware for applications

on a multi-tier IoT infrastructure

2017 C B

31 Foggy- A Framework for Continuous Automated IoT

Application Deployment in Fog Computing

2017 C D

32 A Web of Things Based Device-Adaptive Service

Composition Framework

2016 C O

33 Application Orchestration in Mobile Edge Cloud:

Placing of IoT Applications to the Edge

2016 W O

34 Optimizing Elastic IoT Application Deployments 2016 J D

35 FRED- A Hosted Data Flow Platform for the IoT built

using NodeRED

2016 W B

36 Incremental deployment and migration of geo-

distributed situation awareness applications in the fog

2016 C D

37 On Building Smart City IoT Applications- a

Coordination-based Perspective

2016 W B

38 Orchestrating the Internet of Things Dynamically 2016 W B

39 SoIoT: Toward A User-Centric IoT-Based Service

Framework

2016 J O

40 A Container-based Edge Cloud PaaS Architecture-

based on Raspberry Pi Clusters

2016 C B

41 Automated Deployment of SmartX IoT-Cloud Ser-

vices based on Continuous Integration

2016 C D

42 Cloud4IoT: A Heterogeneous, Distributed and Auto-

nomic Cloud Platform for the IoT

2016 C B

43 Reliable services composition method for the internet

of thing using directed service-object graph deploy-

ment scheme

2016 C O

44 Integration of Heterogeneous Services and Things

into Choreographies

2016 W O

45 A Scalable Framework for Provisioning Large-Scale

IoT Deployments

2016 J D

46 A Data-Centric Framework for Development and

Deployment of Internet of Things Applications In

Clouds

2015 C D

47 Towards a Semantic Model for Automated Deploy-

ment of IoT Services across Platforms

2015 C D

48 A component based approach for the Web of Things 2015 W O

49 A Generic Service Oriented Software Platform to De-

sign Ambient Intelligent Systems

2015 C O

50 Developing IoT Applications in the Fog: a Dis-

tributed Dataﬂow Approach

2015 C B

51 A Full End-to-End Platform as a Service for Smart

City Applications

2014 W B

52 A Novel Deployment Scheme for Green Internet of

Things

2014 J D

53 glue.things - a Mashup Platform for wiring the Inter-

net of Things with the Internet of Services

2014 W B

54 Toward a Distributed Data Flow Platform for the Web

of Things

2014 W O

55 BeC3: Behaviour Crowd Centric Composition for

IoT applications

2014 J B

56 Dioptase: a distributed data streaming middleware for

the future web of things

2014 J B

57 Application deployment for IoT: An infrastructure ap-

proach

2013 C B

58 Orchestration in distributed web-of-objects for cre-

ation of user-centered iot service capability

2013 C O

59 Towards Automated IoT Application Deployment by

a Cloud-Based Approach

2013 C D

60 Mobile Fog: A Programming Model for Large-Scale

Applications on the Internet of Things

2013 C D

61 Gateway as a service- A cloud computing framework

for web of things

2012 C O

62 Behaviour-Aware Compositions of Things 2012 C O

63 Knowledge-Aware and Service-Oriented Middleware

for deploying

2012 J B

64 Mashing up the Internet of Things: A framework for

smart environments

2012 J O

65 D-LITE: Distributed logic for internet of things ser-

vices

2011 C B

66 Adaptable Service Composition for Very-Large-Scale

IoT Systems

2011 W O

67 INOX: A managed service platform for inter-

connected smart objects

2011 W B

68 Connecting Smart Things through Web Services Or-

chestrations

2010 W O

69 COSMOS: a middleware for integrated data process-

ing over heterogeneous sensor networks

2008 J O

PV = Short name of publication venue.

Venue type: J = Journal (19), C = Conference (37), W = Workshop (13).

Focus: D = Deployment, O = Orchestration, B = Both Deployment and Orchestration.

* The titles are clickable to link to the corresponding publications

Figure 3: Publications per year, per venue type.

is understandable for a relatively new research area

like IoT. Answering RQ2.5: Regarding the types of

case studies used for evaluating the DEPO4IOT ap-

proaches, Fig. 6 also shows the similar dominance

of academic approaches. We classify the case stud-

ies that are not from industry as academic studies,

e.g., motivational examples, prototypes or simulations

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

developed by researchers for discussing or evaluat-

ing their DEPO4IOT approaches. Nearly one tenth

of the studies do not really provide evaluation details

(not available, N/A) because of the early stage of their

work, e.g., reported in short papers or new ideas pa-

pers. But, the number of industrial case studies or

empirical studies (with industry) account for 13% in

total, which is still encouraging. We would call for

more collaboration between academia and industry

for more practical DEPO4IOT research in particular,

but also IoT research in general.

Figure 4: Research topics per publication venue.

5.2 Answering RQ2: Deployment &

Orchestration Support

Answering RQ2.1 and RQ2.2: Fig. 7 shows the

distribution of primary studies based on their focus:

orchestration, or deployment, or both orchestration

and deployment. We can see that the orchestration-

focused studies are nearly double the deployment-

focused studies. The main reason could be that

the orchestration-focused studies are around IoT data

Figure 5: The afﬁliations

of authors.

Figure 6: Evaluation case

studies.

mash-up at cloud or edge level, which we show later

in Fig. 8. It is understandable that the ﬁrst IoT re-

search focus is more on building IoT applications (or-

chestration) before deploying them. These studies do

not technically contribute to low-level orchestration

involving IoT devices or gateways but rather make

assumptions on low-level IoT infrastructure. About

one-third (37%) of the approaches support both de-

ployment and orchestration. Note that the degrees of

support for deployment and orchestration are not at

the same level. In other words, approaches that sup-

port deployment somehow also support orchestration

(as part of the deployment speciﬁcations overlap with

orchestration speciﬁcations). However, the orchestra-

tion support in these cases is often at a higher level of

abstraction than the orchestration-focused approaches

that offer speciﬁc support for orchestration (i.e., logi-

cal port vs. method).

Figure 7: Main focus of the primary DEPO4IOT studies.

Figure 8: Target infrastructure.

Fig. 8 shows how the primary DEPO4IOT stud-

ies support for different layers of IoT infrastructure:

cloud, edge, or IoT devices. Most studies (71%) dis-

cuss about mashing up data streaming from IoT de-

vices at cloud (7%) or edge/fog (32%) or both (32%).

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

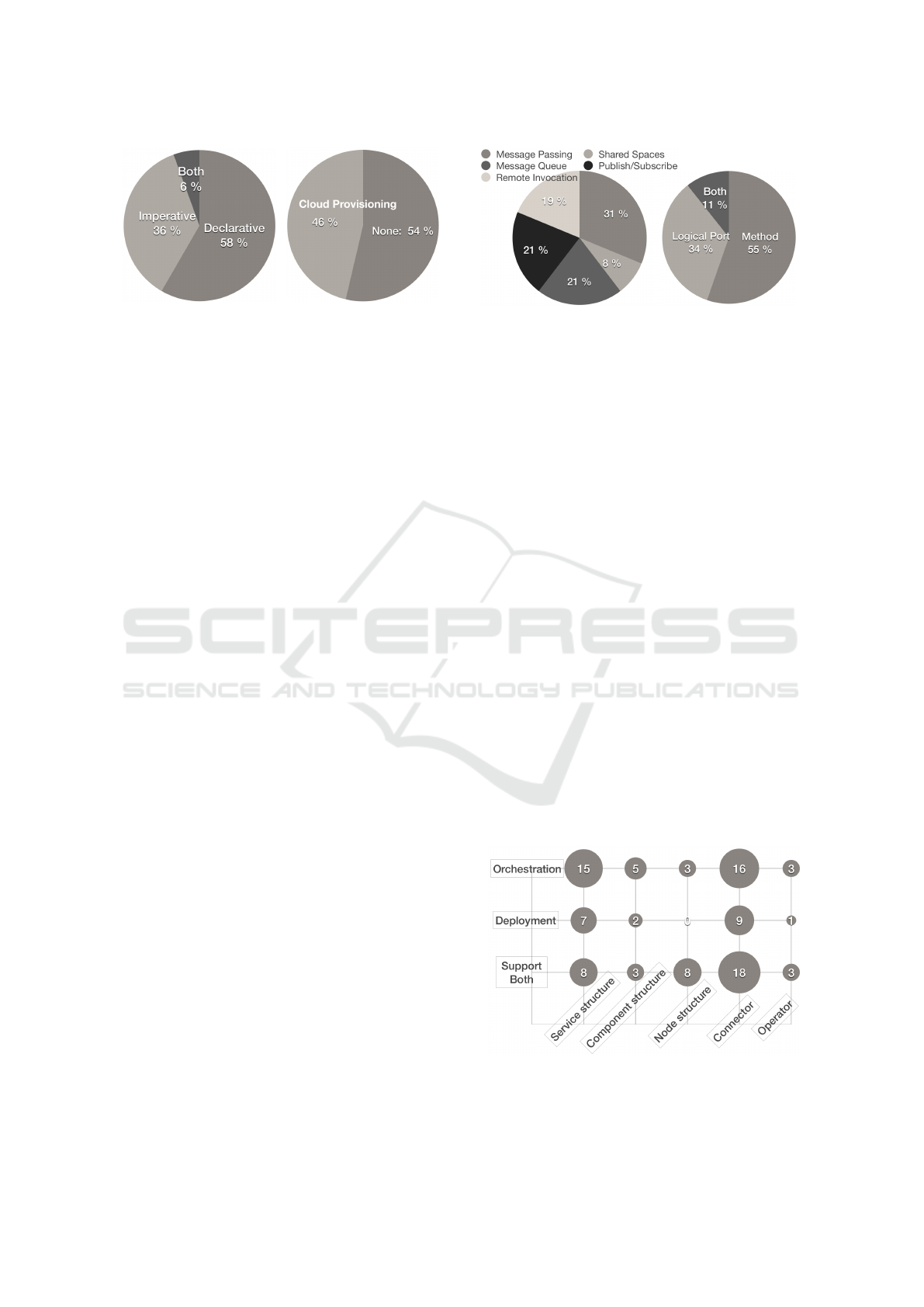

Figure 9: Deployment en-

gine.

Figure 10: Cloud provi-

sioning.

But, few studies (29%) really support orchestrating

and/or deploying software on IoT devices. We would

argue that deployment and orchestration at IoT de-

vices are the most challenging research problems in

DEPO4IOT because of the diversity of IoT devices,

their networking protocols and connectivity issues,

and their different computing resource constraints. To

really support for modern real IoT systems in which

trustworthy aspects are crucial, DEPO4IOT studies

must advance to the technical details of edges and IoT

devices. Even among the 29% mentioned above, we

ﬁnd very limited support for modern IoT systems as

discussed in the following paragraphs.

Looking closer into the studies that support de-

ployment (59%, Fig. 7), we ﬁnd that nearly two-third

(64%, Fig. 9) of them have declarative deployment

type vs. one-third have imperative type. We would

argue this is because imperative approaches are typi-

cally more complicated to specify and reuse (as they

require the speciﬁcation of a deployment plan). On

the other hand, they give full control over the deploy-

ment process, thus allowing its optimization. Very

few approaches (6%) provide users with the ability

to select between both approaches. We would also ar-

gue that hybrid approaches could be beneﬁcial. For

instance, a deployment engine could ﬁrst derives a

tentative deployment plan from a deployment conﬁg-

uration describing the desired system state. Then, if

necessary, the user or a reasoning engine could use an

imperative approach to adjust this plan before the ac-

tual deployment. Also among 59% of the studies that

support deployment, less than half (46%) support the

provisioning of cloud resources before deployment

(Fig. 10). This means only one-third (59% times

46%) of the total primary studies support cloud re-

sources provisioning, which is an important feature in

any advanced DEPO4IOT approach. This illustrates

the need for further integration of the works from the

cloud and IoT domains.

Among the studies that support orchestration

(78%, Fig. 7), we ﬁnd that the communication types

in orchestrating IoT components are diverse (Fig. 11).

However, we observe that approaches offering the

Figure 11: Orchestration

communication types.

Figure 12: Integration

level.

best decoupling in time and space (Eugster et al.,

2003) (between subscribers and publisher), i.e., mes-

sage passing, message queues and publish/subscribe,

are largely adopted (73% in total). The integration

level at methods (66%, Fig. 12) for orchestration is

more common than at logical port (34%). Only 11%

support both levels, which is often needed for orches-

trating more complex IoT systems.

5.3 Answering RQ2: Design Support

This section gives more answers to the RQ2.1 and

RQ2.2, regarding the design support aspects of or-

chestration and deployment. Fig. 13 shows that the

most common term to depict deployment and orches-

tration entities is service, which is signiﬁcantly more

often than component and node. We ﬁnd that most

orchestration approaches have used services for data

mash-up. Node term seems getting more common in

supporting both deployment and orchestration (e.g.,

in NodeRED-based approaches). The total number

of primary studies that provide technical informa-

tion about connectors is 43, which is two-third of the

DEPO4IOT approaches. High-level operators (like

BPMN operators) for supporting deployment and or-

chestration are not common because very few have

been mentioned in the approaches.

Figure 13: Application structure.

Any thorough DEPO4IOT approaches, should

have provided technical information about bootstrap

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

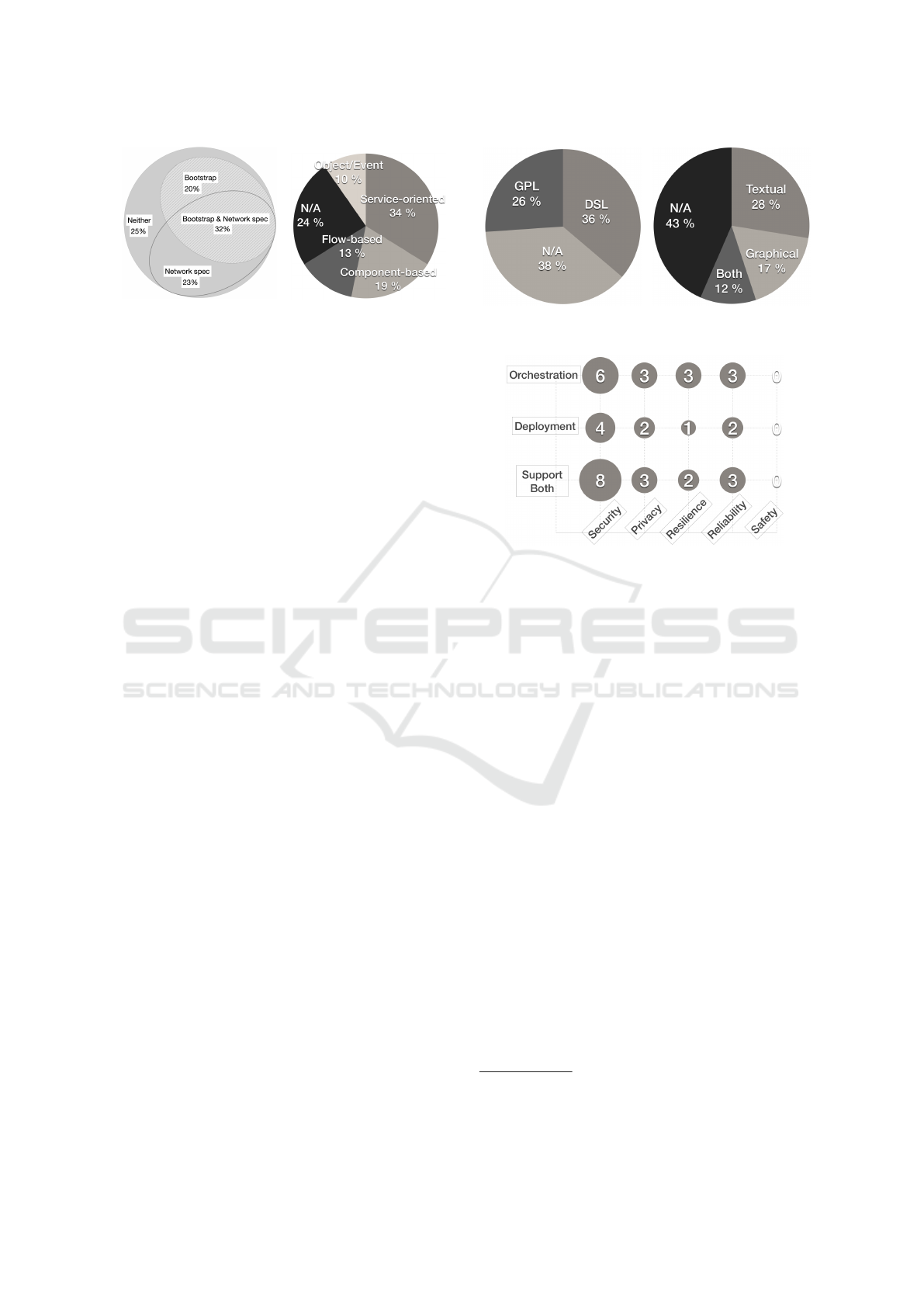

Figure 14: Bootstrap and

network speciﬁcation pro-

vided with deployment?

Figure 15: Programming

model.

and network speciﬁcation. But, Fig. 14 shows that

only less than one-third (32%) of the deployment ap-

proaches have provided any such information. This

could be interpreted that most current approaches do

not address the technical details of deployment and

make assumptions on the support of underlying op-

erating systems or execution engines. We also ﬁnd

in Fig. 14 only about half having either bootstrap

(52%) or network speciﬁcation (55%) with deploy-

ment. A thorough deployment approach should also

have included network speciﬁcation(s) to support for

low-level deployment on IoT devices, where diverse

network topologies and protocols must be considered.

Aligned with the popular of “service” discussed in

the previous paragraphs, service-oriented model is the

most common (34%, Fig. 15) programming model in

the DEPO4IOT approaches, followed by component-

based (19%), and ﬂow-based (13%). These models

can provide a modular, loosely-coupled speciﬁcation

of the orchestration and its deployment so that the

modules can be seamlessly substituted and reused.

The language support is important to make

DEPO4IOT approaches more practical, but more than

one-third of the approaches do not provide language

support for deployment and orchestration (N/A in Fig.

16). Using DSL seems to be more popular than GPL

because DSL could be more expressive in specifying

DEPO4IOT aspects. Fig. 17 shows that textual is the

most popular form of language support (28%), com-

pared to graphical (17%). Some approaches (12%) do

have both graphical and textual formats.

5.4 Answering RQ2: Trustworthiness &

advanced supports

Answering RQ2.3 and RQ2.4: Trustworthiness as-

pects must be supported in the orchestration and de-

ployment of modern IoT systems. However, Fig. 18

shows that very few primary DEPO4IOT studies ad-

dress trustworthy aspects: security (18 out of 69 stud-

ies), privacy (8), resilience (6), reliability (8). Among

the trustworthiness aspects, security is the most ad-

Figure 16: Language

types.

Figure 17: Representation

kinds.

Figure 18: Trustworthiness aspects.

dressed one in the primary DEPO4IOT studies. Even

so, most of 18 DEPO4IOT studies addressing se-

curity only brieﬂy mention security aspects in their

DEPO4IOT approaches. Studies that address security

in more details are very rare (e.g., the study #24 in Ta-

ble 1). None addresses safety, which should be also

a crucial property of critical IoT systems. This re-

lates to the Shared access to resources (including ac-

cess to actuators), which is a rare feature in the ex-

isting DEPO4IOT approaches (e.g., in the study #49).

We believe a reason for that is that IoT system inno-

vations have until now mainly been concerned with

sensors, device management and connectivity, with

the mission to gather data for processing and analy-

sis in the cloud in order to aggregate information and

knowledge

. Management of actuators has thus only

recently appeared as a research priority in the com-

munity. In general, Fig. 19 shows that few primary

DEPO4IOT studies provide advanced supports such

as monitoring, runtime adaptation, shared access. It

is worth noting that it is often the same approaches

that support adaptation and monitoring. We believe

this is due to the fact that both are complementary.

Indeed, before triggering an adaptation it is important

to observe and understand the status of the system.

IEC white paper entitled “IoT 2020: Smart and secure

IoT platform”. http://www.iec.ch/whitepaper/pdf/iecWP-

loT2020-LR.pdf

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

Figure 19: Advanced supports.

5.5 Answering RQ3

This section gives our answers to the RQ3.1 and

RQ3.2 that are supported by the ﬁndings presented

above. Even though there is a big jump in the number

of primary DEPO4IOT studies recently, our analyses

show that DEPO4IOT research is still in its infancy.

Thus, there are fundamental technical gaps and open

issues to be tackled.

We found that the number of orchestration ap-

proaches, often for IoT data mash-up, is nearly dou-

ble the number of deployment approaches. The or-

chestration approaches for IoT data mash-up such as

the studies numbered 10, 20, 33, 62, 64 in Table 1

often make assumptions of readily deployed IoT sys-

tems in operation. IoT deployment approaches should

receive more attention. Without proper deployment

approaches to deploy IoT systems, orchestration ap-

proaches cannot thrive. Besides, it is worth to note

that most of the primary DEPO4IOT approaches do

not really support deployment and/or orchestration at

IoT devices, e.g., without bootstrap or network spec-

iﬁcation. Only by going into low-level details, IoT

engineering can really control the whole chain of IoT

software deployed from cloud until IoT devices. In

this way, it would be more likely that the trustworthy

aspects and advanced supports can be addressed more

systematically and efﬁciently.

They are also immature in addressing trustwor-

thy aspects and advanced supports. The number

of existing DEPO4IOT studies addressing trustwor-

thy aspects is very small. Even among those stud-

ies, we have not really found any that explicitly and

systematically considered trustworthy aspects. The

same observation applies to the advanced support of

DEPO4IOT studies, i.e., regarding monitoring, adap-

tation, and shared access to resources. We would

propose that new DEPO4IOT research should address

more thoroughly and systematically the trustworthy

aspects and advanced supports, which are crucial for

modern IoT systems.

Finally, the dominance of academia-only in

DEPO4IOT research suggests that there should be

more collaboration between academia and industry

to make DEPO4IOT approaches more practical and

closer to the needs in industry.

6 RELATED WORK

IoT has emerged as an important area of research and

development in the recent years. There have been

efforts to review the state of the art in different as-

pects of IoT. Some surveys have addressed IoT mid-

dleware (Razzaque et al., 2016; Ngu et al., 2017), IoT

platforms (Mineraud et al., 2016), and IoT architec-

tural concerns (Gill et al., 2017) but none has sys-

tematically, speciﬁcally investigated deployment and

orchestration approaches for IoT. We have reported

some preliminary results of our SMS in (Nguyen

et al., 2019). In this paper, we report the full results of

our SMS. Note that we have clearly deﬁned the scope

of our SMS, which only considered peer-reviewed

publications, not white papers from industry. Thus,

our SMS reports the state of the art in DEPO4IOT re-

search, not including the state of practice in industry.

From the software architecture view, an IoT mid-

dleware provides a layer between application soft-

ware and system software. DEPO4IOT approaches

are not necessary about middleware because they

are more vertical along the IoT engineering life-

cycle from development to operation of IoT sys-

tems. Research on IoT middleware highly overlaps

with DEPO4IOT because DEPO4IOT approaches of-

ten leverage middlewares for integrating heteroge-

neous computing and communications devices, and

supporting interoperability within the diverse appli-

cations and services running on these devices. In

(Razzaque et al., 2016) and (Ngu et al., 2017), the

authors conducted two different surveys of the ex-

isting middlewares to classify them and ﬁnd out the

main challenges. The results of these studies not only

address the functional aspects of IoT middleware but

also some quality aspects such as security, adaptation

that we also considered in our work. However, these

two studies are not systematic studies.

(Mineraud et al., 2016) provide a gap analysis on

the well-known IoT platforms. In particular, the au-

thors identify gaps related security (ﬁne grained ac-

cess control), cross-platform and cross-layer DSL to

reduce threats on privacy and security. Their work

is not a systematic study and mainly focuses on plat-

forms maturity and usability. (Gill et al., 2017) con-

ducted a systematic study on the key IoT architec-

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

tural concerns. It highlights a set of challenges that

is a combination of technical, human, ﬁnancial and

ethical aspects. Their work is complementary to our

work reported in this paper as it does not focus on

deployment, orchestration and trustworthiness. How-

ever, our work and (Gill et al., 2017) share some com-

mon ﬁndings, e.g., the lack of support for IoT security,

and the need for runtime adaptation of IoT systems.

7 CONCLUSIONS

Deployment and orchestration approaches for IoT

should be advanced enough to support distributed pro-

cessing and coordinated behavior across IoT, edge

and cloud infrastructures. In this paper, we have ex-

amined the research landscape of deployment and or-

chestration approaches for IoT, by conducting a sys-

tematic mapping study. After systematically identify-

ing and reviewing 69 primary studies out of thousands

relevant papers in this ﬁeld, we have found out that

1) there is a sharp rise in the number of publications

addressing this ﬁeld in the two recent years; 2) how-

ever, there are still different gaps that the current ap-

proaches seem to be immature to address such as the

real, low-level technical details of deployment and/or

orchestration at IoT devices level; 3) new deployment

and/or orchestration approaches should also focus on

addressing the trustworthy aspects and advanced sup-

ports for modern IoT systems. To make the IoT de-

ployment and orchestration approaches more practi-

cal, there is a need for increased research collabora-

tions between academia and industry. We will address

these open issues in our current research projects, es-

pecially for the trustworthiness of IoT.

ACKNOWLEDGEMENTS

This work is supported by the H2020 programme un-

der grant agreement no 780351 (ENACT).

REFERENCES

A. Metzger (Ed.) (2015). Cyber physical systems: Opportu-

nities and challenges for software, services, cloud and

data.

Aceto, G., Botta, A., De Donato, W., and Pescap

e, A.

(2013). Cloud monitoring: A survey. Computer Net-

works, 57(9):2093–2115.

Arcangeli, J.-P., Boujbel, R., and Leriche, S. (2015). Au-

tomatic deployment of distributed software systems:

Deﬁnitions and state of the art. Journal of Systems

and Software, 103:198–218.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2010). A view of cloud computing.

Communications of the ACM, 53(4):50–58.

Bergmayr, A., Breitenb

ucher, U., Ferry, N., Rossini, A.,

Solberg, A., Wimmer, M., Kappel, G., and Leymann,

F. (2018). A systematic review of cloud modeling lan-

guages. ACM Comput. Surv., 51(1):22:1–22:38.

Binz, T., Breitenb

ucher, U., Haupt, F., Kopp, O., Leymann,

F., Nowak, A., and Wagner, S. (2013). Opentosca–a

runtime for tosca-based cloud applications. In Inter-

national Conference on Service-Oriented Computing,

pages 692–695. Springer.

Bonomi, F., Milito, R., Zhu, J., and Addepalli, S. (2012).

Fog computing and its role in the internet of things. In

Proceedings of the ﬁrst edition of the MCC workshop

on Mobile cloud computing, pages 13–16. ACM.

Borgia, E., Gomes, D. G., Lagesse, B., Lea, R. J., and Puc-

cinelli, D. (2016). Special issue on “internet of things:

Research challenges and solutions”. Computer Com-

munications, 89:1–4.

Carzaniga, A., Fuggetta, A., Hall, R. S., Heimbigner, D.,

Van Der Hoek, A., and Wolf, A. L. (1998). A char-

acterization framework for software deployment tech-

nologies. Technical report, Colorado State Univ Fort

Collins Dept Of Computer Science.

Dearie, A. (2007). Software deployment, past, present

and future. In Future of Software Engineering, 2007.

FOSE’07, pages 269–284. IEEE.

Eugster, P. T., Felber, P. A., Guerraoui, R., and Kermarrec,

A.-M. (2003). The many faces of publish/subscribe.

ACM computing surveys (CSUR), 35(2):114–131.

Fowler, M. (2010). Domain-speciﬁc languages. Pearson

Education.

Gill, A. Q., Behbood, V., Ramadan-Jradi, R., and Beydoun,

G. (2017). Iot architectural concerns: a systematic

review. In Proceedings of the Second International

Conference on Internet of things and Cloud Comput-

ing, page 117. ACM.

Griffor, E. R., Greer, C., Wollman, D. A., and Burns, M. J.

(2017). Framework for cyber-physical systems: Vol-

ume 1, overview. Technical report.

IEC, ISO (2011). Information technology-security

techniques-privacy framework. International Stan-

dard No. ISO/IEC.

IEC, ISO (2012). Information technology-security

techniques-information security management

systems-overview and vocabulary. International

Standard No. ISO/IEC, 27000:32.

IEEE Standards Association et al. (2016). P2413-standard

for an architectural framework for the internet of

things (iot). Institute of Electrical and Electronics En-

gineers, New York.

Kitchenham, B. (2004). Procedures for performing sys-

tematic reviews. Keele, UK, Keele University,

33(2004):1–26.

Ma, M., Preum, S. M., Tarneberg, W., Ahmed, M., Ruiters,

M., and Stankovic, J. (2016). Detection of run-

time conﬂicts among services in smart cities. In

A Systematic Mapping Study of Deployment and Orchestration Approaches for IoT

Smart Computing (SMARTCOMP), 2016 IEEE Inter-

national Conference on, pages 1–10. IEEE.

McKinley, P. K., Sadjadi, S. M., Kasten, E. P., and Cheng,

B. H. (2004). A taxonomy of compositional adapta-

tion. Rapport Technique.

Medvidovic, N. and Taylor, R. N. (2000). A classiﬁcation

and comparison framework for software architecture

description languages. IEEE Transactions on software

engineering, 26(1):70–93.

Mell, P. and Grance, T. (2001). The NIST Deﬁnition of

Cloud Computing. Special Publication 800-145, Na-

tional Institute of Standards and Technology.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

computing surveys (CSUR).

Mineraud, J., Mazhelis, O., Su, X., and Tarkoma, S. (2016).

A gap analysis of internet-of-things platforms. Com-

puter Communications, 89.

Moody, D. (2009). The “physics” of notations: toward a sci-

entiﬁc basis for constructing visual notations in soft-

ware engineering. IEEE Transactions on Software En-

gineering, 35(6):756–779.

Ngu, A. H., Gutierrez, M., Metsis, V., Nepal, S., and Sheng,

Q. Z. (2017). Iot middleware: A survey on issues and

enabling technologies. IEEE Internet of Things Jour-

nal, 4(1):1–20.

Nguyen, P. H., Ferry, N., Erdogan, G., Song, H., Lavi-

rotte, S., Tigli, J.-Y., and Solberg, A. (2019). The

preliminary results of a mapping study of deploy-

ment and orchestration for IoT. In Proceedings of the

34th ACM/SIGAPP Symposium On Applied Comput-

ing, SAC ’19, New York, NY, USA. ACM.

Petersen, K., Vakkalanka, S., and Kuzniarz, L. (2015).

Guidelines for conducting systematic mapping stud-

ies in software engineering: An update. Information

and Software Technology, 64:1–18.

Razzaque, M. A., Milojevic-Jevric, M., Palade, A., and

Clarke, S. (2016). Middleware for internet of things: a

survey. IEEE Internet of Things Journal, 3(1):70–95.

Tran, N. K., Sheng, Q. Z., Babar, M. A., and Yao, L.

(2017). Searching the web of things: state of the art,

challenges, and solutions. ACM Computing Surveys

(CSUR), 50(4):55.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security
