On the Road with Third-party Apps:

Security Analysis of an In-vehicle App Platform

Benjamin Eriksson, Jonas Groth and Andrei Sabelfeld

Department of Computer Science and Engineering, Chalmers University of Technology, Gothenburg, Sweden

Keywords:

In-vehicle App Security, API Security, Program Analysis for Security, Infotainment, Information Flow

Control, Android Automotive.

Abstract:

Digitalization has revolutionized the automotive industry. Modern cars are equipped with powerful Internet-

connected infotainment systems, comparable to tablets and smartphones. Recently, several car manufacturers

have announced the upcoming possibility to install third-party apps onto these infotainment systems. The

prospect of running third-party code on a device that is integrated into a safety critical in-vehicle system raises

serious concerns for safety, security, and user privacy. This paper investigates these concerns of in-vehicle

apps. We focus on apps for the Android Automotive operating system which several car manufacturers have

opted to use. While the architecture inherits much from regular Android, we scrutinize the adequateness

of its security mechanisms with respect to the in-vehicle setting, particularly affecting road safety and user

privacy. We investigate the attack surface and vulnerabilities for third-party in-vehicle apps. We analyze and

suggest enhancements to such traditional Android mechanisms as app permissions and API control. Further,

we investigate operating system support and how static and dynamic analysis can aid automatic vetting of

in-vehicle apps. We develop AutoTame, a tool for vehicle-speciﬁc code analysis. We report on a case study of

the countermeasures with a Spotify app using emulators and physical test beds from Volvo Cars.

1 INTRODUCTION

The modern infotainment system, often consisting of

a unit with a touchscreen, is mainly used for help-

ing the driver navigate, listening to music or making

phone calls. In addition to this, many users wish to

use their favorite smartphone apps in their cars. Thus,

several car manufacturers, including Volvo, Renault,

Nissan and Mitsubishi (Volvo Car Group, 2018; Re-

nault–Nissan Alliance, 2018), have chosen to use a

special version of Android for use in cars, called An-

droid Automotive (Google Inc., 2018b). Other man-

ufacturers such as Volkswagen (Volkswagen, 2018)

and Mercedes-Benz (Mercedes-Benz, 2018) are in-

stead developing their new in-house infotainment sys-

tems. In contrast to the in-house alternatives, Android

Automotive is an open platform with available infor-

mation and code. This justiﬁes our focus on Android

Automotive apps.

Android Automotive. For the manufacturers, a

substantial beneﬁt of using an operating system based

on Android is gained from relying on third-party de-

velopers to provide in-vehicle apps. A multitude

of popular apps already exists on the Android mar-

ket, which can be naturally converted into Android

Automotive apps. Further, Android Automotive is

a stand-alone platform that does not require a con-

nected smartphone, contrary to its competitors Mir-

rorLink (MirrorLink, 2009), Apple CarPlay (Apple,

2014) and Android Auto (Google Inc., 2014).

Safety, Security, and Privacy Challenges. While

third-party apps boost innovation, they raise serious

concerns for safety, security, and user privacy. In-

deed, it is of paramount importance that the plat-

form both safely handles these apps while driving and

also safeguards the user’s privacy-sensitive informa-

tion against leakage to third parties. Figure 1 gives

a ﬂavor of real-life safety concerns, by showing a

user comment on a radio app with almost half a mil-

lion downloads. The user points out that they had

to stop driving when a shockingly loud ad was sud-

denly played, adding that ads “shouldn’t attempt to

kill you” (Warren, 2018).

While the Android Automotive architecture in-

herits much from regular Android, a key question is

whether its security mechanisms are adequate for in-

Eriksson, B., Groth, J. and Sabelfeld, A.

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform.

DOI: 10.5220/0007678200640075

In Proceedings of the 5th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2019), pages 64-75

ISBN: 978-989-758-374-2

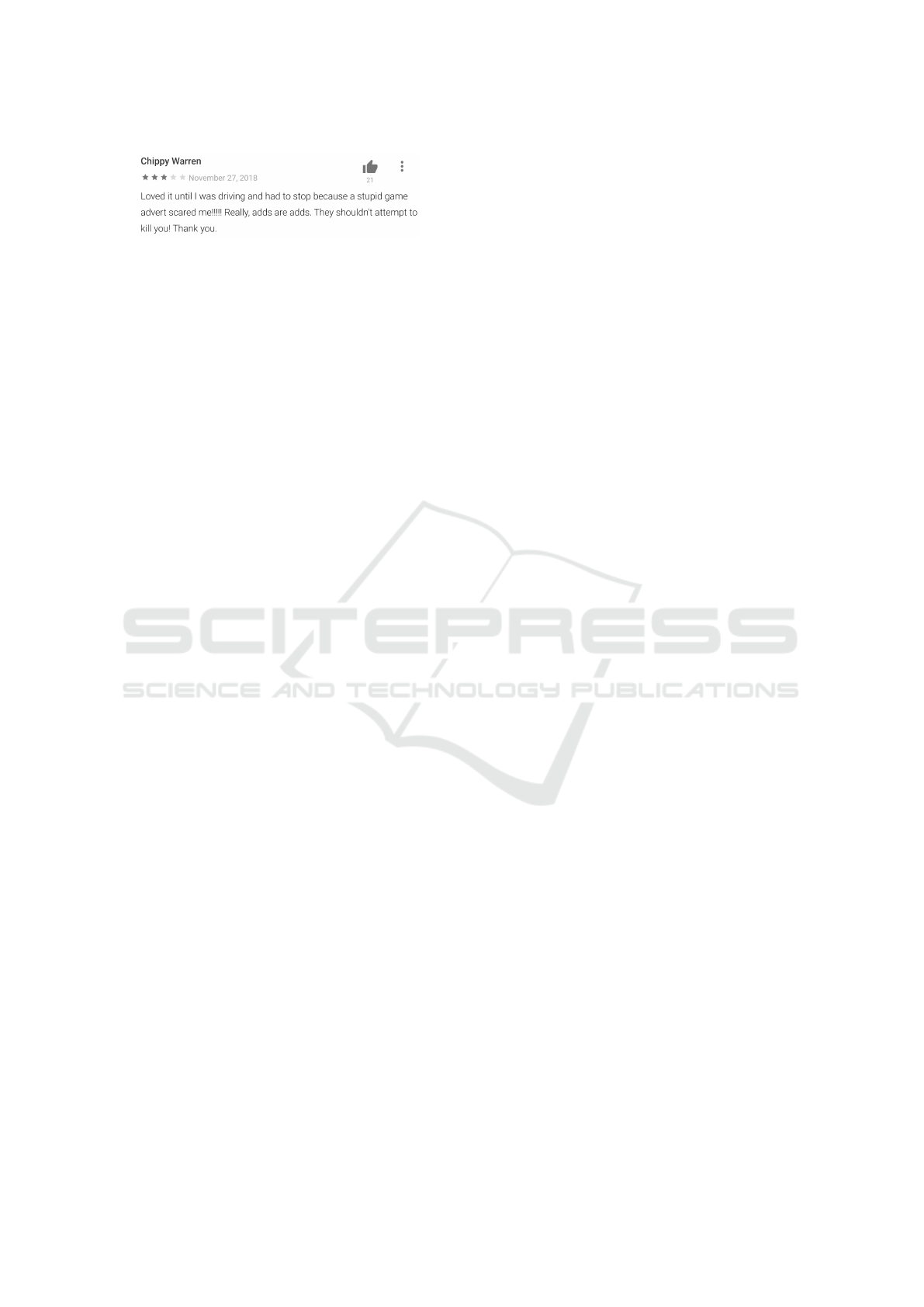

Figure 1: Top comment on a radio app. A user was shocked

by the volume of an ad and had to stop driving.

vehicle apps. However, compared to the setting of

a smartphone, in-vehicle apps have obvious safety-

critical constraints, such as neither being able to tam-

per with the control system nor being able to distract

the driver. Further, car sensors provide sources of pri-

vate information, such as location and speed or sound

from the in-vehicle microphone. In fact, voice con-

trols are encouraged for apps in infotainment systems,

as to help keep the driver’s hands on the wheel, open-

ing up for audio snooping on users by malicious apps.

A recent experiment done by GM collected location

data and radio listening habits from its users with the

goal of creating targeted radio ads (Detroit Free Press,

2018). This clearly highlights the value of user data in

vehicles. Similar data could potentially be collected

by apps using the radio API to record the current sta-

tion (Gampe, 2018). Thus, a key question is whether

Android’s security mechanisms are adequate for in-

vehicle apps.

Android Permissions Android’s core security

mechanism is based on a permission model (Google

Inc., 2018d). This model forces apps to request

permissions before using the system resources.

Sensitive resources such as camera and GPS require

the user to explicitly grant them before the app can

use them. In contrast, more benign resources such

as using the Internet or NFC can be granted during

installation. However, there are several limitations

of this model with implications for the in-vehicle

setting. From a user’s perspective, these permissions

are often hard to understand. Porter Felt et al. (Porter

Felt et al., 2012b) show that less than a ﬁfth of users

pay attention to the permissions when installing an

app, and even a smaller fraction understands the

implications of granting them. Understanding the

implications of giving permissions is even harder.

There are immediate privacy risks, such as an app

having permission to access the car’s position and

the Internet can potentially leak location to any third

party. More advanced attacks would only need access

to the vehicle speed. This may not seem like a privacy

issue but by knowing the starting position, likely

the user’s home address, and speed, it is possible to

derive the path that the car drives (Gao et al., 2014).

Analyzing Android Automotive Security. To the

best of our knowledge, this is the ﬁrst paper to ana-

lyze application-level security on the Android Auto-

motive infotainment system. To assess the security

of the Android Automotive app platform, we need to

extend the scope beyond the traditional permissions.

Attack Surface. For a systematic threat analysis, we

need to analyze the attack surface available to third-

party apps. This includes analyzing what effects mali-

cious apps may have on the functions of the car, such

as climate control or cruise control, and on the driver.

We demonstrate SoundBlast, representative of distur-

bance attacks, where a malicious app can shock the

driver by excessive sound volume, for example, upon

reaching high speed. We also demonstrate availabil-

ity attacks like Fork bomb and Intent Storm. which

render the infotainment system unusable until it is re-

booted. Further, we explore attacks related to the pri-

vacy of sensitive information, such as vehicle loca-

tion and speed, as well as in-vehicle voice sound. We

show how to exﬁltrate location and voice sound infor-

mation to third parties. In order to validate the fea-

sibility of the attacks, we demonstrate the attacks in

a simulation environment obtained from Volvo Cars.

Based on the attacks, we derive exploitable vulner-

abilities and use the Common Vulnerability Scor-

ing System (CVSS) (FIRST.Org Inc., 2018) to assess

their impact.

To address these vulnerabilities, we suggest coun-

termeasures of permissions, API control, system sup-

port, and program analysis.

Permissions. We identify several improvements to

the permission model. This includes both introduc-

ing missing permissions, such as those, pertaining to

the location and the sound system in the car, as well

as making some permissions more ﬁne-grained. For

location, there are ways to bypass the location per-

mission by deriving the location from IP addresses.

At the same time, the location permission currently

allows all or nothing: either sharing highly accurate

position information or not. The former motivates

adding missing permissions, while the latter moti-

vates making permissions more ﬁne-grained. We ar-

gue that for many apps, like Spotify or weather apps,

low-precision in the location, e.g. city-level, sufﬁces.

API Control. In contrast to permissions, API control

can use more information when decided to grant an

app access to a resource. For example, using high-

precision data could be allowed only once an hour, or

during an activity like running. Our ﬁndings reveal

that apps currently need access to the microphone in

order to use voice controls. We deem this as breaking

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform

the principle of least privilege (Saltzer and Schroeder,

1975). To address this, we argue for full mediation, so

that apps subscribe to voice commands mediated by

the operating system, rather than having access to the

microphone. Similarly, location data can also be me-

diated to limit the precision and frequency of location

requests, making it possible to adhere to the principle

of least privilege. These scenarios exemplify coun-

termeasures we suggest to improve API controls for

in-vehicle apps.

System. We argue for improvements to the operating

system in order to protect against apps using too much

of the system’s resources. Malicious apps can cause

the system to become unresponsive or halt, either by

recursively creating new processes or coercing other

system processes to use up all the resources. The

countermeasures consist of limiting the number of re-

quests an app can make, limiting the resources system

processes can use, or completely blocking some ca-

pabilities for third-party apps, like creating new pro-

cesses.

Code Analysis. While previous methods protect the

device from malicious apps, our vision is to also be

able to stop the apps before they make it to the device.

This can be accomplished by analyzing the code in the

app store, before the app is published. This does not

only protect against malicious apps but also poorly

written apps that fail to adhere to security best prac-

tices. This could, for example, include apps not using

encryption for data transmissions, which is currently a

big problem (Razaghpanah et al., 2017). Other prob-

lems include vulnerable apps with high privileges be-

ing exploited by malicious apps or colluding mali-

cious apps sharing data over covert channels. Thus,

we investigate how static and dynamic program anal-

ysis can be leveraged to address the vulnerabilities.

We design and develop AutoTame, our own static

analysis tool for detecting dangerous use of APIs, in-

cluding the new automotive APIs. Further, we explore

several state-of-the-art techniques, based on tools like

FlowDroid (Arzt et al., 2014) and We are Family (Bal-

liu et al., 2017).

Threat Model. The threat model in this paper de-

ﬁnes the attacker as being able to install one or more

apps, with the victim’s permission, on their infotain-

ment system. Similar to previous research (Schlegel

et al., 2011), we assume that the victim is more in-

clined to install an app that asks for fewer permis-

sions. This means that, while one app with access

to both Internet and GPS might be considered suspi-

cious, two apps, one with access to the Internet, the

other with access to GPS, would be more acceptable.

Such a model incentivizes apps to collude and share

information over covert channels. Using this model

we analyze how much damage can be done by a user

mistakenly installing malicious apps.

Case Study. An ideal evaluation of our countermea-

sures would be a large-scale of apps from an app store,

in the style of the studies on Google Play, e.g. (Porter

Felt et al., 2011a; Arzt et al., 2014; Enck et al., 2014).

Unfortunately, Android Automotive is at this stage an

emerging technology with no apps yet publicly avail-

able for a study of this kind. Nevertheless, we have

been granted access to Infotainment Head Unit emu-

lators and physical test beds from Volvo Cars allowing

us to perform a case study with an in-vehicle app ver-

sion of Spotify. We use this infrastructure to evaluate

our countermeasures.

Impact. At the same time, an early study of An-

droid Automotive security has its advantages. Be-

cause our analysis comes at an early phase of An-

droid Automotive adoption by car manufacturers, it

has higher chances for impact. We have reported our

ﬁndings to both Volvo Cars that participated in our

experiments and Google. We are in contact with both

on closing the vulnerabilities we point out and on ex-

perimenting with the countermeasures.

Contributions. The paper offers the following con-

tributions:

• We present an attack surface for third-party in-

vehicle apps, identifying classes of disturbance,

availability, and privacy attacks (Section 3).

• We propose countermeasures, based on ﬁne-

grained permissions, API control, system support,

and information ﬂow (Section 4).

• We overview prominent representatives of tech-

niques and tools for detecting security and privacy

violations in third-party apps (Section 4.4).

• We present our own static analysis tool, Auto-

Tame

, for detection of dangerous API usage

(Section 4.4).

• We evaluate the countermeasures on a case study

with the in-vehicle app Spotify (Section 5).

2 BACKGROUND

As cars become more connected and their infotain-

ment systems more powerful, people expect the car

Our implementations are available online on https://

www.cse.chalmers.se/research/group/security/autotame/

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

to interact in a seamless way with their other devices.

In contrast to most other personal devices, a software

bug in a car can have lethal consequences. For exam-

ple, in 2015 Miller and Valasek (Miller and Valasek,

2015) showed that it was possible to remotely take

over a 2014 Jeep Cherokee by exploiting their info-

tainment system Uconnect. More recently, in May

2018, researchers found multiple vulnerabilities in the

infotainment system and Telematics Control Unit of

BMW cars which made it possible to gain control of

the CAN buses in the vehicle (Tencent Keen Security

Lab, 2018). These type of attacks show that remote

take over attacks of connected vehicles is a possibil-

ity and a real threat.

Attackers do not necessarily need to take control

over the braking or steering system to endanger or dis-

tract the driver. For example, an attacker can make a

malicious infotainment app that disturbs or shocks the

driver at a certain speed level. In order to shock the

driver, the app may, for example, play loud music or

rapidly ﬂash the screen.

In addition to security, privacy is also a concern

as cars become more capable of collecting data about

their users. In accordance with the new EU reg-

ulation, GDPR (European Commission, 2016), the

user has to be informed about how the data is used

and agree to their data being used in the described

way. Previous research projects have explored the

possibility to automatically track and analyze how

privacy-sensitive information is leaked from Android

apps (Reyes et al., 2017), either deliberately through

advertisement networks or inadvertently through in-

secure communication means (Razaghpanah et al.,

2017).

2.1 Experimental Setup

With access to Volvo Cars internal testing equipment,

both the attacks and countermeasures were tested on

their infrastructure. In particular, the code is tested

on Volvo’s Infotainment Head Unit emulators (IHU)

emulators and physical test beds. All of the Android

code is developed for Android SDK version 26 and

27, which corresponds to Android 8.0 and 8.1.

2.2 Automatic Analysis of Android

Apps

Automatically analyzing Android apps can be done

through two major strategies, static analysis or dy-

namic analysis. Static analysis only considers the

code while in dynamic analysis the code is executed

and the program’s behavior is analyzed. Whichever

method is chosen, a decision on what to look for

in the analysis has to be made. In this paper, two

tracks are evaluated, how privacy-sensitive informa-

tion ﬂows through the app and scanning apps for com-

mon vulnerabilities.

2.3 Android Automotive

Today, the Android system is ofﬁcially used in all

types of devices, from phones and tablets to watches,

TVs and soon cars (Google Inc., 2018a). Android Au-

tomotive is a version of Android developed speciﬁ-

cally for use in cars. It is essentially Android with

a User Interface (UI) adapted for cars and a number

of car speciﬁc APIs. The car speciﬁc APIs allow for

control over vehicle functions, such as the heating,

ventilation, and air conditioning (HVAC), and read-

ing of sensor data, e.g. speed, temperature and engine

RPM (Google Inc., 2018b). Android Automotive is

not to be confused with Android Auto which is al-

ready available on the market today. Unlike Android

Auto, Automotive is a completely stand-alone system

that is not dependent on a smartphone. In Android

Auto, apps run on the users Android phone which

then renders content on a screen in the car. The apps

and the Android system thus runs separated from the

car.

2.4 Android’s Permission Model

The Android operating system controls access to

many parts of the system, such as camera, position

and text messages, through permissions. These per-

missions can be of one of four types; normal, danger-

ous, signature or signatureOrSystem. The ﬁrst two

are the most common and can be granted to any third-

party app. Normal permissions give isolated accesses

with minimal risk for the system and user, these are

automatically granted by the operating system. Dan-

gerous permissions, on the other hand, give accesses

to private user data and control over the device that

may harm the user. These permissions have to be ex-

plicitly granted by the user on a per-application ba-

sis. Both Android’s coarse and ﬁne location permis-

sions are examples of dangerous permissions, since

both supply high precision data. The difference be-

tween them is that ﬁne location has access to the

GPS while coarse uses cell towers and WiFi access

points. Finally, there are the signature and signa-

tureOrSystem permissions, which requires the app to

be pre-installed or cryptographically signed (Google

Inc., 2018c).

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform

2.5 Covert Channels

A covert channel, as deﬁned by Lampson, is a com-

munication channel between two entities that are not

intended for information transfer (Lampson, 1973).

In Android, a number of different covert channels

exist that use both hardware attributes and software

functions to communicate. Apps can, for exam-

ple, communicate by reading and setting the volume,

sending special intents or cause high and low system

load (Marforio et al., 2012; Schlegel et al., 2011).

3 ATTACKS

This section focuses on the implementation decisions

regarding the attacks presented in Table 1. The cat-

egory and asset columns in the table give an under-

standing of what the attack is targeting. More specif-

ically, the asset is what the attack is trying to take

control over. In the case of denial-of-service (DoS)

attacks, this is usually some type of resource. Privacy

attacks, on the other hand, try to acquire and exﬁltrate

data such as speed or location. User interaction and

permission are used to judge how easy the attack is

to execute. The values are ﬁnally combined to create

a severity score based on the Common Vulnerability

Scoring System (CVSS3) (FIRST.Org Inc., 2018). A

shortcoming of CVSS3 is that possible physical dam-

age or safety risks are not considered in the scoring.

Distraction vulnerabilities, like the one exploited by

SoundBlast, and other automotive vulnerabilities will

be underrated. These shortcomings are currently be-

ing revised for CVSS3.1 (Dugal, 2018). The exact

vectors and scores for each attack are presented in Ta-

ble 3. Table 2 present the same attacks together with

suitable countermeasures to mitigate the underlying

vulnerabilities.

3.1 Disturbance

SoundBlast. The SoundBlast attack relies heavily

on the AudioManager class in Android. This class

supplies functions which are used to control the vol-

ume of different audio streams in Android. Cars also

have the more speciﬁc CarAudioManager, however,

this class requires special permissions. Different au-

dio streams are used to differentiate between volumes,

e.g. music volume, ringer volume, alarm volume, etc.

A malicious app can use the permissionless audio API

to max the volume and shock the driver. The attack is

further improved by using a ContentObserver to lis-

ten for changes in volume and force the volume to the

maximum as soon as it changes. Using the vehicle’s

sensors, the attacker can also design the attack to only

active when traveling at high speeds.

Testing the SoundBlast attack shows that it is pos-

sible to set any volume on all the different audio

streams in Android, without needing any permissions.

In addition, the attack can also detect changes in vol-

ume and max the volume accordingly. The changes

are also detected even if the driver uses the hardware

controls on the IHU or steering wheel. Killing the app

is the only way to regain control of the volume.

3.2 Availability

Fork Bomb. A fork bomb is a program that creates

new instances of itself until the system runs out of re-

sources, either freezing the device or force a reboot.

While this might be acceptable on a phone, in a vehi-

cle setting this is problematic. Since the IHU usually

handles navigation, freezing the device might distract

drivers trying to ﬁx it, or frustrate them by having to

stop and reboot.

Forking in Android is not possible by default, re-

sulting in the need for a vulnerability to leverage in or-

der to accomplish forking. Unlike previously success-

ful fork bomb attacks on Android (Armando et al.,

2012), our attack takes an application-level approach

by creating a shell, which in turn has the power to

fork itself. By using exec to run sh -s, a new shell

is created, which can execute the fork bomb.

When testing this attack it is able to fully grind

both the emulator and test bed to a halt, requiring a

power cycle to regain control. It is thus able to render

the infotainment system unusable until the system is

rebooted.

Intent Storm. The intent storm attack uses Android

intents to continuously restart the app itself. Similar

to the fork bomb presented in section 3.2, the intent

storm attack tries to use up all the CPU resources,

making the IHU unusable. The difference, however,

is that the intent storm does not use the resources it-

self, but rather forces another system process, the sys-

tem server, to use up all resources. The fast activity

switching required is made possible with threads and

intents. As soon as the app starts, it spins up 8 threads

which all ask Android to start its own main activity.

Using multiple threads increases the pressure on the

system server, making the device less responsive.

During the tests, the system server process was

forced by the attack to use 100% of the CPU, making

the IHU unusable. Similar to the fork bomb in sec-

tion 3.2, this would grind the IHU to a halt. However,

in some cases, the IHU would automatically restart

after a few minutes.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

Table 1: The attacks are divided into three different categories. Which asset and permissions the attacks affects and requires are listed

along with the needed user interaction.

Name Category Asset User interaction Permission Severity

SoundBlast Disturbance Driver’s attention Start app None Medium

Fork bomb DoS CPU resources Start app None Medium

Intent storm DoS CPU resources Start app None Medium

Permissionless speed Privacy Current speed Start app None Low

Permissionless exﬁltration Privacy Data Exﬁltration Start app None Low

Covert channel Privacy Data Exﬁltration Start app Channel dependent Low

The score is subject to the limitation of CVSS3 on lacking support for physical damage and safety risks (Dugal, 2018).

3.3 Privacy

Permissionless Speed. In Android Automotive,

apps have direct access to the current speed. How-

ever, since speed is privacy sensitive it requires a per-

mission. By combining other permissionless sensor

values, such as the current RPM and gear, and knowl-

edge about the wheel size, the speed can be derived.

The effectiveness of this attack does depend on the

sampling frequency of the sensors. The hardware

test beds only contained the IHU and not the full car,

meaning that the efﬁciency of the attack is yet to be

tested.

Permissionless Exﬁltraion. The Android permis-

sion model clearly states that any app wanting com-

municate on a network requires Internet permission.

However, by using intents it is possible to force an-

other app with Internet permission to leak the data.

Different apps handle different intents, for example,

the web browser will open URLs, music player opens

music ﬁles, etc. While the implementation details dif-

fer depending on the app, the common procedure is to

encode the data, split it into chunks and send a sepa-

rate intent for each chunk.

Crafting an intent with data type audio/wav and

using the URL http://evil.com/music.wav?d=[data],

forces the music player to load the URL. The na-

tive Android music player is quite stealthy as it only

shows a small popup with a play button will appear.

By returning a malformed wav ﬁle from the server, the

music player will only show a subtle error message.

If a web browser is used, the attacker can have

the server redirect the request to a deep link, giving

control back to the exﬁltration app. Not only does this

give the app the ability to leak more data, but it also

enables two-way communication with the attacker’s

server, all without using the Internet permission.

In order to test this, a proof-of-concept code was

developed that would record audio for ﬁve seconds

and then upload it using the described method. The

code only needs permission to record audio, but not

to use the Internet. Testing this attack shows that it is

possible to send data to the Internet without using the

Internet permission. The attack was successful using

Chrome, the standard music player, video player and

image viewer. If the device has not been conﬁgured

with a default application for opening the type of data,

it will ask the user to pick one.

Covert Channels. Previous work on covert chan-

nels in Android have used both vibration and vol-

ume settings to transmit data between colluding

apps (Schlegel et al., 2011). In addition, Android Au-

tomotive introduces some new APIs. In particular the

new climate control API for temperature. Since the

temperature is represented by a ﬂoating point value,

the bandwidth is more than tenfold that of the volume

settings. However, changing the temperature does

currently require a signature permission, making it

hard for third-party apps to acquire.

In contrast to previous work on covert channels,

which relied on time synchronization, our attack is

based on asynchronous messages. This forces the

receiver to send an acknowledgment for each of the

received values. While this lowers the bit rate, in

contrast to synchronous communication, it greatly in-

creases the reliability of the communication.

With this implementation, two apps can collude

to leak privacy- sensitive information to the Inter-

net. One app requests permission to privacy-sensitive

information but not the Internet and then acts as a

sender. The second app requests Internet permis-

sion but not permission to access any sensitive data.

The second app can now receive sensitive informa-

tion which it does not have permission for and leak it

to the Internet.

4 COUNTERMEASURES

The vulnerabilities are very different in nature and,

as such, the mitigation techniques differ. Some vul-

nerabilities can be mitigated by several different tech-

niques while others can only be mitigated by one. An

overview of the attacks together with mitigations for

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform

the underlying vulnerabilities are presented in Table

4.1 Permission

The current permission model can be improved both

by adding new permissions for unprotected resources,

and also by reﬁning some very broad permission. The

SoundBlast attack, from Section 3.1, relies on chang-

ing the volume through an API called AudioManager

which does not require any permission. At the same

time, there exists an API called CarAudioManager,

which does require a permission. Cars usually have

more advanced sound systems than phones so a dif-

ferent API with more settings does make sense as

does the need for a permission. When conducting

experiments with the emulator the AudioManager is

usable by third-party apps, thus allowing an attacker

to change the volume without any permission.

In addition to audio, Android allows apps to get

the location of the device by using GPS. This can, for

example, be used by apps to give weather informa-

tion. However, due to these systems having high pre-

cision and allowing for real-time updates, apps often

excessive information.

There are multiple methods for preserving the

user’s privacy while still maintaining an acceptable

level of functionality in apps using location (Micinski

et al., 2013; Fawaz and Shin, 2014). Which method

is optimal is highly dependent on the type of infor-

mation the app needs. A simple approach is to trun-

cate location, effectively creating a grid of possible

locations. A grid will better protect the privacy of the

user, but at the same time degrade the functionality of

some apps (Micinski et al., 2013). In order to handle

apps like ﬁtness trackers, which requires fast updates

and high precision, truncation is not feasible. Fawaz

and Shin (Fawaz and Shin, 2014) argue that in order

to preserve privacy, a choice has to be made between

tracking distance and speed, or tracking the path of

the exercise. They present a method for tracking the

distance and speed by supplying the exercise tracker

with a synthetic route, that has correct distance and

speed but a forged path. Furthermore, they argue that

navigation apps with Internet access, usually used for

real-time trafﬁc information, are the hardest to han-

dle since they can potentially leak the location. This

problem could be solved by using state-of- the-art in-

formation ﬂow tracking to ensure that the location is

never leaked.

4.2 API Control

In some scenarios, permissions are not enough. This

is usually the case when access to a resource can be

abused over time. For example, in the current Android

model, apps are allowed to record audio from the mi-

crophone at all times, as long as it has been granted

the permission once. This means that a restaurant app

that uses voice commands to ﬁnd close by restaurants,

can listen to everything the user says, at all times.

Since voice commands are more prevalent in vehi-

cles, where the user’s focus is on driving, it is reason-

able to believe that more in-vehicle apps will use this

functionality. One solution to this problem is to use

a voice mediator, which is a special service that has

access to the microphone and allows for third-party

apps to subscribe to certain keywords. The app would

only receive sentences that contain the keywords it

subscribed to, effectively removing its capabilities to

eavesdrop. Similar to the voice mediation, the same

method can be used for location. By using a loca-

tion mediator apps can subscribe to arbitrary precision

for location data. The mediator can also introduce a

trade-off between the refresh rate and precision of the

requests, mitigating real-time tracking.

4.3 System

Some problems are best solved at the operating sys-

tem level. These problems include resource man-

agement, e.g. how much CPU time or memory an

app should be allowed to use. Android already lim-

its resource usage by apps to a great extent when it

comes to memory and CPU However, some system

processes, the system server process in particular, can

use all of the CPU, effectively starving the rest of

the system. This lack of rate limiting was exploited

in the intent storm attack in Section 3.2. While not

tested, we speculate that this vulnerability could ei-

ther be countered by rate limiting the CPU usage of

the system server process or limit incoming intents to

the system server.

Similar to CPU limiting, memory usage requires

limitations too. When Android is running low on

memory it will start to terminate apps in the back-

ground. This can result in the termination of apps that

the user wants to run in the background, e.g. nav-

igation apps. A possible method for ensuring that

the navigation works while driving is to prohibit An-

droid from terminating important apps. This protects

against both malicious apps using up the memory, and

legitimate memory hungry apps.

Akin to permissions, SELinux policies are poli-

cies which limit what the processes in an OS can

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

do. These policies play a crucial role in protecting

the vehicle’s subsystems from Android. The policies

are suitable for specifying what an app is allowed to

do. However, not how many times it can do it. As

Bratus et al. (Bratus et al., 2011) explains, “SELinux

does not provide an easy way to control the use of

the fork operation once forking has been allowed in

the program’s proﬁle”, which shows that SELinux is

not suited to stop attacks like fork bombing. While it

might be infeasible in many situations, blocking fork-

ing altogether could be a solution.

4.4 Code Analysis

Automatic analysis techniques can be used to scan

apps, both before installation and during runtime, to

ﬁnd vulnerabilities and block attacks. The following

sections describe this in more detail.

Vulnerability Detection. Both AndroBugs (Lin,

2018) and QARK (LinkedIn Corporation, 2018) are

tools that can be used to scan Android apps for

known vulnerabilities. QARK is capable of ﬁnd-

ing many common security vulnerabilities in Android

apps (Ibrar et al., 2017). QARK can, for exam-

ple, ﬁnd incorrect usage of cryptographic functions,

trace intents and detect insecure broadcasts. In ad-

dition, QARK can also generate exploits for some

of these vulnerabilities. While not able to generate

exploits, AndroBugs can detect vulnerabilities based

on heuristics in the code. For example, multiple dex

ﬁles suggests a master key vulnerability (CVE-2013-

4787) (MITRE, 2013). The tools work well together

since AndroBugs can quickly scan multiple apps with

heuristics and then QARK can perform a deeper anal-

ysis of the interesting apps.

AutoTame. To scan for dangerous use of the new

automotive APIs, we developed a special tool built on

the Soot framework, which can analyze both Java and

Android bytecode. The tool has a list of dangerous

APIs, e.g controlling the HVAC system, change au-

dio volume or spawning shells. Using Soot, our tool

decompiles the APK and analyses each function in

the app while testing if it matches any of the ones in

the list. AutoTame performs a full application anal-

ysis. The main advantage of this is that it does not

require any entry point analysis. Compared to many

other languages, Android apps do not have a single

main function from which execution starts. Therefore

a full analysis ensures that any dangerous use of an

API is detected. However, without knowing the entry

points, dead code could be ﬂagged, potentially lead-

ing to false positives. In addition to only detecting if

the volume is changed, AutoTame can also give ex-

tra warnings if the volume is set to a high numeric

value or if getStreamMaxVolume is used. If a match

is found the app can be removed or marked as poten-

tially dangerous. The tool was able to ﬂag the Sound-

Blast attack, as well as the fork bomb.

Taint Tracking. Taint tracking can help detect pri-

vacy leaks where sensitive information, such as the

user’s location, is being sent to a remote server. Flow-

Droid (Arzt et al., 2014) is a tool for static taint anal-

ysis on Android, that can detect these ﬂows. The taint

analysis works by tainting private sources of infor-

mation, such as the user’s location. If the location is

written to a variable, then this variable also becomes

tainted. If at a later time this tainted variable is writ-

ten to a public sink, e.g an Internet connection, a leak

from a private source to a public sink will be detected.

What makes FlowDroid special is its highly accu-

rate modeling of Android’s life cycles. This is impor-

tant as an app can be started in many different ways.

FlowDroid is also able to track leaks via button clicks

and other UI events. Important for the car API used

in this paper is that FlowDroid can track dynamically

registered callback functions, which is used to estab-

lish the connection to the car.

In order to make FlowDroid fully functional with

Android Automotive apps, we extended the tool with

new sources and sinks. Some of the sources added

were used to acquire the car’s manufacturer, model

and year. For sinks, we added functions for writing to

the climate control APIs.

Observable Flows. Taint tracking is not always

enough to ﬁnd all privacy leaks. For this reason, a

more powerful tool that can detect observable implicit

ﬂows is introduced. The We are Family paper by Bal-

liu et al. (Balliu et al., 2017) presents a two-fold hy-

brid analysis solution. The ﬁrst stage is a static analy-

sis that transforms the application and adds monitors.

These monitors will aid the dynamic analysis tool in

the second stage to ﬁnd implicit ﬂows. The added

monitors are in this case used to track the program

counter label and analyze the current taint value, mak-

ing it possible to detect potential leaks during run-

time on the device. The dynamic tool developed in

the paper is an extension of TaintDroid (Enck et al.,

2014). By using the transformed program together

with TaintDroid, observable implicit ﬂows can be de-

tected, something TaintDroid was not able to do.

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform

Table 2: List of all developed attacks and which countermeasure(s) can be used to mitigate each attack the underlying vulner-

abilities.

Attacks / Countermeasures Permissions Location granularity SELinux AutoTame FlowDroid We are Family Rate limit

SoundBlast X X

Fork bomb X X

Intent Storm X

Permissionless speed X X X

Permissionless exﬁltration X X X

Covert channels X X X X

5 SPOTIFY CASE STUDY

To test some of the countermeasures, an in-depth case

study was performed on the Spotify app. The motiva-

tion behind using Spotify is that it was the only third-

party app available on the emulator and test bed, mak-

ing it the most realistic app to test. It was also much

larger in size than the proof-of-concept attacks. The

larger size will show how well the methods handle

real apps.

5.1 Permissions

The ﬁrst analysis that has to be performed is to gather

an understanding of the permissions the app uses.

Spotify needs permission to Internet, Bluetooth and

NFC, for data transfer. Furthermore, it also requires

permission to change audio settings, run at startup,

and prevent the device from sleeping. Since Spotify

is a music streaming app that should be able to run

in the background, as well as talk to other Bluetooth

devices, these permissions seem innocuous. Shifting

focus to the dangerous permissions, Spotify does re-

quire permission to read the accounts on the device,

contacts stored on the device, the device ID, and in-

formation about current calls. It is not clearly mo-

tivated why this information is necessary, and while

some connection between the Spotify user and the de-

vice user is reasonable, having access to all contacts

seems excessive. Spotify does not ask for the loca-

tion permission, instead, they use IP-addresses for lo-

cation (Spotify, 2018). In addition, Spotify can also

record audio and take pictures, as well as read and

write access to the external storage. Taking pictures is

necessary to scan QR-codes and the microphone will

be used in Spotify’s driving mode (Singleton, 2018).

Access to external storage is reasonable since it al-

lows for ofﬂine storage of music, however, it does in-

clude access to other photos and media ﬁles beyond

Spotify’s.

5.2 Vulnerability Detection

To ensure that the app does not have any known vul-

nerabilities QARK is used to scan the app. While

QARK didn’t ﬁnd any severe vulnerabilities, it did

ﬁnd cases where a vulnerability could arise, e.g. by

using a WebView in an older version of Android (API

≤ 18). Moreover, it also points out interesting entry-

points into the app, one of them leading to a version

of Spotify meant for another automotive system. In

addition, a malicious third-party app can also send in-

tents to Spotify to search and play arbitrary music,

skip songs, or even crash the app. QARK did not ﬁnd

any vulnerabilities relating to the vehicle APIs, moti-

vating the need for further analysis.

5.3 AutoTame

Using AutoTame, multiple warnings about both

changing the volume and querying for max volume

was found. Further manual analysis proved that the

maximum volume was used directly to set the vol-

ume, as shown in Figure 2.

int i = thi s .c . g e tStreamMaxV o l u m e ( 0) ;

th is . c . s e t StreamVo l u m e (0 , i , 0) ;

Figure 2: Decompiled code setting volume to max.

5.4 Information Flow Analysis

The permissions give an upper bound on what the app

is capable of doing. A more precise understanding of

the app is achieved by analyzing it with FlowDroid,

using implicit ﬂow tracking. Using these settings the

information ﬂow analysis found 13 leaks in the app.

One interesting leak was getLastKnownLocation

being leaked into a dynamic receiver registration.

As shown in Figure 3, FlowDroid was able to track

the sensitive location through different assignments,

function calls and control ﬂows. While this case

might be quite benign, as it only leaks one bit, it still

shows the capabilities of the technique.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

acu.a this.y

abi2

Location

abi2.d

q()

j()

addAction

null

Figure 3: The publicly observable addAction function is im-

plicitly dependent on the private location information.

The analysis also over-approximates some leaks,

especially when the information being sent is based

on information being received. A concrete example

of this is when threads try to communication using

sendMessage and obtainMessage. Since the ob-

tained information could contain sensitive informa-

tion, it is ﬂagged as a leak. This could potentially

be solved using dynamic information ﬂow tracking.

5.5 Summary

To summarize these ﬁndings, we see that a more ro-

bust and at the same time more ﬁne-grained permis-

sion model would be beneﬁcial, as it would allow

apps like Spotify to use lower precision location data

instead of privacy-invading high precision data. In

addition, vulnerability detection methods succeed in

ﬁnding a bug that could be exploited to terminate Spo-

tify. Finally, static analysis proved successful for au-

tomatically detecting privacy leaks.

6 RELATED WORK

Previous security and privacy research on vehicles

have to a large extent focused on low-level prob-

lems relating to the internal components. Koscher et

al. (Koscher et al., 2010) showed that with physical

access to the CAN bus it is possible to control both the

speedometer, horn and in-vehicle displays to distract

the driver. Miller and Valasek (Miller and Valasek,

2015) gained similar access to the CAN bus, this time

remotely. A similar vulnerability found in an info-

tainment system used in cars from Volkswagen was

also recently discovered by researchers in the Nether-

lands (Computest, 2018). They showed that it was

possible to connect to the car via WiFi to exploit a

service running in the infotainment system to gain re-

mote code execution system. The most recent study

on attacks against vehicles was done by researchers

at Tencent Keen Security Lab (Tencent Keen Security

Lab, 2018), where they found multiple vulnerabilities

in the infotainment system and Telematics Control

Unit of BMW cars, resulting in control of the CAN

buses.

A contribution of our paper is to show that even

without access to the internal buses or exploiting low-

level vulnerabilities, it is possible to cause distractions

and leak private information.

A more high-level study was done by Mazloom

et al. (Mazloom et al., 2016) where they conducted a

security analysis of the MirrorLink protocol. Mirror-

Link allows smartphones to run apps on the cars info-

tainment system. Their analysis showed weaknesses

in the MirrorLink protocol which could, amongst

other things, allow malicious smartphone apps to play

unwanted music or interfere with navigation. Man-

dal et al. (Mandal et al., 2018) showed that the simi-

lar system Android Auto have multiple problems that

can be abused by third-party apps. For example, auto-

playing audio when launching an app or showing vi-

sual advertisements, both of which are against An-

droid Auto’s quality policy. In our paper, we show

similar attacks are possible on Android Automotive,

however, without the requirement of the user’s smart-

phone, since the malicious app runs on the infotain-

ment system.

Intents, which is the main component in our ex-

ﬁltration attack, are problematic for many reasons.

Khadiranaikar et al. (Khadiranaikar et al., 2017) high-

lighted some of these problems, including how ma-

licious apps can both steal information and compro-

mise other apps using intents. Our paper builds on

these ideas to develop new exﬁltration methods for

the Android Automotive platform.

There is a large body of work on Android per-

missions (Porter Felt et al., 2011b; Porter Felt et al.,

2012a; Frank et al., 2012). As a representative exam-

ple, a study on Android permissions by Porter Felt et

al. (Porter Felt et al., 2011a) shows that many apps

are using more permissions that they need, i.e. not

adhering to the principle of least privilege. Other re-

searches (Bugiel et al., 2013), also argue for the need

of a more ﬁne-grained model which can grant access

to speciﬁc functions instead of full APIs or services.

Extensions such as Apex (Nauman et al., 2010) have

also been developed in order to supply end users with

a more ﬁne-grained model, capable of granting per-

missions based on user-speciﬁed policies. While our

focus is on the speciﬁcs of the in-vehicle setting, we

argue that many apps get access to excessive data due

to the coarse granularity of the permission model it-

self. For example, a weather app or Spotify app only

needs low-precision location, such as city level.

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform

7 CONCLUSIONS

To the best of our knowledge, we have presented the

ﬁrst study to analyze application-level security on the

Android Automotive infotainment system. Unfortu-

nately, our analysis shows that in-vehicle Android

apps are currently as secure as regular phone apps.

We argue it is insufﬁcient because in-vehicle apps can

affect road safety and to some extent user privacy.

Our study of the attack surface available to third-

party apps include driver disturbance, availability, and

privacy attacks, for which there is currently no protec-

tion mechanisms in Android Automotive.

Consequently, it is important for car manufactur-

ers that third-party apps are limited in their abilities to

cause a considerable distraction for the driver. Addi-

tionally, there are a number of vehicle speciﬁc APIs,

such as access to current gear and engine RPM, that

is a cause for concern when it comes to user privacy.

To address the vulnerabilities that lead to these at-

tacks, we have suggested the countermeasures of ro-

bust and ﬁne-grained permissions, API control, sys-

tem support, and program analysis.

We have designed and developed AutoTame, a

tool for detecting dangerous vehicle-speciﬁc API us-

age. We have demonstrated that in-vehicle code anal-

ysis can be performed using AndroBugs and QARK,

to detect known vulnerabilities, AutoTame to detect

vehicle speciﬁc vulnerabilities and FlowDroid, with

the additional vehicle speciﬁc sources and sinks, to

detect privacy leaking apps.

We have evaluated the countermeasures with a

Spotify app using an infrastructure of Volvo Cars.

ACKNOWLEDGEMENTS

Thanks are due to Henrik Broberg for orchestrating

collaboration with Volvo Cars and for his valuable

comments on earlier drafts of the paper. This work

was partly funded by the Swedish Foundation for

Strategic Research (SSF) under the WebSec project

and the Swedish Research Council (VR) under the

PrinSec project.

REFERENCES

Apple (2014). Apple carplay. http://www.apple.com/ios/ca

rplay/.

Armando, A., Merlo, A., Migliardi, M., and Verderame, L.

(2012). Would you mind forking this process? a de-

nial of service attack on android (and some counter-

measures). In IFIP.

Arzt, S., Rasthofer, S., Fritz, C., Bodden, E., Bartel, A.,

Klein, J., Le Traon, Y., Octeau, D., and McDaniel, P.

(2014). Flowdroid: Precise context, ﬂow, ﬁeld, object-

sensitive and lifecycle-aware taint analysis for android

apps. SIGPLAN Not., 49(6):259–269.

Balliu, M., Schoepe, D., and Sabelfeld, A. (2017). We Are

Family: Relating Information-Flow Trackers. In Eu-

ropean Symposium on Research in Computer Security.

Bratus, S., Locasto, M. E., Otto, B., Shapiro, R., Smith,

S. W., and Weaver, G. (2011). Beyond selinux: the

case for behavior-based policy and trust languages.

Bugiel, S., Heuser, S., and Sadeghi, A.-R. (2013). Flexible

and ﬁne-grained mandatory access control on android

for diverse security and privacy policies. In USENIX

Security Symposium.

Computest (2018). Research paper: The connected car -

ways to get unauthorized access and potential impli-

cations. Technical report.

Detroit Free Press (2018). Gm tracked radio lis-

tening habits for 3 months: Here’s why.

https://eu.freep.com/story/money/cars/general-

motors/2018/10/01/gm-radio-listening-habits-

advertising/1424294002/.

Dugal, D. (2018). List of potential improvements for cvss

3.1.

Enck, W., Gilbert, P., Han, S., Tendulkar, V., Chun, B.-G.,

Cox, L. P., Jung, J., McDaniel, P., and Sheth, A. N.

(2014). Taintdroid: An information-ﬂow tracking sys-

tem for realtime privacy monitoring on smartphones.

ACM Trans. Comput. Syst., 32(2):5:1–5:29.

European Commission (2016). Regulation (eu) 2016/679.

http://ec.europa.eu/justice/data-protection/reform/ﬁl

es/regulation oj en.pdf.

Fawaz, K. and Shin, K. G. (2014). Location privacy protec-

tion for smartphone users. In SIGSAC ’14.

FIRST.Org Inc. (2018). Common vulnerability scoring sys-

tem v3.0: User guide.

Frank, M., Dong, B., Porter Felt, and Song, D. (2012). Min-

ing permission request patterns from android and face-

book applications. In ICDM ’12. IEEE.

Gampe, A. (2018). Radiotestfragment. https://android.go

oglesource.com/platform/packages/services/Car/+/4d

1e3469cb2f285e7a4a864bd48a4c5177e7c83f/tests/E

mbeddedKitchenSinkApp/src/com/google/android/c

ar/kitchensink/radio/RadioTestFragment.java.

Gao, X., Firner, B., Sugrim, S., Kaiser-Pendergrast, V.,

Yang, Y., and Lindqvist, J. (2014). Elastic pathing:

Your speed is enough to track you. In ubicomp 2014.

Google Inc. (2014). Android auto. https://www.android.co

m/auto/.

Google Inc. (2018a). Android. https://www.android.com/.

Google Inc. (2018b). Automotive. https://source.android.c

om/devices/automotive/.

Google Inc. (2018c). permission. https://developer.android.

com/guide/topics/manifest/permission-element.html.

Google Inc. (2018d). Permissions overview. https://develo

per.android.com/guide/topics/permissions/overview.

Ibrar, F., Saleem, H., Castle, S., and Malik, M. Z. (2017).

A study of static analysis tools to detect vulnerabili-

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

ties of branchless banking applications in developing

countries. In ICTD ’17.

Khadiranaikar, B., Zavarsky, P., and Malik, Y. (2017). Im-

proving android application security for intent based

attacks. In IEMCON 2017.

Koscher, K., Czeskis, A., Roesner, F., Patel, S., Kohno, T.,

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., and Savage, S. (2010). Experimental

security analysis of a modern automobile. In 2010

IEEE Symposium on Security and Privacy.

Lampson, B. W. (1973). A note on the conﬁnement prob-

lem. Commun. ACM, 16(10):613–615.

Lin, Y.-C. (2018). Androbugs framework. https://github.c

om/AndroBugs/AndroBugs Framework.

LinkedIn Corporation (2018). Qark. https://github.com/lin

kedin/qark.

Mandal, A. K., Cortesi, A., Ferrara, P., Panarotto, F., and

Spoto, F. (2018). Vulnerability analysis of android

auto infotainment apps. In CF ’18. ACM.

Marforio, C., Ritzdorf, H., Francillon, A., and Capkun, S.

(2012). Analysis of the communication between col-

luding applications on modern smartphones. In AC-

SAC ’12.

Mazloom, S., Rezaeirad, M., Hunter, A., and McCoy, D.

(2016). A security analysis of an in-vehicle infotain-

ment and app platform. In WOOT.

Mercedes-Benz (2018). Mercedes-benz user experience:

Revolution in the cockpit. https://www.mercedes-

benz.com/en/mercedes-benz/innovation/mbux-

mercedes-benz-user-experience-revolution-in-the-

cockpit/.

Micinski, K., Phelps, P., and Foster, J. S. (2013). An empir-

ical study of location truncation on android. Weather,

2:21.

Miller, C. and Valasek, C. (2015). Remote exploitation of

an unaltered passenger vehicle. Black Hat USA, 2015.

MirrorLink (2009). Mirrorlink. https://mirrorlink.com/.

MITRE (2013). CVE-2013-4787. https://cve.mitre.org/cgi-

bin/cvename.cgi?name=CVE-2013-4787.

Nauman, M., Khan, S., and Zhang, X. (2010). Apex: ex-

tending android permission model and enforcement

with user-deﬁned runtime constraints. In ASIACCS

’10.

Porter Felt, Chin, E., Hanna, S., Song, D., and Wagner,

D. A. (2011a). Android permissions demystiﬁed. In

ACM Conference on Computer and Communications

Security, pages 627–638. ACM.

Porter Felt, Egelman, S., Finifter, M., Akhawe, D., Wag-

ner, D., et al. (2012a). How to ask for permission. In

HotSec.

Porter Felt, Wang, H. J., Moshchuk, A., Hanna, S., and

Chin, E. (2011b). Permission re-delegation: Attacks

and defenses. In USENIX Security Symposium.

Porter Felt, A., Ha, E., Egelman, S., Haney, A., Chin,

E., and Wagner, D. A. (2012b). Android permis-

sions: user attention, comprehension, and behavior.

In SOUPS, page 3. ACM.

Razaghpanah, A., Niaki, A. A., Vallina-Rodriguez, N., Sun-

daresan, S., Amann, J., and Gill, P. (2017). Studying

tls usage in android apps. In CoNEXT ’17.

Renault–Nissan Alliance (2018). Renault-nissan-mitsubishi

and google join forces on next-generation infotain-

ment. https://www.alliance-2022.com/news/renault-

nissan-mitsubishi-and-google-join-forces-on-next-

generation-infotainment/.

Reyes, I., Wiesekera, P., Razaghpanah, A., Reardon, J.,

Vallina-Rodriguez, N., Egelman, S., and Kreibich, C.

(2017). ” is our children’s apps learning?” automati-

cally detecting coppa violations. In ConPro’17.

Saltzer, J. H. and Schroeder, M. D. (1975). The protection

of information in computer systems. Proceedings of

the IEEE, 63(9).

Schlegel, R., Zhang, K., Zhou, X.-y., Intwala, M., Kapadia,

A., and Wang, X. (2011). Soundcomber: A stealthy

and context-aware sound trojan for smartphones. In

NDSS ’11.

Singleton, M. (2018). Spotify is testing a driving mode fea-

ture. https://www.theverge.com/2017/7/7/15937284/

spotify-driving-mode-feature-testing.

Spotify (2018). Privacy policy. https://www.spotify.com/us

/legal/privacy-policy/.

Tencent Keen Security Lab (2018). New ve-

hicle security research by keenlab: Exper-

imental security assessment of bmw cars.

https://keenlab.tencent.com/en/2018/05/22/New-

CarHacking-Research-by-KeenLab-Experimental-

Security-Assessment-of-BMW-Cars/.

Volkswagen (2018). 2018 passat press kit. https://media.vw

.com/en-us/press-kits/2018-passat-press-kit.

Volvo Car Group (2018). Volvo cars to embed

google assistant, google play store and google

maps in next-generation infotainment system.

https://www.media.volvocars.com/global/en-

gb/media/pressreleases/228639/volvo-cars-to-

embed-google-assistant-google-play-store-and-

google-maps-in-next-generation-infotainme.

Warren, C. (2018). Radio fm. https://play.google.

com/store/apps/details?id=com.radio.fmradio&

hl=en&reviewId=gp%3AAOqpTOFWacIVZQ-

JHULA86lKu5ZYSNQdIjsM8e6Ph0aj2RWN2aVm

oFJFfmJhC91yQEErw6Z0Re3I0LF6k1V o Y.

APPENDIX

Table 3: List of attacks and their severity score, based on

CVSS v3 (FIRST.Org Inc., 2018).

Name CVSS v3 Vector Score

SoundBlast AV:L/AC:L/PR:N/UI:R/S:U/C:N/I:L/A:L 4.4

Fork bomb AV:L/AC:L/PR:N/UI:R/S:U/C:N/I:N/A:H 5.9

Intent storm AV:L/AC:L/PR:N/UI:R/S:U/C:N/I:N/A:H 5.9

Permissionless speed AV:L/AC:L/PR:N/UI:R/S:U/C:L/I:N/A:N 3.3

Permissionless exﬁltration AV:L/AC:L/PR:N/UI:R/S:U/C:L/I:N/A:N 3.3

Covert channel AV:L/AC:L/PR:N/UI:R/S:U/C:L/I:N/A:N 3.3

On the Road with Third-party Apps: Security Analysis of an In-vehicle App Platform
