EMFeR: Model Checking for Object Oriented (EMF) Models

Christoph Eickhoff, Martin Lange, Simon-Lennert Raesch and Albert Z

undorf

Kassel University, Germany

Keywords:

Model Checking, Object Models, EMF.

Abstract:

For safety critical systems it is desirable to be able to prove system correctness. If your system is based e.g.

on statecharts or ﬁnite automata you may use model checking techniques as provided e.g. by Spin. If your

system uses dynamic object models you may use tools like Alloy or graph based tools like Groove, Henshin, or

SDMLib. Unfortunately, most of theses approaches use proprietary languages for the speciﬁcation of models

and model transformations. This has the drawback that in order to verify system properties one has to recode

the system and its operations within the speciﬁc language of the used veriﬁcation tool. This is tedious and

error prone. After a successful veriﬁcation within the speciﬁc tool, you still do not know whether your actual

implementation works correct. To overcome these limitations, this paper outlines our new EMFeR (EMF

Engine for Reachability) tool. EMFeR provides complete testing and model checking capabilities for EMF

based models. Unlike most other systems, EMFeR uses directly the code of the system under test. You just

hand your implementation of the employed model operations to EMFeR as lambda expressions. In addition,

you provide some model queries to retrieve model elements to be operated on. Thus, you may implement your

system’s model operation in plain Java, in Kotlin, in Groovy or whatever and than you may use EMFeR to

model check your actual system implementation.

1 INTRODUCTION

Let us assume you have just built a new smart trafﬁc

light. Your smart trafﬁc light has e.g. radar sensors to

detect approaching cars and instead of switching pe-

riodically, it yields green on demand. Thus, when at

rush hour times all the trafﬁc goes in one direction,

this direction gets green all the time. To implement

this smart behavior you have used an EMF based ob-

ject model that keeps track of car positions and trafﬁc

light states. Now, in order to deploy your smart trafﬁc

light in real world you need to get certiﬁed and thus

you may need to prove system correctness.

Model Checking is a powerful formal method for

the veriﬁcation of e.g. liveness and safety features

of parallel systems. There exists a number of pow-

erful model checking tools like e.g. Spin (Holz-

mann, 1997). For dynamic object models one may

use formal tools like Alloy (Jackson, 2002). And the

area of graph transformation tools provide reachabil-

ity graph computation for similar purposes, cf. tools

like Groove (grooveWebSite, 2018), Henshin (Hensh-

inWebSite, 2018), or SDMLib (wwwSDMLib, 2018).

Unfortunately most of these approaches use propri-

etary languages for the speciﬁcation of models and

model transformations. This has the drawback that in

order to verify system properties, one has to recode

the system and its operations within the speciﬁc lan-

guage of the used veriﬁcation tool. Thus, you basi-

cally specify or implement your smart trafﬁc light, a

second time. This is tedious and error prone. In addi-

tion, you will have to argue, that your implementation

meets your model checking speciﬁcation.

To overcome these limitations, this paper out-

lines our new EMFeR (EMF Engine for Reachability)

tool (emferWebSite, 2018). EMFeR provides model

checking capabilities for EMF (emf, 2018) based

models and arbitrarily implemented transformations

on such models. Your model transformations may be

implemented as plain Java, Xtend (xtend, 2018), us-

ing ATL (ATL, 2018), or any other approach. The

model transformations are provided to EMFeR as

Java 8 lambda expressions. Ideally, you may pass the

actual method implementations that you want to use

in your productive system to EMFeR in order to do

an exhaustive testing of your system implementation.

EMFeR applies your transformations to (clones of)

a given model and to (clones of) the resulting mod-

els, iteratively. Each time a new model is generated,

EMFeR compares the new model with any previous

model and checks whether a new model has been gen-

erated or whether an old model is reached again. To

Eickhoff, C., Lange, M., Raesch, S. and Zündorf, A.

EMFeR: Model Checking for Object Oriented (EMF) Models.

DOI: 10.5220/0007681605110518

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 511-518

ISBN: 978-989-758-358-2

511

Signal

pass:boolean

Road

Car

travelDirection:Traveldirection

Track

name:String

travelDirection :TravelDirection

RoadMap

0..1

track

signal

easternSignal

westernSignal

0..n

west

0..n

east

road

0..n

cars

0..1

track

tracks

0..n

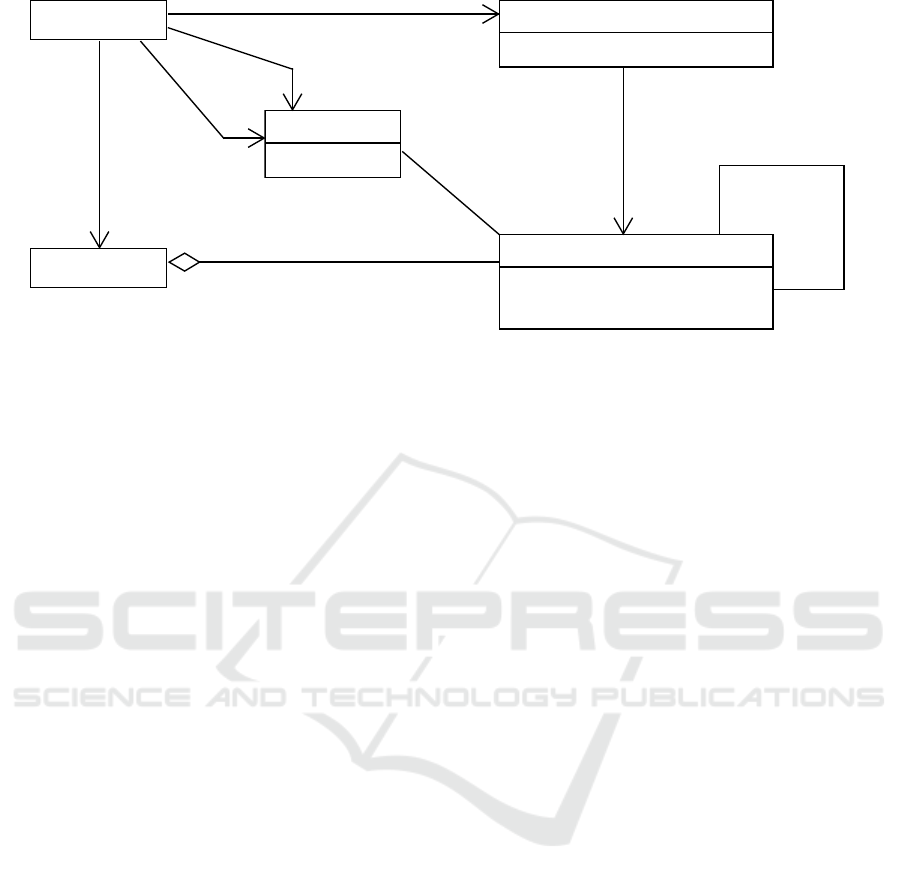

Figure 1: Road Work Class Model.

do this efﬁciently, EMFeR computes model certiﬁ-

cates, i.e. hash keys, for each model, as proposed by

the Groove system (grooveWebSite, 2018). The pro-

cess terminates when all possible models have been

derived. The set of all generated models with links

corresponding to the applied transformations forms a

Labeled Transition System (LTS). In the context of

graph transformations we call this LTS a reachability

graph. On the resulting reachability graph you may

run CTL (Computational Tree Logic) (Emerson and

Clarke, 1982) queries in order to model check e.g.

safety and liveness features. You may also do any

other model query in your favorite (EMF compatible)

query language e.g. Java or OCL.

2 THE ROADWORK EXAMPLE

As running example for this paper we use a simple

trafﬁc light system for a small one way roadwork area.

This example stems from (Greenyer et al., 2015). Fig-

ure 1 shows the class model of our example. Fig-

ure 2 shows the class model of EMFeR’s reachability

graphs.

Figure 3 shows a 2 1/2 D tile graphic for the

start situation of our road work example. We gen-

erate such tile graphics for the animation of exam-

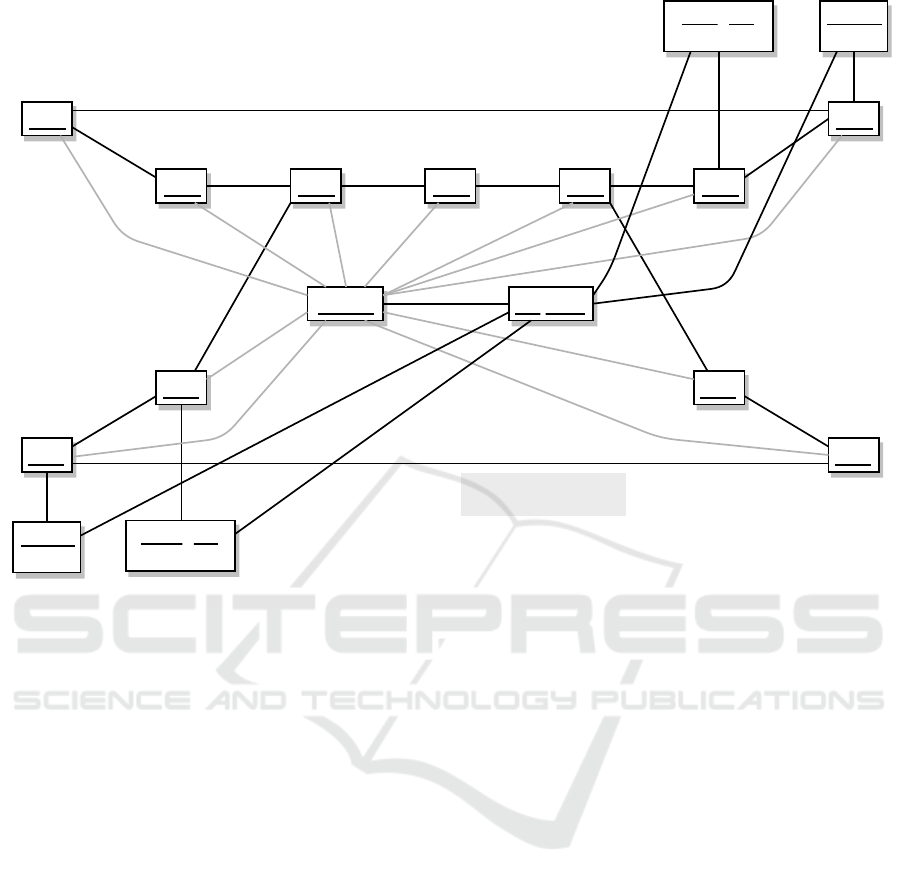

ple scenarios. Figure 4 shows a simpliﬁed EMF ob-

ject model for the same start situation. (EMFeR pro-

vides a simple HTML dump for object models based

on Alchemy.js (Alchemy.js, 2018). To allow simpliﬁ-

cations, Figure 4 has been created, manually.) There

are two lanes: the upper (northern) lane goes from

right (east) to left (west) and consists of Track ob-

jects n1 to n7. Above this lane there are two objects

at the upper right corner of Figure 4. From right to

left this is a Car object c1 located at Track object n1.

Car c1 has travelDirection WEST. And next to it

the eastern Signal t2 that is attached to track n2

and currently shows green (pass=true). The mid-

dle row of Figure 4 shows on the left the Road ob-

ject road that contains all tracks and on the right the

RoadMap object map that refers to the road, all Cars

and all Signals. The lower (southern) lane is rep-

resented by only four Track objects named s1, s2

and s6, s7 (numbering from left to right). The three

middle objects of that lane are missing as they are

blocked by road work. Instead, track s2 is connected

to track n5 of the northern lane and track n3 of the

northern lane is continued by track s6. Each track

has a travelDirection which equals to WEST for the

northern tracks and to EAST for the southern tracks

and to UNDEFINED for the tracks in the road work

area. Finally, there are a Car object c2 and a Signal

object t2 in the lower left corner of Figure 4. The

object structure for the initial situation is created us-

ing the standard RoadworkFactory.eINSTANCE gen-

erated by EMF.

Listing 3 shows our swapSignals transformation.

This transformation has been implemented in plain

Java. Basically, swapSignals checks that the road

work area of our street (tracks with undeﬁned travel

direction) is clear of cars (lines 3 to 5). Next, there

shall be a car waiting on red (line 12) and there shall

be no car just in front of a green light (lines 10 to

11). Under these conditions, the red signal becomes

green and the green signal becomes red, lines 13 to

14. Method swapSignals is an example for an oper-

ation that may be used to actually operate our trafﬁc

signals in the ﬁnal system. Thus the task at hand is, to

prove that swapSignals works save and e.g. fair.

Listing 1 shows how the reachability graph com-

putation is invoked. Line 1 creates an emfer object

and adds the (root of) our start model as ﬁrst state

to EMFeR. EMFeR accepts simple transformations

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

512

EObject

TrafoApplication

description:String

ReachableState

number:long

metricValue:double

ReachabilityGraph

tgt

0..n

resultOf

src

0..n

trafoApplications

root

0..n

trafoApplications

0..n

states

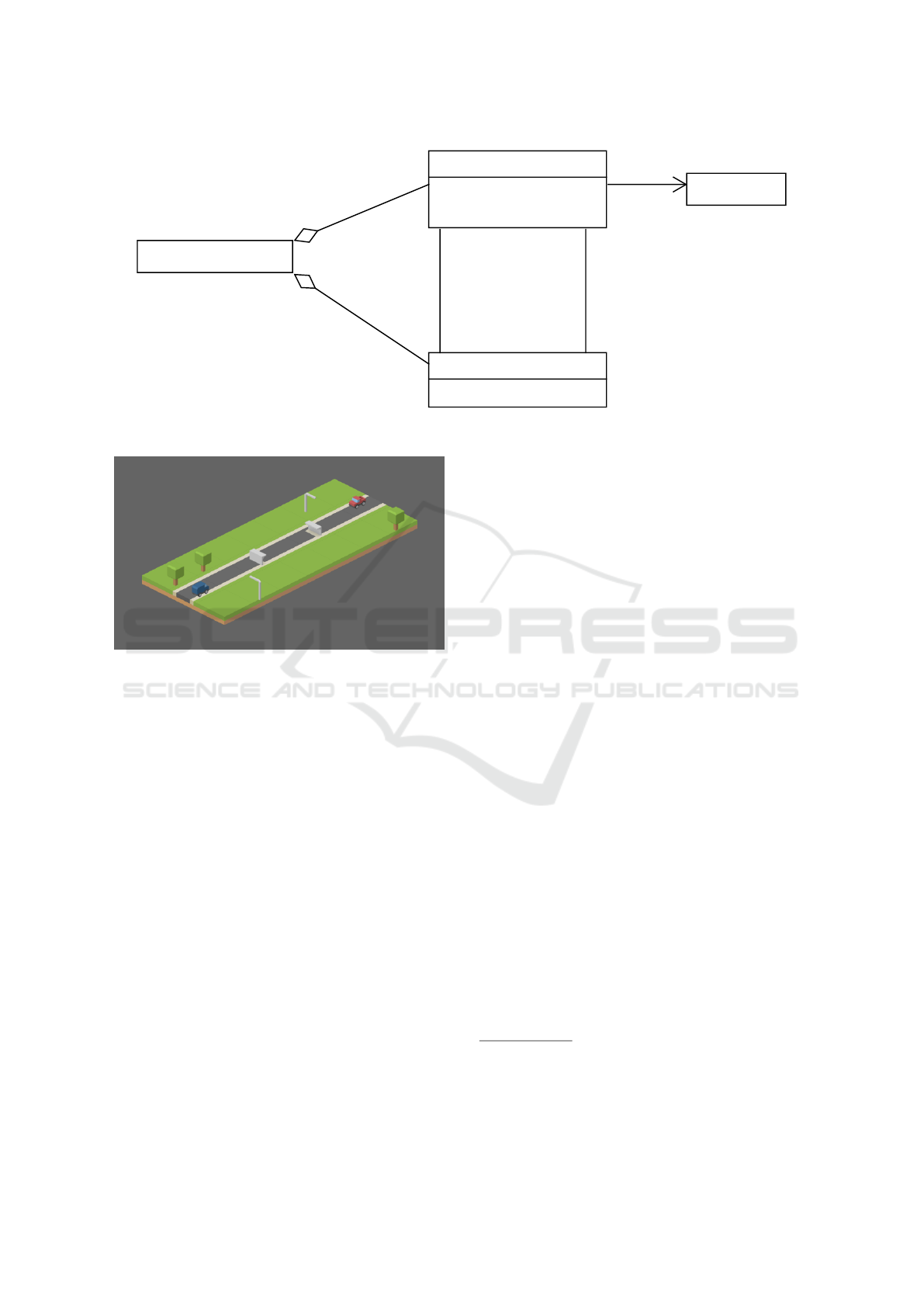

Figure 2: Road Work Class Model.

Figure 3: Start Situation as Tiles Graphic.

as Java lambda expressions with one (root) parame-

ter. Via this root parameter EMFeR passes the EMF

model that shall be transformed. Line 2 adds our

swapSignals transformation to emfer. The trans-

formation swapSignals operates our trafﬁc lights,

cf. Listing 3. In our example, transformation

swapSignals is the (part of the) system implemen-

tation we want to verify, i.e. to test exhaustively. In

contrast to graph transformations, EMFeR transfor-

mations are deterministic and produce only one new

model state. However, sometimes one wants to apply

a transformation on multiple model objects, alterna-

tively. In our example there exist multiple Car objects

that may move, independently. For such cases, EM-

FeR accepts complex transformations that consist of

a path and a two-parameter transformation. Lines 3

to 4 of Listing 1 add our moveCar transformation to

emfer. Line 4 ﬁrst adds a lambda expression that

computes the set of cars in the current model. At ex-

ploration time, EMFeR will call the second lambda

expression of line 4 on each of these cars. In addition

to the car that shall be moved, EMFeR also passes

the root of the current model to the transformation in

order to facilitate access to other model elements. Fi-

nally, line 5 starts the reachability graph computation.

Listing 2 shows pseudo code for EMFeR’s reach-

ability graph exploration operation. For each state

(line 2) and each transformation (line 3), EMFeR ﬁrst

computes the handle objects, on which the trafo

shall be applied (line 4). For complex transforma-

tion, line 4 uses the path lambda provided e.g. in

Listing 1, line 4. For simple transformations, we just

use the root as handle. Now, for each handle (List-

ing 2, line 5) we ﬁrst clone the current model (line 6)

and then we apply the current transformation to the

cloned model passing the clones of root and handle

as parameters. The transformation may modify the

clone. This may result in a totally new model state.

In this case we add the new model state to our reacha-

bility graph and connect it to the current model via an

TrafoApplication link that carries the name of the

transformation and the used handle as description.

It may also happen, that the new state is isomorphic

to an old state, that has been created earlier. In this

case we just add a TrafoApplication link between

the current state and that old state. New states will

also be considered in line 2 of our algorithm, i.e. we

will apply all transformation on all handles of the new

states, again. Thus, EMFeR’s explore operation com-

putes the set of all states that can be created by apply-

ing all trafos on all handles on all states derived from

(and including) the start state, iteratively.

We consider two EMF models as isomorphic if there is

a bidirectional mapping between their objects that respects

all attribute values and all references. Although EMF uses

ELists for to-many references, we do NOT consider the

order of references.

EMFeR: Model Checking for Object Oriented (EMF) Models

513

n1:T

n2:Tn3:Tn4:Tn5:Tn6:T

n7:T

road:R map:RM

s2:T s6:T

s1:T s7:T

c1:Car

"west"

c2:Car

"west"

t2: Signal

pass=false

t2:Signal

pass=true

wwww

westernSignal

car

easternSignal

Abbreviations:

w = west

e = east

T = Track

R = Road

RM = RoadMap

Figure 4: Start Situation (simpliﬁed).

3 REACHABILITY GRAPH

EXPLORATION

EMFeR’s algorithm for the exploration of reachabil-

ity graphs is outlined in Listing 2. However there are

a number of issues to be discussed in more detail.

First, when EMFeR has generated a new model it

uses model certiﬁcates, i.e. hash keys, to efﬁciently

identify possibly isomorphic old models. This fol-

lows the ideas of Arendt Rensink and his Groove sys-

tem (grooveWebSite, 2018). Thus, identifying iso-

morphic old states is reasonably fast. The main efﬁ-

ciency problem of our reachability graphs is the mem-

ory consumption.

In general, the reachability graph exploration

might not terminate or the reachability graph may

become very large. In our road work example the

used transformations (swapSignals and moveCar)

do not create new objects but just change links be-

tween existing objects or change some boolean at-

tributes. Thus, in our road work example there is only

a ﬁnite number of reachable states (56 states to be

precise). However, if one employs e.g. a transfor-

mation that creates new cars or that extends the road

or just a counter for the number of car moves done,

the number of possible states would become inﬁnite

or just larger than we can handle. Currently, EM-

FeR holds the whole reachability graph within main

memory (for this work we used a laptop with 8GB

main memory running Windows 10). Our road work

example uses 15 model objects per state (plus EList

objects for to-many references). Depending on the

size of your main memory, EMFeR may handle up to

some million reachable states.

To avoid OutOfMemory exceptions, EMFeR has a

customizable limit for the maximum number of reach-

able states it creates. This limit defaults to 300000.

It may be adapted according to the sizes of the em-

ployed models and according to the memory space

available. When the limit is reached, EMFeR just ter-

minates the exploration and delivers a partial reacha-

bility graph. If you are lucky, the partial reachability

graph already contains the states you are looking for.

In our road work example this might be a dead lock

state, where two cars traveling in opposite directions

on the single road work lane block each other.

Per default, EMFeR does a breadth ﬁrst explo-

ration of the reachability graph. This means, new

states are managed within a ﬁfo queue for further

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

514

1 EMFeR e mfer = new EMFeR ( ) . w i t h S t a r t ( roadMap )

2 . w i t h T r a f o ( ” swap S i g n a l s ” , r o o t −> s w a p S i g n a l s ( r o o t ) )

3 . w i t h T r a f o ( ”move c a r ” ,

4 r o o t −> ( ( RoadMap ) r o o t ) . g e t C a r s ( ) , ( r o o t , c a r ) −> moveCar ( r o o t , c a r ) ) ;

5 i n t s i z e = emf e r . e x p l o r e ( ) ;

6 R e a c h a b l e S t a t e s t a r t S t a t e = em f e r . g e t R e a c h a b i l i t y G r a p h ( ) . g e t S t a t e s ( ) . g e t ( 0 ) ;

7 A l w a y s G l o b a l l y a l w a y s G l o b a l l y = new Al w a y s G l o b a l l y ( ) ;

8 E x i s t F i n a l l y e x i s t F i n a l l y = new E x i s t F i n a l l y ( ) ;

9 E x i s t G l o b a l l y e x i s t G l o b a l l y = new E x i s t G l o b a l l y ( ) ;

10 bo o l e a n noDeadLock = a l w a y s G l o b a l l y . t e s t ( s t a r t S t a t e , s −>!is Ca r De a d Lo c k ( s ) ) ;

11 bo o l e a n u n f a i r = e x i s t F i n a l l y . t e s t ( s t a r t S t a t e ,

12 s−> e x i s t G l o b a l l y . t e s t ( s , s2−>i s E a s t C a r W a i t s A t R e d ( s2 ) ) ) ;

13 A r r a y L i s t <T r a f o A p p l i c a t i o n > ex a m p l e P a t h = e x i s t G l o b a l l y . g e t E x a m p l e P a t h ( ) ;

14 S yste m . o u t . p r i n t l n ( ex a m p l e P a t h ) ;

Listing 1: Calling Emfer.

1 EMFeR : : e x p l o r e ( ) {

2 f o r e ac h s t a t e {

3 f o r e ac h t r a f o {

4 comp u te h a n d l e s f o r t r a f o

5 f o r e ac h h a n d l e {

6 c l o n e c u r r e n t s t a t e

7 a p p l y t r a f o on c l o n e

8 i f ( new s t a t e )

9 add t r a f o ed g e and

10 new s t a t e t o g r a p h

11 i f ( o l d s t a t e )

12 add t r a f o ed g e t o g r a p h

13 }

14 }

15 }

16 re t u r n number o f s t a t e s

17 }

Listing 2: EMFeR explore.

exploration. In (Eickhoff et al., 2016) we extended

SDMLib’s reachability graph exploration algorithm

with a metric computation provided as Java lambda

expression. EMFeR has adopted this idea. The met-

ric computation computes a metric value for each new

state and then the queue of new states is sorted accord-

ing to this metric value (minimal value ﬁrst). Thereby,

the metric computation steers the exploration strat-

egy similar to an A* algorithm. This results in a hill

climbing strategy for our reachability graphs where

the most promising states are expanded, ﬁrst. Ac-

tually, the result is a kind of taboo search as states

that have been considered will not be expanded again.

Thus, our exploration strategy will backtrack out of

local optima (if there is still memory space left).

In the special case of Computational Tree Logic

CTL (Emerson and Clarke, 1982) proof obligations,

the checking of CTL operators and the expansion of

the reachability graph may be inter wined. This would

allow to stop the exploration as soon as a counter ex-

ample (for always operators) or a positive example

(for exist operators) has been found.

The space limitation problem exists also for tra-

ditional model checkers like Spin (Holzmann, 1997):

depending on your formulas and the available mem-

ory space, there is an upper bound for the number of

boolean variables Spin can handle. To deal with the

space limitation problem, traditional model checkers

employ very efﬁcient encodings for states. So far,

EMFeR uses a full copy of the whole EMF model for

each state. This is very space consuming. Usually,

the Groove tool employs full graph copies per state,

too. But to reduce memory consumptions Groove re-

moves e.g. every second state graph and on demand

Groove recreates missing graphs from predecessors

by applying the corresponding transformation again.

(This becomes necessary when a new graph is cre-

ated and an isomorphism test with an old graph is re-

quired. It is also necessary when you run queries on

your whole reachability graph e.g. searching for dead

lock states.) To achieve a more efﬁcient state space

encoding without needing to recreate dropped states,

EMFeR implements a lazy cloning strategy, where

we clone only model elements that are modiﬁed and

share unmodiﬁed model parts within multiple states.

Technically, EMFeR subscribes a change listener to

all objects of the current model. Then EMFeR just

runs the current transformation on the current model

and records all changes at object and attribute level.

If there are no changes recorded, the transformation

has failed and we go on with the next transforma-

tion. If there are recorded changes, we ﬁrst undo all

changes to recreate the unchanged model. Then, we

create a new reachable state and a clone of the root

node. Now, we iterate through all recorded changes

and for each change we clone the modiﬁed node and

all nodes that refer to the modiﬁed node (transitively).

As all model nodes are reachable from the root node,

we will at least clone all nodes on a path from the

root node to the modiﬁed node. Of course, if some

node has already been cloned, we reuse that clone.

EMFeR: Model Checking for Object Oriented (EMF) Models

515

1 p r i v a t e v o i d s w a p S i g n a l s ( E O b j e c t r o o t ) {

2 RoadMap roadMap = ( RoadMap ) r o o t ;

3 f o r ( Car c : roadMap . g e t C a r s ( ) ) {

4 i f ( c . g e t T r a c k ( ) . g e t T r a v e l D i r e c t i o n ( ) == UNDEFINED) r e t u r n ;

5 }

6 b oo l e a n c a r I s W a i t i n g = f a l s e ;

7 / / no c a r a b o u t t o e n t e r and one ca r w a i t i n g a t r e d l i g h t

8 S i g n a l w e s t = roadMap . g e t W e s t e r n S i g n a l ( )

9 S i g n a l e a s t = roadMap . g e t E a s t e r n S i g n a l ( ) ;

10 i f ( we s t . i s P a s s ( ) && c a r A t W e st ( r o o t ) r e t u r n ;

11 i f ( e a s t . i s P a s s ( ) && c a r A t E a s t ( r o o t ) ) r e t u r n ;

12 i f ( we s t . i s P a s s ()&& c a r A t E a s t ( r o o t ) | | e a s t . i s P a s s ()&& c ar A t W e s t ( r o o t ) ) {

13 e a s t . s e t P a s s ( ! e a s t . i s P a s s ( ) ) ;

14 we s t . s e t P a s s ( ! w e st . i s P a s s ( ) ) ; } }

Listing 3: Controlling the trafﬁc signals.

Thus, the clone of the currently modiﬁed node will be

connected to the clone of the root node via a path of

cloned nodes. Finally, the new state contains a cloned

root node and clones for all nodes that connect this

cloned root node to clones of modiﬁed nodes. Nodes

that are neither modiﬁed nor refer to modiﬁed nodes

are shared with the previous state.

In our road work example the road and its tracks

are not directly modiﬁed by our example transforma-

tions. Thus, the road and track objects are shared by

all states and we clone only the root object, modiﬁed

cars, and or modiﬁed signals. Thus each new state

clones at most 5 model objects and at least 12 model

objects are shared. To enable lazy cloning, our class

model avoids the use of EMF containment associa-

tions and bidirectional associations, cf. Figure 1. The

unidirectional links between cars and tracks and be-

tween signals and tracks, allow the cloning of cars

without cloning their current tracks. Similarly, the

unidirectional association from RoadMap to Road al-

lows to clone the RoadMap root without cloning the

road and the attached tracks. As neither the road ob-

ject nor any track object is ever modiﬁed, the bidi-

rectional association between these classes does not

harm.

Overall, for an application of the moveCar trans-

formation our lazy cloning approach clones only the

moved car and the root object, i.e. we share 15 out

of 17 objects and the new reachable state needs only

2 new model objects (plus the object for the reach-

able state and an object for the TrafoApplication).

Similarly, the swapSignals operation clones only the

two modiﬁed signals and the root object, i.e. only 3

new model objects for the new state. In our exam-

ple this reduces the number of model objects in the

total reachability graph down to some 15%. In addi-

tion, omitting opposite references safes some mem-

ory space, too. On the down side, our model and our

model transformations must limit the use of bidirec-

tional associations and especially of containment as-

sociations. Unfortunately, in EMF contains associa-

tions are commonly used as part of EMF’s persistence

mechanisms. However, to some extend these are EMF

speciﬁc problems and you could go for e.g. SDMLib

based model implementations that avoid these prob-

lems. Generally, we plan to extend EMFeR to apply

for other model implementations.

4 REACHABILITY GRAPH

ANALYSIS

Once a reachability graph has been computed, we

may run all kinds of analysis and query operations

on it. We may e.g. search for all states that contain

a forbidden situation (two cars in the road work area

traveling in opposite direction) or all transformation

edges that connect a valid state with an invalid state.

This gives insight on which model transformations

may need enhanced preconditions in order to avoid

invalid states. You may also search for shortest paths

that lead from the start state to some ﬁnal state where

you assign e.g. speciﬁc costs to each model transfor-

mation. For such queries you may use plain Java or

OCL or graph queries or any other appropriate query

language. After all, our reachability graph is a simple

(EMF) model, again.

For comparability reasons, EMFeR also sup-

ports Computational Tree Logic CTL (Emerson and

Clarke, 1982) to analyze reachability graphs. EM-

FeR provides 8 CTL operators for all combinations

of always and exist quantiﬁers with ﬁnally, globally,

next, and until operators. Listing 1, line 10 shows

the usage of the AlwaysGlobally operator. The op-

erator is parameterized with a predicate to be tested

on all states reachable from the start state. In EM-

FeR, we provide predicates as boolean Java lambda

expressions that may be implemented in plain Java

or e.g. using OCL or some other (your favorite)

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

516

1 [ 2 −−move c a r n1 WEST−> 4 ,

2 4 −−move c a r n2 WEST−> 7 ,

3 7 −−move c a r n3 WEST−> 11 ,

4 11 −−move c a r n4 WEST−> 15 ,

5 15 −−move c a r n5 WEST−> 19 ,

6 19 −−move c a r n6 WEST−> 23 ,

7 23 −−move c a r n7 WEST−> 2 ]

Listing 4: Car traveling east waits at red light, forever.

query language. Listing 1 lines 11 to 12 show how

EMFeR CTL operators may be nested to form more

complex queries. Lines 11 to 12 search for an un-

fair situation, e.g. the east car waits at red light

forever. Unfortunately, lines 11 to 12 detect that

transformation swapSignals from Listing 3 is un-

fair. Thus, the ExistGlobally operator of line 12

succeeds in ﬁnding a circle in our reachability graph

where only the car traveling west moves and the other

car waits for ever. On success, the exist operators gen-

erate an example path. (The always operators pro-

duce counterExample paths, on failure.) Listing 1,

Line 14 prints the unfair example path. Listing 4

shows the output for our unfair example. In state 2,

the car traveling east is waiting at its red light. The

other car has not yet moved. From then on, only the

car traveling west moves until it has done a full circle

reaching state 2, again. When the circle is closed, the

car traveling west may just do new circles for ever. In

this case the car traveling east will starve to death at

the red light.

The fairness problem of our current example sys-

tem is easily solved, if the swapSignals transforma-

tion gets executed once the car traveling west leaves

the road work area. Like Groove (grooveWebSite,

2018), EMFeR allows to force a set of transforma-

tions to be executed, if possible, by assigning priori-

ties to them. Doing so, our example system becomes

fair for two cars. If we add a second car on the upper

lane, these two cars might take turns in blocking the

road work area and thus they may block the signals

from swapping, forever. To address this, we need to

enable our signals to show red on both sides, in order

to drain the road work area and then to give yield to

the opposite direction.

Reachability graphs may also be used for con-

troller synthesis. The basic idea for controller syn-

thesis with EMFeR is to provide EMFeR with all the

basic operations. For our Road Map example we may

simply add an operation that switches each signal in-

dependently and without any respect to car move-

ments. Then, we generate all possible situations. The

resulting reachability graph will contain many unde-

sired or forbidden states. Thus, we now use an anal-

ysis function that visits the reachability graph and

marks undesired states and or adds a metric value for

the goodness of states. Now a smart controller for

our signals may just analyze the current trafﬁc situa-

tion, identify the corresponding state within the reach-

ability graph of our system and identify the successor

state we would like to reach and issue the correspond-

ing switch signal operation.

5 CONCLUSION

EMFeR provides reachability graph computation for

(EMF) models based on model transformations pro-

vided as simple Java lambdas. Thus, you can do com-

plete testing and model checking and controller syn-

thesis on your normal EMF model using your favorite

model transformations. Ideally, you may test your

productive code, exhaustively. There is no need to

recode your problem e.g. in Promela or in any other

proprietary language used by current model checkers

or within a graph transformation system as e.g. Hen-

shin.

To cover all possible trafﬁc situations for our traf-

ﬁc light example, we use additional transformations

that create new cars entering the road work area at

both sides and that remove cars that have passed the

crossing. This more dynamic trafﬁc scenario results

4064 different states for our reachability graph. This

results from all possible situations with or without a

car at each track computing to 2

possible car distri-

butions. And there are 2

different signal states giving

an upper bound of 4096 states.

We have run cases with some ten million states,

i.e. about 2

states. If we add more tracks to our

road, each additional track would add a factor of two

to the upper bound of states, thus we could go to

a street with about 20 tracks or a crossing with 10

incoming lanes, roughly double the size of our cur-

rent example. There is hope that EMFeR perfor-

mance can be further enhanced by techniques devel-

oped e.g. in the context of the Spin model checker.

Still the size of manageable object models is quite

limited. For larger problems model abstractions are

necessary. Systematic approaches to model abstrac-

tion like the counter example guided abstraction re-

ﬁnement method (Clarke et al., 2000) are future work.

However, EMFeR allows to do full testing and

model checking on dynamic object models using the

actual implementation of your model transformation

that will run in your productive system. This means,

you can guarantee that your actual system is fully

tested and works correct in all possible cases. EM-

FeR enables sharing of common sub-models between

multiple states thus providing a memory efﬁcient en-

coding of large reachability graphs where each state

EMFeR: Model Checking for Object Oriented (EMF) Models

517

is still a usual EMF model. EMFeR basically re-

lies on reﬂective access to the models as provided by

EMF’s EClass. We need to be able to ask a model

element for its attributes and to read and write those

attributes and to record all attribute changes. Using

java.lang.reﬂect we could achieve this reﬂective ac-

cess for general Java objects or at least for Java Bean

objects. Thus, our current work is to generalize EM-

FeR for other modeling frameworks and for POJO

models.

REFERENCES

Alchemy.js (2018). Alchemy.js - A graph visualiza-

tion application for the web. http://graphalchemist.

github.io/Alchemy/.

ATL (2018). ATL Transformation Language. http://www.

eclipse.org/atl/.

Clarke, E., Grumberg, O., Jha, S., Lu, Y., and Veith, H.

(2000). Counterexample-guided abstraction reﬁne-

ment. In International Conference on Computer Aided

Veriﬁcation, pages 154–169. Springer.

Eickhoff, C., Raesch, L., and Z

undorf, A. (2016). The sdm-

lib solution to the class responsibility assignment case

for ttc2016. In TTC@ STAF, pages 27–32.

Emerson, E. A. and Clarke, E. M. (1982). Using branch-

ing time temporal logic to synthesize synchroniza-

tion skeletons. Science of Computer Programming,

2(3):241–266.

emf (2018). Eclipse Modeling Framework. https://www.

eclipse.org/modeling/emf/.

emferWebSite (2018). EMFeR Github Site. https://

github.com/fujaba/EMFeR.

Greenyer, J., Gritzner, D., Gutjahr, T., Duente, T., Dulle,

S., Deppe, F.-D., Glade, N., Hilbich, M., Koenig,

F., Luennemann, J., et al. (2015). Scenarios@ run.

time-distributed execution of speciﬁcations on iot-

connected robots. In MoDELS@ Run. time, pages 71–

80.

grooveWebSite (2018). Groove Web Site. http://groove.

cs.utwente.nl/.

HenshinWebSite (2018). Henshin Web Site. https://www.

eclipse.org/henshin/.

Holzmann, G. J. (1997). The model checker spin. IEEE

Transactions on software engineering, 23(5):279–

295.

Jackson, D. (2002). Alloy: A lightweight object mod-

elling notation. ACM Trans. Softw. Eng. Methodol.,

11(2):256–290.

wwwSDMLib (2018). Story Driven Modeling Library.

http://sdmlib.org/.

xtend (2018). Xtend. https://www.eclipse.org/xtend/.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

518
