UML Speciﬁcation and Transformation of Safety Features for Memory

Protection

Lars Huning, Padma Iyenghar and Elke Pulvermüller

Institute of Computer Science, University of Osnabrück, Wachsbleiche 27, 49090 Osnabrück, Germany

Keywords: Code Generation, Embedded Software Engineering, Embedded Systems, Functional Safety, Memory Protec-

tion, Model-driven Development, Model Transformations, Soft Errors.

Abstract:

Standards such as IEC 61508 or ISO 26262 provide a general guideline on how to develop embedded systems

in a safety-critical context. However, they offer no actual support for the implementation of safety mecha-

nisms. This paper proposes such development support by employing Model Driven Development (MDD). For

this, we target the issue of soft errors, which may lead to silent data corruption due to radiation effects. We

propose an MDD workﬂow including a model representation and model transformations, which are able to

automatically generate memory protection for variables inside a program based on a model speciﬁcation via

UML stereotypes.

1 INTRODUCTION

Embedded systems are used in a wide variety of

safety-critical contexts, such as cars, aircrafts or med-

ical devices (Armoush, 2010). In these contexts, em-

bedded systems are responsible for controlling parts

of the application, e.g., the brakes in an automobile

with a brake-by-wire system. Safety standards, such

as IEC 61508 (IEC 61508, 1998) or ISO 26262 (ISO

26262, 2011) have been developed to provide a guide-

line for the development of such safety-critical sys-

tems. However, they provide no actual support for the

implementation of safety mechanisms. IEC 61508 de-

ﬁnes several lifecycle phases for the development of

safety-critical systems. For some of these phases, sev-

eral approaches in the literature have been proposed.

However, phase ten of the safety lifecycle, which is

concerned with the actual realization of the system,

has received little attention in the literature.

On the other side, Model-Driven Development

(MDD) is an emerging development paradigm, in

which models are no longer seen as auxiliary byprod-

ucts, but rather as the central artifacts during soft-

ware development. This paradigm promotes several

engineering concepts that are recommended by IEC

61508, such as the use of semi-formal design methods

and automatic software generation. Thus, MDD is

an ideal candidate to realize developer support for the

automatic generation of safety features recommended

by IEC 61508.

Recent work in the literature has proposed the au-

tomatic generation of non-functional aspects, such as

timing and energy requirements for embedded sys-

tems via MDD (Iyenghar and Pulvermüller, 2018;

Noyer et al., 2016; Iyenghar et al., 2016). Inspired by

these approaches, we envision the automatic genera-

tion of selected software safety aspects recommended

by IEC 61508 via MDD.

For this, we present a model representation and

an MDD workﬂow for the automatic generation of

software-based memory protection mechanisms in

this paper. IEC 61508 recommends the use of mem-

ory protection approaches for the prevention of radia-

tion induced soft errors, as well as the use of monitor-

ing techniques. Our mechanisms protect against such

soft errors that may lead to silent data corruption (cf.

section 2). However, our approach may also be used

for the automatic generation of arbitrary checks on the

program’s variables, e.g., to ensure that the value of a

numeric variable is always within a speciﬁc range.

This paper is organized as follows: First, we

present some general background regarding mem-

ory protection and formulate several requirements

for our solution based on this background (cf. sec-

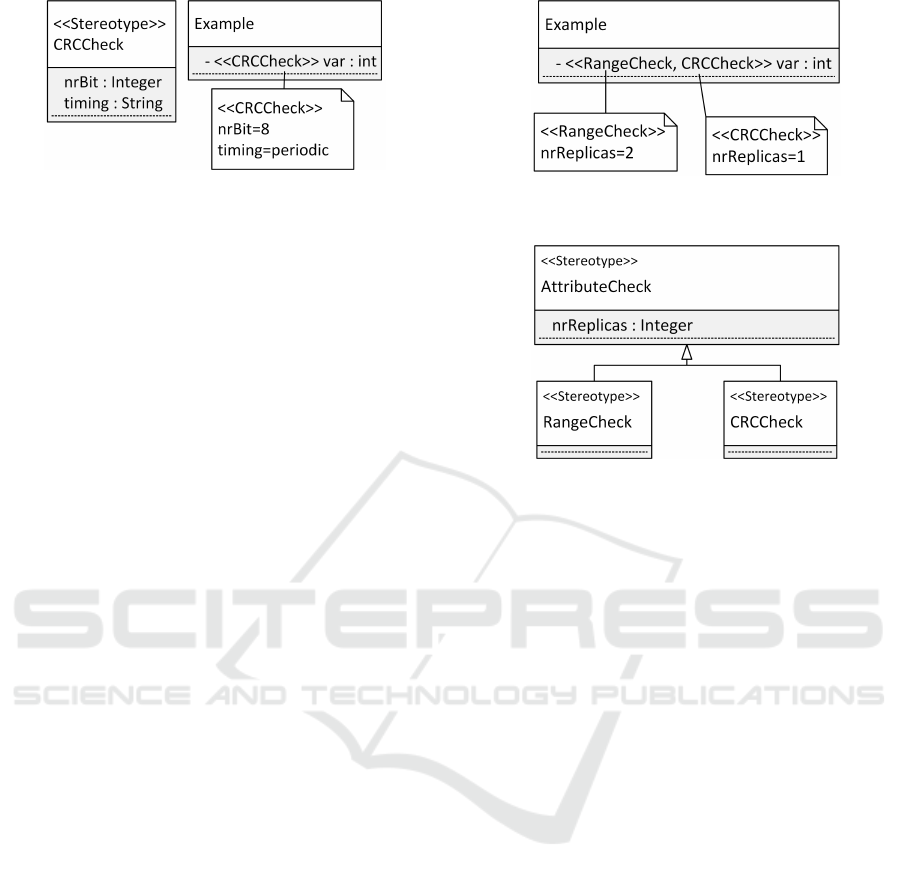

tion 2). Section 3 discusses modeling alternatives be-

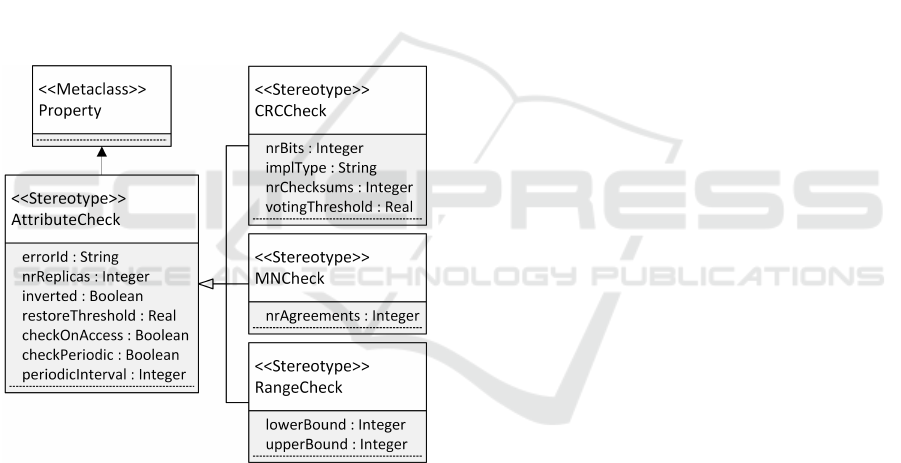

fore proposing a UML (Uniﬁed Modeling Language)

proﬁle for the representation of memory protection

mechanisms and other attribute checks. Based on this

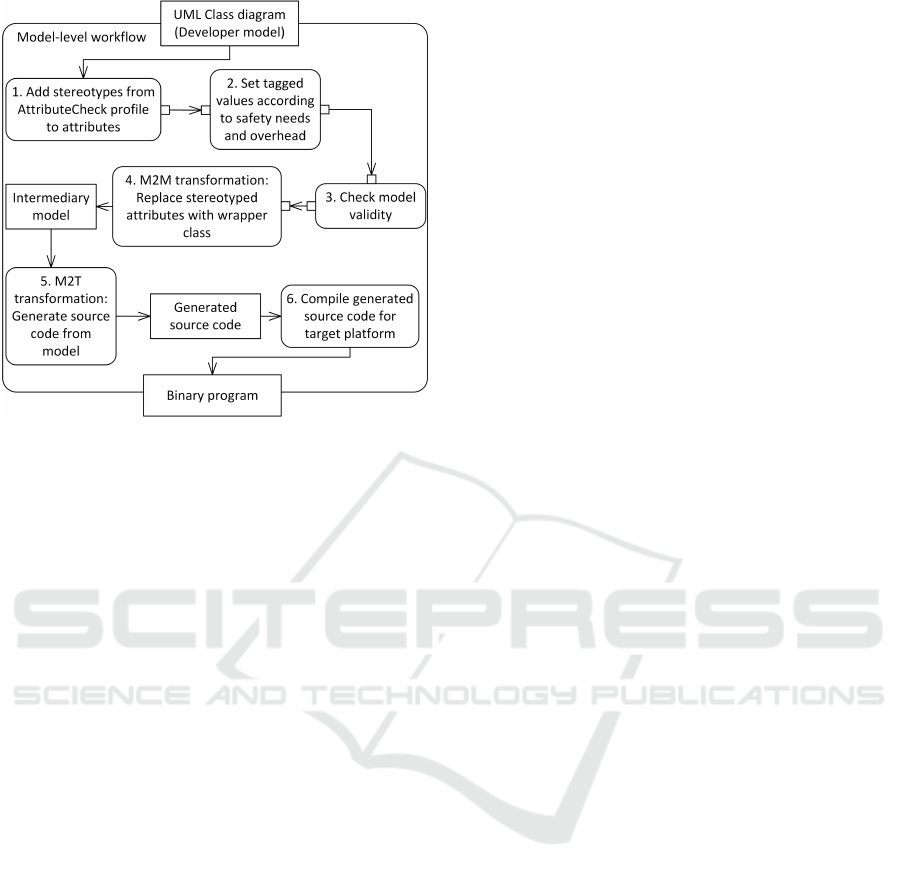

representation, section 4 introduces an MDD work-

ﬂow for the automatic generation of the respective

memory protection checks in source code. Finally, we

review related work on modeling and the automatic

generation of safety features via MDD in section 5.

Huning, L., Iyenghar, P. and Pulvermüller, E.

UML Speciﬁcation and Transformation of Safety Features for Memory Protection.

DOI: 10.5220/0007688202810288

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 281-288

ISBN: 978-989-758-375-9

281

2 MEMORY PROTECTION

This work starts from the IEC 61508 standard and

the therein contained safety issues referring to mem-

ory protection. This section has a look at the ori-

gin of potential memory errors, classiﬁes the protec-

tion techniques, analyzes the memory layout and the

mapping of memory to source code elements. Based

on this, we restrict our approach to a relevant set

of source code elements, choose a set of protection

mechanisms and derive the requirements our MDD

approach should fulﬁll.

The charge state of a semiconductor device may

be inﬂuenced by radiation effects from the atmo-

sphere, e.g., due to cosmic rays, or due to alpha parti-

cles emitted by the packaging material of the device.

If the radiation charge is sufﬁciently high, a reverse or

ﬂip in the data state of a memory cell, register, latch or

ﬂip-ﬂop may occur (Baumann, 2005). Such an event

is referred to as a soft error.

IEC 61508 part 2, table A.1 recommends the

protection of invariable and variable memory ranges

from such soft errors. The standard also proposes

several techniques how these errors may be detected.

The respective techniques may be broadly classiﬁed

into approaches that employ checksums or redundant

copies of the protected memory areas. Traditionally,

such approaches have been applied to the entire mem-

ory range via hardware techniques. However, recent

contributions, such as (Borchert et al., 2013; K. Pat-

tabiraman and Zorn, 2008), have remarked that often

only a selected subset of the memory range is actually

safety-critical. Thus, memory and runtime overhead

may be reduced if only these safety-critical memory

ranges are protected. This requires a certain amount

of ﬂexibility and developer control that is difﬁcult to

achieve with hardware-based memory protection ap-

proaches. For this reason, software-based approaches

have been proposed that enable the protection of se-

lected memory ranges. However, at present, none of

these approaches propose a model representation or

MDD support for software-based memory protection.

While the IEC 61508 standard refers to memory

in general we have to investigate what different kinds

of memory might be addressed in user programs and

what kind of protection might be suitable.

2.1 Memory Layout

We present a short overview of the logical and physi-

cal memory layout and a mapping to source code ele-

ments. Based on this background, we argue that cer-

tain kinds of memory are more suited for protection

than others and why our approach is limited to these.

From a logical perspective, the data of a program

may be stored in one of several virtual memory re-

gions. The text segment contains the binary machine

code and constant variables and is the only read-only

memory. The data segment contains global and static

variables, while the stack segment contains variables

declared inside functions, e.g., temporary variables or

function parameters. The last segment is the heap,

which contains dynamically allocated data e.g., cre-

ated with the new-operator in C++.

From a physical perspective, embedded systems

are often divided into Flash memory, and some form

of RAM, e.g., SRAM or DRAM. (Patterson and Hen-

nessy, 1990). The text-segments are usually mapped

to Flash memory, which is three to ﬁve times less sus-

ceptible to radiation than DRAM and SRAM (Fogle

et al., 2004). All other segments are usually stored

in RAM. As Flash is less susceptible to radiation, we

limit ourselves to the protection of RAM and, thus,

the program elements stored in RAM memory re-

gions.

IEC 61508 part 2, table A.3 also recommends

some limitations on the use of programming lan-

guages forbidding the use of unsafe or error-prone

language constructs. One such set of limitations for

the C++ programming language is proposed by the

MISRA standard (MISRAC++2008, 2008). MISRA

forbids the use of dynamic memory allocation in

safety-critical systems. Thus, we choose to not con-

sider the heap-segment in our approach. This leaves

the data- and stack-segments that need to be pro-

tected by our approach. Both segments consist of

non-constant variables. Thus, we choose to build our

model representation at the level of individual vari-

ables.

2.2 Protection Mechanisms

IEC 61508 provides several requirements for hard-

ware integrity. For instance, in order to achieve a di-

agnostic coverage of 90% or more, the standard man-

dates the protection of safety-critical memory ranges

from soft errors (cf. IEC 61508 part 2, table A.1). Ta-

ble A.5 and A.6 of part 2 also propose the following

techniques how such a protection may be achieved:

• Checksums may be employed in conjunction with

an error detecting code in order to protect the

memory. A checksum is calculated whenever

the protected memory is updated. A consis-

tency check of the protected memory compares

the stored checksum to the checksum of the cur-

rent memory. If these values differ, an error has

been detected.

• The protected memory may be replicated one or

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

282

several times. The replicas have to be updated

each time the protected memory is updated. A

check compares the values of the replicas with

the value of the protected memory for consis-

tency. These approaches are often referred to as

M-out-of-N approaches, where at least M out of N

replicas have to contain the same value (Armoush,

2010).

IEC 61508 does not mandate the use of a spe-

ciﬁc approach within these categories. For example,

an error detecting code may be realized via a Ham-

ming code or Cycling Redundancy Checks (CRC).

Moreover, even these more speciﬁc approaches may

be further conﬁgured: The number of bits for a CRC

checksum may vary, or, the conﬁguration may differ

in whether the implementation should optimize run-

time or memory overhead (Sarwate, 1988). Further-

more, IEC 61508 does not mandate at which point in

time the protected memory should be checked for er-

rors. Other approaches in the literature check either

periodically (Shirvani et al., 2000) or before every ac-

cess of the protected memory (Borchert et al., 2013).

Besides the memory protection of a program’s

variable via consistency checks as described above

IEC 61508 part 2, table A.13 recommends another

safety feature. This is the support for on-line moni-

toring mechanisms, e.g., in order to detect sensor fail-

ures. One example for a monitoring mechanism ap-

plied to variables is a numeric range check, that de-

tects if a numeric value is outside a predeﬁned nu-

meric boundary (Trindade et al., 2014).

2.3 Requirements for MDD based

Protection

This section discusses the requirements an MDD

workﬂow and a corresponding model representa-

tion for the speciﬁcation and automatic generation

of software-based memory protection should fulﬁll.

These requirements have been derived from the safety

standard and from modeling practice:

(R1) Protection of variables: As described in sec-

tion 2.1, the model representation of memory pro-

tection should target the variables in a program.

(R2) Limitation to UML: There are several compet-

ing MDD tools, e.g., (Rhapsody, 2018) and (Mat-

lab, 2018), as well as open-source alternatives,

such as (Papyrus, 2018). In order to maximize the

application of the developed approach, it is im-

portant that the employed modeling language is

supported by a wide variety of tools. The afore-

mentioned tools have in common that they support

modeling and code generation based on UML.

Related concepts to UML, such as OCL, are not

supported by every tool. The approach, therefore,

should be limited to UML without further addi-

tions.

(R3) Conﬁguration of applicable protection mecha-

nisms: As discussed in section 2.2, there are sev-

eral memory protection techniques and each one

may have different conﬁguration options. Thus,

besides specifying which protection approach is

used for a variable, the model representation has

to enable the conﬁguration of these approaches.

(R4) Use of multiple checks: A model representation

that supports to specify safety information should

allow to mark a variable with different protection

techniques or options, respectively, and, thus, sup-

port multiple checks at the same time. A devel-

oper might want to protect a variable with a CRC

memory check and, at the same time, a numeric

range check, for instance.

3 MODEL REPRESENTATION

The goal of this work is to give the developer the op-

portunity to decide which variables need what kind

of safety protection and monitoring. This section dis-

cusses some alternatives for the model representation

of the attribute checks in UML (cf. requirements R1,

R2, R3, R4). This is followed by the introduction of

an appropriate UML proﬁle for memory protection.

3.1 Modeling Elements

Section 2.1 identiﬁes non-constant variables as the

code elements in need for memory protection. These

encompass member variables, method parameters and

local variables, e.g., temporary integer variables in-

side a for-loop. In this work we focus on the pro-

tection of member variables, which are referred to

as attributes in UML. The reason behind this chosen

limitation is that local variables are usually not mod-

eled in UML diagrams. Further, temporary variables

and method parameters are relatively short-lived com-

pared to member variables, thus decreasing the likeli-

hood for them being affected by a soft error. Provided

a variable has a representation in the UML model, our

approach might be easily extended to those variables

in addition.

In order to specify that an attribute is subject to

one or more attribute checks, the attribute in question

has to be associated with additional semantic infor-

mation. In UML, this is commonly achieved by using

stereotypes (cf. ﬁgure 1). While the name of a stereo-

type may be used to specify which attribute check

UML Speciﬁcation and Transformation of Safety Features for Memory Protection

283

Figure 1: Model representation for specifying an attribute

check that employs an eight bit CRC checksum which is

checked periodically.

should be employed for an attribute, stereotypes also

contain an arbitrary number of so-called tagged val-

ues that may be used to specify a set of conﬁgura-

tion values. These tagged values may be represented

graphically inside a UML comment (cf. (uml, 2017),

p.263). The tagged values applicable to a stereotype

and their types may be deﬁned by means of a so-called

UML proﬁle (cf. section 3.3). Many MDD tools, such

as (Rhapsody, 2018; Papyrus, 2018), provide graphi-

cal support for setting the values of tagged values of

an applied stereotype. Additionally, multiple checks

may be easily speciﬁed by applying multiple stereo-

types to the attribute. Thus, stereotypes provide the

best support to represent the multiple conﬁguration

values and multiple checks required by R3 and R4 and

are the means of choice for our approach.

3.2 Multiple Attribute Checks per

Attribute

In some use cases, several attribute checks for a single

attribute may be required (cf. requirement R4). For

example, a developer may decide that a speciﬁc at-

tribute may be protected with a CRC check for mem-

ory protection and, at the same time, with a numeric

range check for monitoring purposes. This may be

modeled by applying two independent stereotypes to

the attribute, one for the CRC check and one for the

range check (cf. ﬁgure 2(a)).

However, applying two attribute check stereotypes

to one and the same attribute results in a new de-

sign challenge. Some safety features and conﬁgura-

tion options have dependencies to each other. For

instance, some conﬁguration decisions are common

among several attribute checks (common in type but

maybe different in the speciﬁc conﬁguration value or,

sometimes, even common in the value). An example

for such common conﬁguration on the type level is

the speciﬁcation of the checking time: Each attribute

check needs a speciﬁcation for the point in time it is

executed. For memory protection, this is usually be-

fore every access of the protected attribute (Borchert

et al., 2013) or periodically (Shirvani et al., 2000).

(a) Multiple stereotypes with conﬂicting

model information.

(b) Inheritance from a top-level stereotype

with common values.

Figure 2: Representation challenges of multiple checks.

Such values that are common in type may be efﬁ-

ciently represented by introducing a top-level stereo-

type from which all other stereotypes that represent

the actual attribute checks inherit (cf. stereotype «At-

tributeCheck» in ﬁgure 2(b)).

The common tagged values of the top-level stereo-

type may be divided into two categories. The ﬁrst

category contains values that refer only to the speciﬁc

check and that are independent of the speciﬁc pro-

tected attribute. An example for this is the aforemen-

tioned timing of the check. The other category en-

compasses values that are connected to the protected

attribute, but are relatively independent of the actual

checking mechanism. For example, this may be a cer-

tain number of replicas of the protected attribute that

are used for error correction approaches. The values

in this category have to be equal for all assigned at-

tribute checks, else the model contains conﬂicting in-

formation in the respective attribute (stereotype) spec-

iﬁcation. This situation is displayed in ﬁgure 2(a).

Two stereotypes, «RangeCheck» and «CRCCheck»,

both specify the use of replicas for error correction.

However, in this example, the «RangeCheck» spec-

iﬁes two replicas, while the «CRCCheck» speciﬁes

only a single replica. It is unclear, whether there are

a total of three replicas, or whether the highest num-

ber of replicas (two in this case) are employed for this

attribute.

Thus, we propose the design of the stereotypes by

means of inheritance (cf. ﬁgure 2(b)) and to include

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

284

the common tagged values in the top-level stereo-

type. The tagged values inherited from the top-level

stereotype (in our example, this is the stereotype «At-

tributeCheck») have to be set to equal values for all

stereotypes applied to the same attribute. While this

prevents certain conﬁgurations, such as using one

check periodically and another check before every ac-

cess for the same attribute, it also prevents the afore-

mentioned conﬂicts in the model representation. Al-

though UML provides no adequate support for this

limitation, this be may implemented as simple equal-

ity checks before the code generation of an MDD tool.

3.3 Example: AttributeCheck Proﬁle

Figure 3 presents a novel and exemplary UML proﬁle

for the model representation of attribute checks. The

UML proﬁle deﬁnes a set of stereotypes together with

their tagged values. The elements of the UML proﬁle

are brieﬂy described in the following:

Figure 3: Exemplary AttributeCheck proﬁle.

• «AttributeCheck:» This is the top-level stereotype

introduced already in section 3.2. It extends the

metaclass “Property”, which is the metaclass of

attributes in the UML metamodel. The stereotype

contains values that are relevant for all attribute

checks applied to an attribute. For example, the

tagged value “errorId” may be used to provide a

custom error message in case an error or a safety

issue has been detected. A speciﬁed number of

replicas may be used for error correction in a vot-

ing process. A correction is possible if at least a

speciﬁed number (stored in the tagged value with

name “restoreThreshold”) replicas have the same

value. IEC 61508 also recommends that replicas

are stored in inverted form, which may be mod-

eled as well. Finally, the stereotype contains val-

ues that specify when the check is executed.

• «CRCCheck:» This stereotype models a memory

protection approach that uses CRC checksums, as

introduced in section 2.2. It contains tagged val-

ues regarding the number of bits of the check-

sum and whether the implementation should op-

timize runtime or memory. Additionally, it pro-

vides the option to store multiple checksums, be-

tween which a voting process may be conducted.

The number of required checksums is speciﬁed

in the tagged value “nrChecksums”. Only if a

sufﬁcient number of checksums agrees with each

other (“votingThreshold”), the check is consid-

ered passed.

• «MNCheck:» An M-out-of-N pattern (cf. sec-

tion 2.2) is modeled by this stereotype, which may

also be used for memory protection. If at least M

out of N versions of the protected attribute agree

with each other, then the check is passed. As

the number of replicas is already implicitly con-

tained in this stereotype by inheritance from «At-

tributeCheck», only the number of required agree-

ments has to be speciﬁed.

• «RangeCheck»: This stereotype models a moni-

toring check that detects if a numeric attribute is

outside speciﬁc numeric bounds (cf. section 2.2).

Consequently, the tagged values model the lower

and upper bound.

4 MDD WORKFLOW

While the previous section introduces a model rep-

resentation for attribute checks (based on stereotypes

and UML proﬁles), this section discusses a corre-

sponding MDD workﬂow that enables the automatic

generation of the speciﬁed safety features into source

code. A UML activity diagram of the workﬂow is

shown in ﬁgure 4.

The input is a UML class diagram created by the

user or developer, respectively. In order to enable the

automatic generation of source code from this user

model, several actions are required. These are ac-

tions 1 to 6 of ﬁgure 4. Some of these have to be

executed manually, while others may be executed au-

tomatically.

4.1 Manual Actions

The manual actions of the model-level workﬂow en-

compass actions 1 to 2 in ﬁgure 4. They are mainly

UML Speciﬁcation and Transformation of Safety Features for Memory Protection

285

Figure 4: Overview of the proposed solution at model- and

code-level (notation UML 2.5 activity diagram).

concerned with specifying which attribute should be

protected by which protection mechanism.

• Action 1: At the start of the workﬂow, users need

to specify which attributes they want to protect by

applying one or multiple stereotypes from the At-

tributeCheck proﬁle to the attribute.

• Action 2: The applied attribute checks may be fur-

ther conﬁgured via the tagged values of the chosen

stereotypes. By specifying the tagged values, the

developer decides about safety conﬁguration de-

tails and, thus, the resulting resource consumption

and safety-speciﬁc overhead of the application.

4.2 Actions that May be Automated

The actions which may be automated in the model-

level workﬂow as part of an MDD tool’s code gen-

eration process are related to model transformations

and the generation of source code. They encompass

actions 3 to 6 in ﬁgure 4.

• Action 3: Before source code is generated from

the user model, the model is checked for valid-

ity. This may include the detection of modeling

conﬂicts which may appear if multiple stereotypes

are applied to one attribute, for instance (cf. sec-

tion 3.2).

• Action 4: Model-to-model transformations are

employed. For each attribute that is marked with

at least one stereotype from the AttributeCheck

proﬁle, corresponding safety mechanisms need to

be generated. For example, this may be achieved

by replacing the stereotyped attribute with a wrap-

per class that performs the required safety opera-

tions. The result of this action is an intermedi-

ary model that already contains all required safety

mechanisms.

• Action 5: This step generates the source code

from the intermediary model via model-to-text

transformations. As the intermediary model al-

ready contains all required safety mechanisms,

existing code generation mechanisms from stan-

dard MDD tools may be used.

• Action 6: The source code generated in action 5 is

compiled with a suitable compiler. The result is a

binary program that may be executed on the target

platform.

5 RELATED WORK

MDD has already been successfully employed for en-

suring non-functional properties other than functional

safety (Noyer et al., 2016; Iyenghar et al., 2016;

Iyenghar and Pulvermüller, 2018), showing promis-

ing results.

A variety of approaches that combine modeling

with aspects of functional safety have been proposed.

However, these are often focused on an earlier part

of the safety lifecycle, e.g., targeting the traceability

of functional safety requirements throughout the de-

velopment process (Tanzi et al., 2014; Beckers et al.,

2014; Yakmets et al., 2015). In contrast, this paper

proposes the generation of safety mechanisms in a

semi-formal way from a model directly into source

code. In (Trindade et al., 2014), a similar idea is

proposed. However, they deﬁne their own domain-

speciﬁc language instead of building atop a common

and standardized modeling language such as UML.

There are also several commercial tools that aim

to incorporate modeling and functional safety con-

cepts, e.g., (Elektrobit Tresos, 2018; PrEEVision,

2018). However, they focus on protecting the em-

ployed operating systems, rather than the devel-

oped user software. Further research projects, such

as (SAFEADAPT, 2016) and (SAFURE, 2018), try to

increase safety in cyber-physical systems or electric

vehicles. Neither of them introduces a model-driven

approach for the automatic generation of safety fea-

tures.

An approach for the representation of selected

safety design patterns is introduced in (Antonino

et al., 2012). It is speciﬁcally intended as a base for

future model driven development approaches that try

to generate these patterns automatically into source

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

286

code. However, such future approaches building on

the proﬁle have not been introduced up to now.

The issue of software-based memory protection

has been the subject of several publications, e.g.,

(Borchert et al., 2013; K. Pattabiraman and Zorn,

2008; Chen et al., 2001; Subasi et al., 2016). None

of these approaches enables the modeling of safety

features in a UML model nor the automatic genera-

tion of these safety model elements into safety-aware

source code.

In summary, in contrast to existing work our ap-

proach provides the following innovative contribu-

tions:

1. Language support to specify safety requirements

(and, thus, inﬂuence the resulting overhead) for

each individual variable directly in the developer

model (UML).

2. An exemplary UML proﬁle to express safety re-

quirements for individual variables in compliance

with the safety standard IEC 61508.

3. An MDD transformation approach to turn safety

speciﬁcations into action during the system’s run-

time (e.g., checking the validity of values stored

in variables during runtime).

6 CONCLUSION

In this paper we take a step to bring the safety stan-

dard IEC 61508 into practice. For that, we propose

an extension of UML to specify protection for safety-

critical attributes. The novel model elements enable

the developer to specify memory protection require-

ments and techniques on the model level using stereo-

types with tagged values. To turn the speciﬁcation

into productive design elements, we have presented

an MDD workﬂow that enables the generation of low

level source code from the speciﬁed safety properties.

While this paper focuses on the model represen-

tation and an MDD workﬂow for safety-protected at-

tributes, future work may be in designing an efﬁcient

software architecture at the source code level together

with further evaluation concerning the trade-off be-

tween runtime and safety. Furthermore, this paper has

introduced model representations and transformations

for only a small subset of the safety techniques rec-

ommended by IEC 61508. Future work may embed

other safety techniques in the MDD process, such as

recovery mechanisms, for instance.

ACKNOWLEDGMENTS

This work was partially funded by the German Fed-

eral Ministry of Economics and Technology (Bun-

desministeriums fuer Wirtschaft und Technologie-

BMWi) within the project “Holistic model-driven de-

velopment for embedded systems in consideration of

diverse hardware architectures” (HolMES). The au-

thors are responsible for the contents of this publica-

tion.

REFERENCES

(2017). OMG Uniﬁed Modeling Language (OMG UML)

Version 2.5.1. Technical report, Object Management

Group.

Antonino, P. O., Keuler, T., and Nakagawa, E. Y. (2012).

Towards an approach to represent safety patterns. In

Proceedings of the Seventh International Conference

on Software Engineering Advances.

Armoush, A. (2010). Design Patterns for Safety-Critical

Embedded Systems. PhD thesis, RWTH Aachen Uni-

versity.

Baumann, R. C. (2005). Radiation-induced soft errors in

advanced semiconductor technologies. IEEE Trans-

actions on Device and Materials Reliability, 5(3).

Beckers, K., Cote, I., Frese, T., Hatebur, D., and Heisel, M.

(2014). Systematic derivation of functional safety re-

quirements for automotive systems. In Proceedings of

the 33rd International Confrence on Computer Safety,

Reliablity and Security, Florence, Italy.

Borchert, C., Schiermeier, H., and Spinczyk, O. (2013).

Generative software-based memory error detection

and correction for operating system data structures.

In Proc. of the 43rd Annual IEEE/IFIP International

Conference on Dependable Systems and Networks

(DSN), Budapest, Hungary.

Chen, D., Messer, A., Bernadat, P., Fu, G., Dimitrijevic,

Z., Lie, D., Mannaru, D., Riska, A., and Milojicic, D.

(2001). JVM susceptibility to memory errors. In Proc.

of the 2001 Symposium on JavaTM Virtual Machine

Research and Technology Symposium, Berkeley, CA,

USA.

Elektrobit Tresos (2018). Elektrobit Tresos functional

safety products.

Fogle, A. D., Darling, D., Blish, R. C., and Daszko, E.

(2004). Flash memory under cosmic and alpha irra-

diation. IEEE Transactions on Device and Materials

Reliability, 4(3):371–376.

IEC 61508 (1998). IEC 61508. functional safety for electri-

cal/electronic/programmable electronic safety-related

systems.

ISO 26262 (2011). ISO 26262 Road vehicles – Functional

safety.

Iyenghar, P. and Pulvermüller, E. (2018). A model-driven

workﬂow for energy-aware scheduling analysis of

IoT-enabled use cases. IEEE Internet of Things Jour-

nal.

UML Speciﬁcation and Transformation of Safety Features for Memory Protection

287

Iyenghar, P., Wessels, S., Noyer, A., and Pulvermüller, E.

(2016). Model-based tool support for energy-aware

scheduling. In Forum on Speciﬁcation and Design

Languages, Bremen, Germany.

K. Pattabiraman, V. G. and Zorn, B. G. (2008). Samurai:

protecting critical data in unsafe languages. In Proc. of

the 3rd ACM SIGOPS/EuroSys European Conference

on Computer Systems, New York, NY, USA.

Matlab (2018). Matlab/simulink.

MISRAC++2008 (2008). MISRA C++2008 Guidelines for

the use of the C++ language in critical systems.

Noyer, A., Iyenghar, P., Engelhardt, J., Pulvermüller, E.,

and Bikker, G. (2016). A model-based framework en-

compassing a complete workﬂow from speciﬁcation

until validation of timing requirements in embedded

software systems. Software Quality Journal.

Papyrus (2018). Papyrus.

Patterson, D. A. and Hennessy, J. L. (1990). Computer Ar-

chitecture: A Quantitative Approach. Morgan Kauf-

mann Publishers Inc., San Francisco, CA, USA.

PrEEVision (2018). PrEEVision tool for functional safety

modeling.

Rhapsody (2018). IBM Rational Rhapsody. Access:

03.04.2018.

SAFEADAPT (2016). SAFEADAPT EU-project, Safe

Adaptive Software for Fully Electric Vehicles.

SAFURE (2018). SAFURE EU-project, Safety and Se-

curity by Design for Interconnected Mixed-Critical

Cyber-Physical Systems.

Sarwate, D. V. (1988). Computation of cyclic redundancy

checks via table look-up. Communications of the

ACM, 31(8).

Shirvani, P. P., Saxena, N. R., and McCluskey, E. J.

(2000). Software-implemented EDAC protection

against SEUs. IEEE Transactions on Reliability,

49(3).

Subasi, O., Unsal, O., Labarta, J., Yalcin, G., and Cristal,

A. (2016). CRC-based memory reliability for task-

parallel HPC applications. In Proceedings of the 2016

IEEE International Parallel and Distributed Process-

ing Symposium, Chicago, Illinois, USA.

Tanzi, T. J., Textoris, R., and Apvrille, L. (2014). Safety

properties modeling. In Proceedings of the 7th Inter-

national Conference on Human System Interactions,

Costa da Caparica, Portugal.

Trindade, R. F. B., Bulwahn, L., and Ainhauser, C.

(2014). Automatically generated safety mechanisms

from semi-formal software safety requirements. In

Proceedings of the International Conference on Com-

puter Safety, Reliability, and Security, Florence, Italy.

Yakmets, N., Perin, M., and Lanusse, A. (2015). Model-

driven multi-level safety analysis of critical systems.

In Proceedings of the 2015 Annual IEEE Systems

Conference, Vancouver, BC, Canada.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

288
