A Containerized Big Data Streaming Architecture for Edge Cloud

Computing on Clustered Single-board Devices

Remo Scolati, Ilenia Fronza, Nabil El Ioini, Areeg Samir and Claus Pahl

Free University of Bozen-Bolzano, Bolzano, Italy

Keywords:

Edge Cloud, Container Technology, Cluster Architecture, Raspberry Pi, Docker Swarm, Big Data, Data

Streaming, Performance Engineering.

Abstract:

The constant increase of the amount of data generated by Internet of Things (IoT) devices creates challenges

for the supporting cloud infrastructure, which is often used to process and store the data. This work focuses on

an alternative approach, based on the edge cloud computing model, i.e., processing and ﬁltering data before

transferring it to a backing cloud infrastructure. We describe the implementation of a low-power and low-cost

cluster of single board computers (SBC) for this context, applying models and technologies from the Big Data

domain with the aim of reducing the amount of data which has to be transferred elsewhere. To implement

the system, a cluster of Raspberry Pis was built, relying on Docker to containerize and deploy an Apache

Hadoop and Apache Spark cluster, on which a test application is then executed. A monitoring stack based

on Prometheus, a popular monitoring and alerting tool in the cloud-native industry, is used to gather system

metrics and analyze the performance of the setup. We evaluate the complexity of the system, showing that by

means of containerization increased fault tolerance and ease of maintenance can be achieved, which makes the

proposed solution suitable for an industrial environment. Furthermore, an analysis of the overall performance,

which takes into account the resource usage of the proposed solution with regards to the constraints imposed

by the devices, is presented in order to discuss the capabilities and limitations of proposed architecture.

1 INTRODUCTION

In the Internet of Things (IoT) almost everything gen-

erates data, of which a major part is stored or pro-

cessed in a cloud environment. Furthermore, the

amount of data generated or collected is growing ex-

ponentially, according to the IDC 2014 report on the

Digital Universe (Turner, 2014). In this kind of sit-

uation, local (pre-)processing of data might be a bet-

ter alternative to the current centralised cloud process-

ing model. Our objective is to present a lightweight

infrastructure based on the edge cloud computing

model, which aims to provide affordable, low-energy

local clusters at the outer edge of the cloud, possi-

bly composed of IoT devices themselves. The pro-

posal explored here is thus a small low-power, low-

cost cluster of single board computers in a local net-

work, which is able to pre-process generated data at

the outer edge. The aim is to present a model which

is scalable and affordable, with a low power footprint,

suitable for industrial applications in an IoT environ-

ment.

The proposed edge cloud architecture (Pahl et al.,

2018b) makes use of technologies commonly used

in processing of Big Data, which has similar char-

acteristics of high speed, high variety, and high vol-

ume, when scaled down to the constraints imposed by

IoT devices, i.e., Apache Hadoop and Apache Spark.

The system is based on the containerization software

Docker, which provides the means of orchestrating

services on a device cluster. To analyze the perfor-

mance of the system (Heinrich et al., 2017), with

regards to the constraints imposed by the Raspberry

Pi, system metrics are collected through a monitoring

stack based on Prometheus, a monitoring and alerting

tool, deployed on the cluster.

Raspberry Pi-based architectures have already

been investigated for IoT and edge settings (Tso et

al., 2013; Hentschel et al., 2016; von Leon et al.,

2019; Pahl et al., 2017), but a performance explo-

ration for an industry-relevant setting is still missing.

Furthermore, the limits of a ﬂexible, i.e., software-

deﬁned, virtualised architecture for software manage-

ment need to be investigated.

Our paper details how the proposed solution can

be implemented, using a cluster of Raspberry Pis, a

Scolati, R., Fronza, I., El Ioini, N., Samir, A. and Pahl, C.

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices.

DOI: 10.5220/0007695000680080

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 68-80

ISBN: 978-989-758-365-0

single board computer (SBC). We show how the pro-

posed system can be implemented, using Docker to

deploy and orchestrate lightweight containers which

run an Apache Hadoop and Apache Spark cluster,

used to process data with a test application. Further-

more, we demonstrate how the cluster can be used as

test bed for such applications, gathering meaningful

system metrics through a monitoring system based on

Prometheus. We conclude with an evaluation, taking

into account the complexity of managing the cluster

as well as the overall performance.

2 REQUIREMENTS AND

APPLICATION SCENARIOS

In a typical cloud computing scenario, the usual ap-

proach is to collect data and to send it to a centralized

system where storage space and computational power

is available, without any selection or analysis. With

increasing complexity and also having to deal with

increasing amounts of data generated in IoT environ-

ments, a centralised cloud infrastructure is not ideal

from a latency, cost and reliability perspective.

The aim of this work is to evaluate the feasibility

of an alternative low-cost and lightweight approach

based on the fog or edge cloud computing model. The

main requirement is to be able to collect, process, and

aggregate data locally, using affordable devices, such

that the overall amount of trafﬁc and the need for

a backing cloud infrastructure can be reduced. The

costs for acquisition, maintenance and operation of

such a system and its suitability in an industrial setting

will also be considered as well as the overall perfor-

mance of the system with regards to the limited power

at disposal. The chosen software platform needs to

reﬂect a industry-relevant setting in terms of software

deployment or big data processing.

The main use cases for such an application range

from the IoT domain, where large amounts of data are

generated and have to be processed, to autonomous

monitoring and automation systems, like remote lo-

calised power grids. Additionally, the ability to pro-

cess data locally with a low-cost and low-power sys-

tem opens up use cases in environments without large

amounts of processing power at disposal on premise,

which would beneﬁt from a decreased trafﬁc, like sys-

tems in remote areas. Possible application scenar-

ios include autonomous power generation and distri-

bution plants, such as smaller local energy grids, or

equivalent distributed systems in rural areas.

Such systems could beneﬁt from the use of sin-

gle board computers like the Raspberry Pi (Johnston

et al., 2018) due to the possibility of connecting sen-

sors to the devices GPIO paired with the capability

to perform more complex computations, thus creating

a network of smart sensors capable of recording, ﬁl-

tering, and processing data. The nodes can be joined

together to a cluster to distribute the workload in the

form of containers, possibly having separate nodes re-

sponsible for different steps of the data pipeline from

generation and collection to evaluation of the data in

a big data streaming and analytics platform. This

would lead towards a microservices-style architecture

(Jamshidi et al., 2018), (Taibi et al., 2018) allowing

for ﬂexible software deployment and management.

The relevant technologies for a lightweight cluster

infrastructure (Raspberry Pis), a container-based soft-

ware deployment and orchestration platform (Docker

swarm) and a big data streaming application architec-

ture are introduced in the next section.

3 BACKGROUND INFORMATION

The three platform technologies – Raspberry Pis,

Docker containers and Hadoop – shall be introduced.

3.1 Raspberry Pi

The Raspberry Pi is a single-board computer, ﬁrst in-

troduced in early 2013. The computer was initially

developed as an educational device, but soon attracted

attention from developers due to the small size and

relatively low price (RPi Foundation, 2018). Since the

ﬁrst model was well received, there have been multi-

ple updates of the platform. In this project, the Rasp-

berry Pi 2 Model B, released in 2015, is used. The

speciﬁcations are shown in Table 1.

Table 1: Speciﬁcation of the Raspberry Pi 2, Model B.

Architecture ARMv7

SoC Broadcom BCM2836

CPU 900 MHz quad-core 32-bit ARMCortex-A7

Memory 1 GB

Ethernet 10/100Mbit/s

3.2 Docker

3.2.1 Architecture

Docker, ﬁrst released in 2013, is an open source soft-

ware project, which allows to run containerized ap-

plications (Docker, 2018). A container is a runnable

instance of a Docker image, a layered template with

instructions to create such a container. A container

holds everything the application needs to run, like

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

system tools, libraries and resources, while keeping

it in isolation from the infrastructure on which the

container is running, thus forming a kind of virtual-

isation layer. This is achieved by compartmentaliz-

ing the container process and its children, using the

Linux containers (LXC) and libcontainer technology

provided by the Linux kernel via kernel namespacing

and control groups (cgroups), in fact isolating the pro-

cess from all other processes on the system, while us-

ing the hosts kernel and resources. The major differ-

ence between containers and virtual machines is that

containers, sharing the hosts kernel, do not necessitate

a separate operating system, resulting in less overhead

and minimizing the needed resources. Figure 1 illus-

trates Dockers architecture.

The access to system resources can be individual-

ized for each container, thus allowing access, among

other devices, to storage, or, in the case of the Rasp-

berry Pi, to the general-purpose input/output pins

(GPIO) for interaction with the environment using

sensors or actuators.

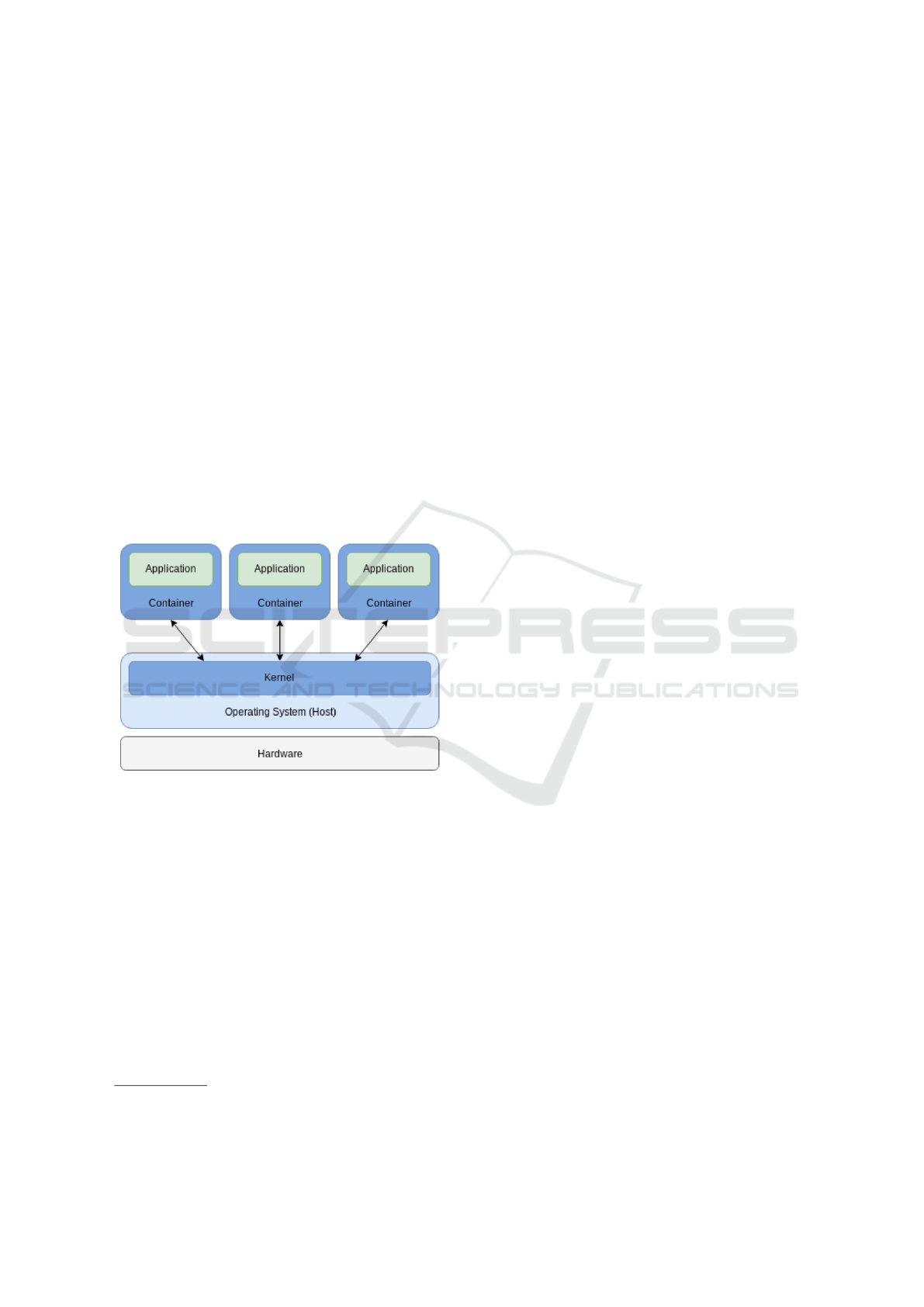

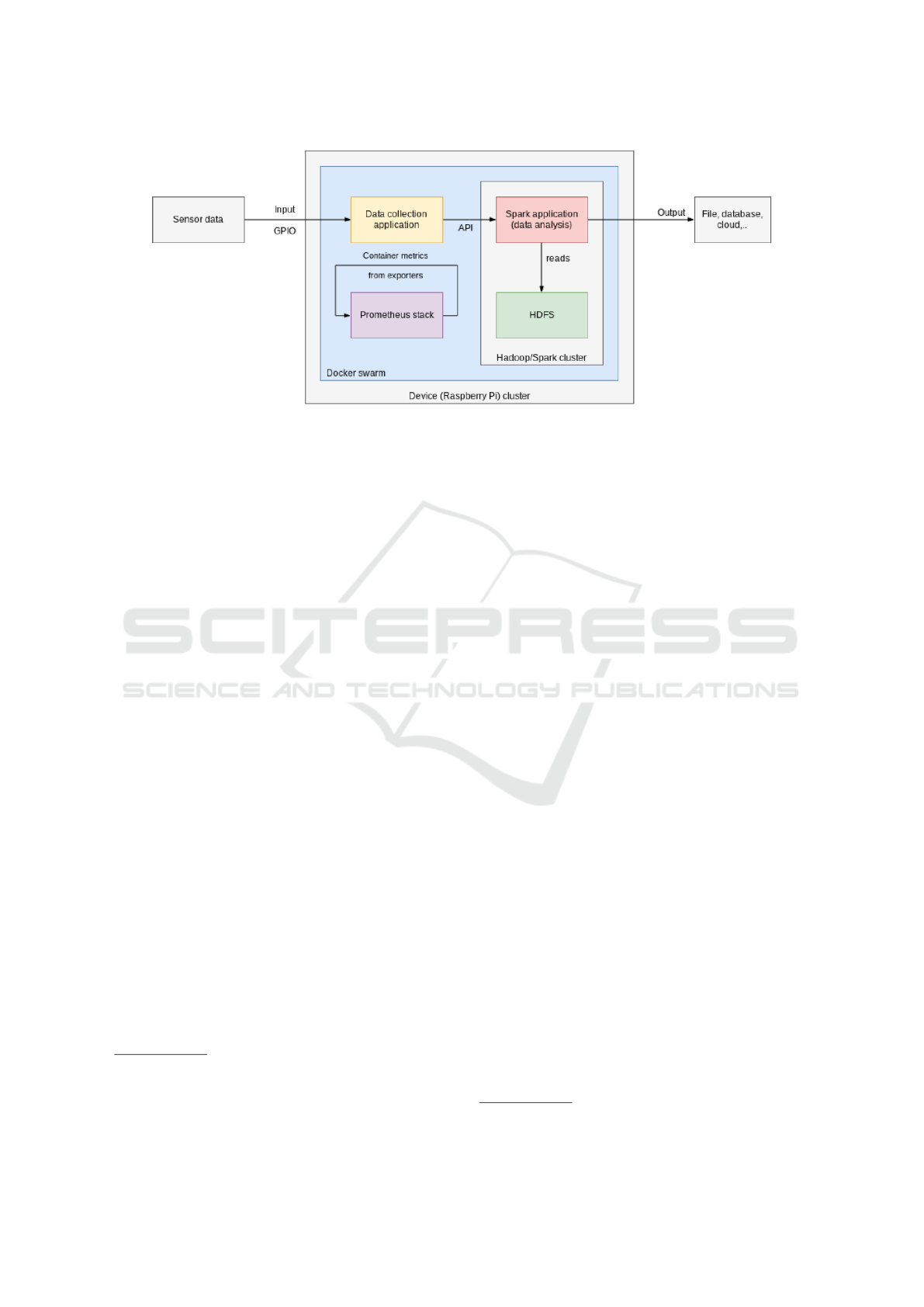

Figure 1: Docker container architecture.

3.2.2 Docker Engine

Docker Engine

, the Docker application, is built us-

ing a client-server architecture. The Docker daemon,

which acts as the server, manages all Docker objects,

i.e., images, containers, volumes and networks. The

client, a command line interface (CLI), communicates

with the daemon using a REST (representational state

transfer) API (application programming interface).

3.2.3 Docker Swarm

Docker 1.12, released in mid 2016, and all subse-

quent releases, integrate a swarm mode

, which al-

lows natively to manage a cluster, called swarm, of

Docker Engine, https://docs.docker.com/engine

Docker Swarm, https://docs.docker.com/engine/swarm/

Docker engines. Docker swarm mode allows to use

the Docker CLI to create and manage a swarm, and

to deploy application services to it, without having to

resort to additional orchestration software. A swarm

is made of multiple Docker hosts, running in swarm

mode and acting as manager nodes or worker nodes.

A host can run as manager, worker, or both. When a

service is created, the number of replicas, available

network and storage resources, exposed ports, and

other conﬁgurations are deﬁned. The state of the ser-

vice is being maintained actively by Docker, which

means that if, for instance, a worker node becomes

unavailable, the tasks assigned to that node are sched-

uled on other nodes, thus providing fault-tolerance. A

task here refers to a running container that is run and

managed by the swarm, as opposed to a standalone

container. Figure 2 illustrates an example of such a

Docker swarm conﬁguration.

3.3 Hadoop

3.3.1 MapReduce

MapReduce is a programming model for processing

big data sets, which allows to use a distributed, par-

allel algorithm on clustered devices (Dean and Ghe-

mawat, 2004). A MapReduce program consists of

a map method, which performs sorting and ﬁltering

of the data, and a Reduce method, which performs

an associative operation. Although inspired by the

map and reduce methods commonly used in func-

tional programming, the main concern of the MapRe-

duce framework is the optimization of the underlying

engine, achieving scalability and fault tolerance of the

applications implementing it.

Both the Map and Reduce operation of MapRe-

duce are performed on structured data, which takes

the form of (key, value) pairs. The Map function is

applied to every pair (k1, v1) of the input in paral-

lel, producing a list of pairs (k2, v2). After this ﬁrst

step, all pairs with the same key k2 are collected by

the MapReduce framework, producing one group (k2,

list(v2)) for each key. Then, the Reduce function is

applied to each group in parallel, producing a list of

values v3. The whole process is illustrated below:

1 Map(k1,v1) list(k2,v2)

2 Reduce(k2, list(v2)) list(v3)

3.3.2 Hadoop

The Apache Hadoop framework is an open source

software library, which allows to process large

datasets in a distributed way, using the MapReduce

programming model (Apache, 2018). It is designed

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Figure 2: Docker Swarm Conﬁguration Sample.

to scale from single nodes to clusters with multiple

thousands of machines (Baldeschwieler, 2018). The

following modules make up the core Apache Hadoop

library:

• Hadoop Common – common libraries & utilities;

• Hadoop Distributed File System (HDFS) – dis-

tributed ﬁle system to store data on cluster nodes;

• Hadoop YARN – managing and scheduling plat-

form for computing resources and applications;

• Hadoop MapReduce – large scale data processing

implementation of the MapReduce programming

model.

A typical, small Hadoop cluster includes a single mas-

ter node and multiple worker nodes. The master node

acts as a task and job tracker, NameNode (data index),

and DataNode (data store) , while the worker nodes

act as task tracker and DataNode. Figure 3 illustrates

such a cluster.

3.3.3 HDFS

The base of the Hadoop architecture consists of the

Hadoop Distributed File System (HDFS) and a pro-

cessing part, which implements the MapReduce pro-

gramming model. Files are split into blocks of data

and distributed across the DataNodes. Transferring

a packaged application on the same nodes, Hadoop

takes advantage of the principle of data locality. Since

the nodes manipulate the data they have access to,

Hadoop allows for faster and more efﬁcient process-

ing of the dataset than more traditional supercomputer

architectures (Wang et al., 2014).

3.3.4 Apache Spark

Apache Spark is an open source framework for dis-

tributed computing, which provides an interface for

Figure 3: Hadoop cluster.

executing applications on clusters (Apache, 2018).

The framework uses as its foundation a resilient

distributed dataset (RDD), a distributed and fault-

tolerant set of read-only data items. As an exten-

sion to the MapReduce paradigm, Sparks RDDs of-

fer a limited form of Hadoop distributed shared mem-

ory for distributed programs. Allowing a less forced

dataﬂow compared to the MapReduce paradigm,

Apache Spark facilitates the implementation of pro-

grams which can reduce the latency, compared to an

Apache Hadoop implementation, by several orders of

magnitude.

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

Apache Spark requires a cluster manager – sup-

ported implementations are Spark native, Apache

Hadoop YARN, and Apache Mesos clusters – and a

distributed storage system. Supported systems are,

among others, HDFS, Cassandra, and Amazon S3, or

a custom solution might be implemented. Further-

more, in extension to Apache Hadoop’s batch pro-

cessing model, Apache Spark provides an interface

to perform streaming analytics, where data is contin-

uously processed in smaller batches. Spark supports

distributed storage systems, TCP/IP sockets, and a va-

riety of data feed providers such as Kafka and Twitter

as streaming sources.

4 STATE OF THE ART REVIEW

Lightweight virtualization solutions based on contain-

ers have continuously gained in popularity during the

last years. Their lightweightness make them in partic-

ular suitable for computing at the outer edge, where

limited resources are available, but still data originat-

ing from the IoT layer needs to be processed:

• Overhead: Compared to native processes, Docker

container virtualization has been shown to not add

signiﬁcant overhead by leveraging kernel tech-

nologies like namespaces and control groups, al-

lowing the isolation of processes from each other

and an optimal allocation of resources, such as I/O

device access, memory and CPU (Renner et al.,

2016), (Morabito, 2016).

• IoT/Edge Applicability: Recent research has

proved that Docker is an extremely interesting

solution for IoT and Edge Cloud applications,

where, due to the constraints imposed by low-

power devices, it allows lightweight virtualization

and facilitates the creation of distributed archi-

tectures (Pahl and Lee., 2015), (Morabito et al.,

2017).

• Big Data: In addition, Docker is suitable for

provisioning Big Data platforms, for instance

Hadoop and Pachyderm, helping overcome dif-

ﬁculties in installation, management, and usage

of large data processing systems (Naik, 2017).

Such systems, as for instance Hadoop, have

been shown to be a convenient solution for pre-

processing large amounts of data also on small

clouds with limited networking and computing re-

sources (Femminella et al., 2016).

The recent development of affordable single board

computers allows to create low-power and low-cost

clusters for IoT environments, offering the capabil-

ity of pre-processing sensor data, while keeping ac-

quisition and maintenance costs low (von Leon et al.,

2018). Devices such as the Raspberry Pi, which offer

the possibility to attach sensors and actuators to its

GPIO pins, are particularly interesting for any system

which gathers, processes, and reacts to environment

data of some form, such as smart infrastructures and

smart sensor networks, as has been shown by the re-

search done at the University of Glasgow in the Smart

Campus project (Tso et al., 2013), (Hentschel et al.,

2016). The team behind HypriotOS, a Linux based

operating system created with the aim of making the

Docker ecosystem available for ARM and IoT de-

vices, showed that container orchestration tools like

Docker Swarm and Kubernetes can be used on Rasp-

berry Pis to create highly available and scalable clus-

ters (Renner, 2016a), (Renner, 2016b).

However, an exploration of the limits of putting

a containerised big data streaming application on a

lightweight cluster architecture is still lacking. Thus,

we have built such an architecture and evaluated it

in terms of cost, conﬁguration and performance as-

pects. An important concern for us was the con-

struction of industry-relevant container management

(Docker) and monitoring (Prometheus) tools.

5 LEIGHTWEIGHT EDGE DATA

PROCESSING PLATFORM

The proposed system is built on top of a Raspberry

Pi cluster. The devices are part of a Docker swarm,

leveraging the ease of container orchestration on mul-

tiple devices provided by the same. All applications,

i.e., the Apache Hadoop and Apache Spark cluster,

the Prometheus monitoring stack and the applica-

tions used to simulate data collection, are executed

inside Docker containers, simplifying the deployment

and management of the services, even in case of a

hardware failure. The Hadoop distributed ﬁle sys-

tem (HDFS) is used as data source for an Apache

Spark streaming application. The data is provided by

a Nodejs

application, which writes ﬁles to the HDFS

via its API. An overview of the architecture is shown

in Figures 4 and 5. Figure 4 shows the architecture of

the implementation and the data ﬂow during the ex-

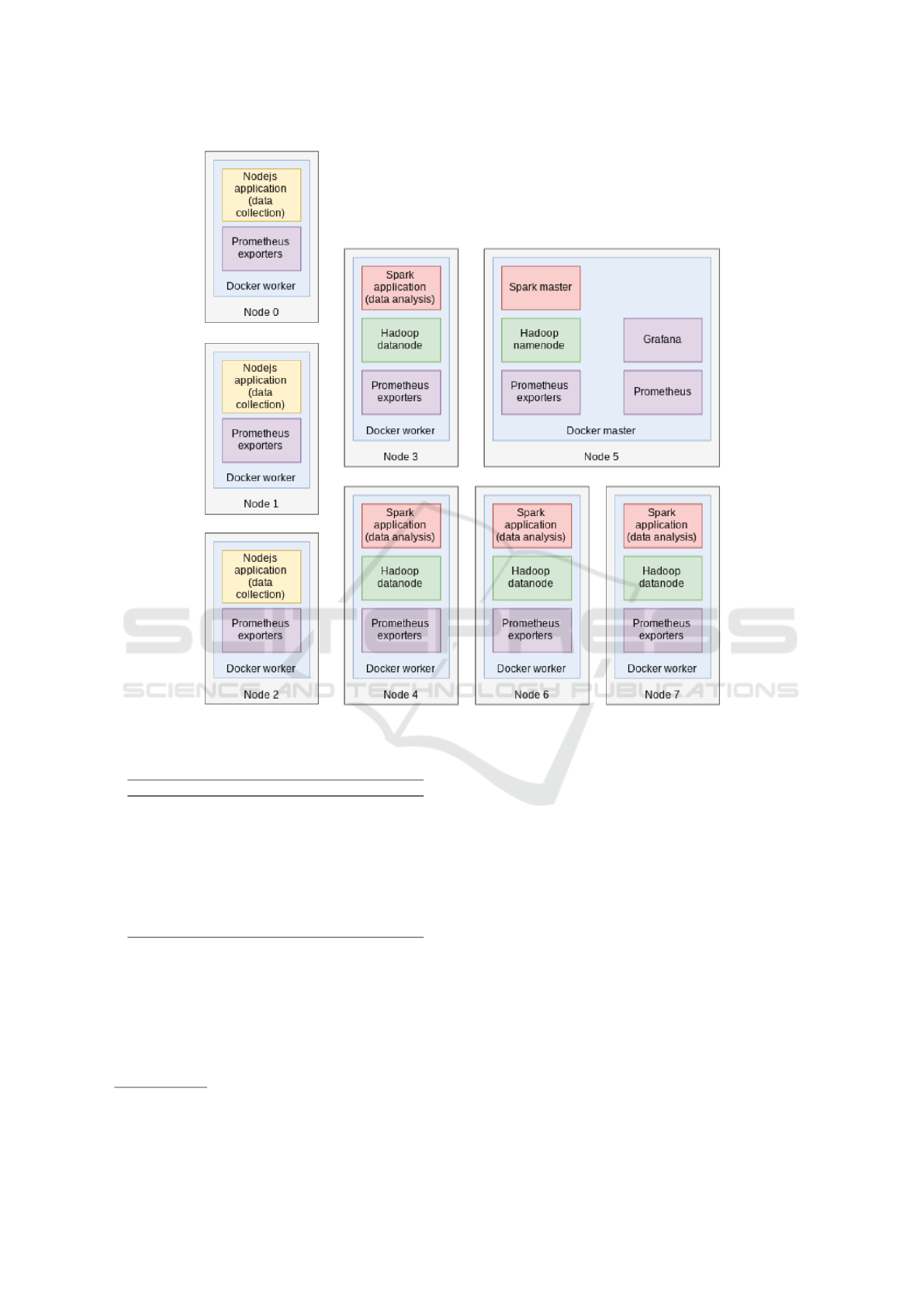

periments, while Figure 5 shows an overview of the

distribution of the services on the Raspberry Pis in

the conﬁguration used for the experiments.

Nodejs, https://nodejs.org

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Figure 4: System Architecture.

5.1 Hardware Architecture

For the cluster, eight Raspberry Pi 2 Model B are

used, each ﬁtted with an 8 GB micro SDcard for the

installation of the OS. The Raspberry Pis are con-

nected to a Veracity Camswitch 8 Mobile switch

which is also used to power the devices through

POE (Power over Ethernet). The switch features ten

10/100Mbit/s ports, eight of which are 802.3 at POE

outputs. The Raspberry Pis are connected to the

switch using category 5E SFTP cables.

POE has the advantage of the setup being cleaner,

since a separate power supply is not needed for the

Raspberry Pis and as such less cables run across the

system, although this is neither necessary nor cost

efﬁcient. Since the Raspberry Pi does not provide

the necessary connectivity for POE, the devices need

to be outﬁtted with an additional POE module, con-

nected to the Raspberry Pis through the GPIO pins.

5.2 Software Architecture

5.2.1 Operating System

The Raspberry Pis run Hypriot OS

, a specialized De-

bian distribution, as their operating system. The dis-

tribution comes with Docker pre-installed, and is a

minimal operating system optimized to run Docker

on ARM devices. Hypriot OS is available as an im-

age which can be ﬂashed, ready to use, on a micro SD

card. The OS provides a pre-boot conﬁguration ﬁle,

Veracity Global Camswitch 8,

http://www.veracityglobal.com/products/networked-

video-integration-devices/camswitch-mobile.aspx

Hypriot OS, https://blog.hypriot.com/about/

allowing, among others, to set a host name, which is

used for Avahi local host name resolution.

The OS comes with a pre-installed SSH service,

accessible through the conﬁgured credentials. Since

password authentication is not secure, all nodes are

set up to use public key authentication. To automate

the setup of the nodes, like conﬁguring automatic

mounting of drives and authentication, or installing

additional software, a conﬁguration management tool,

namely Ansible

, is used since it allows to deﬁne the

hosts and automate conﬁguration tasks via SSH.

5.2.2 Swarm Setup and Management

The Docker engine CLI is used to initialize and setup

the swarm. To initialize it, a single node swarm is cre-

ated from one of the nodes, which becomes the man-

ager for the newly created swarm. The manager stores

join tokens for manager and worker nodes, which can

be used to join other machines to the swarm. Fur-

thermore, different tags can be set through the Docker

CLI on each node, which are used to constrain the de-

ployment of services to speciﬁc nodes. To perform

other swarm management tasks, for instance promo-

tions, demotions and to manage the membership of

nodes, Docker engine commands can be issued to any

one of the swarm managers.

5.2.3 Service Deployment

To deploy services to the swarm, Docker stack de-

ployment is used, which allows to deploy a complete

application stack to the swarm. To describe the stack,

Docker uses a stack description in form of a Compose

Ansible, https://www.ansible.com/

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

Figure 5: Overview of the distribution of the service containers on the nodes.

Table 2: Service allocation on the cluster nodes.

Node Container

Node 0 Data collection, Prometheus exporters

Node 1 Data collection, Prometheus exporters

Node 2 Data collection, Prometheus exporters

Node 3 Spark worker 2, Prometheus exporters

Node 4 Spark worker 1, Prometheus exporters

Node 5 Spark master, Prometheus exporters,

Prometheus, Grafana

Node 6 Spark worker 3, Prometheus exporters

Node 7 Spark worker 4, Prometheus exporters

ﬁle (version 3), where multiple services are deﬁned.

For each service that is part of the stack, the origin

registry, ports and networks, mounted volumes, ser-

vice name and replicas as well as deployment con-

straints, for example Docker node tags, can be spec-

iﬁed. When deployed on a manager node, Docker

Prometheus exporters: Armexporter, Node exporter,

cAdvisor.

will deploy each service in the stack to the nodes of

the swarm, according to the constraints and deﬁnition,

balancing out the containers on the available nodes.

To deploy the compose ﬁle to the swarm manager

and to set up the nodes, for example for the prepa-

ration of conﬁguration ﬁles and mounted directories,

Ansible scripts were used during this project, but the

actions can be performed manually or with any other

scripting language.

5.2.4 Hadoop and Apache Spark

Although it is possible to use Hadoop natively to cre-

ate clusters of computers, both Hadoop as well as

Apache Spark are deployed inside Docker contain-

ers here in order to streamline the deployment process

and in order to avoid the installation of the software

and the management of all the required dependencies

on each device.

A custom Docker image is used to install both

Hadoop and Apache Spark inside a container and for

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

the set-up of the environment. In the ﬁnal set-up one

master node and four separate worker nodes are de-

ployed. Since the worker nodes act as DataNodes for

the cluster, each worker node container is provided

with sufﬁcient storage space, by means of a standard

3.5 inch 1TB hard disk, mounted as a volume.

Hadoop and Apache Spark are deployed to the

cluster, together with the data collection applica-

tion used to evaluate the implementation, through a

Docker Compose ﬁle.

6 EDGE DATA PROCESSING AND

MONITORING

6.1 Data Collection and Analysis

The architecture will be evaluated using two applica-

tions, one for simulating data collection on part of the

nodes and a second one is deployed to the Apache

Spark cluster to process the collected data. The ap-

plications are also used to gather metrics related to

the performance of the system, namely the process-

ing time of submitted data.

Data Collection. In order to simulate data collec-

tion, a Nodejs application is used to send an HTTP

PUT request with the data content to the HDFS API

creating a ﬁle in a speciﬁed interval of time. The data

collection application is deployed on the remaining

three nodes of the cluster through a Compose ﬁle.

The experiment data are sample ﬁles exposed to

and read by the application over the network allowing

to change the size and the contents without having to

modify the application and re-deploy it.

Data Analysis. For the analysis of the collected

data, a Python application is used. The applica-

tion polls for newly created ﬁles every second and

performs a count of single occurrences of words in

the ﬁles. The application is derived, with minimal

changes, from a sample application provided with the

Apache Spark engine

The used implementation follows the classical

MapReduce model, as described earlier, creating a list

of (key, value) pairs of the form (word, 1) for each

occurrence of a word. This list is then grouped by

keys, in this case by words, and the Reduce step is

then applied on each group, generating the sum of

occurrences of each word. These last two steps are

performed by one function, reduceByKey. The listing

below illustrates the algorithm in pseudocode with the

Apache spark example applications,

https://github.com/apache/spark/tree/master/examples

sample MapReduce implementation used as the test

application.

1 lines

2 count :=

lines.flatMap(lambda(line){line.split("")})

3 .map(lambda(word){(word, 1)})

4 .reduceByKey(lambda(val, acc){val + acc})

5 counts.pprint()

The application can be deployed to the Spark clus-

ter using the Spark CLI tool sparksubmit to send it to

the master node, which then distributes the applica-

tion to the workers in the cluster.

6.2 Monitoring

In order to facilitate monitoring of the system, a

Prometheus

-based monitoring stack is deployed to

the cluster, composed of three different components.

Firstly, Prometheus is an open source monitor-

ing and alerting system which uses a time series

database, and provides many integrations with other

software such as HAProxy, the ELK stack (Elastic-

search, Logstash and Kibana) or Docker.

Secondly, since the operational model of

Prometheus is to pull metrics from services, the stack

uses various so-called exporters to collect metrics

and expose them to be collected by Prometheus.

Many ready-to-use exporters exist, interesting for this

immplementation are those for Docker and system

metrics. The exporters used are cAdvisor

, a dae-

mon which collects and exposes container resource

usage, and Node exporter

, part of the Prometheus

project, which exports hardware and system metrics

exposed by the Linux kernel.

Thirdly, to visualize and review the collected data,

Grafana

is used. Grafana is a tool for monitoring

and analyzing metrics, which allows to create dash-

boards exposed via a web user interface (UI). This

solution was chosen because it requires little conﬁg-

uration, for a use case involving the monitoring of

Docker containers on multiple Linux machines. Thus

an almost ready-to-use implementation, which can be

deployed on the Raspberry Pis, was used. The imple-

mentation takes advantage of Docker containers, and

the stack is deployed to the Docker cluster using a

custom Compose ﬁle.

In the ﬁnal setup, Prometheus and Grafana are

both deployed on one of the nodes, while one instance

Prometheus, https://prometheus.io/

Google cAdvisor, https://github.com/google/cadvisor

Node exporter, https://github.com/prometheus/

node exporter

Grafana, https://grafana.com/

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

each of cAdvisor and Node exporter is deployed on

every Raspberry Pi.

7 EVALUATION

We start with some observations on practical conﬁg-

uration and management concerns in Subsection 7.1

before addressing performance in the following per-

formance evaluation in Section 7.2.

7.1 Set-up and Practical Considerations

We evaluate here the practical effort needed to set up

and manage the described cluster architecture.

Both the hardware setup and the preparation for

running the software do not require any special skills.

The Micro SD cards can be ﬂashed using a dedi-

cated tool, which is available for any major platform.

The Hypriot OS maintainers provide information on

the pre-boot conﬁguration ﬁle for the nodes operat-

ing system on their website, and from there, many

guides are available for setting up a connection over

SSH using public key authentication. Scripts for set-

ting up, and later managing, the Docker swarm were

prepared to automate time consuming tasks, but all

the steps required can also be performed manually.

Since the setup requires to run the same commands

on all nodes, for example to install the required de-

pendencies, or to join a newly created swarm, using

a conﬁguration management tool, or preparing some

shell scripts, should be considered. Once the cluster

is running, the Docker documentation provides sup-

port needed to manage the swarm or deploy services

to the same. The services are deployed using Docker

compose ﬁles, and running a command on one of the

master nodes.

The following observations on the main evalua-

tion criteria can be made:

• Maintainability and Ease of Operation. Using

containerized services on a Docker swarm is cru-

cial for achieving maintainability and ease of op-

eration of the implementation.

• Fault-tolerance. Furthermore, the use of Docker

requires only minimal overhead, but increases the

fault tolerance of the system, since containers fail-

ing due to hardware or software problems can be

easily restarted on any other node, which is taken

care of by the cluster itself. Thus, Docker is ideal

for achieving high availability and increasing the

fault tolerance.

• Image Building and Build Times. It has to be

kept in mind that for applications such as Apache

Hadoop and Apache Spark, there might not al-

ways be a Docker image built for the ARM archi-

tecture. The continuous integration and continu-

ous delivery (CI/CD) service provided by Gitlab

was used by us to build the required images. Since

the containers used to build the images run on a

different instruction set than the Raspberry Pis, a

system emulator, QEMU

, was used inside the

Dockerﬁles to cross-build images. Even though

there are some problems with this approach due to

the Java Virtual Machine (JVM) displaying bugs

during the builds, making it necessary to run some

preparatory commands manually on the already

deployed services, it has been preferred to build-

ing the images on one of the cluster nodes due to

the longer build times. Table 3 shows the build

times of one of the used images on a common

notebook

, compared to the build times of the

same image on a Raspberry Pi used in the clus-

ter, to which the time to distribute the image on

the nodes has to be added. The pull of the image

from the Gitlab registry took around 6 minutes.

While these build times seem high, this is an activ-

ity that is not frequently needed and can generally

be tolerated.

Table 3: Comparison of Docker image build times.

Target architecture Build architecture Build time

armv7 x86 64 6m 1s

armv7 armv7 14m33s

7.2 Performance

The main performance evaluation focus shall be on

experimentally evaluating data processing time und

resource consumption, based on input data ﬁle sizes

that reﬂect common IoT scenarios with common

small-to-midsize data producers.

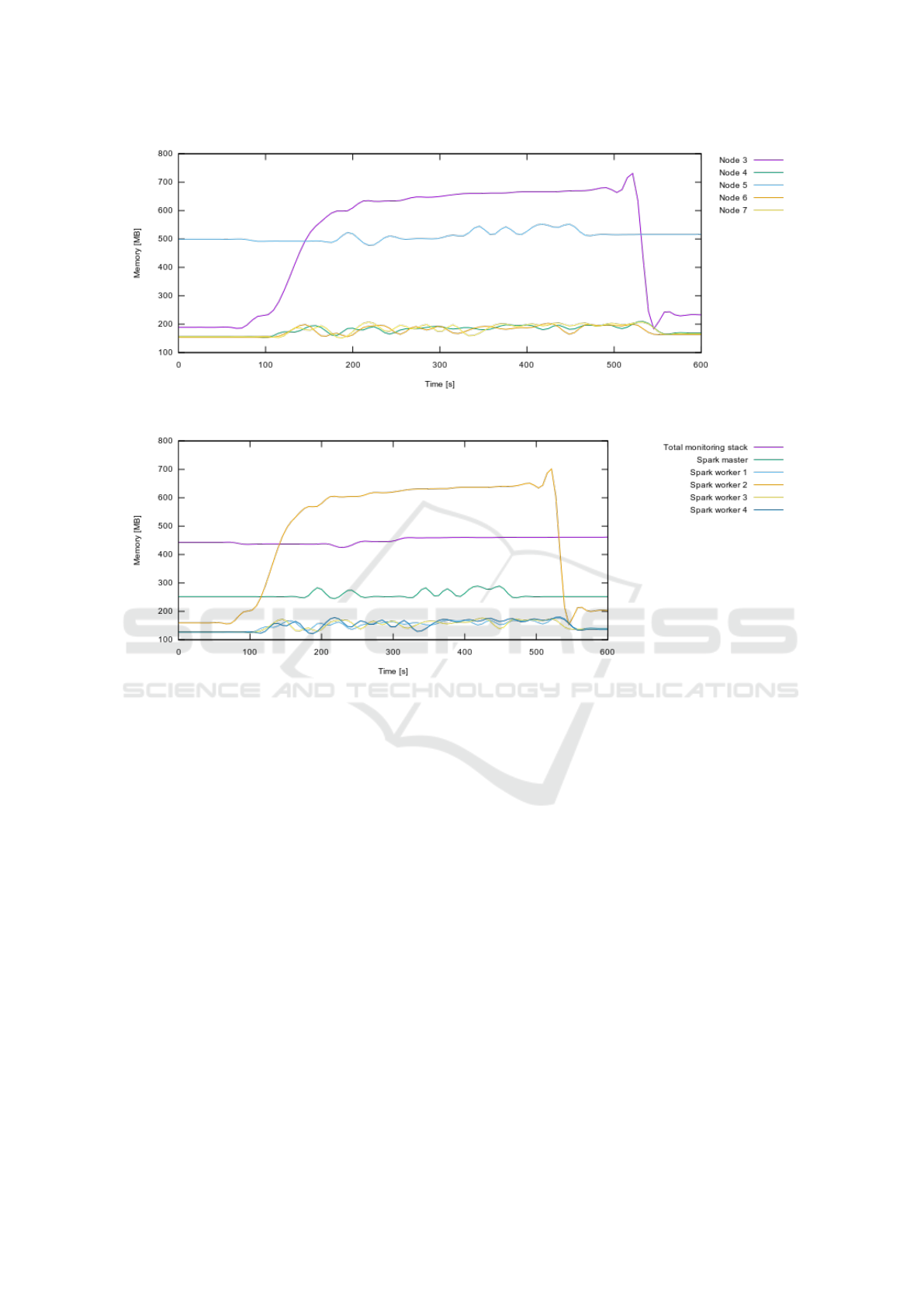

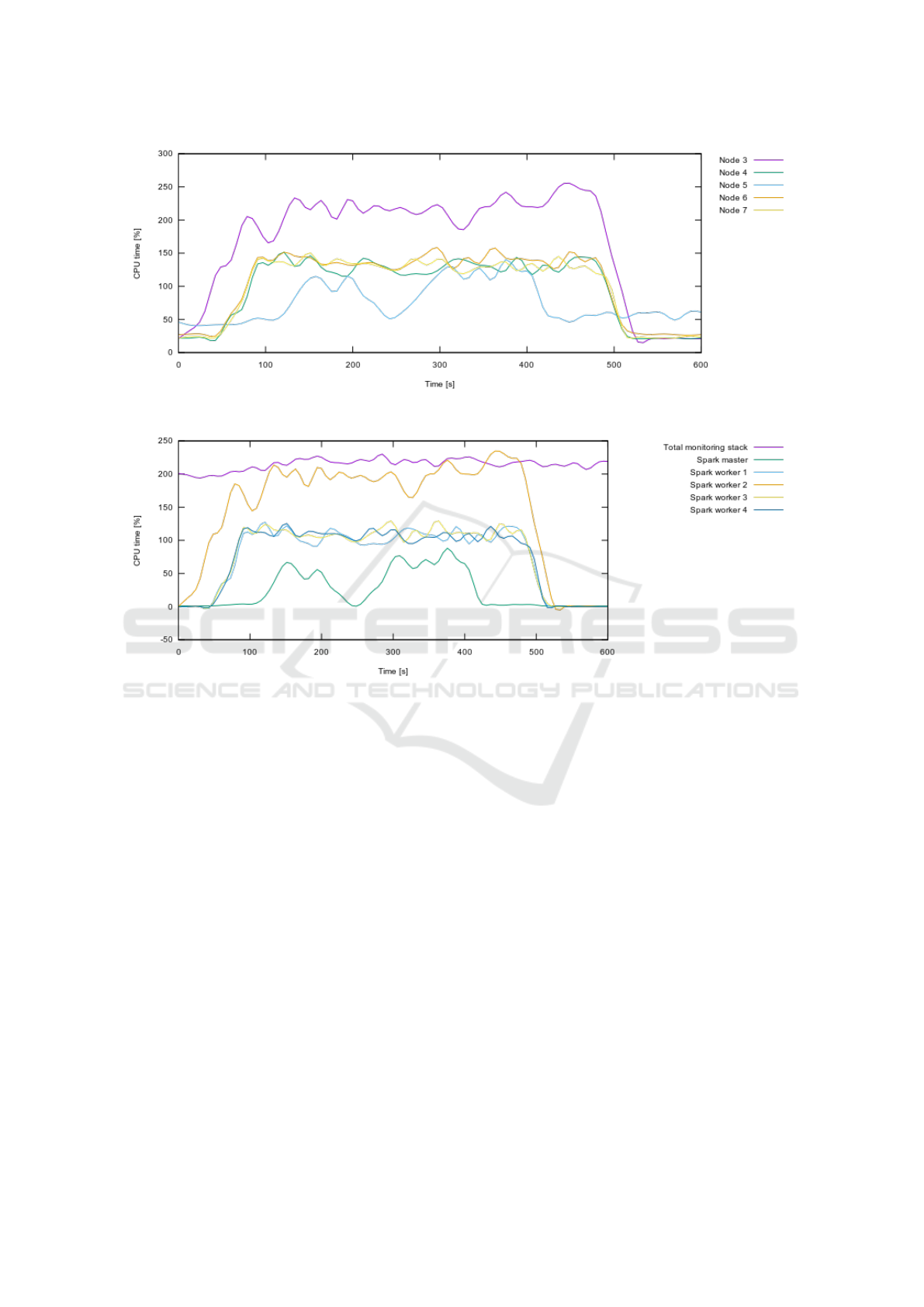

Running the test applications required some ﬁne

tuning of the resources allocated to the Spark ex-

ecutors, inﬂuenced by the constraints imposed by

the Raspberry Pis. The only relevant results were

achieved by allocating 500MB of memory to each ex-

ecutor, since the Spark process would generate out-

of-memory exceptions when using less, while on the

other hand, if given more memory, the processes

would starve one of the components necessary for the

Hadoop/Spark cluster. This memory allocation can be

set during the submission of a job.

Gitlab, https://about.gitlab.com/

QEMU, https://www.qemu.org/

The model used is a HP 355 G2, with AMD A8-6410

2GHz CPU and 12GB memory.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

7.2.1 File Processing Times

The delay between the submission of a new ﬁle and

the end of the analysis process was measured by com-

paring the submission time with the time the output

was printed to the standard output stream (stdout) of

the submission shell, using time stamps for both.

Table 4 shows the results measured for ﬁles with

around 500B and 1KB, respectively, submitted once a

second, which reﬂects as explained a common small-

to-midsize data production volume. In both cases, the

data analysis application was polling for new ﬁles ev-

ery second, and ﬁles were submitted at a rate of one

per second.

The test cases aimed at exploring the limits of

the RPi-based container cluster architecture for cer-

tain IoT and edge computing settings. The delays

shown in Table 4 can be considered too high for some

real-time processing requirements, e.g., for any ap-

plication which relies on short times for immediate

actuation, and are unexpectedly high considering the

ﬁle size and the submission rates used during the test

runs. However, if only storage and analysis without

immediate reaction is required or the sensors produce

a limited volume of data (such as temperature sen-

sors), then the setting would be sufﬁcient.

Table 4: File processing duration from time of ﬁle creation.

File size Polling time Delay

1.04KB 1s 236s

532B 1s 61s

7.2.2 Resource Consumption

Table 2 earlier showed how the various services were

distributed among the nodes during the execution.

The data recorded by the monitoring stack deployed

shows no increase of the used resources during ﬁle

submission and analysis.

CPU. Figure 6 shows the CPU time use (by node)

during the execution of the test application, while Fig-

ure 7 shows the same data, divided by container. As

could be expected, the graphs show an increase of the

CPU workload on all Apache Spark nodes, in partic-

ular on the worker nodes of the cluster. The analysis

application was submitted from node 3 (Spark worker

2), which explains the higher CPU use compared to

the other nodes at point 0 in the graphs, while data

collection was started two minutes in, at the 120 sec-

onds mark, as can be seen by an increased CPU uti-

lization by the Spark master node. Data collection

and data analysis were stopped at 420 seconds and

480 seconds, respectively. The shown records are for

the 532 Bytes test ﬁle, see also Table 4.

Memory. Similar results can be seen in Figure

8 and Figure 9, showing the memory use of the con-

tainers in Spark and the monitoring stack during the

experiment divided by node and by container, respec-

tively. As expected, we can observe that the memory

usage by the Spark node used to submit the applica-

tion, and which therefore acts as controller for the ex-

ecution and collects the results from all other nodes,

is higher than on the other nodes.

Not shown is the resource usage by the remaining

system (e.g., the Docker daemons and system pro-

cesses), which were constant during the test, with

CPU time below 2% and memory use around 120MB

on each node.

7.2.3 Analysis and Discussion

The graphs show that the system resources are not

used optimally, with room to spare both on the CPU

and in particular on the memory of the devices. The

results suggest that the delay is due to how the distri-

bution and replication of small ﬁles

is performed by

HDFS, causing a suboptimal use of Sparks streaming

capabilities and the systems resources.

Apart from the rather high delays and a subopti-

mal resource usage, the recorded data shows an un-

even CPU utilization by the Spark master container,

reaching 0% around the 250 seconds mark, which

was consistently irregular throughout all the test runs.

This might be due to the ﬁle system, or rather HDFS,

starving the process due to high I/O times. Here, fur-

ther experiments with alternative sources might ex-

plore and conﬁrm reasons with more certainty.

Regarding possible hardware performance im-

provements, the Raspberry Pi 3 might here be a better

option than a Pi 2. While in comparison the CPU only

gains 300MHz, it also updates its architecture from a

Cortex-A7 set to a Cortex-A53 one, which is an archi-

tecture boost from 32-bit to 64-bit, thus resulting in

much better performance of a factor 2 to 3

. In terms

of RAM, where the Raspberry Pi 2 has 450MHz, the

Pi 3 has 900MHz RAM.

In conclusion, the aim of this investigation, was

to determine some of the limits of the proposed in-

frastructure. Depending on the concrete application

in question, our conﬁguration might however still

be sufﬁcient or could be improved through better

hardware or software conﬁguration. Furthermore, a

controller allowing self-adaptation (Jamshidi et al.,

2016) to address performance and resource utilisa-

A typical block size used to split ﬁles by HDFS is

64MB.

https://www.jeffgeerling.com/blog/2018/raspberry-pi-

3-b-review-and-performance-comparison

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

Figure 6: Container CPU time, by node.

Figure 7: Container CPU time, by container.

tion anomalies of the platform conﬁguration might be

a solution for the future here that can address sub-

optimal resource utilisation (Jamshidi et al., 2016;

Jamshidi et al., 2015).

8 CONCLUSION

A lightweight containerised cluster platform can be

suitable for a common range of IoT data processing

applications at the edge. Leveraging the lightweight

containerization and container orchestration capabil-

ities offered by Docker, allows for an edge comput-

ing architecture that is simple to manage and has high

fault-tolerance. Due to the Docker swarm actively

maintaining the state of the services, Docker provides

high availability of services, making the cluster self-

healing, while also making scaling simple.

The low energy and cost impact of single board

devices, while still being able to run complex infras-

tructures by means of clustering, are promising with

regards to the overall reduction of infrastructure costs

even in the presence of high volumes of data. Even

though it has been shown that it is possible to imple-

ment a Big Data system on device clusters with strict

constraints on networking and computing resources

like the Raspberry Pis to create a low-cost and low-

power cluster capable of processing large amounts of

data, the actual performance of at least our prototype

system has limits. For instance, a performance lim-

itation of the prototype implementation was caused

by the choice of the Hadoop distributed ﬁle system

(HDFS) as source for data streams of small ﬁles.

In practical terms, for our platform conﬁguration,

most of the images used were created from scratch, or

at least heavily customized from similar implementa-

tions to meet the requirements. Nonetheless, the num-

ber of projects targeting ARM devices are growing in

popularity, for instance, the monitoring stack, which

allowed us to use the system as a performance test bed

for the implementation and applications, was avail-

able as a ready-to-use Docker compose ﬁle which

could be deployed to the cluster with just some con-

ﬁguration changes.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Figure 8: Container memory use, by node.

Figure 9: Container memory use, by container.

Lightweight edge architectures are important for

many new application areas. Autonomous driving is

an example where mobile edge clouds are required.

Vehicles need to coordinate their behaviour, often us-

ing modern telecommunications technologies such as

5G mobile networks. This requires onboard comput-

ing capability as well as local edge clouds in addition

to centralised clouds in order to guarantee the low la-

tency requirements. SBC clusters are an example of

computational infrastructure close the outer edge.

A possible future extension of the work should ex-

plore different possibilities enabled by Apache Spark,

for example using the network as a data source. This

approach could facilitate the use of common IoT data

transmission protocols, like MQTT, while Hadoop

and HDFS might be used on pre-processed and ag-

gregated data. Furthermore, the model used to evalu-

ate the implementation could be extended in order to

verify the actual performance of the system in more

scenarios. Here, alternative data stream sources could

also be considered as part of future work.

Another direction would go beyond the perfor-

mance engineering focus, addressing concerns such

as security and trust (El Ioini and Pahl, 2018; Pahl et

al., 2018a) for IoT and edge cloud settings.

ACKNOWLEDGEMENTS

This work has received funding from the European

Union’s Horizon 2020 research and innovation pro-

gramme under grant agreement No 825012 – Project

5G-CARMEN.

REFERENCES

Apache (2018). Hadoop. Online:

https://hadoop.apache.org. Accessed: September

2018.

Apache (2018). Spark. Online: https://spark.apache.org.

Accessed: September 2018.

Baldeschwieler, E. (2018). Yahoo! launches worlds

largest hadoop production application. Online:

A Containerized Big Data Streaming Architecture for Edge Cloud Computing on Clustered Single-board Devices

http://yahoohadoop.tumblr.com/post/98098649696/

yahoo-launches-worlds-largest-hadoop-production.

Accessed: September 2018.

Dean, J. and Ghemawat, S. (2004). Mapreduce: Simpliﬁed

data processing on large clusters. In OSDI04: Sixth

Symposium on Operating System Design and Imple-

mentation,

Docker (2018). Online: https://docs.docker.com/. Ac-

cessed: September 2018.

El Ioini, N. and Pahl, C. (2018). A review of distributed

ledger technologies. OTM Confederated International

Conferences.

Femminella, M., Pergolesi, M., and Reali, G. (2016). Per-

formance evaluation of edge cloud computing system

for big data applications. In 5th IEEE International

Conference on Cloud Networking (Cloudnet), pages

170-175.

Fowley, F., Pahl, C., Jamshidi, P., Fang, D., and Liu, X.

(2018). A classiﬁcation and comparison framework

for cloud service brokerage architectures IEEE Trans-

actions on Cloud Computing 6 (2), 358-371.

Heinrich, R., van Hoorn, A., Knoche, H., Li, F., Lwakatare,

L.E., Pahl, C., Schulte, S., and Wettinger, J. (2017).

Performance engineering for microservices: research

challenges and directions. Proceedings of the 8th

ACM/SPEC on International Conference on Perfor-

mance Engineering Companion.

Jamshidi, P., Shariﬂoo, A., Pahl, C., Arabnejad, A., Met-

zger, A., and Estrada, G. (2016). Fuzzy self-learning

controllers for elasticity management in dynamic

cloud architectures. 12th International ACM Confer-

ence on Quality of Software Architectures (QoSA).

Jamshidi, P., Shariﬂoo, A., Pahl, C., Metzger, A., and

Estrada, G. (2015). Self-learning cloud controllers:

Fuzzy q-learning for knowledge evolution. arXiv

preprint arXiv:1507.00567.

Jamshidi, P., Pahl, C., Mendonca, N.C., Lewis, J., and

Tilkov, S. (2018). Microservices: The Journey So Far

and Challenges Ahead. IEEE Software 35 (3), 24-35.

Jamshidi, P., Pahl, C., and Mendonca, N.C. (2016). Man-

aging uncertainty in autonomic cloud elasticity con-

trollers. IEEE Cloud Computing, 50-60.

Johnston, S.J., Basford, P.J., Perkins, C.S., Herry, H., Tso,

F.P., Pezaros, D., Mullins, R.D., Yoneki, E., Cox, S.J.,

and Singer, J. (2018). Commodity single board com-

puter clusters and their applications. Future Genera-

tion Computer Systems, 89: 201-212.

Hentschel, K., Jacob, D., Singer, J., and Chalmers, M.

(2016). Supersensors: Raspberry pi devices for smart

campus infrastructure. IEEE Intl Conf on Future In-

ternet of Things and Cloud (FiCloud).

Morabito, R. (2016). A performance evaluation of con-

tainer technologies on internet of things devices.

In IEEE Conference on Computer Communications

Workshops.

Morabito, R., Farris, I., Iera, A., and Taleb, T. (2017). Eval-

uating performance of containerized iot services for

clustered devices at the network edge. IEEE Internet

of Things Journal, 4(4):1019-1030.

Naik, N. (2017). Docker container-based big data process-

ing system in multiple clouds for everyone. In 2017

IEEE International Systems Engineering Symposium

(ISSE), pages 1-7.

Pahl, C. and Lee. B. (2015). Containers and clusters for

edge cloud architectures - A technology review. IEEE

Intl Conf on Future Internet of Things and Cloud.

Pahl, C., El Ioini, N., Helmer, S., and Lee, B. (2018). An

architecture pattern for trusted orchestration in IoT

edge clouds. Third International Conference on Fog

and Mobile Edge Computing (FMEC).

Pahl, C., Jamshidi, P., and Zimmermann, O. (2018). Archi-

tectural principles for cloud software. ACM Transac-

tions on Internet Technology (TOIT) 18 (2), 17.

Pahl, C., Helmer, S., Miori, L., Sanin, J., and Lee. B.

(2016). A container-based edge cloud paas architec-

ture based on raspberry pi clusters. IEEE International

Conference on Future Internet of Things and Cloud

Workshops (FiCloudW).

Renner, T., Meldau, M., and Kliem, A. (2016). Towards

container-based resource management for the inter-

net of things. In International Conference on Software

Networking (ICSN).

Renner, M. (2016). Testing high availability of

docker swarm on a raspberry pi cluster. Online:

https://blog.hypriot.com/post/high-availability-with-

docker/, 2016. Accessed: September 2018.

Renner, M. (2016). Evaluation of high availability perfor-

mance of kubernetes and docker swarm on a raspberry

pi cluster. Highload++ Conference.

Raspberry Pi Foundation (2018). Online:

https://www.raspberrypi.org/products/raspberry-p

i-2-model-b/. Accessed: September 2018.

Taibi, D., Lenarduzzi,V., and Pahl, C. (2018). Architec-

tural patterns for microservices: a systematic mapping

study. Proc. 8th Intl Conf. Cloud Computing and Ser-

vices Science.

Tso, F.P., White, D.R., Jouet, S., Singer, J., and Pezaros,

D.P. (2013). The glasgow raspberry pi cloud: A scale

model for cloud computing infrastructures. In IEEE

33rd International Conference on Distributed Com-

puting Systems Workshops.

Turner, V. (2014). The Digital Universe of Opportunities:

Rich Data and the Increasing Value of the Internet of

Things. IDC Report.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer,

S., and Pahl, C. (2018). A Performance Exploration

of Architectural Options for a Middleware for Decen-

tralised Lightweight Edge Cloud Architectures. Intl

Conf on Internet of Things, Big Data and Security.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer, S.,

and Pahl, C. (2019). A Lightweight Container Mid-

dleware for Edge Cloud Architectures. Fog and Edge

Computing: Principles and Paradigms, 145-170. Wi-

ley & Sons.

Wang, Y., Goldstone, R., Yu, W., and Wang, T.

(2014). Characterization and optimization of memory-

resident mapreduce on hpc systems. In IEEE 28th Intl

Parallel and Distributed Processing Symposium.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science
