A Fog Computing Service Placement for Smart Cities based on Genetic

Algorithms

Claudia Canali and Riccardo Lancellotti

Department of Engineering ”Enzo Ferrari”, University of Modena and Reggio Emilia, Modena, Italy

Keywords:

Fog Computing, Optimization Model, Genetic Algorithms, Smart Cities.

Abstract:

The growing popularity of the Fog Computing paradigm is driven by the increasing availability of large amount

of sensors and smart devices on a geographically distributed area. The scenario of a smart city is a clear ex-

ample of this trend. As we face an increasing presence of sensors producing a huge volume of data, the

classical cloud paradigm, with few powerful data centers that are far away from the data sources, becomes

inadequate. There is the need to deploy a highly distributed layer of data processors that ﬁlter, aggregate and

pre-process the incoming data according to a fog computing paradigm. However, a fog computing architecture

must distribute the incoming workload over the fog nodes to minimize communication latency while avoiding

overload. In the present paper we tackle this problem in a twofold way. First, we propose a formal model for

the problem of mapping the data sources over the fog nodes. The proposed optimization problem considers

both the communication latency and the processing time on the fog nodes (that depends on the node load).

Furthermore, we propose a heuristic, based on genetic algorithms to solve the problem in a scalable way. We

evaluate our proposal on a geographic testbed that represents a smart-city scenario. Our experiments demon-

strate that the proposed heuristic can be used for the optimization in the considered scenario. Furthermore, we

perform a sensitivity analysis on the main heuristic parameters.

1 INTRODUCTION

The explosive growth in data generation in the con-

text of cyber-physical environments is driven by sen-

sors geographically distributed that produce an ever

increasing amount of information that require to be

ﬁltered and processed. this evolution is leading to

the need of new solutions with respect to the classi-

cal cloud paradigm. As data increase in size, pushing

them towards the Internet core could cause stress for

the network infrastructure and introduce excessive de-

lays for the applications.

A solution to improve scalability and reduce net-

work latency lies in taking advantage of the ever in-

creasing presence of fog computing resources. Fog

computing, indeed, is a quite novel paradigm that

extends cloud computing by moving some services

and tasks to the edge of the network. Basically, an

intermediate layer of fog nodes is placed at the ac-

cess network, between the data sources and the cloud

data center, to host data ﬁltering, aggregation and pre-

processing tasks. The fog paradigm was conceived

to address applications and services that do not ﬁt

well the cloud paradigm, including (Liu et al., 2018;

Sasaki et al., 2016):

• Applications that require very low and predictable

very latency (gaming, videoconferencing)

• Geo-distributed applications (pipeline monitor-

ing, sensor networks to monitor the environment)

• Fast mobile applications (smart connected vehi-

cle, connected rail)

• Large-scale distributed control systems (smart

grid, smart trafﬁc monitoring, support for au-

tonomous driving)

For example, in this paper, we focus on a scenario

where the Fog infrastructure is applied to reduce la-

tency and delays experienced by a trafﬁc/air pollution

monitoring application in a smart city scenario.

Nevertheless, the use of a distributed and complex

infrastructure poses several new challenges (Yi et al.,

2015). Several studies in literature focus on the issues

concerning the level of the infrastructure included be-

tween the Fog layer and the cloud data centers, not

taking into account the previous level connecting the

sensors as data sources and the fog nodes. For ex-

ample, the studies in (Deng et al., 2016; Yousefpour

Canali, C. and Lancellotti, R.

A Fog Computing Service Placement for Smart Cities based on Genetic Algorithms.

DOI: 10.5220/0007699400810089

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 81-89

ISBN: 978-989-758-365-0

et al., 2017) address the issue of optimizing the al-

location of the processing tasks coming from the fog

nodes over the cloud infrastructure, proposing differ-

ent solutions also exploiting fog-to-fog nodes com-

munication to reduce the service delay by sharing the

incoming load.

A relevant problem that received less attention in

literature regards the issue of determining, within a set

of available fog nodes, which nodes should receive

and elaborate the workload originated from the data

sources. In the state-of-the-art proposed solutions, in-

deed, a common assumption is that the fog nodes di-

rectly communicate with the sensors or mobile users

through single-hop wireless connections (Deng et al.,

2016) or that a domain of sensor nodes communicate

with a domain of fog nodes associated with the spe-

ciﬁc domain application(s) (Yousefpour et al., 2017).

However, to guarantee a high QoS in terms of re-

sponse time through the reduction of the total latency

and processing time, the problem of mapping the data

ﬂows coming from sensors over the fog nodes that

perform operation on them becomes a critical task.

The main contribution of this paper is twofold.

First, we propose a formal model for the optimiza-

tion problem of mapping the incoming workload (data

sources) over the fog nodes: our solution takes into

account both the latency due to the communication

delay of the geographically distributed infrastructure

and the processing time on the fog nodes due to the lo-

cal load. Second, we propose a heuristic to solve the

optimization problem in a scalable way; to this aim,

we rely on Genetic Algorithms (GAs), that have been

previously and successfully exploited in the context

of cloud computing and Software-as-a-Service place-

ment (Yusoh and Tang, 2010). In this paper we fo-

cus on a smart city scenario, which is a typical ex-

ample of environment where data produced by geo-

graphically distributed sensors may require efﬁcient

processing for a wide range of possible applications,

such as trafﬁc monitoring and control, support for

autonomous driving and environmental sensing. We

evaluate our proposal on a geographic testbed repre-

senting the realistic scenario of a Fog architecture lo-

cated in a small-sized city in Emilia Romagna (Italy)

with roughly 180.000 inhabitants. Our experiments

demonstrate that the proposed genetic algorithm rep-

resent a viable heuristic to solve the mapping problem

in the considered scenario. Moreover, we carry out a

sensitivity analysis on the main heuristic parameters.

The remainder of this paper is organized as fol-

lows. Section 2 describes the problem formally de-

ﬁnes the considered optimization model, while Sec-

tion 3 presents the heuristic algorithms proposed for

solving the problem. Section 4 describes the experi-

mental testbed and results used to prove the viability

of our approach. Finally, Section 5 discusses the re-

lated work and Section 6 concludes the paper with

some ﬁnal remarks and outlines open research prob-

lems.

2 PROBLEM DEFINITION

2.1 Problem Overview

Our problem concerns the management of data ﬂows

in a fog infrastructure such as the one shown in Fig-

ure 1. The infrastructure, that we assume to be de-

ployed in a smart-city scenario, is composed of three

layers: a sensor layer that produces data (represented

as a set of wireless sensors at the bottom of the ﬁg-

ure), a fog layer that is responsible for a preliminary

processing of data from the sensors (second layer in

the ﬁgure), while a cloud layer that is the ﬁnal des-

tination of the data (at the top of the ﬁgure). The

underlying application logic involves the typical ser-

vices of a smart city scenario. Sensors collect infor-

mation about the city status, such as trafﬁc intensity

or air quality (Trafair Project Staff, 2019). Such data

should be collected at the level of a Cloud infrastruc-

ture to provide value-added services such as trafﬁc or

pollution forecast. The proposed fog layer intermedi-

ates the communication between the sensors and the

cloud to provide scalability and reliability in the smart

city services.

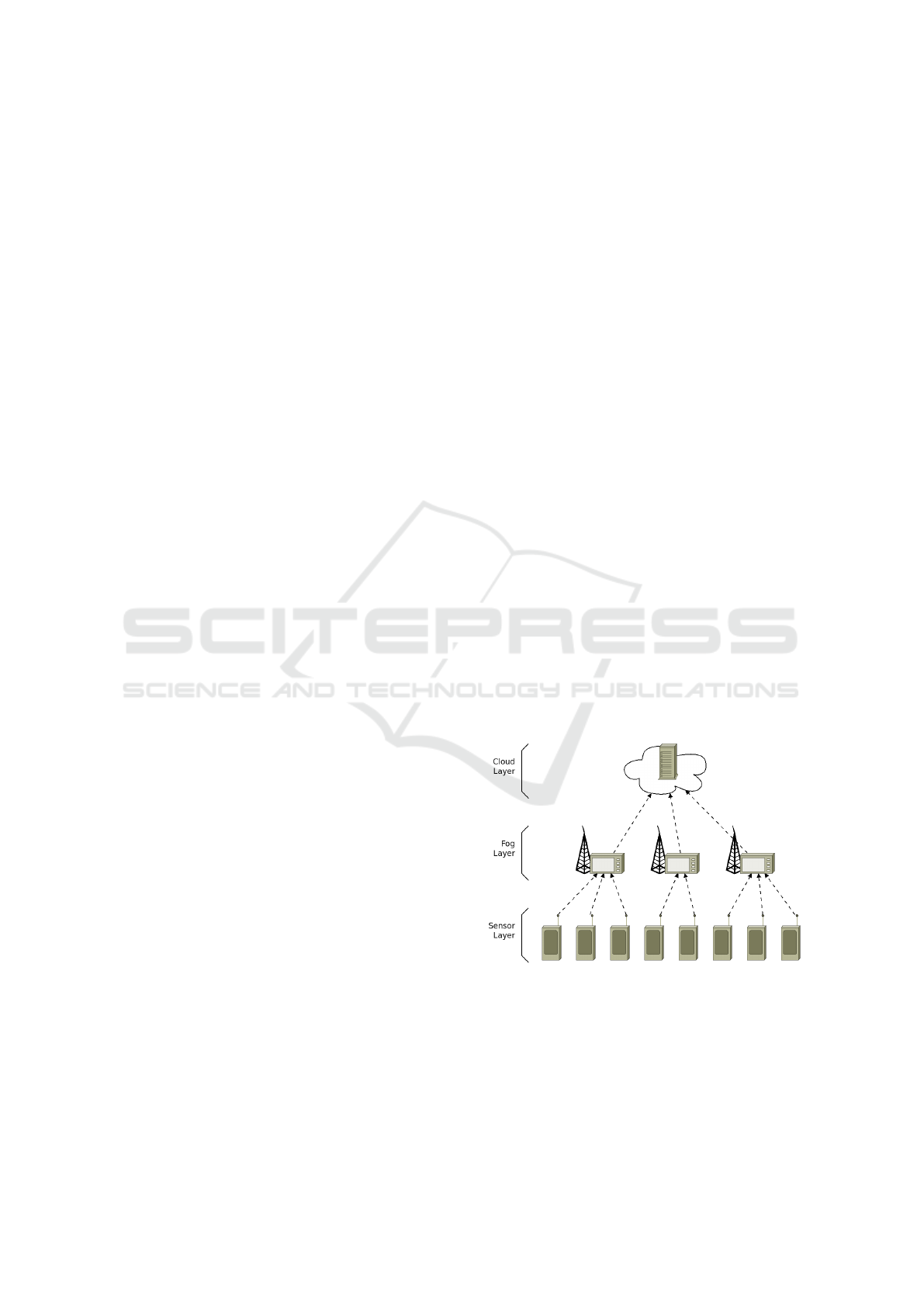

Figure 1: Fog infrastructure.

In our model, we assume a stationary scenario

where a set of similar sensors S are distributed over

an area (we consider the sensors to be not moving, al-

though a different scenario, where mobility is taken

into account can be easily introduced in our model).

Furthermore, we assume that sensors are producing

data at a steady rate, with a frequency that we denote

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

as λ

for the generic sensor i (for a summary of the

symbols used in the model, the reader may refer to Ta-

ble 1). The fog layer consists of a set of nodes F that

receive the data from the sensors and performs opera-

tions on them. These operations typically include pre-

processing of the data, such as ﬁltering and/or aggre-

gation, or may include some form of analysis to iden-

tify anomalies or problems as fast as possible. The re-

ﬁned data samples from the fog nodes are then sent to

a cloud platform where additional analysis is carried

out and where all the information is stored. These ad-

ditional analysis tasks are typically highly expensive

from a computational point of view. Again, our model

presents only one cloud data center, but it is easy to

extend it to a multi-cloud scenario.

As the problem concerning the management of

large cloud data centers has been widely addressed in

literature (Shojafar et al., 2017), we do not consider

the inner details of the cloud layer in our problem

modeling, such as the computation time at the level of

the cloud data center. Instead, we focus our attention

to the problem of coordinating the communication of

the elements in the sensor layer with the nodes in the

fog layer. Speciﬁcally, we want to guarantee an high

QoS, in terms of fast response. To this aim, we must

consider that the response time has the following ma-

jor contributions that should be taken into account:

• Network-based latency due to the communication

between the sensor and the fog nodes. We denote

this value as δ

i,j

where i is a sensor and j is a fog

node.

• Network-based latency due to the communication

between the fog node and the cloud data center.

As this depends just on the fog node due to the

single cloud considered in our model, we simply

denote this measure as δ

, where j is the fog node.

• Computation time on the fog node. This time de-

pends on the computation cost of the request (we

denote as 1/µ

the time to process a packet of data

from a sensor on fog node j) and on the data rate

of all the sensors i that are communicating with

the fog node j – we deﬁne as λ

the incoming data

rate at fog node j.

For the sake of clarity we summarize the symbols

used throughout the paper in Table 1.

2.2 Optimization Model

The main problem in the considered fog scenario is

how to map on the fog nodes the data ﬂows com-

ing from the sensors. To this aim, we deﬁne an opti-

mization problem where we use as the main decision

variable a matrix of boolean ﬂags x

i,j

. In our model

i,j

= 1 if and only if sensor i is sending data to fog

node j, otherwise x

i,j

= 0. As the function of fog

nodes is to pre-process the incoming data performing

ﬁltering and aggregation, we consider that all the data

of a sensor must be sent to the same fog node and

cannot be distributed across the fog layer.

Again, the reader may refer to Table 1 for a sum-

mary of the parameters used in our model.

Table 1: Notation.

Symbol Meaning/Role

Decision variables

i,j

Sending data ﬂow from sensor i to Fog node j

Model parameters

S Set of sensors

F Set of Fog nodes

Outcoming data rate from sensor i

Incoming data rate at fog node j

1/µ

Processing time at fog node j

i,j

Communication latency between sensor i to Fog node j

Communication latency Fog node j and Cloud data center

Model variables

i Index of a sensor

j Index of a Fog node

The optimization model to address the previously-

described problem can be formalized as follows, with

an approach similar to the problem of allocating re-

quests over a distributed infrastructure, such as VMs

on a Cloud (Shojafar et al., 2017; Noshy et al., 2018;

Duan et al., 2017). In particular, we introduce a ma-

trix of boolean decision variables X = x

i,j

that is

used to deﬁne the objective function and the con-

straints as follows:

min obj(X) =

i∈S

j∈F

i,j



− λ

+ δ

i,j

+ δ



(1.1)

subject to:

i∈S

i,j

· λ

∀j ∈ F, (1.2)

j∈F

i,j

= 1 ∀i ∈ S, (1.3)

< µ

∀j ∈ F, (1.4)

i,j

= {0, 1}, ∀i ∈ S, j ∈ F, (1.5)

In the problem formalization, the objective func-

tion 1.1 aims at reducing the total (and hence the av-

erage) latency and processing time from every sensor

to the cloud, including the operation carried out at the

level of fog computing nodes. The expression of re-

sponse time used for our objective function is consis-

tent with other studies in literature focusing on dis-

tributed cloud infrastructures (Ardagna et al., 2018).

A Fog Computing Service Placement for Smart Cities based on Genetic Algorithms

Speciﬁcally, the average processing time is derived

from Little’s result applied to a M/G/1 model and con-

siders just the average arrival frequency λ

and the

processing rate µ

of each fog node j. This deﬁni-

tion of the response time has been widely adopted in

literature, for example in (Ardagna et al., 2018). The

second part of the objective function, that is the la-

tency contribution, captures effectively the commu-

nication delay of a geographically distributed infras-

tructure using the latencies δ

i,j

and δ

Together with the objective function, we have a set

of constraints. Equation 1.2 deﬁnes the incoming load

on each fog node j. Constraint 1.3 means that for

every sensor i, we direct its output to one and only one

fog node. Constraint 1.4 guarantees that, for every fog

node j, we avoid a congestion situation, where the

incoming load λ

exceeds the processing capability

of that node. Finally, constraint 1.5 deﬁnes the

boolean nature of the decision variables x

i,j

3 HEURISTIC ALGORITHM

The previously deﬁned optimization problem is a gen-

eral deﬁnition for mapping sensors over fog nodes.

The actual solution of this problem can be carried

out using commercial solvers, such as CPLEX or K-

NITRO, already applied in similar problems (Canali

and Lancellotti, 2017), or can be addressed using a

speciﬁc heuristic.

We consider interesting in this scenario to intro-

duce a solution method based on the Genetic Algo-

rithms (GAs) heuristic and to compare this approach

with commercial solvers to validate its viability. In

GAs we operate on a population of individuals, where

each individual represents a possible solution of the

problem. The solution is encoded in a chromosome

that deﬁnes the individual and the chromosome is

composed by a ﬁxed number genes that represent

the single parameters characterizing a solution of the

problem.

A population of individuals is typically initialized

randomly. A ﬁtness function, that describes the objec-

tive function of the optimization problem is applied to

each individual. The evolution of population through

a set of generations aims at improving the ﬁtness of

the population using the following main operators:

Mutation is a modiﬁcation of a single or a group of

genes in a chromosome describing the individual

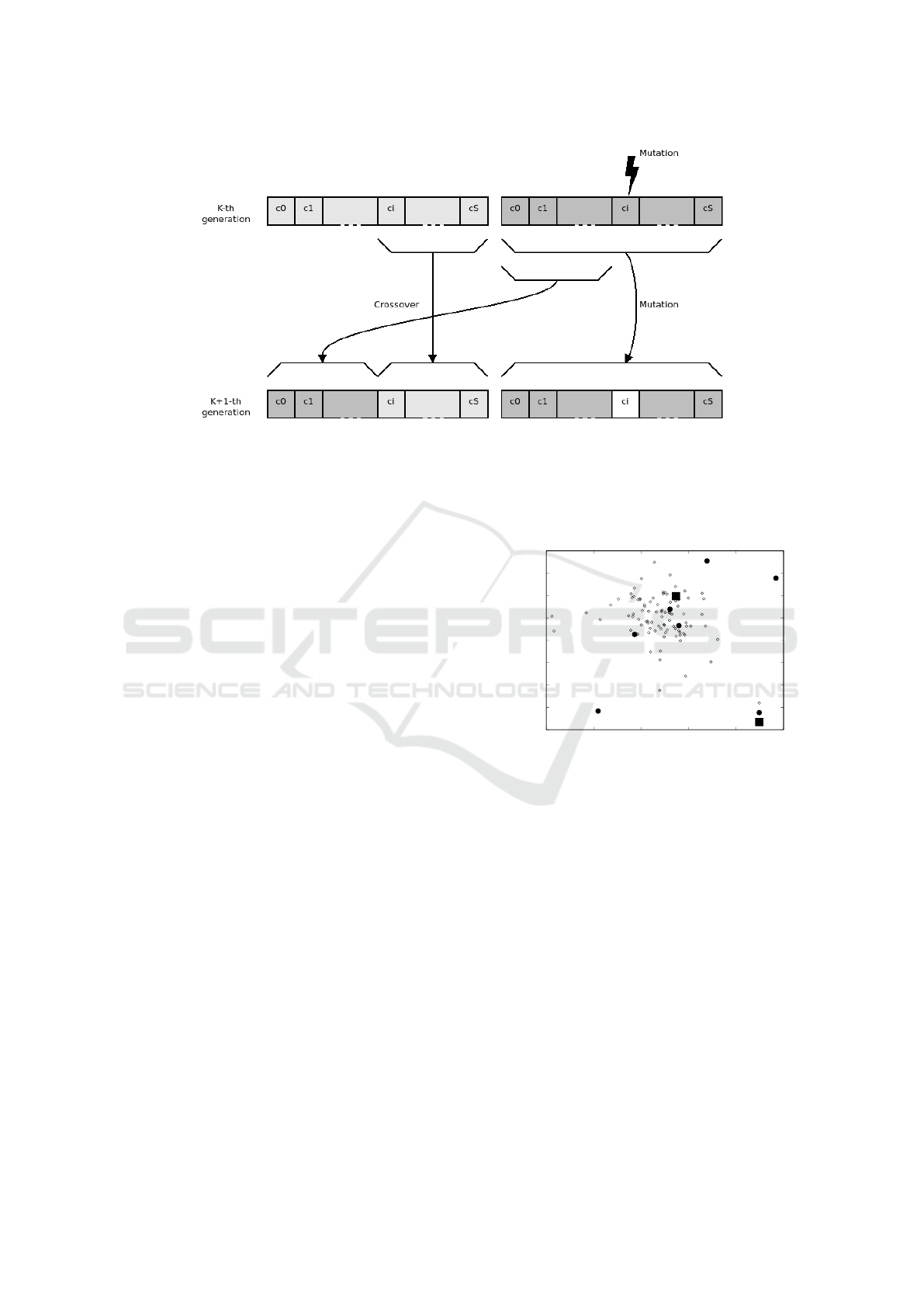

of the population. Figure 2 presents an example of

such operator where the i

gene of the rightmost

individual in the K

generation undergoes a mu-

tation. The main parameter of this operator is the

probability of selecting an individual to perform

a mutation on one of its genes. In the sensitivity

analysis in Section 4.3, we will refer to this prob-

ability as P

mut

Crossover is a merge of two individuals by exchang-

ing part of their chromosomes. Figure 2, again,

provides an example of this operator applied to the

two individuals composing the population at the

generation. In particular, in Figure 2 the child

individual is characterized by a chromosome con-

taining the genes from c

to c

i−1

from the right-

most parent and the genes from c

to c

from the

leftmost parent. The main parameter of this oper-

ator concerns the selection of the parents. In the

sensitivity analysis in Section 4.3, we will refer

to the probability of selecting an individual for a

crossover operation as P

cross

Selection concerns the criteria used to decide if an

individual is passed from the K

generation to

the next. The typical approach in this case is to

apply the ﬁtness function to every individual (in-

cluding new individuals generated through muta-

tion and crossover) and to consider a probability

of being selected for the next generation that is

proportional to the ﬁtness value. The selection

mechanism ensures that the population size re-

mains stable over the generations.

When applying a GAs approach to the problem of

mapping sensors over the fog nodes of a distributed

architecture, we must encode a solution as a gene. In

particular, we aim to formalize the relationship be-

tween the model in Section 2.2 and the GA chromo-

some encoding. Hence, we deﬁne a chromosome as a

set of S genes, where S = |S| is the number of sen-

sors. Each gene is an integer number from 1 to F ,

where F = |F| is the number of fog nodes in our in-

frastructure. The generic i

gene in a chromosome

can be deﬁned as: c

= {j : x

i,j

= 1}. Due

to constraint 1.3 in the optimization model, we know

that only one fog node will receive data from sensor

i, so we have a unique mapping between a solution of

the problem expressed using the decision variable x

i,j

and the GA-based representation of a solution. As we

can map each chromosome into a solution of the orig-

inal optimization problem, we can use the objective

function 1.1 as the basis for ﬁtness function of our

problem. Constraints 1.3 and 1.5 are automatically

satisﬁed by our encoding of the chromosomes. The

only constraint we have to explicitly take into account

is constraint 1.4 about the fog node overload. As em-

bedding the notion of unacceptable solution in a ge-

netic algorithm may hinder the ability of the heuristic

to converge towards a solution, we prefer to insert this

information into the ﬁtness function, in such a way

that the individual providing a solution where one or

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Figure 2: Examples of genetic algorithms operators.

more fog nodes are overloaded is characterized by a

high penalty and is unlikely to enter in the subsequent

generation.

Multiple optimization algorithms have been con-

sidered before adopting the choice of a genetic algo-

rithm. On one hand, greedy heuristics tend to provide

performance that heavily depends on the inherent na-

ture of the problem. For example, the non-linear ob-

jective function may hinder the application of some

greedy approaches, while the number of sensors that

may be supported by each fog node may have signiﬁ-

cant impact on the performance of branch and bound

heuristics. As we aim at providing a general and ﬂex-

ible approach to tackle this problem, we prefer to fo-

cus on meta-heuristics that are supposed to be better

adaptable to a wider set of problem instances (Binitha

et al., 2012). Among these solution, we focus on evo-

lutionary programming in general and on genetic al-

gorithms in particular as this glass of heuristics has

been proven a viable option in similar problems such

as the problem of allocating VMs on a cloud infras-

tructure (Yusoh and Tang, 2010).

4 EXPERIMENTAL RESULTS

4.1 Experimental Testbed

We tested the viability of our approach focusing on a

typical Fog scenario consisting of three components

that are: (1) a large number of sensors; (2) a set of fog

nodes, that we assume to be processing nodes with

limited computational power, responsible for data ﬁl-

tering and aggregation; (3) a cloud data center that is

the ﬁnal destination of the pre-processed sensor data.

Our testbed is based on a smart city scenario. To guar-

antee a realistic experimental testbed, we modeled the

scenario based on the small city of Modena in Italy,

which has roughly 180.000 inhabitants.

44.54

44.56

44.58

44.6

44.62

44.64

44.66

44.68

44.7

10.8 10.85 10.9 10.95 11 11.05

Latitude

Longitude

Sensors

Fog nodes

Cloud datacenter

Figure 3: Smart city scenario.

Figure 3 provides a map of the sensors, fog nodes

and cloud data center considered for the smart city

scenario. We assume that our system supports an ap-

plication for trafﬁc monitoring, with wireless sensors

placed on the main streets of the city and collecting

data about: the number of cars passing on the street,

their speed and other trafﬁc related measures (an ex-

ample of this application can be found in the Trafair

Project (Trafair Project Staff, 2019)). To build the

map of sensors, we collected a list of the main streets

in the city and we geo-referenced them. We assume

that in each main street we have at least a sensor pro-

ducing data. We selected a group of 5 buildings host-

ing the ofﬁces of the municipality and we use them

as the location of the fog nodes – this assumption

is consistent with the current trend of interconnect-

ing the main public building of each city with high

bandwidth links. Our ﬁnal scenario is composed of

A Fog Computing Service Placement for Smart Cities based on Genetic Algorithms

90 sensors and 5 nodes. The euclidean distance be-

tween the nodes is used to model the communication

latency and the delay is in the order of tens of mil-

liseconds (that is a common value for geographic net-

works). Finally, there is only one cloud data center

placed in the actual location of the municipality data

center.

For the data processing model, we consider a pre-

liminary smart city setup, where we have sensors col-

lecting a large set of samples concerning vehicular

trafﬁc and environmental quality indicators. As the

data should support a real-time monitoring of the city,

we assume to have at least a set of samples available

every second. Hence, in our simulation, we consider

that λ

= 1, ∀i ∈ S. For the fog nodes processing

capability, we assume that the node have a compu-

tational power orders of magnitude higher than the

sensors; hence, considering the limited complexity of

most ﬁltering and aggregating tasks, we assume that

each node can process up to 100 sensor feeds concur-

rently without risking overload (µ

= 100, ∀j ∈ F).

For the solution of the optimization problem, we

ﬁrst implemented the model using the AMPL lan-

guage (AMPL, 2018) and we use the commercial

solver CPLEX. The obtained solution is then used as a

comparison for our heuristic implementation. Specif-

ically, the AMPL deﬁnition is directly based on the

optimization problem discussed in Section 2. The ge-

netic algorithm is implemented using the Distributed

Evolutionary Algorithms in Python (DEAP) frame-

work (DEAP, 2018) based on the details provided in

Section 3.

In the evaluation of the genetic algorithm ap-

proach, we run the experiments 10 times and we av-

erage the main metrics. In particular, for each run of

the genetic algorithm, we consider the best achieved

solution at each generation. The algorithm maintains

a population of 100 individuals and we force a stop

of the algorithm after 300 generations. When evaluat-

ing the convergence speed of the algorithm, we deﬁne

as the optimality-reached criteria the fact that the best

individual in the population has a ﬁtness value within

1% of the optimum value obtained using the AMPL

solver.

4.2 Genetic Algorithm Performance

The ﬁrst analysis in our experiment aims at demon-

strating that the genetic algorithms can reach an opti-

mal solution even in presence of a complex problem

with integer programming and a non-linear objective

function.

Figure 4 shows, for a run of the genetic algorithm,

the ﬁtness value (corresponding to the objective func-

2000

2500

3000

3500

4000

4500

5000

5500

0 50 100 150 200 250 300

Objective function

Generations

Genetic algorithm

Optimum

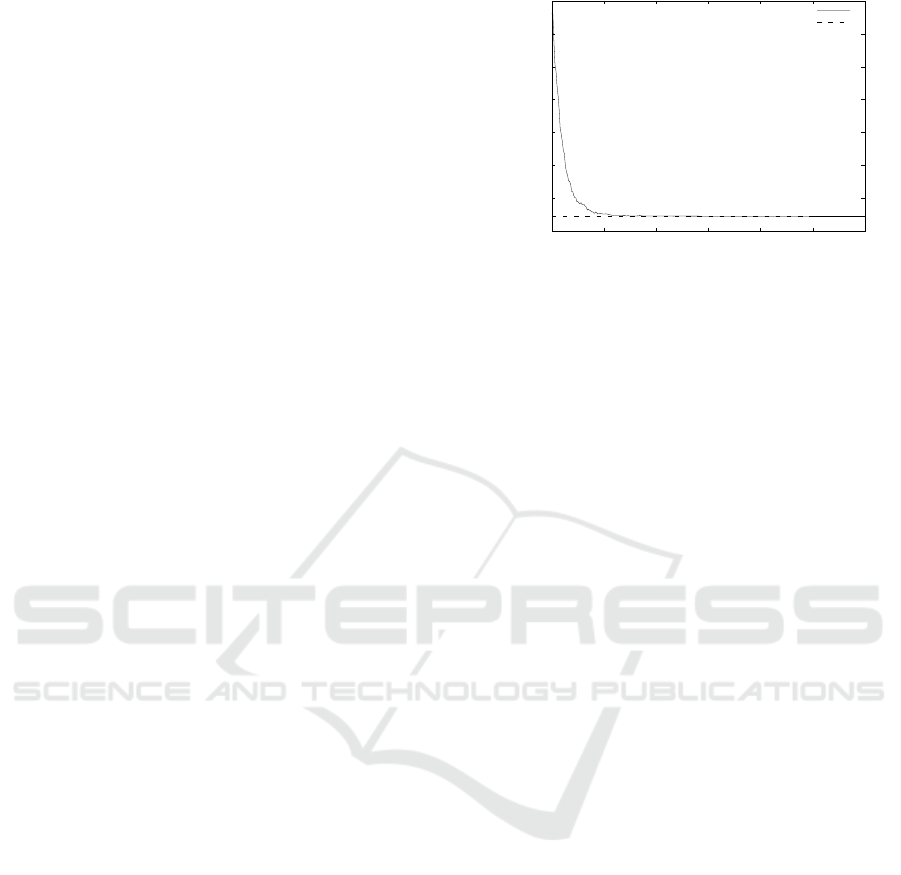

Figure 4: Genetic algorithm performance.

tion) of the best individual within the population as a

function of the generation number. The optimal value

obtained using the AMPL-based problem deﬁnition

and the CPLEX solver is shown as the horizontal thick

dashed line in the lower part of the graph. We observe

that, for the genetic algorithm, convergence is very

fast, with the objective function almost reaching the

optimal value in little more than 50 generations. This

result is quite interesting because it means that the ge-

netic algorithm is able to explore the solution space in

a small amount of time, reaching the proximity of the

optimum (even if the actual optimum value may re-

quire more generation to be found). Comparing the

execution time, the time for the genetic algorithm to

reach a value within 1% of the optimum is roughly

one order of magnitude lower compared to the com-

plete run of the AMPL-based solution.

4.3 Sensitivity Analysis

Our ﬁrst experiment showed that the genetic algo-

rithm is able to reach an optimal solution rapidly.

However, we also consider important to evaluate if

this behavior occurs just for a properly tuned algo-

rithm or if the property of fast convergence is main-

tained. To this aim, we carry out a sensitivity analy-

sis with respect to several parameters of the algorithm

and we present the most interesting ﬁndings.

The ﬁrst analysis concerns the probability of se-

lecting an individual for a crossover operation P

cross

Figure 5 shows the number of generations required

to converge (that is obtaining a value within 1% of

the optimum) and best value of the objective function

(that is used as the ﬁtness score in our analysis) as a

function of P

cross

that ranges from 0.1% to 20%.

We observe that the time to converge shows a non-

negligible dependence from this value: the genera-

tions needed to converge start close to the threshold

value of 300 and gradually descend as the we ap-

proach a value of 1%. After this point, the conver-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

100

150

200

250

300

0.1 1 10

2000

2100

2200

2300

2400

2500

Generations

Objective function

Probability [%]

Convergence speed

Best fitness

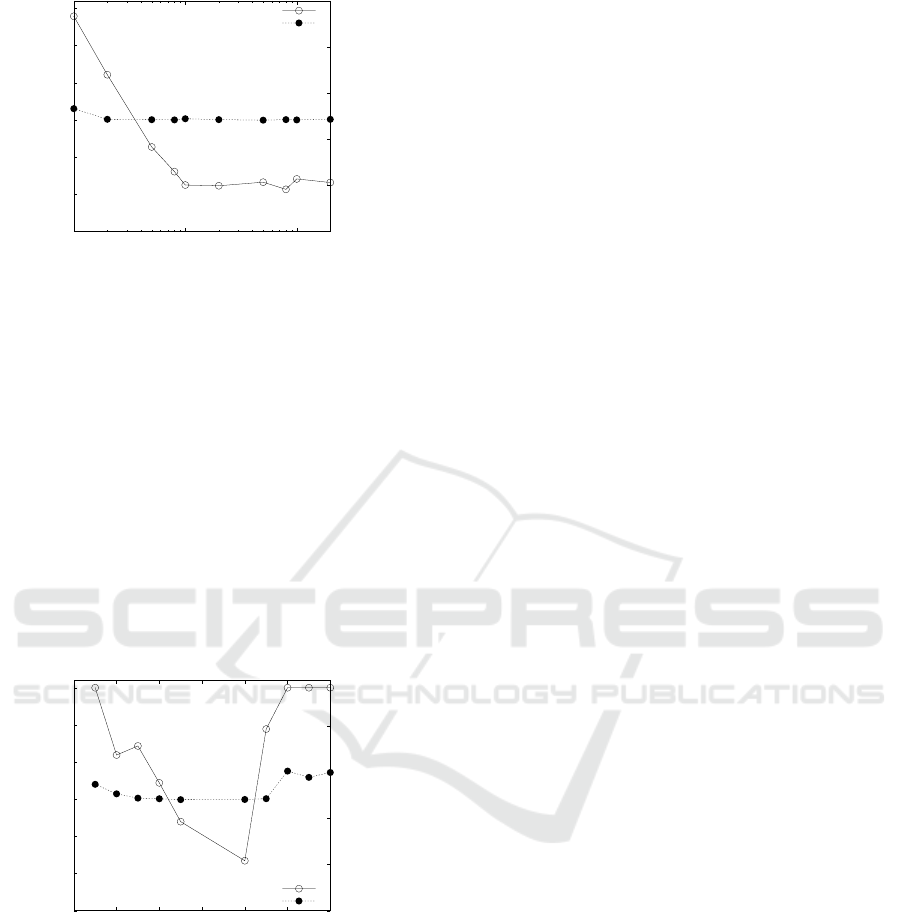

Figure 5: Sensitivity to crossover probability.

gence speed remains stable. If we analyze this behav-

ior, we ﬁnd that the low crossover probability has a

detrimental effect on the time to explore the space of

solutions because a low value in this probability hin-

ders the possibility of a good solution to replicate its

genes in the population. For very high crossover prob-

abilities, the effect is not so interesting, because the

good performing genes becomes rapidly widespread

and crossing similar solutions provides a limited per-

formance gain. On the other hand, the best value of

the objective function remains quite stable with re-

spect of this parameter (as expected) because in every

case we reach convergence, hence, for every proba-

bility value we are still within 1% of the optimum.

100

150

200

250

300

0 0.2 0.4 0.6 0.8 1 1.2

2000

2100

2200

2300

2400

2500

Generations

Objective function

Probability [%]

Convergence speed

Best fitness

Figure 6: Sensitivity to mutation probability.

The second signiﬁcant analysis carried out con-

cerns the impact of the mutation probability P

mut

Figure 6 shows the convergence speed and the ob-

jective function corresponding to the best ﬁtness as

a function of the mutation probability. Once again

the most signiﬁcant metric to observe is the number

of generation needed to reach a value within 1% of

the optimum (that measures the convergence speed).

In this case we observe that both very low values

mut

≤ 0.1%) and high values (P

mut

≥ 1%) result

in the algorithm failing to converge within the thresh-

old of 300 generations. In general, we observe a clear

V-shaped curve with a point of fast convergence for a

probability close to 0.8%. To understand this behav-

ior, we must consider the two-fold effect of mutations.

On one hand, a low mutation probability hinders the

ability to explore the solutions pace, simply because

solution not present in the initial randomly-generated

population may be reached only through mutation.

On the other hand, a mutation in an already good solu-

tion may simply reduce the ability of the algorithm to

converge, because the population keeps changing too

rapidly. If we observe the objective function values

as a function of the mutation probability, we observe

that, when convergence is reached, the achieved ﬁt-

ness is quite stable; on the other hand, when no con-

vergence occurs, the output of the genetic algorithm

may provide a solution signiﬁcantly worse compared

to the potential optimal solution.

5 RELATED WORK

The explosive growth in the generation of data and the

need for their processing to provide innovative ser-

vices and applications has recently led researchers to

focus on fog computing solutions to complement the

cloud systems capabilities. To always exchange local-

ized data from and to the remote cloud, indeed, tends

to be inefﬁcient under different points of view, thus

motivating fog computing to partially process work-

load and data locally on fog nodes (Deng et al., 2016;

Tang et al., 2015; Yi et al., 2015; Wen et al., 2017).

A survey discussing representative application

scenarios and identifying various issues related to de-

sign and implementation of fog computing systems

can be found in (Yi et al., 2015), while the study

in (Wen et al., 2017) provides an overview of the core

issues, challenges, and future research directions in

fog-enabled orchestration for IoT services, focusing

on smart cities as main motivating example of the re-

search. Also our study considers the smart cities as

a meaningful scenario where large amount of sensors

and smart devices produce a huge volume of data on

a geographically distributed area. Speciﬁcally, we fo-

cus on the speciﬁc issue of distributing the incoming

workload over the fog nodes to minimize communi-

cation latency while avoiding overload.

Some existing studies focus on the issue of al-

locating the processing tasks coming from the fog

nodes to the cloud nodes to optimize performance

and reduce latency. Among these studies, Deng et

al. (Deng et al., 2016) explore the tradeoff between

power consumption and transmission delay in the fog-

cloud computing system, formulating an optimization

A Fog Computing Service Placement for Smart Cities based on Genetic Algorithms

of the allocation problem among fog and cloud nodes.

The study in (Yousefpour et al., 2017) explicitly fo-

cuses on the issue of minimizing the service delay

in IoT-fog-cloud application scenarios, proposing a

delay-minimizing policy for fog nodes: in contrast

to other proposals in literature, the proposed policy

employs fog-to-fog communication to reduce the ser-

vice delay by sharing load. It is worth to note that in

both these studies the issue of mapping data sources

on the fog nodes is not taken into account. In (Deng

et al., 2016), indeed, the fog nodes directly commu-

nicate with the mobile users through single-hop wire-

less connections using the off-the-shelf wireless inter-

faces, such as WiFi, Bluetooth, etc., while in (Yousef-

pour et al., 2017), the communication among the IoT

nodes and fog nodes works as follows: a domain of

IoT nodes (in a factory, for instance) communicate

with a domain of fog nodes associated with the spe-

ciﬁc domain application(s). On the other hand, our

study focuses on the issue of optimizing the mapping

of the workload coming from data sources over the

fog nodes.

Among the studies focusing on fog computing

applied to the same context of our paper, in (Tang

et al., 2015) a hierarchical 4-layer Fog Comput-

ing architecture is proposed for big data analysis in

smart cities. The layered Fog computing network

exploits the natural characteristic of geo-distribution

in big data generated by massive sensors, perform-

ing latency-sensitive applications and providing quick

control loop to ensure the safety of critical infrastruc-

ture components. In this paper, the mapping between

fog nodes and sensors is ﬁxed: each fog node is con-

nected to and responsible for a local group of sensors

that cover a neighborhood or a small community.

The study in (Cardellini et al., 2016) consid-

ers Data Stream Processing (DSP) applications and,

speciﬁcally, the so called operator placement prob-

lem, that is the allocation of DSP operator on fog

nodes with the goal of optimizing the applications

Quality of Service (QoS). The optimal DSP place-

ment is modeled as an Integer Linear Programming

(ILP) problem. In this case the authors made the

assumption that it is possible to split the incoming

data ﬂow for parallel processing, while we consider

generic applications where this assumption may not

be true.

Finally, genetic algorithms (GAs) have been suc-

cessfully applied to the context of cloud computing

in recent literature. The study in (Yusoh and Tang,

2010) exploits GAs to produce a suitable and scalable

solution for the Software as a Service (SaaS) Place-

ment Problem (Yusoh and Tang, 2010), while Karimi

et al. (Karimi et al., 2017) proposes a QoS-aware ser-

vice composition for cloud computing systems based

on GAs.

6 CONCLUSIONS AND FUTURE

WORK

Throughout the present paper, we faced a typical sce-

nario that motivates a fog computing infrastructure:

a smart city where sensors or smart devices dissemi-

nated over a geographic area produce a large amount

of data. We pointed out that a classical cloud sce-

nario, where all the communications converge on a

single cloud data center (or, at most, on few data cen-

ters) becomes unmanageable due to the risk of net-

work congestion. As some applications in a smart

city scenario are clearly latency-sensitive (e.g. appli-

cations related to automated trafﬁc management) or

produce a bulk of data that could create congestion at

the network level (e.g., widespread sensors for envi-

ronmental analysis) the most suitable approach is to

push a level a pre-processing as close as possible to

the sensors to ﬁlter and aggregate the data or to per-

form latency-critical tasks.

The presence of fog computing layer, opens the

problem we discussed in our research, that is how to

map the data streams from the sensors over the fog

nodes. We provided a formal model for the problem

of minimizing the overall latency experienced in the

system, considering both data transfer and process-

ing times. Furthermore, we proposed an heuristic al-

gorithm, based on genetic programming to solve the

problem without the need to rely on an external solver.

Our proposed solution is validated using a smart-

city scenario based on a realistic testbed. The exper-

iments demonstrate the viability of the proposed ge-

netic algorithm to solve the problem and provides a

sensitivity analysis with respect to the main parame-

ters of the proposed heuristic.

This paper is just a ﬁrst step in a research line

on the application of fog computing to smart cities.

We plan to extend the current research taking into ac-

count more complex scenarios that involve dynamic

changes in the workload (for example to capture sen-

sor mobility or to consider adaptive sampling tech-

niques at the sensor level) providing contributions

both at the level of scenario deﬁnition and at the level

of algorithm and architecture proposals.

REFERENCES

AMPL (2018). AMPL: Streamlined modeling for real opti-

mization. – https://ampl.com/.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Ardagna, D., Ciavotta, M., Lancellotti, R., and Guerriero,

M. (2018). A hierarchical receding horizon algo-

rithm for qos-driven control of multi-iaas applications.

IEEE Transactions on Cloud Computing, pages 1–1.

Binitha, S., Sathya, S. S., et al. (2012). A survey of bio in-

spired optimization algorithms. International Journal

of Soft Computing and Engineering, 2(2):137–151.

Canali, C. and Lancellotti, R. (2017). Scalable and auto-

matic virtual machines placement based on behavioral

similarities. Computing, 99(6):575–595.

Cardellini, V., Grassi, V., Lo Presti, F., and Nardelli, M.

(2016). Optimal operator placement for distributed

stream processing applications. In Proceedings of the

10th ACM International Conference on Distributed

and Event-based Systems, DEBS ’16, pages 69–80,

New York, NY, USA. ACM.

DEAP (2018). DEAP: Distributed Evolutionary Algorithms

in Pyton. – https://deap.readthedocs.io.

Deng, R., Lu, R., Lai, C., Luan, T. H., and Liang, H. (2016).

Optimal Workload Allocation in Fog-Cloud Comput-

ing Toward Balanced Delay and Power Consumption.

IEEE Internet of Things Journal, 3(6):1171–1181.

Duan, H., Chen, C., Min, G., and Wu, Y. (2017). Energy-

aware scheduling of virtual machines in heteroge-

neous cloud computing systems. Future Generation

Computer Systems, 74:142 – 150.

Karimi, M. B., Isazadeh, A., and Rahmani, A. M. (2017).

Qos-aware service composition in cloud computing

using data mining techniques and genetic algorithm.

J. Supercomput., 73(4):1387–1415.

Liu, J., Li, J., Zhang, L., Dai, F., Zhang, Y., Meng, X., and

Shen, J. (2018). Secure intelligent trafﬁc light control

using fog computing. Future Generation Computer

Systems, 78:817 – 824.

Noshy, M., Ibrahim, A., and Ali, H. (2018). Optimization

of live virtual machine migration in cloud computing:

A survey and future directions. Journal of Network

and Computer Applications, 110:1–10.

Sasaki, K., Suzuki, N., Makido, S., and Nakao, A. (2016).

Vehicle control system coordinated between cloud and

mobile edge computing. In 2016 55th Annual Confer-

ence of the Society of Instrument and Control Engi-

neers of Japan (SICE), pages 1122–1127.

Shojafar, M., Canali, C., and Lancellotti, R. (2017). A

Computation- and Network-Aware Energy Optimiza-

tion Model for Virtual Machines Allocation. In Proc.

of International Conference on Cloud Computing and

Services Science (CLOSER 2017), Porto, Portugal.

Tang, B., Chen, Z., Hefferman, G., Wei, T., He, H., and

Yang, Q. (2015). A hierarchical distributed fog com-

puting architecture for big data analysis in smart cities.

In Proceedings of the ASE BigData & SocialInfor-

matics 2015, ASE BD&SI ’15, pages 28:1–28:6, New

York, NY, USA. ACM.

Trafair Project Staff (2019). Forecast of the impact by lo-

cal emissions at an urban micro scale by the combi-

nation of lagrangian modelling and low cost sensing

technology: the trafair project. In Proc. of 19th In-

ternational conference on Harmionisation within At-

mospheric Dispersion Modelling for Regulatory Pur-

poses, Bruges, Belgium.

Wen, Z., Yang, R., Garraghan, P., Lin, T., Xu, J., and Rovat-

sos, M. (2017). Fog orchestration for internet of things

services. IEEE Internet Computing, 21(2):16–24.

Yi, S., Li, C., and Li, Q. (2015). A survey of fog comput-

ing: Concepts, applications and issues. In Proceed-

ings of the 2015 Workshop on Mobile Big Data, Mo-

bidata ’15, pages 37–42, New York, NY, USA. ACM.

Yousefpour, A., Ishigaki, G., and Jue, J. P. (2017). Fog

computing: Towards minimizing delay in the internet

of things. In 2017 IEEE International Conference on

Edge Computing (EDGE), pages 17–24.

Yusoh, Z. I. M. and Tang, M. (2010). A penalty-based

genetic algorithm for the composite saas placement

problem in the cloud. In IEEE Congress on Evolu-

tionary Computation, pages 1–8.

A Fog Computing Service Placement for Smart Cities based on Genetic Algorithms
