Adapting Linear Hashing for Flash Memory Resource-constrained

Embedded Devices

Andrew Feltham, Spencer MacBeth, Scott Fazackerley and Ramon Lawrence

University of British Columbia, Kelowna, Canada

Keywords: Linear Hash, Index, Embedded, Query, Database, Arduino.

Abstract:

Linear hashing provides constant time operations for data indexing and has been widely implemented for

database systems. Embedded devices, often with limited memory and CPU resources, are increasingly col-

lecting and processing more data and beneﬁt from fast index structures. Implementing linear hashing for

ﬂash-based embedded devices is challenging both due to the limited resources and the unique properties of

ﬂash memory. In this work, an implementation of linear hashing optimized for embedded devices is presented

and evaluated. Experimental results demonstrate that the implementation has constant time performance on

embedded devices, even with as little as 8 KB of memory, and offers beneﬁts for several use cases.

1 INTRODUCTION

There is a renewed focus on data processing on de-

vices with limited capabilities as applications such as

sensor-based monitoring grow in deployments. The

Internet of Things (Lin et al., 2017) relies on these de-

vices for data collection and ﬁltering, and it is widely

known that there are performance and energy beneﬁts

to processing data on the edge (where it is collected)

rather than sending it over the network for later pro-

cessing. Manipulating data on these edge devices rep-

resents similar challenges to the early days of comput-

ing with limited resources and supporting software.

There have been several efforts to construct

database libraries and software tools for these em-

bedded devices starting with the sensor-database net-

works such as TinyDB (Madden et al., 2005) and

COUGAR (Bonnet et al., 2001) to database software

installed and executing on the device such as Ante-

lope (Tsiftes and Dunkels, 2011), PicoDBMS (An-

ciaux et al., 2003), LittleD (Douglas and Lawrence,

2014), and IonDB (Fazackerley et al., 2015). There

have also been data structures and algorithms speciﬁ-

cally developed for ﬂash-memory including (Gal and

Toledo, 2005; Lin et al., 2006). No prior work devel-

oped a linear hash implementation and explored its

potential beneﬁts for this domain.

Linear hashing dates back to work done by Litwin

(Litwin, 1980) and later expanded by Larson (Larson,

1982; Larson, 1985). Linear hashing is an expand-

able hash table on storage that provides constant time

operations. Although B+-trees are generally favored

for database workloads as they also provide ordered

access, linear hashing is implemented in many rela-

tional database systems and has beneﬁts for certain

use cases. In the embedded domain, linear hashing

is interesting as it may allow for even better perfor-

mance and less resource usage than B+-trees.

In this work, linear hashing is adapted and opti-

mized for ﬂash-based, memory-constrained embed-

ded devices and shown to work for devices with as

little as 8 KB of memory. Optimizations include im-

plementing the linked list of overﬂow buckets in a

backwards chaining fashion to avoid writes, trading

off writes for reads due to asymmetric performance

of ﬂash memory, and minimizing the memory con-

sumed so that most operations require only one mem-

ory buffer and at most two memory buffers are re-

quired for a split during insert.

The next section discusses the background of lin-

ear hashing and embedded device data management.

Section 3 describes the linear hash implementation,

and Section 4 provides experimental results. The pa-

per closes with future work and conclusions.

2 BACKGROUND

First introduced by Litwin in 1980 (Litwin, 1980), the

linear hash data structure is a dynamically-resizable

hash table which maintains constant-time complexity

176

Feltham, A., MacBeth, S., Fazackerley, S. and Lawrence, R.

Adapting Linear Hashing for Flash Memory Resource-constrained Embedded Devices.

DOI: 10.5220/0007709301760181

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 176-181

ISBN: 978-989-758-372-8

for hash table operations. A search generally takes

about one access, and the space utilization may be up

to 90%. This performance is superior to B+-trees for

key-based lookup operations. Linear hashing does not

require an index to lookup bucket locations on storage

if the buckets are allocated continuously on storage or

allocated in ﬁxed size regions. Computing the address

of a record is done by using the output of the hash

function computed on the key to identify the appropri-

ate region (if multiple) and bucket within the region.

Thus, the memory consumed is minimal and consists

of information on the current number of buckets and

next bucket to split.

Collisions are handled using overﬂow buckets that

are chained to the primary (or home) bucket. The hash

ﬁle is dynamically resized when the storage utiliza-

tion (load factor) increases beyond a set amount. At

that point, a new bucket is added to the end of the

hash ﬁle and records are divided between the new

bucket and the current bucket to split in the table. It is

this predeﬁned, ordered splitting of buckets that is the

main contribution of linear hashing.

Linear hashing was extended and generalized by

Larson (Larson, 1982) using partial expansions. It

was shown that performance can be increased if dou-

bling of the ﬁle size is done in a series of partial ex-

pansions with two generally being a good number.

Search performance is increased at the slight trade-

off of additional algorithm complexity and the need

for buffering and splitting k + 1 buckets in memory

where k is the number of partial expansions. Further

work (Larson, 1985) allowed for the primary buckets

and overﬂow buckets to use the same storage ﬁle by

reserving pre-deﬁned overﬂow pages at regular inter-

vals in the data ﬁle. This work also added the ability

to have multiple overﬂow chains from a single pri-

mary bucket by utilizing several hash functions to de-

termine the correct overﬂow chain. Popular database

management systems such as PostgreSQL use imple-

mentations of linear hashing.

Variations of linear hashing optimized for ﬂash

memory use the idea of log buffering to increase

performance. The Self-Adaptive Linear Hash (Yang

et al., 2016) buffers logs of successive operations be-

fore ﬂushing the result to storage. This often de-

creases the total number of read and write operations

and allows for some random writes to be performed

sequentially. Self-Adaptive Linear Hash also adds

higher levels of organization to achieve more coarse-

grained writes to improve the bandwidth. Unfortu-

nately, the extra memory consumed is impractical for

embedded devices.

Embedded systems come in a wide variety of con-

ﬁgurations and are often developed and deployed for

particular use cases, which results in software that

is often customized both to the hardware and to the

problem. Arduinos (Severance, 2014) have increased

in usage as their designs are open source and a builder

community has emerged with resources to help de-

velopers. The Arduino Mega 2560, one of the most

popular Arduino boards, has 8 KB of SRAM and a

clock speed of 16 MHz. It also has a microSD card in-

terface for non-volatile, ﬂash-memory storage. With

such limited capabilities, many applications cannot

run on an Arduino without adapting them to the more

resource-constrained environment.

Data structures include special indexed structures

for ﬂash memory (Gal and Toledo, 2005; Lin et al.,

2006). Devices such as smart cards and sensor nodes

cannot afford the code space (often less than 128

KB), memory (between 2KB and 64KB), and en-

ergy requirements for typical database query pro-

cessing. Databases designed for local data storage

and querying on embedded devices, such as Ante-

lope (Tsiftes and Dunkels, 2011), PicoDBMS (Anci-

aux et al., 2003), and LittleD (Douglas and Lawrence,

2014), simplify the queries that are executable and the

data structures and algorithms used. Systems such as

TinyDB (Madden et al., 2005) and COUGAR (Bon-

net et al., 2001) are distributed data systems intended

to manage information over many networked sen-

sors. There has not been an experimental evaluation

of the performance and implementation requirements

for linear hash on embedded devices.

3 IMPLEMENTATION

The implementation of linear hashing requires several

key decisions that are heavily inﬂuenced by the lim-

ited resources, ﬂash memory properties, and embed-

ded use cases:

• Bucket Structure - Are buckets stored as a linked

list or in sequential addresses on storage?

• Overﬂow Buckets - Are overﬂow buckets in a sep-

arate ﬁle or in the data ﬁle?

• Deletions - How are deletions handled? How is

free space reclaimed?

• Caching and Memory Usage - How much of the

data structure is memory-resident? Is memory-

usage tuneable for devices with more memory?

The implementation was optimized for the spe-

ciﬁc properties of embedded use cases. The goal is to

minimize RAM consumed, favor reads over writes on

ﬂash, and optimize for sequential writing of records.

Many embedded systems perform logging applica-

tions where the device is collecting sensed data over

Adapting Linear Hashing for Flash Memory Resource-constrained Embedded Devices

177

time. Thus, optimizing inserts is the most important

with some emphasis on data retrieval. Update and

delete operations are relatively rare.

The ﬁrst key decision is how buckets are repre-

sented on storage, either as a linked list or by sequen-

tial addresses. The advantage of using a sequential

address space is that no memory-resident bucket in-

dex structure is required as the location of a bucket on

storage can be directly calculated based on an offset

using its bucket index. The advantage of the linked

list approach is that buckets can move locations, and

there is ﬂexibility on where they are allocated. The

negative is that a separate bucket index structure is re-

quired to determine the physical bucket location, and

the linked list structure is expensive to maintain in

ﬂash. The trade-off chosen was to use an in-memory

bucket index lookup structure that contained offsets

into the storage ﬁle of where the bucket was located.

Although this consumed some memory and limits the

maximum size of the hash table, it allows ﬂexibility

on bucket allocation and faster inserts. This index can

also be maintained on ﬂash if it grows too large.

Overﬂow buckets are conceptually explained as a

linked list from the main bucket index, but there are

decisions in how this is implemented. Implementing

the overﬂow buckets in separate ﬁles per main bucket

was determined to be too expensive in terms of mem-

ory and created lots of open ﬁles. This is especially

a concern if the embedded device does not have a ﬁle

system and the developer is responsible for managing

raw storage. The decision was to implement the over-

ﬂow buckets in the same ﬁle as the data buckets and

virtually link them as a linked list. To avoid expensive

linked list updates, when an overﬂow bucket is added,

it is added to the start of the list and then points to the

previous head of the list.

For embedded devices such as Arduinos, the block

size matches the size of the block on the SD card

(512 bytes). Each block has a header containing

the ﬁle block index (logical starting at 0), the num-

ber of records it contains and the block index of the

next overﬂow bucket. Overﬂow buckets are linked to-

gether as a linked list using a property in the bucket

header. When a new overﬂow bucket is added it is

added to the top of the linked list to prevent extra

block reads and writes that would be required to up-

date the bottom bucket link. The bucket map is an

array mapping the table index to the ﬁle block index

for the top level bucket. Two 512 byte buffers are al-

located when the linear hash table is initialized. Two

is the minimum number required in order to perform

the split functionality. Most other functions require

only one buffer. All reads and writes are at the block

level through the SD library, and changes are made to

a block buffered in memory before writing it to ﬂash.

In Table 1 is a summary of the components of

the linear hash implementation. For determining a

bucket index given a key value, the hash functions

h0 and h1 are implemented as: h0 : hash&(size − 1)

and h1 : hash&((2 ∗ size)− 1), where hash is the hash

value produced by the hash function and & is a bit-

wise AND operator. A bucket index is h0(hash) if the

calculated value is less than nextSplit otherwise it is

h1(hash).

The insert algorithm is in Figure 1. The algo-

rithm reads the top level bucket, and either adds to

that bucket or creates and writes a new bucket. A

split is triggered after writing the block if the load

((100 ∗ numRecords)/(size ∗ recordsPerBucket)) has

increased passed the threshold. An insert operation

(without a split) always performs exactly one block

read and one block write. Note for faster insert per-

formance the algorithm only inserts into the top level

block even if there may be space in another block in

the bucket. This is to maximize insert performance

and recognizes that deletes are relatively rare.

Hash key and map to a bucket index

Get top level block index from bucketMap

Read that block into a memory buffer (buffer1)

If block->records == recordsPerBucket:

Initialize an empty block at nextBlock

Increment totalBuckets

Add record to block

Increment block->records

Write to file

Else:

Add record to the next record position

Increment block->records

Write to file

Increment the total table numRecords

Figure 1: Insert Algorithm Pseudocode.

The get algorithm is in Figure 2. In the worst

case, the item does not exist, and the method reads

all blocks in the bucket, which is typically around 2

for a well-balanced hash function. Note that buckets

are not always completely full (due to deletes), which

has a minor negative impact on performance.

Hash key and map to a bucket index

blockIndex = block index from bucketMap

Do:

Read blockIndex into buffer1

For each record in block:

Compare keys, if equal return the value

blockIndex = block->overflowBlockIndex

While (block has overflow)

Figure 2: Get Algorithm Pseudo-code.

The delete algorithm is in Figure 3. At a high level

the delete function reads each block, iterates through

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

178

Table 1: Summary of Linear Hash Components.

Name Description

size The number of buckets when the linear hash table was last doubled

nextSplit The bucket index which will be split next

splitThreshold The integer percent when to split the linear hash table

currentSize The number of top level buckets

totalBuckets The total number of buckets in the linear hash table including overﬂow buckets

numRecords The total number of records stored in the hash table

recordsPerBucket The total number of records that can be stored in a bucket

nextBlock The next available ﬁle block index to be used

recordTotalSize Convenience value for the size of a record in bytes. Key size + value size.

buffer1 Byte buffer with 512 bytes

buffer2 Byte buffer with 512 bytes

bucketMap Array list mapping bucket indexes to the top block index

every record, deletes matching records and shifts the

non-deleted records up to ensure an unbroken array

of records in each block. Only changed blocks are

written out. Note that we do not remove empty blocks

from the chain as that requires additional block reads

and writes. This method will read all blocks in the

bucket chain and write anywhere from 0 to all blocks

in the bucket chain.

Do:

Read the blockIndex into the buffer

readPtr, writePtr = first record position

For record in block:

If key == searchKey:

Clear the read key data

Mark the buffer as dirty

Decrement numRecords

Decrement bucketRecords

Else:

If readPtr != writePtr:

copy record at readPtr to writePtr

Increment writePtr

Increment readPtr

If block is dirty:

Write block

blockIndex = block->overflow

While (block has overflow)

Figure 3: Delete Algorithm Pseudocode.

The update algorithm is in Figure 4. The algo-

rithm performs exactly n reads and 0 to n writes where

n is the number of blocks in the bucket.

The split algorithm is in Figure 5. A new bucket

index is created and records in the bucket to split are

re-indexed and moved to the new bucket as required.

Empty slots in the splitting bucket are shufﬂed up to

create a continuous block of records. As with delete,

blocks in the splitting bucket may end up with space

at the end of the blocks and potentially empty blocks.

It would cost more reads and writes in order to remove

empty blocks or swap records to ﬁll blocks. The algo-

Do:

Read the blockIndex into the buffer

For record in bucket:

If key == searchKey:

Update the value with the new value

Mark the buffer as dirty

If block is dirty:

Write block

blockIndex = block->overflow

While (bucket has overflow)

Figure 4: Update Algorithm Pseudocode.

rithm reads and writes every block in the bucket split.

Functions trade-off having more space and buck-

ets for less writes and potentially more reads. Empty

buckets are not removed which will cause additional

reads in get, delete and split function. However, since

reads are less costly then writes both in terms of time

and SD card wear, this is a reasonable trade-off.

4 EXPERIMENTAL RESULTS

The experimental device was an Arduino Mega2560

with SD card and Ethernet shield with 8 KB RAM and

256 KB of code space. It has a 16 MHz 8-bit AVR

processor. An 8 GB Micro SD card class 6 was used

for storage. Although the experiments were run on an

Arduino, the implementation will work on other em-

bedded devices. The record size was 4 bytes. Record

keys were random integers. All experimental results

are the average of 5 runs.

The raw I/O speed of the SD card was measured

by reading and writing 1000 blocks (512 bytes each)

in a ﬁle. The average block read time was 2.5 ms

with a standard deviation of 0.0008 ms. The average

block write time was 3.4 ms with a standard deviation

of 0.017 ms. These results show that read and write

times are consistent with minimal variance, and the

Adapting Linear Hashing for Flash Memory Resource-constrained Embedded Devices

179

Get blockIndex for split bucket from bucketMap

Create a new bucket in buffer2 using index from

currentSize at the next block index

Add the new bucket to the bucket map

Increment currentSize

newInsertPtr = first record loc in new bucket

Do:

read the splitBlock into buffer1

readPtr, writePtr = first record in buffer1

For record in splitBlock:

If (h0(record->key) != h1(record->key):

Copy record from split bucket to

the new bucket at newInsertPtr

Increment newBucket record count

Decrement splitBucket record count

Increment newInsertPtr

If newBucket is full:

Write out to the file block

Create a new bucket

Reset newInsertPtr

Else:

If (readPtr != writePtr):

copy record at readPtr to writePtr

Increment writePtr

Increment readPtr

splitBlock = splitBlock->overflow

While (splitBlock has an overflow)

If currentSize = 2 * size:

size = currentSize

nextSplit = 0

Else:

nextSplit++

Figure 5: Split Pseudocode.

average write time is about 35% slower than reading.

For benchmarking the insert operation, each run

started with an empty hash table and the time to insert

a given number of records was recorded. Statistics

recorded include the overall time, average time per

insert, and average number of block reads and writes

per insert. Figure 6 shows the average time per insert

is linear as the hash table grows and mostly represents

the time to read and write one block (approx. 6 ms).

Figure 7 shows that the average number of blocks read

and written is just over one, which is expected as an

insert without an overﬂow performs 1 block write.

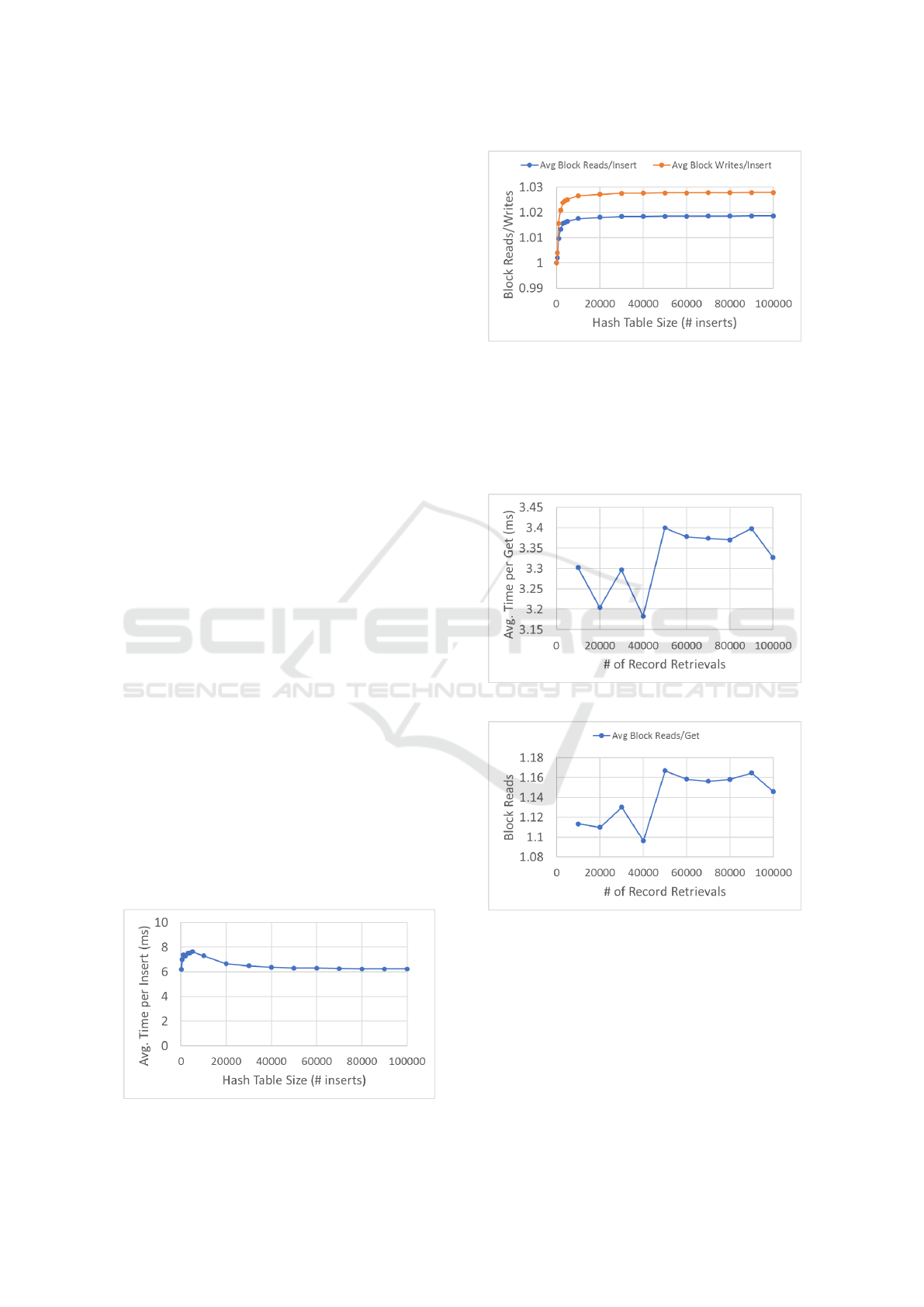

Figure 6: Average Insert Time per Hash Table Size.

Figure 7: Average Block Reads/Writes per Insert.

For evaluating record get, a hash table of 100,000

records was created and an increasing number of

records were retrieved. The average time per record

retrieval was consistent (Figure 8) as was the average

number of blocks read (Figure 9).

Figure 8: Average Get Time.

Figure 9: Average Block Reads/Writes per Get.

For evaluating record deletion, a hash table of

100,000 records was created and an increasing num-

ber of records were deleted from the hash table. The

average time per record deleted decreased slightly as

more records were deleted as the hash table was get-

ting smaller (Figure 10). The number of block I/Os

also decreased (Figure 11). Another experiment was

run involving deleting 50% of the records of hash ta-

ble of various sizes, and the deletion time and I/Os

were similar.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

180

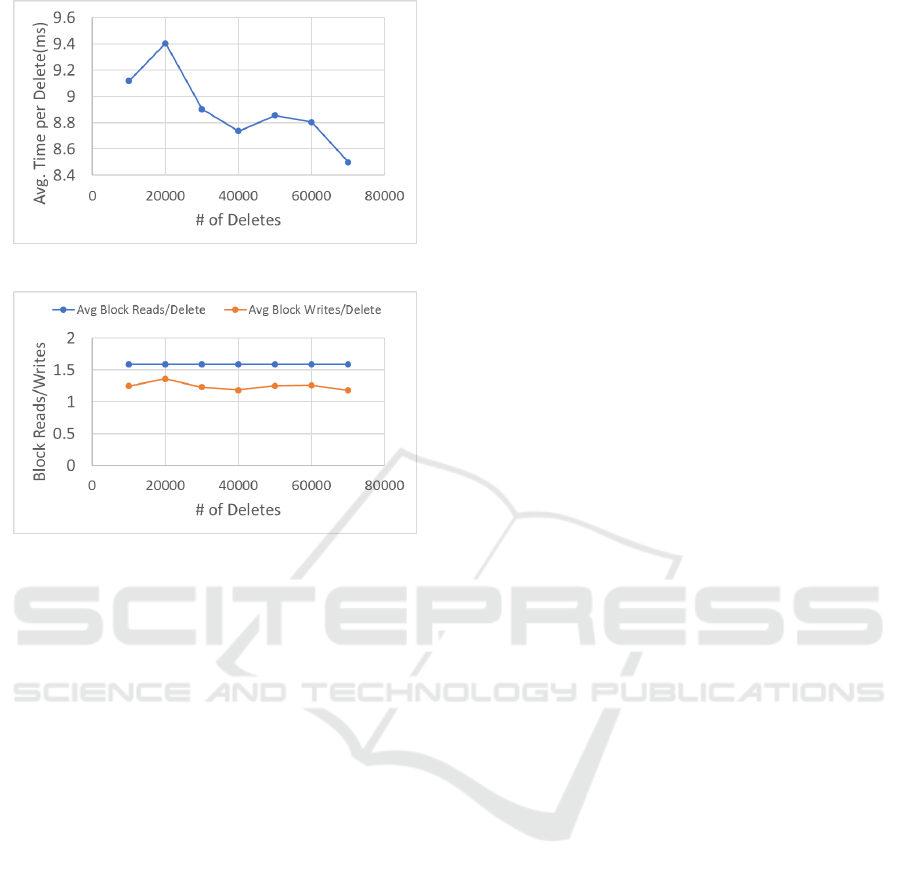

Figure 10: Average Delete Time.

Figure 11: Average Block Reads/Writes per Delete.

Overall, the results demonstrate an optimized lin-

ear hashing implementation for small memory em-

bedded devices that has superior and linear perfor-

mance for all operations, but especially strong per-

formance for insert and get. For insert, the average

insert time of about 6.3 ms is only about 6% higher

than the average time to read and write a block of 5.9

ms. The algorithm is CPU efﬁcient. A limitation is

that the bucket map consumes memory and limits the

size of the hash table unless it is stored in ﬂash.

5 CONCLUSIONS

Linear hashing is an interesting index structure for

small embedded devices as this work has shown that it

can be implemented efﬁciently while retaining linear

performance. The performance for inserts has very

minor overhead and is effective for common environ-

mental and sensor logging applications.

Future work will involve further experimental

testing and optimization for particular SD cards and

embedded system platforms and a performance com-

parison with B+-trees.

REFERENCES

Anciaux, N., Bouganim, L., and Pucheral, P. (2003). Mem-

ory Requirements for Query Execution in Highly Con-

strained Devices. VLDB ’03, pages 694–705. VLDB

Endowment.

Bonnet, P., Gehrke, J., and Seshadri, P. (2001). Towards

Sensor Database Systems. MDM ’01, pages 3–14,

London, UK, UK. Springer-Verlag.

Douglas, G. and Lawrence, R. (2014). LittleD: A SQL

Database for Sensor Nodes and Embedded Applica-

tions. In Proceedings of the 29th Annual ACM Sym-

posium on Applied Computing, SAC ’14, pages 827–

832, New York, NY, USA. ACM.

Fazackerley, S., Huang, E., Douglas, G., Kudlac, R., and

Lawrence, R. (2015). Key-value store implemen-

tations for arduino microcontrollers. In IEEE 28th

Canadian Conference on Electrical and Computer

Engineering, pages 158–164.

Gal, E. and Toledo, S. (2005). Algorithms and Data

Sructures for Flash Memories. ACM Comput. Surv.,

37(2):138–163.

Larson, P. (1985). Linear hashing with overﬂow-handling

by linear probing. ACM Trans. Database Syst.,

10(1):75–89.

Larson, P.-A. (1982). Performance analysis of linear hash-

ing with partial expansions. ACM Trans. Database

Syst., 7(4):566–587.

Lin, J., Yu, W., Zhang, N., Yang, X., Zhang, H., and Zhao,

W. (2017). A survey on internet of things: Archi-

tecture, enabling technologies, security and privacy,

and applications. IEEE Internet of Things Journal,

4(5):1125–1142.

Lin, S., Zeinalipour-Yazti, D., Kalogeraki, V., Gunopulos,

D., and Najjar, W. A. (2006). Efﬁcient Indexing Data

Structures for Flash-Based Sensor Devices. Trans.

Storage, 2(4):468–503.

Litwin, W. (1980). Linear hashing: A new tool for ﬁle and

table addressing. In 6th International Conference on

Very Large Data Bases, pages 212–223. IEEE Com-

puter Society.

Madden, S. R., Franklin, M. J., Hellerstein, J. M., and

Hong, W. (2005). TinyDB: An Acquisitional Query

Processing System for Sensor Networks. ACM Trans.

Database Syst., 30(1):122–173.

Severance, C. (2014). Massimo Banzi: Building Arduino.

Computer, 47(1):11–12.

Tsiftes, N. and Dunkels, A. (2011). A Database in Every

Sensor. SenSys ’11, pages 316–332, New York, NY,

USA. ACM.

Yang, C., Jin, P., Yue, L., and Zhang, D. (2016). Self-

adaptive linear hashing for solid state drives. In ICDE,

pages 433–444.

Adapting Linear Hashing for Flash Memory Resource-constrained Embedded Devices

181
