Developing and Testing Networked Software for Moving Robots

Ichiro Satoh

National Institute of Informatics, 2-1-2 Hitotsubashi Chiyoda-ku Tokyo, 101-8430, Japan

Keywords:

Transport Robot, Software Testing, Networed Software, Live Migration.

Abstract:

Autonomous transport robots have been widely used to carry products in manufacturing and warehousing

spaces. Such robots are smart and networked in the sense that they exchange information with stationary

servers and other robots in their visiting spaces through wireless local-area networks. Therefore, when soft-

ware running on such robots is executed with the services that the robots are connected to through networks,

including multicast protocols. To test such software, we need to execute it within the network domains of the

locations that the robots may move and connect to, because the correctness of the software depends on the

services. To solve this problem, we present a framework for emulating the physical mobility of autonomous

transport robots by the logical mobility of software designed for running on computers by using a mobile

agent technology. It enables such software to run within target network domains so that the software can lo-

cally access servers and receive multicast packets limited within the domains. It was evaluated with a practical

example in a real factory.

1 INTRODUCTION

Automated vehicles, called transport robots, have

been used to transport items in warehousing and man-

ufacturing spaces. Most of vehicles tend to be rigid

and static in the sense that they carry products among

certain locations. Therefore, it is difﬁcult for such

robots to adapt demand-driven and dynamic environ-

ments. To solve this, modern transport robots become

smarter in the sense that they are adaptive to changes

in their environments and have the ability to exchange

information on dynamic demands and environmental

changes in their target spaces with stationary servers

and other robots. In such robotics, their software

plays a key role as it is the medium through which

their autonomy and adaptation are embodied, because

not only the hardware of such transport robots but also

their software tend to be complicated. For example,

these robots are networked with stationary servers to

exchange information with other robots via wireless

networking, e.g., Wi-Fi. Furthermore, networking for

transport robots in large warehousing and manufac-

turing spaces results in another serious problem in

testing software for transport robots in the sense that

these robots frequently connect or disconnect to mul-

tiple network domains, which may be smaller than

target warehousing and manufacturing spaces, while

they are moving in such spaces. Furthermore, such

smart transport robots often use service discovery

mechanisms to ﬁnd servers available in their current

networks or notify their own presences or network ad-

dresses to servers or other robots through multicasts

UDP packets, which are limited within within the net-

work domain of the area to avoid congestion result

from multicasting packets.

The purpose of this paper is to present a frame-

work for testing software for designing to run on net-

worked transport robots. It is constructed based on

an early approach presented in our past paper (Satoh,

2015; Satoh, 2019). The goal of the previous ap-

proach enabled software designed to run on robots to

connect to or disconnect from networks, which the

robots may connect to or disconnect from as they

move. The approach deployed and executed software

at computers within the networks that target robots

may connect to like the framework proposed in this

paper. The framework presented in this paper is an

extended system of the approach with the ability for

its target software to receive and issue multicasting

packets.

We here describe the motivation of the frame-

work. A manufacturing company asked us about a

method to test software designed for running on trans-

port robots.

As mentioned in Section 2, they are us-

ing transport robots to carry products in their facto-

We cannot specify the name of company due to their

request.

Satoh, I.

Developing and Testing Networked Software for Moving Robots.

DOI: 10.5220/0007714503150321

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 315-321

ISBN: 978-989-758-375-9

315

ries. The approach aimed at testing client-side soft-

ware running on mobile computers but server-side

software are often running on transport robots. There-

fore, although the framework presented in this paper

is constructed based on the basic concept of the past

approach, it is extended with several abilities to test

software running on transport robots. Nevertheless,

we do not intend the framework to be general. The

framework aims at testing networked software, which

should be application-level in the sense that it does

not directly access low-level hardware. Conversely,

any lower-level software, e.g., OS and device drivers,

including software for directly monitoring and con-

trolling sensors and actuators are not the scope of the

framework.

The remainder of this paper is organized as fol-

lows. Section 2 describes an example scenario. Sec-

tion 3 presents a framework for emulating the phys-

ical mobility of autonomous transport robots by the

logical mobility of software designed for running on

computers. Section 4 shows demonstrates the usage

of the framework through an example and discuss

software testing with the framework. Section 5 sur-

veys related work and Section 6 provides a summary.

2 REQUIREMENTS AND

EXAMPLE SCENARIO

As mentioned in the previous section, our framework

was inspired by practical problems in our research

collaboration with a manufacturing company. The

company’s factory is shared by the company itself and

its subsidiary companies. They use modern transport

robots to carry products between the areas managed

and operated by them, where each of the areas pro-

vides its own wireless local-area network for commu-

nicating with transport robots running within it and its

local services provided only in the network. Transport

robots moves from area to area in the factory along

their itineraries as shown in Fig. 1, where the cov-

erage area of each wireless network access point is

smaller than the target manufacturing spaces. Each

network area has one or more local servers available

in the area. A service discovery mechanism in each

area periodically multicasts UDP packets within the

network domain of the area to avoid congestion due

to multicasting packets.

• When a transport robot arrives at a new area in the

factory, it can receive UDP-multicasting packets

issued from a service discovery mechanism, e.g.,

UPnP, and then it knows the network address of

the mechanism’s directory server.

• The robot connects to the server and then inform

the addresses of its services to the server.

• When a robot leaves from an area, it can no longer

disconnect to the servers that it connected to in the

area and receive any UDP packets issued from the

area’s service discovery mechanism.

Transport robots run on only the routes that have

ﬂoor-mounted induction loops for navigation. Net-

worked software running on transport robots can be

classiﬁed into two kinds of software, i.e., client-side

and server-side software, independently of transmis-

sion protocols, e.g., TCP and UDP. To test client-side

software for the mechanism on the transport robot, it

needs to be executed within each of the network do-

mains of the areas that the target robot may visit be-

cause UDP multicast packets for the mechanism can

be reached within the individual domains. When a

transport robot discovers available services within its

current network domain as a server-side, its software

needs also to be executed and multicast packets for

discovery mechanisms within each of the network do-

mains of the areas that the target robot may visit.

Some readers may think that even when the tar-

get software runs outside the areas, the target software

can receive UDP multicast packets by via a tunneling

technique. That is, we forward these packets from

the target area to the computer that runs the software.

However, there are ﬁrewalls in networks for reasons

of security and the cost of forwarding often affects

time constraints in protocols, e.g., timeouts.

3 DESIGN

When testing networked software designed to run on

transport robots, developers need to run their target

software within each of the areas that their target

robots may visit. However, it is difﬁcult for develop-

ers to actually move or carry robots between areas and

connect them networks in a running factory. We pro-

pose a testing framework for deploying and running

software, which is designed for running on transport

robots that change their current networks according to

their movement. This framework has two key ideas.

• The ﬁrst is to provide the target software with

an software-level emulation of the execution en-

vironment that the software should run.

• The second is to provide the software with an

emulation of the physical mobility of a robot by

using the software’s logical mobility, which has

been designed to run on the robot over various net-

works.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

316

Wi-Fi coverage of

network domain 2

Wi-Fi coverage of

network domain 3

Wi-Fi coverage of

network domain 4

Wi-Fi coverage of

network domain 1

Directory server

(UDP multicasting)

Directory server

(UDP multicasting)

Directory server

(UDP multicasting)

Directory server

(UDP multicasting)

Moving robot

disconnected

to Wi-Fi domain 2

Moving robot

connected to

directory server

in domain 1

Moving robot

Route for robot

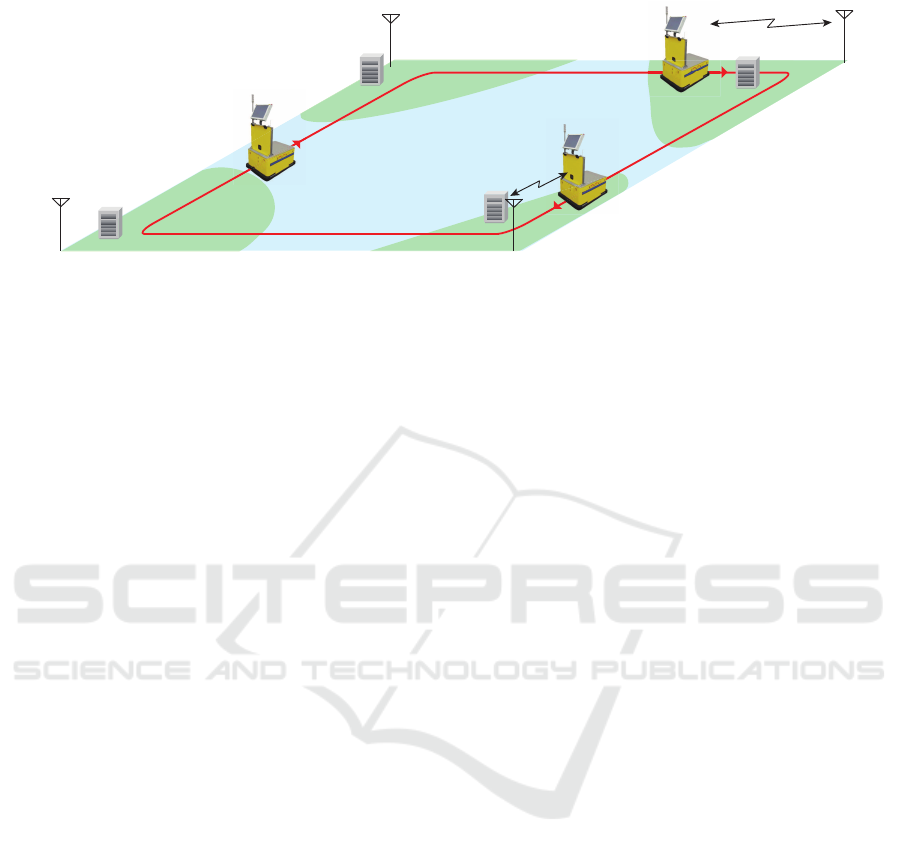

Figure 1: Transport robot with WiFi in a factory.

Physical mobility entails the movement and re-

connection of mobile computing devices between

sub-networks, while logical mobility involves soft-

ware that migrates between hosts on sub-networks.

The emulator enables the target software to be execute

within an emulation of the target robot and to directly

connect to the external environment, such as the re-

sources and servers provided in the networks that the

robot connects to.

The ﬁrst is to use host-level virtual machines,

e.g., VMWare and Hyper-V, and migrate the target

software and operating systems from virtual machine

host to another host by using a technique, called live

migration, which was often used in enterprise data

centers. The technique enabled virtual machines to

migrate to other machines to emulate the discon-

nection/reconnection of transport robots to networks

within which multicast packets for service discov-

ery mechanisms, e.g., plug-and-play protocols, are

transmitted to servers, stationary embedded comput-

ers, and other transport robots.

The second is to introduce an emulator for test-

ing software with plug-and-play protocols running on

language-level virtual machines, e.g., Java virtual ma-

chine called JVM. The emulator can carry the tar-

get software between hosts by using a mobile agent

technology. It is useful to test application-level or

middleware-level software.

The current implementation is based on the sec-

ond, because our target software is Java-based soft-

ware to communicate with stationary servers and

other robots through TCP/IP or upper layer protocols.

Therefore, the software can be tested with the sec-

ond. The ﬁrst also needs high-speed networked stor-

age, storage area network (SAN), which are expensive

and used in data-centers instead of warehousing and

manufacturing spaces.

3.1 Emulator for Transport Robots

Each emulator provides the target software with not

only the internal environment of its own target robot,

but also the external environment, such as the re-

sources and servers provided in the networks that the

robot connects to. Our ﬁnal goal is to emulate the

reconnection of networked robots to networks man-

aged by multicast-based management protocols by

using virtual machine migration. This paper explains

our approach based on the second, i.e., mobile agent-

based emulators, because the ﬁrst and second are

common and it is simpler to implement the second

than the ﬁrst. Physical mobility entails the reconnec-

tion of a robot to a network, while logical mobility

involves a mobile agent-based emulator of the robot.

• Like virtual machines, this framework performs

an emulation of its target robot.

• Depending on the reconnection of its target robot,

the mobile agent-based emulator can carry soft-

ware that should run on the computer on behalf of

the robot to networks that the robot may be moved

into and connected to.

• The emulator allows us to test and debug software

with computational resources provided through its

current network as if the software were being ex-

ecuted on the target robot when dynamically at-

tached to the network.

• The software successfully tested in the emulator

can still be run in the same way without being

modiﬁed or recompiled.

Each mobile agent is just a logical entity and must

thus be executed on a computer. Therefore, this

framework assumes that each of the sub-networks to

which the device may be moved and attached to has

Developing and Testing Networked Software for Moving Robots

317

more than one special stationary host, called an ac-

cess point host, which offers a runtime system for

executing and migrating mobile agent-based emula-

tors. Each access point host is a runtime environment

for allowing applications running in a visiting emu-

lator to connect to local servers in its network. That

is, the physical movement of a mobile computing de-

vice from one network and attachment to another is

simulated by the logical mobility of a mobile agent-

based emulator with the target applications from an

access-point computer in the source network to an-

other access-point computer in the destination net-

work. As a result, each emulator is a mobile agent,

and can thus basically not only carry the codes but

also the states of its applications to the destination, so

the carried applications can basically continue their

processes after arriving at another host as if they had

been moved with its targeted device.

The emulator delegates instruction-level emula-

tion of target robots to Java VM. In fact, each emu-

lator permits its inner software to have access to the

standard classes commonly supported by the Java vir-

tual machine as long as the target robot offers them.

Figure 2 shows the physical mobility of robots and the

logical mobility of emulators.

In addition, each emulator offers its inner software

as typical resources of the target robots. It can main-

tain a database to store ﬁles. Each ﬁle can be stored

in the database as a pair consisting of its ﬁle/directory

path name pattern and its content and provides its

target software with basic primitives for ﬁle opera-

tion, e.g., ﬁle creation, reading, writing, and deletion.

The framework provides the target software with two

states in the lifecycle of the software running on the

target robot, Networked running state and Isolated

running state:. The former enables the target soft-

ware to run within the target network domains and

can link up with servers on the network through TCP

and UDP and can send/receive UDP multicast pack-

ets. This state emulates that the robot is within cov-

erage area of one of the network domains provided

through wireless networks. The latter runs the soft-

ware but prohibits the software from communicating

with any servers on the network. This state emulates

that the robot is out any coverage areas of the network

domains.

3.2 Emulation of Mobility

The framework provides its original runtime system

for emulators by extending our existing mobile agent

platform (Satoh, 2006). When an emulator with its

target software is transferred over a network, the run-

time system transforms the state and codes of the

agent, including its software, into a bitstream deﬁned

by Java’s JAR ﬁle format, which can support digital

signatures for authentication and then transmit the bit-

stream to the destination host. Mobile agent-based

implementation of the framework assumes that the

target software is constructed as a set of Java byte-

code, although its virtual machine-based implementa-

tion can support other software. Each emulator allows

its target software to access most network resources

from the host, e.g., java.net package.

As mentioned in the ﬁrst section, in an early ver-

sion of this framework the target software must be

client-side when communicating through TCP. The

current implementation of this framework dynami-

cally inserts a packet forwarding mechanism like Mo-

bile IP (Perkins, 2002) into java.net package by

using a bytecode level modiﬁcation technique, when

classes for TCP servers, e.g., ServerSocket and

InetAddress, of java.net, are invoked from the tar-

get software. When wireless network domains are

overlapped, robots may have more than one IP ad-

dress. Our modiﬁed classes for IP address, e.g.,

InetAddress, can return the IP address explicitly

speciﬁed from developers.

To operate the framework easily, we provide a

control and monitor system. It has a graphical front-

end to the framework. It allows us to monitor and op-

erate the moving emulator and its target application

by remotely displaying its graphical user-interfaces

on its screen.

4 EXPERIMENT

Our experience presented in this section about testing

of typical software for networked transport robots to

illustrate the utility of the framework. In developing

next generation automated guided vehicles for trans-

port, i.e., transport robot, we need to test transport

robots with WiFi interfaces, which tend to be used

in factories or warehouses (Fig. 4). We had the ﬁve

requirements:

• Each networked transport robot has an embedded

computer (Intel Core i5 2.4GHz) with Linux and

a WiFi interface (Fig. 3).

• The factory has eight areas, where each area has

its wireless local area network through WiFi and

provides a directory servers available within the

coverage space of its WiFi.

• Each robot discovers directory servers by receiv-

ing advertisement messages with their network

addresses periodically issued from them through

a UDP multicast-based original service discovery

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

318

Network domain A

Local servers

Network domain B

Network domain C

Target

software

Target

software

Target

software

Logical migration

Local servers

Remote control

server

Control message

Access

point

host

Control message

Mobile agent

based emulator

Access point host

Target

software

Network domain A

Network domain B

Network domain C

Physical migration

Figure 2: Physical mobility of robot (left) and logical mobility of emulator (right).

protocol available within the WiFi area of its cur-

rent location.

• Each robot periodically updates its location to.

The server that it connects to the server issues the

locations of other robots within the servers’ area

to other robots through a TCP/IP-based original

protocol.

• The coverage areas of the WiFi access points of

areas may overlap and there are some spaces be-

yond the coverage areas of the WiFi access points.

Figure 3: Networked transport robot.

We tested two protocols stacks for the service dis-

covery protocol through UDP multicast and TCP ses-

sion protocols between robots and directory servers

by using the proposed framework. These protocols

were constructed in Java programs so that we could

directly use a mobile agent-based emulator based

on Java VM. To test the protocol stacks running on

the client-side, i.e., robots, we customized a mobile

agent-based emulator for the target robots. The em-

ulator provided virtual I/O to control the movement

Robot

WiFi interface

Sub-network area

(WiFi area)

Directory

server

Advertisement messags

(UDP multicast packets)

Moving

Figure 4: Communication between transport robot and di-

rectory server through WiFi.

of a robot for its target software, but carried the soft-

ware to a host within the target areas and enabled

the software to receive UDP multicast packets, which

reached within the area, and directly connected to the

servers.

The developer could instruct the emulator to mi-

grate to access-point hosts on the sub-networks of

other areas. Also, since the emulator could deﬁne

its own itinerary in areas, it could precisely trace the

movement of each robot. The emulator could carry

the target software, including the protocol stacks, to

access-point hosts in the areas. It could continue to

run the software in the local area network and per-

mitted the software to directly receive UDP multicast

packets, which servers only transmitted within the do-

mains of the local area networks.

We measured the processing overhead of the emu-

lator. The cost of migrating the emulator with its tar-

get software between two access point hosts, which

were connected through a 1 Gbps Ethernet, was 80

msec, where the access point hosts have Intel Xeon

2.8 GHz with 16 GB memory. The performance of

software running in an emulator on an access-point

host was not inferior to that of the same software run-

ning on the target robot, as long as the processing ca-

Developing and Testing Networked Software for Moving Robots

319

pability of the host was equivalent to that of the robot.

5 RELATED WORK

Testing network protocols for non-robots is typically

a manual process in which developers test the proto-

col behavior against various network conditions and

conﬁgurations so that several researchers have stud-

ied approaches to test network protocols with fo-

cus on speciﬁc aspects of protocol behavior. To

reason about the correctness of network protocols,

prior work has employed a variety of program anal-

ysis techniques, such as model checking (Musuvathi

and Engler, 2004; Sistla et al., 2000), static analysis

(Feamster, 2004; Udrea et al., 2008), theorem prov-

ing (Wang et al., 2009) and reﬁnement checking (Alur

and Wang, 2001). However, they have not been de-

signed for moving robots.

There have been many commercial and academic

frameworks to simulate the target robots in virtual en-

vironments and to test software for the robots in the

environments. As long as our knowledge, there is no

paper on enabling the software to be tested with the

networked environments that the target robots may

connect to.

Nevertheless, we discuss on several existing ap-

proaches to test software for robots. SITAF (Park

and Seok Kang, 2012) is a framework to test robot

components by simulating environment. It generates

test cases based on a speciﬁcation given by the de-

veloper. This test generation combined with simula-

tions allows repeatability of tests. It also discards the

need of test reuse, since they are generated. Biggs

(Biggs, 2010) presented on testing software for by us-

ing a repeatable regression testing method for soft-

ware components that interact with its hardware, but

his approach focused on only individual components

rather than the whole robot. Among them, Chung

et al.(Chung and Hwang, 2007) shows their experi-

ments in their applying ISO standard for software test-

ing (ISO 9126) to components for academic robotics.

Laval et al. (Laval et al., 2013) proposed an approach

to enabling to test not only isolated components, but

also the whole robot. Their approach assumed stan-

dalone robots so that they did not support software

for networked robots. Chen et al. (Chen et al., 2011)

and Petters et al. (Petters et al., 2008) presented to

insert an extra step for hybrid tests between simu-

lation and tests based on three levels: component-

level tests, online-level test with humans, and ofﬂine

test (based on logs). Son et al. () proposed another

three levels of tests: unit testing, state testing and API

testing. However, their approaches did not support

networked software running on robots. Laval et al.

(Laval et al., 2013) proposed a safe-by-construction

architecture based on a formal method instead of any

testing approaches.

The reconnection and disconnection result from

the movement of robots are similar to those from the

carrying of portable computers, e.g., notebook PCs,

tablets, and smartphones. There have been several at-

tempts to test software designed to run on portable

computers. (Beck, 2002; Gelperin and Hetzel, 1988;

Whittaker, 2000). A typical problem in physical mo-

bility is that the environment of a mobile entity can

vary dynamically as it moves from one network to

another. A lot of research has been proposed to ei-

ther transparently mask variations in mobility at the

network or system level or adapt this to the current en-

vironment at the application level (Noble et al., 1997;

Perkins, 2002). Nevertheless, current work on these

approaches has focused on a location-transparent in-

frastructure for the applications and location-aware

applications themselves. As a result, the task of build-

ing and testing software has attracted only limited at-

tention.

There have been a few attempts to test software

designed to run on portable computers instead of

robots. Several researchers have explored approaches

to enabling software to run on local computers and

link up with remote servers through networks to ac-

cess particular resources and services provided by re-

mote networks; e.g., the InfoPad project at Berkeley

(Le et al., 1994) and the network emulator of Lan-

caster University (Davies et al., 1995). However, ac-

complishing this in responsively and reliably is difﬁ-

cult, and the emulators cannot remotely access all the

services and resources that are only available within

the network domains because of security, such as ﬁre-

walls. Moreover, the approach is inappropriate for

testing software using service discovery protocols.

6 CONCLUSION

This paper presented a framework for developing

and testing software running on autonomous trans-

port robots, which were often used in warehousing

and manufacturing spaces. Its goal was to enable us

to test networked software that reconnects and discon-

nects to the networks of their destinations according

the movement of transport robots. It could emulate

the physical mobility of the target robots and enabled

the software to directly connect to the networks of

their destinations in addition to the internal execu-

tion environment of the robots by using the logical

mobility of emulators corresponding to the the target

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

320

robots. We designed and implemented an emulator

based on mobile agents and a virtual machine. Each

emulator could emulate its target robot. Since they

were provided as mobile agents, which can travel be-

tween computers, they could carry and test software

designed to run on their target robots in the same way

as if they had been moved with the robots executed

them, and connected to services within their current

local area networks. Our early experience with the

prototype implementation of this framework strongly

suggested that the framework could greatly reduce

the time needed to develop and test software for net-

worked industrial computers.

REFERENCES

Alur, R. and Wang, B.-Y. (2001). Verifying network pro-

tocol implementations by symbolic reﬁnement check-

ing. In Proceedings of the 13th International Confer-

ence on Computer Aided Veriﬁcation, CAV ’01, pages

169–181. Springer-Verlag.

Beck, K. (2002). Test Driven Development. By Example

(Addison-Wesley Signature). Addison-Wesley.

Biggs, G. (2010). Applying regression testing to software

for robot hardware interaction. In ICRA, pages 4621–

4626. IEEE.

Chen, I. Y.-H., MacDonald, B. A., and Wunsche, B. C.

(2011). A ﬂexible mixed reality simulation framework

for software development in robotics. Journal of Soft-

ware Engineering for Robotics, 2(1):40–54.

Chung, Y. K. and Hwang, S.-M. (2007). Software testing

for intelligent robots. In 2007 International Confer-

ence on Control, Automation and Systems, pages 40–

54. IEEE.

Davies, N., Blair, G. S., Cheverst, K., and Friday, A.

(1995). A network emulator to support the develop-

ment of adaptive applications. In Proceedings of the

2nd Symposium on Mobile and Location-Independent

Computing, MLICS ’95, pages 47–56, Berkeley, CA,

USA. USENIX Association.

Feamster, N. (2004). Practical veriﬁcation techniques for

wide-area routing. SIGCOMM Comput. Commun.

Rev., 34(1):87–92.

Gelperin, D. and Hetzel, B. (1988). The growth of software

testing. Commun. ACM, 31(6):687–695.

Laval, J., Fabresse, L., and Bouraqadi, N. (2013). A

methodology for testing mobile autonomous robots.

In 2013 IEEE/RSJ International Conference on Intel-

ligent Robots and Systems, pages 1842–1847.

Le, T., Seshan, S., and Burghardt, F. (1994). Software archi-

tecture of the infopad system. In In Mobidata Work-

shop, page 93.

Musuvathi, M. and Engler, D. R. (2004). Model check-

ing large network protocol implementations. In Pro-

ceedings of the 1st Conference on Symposium on Net-

worked Systems Design and Implementation - Volume

1, NSDI’04, pages 12–12. USENIX Association.

Noble, B. D., Satyanarayanan, M., Narayanan, D., Tilton,

J. E., Flinn, J., and Walker, K. R. (1997). Agile

application-aware adaptation for mobility. In Proceed-

ings of the Sixteenth ACM Symposium on Operating

Systems Principles, SOSP ’97, pages 276–287. ACM.

Park, H. and Seok Kang, J. (2012). Sitaf: Simulation-based

interface testing automation framework for robot soft-

ware component.

Perkins, C. (2002). Ip mobility support for ipv4. Technical

report, RFC, United States.

Petters, S., Thomas, D., Friedmann, M., and von Stryk,

O. (2008). Multilevel testing of control software for

teams of autonomous mobile robots. In Carpin, S.,

Noda, I., Pagello, E., Reggiani, M., and von Stryk, O.,

editors, Simulation, Modeling, and Programming for

Autonomous Robots, pages 183–194, Berlin, Heidel-

berg. Springer Berlin Heidelberg.

Satoh, I. (2006). Mobile Agents, pages 231–254. Springer

US, Boston, MA.

Satoh, I. (2015). An approach for developing software on

robots (short paper). In International Workshop on

Factory Control Systems, 2015, pages 1–2.

Satoh, I. (2019). An approach to testing software on net-

worked transport robots. In 5th International Confer-

ence on Advances and Trends in Software Engineering

(SOFTENG 2019), to appear.

Sistla, A. P., Gyuris, V., and Emerson, E. A. (2000). Smc:

A symmetry-based model checker for veriﬁcation of

safety and liveness properties. ACM Trans. Softw. Eng.

Methodol., 9(2):133–166.

Udrea, O., Lumezanu, C., and Foster, J. S. (2008). Rule-

based static analysis of network protocol implemen-

tations. Information and Computation, 206(2):130 –

157. Joint Workshop on Foundations of Computer Se-

curity and Automated Reasoning for Security Protocol

Analysis (FCS-ARSPA ’06).

Wang, A., Basu, P., Loo, B. T., and Sokolsky, O. (2009).

Declarative network veriﬁcation. In Proceedings of

the 11th International Symposium on Practical As-

pects of Declarative Languages, PADL ’09, pages 61–

75. Springer-Verlag.

Whittaker, J. A. (2000). What is software testing? and why

is it so hard? IEEE Software, 17(1):70–79.

Developing and Testing Networked Software for Moving Robots

321
