Improving the Trade-Off between Performance and Energy Saving

in Mobile Devices through a Transparent Code Ofﬂoading Technique

omulo Reis

1 a

, Paulo Souza

1 b

, Wagner Marques

1 c

, Tiago Ferreto

1 d

and F

abio Diniz Rossi

2 e

Polytechnic School, Pontiﬁcal Catholic University of Rio Grande do Sul

Ipiranga Avenue, 6681 - Building 32, Porto Alegre, Brazil

Federal Institute of Education, Science and Technology Farroupilha, Brazil

Keywords:

Mobile Cloud Computing, Code Ofﬂoading, Mobile Devices, Face Detection, Android.

Abstract:

The popularity of mobile devices has increased signiﬁcantly, and nowadays they are used for the most diverse

purposes like accessing the Internet or helping on business matters. Such popularity emerged as a consequence

of the compatibility of these devices with a large variety of applications. However, the complexity of these

applications boosted the demand for computational resources on mobile devices. Code Ofﬂoading is a so-

lution that aims to mitigate this problem by reducing the use of resources and battery on mobile devices by

sending parts of applications to be processed in the cloud. In this sense, this paper presents an evaluation of

a transparent code ofﬂoading technique, where no modiﬁcation in the application source code is required to

allow the smartphone to send parts of the application to be processed in the cloud. We used a face detection

application for the evaluation. Results showed the technique can improve applications performance in some

scenarios, achieving speed-up of 12x in the best case.

1 INTRODUCTION

The recent computing and telecommunication ad-

vances boosted the adoption of mobile devices. These

devices have been used for the most diverse purposes,

such as entertainment and personal care. However, as

the complexity of mobile applications increases, the

demand for computational resource increases as well.

So, there is a concern in supplying this increasing de-

mand without sacriﬁcing the device’s batteries (Zhou

et al., 2015).

Currently, mobile devices use diverse software

and hardware technologies to deliver greater conve-

nience to their users. But, these devices still present

a poor performance in comparison to desktop com-

puters. This can affect the user experience when

some application is running resource-intensive tasks

like natural language processing. In addition, there

is a concern about the trade-off between application

https://orcid.org/0000-0001-9949-3797

https://orcid.org/0000-0003-4945-3329

https://orcid.org/0000-0003-3304-5611

https://orcid.org/0000-0001-8485-529X

https://orcid.org/0000-0002-2450-1024

performance, battery consumption, and temperature,

since increasing the computational capacity of these

devices implies higher temperature and battery con-

sumption.

In this context, Mobile Cloud Computing (MCC)

emerges with the proposal of delivering greater pro-

cessing power to mobile devices without adversely

affecting aspects in the temperature and the energy

consumption of these devices (Akherﬁ et al., 2016).

MCC brings to mobile devices the unlimited high pro-

cessing capacity provided by cloud computing. It also

makes code ofﬂoading techniques feasible. Code of-

ﬂoading allows parts of an application to be sent and

executed in the cloud. Once the code is processed in

the cloud, the result is sent back to the mobile device.

As a consequence of these advantages, several ap-

plications like Google Photos

and Apple Siri

have

adopted this technique (Sanaei et al., 2014).

Several code ofﬂoading techniques have been de-

veloped (Benedetto et al., 2017; Thakur and Verma,

2015). However, most of them require explicit

changes in the application source code, which limits

their use, since this code is rarely available to anyone.

Available at:<https://photos.google.com >.

Available at: <https://www.apple.com/ios/siri>.

Reis, R., Souza, P., Marques, W., Ferreto, T. and Rossi, F.

Improving the Trade-Off between Performance and Energy Saving in Mobile Devices through a Transparent Code Ofﬂoading Technique.

DOI: 10.5220/0007719703470354

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 347-354

ISBN: 978-989-758-365-0

347

So, a transparent code ofﬂoading technique for An-

droid devices was proposed (de Oliveira et al., 2017)

to eliminate this limitation. This technique allows

the use of code ofﬂoading and does not require any

modiﬁcation in the application code. Experiments

were conducted to prove the viability of this tech-

nique. However, the experiments were performed in

a local environment, using a local network to connect

the smartphone and a virtual machine, which is more

close to a mobile edge computing environment.

In this sense, this paper presents an evaluation of

this transparent code ofﬂoading technique in a real-

world cloud environment. The main objective was to

evaluate whether this technique was a feasible option

in a cloud computing environment and how efﬁcient

it could be. So, we used the same face detection ap-

plication from (de Oliveira et al., 2017) to conducted

a set of experiments, but using virtual machine in-

stances from a public cloud provider (Google Cloud

Platform) instead of a local VM. A secondary objec-

tive was to provide an evaluation of the impact of In-

ternet latency when this code ofﬂoading technique is

adopted. So, we used a set of virtual machines with

heterogeneous capacities and from different regions

of the world.

The remainder of this paper is organized as fol-

lows: In Section 2 we present the concepts of Mo-

bile Cloud Computing and Code Ofﬂoading. In Sec-

tion 3, the architecture of the transparent code ofﬂoad-

ing technique is explained. In Section 4 we present

the speciﬁcations and conﬁgurations of the experi-

ment environment. Section 5 is reserved for the ex-

planation and discussion of results. In the Section 6

we present the ﬁnal considerations.

2 BACKGROUND

Cloud computing is deﬁned as a paradigm that allows

access through the Internet to a shared set of conﬁg-

urable computational resources with unlimited capac-

ity. Such resources can be quickly provisioned and

released with minimal effort of management or inter-

action with the service provider. (Mell et al., 2011).

Mobile Cloud Computing (MCC) enabled the mobile

device to beneﬁt from the unlimited resources pro-

vided by cloud computing (Thakur and Verma, 2015;

Shiraz et al., 2013).

Since mobile applications are becoming more

complex and supporting more and more functionali-

ties, more computational resources are required to run

those applications, which leads to greater battery con-

sumption. Therefore, the code ofﬂoading technique is

used to send parts of an application or even the en-

tire application to run in the cloud. This can improve

application performance, as well as extend the bat-

tery life of mobile devices (Thakur and Verma, 2015;

Benedetto et al., 2017; Chun et al., 2010; Qian and

Andresen, 2015; Flores et al., 2015).

There are several proposals for code ofﬂoading

techniques as an alternative to providing better per-

formance and energy consumption. Some of them re-

quire the developers to modify the application code

in order deﬁne the partitioning and migration of parts

from an application, so only the part with the great-

est demand for computational power is sent to the

cloud. Others approaches require full application mi-

gration to the cloud, but this implies communication

overhead, which can increase the execution time of

applications.

Unlike these related studies, De Oliveira et al.

(de Oliveira et al., 2017) proposed a transparent code

ofﬂoading technique for Android devices. They used

Xposed Framework to transparently modify Android

framework methods and send tasks to be executed re-

motely on a server. In this sense, the proposal does

not require any changes to the ﬁrmware source code

or Android system applications. To evaluate the pro-

posal, an Android application was developed with

the demand for computing resources using the native

methods of the Android operating system. The au-

thors emulated a local cloud using a traditional vir-

tual machine running Android-x86, which is accessed

by the mobile device over a wireless network. The

results showed that this technique can improve exe-

cution time for several application cases, as well as

minimize memory allocation.

3 ARCHITECTURE DESIGN

The environment assumed by the transparent code

ofﬂoading technique is composed of i) Android in-

stances of virtual machines running in a local work-

station or in the cloud and accessible to ii) physical

Android devices, which are connected to a network.

In this architecture, each mobile device has installed

the Xposed Framework, which can modify the behav-

ior of a set of Android Framework methods. Each

mobile device also has an Xposed Framework cus-

tom module enabled. This custom module has a set

of Android framework methods or application meth-

ods. When this module is enabled, it detects when a

speciﬁc method is requested and manipulates this re-

quest to run in the cloud.

Figure 1 illustrates an overview of the architec-

ture design, where an Android device is running two

applications: App A and App B; and computational

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

348

Figure 1: Architecture design overview.

infrastructure running Android instances, which has

an application that plays the role of a service that pro-

cess tasks received from the devices. In this case,

Both applications are invoking some method from the

Android framework. However, App B is invoking a

method which was pre-deﬁned to be ofﬂoaded in the

custom module. Therefore, just the method invoked

by App B is hooked by Xposed and sent to the cloud.

In the same context, each virtual machine runs a

service that is responsible for receiving and respond-

ing to requests from mobile devices. When an appli-

cation calls a method that demands more computing

resources and it is deﬁned in the Xposed framework

module, the task is sent for processing in the cloud.

Otherwise, the method is executed locally. Therefore,

such architecture does not impact the operation of ap-

plications and methods that are not pre-deﬁned in the

module.

By using this architecture, application developers

do not need to modify an existing application or cre-

ate an application that sends its methods to the cloud,

since the Xposed framework module is responsible

for this. In the same sense, if there is a third party ap-

plication that invokes the same method used by App

B, the method would be ofﬂoaded as well. Therefore,

the use of Xposed framework allows the code ofﬂoad-

ing technique to be performed through a transparent

way to the application developer since the developer

of an application does not need to program the appli-

cation’s communication with the server.

The transparent code ofﬂoading technique is a so-

lution that allows the device beneﬁts from cloud com-

puting resources and the resource code of the Android

or application is not available. At the same time, it is

agnostic to Android distribution, since they have the

same Android framework. Hooking Android native

method allows several applications to beneﬁt from

code ofﬂoading. In addition, the device users can

choose when they want to use this code ofﬂoading

technique. This technique supports the implementa-

tion of decision algorithms to evaluate which part of

the application and when to ofﬂoad this part. How-

ever, this is out of the scope of this paper, since our

goal is not to evaluate decision algorithms for code

ofﬂoading.

4 EVALUATION SCENARIO

We have conducted a set of experiments in order to

provide an evaluation of the transparent code ofﬂoad-

ing technique in a cloud computing environment. The

environment for this evaluation has three main com-

ponents: (i) Face Detection Application, (ii) Applica-

tion Service Server, and (iii) Xposed Framework Cus-

tom Module.

The face detection application is the same from

De Oliveira et al. (de Oliveira et al., 2017). This ap-

plication uses the native Android framework method

FaceDetection to detect faces of people in an im-

age. We have chosen this method because it demands

high computational power. This application is imple-

mented as a regular application (there are no annota-

tions for ofﬂoading) to be executed in the smartphone.

Application service server runs inside a virtual

machine with Android-x86. This service applica-

tion handles ofﬂoading requests from mobile de-

vices. The Xposed Framework custom module con-

nects both components. It modiﬁes the behavior of

the method detect(Frame frame) from class the vi-

sion.face.FaceDetector. Then, instead of executing

the code to detect faces in the picture, the smartphone

sends a request to the application service server and

waits for its response, in order to get back to the ap-

plication with the appropriate result. The images are

available in the storage of the VM instance.

The FaceDetector Builder is set in the accurate

mode in the application service server. This makes

detect(Frame) takes longer to be executed, however, it

should be more accurate, ﬁnding more faces than any

other mode available. Besides, the execution time of

the method on the VM is not supposed to take longer

than locally on the mobile device, since the cloud has

more processing power.

Figure 2 illustrates the sequence diagram of our

experiment. When the face detection application calls

FaceDetector.detect(Frame), the Xposed Framework

acts as a man in the middle, intercepting this method

invocation and executing the method from the module

we have developed instead of the original one. Then,

it sends the ID of the image to the server. Each image

has a predeﬁned ID, enabling the application service

to identify the required image. This allows the ap-

plication server to handle different images. Then, the

Improving the Trade-Off between Performance and Energy Saving in Mobile Devices through a Transparent Code Ofﬂoading Technique

349

service application receives the image ID, creating a

Frame.Builder for the predeﬁned image, which is lo-

cally available in the internal memory, and executes

detect(Frame) method. Finally, it sends back to the

smartphone the number of detected faces.

The method from the module receives the num-

ber of detected faces from the application server. This

allows the module to create a loop for receiving the

faces from the server. Right after the number of faces

is sent, the application service cast each face into a

string in JSON format using the Gson library and

sends them, one by one, to the smartphone. Upon re-

ceiving each face, the module has to extract the Face

object in JSON format from a string and append it in a

generic SparseArray. Once all the faces are received,

this SparseArray is returned to the application. We

have used JSON since it is not possible to make a Java

class serializable in this context.

Figure 2: Sequence Diagram of the Experiment.

The experiment data gathered was based on the

following metrics: time to establish the connection,

time to receive faces detected from the server, the time

taken by the server to detect faces, and memory usage.

For this evaluation, we selected 5 images with differ-

ent dimensions and number of faces. The images are

presented in Figure 3 and the images speciﬁcations

are available in Table 1.

Table 1: Images Speciﬁcations.

Name Width x Height (px) Size (KB) Number of Faces

Image 1 1024x768 1300 2

Image 2 1024x768 914 4

Image 3 1024x768 1600 5

Image 4 1024x768 674 5

Image 5 1024x768 1270 29

Table 2: Latency and average distance between the cloud

servers and the smartphone.

Cloud Region Latency

Approximate Distance from where

the experiments were conducted

Sao Paulo (Brazil) 25.7ms 12521km

Sydney (Australia) 406ms 1142.9 km

We used Ravello as an infrastructure provider. In

this sense, we created and instantiated a virtual ma-

chine with Android-x86 running the application ser-

vice, which performs face detection in the cloud. To

verify the impact of different computing resources

available on the virtual machines on the cloud, we

used the three virtual machines sizes described in Ta-

ble 3.

Internet latency can inﬂuence application perfor-

mance that uses code ofﬂoading techniques. There-

fore, we deployed the virtual machines in two differ-

ent regions (Sao Paulo and Sydney) to present the im-

pact caused by Internet latency regarding execution

time. Then, we verify the latency of the connection

with the servers in the different regions and present

the approximated distance between the servers and

from where the experiments were conducted. The re-

sults are presented in Table 2. For each image we ran

the experiment with different virtual machine sizes,

running in different regions. Table 4 presents the con-

ﬁguration of each experiment.

In the mobile device was installed the devel-

oped application with a FaceDetection method, and

the Xposed framework. The framework modiﬁed

the method FaceDetection from class FaceDetector.

Then, through this application, instead of executing

the application to detect faces on the mobile device, it

sent a request to the server application to perform this

task.

The mobile device used in the experiments has the

following conﬁguration: Android 5.1.1, CPU 4x 1.1

GHz Cortex-A7, 1GB of RAM, and 16GB of storage.

It is important to emphasize that the Xposed Frame-

work installation requires root access to the mobile

device, bootloader unlocked, and TWRP installed.

After the Xposed Framework installation, we in-

stalled our custom module and enabled it. Each exper-

iment was performed ten times for each conﬁguration

presented in Table 4. The virtual machines were run-

ning the Android 6.0.1 from the open source project

Android-x86 with no modiﬁcation in its source code.

In this virtual machine, we installed the application

service server for receiving the requests from the

smartphones and performs the face detection.

Table 3: Virtual Machines Speciﬁcation.

Cloud VM Size

Speciﬁcations

Processor Memory Disk

Small 1vCPU 4GB 8GB

Medium 2vCPU 4GB 8GB

Large 4vCPU 4GB 8GB

5 RESULTS AND DISCUSSION

We analyzed three metrics to evaluate the efﬁ-

ciency of the transparent code ofﬂoading technique

(de Oliveira et al., 2017). The ﬁrst metric was the to-

tal time, that is the time taken by the face detection

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

350

(a) Image 1 (b) Image 2 (c) Image 3

(d) Image 4 (e) Image 5

Figure 3: Images adopted in the experiments.

Table 4: Experiment Speciﬁcations.

Image Environment

Image 1 Smartphone

Cloud VM

Small Instance

Cloud VM

Medium Instance

Cloud VM

Large Instance

Sao Paulo Sydney Sao Paulo Sydney Sao Paulo Sydney

Image 2 Smartphone

Cloud VM

Small Instance

Cloud VM

Medium Instance

Cloud VM

Large Instance

Sao Paulo Sydney Sao Paulo Sydney Sao Paulo Sydney

Image 3 Smartphone

Cloud VM

Small Instance

Cloud VM

Medium Instance

Cloud VM

Large Instance

Sao Paulo Sydney Sao Paulo Sydney Sao Paulo Sydney

Image 4 Smartphone

Cloud VM

Small Instance

Cloud VM

Medium Instance

Cloud VM

Large Instance

Sao Paulo Sydney Sao Paulo Sydney Sao Paulo Sydney

Image 5 Smartphone

Cloud VM

Small Instance

Cloud VM

Medium Instance

Cloud VM

Large Instance

Sao Paulo Sydney Sao Paulo Sydney Sao Paulo Sydney

application on the smartphone to show the detected

faces. Total time includes the time taken to instanti-

ate the Java objects required by face detection method

and the communication time with the cloud servers in

the code ofﬂoading scenarios. The second metric we

analyzed was the time to detect faces. We consid-

ered this metric in order to evaluate the technique in

a more accurate way, being able to analyze the per-

formance impact brought by running the face detec-

tion method in the cloud, without considering external

factors like communication delay. The third metric

we analyzed during the experiments was the memory

usage, that is the amount of RAM consumed by the

smartphone. Given the fact that memory is one of the

hardware components responsible for delivering per-

formance to the smartphone users, we analyzed such

metric to verify the memory gains that ofﬂoading ap-

plications to the cloud could bring. Moreover, mem-

ory also affects the device power consumption, so re-

ducing the memory usage can also implicate in reduc-

ing the smartphone battery usage.

5.1 Overall Application Performance

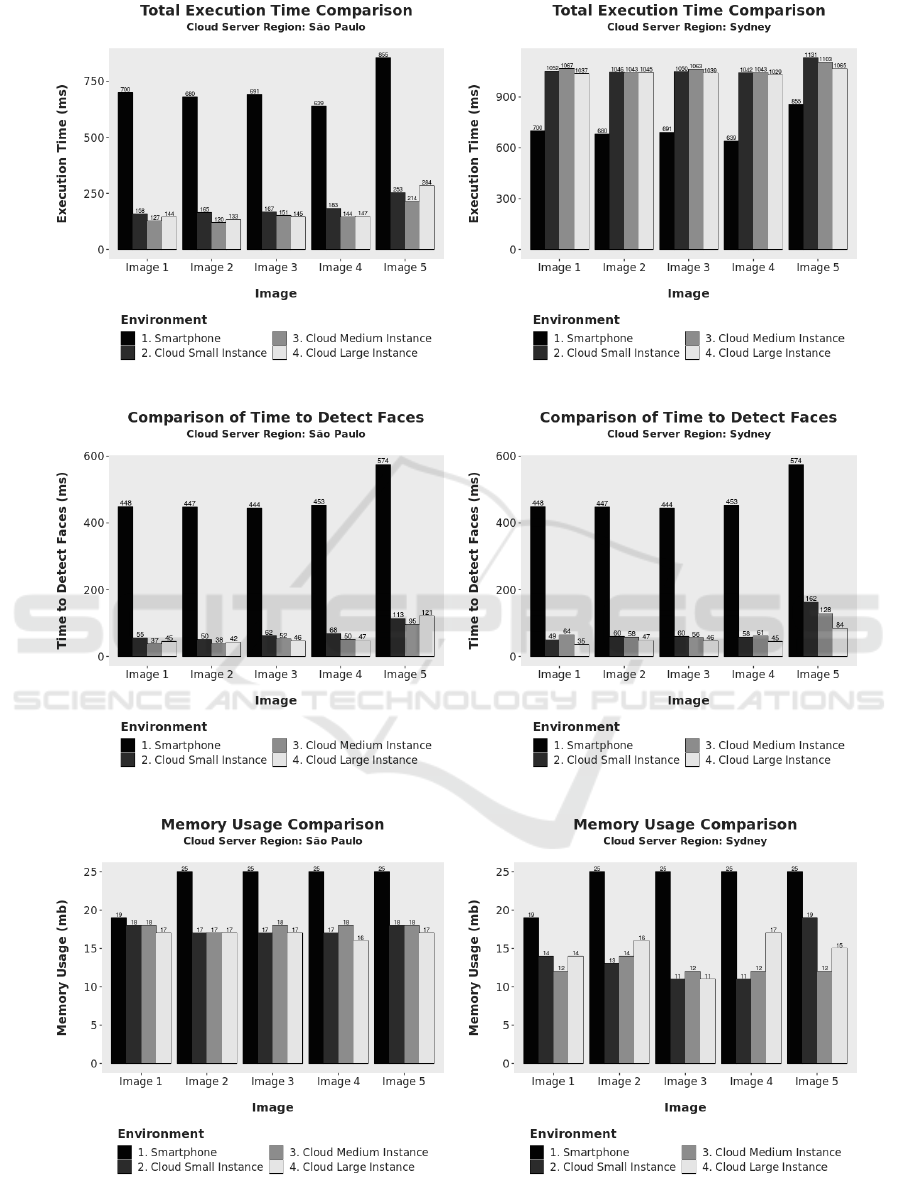

As we can see in Figure 4 (a), using code ofﬂoad-

ing technique and the virtual machine instance in Sao

Paulo increased the overall application performance

according to the virtual machine speciﬁcation. The

best result in this region was achieved by using the

medium instance, where using code ofﬂoading im-

proved the application performance, when consider-

ing the total execution time. The medium size in-

stance resulted in a speed up of 4.8x, while the small

instance resulted in a speed up of 3.9x and 4.4x for the

large instance. In this sense, we can perceive that ex-

ecuting the face detection method in the large virtual

machine does not guarantee the best performance.

The face detection application relies on CPU pro-

cessing, and as a consequence, using 2 vCPUs instead

of 1 vCPU has improved the application performance

in more 92%. However, increasing the virtual ma-

chine capacity to 4 vCPUs led to a 15ms overhead.

This is because this application does not require too

much processing to take advantage of 4 vCPUs of the

large instance, so both the medium and the large in-

stances bought close results. Through such ﬁndings,

we can conclude that the medium instance has the

speciﬁcations that best ﬁt the demand for resources

of the face detection application.

Executing the face detection method in the cloud

server located in Sydney (Figure 4 (b)) decreased

the overall application performance by approximately

344% due to the 406ms of communication delay be-

tween this cloud server and the smartphone (Table 2).

Improving the Trade-Off between Performance and Energy Saving in Mobile Devices through a Transparent Code Ofﬂoading Technique

351

5.2 Time to Detect Faces

The results of the time to detection faces also in-

dicated the viability of the use of code ofﬂoading

through the cloud. In all cases, the virtual machines

instances presented better results than the mobile de-

vice to run all application without using code ofﬂoad-

ing. All results are illustrated in Figure 4 (c) and in

Figure 4 (d). The worse outcome was obtained per-

forming the code ofﬂoading with a small cloud in-

stance on Sydney with image 5. However, this result

also presented a speed up of 3.5x in execution time

if compared with the mobile device execution time

result. Such value was obtained since that virtual ma-

chine has less computing resources than the other in-

stances and the image tested present 29 faces to be

detected.

The best result was collected using image 1 when

was obtained performance speed up of 12x using a

cloud large instance. In the same sense, image 1

presents just two faces to be detected, and the large in-

stance presents more computing resources than small

and medium instances. Then, it provides better per-

formance during face detection by the cloud instance.

In addition, if we consider just the region of Sao

Paulo, the medium virtual machine presents the bet-

ter performance when used to detect faces of image 1,

where it was 1209% faster in the execution time.

The worst result was captured during the execu-

tion of image 5 using the small instance of the vir-

tual machine with a speed up of 4.7x, since the image

needs more computing resources to detect 29 faces.

Then, when the large instances were adopted, we ob-

tained a better execution time. The results also illus-

trate the impact of the number of faces in the images

in each instance of the virtual machine, where it is

provided better performance using large virtual ma-

chines with a small number of faces in the images.

5.3 Memory Usage

We also analyzed the memory allocated after the exe-

cution of the method detect. Figures 4 (e) and (f) illus-

trate the average RAM allocated and, as expected, less

memory was allocated when executing the method

in the cloud. We got RAM savings up to 55,68%

for image 4 using a small instance in Sydney. This

happens because, by running the method remotely,

it prevents the use of memory required to run the

method locally. This can lead making the battery last

longer. Considering the average smartphone memory

allocated for all experiments using cloud infrastrucure

and compared with the memory allocated running the

application only locally, the experiments has allocated

42,07% less memory for Sydney and 25,87% less

memory for Sao Paulo.

6 CONCLUSION

Oliveira et al. (de Oliveira et al., 2017) proposed an

approach for using code ofﬂoading where no modiﬁ-

cation is required on the application source code nor

changes in the Android system image. It is trans-

parent and easy to use for Android device users and

developers. It also allows the user to enable or dis-

able the use of code ofﬂoading. However, the authors

have run their experiments in a local network using

virtual machines through VirtualBox. In this paper,

we brought the transparent code ofﬂoading technique

for Android devices to the cloud in order to verify the

viability of the proposed architecture using the cloud

infrastructure.

In this sense, we adopted Ravello as the cloud

provider and several metrics were collected. The ﬁrst

metric was the time the application on the smartphone

needs to perform the face detection without the use

of cloud instances. We presented the evaluation of

the total time to perform the face detection using the

cloud, which includes aspects such as the time to in-

stantiate the face detection method and the time to

communicate with the cloud instances. In the same

context, we considered the time the applications took

to detect faces without considering external factors

like communication delay.

Two regions were considered and ﬁve images

were adopted during all experiments. Virtual ma-

chines with different computing resources were used

as well. Our results showed that this technique can

improve performance in terms of execution time and

minimize the RAM usage by using cloud comput-

ing. They also showed that this technique is highly

impacted by network infrastructure and Internet ac-

cess. Results indicated performance speed up of

12x% when using the cloud to perform code ofﬂoad-

ing.

The resources from the cloud are more powerful

and all applications could theoretically use this tech-

nique. However, not all of them can beneﬁt from this

technique, since not always running a task remotely is

faster than locally, keeping that in mind for improving

performance, the methods from the Android Frame-

work must be computationally expensive and not re-

quire massive data transference between the smart-

phone and the cloud. We still intend to explore other

methods from the Android Framework that can bene-

ﬁt from this technique.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

352

(a) Total Execution Time Comparison (Sao Paulo) (b) Total Execution Time Comparison (Sydney)

(e) Memory Usage Comparison (Sao Paulo) (f) Memory Usage Comparison (Sydney)

Figure 4: Comparison regarding performance and resources usage between ofﬂine processing and code ofﬂoading.

Improving the Trade-Off between Performance and Energy Saving in Mobile Devices through a Transparent Code Ofﬂoading Technique

353

REFERENCES

Akherﬁ, K., Gerndt, M., and Harroud, H. (2016). Mobile

cloud computing for computation ofﬂoading: Issues

and challenges. Applied computing and informatics.

Benedetto, J. I., Neyem, A., Navon, J., and Valenzuela,

G. (2017). Rethinking the mobile code ofﬂoading

paradigm: from concept to practice. In Mobile Soft-

ware Engineering and Systems (MOBILESoft), 2017

IEEE/ACM 4th International Conference on, pages

63–67. IEEE.

Chun, B.-G., Ihm, S., Maniatis, P., and Naik, M.

(2010). Clonecloud: boosting mobile device appli-

cations through cloud clone execution. arXiv preprint

arXiv:1009.3088.

de Oliveira, R. R., da Silva Schirmer, N. M., Machry,

M., and Ferreto, T. C. (2017). A transparent code

ofﬂoading technique for android devices. In Wire-

less Communications and Mobile Computing Confer-

ence (IWCMC), 2017 13th International, pages 1078–

1083. IEEE.

Flores, H., Hui, P., Tarkoma, S., Li, Y., Srirama, S., and

Buyya, R. (2015). Mobile code ofﬂoading: from con-

cept to practice and beyond. IEEE Communications

Magazine, 53(3):80–88.

Mell, P., Grance, T., et al. (2011). The nist deﬁnition of

cloud computing.

Qian, H. and Andresen, D. (2015). Extending mobile de-

vice’s battery life by ofﬂoading computation to cloud.

In Proceedings of the Second ACM International Con-

ference on Mobile Software Engineering and Systems,

pages 150–151. IEEE Press.

Sanaei, Z., Abolfazli, S., Gani, A., and Buyya, R. (2014).

Heterogeneity in mobile cloud computing: taxonomy

and open challenges. IEEE Communications Surveys

& Tutorials, 16(1):369–392.

Shiraz, M., Gani, A., Khokhar, R. H., and Buyya, R. (2013).

A review on distributed application processing frame-

works in smart mobile devices for mobile cloud com-

puting. IEEE Communications Surveys & Tutorials,

15(3):1294–1313.

Thakur, P. K. and Verma, A. (2015). Hybrid process cost

evaluation method in mobile code ofﬂoading. In

Next Generation Computing Technologies (NGCT),

2015 1st International Conference on, pages 149–152.

IEEE.

Zhou, B., Dastjerdi, A. V., Calheiros, R. N., Srirama, S. N.,

and Buyya, R. (2015). A context sensitive ofﬂoad-

ing scheme for mobile cloud computing service. In

Cloud Computing (CLOUD), 2015 IEEE 8th Interna-

tional Conference on, pages 869–876. IEEE.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

354
