Architecture to Manage and Protect Personal Data Utilising Blockchain

Jens Leicht and Maritta Heisel

paluno - The Ruhr Institute for Software Technology, University of Duisburg-Essen, Duisburg, Germany

Keywords:

Data Protection, Privacy, Blockchain, Data Management.

Abstract:

Many Internet users employ a multitude of online services. Many services require the same data to be entered

and users enter it repeatedly. Instead of entering information for every new service a user wants to use, we

propose a system that allows users to simply share a set of information with any service they want to use. The

information is entered once and stored in a distributed storage system. Users can easily share the data with any

service provider, in order to use a service. Our proposed system makes use of the distributed ledger, provided

by blockchains, to manage access rights. By taking the data away from the service providers, the personal data

is also protected against unwanted data leaks.

1 INTRODUCTION

A tremendous amount of online services access per-

sonal data from their users. The data provided by the

users often must be entered repeatedly, due to several

services requiring the same information. As an ex-

ample, users make purchases at multiple e-commerce

providers. Every time they submit an order in a new

online shop, shipping and payment information needs

to be re-entered. However, this is error prone, due

to typing errors, and might be considered annoying.

In this paper we propose a system called Data Pro-

tection and Management System (DPMS) that allows

users to manage their data with a decentralized sys-

tem. Data only must be entered once and can after-

wards be accessed by service providers. Rights man-

agement and logging of data access are realised with a

distributed ledger in a blockchain (Nakamoto, 2008).

For the storage of users’ data, a distributed hash table

(DHT), with additional redundancy is used.

In a real-world scenario our system could for ex-

ample be used by online merchants. Every merchant

could be providing and using our DPMS interface and

users can store their billing and shipping information

in the DPMS. Every time users place an order, they

can allow the merchant to access their shipping and

billing information and thus do not have to enter their

information repeatedly.

The paper is structured as follows: At ﬁrst some

necessary background information is presented in

Section 2, before we introduce the architecture of our

proposed system in Section 3. In a next step, the en-

coding of access policies is explained in detail in Sec-

tion 4. Afterwards, in Section 5 we explain some pro-

cedures from our system, that allow a better under-

standing of how it is going to work. Next, we present

a short discussion of our system in Section 6 and re-

lated work in Section 7. Finally, Section 8 presents a

conclusion and future work.

2 BACKGROUND

The system that we propose utilises multiple dis-

tributed techniques, which are presented in a short

overview in this section. First, the blockchain tech-

nology and its use for the proposed system is ex-

plained, followed by a brief introduction to distributed

hash tables.

2.1 Blockchain

Blockchain technology is mostly known through the

crypto-currency system bitcoin (Nakamoto, 2008).

The bitcoin system uses the ledger functionality of a

blockchain to store transactions in an immutable man-

ner. Meaning that transactions cannot be altered, af-

ter they have been veriﬁed by the participants of the

blockchain. These participants are called miners, be-

cause they get rewards for the computing power they

spend on the veriﬁcation of the transactions. To re-

move the trust needed in a single miner, all miners

verify the transactions.

340

Leicht, J. and Heisel, M.

Architecture to Manage and Protect Personal Data Utilising Blockchain.

DOI: 10.5220/0007724203400349

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 340-349

ISBN: 978-989-758-375-9

The system is called blockchain, because all trans-

actions are stored in so called blocks, and each new

block references its predecessor, thus creating a chain

of blocks. Each block consists of the hash of the pre-

ceding block, the root of a hash tree of the transac-

tions stored in that block and the transaction data it-

self. The transaction data states how much currency is

transferred from one address to other addresses. The

chaining ensures that past blocks cannot be altered

without replacing all the following blocks, because

the hashes contained in the following blocks would

not match the content of the manipulated block.

This, however, requires several blocks to be cre-

ated, after a transaction has been stored, to prevent

miners with high computing power to manipulate the

block and all currently following blocks. Only after a

certain number of blocks has been created, following

the block containing the transaction, a transaction is

considered persistent.

Two distinct methods for the creation of new

blocks have been developed. On the one hand the

proof-of-work method can be used, which requires

miners to spend their computing power and thus high

amounts of electricity on computing a high number of

hashes. This technology is used by the bitcoin system.

On the other hand, the proof-of-stake method (Kiayias

et al., 2017) can be used, which does not require the

miners to calculate many hashes, but instead allows a

random miner to create a new block by just calculat-

ing one hash. Besides the difference in energy con-

sumption (one hash compared to millions of hashes),

the time needed to create a new block is reduced by

the proof-of-stake method.

When two blocks are created at the same time, a

so-called fork happens. The blockchain gets extended

at two ends in parallel. After some time, the longest

chain is accepted as the actual chain and transactions

from the forked chain are placed in later blocks of the

accepted chain.

The addresses used in transactions are the public

part of an asymmetric key pair, which is generated by

the users of the blockchain. To create new transac-

tions the user needs to use the private part of the key

pair, to sign previous transactions. There is no need

for certiﬁcate authorities (CAs) as the key pair is only

needed on the users’ side and is generated by the users

themselves.

Some blockchain systems provide a so-called

faucet, that provides some amount of free crypto-

currency to users, who are interested in using the sys-

tem.

Although blockchain technology is widely known

through the bitcoin hype, it can also be used outside

the bitcoin and crypto-currency territory. We propose

a use case for a blockchain in a privacy and data man-

agement context. Our system is based on the work

from (Zyskind et al., 2015a), which is further ex-

plained in the related work described in Section 7.

2.2 Distributed Hash Table

A distributed hash table (DHT) is a system that allows

efﬁcient localisation of data in a distributed and de-

centralized peer-to-peer system. Nodes and data are

addressed through hashes.

DHTs can, for example, be used for ﬁle sharing

systems, distributed ﬁle systems or content distribu-

tion systems. An example DHT protocol is Chord

(Stoica et al., 2001), and Kademlia (Maymounkov

and Mazi

eres, 2002) is an implementation of a DHT.

Based on these protocols several applications have

been developed, for example RetroShare

, a secure

communications application, or GlusterFS

, a dis-

tributed ﬁle system.

Through distribution of the data and removal of a

central authority, the users do not have to trust a sin-

gle party in maintaining the conﬁdentiality, availabil-

ity, security and integrity of their data. Additionally,

redundant storage, on multiple nodes, decreases the

risk of data loss.

3 SYSTEM ARCHITECTURE

Figure 1 shows the architecture of our proposed sys-

tem. The DPMS consists of a data manager API, a

DHT, a blockchain and a naming service. A service

provider is providing a service, which is used by a

user.

3.1 API: Data Manager

This is the main component of our proposed system,

which manages access policies on the one hand and

user data on the other hand. This part of the system

could be implemented as a small library that can be

used in applications and web services. In order to

manage access to their data, users need to have their

private key, which is used by the blockchain system

to store transactions containing the access policies.

The data manger is an application programming

interface (API) provided to service providers, who use

the provided API to allow their users to make use of

the DPMS.

http://retroshare.net/

https://www.gluster.org/

Architecture to Manage and Protect Personal Data Utilising Blockchain

341

DHT

Blockchain

Legend

API:Data

Manager

Service

Provider

Miner

Policy

Service

Data

Naming

Service

Interac�on

Technology

User

Key

Management

Miner User

DHT

Node

Service

Provider

Node

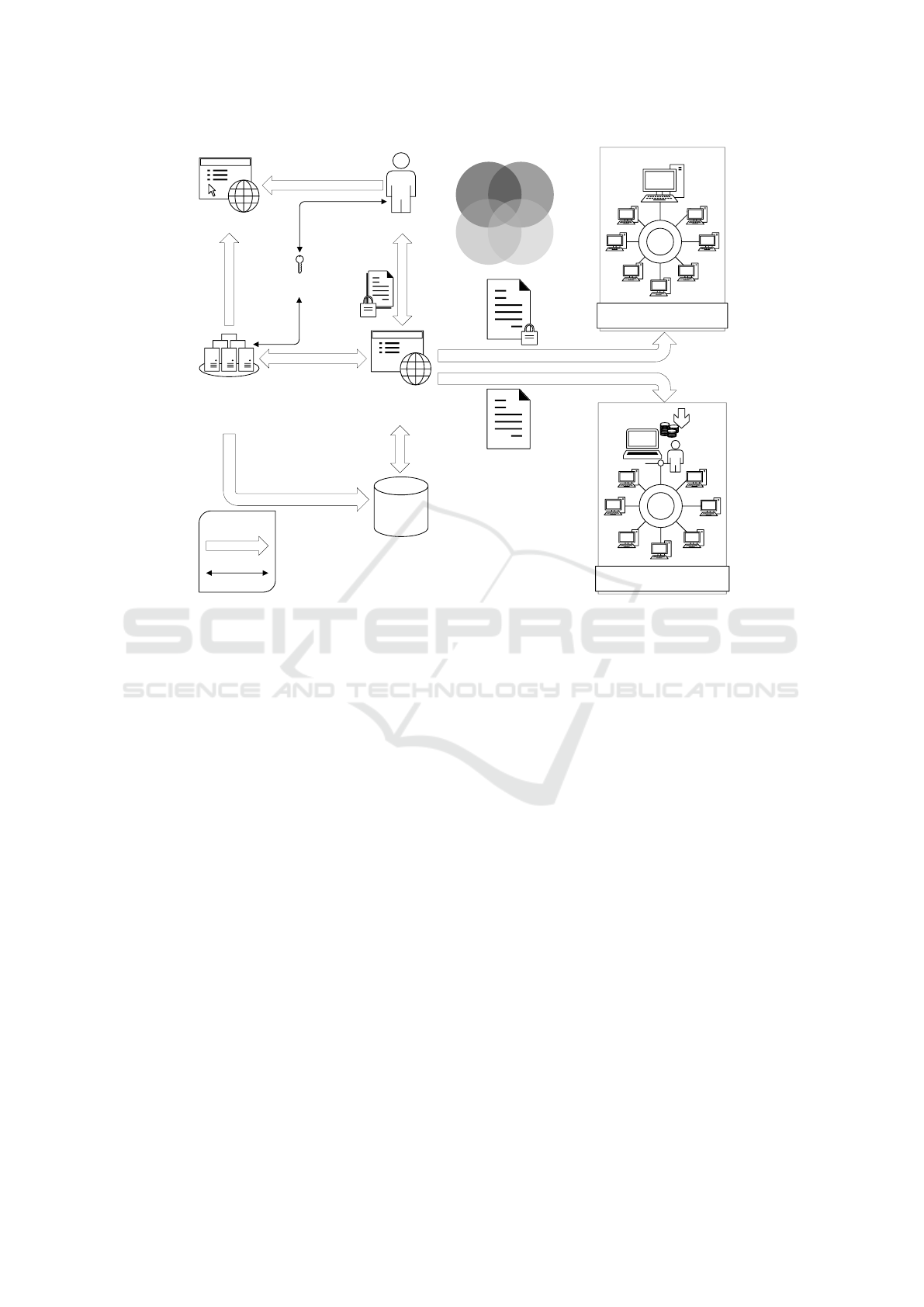

Figure 1: Architecture of the DPMS.

However, the data manager also has to be pro-

vided as a standalone web service or application to

provide users a service-provider-independent access

to the stored data and policies. This is necessary, es-

pecially if users want to withdraw access rights from

a service provider, who stopped providing the data

manager to the users. The application and web ser-

vice can be hosted on the DHT to avoid additional

costs for hosting services.

3.2 Blockchain

The blockchain, visualised as computers interacting

in a network, is powered by miners. A possible

way of powering the blockchain is to offer incen-

tives, like a crypto-currency, to miners that are in no

other way concerned with the DPMS. This however

induces costs that need to be covered by users or ser-

vice providers, which may lead to bad acceptance of

the overall system.

Therefore, we suggest powering the blockchain

from computing power provided by users and service

providers. Both parties do not need additional in-

centives to be willing to provide some computational

power, as they are beneﬁting from the running system.

Additionally to storing access policies, the ledger

is used to log access to the data, and even attempted

access can be logged. This enables users to see who

accessed and who tried to access their data.

Instead of the proof-of-work method used in the

bitcoin blockchain, we propose to use the proof-of-

stake method. This is due to the massive energy con-

sumption required for proof-of-work mining and the

speed at which new blocks can be created.

3.3 Naming Service

Due to its nature the blockchain does not reveal who

is behind a public key. So, users can only see which

public key tried to access their data, when looking at a

logging transaction. However, a DNS (dynamic name

service) like system can be deployed, which reveals

the service provider that relates to a given public key.

The naming service should only be used for service

providers, in order to preserve users’ anonymity and

thus improving their privacy. Only service providers

that have access to users’ data can identify who is re-

lated to a public key, any outside party cannot assert

the relation between public key in the blockchain and

user.

The naming system is enforced by only allow-

ing access requests from the owner of the data and

registered service providers. Any public key, that is

not registered in the naming service, is prohibited to

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

342

access any data. By expanding the functionality of

the DHT, the naming service could be hosted and en-

forced by the DHT nodes.

Even service providers’ privacy can be protected,

by only allowing name lookups by users, whose data

has been accessed/attempted to be accessed by a given

service provider.

3.4 Distributed Hash Table

Parties that are already involved in our system, e.g.

by using it to access or store data, can become par-

ticipants in the DHT. These parties do not need any

further incentive to participate, because they already

beneﬁt from using the system.

Our proposed system is not yet implemented, but

we provide some ideas on how it could be imple-

mented. The DHT part of our system could be imple-

mented using the chord protocol (Stoica et al., 2001).

An alternative could be Kademlia (Maymounkov and

Mazi

eres, 2002). Both protocols provide some basic

features for a DHT.

However, the DHT implementation needs to be

adjusted so that it provides redundancy over multi-

ple nodes. The access control also needs to be im-

plemented into the DHT system. The DHT needs to

make sure that a service provider is registered in the

naming service and has a current access granted trans-

action in the blockchain.

Another important thing to mention is the fact that

a DHT node should not have access to the data it is

storing. Although the data itself is encrypted, a DHT

node could possibly have access to the encryption key.

By restricting the node’s access to the stored data, a

higher level of security can be provided. This could be

achieved by storing the data in an encrypted storage,

not providing the key to the node host.

The DHT implementation should have small com-

puting needs, as this would allow a deployment on

devices like routers at the users’ homes. These de-

vices are already running all day and are capable to

participate in a DHT. BitTorrent

clients like trans-

mission

already make use of these always online de-

vices. Transmission is available for various router

models.

3.5 Key Management

One of the most important parts of our system is

the key management. Users create a set of informa-

tion and encrypt it using symmetric encryption. Sym-

A peer-to-peer ﬁle sharing service using a DHT

(http://www.bittorrent.org/)

https://transmissionbt.com/

metric encryption is used, to enable multiple service

providers to decrypt the same data. If an asymmet-

ric algorithm was used, only one service provider, the

one providing the public key, would be able to decrypt

the data. This would stop our system from reducing

the recurring entering of the same information, be-

cause the data would have to be encrypted for every

service provider separately.

For service providers to be able to access the

stored data, they must be able to decrypt the stored

information.

We suggest that the user creates a secured con-

nection to the service provider and then transmits the

encryption key through the encrypted connection to

the service provider. Once the service provider gains

access rights for the data, it can be downloaded from

the storage system and decrypted to access the infor-

mation.

When users withdraw access rights or get in-

formed about an encryption key disclosure, they need

to be able to withdraw the data, that was encrypted

with the key, from the system. We propose to add

a functionality to the DHT that allows users to re-

voke data from the system. However, this function-

ality should not just delete the data, since a user may

not have a local copy of the data at hand, which is

needed for replacing the data, after using a new en-

cryption key. We suggest that the DHT nodes, stor-

ing the encrypted data, encrypt it with a node speciﬁc

key. Only when the owner of the data wants to access

it, the DHT decrypts the data and returns the origi-

nal encrypted data. This stops anybody other than the

owner to access the data. After downloading the data,

the user can request a deletion of the secured data and

upload the newly encrypted data, afterwards.

In cases where the re-encryption of the data is not

needed instantly (no key breach occurred) the user

can download the original data, delete it and then re-

upload a newly encrypted version.

The DHT re-encryption approach mentioned

above allows the system to automatically react to data

breach notiﬁcations from service providers, by auto-

matically re-encrypting all data that was shared to that

service provider. This ensures privacy even when data

breaches at service providers occur.

To further protect data integrity, the encrypted

data can be enhanced with a signature of the user, to

make sure that the stored data originates from the user

itself.

3.6 Participants

The Venn diagram in Figure 1 shows the partic-

ipants of our system and illustrates that all four

Architecture to Manage and Protect Personal Data Utilising Blockchain

343

groups can overlap. Users sharing their data via the

DPMS can voluntarily provide computing and net-

work power to host a DHT node or perform mining

on the blockchain, however they are also free to just

use the service, relying on other participants hosting

it. As mentioned earlier, always on-line devices like

routers could be utilised by voluntary participants to

strengthen the network.

3.7 Operation

Personal data is handled only in an encrypted state,

protecting the user’s privacy as neither the data man-

ager nor participants of the DHT can access the data.

The policy containing access rights is encoded

into blockchain transactions and committed to the

chain (cf. Section 4). Users can provide access to

a piece of their data by adding a service provider to

the access list of that data and sharing the encryption

key with that service provider, instead of providing

the same data repeatedly to every service they want to

use. Example procedures for data creation and access

are explained in Section 5.

Both users and service providers interact with the

data manager API, users to store data and manage ac-

cess rights, and the service providers to retrieve data,

that has been shared by users. Service providers also

have to register at a naming service.

In order to enhance the privacy of the users, they

can create multiple key pairs when using the system.

This allows users to share data with different ser-

vices without service providers knowing what other

services the users are employing.

4 TRANSACTION ENCODING

The access policy is encoded into transactions on

the blockchain. As these transactions can transfer

crypto-currency from multiple addresses to others, the

crypto-currency is used to encode the policy. The cur-

rency consists of coins (1c) and these coins can be di-

vided into 100 million smallest units (100.000.000s).

First, we describe a policy transaction, which encodes

access rights, followed by an access transaction, log-

ging a service provider accessing the data. As our

system uses a custom blockchain the currency has no

actual value and no established name.

4.1 Policy Transaction

Table 1 shows the structure of a transaction, encod-

ing the access rights of two service providers to the

user’s data. The general idea is based on work by

(Zyskind et al., 2015a). However, our system does not

require shared identities and instead addresses each

entity with its own public key.

A transaction is indexed with a transaction id

(txid), which is calculated as the double hash of the

transaction itself. It is possible that two transactions

have the same double hash, which makes the index

unusable. To circumvent collisions the output at posi-

tion six can optionally be added to the outputs, chang-

ing the hash of the transaction. In a non-colliding

case, this output is not present. The symbolic value of

this output is one smallest unit and it is sent to a sink

address, which can output coins through a faucet. The

faucet provides users with free coins in order to allow

them to use the system.

The input of the transaction is the previous trans-

action that granted the user coins, for example from

the faucet to the user, or a previous policy transaction.

The input transaction is signed by the user issuing the

policy transaction. The value of x is provided by this

previous transaction.

The ﬁrst two outputs are symbolic and encode the

SHAKE256 hash (Dworkin, 2015), with a length of

320 bits, of the encrypted data, which is used to ad-

dress the data in the storage system and to check the

integrity of the data. Both outputs are provided with

a symbolic value of one smallest unit each.

Table 1: Policy Transaction: Structure and contents of an example blockchain transaction, encoding an access policy for two

service providers.

txid: h(h(transaction))

Input Value Output Value

user signed

transaction

0: bytes 1-20 of shake256(data,320) 1s

1: bytes 21-40 of shake256(data,320) 1s

2: service provider 1’s address 1c

3: service provider 2’s address 1c

4: user’s address x-nc-1.5c-2s/[x-nc-1.5c-3s]

5: logger address 1.5c

[6: sink address] 1s

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

344

The table shows an example structure for two ser-

vice providers, but it can be easily extended by just

adding more outputs for more service providers. Each

service provider is granted one coin, which allows for

50 million access transactions to be created before

the user needs to refresh the policy transaction. This

number is less than the 100 million smallest units be-

cause of the access transaction encoding described in

the next section. This value could also be adjusted to

create temporary access to the data by using smaller

values. If two smallest units were granted, a one-time

only access could be encoded.

The output to the user’s address (4) is used to

preserve the user’s remaining coins for later use in

other policy transactions. The value transferred to

this address is calculated based on the input value x,

the number of service providers in the policy (n) and

whether the sink output was needed.

Output 5 transfers one and a half coins to a log-

ger address, that is used by the DHT to create logging

transactions in cases where a service provider tried

to access the data without permission. The amount

transferred to the logger makes 50 million logging

transactions possible.

4.2 Access Transaction

Table 2 shows the structure of an access transaction,

encoding the access of the data by a service provider.

The input is either the original policy transaction, in

case the transaction is the ﬁrst access transaction after

creation of the policy transaction, or the last access

transaction by the service provider for this data. The

value of x depends on the amount received/remaining

from the previous transaction.

The ﬁrst two outputs contain the txid of the orig-

inal policy transaction with some additional padding.

Both outputs have symbolic values of one smallest

unit. The last output (2) returns the residual value to

the service provider. This is used in the next access

transaction that the service provider needs to create

for the data.

Additionally to the outputs shown in Table 2, a

sink output can be added in the case of a transaction

id collision, like output six from Table 1.

5 EXAMPLE PROCEDURES

This section describes different procedures of our sys-

tem. First, we explain how the user can add data

and corresponding access rights to the system. After-

wards, we explain how a service provider can access

the data that a user shared with the service and how

the system protects user data from unwanted access.

5.1 Sharing Data

In this section we describe two methods for users to

provide access to their data. First, we explain the ini-

tial storage of the data in our system, followed by an

update of an existing access policy to share existing

data with a new service provider.

5.1.1 Data Storage

Figure 2 shows the messages that are passed, when a

user tries to access a service that needs some infor-

mation and the user decides to store the data using the

DPMS.

First, the user requests a service from a service

provider. The service provider asks the user to supply

all needed data and provides the user with the public

key (pubKey sp) of the service provider, which is used

in the access policy on the blockchain.

As users are using the DPMS, they create a sym-

metric encryption key and share it with the ser-

vice provider via an encrypted connection. Users

also provide their public key (pubKey u), from the

blockchain, to the service provider, which is used as

the identiﬁer of the user.

Using the encryption key, the user encrypts the

data that needs to be provided and creates an access

policy that states that the service provider is granted

access. To specify this policy the user provides the

public key of the service provider to the data man-

ager. The user also provides the transaction that sent

some blockchain currency to the user’s public key,

Table 2: Access Transaction: Structure and contents of an example blockchain transaction, encoding the access of data by a

service provider.

txid: h(h(transaction))

Input Value Output Value

signed

transaction

0: bytes 1-20 of txid of permission transaction 1s

1: bytes 21-32 of txid of permission transaction

+ 8 bytes padding

2: service provider’s address x-2s

Architecture to Manage and Protect Personal Data Utilising Blockchain

345

sd InitialDataStorage

request

service

request data,

pubKey_sp

encryptionKey,

pubKey_u

encrypted data,

policy(pubKey_sp),

signedTransaction

encrypted data

hash

create

transaction

txid

verify stored

transaction

success

txid,

pubKey_u

success, hash

User

Service

Provider

Data

Manager

Block Chain DHT

verify

policy

create

block

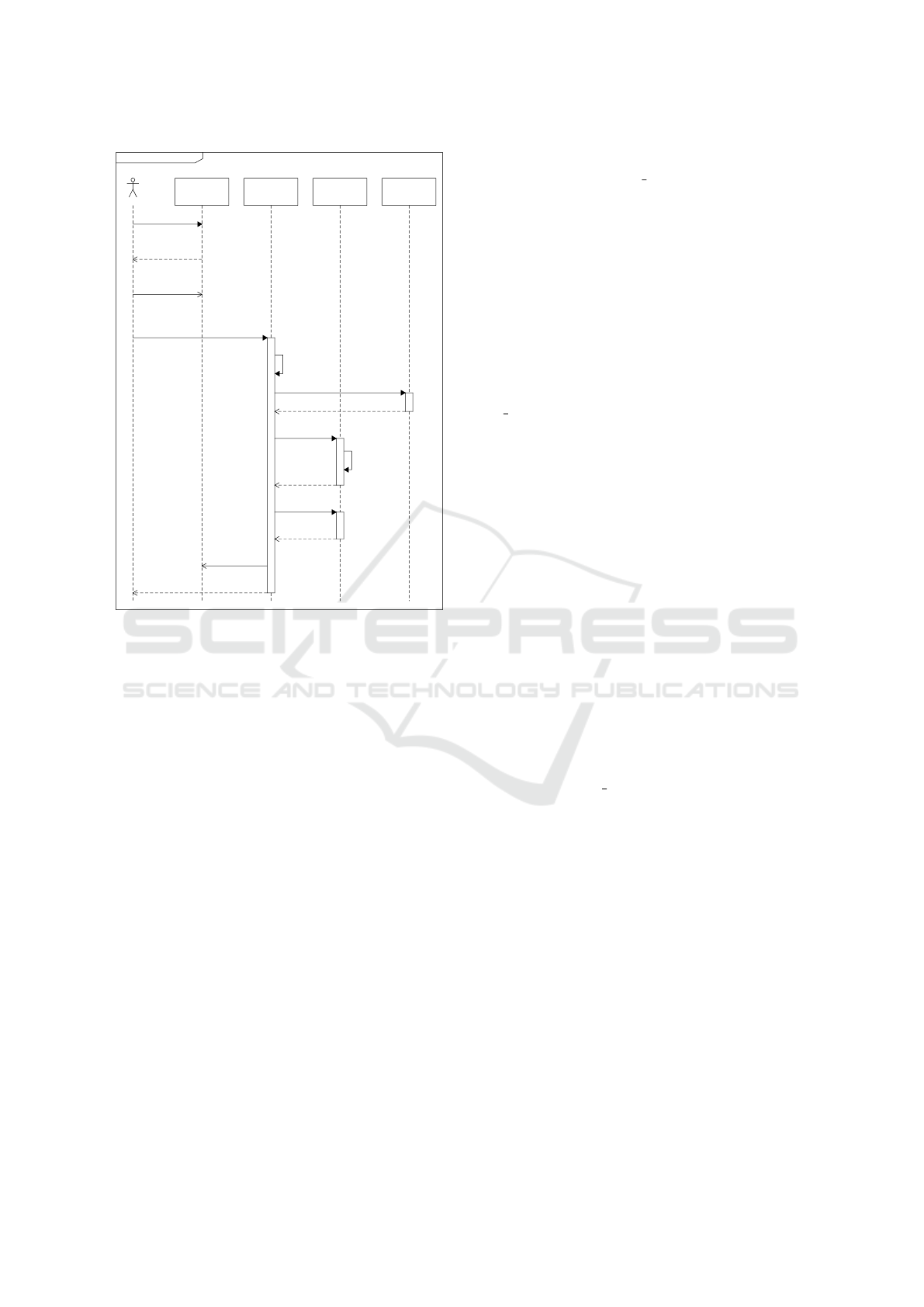

Figure 2: Sequence diagram of the initial storage of a user’s

data and corresponding access policy.

signed with the user’s private key. This transaction

can be another access policy or a transaction from the

blockchain faucet.

The data manager ﬁrst veriﬁes that the policy

is formatted correctly and checks that the service

provider’s public key supplied is registered in the

naming service. Both steps are part of the policy ver-

iﬁcation in Figure 2.

After successful veriﬁcation, the data manger up-

loads the encrypted data to the DHT and receives the

hash of the data, which is also the address needed

to access the data in the system. Using this hash

and the veriﬁed policy, a transaction is created in the

blockchain (cf. Section 4). This transaction is then

processed by miners and stored in a block.

Once the transaction is stored, the data manager

veriﬁes the transaction by waiting for enough new

blocks to be created, thus checking that the transac-

tion is persistent in the blockchain. The time spent

waiting depends on the block creation time of the

blockchain, which can be several seconds per block,

and the number of blocks needed for a transaction to

be considered persistent. The smallest block creation

time possible still needs to be evaluated.

After the persistence is veriﬁed, the data manager

informs the service provider about the txid for the user

with the supplied pubKey u. Finally, the user is in-

formed about the success in sharing the data and is

supplied with the hash of the stored data.

5.1.2 Access Permission

Similar to the initial storage of the data, users can

share previously uploaded data with new service

providers. The ﬁrst three steps of the process are the

same as for the initial storage.

Users request a service from a service provider

that they did not use before. The service provider

requests some data and provides its public key (pub-

Key sp) to the user. Users share the encryption key for

the data, that was created when initially uploading the

data, and their public key with the service provider.

Instead of handing the encrypted data to the data

manager, just the hash of the encrypted data is needed

together with the updated access policy. The up-

dated policy contains all previously permitted service

providers and the one that should be allowed access.

Additionally, the user provides the signed transaction

that sent some blockchain currency to the user’s pub-

lic key, similarly to the initial process from the previ-

ous section.

The data manager veriﬁes the policy and that the

service provider is registered in the naming service,

before creating the new transaction on the blockchain.

Miners then create a block containing the transac-

tion. The data manager veriﬁes that the transaction

is persistent on the chain and then informs the service

providers from the original access policy, as well as

the newly added service provider, about the txid for

the policy transaction in combination with the user’s

public key (pubKey u). Finally, the user is informed

about the successful adaptation of the access policy.

5.2 Data Access

This section describes two cases of the data access

communication. First, a service provider that was

granted access requests the data. Afterwards, a ma-

licious service provider trying to access data without

permission is shown.

5.2.1 Access Granted

The sequence diagram in Figure 3 shows the mes-

sages passed when a service provider, that has access

rights on the data, tries to access a user’s data.

The service provider requests the data via the data

manager supplying the txid of the policy transaction

and a signed version of the policy transaction. The

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

346

sd DataAccess

request data, txid,

signedTransaction

create access

transaction

txid_a, hash

request data, txid_a, hash

verify access

transaction

result

encrypted data

access denied

alt

Service Provider

[result==success]

[else]

Data Manager Block Chain DHT

create

block

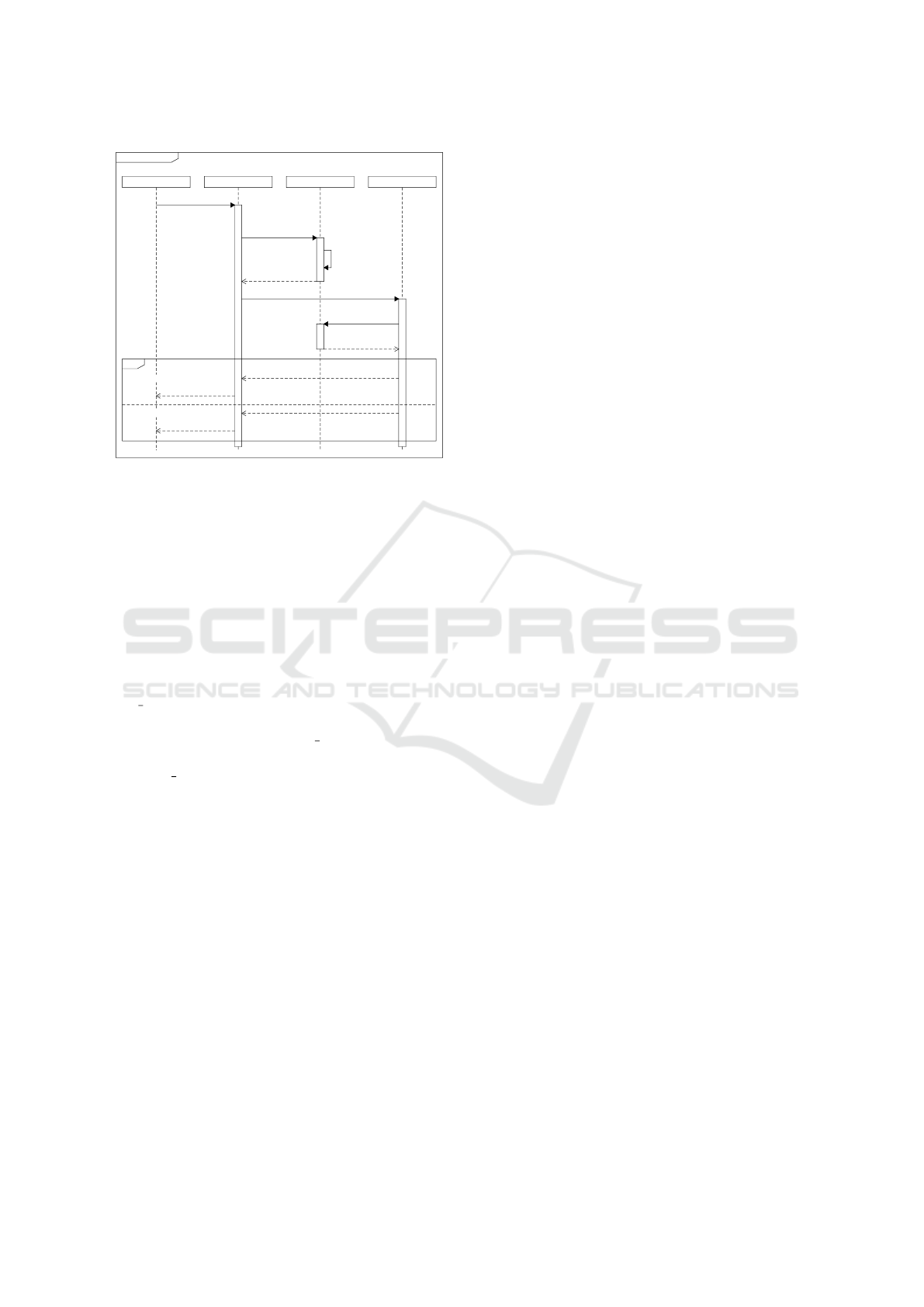

Figure 3: Sequence diagram of a service provider accessing

a user’s data. The service provider has access rights.

transaction is signed using the service provider’s pri-

vate key from the blockchain key pair. The data man-

ager tries to create a transaction that logs the access to

the data. This transaction requires the policy transac-

tion from the previous section in order to be created

on the blockchain. Each access costs two smallest

units of the blockchain currency (2s) from the origi-

nal policy transaction or a previous access transaction

(cf. Section 4).

After the blockchain created the transaction, the

txid a of the logging transaction and the hash of the

data is returned. The data manager requests the data

from the DHT supplying the txid a and the hash of the

data. The DHT veriﬁes that a current access transac-

tion (txid a) is persistent in the blockchain.

If a persistent transaction is found, the encrypted

data is returned to the data manager. If the transaction

was not found, for example because it was created in

a forked chain, the access is denied.

The data manager ﬁnally either returns the en-

crypted data to the service provider or informs the

service provider about the failed access.

Using the encryptionKey, that was shared by the

user, the service provider can now decrypt the data.

5.2.2 Access Denied

When no access policy was granted to a service

provider trying to access some data, the following

procedure kicks in.

The service provider requests the data from the

data manager. The data manager tries to create

the necessary transaction on the blockchain. The

blockchain will not allow the creation of the logging

transaction, because the service provider is not part of

the policy transaction.

This is the ﬁrst access denial, which is returned

to the service provider. However, even if the service

provider manipulates the data manager and tries to ac-

cess the data on the DHT directly, the DHT will stop

the process, because of the missing transaction on the

blockchain. The DHT then performs the logging ac-

tion, that would normally be performed by the data

manager and creates a transaction on the blockchain

that informs the user about the tried access.

And, even if attackers gain access to the data on

the DHT, they still need to obtain the shared encryp-

tion key from either service providers that got access

rights or from the users themselves.

6 DISCUSSION

In this section, we list the beneﬁts and limitations of

our proposed system.

6.1 Beneﬁts

Our proposed system provides a ﬂexible privacy pro-

tecting data management system. The DPMS can be

conﬁgured using different back-end systems, like a

DHT or specialised data hosts.

It does not require trust in a single third party,

when a DHT is used. Users do not put their data in

the hands of a single entity that might use the data for

anything it wants to. Instead users that are interested

in using the system for their own data are collaborat-

ing in the operation of the system.

Users can manage their entered data and do not

have to re-enter the same information on every service

they want to use. This simpliﬁes users’ experience

with Internet services.

Data leakage on a service provider side does not

endanger the privacy of the user, as the DHT can re-

act quickly and re-encrypt all linked data. Thus, data

stored using our system is protected against data leak-

age and does not require users to react to leakage

news.

Due to the use of proof-of-stake instead of proof-

of-work for the mining process of the blockchain,

less energy is consumed when maintaining the

blockchain, compared to bitcoin’s blockchain.

6.2 Limitations

When users revoke access to their data for one service

provider, they must re-encrypt the stored data. This is

necessary because the service provider, whose access

Architecture to Manage and Protect Personal Data Utilising Blockchain

347

got withdrawn, still knows the encryption key of the

data and thus might gain access to the data.

Another problem is the fact that service providers

could be downloading and decrypting the data and

storing it on internal servers instead of requesting the

data from our system.

Without evaluation, performance issues cannot be

excluded from the limitations of this system. On the

one hand the time needed to create new blocks adds

up, when waiting for transactions to be considered

persistent. On the other hand, searching for trans-

actions can also be considered time consuming, as

searches directly on the blockchain are inefﬁcient, due

to linear search complexity.

7 RELATED WORK

In previous work Zyskind et al. proposed a block-

chain-based system to protect personal data (Zyskind

et al., 2015a). The system uses the immutable ledger

of the blockchain for the storage of policies that deﬁne

access rights. Their system has some limitations that

we try to resolve with our proposed system. One lim-

itation of the system is the shared identity that binds

a user to several services, requiring a new identity

when adding or removing a service from the group.

Our system removes this limitation by using the stan-

dard public and private key pair identities from the

blockchain domain. A user just adds new or removes

services from the system by placing transactions on

the blockchain. Services and users are identiﬁed by

public key identities.

In the system, Zyskind et al. proposed, users

must upload the same data multiple times to share it

with different services, as an alternative to creating

new compound identities. Our system allows users to

share their data even after the ﬁrst initial sharing, sim-

ply by creating a new transaction in the blockchain.

In our system, the blockchain and DHT structures

are not connected directly. Instead the DHT imple-

mentation will verify the existence of a speciﬁc trans-

action on the chain. After an access transaction has

been created in the blockchain, the DHT will grant

access to the data.

Zhang et al. propose another privacy related sys-

tem based on blockchain technology (Zhang et al.,

2018). Their system is specialized for Internet of

Things (IoT) devices and the data these devices col-

lect. The approach combines the use of a blockchain

with the use of trusted execution environments to pre-

serve the privacy of the user, whose data was collected

by the IoT device.

Another related work is called ”data-exchange

wallet” by Norta et al., which, like the system pre-

sented in this paper, tries to provide a data manage-

ment system for Internet users (Norta et al., 2018).

The wallet, however, provides incentives to users to

sell their data to companies. Norta et al. argue that

this brings the proﬁt, that service providers make sell-

ing their users’ data, back to the owner of the data.

The data-exchange wallet has been implemented

and

is currently in a beta phase. Our proposed system dif-

fers from this approach by not trying to sell users’ data

but protecting it from misuse and further processing

by the service providers.

Another block-chain-based system, which aims

to protect users’ privacy is Enigma (Zyskind et al.,

2015b). This system has a limited number of use

cases due to the usage of calculations on encrypted

data. It preserves privacy, in cases where these cal-

culations are applicable, by using a decentralised cal-

culation approach based on smart contracts. These

contracts are executed by a blockchain.

Yli-Huumo et al. conducted an extensive system-

atic literature review on the research of blockchain

technologies and revealed that over 80% of the re-

viewed papers were focusing on bitcoin and only less

than 20% dealt with other use cases for the blockchain

technology (Yli-Huumo et al., 2016).

Healthcare Data Gateways were proposed to pro-

vide privacy protected electronic health records util-

ising blockchain technology (Yue et al., 2016). How-

ever, in their paper Yue et al. do not specify how the

blockchain is integrated into their system. Instead,

they just use the term blockchain cloud whenever they

talk about the secure and private storage of the health

records.

Another system concerned with medical records

was proposed by Xia et al., again using blockchain

technology managing the access of researchers to

medical data. They provide some estimated evalua-

tion showing the growth of the blockchain depending

on the number of transactions, concluding that their

system is more scalable than the bitcoin blockchain

system (Xia et al., 2017).

8 CONCLUSION AND FUTURE

WORK

Overall our proposed DPMS seems to be a promising

system that can make users’ lives easier. It reduces the

effort needed, when using multiple services requiring

the same data to be provided by the users.

https://datawallet.com/

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

348

Additionally, the DPMS improves the users’ pri-

vacy and protects them from data leakages, as it takes

the data away from the service providers and places

the data in a secured peer-to-peer system. However,

a few limitations still must be addressed before our

system can be deployed for public use.

Trusted computing modules and a veriﬁed client

software might be used to stop service providers from

locally storing the user data.

Time spent searching transactions could be re-

duced by using an external index, that allows to ﬁnd

blocks and transactions with reasonable efﬁciency.

The system could be extended to allow services to

write data into users’ data sets. Allowing the user to

share data between different services, e.g. shared im-

ages or computed interests could be shared between

multiple social media platforms.

In the future the suggested distributed hash table

could be speciﬁed in more detail. Once the DHT is

speciﬁed, an implementation of the system would be

possible. The implemented system can then be used

to evaluate the proposed approach of managing per-

sonal data.

Future work could also investigate other storage

systems like the inter planetary ﬁle system (IPFS)

replace the DHT.

Instead of sharing the encryption key directly via

an encrypted connection a group key management

method could be used. Examples for such methods

are the certiﬁcateless public key cryptography (Al-

Riyami and Paterson, 2003) or attribute-based group

key management (Nabeel and Bertino, 2014).

REFERENCES

Al-Riyami, S. S. and Paterson, K. G. (2003). Certiﬁcateless

public key cryptography. In International Conference

on the Theory and Application of Cryptology and In-

formation Security, pages 452–473. Springer.

Dworkin, M. J. (2015). SHA-3 standard: Permutation-

based hash and extendable-output functions. Stan-

dard, Federal Information Processing Standards.

Kiayias, A., Russell, A., David, B., and Oliynykov, R.

(2017). Ouroboros: A provably secure proof-of-stake

blockchain protocol. In Advances in Cryptology –

CRYPTO 2017, pages 357–388. Springer International

Publishing.

Maymounkov, P. and Mazi

eres, D. (2002). Kademlia: A

peer-to-peer information system based on the xor met-

ric. Lecture Notes in Computer Science, 2429:53–65.

Nabeel, M. and Bertino, E. (2014). Attribute based group

key management. Transactions on Data Privacy, 7(3).

https://ipfs.io/

Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic

cash system. https://bitcoin.org/bitcoin.pdf.

Norta, A., Hawthorne, D., and Engel, S. L. (2018).

A privacy-protecting data-exchange wallet with

ownership-and monetization capabilities. In 2018

International Joint Conference on Neural Networks

(IJCNN), pages 1–8. IEEE.

Stoica, I., Morris, R., Karger, D., Kaashoek, M. F., and

Balakrishnan, H. (2001). Chord: A scalable peer-to-

peer lookup service for internet applications. Acm Sig-

comm Computer Communication Review, 31(4):149–

160.

Xia, Q., Sifah, E. B., Smahi, A., Amofa, S., and Zhang,

X. S. (2017). Bbds: Blockchain-based data sharing

for electronic medical records in cloud environments.

Information, 8(2):44.

Yli-Huumo, J., Ko, D., Choi, S., Park, S., and Smolan-

der, K. (2016). Where is current research on

blockchain technology?-a systematic review. PLoS

One, 11(10):e0163477.

Yue, X., Wang, H. J., Jin, D. W., Li, M. Q., and Jiang,

W. (2016). Healthcare data gateways: Found health-

care intelligence on blockchain with novel privacy risk

control. Journal of Medical Systems, 40(10):218.

Zhang, N., Li, J., Lou, W., and Hou, Y. T. (2018). Privacy-

guard: Enforcing private data usage with blockchain

and attested execution. In Data Privacy Management,

Cryptocurrencies and Blockchain Technology, pages

345–353. Springer International Publishing.

Zyskind, G., Nathan, O., and Pentland, A. (2015a). De-

centralizing privacy: Using blockchain to protect per-

sonal data. In 2015 IEEE Security and Privacy Work-

shops, pages 180–184.

Zyskind, G., Nathan, O., and Pentland, A. (2015b). Enigma:

Decentralized computation platform with guaranteed

privacy. https://arxiv.org/pdf/1506.03471.pdf.

Architecture to Manage and Protect Personal Data Utilising Blockchain

349
