Analysis of Data Warehouse Architectures: Modeling and Classification
Qishan Yang
1
, Mouzhi Ge
2
and Markus Helfert
1
1
Insight Centre for Data Analytics, Dublin City University, Dublin, Ireland
2
Faculty of Informatics, Masaryk University, Brno, Czech Republic
Keywords:
Data Warehouse, Architecture, Classification, Modeling, Big Data, Archimate.
Abstract:
With decades of development and innovation, data warehouses and their architectures have been extended to a
variety of derivatives in various environments to achieve different organisations’ requirements. Although there
are some ad-hoc studies on data warehouse architecture (DWHA) investigations and classifications, limited
research is relevant to systematically model and classify DWHAs. Especially in the big data era, data is
generated explosively. More emerging architectures and technologies are leveraged to manipulate and manage
big data in this domain. It is therefore valuable to revisit and investigate DWHAs with new innovations. In this
paper, we collect 116 publications and model 73 disparate DWHAs using Archimate, then 9 representative
DWHAs are identified and summarised into a ”big picture”. Furthermore, it proposes a new classification
model sticking to state-of-the-art DWHAs. This model can guide researchers and practitioners to identify,
analyse and compare differences and trends of DWHAs from componental and architectural perspectives.
1 INTRODUCTION
In an organisation, data usually come from heteroge-
neous resources that include different views and may
provide inconsistent information to end users. Thus,
an organisation needs a systematic channel to main-
tain and manipulate its data. Although operational
database management systems (ODBMS) could par-
tially solve the problem, it mainly serves for running
daily business transactions, which focuses more on
managing active interactions and data on time. There-
fore, a Data Warehouse (DWH) is necessary to man-
age the business and support strategic decisions for
an organisation (Ge and Helfert, 2006). (Devlin and
Cote, 1996) states that a DWH is a single, complete,
and consistent store of data from various sources and
made available to end users in a business context.
This centralised data system governs and maintains
data for analyses to meet an organisation’s require-
ments.
DWHs need to rely on architectures and other
components assisting them, e.g. solving data qual-
ity issues and integrating data (Yang et al., 2017).
Data warehouse architectures (DWHAs) are devel-
oped synchronously along with DWHs’ progress to
mainly serve for DWHs. A variety of DWHAs is pro-
posed in order to fit different requirements and situ-
ations. To the best of knowledge, there is no clas-
sification which categories all the DWHAs. (Ariy-
achandra and Watson, 2008) and (Matouk and Owoc,
2012) conduct surveys on parts of DWHAs and cal-
culate their distributions mainly in the United States
and Poland respectively. They only cover five types
of DWHAs. (Hub-and-Spoke, Data Mart Bus, Cen-
tralised, Independent Data Marts and Federated). The
latest DWHA classification is proposed by (Bla
ˇ
zi
´
c
et al., 2017), but some DWHAs, such as Virtual
DWHA, Big DWHA and DWH with data lake ar-
chitecture (DLA), are still excluded. These excluded
DWHAs also frequently appear in literature and in-
dustry, which solve specific problems in terms of ad-
dressing big data issues (Inmon, 2016) and swift data
analyses (Pasquale et al., 2008). While, the DHWAs
included in their research above have few advantages
to solve these problems, which would be more time-
consuming and less-efficient. Hence, it is worthy to
discuss and classify them together. It could benefit
people having more choices to achieve their needs es-
pecially in big data and high-efficient era.
In order to systematically conduct this research,
a systematical literature review is taken to collect
DWHAs in literature. Due to different descriptions
of DHWAs, they are generalised and modelled in or-
der to better demonstrate and differentiate them. It
further analyses the distribution of each DWHA in
literature then compares the result with two previous
604
Yang, Q., Ge, M. and Helfert, M.
Analysis of Data Warehouse Architectures: Modeling and Classification.
DOI: 10.5220/0007728006040611
In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 604-611
ISBN: 978-989-758-372-8
Copyright
c
2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
surveys to give insights from industrial and academic
perspectives. These DWHAs identified from litera-
ture are classified for better structuring and presenting
their relationships. In addition, as intrinsic features of
DWHAs, some of them are analogous and difficult
to distinguish. Hence, it is necessary to discuss and
compare their dissimilitudes. The main contributions
of this research are summarised below.
identified a plethora of DWHAs based on a sys-
tematic literature review;
modelled and generalised DWHAs to describe
similarities and differences among them;
conducted an analysis of DWHAs to offer an
overview of their distributions;
proposed a classification model to analyse differ-
ent types of DWHAs.
The remainder of the paper is organised as fol-
lows. Section 2 reviews the related work of previ-
ous research in this domain. Section 3 presents the
research methods applied in this research. Section
4 explains the results based on data from literature.
Section 5 proposes a DWHA classification model and
further analysis. Finally, section 6 summarises this
research and outlines future work.
2 RELATED WORK
With decades of development, DWHs and their archi-
tectures are not only focusing on data analyses and
decision-making, but they also follow closely behind
the ever-accelerated updating of science and technol-
ogy to meet new requirements. This paper mainly
focuses on investigating DWHAs. As the foremost
components in these architectures, DWHs also should
be concerned and discussed hereby. There are dif-
ferent types of traditional DWHAs to address size-
controlled data sets. They are extended to different
types (e.g. big DWH and data lake) in terms of the big
data challenge. Some relevant concepts are discussed
in this section to clear the boundary of this research.
2.1 Traditional Data Warehouse
A traditional DHW herein normally refers to a
DWH mainly addressing size-controlled structured
data (Katal et al., 2013). Different understandings of
DWHAs can be found in literature. (Inmon, 1997)
defines that a DWH is a subject-oriented, integrated,
non-volatile and time-variant collection of data that
supports of management’s decision-making capabili-
ties. (Kimball and Ross, 2013) advocates that a DWH
is the conglomerate of all DMs within the company
and information is always stored in the dimensional
model. Two main approaches of developing DWHs
are the top-down and bottom-up (George, 2012). In
the top-down approach, a centralised DWH is de-
veloped first, then building independent data marts
(DMs) for individual departments. However, in the
bottom-up approach, DMs are built first then the
DWH is created by combining these DMs.
In addition, there is another terminology called
”data warehousing”, which is similar to the DWH but
with a different meaning. Data warehousing more
focuses on processes or mechanisms of how to or-
ganise algorithms, components and data to build data
warehouses. When comparing the DWH and data
warehousing, the former more focuses on storing and
managing data with several characteristics mentioned
above, while the data warehousing lays emphasis on
the process of building a DWH project. Hence, when
collecting data, this terminology is not included in this
research.
2.2 Big Data Warehouse
Nowadays, DWHs are facing exploded data that is
usually referred to as big data. Especially, unstruc-
tured data dominates a large portion of big data.
This type of data contributes and drives the innova-
tion which should be concerned if more data needs
to be involved in the process of analysis. It consti-
tutes 90 percent of information, which includes so-
cial text, audio, video, sensors, and click stream data,
etc. While, the traditional DWH systems are not de-
signed to scale, and handle this exponential growth of
unstructured data (Pasupuleti and Purra, 2015). In or-
der to address new unstructured big data challenges,
DWHs are extended and merged with state-of-the-
art technologies. The big data platforms or concepts
(e.g. Hadoop and Hive) are leveraged to build DWHs
with high-speed processing capacities (Thusoo et al.,
2010b).
These DWHAs associated with state-of-the-art
technologies are indispensable to address big data is-
sues especially in manipulating a mass of unstruc-
tured data. For instance, (Thusoo et al., 2010b) ap-
plies Hive on top of Hadoop to develop a big DWH to
store and analyse log data at Facebook. This research
mainly focuses on the reconciled layer. (Yang and
Helfert, 2016b) investigates and builds a data ware-
house architecture in the context of big data. It is
based on the Flume, Hadoop, Hive, HBase, Sqoop etc.
to establish a DWHA to store and analyse website log
data. In this research, the reconciled layer and derived
layer are built and mixed in the Hadoop platform.
Analysis of Data Warehouse Architectures: Modeling and Classification
605
2.3 Data Lake
In addition, as a novel data repository, the Data Lake
(DL) is also an option to address big data issues. Ac-
cording to the literature, a DL not only can be applied
to manage data solely, but it can also be accompa-
nied by a DWH. (Research, 2014) holds that the DL
and the enterprise DWH provide a synergy of capabil-
ities to deliver accelerating responses. They cooperate
with each other to present their competences respec-
tively. This combination enables people to deal with
enormous data and driving business results. There are
different descriptions and definitions of the DL and its
architecture. James Dixon proposed that data in a DL
is more natural than the data in a DM in which data is
cleansed, packaged and structured for easy consump-
tion (Dixon, 2010). A DL is a collection of vari-
ous data assets which are near-exact or even exact of
the source format. It serves only for the most highly
skilled analysts to explore data.
A DL is thus less structured compared to a tra-
ditional and big DWHs as data preparation is elim-
inated. It is introduced to maintain and manipulate
the explosively growing unstructured data. This novel
system has abilities to capture and maintain various
types of raw data with a low cost, operate transforma-
tions on the data, define the schema on the fly, per-
form new types of data processing, answer ad hoc
analyses based on the specific use cases (Research,
2014). (Devlin, 2014) summarises that a DL is an
idea that all enterprise data can and should be stored in
Hadoop. It is a rip-and-replace strategy for all DWHs,
DMs and eventually even operational databases be-
cause of its fullest extent.
2.4 DWHA Classifications
According to the literature, there are two main
DWHA classifications which observe DWHAs from
different views. The first classification includes
single-layer, two-layer and three-layer architectures
that are depending on the number of layers used by
the architecture (Devlin and Cote, 1996; Senapati
and Kumar, 2014). The second classification con-
sists of Independent DMs architecture, Bus, Hub-and-
Spoke, Centralized and Federated architectures based
on components and relationships (Ariyachandra and
Watson, 2008).
In terms of these three types of DWHAs, The pri-
mary mechanism of the single-layer (real-time layer)
is all data sets are stockpiled once only (Inmon, 1997).
An operational system and a data warehousing sys-
tem share the identical data that are stored in the same
place. The two-layer architecture adds a derived data
layer to enable the operational and analytical require-
ments to be fulfilled separately. This approach ad-
dresses the single-layer architecture problems, but it
also has the limitation, which has low performance in
inhomogeneous or large volumes of data from differ-
ent sources (Devlin and Cote, 1996). The three-layer
architecture is comprised of a real-time data layer, a
reconciled data layer and a derived data layer, which
adds a reconciled layer as the new layer compared
with the two-layer architecture. This new layer ma-
terialises the integrated and cleansed data.
When investigating DWHAs from components
and their relationships, they can be mainly cate-
gorised into five predominant architectures (Ariy-
achandra and Watson, 2006; Ariyachandra and Wat-
son, 2010). Although other architectures (e.g. hybrid)
are mentioned in this domain, they tend to be vari-
ations on these five (Scheibe and Nilakanta, 2008).
(Ariyachandra and Watson, 2008) conducts a Web-
based survey Surveyed companies ranged from small
(less than $10 million in revenue) to large (in excess
of $10 billion). Most of them are located in the United
States (60%) covering a variety of industries. (Ma-
touk and Owoc, 2012) does a similar survey and col-
lected data from firms listed in the Warsaw Stock Ex-
change. The details of these five DWHAs and the two
surveys will be discussed in the following sections.
3 RESEARCH METHODOLOGY
In this paper, the quantitative research method is ap-
plied to navigate the processes and output numerical
results. This method is presented as ”quantities” or
numbers, which is normally generate results by do-
ing statistical analyses (Patten and Newhart, 2018). It
normally explains phenomena by analysing collected
numerical data using mathematically based methods
(e.g. statistics)(Aliaga and Gunderson, 2006). There
are different patterns to conduct its processes. (Muijs,
2010) lists four situations of using quantitative meth-
ods. (Muijs, 2010) organises the processes of quanti-
tative research with six steps, which is chosen and ap-
plied in this research: (1) identifying research objec-
tives; (2) selecting research design; (3) defining what
information is needed; (4) executing research instru-
ments; (5) collecting data; (6) analysing data.
Accordingly, our research objectives are set down
in the first step, which is investigating the distribu-
tion and classification of DWHAs. (Robson and Mc-
Cartan, 2018) proposes three research designs: exper-
imental, quasi-experimental and non–experimental,
which are widely accepted in different domains of
research. In the second step, non–experimental and
ICEIS 2019 - 21st International Conference on Enterprise Information Systems
606
its sub-branch (analysis of existing data sets) are used
for this research. In the third step, the information is
needed in this research including publications regard-
ing DWHAs, hence, the publications are defined with
the keywords of data warehouse architecture. As for
the fourth and fifth, the systematical literature review
is executed as the research instrument to collect data
from existing data sets. The data analyses for the last
step are presented in section 4 and 5.
4 RESULTS
DWHAs are identified and generalised by analysing
the contents and diagrams of these related publica-
tions collected from literature above. Different de-
scriptions can be found to present even for the same
DWHA in these publications. In order to unify
them, A modelling language, Archimate, is lever-
aged to model and diagram their components and re-
lationships. Archimate is the open source modelling
toolkit for all levels of Enterprise Architects and Mod-
ellers (Modelling, 2018). The conformed modelled
DWHAs can facilitate to observe the similarity and
differentiation of DWHAs.
4.1 DWHA Overview
Archimate is applied to model 73 distinct DWHAs ex-
tracted from 116 articles. Each identified DWHA is
described and explained below. At the meantime, in
order to better demonstrate and distinguish the differ-
ences among them, these modelled DWHAs are gen-
eralised and merged together in figure 1.
The Hub-and-Spoke DWHA: Bill Inmon proposes
the Hub-and-Spoke DWHA, because it is suitable for
traditional relational database tools to fulfill the de-
velopment requirements of an enterprise-wide DWH
(Breslin, 2004). It is a top-down approach to develop
a DWH system, which means a centralised DWH is
built first, then DMs are built on this DWH.
The Data Mart Bus DWHA: Ralph Kimball (Kim-
ball and Ross, 2013) supports the Data Mart Bus us-
ing dimensional modelling, in which a data modelling
approach is unique to the DWH. The Enterprise-
wide cohesion is accomplished by a data bus standard
(Breslin, 2004). It is a bottom-up approach to develop
a DWH. Conformed dimensional tables and DWH bus
matrices play vital roles to provide consistent dimen-
sions for implementation of DMs asynchronously.
The Centralised DHWA: The Centralised DHWA
collects heterogeneous data into the enterprise-level
cross-functional information system, which enables
the separate sources to be used together and stores

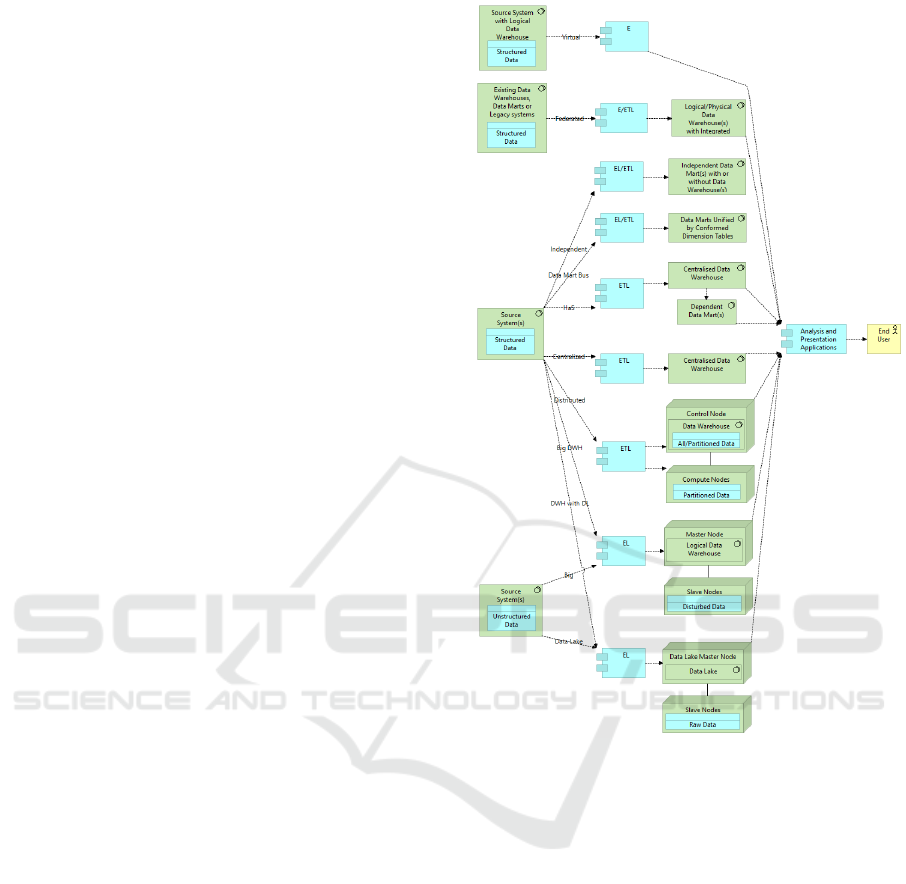

Figure 1: Data Warehouse Architecture Overview.
the presentation-ready format for requests from end
users or further analysis. The topology of this DWH is
not complicated to maintain warehouse data for many
end-users and applications throughout the organiza-
tion (Bontempo and Zagelow, 1998).
The Independent DWHA: In this research, the in-
dependent DHWA originally derives from a broader
scope rather than the Independent Data Marts. The In-
dependent Data Marts consist of physically/logically
separated and irrelevant DMs. while the Independent
DHWA may contain hybrid and less-coupling compo-
nents including DWHs and DMs. This type of archi-
tecture may be called as the DM architecture which
has the independent DM(s) or distributed DHWA
that contains the mixed but independent DWH(s) and
DM(s) like the architecture in (Sahama and Croll,
2007).
The Federated DWHA: The Federated DWHA is
based on the “bottom-up” implementation, in which
enterprise-level dependent DMs can provide the
Analysis of Data Warehouse Architectures: Modeling and Classification
607
enterprise-wide analytical solutions. The federated
DWH model can be acted as the added data staging
layer that enables easier implementation of analytical
solutions to hide the complexities of operational data
sources (Alsqour et al., 2012).
The Virtual DWHA: The virtual DHW manipulates
and analyses operational data sources with limited
data integration functions and also summary views
of the Data Warehouse depending on the complex-
ity of requirements (Chaki and Sarkar, 2010). Mid-
dleware may be leveraged as an interface between
front-end tools and the operational database (Ayman
et al., 2001). (Devlin and Cote, 1996) describes that
a virtual data warehouse is a logical warehouse al-
lowing users to directly access multiple operational
data through middleware tools. It does not necessar-
ily store copies of the operational data with different
formats compared with other DWHAs.
The Distributed DWHA: The distributed DWHA
herein mainly includes DWHs working in parallel
or built on multi-node cloud computing platforms,
in which data are pre-processed and physically dis-
tributed in ODBMS (e.g Oracle, DB2 etc.) with
a predefined schema. This architecture fragments
the warehouse schema using partitioning algorithms
(Pavlo et al., 2012) and allocates the generated frag-
ments over the compute nodes using particular algo-
rithms(Menon, 2005). In order to gain availability of
data and the high performance of the system, the gen-
erated fragments may be duplicated and saved in dif-
ferent compute nodes.
The Big DWHA: This DWH is built on a big data
platform (e.g. Hadoop), in which the distributed file
system and other mechanisms (e.g. MapReduce) are
applied to store and deal with data respectively (Yang
and Helfert, 2016b). This DWH can address big data
issues (e.g. petabyte level) for reporting and ad-hoc
analyses by using SQL-like language (e.g Hive) (Thu-
soo et al., 2010a), which is easily executed by peo-
ple with SQL experience. It can manage unstructured
data provided by a logical DWH (Yang and Helfert,
2016a). This logical DWH does not need to strictly
pre-process data with a predefined schema.
The Data Lake Architecture: The DL can be lever-
aged directly as a centralised raw data repository pro-
viding information for further analyses (Rangarajan
et al., 2015). The DL and DWH can also cooperate
together to address the big data issues and achieve
data analysis requirements, which are generalised and
modelled in figure 1. (Inmon, 2016) presents an ar-
chitecture with a DWH and DL. In their architecture,
the DWH populates the DL, which means the DWH
is built first or a company already has a legacy DWH
then build a DL. Another situation is the DWH fed by
the DL (Pasupuleti and Purra, 2015). The DWH ob-
tain data from the DL, which is suitable for building
the DL then the DWH, optimising the legacy DWH
data flows or extending the DWHA to meeting intan-
gible requirements.
4.2 DWHA Distribution Analysis
A statistics is made to analyse the distribution of these
DWHAs in literature and compare with the two pre-
vious research (Ariyachandra and Watson, 2008) and
(Matouk and Owoc, 2012) presented in table 1.
There is no big conflict among these three results.
The first three DWHAs (Hub-and-Spoke, Data Mart
Bus and Centralised) are similar. In the first two re-
search, the ratios of Data Mart Bus are greater than the
Centralised DHWAs, while in this paper, the result
is the opposite. The reason might be observing the
domain from different angles (e.g. industrial or aca-
demic). Therefore, the three high-weighed DWHAs
are widely accepted in practice and academia. When
choosing or building DWHAs, these three architec-
tures should be concerned. In addition, most of the
papers about DLAs have been published since 2015,
so it shares less proportion. If putting the distributed
DWHA, Big DWHA and DLA together, these three
architectures’ occupation cannot be neglected, which
may imply that big data issues are increasingly in-
escapable in the DWHA context. Hence, when de-
signing and developing DWHAs, it is necessary to
consider these three big-data-oriented architectures.
5 DWHA CLASSIFICATION
MODEL
As discussed before, based on literature, there are two
main DWHA classifications. The layer-based classi-
fication is general and abstract, which gives an out-
line of architectures. The component-based classifi-
cation is derived from use cases in practice. However,
they are some inter-relations between them. Some
DWHAs (e.g. Hub-and-Spoke, Data Mart Bus and
Centralised) may need an ETL tool to extract, trans-
form and load data. Some DHWAs (e.g. Federated
data warehouse architecture) may do not need ETL
tools/staging areas, while, in order to build the log-
ical/physical Federated DHW, the data in its under-
lying DWHA or DM may also need to be reconciled
to provide cleansed, integrated information. There-
fore, the four architectures (the Hub-and-Spoke, Data
Mart Bus, Centralised and Federated) have a similar
structure as the three-layered DWHA has. The in-
dependent DWHA extended from the concept of in-
ICEIS 2019 - 21st International Conference on Enterprise Information Systems
608
Table 1: The data warehouse architecture distribution.
DWH Architecture Distribution
Hub and Spoke
Data Mart Bus
Centralised
Independent
Federated
Virtual
Distributed
Big DWHA
Data Lake
(Ariyachandra and Watson, 2008) 39% 26% 17% 12% 4%
(Matouk and Owoc, 2012) 35% 23% 20% 15% 7%
This paper 29% 9.3% 27% 8.7% 6.4% 2.9% 8.7% 3.5% 5.2%
dependent DMs has different situations: If it con-
sists of independent DMs mainly for individual de-
partment applications, then it may belong to tradi-
tional two-layered DWHA; If it is mixed with in-
dependent DWHs and DMs, it could belong to the
three-layered DWHA as it may also need to reconcile
data from different sources. Therefore, the relation-
ship between these two main classifications (Layer
Based Classification and Component Based Classifi-
cation) can be illustrated: Two-Layer {Independent
[DM]}; Three-Layer {Hub-and-Spoke, Data Mart
Bus, Centralised, Independent [DWH with DM] and
Federated}. By analysing the two main DWHA clas-
sifications and collected DHWAs from literature, we
propose a new classification model of DWHAs based
on their characteristics, which are structured in the top
of table 2 with bold font.
5.1 Discussions and Implications
Even DWHAs are classified in this model, there are
still some indistinct characteristics or similar compo-
nents which could confuse their differentiation. In or-
der to easily identify and explain the differences of
these DWHAs, three features and fifteen sub-features
are chosen and discussed, which mainly derive from
generalised and modelled DWHAs in figure 1. Some
typical DHWAs collected from literature are selected
and discussed here as cases. The table 2 analyses and
summarises differences of these cases. The tick in
this table means that a certain DWHA has this sub-
feature or can address this sub-feature. For example,
the Virtual DWHA manipulates structured data and
then a tick is placed in the related cell. As can be seen
in this table, differences could be analysed from the
feature perspective. For example, most of DWHAs
cannot directly process unstructured data except Big
DWH and DL. Hence, if a company needs to anal-
yse a large amount of unstructured data directly, these
two architectures may be more suitable than others.
In order to distinguish the differences and better un-
derstand these DWHAs, some of them are analysed
together, as they have similar components or in the
same branches.
Virtual, Federated and Big Data: From figure 1,
the Virtual, Federated and Big DWHAs could contain
a logical DWH, but from table 2, the virtual DWHA
normally manages data with a single data schema in a
source system, while, the Federated and Big DWHAs
could extract data from multiple data sources. In ad-
dition, the Big DWHA store data using the distributed
file system (DFS); the Federated DWHA may extract
data from different sources and save data in traditional
database management systems.
Independent [DWH with DM], Centralised, Data
Mart Bus, Hub-and-Spoke and Federated: In the
Classification Model, the Centralised, Data Mart Bus,
Hub and Spoke, and Federated DWHAs are cate-
gorised in the three-layer branch. The differences
mainly can be discerned in the ETL and DM fea-
tures. For example, the Data Mart Bus has separated
DMs but connected with conformed dimension tables;
the Hub-and-Spoke has DM(s) getting data from its
depended DWH, but they do not need to be strictly
linked by conformed dimension tables. The Indepen-
dent [DWH with DM] has DWH(s) and DM(s), but
they are independent.
Distributed, Big DWHA and Data Lake: The Dis-
tributed, Big DWHA and DL belong to the same
main branch. The data could be extracted, loaded
then transformed (ELT) in the Big DWHA , as the
Big DWHA has powerful computing platforms (e.g.
Hadoop) to manipulate data. In addition, its big DWH
(e.g. Hive) does not necessarily pre-load data, which
only needs to be informed where the data is stored in
DFS. However, data in the Distributed DHW should
be extracted, transformed then loaded into a DHW
with a predefined schema (ETL). Besides, the DL
stores row data with detailed granularity, which ex-
tracts and loads (EL) row data from sources with less
pre-processing.
Analysis of Data Warehouse Architectures: Modeling and Classification
609
Table 2: DWHA Classification Model.
DWHA Classification Model
Data Warehouse Architecture
Traditional Data
Oriented Architecture
Big Data Oriented
Architecture
One
Layer
Two
Layer
Three Layer
Big Synergetic
Virtual
Independent
[DM]
Independent
[DWH with DM]
Centralised
Data Mart Bus
Hub-and-Spoke
Federated
Distributed
Big DWHA
Data Lake
Data Type
Structured Data X X X X X X X X
Structured &
Unstructured Data
X X
Schema
Single X X
Multiple X X X X X X X X
ETL
Extract X X
Extract & Load X X X
Extract & Transform
Extract &
Load & Transform
X
Extract &
Transform & Load
X X X X
Data Mart
Conformed Data Mart
X
Independent Data Mart
X X
Dependent Data Mart
X
Unknown or Null
X X X X X X
Storage
Distributed X X X
Aggregated X X X X X X X
6 CONCLUSION
This paper conducts a quantitative study associated
with a systematical literature review on DWHAs to in-
vestigate them from the traditional data oriented and
big data oriented perspectives. 116 publications are
collected from literature and 73 disparate DHWAs are
modelled using Archimate. Based on these modelled
DWHAs and their characteristics, 9 representative
DWHAs are identified and summarised into a ”big
picture” which directly demonstrates their similarities
and differences. The number of these architectures
are counted and their distribution is generated by the
statistic technique. Furthermore, a new DWHA clas-
sification model is proposed to better identify, anal-
yse and compare DWHAs from featured and struc-
tural perspectives. For future work, the classification
model would be refined with more features to bet-
ter measure the performance or difference of these
DWHAs. Also, this model would be extended to ac-
commodate new technologies and DWHAs in further
research.
ACKNOWLEDGEMENTS
This publication is supported by the Science Founda-
tion Ireland grant SFI/12/RC/2289 to Insight Centre
for Data Analytics. INSIGHT is funded under the SFI
Research Centres Programme and is co-funded under
the European Regional Development Fund.
REFERENCES
Aliaga, M. and Gunderson, B. (2006). Interactive Statistics,
3rd Edition. Pearson.
Alsqour, M., K, M., and Owoc, M. L. (2012). A survey of
data warehouse architectures: preliminary results. In
InFedCSIS (pp. 1121-1126).
Ariyachandra, T. and Watson, H. (2010). Key organiza-
tional factors in data warehouse architecture selection.
In Decision support systems. 2010 31;49(2):200-12.
Ariyachandra, T. and Watson, H. J. (2006). Which data
warehouse architecture is most successful? In Busi-
ness intelligence journal, 11(1), p.4.
ICEIS 2019 - 21st International Conference on Enterprise Information Systems
610
Ariyachandra, T. and Watson, H. J. (2008). Which data
warehouse architecture is the best? In Communica-
tions of the ACM, 51(10), p.146. ACM.
Ayman, A., Zaiane Osmar, R., and Ji, Y. (2001). Towards
framework for the virtual data warehouse. In British
National conference on databases (pp. 202-218).
Bla
ˇ
zi
´
c, G., Po
ˇ
s
ˇ
ci
´
c, P., and Jak
ˇ
si
´
c, D. (2017). Data ware-
house architecture classification. In Information and
Communication Technology, Electronics and Micro-
electronics (MIPRO), 2017 40th International Con-
vention on (pp. 1491-1495). IEEE.
Bontempo, C. and Zagelow, G. (1998). The ibm data ware-
house architecture. In Communications of the ACM,
1;41(9):38-48. ACM.
Breslin, M. (2004). Data warehousing battle of the giants.
In Business Intelligence Journal.
Chaki, N. and Sarkar, B. (2010). Virtual data ware-
house modeling using petri nets for distributed deci-
sion making. In Journal of Convergence Information
Technology, 5(5), pp.8-21.
Devlin, B. (2014). Data lake muddies the waters
on big data management. In Available at:
https://searchbusinessanalytics.techtarget.com/feature/
Data-lake-muddies-the-waters-on-big-dat-
management [Accessed 15 Novmber 2018].
Devlin, B. and Cote, L. (1996). Data warehouse: from ar-
chitecture to implementation. Addison-Wesley Long-
man Publishing Co., Inc.,.
Dixon, J. (2010). Pentaho, hadoop and data lakes. In Avail-
able at: https://jamesdixon.wordpress.com/2010/
10/14/pentaho-hadoop-and-data-lakes/ [Accessed 15
Novmber 2018].
Ge, M. and Helfert, M. (2006). A framework to assess deci-
sion quality using information quality dimensions. In
11th International Conference on Information Qual-
ity, pages 455–466.
George, S. (2012). Inmon vs. kimball: Which approach is
suitable for your data warehouse. data warehous. In
pp.1-12.
Inmon, B. (2016). Data Lake Architecture: Designing the
Data Lake and Avoiding the Garbage Dump. Tech-
nics.
Inmon, W. (1997). What is a data warehouse? In Prism
Tech. Topic 1(1).
Katal, A., Wazid, M., and Goudar, R. (2013). Big data:
issues, challenges, tools and good practices. In Con-
temporary Computing (IC3), 2013 Sixth International
Conference on (pp. 404-409). IEEE.
Kimball, R. and Ross, M. (2013). The data warehouse
toolkit: the complete guide to dimensional modeling.
John Wiley & Sons.
Matouk, K. and Owoc, M. L. (2012). A survey of
data warehouse architectures—preliminary results. In
Computer Science and Information Systems (FedC-
SIS), 2012 Federated Conference on (pp. 1121- 1126).
IEEE.
Menon, S. (2005). Allocating fragments in distributed
databases. In IEEE transactions on parallel and dis-
tributed systems, 16(7), pp.577-585.
Modelling, A. (2018). Archi open source
archimate modelling. In Available at:
https://www.archimatetool.com/ [Accessed 15
Novmber 2018].
Muijs, D. (2010). Doing quantitative research in education
with SPSS. SAGE Publications Ltd.
Pasquale, C., Ionescu, B., Ionescu, D., and Gurerero,
A. (2008). Virtual data warehouse architecture
for real-time webgis. In Virtual Environments,
Human-Computer Interfaces and Measurement Sys-
tems, 2008. IEEE Conference on. IEEE.
Pasupuleti, P. and Purra, B. (2015). Data Lake Development
with Big Data. Packt Publishing Ltd.
Patten, M. L. and Newhart, M. (2018). Understanding Re-
search Methods: An Overview of the Essentials. Tay-
lor & Francis, New York and London.
Pavlo, A., Curino, C., and Zdonik, S. (2012). Skew-aware
automatic database partitioning in shared-nothing,
parallel oltp systems. In Proceedings of the 2012 ACM
SIGMOD International Conference on Management
of Data (pp. 61-72). ACM.
Rangarajan, S., Liu, H., Wang, H., and Wang, C. (2015).
Scalable architecture for personalized healthcare ser-
vice recommendation using big data lake. In Service
Research and Innovation (pp. 65-79). Springer, Cham.
Research, C. (2014). Putting the data lake to work a guide
to best practices. In Teradata.
Robson, C. and McCartan, K. (2018). Real world research.
John Wiley & Sons.
Sahama, T. and Croll, P. (2007). A data warehouse architec-
ture for clinical data warehousing. In Proceedings of
the fifth Australasian symposium on ACSW frontiers-
Volume 68. Australian Computer Society, Inc.
Scheibe, K. and Nilakanta, S. (2008). Dimensional issues
in agricultural data warehouse designs. In pp.263-278.
electronics in agriculture, 60(2).
Senapati, R. and Kumar, D. A. (2014). A survey on data
warehouse architecture. In International Journal of
Innovative Research in Computer and Communica-
tion Engineering.
Thusoo, A., Sarma, J., Jain, N., Shao, Z., Chakka, P., Zhang,
N., Antony, S., Liu, H., and Murthy, R. (2010a). Hive-
a petabyte scale data warehouse using hadoop. In
Data Engineering (ICDE), 2010 IEEE 26th Interna-
tional Conference on (pp. 996-1005). IEEE.
Thusoo, A., Shao, Z., Anthony, S., Borthakur, D., Jain, N.,
Sarma, J. S., Murthy, R., and Liu, H. (2010b). Data
warehousing and analytics infrastructure at facebook.
In Proceedings of the 2010 ACM International Con-
ference on Management of data (pp.1013-1020).
Yang, Q., Ge, M., and Helfert, M. (2017). Data quality
problems in tpc-di based data integration processes.
In International Conference on Enterprise Informa-
tion Systems (pp. 57-73). Springer, Cham.
Yang, Q. and Helfert, M. (2016a). Data quality for web log
data using a hadoop environment. In ICIQ 2016: 199-
208. MIT Information Quality ( MITIQ ) Program.
Yang, Q. and Helfert, M. (2016b). Revisiting arguments
for a three layered data warehousing architecture in
the context of the hadoop platform. In Proceedings of
the 6th International Conference on Cloud Computing
and Services Science, Volume 2. SCITEPRESS.
Analysis of Data Warehouse Architectures: Modeling and Classification
611
