Cloud.Jus: Architecture for Provisioning

Infrastructure as a Service in the Government Sector

Klayton Castro, Gabriel R. D. Macedo, Aleteia P. F. Araujo and Leonardo Reboucas de Carvalho

Department of Computer Science, University of Brasilia, Brasilia, DF, Brazil

Keywords:

Infrastructure as a Service, Interoperability, Community Cloud, Multi-cloud, Federation.

Abstract:

Building a community cloud by federating private clouds is one of the lower cost alternatives for hosting ap-

plications that require distributed deployment to meet scale-saving, high availability, reliability, and service

level compliance. Despite its potential beneﬁts, there are many issues about lack of standardization, system

integration, interoperability and portability across multiple service providers, resulting in low adherence to the

model in organizations that are still struggling to adapt its legacy applications to a cloud architecture in com-

plex environments, such as some governmental sector scenarios. Currently, there is no seamless approach to

migrate from the traditional infrastructure model to a cloud computing model on these organizations. So, we

propose an architecture for building a community cloud even in scenarios with a strong presence of non-cloud

native applications by developing a low-coupled infrastructure middleware that supports different hypervisors,

a GUI and a CLI. To show the feasibility of our approach, we evaluate the architecture on a set of infrastruc-

tures at Superior Courts of Brazilian Judicial Branch, that may compose a cost-effective solution to start the

transition to the cloud model in other organizations also.

1 INTRODUCTION

Part of information technology (IT) areas in organiza-

tions focus its controls on their work processes, re-

sulting in a culture oriented to technological silos,

particularly in the infrastructure provisioning, becom-

ing its environments quite complex, which require

ever-increasing and specialized management teams

(Sosinsky, 2010). Besides, a not suitable infrastruc-

ture creates an uncomfortable situation for adminis-

trators, who need to support the growing demands

very quickly while maintaining the environment sta-

bility (Ahn et al., 2014). This way, to build integrated

IT solutions is a meaningful challenge, because it is

hard to create universal service platforms in environ-

ments that result from disaggregated business rules

for each system (Edwards, 2012).

Then, the cloud computing model stands out,

quickly demonstrating its ability to transform the path

of managing IT resources, making them more ag-

ile and efﬁcient (Kim et al., 2016) by providing on-

demand access as a service to a shared set of conﬁg-

urable assets, such as network, servers, storage, and

applications, that may be dynamically provisioned

and instantiated with minimal effort (Buyya et al.,

2013). Although the cloud computing model has be-

come a favorite choice about a decade ago, establish-

ing itself as a reality for many organizations, there is

still a lack of standardization and uncertainties about

interoperability, integration, and portability over mul-

tiple infrastructures (Baur et al., 2015).

Also, the literature recommends to employ dif-

ferent infrastructures, both to ensure the IT services

availability and to avoid the vendor lock-in, that is the

blocking effect on a single provider, aiming to avoid

risks concerning reduced responsiveness, resilience,

and service continuity when relying on a single on-

premises datacenter (Petcu et al., 2013). To over-

come this high-coupling hurdle, virtualizing all ap-

plications and service dependencies, associating them

with cloud middleware and standardized interfaces is

an option (Brasileiro et al., 2016a).

However, each provider applies its standardization

patterns, and there is enough room to improve the

interoperability issues, such as storage access meth-

ods, virtual machine (VM) image formats, applica-

tion and services resources provisioning through Ap-

plication Programming Interfaces (API) (B

egin et al.,

2008). Besides, there are some open programming li-

braries able to deal with some virtualization vendors

and Cloud Service Providers (CSPs), such as libvirt,

jclouds, and libcloud (Wickboldt et al., 2014), that

412

Castro, K., Macedo, G., Araujo, A. and de Carvalho, L.

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector.

DOI: 10.5220/0007731804120421

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 412-421

ISBN: 978-989-758-365-0

also requires integration into preexisting interfaces to

become productive. There are some initiatives aimed

at making general speciﬁcations useful for APIs, such

as the Open Cloud Computing Interface (OCCI) and

Cloud Infrastructure Management Interface (CIMI),

which are still not very mature and evolve in a rather

timid manner, whose CSPs demonstrate a low interest

to support them fully (Baur and Domaschka, 2016).

Other approaches accommodate similarities to CSP’s

industry, giving rise to open Cloud Management Plat-

forms (CMP), which propose resources orchestration

in a cloud manner (Baur et al., 2015). Nevertheless,

the most prominent CMPs promise very close features

and capabilities, making it difﬁcult to select the most

appropriate tool for each organization. Also, such

tools carry a certain complexity of conﬁguration and

do not instantly provide as many resources as desired

and necessary, not rarely leading to exhaustive efforts

to promote satisfying deployment (Wickboldt et al.,

2014).

This way, migrating an existing application or

building a new one using a cloud-native architecture

requires a lot of research and development efforts to

take advantage of available technologies and mitigate

the rework risks, that is not whenever possible. Thus,

our initial motivation is to reconcile the use of IT in-

frastructure assets in the Brazilian government sector,

especially at Superior Courts of Judicial Branch of the

Union (PJU), modernizing them to a cloud-based ar-

chitecture. Similarly, we believe another set of partner

institutions can collaboratively share their infrastruc-

ture in the same way, supporting the investments’ as-

sertiveness, and avoiding too many operational costs

when dealing with complex environments.

In general, medium-sized organizations that al-

ready implemented on-premises data centers observe

low use of the investments made in counterpart to the

present potential. Besides, many institutions such as

Brazilian Superior Courts have available a lot of not

shared IT infrastructure resources: secure data cen-

ters, reliable communications networks, large stor-

age platforms, and modern server equipment, with

leading market virtualization systems, i.e., VMware

(VMware, 2018), Hyper-V (Microsoft, 2016) and Or-

acle VM (Oracle, 2018). Such IT professionals and

geographically distributed robust assets are available

but still isolated on each organization.

Then, it is natural that create a community cloud

by federating these resources offer advantages over

pure private clouds. Following this approach, if at

least a portion of the infrastructure present in each

organization, it is possible to develop a typical and

seamless architecture, regarding the particularities of

each environment. So, the question arises: is it pos-

sible to deﬁne an Infrastructure as a Service archi-

tecture to abstract the underlying complexity, based

on low-coupled design and non-intrusive standardiza-

tion patterns, able to enhance the beneﬁts of the cloud

computing model at governmental organizations?

2 STANDARDIZATION AND

SERVICE ORIENTATION

CONCEPTS

Performing cloud computing consists in an infrastruc-

ture agnostic way for deploying multiple placement

independent resources, maintaining its transparency

(Vaquero et al., 2008). Thus, the distributed services

and the data exchange uniformity mechanisms con-

tributes signiﬁcantly for developing efﬁcient applica-

tions according to this paradigm. The improved vir-

tualization technologies associated with the applica-

tion of Service Oriented Architecture (SOA) become

widely useful (Buyya, 2009).

Concerning an abstraction of these services, there

is a cloud management layer, which consists in: (1)

API (Application Programming Interface), (2) CLI

(Command Line Interface), (3) GUI (Graphic Inter-

face User Interface), in general called Dashboard, and

(4) Orchestrator components, which are responsible

for performing essential functions such as instantiat-

ing, deleting and managing VMs, monitoring usage,

and power management (Dukari

c and Juri

c, 2013). In

this way, APIs are sets of routines and protocols that

act to intermediate the connection between two sys-

tems (operating system, web site) or speciﬁc services

that talk to each other to perform tasks and process

requests from users, as well as other independent sys-

tems or services (Paul et al., 2014).

Due to the interoperability needs in a low-coupled

way, approaches based on the use of APIs are gaining

prominence, since they are more transparent for the

customers (Buyya et al., 2013). So, main cloud com-

ponents are controlled by SOA mechanisms, main-

tained by communicating APIs, that supports the in-

teraction with the underlying infrastructure, integrat-

ing completely different environments and compo-

nents. Then, SOA implementation make possible to

do fast interactions, focusing on orchestrator-based

approaches, that establish service interfaces to the re-

sources provisioning.

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector

413

Table 1: Distinguishes among CMPs.

OpenStack OpenNebula CloudStack Eucalyptus

Supported APIs AWS/OCCI AWS/OCCI AWS AWS

Supported Hypervisors

Xen, KVM,

VMware

Xen, KVM,

VMware

KVM, Xen,

VMware,

Oracle VM

Xen, KVM,

VMware

Architecture

Component

Based

Low-Coupled Strong-Coupled Strong-Coupled

Hybrid Cloud No Yes Yes Yes

3 CLOUD MANAGEMENT

PLATFORMS

Cloud computing model requires supporting large-

scale elastic data centers, orchestrated according to an

agile infrastructure model (Edwards, 2014). By oper-

ating in this way, the resources association becomes

increasingly active, providing efﬁciency gains by as-

signing layers of abstraction that do not demand the

user to know about the placement and other conﬁgura-

tion details (Foster et al., 2008). In this scenario, free

software-based cloud management platforms (CMP)

are available, such as OpenNebula (Sotomayor et al.,

2009) and OpenStack (Sefraoui et al., 2012).

According to Roveda et al. (Roveda et al., 2016),

OpenStack stands out for corporate acceptance, al-

though it is more fragmented, complex and robust,

while OpenNebula offers simplicity and efﬁciency.

While OpenNebula aims to manage private, hybrid

or public clouds, according to the IaaS model, Open-

Stack fulﬁlls covers all the infrastructure resource lay-

ers through a modular architecture, based on a series

of interoperable projects. However, many companies,

public organizations, and other institutions still do not

take full advantage of these solutions, partly because

of the uncertainties about using community-based

software without commercial support or even lack

of accurate information on such possibilities (Fiore

et al., 2015).

In addition to OpenStack and OpenNebula, there

are other useful CMPs, such as CloudStack and Eu-

calyptus, demonstrating that it is possible to structure

such solutions efﬁciently, making them viable alterna-

tives over commercial providers (Casaj et al., 2014).

Lynn et al. (Lynn et al., 2015) and Parmar and Cham-

paneria (Parmar and Champaneria, 2014) present a

qualitative review of the most prominent open source

CMPs in IaaS research ﬁeld (OpenStack, OpenNeb-

ula, CloudStack, and Eucalyptus), whose main dis-

tinctions are in the Table 1.

Llorente (Llorente, 2013) states that presented so-

lutions follow two philosophies of design, due to

functional closeness of commercial implementations

considered as state of the art: Datacenter Virtual-

ization (OpenNebula and CloudStack, conceptually

closer to the characteristics of VMware vCloud) and

Infrastructure Provisioning (OpenStack and Eucalyp-

tus, conceptually closer to the characteristics of Ama-

zon AWS) as described in the Table 2.

Table 2: Different philosophies for IaaS.

Datacenter Virtualiza-

tion

Infrastructure Provi-

sioning

Application

Type

Multilayer, conven-

tional deﬁned

cloud native

Interfaces API and Admin Dash-

board feature-rich

Simple API and self-

service portal

Management Fulﬁt the life cycle of

resources

Simple, with full ab-

straction of underlying

infraestructure

Deployment

Model

Private, mostly Public, mostly

Design Ap-

proach

Bottom-up, deﬁned by

data center complexity

Top-down, deﬁnided

by efﬁcient cloud

interfaces

Business

Require-

ments

High-Availability,

Fault-Tolerance, Repli-

cation and scheduling

cloud promoted

Design depends on ap-

plication

Data center

Integration

Ease to adapt and get

gain CapEx

Built on homogeneus

market infrastructure.

4 INTEROPERABILITY

APPROACHES

Cloud interoperability problems become more evi-

dent as CSPs deliver new products and features, while

more companies migrate their applications to these

environments (Ciuffoletti, 2014). It is necessary to

enable a broader cloud ecosystem to take advantage

of familiar to the market elasticity and service mea-

surement into three-dimensional aspects (Petcu et al.,

2013): (1) federation and communication policies be-

tween CSPs, (2) execution environment and migration

support, and (3) abstraction of programmatic differ-

ences between CSPs in the architecture design.

When provisioning on-demand resources through

cloud computing services, it requires appropriate

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

414

communication interfaces between the existing ab-

straction layers to deal uniformly with each infras-

tructure segment (Demchenko et al., 2012). Aiming at

representing the CMP structures generically, Dukaric

and Juric proposed a taxonomy, that helps to create

a systematic approach about similarity of terms, no-

tions of semantics and relationships involved, con-

sidering most prominent CMPs features (Dukari

c and

Juri

c, 2013), as described on following layers:

1. Resource abstraction: comprises the basic infras-

tructure (computing, storage, and network).

2. Main Services: Displays the highlighted compo-

nents to enable resource delivery (identity man-

agement, scheduling of tasks, a repository of VM

images, billing and event logging).

3. Support: it acts as middleware, providing com-

munication mechanisms for cooperation and in-

teraction with other components (message bus,

database, and ﬁle transfer).

4. Security: includes authentication, authorization,

and security groups).

5. Management: includes federation, elasticity, re-

sources, users and groups, service levels, report-

ing, monitoring, incidents, power management,

and resource allocation.

6. Control: Provides mechanisms for application

and monitoring of service levels, measurement

and policy deﬁnition, orchestration (automation

of tasks such as creating, monitoring, updating,

and deleting instances of virtual machines through

API or CLI) and notiﬁcation of events.

7. Value-added services: It complements the core

services layer (establishment of availability zones,

support for high availability, hybrid cloud support,

live migration, among others).

5 RELATED WORK

Minimal management tasks on individual compo-

nents can compromise applications for reasons that

are not obvious to non-specialists. So, search for uni-

form management standard assists in proposing com-

mon interoperability mechanisms, meeting the need

to combine resources and different suppliers, because

of its heterogeneity and unknown dependencies. Al-

though, universal processes are not entirely deﬁned

yet for the automated provisioning of topologies in

complex sets of applications and their adaptation at

runtime. So, it is essential to follow in an open ap-

proach, designed to be extensible. The literature fo-

cuses its efforts to standardize interfaces, to develop

provisioning and cloud federation middlewares, and

some hybrid approaches.

One of the most prominent standards used in more

recent work is the OCCI (Open Cloud Computing In-

terface) (OCCI, 2018) that deﬁnes a REST API and

a metamodel for IaaS environments. The ability to

simplify the developer’s work with cloud systems in-

tegration is one of the critical beneﬁts of OCCI, which

abstracts the differences between service implementa-

tions independently of the vendor (Korte et al., 2018).

The use of middlewares is particularly useful, both

to enable a resource-friendly transition of resources

between vendors, and to promote the required in-

tegrations for the legacy applications. The hybrid

approaches usually implement open source CMPs

on dedicated architectures, compatible with existing

standards (Toosi et al., 2014).

This way, compatibility with familiar CMPs is

particularly useful for infrastructure provisioning in

federated clouds composition, such as the Federated

Cloud Platform (FCP), developed by EGI (European

Grid Infrastructure), an association of academic insti-

tutions focused on high-performance computing. The

FCP groups 37 institutional-oriented scientiﬁc clouds

and gathers 21 providers running platforms such as

OpenStack, OpenNebula, and CloudStack, as demon-

strated in the works of Sustr et al. (

Sustr et al., 2016)

and Casaj et al. (Casaj et al., 2014).

Aiming to support the OCCI standard, emerge

some extensions to the signiﬁcant CMPs, presenting

integrations with speciﬁc architectures, that can ab-

stract the IaaS layer complexity following the OCCI

patterns (Parpaillon et al., 2015). Par (Par et al., 2016)

presents the rOCCI framework, a stack of components

for creating client/server applications conforming to

the OCCI standard. The rOCCI-core library imple-

ments the OCCI class structure, enabling it to be used

natively in programming, while rOCCI-API imple-

ment OCCI transport services through the HTTP pro-

tocol. ROCCI-server relies on speciﬁc backends to

communicate with various types of CMPs structures,

acting as a kind of stateless translator. ROCCI-CLI is

a command-line client for controlling IaaS compati-

ble clouds, i.e., the OpenNebula.

However, Wickboldt et al. (Wickboldt et al.,

2014) point out that a common design aspect of cur-

rent CMPs concerns the black box-like control na-

ture in which cloud administrators have little opportu-

nity to inﬂuence the resources management, i.e., VM

host positioning and virtual link path selection. The

authors present the Aurora Cloud Manager (Aurora

CM), whose architecture makes possible to control

some aspects of infrastructure, such as the network

ﬂow trafﬁc in real time, through interaction with the

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector

415

API. The Aurora CM establishes an object-oriented

API to make IaaS provisioning and resource man-

agement more ﬂexible and, also, natively interacts

with user-friendly external systems for improving the

cloud monitoring (Cunha Rodrigues et al., 2016).

The deployment of applications that need to op-

erate in different environments with identity manage-

ment coming from multiple networks is addressed in

the CYCLONE (Slawik et al., 2017) project. It is a

middleware stack that allows you to deploy and man-

age multi-cloud applications and CMPs, including the

implementation of identity federation, and a network

manager that connects VMs regardless of the under-

lying infrastructure and use-case presentation in the

area of bioinformatics. CYCLONE enables the feder-

ation of heterogeneous environments but does not of-

fer a complete provisioning suite, involving features

desirable to customers, such as monitoring and cus-

tom usage reports.

Similarly, FogBow is the middleware used in EU-

Brazil’s Cloud Connect project to federate private

clouds hosted by Brazilian and European research

institutions, running on the IaaS CloudStack, Open-

Stack and OpenNebula platforms (Brasileiro et al.,

2016b). It bases on a higher architecture level on

top of the IaaS cloud orchestrators of each member of

the federation, and it presents excellent ﬂexibility by

employing dedicated plugins, which allow the deﬁni-

tion of precise points of interaction between the fed-

eration middleware and the underlying cloud orches-

trator. Like the previously described works, FogBow

provides a standard implementation of the OCCI in-

terface, enabling customers to interact with speciﬁc

managers.

6 Cloud.Jus ARCHITECTURE

Despite serving users over all the country, there is

an eager high-coupling effect in the Brazilian PJU,

whose applications operates exclusively on its Courts

at on-premises infrastructures. This scenario, similar

to the vendor lock-in ones, sometimes threat the IT

services availability due to maintenance on datacen-

ters among other needs. Considering organizations

must focus on speed, not completeness, and should

think of tools in a chain approach, as this is the only

design pattern that everyone can agree to standard-

ize in complex environments, it is essential to ensure

the low coupling sought as good architecture practice

(Edwards, 2012).

In general, having individually right tools is the

simplest and easiest way to accomplish something,

and the most critical concern is how to integrate a

needed toolset and how to manage logically and con-

sistently. Thus, it is not advisable to create universal

projects that wish to remedy all kinds of situations

immediately. On the contrary, interchangeable com-

ponents must be designed considering that partition-

ing reduces overall complexity and iteration increase

the likelihood of success, highlighting the importance

of low coupling systems (Sessions, 2006).

Large companies such Microsoft, Oracle, and

VMware invest in the development of new resources

and, as a result, these resources work best by using

a combination of products native to these companies,

called stacks (Llorente, 2013). So, it makes no sense

to develop new tools that are already very mature and

widely available in enterprise hypervisors. It thick-

ens the possibilities for organizations to move more

quickly to the cloud model since the legacy cannot

be easily incorporated and there are requirements for

adapting processes and applications, not suitable to

avoid the vendor lock-in effect. Thus, our approach

takes advantage of existing resources and native tools,

focusing on the integration services and interfaces

that make calls in a cloud way.

6.1 Design of Integration Standard

Categorization of services, interfaces, and roles in-

volved must be well deﬁned to evolve the develop-

ment of the architecture. Any changes or exceptions

that may break the agreements should have a prede-

ﬁned treatment, so a component, service, or process

should be as tolerant of vendor switching as possible

(Jamsa, 2012). A formal framework is not yet fully

implemented for the emerging OCCI standard. How-

ever, the associated resource-oriented meta-model de-

ﬁnes it as the best possible candidate to develop a set

of tools to manage all types of cloud infrastructure re-

sources as a service. The proposed architecture in-

teracts directly with each corporate hypervisor CLI

and API using native vendor tools in a comprehen-

sible way at a lower abstraction level. So, it does not

depend exclusively on third-parties libraries such as

libvirt, that becomes a single point of coupling, nor

the need to adapt local management in function of

tools such as OpenStack, which require administra-

tors to change how to deal with the legacy environ-

ment, making it a hard transition to the cloud model.

Neither does depend exclusively on OCCI integra-

tions, which still requires extensions. We employ the

OCCI standard to build the messages used by IaaS

platform services and developed a low-coupled mid-

dleware that translates these messages to each sup-

ported set of hypervisors.

For example, our low-coupled approach makes it

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

416

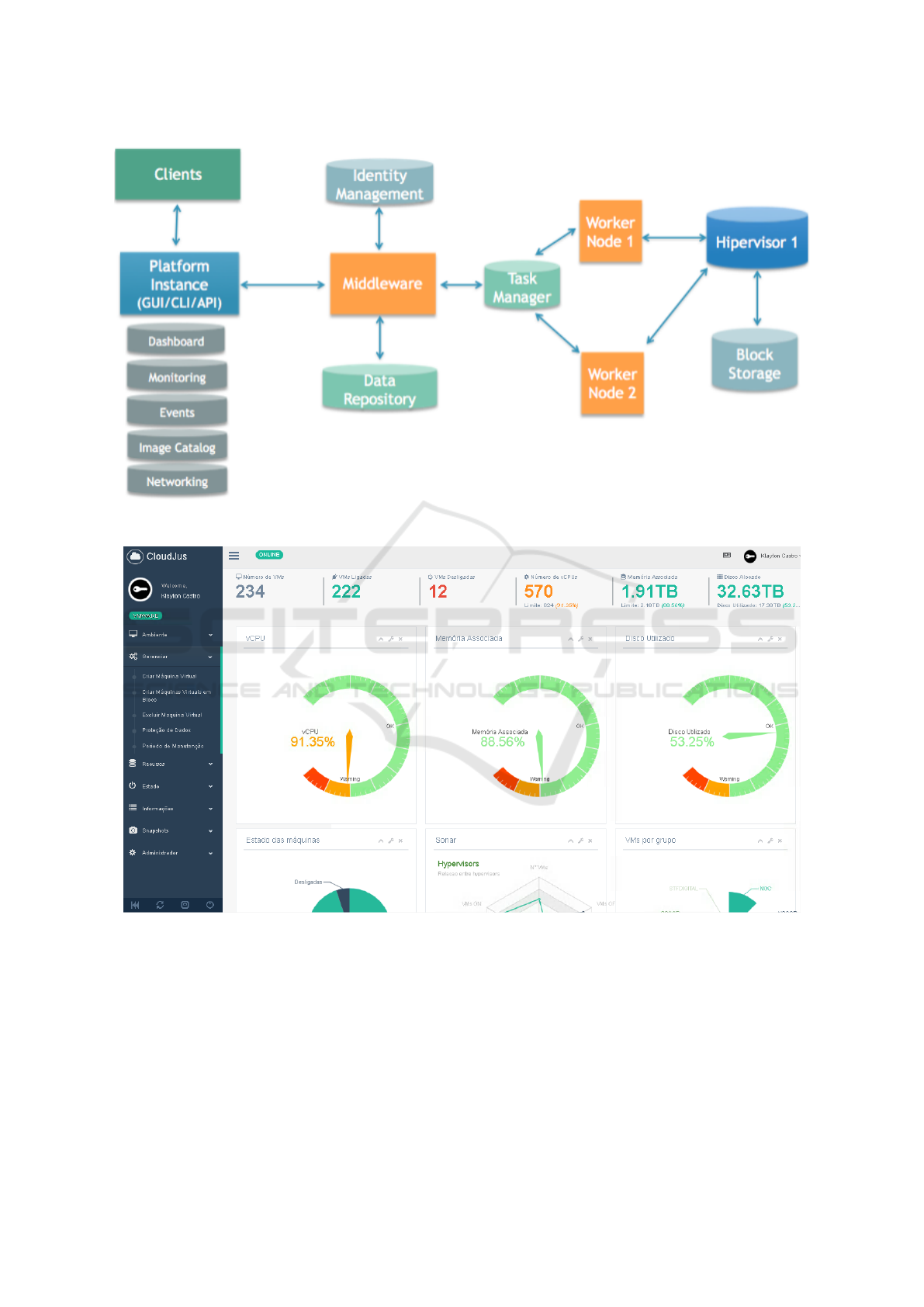

Figure 1: Interaction between middleware and orchestrator and resources.

Figure 2: Dashboard of Platform Cloud.Jus.

possible to respond much more quickly to changes

than rely on libraries such as libvirt, libcloud, or

CMP extensions to integrate with OCCI. During the

Cloud.Jus platform deployment at STF, the local vir-

tualization team performed an upgrade on VMware

ESXi and vCenter environment, from version 5.5 to

6.5. In just a few minutes, the necessary change

for adequacy was implemented easily only in the mi-

croservice code associated with this set of hypervi-

sors, not affecting other operations or requiring addi-

tional intervention in main system modules. It does

not require any changes on middleware, GUI or in-

tegration services, that run entirely in a non-intrusive

mode, outside the hypervisors. Plugins or extensions

are not necessary because we make simple calls to

their native APIs. It means that our solution does

not require any infrastructure adaptation to support

a CMP like CloudStack, OpenNebula or OpenStack,

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector

417

neither change in the local team management way,

but exposes a pool of resources of each virtualization

node for the community cloud instantly.

The Cloud.Jus architecture focuses on the cus-

tomer and cloud administrators, unlike other au-

thors who have proposed more provider-centric ap-

proaches. The architecture establishes a Management

Dashboard that demonstrates the resource utilization

and provides rapid interactions with cloud users and

cloud administrators, without compromising essential

virtualization features at management level, regarding

workload movement and allocation of underlying re-

sources, deﬁnes block storage among others. This ac-

tivities, well known by local administrators, does not

affect the cloud directly and can be made the same as

before. Cloud. Jus infrastructure as a service func-

tional prototype is already able to manage more than

36 virtualization nodes running VMware and Hyper-

V hypervisors and hosting more than 300 VMs at 03

geo-distributed datacenters, using OCCI standard and

microservices interfaces for the supported hypervi-

sors, VMware, Hyper-V, and OracleVM.

6.2 Control Panel

The Control Panel is a Dashboard that controls the

creation, modiﬁcation, and deletion of VM in the IaaS

platform, managing the various components of the

architecture through menus and forms. Besides, it

presents some useful graphs in top-level monitoring

concerning the allocation and utilization of available

resources. The programming language chosen was

PHP for its simplicity and agility by including a ro-

bust set of standardized libraries that make seamless

the integration with the LDAP authentication and au-

thorization, as the use of frameworks such as Boot-

strap, which brings components visually rich in an im-

plementation based on Gentelella, according to Fig-

ure 2. The cloud administrator has maximum man-

agement privileges on the Dashboard. It controls the

resource quotas for each user groups over the cloud

assigned to each hypervisor cluster environment. On

the other hand, a cloud user has access limited to its

scope, having full control from resource allocation to

console execution, which uses the native VMware and

Hyper-V implementations. Until now, Cloud.Jus plat-

form does not support Oracle VM console. It is nec-

essary to use SSH protocol to get access to its VMs.

6.3 Orchestrator

The orchestrator came from the need for the IaaS

model cloud tools that manage public clouds to per-

form essential functions of a private cloud, but on a

large scale. It provides automated management of

the cloud environment control and usage tasks in the

VMs (creation, monitoring, updating, and deletion).

Depending on the architecture of the tool, it can be

seen as a service made available via API or CLI.

The orchestration layer automates tasks and proce-

dures in using the environment, coordinating the de-

mands passed through GUI, CLI and API. Back-end

modules have been developed to handle integration

services between these layers and triggered by the

GUI. The implementation was done using Powershell

scripts that forward requests to hypervisors through

the workers and communicate the actions to middle-

ware, which deals with the update of the metadata

repository according to ﬁgure 1, which demonstrates

the interaction between the components of the orches-

tration layer and the other infrastructure resources.

6.4 Resources Management

It maintains the operations of available infrastructure

resources. It is a responsibility of each member of

the community to act on the existing tools in each

virtualized solution employed, i.e., VMware vCen-

ter. Middleware keeps updated information about hy-

pervisors allocated resources into metadata NoSQL

based repository, which can be queried by other com-

ponents. For this, we chose Cassandra, because it

provides scalability, high performance, and broad ap-

plicability as a distributed storage system, supporting

dynamic control over data layout and format (Kon-

stantinou et al., 2011). Platform message tasks, asyn-

chronously received via the GUI, API, or CLI inter-

face using the OCCI standard, are necessary. So, that

process seamless on back-end nodes (workers), giv-

ing to the system a more ﬂuid look. A queue mes-

saging is needed for parallelizing and, especially, to

order-dependent tasks, like a shutdown and an in-

creasing memory activity for the same VM. For this,

we utilize Kafka as a distributed messaging system

for collecting and delivering messages because its low

latency, that is suitable for ofﬂine and online message

consumption in an efﬁcient and scalable way, provid-

ing distributed support and scale out design (Kreps

et al., 2011). Until now, covers these following IaaS

common tasks, among others:

• Creating and Deleting VMs with CentOS 7.6,

Windows 2012R2, Oracle EL 7.3 and Ubuntu

16.04 images;

• Creating, Changing and Deleting Resources (per-

sistent disk, memory, CPU);

• VM State operations (initialization, shutdown,

and reboot);

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

418

• Snapshot Operations;

• Console Support: Provides to users a server ad-

ministration console to interact with VMware and

Hyper-V transparently.

• Integration and Automation: native support for

monitoring assets performance, availability and

service levels with Zabbix/Grafana built-in;

6.5 Monitoring

It allows the administrator and users to track in gen-

eral the use of the available and available comput-

ing resources. The integration between Cloud.jus and

the Zabbix and Grafana tools via API was imple-

mented, which present real-time information about

metrics such as CPU usage and queue, memory us-

age, network trafﬁc, disk consumption, among other

parameters.

7 DISCUSSION

One of the factors we want to eliminate with the im-

plementation of interoperability in the proposed com-

munity cloud is the vendor lock-in effect. Sometimes

open-source alternative could not fully meet the re-

quirements in the scenario presented in the Brazil-

ian Courts, that requires full compatibility with the

three main corporate hypervisors (VMware, Hyper-

V, and Oracle VM). OpenStack offers limited support

for VMware, leaving Oracle VM uncovered. Integra-

tion with Hyper-V depends on third-party plugins and

does not cover end-to-end management. The integra-

tion with VMware to run OpenStack in its latest re-

lease requires NSX, that is the manufacturer’s SDN

module, which is not yet so popular and is not avail-

able on most organs. The Horizon GUI interface is

visually poor, and it is not simple to implement sev-

eral modules and components of the solution, requir-

ing deep immersion of the administrators, something

that will not always be possible and ending up incur-

ring vendor lock-in, something that you want to avoid.

OpenNebula, while providing an advantageous

workﬂow for the release of features presented by the

visually appealing and functional SunStone interface,

which, despite its smooth implementation, still lacks

in integration. Limited support is offered to VMware,

requiring static sockets to establish the console open-

ing through VNC, where a token is the name of the

port and the machine. It represents a potential vulner-

ability when it comes to an environment that needs

extend to other bodies and communication via the in-

ternet. Hyper-V is not supported, nor is third-party

plugins used.

Despite supporting Oracle VM and VMware,

CloudStack does not support Hyper-V. Eucalyptus

has a different proposal, based on the possibility of

porting the environment through the compatibility of

its API with Amazon AWS. Neither tool offers inte-

gration with robust monitoring tools like Zabbix and

legacy support. We described the approaches con-

sidered by the main related works in the table 1.

There are distinctions about integration and monitor-

ing characteristics can also be observed in these ta-

bles, whose functionality can be more oriented to the

metrics of the solution itself or ﬂexible metrics to

users, in addition to evaluating the coupling of these

solutions.

Search for compatibility with the Amazon APIs,

and OCCI extensibility is quite recurrent. Approaches

such as CYCLONE (Slawik et al., 2017) and FogBow

(Brasileiro et al., 2016b) middleware proposals are at-

tractive to enable integration operations, but require

the association of other tools to obtain a robust com-

munity cloud model. Other alternatives such as Au-

rora (Wickboldt et al., 2014) and DIRAC FCP (Casaj

et al., 2014) do not yet provide a sufﬁciently decou-

pled solution to serve more heterogeneous infrastruc-

tures, such as the Brazilian PJU.

Considering that an IaaS approach could maintain

transparency and compatibility with legacy applica-

tions by acting at a lower level, our choice in this

project employied an architecture to converge already

existing resources into a community cloud with low-

coupled design, that can deal with different infras-

tructure using multiple data centers, network devices,

storage systems, physical servers, and hypervisors. It

providing instances of VMs that abstract the complex-

ity of the underlying layers in an agile and not in-

trusive way. Now, it is easier to understand the use

of tools as interchangeable components and their role

in the process. We developed middleware to inter-

face with different hypervisors, a GUI (Dashboard), a

CLI and other integration services, that offers a uni-

ﬁed resources view and monitoring automation for the

cloud.

8 CONCLUSION

The main contribution of this work is the seamless

provisioning and federation middleware, able to in-

tegrate components and infrastructure resources with

low coupling, keeping the focus on the needs of each

Court, besides a unique Dashboard, that centralizes

the cloud management and high-level capacity moni-

toring. So, while avoiding the vendor lock-in effect,

it is not required to get loss of features on migrat-

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector

419

ing from traditional to cloud infrastructure. Its client-

centric integration and monitoring characteristics use

the APIs of each VMware, Hyper-V, and OracleVM

enterprise virtualization platform that become more

suitable. Unlike other solutions, that depend on evo-

lutions at library level or generic APIs, such as libvirt,

libcloud, and OCCI adaptations, making it unfeasi-

ble for system upgrades and version updates in large,

complex and legacy environments, sacriﬁcing native

hypervisors features by making integration to the vir-

tualization layer something very rigid.

Initially, the platform was implemented to inte-

grate the available resources in the two leading in-

stitutions of the Brazilian PJU, the Federal Supreme

Court (STF) and the National Council of Justice

(CNJ). Cloud.Jus also enables a very ﬂexible native

event monitoring approach, supporting the common

associated systems APIs: Zabbix and Grafana in, al-

lowing both monitoring and proactive and reactive ac-

tions. It may facilitate the transition to a cloud com-

puting model in other organizations also, to promote

common interests, such as maintenance of security in

the geographic distribution of their data, greater re-

dundancy, and tolerance to failures and catastrophes,

implementation of mechanisms to guarantee the strat-

egy of continuity of services. We believe Cloud.Jus

concepts present a feasible architecture contribution

by offering a secure and weakly coupled cloud man-

agement solution at the resources provider level. For

future work, we intend to implement the console call-

ing feature for Oracle-VM and consider mechanisms

to provide billing and resource savings reports.

ACKNOWLEDGEMENT

Klayton Castro thanks the Institutional Security Of-

ﬁce of the Presidency of the Republic of Brazil (Grant

002/2017).

REFERENCES

Ahn, J., Park, C., Huh, J., Lewis, J., and Fowler, M. (2014).

Microservices. In Proceedings of the 47th Interna-

tional Symposium on Microarchitecture.

Baur, D. and Domaschka, J. (2016). Experiences from

building a cross-cloud orchestration tool. In Proceed-

ings of the 3rd Workshop on CrossCloud Infrastruc-

tures Platforms. ACM Press.

Baur, D., Seybold, D., Griesinger, F., Tsitsipas, A., Hauser,

C. B., and Domaschka, J. (2015). Cloud orchestra-

tion features: Are tools ﬁt for purpose? In 2015

IEEE/ACM 8th International Conference on Utility

and Cloud Computing (UCC), pages 95–101.

egin, M.-E., Jones, B., Casey, J., Laure, E., Grey, F.,

Loomis, C., and Kubli, R. (2008). An EGEE Com-

parative Study: Grids and Clouds evolution or revolu-

tion?

Brasileiro, F., Silva, G., Ara

ujo, F., N

obrega, M., Silva, I.,

and Rocha, G. (2016a). Fogbow: A middleware for

the federation of iaas clouds. In 2016 16th IEEE/ACM

International Symposium on Cluster, Cloud and Grid

Computing (CCGrid), pages 531–534.

Brasileiro, F., Vivas, J. L., Silva, G. F. D., Lezzi, D.,

Diaz, C., Badia, R. M., Caballer, M., and Blanquer, I.

(2016b). Flexible federation of cloud providers: The

EUBrazil cloud connect approach. In Proceedings -

IEEE 30th International Conference on Advanced In-

formation Networking and Applications Workshops,

WAINA 2016.

Buyya, R. (2009). Market-oriented cloud computing: Vi-

sion, hype, and reality of delivering computing as the

5th utility. Proceedings: 9th IEEE/ACM International

Symposium on Cluster Computing and the Grid, CC-

GRID 2009, page 1.

Buyya, R., Vecchiola, C., and Selvi, S. T. (2013). Mas-

tering Cloud Computing: Foundations and Appli-

cations Programming. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA, 1st edition.

9780124095397, 9780124114548.

Casaj, A., Diaz, R. G., Tsaregorodtsev, A., M

endez Mu

noz,

V., Casaj

us Ramo, A., Diaz, R. G., and Tsaregorodt-

sev, A. (2014). Cloud governance by a credit model

with DIRAC. In Proceedings of the 4th International

Conference on Cloud Computing and Services Sci-

ence, pages 679–686. SciTePress - Science and and

Technology Publications.

Ciuffoletti, A. (2014). A simple and generic interface for a

cloud monitoring service. In Proceedings of the 4th

International Conference on Cloud Computing and

Services Science. SciTePress - Science and and Tech-

nology Publications.

Cunha Rodrigues, G., Calheiros, R. N., Guimar

aes, V. T.,

Santos, G. L., Carvalho, M. B., Granville, L. Z.,

Tarouco, L. M. R., and Buyya, R. (2016). Monitor-

ing of cloud computing environments. In Proceedings

of the 31st Annual ACM Symposium on Applied Com-

puting - SAC ’16.

Demchenko, Y., Makkes, M. X., Strijkers, R., and De Laat,

C. (2012). Intercloud Architecture for interoperability

and integration. In CloudCom 2012 - Proceedings:

2012 4th IEEE International Conference on Cloud

Computing Technology and Science.

Dukari

c, R. and Juri

c, M. B. (2013). A Taxonomy and Sur-

vey of Infrastructure-as-a-Service Systems. Lecture

Notes on Information Theory.

Edwards, D. (2012). The History Of DevOps.

http://itrevolution.com/the-history-of-devops.

Edwards, D. (2014). Introducing DevOps to the Traditional

Enterprise. InfoQueue / eMag Issue, 14.

Fiore, S., Mancini, M., Elia, D., Nassisi, P., Brasileiro, F. V.,

and Blanquer, I. (2015). Big data analytics for cli-

mate change and biodiversity in the EUBrazilCC fed-

erated cloud infrastructure. In Proceedings of the 12th

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

420

ACM International Conference on Computing Fron-

tiers - CF ’15.

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud com-

puting and grid computing 360-degree compared. In

2008 Grid Computing Environments Workshop, pages

1–10.

Jamsa, D. K. (2012). Cloud Computing: SaaS, PaaS,

IaaS, Virtualization, Business Models, Mobile, Se-

curity and More. Jones & Bartlett Learning.

Http://web.mit.edu/smadnick/www/wp/2013-01.pdf –

Kim, G., Willis, J., Humble, J., and Debois, P. (2016).

The DevOps Handbook: How to Create World-Class

Agility, Reliability and Security in Technology Organi-

zations, volume 2. T Revolution, 2nd edition edition.

Konstantinou, I., Angelou, E., Boumpouka, C., Tsoumakos,

D., and Koziris, N. (2011). On the elasticity of nosql

databases over cloud management platforms. In Pro-

ceedings of the 20perscriptth ACM International Con-

ference on Information and Knowledge Management,

CIKM ’11, pages 2385–2388, New York, NY, USA.

ACM.

Korte, F., Challita, S., Zalila, F., Merle, P., and Grabowski,

J. (2018). Model-driven conﬁguration management

of cloud applications with OCCI. In Proceedings of

the 8th International Conference on Cloud Comput-

ing and Services Science. SCITEPRESS - Science and

Technology Publications.

Kreps, J., Narkhede, N., and Rao, J. (2011). Kafka: A dis-

tributed messaging system for log processing. In Pro-

ceedings of 6th International Workshop on Network-

ing Meets Databases (NetDB). IEEE.

Llorente, I. M. (2013). Eucalyptus, CloudStack, OpenStack

and OpenNebula: A Tale of Two Cloud Models.

Lynn, T., Hunt, G., Corcoran, D., Morrison, J., and Healy,

P. (2015). A comparative study of current open-source

infrastructure as a service frameworks. In Proceedings

of the 5th International Conference on Cloud Com-

puting and Services Science. SciTePress - Science and

and Technology Publications.

Microsoft (2016). Hyper-V Technology Overview.

https://docs.microsoft.com/en-us/windows-

server/virtualization/hyper-v/hyper-v-technology-

overview.

OCCI (2018). Open Cloud Computing Interface.

http://occi-wg.org/.

Oracle (2018). Oracle VM Overview.

https://www.oracle.com/technetwork/server-

storage/vm/overview/index.html.

Par, B., Kimle, M., Fern, P. O., Par

ak, B.,

Sustr, Z., Kimle,

M., Fern

andez, P. O., Garc

ıa,

A. L., Sachtouris, S., and

noz, V. M. (2016). Evolution of the Open Cloud

Computing Interface. In Proceedings of the 6th In-

ternational Conference on Cloud Computing and Ser-

vices Science, volume 2, pages 339–346.

Parmar, H. and Champaneria, T. (2014). Comparative

Study of Open Nebula, Eucalyptus, Open Stack and

Cloud Stack. International Journal of Advanced Re-

search in Computer Science and Software Engineer-

ing, 4(2):991–996.

Parpaillon, J., Merle, P., Barais, O., Dutoo, M., and Paraiso,

F. (2015). OCCIware - A formal and tooled frame-

work for managing everything as a service. In CEUR

Workshop Proceedings.

Paul, S., Jain, R., Samaka, M., and Pan, J. (2014). Ap-

plication delivery in multi-cloud environments using

software deﬁned networking. Computer Networks,

68:166–186.

Petcu, D., Cr, C., and Rak, M. (2013). On the Interoperabil-

ity in Multiple Clouds. In Proceedings of the 3rd In-

ternational Conference on Cloud Computing and Ser-

vices Science. SciTePress - Science and and Technol-

ogy Publications.

Roveda, D., Vogel, A., and Griebler, D. (2016). Under-

standing, Discussing and Analyzing the OpenNebula

and the OpenStack IaaS Management Layers.

Sefraoui, O., Aissaoui, M., and Eleuldj, M. (2012). Open-

stack: Toward an open-source solution for cloud com-

puting. International Journal of Computer Applica-

tions, 55(3):38–42. Full text available.

Sessions, R. (2006). Um melhor caminho para arquiteturas

empresariais.

Slawik, M., Blanchet, C., Demchenko, Y., Turkmen, F.,

Ilyushkin, A., Laat, C. D., and Loomis, C. (2017). CY-

CLONE: The multi-cloud middleware stack for appli-

cation deployment and management. In Proceedings

of the International Conference on Cloud Computing

Technology and Science, CloudCom, pages 347–352.

Sosinsky, B. (2010). Cloud Computing Bible, volume 762.

John Wiley & Sons.

Sotomayor, B., Montero, R. S., Llorente, I. M., and Foster,

I. (2009). Virtual Infrastructure Management in Pri-

vate and Hybrid Clouds. IEEE Internet Computing,

13:5.

Sustr, Z., Scardaci, D., Sitera, J., Par

ak, B., and M

endez

noz, V. (2016). Easing Scientiﬁc Computing and

Federated Management in the Cloud with OCCI. In

Proceedings of the 6th International Conference on

Cloud Computing and Services Science, volume 2,

pages 347–354. SciTePress.

Toosi, A. N., Calheiros, R. N., and Buyya, R. (2014). In-

terconnected cloud computing environments: Chal-

lenges, taxonomy, and survey. ACM Computing Sur-

veys (CSUR), 47(1):1–47.

Vaquero, L. M., Rodero-Merino, L., Caceres, J., and Lind-

ner, M. (2008). A Break in the Clouds: Towards a

Cloud Deﬁnition. Computer Communication Review,

39(1):50–55.

VMware (2018). vSphere ESXi Hypervisor.

https://www.vmware.com/br/products/esxi-and-

esx.html.

Wickboldt, J. A., Esteves, R. P., de Carvalho, M. B., and

Granville, L. Z. (2014). Resource management in iaas

cloud platforms made ﬂexible through programmabil-

ity. Computer Networks, 68:54–70. Communications

and Networking in the Cloud.

Cloud.Jus: Architecture for Provisioning Infrastructure as a Service in the Government Sector

421
