Real-time Processing of Rule-based Complex Event Queries for

Tactical Moving Objects

Yihuai Liang

, Jiwan Lee

, Bonghee Hong

and Woochan Kim

Department of Computer Science and Engineering, Pusan National University, Pusan, Republic of Korea

Agency for Defense Development, Republic of Korea

Keywords: Continuous Processing, Complex Event Processing, CQ Index, Dynamical Rule, Tactical Moving Object.

Abstract: Target data for tactical moving objects are streaming data collected in real time via radar, sonar, and other

sensors. A system of continuous complex event query with dynamic rule definitions and high performance is

needed to process that target data. We develop a continuous complex event query system with rule-based

layered architecture. A continuous processing flow is decomposed into four modules hierarchically, which

are event filtering, event capture, Continuous Queries (CQ) and Complex Event Processing (CEP). Each

module has its responsibility but works together for a completed continuous processing flow. This paper

shows that it is possible to dynamically insert, update, delete and search rule specifications of each layered

modules through the decomposition of the whole system. Many rules are registered in the system for

processing input event data continuously in real time. To improve the performance of getting matching CQs

for each incoming event, CQ index is developed. Finally, experimentations and performance evaluations are

carried out.

1 INTRODUCTION

Different from traditional database management

system, data stream management system (DSMS)

processes the input stream data then produces the

output results continuously in real time. A data stream

is a sequence of tuples that are generated

continuously and incrementally over time with no

end. Many applications process high volumes of

streaming data.

If in the following situations, it should be

considered to use DSMS: (1) Too large amounts of

interesting data to store in hard disks. For example,

data from sensor networks with a massive number of

measurement points. (2) Require real-time analysis

and feedbacks. In a DSMS, the processing model is

push-based or data-driven. It evaluates persistent

queries on transient, append-only data and outputs

results automatically if incoming data meet query

conditions. There is a trade-off between latency and

accuracy, because of processing single-pass stream

data in main memory.

Our target data from tactical moving objects are

stream data collected in real time via radar, sonar, and

other sensors. The data have the following

characteristics: (1) Temporal generating and dynamic

changing, (2) Detected data only contains information

on simple events. The data might be duplicated,

missing, outlier and so on. (3) Large volume from a

massive number of measurement points. The target

data should be processed to detect emergencies within

1 second. Our motivation is to analyze real-time

situations and make alert decisions of tactical moving

objects. We develop a DSMS with the ability of

complex event query over the target data. By using

the system, we query complex events and detect

potential threats in real time.

Figure 1: Scenarios of fighter invasion and detection by

radars and sonars.

From inputting source data to performing a

complex event query, the system goes through a

series of processing procedures, including data

filtering, data adapting, event tracking, meaning

refinement, continuous queries, and complex event

queries. The system could contain hundreds of given

rule specifications and runs based on them. It should

Liang, Y., Lee, J., Hong, B. and Kim, W.

Real-time Processing of Rule-based Complex Event Queries for Tactical Moving Objects.

DOI: 10.5220/0007735700670074

In Proceedings of the 4th International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2019), pages 67-74

ISBN: 978-989-758-366-7

support adding, updating and deleting rule

specifications dynamically without restarting the

whole system. Several rules might work together for

a complete processing flow. So how to make it easy

and flexible to add, update or delete a rule without

affecting other rules? Finding a flexible and dynamic

way to define, organize and manage the rule

specifications is one of the motivations in this paper.

To find out matching CQs for an arriving event, a

naïve approach is to check conditions of each CQ one

by one. It is simple but time-consuming. In our

system, we build a CQ index to solve this issue.

In conclusion, our contributions in this paper are:

 To propose a layered rule-based architecture for

complex event queries.

 To define rule specifications based on the

decomposition of the layered architecture. In

order to make it flexible and dynamic to define,

add, update and delete a rule specification.

 To develop a CQ index by using R*-tree to solve

the performance issue of CQ matching.

The rest of this paper is organized as follows. Section

2 presents an event processing flow. Section 3

presents rule definitions. Section 4 presents the CQ

index. Section 5 presents experiment and section 6

shows results of performance evaluation. Section 7

presents related work. Finally, we conclude the paper

in section 8.

2 EVENT PROCESSING FLOW

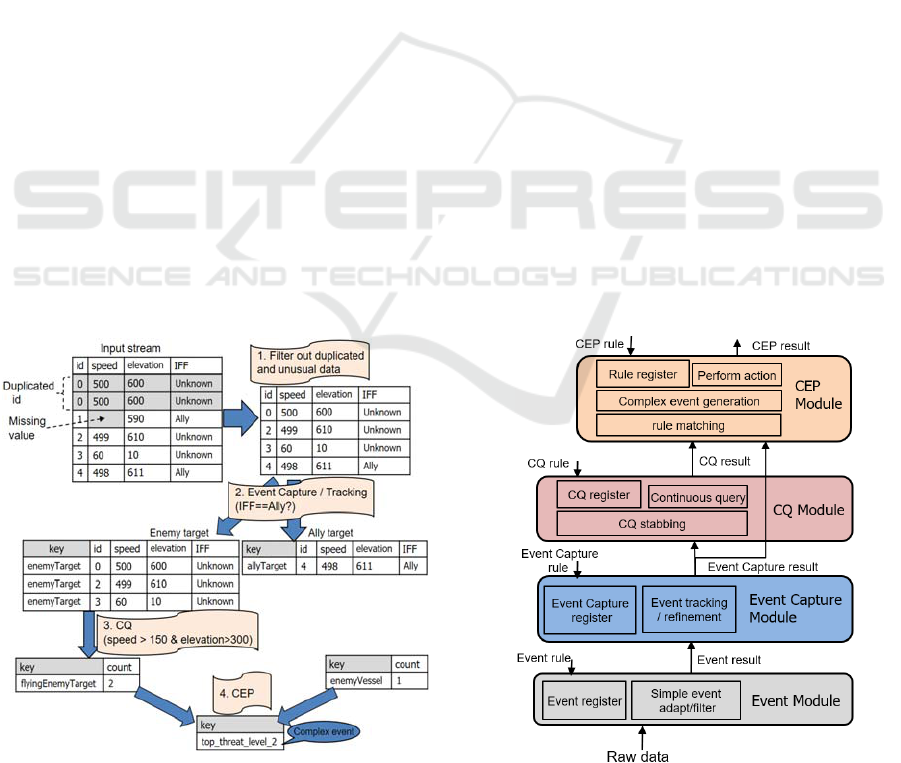

Figure 2: An example of a complex event processing flow.

Before the explanation of event processing flow, let

us take an example shown in Figure 2. First, we filter

out duplicated and unusual input stream data. Second,

we track each data and assign a new meaning to them.

Here, if a data whose field IFF equals to “Ally”, it

belongs to “allyTarget”, else belongs to

“enemyTarget”. Next, we perform CQ to count the

data of “enemyTarget” based on condition

“speed>150 & elevation > 300”. Finally, we perform

CEP to get a complex event “top_threat_level_2”.

The data from input to output goes through a

continuous processing flow. We decompose the flow

into four sub-modules to make the flow clear and

simplify rule definitions. A rule processing flow goes

through four steps as follows:

Step 1: Filter out duplicated and unusual incoming

data.

Step 2: Capture and track events to assign new

meanings to them.

Step 3: Continuous query events using operators

based on query conditions and window. The input

data is from step 2.

Step 4: Perform complex event queries over the input

simple events from step 2 or step 3. Its results can

trigger pre-defined response actions.

In Figure 3, we show the architecture and event

processing flow of our system. There are four

layers/modules, and each has its own registered rules

and output results. They connect together by their

output results to form a complete flow of continuous

complex event queries.

Figure 3: Layered architecture on continuous complex

event queries.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

Each module has its responsibilities. Event

Module is responsible for filtering incoming raw data

and adapting them to simple events. Event Capture

Module is responsible for tracking and refining the

simple events from the Event Module. For example,

as for simple event that meets the condition

speed>150km/s & elevation>100m, we could assign

it new meaning: it is an event of a flying target. CQ

Module is responsible for continuous queries,

consisting of sliding/tumble windows,

stateful/stateless operators, and query expressions

and so on. CEP module is responsible for complex

event processing. It derives complex events from

multiple simple events. The module takes the output

results of the Event Capture Module and CQ Module

as input data, then performs rule matching and

responses actions.

3 RULE-BASED STREAM DATA

PROCESSING

In the previous section, we talk about layered

architecture. The system is decomposed into four

modules. Each module has its own registered rules.

Users tell the system what to do through inputting

rules for each module. In this section, we talk about

how to define rule specifications.

3.1 Rule Format of Event Filtering

The rule of this module is to filter out duplicated and

unusual data. We define the rule format of the Event

Module as follows. IF clause defines the

unduplicated fields and not unusual fields for input

data. It is the filter condition of this rule. FROM

clause defines the DDS topic name. THEN clause

defines the name of output results that satisfy the filter

conditions.

IF <not duplicate(target field)*> AND <not

unusual(target field)*>

FROM <DDS Topic>

THEN <target object>

Example: filter out the data if it has duplicated id or

an unusual value of speed field (Figure 4).

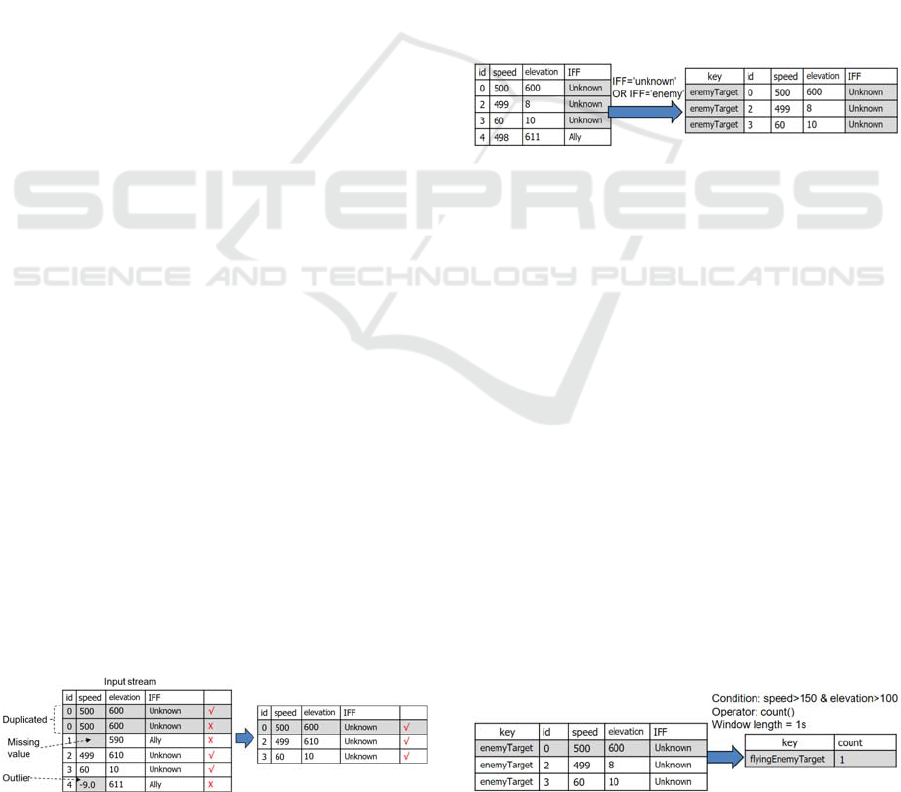

Figure 4: Example of event filtering.

IF not duplicate(id) AND not unusual(speed)

FROM moving_object

THEN target_object

3.2 Rule Format of Event Capture

Event Capture Module is responsible for tracking and

refining the simple events from the Event Module. We

define the rule format of the Event Capture Module

as follows. FROM clause defines the input target

object from the Event Module. If the object satisfies

the conditions in IF clause, it will be assigned a new

meaning.

IF <condition*>

FROM <target object>

THEN <target object with new meaning>

Example: tracking enemy target objects if data meets

the condition “IFF=’unknown’ OR IFF=’enemy’”.

(IFF, Identification Friend or Foe) (Figure 5)

Figure 5: An example of event capture.

IF IFF=’unknown’ OR IFF=’enemy’

FROM moving_object

THEN enemy_object

3.3 Rule Format of CQ

CQ Module is responsible for continuous queries. A

CQ rule consists of query conditions, input data, a

window, object field names for projection and

operators. A window (sliding window or tumble

window) buffers data for supporting aggregate

operations, defined in the WINDOW clause.

IF <condition*>

FROM <target object from Event Capture Module >

WINDOW <length, trigger>

THEN <field name for projection*, operator*>

Example: query the count of flying event belonging

to an enemy in the last 1 second and output the results

every 1 second. (Figure 6)

Figure 6: An example of CQ.

Real-time Processing of Rule-based Complex Event Queries for Tactical Moving Objects

IF speed>150km/s AND elevation>100m

FROM enemy_object

WINDOW length=1000ms, trigger=1000ms

THEN count

3.4 Rule Format of CEP

We define the rule of CEP to indicate how to denote

a complex event. To derive a complex event from

multiple simple events, it is necessary to analyze the

relationships among different types of simple events.

The format of CEP rule is almost the same as CQ rule.

However, the input target data defined in the FROM

clause is from the Event Capture Module or CQ

Module. We define it as follows:

IF <condition*>

FROM <objects from Event Capture or CQ Module>

WINDOW <length, trigger>

THEN <complex event>

Example: derive complex event top_threat_level_2

if simple events approachingAirplane and

approachingMissile both exist in the last 2 seconds.

Perform the query every 2 seconds (Figure 7).

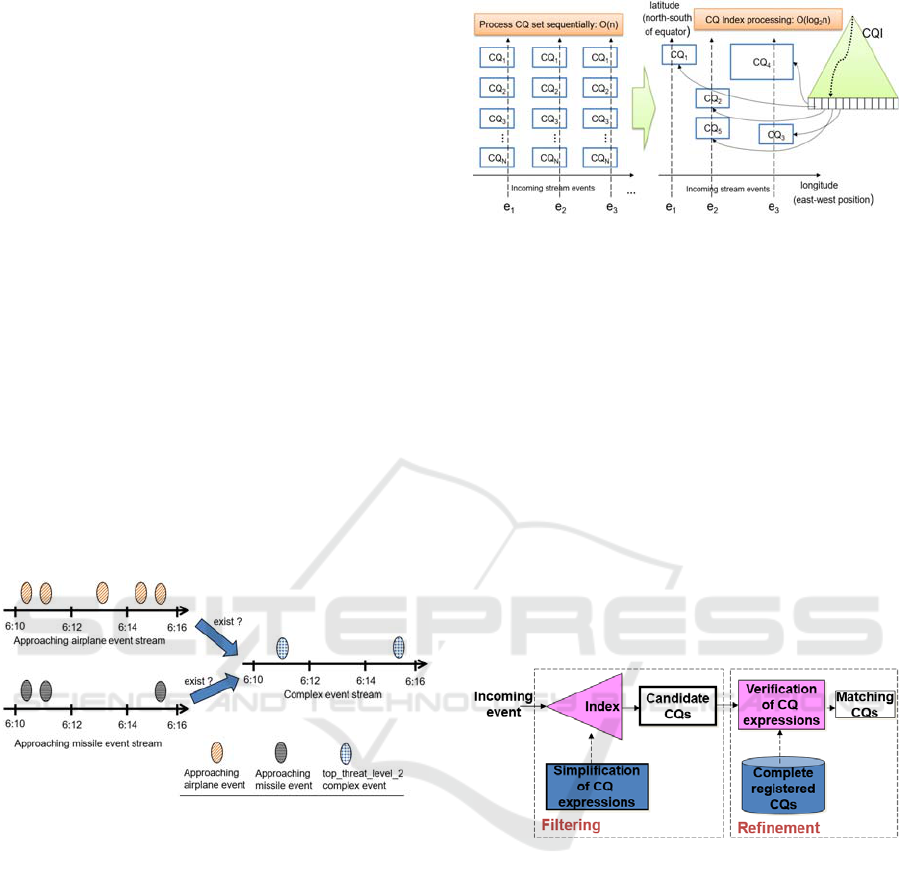

Figure 7: An example of a complex event query.

IF exist(approachingAirplane)

AND exist(approachingMissile)

FROM approachingAirplane, approachingMissile

WINDOW length=2000ms, trigger=2000ms

THEN top_threat_level_2

4 CQ INDEX

For an incoming event, we need to find out its

matching CQs based on the CQ conditions. Because

only the matching CQs should process the event. We

call the procedure as CQ stabbing (Figure 8).

Figure 8: CQ stabbing for incoming events.

The time complexity is O(n) if we make CQ

stabbing by checking conditions of each CQ one by

one. So we are thinking whether there is a way to get

matching CQs directly based on the field values of the

event and condition values in each CQ. To achieve

that, we use R*-tree as CQ index.

There are three steps to build and use a CQ index

(Figure 9):

 Extract values provided by expressions of CQ.

Use the values to build or update the R*-tree

index.

 For an incoming event, use its values to search in

the index, and get candidate CQs.

 Not all candidate CQs from step 2 match the

event. So next, check their conditions one by one

to find out the final matching CQs.

Figure 9: Filtering and refinement strategy of CQ index.

R*-tree could be a multi-dimensions index. Two

examples are shown in Figure 10. In the first sub-

figure, the index only stores values of two fields in

two dimensions, speed, and elevation. For example, a

CQ whose condition is “30 < speed < 50 & 10 <

elevation < 30” can store in the index. One rectangle

indicates one CQ, while one point in the sub-figure

indicates one incoming event. Therefore, for an

arriving event, to get the candidate CQs, it only needs

to find out all rectangles that contain the point. It is

almost the same if the index is in three dimensions,

which is shown in sub-figure 2 as an example.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

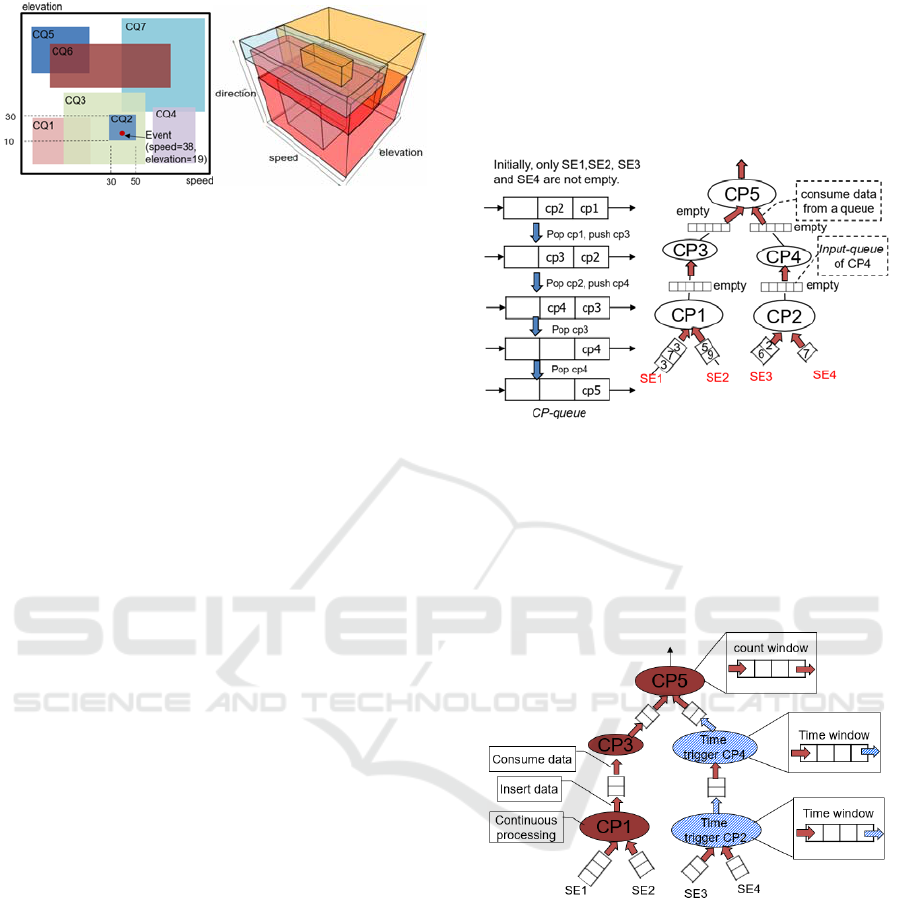

Figure 10: Examples for R*-tree index with (1) two

dimensions, (2) three dimensions.

The data stored in an R*-tree are all points or all

regions. The data type of each dimension in an R*-

tree is the same. However, some predicates in a CQ

condition includes different data types. For example,

the condition “IFF=’enemy’ AND 30<speed<100

AND elevation < 10” includes string and integer two

data types. In such a case, the shapes in the index are

not rectangles or cuboids. It is not suitable to add the

CQ condition to the index directly. We take a strategy

to solve this problem without modifying the

implementation of R*-tree, which is described in the

next section.

5 IMPLEMENTATION FOR

SUPPORTING REAL-TIME

PROCESSING

We have already implemented a prototype system in

C++ program language, running in a single computer

with Windows OS. We use a flexible structure to

organize processing flow among continuous

processing (CP) units. A CP could be a CEP, CQ,

event capture processing or event filtering. Two CPs

connect through a queue (Figure 11). The whole

graph is a directed acyclic graph (DAG).

How to maintain the data in each queue shown in

Figure 11 on the right? Our strategy is consuming the

data in the queues as soon as possible. First, we

maintain a “CP-queue” to store those CPs whose

input streams are not empty. Second, we create a

round-robin scheduler running in a new thread. The

scheduler does two things: one is popping a CP from

the head of the CP-queue, and two is consuming data

from its connecting input queue (called input-queue)

until empty or consuming more than 100 events. If the

input-queue is not empty after popping out more than

100 events, push back the CP to the tail of the CP-

queue, and turn to process another CP. Let us take an

example. In Figure 11, we assume all CPs are

stateless. Initially, only the inputs of CP1 and CP2 are

not empty. So push them to the CP-queue. The round-

robin scheduler pops out CP1, processes it and stores

results in the input-queue that connects to CP3,

causing the input of CP3 becoming not empty. So

push back CP3 to the tail of CP-queue. Next, pop out

CP2 and do the same procedure until the CP-queue

becomes empty.

Figure 11: Implementation of a continuous processing flow.

A CP could be stateless or stateful. If an operation

whose calculation result is affected by history

processed data, it is stateful, such as aggregate

operations Sum and Count. For aggregate operators,

we use a sliding window or tumble window, which is

organized as a data structure queue.

Figure 12: Multi-thread for maintaining data in different

kinds of queues.

Now the question is how to maintain the queue

inside a stateful operation? For a clear explanation,

we focus on the queue of a sliding window or tumble

window. A window is called time window if its length

is based on time, while a window is called count

window if its length is based on event count. In Figure

12, the arrow that is before a queue indicates inserting

data to the queue, while the arrow after a queue

indicates consuming data from the queue. The

components in red color are stateless or contain a

count window. They are processed by the thread of

round-robin scheduler, which is mentioned above in

Real-time Processing of Rule-based Complex Event Queries for Tactical Moving Objects

this section. The components in blue color are stateful

and contain time window. They are processed by a

new thread, which is responsible for time trigger,

called time trigger scheduler. The time trigger

scheduler schedules the re-processing time for CPs,

processes it when the time up for each and store

results to the output queues.

In our system, the output results of CP upstream

have high possibility to be used by multiple CPs

downstream. There is an example shown in Figure 13.

If there are many CPs consuming input data from the

same queue, it will have a performance problem to

check conditions of each CP downstream one by one.

We notice that the case shown in Figure 13 is the

same as the one shown in Figure 8. For this case, we

use CQ index to solve the problem, which is to find

out matching CPs directly by using an index, rather

than checking query conditions one by one.

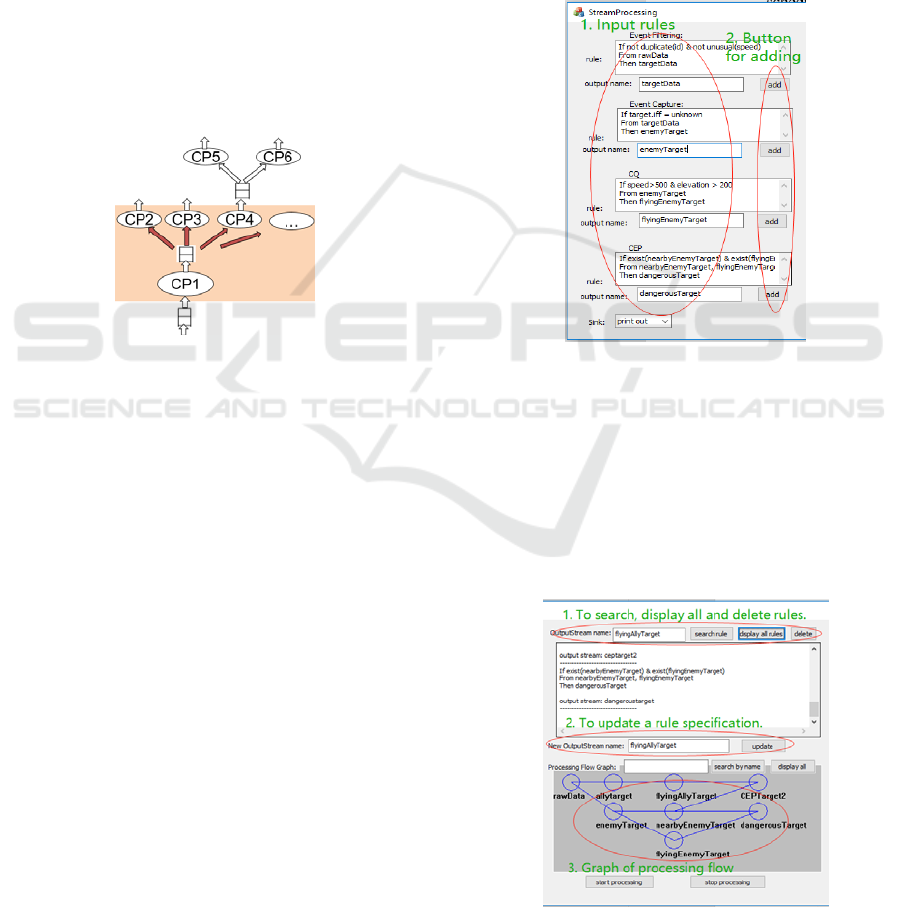

Figure 13: The case to use CQ index.

In section 4, we mentioned that a CQ condition

includes different data types cannot be added to an

R*-tree directly. Our strategy to solve this problem is

to transform the data type of each predicate to be the

same. Also, we transform equation predicates to

interval predicates. For example, an equation

predicate “id=3” can be expressed as “3≤ id ≤3”. Here

is a complete example to transform predicates

“IFF=’enemy’ AND 30<speed<100 AND elevation

< 10” to fit the R*-tree. Firstly, we uniform their data

type to be Integer by using “std::hash<std::string>”

in C++ to calculate the hash value of string “enemy”,

assuming its hash value equals to number 1389.

Secondly, we transform all equation predicates to

interval predicates. Thirdly, make “elevation < 10” to

be “MIN < elevation < 10” (MIN denotes the

minimum integer number). So finally we get the

result that is “1389≤IFF≤1389 AND 30<speed<100

AND MIN < elevation < 10”, which can be added to

an R*-tree.

An incoming event tuple can be expressed as

{“id=3, IFF=enemy, speed=50, elevation=9”} for

example. It indicates a point in the R*-tree. We can

query all regions in the R*-tree that contain the point

by using the function “void

intersectsWithQuery(const IShape& query, IVisitor&

v)” provided by open-source libspatialindex

(libspatialindex, 2019) project.

Our prototype system provides GUI for users to

specification and click the button “add” to finish the

registration (Figure 14). Our system will create a

graph of processing flow based on input and output

stream names of each rule specification. Users can

display all or search the graph by an output stream

name (Figure 15).

Figure 14: GUI for adding rule specifications.

Our system can insert, search, display, update and

delete rule specifications dynamically. In Figure 15,

we show the GUI components for these

functionalities. By inputting the name of an output

stream, users can search or delete a specified rule

specification. The system starts to work after clicking

the button “start processing”. Figure 16 shows the

way to display processing results.

Figure 15: GUI to search, display, delete and update rule

specifications, and to display processing flow graph.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

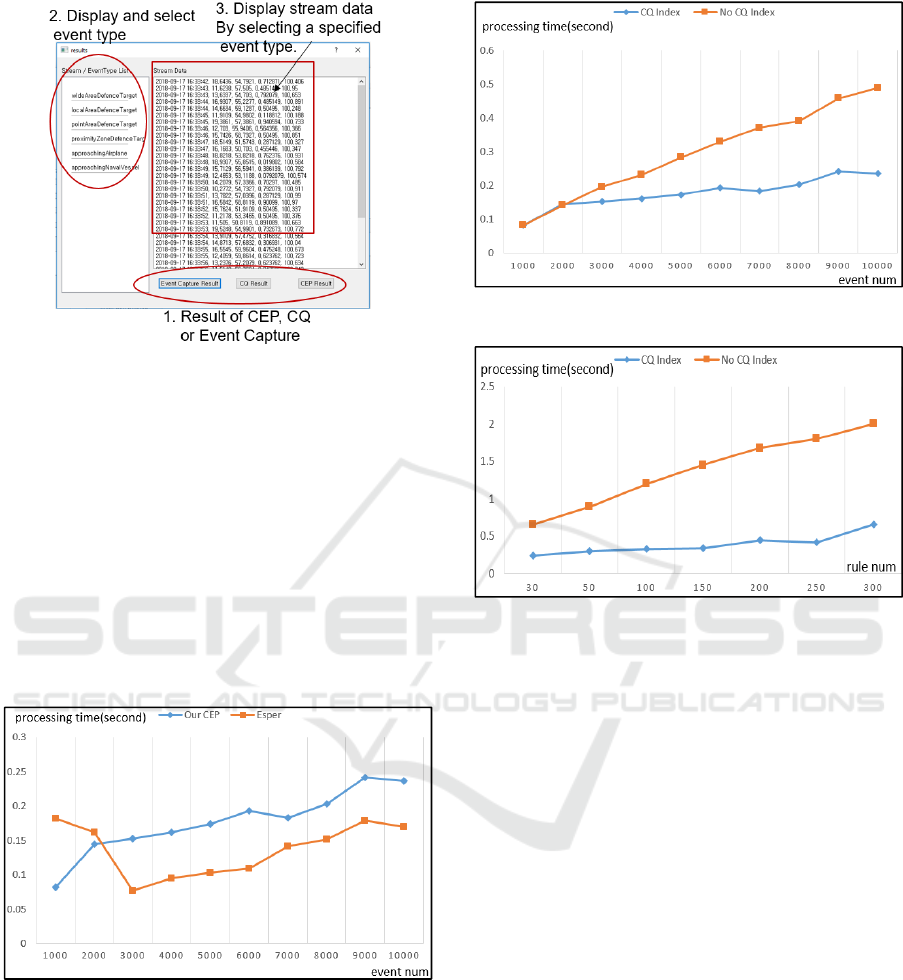

Figure 16: GUI for display stream data.

6 PERFORMANCE

To evaluate the system performance compared with

Esper (EsperTech, 2019), we set up 50 rule

specifications and calculate processing time with

different numbers of input data (Figure 17). To

evaluate the effect of using CQ index, we set up 50

CEP rules and calculate the processing time with and

without using CQ index (Figure 18) and calculate the

time after processing 10,000 events with and without

CQ index (Figure 19).

Figure 17: Set up 50 CEP rules, calculate processing time.

We generate event tuples as input stream data with

randomly assigned values. Attributes of a tuple are id,

time, speed, elevation, IFF, longitude, latitude and so

on. The evaluation result shown in Figure 17 indicates

that the performance of our system is slower than

Esper but not different too much. The evaluation

results in Figure 18 and 19 indicate that the system

has a higher performance by applying CQ index.

Figure 18: Processing time for 50 CEP rules.

Figure 19: Processing time for 10000 events.

7 RELATED WORK

CEP Language: Much research has been carried out

on CEP language and several languages of CEP have

been proposed. The paper (Sadri et al., 2004)

proposed a language SQL-TS, which is an extension

of SQL to express complex sequential patterns in a

database. Paper (Demers et al., 2007) presents query

language Cayuga based on Cayuga Algebra for

naturally expressing complex event patterns. Papers

(Agrawal et al., 2008), (Wu et al., 2006) present the

language SASE and use NFA-based technology to

implement high-performance complex event

processing over streams. Also, CEDR (Barga et al.,

2006) presents the language for temporal stream

modeling. Those languages have common

components. They support Sequencing, Kleene

closure, Negation, Value predicates, Windowing,

Return and so on. The languages could be

implemented with high performance by using NFA-

based technology. The event selection strategy is

Strict or partition contiguity, Skip till next match and

Skip till any match.

Real-time Processing of Rule-based Complex Event Queries for Tactical Moving Objects

Optimizing CEP Performance: Paper (Mozafari et

al., 2012) proposes a high-performance approach that

supports CEP on XML streams. It uses XSeq

language to extend XPath with natural operators over

XML streams. The papers (Agrawal et al., 2008),

(Wu et al., 2006) use NFA-based technology to

improve the performance of pattern matching over

streams. Papers (Krishnamurthy et al., 2006), (Yang

et al., 2009) try to improve CEP performance by

making use of sharing among similar queries.

(Johnson et al., 2007) Uses out of order stream data

by maintaining a small state and without complete

stream reconstruction to improve the efficiency of

regular expression matching on streams. Paper

(Schultz et al., 2009) rewrites event patterns in a more

efficient form before translating them into event

automata. The work (Akdere et al., 2008) uses plan-

based techniques to minimize event transmission

costs and can efficiently perform CEP across

distributed event sources.

8 CONCLUSIONS

In this paper, we propose a layered architecture to

decompose a complex event query into four parts,

corresponding four modules of the system. By doing

that, we make the responsibilities of each module

clearer and simply the rule definitions. Besides, it

helps to insert, delete, search rules dynamically. For

each module, we make rule definitions and describe

their format in detail. This paper shows that it is

possible to process various input rules for continuous

processing dynamically in layered specifications. We

use R*-tree as a multi-dimension index to speed up

continuous queries.

ACKNOWLEDGEMENTS

This research is supported by the Agency for Defense

Development (UD160012DD).

REFERENCES

Sadri, R., Zaniolo, C., Zarkesh, A., & Adibi, J. 2004.

Expressing and optimizing sequence queries in database

systems. ACM Transactions on Database Systems

(TODS), 29(2), 282-318.

Barga, Roger S., et al. "Consistent streaming through time:

A vision for event stream processing." arXiv preprint

cs/0612115. 2006.

Demers, Alan J., et al. 2007. "Cayuga: A General Purpose

Event Monitoring System." Cidr. Vol. 7.

Agrawal, Jagrati, et al. 2008. "Efficient pattern matching

over event streams." Proceedings of the 2008 ACM

SIGMOD international conference on Management of

data. ACM.

Wu, Eugene, Yanlei Diao, and Shariq Rizvi. 2006. "High-

performance complex event processing over streams."

Proceedings of the 2006 ACM SIGMOD international

conference on Management of data. ACM.

Mozafari, et al. 2012. "High-performance complex event

processing over XML streams." Proceedings of the

2012 ACM SIGMOD International Conference on

Management of Data. ACM.

Krishnamurthy, Sailesh, Chung Wu, and Michael Franklin.

2006. "On-the-fly sharing for streamed aggregation."

Proceedings of the 2006 ACM SIGMOD international

conference on Management of data. ACM.

Yang, D., Rundensteiner, E.A. and Ward, M.O. 2009. A

shared execution strategy for multiple pattern mining

requests over streaming data. Proceedings of the VLDB

Endowment, 2(1), pp.874-885.

Johnson, Theodore, S. Muthukrishnan, and Irina

Rozenbaum. 2007. "Monitoring regular expressions on

out-of-order streams." Data Engineering, 2007. ICDE

2007. IEEE 23rd International Conference on. IEEE.

Schultz-Møller, Nicholas Poul, Matteo Migliavacca, and

Peter Pietzuch. 2009. "Distributed complex event

processing with query rewriting." Proceedings of the

Third ACM International Conference on Distributed

Event-Based Systems. ACM.

Akdere, Mert, Uǧur Çetintemel, and Nesime Tatbul. 2008.

"Plan-based complex event detection across distributed

sources." Proceedings of the VLDB Endowment 1.1: 66-

77.

EsperTech, Espter. 2019. http://www.espertech.com/esper/

libspatialindex, 2019. https://libspatialindex.org/index.html

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk
