Consolidating a Model for Describing Situated Software Practices

Diana Kirk

and Stephen MacDonell

and Ewan Tempero

Technology Academy, EDENZ Colleges, 85 Airedale Street, Auckland 1010, New Zealand

SERL, School of Engineering, Computer & Mathematical Sciences, Auckland University of Technology,

Private Bag 92006, Auckland 1142, New Zealand

Department of Computer Science, University of Auckland, Private Bag 92019, Auckland 1142, New Zealand

Keywords:

Software Development Practices, Software Process Context, Decision Support, Theoretical Model.

Abstract:

Many prescriptive approaches to developing software intensive systems have been advocated but each is based

on assumptions about context. It has been found that practitioners do not follow prescribed methodologies,

but rather select and adapt speciﬁc practices according to local needs. As researchers, we would like to be in

a position to support such tailoring. However, at the present time we simply do not have sufﬁcient evidence

relating practice and context for this to be possible. We have long understood that a deeper understanding

of situated software practices is crucial for progress in this area, and have been exploring this problem from

a number of perspectives. In this position paper, we draw together the various aspects of our work into a

holistic model and discuss the ways in which the model might be applied to support the long term goal of

evidence-based decision support for practitioners. The contribution speciﬁc to this paper is a discussion on

model evaluation, including a proof-of-concept demonstration of model utility. We map Kernel elements from

the Essence system to our model and discuss gaps and limitations exposed in the Kernel. Finally, we overview

our plans for further reﬁning and evaluating the model.

1 INTRODUCTION

The history of software engineering process has been

one of advocacy. Many authors, from both academia

and industry, have architected software development

methodologies and processes in the belief that strict

adherence by practitioners will inevitably result in

project success. Examples include traditional models

such as waterfall (Royce, 1970) and spiral (Boehm,

1988) and agile methods such as eXtreme Program-

ming (XP) (Beck, 2000) and Feature Driven Devel-

opment (FDD) (Luca, nd). The wisdom manifested

was that “development models are best regarded as a

coherent set of practices, some of which are required

to balance the performance trade-offs arising from the

use (or absence) of others” (Cusumano et al., 2003).

However, each of the proposed methodologies is

based on a number of assumptions about context. For

example, testing in XP requires an active customer

to test a delivered increment and provide feedback

i.e. it is assumed that a capable and empowered cus-

tomer is available and that the product has a human

interface. Turk et al. point out that this is inappro-

priate if the product-under-development is, for exam-

ple, an embedded system (Turk et al., 2005). Ag-

ile approaches in general tend to advocate continuous

refactoring, but again this may be inappropriate when

the system to be developed is large and complex.

The notion of ‘tailoring according to contexts’ has

become the accepted wisdom (MacCormack et al.,

2012; M

uller et al., 2009; Petersen and Wohlin, 2009;

de Azevedo Santos et al., 2011; Turner et al., 2010).

However, at the present time, we as researchers are

not in a position to support such tailoring because we

simply do not have sufﬁcient evidence relating prac-

tice and context.

We have long been interested in deepening our un-

derstanding of the relationships between practice and

context, and have been exploring this problem from

a number of perspectives. Three key insights have

been gained from these explorations. First, we can-

not know exactly what a practice entails without an

awareness of the context in which it was enacted i.e.

we must now view practice and context as inherently

intertwined. This notion has precedence in the or-

ganisational and management sciences (Orlikowski,

2002) and our recent research has exposed this depen-

dence for software practices (Kirk and MacDonell,

2016). Second, if we wish to discuss and compare

disparate practices, we must apply a research frame-

402

Kirk, D., MacDonell, S. and Tempero, E.

Consolidating a Model for Describing Situated Software Practices.

DOI: 10.5220/0007741304020409

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 402-409

ISBN: 978-989-758-375-9

work that focusses on what a practice is meant to

achieve, rather than how it achieves it (Kirk and Tem-

pero, 2012a). For example, an organisation producing

medical equipment for a speciﬁc client may imple-

ment a strict requirements elicitation process involv-

ing formal sign-off by the client, whereas a startup

organisation may adopt a ‘try it and see’ approach

with feedback from many clients. Both approaches

aim to establish requirements, but do so in very dif-

ferent ways. We also note that each alters the envi-

ronment, but in a different way. In the former case,

the product becomes more formally deﬁned whereas

in the latter case, understanding resides in the heads

of the development team. Third, when exploring con-

text in the literature, we found that many different

kinds of contextual factor were mentioned. In addi-

tion to factors that described context at an operational

level, we also found factors that described project

objectives, factors that described high level organi-

sational objectives and factors that were simply un-

clear (Kirk and MacDonell, 2018; Kirk and Buchan,

2018). Factors tended to be organised in a way that

does not comply with Nickerson et al.’s viewpoint that

the criteria for classiﬁcation must be identiﬁed and

must not be purely descriptive in nature (Nickerson

et al., 2013). For example, the framework proposed

by Clarke and O’Connor contains a factor ‘Cohesion’

which includes ‘team members who have not worked

for you’, ‘ability to work with uncertain objectives’

and ‘team geographically distant’. There is no clear

criteria upon which to base classiﬁcation decisions as

these sub-factors have different meanings.

Our previous explorations have led us to adopt the

position that, before we can conﬁdently support prac-

titioners in their tailoring efforts, we must address two

issues. First, we must build an evidence base that re-

lates a situated practice (a practice performed within

a speciﬁc context) and its outcomes with respect to

desired objectives. As pointed out by Lengnick-Hall

and Grifﬁth, if the intention is to achieve “a speciﬁc,

designated outcome”, as is the case for most software

practices, the knowledge (practice) must be applied

as-is. Applying the knowledge in an intuitive or ex-

perimental way introduces a lack of ﬁt between type

of knowledge and how it is applied, and this inevitably

leads to reduced effectiveness, at best (Lengnick-Hall

and Grifﬁth, 2011). From this perspective, ad-hoc

tailoring that is not grounded in evidence might be

viewed as a ‘hidden’ issue. Second, we require some

notion of ‘equivalent practices’. For example, we

might view the two requirements elicitation practices

mentioned above as ‘equivalent’, as each results in an

understanding of scope i.e. they are similar as regards

‘what’ is achieved.

In this position paper, we draw together the mod-

els we have created to address the issues highlighted

above into a holistic model. These models repre-

sent the exploratory stages of our research. We are

now entering a second, more formal, reﬁnement stage

(Routio, 2007). This approach is consistent with the

notion of developing theory (models) inductively with

“inductive theory building ... producing new theory

from data” followed later by “deductive theory test-

ing completing the cycle by using data to test the-

ory” (Eisenhardt and Graebner, 2007). We discuss

the ways in which the model might be applied to sup-

port the goal of evidence-based decision support for

practitioners and overview our plans for further reﬁn-

ing and evaluating the model. Contributions speciﬁc

to this paper include a discussion on our approach

to model evaluation and a critique of the established

Essence Kernel based on a mapping between Kernel

and model.

In section 2, we overview the model and in section

3 we discuss how it can be used to support evidence

accumulation and (eventually) decision support. In

section 4, we present our approach to evaluating and

further reﬁning the model and discuss the results from

mapping the Essence Kernel onto our model. In sec-

tion 5, we brieﬂy overview related work and in section

6, we summarise the paper.

2 MODEL OVERVIEW

In this section, we present the model that is the re-

sult of previous works in which we explored vari-

ous aspects of situated software practices (Kirk et al.,

2009; Kirk and Tempero, 2012a; Kirk and Mac-

Donell, 2014; Kirk and MacDonell, 2018; Kirk and

MacDonell, 2016; Kirk and Buchan, 2018). We

overview the model in Figure 1 and Table 1. At top

level is a Software Initiative. A Software initiative

is any endeavour that involves deﬁning, creating, de-

livering, maintaining or supporting software intensive

products or services. It thus encompasses the more re-

cent client-focussed delivery paradigm and subsumes

the traditional ‘project’.

We view a software initiative as a set of practices

implemented with the aim of meeting speciﬁed ob-

jectives and enacted within an operational context.

This is in keeping with an earlier understanding that

”Sound tailoring requires the ability to characterise ...

goals ..., the environment ..., and the effect of meth-

ods and tools on achieving these goals in a particular

environment” (Basili and Rombach, 1987). The ini-

tiative thus comprises some objectives, for example,

‘time-to-market’, a set of practices, for example, ‘de-

Consolidating a Model for Describing Situated Software Practices

403

Table 1: Local operational context factors.

People Entity Capability

Motivation

Empowerment

Team cohesion

Interface Team cohesion

Place Entity Physical distance

Temporal distance

Availability

Interface Physical distance

Temporal distance

Availability

Product Product type e.g. embedded

Lifecycle stage e.g. new, mature

Standards e.g. safety

Requirements e.g. clear, complete

Implementations e.g. consistency, modularity

Process Client

Parent org

Legal

Financial

sign review’, and an operational context. The oper-

ational context is many-faceted and includes factors

that directly affect practice efﬁcacy, for example, cul-

tural mis-matches between development teams.

The initiative exists within a higher level strategic

context. Strategic context factors do not directly affect

practice efﬁcacy, but rather spawn decisions relating

to objectives and operational context i.e. the effect is

indirect. Examples are the organisation’s need to gain

consumer trust, or to expand into a global market-

place. The ﬁrst may result in a project where product

quality is stated as the key objective. The second may

result in the establishment of off-shore teams, thus af-

fecting operational context.

Figure 1: Model for situated software practices.

Operational context abstracts the many factors

that are of direct interest for practice efﬁcacy. Work-

ing context comprises the base dimensions of our con-

text mode i.e. the elements that must be taken into

account for practice selection and tailoring. The four

dimensions are:

People. Cultural characteristics affecting peoples’

ability to perform

Place. Peoples’ availability affecting logistics and

communications

Product. Characteristics of the product that is being

developed

Process. Processes external to the initiative (as com-

pared with practices within the initiative).

The sub-categories for working context are shown

in Table 1.

However, our earlier investigations revealed that

some of the terms commonly used in the literature

are simply not sufﬁciently clearly deﬁned and we con-

sider these to be Unresolved factors. Secondary fac-

tors are those made up of multiple ideas. An exam-

ple is ‘outsourcing’, which has many possible scenar-

ios relating to what (product) is outsourced by whom

(people), where (place). Ambiguous factors require

deeper consideration. An example is ‘uncertain re-

quirements’, which may exist because the client is un-

clear about what is wanted (product), client processes

result in delays before decisions can be made (pro-

cess), or the client isn’t available (people).

Our abstraction for practices resulted from an ear-

lier study in which we wished to understand why

some SMEs are successful, despite failing to follow

the standard process reference models (Kirk and Tem-

pero, 2012a). This led to our subsequent viewpoint

that we will be in a position to compare practices only

if we categorise based on function. Our functional

categories are shown in Table 2.

Table 2: Categories for practices.

Deﬁne Roadmap

Scope

Make Architect

Implement

Integrate

Deliver Release

Support

Because we have structured based on function, the

categorisation will support any practice deemed to be

relevant for meeting objectives. For example, infor-

mal meetings in the lunch room that help developers

understand scope clearly ﬁt into the ‘scope’ category.

Of note is that project management activities such as

tracking are not included. Such activities do not di-

rectly address objectives, but rather impact context for

example, team cohesion, and integrate into our model

via the contexts affected. A precondition that an ob-

jective be met is that each category must contain one

or more effective practices. To illustrate, for a ‘Qual-

ity’ objective, including quality considerations during

product architecture, implementation and integration

will fail to achieve the objective if quality expecta-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

404

tions are not included during scoping. The identiﬁca-

tion of gaps in the overall process is straightforward.

A characteristic of the above categorisation is that

of ﬂexibility. There is no assumption about order-

ing of practices, and no expectation that, for example,

practices relating to Implement and Integrate need be

separate. Such ordering would exist at a higher level

and might be used to describe strategies of iteration

and incremental delivery. We also submit that the

categorisation is ‘paradigm-agnostic’ — whether an

initiative is run in a traditional or agile way, the ba-

sic functions of deﬁning, making and delivering the

product must be carried out. Of note is the fact that

the sub-categories ‘Roadmap’ and ‘Support’ lie out-

side of a traditional development project and sub-

categories ‘Deﬁne’ and ‘Deliver’ relate to practices

that span development organisation and client.

3 PROGRAMME OF RESEARCH

In this section, we overview our planned programme

of research. Our overall goal is to support practition-

ers with selecting practices that are suitable for their

local context. We note that studies carried out are ex-

pected to result in reﬁnements to our research model

as our understanding deepens (Routio, 2007). We also

note that studies will act as an evaluation of the model

(see section 4).

3.1 Practice Operating Limits

Our immediate plans relate to growing an evidence

base for situated software practices. We will include

studies to investigate within industry the indicated and

contra-indicated contexts for speciﬁc practices. We

will ask practitioners to select recently- or currently-

enacted practices and elicit information about contex-

tual factors that were perceived as supporting, and

those perceived as detracting from, meeting objec-

tives. The studies will take two forms. For some,

we will use our model as a guide and in others we

will elicit information from the practitioner perspec-

tive only. The goals of these studies are a) to reﬁne

and evaluate the model, and b) to accumulate evi-

dence relating to ‘happy’ and ‘unhappy’ contexts for

speciﬁc practices. This evidence will later be used

as inputs to decision support mechanisms. We note

that the usefulness of this evidence will be reliant on

a context model that is complete i.e. evidence from

early studies may be ineffective if the model changes

too much during reﬁnement. However, as mentioned

above, we must investigate practice and context to-

gether as these are inherently intertwined - we cannot

implement a set of studies on context alone.

3.2 Families of Practices

For this avenue of research, we want to build up ‘fam-

ilies’ of ‘equivalent’ practices. The aim is to sug-

gest to the practitioner a set of practices that per-

form the same function. For example, in section 1,

we discussed two possible ways of eliciting require-

ments (product scoping), one involving formal doc-

umentation and the other involving a ‘try it and see’

approach. A major challenge in this research will be

the establishing of exactly what we mean by ‘equiv-

alent’. Certainly, the starting point is with the func-

tion to which the practice belongs (‘Scope’). How-

ever, implementation of a practice has the side-effect

of changing context in some way, and it is unclear at

this point how this affects things, if at all. Once the

research has matured, we would expect to use the no-

tion of equivalence to suggest possible alternatives to

practitioners during decision support.

3.3 Decision Support

Once we are sufﬁciently conﬁdent in our model, we

plan to use this along with evidence accumulated to

create a decision support mechanism for supporting

practitioners with practice tailoring. As there are

many kinds of software initiative and many possible

situational factors, we envisage offering recommen-

dations based on available evidence, leaving ﬁnal de-

cisions to be made by practitioners with local knowl-

edge. Clearly, an extensive body of evidence must be

accumulated before this can be implemented.

4 EVALUATION

For software engineering, it is suggested that an ap-

propriate approach to validation is to gather different

kinds of evidence from various sources. Dawson et al.

make a case for accumulating many little evidences

of various kinds (Dawson et al., 2004). Others sug-

gest the researcher should accumulate an ‘evidence

portfolio’ containing, for example, case studies, anec-

dotes, surveys, expert opinion and controlled experi-

ments (Kitchenham et al., 2005; Weaver et al., 2005).

We adopt this approach for our research model. We

implement a technique called argumentation and cap-

ture evidence goals, arguments and evidence items us-

ing Goal Structuring Notation (GSN) (GSN Working

Group, 2018). The notation helps the researcher see

what evidence is missing and allows stakeholders to

see ‘at a glance’ what is the evidence coverage.

Consolidating a Model for Describing Situated Software Practices

405

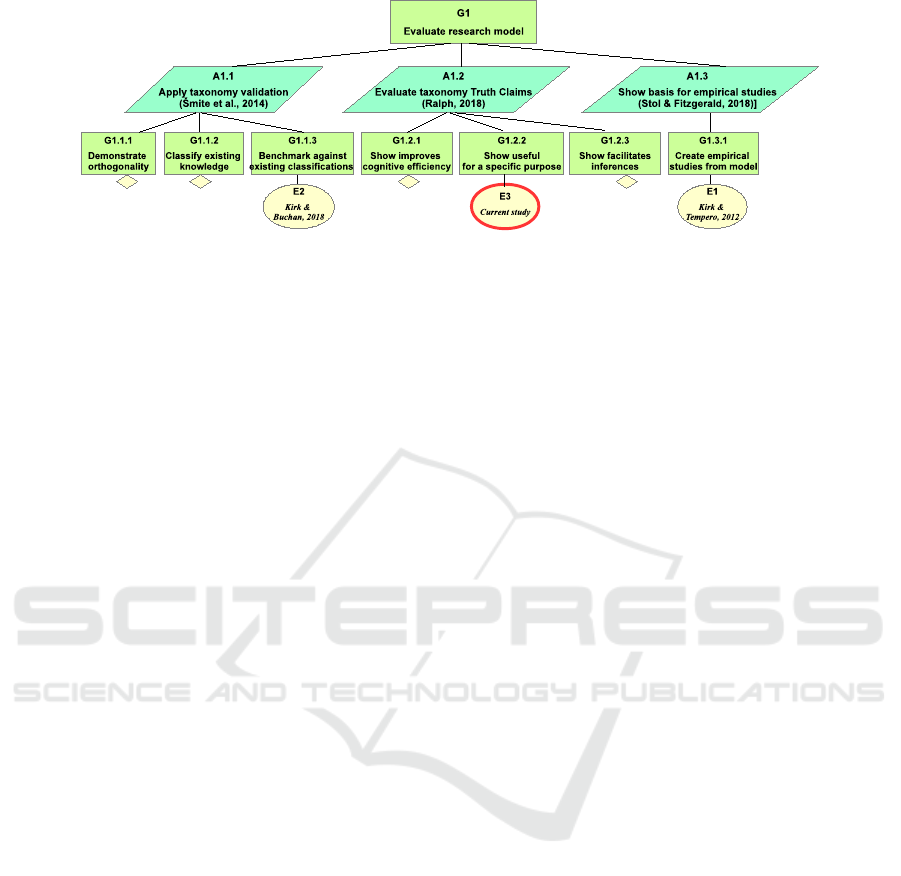

The evidence tree for our model is shown in

Figure 2. Our top level goal is ‘evaluate research

model’. We address this goal by sourcing viewpoints

on model/theory/taxonomy validation from the liter-

ature.

Smite et al. suggest that a taxonomy must

exhibit dimensional orthogonality, should be used to

classify existing knowledge and should be bench-

marked against existing classiﬁcations (

Smite et al.,

2014). These are shown as argument strategy A1.1

and sub-goals G1.1.1, G1.1.2 and G1.1.3. Ralph de-

ﬁnes three ‘truth claims’ inherently made by a taxon-

omy and suggests these form a suitable set for eval-

uation (Ralph, 2018). These are shown as A1.2 and

G1.2.1, G1.2.2 and G1.2.3. Stol and Fitzgerald re-

quire that a model can be used as a basis for empirical

studies (Stol and Fitzgerald, 2018). These are shown

as A1.3 and G1.3.1.

As is clear from the ﬁgure, only two pieces of ev-

idence have thus far been addressed in earlier work

(Kirk and Tempero, 2012b; Kirk and Buchan, 2018).

We are in the process of implementing two further

studies, the ﬁrst to elicit practitioners’ perspectives

on context, and the second to explore the operating

limits for two agile practices. The ﬁrst will address

goal 1.1.2 (classify existing knowledge) and the sec-

ond goal 1.3.1 (create empirical studies from model).

In the next section, we describe a mapping that ad-

dresses goal 1.2.2. (show useful for speciﬁc purpose).

The approach is useful for exposing breadth of ev-

idence but those interested must read the research out-

puts to establish the quality of the provided evidence.

4.1 Essence Analysis

In this section, we carry out a ‘proof-of-concept’ map-

ping between the Essence Kernel from the SEMAT

initiative (Object Management Group, 2018) and our

research model. The SEMAT initiative aims to pro-

vide a theoretical basis to support comparison, evalu-

ation and tailoring of software practices. Central to

the scheme is a Kernel. Practices are described in

Kernel elements, which are “integral to all software

engineering methods”. The kernel comprises Alphas

(attributes relating to assessing project health), Activ-

ity spaces (the essential things to do) and Competen-

cies (key capabilities required). Alphas capture the

main software engineering concepts along with pre-

deﬁned states and checklists, thus providing critical

indicators for the measurement of project health. Ac-

tivity spaces provides a partitioning of the ‘things to

do’ i.e. addresses the activities that must be carried

out. Competencies provide a view of the key capabil-

ities required to carry out activities.

As the aim of the Kernel is similar to our aims

i.e. to support practitioners in adapting methods in

an agile way to suit their needs, we felt it necessary

to attempt a mapping between the two models as a

means of testing that our abstraction is sufﬁciently

comprehensive to allow us to critique an established

approach. In this section, we map the elements of the

Kernel to our model and discuss ﬁndings. The results

of the mapping are shown in Table 3.

According to our understanding, one of the Al-

phas (Opportunity) maps to both Strategic context and

an aspect of Working context, two map to practice-

related ideas and the remaining four to Working con-

text. As these seem to include different kinds of en-

tity, we checked the possible states for each Alpha to

gain a deeper understanding. The ﬁrst point of interest

is found in the mappings of Requirements and Soft-

ware system to Product. States for Requirements in-

clude ‘Bounded’, ‘Coherent’ and ‘Fulﬁlled’ and these

are certainly consistent with our notions of ‘Clear’

and ‘Complete’ (see Table 1). However, Software

system in the Kernel is exempliﬁed by, for example,

‘Usable’, ‘Ready’ i.e. describes the application with

respect to readiness (a project management perspec-

tive), whereas our abstraction describes the product

characteristics we believe to be relevant for practice

tailoring, for example, the degree of consistency be-

tween representations, design modularity, etc.

For Activity spaces as might be expected, most of

the Kernel elements map almost directly to Practices

in our model. However, our model contains no ele-

ments for the project management oriented activities

such as ‘Support the team’.

For Competencies, again as expected, most items

map to People:Entity:Capability. However, the Ker-

nel deﬁnes the set of competencies required in a soft-

ware project whereas, in our model, the ‘capability’

attribute represents the level of capability of a team

with respect to a speciﬁc practice.

4.1.1 Discussion

The two approaches are very different as regards ab-

straction choice. The Kernel perspective appears to

be more project management oriented, with Alphas

including notions of all of Who (people), What (prod-

uct) and How (process). Our perspective tends to be

more focused on ‘what does a team really need to

know to adapt practices?’ i.e. the perspective is that of

the people doing the work. The Kernel elements with

no mapping in Table 3 represent project management

activities. As discussed in section 2, these activities

affect objectives indirectly, via working context. To

illustrate, rather than knowing that someone is ‘sup-

porting the team’ or ‘coordinating activities’, we need

only know to what extent the team feels empowered

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

406

Figure 2: Evidence tree for model.

and cohesive as this affects tailoring choices.

A second observation relates to the pre-deﬁning

of Alpha states. First, the inference is that these states

are relevant for all software initiatives. However, it

is not clear how the Requirements state of ‘Fulﬁlled’,

i.e. that the requirements addressed “... fully satisfy

the need for a new system”, apply in the very common

situations of the team and/or the customer being un-

sure about what is wanted i.e. when an evolutionary

approach is appropriate, perhaps in a startup situation.

Second, we do not need to know that a team is in state

‘formed’, we actually need to know if members share

a room or are spread across different countries, as this

will directly impact on which practices might be ef-

fective. We could not ﬁnd such context-related ideas

represented in the Kernel.

The fact that most of the Kernel competencies map

to People:Entity:Capability illustrates the differences

in the viewpoint of ‘prescribe what competencies are

required’ and ‘whatever practice is being considered,

we need to know the competency level of the team

with respect to the practice’. Our critique of the Ker-

nel approach is the implicit assumption that the com-

plete set of required competencies is known i.e. the

approach does not support extension. For example, a

startup group must be innovative, a competency not

currently included in the Kernel.

Another consideration relates to the notion of ﬂex-

ibility, In agile approaches, developers often combine,

for example, design and implementation. Activity

spaces in the Kernel appear to be ﬁxed and disjoint

and it is not clear that such ﬂexibility is supported.

In section 1, we presented our viewpoint from ear-

lier studies that, before we are in a position to offer

decision support for tailoring, we must ﬁrst a) gather

evidence relating context, software practice and out-

comes, and b) understand practice ‘equivalence’ in or-

der that we know when it is acceptable to replace one

practice with another and can identify gaps in the pro-

cess. We cannot see how the Kernel is able to fully

address either of these. A detailed notion of relevant

context is a pre-requisite for the ﬁrst. The second im-

plies that the set of practices for an objective must

include an element from each category. There is no

point in implementing strong quality related practices

during architecture, implementation and release if the

‘scoping’ practices are weak from a quality perspec-

tive. The statement in section 8.1.1 that the Kernel

allows you “... to apply as few or as many practices

as you like” is not consistent with the notion of iden-

tifying practice gaps.

Finally, we notice that none of the Kernel ele-

ments maps to our Working context dimensions Place,

Product or Process. We have identiﬁed these as be-

ing crucial ideas for selecting and tailoring practices.

Some examples of different practices being indicated

include co-located versus dispersed team members,

(un)availability of architectural documentation and

the culture of the parent organisation. Our main cri-

tiques relates to the lack of any deep consideration

of working context, including type of product and lo-

cational information. Without this, any tailoring can

not be grounded in evidence and remains potentially

problematic, as discussed in section 1.

5 RELATED WORK

Routio describes three kinds of research as a) there

is no model to use as a starting point (exploratory re-

search), b) an existing model is being expanded or

reﬁned, and c) hypotheses based on an established

model are being tested. Exploratory research is ap-

propriate for a “phenomenological pursuit into deep

understanding”. The researcher begins with a “pre-

liminary notion” of the object of study. During the

study the “provisional concepts ... gradually gain pre-

cision” until a suitable conceptualisation is achieved

(Routio, 2007). We have adopted this approach for

our research.

Ralph suggests that a framework or model may be

viewed as a taxonomy and represents a theory stated

as “a system of ideas for making sense of what ex-

ists ... in a domain.” He suggests that a taxonomy

Consolidating a Model for Describing Situated Software Practices

407

Table 3: Mapping between Essence Kernel and model.

Alphas Opportunity Reason for creation of ... system Strategic context

Shared understanding of stakeholders’ needs People::Capability

Stakeholders People, groups or organizations affected ... People

Requirements What the software system must do Product:Req

Software system System of software, hardware and data Product:Impl

Work Activity to achieve a result Practices

Team People engaged in implementation activities People

Way-Of-Working Tailored set of practices to support work Practices

Activity Space Explore possibilities Opportunities to be addressed Practices::Roadmap

Identify stakeholders Practices::Roadmap

Understand stakeholder needs Practices::Scope

Ensure stakeholder satisfactn Gain acceptance from stakeholders Practices::Release

Use the system Observe beneﬁts in live environment Practices::Support

Understand the requirements Gain shared understanding of products Practices::Scope

Shape the system Shape for reuse and expected demands Practices::Architect

Implement the system Implement and test system elements Practices::Implement

Build by integrate and test system elements Practices::Integrate

Deploy the system Make system available externally for use Practices::Release

Operate the system Support system in a live environment Practices::Support

Prepare to do the work Set up team and working environment No mapping

Coordinate activity Co-ordinate and direct team’s work No mapping

Support the team Support team to help themselves No mapping

Track progress Measure and assess progress No mapping

Stop the work Shut down SE endeavour No mapping

Competencies Stakeholder representatn Team understands customer needs People::Team cohesn

Analysis Ability to transform needs to requirements People::Capability

Development Ability to design and program SW systems People::Capability

Testing Ability to verify system meets requirements People::Capability

Leadership Ability to motivate and inspire a team People::Capability

Management Ability to coordinate, plan and track work People::Capability

by its nature posits three ‘truth claims’, a) the tax-

onomy improves cognitive efﬁciency, b) it facilitates

inferences and c) it is useful for a speciﬁc purpose.

Evaluation involves addressing each of these claims

(Ralph, 2018). We have included these truth claims

as items in our evidence tree.

Stol and Fitzgerald present a set of metaphors for

the various kinds of research within software engi-

neering (Stol and Fitzgerald, 2018). The metaphor

applied for building theories or models with some de-

gree of generalisability is that of a jigsaw puzzle. Each

piece of the puzzle is considered and theorised with

respect to the whole. The authors suggest that such

studies are important as they provide “a new concep-

tual lens to design future empirical studies”. Result-

ing models must, of course, be validated during sub-

sequent empirical studies. The reﬁnement stage for

our context model ﬁts into this category, as we are

effectively uncovering new pieces of the puzzle and

integrating into the whole.

6 CONCLUSIONS AND FUTURE

WORK

In this position paper, we have drawn together the re-

sults of our previous studies to create a holistic model

which we plan to use as a basis for accumulating ev-

idence relating to situated software practices. Such

evidence is a pre-condition for our long term goal of

supporting evidence-based decision making for prac-

titioners who wish to tailor software practices to suit

local context.

Contributions speciﬁc to this paper include a dis-

cussion on our approach to model evaluation and a

critique of the established Essence Kernel based on

a mapping between Kernel and model. The mapping

exposed several issues relating to generality and ﬂex-

ibility and rooted in the pre-deﬁning of Alpha states,

Competencies and Activities. We conclude that, even

at this early stage, our conceptual model has proven

useful.

The model is now entering a ‘use-and-reﬁne’ cy-

cle. Future work planned includes a) consolidating

the context-related elements of the model, and b) ac-

cumulating evidence on operating limits for speciﬁc

situated software practices.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

408

REFERENCES

Basili, V. R. and Rombach, H. D. (1987). Tailoring the

Software Process to Project Goals and Environments.

In Proceedings of the Ninth International Conference

on Software Engineering, pages 345–357. IEEE.

Beck, K. (2000). eXtreme Programming eXplained - Em-

brace Change. Addison-Wesley, USA.

Boehm, B. W. (1988). A Spiral Model of Software

Development and Enhancement. IEEE Computer,

May(11):61–71.

Cusumano, M., MacCormack, A., Kemerer, C., and Cran-

dall, B. (2003). Software development worldwide:

The state of the practice. IEEE Software, 20(6):28–

34.

Dawson, R., Bones, P., Oates, B. J., Brereton, P., Azuma,

M., and Jackson, M. L. (2004). Empirical Method-

ologies in Software Engineering. In Proc. Eleventh

Annual Int. Workshop on SW Technology and Engi-

neering Practice. IEEE.

de Azevedo Santos, M., de Souza Bermejo, P. H.,

de Oliveira, M. S., and Tonelli, A. O. (2011). Ag-

ile practices: An assessment of perception of value of

professionals on the quality criteria in performance of

projects. Journal of Software Engineering and Appli-

cations, 4:700–709.

Eisenhardt, K. M. and Graebner, M. E. (2007). Theory

Building from Cases: Opportunities and Challenges.

Academy of Management Journal, 50(1):25–32.

GSN Working Group (2018). GSN Standard.

http://www.goalstructuringnotation.info.

Kirk, D. and Buchan, J. (2018). Developing a Taxonomy

for Software Process Context. In Proc. of the 13th In-

ternational Conf. on Software Technologies (ICSOFT

18), pages 312–319, Porto, Portugal. SCITEPRESS.

Kirk, D., MacDonell, S., and Tempero, E. (2009). Mod-

elling software processes - a focus on objectives. In

Proc. OOPSLA 2009, Session: Onward short papers

session 2., pages 941–948, Florida, USA. ACM.

Kirk, D. and MacDonell, S. G. (2014). Investigating a con-

ceptual construct for software context. In Proceedings

of the Conference on Empirical Assessment in Soft-

ware Engineering (EASE), number 27.

Kirk, D. and MacDonell, S. G. (2016). An Ontological

Analysis of a Proposed Theory for Software Devel-

opment. In P. Lorenz et al., editor, Software Tech-

nologies - ICSOFT 2015, volume 586 of CCIS, pages

1–17. Springer, Switzerland.

Kirk, D. and MacDonell, S. G. (2018). Evolving a Model

for Software Process Context: An Exploratory Study.

In Proc. 13th Int. Conf. on SW Technologies (ICSOFT

18), pages 296–303, Porto, Portugal. SCITEPRESS.

Kirk, D. and Tempero, E. (2012a). A lightweight frame-

work for describing software practices. Journal of

Systems and Software, 85(3):581–594.

Kirk, D. and Tempero, E. (2012b). Software Development

Practices in New Zealand. Technical report, Univer-

sity of Auckland, Dept. Computer Science.

Kitchenham, B., Budgen, D., Brereton, P., and Linkman,

S. (2005). Realising Evidence-Based Software Engi-

neering. In Realising Evidence-Based Software Engi-

neering ICSE Workshop 2005, St. Louis.

Lengnick-Hall, C. A. and Grifﬁth, R. J. (2011). Evidence-

based versus tinkerable knowledge as strategic assets:

A new perspective on the interplay between innova-

tion and application. Journal of Engineering and

Technology Management, 28:147–167.

Luca, J. D. (n.d.). Agile Software Developmet using Feature

Driven Development (FDD).

MacCormack, A., Crandall, W., Henderson, P., and

Toft, P. (2012). Do you need a new product-

development strategy? Research Technology Man-

agement, 55(1):34–43.

uller, S. D., Kræmmergaard, P., and Mathiassen, L.

(2009). Managing Cultural variation in Software Pro-

cess Improvement: A Comparison of Methods for

Subculture Assessment. IEEE Transactions on Engi-

neering Management, 56(4):584–599.

Nickerson, R. C., Varshney, U., and Muntermann, J. (2013).

A method for taxonomy development and its applica-

tion in information systems. European Journal of In-

formation Systems, 22:336–359.

Object Management Group (2018). Essence - Kernel and

Language for Software Engineering Methods version

1.2. https://www.omg.org/spec/Essence/.

Orlikowski, W. (2002). Knowing in Practice: Enabling a

Collective Capability in Distributed Organizing. Or-

ganization Science, 13(3):249–273.

Petersen, K. and Wohlin, C. (2009). A comparison of issues

and advantages in agile and incremental development

between state of the art and an industrial case. Journal

of Systems and Software, 82:1479–1490.

Ralph, P. (2018). Towards methodological guidelines for

process theories and taxonomies in software engineer-

ing. IEEE Transactions on Software Engineering.

Routio, P. (2007). Models in the Research Process.

http://www2.uiah.ﬁ/projects/metodi/177.htm.

Royce, W. (1970). Managing the Development of Large

Software Systems. In Proceedings, IEEE WestCon,

pages 328–339. IEEE.

Stol, K.-J. and Fitzgerald, B. (2018). The ABC of Software

Engineering Research. ACM Trans. Software Engi-

neering and Methodology, 27(3):11.1–11.51.

Turk, D., France, R., and Rumpe, B. (2005). Assumptions

Underlying Agile Software Development Processes.

Journal of Database Management, 16(4):62–87.

Turner, R., Ledwith, A., and Kelly, J. (2010). Project

management in small to medium-sized enterprises:

Matching processes to the nature of the ﬁrm. Interna-

tional Journal of Project Management, 28:744–755.

Smite, D., Wohlin, C., Galvin¸a, Z., and Priladnicki, R.

(2014). An empirically based terminology and taxon-

omy for global software engineering. Empirical Soft-

ware Engineering, 19:105–153.

Weaver, R., Despotou, G., Kelly, T., and McDermid, J.

(2005). Combining Software Evidence - Arguments

and Assurance. In Realising Evidence-Based Software

Engineering ICSE Workshop 2005, St. Louis.

Consolidating a Model for Describing Situated Software Practices

409
