Anomaly Detection in Smart Grids based on Software Defined Networks
Oliver Jung, Paul Smith, Julian Magin and Lenhard Reuter
Center for Digital Safety and Security, Austrian Institute of Technology, Vienna, Austria
Keywords:
Smart Grid, Software Defined Networks, Network Security, Anomaly Detection, Information Theory.
Abstract:
Software-defined networking (SDN) is a networking architecture that increasingly receives attention from
power grid operators. The basic principle is the separation of the packet forwarding data plane and the central
controller implemented in software that provides a programmable network control plane. SDN can provide
various functions that facilitate the operation of smart grid communication networks, as it can support network
management, quality of service (QoS) enforcement, network security, and network slicing. Due to periodical
updates of the central controller, a real-time view of the network is available that allows for detecting attacks
like e.g. denial-of-service (DoS) attack or network scanning. These kinds of attacks can be detected by
applying anomaly detection mechanisms on the gathered information. In this position paper, we highlight
the benefits SDN can bring to smart grids, address the implications of SDN on network security, and finally
describe how information collected by a popular OpenFlow SDN controller can be used to detect attacks in
smart grid communication networks.
1 INTRODUCTION
The power grid is currently subject to significant
changes. It has to cope with an growing num-
ber of decentralized generation, an increasing num-
ber of electric vehicles, new business models like
virtual power plants and local energy communities
(MENDES et al., 2018) and the demand for energy-
and cost-efficient system operation. Some of these
challenges can only be coped with by introducing
information and communication technology into all
parts of the power grid to build the smart grid. The
smart grid communication network thus has to sup-
port all different kinds of applications coming with
specific requirements for e.g. quality of service (QoS)
and Security.
To handle all these requirements grid operators
originally introduced Multi Protocol Label Switching
(MPLS) into their communication networks. How-
ever, due to the essential benefits provided that
software-defined networking (SDN) for communica-
tion in smart grids they are currently considering to
replace MPLS by SDN or to build an SDN overlay on
top of MPLS.
SDN can provide features like network segmen-
tation, fast failover, network monitoring required for
smart grid communication infrastructures. The cen-
tralized SDN controller has a complete overview of
the communication network status and thus monitor-
ing can be be significantly simplified. This is not only
important for identifying problems in smart grid net-
work equipment, such as switches and routers, but
also for security reasons. Gathered network traffic in-
formation are well suited for applying anomaly de-
tection to identify different kinds of network mis-
behaviour. Operators are thus enabled to detect
malfunctioning or misconfigured power grid devices,
such as intelligent electronic devices (IED) or remote
terminal units (RTU) and to detect malicious attacks.
The central SDN controller collects traffic flow in-
formation from all switches connected and thus has
complete visibility of the network. It has been shown
that anomaly detection can be successfully applied to
traffic flows in order to identify different kinds of at-
tack that can severely degrade smart grid availability.
This position paper addresses the benefits that
software defined networking can offer to smart grid
communication networks, in particular focusing on
improved attack identification capabilities, by apply-
ing network-based anomaly detection to SDN flow in-
formation.
This paper is organized as follows. Section 2 will
introduce related work. Section 3 deals with commu-
nication networks for smart grids while Section 4 ad-
dresses basic SDN functionalities, related security is-
sues and the pros and cons for introducing SDN in
Jung, O., Smith, P., Magin, J. and Reuter, L.
Anomaly Detection in Smart Grids based on Software Defined Networks.
DOI: 10.5220/0007752501570164
In Proceedings of the 8th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2019), pages 157-164
ISBN: 978-989-758-373-5
Copyright
c
2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
157
smart grids. Section 5 describes how anomaly detec-
tion can actually be done in SDN and how our ap-
proach will be validated. Finally, Section 6 concludes
our paper.
Table 1: List of acronyms.
DDOS Distributed denial-of-service
DOS Denial-of-service
DS Differentiated service
HAN Home Area Network
ICMP Internet Control Message Protocol
IED Intelligent Electronic Device
MPLS Multiprotocol Label Switching
NAN Neighborhood Area Network
ONOS Open Network Operating System
PCA Principal Component Analysis
QoS Quality of Service
RTU Remote Terminal Unit
SCADA
Supervisory Control and
Data Acquisition
SDECN
Software-defined Energy
Communication Network
SDN Software-defined Networking
VLAN Virtual Local Area Network
WAN Wide Area Network
2 RELATED WORK
Software-defined networking (SDN) for smart grid
communication has not only attracted attention from
the research community but recently also from prac-
titioners. One of the first analyses of this issue can
be found in (Zhang et al., 2013). They highlight the
SDN capabilities that make it ideally suited for the
smart grid: a) ease of configuration and management,
b) cross domain content-based networking, and c) vir-
tualisation and isolation. They present three use cases
to underline their position.
In (Cahn et al., 2013) the authors describe how
communication within an electric substation can be
improved. One of the challenges of conventional sub-
station networks is the complex configuration of mul-
ticast groups for more than a hundred IEDs. The
suggested software-defined energy communication
network (SDECN) architecture can eliminate many
substation network management issues by providing
auto-configuration capabilities.
The authors of (Aydeger et al., 2016) explored
how an SDN-enabled smart grid infrastructure can
improve substations resilience with self-recovery by
considering wireless communication links as failover
solution. The approach was evaluated using a virtual
Mininet-based test bed with the ns-3 network simula-
tor.
It generally has been acknowledged that there are
quite some security related issues around SDN. On
one hand side, SDN can provide functionalities for
improving network security by improved network vis-
ibility and ease of re-configuration. On the other
hand, the controller constitutes a single point of fail-
ure that increases the attack surface due to complex-
ity. The pros and cons around SDN security have been
summarized by (Dacier et al., 2017).
An approach for improving smart grid resilience
through SDN is presented in (Dong et al., 2015). The
solution establishes communication links only when
grid control commands are sent from the control cen-
tre to the grid devices. By doing so, the attacker has
only limited time to inject bogus control commands.
Using traffic flow information for network moni-
toring is a recognized key benefit of SDN. However,
anomaly detection in SDN has gained only limited
attention. In (Braga et al., 2010) the authors sug-
gest to use an artificial neural network method for
DDoS attack detection based on SDN traffic flow fea-
tures. Authors of (Mehdi et al., 2011) apply differ-
ent anomaly detection mechanisms in an SDN. They
evaluate the probability of successful connection at-
tempts and use maximum entropy estimation of traf-
fic features. However, the latter approach requires the
examination of every packet and thus dismisses the
benefits of SDN to some extent.
A comparison of OpenFlow and sFlow concern-
ing flow retrieval for anomaly detection is provided
by (Giotis et al., 2014). They claim that the number of
flow table entries may grow in a way that it can impact
the switching performance, in particular, in the case
of DoS attacks. Thus, sFlow with sampling for data
collection is used for detection purposes while Open-
Flow is responsible for attack mitigation by dropping
attack traffic.
Traffic features are mostly analysed separately in
order to detect anomalies. To allow for anomaly de-
tection across multiple traffic features or flows, au-
thors in (Lakhina et al., 2005) apply the multiway sub-
space method after an initial entropy-based analysis.
In this paper, we propose to apply entropy-based
anomaly detection to flow data that is collected by an
OpenFlow controller in a smart grid. We expect to
gain even better results as smart grid traffic is assumed
to be uniformly distributed given that most data pack-
ets from sensor measurements are sent periodically
and control commands are rather scarce under normal
conditions.
SMARTGREENS 2019 - 8th International Conference on Smart Cities and Green ICT Systems
158
3 SMART GRID
COMMUNICATION
Smart Grids are a set of technologies that are used
for remote control, monitoring, automation and digi-
talization of electrical power systems, including elec-
tricity distribution, demand and supply.
The electrical distribution grid is expected to ac-
commodate more smart loads (e.g. controllable loads)
and distributed energy generation devices, such as PV
inverters, in the near future. Connecting more devices
requires the communication network to be easily scal-
able, manageable and secure.
In general the aim of smart grid implementations
is to optimize failure handling, grid control, costs,
supply and demand, and increase the share of elec-
tricity from renewable energy sources. In order to
meet these objectives, the communication infrastruc-
ture has to support extensive network monitoring to
detect failures before they severely impact grid con-
trol, and maintain a high level of security and depend-
ability.
Thus, utilities introduce Multi Protocol Label
Switching (MPLS) in their communication back-
bones. The main reasons for this are the provisioning
of virtual private networks and the traffic engineer-
ing capabilities. However, MPLS is not very flexible
when it comes to new network services (Sydney et al.,
2013).
In contrast, the programmable controller in soft-
ware defined networks allows for the easy deploy-
ment of new network services, even during runtime.
In SDN, different classes of smart grid network traffic
can be isolated, e.g. to guarantee QoS. The software-
based network control applications allow for arbitrary
changes of switching devices. They add an additional
layer of control over network traffic as it allows to
prioritize or permit/block certain packet flows. SDN
may thus outperform MPLS as a backbone communi-
cation technology.
The emergence of digital communication net-
works has also added to the evolution of Supervi-
sory Control and Data Acquisition (SCADA) systems
that are essential for power system network opera-
tion. Currently, a number of open international stan-
dards exist in the SCADA systems of utilities, such as
the IEC 60870–5 and IEC 61850 series. While IEC
61850 is predominantly applied to intra-substation
communication, IEC 60870–5-104 is used for tele-
control between control centres and substations (Yang
et al., 2013).
The smart grid is expected to support a number of
different functionalities that come with their specific
performance requirements for the communication in-
frastructure. This infrastructure has to connect a vast
number of geographically spread devices, such as
Remote Terminal Units (RTUs) in substations, con-
trollers of distributed energy resources, as well as
bulk generation. In general, three categories of com-
munication networks can be distinguished: Home
Area Networks (HANs), Neighborhood Area Net-
works (NANs) and Wide Area Networks (WANs)
(Kuzlu et al., 2014).
Wide area networks connect distributed NANs
and HANs in different geographic locations. Real-
time measurements from devices are transported from
the substations to control centres through the wide
area networks. Control messages are sent by the con-
trol centre to the substations using the WAN. For
wide-area situational awareness, utilities require a
lot of time-stamped and real-time measurement data
from sensors in the power grid for monitoring, con-
trol, and protection (Wang et al., 2011). Thus, the
WAN in the smart grid system should provide reliably
high bandwidth and low latency.
Neighborhood Area Networks connect sensors on
the distribution feeders and transformers, and IEDs
carrying out control commands, distributed energy re-
sources in the distribution grid, or smart meters at
customer premises (Wang et al., 2011). These de-
vices build the main source of information for the
control centres to estimate the state of the distribu-
tion grid, and they are controlled by the control cen-
tre. The main requirement for applications in the cus-
tomer premises, such as smart metering, is scalabil-
ity. These applications are usually not sensitive to low
bandwidth or high latency. In contrast applications in
the field like e.g. SCADA for grid control require low
latency and high reliability. Operators should thus be
able to provide separated QoS classes to the different
categories of applications using e.g. network slicing
or virtualization, as provided by SDN.
Home area networks connect devices in the cus-
tomer premises to support applications such as de-
mand response or advanced metering. The HAN is
usually not under the control of the utility. Commu-
nication with devices in the HAN is done via a home
gateway or with the smart meter directly. The number
of devices connected to the HAN is limited and there
are no strict communication requirements compared
to WAN and NAN.
4 SOFTWARE DEFINED
NETWORKS
SDN is a network architecture where configuration
and intelligence are provided by an SDN controller.
Anomaly Detection in Smart Grids based on Software Defined Networks
159
The separated data plane is a mere packet forwarding
layer, implementing rules that are defined by a con-
troller. The SDN controller enables programmability
of network configuration using protocols like Open-
Flow (Open Networking Foundation, 2012) to con-
trol flow tables that are maintained by switches and
routers in the network. By relocating control func-
tionalities to a software-based controller, SDN can
provide a high degree of flexibility for implementing
new networking solutions for Smart Grids.
Network switches and routers usually have packet
routing and control algorithms included in the de-
vice firmware. However, the firmware is often not
accessible with the consequence that the switch’s
functionality cannot be changed easily. In contrast,
a software-based controller with numerous existing
open-source implementations, such as OpenDaylight
(Medved et al., 2014) or ONOS (Berde et al., 2014),
can be changed and new functionality added.

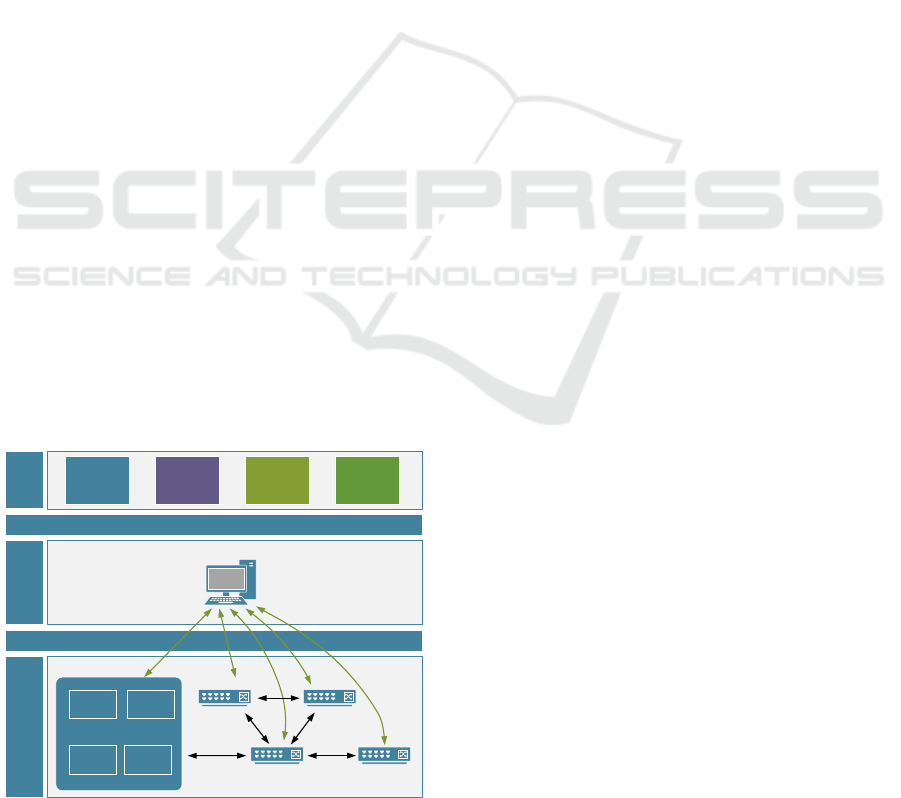

Figure 1 shows the basic SDN concept and archi-
tecture. The southbound interface defines the instruc-
tion set of the forwarding devices or switches. Al-
though there are other proprietary protocols, Open-
Flow (Open Networking Foundation, 2012) is the
most popular communication protocol to config-
ure forwarding devices from the control plane. It
is supported by numerous commercial-of-the-shelf
switches.
The northbound interface is the API for network
applications, denoted as App in Figure 1. Actual net-
work control and operation is implemented in the net-
work applications. They provide essential network
services such as switching, routing, firewalls, load
balancing or intrusion prevention. They interact with
the data plane without having the need of dealing with
each individual switch.
Control Plane
Data Plane
Openflow Switch
Meter
Table
Group
Table
Flow
Table
Flow
Table
Openflow Switches
Southbound Interface
Norththbound Interface
Application
Plane
App App App App
SDN Controller
Openflow Protocol
Data Transfer
Figure 1: OpenFlow SDN conceptual architecture.

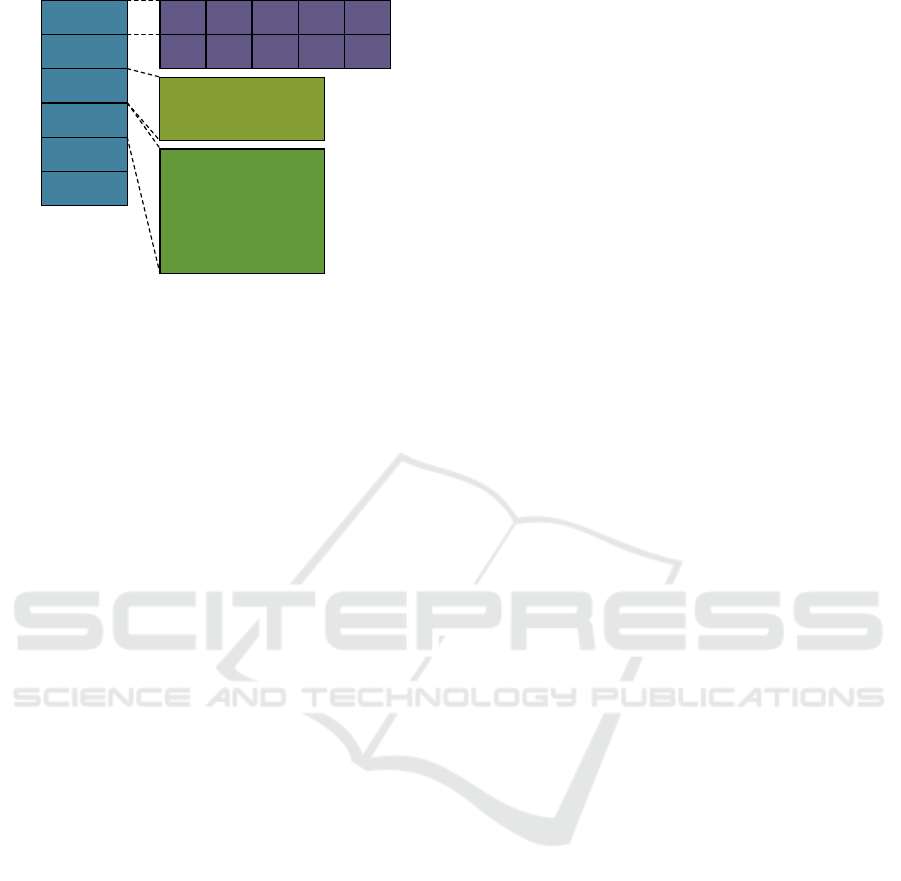

The OpenFlow switch maintains different tables.
The most important ones are the flow tables. They
define how packets are processed by the switch. The
table consists of three parts: (i) match fields such
as ingress port, destination and source IP address, or
ICMP type for matching received packets; (ii) instruc-
tions that are executed for matched packets, like for-
warding or dropping packets; (iii) and statistics re-
garding the matched packets. When a new packet is
received, which has no matching entry in the flow ta-
ble, it is forwarded to the controller for further pro-
cessing. The controller processes the packet and pre-
pares the flow entry that is implemented by the switch.
Group tables are a way to support more complex
tasks that are not possible using flow table instruc-
tions. Using groups, complex actions or sets of ac-
tions can be executed. Each group can contain sepa-
rate lists of actions, called OpenFlow buckets.
The meter tables contain per flow meter entries
with the purpose of implementing QoS operations.
They are used to monitor and control the rate of as-
sociated flows and can apply drop actions or change
the differentiated services (DS) field of the IP packet.
4.1 SDN in Smart Grids
The main benefit of SDN in smart grids is the capabil-
ity to dynamically configure network devices by ma-
nipulating data traffic flows, in order to improve QoS
or system resilience by preventing and mitigating fail-
ures and attacks (Dong et al., 2015). In general, the
key advantages of applying SDN in smart grids in-
clude (Rehmani et al., 2018):
Isolation of traffic classes and applications: As
described in Section 3, smart grid communi-
cation networks are divided into different cate-
gories, supporting applications with different de-
mands concerning bandwidth, latency and relia-
bility. SDN can establish virtual networks in order
isolate applications (Kim et al., 2014).
QoS enforcement: SDN introduces QoS mecha-
nisms for giving higher priority to time critical
measurements from different devices and control
messages, e.g. from the control centre to the sub-
station by link reservation (Dorsch et al., 2014)
Resilience: Resilience of smart grid communica-
tion networks can be increased by fast re-routing
and switchover from failing links. Mechanisms
provided by SDN introduce lower latency in case
of failover compared to classical routing mecha-
nisms, as SDN mechanisms respond faster to net-
work events (Dorsch et al., 2014).
SMARTGREENS 2019 - 8th International Conference on Smart Cities and Green ICT Systems
160
Network Visibility: The central SDN controller
periodically requests status information from the
connected SDN switches. Thus, it has full visi-
bility of all flows in the network and is aware of
the number of received packets and bytes, avail-
able bandwidth and links. Acquired flow statis-
tics which provides a real-time view of the net-
work state is accessible via open APIs and thus a
convenient source of information for traffic moni-
toring applications (Ali et al., 2015).
Security: Link isolation is a requirement for smart
grid communication networks. IEC 62351-10 (In-
ternational Electrotechnical Commission, 2012)
defines security architecture guidelines for power
systems and requires the implementation of sepa-
rated security domains. Similarly, NIST IR 7628
(National Institute of Standards and Technology,
2014) asks for communications partitioning. Link
isolation can moreover be used to enforce access
control policies and to implement one-way com-
munication where messages can only be sent from
a trusted to an untrusted domain and not vice
versa.
Moreover, SDN traffic routing features can be
used to block or redirect malicious traffic origi-
nating from DoS attacks or a network scan.
SDN can thus bring numerous advantages to smart
grid communication networks. Utilities are currently
evaluating in field trials the use of SDN in there pro-
cess networks. In the following section, some of se-
curity aspects of SDN deployments are highlighted.
4.2 SDN and Network Security
The SDN paradigm can bring opportunities to en-
hance security of smart grid communication net-
works, offering new approaches for preventing, de-
tecting and mitigating attacks. However, SDN also
increases the attack surface and existing standards do
not address issues of authentication and authorization.
The introduction of several network applications
can significantly increases the system complexity
(Dacier et al., 2017), making it harder to identify
a specific application that is responsible for chang-
ing flow entries in a particular way. The SDN APIs
can be used in order to implement elaborate security
applications. Acquiring network statistics, isolating
networks, leveraging active attack response is signifi-
cantly simplified.
The drawback of the central controller is that acts
as a single point of failure, which potentially reduces
system resilience and is an attractive target for attack-
ers. Attackers who are able to compromise the con-
troller can gain full control over the network. Ad-
ditionally, the controller is susceptible to denial-of-
service-attacks using vast numbers of unknown flows
and thus overloading the controller.
On the other hand, the centralized real-time situa-
tional awareness of the controller allows for detecting
DoS attacks more reliably and to mitigate attacks by
network re-configuration, meaning that packets that
are identified as being part of an attack can be dropped
or redirected to a security appliance (Scott-Hayward
et al., 2016).
How data collection for security purposes can be
gathered is described in the following section, using
the OpenFlow SDN controller as an example.
4.3 Data Collection in OpenFlow
In order to gain situational awareness in the net-
work, the SDN controller performs regular requests
of flow statistics from the OpenFlow-capable SDN
switches. In each request all flow table entries and
included counter values are queried and downloaded
to the controller. The popular ONOS controller re-
quests by default every 5 seconds information about
active flows using the OFPMP FLOW message with the
OFPTT ALL option. SDN controllers commonly pro-
vide a REST API that allows easy access to flow en-
tries in general and to flow statistics in particular. An
anomaly detection application can make use of this
API to interact with the controller.
The flow table counters are updated for each
packet that corresponds to the match fields of the flow
table. Match fields can include e.g. ingress port or
packet headers fields. Moreover, the flow table holds
an action field that defines how the matched packet
should be processed, e.g. forwarding to a specified
switch port, drop packet (empty instruction set), or
modify a virtual LAN (VLAN) tag. Thus, the Open-
Flow flow statistics is closely related to packet for-
warding performed by the SDN switch. As a con-
sequence, the switches acquire full flow information
compared to conventional packet forwarding devices
that aggregate packets into flows and export flow
data using protocols like sFlow, NetFlow, and IP-
FIX where often packet sampling is applied in or-
der to reduce effort for packet processing e.g. on
backbone routers. As the central SDN controller
is responsible for managing all the connected SDN
switches, it can acquire a complete overview of the
smart grid communication network knowing the flows
of all switches.
Anomaly detection mechanisms can make use of
the counters that are included in the flow table. The
OpenFlow Switch Specification (Open Networking
Foundation, 2012) defines optional as well as manda-
Anomaly Detection in Smart Grids based on Software Defined Networks
161
Switch
port
MAC
src
MAC
dst
VLAN
ID
IP
src
IP
dst
TCP
srcp
TCP
dstp
...
Actions:
Drop packet
Forward the packet to a
particular port
Modify packet state
Forward the packet to
another table or group
for further processing
Match Fields
Priority
Counters
Instructions
Timeouts
Received Packets
Received Bytes
Duration (seconds)
Duration (nanoseconds)
...
...
Figure 2: OpenFlow flow table.
tory per flow packet and byte counters. A duration
counter maintains track of the time a flow entry exists
in the flow table. The structure of the flow table is
shown in Figure 2.
The per flow counters monitor the number of
packets since the flow entry was installed in the flow
table. For anomaly detection purposes, usually net-
work traffic of a certain time interval is considered,
e.g. a 5 seconds interval. Thus, the anomaly detection
mechanism has to retain counter information until the
end of the following interval.
5 ANOMALY DETECTION
Flow data is widely used source of information for
detecting various types of security related incidents.
This includes malicious events such as distributed
denial-of-service (DDoS) attacks and network scans.
Compared to packet-based analyses, anomaly detec-
tion solely on flow data usually results in more false
positives and negatives because of the lower resolu-
tion of flow data.
Intrusion detection systems can be classified as
signature-based and anomaly-based detection sys-
tems. The former is only able to detect known attacks
by monitoring network traffic for known byte patters
or traffic sequences. This leads to low false positives,
incidents that are erroneously categorized as attacks,
but unknown attacks can not be detected. Anomaly-
based intrusion detection systems are able to detect
these kind of attacks by identifying deviations from
normal behaviour .
Most network traffic anomalies have in common
that they change the distribution of IP packet header
fields like source and destination addresses and ports.
In the anomaly detection context these fields charac-
terising the traffic behaviour are the traffic features.
Obviously in case of the DoS, e.g. flooding attack it
can be expected that the number of packets destined
to the victim will rise and thus change the traffic fea-
ture distribution. Also a port scan will manifest in the
feature distribution where a single host scans various
destination IP addresses and ports from a single IP
address and port.
There are numerous approaches for flow based
anomaly detection (Sperotto et al., 2010). We will fo-
cus on entropy based anomaly detection in the follow-
ing as an entropy based metric can effectively mea-
sure changes in the distribution of traffic features over
time.
5.1 Entropy based Anomaly Detection
Entropy based anomaly detection approaches relying
on network feature distributions have been proven
successful for detecting different classes of attacks
like DoS and ports scans. They have been applied
in smart grid as well as in SDN environments (Giotis
et al., 2014; Lakhina et al., 2005).
We propose to use Shannon Entropy to detect
anomalies in the distribution of traffic feature such as
source IP address, destination IP address, TCP source
port and TCP destination port. Entropy can be used as
a measure of the regularity of traffic features (Lee and
Xiang, 2001). High entropy means a scattered fea-
ture distribution while low entropy values represent a
converged distribution.
A DoS attack, where vast numbers of packets are
destined to one destination IP address and destination
port will significantly reduce entropy and can thus be
detected as a drop in entropy. A network scan where
whole network is scanned for existing IP addresses
and open ports will manifest in a rise in entropy.
Depending on the number of existing flows, cal-
culating entropy values for each feature can generate
extensive data sets. Hence, in order to reduce the di-
mensionality of the data gathered Principal Compo-
nent Analysis (PCA) is used in a second step to re-
duce data dimensions. That is a procedure form mul-
tivariate statistics and consists of a linear regression
model. PCA can be considered as a pre-processing
step for the classification phase. The aim is to set ap-
propriate counter measurements to prevent intrusions
and therefore provide more resilient network services
(Lakhina et al., 2005).
5.2 Testbed Validation
Figure 3 shows the testbed that will be used to ver-
ify that entropy based anomaly detection can be suc-
cessfully applied to SDN flow information in a smart
grid communication network. We will integrate the
anomaly detection application in a power grid ICT in-
SMARTGREENS 2019 - 8th International Conference on Smart Cities and Green ICT Systems
162
frastructure which consists of a substation ring with
SDN switches. Grid status information will be re-
trieved from the substation RTU using Modbus TCP.
The SDN anomaly detection application is using
flow information requested from the switches by the
ONOS controller using the controller’s REST API.
Flow statistics has to be requested by the controller
using OpenFlow OFPTT ALL request. In order to pre-
vent flow entries to expire before they have been col-
lected by the controller the flow timeout has to be ad-
justed to the request rate.
OpenFlow
Switch
SDN Controller
(ONOS)
Control Centre
RTU
RTU
OpenFlow
Switch
OpenFlow
Switch
SDN Applications
(Anomaly Detection)
REST API
Ethernet Data Plane
Ethernet Control Plane (flow monitoring)
OpenFlow statistics
Figure 3: Anomaly Detection testbed.
For generating smart grid traffic we will use Rasp-
berry Pis with OpenMuc. OpenMuc is a framework
for implementing smart grid monitoring and control
applications and supports the most important smart
grid communication protocols (e.g. IEC 61850, IEC
60870-5-104, or Modbus). We will launch different
kinds of attacks such as DoS, network scans, port
scans against the smart grid nodes, and will mimic
attacker activities through irregular activities like un-
planned firmware updates and unusual connection at-
tempts. The metrics for evaluating efficiency of the
detection mechanism will be the ratio of false posi-
tives and false negatives.
In addition we will use traffic traces from real
power grid that do not contain any attacks. We will
inject attack traces into these traces in order evaluate
the performance of the anomaly detection approach.
6 SUMMARY AND
CONCLUSIONS
This paper has shown that SDN can bring numerous
benefits to smart grid communication infrastructures.
One of them is enhanced network visibility (situa-
tion awareness), in which traffic flows and associated
statistics from switches are available at a centralized
SDN controller. Due to the SDN conceptual architec-
ture this features is inherently provided by SDN.
The SDN controller’s APIs enable access to this
information and can be used to support the implemen-
tation of a wide-variety applications that are useful
for smart grid networks, including anomaly detection
systems.
An anomaly detection mechanism that has been
successfully applied to traffic flows is entropy-based
anomaly detection. This form of detection system can
identify attacks, such as DoS attacks or port scans,
which can have a severe impact on smart grids or
could be part of network reconnaissance for prepar-
ing an attack. As part of our ongoing research, we
will implement and validate our approach to entropy-
based detection on an SDN testbed, which consists of
an ONOS SDN controller and Edgecore OpenFlow
switches. To generate representative smart grid net-
work traffic, a Raspberry Pi cluster has been devel-
oped that can, for example, be configured to represent
RTUs. Finally, we will verify our assumptions using
network traces from a real power grid.
As network re-configuration in SDN can be done
easily we will investigate ways to mitigate attacks by
e.g. dropping all packets that are part of the DoS at-
tack or limiting the number of packets to a rate where
they have no impact on the smart grid.
ACKNOWLEDGEMENTS
The presented work is conducted in the research
project VirtueGrid, which is funded by the Austrian
Climate and Energy Fund (KLIEN, ref. 858873)
within the program e!MISSION (eCall 9096736).
REFERENCES
Ali, S. T., Sivaraman, V., Radford, A., and Jha, S. (2015).
A Survey of Securing Networks Using Software De-
fined Networking. IEEE Transactions on Reliability,
64(3):1086–1097.
Aydeger, A., Akkaya, K., Cintuglu, M. H., Uluagac, A. S.,
and Mohammed, O. (2016). Software defined net-
working for resilient communications in Smart Grid
active distribution networks. pages 1–6. IEEE.
Berde, P., Snow, W., Parulkar, G., Gerola, M., Hart, J.,
Higuchi, Y., Kobayashi, M., Koide, T., Lantz, B.,
O’Connor, B., and Radoslavov, P. (2014). ONOS: to-
wards an open, distributed SDN OS. In Proceedings
of the third workshop on Hot topics in software de-
fined networking - HotSDN ’14, pages 1–6, Chicago,
Illinois, USA. ACM Press.
Braga, R., Mota, E., and Passito, A. (2010).
Lightweight DDoS flooding attack detection us-
ing NOX/OpenFlow. In IEEE Local Computer
Anomaly Detection in Smart Grids based on Software Defined Networks
163
Network Conference, pages 408–415, Denver, CO,
USA. IEEE.
Cahn, A., Hoyos, J., Hulse, M., and Keller, E. (2013).
Software-defined energy communication networks:
From substation automation to future smart grids.
pages 558–563. IEEE.
Dacier, M. C., Konig, H., Cwalinski, R., Kargl, F., and Di-
etrich, S. (2017). Security Challenges and Opportuni-
ties of Software-Defined Networking. IEEE Security
& Privacy, 15(2):96–100.
Dong, X., Lin, H., Tan, R., Iyer, R. K., and Kalbarczyk, Z.
(2015). Software-Defined Networking for Smart Grid
Resilience: Opportunities and Challenges. In Pro-
ceedings of the 1st ACM Workshop on Cyber-Physical
System Security - CPSS ’15, pages 61–68, Singapore,
Republic of Singapore. ACM Press.
Dorsch, N., Kurtz, F., Georg, H., Hagerling, C., and
Wietfeld, C. (2014). Software-defined networking
for Smart Grid communications: Applications, chal-
lenges and advantages. pages 422–427. IEEE.
Giotis, K., Argyropoulos, C., Androulidakis, G., Kalogeras,
D., and Maglaris, V. (2014). Combining OpenFlow
and sFlow for an effective and scalable anomaly de-
tection and mitigation mechanism on SDN environ-
ments. Computer Networks, 62:122–136.
International Electrotechnical Commission (2012). IEC TR
62351-10: Power systems management and associ-
ated information exchange - Data and communica-
tions security - Part 10: Security architecture guide-
lines.
Kim, Y.-J., He, K., Thottan, M., and Deshpande, J. G.
(2014). Virtualized and self-configurable utility com-
munications enabled by software-defined networks. In
2014 IEEE International Conference on Smart Grid
Communications (SmartGridComm), pages 416–421,
Venice, Italy. IEEE.
Kuzlu, M., Pipattanasomporn, M., and Rahman, S.
(2014). Communication network requirements for
major smart grid applications in HAN, NAN and
WAN. Computer Networks, 67:74–88.
Lakhina, A., Crovella, M., and Diot, C. (2005). Min-
ing anomalies using traffic feature distributions. In
Proceedings of the 2005 conference on Applications,
technologies, architectures, and protocols for com-
puter communications - SIGCOMM ’05, page 217,
Philadelphia, Pennsylvania, USA. ACM Press.
Lee, W. and Xiang, D. (2001). Information-theoretic mea-
sures for anomaly detection. In Proceedings of the
2001 IEEE Symposium on Security and Privacy, SP
’01, pages 130–, Washington, DC, USA. IEEE Com-
puter Society.
Medved, J., Varga, R., Tkacik, A., and Gray, K. (2014).
OpenDaylight: Towards a Model-Driven SDN Con-
troller architecture. In Proceeding of IEEE Interna-
tional Symposium on a World of Wireless, Mobile and
Multimedia Networks 2014, pages 1–6.
Mehdi, S. A., Khalid, J., and Khayam, S. A. (2011). Revis-
iting Traffic Anomaly Detection Using Software De-
fined Networking. In Sommer, R., Balzarotti, D., and
Maier, G., editors, Recent Advances in Intrusion De-
tection, volume 6961, pages 161–180. Springer Berlin
Heidelberg, Berlin, Heidelberg.
MENDES, G., NYLUND, J., and ANNALA, S. (2018). Lo-
cal energy markets: Opportunities, benefits, and bar-
riers. Ljubljana.
National Institute of Standards and Technology (2014).
Guidelines for Smart Grid Cybersecurity. Technical
Report NIST Internal or Interagency Report (NISTIR)
7628 Rev. 1, National Institute of Standards and Tech-
nology.
Open Networking Foundation (2012). OpenFlow Switch
Specification 1.3.0.
Rehmani, M. H., Davy, A., Jennings, B., and Assi, C.
(2018). Software Defined Networks based Smart
Grid Communication: A Comprehensive Survey.
arXiv:1801.04613 [cs]. arXiv: 1801.04613.
Scott-Hayward, S., Natarajan, S., and Sezer, S. (2016).
A Survey of Security in Software Defined Net-
works. IEEE Communications Surveys & Tutorials,
18(1):623–654.
Sperotto, A., Schaffrath, G., Sadre, R., Morariu, C., Pras,
A., and Stiller, B. (2010). An Overview of IP Flow-
Based Intrusion Detection. IEEE Communications
Surveys & Tutorials, 12(3):343–356.
Sydney, A., Nutaro, J., Scoglio, C., Gruenbacher, D., and
Schulz, N. (2013). Simulative Comparison of Mul-
tiprotocol Label Switching and OpenFlow Network
Technologies for Transmission Operations. IEEE
Transactions on Smart Grid, 4(2):763–770.
Wang, W., Xu, Y., and Khanna, M. (2011). A survey on the
communication architectures in smart grid. Computer
Networks, 55(15):3604–3629.
Yang, Y., McLaughlin, K., Littler, T., Sezer, S., Pranggono,
B., and Wang, H. F. (2013). Intrusion Detection Sys-
tem for IEC 60870-5-104 based SCADA networks. In
2013 IEEE Power & Energy Society General Meeting,
pages 1–5, Vancouver, BC. IEEE.
Zhang, J., Seet, B.-C., Lie, T.-T., and Foh, C. H. (2013). Op-
portunities for Software-Defined Networking in Smart
Grid. In 2013 9th International Conference on Infor-
mation, Communications Signal Processing, pages 1–
5.
SMARTGREENS 2019 - 8th International Conference on Smart Cities and Green ICT Systems
164
