Workspace-based Virtual Networks: A Clean Slate Approach to Slicing
Cloud Networks
Romerson Deiny Oliveira
a
, Diego Nunes Molinos
b
, Marcelo Silva Freitas
c
,
Pedro Frosi Rosa
d
and Flavio de Oliveira Silva
e
Faculty of Computing, Federal University of Uberlandia, Uberlandia, Brazil
Keywords:
Cloud Computing, Edge Computing, Virtual Network, ETArch, Workspace, Software Defined Networking.
Abstract:
Cloud Computing has brought a new vision about what applications might expect from underlying networks.
Software Defined Networking, in this context, provides techniques to make networks more flexible to applica-
tion requirements as well as to virtual networks, which help implement the provisioning of physical resources
to support tenants. Cloud-hosted applications assume that networks have high throughput, but do not con-
sider competition through the medium, handled by the switches. This paper aims to present the concept of
Workspace as a new paradigm to manage the underlying resources in terms of meeting the communication
requirements. We introduce a clean-slate approach based on horizontal addressing that has Workspaces as
logical links capable of being parameterized at the level of medium access control. In addition, an overview
of a new network element designed to allow the parameterization of Workspaces directly on the hardware is
given.
1 INTRODUCTION
Cloud computing has become an expressive paradigm
over the Internet in such a way that the number of ap-
plications developed and hosted in the Cloud is con-
stantly increasing (Zhang et al., 2010). Virtualization
in this respect enables the deployment of virtual net-
works as well as virtual services, and makes the de-
tails of the underlying (physical) network to applica-
tions transparent (Son and Buyya, 2018) (Blenk et al.,
2015) (Jain and Paul, 2013).
Nevertheless, virtualized resource management is
one of the challenges that Cloud environments still
have to deal with. For instance, how to quickly deploy
new services to customers and how to adjust band-
width on demand. These problems are directly related
to network infrastructures and not just to the virtual-
ized distributed system. In this sense, the concept of
programmable networks has been recovered to make
network management more flexible.
As stated by (Jain and Paul, 2013) and (Son and
a
https://orcid.org/0000-0003-0083-469X
b
https://orcid.org/0000-0002-7455-7624
c
https://orcid.org/0000-0002-2313-1068
d
https://orcid.org/0000-0001-8820-9113
e
https://orcid.org/0000-0001-7051-7396
Buyya, 2018), several researches explore the concept
of Software Defined Networking (SDN) to provide
Cloud infrastructure. Software Defined Networks
separate control and forward planes as well as enable
higher level software to configure the control plane on
demand, allowing the infrastructure to quickly adapt
to new application requirements (ONF, 2012).
Following the principles of SDN, Entity Title Ar-
chitecture (ETArch), a clean slate network architec-
ture, is based on a horizontal addressing scheme in
which entities communicate with each other through
a Workspace. The Workspace is a logical bus, a mul-
ticast domain, created according to the requirements
of the application (de Oliveira Silva et al., 2012).
Regarding SDN implementations, this is achieved
with a new layer of control between applications and
infrastructure. This control layer receives instructions
from applications and issues configuration actions for
the equipment at the infrastructure layer (Son and
Buyya, 2018). Nowadays, the OpenFlow protocol can
be considered the ‘de facto’ standard for the interac-
tion between the centralized logic controller and the
forwarding devices, e.g. SDN switches.
Despite the flow separation allowed by the Open-
Flow switches, there is still no link-level program-
ming, i.e. all streams are performed following the
same static medium access control.
464
Oliveira, R., Molinos, D., Freitas, M., Rosa, P. and Silva, F.
Workspace-based Virtual Networks: A Clean Slate Approach to Slicing Cloud Networks.
DOI: 10.5220/0007753104640470
In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 464-470
ISBN: 978-989-758-365-0
Copyright
c
2019 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
This paper aims to present the concept of
Workspace as a new paradigm to manage the under-
lying communications in terms of meeting the com-
munication requirements of applications such as QoS,
mobility, security, and so on. Debates on cloud-
hosted applications assume that networks are increas-
ingly larger, but do not consider competition for the
physical medium manipulated by switches. We intro-
duce a clean-slate approach based on horizontal ad-
dressing that has Workspaces as logical links capable
of being parameterized at the level of access control
to the medium.
The remainder of the document is structured as
follows: Section 2 presents the background and re-
lated works about fundamental concepts, highlighting
the supporting technologies for Cloud networks and
briefly presents the ETArch architecture. Section 3
provides an overview of the use of ETArch for slicing
Cloud networks proposal. Section 4 shows the results
of work in progress until now. Finally, Section 5 of-
fers some concluding remarks and makes suggestions
for future work.
2 BACKGROUND AND RELATED
WORK
This section brings some noteworthy concepts about
current and proposed cloud support.
Cloud computing represents the transformation
in computing nowadays. The virtualization tech-
nique employed in cloud computing allows multi-
ple servers to serve multiple applications for several
users. Resources such as processing and storage have
been greatly improved, but network infrastructure re-
sources have made slow progress in recent years (Son
and Buyya, 2018).
2.1 Cloud Virtual Networks
Management
The virtualization technique has been widely ex-
plored in the field of cloud computing, offering dis-
tributed computing in which a pool of virtualized and
dynamically scalable computing services are deliv-
ered on demand (Duan et al., 2012).
Cloud virtual networks introduce flexibility by de-
coupling service providers and allow multiple het-
erogeneous network from different service providers,
sharing the same common underlying physical net-
work resources (Chowdhury and Boutaba, 2010).
Virtual networks was conceived to ‘slice’ a given
physical network infrastructure. Basically, it abstracts
the underlying physical network and then creates de-
tached virtual networks (slices). In the network field,
there are several techniques that can create network
slices, such as Wavelength Division Multiplexing
(WDM), Virtual Local Area Networks (VLAN) and
Multiple Protocol Label Switching (MPLS) (Blenk
et al., 2015).
To enable virtualization of networks in cloud com-
puting environments, it is necessary to virtualize
nodes, links, switches, and all resources in the phys-
ical network infrastructure. The granularity level of
the slice directly reflects the effectiveness of man-
aging the network resources (Foukas et al., 2017)
(Chowdhury and Boutaba, 2010).
In coarse granulation, each function is responsi-
ble for a large portion of the network operations (e.g.,
LTE EPC), whereas in the fine grained functions, each
of the coarse grained functions is divided into several
sub-functions. For the same example, LTE EPC can
be broken into functions responsible for mobility and
traffic forwarding (Foukas et al., 2017).
There are several initiatives that seek mecha-
nisms to minimize the lack of flexibility and dy-
namism of virtual networks. Although usual, vir-
tualization requires powerful abstraction capabilities
to keep the operational complexity hidden (Amaras-
inghe and Karmouch, 2016).
Software Defined Networking breaks with the tra-
ditional distributed control of the real Internet archi-
tecture, by logically centering the control of an entire
physical SDN network on a single logical SDN con-
troller (Blenk et al., 2015). The programming capa-
bility offered by SDN can be used to implement vir-
tual SDN, so an SDN network can be virtualized by
inserting a hypervisor between the physical SDN net-
work and the SDN control plane. The SDN hyper-
visor virtualizes the physical SDN network and cre-
ates isolated virtual SDN (vSDN) networks that are
controlled by their respective SDN virtual controllers
(Son and Buyya, 2018) (Blenk et al., 2015).
Network virtualization in SDN still lacks research
and studies. There are obstacles that decrease the per-
formance of vSDN and consequently in the quality
of service delivered by the network. A visible prob-
lem is the abstraction of the hardware SDN switches,
where the elements can present significant variations
compromising the efficiency of the network. Re-
cent studies present partial virtualization proposals
for networks and physical switches (Kuzniar et al.,
2014)(Lazaris et al., 2014)(Blenk et al., 2015).
Workspace-based Virtual Networks: A Clean Slate Approach to Slicing Cloud Networks
465
2.2 Entity Title Architecture - ETArch
Among several new architectures projects (Hasegawa,
2013), the ETArch project emerged (de Oliveira Silva
et al., 2012) idealizing a clean slate architecture to
meet the requirements of future networks. ETArch is
based on a horizontal title-based addressing scheme in
which communicating entities request content by sub-
scribing to them, which triggers a process of dynamic
network configuration in order to provide content for
requesting entities. Content is delivered through a
channel, called Workspace, which aggregates various
communication elements, by allowing the user’s enti-
ties to express their requirements and capabilities over
time.
ETArch’s Title addressing eliminates the ambigu-
ity between Identifier and Locator, which still exists
in the IP addressing hierarchy, and replaces multi-
ple addresses, namely those used in multiple layers
of the TCP/IP stack, for a single address for the entity
(de Souza Pereira et al., 2010).
ETArch does not have a fixed layer structure as
in the TCP/IP architecture. In place of transport and
network layers, ETArch defines the ‘Communication’
layer. As shown in Figure 1, this layer differs from
traditional ones by being flexible and shaping accord-
ing to application-specific communications require-
ments such as, for example, QoS, low power con-
sumption and bandwidth.
Link Layer
Link Layer Protocols (such as IEEE 802, 3G, 4G)
Communication Layer
Application Layer
Figure 1: ETArch layer architecture pattern
(de Oliveira Silva et al., 2012).
2.2.1 Entity and Title
An ETArch entity can be anything that can commu-
nicate through the network. Thus, it can be a host,
a server, a switch, a user, a process, a Workspace,
among others. An entity has at least one title, a set of
requirements and capabilities. Examples of require-
ments are throughput, security and jitter.
Before start communicating, an entity expresses
its needs by sending its requirements, in addition to
its capabilities, to the control plane. Using such in-
formation, the network will be configured to meet the
requirements to support communication.
The Title is an identifier, unambiguous and inde-
pendent of the type and topology of the underlying
network. An entity may have one or more titles, but a
title identifies only one entity. The title is independent
of the location of the entity, which facilitates the man-
agement of entity mobility (Guimar
˜
aes et al., 2014).
2.2.2 Domain Title Service - DTS
DTS represents the control plane of an ETArch sys-
tem. It is a distributed system composed of intercon-
nected DTS Agents (DTSA), each one controlling a
subset of the forwarding elements of the network.
The DTSA is a local domain. To allow inter-
domain communication, ETArch has the Master
DTSA (MDTSA), which is an agent that has a super-
set of DTSA functions, responsible for implementing
the inter-domain communication interface.
2.2.3 Workspace
A Workspace can be defined as a logical bus, re-
gardless of the topology and type of the underlying
network, which interconnects multiple entities that
need to communicate according to specific require-
ments. A Workspace is naturally multicast, meaning
that one primitive transmitted by an entity reaches,
without retransmissions, all entities participating in
that Workspace.
Workspaces does not exist in the initial network
configuration. If an entity wants to offer content, it
needs to create a Workspace and register it in DTS
through a DTSA. When another entity is willing for
this content, it must ask DTS to register it and to at-
tach it to the Workspace that offers that content.
Figure 2: Ecosystem ETArch (de Oliveira Silva et al.,
2012).
ETArch specifies two types of Workspaces,
namely, Data and Control. The Figure 2 shows an
CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science
466
example of Data Workspace of the ETArch architec-
ture. In this figure, the DTS domain consists of two
agents, DTSA1 and DTSA2, each controlling a sub-
set of the Network Elements (NEs). To this end, each
agent abstracts the topology of the NEs it controls.
Note that traffic, in the illustrated Data
Workspace, is only duplicated in NEs closest to
consumer entities. Problems related to discovering
Workspaces and determining the best routes to
expand their boundaries are discussed in (Souza Neto
et al., 2015).
The Control Workspace is responsible for trans-
mitting the control plane primitives. It is a common
Workspace, however, its function is to create a logical
bus for communication of DTSAs. Thus, the entities
that compose it are the DTSAs of a domain (DTS) and
the switches that interconnect them.
Control Workspaces are not dynamic, such as
Data Workspaces. The latter are created and re-
moved as required by network applications. The con-
trol workspaces are created in the network bootstrap
and maintained during its operation. This type of
Workspace is used for inter-domain routing, since
communications between DTSAs is the reason for its
existence (Souza Neto et al., 2015).
In order to implement the concept of Workspaces,
two protocols were proposed for the control plane:
ETCP (Entity Title Control Protocol) and DTSCP
(Domain Title Service Control Protocol), the first
one for communication between entities and DTSAs
and the second for communication between two or
more DTSAs. The services of each protocol, as
well as their respective primitives can be found in
(de Oliveira Silva et al., 2012).
3 ETARCH TO SLICING CLOUD
NETWORKS
This section presents an approach that considers the
use of Workspaces to implement future virtual net-
works.
3.1 Workspace-based Slices
Applying virtualization concepts to SDN networks
offers numerous benefits. For example, slicing the
physical network into multiple virtual networks pro-
vides the lessee with only the resources requested by
the virtual network.
In turn, the ETArch architecture was designed
based on the assumption that current network archi-
tectures, based on the ”one size fits all” approach, are
no longer adequate for future networks. That is, net-
works of the future must be able to meet the diverse
demands of applications with diverse requirements.
As presented in Section 2.2, Workspace is a fun-
damental concept to communications in ETArch. In
addition to its intrinsic multicast nature, it can also be
emphasized that the concept of QoS are also intrinsic
to its nature, just because a Workspace is deployed
by DTSAs on network switches according to the re-
quirements and capabilities of the entity that create
the Workspace. Other entities that may be attached,
must meet the Workspace requirements.
Note that a single virtual SDN network must sup-
port a variety of applications. But, since each applica-
tion may have specific requirements, it is appropriate
to think that one slice should have be associated to
one application. Then, if the workspaces can be seen
as slices, they can offer finer-grained resource man-
agement whether compared to virtual networks, such
as SDN virtual slices.
Workspace VN1
Physical Network
Wsp11
Wsp1N
...
App11
App1N
DTS
...
DTSA1
DTSA2
DTSAn
DTS
Workspace VN2
Wsp21
Wsp2N
App21
App2N
...
Figure 3: Workspace-based virtual networks.
The Figure 3 shows how a DTS could instan-
tiate, through DTSAs, two Workspaces, namely
(Workspace VN1 and Workspace VN2), that would
be two slices of the physical network. Then, they
would create support for instantiating a Workspace by
the application within each slice.
Considering the possibilities and benefits that the
implementation of this idea could bring to the man-
agement of future network resources, this position pa-
per defends the potential applicability of Workspaces
to the provisioning and control of virtual networks, in-
cluding future cloud environments. However, to make
it real, a whole new network element and its interface
must be designed.
3.2 Workspace Interfaces
A complete overview of the Workspace-based ar-
chitecture is represented in figure 4. At the top,
the DTSA and End User entities are using the
Workspaces as a communication link. There are no
Workspace-based Virtual Networks: A Clean Slate Approach to Slicing Cloud Networks
467
Entity
Manager
Workspace
Manager
Mobility
Manager
OpenFlow
Resource
Adaptor
ETArch Switch
Resource
Adaptor
MIH
Resource
Adapter
DTSA Connector
Access Control
ETArch Switch
OpenFlow Switch
User NIC
DTSA
END USER
Hardware
Abstraction
Layer
Operating System
User Software
Network
Element
North Bound API
ETArch Config Protocol, OpenFlow,...
Logic Link
Horizontal Addressing
WKP_VN_1
Workspace-based
Slicing
ETCP, DTSCP
South Bound API
INFRASTRUCTURE
WORKSPACE
APPLICATION LEVEL
QoS
Manager
WKP_VN_2
...
WKP_VN_n
Figure 4: Workspace-based Architecture Overview.
assumptions about the physical topology of network
elements for end users. They talk to each other fol-
lowing the rules of the ETArch protocols.
At the bottom, the network elements act on the
forwarding plane. Among them, logical links are es-
tablished on demand in accordance with DTSA guide-
lines.
The ETArch switches in this scenario, through
the south-bound interface, bring a new hardware-
implemented API to provide programmability down-
to the medium access control method, i.e., the embed-
ded software defines hardware operations using repro-
grammability - which is discussed in Section 4.
Especially at the south-bound, the interface be-
tween the Workspace and the network element is quite
thin. Parameters such as traffic prioritization, flow
rate, hardware encryption, and Workspace discover-
ing are configured directly on flexible hardware.
According to (Kalyaev and Melnik, 2015), on
some switches, OpenFlow support is considered as
enhancement of existing features and adversely af-
fects their cost. Virtually, the switches do not have
full hardware support for newer versions of Open-
Flow, since hardware is inherited from classic solu-
tions. For economic reasons, manufacturers do not
always announce the possibility of using OpenFlow in
their decisions. In addition, with special attention to
the lower layers of the network, OpenFlow switches
do not allow any changes to link-level connections,
especially the hardware/software interface.
4 RESULTS AND THE ROAD
AHEAD
As stated earlier, programmable networks are use-
ful for enabling the transfer of content in the cloud.
Network flexibility depends on features such as pro-
grammability level, programmable communications
abstractions, and architectural domain or application
domain (e.g., signaling, management, transport). This
impacts the construction of architectures as well as
the services offered, considering that they are strongly
related to the programming methodology, adopted
middleware and potentially networked node support
(Campbell et al., 1999).
One problem with this is that all implementations
assume there is some connectivity at the network link
level. Note that SDN implementations are most of-
ten implemented in OpenFlow-based switches. At
this point, and intending to have greater control of the
QoS parameters of the transmissions, the Workspace
south-bound interface requires some flexible network
element to support the programmability, even at the
lower levels of the network.
The Link layer is the level at which hardware and
software interface in the implementations. Therefore,
having a new network element, such as a switch Eth-
ernet and TCP/IP-independent, would be a very versa-
tile solution for establishing distinct Workspaces with
different hardware-level features.
In this scenario, we propose a programmable
switch prototyped in reconfigurable hardware. The
main idea is to offer a switch that allows different
methods of medium access control, that differentiate
the different communication needs, and that allows
the parameterization of each Workspace being cre-
ated. The notion of separate control and forwarding
planes remains unchanged, but the programmability
is also added to the forwarding plane as well as the
possibility of change hardware configurations on the
fly.
We provide an API-like (hardware-implemented)
to DTSAs so they can combine parameters and have
a subset of possible Workspace configurations strictly
on hardware. Figure 5 shows how Workspaces are
implemented. Within the ETARch switch, there is
a set of Datapaths (and respective PHYs), a Control
Unit and a Workspace Table. Each Datapath is con-
nected to all others Datapaths to request and confirm
frame retransmissions. In addition, the Control Unit
configures each workspace with a subset of Datapath
functions/cores, as represented in the colored planes
of Figure 5.
Each physical datapath can be used according to
the needs of each Workspace. Then, independent traf-
CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science
468
fic can be found on the same switch port belonging to
different workspaces. In addition, a Workspace may
be flowing on different ports at the same time.

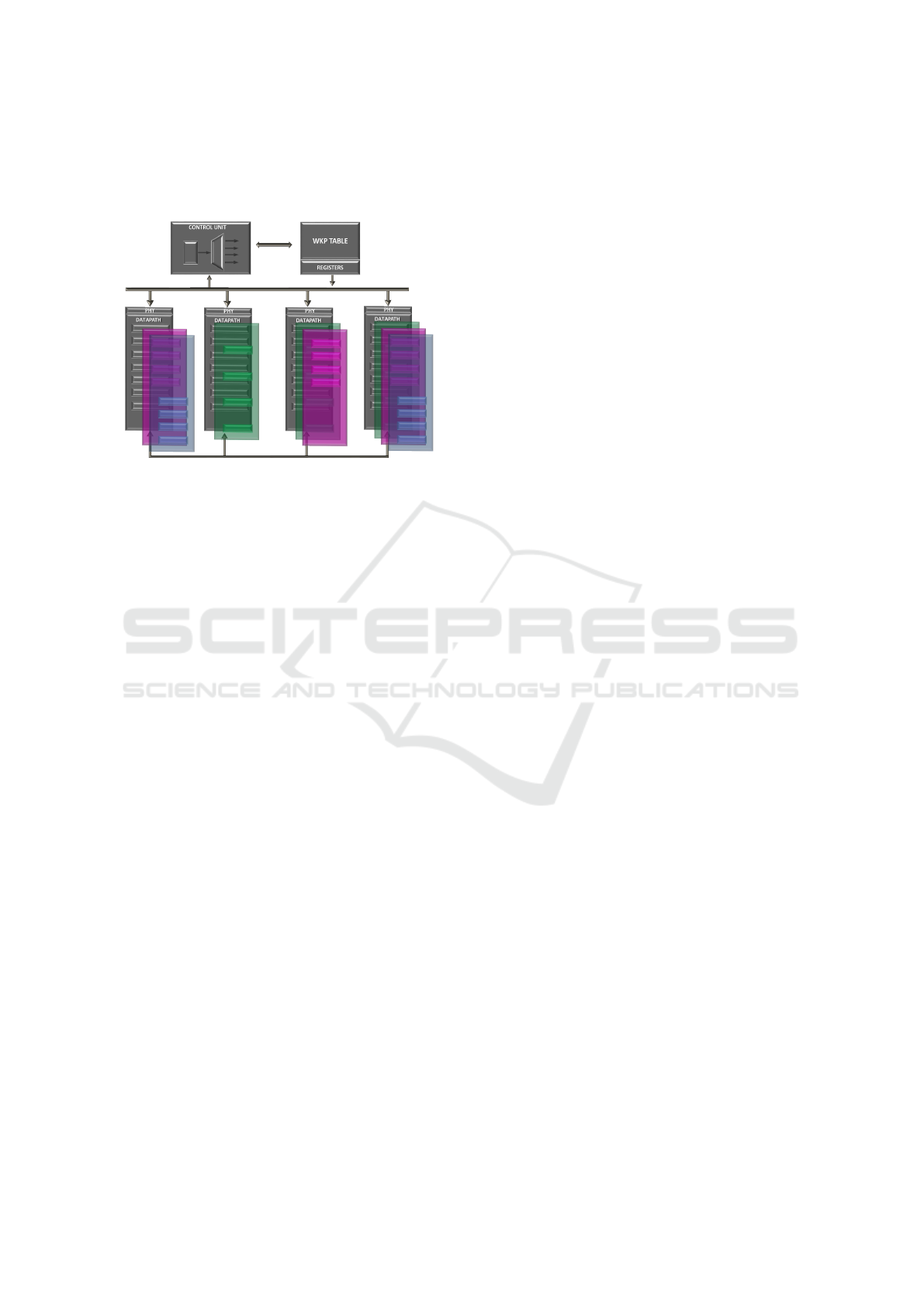

Figure 5: ETArch Switch - Virtual Datapaths.
The granularity of the Workspaces (looking from
below) relies on the capabilities and parameters ex-
plained in following.
Workspace Prioritizing: traffic sorted according
to several levels of Workspace priority on message
queues.
Parallel Scheduling: a component of the sched-
uler that takes advantage of the spatial parallelism of
the hardware to implement different threads with dif-
ferent scanning frequencies. This means that frames
are forwarded with different flow rates according to
Workspace requirements (configured by DTSA). For
example, text, audio, and video may have different
rates to be forwarded.
Non-linear throughput: thread frequencies can be
modified on demand, and at line rate by the DTSA,
i.e., the scheduler changes the rate in which each
Workspace has its frames being forwarded to the cor-
responding output ports. This is useful mainly to con-
trol the QoS of critical Workspaces.
Workspace Manipulation: Workspaces can be
added, edited, extended or deleted at line rate by re-
sponding DTSA requests (e.g., due to QoS agree-
ments or security requirements).
Resource Partitioning: the switch itself can in-
form the DTSA about being (or not) able to accept
new Workspaces based on its capacity and the cur-
rent throughput being used (with direct impact on the
QoS).
Multicast Inherent: multicast created at the link
level by streams added in a workspace table addressed
by titles.
As stated by (Kalyaev and Melnik, 2015), a key
challenge for SDN is how to handle high-touch,
high-security, and high-performance packet process-
ing streams. There are two essential elements to con-
sider: performance and flexibility. To handle this
trade-off, the FPGA is a midterm between GPP and
ASIC and it can achieve custom data path processing
of over 200 Gb/s per device and still keep the flexibil-
ity of a reconfigurable hardware.
Taking this into account and bearing in mind that
the cost of Non Recurrent Engineering (NRE) for
a FPGA prototyping is lower than for an ASIC, an
FPGA was chosen to be the prototyping platform. Up
to now, we have the switch prototyped (on Altera’s
FPGA Cyclone II) and able to add, create, edit and re-
move Workspaces according to DTSA requests. Per-
formance and stress tests are still being performed. It
is possible to realize that the DTS environment has the
closest control of the QoS parameter on each link in
the network, controlling the scanning frequency of the
scheduler and configuring each Workspace parameter
on the south-bound interface.
The work in progress at this time is related to man-
aging security in the environment and virtualizing dif-
ferent types of network architectures in terminals, ac-
cording to the needs of the entities and the aspects of
the resident operating system.
5 CONCLUDING REMARKS
This work proposes a network architecture to support
the communication requirements of cloud computing,
which takes advantage of the clean-slate architecture
approach. Network programming capability, scalabil-
ity, and on-demand provisioning can be enhanced us-
ing the Workspace concept.
Implementing Workspaces to support Cloud en-
vironment allows more granular management of the
infrastructure. Using Workspaces to slice networks
means allocate one logical bus per application offer-
ing some content rather than using slices, where dif-
ferent applications can share the slice with different
requirements.
Nevertheless, implementing a clean-slate ap-
proach is something challenging, because it requires
changes at the endpoints. These changes may have
an impact on the network interface cards as well as in
the operating system modules. This is not trivial to
overcome.
Some SDN premises are essential for cloud traf-
fic on networks. The ETArch approach, with the new
switch design, addresses the separation of hardware
and software while maintaining programmability in
both. In addition, it provides the availability of pro-
grammable open interfaces of the lowest level of the
network, the virtualization of the network infrastruc-
Workspace-based Virtual Networks: A Clean Slate Approach to Slicing Cloud Networks
469
ture using Workspaces as logical buses (and imple-
mented as virtual data paths), resource partitioning
and coexistence of independent network or architec-
tures over the same physical network hardware.
The FPGA-based switch allows to coexist in a sin-
gle network element, traffic with specific communica-
tion requirements. This is useful for distributing con-
tent across the network by categorizing it by different
levels of QoS, such as real-time video transfers, Web
audio conferencing, and document downloads.
ACKNOWLEDGEMENTS
This project was built with the support of MEHAR
team. We want to thank all who contributed to our re-
search. Brazilian agency CAPES has partially funded
this work.
REFERENCES
Amarasinghe, H. and Karmouch, A. (2016). Sdn-based
framework for infrastructure as a service clouds. In
Cloud Computing (CLOUD), 2016 IEEE 9th Interna-
tional Conference on, pages 782–789. IEEE.
Blenk, A., Basta, A., Reisslein, M., and Kellerer, W.
(2015). Survey on network virtualization hypervi-
sors for software defined networking. arXiv preprint
arXiv:1506.07275.
Campbell, A. T., De Meer, H. G., Kounavis, M. E., Miki,
K., Vicente, J. B., and Villela, D. (1999). A survey of
programmable networks. SIGCOMM Comput. Com-
mun. Rev., 29(2):7–23.
Chowdhury, N. M. K. and Boutaba, R. (2010). A sur-
vey of network virtualization. Computer Networks,
54(5):862–876.
de Oliveira Silva, F., Gonc¸alves, M. A., de Souza Pereira,
J. H., Pasquini, R., Rosa, P. F., and Kofuji, S. T.
(2012). On the analysis of multicast traffic over the
entity title architecture. In Networks (ICON), 2012
18th IEEE International Conference on, pages 30–35.
IEEE.
de Souza Pereira, J. H., Kofuji, S. T., and Rosa, P. F. (2010).
Horizontal addressing by title in a next generation in-
ternet. In Networking and Services (ICNS), 2010 Sixth
International Conference on, pages 7–11. IEEE.
Duan, Q., Yan, Y., and Vasilakos, A. V. (2012). A survey on
service-oriented network virtualization toward con-
vergence of networking and cloud computing. IEEE
Transactions on Network and Service Management,
9(4):373–392.
Foukas, X., Patounas, G., Elmokashfi, A., and Marina,
M. K. (2017). Network slicing in 5g: Survey and chal-
lenges. IEEE Communications Magazine, 55(5):94–
100.
Guimar
˜
aes, C., Corujo, D., Silva, F., Frosi, P., Neto, A.,
and Aguiar, R. L. (2014). IEEE 802.21-enabled en-
tity title architecture for handover optimization. In
Wireless Communications and Networking Confer-
ence (WCNC), 2014 IEEE, pages 2671–2676. IEEE.
Hasegawa, T. (2013). A survey of the research on future In-
ternet and network architectures. IEICE transactions
on communications, 96(6):1385–1401.
Jain, R. and Paul, S. (2013). Network virtualization and
software defined networking for cloud computing: a
survey. IEEE Communications Magazine, 51(11):24–
31.
Kalyaev, A. and Melnik, E. (2015). Fpga-based approach
for organization of sdn switch. In 2015 9th Interna-
tional Conference on Application of Information and
Communication Technologies (AICT), pages 363–366.
Kuzniar, M., Peresini, P., and Kostic, D. (2014). What
you need to know about sdn control and data planes.
EPFL, Lausanne, Switzerland, Tech. Rep. EPFL-
REPORT-199497.
Lazaris, A., Tahara, D., Huang, X., Li, E., Voellmy, A.,
Yang, Y. R., and Yu, M. (2014). Tango: Simplify-
ing sdn control with automatic switch property infer-
ence, abstraction, and optimization. In Proceedings of
the 10th ACM International on Conference on emerg-
ing Networking Experiments and Technologies, pages
199–212. ACM.
ONF (2012). Software-defined networking: The
new norm for networks. ONF White Paper.
https://www.opennetworking.org/images/stories/
downloads/sdn-resources/white-papers/wp-sdn-
newnorm.pdf.
Son, J. and Buyya, R. (2018). A taxonomy of software-
defined networking (sdn)-enabled cloud computing.
ACM Computing Surveys (CSUR), 51(3):59.
Souza Neto, N. V. d., de Oliveira Silva, F., Rosa, P. F., and
de Souza Pereira, J. H. (2015). Control Plane Rout-
ing Protocol for the Entity Title Architecture: De-
sign and Specification. In ICN 2015, pages 185–190,
Barcelona, Spain.
Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-
puting: state-of-the-art and research challenges. Jour-
nal of internet services and applications, 1(1):7–18.
CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science
470
