On the Evolutionary Relationship between Change Coupling and

Fix-Inducing Changes

Ali Zafar Sadiq, Md. Jubair Ibna Mostafa and Kazi Sakib

Institute of Information Technology, University of Dhaka, Bangladesh

Keywords:

Change Coupling, Software Bug, Fix-Inducing Change, Software Defect.

Abstract:

Change Coupling (CC) is the implicit relation formed between two or more changing software artifacts (e.g.

source code). These artifacts are found to have design issues and code smells. Existing research has revealed

the relationship between the change coupled relation of a class with the number of bugs in bug repositories.

However, this ignored their true relation at the creation time of bugs or erroneous changes known as Fix-

Inducing Changes (FIC). This paper tries to ﬁnd the actual relationship between FIC and change coupled

relations with respect to considering recent and all commits. This is done by traversing the entire history of

a repository with a commit window of 100 commits and collecting data about FICs and metrics related to

change coupling and object oriented system. It is found from the analysis that recent CC relations at the time

of error are more correlated with new errors. Besides, it is found that explanatory power for predicting future

erroneous change is more in recent CC relation than the one formed by considering all commits starting from

the 1

commit.

1 INTRODUCTION

Software artifacts form change coupled relation by

frequently changing together. Continuous changes

in software artifacts indicate that previous changes

were not enough to make the software work cor-

rectly. This may be the result of design issues or

erroneous code changes. Changes, where any erro-

neous code is introduced in the software, are known

as Fix-Inducing Changes (FIC). These changes create

adverse effect and produces unexpected results (Sliw-

erski et al., 2005) (Antoniol et al., 2005). In order to

analyze these erroneous changes, various works fo-

cused on different properties of change like affected

ﬁles, time of day, developer experience and others that

would induce the bugs (Levin and Yehudai, 2017),

(Kim et al., 2008), (Menzies et al., 2007), (Fukushima

et al., 2014). However, the change coupled relation of

artifacts like ﬁles or classes (in Java) with the number

of erroneous changes is yet to be investigated.

CC relations depend on the number of changes

considered in the commit history of a software sys-

tem. This relation when considered with all commits

from the origin or 1

commit and that of a small

number of commits recent to FIC or an erroneous

change will differ. Besides, considering the same

object-oriented and change coupled metrics for bugs

like (D’Ambros et al., 2009), originated at a differ-

ent period, may provide wrong information. So, it is

important to investigate the real relationship between

change coupling and erroneous changes with those

metrics recent to FICs.

Different researches have been conducted in both

change coupling and software bugs. In case of change

coupling, works like predicting change (Zimmermann

et al., 2005), suggesting overlooked change and that

of identifying design issues or code smells are seen

(Palomba et al., 2013). However, all of these ig-

nore the fact that the frequently changing relation may

have a role in producing bugs or erroneous changes.

This fact is later on explored (D’Ambros et al., 2009).

They have investigated this relationship by consid-

ering the software bugs with their proposed change

coupled metrics (like Linearly Weighted Sum of Cou-

pling or LWSOC, Sum of Coupling or SOC). This

considers the same object oriented and change cou-

pling metrics for all bugs but certainly does not repre-

sent at the time of creation of bugs or errors known as

FICs.

For conducting this work, ﬁrstly, Fixing Changes

(FCs) in the repository are obtained by searching

commit comment history using keywords and num-

ber indicating bug id. From ﬁxing changes, edited

and deleted lines are detected by comparing a ﬁxing

494

Sadiq, A., Mostafa, M. and Sakib, K.

On the Evolutionary Relationship between Change Coupling and Fix-Inducing Changes.

DOI: 10.5220/0007758804940501

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 494-501

ISBN: 978-989-758-375-9

change with its parent change. Since any change is

stored in the repository as commit, so ﬁxing commit

contains the corrected change from erroneous one by

changing or deleting erroneous lines of codes. Then

those edited or deleted lines are tracked to their last

modiﬁcation to ﬁnd FICs. Then considering a com-

mit window of 100 commits the entire history of the

repository is traversed. The number of FICs of a

class and change coupled metrics (like LWSOC and

SOC) proposed by (D’Ambros et al., 2009) and other

object-oriented metrics (like number of attributes) are

collected for ﬁnding their relationship.

The main contribution of this paper is to propose

considering the relationship between FICs and change

coupling. Besides, it investigated whether recent CC

relations or total CC relations inﬂuences more in pro-

ducing bugs. For this correlation analysis is per-

formed and obtained result shows recent relation is

correlated more with recent errors. After that from

regression analysis to predict number of FICs within

the short window of 100 commits, it is seen from the

obtained R

, the percentage of the response variable

variation that is explained by a linear model, is more

for recent CC relations.

2 METHODOLOGY

To analyze change coupled relations, historical in-

formation is collected from the Version Control Sys-

tem (VCS) git. All software changes in documents

or source code are stored in VCS as commits, which

contain information about a changed ﬁle, author, time

and comment for why the change is made. Among

those changes, Fixing Change (FC) correct errors

and bugs. Then changed and deleted lines in those

FCs lead to identifying the commit changes that in-

troduced errors in the system, also known as Fix-

Inducing Change (FIC). After that, the temporal anal-

ysis is performed to obtain the change coupled rela-

tions. All of these are elaborated in the following sub-

sections.

2.1 Identifying Fix-Inducing Changes

(FIC)

The entire process of ﬁnding FIC, also known as Bug

Introducing Change (BIC), is shown in Figure 1. To

ﬁnd FIC, at ﬁrst, all commit comments are searched

for FCs. FC commits contain comments with key-

words “Fix”, “Bug”, “Patch” or their past and gerund

form or those keywords with bug identiﬁcation num-

ber represented as a number following hash-tags like

“#1234”. Any commit containing any one of those

traits is marked as FC commit without linking those

to bug repository. This is because linking with bug

repository has a problem when bug ids are not found

in commit messages. So it might not fairly represent

all bugs (Bird et al., 2009). In these FCs, codes are

either modiﬁed or deleted to correct errors. The line

number of these modiﬁed or deleted codes in the im-

mediate parent commit of FC contains the erroneous

code. Therefore, by using Diffj (Diffj, 2018), the dif-

ferences in ﬁle contents of an FC commit and its im-

mediate parent commit, erroneous codes and their line

numbers are found. Since Diffj compares Java ﬁles

based on their code and ignores formatting, organi-

zation, comments, or whitespace, it removes the pos-

sibility of ﬁnding false FICs (Kim et al., 2006). By

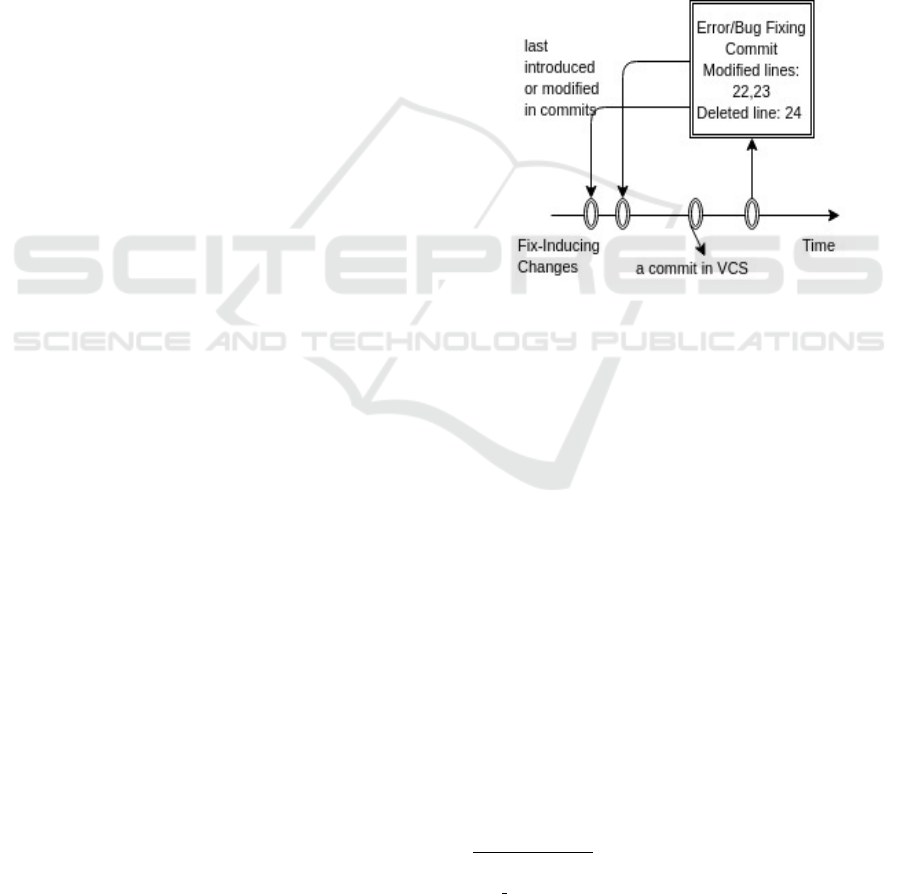

Figure 1: Identifying Fix-Inducing Changes.

tracking the origin of those lines containing erroneous

code in the parent commit of FCs to their last modi-

ﬁcation by using the Git blame command

(Fab

ok,

2012), FICs are found.

2.2 Analyzing Relationship

The change coupled relation is analyzed by consid-

ering a commit window rather than a time frame of

month and year. This is because some software repos-

itories might not have any commit in a month or year.

Also, the ﬁrst 20 commits of the repository are ig-

nored from analyzing FICs due to the assumption

that those are initial setups. So, analysis consists of

commit window having commits between [20..120),

[120..220) and so on. Figure 2 shows the entire pro-

cess.

For analyzing change coupled relationship, ﬁrstly

all java classes in the repository from 1

to the last

commit are listed. Then, all obtained FICs are sorted

according to the timeline. After that, the version his-

tory is traversed along with a commit window of 100

git -c core.abbrev=40 blame -L(line number),+1

(FC ParentHash)ˆ– (ﬁlename)

On the Evolutionary Relationship between Change Coupling and Fix-Inducing Changes

495

Figure 2: Analysis process of recency consideration in CC

relation.

commits, and for each FIC in that commit window,

CC relation is considered along 2-time tracks. CC re-

lation formed from the 1

commit up to the end of

considered commit window is considered as Origin

track as it considers time period from 1

commit. In

order to get the recently formed relations, which will

reﬂect recent relations,

of origin distance previous

to the commit window’s last commit is considered as

Recent track. This is done from intuition to ensure the

importance of recency (Mori et al., 2015) which may

be related to the erroneous codes. Consideration of

of origin distance is done from following assump-

tions

• Recent month or year may have 0 commits.

Therefore rather than tracking through time, it is

best to use a suitable commit number.

• Related changes are mainly committed to to-

gether(Herzig and Zeller, 2013). So, any changes

related to error will be near to the erroneous com-

mit.

• As software evolves, different functionalities are

added and the number of commits to maint=in

them may increase. Therefore, as the distance

from origin increases, the recent track will con-

sider more commits.

Now, change coupling measures, as mentioned by

(D’Ambros et al., 2009), are collected from these

tracks for each class in FICs within the commit win-

dow. These are Number of Coupled Class (NOCC),

Sum of Coupling (SOC), Exponentially Weighted

Sum of Coupling (EWSOC) and Linearly Weighted

Sum of Coupling (LWSOC). These are brieﬂy de-

scribed below. Here, NOCC measures the number of

co-change occurrences that exceeds threshold n. SOC

takes into account the total magnitude of occurrence

in change coupling relationship. EWSOC and LW-

SOC take into account how apart change coupled re-

lations are with respect to the considered time period.

Table 1: Repository Detail.

Repository

Name

Total

Commits

Analyzed

Commits

Lines of

Code

Google

Guava

(Doe,

2009)

4798 4520 768858

After that, software complexity metrics are col-

lected from repository states at the last commits by

moving commit window (e.g. 120, 220, 320 and so

on). These complexity metrics include (Chidamber

and Kemerer, 1994) Chidamber & Kemerer object-

oriented metrics. These are Weighted Method Count

(WMC), Depth of Inheritance Tree (DIT), Response

For Class (RFC), Number Of Children (NOC), Cou-

pling Between Objects (CBO) and Lack of Cohe-

sion in Methods (LCOM). Besides it also includes

some other object-oriented metrics which are Number

Of Attributes (NOA), Number Of Methods (NOM),

FANIN and FANOUT.

Change coupling and object-oriented metrics are

collected or each of 100 commits. After that correla-

tion and linear regression analysis are performed. Ob-

serving p and R square value, their relation and abil-

ity to predict and explain the number of actual ﬁx-

inducing changes of a class within the commit win-

dow period are analyzed. From those data, the impor-

tance of recent data about changed coupled relation

can be understood.

3 EXPERIMENTATION

This experiment is carried out in Ubuntu 14.04 oper-

ating system with 8GB memory and Intel Core” i3-

4130 CPU @ 3.40GHz × 4 processor. For perform-

ing this experiment, ﬁrstly, some popular Java repos-

itories are searched and among them, 1 java reposi-

tory is currently analyzed. The details of the selected

repository are shown in Table 1.

In Guava repository, mostly Google develop-

ers maintain an open-source set of libraries. This

project provides extensions to existing Java collec-

tions frameworks and other features like hashing,

graph, range objects, and many others. This reposi-

tory contains commits from June 2009 to the last com-

mit found to be updated in August 2018.

In this repository, the experiment is carried out

methodologically. Firstly, the ﬁxing changes are

found in the source repository by searching commit

comments with keywords. After that, Diffj (Diffj,

2018) is used to identify changes between FC and its

immediate parent commit while ignoring format and

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

496

white space changes. The modiﬁed and changed lines

are tracked to their last modiﬁcation known as FICs

using Git blame command. The number of FCs and

FICs found in the repository are shown in table 2

Table 2: Total Fix-Inducing Commits and Fixing Commits

of each repository.

Repository

Name

Fixing

Commits

Fix-Inducing

Commits

Google

Guava

597 486

After ﬁnding FICs, these are sorted according to

their commit distance from the 1

commit of the

repository. Then with a sliding window of 100 com-

mits, commit history is traversed and coupling mea-

sures are collected from 2 track and object-oriented

metrics from repository state at the last commit in

sliding commit window. Then for each of these mea-

sures, the number of errors/FIC of a particular class

found within the commit window is analyzed.

4 RESULT ANALYSIS

The data collected from the experiment is used to per-

form correlation and linear regression analysis. To

ﬁnd the relationship of change coupling measures

and object-oriented metrics with the number of ﬁx-

inducing changes within the commit window, cor-

relation analysis is done. It is observed that re-

cent change coupling measures are more correlated

to errors where co-change occurrences are small but

poorly co-related where the number of co-change oc-

currences is large. Besides recent co-change metrics

are more explanatory in predicting the number of fu-

ture bugs rather than the co-change from the origin.

4.1 Correlation Analysis

Here, the correlation between coupling measures and

errors introduced into the system, i.e. FICs within the

commit range, is analyzed. From this analysis, fol-

lowing questions can be addressed.

1. Is there any correlation between FICs and change

coupling measures?

2. Is there any difference between considering

change coupling measures for the recent time pe-

riod to that from the 1

commit?

To answer those questions Spearman correlation

analysis is performed. In Figure 3, Spearman corre-

lation is indicated on the y-axis and x-axis represents

the threshold (i.e. n to get those n coupled classes

with respect to considered class) used for the compu-

tation of change couplings metrics. After that plotting

the points on the graph, these are connected to under-

stand their behavior.

In Figure 3a, Spearman correlation between

change coupling and object-oriented metrics of class

total FICs found in the commit window period are

shown. All metrics are represented with their name,

except recent track metrics are named with a preﬁx

”r ”. The correlation analysis of object-oriented met-

rics gives a vague idea whereas recent track shows

moderate relation during early phase or around 14-15

co-change occurrences of a class with other classes.

In Figure 3b, Spearman correlation between re-

cent and origin track coupling measures with total

FICs in the commit window period are shown. The

correlation analysis of origin track gives the idea

that change prone classes have more correlation with

FICs. Since, those classes co-changing in a huge

amount like 14-15 may not be present in recent track,

so recent track badly correlates with FICs after 14-

15 co-change occurrence of a class. However, in the

early phase of co-change occurrences of a class, i.e.

1-15 recent track shows that those have more relation

with errors.

Now, with respect to question 1, it can be said

there is a correlation between FIC of a period with

its change coupling measures. Although, it may ap-

pear moderate or weak for various reasons like Guava

being a library project, considering the number of er-

rors within commit window of 100 for prediction or

the analyzed history of guava is short (i.e 4520 com-

mits). So, it needs further analysis by changing the

number of commits and exploring different projects.

And for question 2, recent track coupling measures

show a moderate correlation in cases where a class

co-changed small number of times but weak correla-

tion with respect to change prone classes which co-

changed more than 15 changes in guava repository.

This means that change prone classes like those which

changed more than 15 times have been are very un-

likely to produce bugs due to its co-changing rela-

tions. This indicates that newly formed relations with

smaller co-change occurrences are mainly responsible

for bugs.

4.2 Linear Regression Analysis

After ﬁnding correlation between number of FICs

with change coupling metrics, here, two questions are

addressed. These are

1. Does use of change coupling increase explanatory

power for predicting FICs or erroneous changes

based on software metrics?

On the Evolutionary Relationship between Change Coupling and Fix-Inducing Changes

497

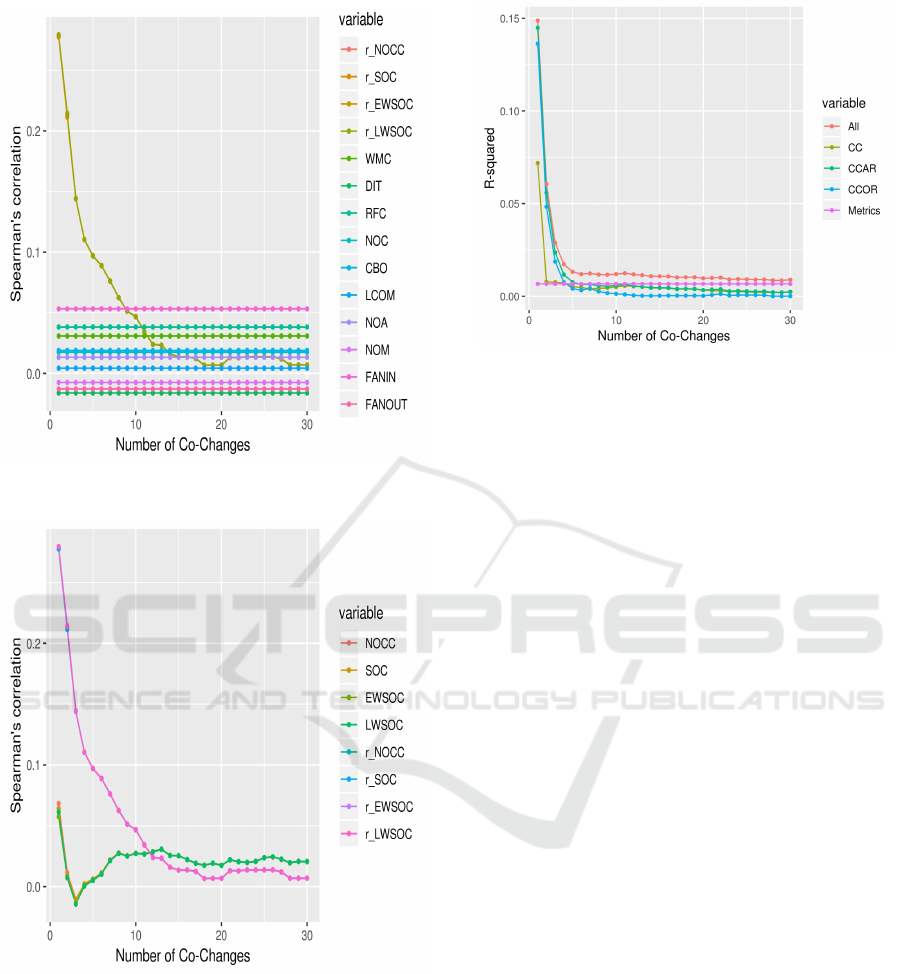

(a) Spearman correlation analysis between recent track

coupling measures and metrics

(b) Spearman correlation analysis between recent track and

origin coupling measures

Figure 3: Spearman Correlation analysis showing a correla-

tion between recent, origin track change coupling measures

and metrics with FIC.

2. Does use of recent track change coupling mea-

sures improve the model further?

For this, linear regression models are made. Here

the independent variables are change coupling mea-

sures in origin and recent track and the object-

Figure 4: Linear Regression analysis for Guava Repository.

oriented software metrics as described in the method-

ology section. The dependent variable is the num-

ber of errors or FICs found within the commit win-

dow considered. In Figure 4, the obtained results

of regression analysis are described. Here, the x-

axis represents the threshold (i.e. n in Figure 4 to

get the change coupling measures as considered by in

D’Ambros et al proposed change couple metrics ) and

the y-axis represents the R

found in regression anal-

ysis. After that plotted points are connected. In Fig-

ure 4, all means every metrics and change coupling

measures are considered. CC represents only change

coupled relations, CCAR means change coupled mea-

sures with recent and origin both track, CCOR means

only recent change coupled measures and Metrics

means the considered object-oriented metrics. In re-

gression analysis, p-values help to determine whether

the observed relationships also exist in the larger pop-

ulation. All p values for the regression models, for

predicting errors when the number of co-change oc-

currences is from 1 to 30, are found signiﬁcant i.e. p

< 0.01. In case of independent variables, all 4 change

couple metrics proposed by (D’Ambros et al., 2009)

are found signiﬁcant in all cases p < 0.01. In case of

recent track, most of them are found signiﬁcant in all

cases with an exception in a small number of cases.

Based on R

from Figure 4, which explains the

variability of the response data around the mean of

regression line, it can be said that recent change cou-

pling measures improve the explanatory power of

existing models with object-oriented metrics. This

answers question 1. Question 2 is also answered

from the analysis it is clear that recent information

of change coupled relations can further improve the

explanatory power of prediction model for predicting

future FICs. It is also noticed here that R

is very

small, this may be either due to the project’s nature or

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

498

that of considered FICs within commit window of 100

commits. This requires further analysis by changing

the size of the commit window and investigating other

projects.

5 THREATS TO VALIDITY

The construct validity of the work is threatened by

the following facts. Firstly, only commit messages

are searched for ﬁx-inducing changes without linking

it with the bug repository. Linking with bug repos-

itory has a problem when bug ids are not found in

commit messages. Therefore it might not fairly rep-

resent all bugs (Bird et al., 2009). Besides, the main

objective of this study is to analyze, in the evolution

of software, the relation between CC classes with er-

rors at FIC. Secondly, varying commit behavior like

changing multiple classes not related to ﬁx in an FC

might lead to wrong FICs. This is mitigated by con-

sidering a large dataset. This will be done in the fu-

ture with repositories containing more FIC commits.

Thirdly, all ﬁxes are taken into account but these all

may not represent corrective maintenance (Antoniol

et al., 2008). However, in the considered project, only

bug ﬁxes are found by going through 10 random FCs.

It is found that those FCs are indeed intended for cor-

rective maintenance.

Although this study considered only Java classes.

The main reason behind this limitation is Diffj which

ﬁnds the modiﬁed and deleted lines between two ver-

sions of a ﬁle. In order to make it language inde-

pendent, ANTLR grammars may be used but those

are not as efﬁcient as abstract syntax tree made for

each language. So, the future extension may contain

an elaborate analysis of different types of ﬁles and

projects. Further, evolution will be analyzed with re-

spect to different conﬁdence level will be considered

to get more insight.

6 RELATED WORKS

Although a considerable number of works are visible

in both the ﬁelds of CC and Bug/Error, works com-

bining those two are rare. All of those tried to address

different issues with problems of a particular ﬁeld.

Among these works, some of the worth mentioning

works are mentioned below.

To analyze the importance of change coupling, it

is found that structural dependencies are not enough

to explain the evolvability of Java software (Geipel

and Schweitzer, 2012). In the evolution of the

software system, historical data about co-changing

classes can be used like ROSE (Zimmermann et al.,

2005) prototype to predict further changes. Further,

the Bayesian network can be used for change predic-

tion(Zhou et al., 2008). Based on how changes are

done in the source code....., these can be classiﬁed

according to tree edit operations in AST (Fluri and

Gall, ). By taking into account inheritance, polymor-

phism, and dynamic binding, there is an operational

deﬁnition of dynamic coupling measures (Arisholm

et al., 2004). Continuous co-changes may indicate

ﬂawed design or rigid coding. To validate this claim,

it is found that frequently changing software parts or

change couplings may be candidates for refactoring

(Ratzinger et al., 2005).

By using commit comments in the source repos-

itories, ﬁxing changes and ﬁx-inducing changes are

identiﬁed by (Sliwerski et al., 2005). However, due

to considering format change and comments, it in-

creases the number of false ﬁx-inducing changes

which is later on addressed by (Kim et al., 2006).

Information from ﬁxing change and ﬁx introduc-

ing changes in version control commits and changed

codes can be used for bug prediction (Nucci et al.,

2018) (Shivaji et al., 2013), localization (Wen et al.,

2016) as well as to to identify affected parts (Misirli

et al., 2016). Further, to analyze whether any

change can be predicted to introduce a bug, (Aver-

sano et al., 2007) used software changes as elements

of n-dimensional space. Similar work is done by

(Shivaji et al., 2013) by reducing the number of fea-

tures. Besides, ﬁxing any erroneous change may not

ﬁx the bug, to address this issue, research of (Yin

et al., 2011) provided useful guidelines. To investi-

gate the characteristics of change types in bug ﬁxing

code, (Zhao et al., 2017) classiﬁed the change types

into 5 categories.

The relationship between change coupling and

software defect is ﬁrst brought up by (D’Ambros

et al., 2009). It showed that frequently changing

software artifacts has a strong correlation with soft-

ware bugs. For ﬁnding the relationship, this consid-

ered total bugs of a class in bug repository with col-

lected metrics from repositories considering all trans-

actions. Recently, similar work is performed and it

is found that there is a positive correlation between

change coupling and defect measures (Kirbas et al.,

2017). However all of these considered bugs from

bug repositories. All of these motivated this work to

look at the evolutionary relationship between change

coupling and FICs and to ﬁnd their relationship.

On the Evolutionary Relationship between Change Coupling and Fix-Inducing Changes

499

7 CONCLUSIONS

This paper tries to ﬁnd out whether or not change

coupling has a relationship with the origin of bugs

known as ﬁx-inducing changes from source reposi-

tories rather than considering bugs from bug reposi-

tories like (D’Ambros et al., 2009). For this, change

coupling measures and FICs are collected from the

source repository of Google Guava. This is done by

considering a commit window of 100 commits and

traversing the history using the version control sys-

tem git. To analyze their relationship, both correlation

and regression analysis is performed. It is seen from

the obtained results that recent change coupling mea-

sures are more correlated with errors rather than con-

sidering total relation. By considering the explana-

tory power for predicting erroneous changes within

the commit window, the use of recent change cou-

pling measures seemed to improve the model as it rep-

resents the recent interactions.

The main achievement of this work is to consider

the relationship between FICs a software defect with

change coupling measures. This analysis is based

on Google Guava repository and by considering FICs

within 100 commits of the commit window, so the

obtained results seem to show moderate and weaker

relation. To address this issue more repositories will

be explored and commit window of different size will

be taken in the future to strengthen the claim. Re-

cently, from analysis, it is observed that total ﬁx-

inducing changes obtained from all commits under

observation correlates strongly with the change cou-

pling measures used in this study.

Various works are possible from the relationship

between change coupling and ﬁx-inducing changes.

These may include prediction, automatic bug ﬁxing,

analyzing change impact and others. However, in fu-

ture works focus will be given on ﬁnding how this re-

lationship is inﬂuenced by considering different conﬁ-

dence level and size of commits. Besides, this work is

based on java projects and in future projects of other

programming languages will be analyzed to ﬁnd the

actual difference.

ACKNOWLEDGMENT

This research is supported by the fellowship from

ICT Division, Ministry of Posts, Telecommunica-

tions and Information Technology, Bangladesh. No-

56.00.0000.028.33.002.19.3; Dated 09.01.2019.

REFERENCES

Antoniol, G., Ayari, K., Di Penta, M., Khomh, F., and

eneuc, Y.-G. (2008). Is it a bug or an enhance-

ment?: a text-based approach to classify change re-

quests. In Proceedings of the 2008 conference of the

center for advanced studies on collaborative research:

meeting of minds, page 23. ACM.

Antoniol, G., Rollo, V. F., and Venturi, G. (2005). Detect-

ing groups of co-changing ﬁles in CVS repositories.

In 8th International Workshop on Principles of Soft-

ware Evolution (IWPSE 2005), 5-7 September 2005,

Lisbon, Portugal, pages 23–32.

Arisholm, E., Briand, L. C., and Foyen, A. (2004). Dy-

namic coupling measurement for object-oriented soft-

ware. IEEE Transactions on software engineering,

30(8):491–506.

Aversano, L., Cerulo, L., and Del Grosso, C. (2007). Learn-

ing from bug-introducing changes to prevent fault

prone code. In Ninth international workshop on Prin-

ciples of software evolution: in conjunction with the

6th ESEC/FSE joint meeting, pages 19–26. ACM.

Bird, C., Bachmann, A., Aune, E., Duffy, J., Bernstein,

A., Filkov, V., and Devanbu, P. (2009). Fair and bal-

anced?: bias in bug-ﬁx datasets. In Proceedings of

the the 7th joint meeting of the European software

engineering conference and the ACM SIGSOFT sym-

posium on The foundations of software engineering,

pages 121–130. ACM.

Chidamber, S. R. and Kemerer, C. F. (1994). A metrics

suite for object oriented design. IEEE Transactions

on software engineering, 20(6):476–493.

D’Ambros, M., Lanza, M., and Robbes, R. (2009). On

the relationship between change coupling and soft-

ware defects. In 16th Working Conference on Reverse

Engineering, WCRE 2009, 13-16 October 2009, Lille,

France, pages 135–144.

Diffj (2018). https://github.com/jpace/diffj.

Doe, R. (2009). Guava repository from github. https:

//github.com/google/guava.

Fab

ok, Z. (2012). Learn more about the history of a line

with git blame. https://zsoltfabok.com/blog/2012/02/

git-blame-line-history/.

Fluri, B. and Gall, H. C. Classifying change types for quali-

fying change couplings. In 14th International Confer-

ence on Program Comprehension (ICPC 2006), pages

= 35–45, year = 2006, bibsource = dblp computer sci-

ence bibliography, https://dblp.org.

Fukushima, T., Kamei, Y., McIntosh, S., Yamashita, K., and

Ubayashi, N. (2014). An empirical study of just-in-

time defect prediction using cross-project models. In

11th Working Conference on Mining Software Repos-

itories, MSR 2014, Proceedings, May 31 - June 1,

2014, Hyderabad, India, pages 172–181.

Geipel, M. M. and Schweitzer, F. (2012). The link between

dependency and cochange: Empirical evidence. IEEE

Transactions on Software Engineering, 38(6):1432–

1444.

Herzig, K. and Zeller, A. (2013). The impact of tangled

code changes. In Proceedings of the 10th Working

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

500

Conference on Mining Software Repositories, pages

121–130. IEEE Press.

Kim, S., Jr., E. J. W., and Zhang, Y. (2008). Classifying

software changes: Clean or buggy? IEEE Trans. Soft-

ware Eng., 34(2):181–196.

Kim, S., Zimmermann, T., Pan, K., and Jr., E. J. W.

(2006). Automatic identiﬁcation of bug-introducing

changes. In 21st IEEE/ACM International Conference

on Automated Software Engineering (ASE 2006), 18-

22 September 2006, Tokyo, Japan, pages 81–90.

Kirbas, S., Caglayan, B., Hall, T., Counsell, S., Bowes, D.,

Sen, A., and Bener, A. (2017). The relationship be-

tween evolutionary coupling and defects in large in-

dustrial software. Journal of Software: Evolution and

Process, 29(4):e1842.

Levin, S. and Yehudai, A. (2017). Boosting automatic com-

mit classiﬁcation into maintenance activities by utiliz-

ing source code changes. In Proceedings of the 13th

International Conference on Predictive Models and

Data Analytics in Software Engineering, PROMISE

2017, Toronto, Canada, November 8, 2017, pages 97–

106.

Menzies, T., Greenwald, J., and Frank, A. (2007). Data

mining static code attributes to learn defect predictors.

IEEE Trans. Software Eng., 33(1):2–13.

Misirli, A. T., Shihab, E., and Kamei, Y. (2016). Studying

high impact ﬁx-inducing changes. Empirical Software

Engineering, 21(2):605–641.

Mori, T., Hagward, A., and Kobayashi, T. (2015). Effects

of recency and commits aggregation on change guide

method based on change history analysis. In Proceed-

ings of the Tenth International Conference on Soft-

ware Engineering Advances, pages 96–101.

Nucci, D. D., Palomba, F., Rosa, G. D., Bavota, G., Oliveto,

R., and Lucia, A. D. (2018). A developer centered

bug prediction model. IEEE Trans. Software Eng.,

44(1):5–24.

Palomba, F., Bavota, G., Di Penta, M., Oliveto, R., De Lu-

cia, A., and Poshyvanyk, D. (2013). Detecting bad

smells in source code using change history informa-

tion. In Proceedings of the 28th IEEE/ACM Interna-

tional Conference on Automated Software Engineer-

ing, pages 268–278. IEEE Press.

Ratzinger, J., Fischer, M., and Gall, H. C. (2005). Improv-

ing evolvability through refactoring. ACM SIGSOFT

Software Engineering Notes, 30(4):1–5.

Shivaji, S., Jr., E. J. W., Akella, R., and Kim, S. (2013).

Reducing features to improve code change-based bug

prediction. IEEE Trans. Software Eng., 39(4):552–

569.

Sliwerski, J., Zimmermann, T., and Zeller, A. (2005). When

do changes induce ﬁxes? ACM SIGSOFT Software

Engineering Notes, 30(4):1–5.

Wen, M., Wu, R., and Cheung, S. (2016). Locus: locat-

ing bugs from software changes. In Proceedings of

the 31st IEEE/ACM International Conference on Au-

tomated Software Engineering, ASE 2016, Singapore,

September 3-7, 2016, pages 262–273.

Yin, Z., Yuan, D., Zhou, Y., Pasupathy, S., and Bairavasun-

daram, L. (2011). How do ﬁxes become bugs? In

Proceedings of the 19th ACM SIGSOFT symposium

and the 13th European conference on Foundations of

software engineering, pages 26–36. ACM.

Zhao, Y., Leung, H., Yang, Y., Zhou, Y., and Xu, B. (2017).

Towards an understanding of change types in bug

ﬁxing code. Information and software technology,

86:37–53.

Zhou, Y., W

ursch, M., Giger, E., Gall, H. C., and Lu,

J. (2008). A bayesian network based approach for

change coupling prediction. In WCRE 2008, Proceed-

ings of the 15th Working Conference on Reverse En-

gineering, Antwerp, Belgium, October 15-18, 2008,

pages 27–36.

Zimmermann, T., Weißgerber, P., Diehl, S., and Zeller, A.

(2005). Mining version histories to guide software

changes. IEEE Trans. Software Eng., 31(6):429–445.

On the Evolutionary Relationship between Change Coupling and Fix-Inducing Changes

501
