Optimizing Regression Testing with Functional Flow Block Reliability

Diagram

Vaishali Chourey

1 a

and Meena Sharma

Department of IT, Medi-Caps University, Indore, India

Department of Computer Engineering, IET DAVV, Indore, India

Keywords:

Regression Testing, UML, Test Prioritization, Reliability Testing.

Abstract:

Model based testing techniques are widely used to generate tests from models and their speciﬁcations. Regres-

sion Testing is critical in evolving software systems. It implies that Software undergoes continuous integration

and subsequent testing of modules and components to develop a ﬁnal release of the software. Recent research

on test automation have revealed challenges in testing such as enormous test cases generated that are either

redundant or irrelevant tests. This prevents the critical parts of code from testing and leave faults uncovered.

Manual testing also slows the process and makes exhaustive testing for quality difﬁcult. This paper proposes

an approach to generate regression tests from model synthesized from UML interaction diagrams and also pri-

oritize tests. The algorithm generate test suites from the proposed intermediate model. The reliability analysis

is performed on blocks and the results govern the prioritization of tests.

1 INTRODUCTION

Model-based testing (Aichernig et al., 2018)has

proved to be an advantageous approach to design tests

for evolving and complex software systems. Modern

software systems are developed for adaptable services

by integration of large number of components. Such

software systems actually require systematic, scalable

and automated testing support. Another characteris-

tic of such systems is that they need frequent updates

to maintain their evolution. In such cases, regression

testing becomes a crucial part of the development and

maintenance phases. Regression testing veriﬁes the

code modiﬁed during the update or an upgrade. Re-

gression testing ensures that the update in the sys-

tem does not alter or deviate the inherent behavior

of the system.The test automation also poses serious

problems with enormous amounts of test cases gen-

erated that are redundant. Software are composed of

interacting components which are amenable to test-

ing. Such black box components are interface depen-

dent and their evaluation in combination with other

components is difﬁcult. Implementing under the Ag-

ile teams, the fast delivery imposes time constraints

and the exhaustive testing is not possible. Studies for

obtaining maximum coverage and fulﬁllment of tests

https://orcid.org/0000-0002-2171-9247

under such constraints are gaining attention in many

researches.

Software undergoes modiﬁcations with changing

user requirements or improvements in the function-

alities, handling errors and correcting defects (Dick

et al., 2017). This is where regression testing plays an

important role for maintaining the quality of the soft-

ware in the event of changed speciﬁcations. The re-

gression testing also concerns for quality in terms of

security, reliability, dynamic accessibility and inter-

component dependencies (Yoo and Harman, 2012). It

ensures changes may not affect the system for these

quality issues along with the consistent functional

speciﬁcations. Automated testing has eased the task

of testing but with a price of enormous tests gener-

ated as result (Gupta et al., 2018). Prioritizing tests,

maximizing coverage with minimum test cases is the

aim of regression testing today. This reduces the over-

all cost and time for testing also. When testing goes

along with development, the test case prioritization

takes place simultaneous to development of the mod-

ule and beneﬁts the managers and the testers.

The process of regression testing is an unavoid-

able activity along with integration during develop-

ment of system functionalities (Luo, 2001). The test

case generation aligns with the development as the

cost of test generation at later stage incurs additional

cost and efforts. A complete test suite for code, spe-

526

Chourey, V. and Sharma, M.

Optimizing Regression Testing with Functional Flow Block Reliability Diagram.

DOI: 10.5220/0007763505260532

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 526-532

ISBN: 978-989-758-375-9

ciﬁc to the development environment is required be-

fore the testing. The effectiveness of tests generated

lies in the strategies to minimize the test cases, se-

lecting relevant tests and prioritize tests (Kandil et al.,

2017). There are challenges in the regression test-

ing around recursively growing lengthy tests. Man-

ual intervention to stop such tests leads to undeﬁned

sections in system with un-approached tests. Tests

aborted may leave the failures concealed. Tests are

drawn at unit, integration or system levels depending

on the scope and extent of testing. Unit testing is ma-

ture with tools available for the purpose, speciﬁc to

the language and application. The difﬁcult part is the

system testing which depends on the artefacts, speciﬁ-

cations, and other information related to the software

system.

UML provides the necessary information about

the system, its structure, its interactions and speciﬁ-

cations to aid the development and testing (Arora and

Bhatia, 2018; Mingsong et al., 2006; Sarma and Mall,

2007b). The methodology proposed in the paper is a

strong justiﬁcation to adopt model based testing as a

scope to handle the challenges of testing. With Ag-

ile and other development strategies, where design

are less relevant, a model is proposed to use model

information and facilitate regression testing (Teixeira

and e Silva, 2018; Wu et al., 2018). The sequence of

interactions is important to understand the behaviour

of the system. Testable model, called as Functional

Flow Block Reliability Diagram (FFBRD) is hereby

proposed to generate the tests from the model and its

annotation to estimate the reliability quality attribute.

The approach in this paper addresses the issues of test

generation, estimation of quality and prioritization of

tests.

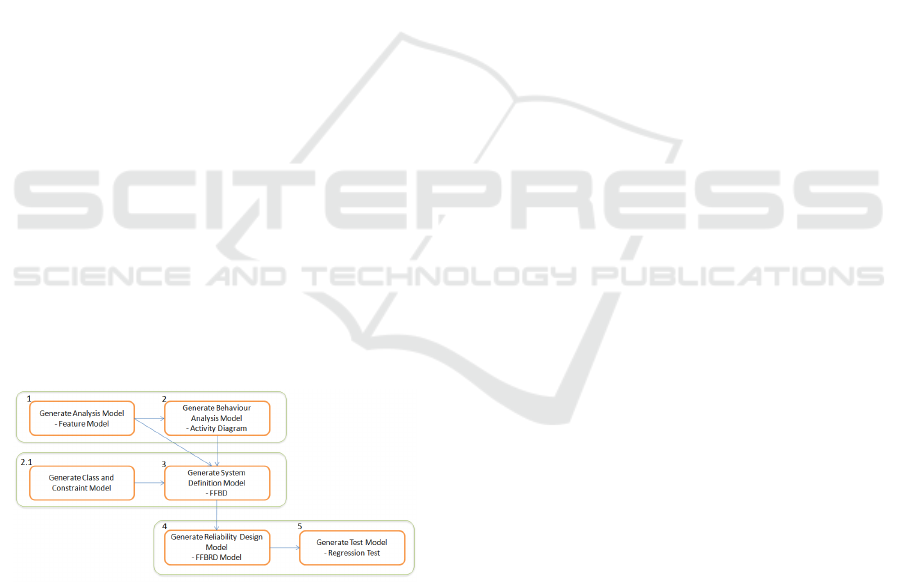

Figure 1: Flow Diagram for FFBRD and Test Generation.

The ﬁgure 1 explains the steps in generating the

desired intermediate model. The requirements are

modelled as structural and behavioral diagrams which

acts as input to the FFBRD. The levels of abstrac-

tions in deﬁning the components of the system are

adapted from feature model and the dynamics is mod-

elled from the activity ﬂow (Chourey and Sharma,

2016). The annotation is formulated as constraints of

the classes. Altogether the structural aspect of FFBD

is attained. The expected quality attribute is then an-

notated to visualize quality in the design. The fea-

tures, blocks and constraints together formally deﬁnes

the FFBRD. Simulating the execution of the transac-

tions are studied as operational behavior of the sys-

tem, the test suites are generated (Kim et al., 2017).

The test cases emerging from the transactions are fur-

ther categorized as critical and non critical. This also

enables prioritization of components and ﬂows. The

concept of FFBRD enables the use of existing seman-

tics and models from UML and SysML. This best

suits the process of test optimization (Felderer and

Herrmann, 2018).

The organization of this paper is as follows. The

next section is an overview of related work in the area

of model based testing, speciﬁcally in regression test-

ing. Brief deﬁnition and structure of FFBRD is pro-

posed in section 3. Section 3 also presents illustration

of approach in system representation and test genera-

tion. Section 4 describes proposed algorithm for test

generation and prioritization. Last section includes

conclusion and scope of the work.

2 RELATED WORK

This section reviews the research developed around

the scope of the proposed work. This paper focuses

on two aspects - Functional Flow Block Diagrams

and Reliability Assessment. FFBD (McInnes et al.,

2011) are the formal graphical representations in sys-

tems engineering for behaviour of complex hierarchi-

cal systems. The software architecture with EFFBD

are formally deﬁned in SysML standards (Alanen and

Porres, 2005). Blocks deﬁned in SysML has a close

resemblance to the components and their ﬂows. The

generic deﬁnitions and syntax of SysML enables the

construction of metamodel for FFBD. The applica-

tion of FFBD to visualize reliability in design extends

the notation to a new vocabulary of FFBRD. This is

a combination of ﬂow (dynamics) of UML speciﬁca-

tions and analysis of reliability in terms of RBDs. The

UML based semantics for software reliability through

design is validated with reliability assessment strate-

gies (Gokhale and Trivedi, 2002). The target software

model that was a functional speciﬁcation extends to

quality speciﬁc attributes. The software model gen-

erates test artifacts for regression testing. FFBDs in

this semantic make it adaptable to tools and analysis

applicable to UML designs. This prevents unambigu-

ous interpretations and ﬁts FFBDs for software design

and test modeling.

Reliability assessment models have been proposed

to analyze and quantify reliability which is an impor-

Optimizing Regression Testing with Functional Flow Block Reliability Diagram

527

tant aspect of software quality (Lyu et al., 1996). An

array of methods exists, applicable during different

phases of software development life cycle (Go

seva-

Popstojanova and Trivedi, 2001). These black box

techniques depend on failure data for analyses (Pham

and Pham, 2017). The types of software developed

nowadays need analysis based on modules, their inter-

actions and dynamically making choice of substitut-

ing modules for quality improvement. The key iden-

tiﬁers in the process of reliability modeling are:

• Specifying the structure of the system composed

of reusable modules/components along with their

quality and performance attributes;

• Analyzing reliability with choice of the module to

increase overall reliability;

• Analyzing interfaces and interactions across the

modules;

• Prioritizing critical modules.

The most interesting part is to bring the FFBD and

the reliability testing in the regression test suits. So

far, UML models have been an important study for

testing functionality (Yildirim et al., 2017) through

behavioural diagrams like activity diagram, state

charts and sequence diagrams (Teixeira and e Silva,

2018; Sarma and Mall, 2007a). Converting into

graphs, scenarios or interpretations from models have

aided test generation from models (Jena et al., 2014;

Nelson, 2009). The effectiveness is to map it to test

for quality attributes in the same manner as function-

ality is the application of the concept. The simulation

of ﬂows in the system makes it amenable to be anal-

ysed for its execution time behaviour. This facilitates

understanding the performance of the system during

the design stage. Such estimations also support opti-

mization for quality-wise delivery of the functionality

(Nelson, 1983; Zheng et al., 2017). For the scope

of paper, reliability is considered for evaluation of

quality. The tool support of ReliaSoftBlockSim en-

ables the analysis of components of the system for

reliability. The conversion of behavioural models into

blocks and then modelling their transitions for serial

or parallel communications derives the system relia-

bility (Chourey and Sharma, 2015). The next section

illustrates the concept of FFBRD and the contribution

of the paper.

3 PROPOSED METHODOLOGY

The basic structural component of the FFBRD is the

Block. Blocks are modular units of system descrip-

tion. They are a collection of structural and be-

havioural features to deﬁne a system. A Block is de-

ﬁned with the context of its functionality and quality

requirements. The Use cases provide the functional

requirements whereas the provision of deﬁning views

and viewpoints in UML4SysML provides a generic

method to deﬁne the quality perspective. Although

the concept stems from SysML, the semantics of the

diagram is inherited from the class structure and ﬂows

through activity diagram.

Figure 2: Notation for FFBRD.

FFBRDs can be arranged in a hierarchy to deﬁne

the levels of abstraction of system understanding as in

ﬁgure 3. This is a feature diagram that has levels and

each level initiates the next level of its deﬁnition in

case of complex activities or dependent abstractions.

Figure 3: Levels of Abstractions in FFBRD.

The FFBRD contains blocks (FBi) with commu-

nications amongst the blocks and properties (pi) of

the block to describe the structure of the system. For

a special case the reliability values of the block is

annotated in the properties as Ri. The stereotype is

Enhanced Functional Flow Block Diagram (EFFBD)

with Base Class::UML4SysML::Activity and con-

straints are applicable in parameters, actions, activ-

ity and execution. The constructs of FFBRD is given

in the notation of FFBD and is modelled as sequence

of blocks, iterations, choice, alternatives and parallel

blocks. The ﬂow and order of execution of the blocks

as in ﬁgure 2 characterizes the behaviour speciﬁcation

in the model.

An example shows a checkout scenario, its equiv-

alent use case and FFBRD to visualize the reliabil-

ity of the subsystem. The scenario consists of check-

out after the purchase. The registered customer up-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

528

Table 1: Formalization of FFBRD in UML and SysML Se-

mantics.

Block Feature Metamodel Reference from

SysML, UML4SysML

Block Deﬁnition SysML::Blocks

Property UML4SysML::Property

Input UML4SysML::AcceptEventAction

Output UML4SysML::SendSignalAction

Control Values ControlNode and ObjectNode from

UML4SysML::ActivityNode

ControlFlow UML4SysML::ControlFlow

Probability SysML::Activities::Probability

Reliability UML4SysML::Reliability extends

UML4SysML::ParameterSet

ConstraintBlock SysML::ConstraintBlocks

dates his cart and makes payment for the calculated

amount. The payment interface accepts payment op-

tions to proceed. The use case diagram enumerates

the functionalities in the scenario. The ﬂow of con-

trol and data is formulated as FFBD as shown in the

ﬁgure 4. An implementation of the model in SysML

is supported in Papyrus tool in Eclipse environment

erard, ).

Figure 4: Usecase for Checkout Scenario.

The assessment of reliability is done by translat-

ing the FFBD to RBD (Rajput and Chourey, 2015).

This provides the reliability contribution of the blocks

in attaining desired system reliability. Next step is to

annotate the blocks with constraints as the reliability.

The added constraint beneﬁt in deriving relevant and

speciﬁc tests (Petke et al., 2015). There were 2 simu-

lation scenarios created to evaluate reliability Ri and

Reliability Importance RIi.

The RBD analysis performed with ReliaSoft

BlockSim simulates the system for 500 hours opera-

tions. The target reliability in these scenarios is 0.95.

The reliability values for 500 hours for each of the

blocks obtained are as in ﬁgure 7.

Figure 5: FFBRD for Checkout Scenario.

Figure 6: RBD Analysis for Checkout Scenario.

The evaluations suggest the system reliability at-

tained in the scenario 1 is 0.638212 and in the second

is 0.641303. If the target reliability is considered, the

MTTFF (Hr) calculates to 1151.5 and 1313.71 respec-

tively for the scenarios. The reliability parameter also

determines MTBF, Uptime, Downtime, Availability

and Maintainability statistics for the system.

Figure 7: Reliability Analysis of Checkout Scenario.

The reliability importance computed in the sim-

ulation prioritizes the blocks (Mostafa et al., 2017).

The payment, checkout and payment modes are iden-

tiﬁed as the critical blocks with higher Reliability Im-

Optimizing Regression Testing with Functional Flow Block Reliability Diagram

529

portance. These are relevant to the regression testing

of system and prioritize the test cases corresponding

to the identiﬁed blocks.

4 TEST COVERAGE AND TEST

SUFFICIENCY

The test case generation may be categorized as a con-

straint satisfaction problem (Petke et al., 2015; Fraser

and Arcuri, 2015). The solution to the problem is ap-

proached through control ﬂow graphs. The model el-

ements are converted into an intermediate model to

form a directed graph. The graph is marked for en-

try points, exit points, edges and nodes. The sim-

ulated graphs are applied to backtracking algorithm

with state space search for solution space. All path set

is created and the attribute of the node with maximum

reliability becomes the search node. The search node

is backtracked and the path for the graph is set as the

test case with maximum priority. Similarly, next and

subsequent reliable nodes are identiﬁed for paths and

test cases are organized accordingly. Branching and

decision nodes makes subgraphs for the test cases.

Thus, the Search Graph (SG) ordered in the reliability

value to optimize the test cases is generated (Trivedi

and Bobbio, 2017).

Another interesting advantage with the algorithm

is that it the path-oriented algorithm chooses the best

ﬁrst search to make the most important test case. The

look-ahead and look-back feature of the search algo-

rithm makes the complete test case. The node that

are traversed are marked as coloured if the tests have

been generated for the graph through that node, with

a graph colouring algorithm. Thus the redundancy of

tests can be curbed through the algorithm. This pre-

vents the state space explosion of redundant and irrel-

evant tests being generated through such graph traver-

sal strategies.

4.1 Algorithm for Prioritizing Nodes in

the FBGraph

Algoritm for generating Search Graphs (SG): In this

step, all possible test sequences are derived from the

ﬂow in FFBRD. The sequence of blocks in all inde-

pendent paths is a path in Search Graph. The guard

conditions, OR states, AND states derives the paths

in the graph. It may be noted that the graphs gener-

ated from the RBDs give maximum coverage as they

are path based. The algorithm ensures covering all

blocks and all paths from all type of user inputs and

ﬂow as responses to the inputs.

Begin

Input: p = path to be traversed

/the paths of the graphs are traversed

Output: TCi ,

testcase of all possible paths p,

search graphs SG,

State space (FBi, C, I, F)

Where FBi is the FunctionBlock

C is the connections to other Blocks

I is the initial Block

F is the final Block or end state

call all-path-search(FBi) for all connections C

until look-back(I) and look-ahead(F) is reached

return SG with start node,

end node and weights as RI

// Read the properties of the Block and

find the maximum value of the reliability Ri

End

4.2 Algorithm 2: RTO (Regression Test

Optimizer)

Algorithm for optimizing tests: Test optimization

here means eliminating the redundant paths generated

as test sequences i.e. SG. This also includes execution

of graphs in a sequential manner to improve the per-

formance of regression testing. The simulated execu-

tion of the transactions in the system generates relia-

bility and reliability importance which prioritizes the

test sequences accordingly.

Begin

Parameters:

Test Suite TS,

includes Test Cases TC

that correlates FB for each cases,

Weights in RI values

//RI is Reliability Importance for a block

for all TCi in TSi (1 ≤ i ≤ n)

corresponds to each path p in all-path-search

Sort TCi by RIi

Ri: reliability of Block FBi

//reliability of ith block

RIi: Reliability Importance of Block

//reliability importance of ith block

Create reliability-wise-graph path

// sorted on RI

//assigning priority on max(RIi)

TS = Test Scenarios for each SG path

End

The algorithm analyses scenarios in the context of

component and system reliability. The all path test

scenario assures test completeness and test coverage

for the regression testing.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

530

5 CONCLUSION AND FUTURE

SCOPE

The approach of FFBRD discussed in this paper is an

advantageous approach to use models as tools for test

generation. This is a preparedness for test during the

design phase and keeps the parameters of quality in

check. The algorithm saves time and complexity of

test generation from other sources. If automation of

the process is done, adaptability of the method in pro-

cesses like Agile will reduce the drawbacks of testing.

A rigorous study with the practices of industry and the

use of FFBRD in the development process needs to

be done. The efﬁciency of the method and model can

thus be validated for quality-based development. Ap-

propriate analysis of requirements can generate test

possibility and prioritized requirements. Also, tool

support of automating the process can be identiﬁed

to produce relevant regression test cases. A thorough

and systematic research in this direction will make the

studies in reliability testing in Software Engineering

efﬁcient and productive.

REFERENCES

Aichernig, B. K., Mostowski, W., Mousavi, M. R., Tappler,

M., and Taromirad, M. (2018). Model learning and

model-based testing. In Machine Learning for Dy-

namic Software Analysis: Potentials and Limits, pages

74–100. Springer.

Alanen, M. and Porres, I. (2005). Model interchange using

OMG standards. IEEE.

Arora, P. K. and Bhatia, R. (2018). Agent-based regression

test case generation using class diagram, use cases

and activity diagram. Procedia Computer Science,

125:747–753.

Chourey, V. and Sharma, M. (2015). Component based reli-

ability assessment from uml models. In 2015 Interna-

tional Conference on Advances in Computing, Com-

munications and Informatics (ICACCI), pages 772–

778. IEEE.

Chourey, V. and Sharma, M. (2016). Functional ﬂow di-

agram (ffd): semantics for evolving software. In

2016 International Conference on Advances in Com-

puting, Communications and Informatics (ICACCI),

pages 2193–2199. IEEE.

Dick, J., Hull, E., and Jackson, K. (2017). Requirements

engineering. Springer.

Felderer, M. and Herrmann, A. (2018). Comprehensibility

of system models during test design: a controlled ex-

periment comparing uml activity diagrams and state

machines. Software Quality Journal, pages 1–23.

Fraser, G. and Arcuri, A. (2015). Achieving scalable

mutation-based generation of whole test suites. Em-

pirical Software Engineering, 20(3):783–812.

erard, S. Papyrus user guide series: About uml proﬁling.

2011.

Gokhale, S. S. and Trivedi, K. S. (2002). Reliability predic-

tion and sensitivity analysis based on software archi-

tecture. In 13th International Symposium on Software

Reliability Engineering, 2002. Proceedings., pages

64–75. IEEE.

seva-Popstojanova, K. and Trivedi, K. S. (2001).

Architecture-based approach to reliability assessment

of software systems. Performance Evaluation, 45(2-

3):179–204.

Gupta, N., Yadav, V., and Singh, M. (2018). Automated

regression test case generation for web application: A

survey. ACM Computing Surveys (CSUR), 51(4):87.

Jena, A. K., Swain, S. K., and Mohapatra, D. P. (2014).

A novel approach for test case generation from uml

activity diagram. In Issues and challenges in intel-

ligent computing techniques (ICICT), 2014 interna-

tional conference on, pages 621–629. IEEE.

Kandil, P., Moussa, S., and Badr, N. (2017). Cluster-based

test cases prioritization and selection technique for ag-

ile regression testing. Journal of Software: Evolution

and Process, 29(6):e1794.

Kim, J., Jeong, H., and Lee, E. (2017). Failure history data-

based test case prioritization for effective regression

test. In Proceedings of the Symposium on Applied

Computing, pages 1409–1415. ACM.

Luo, L. (2001). Software testing techniques. Institute for

software research international Carnegie mellon uni-

versity Pittsburgh, PA, 15232(1-19):19.

Lyu, M. R. et al. (1996). Handbook of software reliabil-

ity engineering, volume 222. IEEE computer society

press CA.

McInnes, A. I., Eames, B. K., and Grover, R. (2011). For-

malizing functional ﬂow block diagrams using pro-

cess algebra and metamodels. IEEE Transactions on

Systems, Man, and Cybernetics-Part A: Systems and

Humans, 41(1):34–49.

Mingsong, C., Xiaokang, Q., and Xuandong, L. (2006). Au-

tomatic test case generation for uml activity diagrams.

In Proceedings of the 2006 international workshop on

Automation of software test, pages 2–8. ACM.

Mostafa, S., Wang, X., and Xie, T. (2017). Per-

franker: Prioritization of performance regression tests

for collection-intensive software. In Proceedings of

the 26th ACM SIGSOFT International Symposium on

Software Testing and Analysis, pages 23–34. ACM.

Nelson, W. (1983). How to analyze reliability data, vol-

ume 6. Asq Pr.

Nelson, W. B. (2009). Accelerated testing: statistical mod-

els, test plans, and data analysis, volume 344. John

Wiley & Sons.

Petke, J., Cohen, M. B., Harman, M., and Yoo, S. (2015).

Practical combinatorial interaction testing: Empirical

ﬁndings on efﬁciency and early fault detection. IEEE

Transactions on Software Engineering, 41(9):901–

924.

Pham, T. and Pham, H. (2017). A generalized software reli-

ability model with stochastic fault-detection rate. An-

nals of Operations Research, pages 1–11.

Optimizing Regression Testing with Functional Flow Block Reliability Diagram

531

Rajput, B. S. and Chourey, V. (2015). Uml based approach

for system reliability assessment. International Jour-

nal of Computer Applications, 131(2):0975–8887.

Sarma, M. and Mall, R. (2007a). Automatic test case gener-

ation from uml models. In 10th International Confer-

ence on Information Technology (ICIT 2007), pages

196–201. IEEE.

Sarma, M. and Mall, R. (2007b). Synthesis of system state

models. ACM SIGPLAN Notices, 42(11):5–14.

Teixeira, F. A. D. and e Silva, G. B. (2018). Easytest: An

approach for automatic test cases generation from uml

activity diagrams. In Information Technology-New

Generations, pages 411–417. Springer.

Trivedi, K. S. and Bobbio, A. (2017). Reliability and Avail-

ability Engineering: Modeling, Analysis, and Appli-

cations. Cambridge University Press.

Wu, L., He, W., Liu, B., Han, X., and Tang, L. (2018).

Scenario-based software reliability testing and evalu-

ation of complex information systems. In 2018 IEEE

International Conference on Software Quality, Relia-

bility and Security Companion (QRS-C), pages 73–78.

IEEE.

Yildirim, U., Campean, F., and Williams, H. (2017). Func-

tion modeling using the system state ﬂow diagram. AI

EDAM, 31(4):413–435.

Yoo, S. and Harman, M. (2012). Regression testing mini-

mization, selection and prioritization: a survey. Soft-

ware Testing, Veriﬁcation and Reliability, 22(2):67–

120.

Zheng, Z., Trivedi, K. S., Qiu, K., and Xia, R. (2017). Semi-

markov models of composite web services for their

performance, reliability and bottlenecks. IEEE Trans-

actions on Services Computing, 10(3):448–460.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

532
