Towards Automated Modelling of Large-scale Cybersecurity

Transformations: Potential Model and Methodology

Artur Rot

and Bartosz Blaicke

Department of Information Systems, Wroclaw University of Economics, Wroclaw, Poland

Keywords: Security, Cybersecurity, Transformation, Investment, Budget, Risk-based Approach.

Abstract: The purpose of this paper is to propose a proprietary methodology and model to generate a “cybersecurity

transformation workplan” for large organizations that can improve their cybersecurity posture. The key input

is based on risk-based assessment or maturity-based questionnaires depending on existing governance

processes and available information. The original scoring can be then used to prioritize a portfolio of all

possible initiatives by selecting the ones that are missing from typical foundation elements or would have

high potential impact in relation to required investment and effort. Additional constraints such as budget

limitation and FTE availability, logical sequencing and time requirements could be added to ensure effective

use of company resources and actionability of the recommendations. The Gantt-like output would ease the

burden on the security teams by providing an individualized set of activities to be implemented to improve

risk posture.

1 INTRODUCTION

Cybersecurity is a field that has been gaining

significant attention among IT professionals and the

general public. Part of the reason is due to rising

prominence of cyber-attacks and their impact so that

they are now considered one of the top 5 global risks

on par with extreme weather events and natural

disasters (WEF, 2019). However, even considered on

their own, cyberattacks are becoming increasingly

dangerous. They are growing in quantity at a 34% per

year (US-GAO, 2016), sophistication such as recent

Triton attack that could override itself to cover its

tracks (Venkatachary, Prasad and Samikannu, 2018)

and reach as single modern ransomware (e.g.

NotPetya) is able affect computers in more than 100

countries worldwide (Jasper, 2017). Unfortunately,

the defense perimeter is enormous, and attackers only

need a single-entry vector to be successful so not only

many attacks go unnoticed with average time to

detection being multiple months, but many more are

believed to go completely unnoticed (Verizon, 2017).

There is also significant innovation element in

cybersecurity with more than USD 20bn of merger

and acquisition spending in the space and additional

https://orcid.org/0000-0002-7281-8253

https://orcid.org/0000-0002-5083-0059

USD 5bn being invested by private equity companies

into disruptive cybersecurity start-ups in 178 deals

during 2017 alone (McAlpine et al, 2018).

Regrettably, some of that innovation causes more

confusion with companies having to setup and

manage multiple provider ecosystems each operating

separately and adding complexity that often is not

leading to more security but opening another potential

attack vector for attackers due to misconfigurations.

Internet of Things (IoT) adds another layer of

complexity with the proliferation of over 30bn

connected devices predicted to be online by 2023

(Ericsson, 2017) that can often be easily disoverable

via “Google-like” search engines such as SHODAN

and accessed by anyone using default passwords.

Such services expose hundreds of thousands IoT

devices, many with unchangeble default passwords

and no future firmware updates. (Rot and Blaicke,

2017).

Attacks have also already crossed the digital-

physical barrier as long ago as 2010. We have seen

that cyberattacks can cause physical consequences or

even be used as military weapons that are highly

targeted and potentially more effective than

traditional warfare such as Stuxnet (Zetter, 2014).

Rot, A. and Blaicke, B.

Towards Automated Modelling of Large-scale Cybersecurity Transformations: Potential Model and Methodology.

DOI: 10.5220/0007763703450350

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 345-350

ISBN: 978-989-758-372-8

345

Malicious actors are now targeting utilities and

energy sector companies, as much as 68% of all such

companies were hit by a cyber-attack in 2016

(Ponemon, 2017).

All the complexity for businesses is further

amplified by shortage of adequate talent, that doesn’t

even come close to match current demand and will

not do so for the foreseeable future (Libicki, Senty

and Pollak, 2014). That often results in inadequate

attention to the issue despite significant threat that

cyber adversaries pose to our increasingly digital

society.

Therefore, the purpose of this paper is to propose

proprietary methodology that could take away some

of the complexity by automating part of the planning

and give organizations a “fighting chance”. Focusing

their activities on more initiatives that would increase

their odds against potential attacks would be the first

step in that direction and we are hoping this paper

could provide that.

2 STATE OF THE ART

APPROACH TO

CYBERSECURITY

TRANSFORMATIONS

Traditionally cybersecurity transformation planning

has been done either by senior cybersecurity function

employees (i.e. CISO or N-1) that often have many

competing and immediate responsibilities or crises to

handle preventing them from devoting all the

necessary time and attention to such long-term

activities. Therefore, more often due to the increased

scrutiny from the board of directors (Rothrock,

Kaplan and Van der Oord, 2017) 3

party specialists

or management consulting companies are brought in

for several weeks or months to deliver such custom-

tailored plans.

The problem is also being discussed within the

academia with various approaches such as

cybersecurity investment supply chain game theory

model (Nagurney, Nagurney and Shukla, 2015),

focusing on how to optimally invest in cybersecurity

controls when organizations are underinvesting

(Panaousis et al, 2014) or how to use economic

incentives for cybersecurity (Vishik, Sheldon and Ott,

2013).

The use of 3rd party vendor typically requires

significant investment that is not always available for

organizations. On the other hand, none of the

academic approaches have been described and

documented yet in such a way that would allow for

easy implementation or as a matter of fact tested in a

real-life scenario. Therefore, we can build on all these

experiences to enhance the proposed model before

testing that as a real-life scenario.

3 PLANNING CYBERSECURITY

TRANSFORMATIONS

In response to the increased complexity and threat,

companies are significantly increasing spending for

cybersecurity. In 2019 analysts estimate that excess

of USD 124bn will be spend on information security

which is a 12.4% increase from last year (Gartner,

2018). However, that increasing spending is not

necessarily correlated with better security for the

companies as there is a vast spectrum of companies

spending above average on security as proportion of

IT spending achieving similar or even lower security

ratings than their peers. In addition, traditional

cybersecurity focus is on controls and processes.

However, there are further layers that need to be

addressed to fully cover the area including

organization aspects (e.g. organization structure) or

governance (e.g. roles and responsibilities).

Historically, spending is focused on technology such

as firewalls, intrusion prevention systems or identity

and access management solutions but not necessarily

with business outcomes in mind or understanding the

impact these solutions would have on the remaining

part of the organization (Choi et al, 2017).

Cybersecurity transformations in such an

environment needs to consider what is already

established and existing within an organization.

Depending on that, it needs to find a balance between

technical and business-related activities that should

be implemented. In addition, a mix of long-term

efforts and quick wins should be established to

protect against current treats quickly but also start

laying down the foundations for protection

mechanisms of tomorrow.

3.1 Establishing the Baseline

The key input needed before considering what needs

to be recommended as part of a cybersecurity

function transformation is a complete understanding

of the current state. That could be gained following

two different approaches, depending on existing

elements at a given organization:

 Risk-based approach that is rooted in a more

detailed assessment of threats, vulnerabilities and

controls that results in risk exposures with various

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

346

likelihoods. It requires more effort and is typically

found only in more advanced organizations.

 Maturity-based approach has been historically the

preferred method due to easier implementation. It

has certain limitations as it is often self-reported

and carries a potential danger of targeting a certain

maturity level without an established link to actual

improvement of the security posture.

3.1.1 Risk-based Approach

Risk-based approach is a methodology that encourages

organizations to clearly identify, list and assess risks

that they are exposed to. That understanding is used to

focus effort and resources on addressing highest risks

first and deploying adequate protection to other risks.

To follow a risk-based approach the company needs to

create and maintain a list of potential threats, up-to-

date status of vulnerabilities across the environment

and controls that are in place and planned to mitigate

known vulnerabilities that jointly could also be thought

of as likelihood of the risk. All that will inform the

well-established equation (1).

Risk = Threats x Vulnerabilities x Impacts

(1)

That level of understanding is already very helpful for

the security function on its own. In addition, as it

provides detailed understanding of controls and

vulnerabilities it allows to effectively target the

controls and initiatives with the potential to maximize

vulnerability reduction.

3.1.2 Maturity-based Approach

Alternatively, a simpler and still very popular method

is to follow a maturity-based approach. Its goal is to

showcase how advanced any organization is by

assigning a cybersecurity preparedness score or a rank

to each area, often on a 5-point scale from 0 being non-

existent, 1 inadequate, to 4 considered advanced or

state-of-the-art. Such maturity score is mostly based on

self-reported questionnaires covering multiple

elements of a cybersecurity organization from

governance, through existing technical controls to

personnel awareness level (often ~100 questions). The

score allows to prioritize areas requiring immediate

improvement.

4 DEVELOPING A PORTFOLIO

OF INITIATIVES

Following initial phase of assessing the current state of

the organization, next step would include comparing

the individual risks or maturity scores with a

proprietary model of all potential activities that can be

recommended. That will inform which actions are

necessary as well as how they should be prioritized in

a most efficient way given existing constraints.

4.1 Segmentation Framework Options

To cover the entire realm of potential initiatives we

need to establish a framework that will be

comprehensive but also intuitive enough for the

cybersecurity function to include it into their

processes. The most obvious choice for such

frameworks are industry standards such as ISO 27001

and 27002 or NIST Cybersecurity Framework (CSF)

but there are also proprietary approaches such as

Resilience Levers used by McKinsey & Company

that should be compared. A brief overview of primary

areas highlighted by each of the above mentioned

frameworks shows different segmentation and level

of detail available as shown in Table 1.

Table 1: Comparison of key areas for each framework.

ISO 27002

NIST CSF

Resiliency Levers

Information

security policies

Identify

Information assets

and related risks

HR security

Protect

Frontline personnel

Organization of

information

security

Detect

Resilience in

enterprise processes

Asset

management

Respond

Incident response

Access control

Recover

Security integration

into technology

Cryptography

n/a

Differentiated

protection for assets

Physical and

environmental

security

n/a

Deploy active

defenses

Operations

security

n/a

Communications

security

n/a

System

acquisition,

development and

maintenance

n/a

Supplier

relationships

n/a

Incident

management

n/a

Business

continuity

management

n/a

Compliance

n/a

Towards Automated Modelling of Large-scale Cybersecurity Transformations: Potential Model and Methodology

347

Despite the differences, all the activities could

also be mapped against all the frameworks

simultaneously at deeper levels if needed, providing

another layer of comparison.

4.2 Prioritization Approach

Having the framework selected, we would need to

establish a large portfolio of initiatives that would

cover multiple possible scenarios that a company

might find itself in. Sample set of initiatives could

include the following:

 Launch phishing campaigns with real-time

feedback for users;

 Set common vision and mission for the

cybersecurity function in line with business

objectives;

 Introduce Network Access Control (NAC)

solution(s).

The model would capture the following

proprietary attributes for each of the activities in the

baseline portfolio:

 Actionable description;

 Cybersecurity areas that an activity would

impact based on selected taxonomy;

 Estimate of time needed to implement

(adjustable based on company data such as

revenue and FTEs – detailed in 5.1);

 Sequencing/prioritization within each

taxonomy section (based on logical flow of

implementation activities) and globally (based

on overall impact and interdependencies);

 Two high level indicators whether this would

be a “quick win” (less than a month) or a

longer-term endeavor as well as if that would

be a “basic, intermediate or advanced” type of

control once implemented;

 Estimated impact on the initial self-assessment

score (maturity or risk-based) if that activity

would be completed;

 Flags for omitting an activity (already in place)

or indicating current work in progress or

manual prioritization modifier.

Combination of the input scoring and full

portfolio prioritization would result in each activity

being marked as relevant or not and prioritized

accordingly to their risk reduction or maturity score

improvement to form an individual output. That

allows to accommodate for the fact that not every

element needs to reach the highest possible risk

reduction potential or maturity, nor would it be

effective use of company resources in most cases.

5 GENERATING AND

ADJUSTING THE OUTPUT

PLAN

The final element once the input and initial

prioritization are complete, is to adjust the output and

recommendations in a way that would make it

relevant and usable for an organization. One way to

do it is to allow for certain constraints to be defined

so that the desired plan is relatable and realistic. For

example, if we were to propose an estimated effort to

be 10 times larger than what the organization could

typically handle than such recommendation is not

going to be taken seriously. However, if we can distil

which actions would be the best candidates within the

budget constraints that would result in a solid

foundation that could be used as a starting point by

the security function. Secondly, the output

presentation element is equally important since “a

picture is worth a thousand words” and having a

visual representation with easily accessible details is

crucial.

5.1 Constraints Handling

Each company at any given moment in time is

operating in a unique environment with different

constraints following a different vision and plan. To

be able to make the recommendations relatable, the

activities need to be adjustable based on the following

criteria:

 Company size based on revenue or Full Time

Equivalent (FTE);

 Allocated cybersecurity budget;

 Size of the cybersecurity team;

 Number of potential concurrent efforts that

could be handled simultaneously;

 Aspiration level to be achieved (e.g. reduction

of risk by X% or maturity score improvement

by Y points).

Modifying these criteria would allow to adjust the

baseline output as close to the desired state as

possible. However, while it is possible to make these

modifications, it is not required as it might also be

beneficial to understand the long tail of what needs to

be done as the first iteration before proceeding to

adjust the scope.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

348

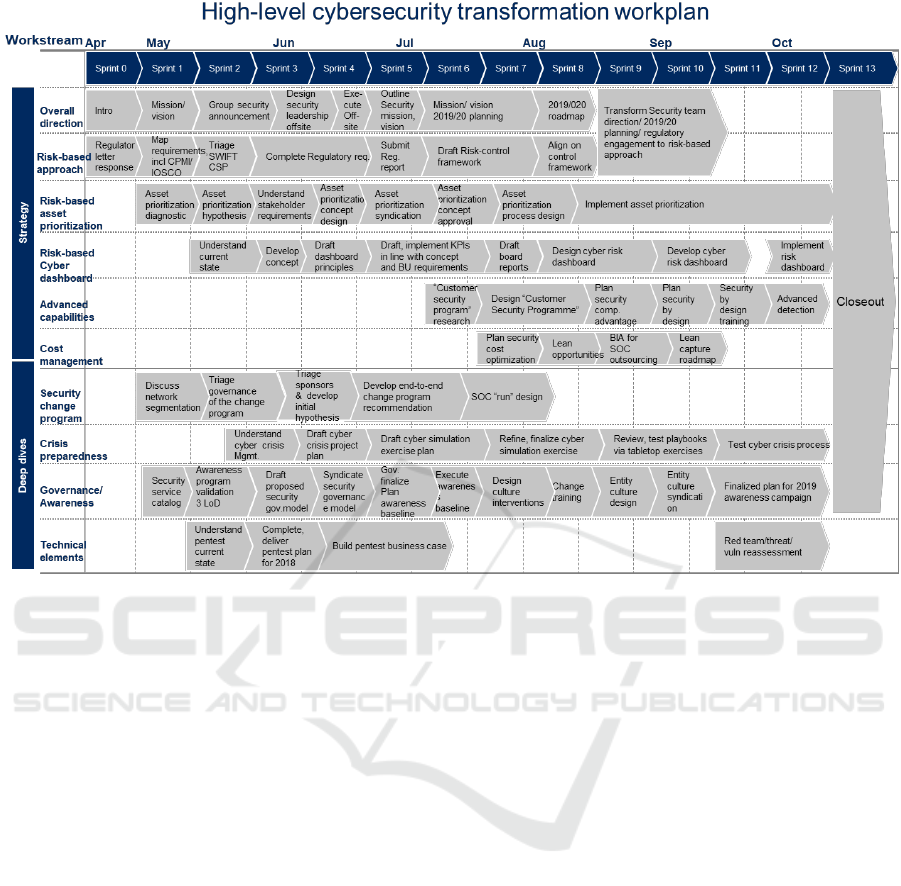

Figure 1: Potential visual representation of the output.

5.2 Output Generation

The output from the model would be a Gannt chart

(see Figure 1 as an example based on previous

manually prepared case study) offering an overview

of all the recommended activities, put in a sequence

with an estimate of man-hours needed to complete the

entire plan. Such output would be modifiable using

previously discussed constraints criteria that the

organization would like to apply. Proposed

automatization approach should be a ranking or

points-based system with multiple parameters to

initially address the sequencing aspect. In addition, it

should be aided with algorithms for multi-project

scheduling such as presented for IT development

efforts (Chen et al, 2017). The added complexity is

that it would need to operate under time dependent

uncertainty because early in the planning exact

initiatives durations are highly uncertain as proposed

more generally in (Song et al, 2019). Potentially with

large enough sample set a machine learning algorithm

could be used to further automate the process and

improve the output quality. However, early on

following a simultaneous manual process to validate

and adjust the automated output would be key to

ensure high quality and allow for adjustments to the

model.

Such proposed work plan could then be used

directly as a high-level blueprint for an organization

to start improving their cybersecurity function or

further modified by the security team for their

specific needs. Additional adjustments could be based

on state of individual projects or activities that might

overlap with what IT or other adjacent functions are

performing for additional customization.

6 CONCLUSIONS

We began this paper with an overview of how

cybersecurity is gaining importance but remains a

complex challenge for most organizations. After

examining current state, we concluded that such

fundamental issue as holistic improvement of

individual company cybersecurity posture is not

easily solved with currently available methods. Some

of which are too abstract and theoretical while others

do not scale well and require additional expenditure

that might place them out of reach for some

organizations.

Thus, we hope that our early thinking on the

proposed proprietary approach and methodology

described in this position paper provides an

Towards Automated Modelling of Large-scale Cybersecurity Transformations: Potential Model and Methodology

349

explanation of how automating the modelling of

large-scale cybersecurity transformations can be done

in an approachable way. We believe that is an

important problem that we could solve or at the very

least simplify for all the organizations that are looking

to improve their cybersecurity posture in an efficient

way.

Fully developing the described methodology and

model would allow to shorten the time and effort

needed to create such comprehensive transformation

plans and, in some cases, might be enough to get the

company on the right track immediately.

REFERENCES

Chen, R., Liang, C., Gu, D., Leung, J., 2017. A multi-

objective model for multi-project scheduling and multi-

skilled staff assignment for IT product development

considering competency evolution, International

Journal of Production Research, Issue 21, Volume 55,

May 2017.

Choi, J., Kaplan, J., Krishnamurthy, C., Lung, H., 2017. Hit

or myth? Understanding the true costs and impact of

cybersecurity programs. https://www.mckinsey.com/

business-functions/digital-mckinsey/our-insights/hit-

or-myth-understanding-the-true-costs-and-impact-of-

cybersecurity-programs. Accessed Jan 2019.

Ericsson, 2017. Ericsson Mobility Report with Middle East

and Africa Appendix, November 2017.

https://www.ericsson.com/assets/local/mobility-

report/documents/2017/ericsson-mobility-report-

november-2017-middle-east-and-africa.pdf.

Stockholm, Sweden. Accessed Jan 2019.

Gartner Inc., 2018. Gartner Forecasts Worldwide

Information Security Spending to Exceed $124 Billion

in 2019, United States. https://www.gartner.com/en/

newsroom/press-releases/2018-08-15-gartner-

forecasts-worldwide-information-security-spending-

to-exceed-124-billion-in-2019. Accessed Jan 2019.

Jasper, S., 2017. Russia and Ransomware: Stop the Act, Not

the Actor. The National Interest, November 20, 2017.

USA.

Libicki, M., Senty, D., Pollak, J., 2014. Hackers Wanted:

An examination of the cybersecurity labor market,

Rand National Security Research Division. Santa

Monica, California, USA.

McAlpine, E., Tedesco, M., Skirbe, K., Boukouris, D.,

Isagon, J., Keswani, J., 2018. Cybersecurity Almanac.

https://momentumcyber.com/docs/Yearly/2018_Cyber

security_Almanac.pdf. Accessed Jan 2019. Momentum

Cyber, San Francisco, USA.

Nagurney, A., Nagurney, L.S., Shukla, S., 2015. A Supply

Chain Game Theory Framework for Cybersecurity

Investments Under Network Vulnerability. Amherst,

USA.

Panaousis, E., Fielder, A., Malacaria, P., Hankin, C.,

Smeraldi, F., 2014. Cybersecurity Games and

Investments: A Decision Support Approach. Queen

Mary University of London, UK.

Ponemon Institute, 2017. The state of cybersecurity in the

oil & gas industry, United States. http://

news.usa.siemens.biz/sites/siemensusa.newshq.busines

swire.com/files/press_release/additional/Cyber_readin

ess_in_Oil__Gas_Final_4.pdf. Accessed Jan 2019.

Rot, A., Blaicke, B., 2017. Internet of Things security.

Selected threats and protection methods on the example

of manufacturing systems, Publishing House of

Czestochowa Technical University, Czestochowa,

Poland.

Rothrock, R.A., Kaplan, J., Van der Oord, F., 2017. The

Board’s Role in Managing Cybersecurity Risks, MIT

Sloan Management Review Magazine: Winter 2018

Issue. Cambridge, USA.

Song, W., Kang, D., Zhang, J., Cao, Z., Xi, H., 2019. A

Sampling Approach for Proactive Project Scheduling

under Generalized Time-dependent Workability

Uncertainty, Journal of Artificial Intelligence Research

Volume 64, 2019.

United States Government Accountability Office (US-

GAO), 2016. Information Security. Agencies Need to

Improve Controls over Selected High-Impact Systems.

https://www.gao.gov/assets/680/677293.pdf

Washington DC., USA. Accessed Jan 2019.

Venkatachary, S.K., Prasad, J., Samikannu, R., 2018.

Cybersecurity and cyber terrorism - in energy sector –

a review. Journal of Cyber Security Technology

Volume 2, 2018.

Verizon, 2017. Data Breach Investigations Report 10

Edition, USA.

http://www.verizonenterprise.com/verizon-insights-

lab/dbir/tool/. Accessed Jan 2019.

Vishik, C., Sheldon, F., Ott, D., 2013. Economic Incentives

for Cybersecurity: Using Economics to Design

Technologies Ready for Deployment.

World Economic Forum (WEF), 2019. The Global Risks

Report 2019, 14th Edition. Geneva, Switzerland.

http://www3.weforum.org/docs/WEF_Global_Risks_

Report_2019.pdf. Accessed Jan 2019.

Zetter, K., 2014. Countdown to zero day. Stuxnet and the

launch of the world's first digital weapon, Random

House. USA.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

350
