Automatic Decomposition of IoT Aware Business Processes with Data

and Control Flow Distribution

Francisco Martins

1,2 a

, Dulce Domingos

1 b

and Daniel Vitoriano

LASIGE, Faculdade de Ci

encias, Universidade de Lisboa, Portugal

University of the Azores, Portugal

Keywords:

Internet of Things, BPMN, Process Decomposition.

Abstract:

The Internet of Things (IoT) is generally seen as a distributed information gathering platform when used in

business processes (BP). IoT devices have computational capabilities that can and should be used to execute

fragments of BP that present beneﬁts for both the devices and the BP execution engine. In fact, executing

parts of the BP in the IoT devices may result in the reduction of the number of messages exchanged between

the IoT network and the BP execution engine, increasing the battery lifespan of the IoT devices; also, it

reduces the workload of the BP execution engine. However, processes are still deﬁned following a centralised

approach, making it difﬁcult to use the full capabilities of these devices. In this paper, we present an automatic

decomposition solution for IoT aware business processes, described using the Business Process Model and

Notation (BPMN). We start from a BP model that follows a centralised approach and apply our decomposition

method to transfer to the IoT devices the operations that can be performed there. This transformation preserves

the control and the data ﬂows of the original process and reduces the central processing and the number of

messages exchanged in the network. The code that IoT devices execute is automatically generated from the

BPMN process being decentralised.

1 INTRODUCTION

The Internet of Things (IoT) is one of the key dimen-

sions of the new industrial revolution that is trigger-

ing a paradigm shift in business methodologies and

in people’s daily life. It is a paradigm that makes the

things that surround us into active actors of the Inter-

net, generating and consuming information.

Motivated by the rapid development of digital

technologies, the IoT is characterised by the presence

of things, equipped with RFID tags, sensors, actua-

tors, and mobile devices that, through single address

schemes, can interact with each other and cooperate

with their neighbours to achieve a common goal. In-

terconnected things pose several challenges that have

been addressed by state of the art literature, such as:

energy consumption, the scarcest resource in the IoT;

scalability, since the number of devices can be quite

high; reliability, since the network can be used to re-

port alarm events; and robustness, as the nodes of

the network are susceptible to a wide variety of fail-

https://orcid.org/0000-0002-2379-7257

https://orcid.org/0000-0002-5829-2742

ures (Atzori et al., 2010; Moreno et al., 2014; Rault

et al., 2014; Lee and Kim, 2010; Zorzi et al., 2010).

A business process model is a conceptual descrip-

tion of how businesses conduct their operations, by

specifying activities, events, states, and ﬂow control

logic, among other factors. Process models are crit-

ical for the optimisation and automation of business

processes and are often represented in a graphical no-

tation, such as BPMN (OMG, 2011). These processes

can use IoT devices to read and act based on their

surrounding environment (Yousﬁ et al., 2016). They

can even take advantage of the IoT to decentralise

part of their execution ﬂow when properly decom-

posed (Haller et al., 2008).

Business processes interact with IoT devices fol-

lowing a request-response or a publish-subscribe

scheme to gather information and to trigger actuators.

These interaction schemes promote the exchange of

messages between IoT devices and the execution en-

gine, which results in a high power consumption pro-

ﬁle from the IoT device. Notice that communication

is one of the most battery demanding tasks performed

by the IoT devices. An alternative scheme would be

to transfer part of the business process logic to the IoT

516

Martins, F., Domingos, D. and Vitoriano, D.

Automatic Decomposition of IoT Aware Business Processes with Data and Control Flow Distribution.

DOI: 10.5220/0007766405160524

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 516-524

ISBN: 978-989-758-372-8

devices and let them make some of the business deci-

sions and actuate on the environment without having

to exchange information with the execution engine.

This approach offers two beneﬁts: it reduces the num-

ber of exchanged messages, increasing battery lifes-

pan, and alleviates the execution engine by decentral-

ising part of the execution of the process to the edges

of the network (the IoT devices). Of course this extra

execution will consume power of the IoT device, but

the energy consumption of the migrated tasks is much

smaller than that used on communication.

Decomposition breaks a system into progressively

smaller subsystems that implement fragments of the

domain problem. Decomposition is also a means to

model large systems and to facilitate the reuse of par-

tial models because it reduces coupling, helps in con-

trolling speciﬁcation complexity, and allows for mul-

tiple levels of detail to coexist. Consequently, models

become easier to understand that, in turn, facilitates

their validation, redesign, and optimisation (Caetano

et al., 2010).

Despite the beneﬁts of decentralisation, business

processes are still deﬁned following a centralised ap-

proach. Our solution automatically decomposes busi-

ness processes, transforming the original process into

one that takes advantage of the computational re-

sources that IoT devices make available. We begin by

generating a graph from a BPMN model that captures

the control and data ﬂow dependencies of the tasks.

Then, we identify paths that only contain BPMN el-

ements capable of being executed in IoT devices and

that can be transferred. Then, based on these paths,

we check which ones fall within the patterns that we

have identiﬁed, and apply the corresponding transfor-

mation procedure. Finally, we redesign the BPMN

model with the achieved solution.

The decomposition procedure is based on parti-

tion techniques, which group together activities in

sub-processes and assign them to separate partici-

pants. These techniques were previously applied to

generic workﬂow models with simpliﬁed approaches

that omit data dependencies (Sadiq et al., 2006) or re-

quire designers to deﬁne the possible execution loca-

tion of activities (Fdhila et al., 2009; Xue et al., 2018).

We are using BPMN diagrams to determine data and

control dependencies, as well as execution location of

activities. This proposal is a step forward from our

previous work (Domingos et al., 2014) as it reduces

the number of steps of the algorithm and improves

the way it identiﬁes the tasks to transfer to IoT de-

vices. Beyond reducing centralised execution of busi-

ness processes, this solution also reduces the number

of communications performed with IoT devices.

This paper is organised as follows: the next sec-

tion presents the related work; Section 3 presents our

approach to process decomposition illustrated via a

case study; Section 4 shows the developed prototype,

and the last section concludes the paper and discusses

future work.

2 RELATED WORK

The Mentor project presents one of the ﬁrst proposals

on process decomposition (Wodtke et al., 1996). To

model processes, the authors use state diagrams and

partition processes taking into account control and

data ﬂows.

The growing use of the Web Services Business

Process Execution Language (WS-BPEL) (OASIS,

2007) justiﬁed the development of decomposition

proposals of such processes. Nanda et al. (2004) cre-

ate new subprocesses for each service of the original

process, which communicate directly, reducing the

synchronisation and message exchange that the cen-

tral process execution engine has to perform. How-

ever, these authors do not consider the possibility of

grouping services in the same subprocess.

Sadiq et al. (2006) and Fdhila et al. (2009) decom-

pose generic process models by grouping various ac-

tivities into subprocesses and by distributing the exe-

cution of these subprocesses among different execu-

tion engines. The former only considers control ﬂow

dependencies, while the latter also considers data ﬂow

dependencies. A subsequent work by Fdhila et al.

(2014) optimise subprocesses composition taking into

account several quality of service parameters, such as

cost, time, reliability, and availability. Yu et al. (2016)

use genetic programming to create partitions (subpro-

cesses) of WS-BPEL processes that intensively use

data.

To make use of the advantages offered by the

cloud to execute fragments of business processes,

Duipmans et al. (2012) divide business processes into

two categories: those that run locally and those that

can run in the cloud. With this division, the authors

intend to perform the most computationally intensive

tasks in the cloud, whose data is not conﬁdential. The

identiﬁcation of these tasks is performed manually.

Povoa et al. (2014) propose a semi-automatic mecha-

nism to determine the location of activities and their

data based on conﬁdentiality policies, monetary costs,

and performance metrics. Hoenisch et al. (2016) opti-

mise the distribution of activities taking into account

some additional parameters such as the cost associ-

ated with delays in the execution of activities and the

unused, but paid, time of cloud resources.

In (Domingos et al., 2014) we present a prelimi-

Automatic Decomposition of IoT Aware Business Processes with Data and Control Flow Distribution

517

nary approach to the decomposition problem of IoT

aware BPMN business processes. The decomposi-

tion is based on dependency tables, as in (Sadiq et al.,

2006; Fdhila et al., 2009) and takes into account con-

trol ﬂow as well as data ﬂow. Unlike related work, the

partitions that IoT devices can execute are identiﬁed

automatically, taking into account the capabilities of

these devices.

The work we present in this paper goes a step for-

ward by avoiding the generation of dependency tables

and by using a more ﬁne-grained selection algorithm

for candidate partitions (or sub-paths). Our proposal

is based on the graph we generate from BPMN pro-

cess deﬁnitions, which captures control and data ﬂow

restrictions. Then, we identify sub-paths that only

contain BPMN elements that IoT devices can execute

and we transform them with the three patterns that we

have identiﬁed, as detailed in the next section.

3 DECOMPOSITION OF

BUSINESS PROCESSES

This section describes our business process decompo-

sition method focused on reducing communications

between IoT devices and the central system by mov-

ing fragments of the business process to IoT devices.

We illustrate it using a simpliﬁed automatic irrigation

business process.

3.1 Case Study

The irrigation system we describe automatically de-

termines when to irrigate, based on the soil moisture.

The water used for the irrigation comes from tanks,

whose water level is also controlled by the system. It

is possible to check the water level of the tanks and

ﬁll them whenever necessary.

The water level values are stored in a historical

record ﬁle for future expenses audit. In addition, the

system periodically contacts IoT devices to gather soil

moisture levels. If the level is below a given threshold,

a signal is sent to the IoT network that triggers the

irrigation process. Soil moisture values are also kept

in a historical record ﬁle.

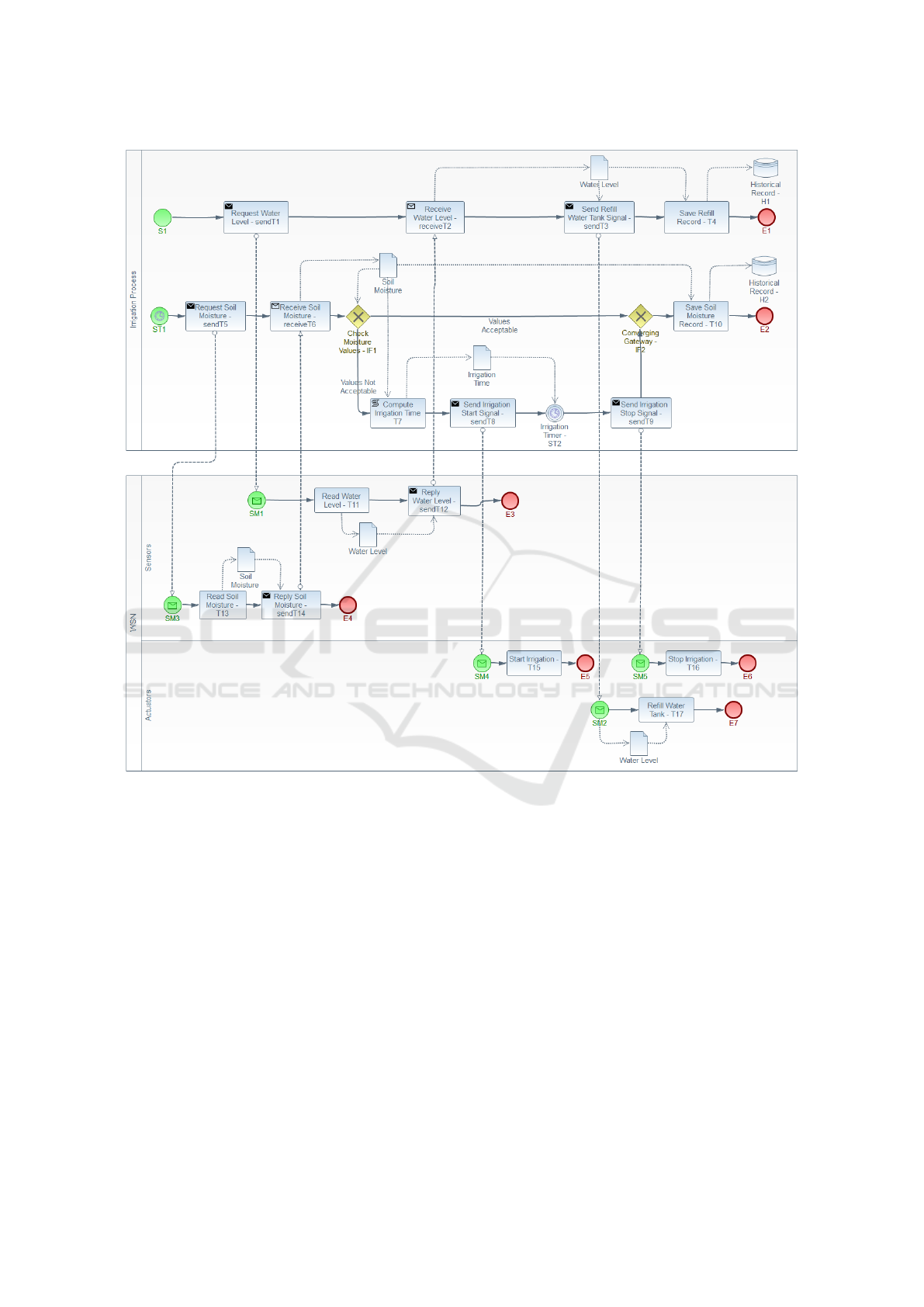

Figure 1 illustrates the simpliﬁed BPMN model of

our case study. It consists of two pools: the Irrigation

Process and the IoT network (WSN). The irrigation

process represents the central server responsible for

executing the business processes. It contains two exe-

cution ﬂows: the top describes tank reﬁlling; the other

speciﬁes the irrigation process itself.

The top execution ﬂow is triggered manually (S1

start event) and starts by requesting the tank’s water

level (sendT1), sending a message to the IoT pool

(SM1). The sensors read the tank’s water level (T11)

and forward this information back to the irrigation

process (sendT12). The Receive Water Level task (re-

ceiveT2) blocks until a message arrives. Upon mes-

sage arrival, it sends a message (sendT3) with the re-

ceived information to the actuator. This information is

transmitted to the Reﬁll Water Tank task that sets the

tank’s water level to the top. Meanwhile, Save Reﬁll

Record task (T4) stores this occurrence by writing it

to the Historical Record data store (H1).

The bottom execution ﬂow executes periodically

(ST1), starting by determining if the soil moisture lev-

els provided by the IoT device are acceptable. For

this, it requests this information (sendT5) to the IoT

pool that starts the process (SM3), reads the soil mois-

ture (T13), and sends a message with this information

(sendT14) back to the irrigation process. Then, the

process checks if it is necessary to start an irrigation

cycle. For this, the exclusive gateway Check Moisture

Values (IF1) forces the process to follow only one of

its paths. If the moisture value is below the deﬁned

threshold, it computes the irrigation time based on

the moisture level received and signals the actuators

(sendT8) to start irrigating (T15). The purpose of the

irrigation intermediate timer event (ST2) is to wait for

the irrigation time before sending a signal (sendT9) to

stop the actuator (T16). Finally, the process records

the soil moisture level (T10) into the historical record

data store (H2). The purpose of the converging gate-

way is to forward the process to task T10, regardless

of the path taken by the process.

This process, despite using IoT devices, follows

a centralised approach. In the following sections, we

use it to illustrate the various steps of our decomposi-

tion procedure.

3.2 Decomposition Patterns

This section presents the patterns that we have identi-

ﬁed as ineffective uses of the computational capabili-

ties of IoT devices. The main concern on the identiﬁ-

cation of the patterns, and their respective transforma-

tions, is to minimise the number of communications

between the central process and to preserve the execu-

tion ﬂow of the initial business process. This means

that the tasks still execute in the original order after

the transformations.

Figure 2a presents an example of the ﬁrst pat-

tern taken from our running example. The pattern is

identiﬁed by a receive task (receiveT2) followed by a

send task (sendT3) in the central pool that are, respec-

tively, preceded and followed by a send and a receive

task or start message event belonging to the same IoT

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

518

Figure 1: BPMN model of an automatic irrigation system - a case study.

pool. This includes an unnecessary communication

between the two pools: the transformation eliminates

SendT3 and SM2. To enforce the original control

ﬂow, receiveT2 is connected to T4 and sendT12 is

connected to T17, as Figure 2b illustrates.

An example of the second pattern is shown in Fig-

ure 3a. The central pool has a process that starts

with a timer event (ST1) and is followed by a send

task (sendT5) and a receive task (receiveT6), both

to/from the same IoT pool. By moving the timer to

the IoT pool, we eliminate one communication be-

tween sendT5 task and SM3 (typically, IoT devices

have timer operations), as Figure 3b shows.

Figure 4a contains an excerpt of our running ex-

ample that illustrates the third pattern. Typically, IoT

devices have sufﬁcient computational capabilities to

perform logical and mathematical operations, so it is

possible to transfer gateways to the IoT network, as

long as the data for making the decision is available.

Also script tasks that compute mathematical expres-

sions can be moved to IoT devices as it is the case

for task 7. This pattern is characterised by a mes-

sage ﬂow from the IoT pool to the central process

(from sendT14 task to receiveT6 task), which after-

wards branches (IF1 gateway) based on the received

data. The goal is to transfer as much tasks as possi-

ble to the IoT pool, while preserving control and data

ﬂow dependencies. Figure 4b illustrates the applica-

tion of this pattern on our running example. The mes-

sage ﬂow from the IoT pool to the central process is

postponed as long as the central process has BPMN

elements that can be moved to the IoT pool. This

set of BPMN elements includes exclusive gateways,

script tasks that only compute mathematical expres-

Automatic Decomposition of IoT Aware Business Processes with Data and Control Flow Distribution

519

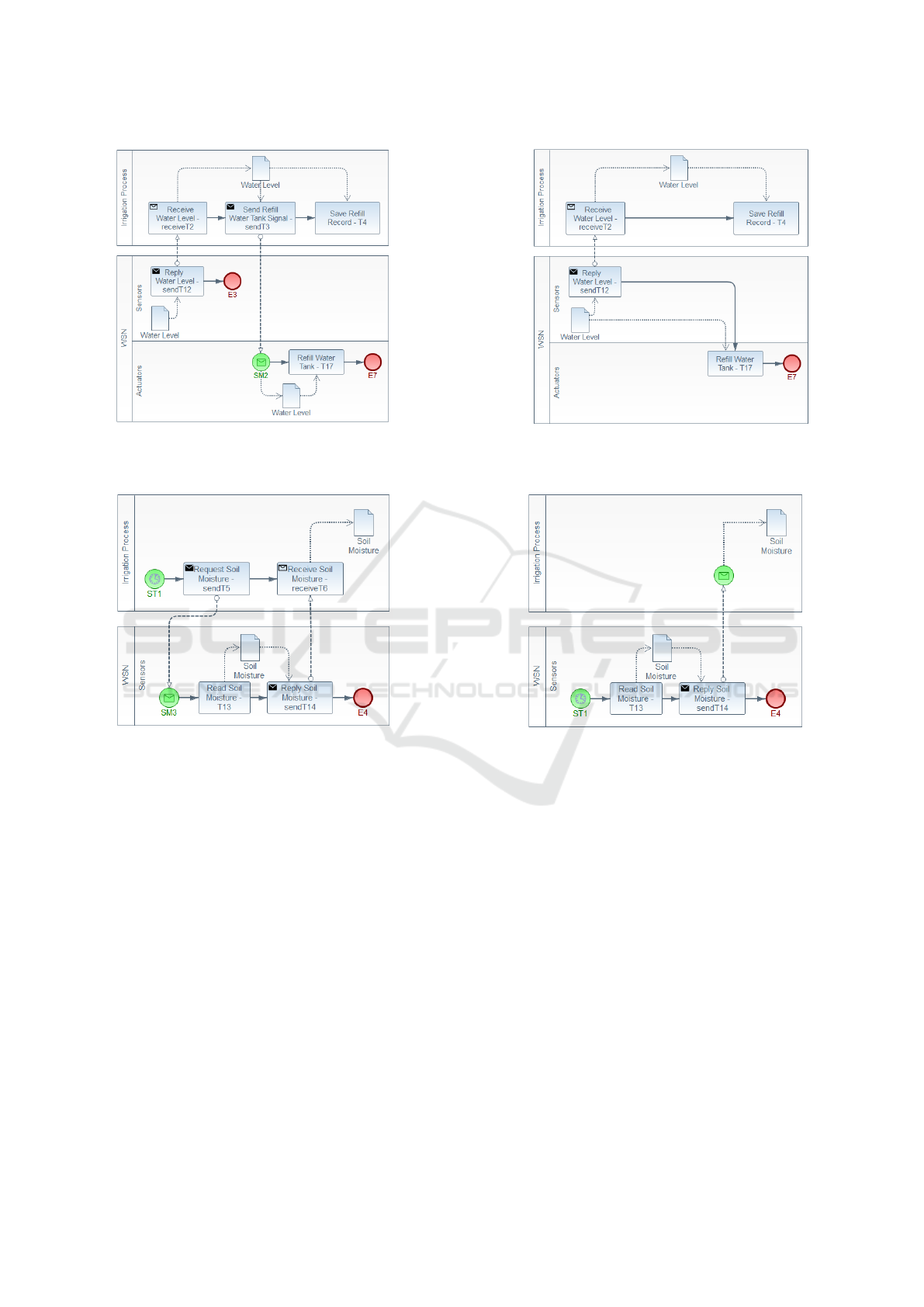

(a) Centralised model.

(b) Decentralised model.

Figure 2: Pattern 1 example taken from the case study.

(a) Centralised model.

(b) Decentralised model.

Figure 3: Pattern 2 example taken from the case study.

sions, timer events, and send tasks targeted at the IoT

pool.

3.3 Decomposition Procedure

This section describes the procedure we propose to

decompose IoT aware business processes by transfer-

ring fragments of the process to be executed by IoT

devices. This procedure includes the following steps:

1. Generate a graph, from a BPMN business process

model, that captures control and data ﬂow depen-

dencies of the BPMN elements. Figure 5 illus-

trates the graph that captures the control and data

ﬂow dependencies of the BPMN model of our

running example. Each node contains the iden-

tiﬁcation of the BPMN element its pool name.

2. Generate a list of sub-paths (that we call candidate

sub-paths) that can be transferred to IoT devices.

For each initial node of the graph, the algorithm

traverses it to list sub-paths that: (1) contain, at

least, one message ﬂow exchanged between the

central pool and an IoT pool, (2) only include

BPMN elements that are part of the IoT pool or

BPMN elements (events, send tasks, receive tasks,

gateways, script tasks computing mathematical

expressions, data objects) that can be executed on

IoT devices. At the end, paths that are sub-paths

of other paths are removed.

In our running example, we obtain the following

candidate sub-paths:

[T1, SM1, T11, WL, T12, T2, WL, T3, SM2, WL,

T17, E7],

[ST1, T5, SM3, T13, SM, T14, T6, SM, IF1, T7,

IT, ST2, T9, SM5, T16, E6],

[ST1, T5, SM3, T13, SM, T14, T6, SM, IF1, T7,

T8, ST2, T9, SM5, T16, E6],

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

520

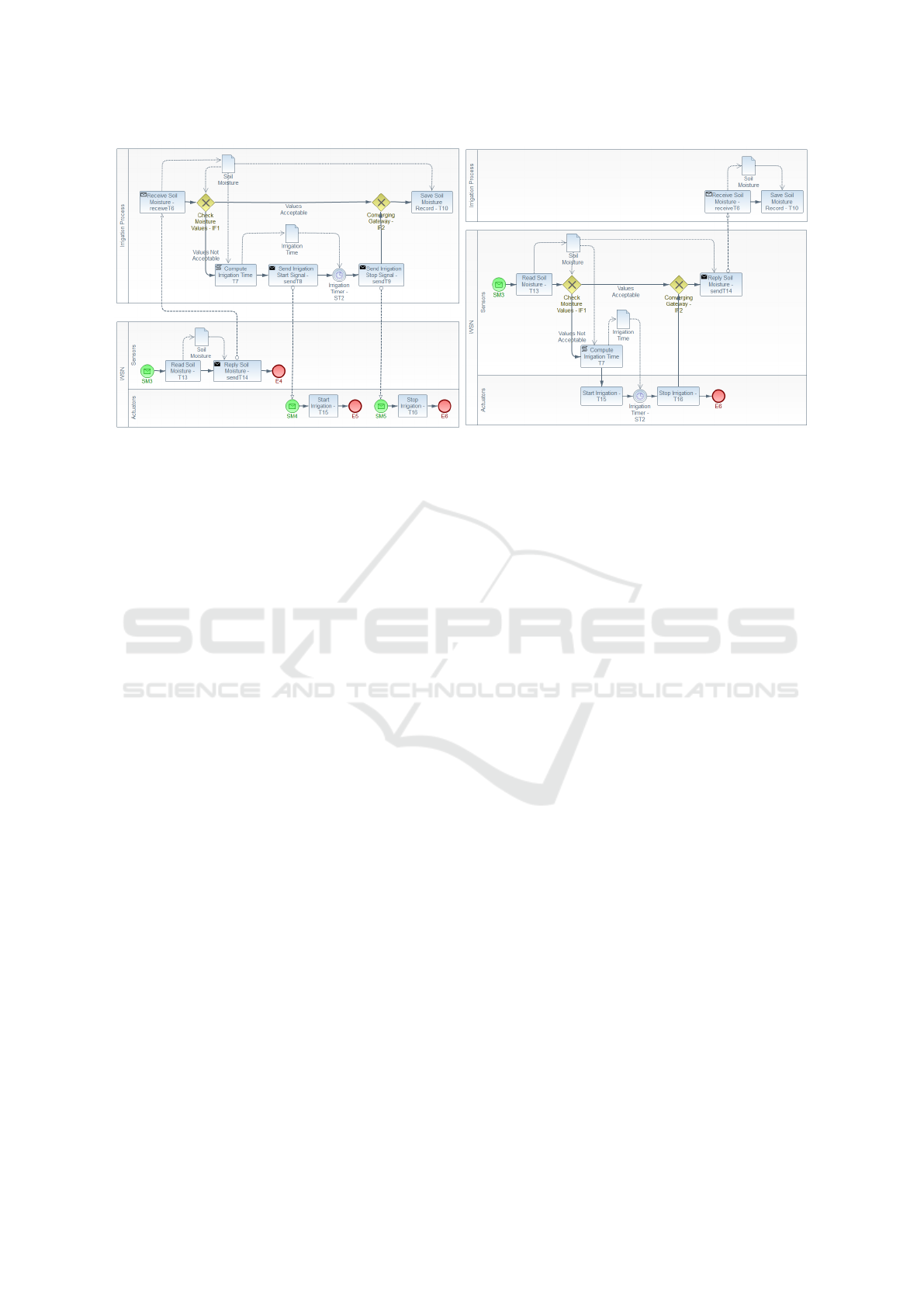

(a) Centralised model.

(b) Decentralised model.

Figure 4: Pattern 3 example taken from the case study.

[ST1, T5, SM3, T13, SM, T14, T6, SM, IF1, T7,

T8, SM4, T15, E5].

For instance, path [T1, SM1, T11, T12, T2, T3,

SM2, WL, T17, E7] is removed because it is a

sub-path of [T1, SM1, T11, WL, T12, T2, WL,

T3, SM2, WL, T17, E7].

3. Redeﬁne pools based on the candidate sub-paths.

Process pools are redeﬁned when transferring ac-

tivities to the IoT pool or by eliminating commu-

nications. The redeﬁnition occurs based on the

patterns that we previously described.

4. Create a new BPMN model.

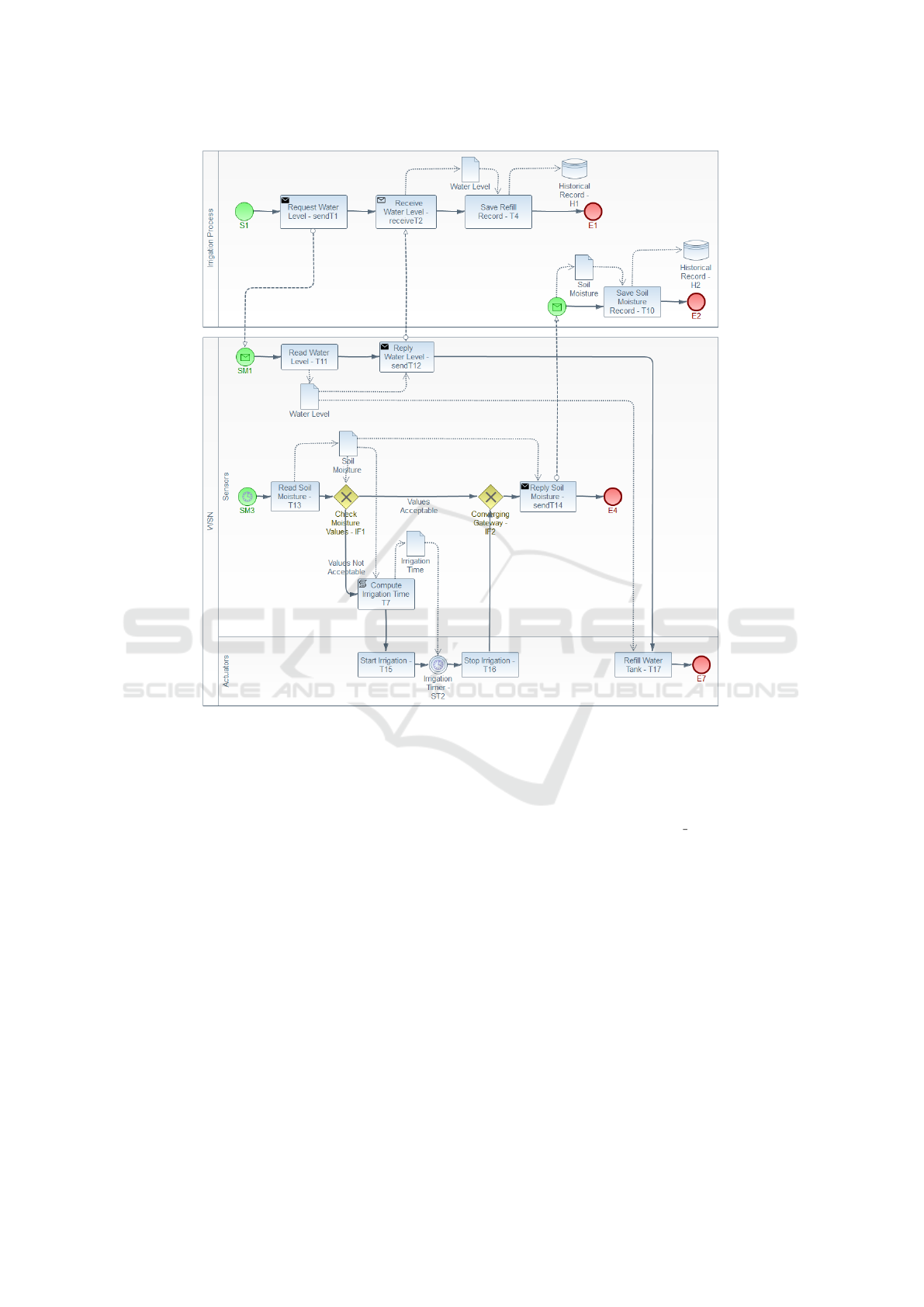

We use Graphviz to generate the coordinates of

the elements of the modiﬁed BPMN model. Fig-

ure 6 illustrates the ﬁnal solution of our use case,

after several iterations of our decomposition pro-

cedure. We performed some manual layout ad-

justments in order to make the overall process

more readable than that generated automatically

by our tool.

It is possible to observe that, considering the seven

message ﬂows that the original model has be-

tween the irrigation process and the IoT pool, our

solution shows that only three are in fact neces-

sary if we take advantage of the capabilities that

IoT devices offer.

4 PROTOTYPE

We conceived a prototype that performs the de-

composition procedures described in the pre-

vious section, whose source code is available

at github (https://github.com/fcmartins/bpmn-

decomposition.git).

Our development environment uses the Java pro-

gramming language and the following tools:

• jBPM (version 6.3.0);

• Eclipse Luna (version 4.4.2) with BPMN2 Mod-

eller and SonarLint plug-ins;

• Graphviz.

This prototype builds on top of previous tools

we already developed that translate BPMN into

CALLAS (a high-level sensor programming lan-

guage (Lopes and Martins (2016))) and that automat-

ically transform the BPMN model to communicate

with the IoT network either using request-response or

publish-subscribe architectures (Domingos and Mar-

tins (2017a,b)).

jBPM is a JavaEE application that implements the

BPMN standard. This application is associated with

the Luna version of Eclipse. BPMN2 Modeller is a

BPMN graphical visualisation plug-in and SonarLint

a plug-in for enforcing source code quality. Graphviz

is a tool for drawing graphs speciﬁed in the DOT lan-

guage.

In order to execute the prototype, we provide a

BPMN ﬁle with the model to be decomposed.

One of the challenges of the implementation, be-

sides the decomposition of the model, was to calculate

the coordinates of the BPMN elements on the new

model generated by the prototype. For this, we use

Graphviz. We generate a DOT ﬁle for each pool of

the BPMN new model and use Graphviz that, through

its graphing algorithm, generates the coordinates that

we use as reference to lay down the BPMN elements

of decomposition. Then, we apply geometric trans-

Automatic Decomposition of IoT Aware Business Processes with Data and Control Flow Distribution

521

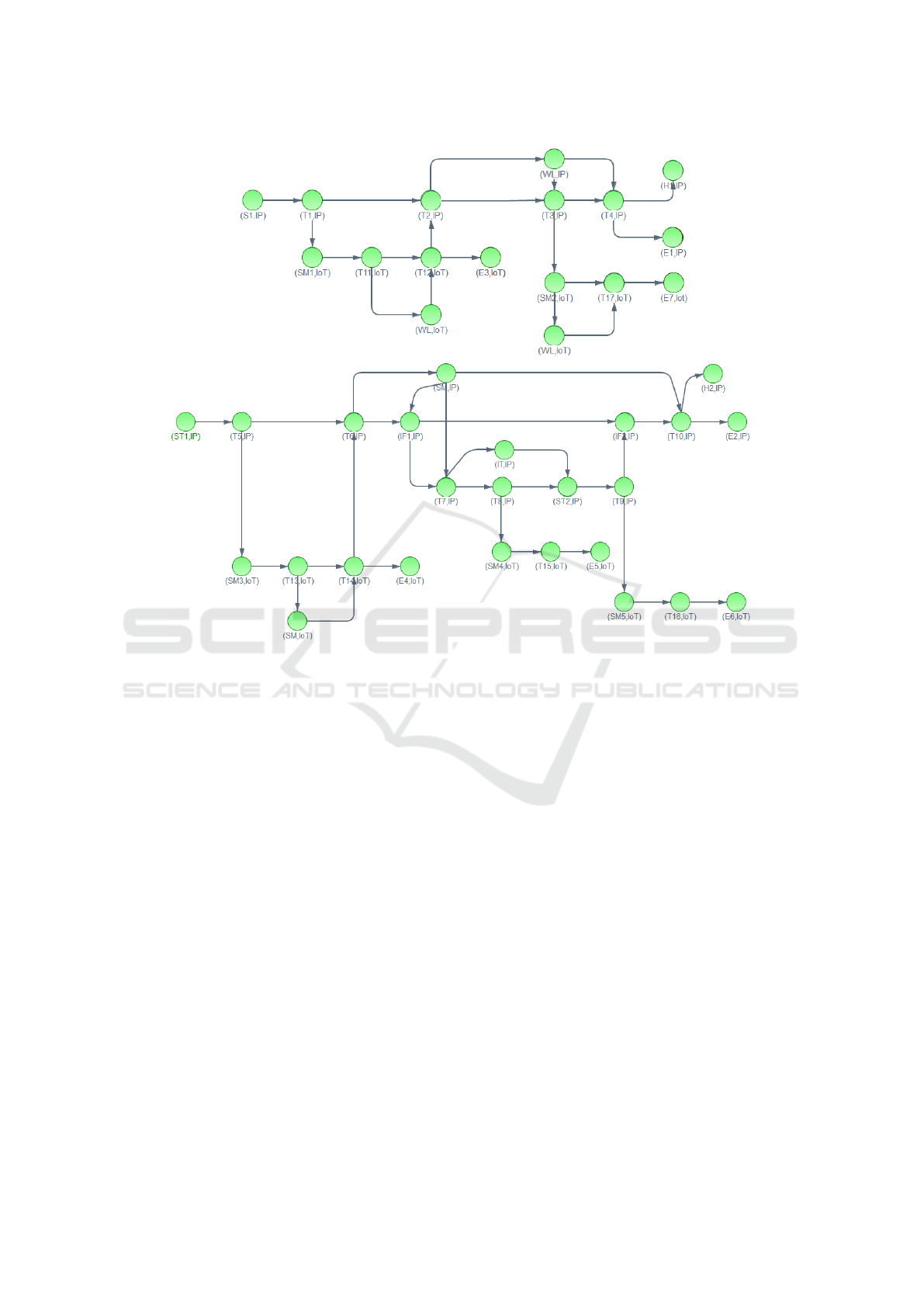

Figure 5: Graph generated from the BPMN deﬁnition.

formations to the coordinates generated so they are

aligned with the other components of the model.

This prototype also translates the IoT behaviour

into Callas bytecode to support the execution of all the

BPMN model, as detailed in (Domingos and Martins

(2017b)).

We evaluated the prototype using various models

we built. In particular, the decomposition we present

here results from the application of the prototype.

5 CONCLUSIONS AND FUTURE

WORK

Business processes are increasingly using information

made available by IoT devices to provide timely re-

sponses according to their context. In addition, IoT

devices have enough computational power to exe-

cute parts of business processes, thus reducing central

processing and the number of messages exchanged,

and, consequently, increasing the energy autonomy of

these devices.

Considering that business process modelling usu-

ally follows a centralised approach, the work pro-

posed in this paper allows for automatic decomposi-

tion of IoT-aware business processes. The decompo-

sition takes into account constraints imposed by both

control ﬂow and data ﬂows. This proposal reduces

the number of messages exchanged between a central

pool and IoT pools.

As for future work, we intend to generalise the

patterns we propose in this paper, to conclude the

work of checking whether script task can be executed

by IoT devices, and to use additional information of

the business processes history logs in the decompo-

sition procedure. We also plan to extensively assess

our approach, in particular, by measuring the amount

of time, energy, and exchanged messages saved when

using our algorithm.

ACKNOWLEDGEMENTS

We thank the anonymous reviewers for their com-

ments and suggestions on an earlier version of

this work. Some of their valuable comments will

be deﬁnitely considered in future developments of

our work. This work is partially supported by

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

522

Figure 6: BPMN model of the automatic irrigation system after decentralisation.

FCT funding through LASIGE Research Unit, ref.

UID/CEC/00408/2018, and by project DoIT, ref.

PTDC/EEIESS/5863/2014.

REFERENCES

Atzori, L., Iera, A., and Morabito, G. (2010). The internet of

things: A survey. Computer networks, 54(15):2787–

2805.

Caetano, A., Silva, A. R., and Tribolet, J. (2010). Business

process decomposition-an approach based on the prin-

ciple of separation of concerns. Enterprise Modelling

and Information Systems Architectures, 5(1):44–57.

Domingos, D. and Martins, F. (2017a). Modelling iot be-

haviour within bpmn business processes. Procedia

computer science, 121:1014–1022.

Domingos, D. and Martins, F. (2017b). Using bpmn to

model internet of things behavior within business pro-

cess. IJISPM-International Journal of Information

Systems and Project Management, 5(4):39–51.

Domingos, D., Martins, F., and Caiola, L. (2014). Decen-

tralising internet of things aware bpmn business pro-

cesses. In International Conference on Sensor Sys-

tems and Software, pages 110–119. Springer.

Duipmans, E. F., Pires, L. F., and da Silva Santos, L. O. B.

(2012). Towards a BPM cloud architecture with data

and activity distribution. In Proceedings of the 2012

IEEE 16th International Enterprise Distributed Ob-

ject Computing Conference Workshops, pages 165–

171. IEEE.

Fdhila, W., Dumas, M., Godart, C., and Garc

ıa-Ba

nuelos, L.

(2014). Heuristics for composite web service decen-

tralization. Software & Systems Modeling, 13(2):599–

619.

Fdhila, W., Yildiz, U., and Godart, C. (2009). A ﬂexible

approach for automatic process decentralization using

dependency tables. In Proceedings of the 2009 IEEE

International Conference on Web Services, (ICWS),

pages 847–855. IEEE.

Haller, S., Karnouskos, S., and Schroth, C. (2008). The

Internet of Things in an enterprise context. In Future

Internet Symposium, pages 14–28. Springer.

Hoenisch, P., Schuller, D., Schulte, S., Hochreiner, C., and

Automatic Decomposition of IoT Aware Business Processes with Data and Control Flow Distribution

523

Dustdar, S. (2016). Optimization of complex elastic

processes. IEEE Transactions on Services Computing,

9(5):700–713.

Lee, G. M. and Kim, J. Y. (2010). The internet of things

problem statement. In Proceedings of the 2010 Inter-

national Conference on Information and Communica-

tion Technology Convergence (ICTC), pages 517–518.

IEEE.

Lopes, L. and Martins, F. (2016). A safe-by-design pro-

gramming language for wireless sensor networks.

Journal of Systems Architecture, 63:16–32.

Moreno, M.,

Ubeda, B., Skarmeta, A. F., and Zamora, M. A.

(2014). How can we tackle energy efﬁciency in IoT

based smart buildings? Sensors, 14(6):9582–9614.

Nanda, M. G., Chandra, S., and Sarkar, V. (2004). De-

centralizing execution of composite web services. In

ACM SIGPLAN Notices, volume 39, pages 170–187.

ACM.

OASIS (2007). Web services business process execu-

tion language version 2.0. URL: http://docs.oasis-

open.org/wsbpel/2.0/OS/wsbpel-v2.0-OS.html.

OMG (2011). Business Process Model and Notation

(BPMN), Version 2.0.

Povoa, L. V., de Souza, W. L., Pires, L. F., and do Prado,

A. F. (2014). An approach to the decomposition of

business processes for execution in the cloud. In Pro-

ceedings of the 2014 IEEE/ACS 11th International

Conference on Computer Systems and Applications

(AICCSA), pages 470–477. IEEE.

Rault, T., Bouabdallah, A., and Challal, Y. (2014). Energy

efﬁciency in wireless sensor networks: A top-down

survey. Computer Networks, 67:104–122.

Sadiq, W., Sadiq, S., and Schulz, K. (2006). Model driven

distribution of collaborative business processes. In

Services Computing, 2006. SCC’06. IEEE Interna-

tional Conference on, pages 281–284. IEEE.

Wodtke, D., Weißenfels, J., Weikum, G., and Dittrich, A. K.

(1996). The mentor project: Steps towards enterprise-

wide workﬂow management. In Proceedings of the

Twelfth International Conference on Data Engineer-

ing, pages 556–565. IEEE.

Xue, G., Liu, J., Wu, L., and Yao, S. (2018). A graph

based technique of process partitioning. J. Web Eng.,

17(1&2):121–140.

Yousﬁ, A., de Freitas, A., Dey, A. K., and Saidi, R. (2016).

The use of ubiquitous computing for business process

improvement. IEEE Transactions on Services Com-

puting, 9(4):621–632.

Yu, Y., Ma, H., and Zhang, M. (2016). A genetic pro-

gramming approach to distributed execution of data-

intensive web service compositions. In Proceedings

of the Australasian Computer Science Week Multicon-

ference, page 29. ACM.

Zorzi, M., Gluhak, A., Lange, S., and Bassi, A. (2010).

From today’s Intranet of Things to a future Internet

of Things: a wireless and mobility-related view. IEEE

Wireless communications, 17(6).

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

524
