Towards a Runtime Standard-based Testing Framework for

Dynamic Distributed Information Systems

Moez Krichen

1,3

, Roobaea Alroobaea

and Mariam Lahami

Faculty of CSIT, Al-Baha University, Saudi Arabia

College of CIT, Taif University, Saudi Arabia

ReDCAD Laboratory, University of Sfax, Tunisia

Keywords: Distributed, Information Systems, Runtime, Dynamic, Adaptable, TTCN-3, Testing, Isolation, Generation,

Minimization, Classiﬁcation.

Abstract:

In this work, we are interested in testing dynamic distributed information systems. That is we consider a decen-

tralized information system which can evolve over time. For this purpose we propose a runtime standard-based

test execution platform. The latter is built upon the normalized TTCN-3 speciﬁcation and implementation test-

ing language. The proposed platform ensures execution of tests cases at runtime. Moreover it considers both

structural and behavioral adaptations of the system under test. In addition, it is equipped with a test isolation

layer that minimizes the risk of interference between business and testing processes. The platform also gener-

ates a minimal subset of test scenarios to execute after each adaptation. Finally, it proposes an optimal strategy

to place the TTCN-3 test components among the system execution nodes.

1 INTRODUCTION

Nowadays, information systems are steadily gaining

importance as a major ingredient for a wide range

of modern technologies and computerized services.

More precisely we are interested in distributed in-

formation systems (Grusho et al., 2017; Yesikov

et al., 2017) which correspond to decentralized sys-

tems made of sets of physical devices and software

components. Moreover we pay a particular attention

to dynamic distributed information systems which are

systems that can evolve during execution time.

The possible changes the considered system may

encounter could be either structural or behavioral. On

the ﬁrst hand, structural changes correspond to the ad-

dition or deletion of physical nodes or links between

nodes. On the other hand, behavioral changes corre-

spond to the addition, deletion or update of the soft-

ware components installed on the physical nodes of

the system.

It is worth noting that these two types of changes

may happen while the system is running. Conse-

quently this may lead to the apparition of new risks,

bugs and problems for the considered distributed in-

formation system either locally (on some limited parts

of the system) or globally (on the whole behavior of

the system).

In both cases this is considered as a dangerous and

critical situation. Thus very urgent and efﬁcient mea-

sures must be taken in order to guarantee the correct-

ness and the safety of the distributed information sys-

tem we are dealing with.

To remedy this, we adopt in this work an online

testing approach which can be applied at runtime. For

that, we propose a standard-based testing platform for

dynamic distributed information systems. The pro-

posed platform uses the TTCN3 standard and takes

into account both structural and behavioral adapta-

tions. Moreover, it is equipped with a test isolation

layer which minimizes the risk of interference be-

tween testing and business processes. We also com-

pute a minimal subset of test cases to run and efﬁ-

ciently distribute them among the execution nodes.

The remainder of this paper is organized as fol-

lows. Section 2 is dedicated for Runtime Testing

for Structural Adaptations. In Section 3, we propose

techniques for Runtime Testing of Behavioral Adap-

tations. Finally, Section 4 summarizes the main con-

tributions presented in this paper and states some di-

rections for future work.

Krichen, M., Alroobaea, R. and Lahami, M.

Towards a Runtime Standard-based Testing Framework for Dynamic Distributed Information Systems.

DOI: 10.5220/0007772101210129

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 121-129

ISBN: 978-989-758-372-8

121

2 TESTING FOR STRUCTURAL

ADAPTATIONS

The process depicted in Figure 1 shows the different

steps to fulﬁll in order to execute runtime tests when

structural reconﬁguration actions happen:

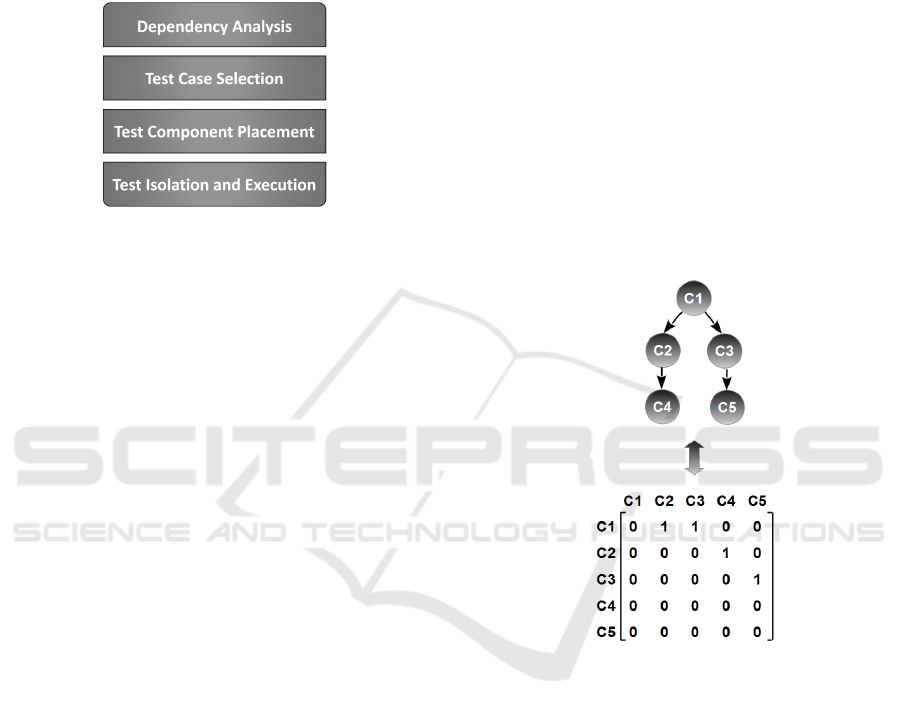

Figure 1: The different steps for structural adaptations vali-

dation of the system under test.

• Dependency Analysis: This step focuses on de-

termining the affected components of the system

under test by a structural reconﬁguration action.

• Test Case Selection: This step allows to identify

the set of test cases to choose from the Test Case

Repository and which will be applied on the set of

components identiﬁed during the previous step.

• Test Component Placement: This step allows

to distribute test components over the execution

nodes while taking into account speciﬁc con-

straints.

• Test Isolation and Execution: This step allows

to take into account isolation aspects and to exe-

cute the test cases selected during step 2.

More details about these different steps are given

in the next sections.

2.1 Dependency Analysis

Our goal here is to reduce the cost of the test activity

with respect to both to time and resources. For that

purpose, after each dynamic evolution of the system

we determine the subset of components of the system

which were impacted by the considered dynamic evo-

lution. This allows us not to execute all the available

test cases at runtime. Rather we choose a minimal

subset of tests (corresponding to the modiﬁed parts of

the system) and then we re-execute them. Our tech-

nique is based on the use of a dependency analysis

algorithm. The latter is used in several software engi-

neering branches (e.g., testing (Li et al., 2005), main-

tenance and evolution (Qu et al., 2010), etc.).

In (Alhazbi and Jantan, 2007) the authors de-

ﬁne dependency as “the reliance of a component on

other(s) to support a speciﬁc functionality”. So It can

be seen as a binary relation between components. A

component C

is said to be an antecedent to compo-

nent C

if its functionalities or data are exploited by

. Moreover in this case, B is said to be dependent on

. For a such situation we use the following notation

→C

The authors of (Larsson and Crnkovic, 2001) de-

ﬁne the relation → in a formal fashion as follows. Let

N odes be the set of components of the considered

system. The set of dependencies of this system is:

Dep =



, C

) : C

, C

∈ N odes ∧C

→C



In this manner, the current conﬁguration of the

system is made of two elements namely the set of

components and the set of corresponding dependen-

cies

Con f = (N odes, Dep).

Figure 2: An example of a 5-nodes dependency graph and

its corresponding 5x5 dependency matrix.

The conﬁguration of the system can be presented

either by a Component Dependency Graph or an

equivalent Component Dependency Matrix. In Fig-

ure 2 we give an example of such a dependency graph

and its equivalent dependency matrix.

At the beginning, the dependency graph stores

only the direct dependencies between the different

components of the system. Then in a second step in-

direct dependencies are calculated by means of transi-

tive closure algorithm (Ioannidis and Rantakrishnan,

1988) applied on the initial graph. For instance in the

example given by Figure 2 there is no direct depen-

dency between the two nodes C1 and C4 however an

indirect dependency exist between them through the

node C2. Similarly an indirect dependency exist be-

tween C1 and C5 through the node C3.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

122

2.2 Test Case Selection

When dynamic adaptations occur, we need to con-

sider two types of test cases. The ﬁrst type corre-

sponds to unit tests which allow to check the correct-

ness of the components which were affected at a local

level. Besides, the second type corresponds to inte-

gration tests which are necessary to guarantee com-

patibility and correct interaction between the different

components of the system which were inﬂuenced by

the dynamic adaptation.

As shown in Figure 3, this step consists in identi-

fying a subset of test cases from an already existing

test suite in order to test the affected parts of the sys-

tem. For that purpose several regression test selection

methods have been adopted in the literature. The pro-

posed methods are mostly based on dependency anal-

ysis techniques (Rothermel and Harrold, 1996).

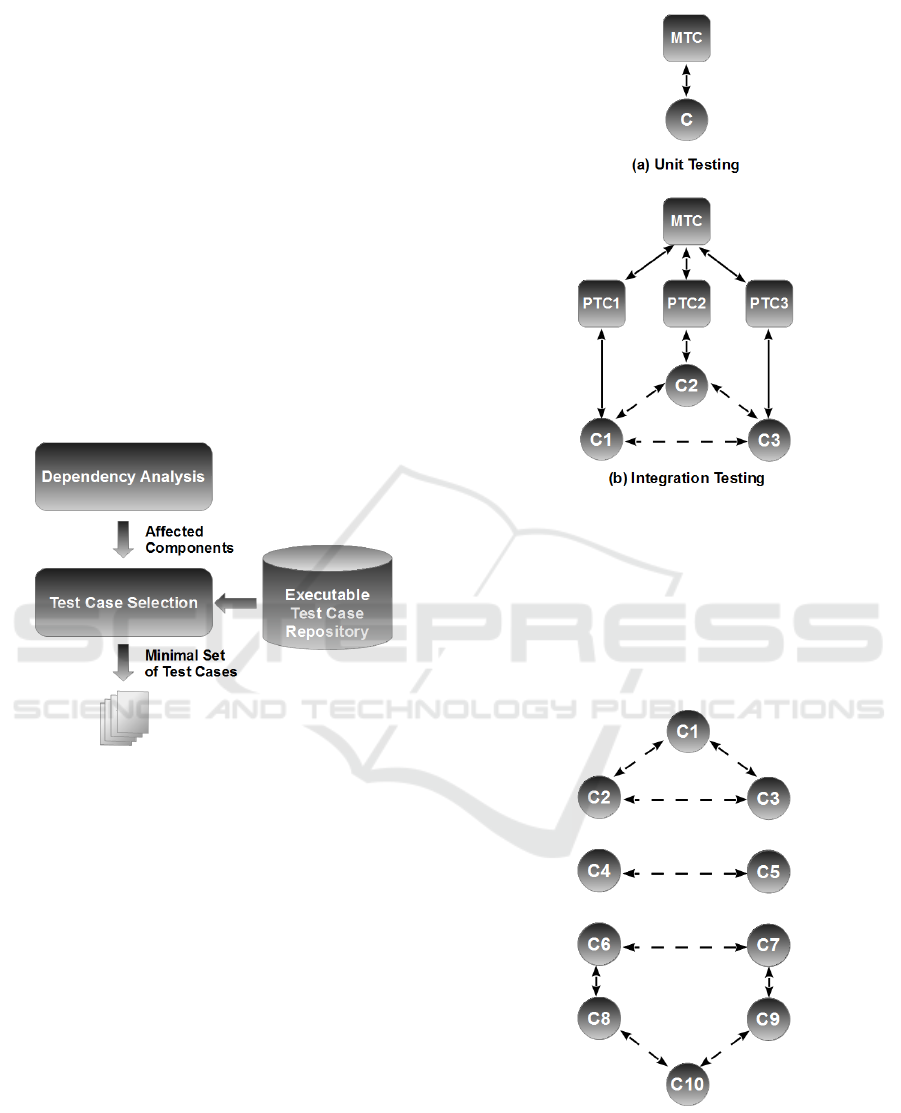

Figure 3: Illustration of the test selection phase.

Since we opted for a standard-based test execu-

tion platform, our tests will be written in the TTCN-

3 language and run by TTCN-3 test components.

More precisely two types of TTCN-3 components

are needed namely Main Test Components (MTC)

and Parallel Test Components (PTC). As illustrated

in Figure 4, an MTC can be charged of the execution

of a unit test for a speciﬁc component of the system

under test (Figure 4.a). Otherwise it can collaborate

with a set of PTCs in order to execute some integra-

tion tests corresponding to a set of interacting compo-

nents of the system (Figure 4.b). In the next section

we explain how the placement of these different test

components is done.

2.3 Test Component Placement

In this section, we explain how to compute an ade-

quate plan to distribute test cases over the different

nodes of the execution environment. For this pur-

Figure 4: TTCN-3 components used to execute unit and

integration test cases.

pose we consider both connectivity and resource con-

straints of the different components of the system.

First the connectivity constraint corresponds to the

fact that a given TTCN-3 test component needs to

have a connection (either direct or indirect) with all

components of the system it is in charge of testing.

Figure 5: An example of a system under test made of ten

components.

For instance the system shown in Figure 5 is made

of ten components. These components can be divided

into three subsets according to connectivity namely

{C1, C2, C3}, {C4, C5} and {C6, C7, C8, C9, C10}.

Towards a Runtime Standard-based Testing Framework for Dynamic Distributed Information Systems

123

Consequently at least three test components are

needed in order to test this system (i.e., a TTCN-3 test

component for each of the previously deﬁned subsets

of the system nodes).

The second constraint to take into account at this

level deals with the availability of resources required

by test components in order to execute the set of se-

lected test cases. That is each node of the execution

environment which is hosting a particular test compo-

nent must have enough resources to execute the test

cases attributed to this test component. Among these

resources we may consider for instance the CPU load,

the memory occupation, the storage capacities, etc.

Computing an adequate test placement strategy is

done by ﬁtting the previous constraints. This pro-

cedure may be considered as a Constraint Satisfac-

tion Problem (CSP) (Gh

edira and Dubuisson, 2013).

More precisely the problem in hand can be instan-

tiated as a particular variant of the Knapsack Prob-

lem (Martello and Toth, 1990; Kellerer et al., 2004),

called Multiple Multidimensional Knapsack Problem

(MMKP) (Lahami et al., 2012b).

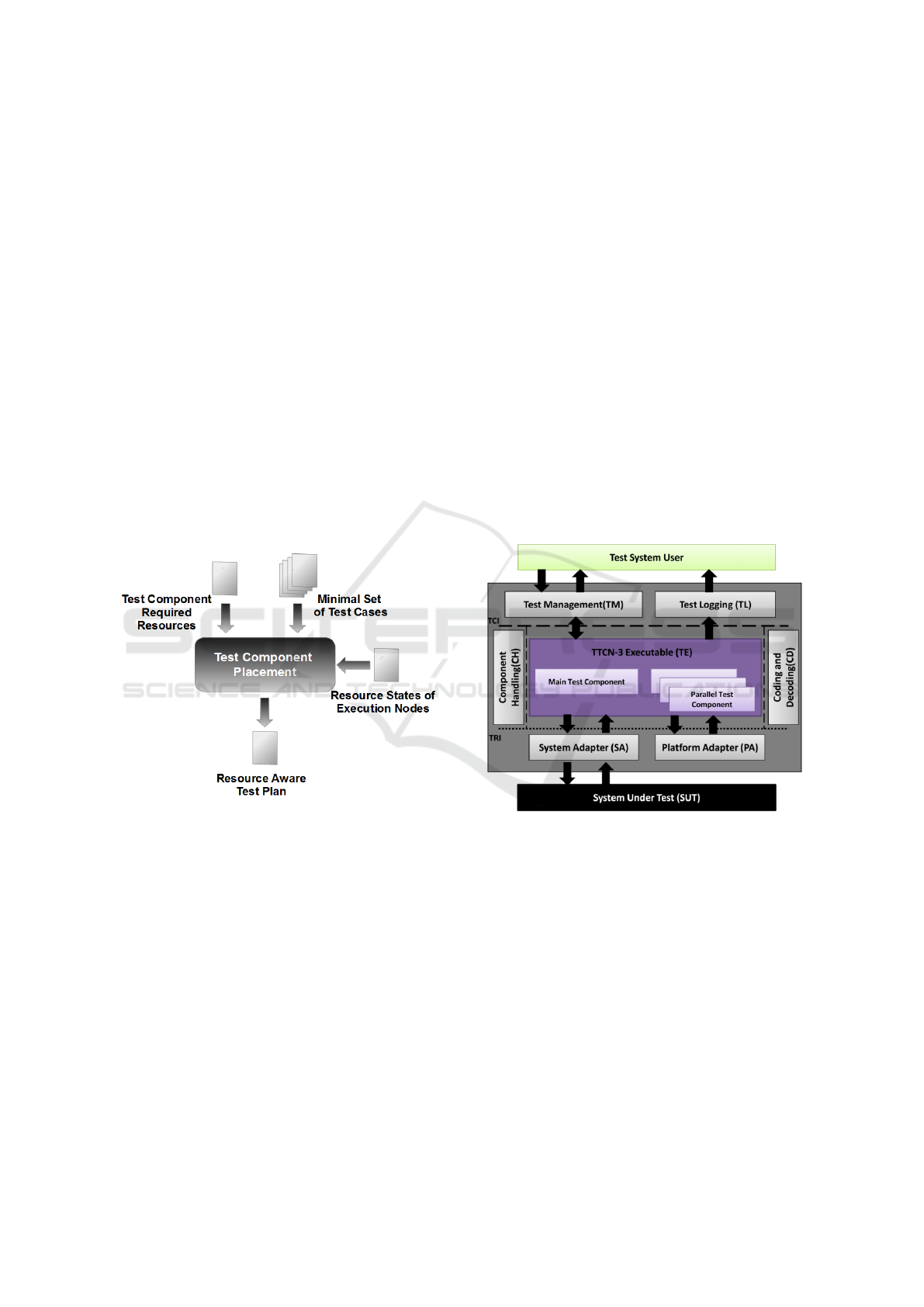

Figure 6: Illustration of the TTCN-3 Test Component Place-

ment Module.

As presented in Figure 6, the test component

placement takes as inputs the minimal set of test cases

(generated during the test selection phase), a descrip-

tion of the amount of resources needed by the test

components and ﬁnally a description of the state of

available resources in each node of the execution plat-

form. As an output this module generates a resource

aware test plan.

2.4 Test Isolation and Execution

As already mentioned our work is based on the

TTCN-3 standard. More precisely we are inspired

by the work of (Lahami et al., 2012a; Lahami et al.,

2016). Next we recall the main constituents of the

TTCN-3 reference architecture as shown in Figure 7:

• Test Management (TM): starts and stops tests,

provides parameters and manages the whole test

process;

• Test Logging (TL): handles all log events;

• TTCN-3 Executable (TE): executes the com-

piled TTCN-3 code;

• Component Handling (CH): distributes parallel

test components and ensures communication be-

tween them;

• Coding and Decoding (CD): encodes and de-

codes data exchanged with the TE;

• System Adapter (SA): adapts the communication

with the system under test;

• Platform Adapter (PA): implements external func-

tions.

In Figure 7, the abbreviation TCI stands for

TTCN-3 Control Interface and the abbreviation TRI

stands for TTCN-3 Control Interface.

Figure 7: TTCN-3 Reference Architecture (Lahami et al.,

2016).

As already mentioned, we need to consider some

isolation operations during the test execution phase in

order to avoid any possible interference between busi-

ness behaviors and test behaviors. So inspired by the

work of (Lahami et al., 2016), we intend to extend

the standard TTCN-3 architecture with a test isola-

tion component (Figure 8). This new component is

connected with both the system adapter (SA) and the

system under test. It allows to choose the appropriate

isolation strategy for each constituent under test de-

pending on the nature of that constituent. Next, we

brieﬂy describe ﬁve possible isolation strategies:

• The BIT-based Strategy: corresponds to a built-

in-testing approach where we assume that the

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

124

SUT components are initially equipped with inter-

faces which accept both business inputs and test

inputs simultaneously.

• The Aspect-based Strategy: which is inspired

from Aspect-Oriented Programming (AOP)

paradigm (Kienzle et al., 2010; Kiczales et al.,

2001) and consists in equipping each SUT

component with an aspect providing testing

facilities.

• The Tagging-based Strategy: consists in tagging

test inputs with a special ﬂag to differentiate them

from business inputs.

• The Cloning-based Strategy: consists in creat-

ing a copy of the component under test and then

testing the created clone instead of the original

component.

• The Blocking-based Strategy: consists in pre-

venting temporarily the component under test

from receiving any requests from its environment

except from the test components to which it is

connected.

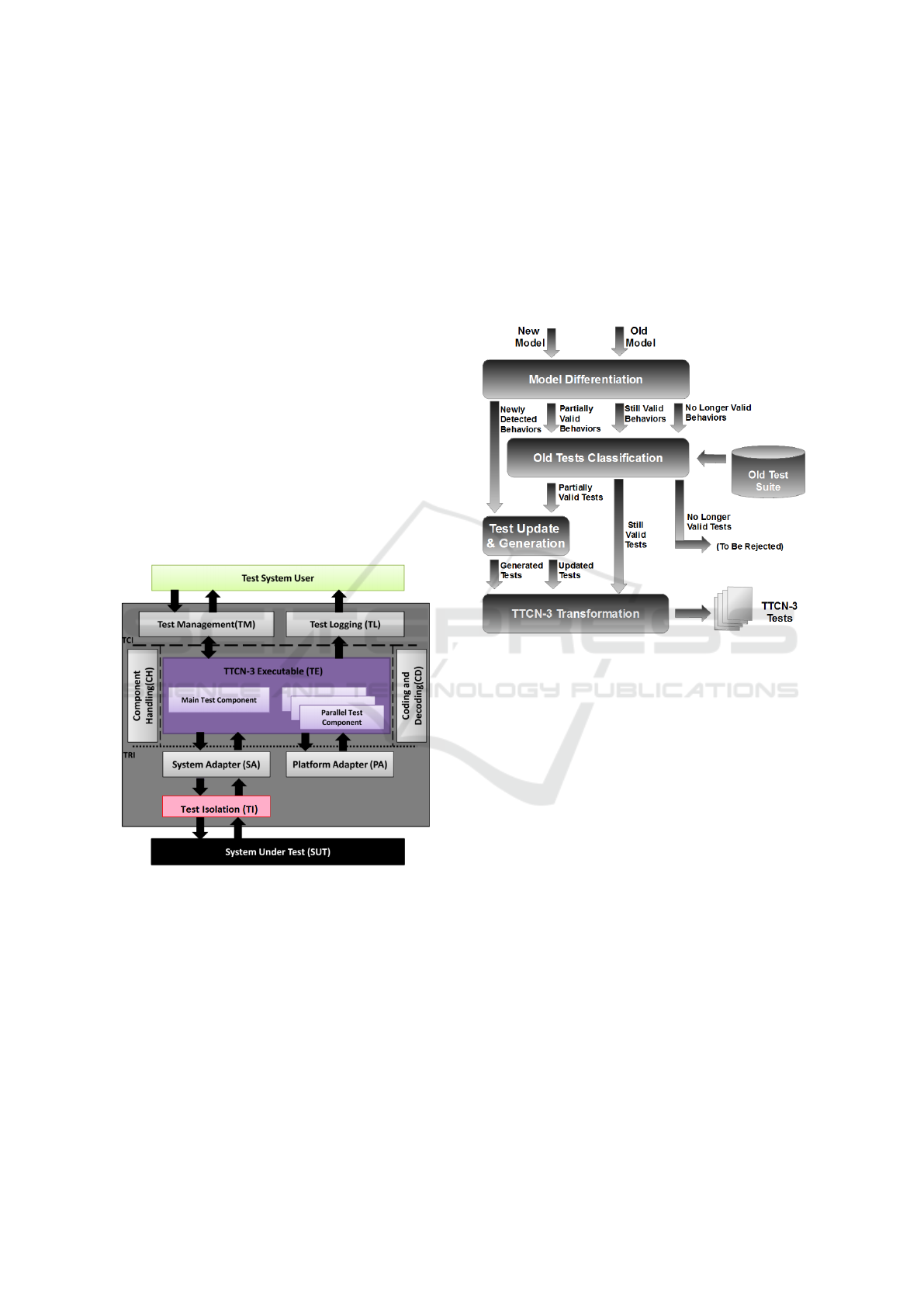

Figure 8: TTCN-3 Architecture Extended with an Isolation

Component (Lahami et al., 2016).

3 TESTING OF BEHAVIORAL

ADAPTATIONS

Now we move to the second part of this work which

deals with runtime testing of distributed information

systems after behavioral adaptations. For this purpose

we adopt a formal approach (Krichen, 2010; Krichen

and Tripakis, 2009) based on the use of the model

of timed automata (Alur and Dill, 1994). That is we

assume the our system is modelled as a simple timed

automaton or a product of timed automata. Moreover

we assume the considered model may evolve either

partially or entirely after the occurrence of a dynamic

behavioral adaptation. Consequently there is a need to

update the set of available test cases either by creating

new tests or modifying old ones. For that reason we

need to take advantage from both selective regression

testing and model-based testing techniques.

Figure 9: The different steps for behavioral adaptations val-

idation of the system under test.

In order to reach this goal, we adopt a four-step

approach as illustrated in Figure 9. The four consid-

ered steps are the following:

• Model Differentiation: consists in comparing

the old and the new model of the distributed infor-

mation system we have in hand in order to detect

similarities and differences between them;

• Old Tests Classiﬁcation: consists in sorting the

old tests and dividing them into three groups

(1. Tests which need to be removed because they

are no longer valid, 2. Tests which are partially

valid and need to be updated and ﬁnally 3. Tests

which are still valid and do not need any update);

• Test Update and Generation: consists in updat-

ing the partially valid tests detected in the previ-

ous step and generating new test cases covering

the new behaviors appearing in the new model of

the system;

• TTCN-3 Transformation: consists in concretiz-

ing the set of obtained tests by translating them

from an abstract level into a TTC-3 representa-

tion.

Towards a Runtime Standard-based Testing Framework for Dynamic Distributed Information Systems

125

More details about these different steps are given

in the next subsections. However before that we start

by giving a brief description of the formalism used to

model distributed information systems, namely UP-

PAALL timed automata.

3.1 UPPAAL Timed Automata

In order to specify the behavioral models of evolved

systems, Timed Automata (TA) are chosen for the

reason that they correspond to a widespread formal-

ism usually used for modeling behaviors of criti-

cal and real-time systems. More precisely, we opt

for the particular UPPAAL style (Behrmann et al.,

2004) of timed automata because UPPAAL is a well-

established veriﬁcation tool. It is made up of a system

editor that allows users to edit easily timed automata,

a simulator that visualizes the possible dynamic exe-

cution of a given system and a veriﬁer that is charged

with verifying a given model w.r.t. a formally ex-

pressed requirement speciﬁcation. Within UPPAAL

timed automata, a system is modeled as a network of

timed automata, called processes. A timed automa-

ton, is an extended ﬁnite-state machine equipped with

a set of clock-variables that track the progress of time

and that can guard when transitions are allowed.

Let C l be a set of continuous variables called

clocks, and Act = I np ∪Out} where I np is a set of

inputs and Out a set of outputs. Gd(Cl) is deﬁned as

the set of guards on the clocks C l being conjunctions

of constraints of the form c op n, where c ∈C l, n ∈N,

and op ∈{6, ≤, =, ≥, >}. Moreover, let U p(C l) de-

note the set of updates of clocks of the form c := n.

A timed automaton over (Act, Cl) is a tuple

(Loc, l

, Act, Cl, Inv, Ed), where :

• Loc is the set of locations;

• l

∈ Loc is the initial location;

• Inv : Loc 7−→ Gd(Cl) a function which an invari-

ant to each location;

• Ed is the set of edges such that Ed ⊆ Loc ×

Gd(Cl) ×Act

×U p(C l)×Loc.

Figure 10: A simple UPAALL timed automaton.

A simple example of a UPPAALL timed automa-

ton is shown in Figure 10. It has:

• Two locations: Idle and InUSe;

• One input action: use?;

• One output action done!;

• One clock (x).

The system is initially occupying the location Idle.

The clock x is reset to 0 when the input action use?

takes place. The system is allowed to stay at most

C times unit at the location InU se. Finally when the

clock x reaches the value C the output action done! is

produced and the system goes back to its initial loca-

tion. Then the same cycle can start again and again.

3.2 Model Differentiation

As already mentioned the goal of this step is to com-

pare the old and new models of the system under test.

That is to ﬁnd differences and similarities between

them. This allows us to avoid generating the whole set

of test cases from scratch after each behavioral adap-

tation of the system. For this purpose we need to split

the behaviors described by the new model of the sys-

tem into four groups (as illustrated in Figure 9):

• Newly Detected Behaviors: correspond to the set

of behaviors present in the new model of the sys-

tem but not in the old one;

• Partially Valid Behaviors: correspond to the set

of behaviors that bear a high level of similarity

with some old behaviors of the system but are not

completely identical to them;

• Still Valid Behaviors: correspond to the set of

behaviors which are in common between the two

versions of the model of the system;

• No Longer Valid Behaviors: correspond to the

set of behaviors present in the old model of the

system but not in the new one and which therefore

must be rejected.

To achieve this goal, we need to take advantage

from different works present in the literature. For in-

stance, (Pilskalns et al., 2006) presented a technique

which allows to reduce the complexity of identify-

ing the modiﬁcation impact from different UML dia-

grams. The authors consider different design changes

which are classiﬁed according to whether they create,

modify, or delete elements in the diagram.

In this same context, (Chen et al., 2007) propose

a regression technique based on the use of the model

of Extended Finite State Machine. This model is used

to identify the effects of three types of modiﬁcations:

modiﬁcation, addition or deletion of a transition.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

126

3.3 Old Tests Classiﬁcation

Once the computation of the different sets of behav-

iors is achieved as explained in the previous step, the

next task to do consists in splitting the set of old avail-

able test cases accordingly into three subsets of tests

(see Figure 9):

• Partially Valid Tests: correspond to the set of

partially valid behaviors of the new model of the

system;

• Still Valid Tests: correspond to the set of still

valid behaviors of the new model;

• No Longer Valid Tests: correspond to the set of

no longer valid behaviors present in the old model

of the system and which must be rejected.

At this level too we need to take advantage from

existing contributions in the literature. For example,

(Briand et al., 2009) introduce a UML-based regres-

sion test selection strategy. The latter allows to clas-

sify tests issued from the initial behavioral models as

obsolete, reusable and re-testable tests.

Similarly, (Fourneret et al., 2011) proposed a tech-

nique which selects reusable tests, discards obsolete

ones and generates only new ones.

Moreover in (Korel et al., 2005), the authors split

the set of old tests into high and low priority subsets.

A high priority is attributed to tests that manipulate

modiﬁed transitions and a low priority to tests that do

not include any modiﬁed transition.

3.4 Test Update and Generation

As illustrated in Figure 9, we need to update partially

valid tests identiﬁed during the test classiﬁcation step

and to derive new test cases from the newly detected

behaviors identiﬁed during the model differentiation

step. For this purpose we need to use techniques bor-

rowed from model-based testing approaches (Krichen

and Tripakis, 2009; Krichen, 2012).

More precisely the technique we intend to adopt

consists in using a particular type of timed automata

called observer automata (Blom et al., 2005). These

automata allow to model the speciﬁc behaviors we

are interested in testing. In our case the behaviors

to model are the newly detected behaviors discovered

during the differentiation step.

The main steps to follow are the following:

1. Transforming the desired behavior into an ob-

server automaton;

2. Computing the product of the observer automaton

and the new timed automaton model of the system

under test;

3. Deriving tests cases from the obtained timed-

automaton product using classical test generation

techniques.

The previously mentioned steps can be performed

using the test generation tool UPPAAL CO

√

(Hessel and Pettersson, 2007) which supports the no-

tion of observers and test case generation.

3.5 TTCN-3 Transformation

This step consists in deﬁning a set of rules to derive

TTCN-3 tests from abstract test cases obtained dur-

ing the previous steps. Our transformation algorithm

will be inspired by the following works (Axel Ren-

noch and Schieferdecker, 2016; Lahami et al., 2012a;

Hochberger and Liskowsky, 2006; Ebner, 2004).

In table 1 we give some examples of the rules

to use to translate abstract test cases into concrete

TTCN-3 tests. These rules are brieﬂy explained be-

low:

• R1: consists in generating a new TTCN-3 module

for each considered abstract test suite;

• R2: consists in transforming each abstract test se-

quence into a concrete TTCN-3 test case;

• R3: consists in associating a TTCN-3 timer with

each abstract timed behavior;

• R4: consists in transforming each abstract test se-

quence (with the form input-delay-output) into a

concrete TTCN-3 function;

• R5: consists in transforming the abstract channels

(declared in the UPPAAL XML ﬁle) into concrete

TTCN-3 templates.

Table 1: TTCN-3 Transformation Rules.

R# Abstract Concepts TTCN-3 Concepts

R1 Test Suite TTCN-3 Module

R2 Single Trace TTCN-3 Test Case

R3 Timed Behavior TTCN-3 Timer

R4 Test Sequence TTCN-3 Function

R5 Channel TTCN-3 Template

4 CONCLUSION

In this article, we adopted a runtime testing approach

to validate and test dynamic distributed information

systems. For this purpose, we proposed a standard-

based and resource aware test execution platform

which allows to deal efﬁciently with both structural

and behavioral adaptations. On the one hand struc-

tural adaptations correspond to the addition or dele-

tion of nodes and/or connections between the nodes

Towards a Runtime Standard-based Testing Framework for Dynamic Distributed Information Systems

127

of the system under test. On the other hand behav-

ioral adaptations correspond to the addition, deletion

or update of the software components or functionali-

ties installed on the physical devices of the considered

system under test.

Firstly, Our platform is standard-based since it

is built upon the TTCN-3 speciﬁcation and execu-

tion testing language. Indeed we adopted the generic

standard TTCN-3 architecture extended with an iso-

lation layer which allows to avoid possible risks of

interference between testing and business processes.

To reach this goal, ﬁve possible isolation strategies

may be adopted at this level namely: 1. BIT-based,

2. aspect-based, 3. tagging-based, 4. cloning-based,

and ﬁnally 5. blocking-based.

Secondly, our platform is resource aware since it

ensures test selection and optimal placement of test

components among physical nodes of the system un-

der test. The test selection phase consists in identi-

fying a subset of tests scenarios from an already ex-

isting repository in order to test the affected parts of

the system. Besides, the placement phase consists in

computing an appropriate plan to assign test cases to

the different nodes of the execution environment us-

ing adequate optimization techniques.

Regarding behavioral adaptations, our methodol-

ogy comprises four steps. The ﬁrst step corresponds

to the differentiation between the old and the new

models of the system in order to identify similarities

and differences between them. The second step con-

sists in sorting the old tests and splitting them into

three suitable sets. The third step lies in updating a

subset of old tests and in generating a set of new test

cases. Finally, the fourth step consists in translating

the set of obtained tests scenarios from an abstract

representation into the TTCN-3 language.

Our work is at its beginning and many efforts are

still needed on both theoretical and practical aspects

in order to achieve the different goals mentioned in

this article:

• We need to build an appropriate model for the

considered system under test. At this level we

need to choose an optimal level of abstraction for

this model. That is the latter should be neither

too small nor too big. Being too small may cause

the loss of important details of the system and be-

ing too big may lead to the famous state explo-

sion problem which may make our approach com-

pletely infeasible.

• We also need to consider some sophisticated

heuristics to solve the test component placement

problem. In fact since we are adopting a runtime

testing approach then the time to ﬁnd an accept-

able placement plan should be enough short in or-

der to detect anomalies at the right moment.

• Moreover we need to propose efﬁcient techni-

cal solutions to implement the different isolation

strategies mentioned previously in this article. In

the same manner we should develop and install

adequately the different TTCN-3 test components

upon the physical devices of the system in order

to guarantee the success of the whole approach.

• Finally we may combine load and functional test-

ing aspects as done in (Krichen et al., 2018;

alej et al., 2013; Ma

alej et al., 2012b; Ma

alej

et al., 2012a).

REFERENCES

Alhazbi, S. and Jantan, A. (2007). Dependencies Manage-

ment in Dynamically Updateable Component-Based

Systems. Journal of Computer Science, 3(7):499–505.

Alur, R. and Dill, D. L. (1994). A theory of timed automata.

Theoretical Computer Science, 126(2):183–235.

Axel Rennoch, Claude Desroches, T. V. and Schieferdecker,

I. (2016). TTCN-3 Quick Reference Card.

Behrmann, G., David, A., and Larsen, K. (2004). A tutorial

on uppaal. In Bernardo, M. and Corradini, F., editors,

International School on Formal Methods for the De-

sign of Computer, Communication, and Software Sys-

tems, SFM-RT 2004. Revised Lectures, volume 3185

of LNCS, pages 200–237. Springer Verlag.

Blom, J., Hessel, A., Jonsson, B., and Pettersson, P. (2005).

Specifying and Generating Test Cases Using Observer

Automata. In Proceeding of the 5th International

Workshop on Formal Approaches to Software Testing

(FATES’05), pages 125–139.

Briand, L. C., Labiche, Y., and He, S. (2009). Automating

Regression Test Selection Based on UML Designs. In-

formation & Software Technology, 51(1):16–30.

Chen, Y., Probert, R. L., and Ural, H. (2007). Model-

based Regression Test Suite Generation Using Depen-

dence Analysis. In Proceedings of the 3rd Interna-

tional Workshop on Advances in Model-based Testing

(A-MOST’07), pages 54–62.

Ebner, M. (2004). TTCN-3 Test Case Generation from Mes-

sage Sequence Charts. In Proceeding of the Work-

shop on Integrated-reliability with Telecommunica-

tions and UML Languages (WITUL’04).

Fourneret, E., Bouquet, F., Dadeau, F., and Debricon, S.

(2011). Selective Test Generation Method for Evolv-

ing Critical Systems. In Proceedings of the 2011 IEEE

4th International Conference on Software Testing,

Veriﬁcation and Validation Workshops (ICSTW’11),

pages 125–134.

edira, K. and Dubuisson, B. (2013). Constraint Satis-

faction Problems, chapter Foundations of CSP, pages

1–28. John Wiley & Sons, Inc.

Grusho, A. A., Grusho, N. A., and Timonina, E. E. (2017).

Information security architecture synthesis in dis-

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

128

tributed information computation systems. Automatic

Control and Computer Sciences, 51(8):799–804.

Hessel, A. and Pettersson, P. (2007). CO

√

ER A Real-

Time Test Case Generation Tool. In Proceeding of the

7th International Workshop on Formal Approaches to

Testing of Software (FATES’07).

Hochberger, C. and Liskowsky, R., editors (2006). In-

formatik 2006 - Informatik f

ur Menschen, Band 2,

Beitr

age der 36. Jahrestagung der Gesellschaft f

ur In-

formatik e.V. (GI), 2.-6. Oktober 2006 in Dresden, vol-

ume 94 of LNI. GI.

Ioannidis, Y. E. and Rantakrishnan, R. (1988). Efﬁ-

cient Transitive Closure Algorithms. In Proceedings

of the 14th International Conference on Very Large

Databases (VLDB’88).

Kellerer, H., Pferschy, U., and Pisinger, D. (2004). Knap-

sack Problems. Springer, Berlin, Germany.

Kiczales, G., Hilsdale, E., Hugunin, J., Kersten, M., Palm,

J., and Griswold, W. G. (2001). An Overview of As-

pectJ. In Proceedings of the 15th European Confer-

ence on Object-Oriented Programming (ECOOP’01),

pages 327–353.

Kienzle, J., Guelﬁ, N., and Mustaﬁz, S. (2010). Transac-

tions on Aspect-Oriented Software Development VII:

A Common Case Study for Aspect-Oriented Modeling,

chapter Crisis Management Systems: A Case Study

for Aspect-Oriented Modeling, pages 1–22. Springer

Berlin Heidelberg.

Korel, B., Tahat, L., and Harman, M. (2005). Test Prioritiza-

tion Using System Models. In Proceedings of the 21st

IEEE International Conference on Software Mainte-

nance(ICSM’05), pages 559–568.

Krichen, M. (2010). A Formal Framework for Confor-

mance Testing of Distributed Real-Time Systems. In

Proceedings of the 14th International Conference On

Principles Of Distributed Systems, (OPODIS’10).

Krichen, M. (2012). A formal framework for black-box

conformance testing of distributed real-time systems.

IJCCBS, 3(1/2):26–43.

Krichen, M., Ma

alej, A. J., and Lahami, M. (2018). A

model-based approach to combine conformance and

load tests: an ehealth case study. IJCCBS, 8(3/4):282–

310.

Krichen, M. and Tripakis, S. (2009). Conformance testing

for real-time systems. Formal Methods in System De-

sign, 34(3):238–304.

Lahami, M., Fakhfakh, F., Krichen, M., and Jma

ıel, M.

(2012a). Towards a TTCN-3 Test System for Run-

time Testing of Adaptable and Distributed Systems.

In Proceedings of the 24th IFIP WG 6.1 International

Conference Testing Software and Systems (ICTSS’12),

pages 71–86.

Lahami, M., Krichen, M., Bouchakwa, M., and Jmaiel,

M. (2012b). Using knapsack problem model to de-

sign a resource aware test architecture for adaptable

and distributed systems. In Testing Software and Sys-

tems - 24th IFIP WG 6.1 International Conference,

ICTSS 2012, Aalborg, Denmark, November 19-21,

2012. Proceedings, pages 103–118.

Lahami, M., Krichen, M., and Jma

ıel, M. (2016). Safe and

Efﬁcient Runtime Testing Framework Applied in Dy-

namic and Distributed Systems. Science of Computer

Programming (SCP), 122(C):1–28.

Larsson, M. and Crnkovic, I. (2001). Conﬁguration Man-

agement for Component-Based Systems. In Proceed-

ing of the 10th International Workshop on Software

conﬁguration Management (SCM’01).

Li, B., Zhou, Y., Wang, Y., and Mo, J. (2005). Matrix-based

Component Dependence Representation and Its Ap-

plications in Software Quality Assurance. ACM SIG-

PLAN Notices, 40(11):29–36.

alej, A. J., Hamza, M., Krichen, M., and Jmaiel, M.

(2013). Automated signiﬁcant load testing for WS-

BPEL compositions. In Sixth IEEE International Con-

ference on Software Testing, Veriﬁcation and Vali-

dation, ICST 2013 Workshops Proceedings, Luxem-

bourg, Luxembourg, March 18-22, 2013, pages 144–

153.

alej, A. J., Krichen, M., and Jmaiel, M. (2012a). Con-

formance testing of WS-BPEL compositions under

various load conditions. In 36th Annual IEEE Com-

puter Software and Applications Conference, COMP-

SAC 2012, Izmir, Turkey, July 16-20, 2012, page 371.

alej, A. J., Krichen, M., and Jmaiel, M. (2012b). Model-

based conformance testing of WS-BPEL composi-

tions. In 36th Annual IEEE Computer Software

and Applications Conference Workshops, COMPSAC

2012, Izmir, Turkey, July 16-20, 2012, pages 452–457.

Martello, S. and Toth, P. (1990). Knapsack Problems: Al-

gorithms and Computer Implementations. John Wiley

& Sons, Inc., New York, NY, USA.

Pilskalns, O., Uyan, G., and Andrews, A. (2006). Re-

gression Testing UML Designs. In Proceedings of

the 22nd IEEE International Conference on Software

Maintenance (ICSM’06), pages 254–264.

Qu, B., Liu, Q., and Lu, Y. (2010). A Framework for

Dynamic Analysis Dependency in Component-Based

System. In the 2nd International Conference on Com-

puter Engineering and Technology (ICCET’10), pages

250–254.

Rothermel, G. and Harrold, M. (1996). Analyzing Regres-

sion Test Selection Techniques. IEEE Transactions on

Software Engineering, 22(8):529–551.

Yesikov, D., Ivutin, A., Larkin, E., and Kotov, V. (2017).

Multi-agent approach for distributed information sys-

tems reliability prediction. Procedia Computer Sci-

ence, 103:416 – 420. XII International Symposium

Intelligent Systems 2016, INTELS 2016, 5-7 October

2016, Moscow, Russia.

Towards a Runtime Standard-based Testing Framework for Dynamic Distributed Information Systems

129
