An Augmented Reality Mirror Exergame using 2D Pose Estimation

Fernando Losilla and Francisca Rosique

Universidad Politécnica de Cartagena, Spain

Keywords: Exergame, Augmented Reality, Body Pose Estimation, OpenPose.

Abstract: Exergames have become very popular for fitness and rehabilitation purposes. They usually rely on RGB-D

sensors to estimate human 3D body pose and, therefore, allow users to interact with virtual environments.

Currently, a new generation of deep learning techniques enable the estimation of 2D body pose from video

sequences. These video sequences could be augmented with the estimated pose and other virtual objects,

resulting in augmented reality mirrors where players can see their reflection along with other visual cues that

guide them through exercises. The main benefit of using this approach would be replacing RGB-D cameras

with simpler and more widely available webcams. This approach is explored in this work with the

development of the ExerCam exergame. This application relies on a single webcam and the OpenPose library

to allow users to perform exercises where they have to reach virtual targets appearing on the screen. A

preliminary study has been performed in order to explore the technical viability and usability of this

application, with promising results.

1 INTRODUCTION

Exergames are a new generation of digital gaming

systems with an interface that requires physical

exertion to play the game (Larsen et al., 2013).

Research indicates that they can produce

improvements in physical health, cognitive function

as well as other non-physical effects (Anderson-

Hanley et al., 2012; Larsen et al., 2013; Staiano and

Calvert, 2011). In addition, they also have the

potential to increase motivation and, therefore, the

adherence to exercise or rehabilitation programs.

Typically, exergames are used to construct virtual

environments where an avatar or other elements of

the game are controlled by the movements of the

player in the real world (Synofzik and Ilg, 2014; Zhao

et al., 2017). As a result, they rely heavily on different

technologies to track human body movement. To

date, the most widely adopted of these technologies

are RGB-D sensors such as the Microsoft Kinect.

An interesting alternative to the use of the RGB-

D sensors can be found in recent research in machine

learning techniques that allow the estimation of

human body 2D pose from images (Cao et al., 2016).

These techniques enable using simple RGB cameras

such as webcams in exergames. In opposition to

https://orcid.org/0000-0002-3311-8414

RGB-D sensors, webcams are widely spread among

users of computers, easily available and have a

smaller size and a much lighter weight. Consequently,

they provide a great opportunity to increase the usage

of exergames in home exercise and rehabilitation

programs.

Due to their nature, 2D body pose estimation

technologies create virtual skeletons of people in an

image, being able to superimpose them on top of the

original image. In that regard, they could be used to

create exergames that would behave as augmented

mirrors. In this approach, the original image would

allow players to see their reflection. Virtual skeletons,

even if not displayed, would be used as the interface

to control the game or as a reference to other virtual

elements. Finally, other visual cues could be

superimposed to guide movements. This is the

approach that will be considered in this paper.

Augmented reality has been used previously in

exergames. It became very popular thanks to mobile

games such as Pokemon Go (An and Nigg, 2017).

However, current mobile exergames are very

different in nature from the one studied in this paper

and are aimed at promoting healthy lifestyles rather

than specific exercises. Other approach to augmented

reality consists in the projection of guidance hints on

Losilla, F. and Rosique, F.

An Augmented Reality Mirror Exergame using 2D Pose Estimation.

DOI: 10.5220/0007798906430648

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 643-648

ISBN: 978-989-758-379-7

643

top of body parts or other surfaces such as LightGuide

(Sodhi et al., 2012) or SleeveAR (Sousa et al., 2016).

A problem found with the previous proposals is that

they are still too complex and expensive to be

deployed in home settings.

There is other research work more in line with the

proposal of this paper, in which Augmented Reality

mirrors are applied. Physio@Home (Tang et al.,

2014) employs them to allow patients to practice

physiotherapy at home. It displays visual cues such as

arrows and arm traces to guide patients through

exercises and movements without the presence of a

physiotherapist. MotionMA (Velloso et al., 2013) is

aimed at learning complex movements, allowing

expert users to specify movements, which can be

repeated later by other users while receiving feedback

about their performance. YouMove (Anderson et al.,

2013) is also conceived as a full-body movement

training in which the authors employed an actual

mirror for the implementation. Finally, the NeuroR

(Klein and Assis, 2013) system applies an augmented

reality mirror for patients with paralyzed arms.

In this paper a new exergame that makes use of

recently available 2D pose estimation libraries, called

ExerCam, is introduced. Consequently, it requires a

webcam instead of a RGB-D sensor. ExerCam is

conceived as a general-purpose exergame which can

be customized to perform simple exercises in an

augmented reality mirror. A preliminary study with

healthy volunteers to assess its technical viability and

usability is also presented.

2 ExerCam

For the purpose of this research, the ExerCam

application has been developed. It works as an

augmented reality mirror that uses a screen to reflect

the image of the player and augments it with virtual

objects. The reflection on the mirror allows players to

have visual feedback of their own body. The virtual

components on top of the reflection provide

additional feedback for the proper execution of the

exercises.

ExerCam operation is based on the appearance of

virtual objects on the screen that players have to reach

with their joints. Exercises can be performed by

sequentially reproducing previously programmed

sequences of objects. In this way, it provides with

means to stimulate physical activity, by inducing

movement, or gross motor learning, as it able to

provide the three key principles in motor learning:

repetition, feedback and motivation (Pereira et al.,

2014). However, at this stage, ExerCam has only be

used to perform exercises not aimed at treating

specific medical conditions, but to gain more

knowledge about its technical viability.

ExerCam has three types of virtual objects (see

Figure 1). First, a virtual skeleton is superimposed on

top of the user’s body, highlighting body joints. The

joints that can be used by the exergame correspond to

the keypoints used in the COCO (Lin et al., 2014)

image dataset, with 17 keypoints for each medium

and large sized person in the images. Superimposed

joints let players know which body parts they have to

use to reach target objects. When targets can be

reached by any joint, virtual joints are drawn as small

circles, whereas, when a particular joint has to be

used, a larger circle with a color associated to the joint

is displayed.

The second type of virtual objects are the target

objects, currently depicted by bullseyes, that players

have to reach with their joints. When they are hit, a

simple sound is played in order to give additional

positive feedback and increase the feeling of

immersion (Jørgensen, 2008) and engagement in the

game. If targets are assigned to a joint, i.e. the player

has to use a particular joint for the target, a colored

circle will indicate the joint that has to be used. They

can be in a fixed position or move along predefined

trajectories. Besides, they can be configured to appear

or disappear at a certain time or in response to events

such as timers being fired or previous targets being

hit. For example, it is possible to schedule a certain

target to appear a few seconds after all the previous

targets have disappeared and thus let the player rest.

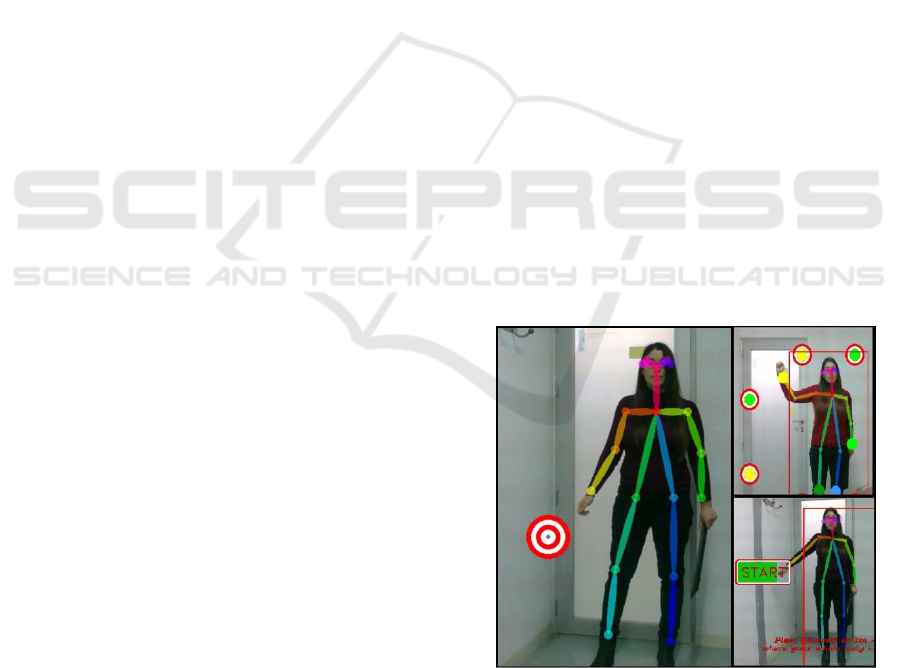

Figure 1: ExerCam virtual objects.

Finally, visual cues and instructions are the last

type of virtual objects in the game. They can be

further subdivided into different kinds of text

(instructions, score, time elapsed, etc.), progress bar-

ICSOFT 2019 - 14th International Conference on Software Technologies

644

like buttons to start an exercise and geometric shapes

that help position the user and calibrate the system.

One key differentiator from most of other

exergames that require specific devices (body

markers) or a RGB-D sensor is that it only needs a

webcam and the processing power of a graphics card.

These devices are mainstream and owned by many

computer users. The main limitation of the presented

software, though, is that it requires a relatively

powerful graphics card to operate properly. However,

as the processing power of graphics cards increases

every year and their price drop, this is less of a

problem.

The previous requirements are imposed by the use

of a novel library, OpenPose (Cao et al., 2018), the

first open-source realtime library for multi-person 2D

pose detection. OpenPose takes an image as the input

and outputs 2D keypoints for the different body parts

of the people in the image. Its use has also

conditioned the usage of other programming

languages and libraries in the initial implementation

of ExerCam, using those in which OpenPose relies

on. In particular, the C++ language has been used

along with the OpenCV (Bradski and Kaehler, 2008)

computer vision library. In the future, porting

ExerCam to a game development platform such as

Unity will be studied, as it will help in the

development of more sophisticated graphical

interfaces for the game.

3 EVALUATION

3.1 Outline of the Study Protocol

In order to check the system viability, a preliminary

study was carried out on 28 healthy subjects with ages

between 25 and 75 years. A laptop with an NVIDA

GTX 1070 graphics card was used due to its mobility

and computing capability to run ExerCam. An

instructor guided and supervised participants from

beginning to end. The protocol describing the study is

detailed in Figure 2.

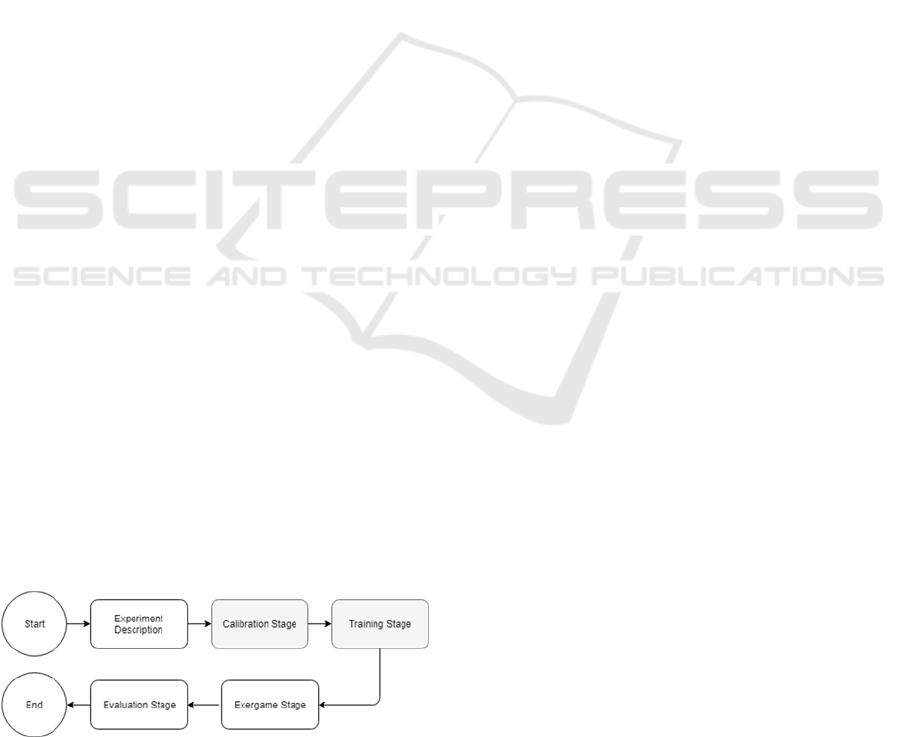

Figure 2: Stages of the study protocol.

Initially, the experiment was described to the

participants. Then, in the calibration stage, the screen,

the camera and the participants were positioned, with

a distance between the camera and the players

ranging from 2.5m to 3.5m, depending on the player

height. In the Training Stage, the instructor helped

subjects to perform low difficulty tasks with

ExerCam. In the Exergame Stage, each of the subjects

performed a set of experiments based on the

execution of a task of incremental difficulty. The

participants were asked to reach diverse targets

(static, mobile as well as targets assigned to specific

joints) as they appeared on the screen. Finally, in the

Evaluation Stage, the instructor checked the results

achieved by the subjects in order to determine future

changes to the task.

Three different modalities of the protocol had to

be used, called m1, m2 and m3. Initially, in the m1

modality, the exergame had no visual aids to help the

user position during the calibration stage and the

participants performed only a single repetition of the

task. It was observed that some kind of aid was

necessary to allow participants to place themselves

properly and return to the original position during the

game. This aid was introduced in the m2 modality and

consisted in a rectangle on the screen where the

participants had to place their body. In case that

players moved from their original position during the

exercise, they had to move back to it. Finally, in the

m3 modality, the players were asked to perform

several repetitions of the task instead of one (with a

maximum of 5 repetitions, less if a plateau was

observed in the results). In this way, it could be

observed how their performance improved after

familiarizing with the game.

In order to correctly assess the performance of the

participants, some metrics related to the performance

of the users were stored. These included, among other

data: the response time, measured as the time elapsed

from the moment that a target appears to the time

when the player hits it; the duration of the execution

of each task; whether targets are reached or not; the

total score for each task, obtained adding the points

associated with each target that was hit.

In addition, the SUS (Brooke, 1995) test was

chosen to assess the usability of the system. It is a test

with a reasonable number of questions (10), easily

understandable and widely validated and adopted for

technological-based. Each of its questions is rated on

a Likert scale between 1 and 5 (from 1 for “strongly

disagree” to 5 for “strongly agree”). The results of the

test provides a usability score ranging from 0 to 100.

An Augmented Reality Mirror Exergame using 2D Pose Estimation

645

Table 1: Target hit times and percentage of misses for each modality of the study and each type of target.

Target Type % Misses m1 % Misses m2 % Misses m3 Hit Time m1 Hit Time m2 Hit Time m3

Static 9.62% 8.92% 1.2% 2196.88ms 1856.78ms 1068.3ms

Mobile 20.06% 17.85% 2.76% 1713ms 1022.2ms 856.9ms

Join

-assigne

19.68% 15.23% 4.75% 3284.5ms 2873.4ms 1387ms

Joint-assigned

Mobile

79.56% 52.14% 7.6% 3925.3ms 3568.8ms 1573.25ms

All 21.85% 16.82% 3.25% 2471ms 2282ms 1370ms

Table 2: Average execution time and information for the targets with longest and shortest response times.

Mod Task duration

Shortest time (target) Longest time (target)

Time Position Type Time Position Type

M1 124575ms 1609ms (600,300) mobile 9757ms (750,250) Join

-assigned Mobile

M2 120929ms 445ms (400,500) mobile 9269ms (750,250) Join

-assigned Mobile

M3 61464.5ms 93ms (600,300) static 4635ms (800,200) Join

-assigned

Table 3: SUS test results.

Answer

Questionnaire item 1 2 3 4 5



I1: I think that I would like to use this system frequently 0 1 5 11 3 3.75

I2: I found the system unnecessarily complex 14 5 1 0 0 1.35

I3: I thought the system was easy to use 0 1 3 5 11 4.3

I4: I think that I would need the support of a technical person to be able to

use this system

2 8 2 2 6 2.48

I5: I found the various functions in this system were well integrated 0 0 0 2 18 4.9

I6: I thought there was too much inconsistency in this system 17 3 0 0 0 1.15

I7 I would imagine that most people would learn to use this system very

quickly

0 0 0 11 9 4.45

I8: I found the system very cumbersome to use 12 6 2 0 0 1.5

I9: I felt very confident using the system 0 0 1 16 3 4.1

I10: I needed to learn a lot of things before I could get going with this

system

18 2 0 0 0 1.1

3.2 Results

The protocol presented in Section 3.1 has been

applied to acquire and analyze data. Table 1 shows

the percentage of missed targets in each modality of

the study and the average time required by the

participants to hit each of the targets in the different

modalities. In both cases targets have been

differentiated by their type (static, mobile, joint-

assigned, joint-assigned mobile).

Table 2 shows the average time (in milliseconds)

required by the participants to finish the defined task

(Task duration) in each of the modalities of the study.

The time, position and type of the target that was hit

in the shortest time, as well as the same information

for the target that took the longest time, are also

shown. The position of the targets have been

expressed in pixels in a 1280x720 screen, where (0,

0) corresponds to the upper-left corner. Missed

targets have not been taken into account for the

calculations.

The test questions for the subjective assessment

usability of the system by the participants in the study

are shown in Table 3. The SUS score of the system is

84.8 out of 100.

4 DISCUSSION

The results in the previous section show that

developing a mirror like exergame using state of the

art technologies for 2D body pose is technically

viable. The developed exergame received a SUS

score of 84.8 from the participants in the study, which

is a good result. The times that the participants needed

to hit the targets, as well as the percentage of targets

not missed were also satisfactory in the m3 modality

of the study protocol (see Table 1), where the

participants were able to perform several repetitions

of the task. During the first repetition, they were not

still familiarized with the interface of the game. After

several repetitions using ExerCam, participants were

able to perform exercises reaching almost all the

targets, with less than a 4% of misses. In addition,

they finished the tasks earlier, they were able to react

ICSOFT 2019 - 14th International Conference on Software Technologies

646

more quickly to targets and they spent less time in the

calibration stage.

It can also be observed in Table 1 that the type of

virtual objects, in all of the modalities of the protocol

study, is a relevant factor affecting both the

percentages of misses as well as the time needed to

reach the object itself. As expected, static objects

subject to no joint constraint had a smaller percentage

of misses. On the contrary, objects subject to both

movement and assigned to a particular joint had a

higher percentage of misses and, in addition, they

required more time to be reached. It is surprising,

though, that the objects that required the shortest time

to be reached are the moving objects, as shown in

Table 2. However, it has to be taken into account that

these objects had a large amount of misses and that

their starting position was easy to reach.

The introduction of visual aids in m2 also led to

better results. Firstly, the use of aids to help

participants go back to their original position was

helpful in performing exercises as they were

originally intended. That is, targets appeared at the

expected position relative to the user. In addition,

other aids such as the use of a superimposed virtual

button to start the game was also helpful. In the m1

modality, without this button, participants required

some time to react at the beginning of the game and

missed the first or firsts targets. Using a button

activated by their left wrist, which has to be held over

the button until a progress bar is full, let users to

remain focused at the beginning of the task.

There are also some considerations and

limitations that have to be remarked about the

software and the study. First, and more important, a

relatively powerful graphics card is required. An

NVIDIA GTX 1070 had to be used because of this.

The computers available with lower end graphics

cards offered an unacceptable delay between the

acquisition of images from the webcam and the

finalization of their processing by the OpenPose

library. In addition, it could be observed that using the

standard settings in OpenPose also resulted in large

delays (even with the GTX 1070 card). We found that

dropping the number of lines of the images to 128

(228 x 128 resolution using a 16:9 aspect ratio) still

provided good tracking with a barely noticeable

delay. This is the resolution of the images processed

by OpenPose in the study. Further reductions in the

resolution resulted in poor tracking. It was possible,

though, to perform partial body estimation (for

example, upper limbs) using 96 lines of input

resolution, but it required the user to be close to the

camera in order to be detected and showed some

instability in the estimations.

The size of the screen may also be a concern with

older adults. Most of the participants of the study

were young and, therefore, the study did not focus on

age. However, it was observed that older players

tended to get close to the screen in order to see the

screen better, which can affect their execution of

tasks. This group of users also reported in the SUS

questionnaire that they would need the support of a

technical person in order to be able to use the system.

Finally, it has to noted that ExerCam only requires

determining the position of the joints in order to

operate. This is not problematic using 2D body pose

estimation libraries. However, the development of

exergames that require more complex analysis of the

pose, for example for the recognition of gestures or

movements could be more challenging than with 3D

poses from RGB-D cameras.

5 CONCLUSSIONS

This paper studies the feasibility of applying new 2D

body pose estimation techniques to the development

of exergames based on augmented reality mirrors. To

that end, the ExerCam application was developed. It

works as an augmented reality mirror that overlays

virtual objects on images captured by a webcam. It

can be used for different purposes, allowing trainers

or therapists to define tasks based on the appearance

of virtual targets on the screen, which the player has

to reach. A preliminary study has been carried out to

assess the viability of this approach, with satisfactory

results. Its use in specific medical conditions has not

been studied. However, the application allows the

creation of tasks that could promote physical exercise

and gross motor skills.

In spite of some limitations, emerging 2D body

pose estimation methods based on deep learning are a

promising solution for augmented reality exergames,

particularly for those based on augmented reality

mirrors. They only require a computer with enough

processing power and a webcam. In addition,

webcams are cheap and widely available devices that

can be easily installed due to their small size and

weight.

ACKNOWLEDGEMENTS

This research has been supported by the AEI/FEDER,

UE project grant TEC2016-76465-C2-1-R (AIM) and

the “Research Program for Groups of Scientific

Excellence in the Region of Murcia" of the Seneca

An Augmented Reality Mirror Exergame using 2D Pose Estimation

647

Foundation (Agency for Science and Technology in

the Region of Murcia) [19895/GERM/15], Spain.

REFERENCES

An, J.-Y., Nigg, C.R., 2017. The promise of an augmented

reality game—Pokémon GO. Ann. Transl. Med. 5.

https://doi.org/10.21037/atm.2017.03.12

Anderson, F., Grossman, T., Matejka, J., Fitzmaurice, G.,

2013. YouMove: Enhancing Movement Training with

an Augmented Reality Mirror, in: Proceedings of the

26th Annual ACM Symposium on User Interface

Software and Technology, UIST ’13. ACM, New York,

NY, USA, pp. 311–320. https://doi.org/10.1145/

2501988.2502045

Anderson-Hanley, C., Arciero, P.J., Brickman, A.M.,

Nimon, J.P., Okuma, N., Westen, S.C., Merz, M.E.,

Pence, B.D., Woods, J.A., Kramer, A.F., Zimmerman,

E.A., 2012. Exergaming and older adult cognition: a

cluster randomized clinical trial. Am. J. Prev. Med. 42,

109–119.

https://doi.org/10.1016/j.amepre.2011.10.016

Bradski, G., Kaehler, A., 2008. Learning OpenCV:

Computer Vision with the OpenCV Library, Edición: 1.

ed. O’Reilly Media, Beijing.

Brooke, J., 1995. SUS: A quick and dirty usability scale.

Usability Eval Ind 189.

Cao, Z., Hidalgo, G., Simon, T., Wei, S.-E., Sheikh, Y.,

2018. OpenPose: Realtime Multi-Person 2D Pose

Estimation using Part Affinity Fields. ArXiv181208008

Cs.

Cao, Z., Simon, T., Wei, S.-E., Sheikh, Y., 2016. Realtime

Multi-Person 2D Pose Estimation using Part Affinity

Fields. ArXiv161108050 Cs.

Jørgensen, K., 2008. Left in the dark: playing computer

games with the sound turned off. Ashgate.

Klein, A., Assis, G.A. d, 2013. A Markeless Augmented

Reality Tracking for Enhancing the User Interaction

during Virtual Rehabilitation, in: 2013 XV Symposium

on Virtual and Augmented Reality. Presented at the

2013 XV Symposium on Virtual and Augmented Reality,

pp. 117–124. https://doi.org/10.1109/SVR.2013.43

Larsen, L.H., Schou, L., Lund, H.H., Langberg, H., 2013.

The Physical Effect of Exergames in Healthy Elderly-

A Systematic Review. Games Health J. 2, 205–212.

https://doi.org/10.1089/g4h.2013.0036

Lin, T.-Y., Maire, M., Belongie, S., Bourdev, L., Girshick,

R., Hays, J., Perona, P., Ramanan, D., Zitnick, C.L.,

Dollár, P., 2014. Microsoft COCO: Common Objects in

Context. ArXiv14050312 Cs.

Monge Pereira, E., Molina Rueda, F., Alguacil Diego, I.M.,

Cano De La Cuerda, R., De Mauro, A., Miangolarra

Page, J.C., 2014. Use of virtual reality systems as

proprioception method in cerebral palsy: clinical

practice guideline. Neurol. Engl. Ed. 29, 550–559.

https://doi.org/10.1016/j.nrleng.2011.12.011

Sodhi, R., Benko, H., Wilson, A., 2012. LightGuide:

Projected Visualizations for Hand Movement

Guidance, in: Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems, CHI ’12.

ACM, New York, NY, USA, pp. 179–188.

https://doi.org/10.1145/2207676.2207702

Sousa, M., Vieira, J., Medeiros, D., Arsenio, A., Jorge, J.,

2016. SleeveAR: Augmented Reality for Rehabilitation

Using Realtime Feedback, in: Proceedings of the 21st

International Conference on Intelligent User

Interfaces, IUI ’16. ACM, New York, NY, USA, pp.

175–185. https://doi.org/10.1145/2856767.2856773

Staiano, A.E., Calvert, S.L., 2011. Exergames for Physical

Education Courses: Physical, Social, and Cognitive

Benefits. Child Dev. Perspect. 5, 93–98.

https://doi.org/10.1111/j.1750-8606.2011.00162.x

Synofzik, M., Ilg, W., 2014. Motor Training in

Degenerative Spinocerebellar Disease: Ataxia-Specific

Improvements by Intensive Physiotherapy and

Exergames [WWW Document]. BioMed Res. Int.

https://doi.org/10.1155/2014/583507

Tang, R., Alizadeh, H., Tang, A., Bateman, S., Jorge,

J.A.P., 2014. Physio@Home: Design Explorations to

Support Movement Guidance, in: CHI ’14 Extended

Abstracts on Human Factors in Computing Systems,

CHI EA ’14. ACM, New York, NY, USA, pp. 1651–

1656. https://doi.org/10.1145/2559206.2581197

Velloso, E., Bulling, A., Gellersen, H., 2013. MotionMA:

Motion Modelling and Analysis by Demonstration, in:

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, CHI ’13. ACM, New

York, NY, USA, pp. 1309–1318. https://doi.org/

10.1145/2470654.2466171

Zhao, W., Reinthal, M.A., Espy, D.D., Luo, X., 2017. Rule-

Based Human Motion Tracking for Rehabilitation

Exercises: Realtime Assessment, Feedback, and

Guidance. IEEE Access 5, 21382–21394.

https://doi.org/10.1109/ACCESS.2017.2759801.

ICSOFT 2019 - 14th International Conference on Software Technologies

648
