An Analysis System for Mobile Applications MVC Software

Architectures

Dragos¸ Dobrean

and Laura Dios¸an

Computer Science Department, Babes Bolyai University, Cluj Napoca, Romania

Keywords:

Mobile Applications Software Architecture, Automatic Static Analysis, Model View Controller.

Abstract:

Mobile applications are software systems that are highly used by all modern people; a vast majority of those

are intricate systems. Due to their increase in complexity, the architectural pattern used plays a signiﬁcant

role in their lifecycle. Architectural patterns can not be enforced on a codebase without the aid of an external

tool; with this idea in mind, the current paper describes a novel technique for an automatically analysis of

Model View Controller mobile application codebases from an architectural point of view. The analysis takes

into account the constraints imposed by this layered architecture and offers insightful metrics regarding the

architectural health of the codebase, while also highlighting the architectural issues. Both open source and

private codebases have been analysed by the proposed approach and the results indicate an average accuracy

of 89.6% of the evaluation process.

1 INTRODUCTION

Nowadays there are many companies which are built

around their mobile applications (Instagram, What-

sapp, Uber, etc.) which have large teams of people

working on those projects. These kind of projects

need to be maintained over a long period of time and

they need to be ﬂexible to new Software Develop-

ment Kit (SDK) and hardware features. In order for

a project to be extensible, maintainable and for more

people to be able to work on it in parallel it needs

to have a software architecture which allows it. Mo-

bile applications usually use presentational software

architectures and generally all of the architectural

ﬂavours used descend from Model View Controller

(MVC) Fowler (2002); Reenskaug (2003). Each plat-

form uses a ﬂavour of MVC as their ”default” archi-

tecture, alongside those, other architectural patterns

have been coined such as Model View Presenter Potel

(1996), Model View View Model Garofalo (2011), or

View Interactor Presenter Entity Router MutualMo-

bile (2014) in order to provide extra ﬂexibility and

testability of those applications.

Many of the codebases do not respect the imposed

architecture for various reasons. One of the reasons

is the fact that the developers working on the projects

https://orcid.org/0000-0001-7521-7552

https://orcid.org/0000-0002-6339-1622

do not have the right experience and skill set which

result into architectural smells such as Brick Func-

tionality Overloading, Scattered Parasitic Function-

ality, Logical Coupling or Ambiguous Interfaces Le

et al. (2015). Another reason for architectural erosion

is the transition from one architectural pattern to an-

other without doing it all over the codebase and all the

refactoring needed.

An architectural pattern, which can impose the

code to be written in a predeﬁned way or to impose

any strict boundaries can not be created without an

external system which periodically checks it. Taking

into consideration the architectural problems which

appear on the mobile platforms, their increasing pop-

ularity and the fact that most problems are caused by

developers which do not use the pattern correctly and

not by requirements or other external factors, we have

developed a system which statically checks if a mo-

bile codebase is valid from an architectural point of

view, while also highlighting the issues if those ex-

ist. Moreover, this system also provides valuable in-

formation which can be used by the management to

check the architectural health of a codebase and to

see tangible results of the refactoring phases.

The novelty of the proposed system is given by

the usage of information from the mobile SDKs rather

than relying strictly on the information extracted from

the codebase as in other approaches Boaye Belle

(2016); Corazza et al. (2016); Garcia et al. (2013). In

178

Dobrean, D. and Dio¸san, L.

An Analysis System for Mobile Applications MVC Software Architectures.

DOI: 10.5220/0007827801780185

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 178-185

ISBN: 978-989-758-379-7

addition, it uses a simple formalisation of the archi-

tectural rules rather than complex speciﬁcations Rum-

baugh et al. (2004),Hussain (2013), which makes it

simply understandable even by less experienced prac-

titioners. Furthermore, by using the proposed system,

the architectural pressure points can be easily iden-

tiﬁed and this can be done early in the development

phase by using it in a CI/CD pipeline.

The following section talks about MVC and its

particularities. Section 2 analyses the MVC archi-

tecture and provides a way of detecting violation of

its implementation. In section 3 we present the re-

sult of the validation experiments conducted on pri-

vate and open-source iOS projects with the proposed

method. The ﬁnal section, states our conclusions and

some ideas that could be tackled in future work.

2 SOFTWARE ARCHITECTURE

CHECKER SYSTEM

The proposed system analyses a mobile application

based on the composing components, it clusters them

in categories based on the implemented architecture

of the codebase and constructs the topological struc-

ture of the codebase, a dependency graph. After the

graph has been constructed, the relationships between

its composing components are analysed and architec-

tural issues are highlighted (Fig 1). By component

we mean one different element of the following kind:

class, struct, protocol, enumeration.

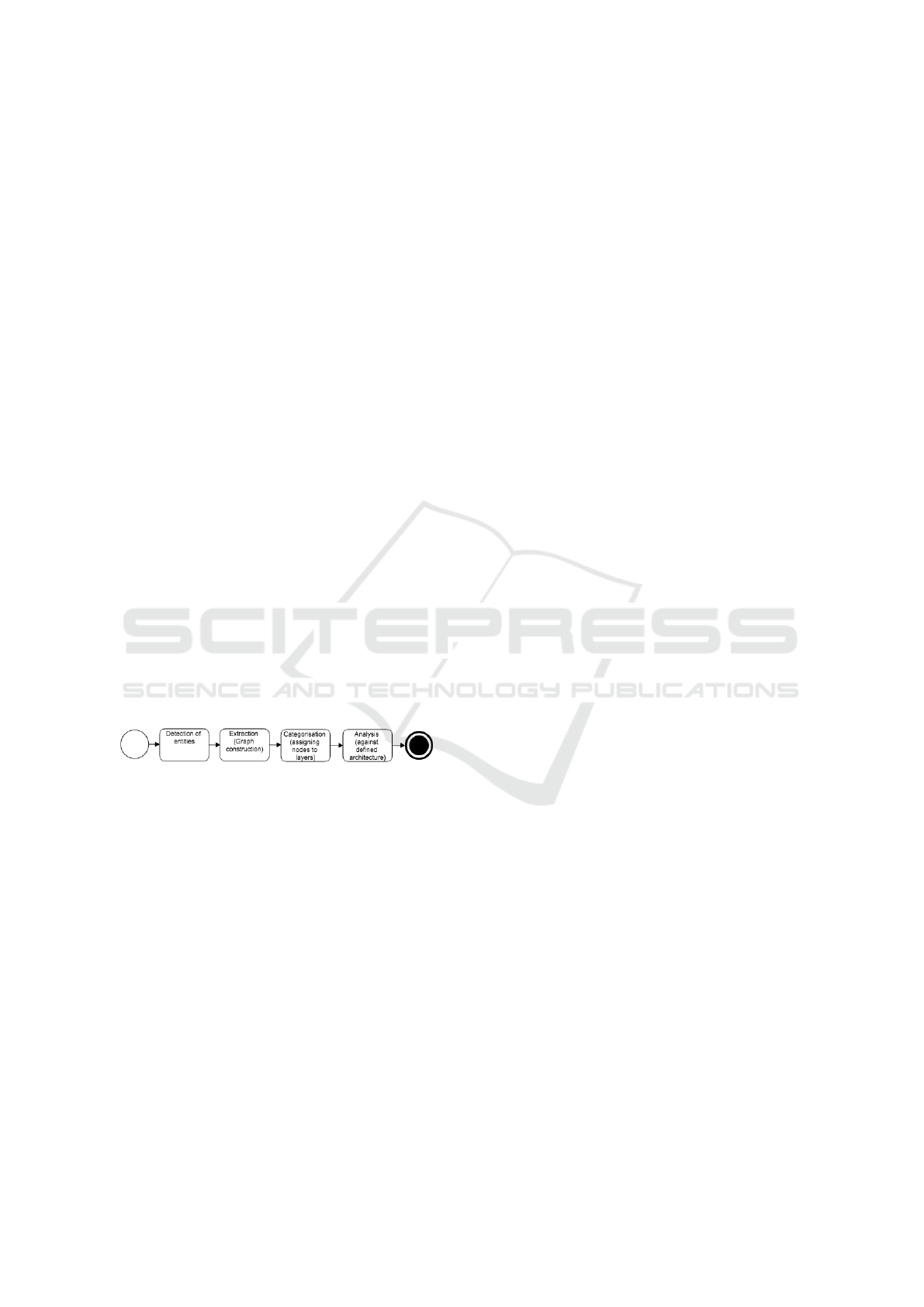

Figure 1: Software architecture checker system phases.

2.1 Detection

The detection phase of the system takes a mobile

codebase and analyses its components. It detects all

the classes, protocols, structs and enums together with

all their instance properties and methods (both private

and public). The result of this detection is an analysis

document in which we have stored all the information

regarding the codebase, paths of the codebase com-

ponents, their properties (methods, variables and the

names and types of those) together with the size of

the ﬁles. All of this information is encoded in a struc-

tured ﬁle (eg. JSON, XML or other type) which will

be used by the extracting phase.

2.2 Extraction

There are many approaches for extracting an archi-

tecture from a codebase Belle et al. (2013); Corazza

et al. (2016); Garcia et al. (2013), or for specifying

it Hussain (2013); Rumbaugh et al. (2004). However,

none of those approaches are designed speciﬁcally for

mobile codebases and they are too complex for the

purpose of our study.

In order to extract the architecture of the codebase

we analyse the ﬁle produced by the detection phase.

We are constructing the topological structure of the

implemented architecture based on the information in

that ﬁle. The topology is represented by a directed

graph in which every node corresponds to a compo-

nent and has the following informations: name, type,

kind (class / struct / protocol / enum name), inherited

type, instance and class variables (name and type), in-

stance and class methods (together with parameters

names and types), path.

The edges between nodes represent the links in

the code between two components. Unlike a clas-

sic graph, in the architectural topological structure

we can have multiple links between two nodes: a

class has multiple references to another class; each

of them is translated into an edge, allowing to specif-

ically highlight all the individual codebase issues.

2.3 Categorisation

The most sensitive step in the analysis process is the

categorisation one: the previously deﬁned compo-

nents need to be assigned in a certain category. Previ-

ous work has been done in the area of software archi-

tecture clusterisation and it was analysed from various

perspectives: modules Huang and Liu (2016); Paixao

et al. (2018), components Ram

ırez et al. (2018), lay-

ers Belle et al. (2013).

For the purpose of our research we are interested

in the layered one. The components of a codebase

can be distributed on abstract layers by following two

strategies: the responsability-based strategy and the

reuse-based strategy. In our MVC-context, the ﬁrst

strategy is implemented. MVC has also been analysed

in Chen et al. (2014); Xu and Liang (2014b): an evo-

lutionary algorithm optimises the mapping between

the class responsibilities and the pattern roles. In our

case, we deﬁne several heuristics, speciﬁc to mobile

applications, that have to be respected by such map-

ping. Our proposed solution is a deterministic one;

the search space is smaller as we are focusing on the

codebase alone. In Mariani et al. (2016) the layered

architectures are analysed, but the focus is on chang-

ing the codebase for avoiding the layered violations.

An Analysis System for Mobile Applications MVC Software Architectures

179

They do not analyse the architectural style used nor

do they speciﬁcally focus on mobile platforms. To

the best of our knowledge, the architectural style was

analysed only in Sarkar et al. (2009) and Maffort et al.

(2013), but these approaches are not mobile oriented.

Regarding the architecture conformance, the liter-

ature describes two main techniques: reﬂexion mod-

els and domain-speciﬁc languages that express the de-

pendency rules. The reﬂexion models compare the in-

tended architecture expressed as a high-level model

created by the architect with the implemented one

extracted from the source code and expressed as a

concrete model. In general, the high-level model re-

quires a set of reﬁnements in order to identify the

architecture violations Koschke (2013). In Maffort

et al. (2013) a lightweight speciﬁcation of the high-

level model is proposed in order to mine the structural

and historical architectural patterns. Our approach

is somehow similar to Maffort’s approach, but is fo-

cus on mobile applications and integrates information

from the mobile SDKs rather than relying strictly on

the information extracted from the codebase. The

domain-speciﬁc languages help the architects to de-

ﬁned the intended architecture by using various con-

straints expressed in a customised and elaborated syn-

tax Terra and Valente (2009). The constraints we pro-

posed to be used can be easily deﬁned and mined in

the checker system.

We propose a novel mobile-inspired approach: the

categories represent the layers of the analysed archi-

tectural pattern. In the case of the current research

those are Model, View and Controller. We can lever-

age the fact that the mobile applications use certain

SDKs for displaying information on the screen. The

interaction with the user, both input and output, is ma-

nipulated by SDKs provided by the creators of mobile

Operating Systems. With this idea in mind, we pro-

pose the following heuristics for deciding which com-

ponent ﬁts in which layer:

• All Controller layer items should inherit from

Controller classes deﬁned in the used SDK

• All View layer items should inherit from a UI

component from the used SDK

• All the remaining items are treated as Model layer

items

2.4 Analysis

MVC has been extensively analysed by practition-

ers DeLong (2017); Kocsis (2018); Orlov (2015) and

academia Garofalo (2011); La and Kim (2010); Ols-

son et al. (2018) on mobile applications and other

software systems. The potential issues highlighted

such as massive view controllers or violation of sin-

gle responsibility principle DeLong (2017) constitute

the base for our research and represent the architec-

tural issues we want to highlight early in the develop-

ment phase. Therefore, the last phase of the process-

ing is the analysis of the dependency graph generated

by the extraction phase, correlated to the clusterisa-

tion on abstract layers. In this study, we are analysing

whether or not one of the rules which dictate the MVC

pattern are violated. Every rule violation is detected

and highlighted. After this step we can say whether or

not the codebase respects the MVC architecture and

which are the pressure points in the codebase, what

should be refactored and which are the components

responsible for those violations.

The dependency relation between two layers, de-

ﬁned as two sets A and B, can be formalised as a set

L ⊆ A×B as follows: L

= {l = (a, b)|a ∈ A ∧b ∈ B}.

Note that a link is different to a coupling. The link is

unidirectional, while the coupling is bidirectional.

After all the components have been split into

the three categories (Model, View, Controller), each

component is checked against all the other compo-

nents from the other two layers for ﬁnding dependen-

cies. The dependencies which are forbidden are high-

lighted and presented to the end user of the system.

In the classic MVC architecture all the depen-

dencies are allowed except for the one between the

Model and the Controller. This rule can be ex-

pressed formally by deﬁning L

Controller

Model

, the relations

of Model’s components to components of the Con-

troller layer: L

Controller

Model

= {l = (m, c)|m ∈ Model ∧

(c ∈ Controller)}. In order for the application to

respect the classic MVC dependencies, L

Other

View

should be true. Based on the MVC ﬂavour used the

allowed dependencies rules can be different.

3 EVALUATION

The aim of the analysis is to inspect whether or not

the MVC architecture is respected in the codebases

of commercially available mobile applications using

our proposed system. The rest of the paper focuses

on the iOS platform and on Swift codebases; how-

ever, the same principles can be applied to other mo-

bile platforms (Android, Window Mobile) and even

on some other ranges of presentational applications

such as desktop applications. The main differences

between iOS and other platforms would be the nam-

ing of the components and frameworks used. In this

part of the study the focus was on answering the fol-

lowing research questions:

RQ1 - How effective is the proposed categorisation

ICSOFT 2019 - 14th International Conference on Software Technologies

180

method compared to manual inspections?

RQ2 - What is the topological structure of mobile

codebases using the proposed approach?

RQ3 - Do mobile codebases respect the architectural

rules?

3.1 Methodology

Since we inspect iOS codebases, for the validation

and analysis of the proposed system we have used the

rules of Apple’s ﬂavour of MVC Apple (2012b):

Controller: L

= {l = (vc, cc)|vc ∈ ViewControl-

lers ∧ cc ∈ CoordinatingControllers} =

0 meaning

that ViewControllers should not depend on other Co-

ordinator controllers

View: L

Other

View

= {l = (v, o)|v ∈ View ∧ (o ∈ Control-

ler ∨ o ∈ Model)} =

0 meaning that all components

in the View layer should only depend on components

within the same layer

Model: L

Other

Model

= {l = (m, o)|m ∈ Model ∧ (o ∈ Con-

troller ∨ o ∈ View)} =

0 meaning that all components

in the Model layer should only depend on components

within the same layer

A codebase respects Apple’s ﬂavour of MVC Ap-

ple (2012b) when all the above rules are respected.

Mobile applications do not always use the Coordina-

tor layer as this is a fairly unknown to the vast ma-

jority of developers, that is why our analysis has two

categorisation approaches:

3.1.1 MVC Approach (SimpleCateg)

Analysing the most common MVC implementation

(classic MVC) by identifying the View objects, the

Controller (without coordinators - meaning that the

code from navigating from a ViewController to an-

other should reside in a child of an SDK deﬁned Con-

troller object) and all the other items were treated as

Models.

Layers & Components. The Controller layer does

not contain any Coordinating objects. The heuristics

involved in this approach are:

Controllers ← CategorisationVCs(Comps.)

Views ← CategorisationViews(Comps. \Controllers)

Models ← Comps. \ (Controllers ∪Views)

Dependencies Rules used for Validation.

Others

View

0 – all View components depend only on other

View components

Others

Model

0 – all Model components depend only on

other Model components

3.1.2 MVC with Coordinators Approach

(CoordCateg)

Analysing the MVC with coordinating objects in

place. Every items which dealt with UIKit deﬁned

Controller object was marked as a coordinator object.

We have also taken all the objects that deal with those

coordinator objects, and put them in the same cate-

gory as well — Coordinating controllers.

Layers & Components. The Controller layer con-

tains Coordinating objects. The heuristics involved in

this approach are:

Controllers ← CategorisationVCsAndCCs(Comps.)

Views ← CategorisationViews(Comps. \Controllers)

Models ← Comps. \ (Controllers ∪Views)

Dependencies Rules.

Others

View

0 – all View components depend only on other

View components

Others

Model

0 – all Model components depend only on

other Model components

CCs

VCs

0 – all ViewController components should not

depend on Coordinator components

3.2 Evaluation Metrics

With both approaches we were interested in the same

metrics. Our evaluation is two folded: validation of

the categorisation process and analysis of how the ar-

chitectural rules are respected or not.

In the validation stage, to measure the effective-

ness of the categorisation, we compare the results

from manual inspection (that acts as ground truth) to

those of our methods. Three metrics are of interest

in this validation: accuracy, precision and recall. In

the case of multi-class classiﬁcation problems (in our

case we have a problem with 3 classes) the accuracy

metric could be misleading since it does not take into

account is the analysed data is balanced or not (all the

classes have the same number of examples). Precision

and recall are better-suited metrics.

In the analysis stage, the number of components

(#Comp) from each abstract layer, the percentage of

the Model, View and Controller components from the

overall total and how many MVC rules were invali-

dated in the codebase (based on the analysed ﬂavour)

are computed.

We were also interested in the number of depen-

dencies within a layer (#IntDepends), as well as in the

number of external dependencies (#ExtDepends) of a

layer. The #IntDepends are represented by links in the

architectural topology of the codebase which are done

between components which reside in the same layer.

An Analysis System for Mobile Applications MVC Software Architectures

181

#ExtDepends represent the links between the compo-

nents of a layer and components which reside within

the other two layers of MVC. Moreover, the #Com-

pleteExtDepends include the external links relative to

MVC layers and the links with other SDKs and third

party libraries deﬁned types, as well as Swift prede-

ﬁned types (such as String, Int) or codebase deﬁned

types (such as closures). These numbers denote the

layers which are highly coupled with other layers or

libraries and identifying those can ease the refactoring

process by highlighting to the developers the items

which are too complex and represent an architectural

pressure point in the system, and revalidate the layers

constructed correctly which are loosely coupled and

self contained.

Another important metric is the number of differ-

ent external links (#DiffExtDepend) — the number

of different codebase components on which a certain

component depends. The components with a large

amount of different dependent items which violate the

architectural rules are problematic and represent ar-

chitectural pressure points in the analysed codebase.

Note that architectural change metrics (e.g.

architecture-to-architecture, MoJoFM, cluster-to-

cluster Le et al. (2015)) can not be used in order to

establish which rules are violated, since the concep-

tual/intended architectures of the analysed systems

are unknown.

3.3 Data

In order to test our system we have used some small,

medium and large sized private and open-source iOS

projects written in Swift. All the external libraries

were ignored as well as their codebase are not rele-

vant for the analysed application. In other words, we

have analysed the Swift ﬁles deﬁned in the project,

and none of the external ones or the ones written in

another programming language.

We have analysed 5 applications: mobile Web

browser - Firefox Mozilla (2018), information -

Wikipedia Wikimedia (2018), cryptocurrency wallet -

Trust Trust (2018), e-commerce application - private

and multiplayer game - private.

Table 1: Short description of investigated applications.

Application Blank Comment Code

Firefox 23392 18648 100111

Wikipedia 6933 1473 35640

Trust 4772 3809 23919

E-Commerce 7861 3169 20525

Game 839 331 2113

As can be seen in Table 1. we have analysed

different sized codebase. Blank, comment and code

columns refer to the type of the text written in a line.

In order for the categorisation process to be accurate,

we have identiﬁed all the iOS SDK deﬁned ViewCon-

troller and View components types deﬁned in the iOS

SDK, there are 12 different ViewController items and

40 View ones.

3.4 Results

RQ1 - How Effective is the Proposed Categorisa-

tion Method Compared to Manual Inspections?

The ﬁrst evaluation done was for the categorisation

phase. We have manually analysed each application

and placed each one of its components in one of the

Model, View, Controller layers. After creating the

ground truth, the system was ran over the studied ap-

plications and the results were compared against the

baseline. Table 2 presents our ﬁndings for each of the

applications using the precision, recall and accuracy

metrics.

Table 2: The effectiveness of the categorisation process in

terms of Accuracy, Precision and Recall.

Appr Applic

Model View Ctrl

Acc

P R P R P R

Simple Firefox 96 99 100 98 98 71 95

Coord. Firefox 96 77 100 96 46 90 82

Simple Wiki 76 99 100 57 98 89 87

Coord. Wiki 72 73 100 57 73 95 78

Simple Trust 78 98 100 67 100 37 82

Coord. Trust 83 88 100 67 64 70 82

Simple E-comm 75 100 100 100 100 54 84

Coord. E-comm 96 78 100 96 78 100 89

Simple Game 100 100 100 100 100 100 100

Coord. Game 100 100 100 100 100 100 100

We start the validation by an important metric, the

accuracy, which denotes how many components were

correctly identiﬁed for all the analysed layers. Our ex-

periment shown that by using the SimpleCateg, with-

out the coordinators detection, the proposed system

was able to correctly categorise the components in

layers with an average accuracy of 89.6% on all of

the analysed codebases, while CoordCateg achieved

an average accuracy of 86.2%.

An interesting ﬁnding is that in the case of the ap-

plications where the Coordinator concept was consis-

tently used throughout the code (Trust, E-Commerce)

the results were better for the CoordCateg approach,

however on the other applications where this concept

was not used, the results were worst.

The detection of the Coordinator components is

heavily inﬂuenced by the way the navigation from one

ViewController to another is implemented in the ap-

plication. If this is scattered all around the codebase

and is not extracted in custom components (Coordi-

nators) the detection process will be affected. While

building the ground truth, we have prioritised inheri-

tance over the links between components – meaning

ICSOFT 2019 - 14th International Conference on Software Technologies

182

that if a component inherits from a View element but

has dependencies to other Controller components we

have marked it as a View component – as we had no

way of knowing what the developers intended.

In the categorisation phase of the CoordCateg ap-

proach we are interested in the behaviour while de-

tecting the Coordinators. It is more important to high-

light that a component has the behaviour of a Coordi-

nator than to leave it as a View or Model component.

Due to how the code was written and the usage of

external libraries of View elements, the accuracy for

the CoordCateg approach is worst in the case of the

Firefox and Wikipedia apps. The difference in the ac-

curacy indicates that in the codebase there is a differ-

ence between the behaviour and the intended type of

a component, which highlights an architectural mis-

conception.

In the case of the simplest application (from an ar-

chitectural point of view), both approaches correctly

identiﬁed the components with an accuracy of 100%.

From Precision’s point of view, the best classiﬁed

component is the View one (in both approaches) and

no false positive are identiﬁed for this layer. From Re-

call’s point of view, the best classiﬁed component by

the ﬁrst approach is the Model, while by the second

approach is the Controller – such result is somehow

correlated with H

, the improved heuristic focused on

Controller layer. In several cases (ECommerce and

Game) a perfect recall is obtained indicating that the

system produces no false negatives.

If we compare the results of the ﬁrst approach

with those of the second approach we observe how

the second approach improves the Controller’s recall

because it is able to identify more types of compo-

nents that should belong to this layer (not only that

are pure View Controllers).

In the same time the Controller’s precision and the

View’s recall decrease (their are some View compo-

nents that, due to the ﬁltering order, are labelled as

Coordinator objects, breaking the mention metrics).

Furthermore, the Model’s recall decreases since some

Model’s components are labelled as Coordinating ob-

jects.

The Model’s precision increases in some cases

(e.g. Trust and ECommerce applications) because

there are fewer false positive cases: some Coordi-

nating objects, labelled as Model by the ﬁrst ap-

proach, are labelled as Controller by the second ap-

proach. However, the Model’s precision decreases

when the second approach labelled as Coordinators

some Model’s components (that manipulate View-

Controllers), similar to the View’s components wrong

classiﬁed. The View’s precision is constant and reach

the maximum, this being a good sign that the pro-

posed system is able to correct recognise all View’s

components. The View’s recall if affected by the us-

age of external libraries for UI components (e.g. Wiki

case).

As a ﬁrst conclusion, our system is able of cate-

gorising the components on the right layers.

RQ2 - What is the Topological Structure of Mobile

Codebases using the Proposed Approach? Fig.

2 presents clusters composed from three categories

(Model, View, Controller) showing the number of

different components (#Comp) / #IntDepends — the

number of internal dependencies for each cluster. The

ﬁrst columns from each application refer to the Sim-

pleCateg, while the second columns denote the Co-

ordCateg approach. As can be seen from the analysis

and the sizes of the codebase, a smaller codebase can

have more components even if it has fewer number of

lines. This is due to the granularity of the architec-

ture. Usually a higher granularity indicates a better

architecture.

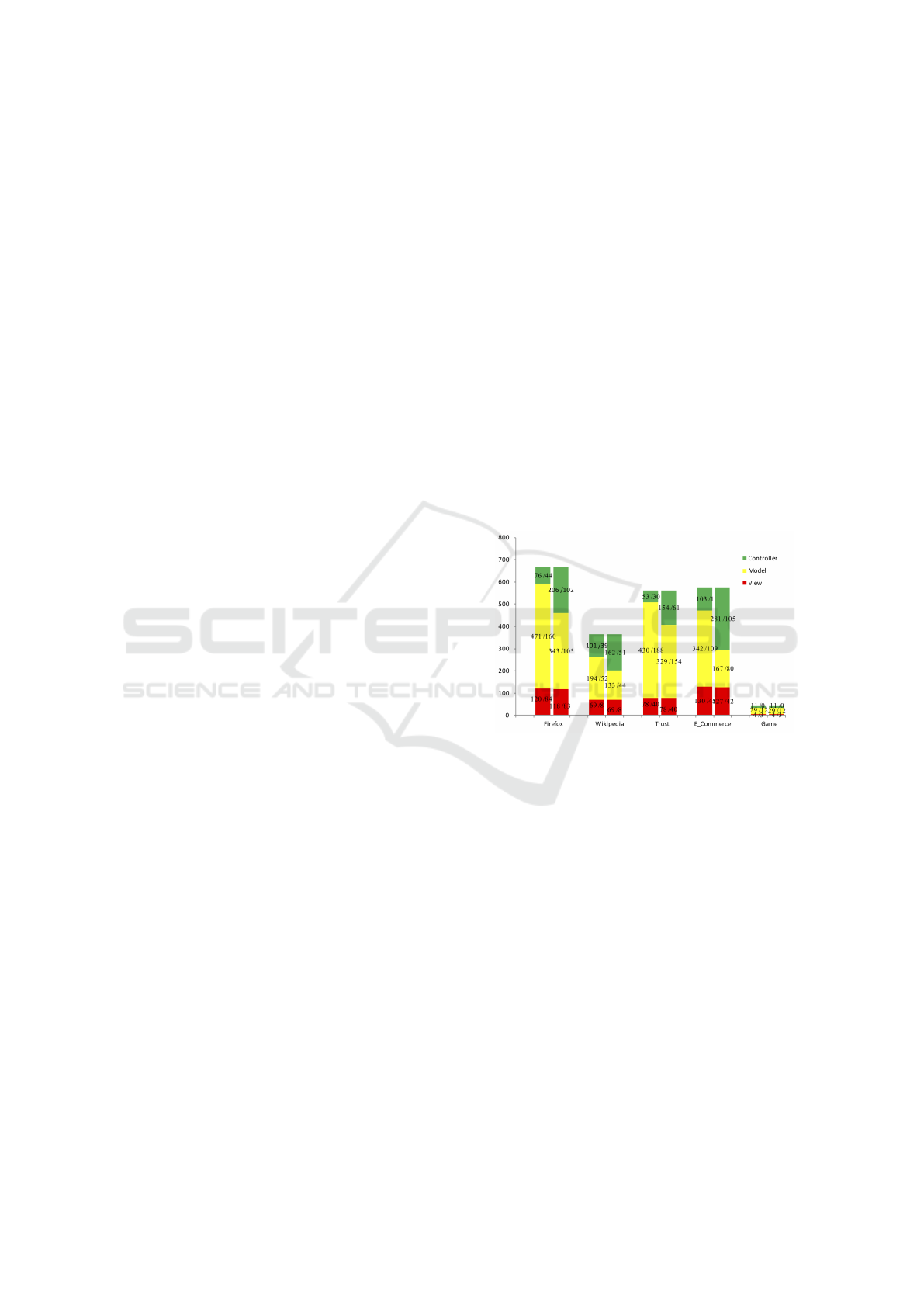

Figure 2: Codebase components, distribution of compo-

nents on layers.

The #IntDepends are increasing in the case of the

CoordCateg approach for the Controller layer and de-

creasing or keeping their status for the other two lay-

ers. This decrease of internal dependencies in the

View and Model happens due to the migration of var-

ious components in the Controller layer as Coordinat-

ing items; the remaining items have a higher degree

of cohesion among them.

Tables 3 and 4 summarise the analysis of the sep-

aration on each one of the codebases, both #ExtDe-

pends and #DiffExtDepend are presented. The

items highlighted in red represent the dependencies

which violate the MVC rules. While links Model—

Controller and View—Controller should exits, those

should be done trough interfaces and the Model and

View should have no direct knowledge about the Con-

troller; that is why those items were highlighted as

well.

As can be seen from the two approaches, Coord-

An Analysis System for Mobile Applications MVC Software Architectures

183

Table 3: Codebase analysis - SimpleCateg approach.

#ExtDepends / #DiffExtDepend

Dependency Firefox Wiki Trust E-comm Game

View - Model 21/9 7/3 21/14 72/27 1/1

View - Controller 3/1 - - 2/1 -

Model - View 203/19 99/11 49/11 122/11 1/1

Model - Controller 161/11 55/8 146/23 560/69 -

Controller - Model 152/41 78/35 74/37 290/62 38/6

Controller - View 403/46 545/35 146/30 637/47 42/13

#CompleteExtDepends

Model 3001 1393 1745 2018 111

Controller 1615 2212 496 1702 188

Table 4: Codebase analysis - CoordCateg approach.

#ExtDepends / #DiffExtDepend

Dependency Firefox Wiki Trust E-comm Game

View - Model 21/9 7/3 21/14 63/25 1/1

View - Controller 3/1 - - 2/1 -

Model - View 126/14 91/11 35/11 103/8 1/1

Model - Controller - - - - -

Controller - Model 257/41 73/32 264/66 431/62 38/6

Controller - View 448/46 576/35 161/31 674/49 42/13

VC - CC 50/9 8/3 - 49/8 -

#CompleteExtDepends

Model 2129 957 1228 846 111

Controller 2646 2672 1193 2569 188

Categ produces more accurate results and it does not

have any negative side effects on codebases which do

not use coordinators at all (Game). The shift from

Model and View to more Controller components can

be seen in the #CompleteExtDepends section of Ta-

bles 3 and 4, as well as in the Fig. 2, the Controller

has more items, while the Model and sometimes the

View has fewer.

RQ3 - Do Mobile Codebases Respect the Architec-

tural Rules? Our approach intends to highlight the

architectural problems and to provide meaningful in-

sights regarding the codebase. To this aim we analyse

MVC speciﬁc validation rules over different types of

dependencies found in the codebase. Note that the

purpose of this study was not to compare the extracted

architectural topology against a reference one (also

known in literature as the conceptual architecture)

since it not available for the analysed systems. Hence,

in Tables 3 and 4 can be seen that the validation rules

and R

are violated in both approaches. One rea-

son for this can be the fact that developers tend to re-

spect the classic MVC dependencies rules and ignore

the Apple’s ﬂavour of MVC Apple (2012b) depen-

dency rules. However, in the CoordCateg approach

(Table 4) the rule violation is more mildly as we have

fewer invalidations. This amelioration could be a con-

sequence of the improved heuristic used for identify-

ing Controller layer components (H

In the CoordCateg approach, as can be seen in Ta-

ble 4 the rule R

is violated in 3 of the 5 analysed

codebases; the Game codebase does not use Coordi-

nating controllers, while in the case of Trust applica-

tion the dependency rule is respected. In the case of

applications where the Coordinating controllers are

well understood, they are usually correctly imple-

mented. However in other cases where this sub-layer

appears as a side effect of the complexity in the Con-

troller layer, they are inadequately constructed.

As can be seen in both Tables 3 and 4, the ma-

jority of the architectural problems are encountered

between the Model and the other layers. This shows

that the Model layer is usually wrongly constructed

and it is not clear for developers what should reside

in there. Moreover the analysis also shows that while

mobile projects are split in composing layers, MVC

tries to be followed, the dependencies between those

layers are not correctly constructed.

3.5 Threats to Validity

Internal Validity. In the case of Coordinating Con-

trollers detection there might be mismatches between

the purpose given by the developer to that compo-

nent and our categorisation process. This shift from

Model and View layer might not always be valid as

some components were intended to reside in those

layers, but they simply are wrongly coupled with

ViewControllers. In addition to this this wrong cat-

egorisation heavily affects the analysis phase. More-

over the usage of third party libraries for the UI com-

ponents heavily impacts the categorisation process

which drastically impacts the rest of the analysis as

those are not covered by our proposed heuristics. Fur-

thermore the analysis was conducted on the iOS plat-

form using the Swift language, for other platforms

which use languages which support multiple inheri-

tance some of the heuristics might not apply.

External Validity. The current study focuses on

MVC and its ﬂavours on the most popular mobile

platforms. By using the current approach, custom ar-

chitectural patterns can not be analysed, in order to

overcome this issue the categorisation process should

be enriched with more layers and improving the clus-

tering capabilities.

Conclusion Validity. The study can be ran on more

applications to strengthen our ﬁndings. Additional

metrics can be used for analysing the dependencies in

order to give relevant insights regarding the stability,

testability and extensibility of the analysed codebase.

4 CONCLUSIONS

Architectural patterns can not enforce their rules on

developers. In the domain of software architectures,

ICSOFT 2019 - 14th International Conference on Software Technologies

184

the builders — developers, can cross architectural

boundaries fairly easy; that is why an external sys-

tem is needed for enforcing the chosen architectural

pattern. Our research provides a distinct technique

for analysing the mobile codebases, without the need

for using complex ADL languages and validation sys-

tems. The proposed method uses the mobile SDKs

particularities for constructing an easy to use and un-

derstand system which can come in the aid of mo-

bile developers. Discovering the root and sources of

the technical debt and highlighting the architectural

issues of the codebase beneﬁts both developers as

well as management, as they can see the architectural

health of the codebase.

The fact that the codebase is split in well deﬁned

categories represent just part of the beneﬁts obtained

by respecting an architectural pattern. The correct de-

pendencies between layers is what offers all the other

architectural beneﬁts (ﬂexibility, testability, maintain-

ability, etc.) and it is more important than just cate-

gorising the components. Our results show that those

dependencies are not correctly constructed and there

is a need for an architectural checker system on mo-

bile platforms for imposing architectural patterns.

As future steps, we plan to extend the system

to work with custom deﬁned software architectures,

such that it can analyse multiple type of projects. The

system can also be integrated into a CI/CD pipeline,

highlighting architectural issues early in the develop-

ment phase before the code goes into the ﬁnal prod-

uct.

REFERENCES

Ameller, D. and Franch, X. (2011). Ontology-based archi-

tectural knowledge representation: structural elements

module. In CAiSE, pp. 296–301. Springer.

Apple (2012a). Controller. link.

Apple (2012b). Model-view-controller. link.

Belle, A. B. et al. (2013). The layered architecture revisited:

Is it an optimization problem? In SEKE, pp. 344–349.

Boaye Belle, A. (2016). Recovering software layers from

object oriented systems: a formalization as an opti-

mization problem. PhD thesis,

Ecole de technologie

sup

erieure.

Chen, X. et al. (2014). A replicated experiment on archi-

tecture pattern recommendation based on quality re-

quirements. In ICSESS, pp. 32–36. Citeseer.

Corazza, A. et al. (2016). Weighing lexical information for

software clustering in the context of architecture re-

covery. Empirical Software Engineering, 21(1):72–

103.

DeLong, D. (2017). A better MVC. link.

Fowler, M. (2002). Patterns of enterprise application ar-

chitecture. Addison-Wesley Longman Publishing Co.,

Inc.

Garcia, J. et al. (2013). A comparative analysis of software

architecture recovery techniques. In ICASE, pp. 486–

496. IEEE Press.

Garofalo, R. (2011). Building enterprise applications

with Windows Presentation Foundation and the Model

View View Model Pattern. Microsoft Press.

Huang, J. and Liu, J. (2016). A similarity-based modular-

ization quality measure for software module cluster-

ing problems. Information Sciences, 342:96–110.

Hussain, S. (2013). Investigating architecture description

languages (ADLs) a systematic literature review. PhD

thesis, Linkapings Universitet.

Kocsis, K. (2018). Architectural patterns, MVC, MVVM:

What is the hype all about? link.

Koschke, R. (2013). Incremental reﬂexion analysis. Journal

of Software: Evolution and Process, 25(6):601–637.

La, H. J. and Kim, S. D. (2010). Balanced mvc architecture

for developing service-based mobile applications. In

ICEBE, pp. 292–299. IEEE.

Le, D. M. et al. (2015). An empirical study of architectural

change in open-source software systems. In IEEE

MSR, pp. 235–245.

Maffort, C. et al. (2013). Mining architectural patterns using

association rules. In SEKE, 2013, pp. 375–380.

Mariani, T. et al. (2016). Preserving architectural styles in

the search based design of software product line archi-

tectures. J. of Systems and Software, 115:157–173.

Mozilla (2018). Firefox iOS application. link.

MutualMobile (2014). Meet VIPER: Clean architecture for

iOS apps. link.

Olsson, T. et al. (2018). Towards improved initial map-

ping in semi automatic clustering. In ECSA, page 51.

ACM.

Orlov, B. (2015). iOS architecture patterns: Demystifying

MVC, MVP, MVVM and VIPER. link.

Paixao, M. et al. (2018). An empirical study of cohesion

and coupling: Balancing optimization and disruption.

IEEE TEC, 22(3):394–414.

Potel, M. (1996). MVP: Model-View-Presenter the taligent

programming model for C++ and Java. Taligent Inc,

page 20.

Ram

ırez, A. et al. (2018). Interactive multi-objective evolu-

tionary optimization of software architectures. Infor-

mation Sciences.

Reenskaug, T. (2003). The model-view-controller (MVC)

its past and present. University of Oslo Draft.

Rumbaugh, J. et al. (2004). Uniﬁed modeling language ref-

erence manual, the. Pearson Higher Education.

Sarkar, S. et al. (2009). Discovery of architectural lay-

ers and measurement of layering violations in source

code. J. of Systems and Software, 82(11):1891–1905.

Terra, R. and Valente, M. T. (2009). A dependency con-

straint language to manage object-oriented software

architectures. Software: Practice and Experience,

39(12):1073–1094.

Trust (2018). Trust wallet iOS application. link.

Wikimedia (2018). Wikipedia ios application. link.

Xu, Y. and Liang, P. (2014b). A cooperative coevolution

approach to automate pattern-based software architec-

tural synthesis. IJSEKE, 24(10):1387–1411.

Zhang, M. (2018). Photoshop coming to the iPad. link.

An Analysis System for Mobile Applications MVC Software Architectures

185
