LASER: Lightweight and Secure Remote Keyless Entry Protocol

Vanesa Daza

1,2

and Xavier Salleras

1,2

Department of Information and Communication Technologies, Universitat Pompeu Fabra, Barcelona, Spain

CYBERCAT - Center for Cybersecurity Research of Catalonia, Spain

Keywords:

Remote Keyless Entry, Wireless Security, Jamming-and-Replay Attack, Relay Attack.

Abstract:

Since Remote Keyless Entry (RKE) systems started to be widely used, several vulnerabilities in their protocols

have been found. Attacks such as jamming-and-replay attacks and relay attacks are still effective against most

recent RKE systems (Ibrahim et al., 2018), even when many secure schemes have been designed. Although

they are interesting from a theoretical point of view, the complexity of these solutions is excessive to implement

them into a fob (Karani et al., 2016). This paper presents a lightweight and general solution based on a

one message protocol, which guarantees the integrity and validity of the authentication in RKE systems,

protecting the communication against the well-known jamming-and-replay and relay attacks, without using

complex cryptographic schemes. Moreover, we also adapt our protocol for passive RKE (PRKE) systems.

Our solution also includes a novel frequency-hopping-based approach which mitigates deny-of-service attacks.

Finally, a prototype has been implemented using non-expensive hardware. Obtained results assure scalability,

effectiveness and robustness.

1 INTRODUCTION

The usage of RKE systems has been increasing over

the years, being them widely used to remotely lock

and unlock cars, garage doors, sensors, doorbells or

alarms. The ﬁrst RKE systems used a simple proto-

col, where a code was sent in plaintext to a receiver

which had to execute a command, let us say, unlock

a door. However, as snifﬁng and replaying the code

was enough to be able to unlock such a door, a new

scheme called rolling codes was developed, and it is

still widely used nowadays. Such scheme pretends to

be secure so the key fob computes and sends a new

code each time it is used, and each code is accepted

by the receiver just once. Even so, it has been proved

that rolling codes are vulnerable to different attacks,

and authorities are starting to report

criminals tak-

ing proﬁt of these vulnerabilities. This fact has led

researchers to design new secure schemes (Lv and

Xu, 2012) to protect these systems, but their complex-

ity made manufacturers not to implement them, so it

would mean to develop key fobs with some disadvan-

tages, i.e. a higher price or a faster draining of the

battery. This is due to the fact that many solutions pro-

posed to use cryptographic schemes (Ni et al., 2007)

https://www.west-midlands.police.uk/news/watch-police-

release-footage-relay-crime

which needed higher computing power than the avail-

able in the current fobs. Furthermore, some solutions

(Glocker et al., 2017) usually need more than one

message to exchange some private information or in-

struction command, which increases the complexity

of the protocol.

Contributions. We provide a secure protocol

to be

implemented by manufacturers into both RKE and

PRKE systems with the only requirement of having a

real-time clock, synchronized periodically as detailed

in our protocol. Our scheme is robust against both

jamming-and-replay attacks and relay attacks; fur-

thermore, it mitigates the effectiveness of jamming-

based deny-of-service attacks, thanks to the integra-

tion into the protocol of a frequency-hopping ap-

proach. Moreover, our solution is a one message

protocol for RKE systems and a two messages pro-

tocol for PRKE systems, where both approaches are

proved to be lightweight. We also demonstrate how

our solution can be implemented achieving good re-

sults. More details about the presented work can be

found in (Daza and Salleras, 2019).

Roadmap. In Section 2 we explain both RKE and

PRKE systems along with the common attacks that

The presented solution has been submitted as an invention

to be patented with European Patent application number

19382339.0, on May 6th, 2019.

372

Daza, V. and Salleras, X.

LASER: Lightweight and Secure Remote Keyless Entry Protocol.

DOI: 10.5220/0007830103720377

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 372-377

ISBN: 978-989-758-378-0

can be performed against them. In Section 3 the state-

of-the-art is presented. In Section 4 we explain our

solution. The implementation of the proposed solu-

tion, along with the experiments and the results de-

rived from them are explained in Section 5. We ﬁnally

conclude in Section 6.

2 BACKGROUND

Remote Keyless Entry Systems. We call RKE to

those systems which are composed of a fob F and a

device D. When a button on F is pressed, a radio fre-

quency signal is sent to D, including an instruction

command that D will have to execute. These systems

are commonly used to lock or unlock cars and open

their boots, to open a garage door, to control a tem-

perature sensor, etc. The main protocols used by these

systems can be divided as follows:

• Fixed codes. This is the simplest scheme. F sends

a command cmd to D, which is essentially a bit

stream referring to an action that D will have to

perform.

• Rolling codes. Both F and D have previously

agreed on a secret key from which derives a se-

quence of codes N

, N

, ..., N

. Then, each time

a button on F is pressed, the next code c is com-

puted and sent to D, who checks if the received

number is equal to a value c that previously it

also computed. Apart from c, a command cmd is

also sent, which is typically a sequence of bits that

refers to an action D will have to do, i.e. unlock a

car. Each value c can be used only once. In case D

may have not received some of the codes sent by

F, it commonly checks up to the next 256 gener-

ated codes, and when a correct value c is received

by D, all the codes behind it cannot be used again.

One of the most used rolling codes devices has

been KeeLoq (Microchip Technology Inc., 1996).

Passive Remote Keyless Entry. PRKE systems

(King, 1998) are a special type of RKE. They do

not require the user to manipulate F. Instead, as soon

as D receives an external input (i.e. if D is a door,

someone pulling the handle), it automatically sends

a request to F, which replies with a conﬁrmation.

The most used protocol (NXP Semiconductors N.V.,

2012) for PRKE systems is the challenge-response

protocol, where D sends to F a random value r, the

challenge, and waits for a speciﬁc response to verify.

For instance, F encrypts r using a pre-shared secret

key sk, and sends the cipher c to D. By means of sk,

D can decrypt c and verify the identity of F.

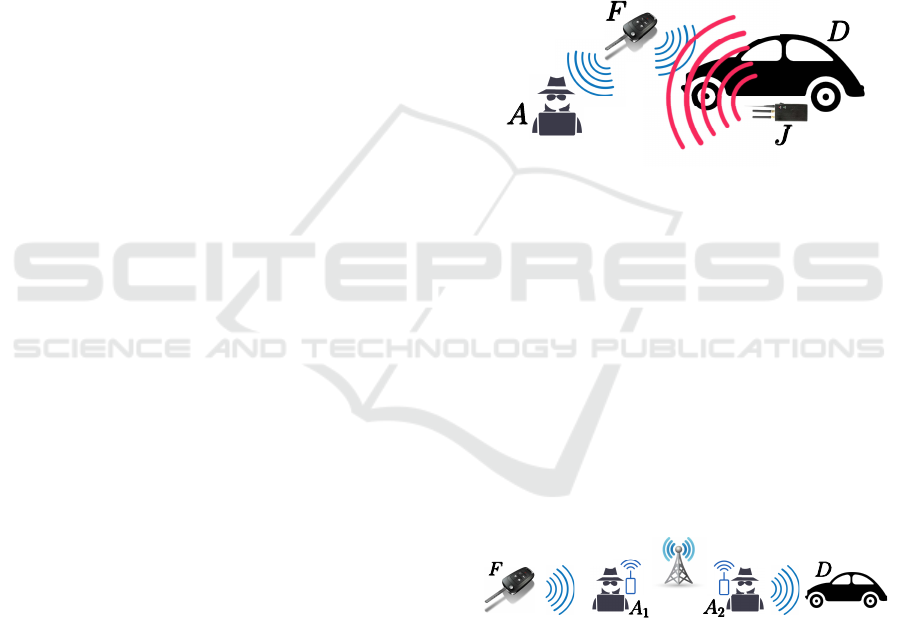

Jamming-and-Replay Attack. As depicted in Figure

1, these attacks (Kamkar, 2015) are performed using

two transceiver devices. One of them is placed near

to D, hidden from the view of the victim V, and jam-

ming the frequency used by the system an attacker A

is willing to hack. Then, the other one is close to F,

eavesdropping the communications. When V presses

the button of F, the signal it sends is jammed by the

jamming transceiver J, and V is forced to use an al-

ternative (i.e. a physical key). Meanwhile, A captures

the message sent by F, and as D never receives it, A

will be able to replay it later. Finally, the jammer can

be remotely deactivated by A, as soon as he is sure

that V will not try to use F again.

Figure 1: Jamming-and-replay attack.

Relay Attack. These attacks (Francillon et al.,

2010) are performed using two transceivers connected

through an LTE network or similar, as depicted in Fig-

ure 2. One of them is close to D, and the other one to

F. Like this, they create a bridge between both end-

points. If the attacked system is a PRKE, when the at-

tacker A

pulls the car handle the challenge-response

protocol is performed through the bridge created by

both attackers. Otherwise, if we are talking about an

RKE system, we have to expect that the user may

either accidentally press the button on F, or leave it

unattended (thus allowing the attacker A

to press the

button).

Figure 2: Relay attack.

Deny-of-Service (DoS) Attack. This kind of attack

(Thakur and Sankaralingam, 2013) is also based on

jamming the frequency used by the protocol, but in

this case with the main goal of denying the service. It

has a lower impact on the system security as it does

not grant access to the system, but it bothers the user,

who will require a physical key if he wants to perform

the action.

LASER: Lightweight and Secure Remote Keyless Entry Protocol

373

3 RELATED WORK

Regarding the attacks against RKE systems, an im-

portant contribution on the topic has been recently

done in (Ibrahim et al., 2018). They demonstrate as

the jamming-and-relay attacks are nowadays still ef-

fective against a wide variety of modern cars, by mak-

ing use of two units of a radio frequency device called

HackRF One

, one for jamming and the other one for

logging data and replaying later. Another important

contribution has been done in (Garcia and Oswald,

2016), where an attack allowing an attacker to recover

the secret key used in a speciﬁc RKE implementation

is introduced. As stated in the paper, major manu-

facturers have sold systems with this vulnerability for

over 20 years.

Implementation of the Attacks. By making use of

two radio frequency devices called Yardstick One

(YS1), a jamming-and-replay attack can be performed

by using a python implementation

of this attack.

This implementation makes use of a library called

rﬂib, included in a software used by YS1 called Rf-

Cat

. That said, one antenna will be jamming while

the other will be snifﬁng the code of the fob. The

same implementation is useful for performing just the

DoS attack. Moreover, taking this implementation as

a starting point, implementing a relay attack is trivial.

Proposed Solutions. Many secure schemes (Lv and

Xu, 2012), (Glocker et al., 2017) have been designed

to increase the security of RKE and PRKE systems.

The main problem they present is their complexity, so

they use cryptographic schemes which are hard to im-

plement into cheap key fobs. On the other hand, some

schemes (Jeong and So, 2018) have been proved to be

both simple and effective against relay attacks. One of

them, proposed in (Ranganathan and Capkun, 2018),

demonstrates that a protocol calculating the time be-

tween message exchanges can determine if a relay at-

tack is being performed against a PRKE or not. This

is the main idea behind LASER, which also solves the

replay vulnerability.

4 OUR SCHEME: LASER

In this section we explain step-by-step our protocol,

LASER, for both RKE and PRKE systems. We con-

sider a fob F and a generic device D, assuming it to

be a car. First, both endpoints have to agree on a ran-

domly generated secret key sk large enough to make a

https://greatscottgadgets.com/hackrf/

https://greatscottgadgets.com/yardstickone/

https://github.com/exploitagency/rfcat-rolljam

https://github.com/atlas0fd00m/rfcat

brute-force attack hard to accomplish (i.e. a 256-bits

key). They also need to agree on a set of commands

cmd, used for example to lock the car, unlock it, etc. D

also has a car identiﬁcation number (device

) known

by F.

In both RKE and PRKE systems, both F and D

will be required to compute a hash. The hash function

used by both devices was required to be lightweight

in order to optimize the timings and the resources

consumption. For our implementation and analysis

we have chosen to use Blake2, a hash function pro-

posed in (Aumasson et al., 2013), which guarantees

a low power and computing resources consumption.

Furthermore, it is proved to be as fast as MD5, but

solving the security vulnerabilities MD5 presents. In

particular we are interested in using Blake2s, a ver-

sion of Blake2 optimized for 8-bit platforms, which

are the kind of cheap processors commonly used for

key fobs. Basing our solution in the usage of a hash

function like Blake2 instead of using some complex

cryptographic scheme, we are decreasing the costs of

implementing our solution, and also avoiding a fast

draining of the battery.

Our solution performs a frequency-hopping proto-

col where the frequency channel used to transmit the

messages changes each period of time p. This means

that both D and F must agree on the same channel,

and to achieve it they perform the Protocol 4.1.

Protocol 4.1 (Frequency-hopping for LASER). The

frequency-hopping for a speciﬁc endpoint, which has

a number of available frequency channels N

, is per-

formed as follows:

1. Each period of time p (both F and D have pre-

viously agreed on this value) it gets the current

datetime in a timestamp form, sums the secret key

sk to it and calculates its hash h.

2. It calculates the channel ch, which is the modulo

of the integer representation of h: ch ≡ int(h)

(mod N

Next subsections explain the speciﬁc details for

either RKE and PRKE systems, and the security anal-

ysis of both approaches.

4.1 Protocol Details

LASER Protocol for RKE. In this scheme, D is re-

quired to be always listening to a speciﬁc channel, so

it will be continuously performing the Protocol 4.1.

However, F will perform it just before to start the Pro-

tocol 4.2. When the owner of D wants to execute a

command cmd by pressing a button on F, F calculates

ch by ﬁrst calculating h, but rounding the timestamp

to the previous multiple of p. Then, next protocol is

performed (as depicted in Figure 3):

SECRYPT 2019 - 16th International Conference on Security and Cryptography

374

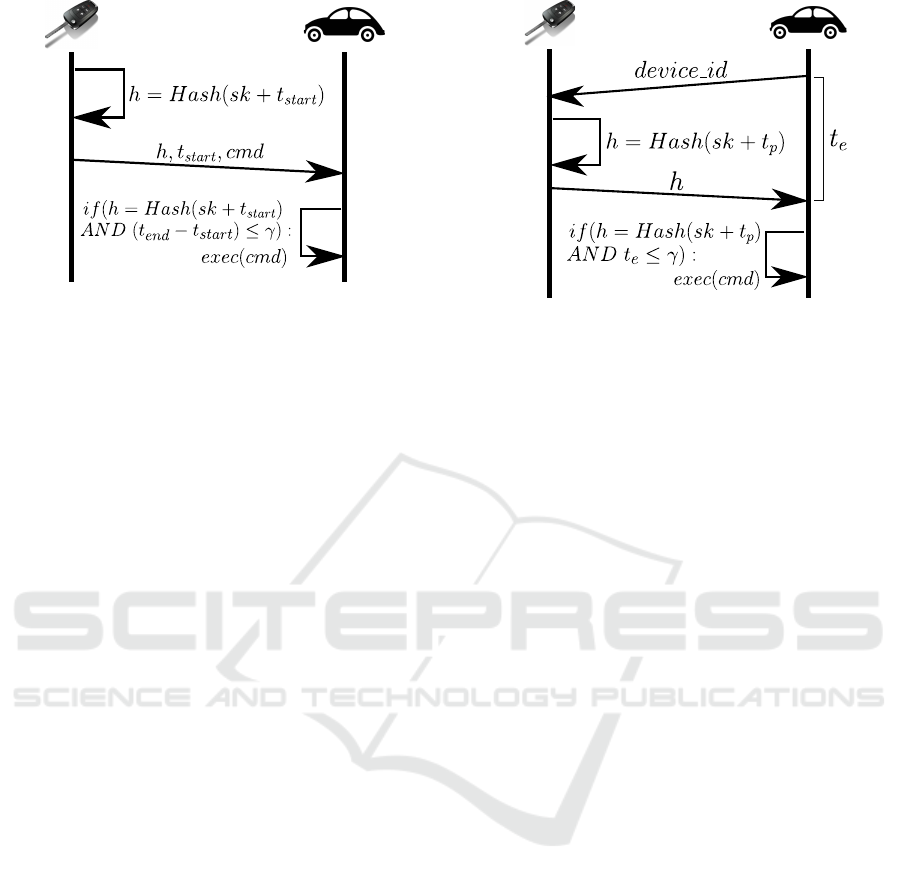

Figure 3: LASER for RKE.

Protocol 4.2 (LASER for RKE). Both D and F follow

the next protocol:

1. F takes the current timestamp t

start

, sums it to sk

and computes its hash h.

2. F sends h over ch along with the real timestamp

start

and the command cmd.

3. As soon as D receives the message sent in the

last step, it gets the current timestamp t

end

, and

checks if the difference between t

start

and t

end

lower than or equal to a threshold γ, previously

estimated.

4. If the above condition is true, and h is correct, D

executes cmd.

An accurate time synchronization between F and D

is crucial, as F has to send an exact timestamp. To

overcome this drawback, we propose the usage of the

same approach we introduced in our protocol: if F

sends a timestamp t

start

that does not veriﬁes (t

end

−

start

) ≤ γ, D replies with a message h

sync

, t

sync

, where

sync

is the correct timestamp and h

sync

= Hash(sk +

sync

). F updates its real-time clock after verifying

sync

. The purpose of sending also a hash here, is to

avoid an attacker being able to send messages to F to

modify its current time.

LASER Protocol for PRKE. In this scheme, it will

be F who is continuously performing the Protocol 4.1.

When the owner of D wants to unlock it by pulling

the handle, D calculates ch by ﬁrst calculating h, but

rounding the timestamp to the previous multiple of

p. Then, next protocol is performed (as depicted in

Figure 4):

Protocol 4.3 (LASER for PRKE). Both D and F fol-

low the next protocol:

1. D sends over ch a SYN message to F including

the device

. At the moment it sends the message,

it also starts to calculate a message exchanging

time t

Figure 4: LASER for PRKE.

2. F computes the hash value of sk plus t

, and sends

the result h to D.

3. As soon as D receives the message sent in the last

step, it stops the counter of t

. Like this, now

D knows a value t

which is the time between D

sending a message and receiving a response. If

the received value h is correct and t

is lower than

or equal to a threshold γ, D executes the desired

action.

In PRKE, if D does not receive a response after send-

ing the ﬁrst message of the protocol, it can be that t

on F is incorrect. In this case, D must send h

sync

, t

sync

using all the other frequencies, to be able to reach the

one used by F, and make it update its current time.

4.2 Security Analysis

Preventing Jamming-and-Replay Attacks. To pre-

vent jamming-and-replay, our solution sends a unique

hashed value h of a secret key sk concatenated to a

timestamp. Like this, each hash will be unique in

time, and will be accepted by the receiver just at that

moment. Plus, the fact of concatenating a secret key

makes impossible for an attacker A to generate a new

hash.

Preventing Relay Attacks. We ﬁrst need to estimate

the threshold γ, which is the maximum amount of time

a message should take going from F to D in RKE (in

PRKE, is the maximum time it should take for a mes-

sage to go from D to F, plus the response message to

go back to D). In this scenario, if a message took an

amount of time (t

end

− t

start

) higher than γ, we could

say that F is placed further from D than what it should

be, and that the protocol is performed by means of a

relay attack, using an LTE network or similar.

Preventing DoS. Both endpoints have different fre-

quency channels available to perform the frequency-

hopping protocol, and they agree on a channel without

LASER: Lightweight and Secure Remote Keyless Entry Protocol

375

an attacker being able of knowing it. As they change

the transmitting channel each short period of time p

(which should be deﬁned by the manufacturer consid-

ering the best performance of the device), an attacker

willing to perform a DoS against us will have to jam

a wide range of frequencies at the same time. It can

be done by means of several jamming devices, which

is an expensive investment

5 EXPERIMENTS AND RESULTS

Implementation. A prototype

of our solution has

been developed and tested using Python and RfCat.

Our code is composed of a single script, which can

be run either for F and D, providing a device

and a

sk. The range of frequencies used by the code to per-

form the frequency-hopping protocol can be provided

by the user, where the available range depends on the

antenna used, in this case YS1. When we press the

key corresponding to the command we want to ex-

ecute, the protocol keeps being performed while the

user retains the key pressed, meaning this that mes-

sages are sent continuously till the key is released.

Even pressing and releasing the key quickly, our tests

demonstrate that around 6 messages are sent on aver-

age (in both RKE and PRKE implementations). This

has been done on purpose, like is done in regular RKE

and PRKE systems, to avoid having to press more

than once if the receiver is not able to catch the mes-

sage the ﬁrst time, due to random hardware errors.

Estimating the Threshold. For each system RKE

and PRKE we have tried to execute a command one

thousand times. The success rate has been 100% in

both cases, meaning this that the command has been

always executed. By logging the timestamps into a

dataset, we have found out that the time it takes for

a message to go from an endpoint to the other one is

never higher than t

max

= 136 ms for the RKE solu-

tion, as shown in Table 1. For PRKE systems, where

the calculated time is how much it takes D to receive

F’s reply, the maximum time it took has been t

max

175 ms. Choosing this maximum value as the thresh-

old could be dangerous if a relay attack is performed:

for the RKE, if the message takes the minimum time

min

= 55 ms to go to the attacker A

, and the sec-

ond attacker A

gets to send the relayed message in

the same amount of time, it would take 110 ms. As-

suming that the attackers will not be able to exchange

the relayed message in less than t

max

− 110 = 26 ms

is a weak premise. Plus, taking the average amount

https://www.jammer-store.com/hpj16-all-frequencies-

jammer.html

https://github.com/xevisalle/laser

of time we are compromising the usability of the sys-

tem, so most of the time the user will have to press

the button more than once, as shown in Figure 5. To

overcome this, we can use the third quartile of the

dataset, which is higher than the average in both RKE

and PRKE systems. We can see in Figure 5 that now

the effectivity is higher as well. As every time we

press the button in the fob we are sending around 6

messages, the probability of failing when trying to ex-

ecute a command is almost negligible, so the success

rate for each message is almost 75%.

Table 1: Information extracted from timestamps of RKE

and PRKE systems, expressed in milliseconds.

System t

max

min

avg

RKE 136 55 71 79

PRKE 175 113 157 164

100

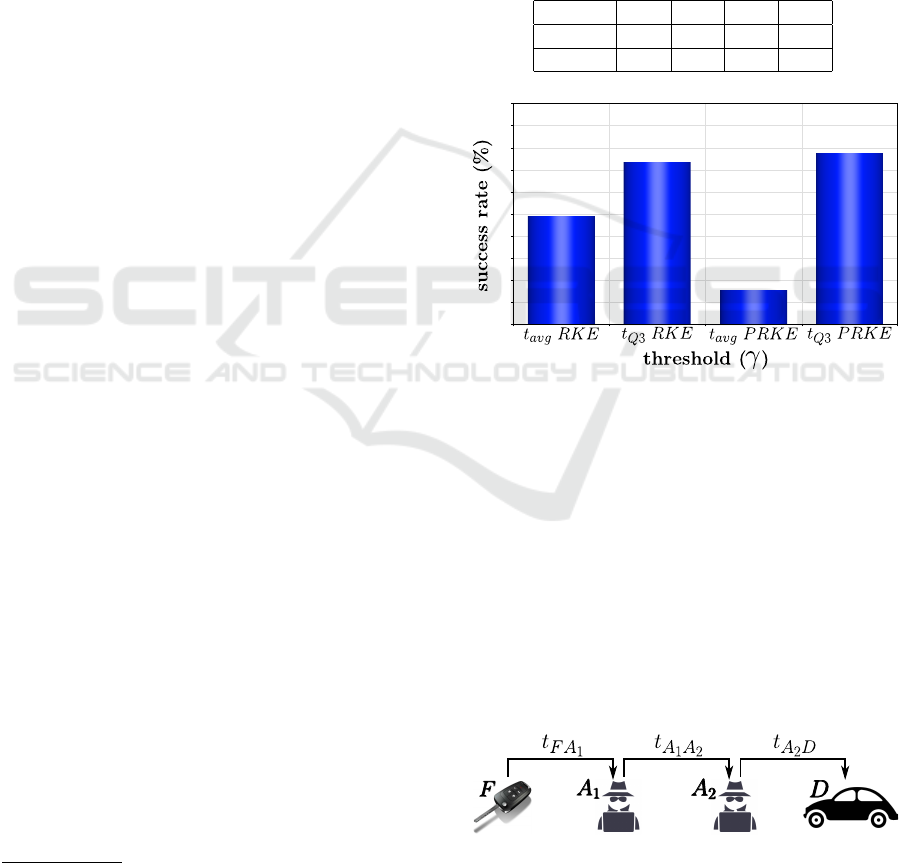

Figure 5: Success rate when trying to execute a command in

both RKE and PRKE systems considering different thresh-

olds.

Robustness Against Relay Attacks. Let us have an

RKE relay attack scenario as depicted in Figure 6. If

the minimum time it can ever take for the user’s hard-

ware to send a message from F to D is t

min

, we can be

sure that t

= t

min

is the minimum value that can be

achieved. As such, our scheme is secure as far as the

attackers are not able to achieve the following state-

ment:

≤ γ

) ≤ γ −t

(1)

Figure 6: RKE relay attack scenario.

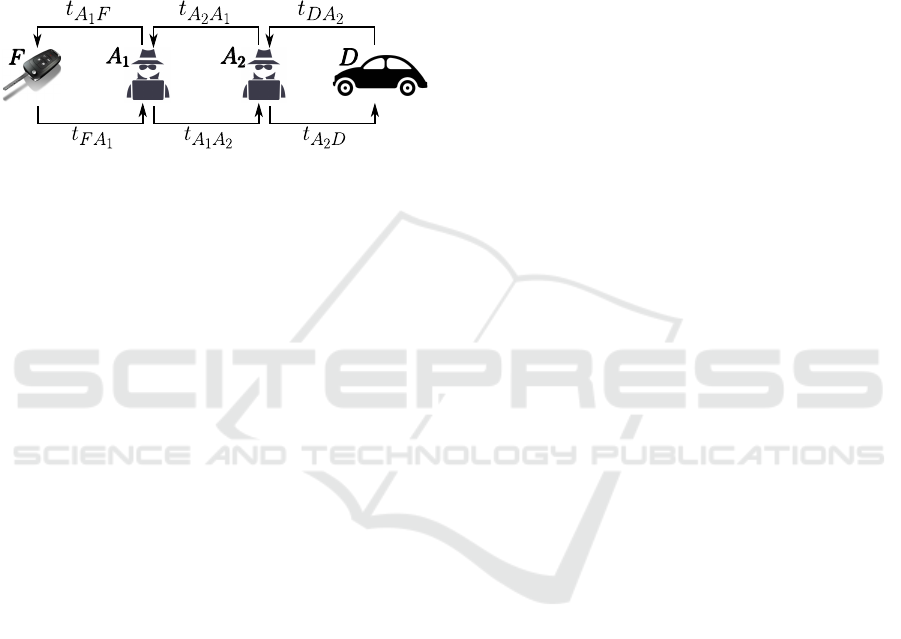

On the other hand, we have a PRKE relay attack

scenario as depicted in Figure 7. If the minimum time

SECRYPT 2019 - 16th International Conference on Security and Cryptography

376

it can ever take for the user’s hardware to send a mes-

sage from D to F and send the answer back to D is

min

, we can be sure that (t

+ t

) = t

min

is the

minimum value that can be achieved. As such, our

scheme is secure as far as the attackers are not able to

achieve the following statement:

≤ γ

) ≤ γ − (t

)

(2)

Figure 7: PRKE relay attack scenario.

As detailed in Section 2, the bridge between A

and A

can be done through an LTE network or sim-

ilar. Knowing that the average uplink latency in LTE

networks is 10.5 ms (Amjad et al., 2018), we could

assume two attackers getting lower values for t

and t

. Even so, assuming that a relay attack can

be successful against LASER is a strong premise.

6 CONCLUSION

In this paper we have introduced LASER, a

lightweight and secure scheme for both RKE and

PRKE systems. LASER solves the security is-

sues present into these systems, completely avoid-

ing jamming-and-replay and relay attacks without us-

ing complex cryptographic schemes. Furthermore, it

mitigates DoS attacks thanks to a simple frequency-

hopping protocol. LASER is easy-to-implement and

we demonstrated it by implementing a prototype us-

ing non-expensive hardware. Last but not least, we

proved the effectiveness and robustness of our solu-

tion through different experiments we performed.

ACKNOWLEDGEMENTS

This work was supported by Project RTI2018-

102112-B-I00 and by the European Research Council

under the H2020 Framework Programme/ERC grant

agreement 694974.

REFERENCES

Amjad, Z., Sikora, A., Lauffenburger, J.-P., and Hilt, B.

(2018). Latency reduction in narrowband 4g lte net-

works. In 2018 15th International Symposium on

Wireless Communication Systems (ISWCS).

Aumasson, J. P., Neves, S., Wilcox-O’Hearn, Z., and Win-

nerlein, C. (2013). BLAKE2: simpler, smaller, fast as

MD5. https://blake2.net/.

Daza, V. and Salleras, X. (2019). LASER: Lightweight And

SEcure Remote keyless entry protocol (Extended ver-

sion). arXiv:1905.05694 [cs.CR].

Francillon, A., Danev, B., and Capkun, S. (2010). Relay

attacks on passive keyless entry and start systems in

modern cars. https://eprint.iacr.org/2010/332.

Garcia, F. D. and Oswald, D. (2016). Lock It and Still Lose

It-On the (In)Security of Automotive Remote Keyless

Entry Systems. 25th USENIX Security Symposium

(USENIX Security 16).

Glocker, T., Mantere, T., and Elmusrati, M. (2017). A pro-

tocol for a secure remote keyless entry system appli-

cable in vehicles using symmetric-key cryptography.

In 2017 8th International Conference on Information

and Communication Systems (ICICS), pages 310–315.

Ibrahim, O. A., Hussain, A. M., Oligeri, G., and Di Pietro,

R. (2018). Key is in the air: Hacking remote keyless

entry systems. In Proc. of the International Workshop

on Cyber Security for Intelligent Transportation Sys-

tems (CSITS2018).

Jeong, H. and So, J. (2018). Channel correlation-based re-

lay attack avoidance in vehicle keyless-entry systems.

Electronics Letters, 54(6):395–397.

Kamkar, S. (2015). Drive it like you hacked it: New attacks

and tools to wirelessly steal cars. DEFCON 23.

Karani, R., Dhote, S., Khanduri, N., Srinivasan, A., Sawant,

R., Gore, G., and Joshi, J. (2016). Implementation

and design issues for using bluetooth low energy in

passive keyless entry systems. In 2016 IEEE Annual

India Conference (INDICON).

King, J. D. (1998). Passive remote keyless entry system.

US6236333B1.

Lv, X. and Xu, L. (2012). AES encryption algorithm key-

less entry system. In 2012 2nd International Confer-

ence on Consumer Electronics, Communications and

Networks (CECNet), pages 3090–3093.

Microchip Technology Inc. (1996). TB003 An Introduction

to KEELOQ Code Hopping.

Ni, X., Shi, W., and Fook, V. F. S. (2007). AES security pro-

tocol implementation for automobile remote keyless

system. IEEE 65th Vehicular Technology Conference.

NXP Semiconductors N.V. (2012). NXP keyless entry/go

solutions: Advancing keyless entry/go.

Ranganathan, A. and Capkun, S. (2018). Are we really

close? verifying proximity in wireless systems. IEEE

Security Privacy, pages 1–1.

Thakur, N. and Sankaralingam, A. (2013). Introduction to

jamming attacks and prevention techniques using hon-

eypots in wireless networks. IRACST - International

Journal of Computer Science and Information Tech-

nology and Security (IJCSITS).

LASER: Lightweight and Secure Remote Keyless Entry Protocol

377
