A New Model-based Framework for Testing Security of IoT Systems in

Smart Cities using Attack Trees and Price Timed Automata

Moez Krichen

1,2

and Roobaea Alroobaea

Faculty of CSIT, Al-Baha University, Saudi Arabia

ReDCAD Laboratory, University of Sfax, Tunisia

College of CIT, Taif University, Saudi Arabia

Keywords:

Model-based, Testing, Security, Internet of Things, IoT, Smart Cities, Attack Tree, Price Timed Automaton,

UPPAALL, TTCN-3, Cloud.

Abstract:

In this paper we propose a new model-based framework for testing security properties of Internet of Things in

Smart Cities. In general a model-based approach consists in extracting test cases from a formal speciﬁcation

either of the system under test or the environment of the considered system in an automatic fashion. Our

framework is mainly built on the use of two formalisms namely Attack Trees and Price Timed Automata. An

attack tree allows to describe the strategy adopted by the malicious party which intends to violate the security

of the considered IOT system. An attack tree is translated into a network of price timed automata. The product

of the constructed price timed automata is then computed using the well known UPPAALL platform. The

obtained timed automata product serves as input for the adopted test generation algorithm. Moreover our

framework takes advantage of the use of the standardized speciﬁcation and execution testing language TTCN-

3. With this respect, the obtained abstract tests are translated into the TTCN-3 format. Finally we propose a

cloud-oriented architecture in order to ensure test execution and to collect the generated verdicts.

1 INTRODUCTION

Nowadays Internet of Things (IoT) is playing an im-

portant role in our modern society as a technology

which allows to connect everyday objects to Inter-

net. These objects are equipped with sophisticated in-

terfaces which give them the capabilities to measure

physical aspects from the environment and to interact

with other entities by exchanging speciﬁc messages.

This new technology has provided a wide genera-

tion of valuable and innovative services. In this man-

ner, modern cities are becoming smarter by adopting

intelligent systems for water management, trafﬁc con-

trol, energy management, street lighting, public trans-

port, etc. However, these services can massively be

attacked and compromised by several malicious par-

ties whenever adequate and appropriate security mea-

sures are absent.

A few years ago, the smart devices that make

up the Internet of Things, such as light bulbs, ther-

mostats, webcams, and many others , were seen as

potential targets for attackers to activate or disable

remote devices and to harm consumers. Today, the

IoT no longer represents a mere target, but a real plat-

form which may be used by attackers to launch dan-

gerous remote aggressions and to cause very serious

incidents.

With the emergence of wide-ranging Open Source

worms, such as Mirai (Antonakakis et al., 2017), ca-

pable of spreading to tens of millions of IoT devices,

attackers can exploit these systems to generate a mas-

sive inﬂux of trafﬁc and disconnect any company or

institution from Internet. Beyond the massive attack

of the network, these IoT attack platforms can present

other forms of threats, such as information theft and

passwords decryption.

The attacks on industrial control systems have

taken a disturbing turn. Cyber criminals attack the op-

erational core of vital infrastructures taking advantage

of their vulnerability. Recent attacks have not only

disrupted the provision of essential services, such as

electricity, but have also damaged automation systems

to return to normal operation.

For instance the 2015 and 2016 attacks in

Ukraine (Boyte, 2017) that caused power outages

were perfectly planned and coordinated. The at-

tackers managed to hijack the automation systems to

cause power outages and then perform a well-ordered

570

Krichen, M. and Alroobaea, R.

A New Model-based Framework for Testing Security of IoT Systems in Smart Cities using Attack Trees and Pr ice Timed Automata.

DOI: 10.5220/0007830605700577

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 570-577

ISBN: 978-989-758-375-9

succession of destructive payloads on workstations,

servers, and embedded devices.

In the future, it will be more difﬁcult to recover

from breakdowns caused by attacks, and interruptions

may be measured in days instead of hours. Events

of this type force providers in charge of these infras-

tructures to think about how to act in the event of an

attack.

In this context our goal in this work is to pro-

pose a new framework for testing security aspects for

IoT systems deployed in smart cities in order to avoid

such anomalies or at least to minimize them as much

as possible. Our framework is model-based (Krichen

et al., 2018a) in the sense that it is based on the use

of a formal approach which consists is generating test

cases from a given model.

In our case, the considered model corresponds to

the behavior of the attacker aiming to violate the sys-

tem under investigation. First the behavior of the at-

tacker is given as an attack-tree (Kordy et al., 2014).

The latter is a formalism used to describe the strategy

adopted by the attacker to achieve its goal.

In a second step the proposed tree is translated

into an equivalent network of price timed automa-

ton (Behrmann et al., 2005) which is a graphical

representation which is used to model timed behav-

iors. The obtained network of price timed automaton

serves as an input for the test generation algorithm.

The generated abstract test cases are then trans-

lated into the speciﬁcation and execution standard

testing language TTCN-3 (Lahami et al., 2012a). Fi-

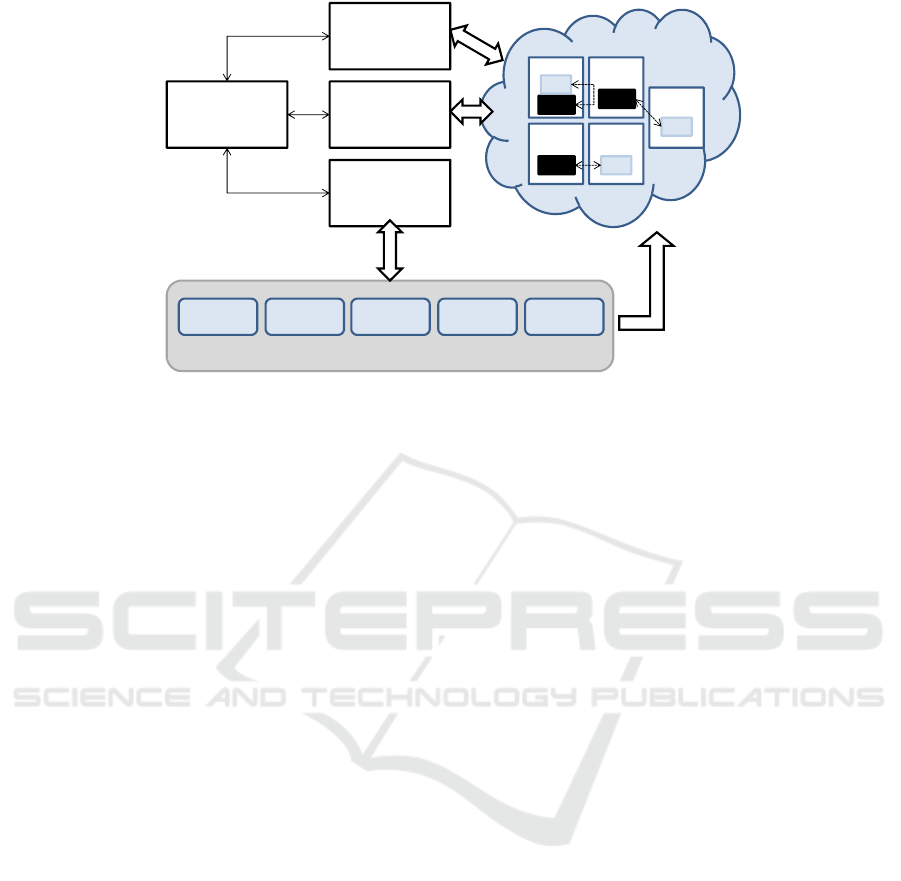

nally a cloud-oriented test architecture (Tilley and

Parveen, 2012) is proposed to run the obtained

TTCN-3 concrete tests and to collect the generated

verdicts.

The rest of this paper is organized as follows. Sec-

tion 2 introduces the notion of attack trees. Section 3

deﬁnes the model of price timed automata. Section

4 illustrates how attack trees are translated into net-

works of price timed automata. Section 5 presents

an overview about the test generation and execution

phases. Section 6 reports on related research works

dealing with IoT security testing. Finally Section 7

summarizes the main contributions of the paper and

gives some possible directions for future work.

2 ATTACK TREES

Attack trees (AT) (Kordy et al., 2014) correspond to

a useful graphical formalism to study the security of

critical systems. More precisely an attack tree can

be seen as a graphical representation of the attacker

strategy represented in the form of a tree.

The root of an AT corresponds to the goal the at-

tacker aims to fulﬁll. The children of a node in the

AT are reﬁnements of the goal of the corresponding

parent node into sub-goals.

The reﬁnement of an internal node of an AT can

be either conjunctive or disjunctive:

• A conjunctive reﬁnement is used when the fulﬁl-

ment of all the children’s goals is needed to ful-

ﬁll the parent’s goal. In this case we associate an

AND-Gate with considered parent node (See Fig-

ure 1- (a)).

• A disjunctive reﬁnement is used when the fulﬁl-

ment of one of the children’s goals is enough to

fulﬁll the parent’s goal. In this second case an

OR-gate is associated with the considered node

(See Figure 1-(b)).

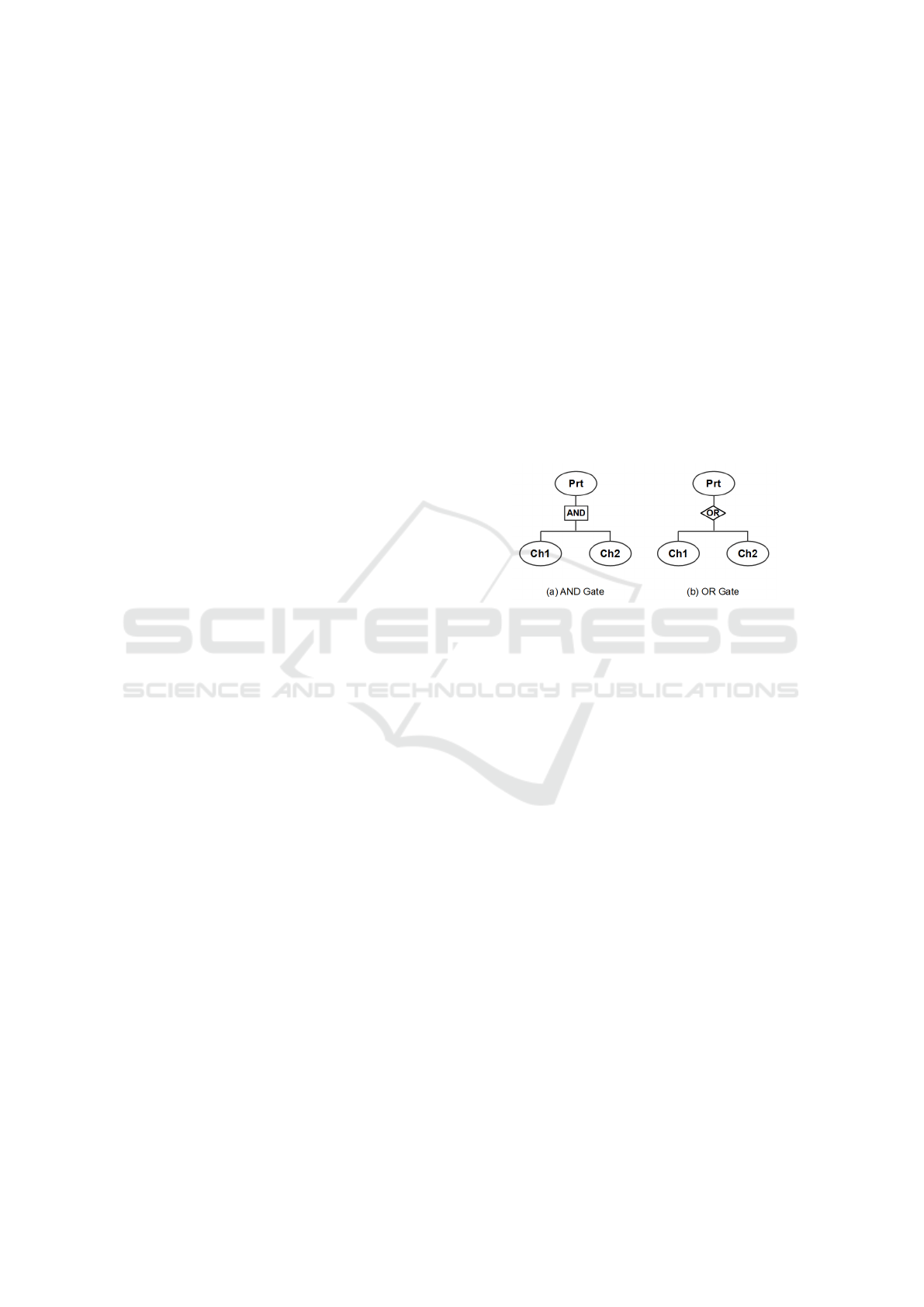

Figure 1: Different possible gates of an attack tree.

We consider a ﬁnite set of attribute variables

Attribs = {Att

, · ·· , Att

}. These attributes are used

to describe the characteristics of the attacker like

available resources for instance. We denote by Vals ⊆

≥0

)

the set of valuations of the attributes.

The leaves of the AT correspond to the elementary

actions the attacker has to execute. They are called

basic attack steps (BAS). Each BAS is equipped with

an additional attribute Time (which measures the time

since the basic attack step started) and two precondi-

tions:

Ready2Start : Vals → {0, 1}

which indicates that the BAS can be started or not

(i.e., has enough resources to start for example); and

Able2Succeed : Vals → {0, 1}

which indicates whether the BAS can succeed or not.

These preconditions are Boolean combinations of lin-

ear equations over Attributes. Moreover each BAS

has an update function:

Modi f y : Vals × R

≥0

→ Vals

which updates the attribute values when time elapses.

At this level we assume that time dependence is linear

between the attributes {Att

, · ·· , Att

} and the special

attribute Time.

A New Model-based Framework for Testing Security of IoT Systems in Smart Cities using Attack Trees and Price Timed Automata

571

Let PrePost(Attribs) be the set of all possi-

ble triples (Ready2Start, Able2Succeed, Modi f y) de-

ﬁned with respect to Attribs. We also deﬁne an At-

tacker Initializer which gives the initial valuation of

the attributes. It is deﬁned as:

Init : {Att

, · ·· , Att

} → R

≥

The set of attack tree gate types is deﬁned as:

Gates = {AND, OR}.

An attack tree A is formally deﬁned as a tuple

hNds,Chld, Rt, Attribs, Init, Ftrsi where:

• Nds is a ﬁnite set of attacker nodes;

• Chld : Nds → Nds

∗

associates a set of children to

each parent node;

• Rt corresponds to the root of the AT A which de-

ﬁnes the global goal of the attacker;

• Attribs corresponds to the set of attributes of the

AT A;

• Init corresponds to the attacker initializer;

• Ftrs : Nds → Gates ∪PrePost(Attribs) associates

an AND/OR Gate with each internal node and a

tuple (Ready2Start, Able2Succeed, Modi f y) with

each leaf of the AT.

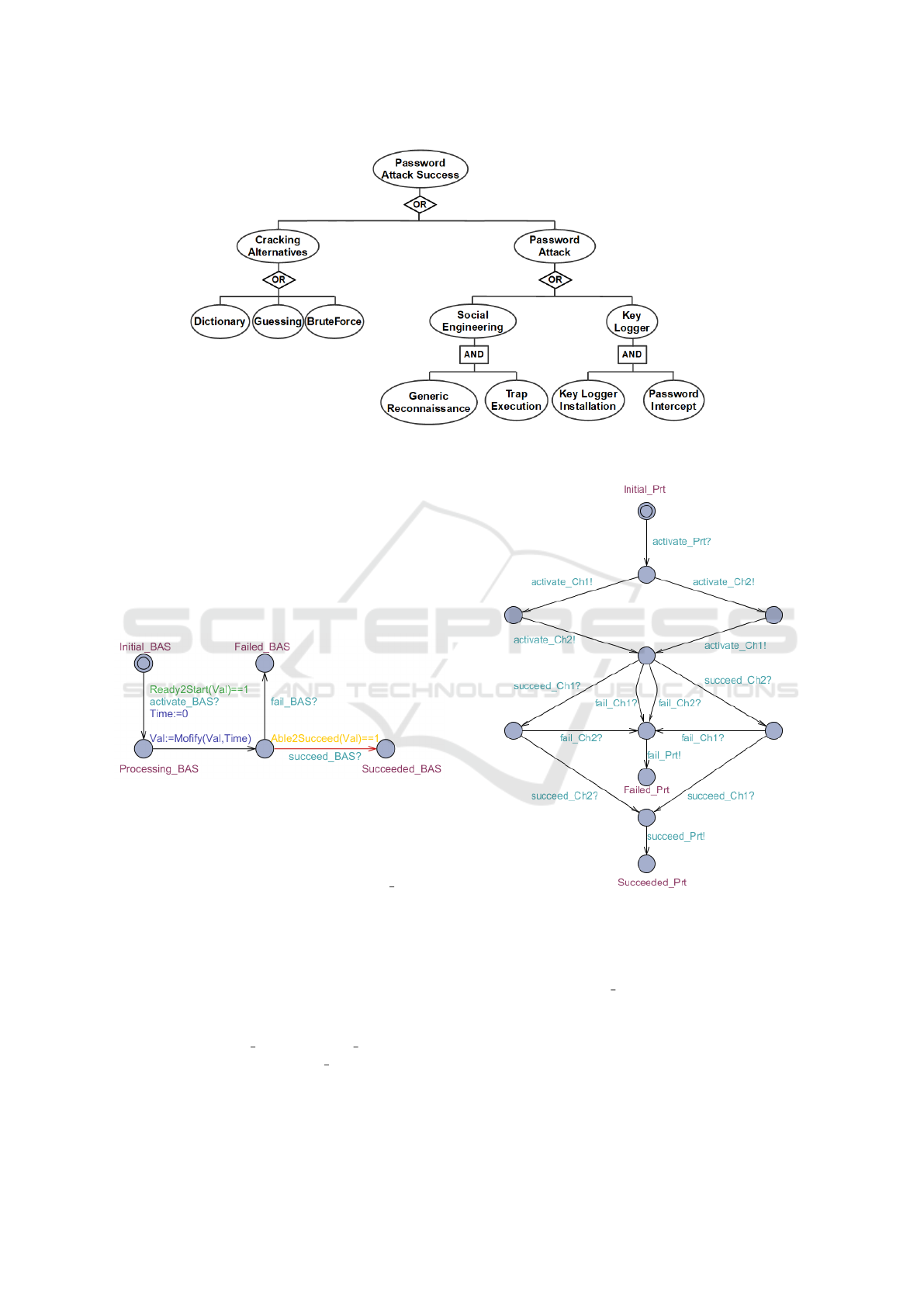

An example of an AT is given in Figure 2. This AT

is inspired from the work of (Kumar et al., 2015). The

goal of the attacker here is to crack the password of a

protected ﬁle. As indicated by the ﬁgure the global

goal of the attacker can be achieved by:

• Either cracking the password: this sub-goal can

in turn be achieved using one of three possible

choices (namely: Dictionary, Guessing or Brute

Force attacks).

• Or performing a password attack: this sub-goal

can be either achieved by a Social Engineer-

ing or a Key Logger attacks. The Social En-

gineering attack is in turn decomposed into two

BASs namely: Generic Reconnaissance and Trap

Execution. Similarly the Key logger attack is

achieved within two BAS: Key Logger Installa-

tion and Password Intercept.

More details about this example can be found in the

previously mentioned article (Kumar et al., 2015).

3 PRICED TIMED AUTOMATA

The model of Priced timed automata

(PTA) (Behrmann et al., 2005) is an extension

of timed automata, obtained by assigning costs to

actions and locations. Next, we will denote by Ψ(Y )

the set of all possible Boolean predicates over a set Y

of continuous variables.

A priced timed automaton P is deﬁned as a tuple

hLoc, loc

,Cl, Act, Edg, Inv,Costi where:

• Loc is a ﬁnite set of states;

• loc

∈ L is the initial state;

• Cl is a ﬁnite set of clocks;

• Act is ﬁnite a set of labels;

• Edg ⊆ Loc × Ψ(Cl) × Act × 2

× Loc gives the

set of transitions;

• Inv : Loc → Ψ(Cl) assigns invariants to locations;

• Cost : Loc ∪ Edg → N

≥0

. assigns cost rates to

states and costs to edges.

An edge hloc, ψ, act, λ, loc

i ∈ Edg deﬁnes a tran-

sition from location loc to location loc

taking an ac-

tion act. This edge can only be traversed when the

constraint ψ over Cl is true, and the set λ ⊆ Cl identi-

ﬁes the subset of clocks which must be reset after the

execution of the transition.

A trace of P = hLoc, loc

,Cl, Act, Edg, Inv,Costi

is a sequence of locations and transitions T R =

loc

act

−−→

loc

act

−−→

loc

·· · where:

• For every i, there is a transition T

(loc

, ψ

, act

, λ

, loc

i+1

) ∈ E;

• For every i, c

= C(T

) + t

· C(l

) is the cost in-

curred in the transition;

• The initial valuation V

−→

0 which assigns 0 to

every clock in Cl;

• After each transition, there is a new clock valua-

tion V

i+1

= (V

)[λ

= 0] obtained by increasing

every clock in X

by t

and re-initializing all clocks

in λ

to 0;

• Each valuation V

+ t for t < t

must satisfy the

invariant Inv(l

);

• The valuation V

must satisfy ψ

for every i.

Let k be the parallel product operator over price

timed automata. That is given a set of PTAs

, P

, · ··P

}, P

k· ··kP

will denote the corre-

sponding parallel product obtained by synchronizing

the transitions of the component PTAs via joint sig-

nals. The formal deﬁnition of this operator is given in

(Bengtsson and Yi, 2004).

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

572

Figure 2: An example of an attacker tree inspired by the work of (Kumar et al., 2015).

4 FROM ATTACK TREES TO

PRICE TIMED AUTOMATA

In this section we explain how an attack tree is trans-

formed into a network of price timed automata. The

proposed transformation is borrowed from the work

of (Kumar et al., 2015).

Figure 3: A priced timed automaton for a basic attack step.

First in Figure 3 we draw the price timed au-

tomaton corresponding to a basic attack step. The

proposed PTA has ﬁve nodes. The considered BAS

is activated when the input-signal activate BAS? is

received from the corresponding parent-node PTA.

In order to execute this input-signal the condi-

tion Ready2Start(Val) == 1 must hold. The

clock variable Time is reset to zero as soon as

the BAS is activated. The attributes of the at-

tacker are updated through the transition labeled

with Val := Mo f i f y(Val, Time). At the end of

the execution of the BAS the PTA reaches ei-

ther state Succeeded BAS or Failed BAS. In or-

der to reach the state Succeeded BAS the condition

Able2Succeed(Val) == 1 must hold.

In Figure 4, we propose a PTA which corresponds

to a parent node connected to two children via an

Figure 4: A priced timed automaton for an AND gate and a

parent node having two children.

AND gate. This PTA is activated after receiving the

input-signal activate Prt?. After that an activation

output-signal is sent to each child PTA. If a success

signal is received from both children then the parent

PTA moves to its success state.

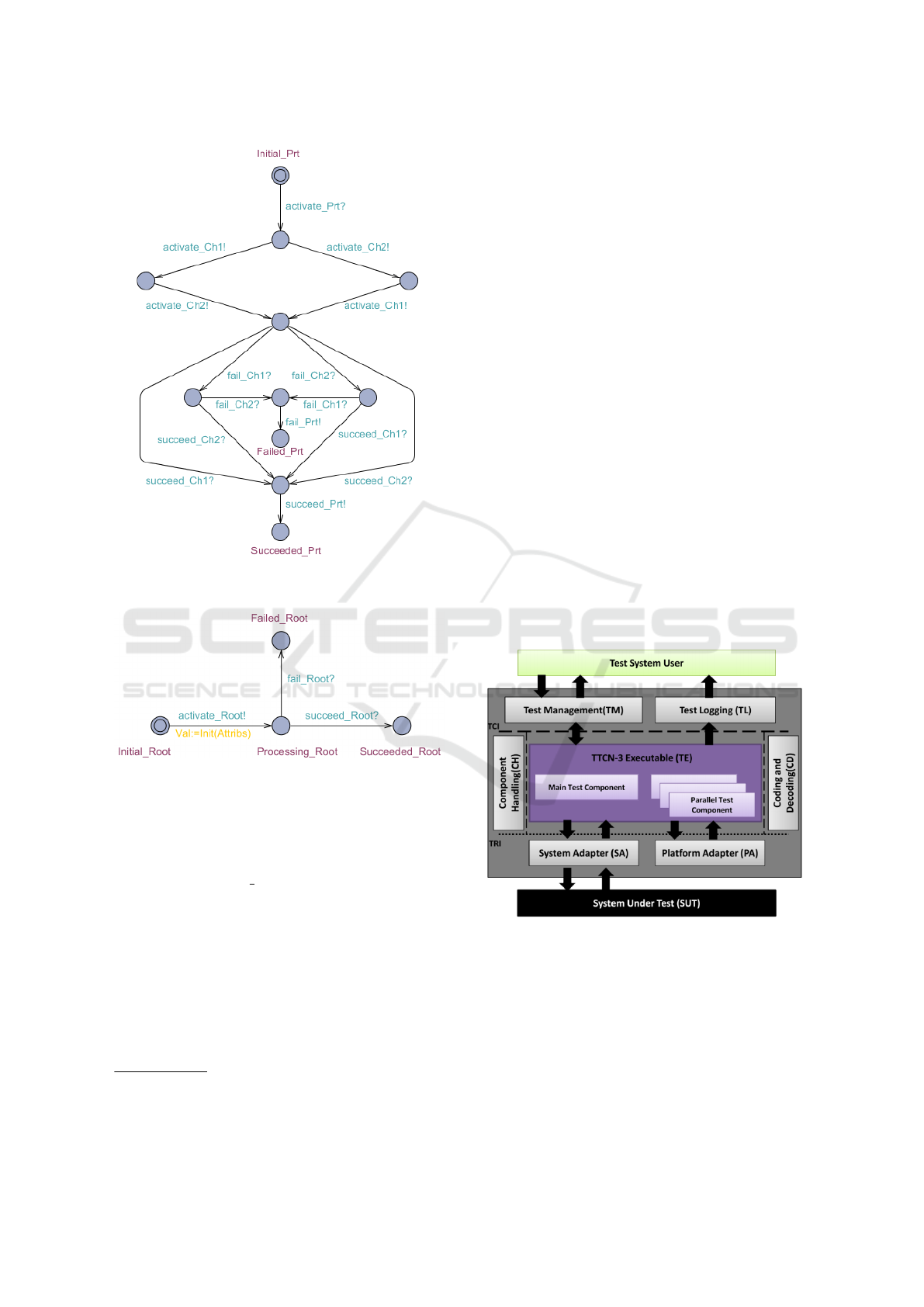

Similarly Figure 5 is an illustration of the PTA

corresponding to a parent node connected to two chil-

dren via an OR gate. In this case receiving a success

signal from one of the two children is enough to guar-

A New Model-based Framework for Testing Security of IoT Systems in Smart Cities using Attack Trees and Price Timed Automata

573

Figure 5: A priced timed automaton for an OR gate and a

parent node having two children.

Figure 6: Priced timed automaton corresponding to the

global goal of the attacker.

antee the success of the parent PTA.

Finally Figure 6 gives a PTA which corresponds to

the execution of the global goal of the attacker. The

output signal activate Root! will be the ﬁrst action to

be executed by the network of obtained PTAs.

5 TEST GENERATION AND

EXECUTION

Test generation consists in extracting abstract test

cases from the obtained network of PTAs. For this

purpose we may use UPPAAL CORA (Behrmann

It is worth noting that the two previous cases can be

easily extended to the situation where a parent node has

more than two children.

et al., 2005; Rasmussen et al., 2004) which is an ex-

tension of the platform UPPAAL. This extension is

enriched with additional variables used for optimal

reachability analysis.

As already mentioned the proposed framework in

this work is based on the TTCN-3 standard (ETSI,

2015). For this purpose, we will take advantage from

the work of (Lahami et al., 2016; Lahami et al.,

2012a). Next we give a brief recall about the main

constituents of the TTCN-3 reference architecture as

illustrated in Figure 7:

• Test Management (TM): manages the whole test

process by starting and stopping tests;

• Test Logging (TL): manages all log events;

• TTCN-3 Executable (TE): runs the compiled

TTCN-3 code;

• Component Handling (CH): places parallel test

components and guarantees communication be-

tween them;

• Coding and Decoding (CD): encodes and de-

codes received from and sent to the TE;

• System Adapter (SA): adjusts the communica-

tion with the application or system under test;

• Platform Adapter (PA): implements the set of

external functions.

Figure 7: TTCN-3 Architecture (Lahami et al., 2016).

At this level we are interested in deﬁning a set of

rules for transforming abstract test cases into concrete

TTCN-3 tests.

The adopted transformation algorithm may be in-

spired by the following works (Axel Rennoch and

Schieferdecker, 2016; Hochberger and Liskowsky,

2006; Ebner, 2004). Table 1 gives some examples of

the rules to use to derive TTCN-3 tests from abstract

test cases. These rules are concisely explained below:

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

574

• R1: This rule generates a new TTCN-3 module

for each abstract test suite;

• R2: This rule transforms each test sequence into

a TTCN-3 test case;

• R3: This rule associates a TTCN-3 timer with

each abstract timed behavior;

• R4: This rule transforms each test sequence into

a TTCN-3 function;

• R5: This rule transforms the abstract channels

into TTCN-3 templates.

Table 1: TTCN-3 Transformation Rules.

R# Abstract Concepts TTCN-3 Concepts

R1 Test Suite TTCN-3 Module

R2 Single Trace TTCN-3 Test Case

R3 Timed Behavior TTCN-3 Timer

R4 Test Sequence TTCN-3 Function

R5 Channel TTCN-3 Template

Cloud computing can be used in the ﬁeld of soft-

ware testing to deal with the problem of lack of re-

sources and the considerable cost of building a dis-

tributed test solution during the testing activity. Con-

sequently, the notion of Cloud testing is increasingly

emerging in order to offer cost-effective and efﬁcient

testing facilities. As deﬁned by (Gao et al., 2011),

it corresponds to testing activities (namely test case

generation, test case execution and test result evalua-

tion) on a cloud-oriented environment.

The proposed cloud testing architecture is built

based on TaaS (Testing as a Service) concepts. Figure

8 outlines an overview of its different components of

this architecture.

• Test Management GUI: offers a GUI (Graphical

User Interface) charged with manages the whole

testing process.

• Resource Management: enables ﬂexibility and

elasticity during the testing process.

• Test Component Management: offers services

which create/delete test components and start/stop

their execution.

• Runtime Monitoring: gives the status of the re-

sources of each VM (e.g., memory, CPU, etc.).

6 RELATED WORK

Authors of (Felderer et al., 2016) proposed an inter-

esting survey on dozens of articles related to model-

based security testing chosen from the most relevant

digital sources and classiﬁed with respect to speciﬁc

criteria. However this review did not cover any work

dealing security issues for IoT and smart cities. In

the opposite way, the authors of (Ahmad et al., 2016)

presented a model-based approach to test IoT systems

but they did not consider security aspects in anyway.

Moreover the authors of (Wang et al., 2017) proposed

a formal framework based on timed automata for an-

alyzing security properties of cyber-physical systems.

In (Krichen et al., 2018a), the authors proposed a pre-

liminary work which introduced a model based ap-

proach for testing security aspects of IoT systems in

smart cities. Regarding the use of attack trees we

mention the following works (Aslanyan et al., 2016)

(Kamm

uller et al., 2016) (Kumar et al., 2015) (Ko-

rdy et al., 2014) which adopted this formalism to

model and analyse security attacks. However none of

these works has attempted to use testing techniques to

check the ability of the considered systems to defend

themselves against security attacks.

7 CONCLUSION

In this work we proposed a new approach for test-

ing security aspects for IoT systems in Smart Cities.

The proposed approach is based on the use of attack

trees which correspond to a graphical representation

of the strategy adopted by an attacker in order to vi-

olate the IoT system. We proposed a transformation

method to translate a given attack tree into a network

of price timed automata. The latter is then used as

input for the test generation algorithm for producing

abstract test cases. The obtained test cases are trans-

lated into concrete TTCN-3 test scenarios. Finally a

cloud oriented testing architecture is proposed in or-

der to execute tests and collect testing results.

Many extensions are possible for this work. First

we may attack advantage from the work of (Lahami

et al., 2016; Krichen, 2012; Lahami et al., 2012b;

Krichen and Tripakis, 2006) to build a decentral-

ized testing architecture. Moreover we may adopt

the methodology proposed in (Krichen et al., 2018b;

alej and Krichen, 2016; Ma

alej et al., 2013; Ma

alej

et al., 2012b; Ma

alej et al., 2012a) to combine secu-

rity and load tests for IoT applications. Finally we

may exploit the same techniques presented in (Ben-

salem et al., 2007) in order to reﬁne abstract test cases

before translating them into TTCN-3.

A New Model-based Framework for Testing Security of IoT Systems in Smart Cities using Attack Trees and Price Timed Automata

575

Test

management

GUI

Resource

management

Runtime

monitoring

Resource

request

Resource

request

SUT

Test

component

management

VM state

request

VM VM

Google Compute Engine

Create Delete Start Stop

Scale

up/down

request

Figure 8: Cloud Testing Architecture Overview.

REFERENCES

Ahmad, A., Bouquet, F., Fourneret, E., Le Gall, F., and Leg-

eard, B. (2016). Model-based testing as a service for

iot platforms. In Margaria, T. and Steffen, B., editors,

Leveraging Applications of Formal Methods, Veriﬁca-

tion and Validation: Discussion, Dissemination, Ap-

plications, pages 727–742, Cham. Springer Interna-

tional Publishing.

Antonakakis, M., April, T., Bailey, M., Bernhard, M.,

Bursztein, E., Cochran, J., Durumeric, Z., Halderman,

J. A., Invernizzi, L., Kallitsis, M., Kumar, D., Lever,

C., Ma, Z., Mason, J., Menscher, D., Seaman, C., Sul-

livan, N., Thomas, K., and Zhou, Y. (2017). Under-

standing the mirai botnet. In 26th USENIX Security

Symposium (USENIX Security 17), pages 1093–1110,

Vancouver, BC. USENIX Association.

Aslanyan, Z., Nielson, F., and Parker, D. (2016). Quanti-

tative veriﬁcation and synthesis of attack-defence sce-

narios. In IEEE 29th Computer Security Foundations

Symposium, CSF 2016, Lisbon, Portugal, June 27 -

July 1, 2016, pages 105–119.

Axel Rennoch, Claude Desroches, T. V. and Schieferdecker,

I. (2016). TTCN-3 Quick Reference Card.

Behrmann, G., Larsen, K. G., and Rasmussen, J. I. (2005).

Priced timed automata: Algorithms and applications.

In de Boer, F. S., Bonsangue, M. M., Graf, S., and

de Roever, W.-P., editors, Formal Methods for Com-

ponents and Objects, pages 162–182, Berlin, Heidel-

berg. Springer Berlin Heidelberg.

Bengtsson, J. and Yi, W. (2004). Timed Automata: Seman-

tics, Algorithms and Tools, pages 87–124. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Bensalem, S., Krichen, M., Majdoub, L., Robbana, R., and

Tripakis, S. (2007). A simpliﬁed approach for test-

ing real-time systems based on action reﬁnement. In

ISoLA 2007, Workshop On Leveraging Applications of

Formal Methods, Veriﬁcation and Validation, Poitiers-

Futuroscope, France, December 12-14, 2007, pages

191–202.

Boyte, K. J. (2017). A comparative analysis of the cyber-

attacks against estonia, the united states, and ukraine:

Exemplifying the evolution of internet-supported war-

fare. Int. J. Cyber Warf. Terror., 7(2):54–69.

Ebner, M. (2004). TTCN-3 Test Case Generation from Mes-

sage Sequence Charts. In Proceeding of the Work-

shop on Integrated-reliability with Telecommunica-

tions and UML Languages (WITUL’04).

ETSI (2015). Methods for Testing and Speciﬁcation (MTS),

The Testing and Test Control Notation version 3,

TTCN-3 Language Extensions: TTCN-3 Performance

and Real Time Testing.

Felderer, M., Zech, P., Breu, R., B

uchler, M., and

Pretschner, A. (2016). Model-based security testing:

A taxonomy and systematic classiﬁcation. Softw. Test.

Verif. Reliab., 26(2):119–148.

Gao, J., Bai, X., and Tsai, W.-T. (September 2011). Cloud

testing- issues, challenges, needs and practice. Soft-

ware Engineering : An International Journal (SEIJ).

Hochberger, C. and Liskowsky, R., editors (2006). In-

formatik 2006 - Informatik f

ur Menschen, Band 2,

Beitr

age der 36. Jahrestagung der Gesellschaft f

ur In-

formatik e.V. (GI), 2.-6. Oktober 2006 in Dresden, vol-

ume 94 of LNI. GI.

Kamm

uller, F., Nurse, J. R. C., and Probst, C. W. (2016).

Attack tree analysis for insider threats on the iot using

isabelle. In Tryfonas, T., editor, Human Aspects of

Information Security, Privacy, and Trust, pages 234–

246, Cham. Springer International Publishing.

Kordy, B., Pi

etre-Cambac

es, L., and Schweitzer, P.

(2014). Dag-based attack and defense modeling:

Don’t miss the forest for the attack trees. Computer

Science Review, 13-14:1 – 38.

Krichen, M. (2012). A formal framework for black-box

conformance testing of distributed real-time systems.

IJCCBS, 3(1/2):26–43.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

576

Krichen, M., Cheikhrouhou, O., Lahami, M., Alroobaea,

R., and Jmal Ma

alej, A. (2018a). Towards a model-

based testing framework for the security of internet

of things for smart city applications. In Mehmood,

R., Bhaduri, B., Katib, I., and Chlamtac, I., editors,

Smart Societies, Infrastructure, Technologies and Ap-

plications, pages 360–365, Cham. Springer Interna-

tional Publishing.

Krichen, M., Ma

alej, A. J., and Lahami, M. (2018b). A

model-based approach to combine conformance and

load tests: an ehealth case study. International Jour-

nal of Critical Computer-Based Systems, 8(3-4):282–

310.

Krichen, M. and Tripakis, S. (2006). Interesting properties

of the real-time conformance relation. In Theoretical

Aspects of Computing - ICTAC 2006, Third Interna-

tional Colloquium, Tunis, Tunisia, November 20-24,

2006, Proceedings, pages 317–331.

Kumar, R., Ruijters, E., and Stoelinga, M. (2015). Quanti-

tative attack tree analysis via priced timed automata.

In Sankaranarayanan, S. and Vicario, E., editors, For-

mal Modeling and Analysis of Timed Systems, pages

156–171, Cham. Springer International Publishing.

Lahami, M., Fakhfakh, F., Krichen, M., and Jma

ıel, M.

(2012a). Towards a TTCN-3 Test System for Run-

time Testing of Adaptable and Distributed Systems.

In Proceedings of the 24th IFIP WG 6.1 International

Conference Testing Software and Systems (ICTSS’12),

pages 71–86.

Lahami, M., Krichen, M., Bouchakwa, M., and Jmaiel,

M. (2012b). Using knapsack problem model to de-

sign a resource aware test architecture for adaptable

and distributed systems. In Testing Software and Sys-

tems - 24th IFIP WG 6.1 International Conference,

ICTSS 2012, Aalborg, Denmark, November 19-21,

2012. Proceedings, pages 103–118.

Lahami, M., Krichen, M., and Jma

ıel, M. (2016). Safe and

Efﬁcient Runtime Testing Framework Applied in Dy-

namic and Distributed Systems. Science of Computer

Programming (SCP), 122(C):1–28.

alej, A. J., Hamza, M., Krichen, M., and Jmaiel, M.

(2013). Automated signiﬁcant load testing for WS-

BPEL compositions. In Sixth IEEE International Con-

ference on Software Testing, Veriﬁcation and Vali-

dation, ICST 2013 Workshops Proceedings, Luxem-

bourg, Luxembourg, March 18-22, 2013, pages 144–

153.

alej, A. J. and Krichen, M. (2016). A model based ap-

proach to combine load and functional tests for ser-

vice oriented architectures. In Proceedings of the 10th

Workshop on Veriﬁcation and Evaluation of Com-

puter and Communication System, VECoS 2016, Tu-

nis, Tunisia, October 6-7, 2016., pages 123–140.

alej, A. J., Krichen, M., and Jmaiel, M. (2012a). Con-

formance testing of WS-BPEL compositions under

various load conditions. In 36th Annual IEEE Com-

puter Software and Applications Conference, COMP-

SAC 2012, Izmir, Turkey, July 16-20, 2012, page 371.

alej, A. J., Krichen, M., and Jmaiel, M. (2012b). Model-

based conformance testing of WS-BPEL composi-

tions. In 36th Annual IEEE Computer Software

and Applications Conference Workshops, COMPSAC

2012, Izmir, Turkey, July 16-20, 2012, pages 452–457.

Rasmussen, J. I., Larsen, K. G., and Subramani, K. (2004).

Resource-optimal scheduling using priced timed au-

tomata. In Jensen, K. and Podelski, A., editors, Tools

and Algorithms for the Construction and Analysis of

Systems, pages 220–235, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Tilley, S. and Parveen, T. (2012). Software Testing in the

Cloud: Perspectives on an Emerging Discipline. IGI

Global, Hershey, PA, USA, 1st edition.

Wang, T., Su, Q., and Chen, T. (2017). Formal analysis of

security properties of cyber-physical system based on

timed automata. In Second IEEE International Con-

ference on Data Science in Cyberspace, DSC 2017,

Shenzhen, China, June 26-29, 2017, pages 534–540.

A New Model-based Framework for Testing Security of IoT Systems in Smart Cities using Attack Trees and Price Timed Automata

577
