Exploring DDoS Mechanisms

Bruno de Souza Neves, Filipe Mour

ao Leite, Lucas da Silva Jorge, Rahyan Azin Gondin Paiva,

Juliana de Melo Bezerra and Vitor Venceslau Curtis

Department of Computer Science, ITA, S

ao Jos

e dos Campos, Brazil

Keywords:

DDoS, Botnet, Election, Network Topology.

Abstract:

The concern about cyber security has attracted attention by organizations and public services over the last

few years due to the importance of conﬁdentiality, integrity, and availability of services and sensitive data.

Many recent episodes of cyber attacks causing strong impact have been performed using extremely simple

techniques and taking advantage of the hidden weaknesses of current systems. This article has the main

purpose to motivate the academy to mitigate unexpected potential threats from the attacker’s perspective,

exposing the latent weakness of current systems, since the majority of such papers focus only on the defense

perspective. We analyze the potential impact of Denial of Service (DoS), a very popular cyber attack that

affects the availability of a victim server, through different mechanisms and topologies. Speciﬁcally, we

simulate and analyze the impact of Distributed DoS (DDoS) using the List and Binary Tree topologies along

with Continuous or Pulsating stream of requests. In order to improve the potential of the analyzed DDoS

methods, we also introduce a new technique to protect them against mitigation from security systems.

1 INTRODUCTION

Over the last decade, we have seen technologies as

streaming, deep learning, IoT, blockchain and big

data disrupting traditional business and enabling a

proliﬁc market of network-based systems where data

are the principal value. In this context, secure and

reliable systems are very important to not tarnish the

image of a company and crucial in critical systems

and public services.

A good example of potential damage a network

cyber attack could lead was recently revealed by (Mc-

Callie et al., 2011). They expose the fragility of the

Automatic Dependent Surveillance-Broadcast (ADS-

B) system of the global air trafﬁc control. Using about

$1,000 worth of radio equipment, a hacker could sim-

ply ﬂood the air trafﬁc control system with as many

fake airplanes as it wants.

In 2016, Mirai botnet attacked the Internet Ser-

vice Provider (ISP) for sites such as Twitter, Amazon,

PayPal, Spotify, Netﬂix, and others, making them un-

reachable for several hours. In such attacks, a worm

propagates through networks and systems taking con-

trol of poorly protected IoT and embedded devices

such as IP cameras, thermostats, Wi-Fi enabled clocks

and washing machines (Kolias et al., 2017). At its

peak, Mirai infected over 600,000 vulnerable devices

and was able to attack the OVH services with a vol-

ume of network trafﬁc around 1Tbps (Antonakakis

et al., 2017).

These episodes expose considerable negligence by

companies in the past years regarding security, which

now reﬂects as latent threats to computer systems.

Forecastings estimate that IoT and small devices will

represent more than 75% of the global Internet reach-

ing 10 billion in 2020 and representing a true potential

threat specially because of new connected solutions

with poor security pop up every day by small business

and startups, (Rose et al., 2015), (Columbus, 2018).

With this scenario, we propose that the academy

encourage more research papers from the attacker’s

perspective rather than the defense to force the expo-

sure of current hidden weaknesses of computer sys-

tems as a measure of prevention from real potential

attacks to organization and states.

According to (Schatz et al., 2017), the current ter-

minology to discuss security aspects of digital devices

and information is cyber security and it is basically

deﬁned as the actions and technologies followed by

organizations and states to protect conﬁdentiality, in-

tegrity, and availability of data and assets used in cy-

berspace.

Among the cyber threats, the Denial-of-Service

(DoS) is a very easy and common kind of cyber at-

460

Neves, B., Leite, F., Jorge, L., Paiva, R., Bezerra, J. and Curtis, V.

Exploring DDoS Mechanisms.

DOI: 10.5220/0007835304600467

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 460-467

ISBN: 978-989-758-379-7

tack that violates the availability of systems. Besides

it looks harmless at ﬁrst, as cited by the examples

above, it can cause severe damages to organizations

and public services. Furthermore, due to the con-

temporary importance of conﬁdentiality and value of

data, cyber attacks can cause an important devaluation

of brands by inducing distrust about the integrity and

conﬁdentiality of personal data or services, becoming

even a tool to commit ﬁnancial crimes by inﬂuencing

the stock markets.

In this article, we motivate the attacker’s philoso-

phy of cybersecurity by analyzing the performance of

some Distributed DoS (DDoS), a non-trivial kind of

DoS, as a way to analyze the potential damage a real

scenario powered by the growth of IoT devices could

cause.

First, we present some basic concepts of DoS and

DDoS in section 2, followed by a common taxonomy

of the main methods of DDoS based on some behav-

ior mechanisms. Section 3 describes how to simulate

the main methods of DDoS introduced in the previ-

ous section and the limitations of these simulations.

Section 4 discusses the results of the simulations and

the potential of each mechanism. In section 5, we pro-

pose a new technique difﬁculting DDoS mitigation by

protecting the attacking network and, ﬁnally, 6 cites

the main conclusions of this work.

2 BASIC CONCEPTS OF DOS

AND TAXONOMY OF DDOS

DoS is a cyber-attack in which the perpetrator seeks

to make a machine or network resource unavailable to

its intended users by temporarily or indeﬁnitely dis-

rupting services of a host connected to the Internet

(Soltanian and Amiri, 2016), and it can be achieved

by different methods.

Usually, the most common method of attack oc-

curs when the hacker ﬂoods a network server or re-

source with superﬂuous or incorrect requests in an at-

tempt to decrease its availability to attend legitimate

requests and blocking all users at once. One exam-

ple of such attack is known as SYN ﬂood, where one

sends a request to connect but never completes the

connection through a three-way handshake. The in-

complete handshake leaves the connected port in an

occupied status and unavailable for further requests.

Many of these DoS attacks are easy to identify and

block by only checking the source of the requests. Be-

cause of this, hackers usually use DDoS, which im-

plements distributed computing to coordenate multi-

ple attackers from different sources to send malicious

trafﬁc to a targeted server.

Internet devices

Hacker

C&C

Infected devices

Company’s

infrastucture

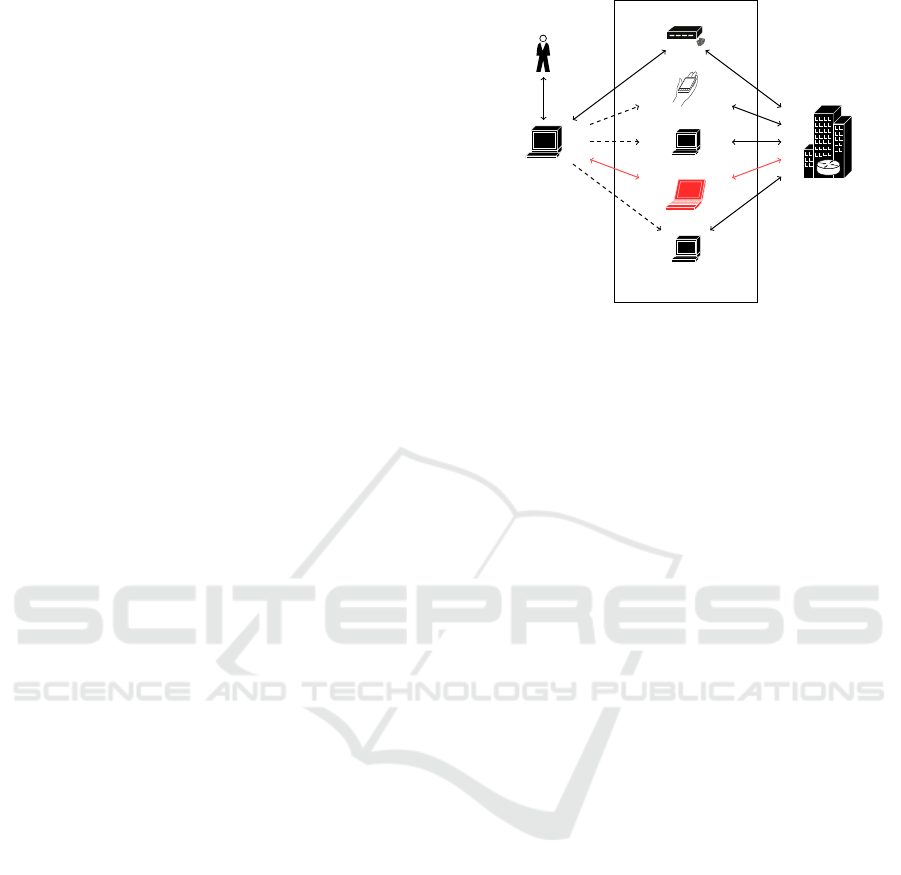

Figure 1: Arquitecture example of a DDoS botnet with one

zombie, in red, blocked by the target ﬁrewall.

A DDoS starts with the hacker ﬁrst spreading ma-

licious softwares called malware with the intention to

infect an army of Internet-connected devices, named

zombie computers, with backdoors running in back-

ground and waiting for commands from a Command

and Control (C&C) server, as shown in Figure 1, con-

ﬁguring a network of zombies called botnet.

After many devices infected, the hacker initiates

a DDoS through the C&C, which is responsible to

spread the attack command over the botnet, and each

zombie performs the attack by requesting some ser-

vice over the network to the target infrastructure. It

makes the defense much more difﬁcult since block-

ing one IP, see Figure 1, has almost no effect because

of the massive amount of attacking points spread over

the Internet.

DDoS is also much more powerful than a simple

DoS because it multiplies the capacity of sending fake

request to the target, the massive amount of available

resources enables requests with signatures very close

to genuine requests, and it can be implemented with

no central point of C&C, making the interruption of

an attack much more difﬁcult.

In the literature, there are some taxonomies trying

to capture all the methods involving DDoS. (Mirkovic

and Reiher, 2004) and (Bhardwaj et al., 2016) clas-

sify DDoS attacks by the following main categories:

Degree of Automation (DA), Exploited Weakness to

Deny Service (EW), Source Address Validity (SAV),

Attack Rate Dynamics (ARD), Possibility of Charac-

terization (PC), Persistence of Agent Set (PAS), Vic-

tim Type (VT) and Impact on the Victim (IV), as

described by Figure 2. For more information about

the details of this taxonomy and the characteristics of

each component, please, see (Mirkovic and Reiher,

2004) and (Bhardwaj et al., 2016).

According to this classiﬁcation, our proposed

Exploring DDoS Mechanisms

461

DDoS Attack Mechanisms

Manual (DA-1)

Semi-automatic (DA-2)

Automatic (DA-3)

Direct (CM-1)

Indirect (CM-2)

Random (HSS-1)

Hitlist (HSS-2)

Signpost (HSS-3)

Permutation (HSS-4)

Local subnet (HSS-5)

Central (PM-1)

Back-chaining (PM-2)

Autonomous (PM-3)

Semantic (EW-1)

Brute-force (EW-2)

Filterable (RAVS-1)

Non-filterable (RAVS-2)

Characterizable (PC-1)

Non-characterizable (PC-2)

Constant rate (ARD-1)

Variable rate (ARD-2)

Increasing (RCM-1)

Fluctuating (RCM-2)

Disruptive (IV-1)

Degrading (IV-2)

Host (VT-2)

Application (VT-1)

Network (VT-4)

Infrastructure (VT-5)

Constant set (PAS-1)

Variable (PAS-2)

Spoofed (SAV-1)

Valid (SAV-2)

Non-routable (AR-2)

Routable (AR-1)

Random (ST-1)

Subnet (ST-2)

En route (ST-3)

Classification by

degree of automation (DA)

Classification by

host scanning strategy (HSS)

Classification by

propagation mechanism (PM)

Classification by

communication mechanism (CM)

Classification by

attack rate dynamics (ARD)

Classification by

rate change mechanism (RCM)

Classification by

possibility of characterization (PC)

Classification by

relation of attack

to victim services (RAVS)

Classification by

source address validity (SAV)

Classification by

victim type (VT)

Classification by

persistence of agent set (PAS)

Classification by

impact on the victim (IV)

Self-recoverable (PDR-1)

Human-recoverable (PDR-2)

Classification by

possibility of

dynamic recovery (PDR)

Classification by

exploited weakness (EW)

Classification by

address routability (AR)

Classification by

spoofing technique (ST)

Non-recoverable (PDR-3)

Fixed (ST-4)

Resource (VT-3)

Horizontal (VSS-1)

Vertical (VSS-2)

Coordinated (VSS-3)

Stealthy (VSS-4)

Classification by vulnerability

scanning strategy (VSS)

Figure 2: Taxonomy of DDoS attacks.

methodology has the following characteristics:

• Semi-Automatic (DA): the attack is initiated by

the user command, while all the other processes

are automatic;

• Brute Force (EW): it sends a high volume of

seemingly legitimate requests to exhaust the vic-

tim’s capacity;

• Valid Source Address (SAV): the attacker does not

use a spoofed source address;

• Constant or Variable Rate (ARD): both dynamics

are tested;

• Non-Characterizable (PC): no speciﬁc protocol or

application from the victim was chosen to be tar-

geted. The attack only intends to consume net-

work bandwidth;

• Constant Agent Set (PA): when a node is infected,

it becomes a permanent participant in each of the

subsequent attacks;

• Network Attack (VT): the attacks mean to exhaust

the bandwidth of a target;

• Disruptive (IV): the attack has the object to dis-

rupt the entire target’s resources, even though

sometimes it cannot accomplish it.

Among these characteristics, the Degree of Au-

tomation and Attack Rate Dynamics are crucial in our

experiments once our goal is to measure the efﬁciency

of a botnet. Thus, the following subsections 2.1 and

2.2 respectively describe in more details the mecha-

nisms of DA and ARD analyzed in our simulations.

2.1 Degree of Automation

The infection of new zombies, the dynamic man-

agement of the network, and the control of a botnet

may be implemented in different degree of automa-

tion (Bhardwaj et al., 2016):

• Automatic: zombie nodes autonomously organize

themselves, including a pre-programmed attack

pattern;

• Manual: the hacker starts all the commands: at-

tack, network management and infection;

• Semi-automatic: some degree of automation.

In this work, we preferred the semi-automatic de-

gree of automation once the automatic restricts the

ﬂexibility of attack and the manual exposes the bot-

net network with many control messages. The semi-

automatic approach is better once it has all the bene-

ﬁts of common distributed systems: no-central server,

resilient to failures, scalable, etc.

Our semi-automatic solution implements a dis-

tributed botnet system that dynamically adapts the

network, the topology of zombie nodes, once they

become available or not due to a new successful in-

fection or mitigation by a security system. Only the

start of an attack command is kept manual in order to

have more control of the experiments, while the dis-

semination of any command in the botnet continues

autonomously.

Botnets can be formed in different network struc-

tures, topologies, for which the most common are:

• Star topology: there is a C&C server with the bots

organized around it;

ICSOFT 2019 - 14th International Conference on Software Technologies

462

• Hierarchical topology: bots organized in layers of

C&C servers;

• Random topology: Peer-to-Peer (P2P) communi-

cation among bots.

The star topology was chosen to facilitate the im-

plementation of the semi-automatic attack, since there

is a central server that can receive manual input from

a user and then transmit a ﬂow of commands in the

direction from the root to leaves.

A weakness of this topology is the possibility of a

security system to explore the center of each start. Us-

ing this vulnerability, it is possible to reach the C&C

and make it unavailable. In order to avoid this type

of mitigation and still preserve the manual control of

the attack, in section 5, we propose a new method of

automation which controls the botnet with resilience,

where zombies have only partial information about

the topology.

2.2 Attack Rate Dynamics

A DDoS can also follow different dynamics depend-

ing on the duration, form, and distribution of the traf-

ﬁc in the stream of superﬂuous requests, where the

more similar its signature is to a genuine request, the

more difﬁcult it is to detect the DDoS. A taxonomy

with two main classes of ARD patterns are described

in (Liu et al., 2012).

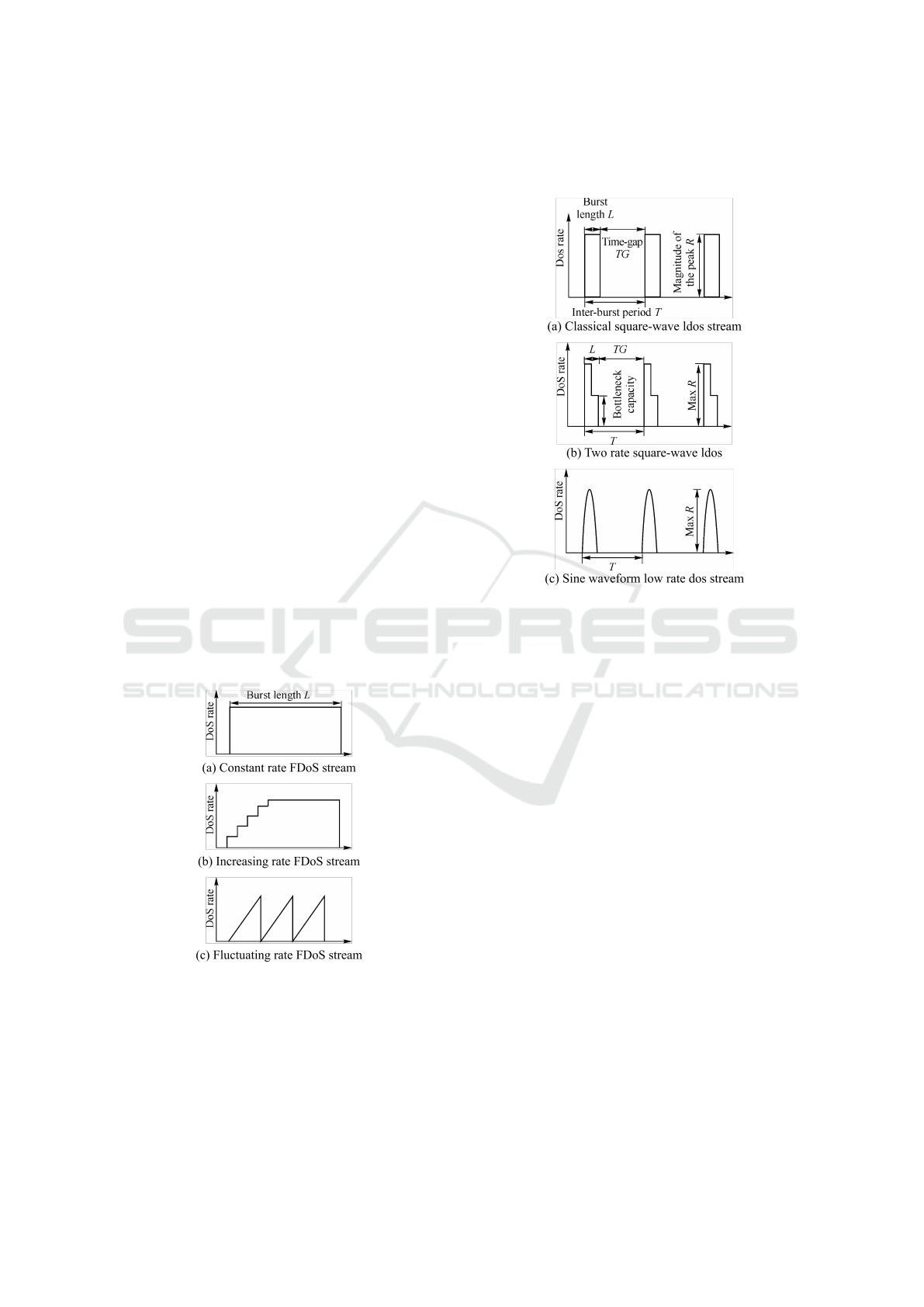

Figure 3: Typical FDoS waveforms.

Flood DoS (FDoS), as showed in Figure 3, has

three typical types of a waveform based on the ARD:

classical constant rate ﬂood, increasing rate ﬂood,

ﬂuctuating rate ﬂood. In constant rate, the botnet

attacks the target with full force; in increasing rate

ﬂood, the botnet gradually increases the attack rate

resulting to slow exhaustion of victim’s resources;

and in ﬂuctuating rate, the botnet performs any other

waveform, including occasional changes.

Figure 4: Typical LDoS waveforms.

Low Rate DoS (LDos) is similar to ﬂuctuating rate

ﬂood but it sends just one short burst, usually a square

wave pattern, every each T period. For large botnets,

T may even be long in order to difﬁcult the detection

of the malicious attack. The Figure 4 presents some

typical different patterns of LDoS.

In this work, we analyze two main patters of a

ARD: a continuous stream and a pulse waveform. The

ﬁrst is very similar to the constant rate FDoS and the

second is closely related to LDoS pattern. However,

it is important to note that the propagation delay of

a command from the C&C into the botnet may dras-

tically change the waveform, resulting in interesting

patterns.

3 SIMULATIONS OF DDOS

In this work, the two common mechanisms of ARD

described in Section 2.2 are analyzed, each using two

network topologies: a tree-based, where each node in

the botnet has some children, and list-based network,

where each node can forward an attack only to one

next node.

In order to simulate the experiments, we

implemented programs in GoLang supported by

lightweight threads to achieve a high scale for the bot-

Exploring DDoS Mechanisms

463

net simulation. Basically, the simulations are com-

posed by three programs:

• Server: It is basically the C&C server, responsible

for the botnet commands and for tracking when a

node ﬁrst joined the botnet;

• Client: It is the zombie node, a node in a bot-

net network, capable of autonomously discover-

ing other zombies and handling attacks;

• Targeted Server: It represents the target infras-

tructure and stores the attack data for further anal-

ysis.

All programs communicate with each other

by UDP packets and the Client implements dis-

tributed solutions to handle the network topology au-

tonomously. All the information about the simula-

tion is retrieved from logs and the packets exchanged

among the nodes of the network. More speciﬁcally,

each packet contains:

• Sent to the Targeted Server: an identiﬁcation of

the sender, a timestamp of a sent packet, and a

sequence number to help identifying lost packets;

• Ordering a attack (to zombies): the Targeted

Server identiﬁcation, the type of the attack, and

a timestamp identifying the initial attack time in

case of a pulse DDoS pattern;

• Regarding the botnet construction: identiﬁcation

of the new Client (zombie).

Using data of the packages sent to the Targeted

Server it is possible to acquire information regarding

the packet loss, packet delay and transmition delay

throughout the botnet. We use these data to imple-

ment two kinds of attack patterns: constant (Clients

begin the attack as soon as they receive the mes-

sage), and the pulse-like (a timestamp states when the

Clients should start the attack).

Since the experiment was not performed in a

real network, real computers with their latencies and

bandwidth, we had to simulate these characteristics

by controlling the rate of the package exchanges

among the nodes of the network.

The latencies are simulated by implementing two

basic botnet topologies: a list topology and a random

binary tree topology. In both cases, the addition of a

new zombie is decided by the zombies already set in

the network: it greedily accepts a new zombie as its

own child (two in the case of binary tree and one for

list) or ramdonly choose one of its children to delegate

the addition in a recursive way. The goal is to simulate

a balanced tree that minimizes its depth (information

delay among bots) and the message passing, and fur-

ther compare it to a topology with high latency, i.e.,

the list-based topology.

All the codes are available open-source for further

researches. Please, contact the authors for getting ac-

cess to it.

4 RESULTS

This section presents the main results of our simu-

lations for the tree-based and list-based topologies

using continuous stream and pulse wave pattern of

DDoS attacks. From the logs obtained by the simu-

lation, the most relevant measurements extracted are

the package loss and the attack propagation delay.

The tests were performed in different machines

conﬁgurations and the results were similar. In the

following sections, we preferred to show the results

for a single regular Windows PC with the following

conﬁguration and tools: Windows 10 O.S., Intel Core

i7 processor, 8GB(RAM). The amount of lightweight

threads is described in each experiment.

4.1 Attack Propagation Delay

In a real scenario, a central server of a star topology

usually contaminates zombies around it in a tree-like

structure. Thus, in order to simulate this approach,

we implemented the system with a binary tree topol-

ogy. Furthermore, to observe the effects of having a

large number of levels in the tree architecture with a

reasonable number of nodes, we use a botnet with list

structure, which in practice is unlikely to happen but

it is enough to observe results.

0 100 200 300 400

500

1,000

2,000

Reached nodes

Elapsed time (in ms)

Figure 5: Propagation delay within a botnet with 500 nodes

using constant DDoS in binary tree topology.

During the contamination phase, for a similar

number of nodes, the list-based topology presents a

bigger number of layers than a tree-based topology,

implying in a larger delay of propagation through the

botnet. Because of this, we use 100 nodes for the list

implementations. For the binary tree topology, since

ICSOFT 2019 - 14th International Conference on Software Technologies

464

0 100 200 300 400

500

100

200

300

400

Reached nodes

Elapsed time (in ms)

Figure 6: Propagation delay within a botnet with 500 nodes

using pulse DDoS in binary tree topology.

0 20 40

80 100

5,000

10,000

Reached nodes

Elapsed time (in ms)

Figure 7: Propagation delay within a botnet with 100 nodes

using constant DDoS in list topology.

the height tends to be proportional to log

n, we use

500 nodes in the simulation to get more levels and

make the effect of the topology clear in the results.

The results are presented in Figures 5-8.

Using pulse DDoS mechanism, Figure 6 and Fig-

ure 8, it can be noticed that almost all nodes attack

at the same time, delay near 0ms, except for outliers

that do not attack immediately for some unexpected

0 20 40

80 100

1,000

2,000

Reached nodes

Elapsed time (in ms)

Figure 8: Propagation delay within a botnet with 100 nodes

using pulse DDoS in list topology.

fail or oscillation, a phenomena also present in a real

network.

The graphs of the constant DDoS mechanism,

Figure 5 and Figure 7, show how the nodes are grad-

ually mobilized by the attack wave, exposing the hi-

erarchy of a network with many layers. Particularly,

the propagation delay using constant DDoS and list

topology, Figure 7, results in perfect straight line once

the information in the list is passed from node to node

with a similar delay.

4.2 Package Loss in Target Server

The graphs on Figures 9-12 show that the binary tree

topology is much more effective in damaging the traf-

ﬁc of the target server. Even considering a margin on

a simulation where a tree-based topology has 5 times

more node than a list-based topology, 500 nodes ver-

sus 100 nodes, the difference of the results is much

bigger than this proportion.

0 20 40

80 100 120 140

2,000

4,000

6,000

8,000

Elapsed time (in ms)

Amount of lost packages

Figure 9: Package loss for each ten thousand packages us-

ing constant DDoS in Binary Tree topology.

0 20 40

80 100

2,000

4,000

6,000

8,000

10,000

Elapsed time (in ms)

Amount of lost packages

Figure 10: Package loss for each ten thousand packages us-

ing pulse DDoS in Binary Tree topology.

This can be interpreted as a consequence of the

small delay in propagating commands from the C&C

Exploring DDoS Mechanisms

465

0 100 200 300 400

200

400

600

Elapsed time (in ms)

Amount of lost packages

Figure 11: Package loss for each ten thousand packages us-

ing constant DDoS in List topology.

100

150

200

400

600

Elapsed time (in ms)

Amount of lost packages

Figure 12: Package loss for each ten thousand packages us-

ing pulse DDoS in List topology.

to far nodes in the botnet for a smaller number of lev-

els. In the list, even though the DDoS algorithm or-

ders that all nodes attack at the same time, the delay

of the propagation makes the attacks to reach the tar-

get asynchronously resulting in a very ineffective ap-

proach.

As it can be seen in both topologies, Figure 9 and

Figure 11, respectively, the tree-based and list-based

topologies, the constant rate DDoS presents a consid-

erable delay before achieving a stable rate of package

loss. It is the time necessary to mobilize all the nodes

in the botnet.

On the other hand, Figure 10 and Figure 12 show

that the pulse DDoS presents a stable rate since the

ﬁrst time of the attack, given that the C&C orders that

all nodes attack at the same clock time, and resulting

in a more powerful capacity for using it against big

infrastructures.

Thus, we may conclude that that the shorter the

attack propagation delay is, the worse are the impacts.

As it can be seen in Figure 10 and Figure 12, it is very

likely that no action could be taken before the server

is down, the worse case scenario. In constant attacks

patterns, like the ones from the Figures 9 and 11, it is

possible to identify the increasing workload and take

action to protect the servers before it is too late.

5 PROTECTION AGAINST

MITIGATION

In a real botnet over the Internet, zombie nodes may

be turned off at any time. As the transmission of the

C&C commands is forwarded node by node on the

topology, it may brake the botnet. Usually, botnets

solve it by implementing some distributed solution to

autonomously adapt the topology on such cases.

Security systems may take advantage of this sit-

uation by inﬁltrating a zombie spy in the botnet and

blocking the other nodes in such a way to push it as

close as possible to the root of the tree topology. Us-

ing this strategy, the invader could raise hierarchically

in the topology and get a huge part of the tree as its

descendant. Since the command ﬂow occurs from the

root to the leaves, the spy can stop sending malicious

trafﬁc to this part of the botnet or sabotage it.

grand

parent

child 1 child 2

child 3

...

Figure 13: Child detects the absence of it failed parent.

grand

parent

child 2

child 1

child 3

...

Figure 14: Oldest child (2) replaces the missing parent.

Next, we describe a solution to protect the botnet

against this kind of security systems. If a node detects

that its parent is missing, it starts an election process

to decide a new one. In the adopted strategy, exempli-

ﬁed in the Figures 13 and 14, the oldest child of the

missing parent takes its place.

The timestamp on the system clock, when the

zombie joined the botnet, is used to compare the zom-

bie nodes and to decide who is the oldest brother. This

ICSOFT 2019 - 14th International Conference on Software Technologies

466

is sufﬁcient to avoid an invader from forging its own

time by pretending to be older in order to substitute

a missing parent. Since the malware in a real system

could take hours or even days to spread, the invader

has to wait for a time of the same order of magnitude

to ascend a substantial level in the hierarchy. Mean-

while, the other branches of the tree grow indepen-

dently of what the security system is doing in the spy

branch. This is more than enough for the botnet to

make substantial damage to the server.

It is important to notice that, in our botnet con-

ﬁguration, each node is only able to get information

about its adjacent nodes: child, parent, and some

close nodes (siblings and grandparent) due to the elec-

tion procedure. This prevents a possible attacker to

have easy access to the control server and allows a

semi-automatic Degree of Automation.

Another approach to avoid the vulnerability of

having a centralized server taken down is to change

the hierarchy to peer-to-peer, in which each node

would be exposed only to its adjacent bots and ev-

ery node can be a command center. However, this

would forbid the manual control by the Server: time,

rate and the dynamic. Thus, the implemented topol-

ogy is similar to a P2P in the way nodes join the bot-

net and communicate with neighbors, but it is similar

to a hierarchical network in the way command ﬂows

throughout the level of the topology.

6 CONCLUSION

The simulation of DDoS mechanisms implemented in

this work achieved interesting results preserving the

functionality of a real DDoS and clarifying the dis-

semination of information within a botnet along with

its interacting behavior.

The list-based implementation exposed the differ-

ences in each ARD mechanism, since it generated

many levels of hierarchy in the topology using a rel-

atively small number of nodes. Thus, phenomena as

the network propagation delay can be noticed easier:

the time to mobilize all bots in the network is more

expressive and the two mechanisms of attack gener-

ate very different results.

In terms of package loss in the targeted system,

both mechanisms (Continuous and Pulsating) gener-

ated similar outputs. This is expected for a limited

target infrastructure and it can be interpreted as the

botnet having more network bandwidth capacity than

the target.

We also proposed a new election strategy to man-

age the dynamic structure of the botnet network, when

zombie nodes detect failed parents, improving the se-

curity against mitigation from security systems. The

proposed method theoretically meets the objective of

preventing the botnet mitigation by outside invaders.

However, since the simulation of a real scenario of se-

curity system attacking botnets is not trivial, we pre-

ferred to explore such simulations in future projects.

As DDoS from the attacker perspective is not a

common topic in the academia, we expect that this

work can be used as material to new computer net-

work and distributed system courses in order to im-

prove the security discussions.

REFERENCES

Antonakakis, M., April, T., Bailey, M., Bernhard, M.,

Bursztein, E., Cochran, J., Durumeric, Z., Halderman,

J. A., Invernizzi, L., Kallitsis, M., Kumar, D., Lever,

C., Ma, Z., Mason, J., Menscher, D., Seaman, C., Sul-

livan, N., Thomas, K., and Zhou, Y. (2017). Under-

standing the mirai botnet. In 26th USENIX Security

Symposium, pages 1093–1110, Vancouver, BC.

Bhardwaj, A., Subrahmanyam, G. V. B., Avasthi, V., Sastry,

H., and Goundar, S. (2016). DDoS attacks, new DDoS

taxonomy and mitigation solutions - A survey. In 2016

Inter. Conf. on Signal Proc., Commun., Power and

Embedded System (SCOPES), pages 793–798. IEEE.

Columbus, L. (2018). 2018 Roundup of internet of things

forecasts and market estimates. Forbes.

Kolias, C., Kambourakis, G., Stavrou, A., and Voas, J.

(2017). DDoS in the IoT: Mirai and other botnets.

Computer, 50(7):80–84.

Liu, X., Cheng, G., Li, Q., and Zhang, M. (2012). A

comparative study on ﬂood DoS and low-rate DoS at-

tacks. The Journal of China Universities of Posts and

Telecommunications, 19:116–121.

McCallie, D., Butts, J., and Mills, R. (2011). Security anal-

ysis of the ADS-B implementation in the next genera-

tion air transportation system. International l Journal

of Critical Infrastructure Protection, 4(2):78–87.

Mirkovic, J. and Reiher, P. (2004). A taxonomy of ddos at-

tack and ddos defense mechanisms. SIGCOMM Com-

put. Commun. Rev., 34(2):39–53.

Rose, K., Eldridge, S., and Chapin, L. (2015). The internet

of things: An overview. The Internet Society (ISOC),

pages 1–50.

Schatz, D., Bashroush, R., and Wall, J. (2017). Towards a

more representative deﬁnition of cyber security. Jour-

nal of Digital Forensics, Security and Law, 12(2):8.

Soltanian, M. R. K. and Amiri, I. S. (2016). Theoretical and

Experimental Methods for Defending Against DDoS

Attacks. Syngress, ﬁrst edition.

Exploring DDoS Mechanisms

467
